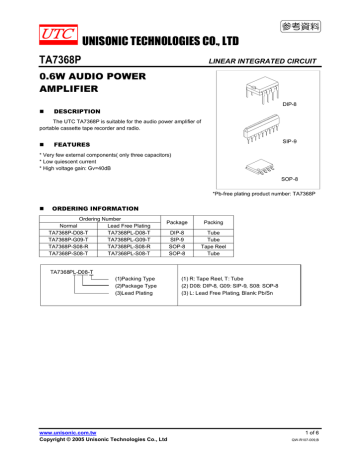

UNISONIC TECHNOLOGIES CO., LTD
TA7368P
LINEAR INTEGRATED CIRCUIT
0.6W AUDIO POWER
AMPLIFIER
DIP-8
DESCRIPTION
The UTC TA7368P is suitable for the audio power amplifier of
portable cassette tape recorder and radio.
SIP-9
FEATURES
* Very few external components( only three capacitors)
* Low quiescent current
* High voltage gain: Gv=40dB
SOP-8
*Pb-free plating product number: TA7368P
ORDERING INFORMATION
Ordering Number
Normal
Lead Free Plating
TA7368P-D08-T
TA7368PL-D08-T
TA7368P-G09-T
TA7368PL-G09-T
TA7368P-S08-R
TA7368PL-S08-R
TA7368P-S08-T
TA7368PL-S08-T
Package
Packing
DIP-8
SIP-9
SOP-8
SOP-8
Tube
Tube
Tape Reel
Tube
TA7368PL-D08-T
(1)Packing Type
(2)Package Type
(3)Lead Plating
www.unisonic.com.tw
Copyright © 2005 Unisonic Technologies Co., Ltd
(1) R: Tape Reel, T: Tube
(2) D08: DIP-8, G09: SIP-9, S08: SOP-8
(3) L: Lead Free Plating, Blank: Pb/Sn
1 of 6
QW-R107-009,B
参考資料
TA7368P
LINEAR INTEGRATED CIRCUIT
PIN DESCRIPTION
SOP-8/DIP-8
V IN
1
8
Vcc
RIPPLE
2
7
POUT
NF
3
6
PWR-GND
PHASE
4
5
PRE-GND
1
2
3
4
5
6
7
8
9
VIN
RIPPLE
NF
PHASE
PRE-GND
PWR-GND
POUT
NC
VCC
SIP-9
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
2 of 6
QW-R107-009,B
参考資料
TA7368P
LINEAR INTEGRATED CIRCUIT
BLOCK DIAGRAM
Vcc
2
9
Ripple
Rejection
Input
1
Output
7
RL
3
Negative
Feedback
4
Phase
5
Pre
GND
6
Power
GND
Note: PIN Connection
DIP-8/SOP-8: ⑧PIN:VCC
SIP-9: ⑧PIN: NC, ⑨PIN:VCC
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
3 of 6
QW-R107-009,B
参考資料
TA7368P
LINEAR INTEGRATED CIRCUIT
ABSOLUTE MAXIMUN RATINGS (Ta=25°C)
PARAMETER
SYMBOL
VCC
Supply Voltage
DIP-8
SIP-9
SOP-8
Power Dissipation
RATINGS
14
900
950
400
-20 ~ 75
-55 ~ 150
PD
UNIT
V
mW
mW
mW
°C
°C
Operating Temperature
TOPR
Storage Temperature
TSTG
Note: 1. Derated Ta>25°C, in the proportion of 7.2mW/°C
2. Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
ELECTRONIC CHARACTERISTICS
(Ta=25°C, Vcc=6V, f=1kHz, Rg=600Ω,RL=4Ω, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
VCC=3V,VIN=0
Quiescent Circuit Current
ICCQ
VCC=6V,VIN=0
VCC=9V,VIN=0
Voltage Gain
GV
VIN=0.5mVrms
VCC=3V,RL=4Ω,THD=10%
VCC=6V,RL=4Ω,THD=10%
Output Power
POUT VCC=6V,RL=8Ω,THD=10%
VCC=9V,RL=8Ω,THD=10%
VCC=9V,RL=16Ω,THD=10%
Total Harmonic Distortion
THD POUT=100mW
Output Noise Voltage
eN
Rg=10kΩ,BPF=20Hz~20kHz
Ripple Rejection
Input Resistance
RR
RIN
fr=100Hz,Vr=0.3Vrms,Crip=0
MIN
37
500
300
800
450
TYP
5.5
6.6
7.5
40
120
720
450
1100
610
0.3
0.2
25
27
MAX
UNIT
mA
43
dB
mW
1
0.5
%
mVrm
s
dB
kΩ
TERMINAL DC VOLTAGE
Pin No.
Value(V)
1
0
2
2.4
3
0.62
4
0.64
5
0
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
6
0
7
2.61
8
NC
9
6
4 of 6
QW-R107-009,B
参考資料
TA7368P
LINEAR INTEGRATED CIRCUIT
PRECAUTION FOR APPLICATION
1. Input stage (Figure 1)
The input stage of power amplifier is comprised of a PNP differential pair( Q2 and Q3) preceded by a PNP emitter
follower(Q1) which allows DC referencing of the source signal to GND. This eliminates the need for an input coupling
capacitor. However, in case the brush noise of volume becomes a problem, provide serially a coupling capacitor to
the input side.
2. Adjustment of the voltage gain (figure 2)
The voltage gain is fixed at Gv=40dB by the resistors( R4 and R5) in IC. Its reduction is possible through adding Rf
as shown in Figure 2. In this case, the voltage gain is obtained by the following equation:
Gv=20log(R5+R4+Rf)/(R4+Rf). It is recommended to use this IC with the voltage gain of Gv=28dB or over.
Pin 9
Q2
Q3
R5
1
Pin 7
R4
Pin 1 Q1
R1
27Ω
3
Q4
R4
2
Rf
Pin 3
D1
R5
Crip
Pin 5
Figure 1
Figure 2
Figure 3
3. Ripple rejection (Figure 3)
Adding Crip, to the ripple terminal 2 as shown in Figure 3, the ripple rejection ratio is improved from -25dB to -45dB.
4. Power dissipation
Casre should be taken to use IC below maximum power dissipation because it may be over maximum rating
depending on operating condition.
Pd=900mW (Ta=25°C)
5. Phase-compensation
Small temperature coefficient and excellent frequency characteristics is needed by capacitor below:
*Oscillation preventing capacitor for power amplifier output
*Bypass capacitor for ripple filter
*Capacitor between Vcc and GND
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
5 of 6
QW-R107-009,B
参考資料
TA7368P
LINEAR INTEGRATED CIRCUIT
TEST CIRCUIT
Vcc
100 µF
2
9
Ripple
Rejection
Input
1
27kΩ
470 µF
10kΩ
90Ω
3
RL
4
100 µF
Negative
Feedback
Output
7
Phase
5
Pre
GND
6
Power
GND
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
www.unisonic.com.tw
6 of 6
QW-R107-009,B
