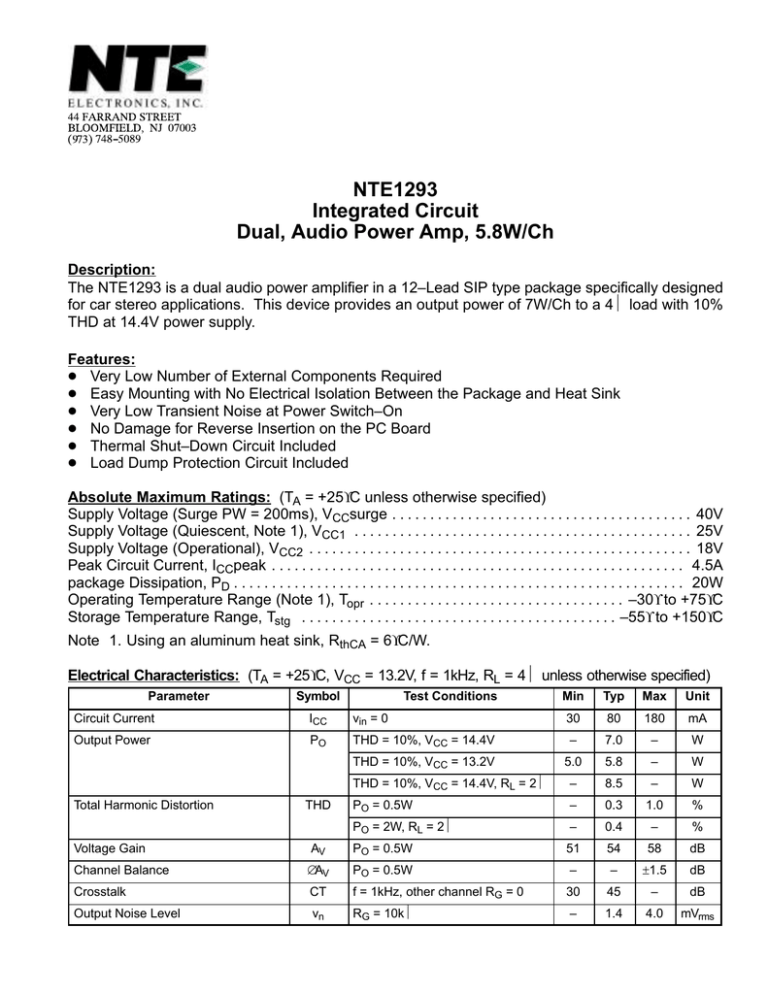

NTE1293
Integrated Circuit
Dual, Audio Power Amp, 5.8W/Ch
Description:
The NTE1293 is a dual audio power amplifier in a 12–Lead SIP type package specifically designed
for car stereo applications. This device provides an output power of 7W/Ch to a 4Ω load with 10%
THD at 14.4V power supply.
Features:
D Very Low Number of External Components Required
D Easy Mounting with No Electrical Isolation Between the Package and Heat Sink
D Very Low Transient Noise at Power Switch–On
D No Damage for Reverse Insertion on the PC Board
D Thermal Shut–Down Circuit Included
D Load Dump Protection Circuit Included
Absolute Maximum Ratings: (TA = +25°C unless otherwise specified)
Supply Voltage (Surge PW = 200ms), VCCsurge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40V
Supply Voltage (Quiescent, Note 1), VCC1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
Supply Voltage (Operational), VCC2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18V
Peak Circuit Current, ICCpeak . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4.5A
package Dissipation, PD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Operating Temperature Range (Note 1), Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –30° to +75°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –55° to +150°C
Note 1. Using an aluminum heat sink, RthCA = 6°C/W.
Electrical Characteristics: (TA = +25°C, VCC = 13.2V, f = 1kHz, RL = 4Ω unless otherwise specified)
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
Circuit Current
ICC
vin = 0
30
80
180
mA
Output Power
PO
THD = 10%, VCC = 14.4V
–
7.0
–
W
THD = 10%, VCC = 13.2V
5.0
5.8
–
W
THD = 10%, VCC = 14.4V, RL = 2Ω
–
8.5
–
W
PO = 0.5W
–
0.3
1.0
%
PO = 2W, RL = 2Ω
–
0.4
–
%
AV
PO = 0.5W
51
54
58
dB
Channel Balance
∆AV
PO = 0.5W
–
–
±1.5
dB
Crosstalk
CT
f = 1kHz, other channel RG = 0
30
45
–
dB
Output Noise Level
vn
RG = 10kΩ
–
1.4
4.0
mVrms
Total Harmonic Distortion
Voltage Gain
THD
Pin Connection Diagram
(Front View)
12
11
10
9
8
7
6
5
4
3
2
1
GND
Output Ch 2
Bootstrap Ch 2
VCC
Neg Feedback Ch 2
Input Ch 2
Input Ch 1
Neg Feedback Ch 1
Filter
Bootstrao Ch 1
Output Ch 1
GND
1.260 (32.0) Max
.197 (5.0)
Max
.945 (24.0)
.590
(14.9)
1
12
.070
(1.78)
R Typ
.256
(6.5)
.100 (2.54)
.099 (2.5)
.512
(13.0)
