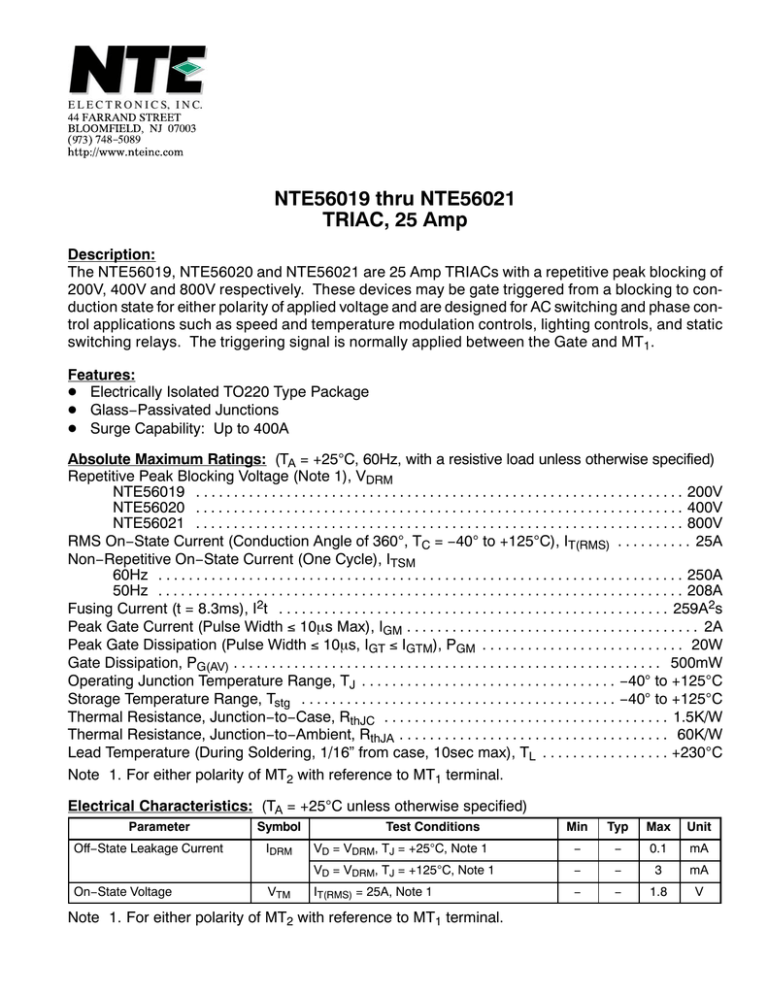

NTE56019 thru NTE56021
TRIAC, 25 Amp
Description:
The NTE56019, NTE56020 and NTE56021 are 25 Amp TRIACs with a repetitive peak blocking of
200V, 400V and 800V respectively. These devices may be gate triggered from a blocking to conduction state for either polarity of applied voltage and are designed for AC switching and phase control applications such as speed and temperature modulation controls, lighting controls, and static
switching relays. The triggering signal is normally applied between the Gate and MT1.
Features:
D Electrically Isolated TO220 Type Package
D Glass−Passivated Junctions
D Surge Capability: Up to 400A
Absolute Maximum Ratings: (TA = +25°C, 60Hz, with a resistive load unless otherwise specified)
Repetitive Peak Blocking Voltage (Note 1), VDRM
NTE56019 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V
NTE56020 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V
NTE56021 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V
RMS On−State Current (Conduction Angle of 360°, TC = −40° to +125°C), IT(RMS) . . . . . . . . . . 25A
Non−Repetitive On−State Current (One Cycle), ITSM
60Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250A
50Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208A
Fusing Current (t = 8.3ms), I2t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259A2s
Peak Gate Current (Pulse Width ≤ 10µs Max), IGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A
Peak Gate Dissipation (Pulse Width ≤ 10µs, IGT ≤ IGTM), PGM . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Gate Dissipation, PG(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −40° to +125°C
Thermal Resistance, Junction−to−Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5K/W
Thermal Resistance, Junction−to−Ambient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60K/W
Lead Temperature (During Soldering, 1/16” from case, 10sec max), TL . . . . . . . . . . . . . . . . . +230°C
Note 1. For either polarity of MT2 with reference to MT1 terminal.
Electrical Characteristics: (TA = +25°C unless otherwise specified)
Parameter
Off−State Leakage Current
On−State Voltage
Symbol
IDRM
VTM
Test Conditions
Min
Typ
Max
Unit
VD = VDRM, TJ = +25°C, Note 1
−
−
0.1
mA
VD = VDRM, TJ = +125°C, Note 1
−
−
3
mA
IT(RMS) = 25A, Note 1
−
−
1.8
V
Note 1. For either polarity of MT2 with reference to MT1 terminal.
Electrical Characteristics (Cont’d): (TA = +25°C unless otherwise specified)
Parameter
Symbol
Test Conditions
Min
Typ
Max
Unit
Gate Trigger Current
IGT
VD = 12V, TC = −40° to +125°C
−
−
80
mA
Gate Trigger Voltage
VGT
VD = 12V, Quadrants I, II, and III, Note 2
−
−
2.5
V
Holding Current
IH
Gate Open, Note 1, Note 3
−
−
100
mA
Gate Controlled Turn−On Time
tgt
IGT = 500mA, 0.1µs Rise Time
−
4
−
µs
250
−
−
V/µs
5
−
−
V/µs
Critical Rate−of−Rise
dv/dt
VD = VDRM, Gate Open, TC = +125°C, Note 1
Critical Rate−of−Rise, Off−State
dv/dtc
VD = VDRM, IT = 25A, di/dt = 13.5A/ms,
Gate Unenergized, Note 1
Note 1. For either polarity of MT2 with reference to MT1 terminal.
Note 2. For either polarity of gate voltage with reference to electrode MT1.
Note 3. Initial On−State Current = 400mA (DC).
.420 (10.67)
Max
.110 (2.79)
Isolated
.147 (3.75)
Dia Max
.500
(12.7)
Max
.250 (6.35)
Max
.070 (1.78) Max
MT1
.100 (2.54)
.500
(12.7)
Min
Gate
MT2
