SA-700
Servo Controlled
Subwoofer Amplifier
Atlantic Technology
®
I
N N O V A T I V E
H
O M E
T
H E A T E R
SA-700 pictured
This manual covers installation and operation of SA-350 Mono and SA-700
Dual Mono Subwoofer Amplifiers. Installation of the 8 SUB Woofer Module
is covered separately by an instruction sheet included with the woofer.
Atlantic Technology
®
IN
N O V A T I V E
H
O M E
T
H E A T E R

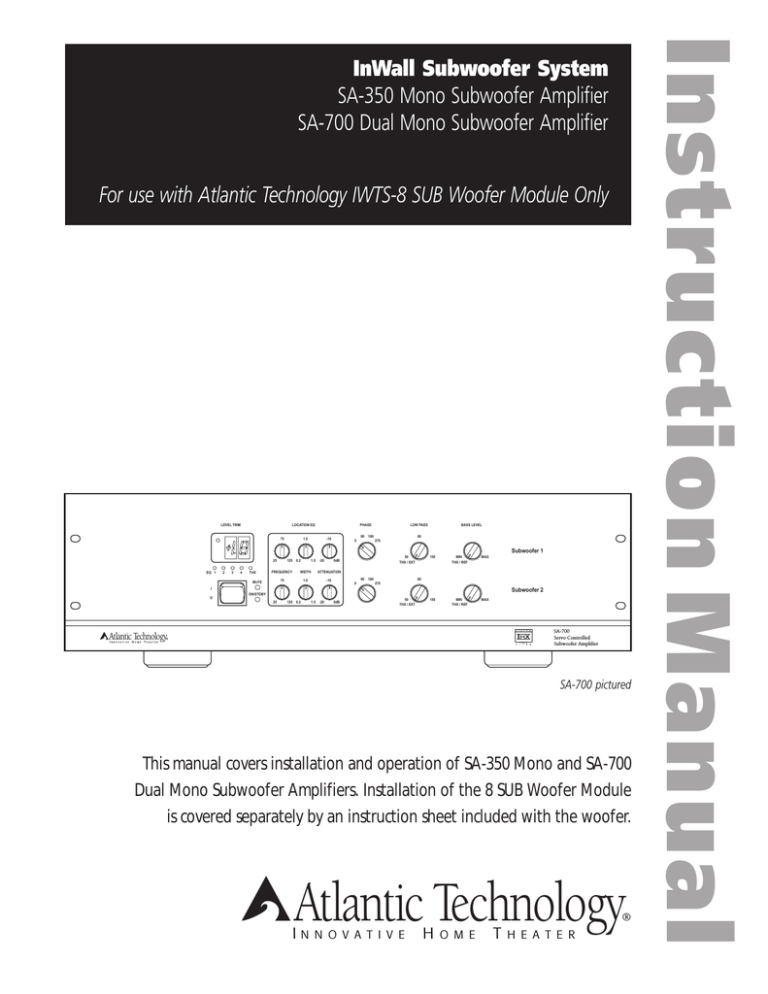

Instruction Manual
InWall Subwoofer System
SA-350 Mono Subwoofer Amplifier
SA-700 Dual Mono Subwoofer Amplifier
2
Safety Precautions
InWall Subwoofer System
IMPORTANT NOTE
These instructions are for Atlantic Technology InWall
Subwoofer systems using the SA-350 Mono and
SA-700 Dual Mono Subwoofer amplifiers. All instructions and
information pertain to both systems. Note that the SA-350
amplifier only has one set of front mounted controls and one
set of input/output connectors on the back and is designed to
work with a single 8 SUB woofer module.
The unique design of these drivers and amplifiers means that
they must only be used together, with each other. You should
never attempt to use a different amplifier with these woofers or
different woofers with these amplifiers.
Features
8 SUB Woofer
■
Ultra-long-throw 8" Coated Composite Molded Graphite
polymer cone drivers with vented 8 pound motor structure
and 1-3/4" high temperature, 4 layer voice coil
A massive magnetic motor assembly and high temperature parts
combined with a bumped out rear plate and compliant suspension allow very long travel capability for the cone. The result is
amazing bass performance from a relatively small footprint. One
of the most powerful 8" subwoofer drivers ever designed, the motor assembly is much more consistent with 15" woofers!
■
Sealed enclosure design provides for low distortion deep
bass output
This design is inherently low in distortion and naturally delivers
deep, smooth bass response with a gradual and predictable rolloff below resonance, ensuring accurate musical bass reproduction along with terrific special effects.
Safety Precautions
SA-350 and SA-700
■
CAUTION: To reduce the risk of electric shock, do not remove
the cover (or back). No user serviceable parts inside. Refer to qualified personnel.
The fully discrete design utilizes audiophile grade component
parts including an independent power supply for each channel
with its own custom-wound, low-hum Toroidal transformer. Class
G design means each of the power supplies is dual mode in operation, one for long term operation and the second for short
term very high power peaks. High peak current delivers exceptional driver control.
WARNING: To reduce the risk of fire or electric shock, do not
expose this appliance to rain or moisture.
The lightning flash with arrowhead, within an equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electrical shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of important operating maintenance (servicing) instructions in the literature accompanying the appliance.
For Future Reference
■
Servo-control circuitry
This circuit monitors woofer performance. If the servo-control
detects driver distortion it immediately regains control and eliminates it, resulting in very high output levels at unusually low distortion levels.
■
Built-in Parametric Equalizer (pages 5 and 13)
Designed to flatten and smooth bass response deviations caused
by standing waves at the listening position in your room.
■
Record your speaker and amplifier serial numbers and date of purchase here:
Four Built-in Program Equalization and one Reference
setting (pages 7 and 14)
We’ve carefully chosen and built in several preset bass EQ curves,
plus a flat/THX response setting, to enhance your enjoyment of
all program materials .
Model Number
■
Serial Number
Wireless Remote Operation (pages 7 and 14)
Control program EQs, volume trim adjustment, and full
subwoofer muting from your listening position.
Date of Purchase
The serial number is found on the back of the speaker near the connecting terminals.
Linear power high current discrete Class G amplifier conservatively rated at 350 watts RMS per channel with short
term peak output ability in excess of 550 watts
■
A useful in room working frequency range of 20 Hz to 150Hz
Introduction
3
Instruction Manual
■
■
Adjustable (50 Hz to 150 Hz) low-pass crossover (@ 24 dB
per octave) with a THX/External setting (pages 5, 12 and 14)
Table of Contents
Allows for much better bass integration with the satellite speakers while making the woofer less localizable.
4 InWall Subwoofer Systems
Low level inputs, low level thruputs (pages 6 and 7)
Thruputs allow daisy chaining of multiple subwoofers, or can act
as a return path back to the processor.
■
Four position Phase Invert switch (pages 5, 12 and 14)
Allows precise acoustic matching with satellite speaker systems
whose output may be phase reversed. May also help to compensate for unusual room acoustics that can occur, causing a lack of
or too much bass at the listening position.
5
6
7
7
7
7
7
8
9
■
A convenient front panel mounted Level Control with a clickstop THX/REF input sensitivity setting (pages 5 and 14)
10
■
Automatic standby operation with LED indicator (page 12)
11
12
Features signal sensing turn-on with 7-10 minute turn-off delay.
■
■
Heavy-Duty detachable AC power cord and input socket
(pages 6 and 12)
Meets all current UL/CSA and European safety requirements
THX Ultra Certified (SA-700 only)
THX is a group of performance standards and technologies developed by Lucasfilm Ltd. (of Star Wars fame). These are intended to
ensure that what you hear (and see) on your home system, as closely
as possible, matches what the director heard and saw during the
final production mixdown of the film. THX is intended to enhance
all surround formats including the latest discrete multi-channel digital types. Please note that THX is not a surround format itself.
THX Ultra standards are based upon a room size of 3000 cubic feet
(LxWxH). This doesn’t mean certified components must be used in
rooms this exact size. The room sizes simply provide a frame of reference, as they indicate that these systems must deliver a minimum
level of performance in the specified area.
12
12
12
12
13
13
13
14
14
14
14
14
15
15
15
16
Amplifier Front Panel
Amplifier Back Panel
Remote Control
Connecting Your Subwoofer
Low Level Connection (LO IN)
Using the Low Level Thruput (THRU)
High Level Connection (HI IN)
SA-350 Low Level Connections
SA-700 Low Level Connections with one
SubOut/LFE Output
SA-700 Low Level Connections with two
SubOut/LFE Outputs
SA-700 High Level Connections
Power Connection
System Setup and Operation
The LOW PASS Control
Bass Management
The PHASE Control
Parametric Room Equalizer (EQ)
Adjusting the Parametric EQ Using a Meter or
Real Time Analyzer (RTA)
Level Setting Using an SPL Meter
Level Setting Setup Without Using an SPL Meter
Setting the Subwoofer Level Without an SPL Meter
or Test Tones
How Much is Enough?
Remote Control Functions
Direct Access Connector
Care and Feeding of Your Subwoofer
Subwoofer Troubleshooting Guide
Specifications
Program EQ Setting Curves
Test and Training CD-ROM
The enclosed Atlantic Technology/Sencore Test and Training Disc
includes lots of useful information. (Sencore is a world famous
manufacturer of electronic test and measurement equipment. We
strongly support the use of this caliber of equipment in the setup of
home surround sound systems.) Please take a moment to go over
its contents before proceeding with your woofer’s setup. The disc
includes room mode calculators, explanations of how sound spreads
in a room, information about home theater setup, a glossary, and
even an explanation of how standing waves “setup” in rooms. Most
importantly, there are test tones on the disc intended to be used to
set the equalizer and subwoofer level in your system.
Copyright © 2001 Atlantic Technology International.
Specifications are those in effect at the time of printing. Atlantic Technology
reserves the right to change specifications or designs at any time without
notice. THX and THX Ultra are registered trademarks of Lucasfilm, Ltd. Dolby
Digital, AC-3, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby
Laboratories Licensing Corporation.
4
InWall Subwoofer Systems
