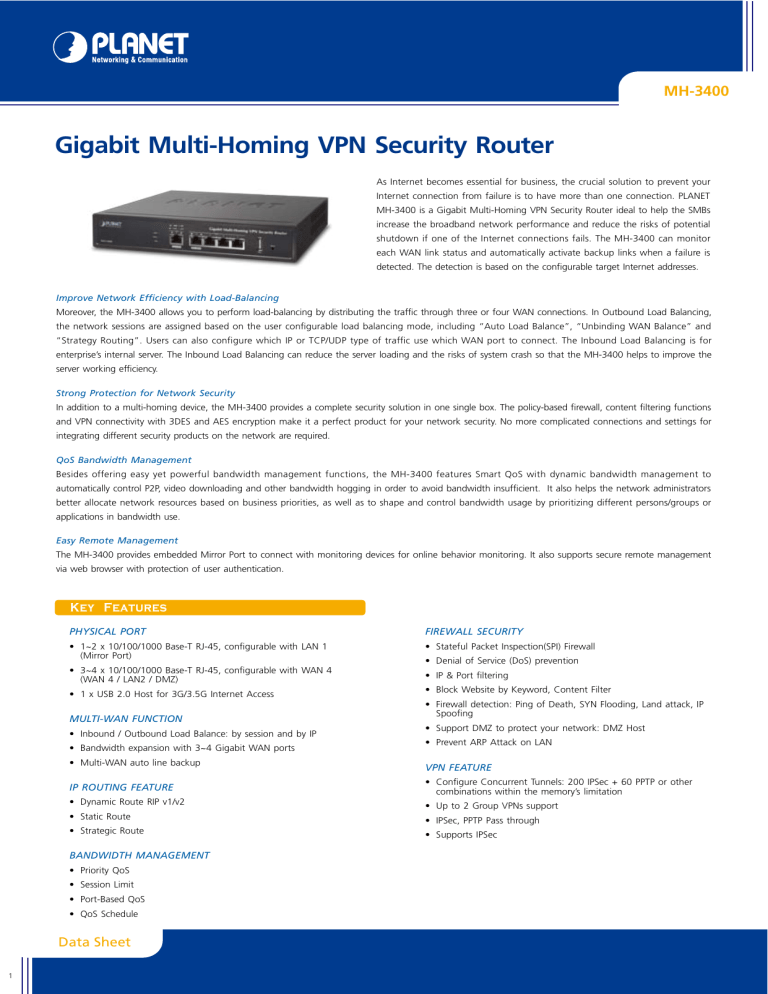

MH-3400
Gigabit Multi-Homing VPN Security Router
As Internet becomes essential for business, the crucial solution to prevent your
Internet connection from failure is to have more than one connection. PLANET
MH-3400 is a Gigabit Multi-Homing VPN Security Router ideal to help the SMBs
increase the broadband network performance and reduce the risks of potential
shutdown if one of the Internet connections fails. The MH-3400 can monitor
each WAN link status and automatically activate backup links when a failure is
detected. The detection is based on the configurable target Internet addresses.
Improve Network Efficiency with Load-Balancing
Moreover, the MH-3400 allows you to perform load-balancing by distributing the traffic through three or four WAN connections. In Outbound Load Balancing,
the network sessions are assigned based on the user configurable load balancing mode, including “Auto Load Balance”, “Unbinding WAN Balance” and
“Strategy Routing”. Users can also configure which IP or TCP/UDP type of traffic use which WAN port to connect. The Inbound Load Balancing is for
enterprise’s internal server. The Inbound Load Balancing can reduce the server loading and the risks of system crash so that the MH-3400 helps to improve the
server working efficiency.
Strong Protection for Network Security
In addition to a multi-homing device, the MH-3400 provides a complete security solution in one single box. The policy-based firewall, content filtering functions
and VPN connectivity with 3DES and AES encryption make it a perfect product for your network security. No more complicated connections and settings for
integrating different security products on the network are required.
QoS Bandwidth Management
Besides offering easy yet powerful bandwidth management functions, the MH-3400 features Smart QoS with dynamic bandwidth management to
automatically control P2P, video downloading and other bandwidth hogging in order to avoid bandwidth insufficient. It also helps the network administrators
better allocate network resources based on business priorities, as well as to shape and control bandwidth usage by prioritizing different persons/groups or
applications in bandwidth use.
Easy Remote Management
The MH-3400 provides embedded Mirror Port to connect with monitoring devices for online behavior monitoring. It also supports secure remote management
via web browser with protection of user authentication.
Key Features
Physical Port
Firewall Security
•• 1~2 x 10/100/1000 Base-T RJ-45, configurable with LAN 1
(Mirror Port)
•• Stateful Packet Inspection(SPI) Firewall
•• 3~4 x 10/100/1000 Base-T RJ-45, configurable with WAN 4
(WAN 4 / LAN2 / DMZ)
•• 1 x USB 2.0 Host for 3G/3.5G Internet Access
Multi-WAN Function
•• Inbound / Outbound Load Balance: by session and by IP
•• Bandwidth expansion with 3~4 Gigabit WAN ports
•• Multi-WAN auto line backup
•• IP & Port filtering
•• Block Website by Keyword, Content Filter
•• Firewall detection: Ping of Death, SYN Flooding, Land attack, IP
Spoofing
•• Support DMZ to protect your network: DMZ Host
•• Prevent ARP Attack on LAN
VPN Feature
IP Routing feature
•• Configure Concurrent Tunnels: 200 IPSec + 60 PPTP or other
combinations within the memory’s limitation
•• Dynamic Route RIP v1/v2
•• Up to 2 Group VPNs support
•• Static Route
•• IPSec, PPTP Pass through
•• Strategic Route
•• Supports IPSec
Bandwidth Management
•• Priority QoS
•• Session Limit
•• Port-Based QoS
•• QoS Schedule
Data Sheet
1
•• Denial of Service (DoS) prevention
MH-3400
Networking
3G USB support
•• DHCP Server (supports class C), client, dynamic IP, static IP, IP
Grouping support
•• 3G/3.5G Internet Access
•• Automatic fail-over and Load balancing between 3G and WAN
•• Multiple DHCP Servers support multiple Subnet (supports 4 sets
of Class C)
•• Auto / manual throughput and time calculation mechanism for
cost or dial-on
•• PPPoE / Static IP / DHCP Client
•• Throughput measurement
•• Protocol: TCP/IP, ARP, ICMP, FTP/TFTP, IPv4
•• APN and PIN code support
•• NAT with popular ALG support
•• Port forwarding (Virtual Server)
Network Management
•• DNS Relay
•• Comprehensive web based management and policy setting
•• DDNS: supports DynDNS, 3322
•• SNMP v1/v2c
•• Password protected configuration or management sessions for
web access
•• Monitoring, Logging, and Alarms of system activities
•• Firmware upgrade through Web browser
•• Port Management – Speed / Duplex / Auto Negotiation / VLAN
•• Transparent Bridge
Applications
PLANET Multi-Homing VPN Security Router, MH-3400 has the powerful firewall functions like SPI Firewall DoS prevention. Providing IPSec and
PPTP VPN solutions MH-3400 provides the secured data communication for Branches, cooperate Venders, and/or mobile workers a flexible way to
connect back to the headquarter.
Vendor
Branch Offices
Firewall Gateway
Firewall Gateway
PC
IPSec VPN Tunnel
IPSec VPN Tunnel
PC Group
ADSL
Modem
Modem
Internet
VDSL2
a/n
Access Point
Laptop
ADSL
VDSL2
Modem
Access Point
PPTP VPN Tunnel
Firewall
MH-3400
Firewall
PC
DMZ
b/g
Laptop
Finance-Server
PC
Web-Server
Mail-Server
Action Office
Headquarters
ADSL 2/2+
ADSL
VDSL2
VDSL2
100Base-TX UTP
1000Base-T UTP
a/n
Data Sheet
2
5GHz 802.11a/n
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected] www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2008 PLANET Technology Corp. All rights reserved.
MH-3400
The MH-3400 can connect the multiple WANs by different ISPs. It can create a stable and qualified VPN connection for many important applications
such as VoIP, Video Conference and data transmission.
Branch Office
Lobby
Fisheye IP Camera
Computer Room
Meeting Room
PSTN
PoE
FAX
PC Group
NVR
PoE
H.264 IP Camera
Switch
Phone
PoE
MH-3400
Modem
PPTP VPN
Tunnel
Modem
ISP1
VoIP Gateway
PoE Switch
ISP2
PPTP VPN
Tunnel
Internet
ISP3
Headquarters
ISP4
MH-3400
Modem
Modem
Core Switch
PBX
VoIP Gateway
Switch
CMS
DMZ
Phone
PSTN
Management
FAX
Office
Web or Mail Server
Central
Security Center
100Base-TX UTP
1000Base-T UTP
Data Sheet
3
Telephone wire
PoE
100Base-TX UTP with PoE
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected] www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
01-08
C-POE-100SK
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2008 PLANET Technology Corp. All rights reserved.
MH-3400
Specification
Product
Gigabit Multi-Homing VPN Security Router
Model
Hardware
MH-3400
Ethernet
Button
LAN
WAN
DMZ
Reset
Power
USB
Operating Environment
Dimension (W x D x H)
Power
Regulatory
Software
Multi-WAN Function
Routing
System Performance
Bandwidth Management
Inbound / Outbound Load Balance: by session and by IP
Protocol Binding
Network Service Detection
Dynamic Route RIP v1/v2
Static Route
Strategic Route
Concurrent session: 50000
Firewall performance: 1Gbps
Corporation Size: SMB (clients 200~250)
3DES performance: 154Mbps
Session Limit
Priority QoS
Port-Based QoS
QoS Schedule
Firewall Security
NAT
One-to-One NAT
Multiple-to-One NAT
Stateful Packet Inspection (SPI) Firewall
Denial of Service (DoS) prevention
IP & Port filtering
Block Website by Keyword, Content Filter
Firewall detection: Ping of Death, SYN Flooding, Land attack, IP Spoofing
Email Alert for Hacker Attack
IP&MAC Binding
Supports DMZ to protect your network: DMZ Host
Prevents ARP Attack on LAN
Networking
Configurable DMZ
DHCP Server (supports class C), client, dynamic IP, static IP, IP Grouping support
Multiple DHCP Server (supports 4 sets of Class C)
PPPoE / Static IP / DHCP Client
LAN MAC Clone
Multiple Subnet
Protocol: TCP /IP, ARP, ICMP, FTP/TFTP, IPv4
NAT with popular ALG support
Port forwarding (Virtual Server)
DNS Relay
DDNS: support DynDNS, 3322
Password protected configuration or management sessions for web access
Port Management – Speed / Duplex / Auto Negotiation / VLAN
Transparent Bridge
USB Feature
3G/3.5G Internet Access
3G as WAN interface
Automatic failover between 3G and WAN
Load balancing between 3G and WAN
Auto / manual throughput and time calculation mechanism for cost or dial-on demand
(Cellular cost Control)
Signal strength display on front panel
Throughput measurement
APN and PIN code support
Data Sheet
4
1~2 x 10/100/1000 Mbps RJ-45, configurable with LAN 1 (Mirror Port)
3~4 x 10/100/1000 Mbps RJ-45, configurable with WAN 4 (WAN 4 / LAN2 / DMZ)
1 x 10/100/1000 Mbps RJ-45
1 x Reset button for reset to factory default setting
1 x Power on/off switch
1 x USB 2.0 Host
Temperature:
0 ~ 50 Degree C
Relative Humidity: 10~85% (non-condensing)
240 x160 x 44 mm
100~240 VAC, 50~60 Hz, max 0.5A
FCC Class B, CE
PLANET Technology Corporation
11F, No. 96, Min Chuan Road, Hsin Tien, Taipei, Taiwan, R.O.C.
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected] www.planet.com.tw
VoIP Gateway: vip.planet.com.tw
01-08
C-POE-100SK
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2008 PLANET Technology Corp. All rights reserved.
MH-3400
Network Management
VPN tunnel
VPN
Support
IPSec VPN
Comprehensive web based management and policy setting
SNMP v1/v2c
Monitoring, Logging, and Alarms of system activities
Firmware upgrade through Web browser
200 IPSec VPN Tunnels / 60 PPTP VPN Tunnels
IPSec H/W acceleration
Up to 2 Groups of VPN support
Friendly VPN Tunnel Management
IKE: Pre-Shared keys
IPSec Encryption DES / 3DES / AES128 / AES192 / AES256
IPSec Authentication MD5 / SHA1
PMTU
NAT Traversal
Connect on Demand
DPD detection
VPN Hub
IP by DNS Resolved
View Log
IPSec, PPTP Pass through
Ordering Information
MH-3400
Gigabit Multi-Homing VPN Security Router
Related Products
VRT-402N
802.11n Wireless VPN/Firewall Router
VRT-420N
SG-1000
CS-1000
CS-2001
802.11n Multi-Homing Broadband Router
VPN Security Gateway
Multi-Homing Content Security Gateway
UTM Content Security Gateway
Data Sheet
5
01-12
PLANET Technology Corporation
11F., No.96, Minquan Rd., Xindian Dist., New Taipei City 231,
Taiwan (R.O.C.)
Tel: 886-2-2219-9518 Fax: 886-2-2219-9528
Email: [email protected] www.planet.com.tw
C-MH-3400
PLANET reserves the right to change specifications without prior notice. All brand names and trademarks are property of
their respective owners. Copyright © 2012 PLANET Technology Corp. All rights reserved.
