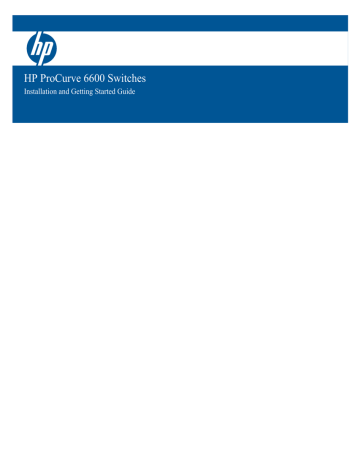

HP ProCurve 6600 Switches
Installation and Getting Started Guide
ProCurve 6600 Switches
Installation and Getting Started Guide
© Copyright 2011 Hewlett-Packard Development
Company, L.P.
Disclaimer
HEWLETT-PACKARD COMPANY MAKES NO WARRANTY
OF ANY KIND WITH REGARD TO THIS MATERIAL,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not
be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing,
performance, or use of this material.
Publication Number
5992-4962
August 2011
Applicable Products
HP ProCurve 6600-24G Switch
HP ProCurve 6600-24G-4XG Switch
HP ProCurve 6600-24G-24XG Switch
HP ProCurve 6600-48G Switch
HP ProCurve 6600-48G-4XG Switch
HP ProCurve Switch Power Supply
HP ProCurve Switch Fan Tray
(J9263A)
(J9264A)
(J9265A)
(J9451A)
(J9452A)
(J9269A)
(J9271A)
The information contained herein is subject to change
without notice. The only warranties for HP products and
services are set forth in the express warranty statements
accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or
omissions contained herein.
Hewlett-Packard assumes no responsibility for the use or
reliability of its software on equipment that is not furnished
by Hewlett-Packard.
Warranty
See the Customer Support/Warranty booklet included with
the product.
A copy of the specific warranty terms applicable to your
Hewlett-Packard products and replacement parts can be
obtained from your HP Sales and Service Office or
authorized dealer.
Safety
Before installing and operating these products, please read
the “Installation Precautions” in chapter 2, “Installing the
Switch”, and the safety statements in appendix C, “Safety
and EMC Regulatory Statements”.
Hewlett-Packard Company
8000 Foothills Boulevard, m/s 5552
Roseville, California 95747-5552
www.procurve.com
Contents
Introducing the Switch
Front of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4
Network Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-6
LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7
LED Mode Select Button and Indicator LEDs . . . . . . . . . . . . . . . . . . . . 1-9
Reset Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11
Back of the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Power Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12
Switch Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13
Installing the Switch
Included Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3
Installation Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4
1. Prepare the Installation Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
2. Verify the Switch Passes Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
LED Behavior During Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7
3. (Optional) Reverse the air flow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8
4. Mount the Switch and Route the Power Cords . . . . . . . . . . . . . . . .
Rack or Cabinet Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Mounting a 6600 Switch with the 4-Post Rack Mount Kit . . . . . .
Mounting a 6600 Switch in an HP 10000 Series Cabinet . . . . . . .
Mounting the Switch in a 2-Post Telco Rack . . . . . . . . . . . . . . . .
2-11
2-11
2-12
2-16
2-22
5. Connect the Switch to a Power Source . . . . . . . . . . . . . . . . . . . . . . 2-24
6. (Optional) Install Transceivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-24
Installing a Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-25
Removing a Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-26
7. Connect the Network Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Using the RJ-45 Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-27
Connecting Cables to Transceivers . . . . . . . . . . . . . . . . . . . . . . . . 2-27
iii
8. (Optional) Connect a Management Console . . . . . . . . . . . . . . . . . . 2-28
Configuring the Management Console . . . . . . . . . . . . . . . . . . . . . 2-29
Setting Up an Out-of-Band Console Connection . . . . . . . . . . . . . 2-29
Sample Network Topology . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-32
Getting Started With Switch Configuration
Recommended Minimal Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Minimal Configuration Through the Out-of-Band Console Connection . . 3-2
Where to Go From Here: Networked Connections . . . . . . . . . . . . . . . . . . . 3-4
Using the IP Address for Remote Switch Management . . . . . . . . . . . . . . . . 3-6
Starting a Telnet Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Starting a Web Browser Session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6
Replacing Components
Replacing the Fan Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
Replacing a Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3
Troubleshooting
Basic Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
Using LEDs to Diagnose an Error Condition . . . . . . . . . . . . . . . . . . . . . . . . 5-4
Proactive Networking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8
Hardware Diagnostic Tests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Testing the Switch by Resetting It . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Checking the Switch LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Checking Console Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-9
Testing Twisted-Pair Cabling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Testing Switch-to-Device Network Communications . . . . . . . . . . . . 5-10
Testing End-to-End Network Communications . . . . . . . . . . . . . . . . . 5-10
Restoring the Factory Default Configuration . . . . . . . . . . . . . . . . . . . . . . . 5-11
Downloading New Switch Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
HP Customer Support Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
Before Calling Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12
iv
Specifications
Physical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Electrical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Environmental . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Acoustic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-3
Cabling and Technology Information
Cabling specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-1
Technology distance specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . B-3
Mode Conditioning Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-4
Installing the Patch Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-5
Twisted-Pair Cable/Connector Pin-Outs . . . . . . . . . . . . . . . . . . . . . . . . . . . B-6
Straight-Through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . B-7
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-7
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection . . . . . . . . . . . . . . . . . . . . . B-8
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-8
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Cable Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Pin Assignments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . B-9
Safety and EMC Regulatory Statements
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-1
Informations concernant la sécurité . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-2
Hinweise zur Sicherheit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-3
Considerazioni sulla sicurezza . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-4
Consideraciones sobre seguridad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-5
Safety Information (Japan) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-6
Safety Information (China) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-7
v
EMC Regulatory Statements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
U.S.A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Canada . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Australia/New Zealand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Japan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
Taiwan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-8
European Community . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C-9
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements . . . . . . D-1
Index
vi
Introducing the Switch
Introducing the Switch
HP ProCurve 6600 Switches are top-of-rack data center switches that support
advanced Layer 3 switching, and have reversible front-to-back airflow and two
hot swappable power supplies. You can use 6600 Switches to build high-speed
switched networks between servers in the data center.
HP ProCurve 6600-24G Switch (J9263A)
• 20 auto-sensing 10/100/1000Base-TX RJ-45 ports
• 4 dual-personality ports: auto-sensing 10/100/1000Base-T RJ-45 or Small Form-Factor Pluggable (SFP) that
accept mini-GBIC transceivers
HP ProCurve 6600-24G-4XG Switch (J9264A)
• 20 auto-sensing 10/100/1000Base-TX RJ-45 ports
• 4 dual-personality ports that can function as auto-sensing 10/100/1000Base-T RJ-45 or SFP (mini-GBIC) ports
• 4 SFP+ ports that accept 10-Gigabit transceivers
Note
Although SFP+ ports are the same form-factor (size and shape) as SFP ports,
SFP+ ports support 10-Gigabit transceivers while SFP ports support 1-Gigabit
and 100-Megabit transceivers.
1-1
Introducing the Switch
1
Introducing the Switch
Introducing the Switch
HP ProCurve 6600-24XG Switch (J9265A)
• 24 SFP+ ports for 10-Gigabit connectivity
HP ProCurve 6600-48G Switch (J9451A)
• 44 auto-sensing 10/100/1000Base-TX RJ-45 ports
• 4 dual-personality ports that can function as auto-sensing 10/100/1000Base-T RJ-45 or SFP (mini-GBIC)
ports
HP ProCurve 6600-48G-4XG Switch (J9452A)
• 48 auto-sensing 10/100/1000Base-TX RJ-45 ports
• 4 SFP+ ports for 10-Gigabit connectivity
1-2
Introducing the Switch
Table 1-1.
Speed
Transceiver Speeds and Technologies
Technology
Cabling
Transceiver Form-Factor
and Connector
SFP (mini-GBIC)
Connector
100-Mbps
1-Gbps
10-Gbps
SFP+
Connector
100-FX
Fiber (multimode)
LC
100-BX
Fiber (single mode)
LC
1000-SX
Fiber (multimode)
LC
1000-LX
Fiber (multimode or
single mode)
LC
1000-LH
Fiber (single mode)
LC
1000-BX
Fiber (single mode)
LC
10-Gig
Direct Attach
Copper (Twinaxial)
N/A1
10-Gig SR
Fiber (multimode)
LC
10-Gig LRM
Fiber (multimode)
LC
10-Gig LR
Fiber (single mode)
LC
1 Direct attach cables (DAC) are low-cost 10-GbE connectivity options consisting of a one,
three, or seven meter cable with SFP+ connectors permanently attached to each end.
For a list of supported transceivers, go to www.procurve.com/faqs. On this web site,
ProCurve 10-GbE Transceivers and ProCurve Mini-GBICs and SFPs have links to a list
of supported products (first question in the “General Product Information” category).
For technical details of cabling and technologies see Appendix B, “Cabling and Technology Information”.
6600 Switches are designed to be used primarily in data center environments
while mounted in equipment racks with the servers they are connected to.
6600 Switches can directly connect servers to other servers or backbone LANs
to provide dedicated bandwidth to those devices. You can build a switched
network infrastructure by interconnecting 6600 Switches with routers or
other switches. In addition, 6600 Switches offer full network management
capabilities.
1-3
Introducing the Switch
6600 Switches support optional network connectivity with the speeds and
technologies shown in Table 1-1 .
Introducing the Switch
Front of the Switch
Introducing the Switch
Front of the Switch
Power, Fault,
and Locator
LEDs
PS, Temperature, Fan, and
Test Status LEDs
Auxiliary port
and LED
Console port
Port LED Mode select
button and indicator LEDs
Switch port LEDs
Link and Mode
10/100/1000Base-T
10/100/1000Base-T
RJ-45
RJ-45
portsports
Reset and Clear
buttons
Dual-personality ports:
10/100/1000Base-T or SFP (mini-GBIC)
Figure 1-1. HP ProCurve 6600-24G Switch
PS, Temperature, Fan, and
Test Status LEDs
Power, Fault,
and Locator
LEDs
Reset and Clear
buttons
Console port
Auxiliary port
and LED
Port LED Mode select
button and indicator LEDs
Switch port LEDs
Link and Mode
10/100/1000Base-T
RJ-45ports
SFP+ 10-GbE ports1
Dual-personality ports:
10/100/1000Base-T or SFP (mini-GBIC)
1 The SFP+ slots are in the same configuration as the SFP (mini-GBIC) slots of ports 22 and 24. Insert transceivers with the label facing
down.
Figure 1-2. HP ProCurve 6600-24G-4XG Switch
1-4
Introducing the Switch
Front of the Switch
PS, Temperature, Fan, and
Test Status LEDs
Out-of-Band
Management port
Console port
Introducing the Switch
Power, Fault,
and Locator
LEDs
Auxiliary port
and LED
Link and Mode LEDs
Port LED Mode select
button and indicator LEDs
SFP+ 10-GbE ports
Reset and Clear
buttons
Figure 1-3. HP ProCurve 6600-24XG Switch
Power, Fault,
and Locator
LEDs
PS, Temperature, Fan, and
Test Status LEDs
Out-of-Band
Management port
Port LED Mode select
button and indicator LEDs
Console port
Auxiliary port
and LED
Switch port LEDs
Link and Mode
10/100/1000Base-T
RJ-45 ports
Dual-personality ports:
10/100/1000Base-T or SFP (mini-GBIC)
Reset and Clear
buttons
Figure 1-4. HP ProCurve 6600-48G Switch
1-5
Introducing the Switch
Introducing the Switch
Front of the Switch
Power, Fault,
and Locator
LEDs
PS, Temperature, Fan,
and Test Status LEDs
Out-of-Band
Management port
Auxiliary port
and LED
Switch port LEDs
Link and Mode
Port LED Mode select
button and indicator LEDs
Console port
Reset and Clear
buttons
10/100/1000Base-T
RJ-45 ports
SFP+ 10-GbE ports
Figure 1-5. HP ProCurve 6600-48G-4XG Switch
Network Ports
■
On the 6600-24G, 6600-24G-4XG, 6600-48G, and 6600-48G-4XG Switches,
there are 24 or 48 auto-sensing 10/100/1000Base-T ports. These ports
support the “Auto MDIX” feature, which allows you to use either straightthrough or crossover twisted-pair cables to connect any network device
to the switch.
■
On the 6600-24G, 6600-48G, 6600-24G-4XG Switches, there are four dualpersonality ports, which support the use of a 10/100/1000Base-T RJ-45
connector or an HP ProCurve SFP (mini-GBIC) transceiver for fiber-optic
connections.
Dual-Personality Port Operation. By default, the RJ-45 connectors are
enabled. However, if you install an SFP transceiver in the slot, the transceiver is enabled and the associated RJ-45 connector is disabled and
cannot be used. When you remove the SFP transceiver, the associated RJ45 port is automatically re-enabled.
■
1-6
The 6600-24XG Switch has twenty-four SFP+ ports; the 6600-48G-4XG and
6600-24G-4XG Switches have four SFP+ ports. An SFP+ port supports
only 10 Gbps operation. SFP transceivers are not supported on an SFP+
port.
Introducing the Switch
Front of the Switch
LEDs
Introducing the Switch
Table 1-2 describes each LED state. For more information, refer to the
Management and Configuration Guide for your switch.
Table 1-2.
Switch LEDs
Switch LEDs
State
Meaning
Power
(Green)
On
Off
Switch power is operating correctly.
Switch power is not operating correctly or there is no power connection.
Fault
(Orange)
Off
The normal state; indicates there are no fault conditions on the switch.
1
Blinking
A fault has occurred on the switch, one of the switch ports, module in the rear of
the switch, or the fan. The Status LED for the component with the Fault LED will
blink simultaneously.
On
On briefly after the switch is powered on or reset, at the beginning of switch selftest. If this LED is on for a prolonged time, the switch has encountered a fatal
hardware failure, or has failed its self-test. See chapter 4, “Troubleshooting” for
more information.
Locator (Blue)
On
Blinking
Off
The Locator LED is used to locate a specific switch in a area full of switches. The
LED can be set to be on solid or blink for a specified number of minutes (1-1440).
The default is 30 minutes. Use the command “chassislocate”.
PS
(Green/Orange)
On green
Off
The switch is receiving power.
The switch is NOT receiving power.
Blinking
orange1
A fault has occurred on one of the power supplies. The PS Status LED, Fault LED,
and on the back of the switch the failed power supply LED (PS1 or PS2) will all
blink simultaneously.
On green
Switch temperature is normal.
Blinking
orange1
Blinking
orange2
An over temperature condition has been detected. This is a Fault condition
indicating elevated internal temperatures. The Fault LED will blink simultaneously.
This indicates an alert condition indicating critical internal temperatures. The
Fault LED will blink simultaneously.
Fan Status
(Green/Orange)
On
Blinking
orange1
Blinking
orange2
Normal operation, all fans are ok.
One of the unit’s fans has failed. The switch Fault LED will be blinking
simultaneously.
One of the unit’s fans has failed and the switch is in an overtemp condition. The
switch Fault LED will be blinking simultaneously.
Fan LED on the fan
tray (Orange)
Off
Blinking
orange1
Normal operation, all fans are working properly.
One or more of the unit’s fans has failed. The switch Fault LED, fan status LED on
the front of the switch, and the fan status LED on the back of the switch will be
blinking simultaneously.
Tmp
(Green/Orange)
1-7
Introducing the Switch
Introducing the Switch
Front of the Switch
Switch LEDs
State
Meaning
Test
(Green/Orange)
Off
The normal operational state; the switch is not undergoing self-test.
On green
The switch self-test and initialization are in progress after the switch has been
power cycled or reset. The switch is not operational until this LED goes off. The
Self-Test LED also comes on briefly when you “hot swap” a transceiver into the
switch; the transceiver is self-tested when it is hot swapped.
Blinking
orange1
A component of the switch has failed its self-test. The status LED for that
component, for example an RJ-45 port, and the switch Fault LED will blink
simultaneously.
Link
Indicates the port LEDs are displaying link information:
• if the port LED is on, the port is enabled and receiving a link indication from the
connected device.
• if the port LED is off, the port has no active network cable connected, or is not
receiving link beat or sufficient light. Otherwise, the port may have been
disabled through the switch console, the web browser interface, or ProCurve
Manager.
if the port LED is Blinking1 (orange) simultaneously with the Fault LED, the
corresponding port has failed its self-test.
Mode
The operation of the Mode LED is controlled by the LED Mode select button, and
the current setting is indicated by the LED Mode indicator LEDs near the button.
Press the button to step from one view mode to the next. The default view is
Activity (Act).
Act
Indicates the port LEDs are displaying network activity information.
FDx
Indicates port LEDs are lit for ports in Full Duplex Mode. Off indicates ½ duplex.
Spd
Indicates the port LEDs are displaying the connection speed at which each port
is operating:
• if the port LED is off, the port is operating at 10 Mbps.
• if the port LED is Blinking**, the port is operating at 100 Mbps.
• if the port LED is on continuously, the port is operating at 1000 Mbps.
Usr
Indicates the port is displaying customer-specified information.
Port LEDs
(Green/Orange –
Link and Mode)
LED Mode View
(Green LEDs)
1-8
Introducing the Switch
Front of the Switch
State
Meaning
Auxiliary
(Green/Orange)
Blinking
green2
Data transfer between the switch and a USB device is occurring.
On green
USB device is connected to the switch. No data transfer operation is occurring.
Blinking
orange1
Indicates an error condition. The switch Fault LED will be blinking simultaneously.
There is a hardware fault associated with the USB device or the USB connector
on the switch.
Blinking
orange2
Indicates an alert condition. The switch Fault LED should not be blinking
simultaneously. An alert error occurred in the USB operation that is not caused
by a hardware fault, such as a file transfer error.
Off
Indicates that no USB device has been inserted, or that the inserted USB device
cannot be recognized, or that no command file can be found on the inserted USB
device.
1
2
The Blinking behavior is an on/off cycle once every 1.6 seconds, approximately.
The Blinking behavior is an on/off cycle once every 0.8 seconds, approximately.
LED Mode Select Button and Indicator LEDs
The operation of the Mode LED is controlled by the LED Mode select button,
and the current setting is indicated by the LED Mode indicator LEDs near the
button. Press the button to step from one view mode to the next.
Port LEDs Link and Mode
LED Mode select button
and indicator LEDs
Figure 1-6.
HP ProCurve 6600-24G and 6600-24G-4XG Switches
1-9
Introducing the Switch
Switch LEDs
Introducing the Switch
Front of the Switch
Introducing the Switch
Port LEDs Link
and Mode
LED Mode select button
and indicator LED
Figure 1-7.
HP ProCurve 6600-24XG Switch
Port LEDs Link
and Mode
LED Mode select button
and indicator LEDs
Figure 1-8. HP ProCurve 6600-48G and 6600-48G-4XG Switches
■
Each port has a Link LED. If it is lit, the port has a link. If the Link LED is
Blinking, the port has failed its self-test. The Fault and Self-Test LEDs will
be Blinking simultaneously.
■
If the Activity (Act) indicator LED is lit, each port LED displays activity
information for the associated port—it flickers as network traffic is
received and transmitted through the port.
■
If the Full Duplex (FDx) indicator LED is lit, the port LEDs light for those
ports that are operating in full duplex.
■
If the Speed (Spd) indicator LED is lit, the port LEDs behave as follows
to indicate the connection speed for the port:
■
1-10
•
Off = 10 Mbps
•
Blinking = 100 Mbps (the Blinking behavior is a repeated on/off cycle
once every 0.8 sec.)
•
On = 1000 Mbps
The Usr Mode LED indicates the port is displaying customer-specified
information.
Introducing the Switch
Front of the Switch
Reset Button
■
Reset the switch - When the switch is powered on. This action clears
any temporary error conditions that may have occurred and executes the
switch self-test.
■
Restore the factory default configuration - When pressed with the
Clear button in a specific pattern, any configuration changes you may have
made through the switch console, the web browser interface, and SNMP
management are removed, and the factory default configuration is
restored to the switch. For the specific method to restore the factory
default configuration, see “Restoring the Factory Default Configuration”
on page 5-11, in the Troubleshooting chapter of this manual.
Clear Button
Use the Clear button to:
■
Delete passwords - When pressed by itself for at least one second, the
button deletes any switch console access passwords that you may have
configured. Use this feature if you have misplaced the password and need
console access. This button is provided as a convenience, however if you
are concerned with the security of the switch configuration and operation,
you should make sure the switch is installed in a secure location. This
button can be disabled by a CLI command.
■
Restore the factory default configuration - See Reset Button above.
Console Port
The Console port is used to connect a console to the switch in an out-of-band
connection by using the RJ-45-to-DB9 cable or DB9-to-DB9 serial cable
shipped with the switch. The console can be a PC, a workstation running a
VT-100 terminal emulator, or a VT-100 terminal.
6600-24G and 6600-24G-4XG Switches use the DB9-to-DB9 serial cable; 660024XG, 6600-48G, and 6600-48G-4XG Switches use the RJ-45 to DB cable.
For more information on the out-of-band console connection, see “8.
(Optional) Connect a Management Console” on page 2-28.
1-11
Introducing the Switch
Use the Reset button to:
Introducing the Switch
Back of the Switch
Introducing the Switch
Back of the Switch
Figure 1-9 shows the back of an HP ProCurve 6600 Switch, which is the same
for all 6600 Switches.
Power Supply and
Locator LEDs
pply
AC power connector
Fan tray assembly
Extra power slot
Figure 1-9. Back of an HP ProCurve 6600 Switch
Power Connector
The 6600 Switches do not have a power switch; they are powered on when
connected to an active AC power source. These switches automatically adjust
to any voltage between 100--127 and 200--240 volts and either 50 or 60 Hz.
There are no voltage range settings required.
1-12
Introducing the Switch
Switch Features
HP Procurve 6600 Switches have the following hardware and software
features:
■
Auto-sensing 10/100/1000Base-T RJ-45 ports with Auto-MDIX capability
(6600-24G, 6600-24XG-4XG, 6600-48G, and 6600-48G-4XG Switches).
6600-24G, 6600-24G-4XG, 6600-48G, and 6600-48G-4XG Switches support
IEEE 802.3ab Auto MDIX on all 10/100/1000 twisted-pair ports. As a result,
all connections can be made using straight-through twisted-pair
cables. Cross-over cables are not required, although they will also work.
The pin operation of each port is automatically adjusted for the attached
device: if the switch detects that another switch or hub is connected to
the port, it configures the port as MDI; if the switch detects that an endnode device is connected to the port, it configures the port as MDI-X.
■
Dual-personality ports, in which an RJ-45 connector or SFP (mini-GBIC)
transceiver is supported (6600-24G, 6600-24G-4XG, and 6600-48G
Switches).
■
SFP+ 10-GbE ports (6600-24XG, 6600-24G-4XG, and 6600-48G-4XG
Switches)
■
An auxiliary (USB) port for processing a USB command file or copying
configuration files and firmware to and from the switch. You can execute
an autorun operation for a command file by using a USB flash drive.
■
Plug-and-play networking—all ports are enabled—just connect the
network cables to active network devices and your switched network is
operational.
■
Reversible power-to-port air flow—In a 6600 Switch, the default air flow
direction is from the power to the port side. In a 4-post rack mounting,
you must ensure that the air flow direction is from the cold side to the hot
side of the aisle. If necessary, you can reverse the direction of the fans to
provide adequate switch cooling.
■
Automatic learning of MAC addresses in the address forwarding table; up
to 64,000 addresses with a configurable address aging value are
supported.
■
Automatically negotiated full-duplex operation for the 10/100/1000 RJ-45
ports when connected to other auto-negotiating devices
1-13
Introducing the Switch
Switch Features
Introducing the Switch
Switch Features
Introducing the Switch
■
Easy management of the switch through several available interfaces:
•
Command-line interface (CLI)—a full featured, easy-to-use
console interface used from a VT-100 terminal for out-of-band switch
management or Telnet access to the switch.
•
Web browser interface—an easy-to-use built-in graphical interface
that can be accessed from common web browsers.
•
ProCurve Manager—an SNMP-based, graphical network management tool that you can use to manage your entire network. This
product is included with your new switch.
■
Support for the Spanning Tree Protocol to eliminate network loops
■
Support for up to 2048 IEEE 802.1Q-compliant VLANs so you can divide
the attached end nodes into logical groupings that fit your business needs.
■
Support for many advanced features to enhance network performance—for a description, see the Management and Configuration
Guide, which is on the ProCurve Web site www.procurve.com/manuals.
■
Download of new switch software for product enhancements or bug fixes.
■
Power Save mode—6600-24XG (J9265A), 6600-48G (J9451A) and 660048G-4XG (J9452A) Switches allow you to turn off groups of ports to save
power by entering the CLI savepower command at the global configuration
level.
Ports are grouped into power domains on each 6600 Switch. To enable
Power Save mode, you must enter a power domain number with the
savepower command. The amount of power saved by powering down a
port group is shown in the following tables.
6600-24XG Power Save Mode
Power Domain
Port Range
Power Savings
1
01-08
70 watts
2
09-16
70 watts
3
17-24
70 watts
6600-48G Power Save Mode
Power Domain
1-14
Port Range
Power Savings
1
01-24
35 watts
2
25-48
35 watts
Introducing the Switch
Switch Features
6600-48G-4XG Power Save Mode
Port Range
Power Savings
1
01-24
35 watts
2
25-48
35 watts
3
49-52*
50 watts
Introducing the Switch
Power Domain
* SFP+ ports for 10-Gigabit Ethernet connectivity
Note: The Power Save mode configured with the savepower command is
only a temporary setting, and is not retained after a power cycle or reboot.
For information on the support services provided for 6600 Switches, go to the
HP ProCurve Customer Care Services web site at http://www.procurve.com/
customercare/services/index.htm.
1-15
Introducing the Switch
Introducing the Switch
Switch Features
1-16
Installing the Switch
Included Parts
2
Installing the Switch
Caution
If the switch is shipped in a rack, be sure to use only an HP 10000 Series rack
and mount the switch using the HP 10000 Series Cabinet: Rack Mount Kit
(5070-0145). Otherwise, the switch warranty may be voided.
Included Parts
6600 Switches are shipped with the following components:
■
HP ProCurve Switch: Quick Setup sheet
■
HP ProCurve 6600 Switches: Switch Safety and Regulatory Information
sheet
■
HP ProCurve Switches: General Safety and Regulatory Information
booklet
■
Read Me First for HP ProCurve 6600 Switches
■
Customer Support/Warranty booklet
■
Accessory kit that contains the following items:
•
Two mounting brackets for a 2-post telco rack
•
Eight M4 (8-mm) screws to attach the mounting brackets to a switch
•
Four 12-24 (5/8-inch) number screws to attach the mounting brackets
to a 2-post telco rack
•
Two 10-32 (1/2-inch) screws to attach the mounting brackets to a 4post rack
2-1
Installing the Switch
HP ProCurve 6600 Switches come with an accessory kit that includes the
brackets for mounting the switch in an equipment cabinet (4-post rack) or a
standard 19-inch telco (2-post) rack. The brackets are designed to allow
mounting the switch in a variety of locations and orientations. For other
mounting options, contact your local ProCurve authorized network reseller
or ProCurve representative.
Installing the Switch
Included Parts
Note
To mount a 6600 Switch in a 4-post rack, one of the following accessory
kits, which include the mounting brackets for a 4-post rack, is necessary:
•
HP ProCurve 6600 Switch: 4-Post Rack Mount Kit (J9469A)
•
HP 10000 Series Cabinet: Rack Mount Kit (5070-0145)
In addition, when you install a 6600 Switch in a 4-post rack with the power
side facing the cold aisle, you must also install an air plenum for air
circulation. Use the correct plenum for the size of the switch being
installed. The plenum comes in two sizes:
•
Installing the Switch
•
■
■
The shorter air plenum (J9480A) is used with 6600-24XG, 6600-48G,
and 6600-48G-4XG Switches.
The longer air plenum (J9481A) is used with 6600-24G and 6600-24G4XG Switches.
Console cable:
•
A DB9-to-DB9 console cable and a DB9-to-RJ45 adapter are shipped
with the 6600-24G, 6600-24G-4XG Switches.
•
A DB9-to-RJ45 console cable is shipped with the 6600-24XG, 660048G, and 6600-48G-4XG Switches.
Power cord:
Australia/New Zealand
China
Continental Europe
Denmark
Japan
Switzerland
United Kingdom/Hong Kong/Singapore
United States/Canada/Mexico
South Africa
India
Argentina
Thailand
Brazil
Chile
Taiwan
Israel
■
8120-6810
8120-8707
8120-6811
8120-6814
8120-4753
8120-6815
8120-6809
8120-6812
8120-6813
8120-6813
8120-6869
8121-0668
8121-1069
8120-6980
8121-0974
8121-1035
Jumper cable to connect to a Power Distribution Unit (PDU):
United States/Canada/Mexico/Taiwan/Japan
All other countries
Japan Power
Cord Warning
2-2
8121-1091
8121-1094
Installing the Switch
Included Parts
Installation Precautions
WARNING
Cautions
■
The rack or cabinet should be adequately secured to prevent it
from becoming unstable and/or falling over.
■
Devices installed in a rack or cabinet should be mounted as low as
possible, with the heaviest devices at the bottom and progressively
lighter devices installed above.
■
Do not wall mount a 6600 Switch.
■
When you mount a 6600 Switch:
In a 2-post telco rack, use the rail mounting brackets and screws in
the accessory kit shipped with the switch (5070-6315 or 5070-6316).
•
In an HP 10000 Series cabinet, use the HP 10000 Series Cabinet: Rack
Mount Kit (5070-0145).
•
In a 4-post equipment rack, use the HP Procurve 6600 Switch: 4-Post
Rack Mount Kit (J9469A).
■
Ensure the power source circuits are properly grounded, then use the
power cord supplied with the switch to connect it to the power source.
■
If your installation requires a different power cord than the one supplied
with the switch and power supply, be sure the cord is adequately sized for
the switch’s current requirements. In addition, be sure to use a power cord
displaying the mark of the safety agency that defines the regulations for
power cords in your country. The mark is your assurance that the power
cord can be used safely with the switch and power supply.
■
When installing the switch, the AC outlet should be near the switch and
should be easily accessible in case the switch must be powered off.
■
Ensure the switch does not overload the power circuits, wiring, and overcurrent protection. To determine the possibility of overloading the supply
circuits, add together the ampere ratings of all devices installed on the
same circuit as the switch and compare the total with the rating limit for
the circuit. The maximum ampere ratings are usually printed on the
devices near the AC power connectors.
■
Do not install the switch in an environment where the operating ambient
temperature might exceed 40°C (104°F).
■
Ensure the air flow around the front and back of the switch is not
restricted. Leave at least 7.6 cm (3 inches) for cooling. See Figure 2-5 for
the air flow direction.
2-3
Installing the Switch
•
Installing the Switch
Installation Procedures
Installation Procedures
Overview
Installing the Switch
1.
2-4
Prepare the installation site (page 2-5). Ensure that the physical
environment is properly prepared:
•
Determine the appropriate rack and rail kit for the switch; for
example:
– 2-post telco rack
– 4-post HP 10000 Series cabinet rack
– Other 4-post racking solutions such as an equipment cabinet.
•
Have the correct network cabling ready to connect to the switch.
•
Determine the place where you will mount the switch.
•
Follow all installation precautions described in “Cautions” on page 23.
2.
Verify that the switch passes self-test (page 2-5). Plug the switch into
a power source and observe that the LEDs on the switch’s front panel
indicate correct switch operation. When the self-test is complete, unplug
the switch.
3.
(Optional) Reverse the air flow (page 2-8). The direction of air flow
can be reversed from the default (power to port side) direction by
reversing the fans.
4.
Mount the switch and route the power cords (page 2-11). The switch
can be mounted in a 2-post telco rack or in a 4-post rack or equipment
cabinet.
5.
Connect power to the switch (page 2-24). Once the switch is mounted,
plug it into the nearby main power source.
6.
(Optional) Install SFP (mini-GBIC) or SFP+ transceivers (page 224). The switch has four slots for installing transceivers. Depending on
where you mount the switch, it may be easier to install the transceivers
first. You can install and remove transceivers while the switch is powered
on.
7.
Connect the network cables (page 2-27). Using the appropriate
network cables, connect network devices to the switch ports.
8.
(Optional) Connect a management console to the switch (page 228). You may need to modify the default configuration (such as configure
an IP address) to manage a switch using a web browser from an SNMP
network management station or through a Telnet session. These configuration changes can be made easily by connecting a PC with the console
cable to the switch’s Console port.
Installing the Switch
Installation Procedures
The switch is now fully installed. Refer to the appropriate section in this
chapter for detailed information on any installation step.
1. Prepare the Installation Site
Cabling Infrastructure - Ensure the cabling infrastructure meets the
necessary network requirements. See Appendix B “Cabling and Technology
Information” for detailed information.
Installation Location - Before installing the switch, plan its location and
orientation relative to other devices and equipment:
In the front of the switch, leave at least 7.6 cm (3 inches) of space for the
twisted-pair fiber-optic cabling and for cooling. See Figure 2-5 for the air
flow direction.
■
In the back of the switch, leave at least 3.8 cm (1 1/2 inches) of space for
the power cord and cooling.
2. Verify the Switch Passes Self-Test
Before mounting the switch in its network location, you should first verify it
is working properly by plugging it into a power source and verifying it passes
self-test.
1.
Connect the power cord shipped with the switch to the power connector
on the back of the power supply, and then into a properly grounded
electrical outlet.
.
Figure 2-1. Connecting the Power Cord
2-5
Installing the Switch
■
Installing the Switch
Installation Procedures
6600 Switches do not have a power switch. They are powered on when
the power cord is connected to the power supply and to a power source.
For safety, the power outlet should be located near the switch installation.
The power supply cannot be removed when the power cord is connected.
The switch automatically adjusts to any voltage between 100-127 and 200240 volts and either 50 or 60 Hz. No voltage range settings are required.
Installing the Switch
If your installation requires a different power cord than the one supplied
with the switch, be sure to use a power cord displaying the mark of the
safety agency that defines the regulations for power cords in your country.
The mark is your assurance that the power cord can be used safely with
the switch.
2.
Check the LEDs on the switch as in “LED Behavior During Self-Test” on
page 2-7. When the switch is powered on, it performs a diagnostic selftest. The self-test takes approximately 50 seconds to complete.
Switch port LEDs
Power and
Fault LEDs
Test LED
Figure 2-2. Checking the LEDs on the 6600-24G and 6600-24G-4XG
Switch port LEDs
Power and
Fault LEDs
Test LED
Figure 2-3. Checking the LEDs on the 6600-24XG
2-6
Installing the Switch
Installation Procedures
Power and
Fault LEDs
Test LED
Switch port LEDs
3.
When the self-test finishes, disconnect the power cord from the power
source.
LED Behavior During Self-Test
During the self-test:
■
Status, LED Mode and port LEDs stay on during most of the test.
■
Most of the LEDs go off and then may come on again during phases of the
self-test.
■
The Test LED stays on for the duration of the self-test.
If the self-test completes successfully:
■
The Power and Fan Status LEDs remain on.
■
The Fault and Test LEDs go off.
■
The port LEDs on the front of the switch go into their normal
operational mode:
•
If the ports are connected to active network devices, the LEDs behave
according to the LED Mode selected. In the default view mode (Link),
the LEDs should be on.
•
If the ports are not connected to active network devices, the LEDs
stay off.
2-7
Installing the Switch
Figure 2-4. Checking the LEDs on the 6600-48G and 6600-48G-4XG
Installing the Switch
Installation Procedures
If the self-test does not complete correctly, the LED display will be different
than what is described above; for example:
■
The Fault and Test LEDs stay on for more than 60 seconds.
■
The Fault and Test LEDs start blinking.
Refer to Chapter 4, “Troubleshooting” for diagnostic help.
3. (Optional) Reverse the air flow
Installing the Switch
In a 4-post rack mounting, you must ensure that the air flow direction in a 6600
Switch is from the cold side to the hot side of the aisle. If necessary, reverse
the direction of the fans to provide adequate switch cooling. For example,
reversing the air flow direction is required in a port-side mounting in which
the port side of a 6600 Switch faces the cold aisle and the air flow is from the
power (hot aisle) to the port (cold aisle) side.
The default air flow direction is from the power to the port side as shown in
Figure 2-1.
Power Side
Port Side
Figure 2-5. Default air-flow direction in 6600 Switches is from power to ports.
Note
Although reversing the direction of air flow on a switch is a hot swap operation, HP ProCurve recommends that you perform the operation after powering
down the switch.
If you remove the fan tray while a switch is running, you have only three
minutes before the switch powers down the ports. To re-enable the ports, you
must reset the switch either by pressing the Reset button or powering off and
on the switch.
2-8
Installing the Switch
Installation Procedures
Important
If you reverse the direction of the fans to provide adequate switch cooling,
be sure to record the preferred air-flow direction for a 6600 Switch by using
the system fan-pref-airflow-dir { port-to-power | power-to-port } CLI command at
the global configuration level. A Syslog message is then generated if the fan
tray is installed in the wrong direction in the future.
To reverse the direction of air flow:
1.
Remove the fan tray assembly
a.
Unscrew the retaining screws
b.
Holding the two retaining screws, pull the fan tray assembly straight
out.
Fan tray
assembly
2.
Using a T10 screwdriver, remove the four retaining screws.
3.
Lift the fan assembly from the fan tray high enough to turn it over.
Retaining
Screw
Installing the Switch
Retaining
Screw
Rotating fan
tray
2-9
Installing the Switch
Installation Procedures
4.
Rotate the fan assembly 180 degrees and replace the fan assembly into
the fan tray, sheet metal side up.
Installing the Switch
Rotated
position
5.
Take care to align the sensing pin between the two sensors and replace
the 4 retaining screws.
Sensors
Sensing pin
2-10
6.
Replace the fan tray assembly into the switch.
7.
Tighten the retaining screws.
Retaining
Screw
Installing the Switch
Installation Procedures
4. Mount the Switch and Route the Power Cords
After a switch passes the self-test, it is ready to be mounted in a stable location.
Rack or Cabinet Mounting
WARNING
For safe operation, please read the mounting precautions on page 2-3
before mounting a switch.
6600 Switches are designed to be mounted in any of the following racking
configurations:
■
Secure the rack in accordance with the manufacture’s safety guidelines.
See “Mounting a 6600 Switch with the 4-Post Rack Mount Kit” on page 212 for detailed information.
■
4-post rack in an HP 10000 Series cabinet using the HP 10000 Series
Cabinet: Rack Mount Kit (5070-0145).
See “Mounting a 6600 Switch with the 4-Post Rack Mount Kit” on page 212 for detailed information.
■
2-post EIA-standard 19-inch telco rack, using a balanced or center
mounting orientation. Flush mounting in a 2-post rack is not supported.
See “Mounting the Switch in a 2-Post Telco Rack” on page 2-22 for detailed
information.
Rack Mounting
Notes
The four 12-24 (5/8 inch) screws shipped in the accessory kit with a 6600
Switch have the correct threading for standard EIA/TIA open 19-inch (2-post)
racks. If you are installing the switch in a 4-post rack, such as a server cabinet,
use the clips and screws that are provided with the cabinet instead of the 1224 screws that are shipped with the switch.
The direction of air flow in a 6600 Switch is set by default from the power to
the port side. When you mount a 6600 Switch with the port side or power side
facing the cold aisle, you must ensure that the air flow direction is from the
cold side to the hot side of the aisle. If necessary, reverse the direction of the
fans to provide adequate switch cooling as described in “3. (Optional) Reverse
the air flow” on page 2-8.
2-11
Installing the Switch
4-post rack in an equipment cabinet using the HP Procurve 6600 Switch:
4-Post Rack Mount Kit (J9469A).
Installing the Switch
Installation Procedures
Mounting a 6600 Switch with the 4-Post Rack Mount Kit
6600 Switches are designed to be mounted in a 4-post rack. To mount a 6600
Switch in a 4-post rack in an equipment cabinet, you must use the HP Procurve
6600 Switch: 4-Post Rack Mount Kit (J9469A).
To mount a 6600 Switch in a 4-post rack, follow these steps. Refer to the HP
ProCurve 6600 Switch: 4-Post Rack Mount Kit Installation Instructions for
additional information.
Installing the Switch
1.
Power Cord
Note
Determine the height at which you want to mount the switch in the rack,
and whether the switch ports will face the hot-aisle or the cold-aisle side
of an equipment cabinet. Unpack the contents of the 4-Post Rack Mount
Kit (J9469A) required for your 4-post mounting.
When you mount a 6600 switch in a 4-post equipment rack, remember that if
the switch ports face in the same direction as the network ports on the servers,
you may have to wrap the power cord over the top of the switch to reach the
opposite side of the rack where the power source is.
2.
Install the two rails in the 4-post rack.
Align the mounting holes at each end of a rail with the holes on the front
and back rack posts so that they are at the same height.
For a square-hole rack, leave the pre-installed square-hole pin in each rail.
Unscrew and re-install the 10-32 screw on each rail to secure it to the rack.
(For a square-hole Panduit rack with grounding strips, unscrew the 10-32
screws and install the green grounding screws (5183-2026) shipped with
the 4-Post Rack Mount Kit.)
For a round-hole rack, install the alternate round-hole pins that are
shipped with the kit to set the rails in the rack. Install the alternate roundhole screws to secure the rails. (The round-hole screws have a different
shoulder than the square-hole screws.)
Install a 10-32 shoulder screw in the top hole.
Use an alignment pin in the bottom hole to
align each rail.
Figure 2-6. Installing Rails in a 4-Post Rack
2-12
Installing the Switch
Installation Procedures
3.
Install the mounting brackets on the switch. (The mounting brackets are
shipped with the HP Procurve 6600 Switch: 4-Post Rack Mount Kit.)
If you install a 6600 Switch with the power side facing the cold aisle, you
must install the switch as shown in Option 1 or 2 to leave space for an air
plenum.
If you install a 6600 Switch with the port side facing the cold aisle, you
must install the switch as shown in Option 3 without an air plenum.
Depending on whether you install the switch in a power-side or port-side
mounting, locate the set of holes where you want to attach the mounting
brackets. Use eight M4 8mm screws (four per bracket) to attach both
brackets.
Option 1- Power-side mounting for 6600-24XG,
6600-48G, and 6600-48G-4XG Switches (24-inch
depth products)
Option 2 - Power-side mounting for
6600-24G and 6600-24G-4XG Switches
(20-inch depth products)
Option 3 - Port-side mounting for all 6600
Switches
Space for longer
air plenum
Space for shorter
air plenum
Bracket
Mounting
screws
Position the bracket in a power-side mounting according to the length of your 6600 Switch.
Figure 2-7. Attaching the Mounting Brackets on a 6600 Switch
4.
Slide the switch onto the rails until the switch is fully inserted and the
mounting hole in each bracket lines up with the mounting holes in the
rack.
Power-side mounting for a 6600 Switch (Option 1 or 2)
Port-side mounting for a 6600 Switch (Option 3)
Mounting Holes on Brackets
Figure 2-8. Installing a 6600 Switch in a 4-Post Rack
2-13
Installing the Switch
Note that in a power-side mounting, you must attach the brackets in
different positions according to the length of a 6600 Switch. The brackets
will extend beyond the back of the switch.
Installing the Switch
Installation Procedures
5.
Caution
Connect the power cords to the switch and route the cords through the
rack.
a.
Connect each power cord to a power supply and secure the cord with
a velcro strap. Route each cord through the rack.
b.
Install the air plenum in a power-side mounting.
Make sure the air flow is not restricted in the front or back of the switch. Figure
2-1 on page 2-8 shows the default air flow direction from power to ports.
If you are installing a 6600 Switch with the port side facing the cold aisle,
no air plenum is necessary. Continue with Step 6.
Installing the Switch
If you are installing a 6600 Switch with the power side facing the cold aisle,
an air plenum is necessary. Use the correct plenum for the size of the
switch being installed. The plenum comes in two sizes. Both plenums are
installed in the same way.
•
J9480A is the shorter air plenum for 6600-24XG, 6600-48G, and
6600-48G-4XG Switches.
•
J9481A is the longer air plenum for 6600-24G and 6600-24G-4XG
Switches.
After you connect and route the power cords, slide the plenum into the
rails until the plenum is fully inserted and the two mounting holes align
with the mounting holes on the bracket and rack.
In a power-side mounting, slide
the plenum into the rails.
Power-side mounting for a 6600 Switch
(Option 1 or 2)
Figure 2-9. Installing an Air Plenum
2-14
Installing the Switch
Installation Procedures
Figure 2-10 and Figure 2-11 show different ways in which you can route a
power cord through the plenum in a power-side mounting.
Route the power cord through the
front groove in the plenum.
Installing the Switch
Figure 2-10. Routing a Power Cord Through the Front of the Plenum
Route the power cord through the plenum opening, and up and
over the switch in either a single- or stacked-switch installation.
When you mount a pair of 6600 switches so that one is on top of
the other, the opening in the bottom of each plenum allows you to
route the power cord up and through it.
Figure 2-11. Routing a Power Cord Up and Over a 6600 Switch
2-15
Installing the Switch
Installation Procedures
6.
Secure the switch to the rack.
Use two 10-32 screws (one for each bracket) to tighten the plenum and
mounting bracket (in a power-side mounting) or only the bracket (in a
port-side mounting) to the rack.
Installing the Switch
Power-side mounting for a 6600 Switch (Option 1 or 2)
Port-side mounting for a 6600 Switch (Option 3)
Install and tighten a 10-32 screw in the
middle hole.
Figure 2-12. Securing a 6600 Switch to the Rack
Mounting a 6600 Switch in an HP 10000 Series Cabinet
6600 Switches can also be mounted in an HP 10000 Series cabinet using the
HP 10000 Series Cabinet: Rack Mount Kit (5070-0145).
To mount a 6600 Switch with this rack mount kit, follow the procedure below.
Refer to the HP 10000 Series Cabinet: Rack Mount Kit Installation Instructions for additional information.
1.
HP 10000
Series Notes
Determine the height at which you want to mount the switch in the rack,
and whether the switch ports will face the hot-aisle or the cold-aisle side
of an equipment cabinet. Unpack the contents of the Rack Mount Kit
(5070-0145) required for your HP 10000 Series 4-post mounting.
When you mount a 6600 switch in an HP 10000 Series cabinet rack, remember
that if the switch ports face in the same direction as the network ports on the
servers, you may have to wrap the power cord over the top of the switch to
reach the opposite side of the rack where the power source is.
Use the clips and screws that are shipped with the cabinet in place of the 1224 screws that are shipped with the switch. After you determine the height at
which you want to mount the switch in the cabinet, install the four clips in the
appropriate post holes.
2-16
Installing the Switch
Installation Procedures
2.
Install the two rails (shipped in the rack mount kit) in the HP 10000 Series
cabinet.
With a posi-drive screwdriver, install two M6 (16-mm) screws and two M6
cage nuts (shipped in the rack mount kit) to attach each rail to the cabinet
rack as shown in the Figure 10. Ensure that the rails are at the same height
on each post.
Devices installed in a rack or cabinet should be mounted as low as
possible, with the heaviest device on the bottom and progressively lighter
devices installed above it.
Install two M6 screws to attach
each rail.
Installing the Switch
Figure 2-13. Attaching Rails to an HP 100000 Series Cabinet Rack
3.
Install the hold-down and mounting brackets on the switch. (The holddown and mounting brackets are shipped in the HP 10000 Series Cabinet:
Rack Mount Kit.)
Use a #1 Phillips (cross-head) screwdriver to attach the hold-down
brackets (shipped in the rack mount kit) and the mounting brackets
(shipped with the switch) with the M4 (8 mm) flat-head screws (shipped
with the switch).
Install a hold-down bracket with two M4 screws.
Install a mounting bracket with four M4 screws.
Figures 11, 12, and 13 show where to install the hold-down and mounting
brackets on a 6600 Switch chassis when either the port side or the power
side face the cold aisle.
2-17
Installing the Switch
Installation Procedures
Option 1 - Power-side mounting for 6600-24XG, 6600-48G, and 6600-48G-4XG Switches (24-inch depth products)
Installing the Switch
Space for shorter
air plenum
Install each hold-down bracket in the middle of the
switch with two M4 screws so that the bracket holes
are near the top of the switch.
In an Option 1 power-side mounting, install each mounting bracket with four M4
screws as shown here. The brackets will extend from the back of the switch to
leave space for the shorter air plenum.
Figure 2-14. Installing Hold-down and Mounting Brackets on a 6600 Switch:
Option 1 - Power-Side Mounting
Option 2 - Power-side mounting for 6600-24G and 6600-24G-4XG Switches (20-inch depth products)
Space for longer
air plenum
Install each hold-down bracket in the middle of the
switch with two M4 screws so that the bracket holes
are near the top of the switch.
In an Option 2 power-side mounting, install each mounting bracket with four M4
screws as shown here. The brackets will extend from the back of the switch to
leave space for the longer air plenum.
Figure 2-15. Installing Hold-down and Mounting Brackets on a 6600 Switch:
Option 2 - Power-Side Mounting
2-18
Installing the Switch
Installation Procedures
Option 3 - Port-side mounting for all 6600 Switches
Install each mounting bracket with four M4 screws so that the end
of the mounting bracket is flush with the front panel of the 6600
Switch.
Figure 2-16. Installing Hold-down and Mounting Brackets on a 6600 Switch:
Option 3 - Port-Side Mounting
4.
Install M6 cage nuts (shipped in the rack mount kit) in the appropriate
post holes for the switch you are installing. Then slide the switch into the
rails until the switch is fully inserted and the mounting hole in each
bracket lines up with the cage nut in each rack post.
•
If you are installing a 6600 Switch with the port side facing the cold
aisle, no air plenum is necessary.
i.
Install two M6 cage nuts in the appropriate post holes. Then slide
the switch into the rack and secure it using two M6 screws (one
screw and cage nut per bracket).
ii.
Connect each power cord to the switch and secure it with a velcro
strap. Then route each cord through the rack.
In a port-side-front mounting, slide the 6600 Switch into the rails.
Install and tighten an M6 screw in each mounting bracket to
secure the 6600 Switch.
Figure 2-17. Installing a 6600 Switch in a Port-Side HP 10000 Series Mounting
2-19
Installing the Switch
Install each hold-down bracket with two M4 screws at the back
of the switch. Ensure that the end of the bracket is flush with the
end of the switch and does not hang over.
No air plenum is used in a port-side mounting.
Installing the Switch
Installation Procedures
•
If you are installing a 6600 Switch with the power side facing the cold
aisle:
i.
Install an M6 cage nut in the appropriate hole on each rack post.
Then slide the switch into the rack until the switch is fully inserted
and the mounting hole in each bracket lines up with the cage nut
in each rack post.
ii.
Connect each power cord to a power supply and secure the cord
with a velcro strap. Then route each cord through the rack. (See
“Routing a power cord” on page 2-21 for examples.)
Installing the Switch
iii. Install the air plenum. (See “Installing an Air Plenum” on page 221 for more information.)
In a power-side-front mounting (Option 1 or 2), slide the switch and plenum into the rails.
Figure 2-18. Installing a 6600 Switch in a Power-Side HP 10000 Series Mounting
with an Air Plenum
iv. Use two M6 screws (one screw for each bracket) to tighten the
plenum and the mounting bracket to the rack.
In a power-side-front mounting, install and
tighten an M6 screw on each side of the
plenum with the cage nut in the rack post.
(In a port-side-front mounting, no plenum
is used.)
Figure 2-19. Securing a 6600 Switch in an HP 10000 Series Mounting
2-20
Installing the Switch
Installation Procedures
Routing a power cord. Figure 10 shows different ways in which you can
route a power cord through the plenum in a power-side mounting.
Route the power cord through the
front groove in the plenum.
Route the power cord through the plenum opening,
and up and over the switch in either a single- or
stacked-switch installation.
Installing an Air Plenum. Be sure to use the correct plenum for the size of
the 6600 Switch being installed. The plenum comes in two sizes. Both plenums
are installed in the same way.
■
J9480A is the shorter air plenum for 6600-24XG, 6600-48G, and 660048G-4XG Switches.
■
J9481A is the longer air plenum for 6600-24G and 6600-24G-4XG
Switches.
Slide the plenum into the rails until the plenum is fully inserted and the
mounting hole on each side lines up with the with the cage nut in the rack
post.
2-21
Installing the Switch
Figure 2-20. Routing a Power Cord Through the Front of the Plenum or Up and Over
the Switch
Installing the Switch
Installation Procedures
Mounting the Switch in a 2-Post Telco Rack
The accessory kit shipped with a 6600 Switch contains the parts used to mount
the switch in a 2-post telco rack:
■
Two mounting brackets for a 2-post telco rack
■
Eight M4 (8 mm) screws to attach the mounting brackets (four screws per
bracket)
■
Four 12-24 (5/8 inch) screws to attach the mounting brackets to a 2-post
telco rack (two screws per post)
Installing the Switch
The 12-24 screws shipped with the switch have the correct threading for
standard EIA/TIA open 19-inch racks.
Although the 2-post mounting brackets have multiple mounting holes and can
be rotated for different mounting options, HP ProCurve recommends that you
always mount a 6600 Switch in a 2-post telco rack in the balanced position
shown in Figure 2-21.
Figure 2-21. Mounting a 6600 Switch in 2-Post Rack
To mount a 6600 Switch in a 2-post telco rack, follow these steps:
1.
Using a #1 Phillips (cross-head) screwdriver, install the 2-post mounting
brackets at the center of the switch with the M4 (8 mm) screws. Use four
screws per bracket.
2.
Determine the height at which you want to mount the switch in the rack
and with the help of another person, lift the switch into place.
3.
Insert and tighten the 12-24 (5/8-inch) screws to secure each 2-post
bracket to the rack. Use two screws per post.
4.
Connect the power cords to the switch and secure the cords with a velcro
strap (as shown Figure 2-22) as follows:
a.
2-22
Connect the power cord to the power supply.
Installing the Switch
Installation Procedures
b.
Make a small loop in the power cord, approximately 3 to 4 inches and
insert the velcro strap through the loop and through the handle on
power supply.
c.
Insert the end of the velcro strap through the slot in the other end of
the velcro strap.
d.
Tighten the velcro strap around the loop in the power cord.
e.
Wrap the excess velcro strap around the power cord loop and through
the power supply handle a couple of times and secure the velcro strap
to itself.
b.
c.
d.
Installing the Switch
a.
e.
Figure 2-22. Connecting and Securing a Power Cord to a 6600 Switch
2-23
Installing the Switch
Installation Procedures
5. Connect the Switch to a Power Source
Plug the power cord into the power connector on the back of the switch and
into a nearby AC power source.
Re-check the LEDs during the self-test as described in “LED Behavior” on page
2-7.
6. (Optional) Install Transceivers
Installing the Switch
You can install or remove a transceiver from a transceiver slot without having
to power off the switch. A 6600 Switch supports only HP ProCurve transceivers, including:
Notes
■
1-Gigabit SFP (mini-GBIC)
■
10-Gigabit SFP+
■
On 6600-24G, 6600-24G-4XG, and 6600-48G Switches, the four SFP slots
are shared with 10/100/1000Base-T RJ-45 ports. If an SFP transceiver is
installed in a slot, the associated RJ-45 port is disabled and cannot be used.
■
An SFP+ (10-GbE) transceiver is not supported in an SFP (1-Gigabit) slot
and does not function. The following event log message is generated:
“Transceiver type not supported by this port”.
Similarly, an SFP (1-Gigabit) transceiver is not supported in an SFP+ (10GbE) slot. The same event log message is generated, and the transceiver
does not function.
■
2-24
Ensure the network cable is NOT connected when you install or remove
a transceiver unless you are using a Direct Attach Cable (DAC).
Installing the Switch
Installation Procedures
Note
Direct attach cables (DAC) are lowcost 10-GbE connectivity options
consisting of a one, three, or seven
meter cable with SFP+ connectors
permanently attached to each end.
Caution
Use only supported genuine HP ProCurve transceiver accessories with your
switch. Non-ProCurve transceiver accessories are not supported, and their
use may result in product malfunction. If you need additional HP ProCurve
transceiver accessories, contact your HP ProCurve Networking Sales and
Service Office or authorized dealer.
Installing a Transceiver
Hold a transceiver by its sides and gently insert it into any of the transceiver
slots on the switch until the transceiver clicks into place.
10-GbE
transceiver
Figure 2-24. Installing a Transceiver
WARNING
The HP ProCurve optical transceivers are Class 1 laser devices. Avoid
direct eye exposure to the beam coming from the transmit port.
2-25
Installing the Switch
Figure 2-23. One meter DAC
Installing the Switch
Installation Procedures
■
Installing the Switch
■
SFP transceivers are supported in the following slots on 6600 Switches:
•
6600-24G and 6600-24G-4XG: Slots 21S, 22S, 23S, and 24S
•
6600-48G: Slots 45S, 46S, 47S, and 48S
•
6600-24XG and 6600-48G-4XG Switches do not support SFP transceivers.
SFP+ transceivers are supported in the following slots on 6600 Switches:
•
6600-24XG: All slots (1 to 24)
•
6600-24G-4XG: Slots 25, 26, 27, and 28
•
6600-48G-4XG: Slots 49, 50, 51, and 52
•
6600-24G and 6600-48G Switches do not support SFP+ transceivers.
After you install a transceiver, if the switch recognizes the transceiver, the
Mode LED turns on solid for 2 seconds and then goes to normal operation.
Tr a n s c e i v e r
Usage Notes
After you insert an SFP or SFP+ transceiver, do not remove the transceiver
until the Mode LED turns off.
If you insert a faulty or non-ProCurve transceiver, the Fault LED and Link LED
of the affected port displays a slow flash for situations that cannot be fixed by
the customer.
If you insert a transceiver that is functional but not supported (such as an SFP
transceiver in an SFP+ slot or an SFP+ transceiver in an SFP slot), the Link
LED of the affected port displays an orange fast flash. Event log messages are
generated. For example, this error condition occurs when an inserted transceiver is not supported by the switch software, is the wrong revision, or is the
wrong transceiver type.
Removing a Transceiver
Important
Be sure to disconnect the network cable from a transceiver before you remove
the transceiver from the switch.
An HP ProCurve transceiver may have any of the following release mechanisms:
2-26
■
A plastic tab on the bottom of the transceiver
■
A plastic collar around the transceiver
■
A wire bail
Installing the Switch
Installation Procedures
To remove a transceiver that has a plastic tab or plastic collar, push the tab or
collar toward the switch until you see the transceiver release from the switch
(you will see it move outward), and then pull the transceiver from the slot.
To remove a the transceiver that has a wire bail, lower the bail until it is
horizontal, and then using the bail, pull the transceiver from the slot.
7. Connect the Network Cables
Connect the network cables, described under “Cabling Infrastructure” (page
2-5), from the network devices or your patch panels to the fixed RJ-45 ports
on the switch or to any transceivers you have installed in the switch.
To connect: Push the RJ-45 plug into the
RJ-45 jack until the tab on the plug
clicks into place. When power is on for
the switch and the connected device,
the Link LED for the port should light
to confirm a powered-on device (for
example, an end node) is at the other
end of the cable.
If the Link LED does not go on when the
network cable is connected to the port,
go to “Using LEDs to Diagnose an Error
Condition” on page 5-4 to troubleshoot
the problem.
To disconnect: Press the small tab on
the plug and pull the plug out of the
jack.
RJ-45
connector
Unshielded twisted-pair cable:
• Category 3, 4, or 5 for 10 Mbps ports
• Category 5 or better for 100 Mbps ports
• Category 5e or better for 1000 Mbps ports
Maximum distance: 100 meters
Figure 2-25. Connecting RJ-45s
Connecting Cables to Transceivers
Note
Each of the four SFP (mini-GBIC) slots is shared with an associated 10/100/
1000Base-T RJ-45 port. If an SFP transceiver is installed in a slot, the associated RJ-45 port is disabled.
If you have any transceivers installed in the switch, the type of network
connections you will need to use depends on the type of transceivers you have
installed. See Appendix B, “Cabling and Technology Information”, for information on transceiver cabling.
2-27
Installing the Switch
Using the RJ-45 Connectors
Installing the Switch
Installation Procedures
Installing the Switch
For transceiver ports, and in general for
all the switch ports, when a network
cable from an active network device is
connected to the port, the port LED for
that port should go on. If the port LED
does not go on when the network cable
is connected to the port, see “Using
LEDs to Diagnose an Error Condition”
on page 5-4 in chapter 5, “Troubleshooting”.
Figure 2-26. Connecting an LC Fiber
Optic Connector
8. (Optional) Connect a Management Console
6600 Switches have a full-featured, easy-to-use console interface for
performing switch management tasks including:
■
■
■
■
■
Monitor switch and port status, and network activity statistics.
Modify the switch’s configuration to optimize switch performance,
enhance network traffic control, and improve network security.
Read the event log and access diagnostic tools to help in troubleshooting.
Download new software to the switch.
Add passwords to control access to the switch from the console, web
browser interface, and network management stations.
After you install and power up a 6600 Switch, you must use the out-of-band
console connection to minimally configure the switch with an IP address and
subnet mask before you can use a networked (in-band or out-of-band) connection to manage the switch. The minimal switch configuration is described in
“Minimal Configuration Through the Out-of-Band Console Connection” on
page 3-2.
To connect a console to the switch, use the console cable shipped with the
switch and connect a PC or VT-100 terminal to the Console serial port. The PC
or terminal then functions as a management console connected directly to the
switch.
You can use the Console port only for out-of-band management; it cannot be
used for a Telnet connection.
2-28
Installing the Switch
Installation Procedures
Configuring the Management Console
To set up a console to manage the switch through the Console port connection:
1.
Configure the PC terminal emulator as a DEC VT-100 (ANSI) terminal or
use a VT-100 terminal.
2.
Configure the terminal with the following settings:
A baud rate from 1200 to 115200 (the switch senses the speed)
•
8 data bits, 1 stop bit, no parity, and flow control set to Xon/Xoff
•
For the Windows Terminal program, disable (uncheck) the “Use
Function, Arrow, and Ctrl Keys for Windows” option.
•
For the Hilgraeve HyperTerminal program, select the “Terminal keys”
option for the “Function, Arrow, and Ctrl Keys act as” parameter.
If you use a management console with different configuration settings, be sure
to reconfigure the settings on both the terminal and the switch in the following
order so that both configurations are compatible:
1.
Reconfigure the switch and save the new settings.
2.
Reconfigure the terminal and save the new settings.
3.
Reboot the switch and re-establish the console session.
Setting Up an Out-of-Band Console Connection
To access a 6600 Switch through an out-of-band (Console port) connection,
follow these steps:
1.
Configure the management console as described in “Configuring the
Management Console” on page 2-29.
2.
For a direct console connection, connect the PC or terminal to the
Console serial port using the console cable shipped with the switch:
•
A DB9-to-DB9 console cable and a DB9-to-RJ45 adapter are shipped
with the 6600-24G, 6600-24G-4XG Switches.
•
A DB9-to-RJ45 console cable is shipped with the 6600-24XG, 660048G, and 6600-48G-4XG Switches. For the DB9-to-RJ45 console cable
pinouts, see “RJ45-to-DB9 Console Cable Pinouts” on page 2-31.
2-29
Installing the Switch
•
Installing the Switch
Installation Procedures
If your PC or terminal has a 25-pin serial connector, first attach a 9-pin to
25-pin straight-through adapter at one end of the console cable.
Console Port
RJ45-to-DB9 Console Cable
shipped with 6600-24XG, 660048G, and 6600-48G-4XG Switches
Installing the Switch
DB9-to-DB9 Console Cable
shipped with 6600-24G and
6600-24G-4XG Switches
To a PC running a terminal
emulator program or a
VT-100 terminal
Figure 2-27. Connecting the Cable for a Direct Console Connection
Important
2-30
3.
Power on the management console (terminal or PC). If you are using a
PC, start the PC terminal program.
4.
For a direct console connection through the Console port:
a.
Press [Enter] two or three times to display the copyright page and the
message “Press any key to continue”.
b.
Press any key to display the switch console command (CLI) prompt;
for example: ProCurve Switch 6600-24G#
c.
Continue the console session to configure the switch by following the
procedure in “Minimal Configuration Through the Out-of-Band
Console Connection” on page 3-2.
You must use the out-of-band console connection to minimally configure the
switch with an IP address and subnet mask before you can use an in-band or
out-of-band networked connection to manage the switch. Continue with
“Recommended Minimal Configuration” on page 3-1 for more information.
Installing the Switch
Installation Procedures
RJ45-to-DB9 Console Cable Pinouts. A console cable may have an RJ-45
male connector on one end and a DB-9 female connector on the other end.
Table 2-16 describes the mapping of the RJ-45 to DB-9 pins.
12345678
5
4
9
3
8
2
7
1
6
Installing the Switch
12345678
Figure 2-28. RJ-45 to DB-9 Pinouts
Table 2-1.
Mapping of RJ-45 to DB-9
RJ-45 (Signal reference from Chassis
DB-9 (Signal reference from PC)
Reserved
1
8
CTS
Reserved
2
6
DSR
TXD
3
2
RXD
Reserved
4
1
DCD
GND
5
5
GND
RXD
6
3
TXD
Reserved
7
4
DTR
Reserved
8
7
RTS
9
RI
2-31
Installing the Switch
Sample Network Topology
Sample Network Topology
An industry-standard building block approach requires that applications can
be adapted to a common server environment. Virtualization of these resources
allows for improved scaling, flexibility, and efficient use of resources, while
delivering seamless interoperability.
Installing the Switch
In such a model, the server/access layer of a network infrastructure can be
completely standardized and continuously deployed without regard to application requirements.
Gigabit Fiber Cable
6600 Switch
6600 Switch
Servers
Servers
Servers
Servers
Figure 2-29. Sample Topology
2-32
Gigabit Fiber Cable
Getting Started With Switch Configuration
Recommended Minimal Configuration
3
Getting Started With Switch Configuration
This chapter is intended as a guide for using the console Switch Setup screen
to quickly assign an IP (Internet Protocol) address and subnet mask to the
switch, set a Manager password and, optionally, configure other basic
features.
For more information on using the switch console and the other switch
management interfaces: the web browser interface and the SNMP
management tool, ProCurve Manager, please see the Management and
Configuration Guide, which is on the ProCurve Web site at
www.procurve.com/manuals.
Recommended Minimal Configuration
To manage the switch through a networked (in-band data port or out-of-band
management port) connection, you must first configure the switch with an IP
address and subnet mask compatible with your network.
Also, you should configure a Manager password to control access privileges
from the console and web browser interface. Other parameters in the Switch
Setup screen can be left at their default settings or you can configure them
with new values.
You can configure many other switch features through the switch’s console
interface to:
■
Optimize switch performance.
■
Enhance control of network traffic.
■
Improve network security.
3-1
Getting Started With Switch
Configuration
In the factory default configuration, the switch has no IP (Internet Protocol)
address and subnet mask, and no passwords. In this state, it can be managed
only through a direct console connection.
Getting Started With Switch Configuration
Minimal Configuration Through the Out-of-Band Console Connection
After you configure an IP address on the switch, you can manage these
features more conveniently in any of the following ways:
■
A remote Telnet session
■
A web browser interface
■
An SNMP network management station running a network management
program, such as ProCurve Manager.
For a list of switch features available with and without an IP address, refer to
“How IP Addressing Affects Switch Operation” in the Management and
Configuration Guide at www.procurve.com/manuals.
For more information on IP addressing, refer to “IP Configuration” in the
Management and Configuration Guide.
Note
By default, the switch is configured to acquire an IP address configuration
from a DHCP or Bootp server. To use DHCP/Bootp instead of the manual
configuration method described in “Minimal Configuration Through the Outof-Band Console Connection”, see “DHCP/Bootp Operation” in the
Management and Configuration Guide at www.procurve.com/manuals.
Getting Started With Switch
Configuration
Minimal Configuration Through the Outof-Band Console Connection
The quickest and easiest way to minimally configure the switch for networked
management and password protection is to use the direct (out-of-band)
connection through the Console port to start a console session and access the
Switch Setup screen.
3-2
1.
Configure a management console as described in “Configuring the
Management Console” on page 2-29.
2.
Set up an out-band console connection through the Console port by
following the procedure described in “Setting Up an Out-of-Band Console
Connection” on page 2-29. The 6600 command-line prompt should e
displayed on the console screen with the switch model number; for
example:
ProCurve 6600-24G Switch#
3.
At the prompt, enter the setup command to display the Switch Setup
screen. The following illustration shows the Setup screen with the default
settings.
Getting Started With Switch Configuration
Minimal Configuration Through the Out-of-Band Console Connection
58
6600-24G
Pr oCurve Switch
6600-24G
4.
Use the [Tab] key to select the Manager Password field and enter a manager
password of up to 16 characters.
5.
[Tab] to the IP Config (DHCP/Bootp) field and use the Space bar to select the
Manual option.
6.
your network.
7.
[Tab] to the Subnet Mask field and enter the subnet mask used for your
network.
8.
Press [Enter], then [S] (for Save).
The following fields are displayed in the Setup screen. For more information
on these fields, refer to the Management and Configuration Guide at
www.procurve.com/manuals:
Switch Setup Parameter Default
System Name
blank
Optional; up to 25 characters, including spaces
System Contact
blank
Optional; up to 48 characters, including spaces
Manager Password
blank
Recommended; up to 16 characters (no blank spaces)
Logon Default
CLI
The default setting selects the command line interface for console access.
The alternative is the menu interface.
Time Zone
0 (none)
Optional; 1440 to -1440. The number of minutes your location is to the West (-)
or East (+) of GMT.
3-3
Getting Started With Switch
Configuration
[Tab] to the IP Address field and enter the IP address that is compatible with
Getting Started With Switch Configuration
Where to Go From Here: Networked Connections
Switch Setup Parameter Default
Community Name
public
Default setting recommended.
Spanning Tree Enabled
No
Default setting recommended unless STP is already running on your network
or the switch will be used in complex network topologies.
Default Gateway
blank
Optional; Enter the IP address of the next-hop gateway node if network traffic
needs to be able to reach off-subnet destinations.
Time Sync Method
None
Optional; The protocol the switch uses to acquire a time signal. The options
are SNTP and TimeP.
TimeP Mode
Disabled
Optional; The method the switch uses to acquire the TimeP server address.
IP Config (DHCP/Bootp)
DHCP/Bootp
Set to Manual unless a DHCP/Bootp server is used on your network to
configure IP addressing.
IP Address
xxx.xxx.xxx.xxx Recommended; If you set IP Config to Manual, then enter an IP address
compatible with your network.
Note: The IP address and subnet mask assigned for the switch must be compatible with the IP addressing used in your
network. For more information on IP addressing, see the Management and Configuration Guide at www.procurve.com/
manuals.
Subnet Mask
xxx.xxx.xxx.xxx Recommended; If you entered an IP address, then enter a subnet mask
compatible with your network.
Getting Started With Switch
Configuration
Where to Go From Here: Networked
Connections
After a 6600 Switch is configured with a Manager password, IP address, and
subnet mask, you can manage the switch from a networked connection, such
as:
■
PC equipped with Telnet (see “Starting a Telnet Session” on page 3-6)
■
Web browser interface (see “Starting a Web Browser Session” on page 36)
■
SNMP-based network management station using a tool such as ProCurve
Manager.
For more information on these management interfaces and all the features
that you can configure on the switch, refer to the Management and
Configuration Guide at www.procurve.com/manuals.
The following types of networked connections are supported on a 6600
Switch:
3-4
Getting Started With Switch Configuration
Where to Go From Here: Networked Connections
■
Out-of-band networked connection through the dedicated Management
port on 6600-24XG, 6600-48G, and 6600-48G-4XG Switches
To use: Connect an RJ-45 network cable to the Mgmt port to manage a
6600 Switch via Telnet from a remote PC or UNIX workstation.
You must first configure the switch with an IP address and subnet mask
by using the out-of-band console connection (see “Minimal Configuration
Through the Out-of-Band Console Connection” on page 3-2) or through
DHCP/Bootp.
A networked out-of-band connection allows you to manage data network
switches from a physically and logically separate management network.
For more information on, refer to the “Network Out-of-Band Management
(OOBM)” appendix in the Management and Configuration Guide at
www.procurve.com/manuals.
■
In-band networked connection through a data port on the switch
To use: Connect a PC or UNIX workstation with a VT-100 terminal
emulator directly to a switch data port. Then access the switch via Telnet
from the workstation
For more information on in-band and out-of-band networked connections for
switch management, refer to “Using the IP Address for Remote Switch
Management” on page 3-6 and the Management and Configuration Guide at
www.procurve.com/manuals.
Management
Sessions
A 6600 Switch can simultaneously support one out-of-band serial console
session through the Console port and up to five in-band Telnet/TCP
(networked) sessions through data ports on the switch.
3-5
Getting Started With Switch
Configuration
You must first configure the switch with an IP address and subnet mask
by using the out-of-band console connection (see “Minimal Configuration
Through the Out-of-Band Console Connection” on page 3-2) or through
DHCP/Bootp.
Getting Started With Switch Configuration
Using the IP Address for Remote Switch Management
Using the IP Address for Remote Switch
Management
The switch’s IP address can be used to manage the switch from any PC on the
same or on a different subnet as the switch. In a networked (in-band or outof-band) connection, you can use a Telnet session or standard web browser
to manage the switch.
Starting a Telnet Session
To access the switch through a Telnet session, follow these steps:
1.
Make sure the switch is configured with an IP address and that the switch
is reachable from the PC that is running the Telnet session (for example,
by using a Ping command to the switch’s IP address).
2.
Start the Telnet program on a PC that is on the same subnet as the switch
and connect to the switch’s IP address.
3.
You will see the copyright page and the message “Press any key to
continue”. Press a key, and you will then see the switch console command
(CLI) prompt, for example:
Getting Started With Switch
Configuration
ProCurve 6600-24G-4XG Switch#
Enter help or ? to see a list of commands that can be executed at the
prompt. Entering any command followed by help provides more detailed
context help information about the command. Entering any command
followed by ? displays a list of options that are available at that point in
the command entry.
Starting a Web Browser Session
A 6600 Switch can be managed through a graphical interface that you access
from a PC or workstation on the network by running a web browser and typing
in the switch’s IP address as the URL. No additional software installation is
required to make this interface available; it is included in the switch’s onboard
software.
The operating systems, web browsers, and Java support required to manage
the switch through the browser interface are listed in the following table:
3-6
Getting Started With Switch Configuration
Using the IP Address for Remote Switch Management
Operating System
Internet Explorer
Java Version
Windows 2000 SP4
5.5 SP2, 6.0 SP1
1.3.1_12 and 1.4.2_05
Windows XP SP1a
6.0 SP1
1.3.1_12 and 1.4.2_05
Windows Server 2003
6.0 SP1
1.3.1_12 and 1.4.2_05
The following illustration shows a typical web browser interface screen.
Pr oCurve Switch 6600-24G Status Information
J9263A Pr oCurve Switch 6600-24G
Getting Started With Switch
Configuration
For more information on using the web browser interface, refer to the
Management and Configuration Guide at www.procurve.com/manuals.
An extensive help system is also available for the web browser interface. To
access the help system though, the subnet on which the switch is installed
must have access to the internet, or ProCurve Manager needs to be installed
on a network management station that is on the subnet.
3-7
Getting Started With Switch
Configuration
Getting Started With Switch Configuration
Using the IP Address for Remote Switch Management
3-8
Replacing Components
Replacing the Fan Tray
4
Replacing Components
This chapter shows you how to remove and install the following components:
Caution
■
Fan tray (see page 4-1)
■
Power Supplies (see page 4-3)
The HP ProCurve 6600 Switch and its components are sensitive to static
discharge. Use an antistatic wrist strap and observe all static precautions
when replacing components.
Replacing the Fan Tray
When a fan fails, the Fan Status LED on the switch chassis blinks
simultaneously with the Fault LED. The entire fan tray assembly must then be
replaced. You cannot replace individual fans.
Note
Although the fan tray assembly is hot swappable, HP ProCurve recommends
that you perform the operation after powering down the switch. If you remove
the fan tray while a switch is running, you have only three minutes to remove
and replace the fan tray before the switch powers down the ports.
To re-enable the ports, you must reset the switch either by pressing the Reset
button or powering off and on the switch.
If you hot-swap out the fan tray assembly, to avoid contact with
spinning fans, pull the assembly out one-inch and allow the fans to
stop rotating (approximately 5 seconds) before pulling it all the way
out.
To replace a fan tray assembly:
4-1
Replacing Components
WARNING
Replacing Components
Replacing the Fan Tray
1.
Unscrew the retaining screws.
Retaining
screw
Figure 4-1. Retaining Screws on the Fan Tray Assembly
2.
Holding the two retaining screws, pull the fan tray assembly straight out.
Fan tray
assembly
Figure 4-2. Removing the Fan Tray Assembly
3.
Replacing Components
Note
4-2
Remove the new fan tray assembly from its packaging.
Before you install a new fan tray, ensure that the air flow direction (power-toport or port-to-power) is the same as the fan tray that you are replacing.
Replacing Components
Replacing a Power Supply
Replacing a Power Supply
If a 6600 switch is configured with redundant power supplies, the switch does
not suffer loss of traffic or performance if a power supply fails. You should
replace the failed component as soon as possible. The PS (Power Supply) LED
blinks simultaneously with the Fault LED to indicate that a power supply has
failed.
To remove an AC power supply:
1.
Ensure the failed power supply is not plugged into an AC power source.
2.
Grasping the handle of the failed power supply release the locking
mechanism by squeezing the latch handle and remove the failed power
supply.
Latch release
handle
Power supply
handle
3.
Insert the new power supply. Slide it in all the way in until the locking
mechanism locks.
Replacing Components
4-3
Troubleshooting
Basic Troubleshooting Tips
5
Troubleshooting
Troubleshooting
This chapter describes how to troubleshoot your switch. This document
describes troubleshooting mostly from a hardware perspective. You can
perform more in-depth troubleshooting on the switch using the software tools
available with the switch, including the full-featured console interface, the
built-in web browser interface, and ProCurve Manager, the SNMP-based
network management tool. For more information, see the chapter “Troubleshooting” in the Management and Configuration Guide, which is on the
ProCurve Web site at www.procurve.com/manuals.
This chapter describes the following:
■
Basic Troubleshooting Tips (page 5-1)
■
Diagnosing with the LEDs (page 5-4)
■
Proactive Networking Tools (page 5-8)
■
Hardware Diagnostic Tests (page 5-9)
■
Restoring the Factory Default Configuration (page 5-11)
■
Downloading New Switch Software (page 5-12)
■
HP Customer Support Services (page 5-12)
Basic Troubleshooting Tips
Most problems are caused by the following situations. Check for these items
first when starting your troubleshooting:
■
Connecting to devices that have a fixed full-duplex configuration.
The RJ-45 ports are configured as “Auto”. That is, when connecting to
attached devices, the switch will operate in one of two ways to determine
the link speed and the communication mode (half duplex or full duplex):
•
If the connected device is also configured to Auto, the switch will
automatically negotiate both link speed and communication mode.
•
If the connected device has a fixed configuration, for example
100 Mbps, at half or full duplex, the switch will automatically sense
the link speed, but will default to a communication mode of half
duplex.
5-1
Troubleshooting
Basic Troubleshooting Tips
Troubleshooting
Caution
Because the switch behaves in this way (in compliance with the IEEE 802.3
standard), if a device connected to the switch has a fixed configuration at full
duplex, the device will not connect correctly to the switch. The result will be
high error rates and very inefficient communications between the switch and
the device.
Make sure all devices connected to the switch are configured to auto negotiate, or are configured to connect at half duplex (all hubs are configured this
way, for example).
■
Faulty or loose cables. Look for loose or obviously faulty connections.
If they appear to be OK, make sure the connections are snug. If that does
not correct the problem, try a different cable.
■
Non-standard cables. Non-standard and miswired cables may cause
network collisions and other network problems, and can seriously impair
network performance. Use a new correctly-wired cable or compare your
cable to the cable in appendix B, “Cables and Connectors” for pinouts and
correct cable wiring. A category 5 cable tester is a recommended tool for
every 100Base-TX and 1000Base-T network installation.
■
Improper Network Topologies. It is important to make sure you have
a valid network topology. Common topology faults include excessive
cable length and excessive repeater delays between end nodes. If you have
network problems after recent changes to the network, change back to
the previous topology. If you no longer experience the problems, the new
topology is probably at fault. Sample topologies are shown at the end of
chapter 2 in this book, and some topology configuration guidelines can
be found online on the ProCurve Web site at www.procurve.com/manuals.
In addition, you should make sure that your network topology contains
no data path loops. Between any two end nodes, there should be only
one active cabling path at any time. Data path loops will cause broadcast
storms that will severely impact your network performance.
For your switch, if you wish to build redundant paths between important
nodes in your network to provide some fault tolerance, you should enable
Spanning Tree Protocol support on the switch. This ensures only one
of the redundant paths is active at any time, thus avoiding data path loops.
Spanning Tree can be enabled through the switch console, the web
browser interface, or ProCurve Manager.
The 6600 Switch devices also support Trunking, which allows multiple
network cables to be used for a single network connection without
causing a data path loop. For more information on Spanning Tree and
Trunking, see the Management and Configuration Guide, which is on
the ProCurve Web site at www.procurve.com/manuals.
5-2
Troubleshooting
Basic Troubleshooting Tips
■
Use the switch console to determine the port’s configuration and verify
that there is not an improper or undesired configuration of any of the
switch features that may be affecting the port. For more information, see
the Management and Configuration Guide, which is on the ProCurve
Web site at www.procurve.com/manuals.
■
Recover from a lost manager password. If you cannot start a console
session at the manager level because of a lost Manager password, you can
clear all passwords and user names by pressing and holding the Clear
button on the switch for a full second.
■
Receive a log message for incorrect air flow. The direction of air flow
in a 6600 Switch is set by default from the power to the port side. When
you mount a 6600 Switch with the port side or power side facing the cold
aisle, you must ensure that the air flow direction is from the cold side to
the hot side of the aisle. If necessary, reverse the direction of the fans to
provide adequate switch cooling as described in “Reverse the air flow” on
page 2-8.
If you reverse the direction of the fans, be sure to record the preferred airflow direction for a 6600 Switch by using the system fan-pref-airflow-dir
{ port-to-power | power-to-port } CLI command at the global configuration
level. A Syslog message is then generated if the fan tray is installed in the
wrong direction in the future.
For more information on possible network problems and their solutions, refer
to the technical note “Troubleshooting LAN Performance and Intermittent
Connectivity Problems”, which can be found on the ProCurve Web site,
www.procurve.com/library, under “T” in the A-Z Index section.
5-3
Troubleshooting
Check the port configuration. A port on your switch may not be
operating as you expect because it has been put into a “blocking” state by
Spanning Tree, GVRP (automatic VLANs), or LACP (automatic trunking).
(Note that the normal operation of the Spanning Tree, GVRP, and LACP
features may put the port in a blocking state.) Or, the port just may have
been configured as disabled through software.
Troubleshooting
Using LEDs to Diagnose an Error Condition
Troubleshooting
Using LEDs to Diagnose an Error
Condition
Table 5-1 shows LED patterns on the switch and the switch modules that
indicate problem conditions.
1.
Check in the table for the LED pattern you see on your switch.
2.
Refer to the corresponding diagnostic tip on the next few pages.
Table 5-1.
LED Error Indicators
LED Pattern Indicating Problems
Power
Fault
PS
Tmp
Test
Fan
Status
(in Link view mode)
Diag
Tips
Off with
power cord
plugged in
*
PS LED off
or blinking
orange
*
*
*
*
➊
On
Prolonged On
*
*
Prolonged
On
*
*
➋
On
Blinking†
*
*
Blinking†
*
*
➌
On
Blinking†
*
*
Off
Blinking†
*
On
†
Blinking
*
*
Blinking
On
Off
*
*
On
Off
*
On
Blinking
On
Blinking
†
Port LED
*
Blinking
➎
Off
*
Off with cable
connected
➏
*
Off
*
On, but the port is
not
communicating
➐
Blinking
*
Off
*
*
➑
*
Blinking
Off
*
*
➒
* This LED is not important for the diagnosis.
†
The blinking behavior is an on/off cycle once every 1.6 seconds, approximately.
5-4
➍
†
Troubleshooting
Using LEDs to Diagnose an Error Condition
Diagnostic Tips:
Problem
Solution
➊
The switch is not
plugged into an
active AC power
source, or the
switch’s power
supply may have
failed.
1. Verify the power cord is plugged into an active power source and to the switch. Make
sure these connections are snug.
2. Try power cycling the switch by unplugging and plugging the power cord back in.
3. If the Power LED is still not on, verify that the AC power source works by plugging
another device into the outlet. Or try plugging the switch into a different outlet or try a
different power cord.
If the power source and power cord are OK and this condition persists, the switch power
supply may have failed. Call your ProCurve authorized LAN dealer, or use the electronic
support services from ProCurve to get assistance. See the Customer Support/Warranty
booklet for more information.
➋
A switch
hardware failure
has occurred. All
the LEDs will stay
on indefinitely.
Try power cycling the switch. If the fault indication reoccurs, the switch may have failed.
Call your ProCurve authorized LAN dealer, or use the electronic support services from HP
to get assistance. See the Customer Support/Warranty booklet for more information.
➌
The switch has
experienced a
software failure
during self-test.
1. Try resetting the switch by pressing the Reset button on the front of the switch, or by
power cycling the switch.
2. If the fault indication reoccurs, attach a console to the switch (as indicated in chapter
2) and configure it to operate at 9600 baud. Then, reset the switch. Messages should
appear on the console screen and in the console log identifying the error condition.
You can view the console log at that point by selecting it from the console Main Menu.
If necessary to resolve the problem, contact your ProCurve authorized LAN dealer, or use
the electronic support services from ProCurve to get assistance. See the Customer
Support/Warranty booklet for more information.
➍
One of the switch
cooling fans may
have failed.
Try disconnecting power from the switch and wait a few moments. Then reconnect the
power to the switch and check the LEDs again. If the error indication reoccurs, one of the
fans has failed. The other switch fans may continue to operate under this condition if the
ambient temperature does not exceed normal room temperature, but for best operation,
the fans should be replaced. Contact your ProCurve authorized LAN dealer, or use the
electronic support services from ProCurve to get assistance. See the Customer Support/
Warranty booklet for more information.
➎
The network port
for which the LED
is Blinking has
experienced a
self-test or
initialization
failure.
Try power cycling the switch. If the fault indication reoccurs, the switch port may have
failed. Call your ProCurve authorized LAN dealer, or use the electronic support services
from ProCurve to get assistance. See the Customer Support/Warranty booklet for more
information.
If the port is a pluggable, verify it is one of the pluggables supported by the switch.
Unsupported pluggables will be identified with this fault condition. Supported
transceivers are described in Chapter 2, “Installing the Switch” on page 2-1. Transceivers
are also tested when they are “hot-swapped” — installed or changed while the switch
is powered on. Also check the log file for error messages.
To verify the port has failed, try removing and reinstalling the transceiver without having
to power off the switch. If the port fault indication reoccurs, you will have to replace the
transceiver.
5-5
Troubleshooting
Tip
Troubleshooting
Using LEDs to Diagnose an Error Condition
Troubleshooting
Tip
Problem
Solution
continued on the next page
➏
The network
connection is not
working
properly.
Try the following procedures:
• For the indicated port, verify both ends of the cabling, at the switch and the connected
device, are connected properly.
• Verify the connected device and switch are both powered on and operating correctly.
• Verify you have used the correct cable type for the connection:
– For twisted-pair connections to the fixed 10/100 or 10/100/1000 ports, if the port is
configured to “Auto” (auto negotiate), either straight-through or crossover cables
can be used because of the switch’s “HP Auto-MDIX” feature and the Auto MDI/
MDI-X feature of the 10/100/1000-T port.
Note: If the switch port configuration is changed to one of the fixed configuration
options (for example, 100 Mbps/Full Duplex), then the port operates as MDI-X only
and you must use the correct type of cable for the connection. In general, for
connecting an end node (MDI port) to the switch, use straight-through cable; for
connecting to MDI-X ports on hubs, other switches, and routers, use crossover
cable.
•
•
•
•
•
5-6
– For fiber-optic connections, verify the transmit port on the switch is connected to
the receive port on the connected device, and the switch receive port is connected
to the transmit port on the connected device.
For the dual-personality 10/100/1000-T ports, be sure an SFP (mini-GBIC) transceiver
is not installed in the associated slot.
For 1000Base-T connections, verify that the network cabling complies with the IEEE
802.3ab standard. the cable should be installed according to the ANSI/TIA/EIA-568A-5 specifications. Cable testing should comply with the stated limitations for Attenuation, Near-End Crosstalk, Far-End Crosstalk, Equal-Level Far-End Crosstalk (ELFEXT),
Multiple Disturber ELFEXT, and Return Loss.
The cable verification process must include all patch cables from any end devices,
including the switch, to any patch panels in the cabling path.
Verify the port has not been disabled through a switch configuration change.
You can use the console interface, or, if you have configured an IP address on the
switch, use the web browser interface, or ProCurve Manager network management
software to determine the state of the port and re-enable the port if necessary.
Verify the switch port configuration matches the configuration of the attached device.
For example, if the switch port is configured as “Auto”, the port on the attached device
also MUST be configured as “Auto”. Depending on the port type, twisted-pair or fiberoptic, if the configurations don’t match, the results could be a very unreliable connection, or no link at all.
If the other procedures don’t resolve the problem, try using a different port or a different
cable.
Troubleshooting
Using LEDs to Diagnose an Error Condition
Problem
Solution
➐
The port may be
improperly
configured, or
the port may be in
a “blocking”
state by the
normal operation
of the Spanning
Tree, LACP, or
IGMP features.
Use the switch console to see if the port is part of a dynamic trunk (through the LACP
feature) or to see if Spanning Tree is enabled on the switch, and to see if the port may
have been put into a “blocking” state by those features. The show lacp command displays
the port status for the LACP feature; the show spanning-tree command displays the port
status for Spanning Tree.
Also check the Port Status screen using the show interfaces command to see if the port
has been configured as “disabled”.
Other switch features that may affect the port operation include VLANs and IGMP. Use
the switch console to see how the port is configured for these features.
For software troubleshooting tips, see the chapter “Troubleshooting” in the Management
and Configuration Guide, which is on the ProCurve Web site at www.procurve.com/
manuals.
Make sure also, the device at the other end of the connection is indicating a good link to
the switch. If it is not, the problem may be with the cabling between the devices or the
connectors on the cable.
➑
A power supply
has failed in a
multi-power
supply switch.
Check the back of the switch to see which power supply has failed. The failed power
supply LED will be blinking. Replace the failed power supply. Once the failed power supply
is removed the LEDs will return to normal. If only one supply is inserted, try power cycling
the switch. If the fault reoccurs, the power supply may need to be replaced. If there are
two power supplies inserted but only one is connected, to remove the fault either connect
power to the other supply or remove it.
➒
The switch has
overheated.
Check to ensure the fans are functioning correctly.
5-7
Troubleshooting
Tip
Troubleshooting
Proactive Networking
Troubleshooting
Proactive Networking
The HP ProCurve 6600 Switches have built-in management capabilities that
proactively help you manage your network including:
■
finding and helping you fix the most common network error conditions
(for example, faulty network cabling, and non-standard network topologies)
■
informing you of the problem with clear, easy-to-understand messages
■
recommending network configuration changes to enhance the performance of your network
The following interfaces provide tests, indicators, and an event log that can
be used to monitor the switch and its network connections and to help you
take advantage of these proactive networking features:
■
ProCurve Manager - an SNMP-based network management tool that is
included with your switch.
■
A graphical web browser interface that you can use to manage your switch
from a PC running a supported web browser, for example Microsoft
Internet Explorer, and Netscape Communicator.
■
A full-featured easy-to-use console interface that you can access by
connecting a standard terminal or PC running a terminal emulator to the
switch’s console port. The cable to make that connection is provided with
your switch. The console interface is also accessible through a Telnet
connection.
For more information on using these software tools to diagnose and manage
your switch, see the “Troubleshooting” chapter in the Management and
Configuration Guide, which is on the ProCurve Web site at
www.procurve.com/manuals.
5-8
Troubleshooting
Hardware Diagnostic Tests
Testing the Switch by Resetting It
If you believe the switch is not operating correctly, you can reset the switch
to test its circuitry and operating code. To reset a switch, either:
■
unplug and plug in the power cord (power cycling)
■
press the Reset button on the front of the switch
Power cycling the switch and pressing the Reset button both cause the switch
to perform its power-on self-test, which almost always will resolve any temporary operational problems. These reset processes also cause any network
traffic counters to be reset to zero, and cause the System Up Time timer to
reset to zero.
Checking the Switch LEDs
The self-test passes if the Fault and Self-Test LEDs on the front of the switch
go off after approximately 50 seconds. If these LEDs stay on longer than 60
seconds or begin Blinking, there may be a problem with the switch.
See “Diagnosing With the LEDs” on page 5-4 for information on interpreting
the LED patterns and LED behaviors in chapter one.
Checking Console Messages
Useful diagnostic messages may be displayed on the console screen when the
switch is reset. As described in chapter 2 under step 7, “Connect a Console to
the Switch”, connect a PC running a VT-100 terminal emulator program or a
standard VT-100 terminal to the switch’s Console Port and configure it to run
at 9600 baud, and with the other terminal communication settings shown on
page 2-29. Then, when you reset the switch, note the messages that are
displayed. Additionally, you can check the switch event log, which can be
accessed from the console using the show log command, or from the console
Main Menu.
5-9
Troubleshooting
Hardware Diagnostic Tests
Troubleshooting
Hardware Diagnostic Tests
Testing Twisted-Pair Cabling
Troubleshooting
Network cables that fail to provide a link or provide an unreliable link between
the switch and the connected network device may not be compatible with the
IEEE 802.3 Type 10Base-T, 100Base-TX, or 1000Base-T standards. The twistedpair cables attached to the Switch must be compatible with the appropriate
standards. To verify your cable is compatible with these standards, use a
qualified cable test device.
Testing Switch-to-Device Network Communications
You can perform the following communication tests to verify the network is
operating correctly between the switch and any connected device that can
respond correctly to the communication test.
■
Link Test -- a physical layer test that sends IEEE 802.2 test packets to any
device identified by its MAC address.
■
Ping Test -- a network layer test used on IP networks that sends test
packets to any device identified by its IP address.
These tests can be performed through the switch console interface from a
terminal connected to the switch or through a Telnet connection, or from the
switch’s web browser interface. For more information, see the Management
and Configuration Guide, which is on the ProCurve Web site at
www.procurve.com/manuals.
These tests can also be performed from an SNMP network management
station running a program that can manage the switch, for example, ProCurve
Manager.
Testing End-to-End Network Communications
Both the switch and the cabling can be tested by running an end-to-end
communications test -- a test that sends known data from one network device
to another through the switch. For example, if you have two PCs on the
network that have LAN adapters between which you can run a link-level test
or Ping test through the switch, you can use this test to verify that the entire
communication path between the two PCs is functioning correctly. See your
LAN adapter documentation for more information on running a link test or
Ping test.
5-10
Troubleshooting
Restoring the Factory Default Configuration
As part of your troubleshooting process on the switch, it may become necessary to return the switch configuration to the factory default settings. This
process momentarily interrupts the switch operation, clears any passwords,
clears the console event log, resets the network counters to zero, performs a
complete self-test, and reboots the switch into its factory default configuration
including deleting the IP address, if one is configured.
Note
This process removes all switch configuration changes you have made from
the factory default settings. This includes, for example, configuration of
VLANs, Spanning Tree, trunks, and stacking. Returning the configuration of
these features to their factory default settings (usually disabling them) may
result in network connectivity issues.
If the switch has a valid configuration, and you are restoring the factory default
settings for a reason other than configuration problems, you should save the
switch configuration prior to performing the factory default reset. Then, after
the reset and resolution of the original problem, you can restore the saved
configuration to the switch. For both the save and restore processes, you can
use the console copy command. For more information on this command, see
the Management and Configuration Guide, which is on the ProCurve Web
site at www.procurve.com/manuals.
You can restore the factory default configuration either on the switch itself,
or through the switch console.
To execute the factory default reset on the switch, perform these steps:
1.
Using pointed objects, simultaneously press both the Reset and Clear
buttons on the front of the switch.
2.
Continue to press the Clear button while releasing the Reset button.
3.
When the Self-Test LED begins to blink, release the Clear button.
The switch will then complete its self-test and begin operating with its
configuration restored to the factory default settings.
To restore the factory default configuration using the console, execute the
erase startup-config command from the console command prompt.
5-11
Troubleshooting
Restoring the Factory Default
Configuration
Troubleshooting
Downloading New Switch Software
Troubleshooting
Downloading New Switch Software
When product enhancements occur for the switch, new software can be
downloaded to the switch through several methods, for product enhancements and new features. For more information, see the Management and
Configuration Guide, which is on the ProCurve Web site at
www.procurve.com/manuals
The new switch software would be available on the ProCurve Web site at
www.procurve.com/software.
HP Customer Support Services
If you are still having trouble with your switch, Hewlett-Packard offers support
24 hours a day, seven days a week through the use of a number of automated
electronic services. See the Customer Support/Warranty booklet that came
with your switch for information on how to use these services to get technical
support. The ProCurve Web site at www.procurve.com/support also provides
up-to-date support information.
Additionally, your ProCurve authorized network reseller can provide you with
assistance, both with services that they offer and with services offered by
ProCurve.
Before Calling Support
Before calling your networking dealer or ProCurve Support, to make the
support process most efficient, you first should have retrieved the following
information:
Information Item
5-12
Information Location
• product identification, including
transceiver type
the front of the switch and on labels on the
transceivers
• details about the switch’s status including the software (OS) version, a copy of
the switch configuration, a copy of the
switch Event Log, and a copy of the
switch status and counters information
switch console: show tech command
• copy of your network topology map, including network addresses assigned to
the relevant devices
your network records
A
Specifications
Physical
6600-24G
(J9263A)
6600-24G-4XG
(J9264A)
6600-24XG
(J9265A)
6600-48G
(J9451A)
6600-48G-4XG
(J9452A)
Width:
44.3 cm (17.42 in)
44.3 cm (17.42 in)
44.3 cm (17.42 in)
44.25cm (17.42 in)
44.25cm (17.42 in)
Depth:
51.1 cm (20.1 in)
51.1 cm (20.1 in)
59.9 cm (23.6 in)
60.00cm (23.62 in)
60.00cm (23.62 in)
Height:
4.4 cm (1.7 in)
4.4 cm (1.7 in)
4.4 cm (1.7 in)
4.36cm (1.72 in)
4.36cm (1.72 in)
Weight:
7.68 kg (16.93) lbs) 7.7 kg (16.97 lbs)
9.33 kg (20.6 lbs)
9.33 kg (20.6 lbs)
9.40kg (20.72 lbs)
Electrical
The switch automatically adjusts to any voltage between 100-127 and 200-240
volts and either 50 or 60 Hz.
HP ProCurve 6600
Switches
Electrical
AC voltage:
Maximum current:
Frequency range:
6600-24G
(J9263A)
6600-24G-4XG
(J9264A)
6600-24XG
(J9265A)
6600-48G
(J9451A)
6600-48G-4XG
(J9452A)
100-127/200-240
volts
1.8A/0.9A
50/60 Hz
100-127/200-240
volts
2.1A/1.1A
50/60 Hz
100-127/200-240
volts
4.2A/2.2A
50/60 Hz
100-127/200-240
volts
3.0A/1.6A
50/60 Hz
100-127/200-240
volts
3.0A/1.6A
50/60 Hz
The switch automatically adjusts to any voltage between 100-127 and 200-240 volts and either 50 or 60 Hz.
Environmental
HP ProCurve 6600
Switches
Operating
Non-Operating
Temperature:
5°C to 40°C (41°F to 104°F)
-40°C to 70°C (-40°F to 158°F)
Relative humidity:
(non-condensing)
15% to 80% at 40°C (104°F)
20% to 90% at 70°C (158°F)
Maximum altitude:
3.0 km (10,000 ft)
4.6 km (15,000 ft)
A-1
Specifications
HP ProCurve 6600
Switches
Specifications
Acoustic
HP ProCurve Switch 6600-24G (J9263A)
Geraeuschemission LpA=62.3 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Noise Emission LpA=62.3 dB at virtual workspace according to
DIN 45635 T.19
HP ProCurve Switch 6600-28G-4XG (J9264A)
Specifications
Geraeuschemission LpA=59.5 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Noise Emission LpA=59.5 dB at virtual workspace according to
DIN 45635 T.19
HP ProCurve Switch 6600-24G-24XG (J9265A)
Geraeuschemission LpA=61.8 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Noise Emission LpA=61.8 dB at virtual workspace according to
DIN 45635 T.19
HP ProCurve Switch 6600-48G (J9451A)
Geraeuschemission LpA=64.5 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Noise Emission LpA=64.5 dB at virtual workspace according to
DIN 45635 T.19
HP ProCurve Switch 6600-48G-4XG (J9452A)
Geraeuschemission LpA=63.4 dB am fiktiven Arbeitsplatz nach
DIN 45635 T.19
Noise Emission LpA=63.4 dB at virtual workspace according to
DIN 45635 T.19
A-2
Specifications
Safety
Complies with:
■
EN60950-1
■
CSA 22.2 No. 60950-1
■
UL 60950-1
■
IEC 60950-1
Table A-1.
Technology standards and safety compliance
Laser safety information
Technology
Compatible with these IEEE
standards
SFP (“mini-GBIC”)
Lasers
SFP+
Lasers
Specifications
Safety
standard
compliance
10/100/1000-T
IEEE 802.3 10BASE-T,
IEEE 802.3u 100BASE-TX,
IEEE 802.3ab 1000BASE-T
100-FX
IEEE 802.3u 100BASE-FX
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
100-BX
IEEE 802.3ah 100BASE-BX10
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
1000-SX
IEEE 802.3z 1000BASE-SX
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
1000-LX
IEEE 802.3z 1000BASE-LX
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
1000-LH
(not an IEEE standard)
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
1000-BX
IEEE 802.3ah 1000BASE-BX10
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
10-Gig
Direct Attach
(not an IEEE standard)
10-Gig SR
IEEE 802.3ae 10GBASE-SR
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
10-Gig LRM
IEEE 802.3aq 10GBASE-LRM
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
10-Gig LR
IEEE 802.3ae 10GBASE-LR
EN/IEC
60825
Class 1 Laser Product
Laser Klasse 1
A-3
B
Cabling and Technology Information
This appendix includes network cable information for cables that should be
used with the Switch 6600, including minimum pin-out information and
specifications for twisted-pair cables.
Note
Incorrectly wired cabling is the most common cause of problems for LAN
communications. ProCurve recommends that you work with a qualified LAN
cable installer for assistance with your cabling requirements.
Cabling specifications
Table B-1.
Twisted-pair copper
Category 3, 4, or 5 100-ohm unshielded twisted-pair (UTP) or
shielded twisted-pair (STP) cable, complying with IEEE 802.3
10Base-T specifications.
100 Mbps Operation
Category 5 100-ohm UTP or STP cable, complying with IEEE
802.3u 100Base-TX specifications.
1000 Mbps Operation
Category 5 100-ohm 4-pair UTP or STP cable, complying with IEEE
802.3ab 1000Base-T specifications—Category 5e or better is
recommended. See note on 1000Base-T Cable Requirements on
page B-2.
Direct attach cables
One-piece devices consisting of a cable with SFP+ connectors
permanently attached to each end, complying with SFF 8431 SFP+
specifications.
Multimode fiber
62.5/125 μm or 50/125 μm (core/cladding) diameter, low metal
content, graded index fiber-optic cables, complying with the
ITU-T G.651 and ISO/IEC 793-2 Type A1b or A1a standards
respectively.1
Single mode fiber
9/125 μm (core/cladding) diameter, low metal content fiber-optic
cables, complying with the ITU-T G.652 and
ISO/IEC 793-2 Type B1 standards.
1
A mode conditioning patch cord may be needed for some Gigabit-LX and 10-Gigabit LRM installations.
See “Mode Conditioning Patch Cord” on page B-4 for more information.
B-1
Cabling and Technology
Information
Twinaxial copper
10 Mbps Operation
Cabling and Technology Information
Note on 1000Base-T Cable Requirements. The Category 5 networking
cables that work for 100Base-TX connections should also work for
1000Base-T, as long as all four-pairs are connected. But, for the most robust
connections you should use cabling that complies with the Category 5e
specifications, as described in Addendum 5 to the TIA-568-A standard (ANSI/
TIA/EIA-568-A-5).
Because of the increased speed provided by 1000Base-T (Gigabit-T), network
cable quality is more important than for either 10Base-T or 100Base-TX.
Cabling plants being used to carry 1000Base-T networking must comply with
the IEEE 802.3ab standards. In particular, the cabling must pass tests for
Attenuation, Near-End Crosstalk (NEXT), and Far-End Crosstalk (FEXT).
Additionally, unlike the cables for 100Base-TX, the 1000Base-T cables must
pass tests for Equal-Level Far-End Crosstalk (ELFEXT) and Return Loss.
Cabling and Technology
Information
When testing your cabling, be sure to include the patch cables that connect
the switch and other end devices to the patch panels on your site. The patch
cables are frequently overlooked when testing cable and they must also
comply with the cabling standards.
B-2
Cabling and Technology Information
Technology distance specifications
Table B-2.
Supported cable type
Multimode fiber
modal bandwidth
Supported distances
100-FX
multimode fiber
any
up to 2,000 meters
100-BX
single mode fiber
N/A
0.5 - 10,000 meters
1000-T
twisted-pair copper
N/A
up to 100 meters
1000-SX
multimode fiber
160 MHz*km
200 MHz*km
400 MHz*km
500 MHz*km
2 - 220 meters
2 - 275 meters
2 - 500 meters
2 - 550 meters
1000-LX
multimode fiber
single mode fiber
400 MHz*km
500 MHz*km
N/A
2 - 550 meters
2 - 550 meters
2 - 10,000 meters
1000-LH
single mode fiber
N/A
10 - 70,000 meters1
1000-BX
single mode fiber
N/A
0.5 - 10,000 meters
10-Gig Direct Attach
twinaxial copper
N/A
(various lengths offered)
10-Gig SR
multimode fiber
160 MHz*km
200 MHz*km
400 MHz*km
500 MHz*km
2000 MHz*km
2 - 26 meters
2 - 33 meters
2 - 66 meters
2 - 82 meters
2 - 300 meters
10-Gig LRM
multimode fiber
400 MHz*km
500 MHz*km
0.5 - 100 meters
0.5 - 220 meters
10-Gig LR
single mode fiber
N/A
2 - 10,000 meters
Cabling and Technology
Information
Technology
1
For distances less than 20km, a 10dB attenuator must be used. For distances between 20km and 40km,
a 5dB attenuator must be used. Attenuators can be purchased from most cable vendors.
B-3
Cabling and Technology Information
Mode Conditioning Patch Cord
Mode Conditioning Patch Cord
The following information applies to installations in which multimode fiberoptic cables are connected to a Gigabit-LX port or a 10-Gigabit LRM port.
Multimode cable has a design characteristic called “Differential Mode Delay”,
which requires the transmission signals be “conditioned” to compensate for
the cable design and thus prevent resulting transmission errors.
Under certain circumstances, depending on the cable used and the lengths of
the cable runs, an external Mode Conditioning Patch Cord may need to be
installed between the Gigabit-LX or 10-Gigabit LRM transmitting device and
the multimode network cable to provide the transmission conditioning. If you
experience a high number of transmission errors on those ports, usually CRC
or FCS errors, you may need to install one of these patch cords between the
fiber-optic port in your switch and your multimode fiber-optic network
cabling, at both ends of the network link.
Cabling and Technology
Information
The patch cord consists of a short length of single mode fiber cable coupled
to graded-index multimode fiber cable on the transmit side, and only
multimode cable on the receive side. The section of single mode fiber is
connected in such a way that it minimizes the effects of the differential mode
delay in the multimode cable.
Note
Most of the time, if you are using good quality graded-index multimode fiber
cable that adheres to the standards listed in Appendix B, there should not be
a need to use mode conditioning patch cords in your network. This is
especially true if the fiber runs in your network are relatively short.
For 10-Gigabit LRM using OM3 cable (50 μm multimode @ 1500/500 MHz*km),
a mode conditioning patch cord is not required. Other multimode cables may
require mode conditioning patch cords to achieve the LRM maximum
distances.
B-4
Cabling and Technology Information
Mode Conditioning Patch Cord
Installing the Patch Cord
As shown in the illustration below, connect the patch cord to the ProCurve
transceiver with the section of single mode fiber plugged in to the Tx
(transmit) port. Then, connect the other end of the patch cord to your network
cabling patch panel, or directly to the network multimode fiber.
To network
multimode
cabling
The multimode cable in the patch cord
must match the characteristics of your
network cable
Tx
Gigabit-LX port
Rx
If you connect the patch cord directly to the network cabling, you may need
to install a female-to-female adapter to allow the cables to be connected
together.
Mode Conditioning
Patch Cord
Single-mode section plugs into Tx
port on Gigabit-LX Transceiver or
Gigabit-LX mini-GBIC
Make sure you purchase a patch cord that has appropriate connectors on each
end, and has multimode fibers that match the characteristics of the multimode
fiber in your network. Most important, the core diameter of the multimode
patch cord must match the core diameter of the multimode cable
infrastructure (either 50 or 62.5 microns).
B-5
Cabling and Technology
Information
Figure B-1. Example: Connecting a Mode Conditioning Patch Cord for Gigabit-LX
Cabling and Technology Information
Twisted-Pair Cable/Connector Pin-Outs
Twisted-Pair Cable/Connector Pin-Outs
Auto-MDIX Feature: The 10/100/1000-T ports support the IEEE 802.3ab
standard, which includes the “Auto MDI/MDI-X” feature. In the default
configuration, “Auto”, the ports on the Switch 6600 all automatically detect
the type of port on the connected device and operate as either an MDI or MDIX port, whichever is appropriate. So for any connection, a straight-through
twisted-pair cable can be used -- you no longer have to use crossover cables,
although crossover cables can also be used for any of the connections.
If you connect a Switch 6600 twisted-pair port to another switch or hub, which
typically have MDI-X ports, the Switch 6600 port automatically operates as an
MDI port. If you connect it to an end node, such as a server or PC, which
typically have MDI ports, the Switch 6600 port operates as an MDI-X port. In
all cases, you can use standard straight-through cables or crossover cables.
If you happen to use a correctly wired crossover cable, though, the switch will
still be able to automatically detect the MDI/MDI-X operation and link
correctly to the connected device.
Cabling and Technology
Information
Other Wiring Rules:
B-6
■
All twisted-pair wires used for 10 Mbps, and 100 Mbps operation must be
twisted through the entire length of the cable. The wiring sequence must
conform to EIA/TIA 568-B (not USOC). See “Twisted-Pair Cable Pin
Assignments” later in this appendix for a listing of the signals used on each
pin.
■
For 1000Base-T connections, all four pairs of wires in the cable must be
available for data transmission. See “Note on 1000Base-T Cable Requirements” on page B-2 for more information on 1000Base-T cabling.
■
For 10 Mbps connections to the ports, you can use Category 3, 4, or 5
unshielded twisted-pair cable, as supported by the IEEE 802.3 Type
10Base-T standard.
■
For 100 Mbps connections to the ports, use 100-ohm Category 5 UTP or
STP cable only, as supported by the IEEE 802.3u Type 100Base-TX standard.
■
For 1000 Mbps connections, 100-ohm Category 5e or better cabling is
recommended.
Cabling and Technology Information
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connections
Because of the HP Auto-MDIX operation of the 10/100 ports on the switch, for
all network connections, to PCs, servers or other end nodes, or to hubs or
other switches, you can use straight-through cables.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and straight-through cables
must be then used for connections to PC NICs and other MDI ports.
Cable Diagram
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
Switch End (MDI-X)
Computer, Transceiver, or
Other End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
1
2
3
6
transmit +
transmit receive +
receive -
B-7
Cabling and Technology
Information
Note
Cabling and Technology Information
Twisted-Pair Cable/Connector Pin-Outs
Crossover Twisted-Pair Cable for
10 Mbps or 100 Mbps Network Connection
The HP Auto-MDIX operation of the 10/100 ports on the switch also allows
you to use crossover cables for all network connections, to PCs, servers or
other end nodes, or to hubs or other switches.
If any of these ports are given a fixed configuration, for example 100 Mbps/
Full Duplex, the ports operate as MDI-X ports, and crossover cables must be
then used for connections to hubs or switches or other MDI-X network
devices.
Cabling and Technology
Information
Cable Diagram
Note
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 4, 5, 7, and 8 are not used in this application, although they may be wired
in the cable.
.
Pin Assignments
B-8
Switch End (MDI-X)
Hub or Switch Port, or Other
MDI-X Port End
Signal
Pins
Pins
Signal
receive +
receive transmit +
transmit -
1
2
3
6
6
3
2
1
transmit transmit +
receive receive +
Cabling and Technology Information
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000Base-T connections require that all four pairs or wires be connected.
Cable Diagram
Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000Base-T operation, all four pairs of wires are used for both transmit
and receive.
B-9
Cabling and Technology
Information
Note
C
Safety and EMC Regulatory Statements
Safety Information
!
Documentation reference symbol. If the product is marked with this
symbol, refer to the product documentation to get more information
about the product.
WARNING
A WARNING in the manual denotes a hazard that can cause injury
or death.
Caution
A Caution in the manual denotes a hazard that can damage equipment.
Do not proceed beyond a WARNING or Caution notice until you
have understood the hazardous conditions and have taken appropriate steps.
Grounding
These are safety class I products and have protective earthing terminals. There
must be an uninterruptible safety earth ground from the main power source
to the product's input wiring terminals, power cord, or supplied power cord
set. Whenever it is likely that the protection has been impaired, disconnect
the power cord until the ground has been restored.
For LAN cable grounding:
■
If your LAN covers an area served by more than one power distribution system, be sure their safety grounds are securely interconnected.
■
LAN cables may occasionally be subject to hazardous transient voltages (such as lightning or disturbances in the electrical utilities power
grid). Handle exposed metal components of the network with caution.
These products do not have a power switch; they are powered on when the
power cord is plugged in.
C-1
Safety and EMC Regulatory
Statements
Servicing
There are no user-serviceable parts inside these products. Any servicing,
adjustment, maintenance, or repair must be performed only by service-trained
personnel.
Safety and EMC Regulatory Statements
Informations concernant la sécurité
Informations concernant la sécurité
!
Symbole de référence à la documentation. Si le produit est marqué de
ce symbole, reportez-vous à la documentation du produit afin d'obtenir
des informations plus détaillées.
WARNING
Dans la documentation, un WARNING indique un danger susceptible
d'entraîner des dommages corporels ou la mort.
Caution
Un texte de mise en garde intitulé Caution indique un danger susceptible de causer des dommages à l'équipement.
Ne continuez pas au-delà d'une rubrique WARNING ou Caution avant
d'avoir bien compris les conditions présentant un danger et pris les
mesures appropriées.
Cet appareil est un produit de classe I et possède une borne de mise à la terre. La source
d'alimentation principale doit être munie d'une prise de terre de sécurité installée aux
bornes du câblage d'entrée, sur le cordon d'alimentation ou le cordon de raccordement
fourni avec le produit. Lorsque cette protection semble avoir été endommagée,
débrancher le cordon d'alimentation jusqu'à ce que la mise à la terre ait été réparée.
Mise à la terre du câble de réseau local:
■
si votre réseau local s'étend sur une zone desservie par plus d'un système de
distribution de puissance, assurez-vous que les prises de terre de sécurité
soient convenablement interconnectées.
■
Les câbles de réseaux locaux peuvent occasionnellement être soumis à des
surtensions transitoires dangereuses (telles que la foudre ou des perturbations dans le réseau d'alimentation public). Manipulez les composants
métalliques du réseau avec précautions.
Aucune pièce contenue à l'intérieur de ce produit ne peut être réparée par l'utilisateur.
Tout dépannage, réglage, entretien ou réparation devra être confié exclusivement à un
personnel qualifié.
Safety and EMC Regulatory
Statements
Cet appareil ne comporte pas de commutateur principal ; la mise sous tension est
effectuée par branchement du cordon d'alimentation.
C-2
Safety and EMC Regulatory Statements
Hinweise zur Sicherheit
Hinweise zur Sicherheit
!
Symbol für Dokumentationsverweis. Wenn das Produkt mit diesem
Symbol markiert ist, schlagen Sie bitte in der Produktdokumentation
nach, um mehr Informationen über das Produkt zu erhalten.
WARNING
Eine WARNING in der Dokumentation symbolisiert eine Gefahr, die
Verletzungen oder sogar Todesfälle verursachen kann.
Caution
Caution in der Dokumentation symbolisiert eine Gefahr, die dis Gerät
beschädigen kann.
Fahren Sie nach dem Hinweis WARNING oder Caution erst fort,
nachdem Sie den Gefahrenzustand verstanden und die entsprechenden Maßnahmen ergriffen haben.
Dies ist ein Gerät der Sicherheitsklasse I und verfügt über einen schützenden Erdungsterminal. Der Betrieb des Geräts erfordert eine ununterbrochene Sicherheitserdung
von der Hauptstromquelle zu den Geräteingabeterminals, den Netzkabeln oder dem
mit Strom belieferten Netzkabelsatz voraus. Sobald Grund zur Annahme besteht, daß
der Schutz beeinträchtigt worden ist, das Netzkabel aus der Wandsteckdose
herausziehen, bis die Erdung wiederhergestellt ist.
Für LAN-Kabelerdung:
■
Wenn Ihr LAN ein Gebiet umfaßt, das von mehr als einem Stromverteilungssystem beliefert wird, müssen Sie sich vergewissern, daß die
Sicherheitserdungen fest untereinander verbunden sind.
■
LAN-Kabel können gelegentlich gefährlichen Übergangsspannungen ausgesetzt werden (beispielsweise durch Blitz oder Störungen in dem
Starkstromnetz des Elektrizitätswerks). Bei der Handhabung exponierter
Metallbestandteile des Netzwerkes Vorsicht walten lassen.
Dieses Gerät enthält innen keine durch den Benutzer zu wartenden Teile. Wartungs-,
Anpassungs-, Instandhaltungs- oder Reparaturarbeiten dürfen nur von geschultem
Bedienungspersonal durchgeführt werden.
Safety and EMC Regulatory
Statements
Dieses Gerät hat keinen Netzschalter; es wird beim Anschließen des Netzkabels
eingeschaltet.
C-3
Safety and EMC Regulatory Statements
Considerazioni sulla sicurezza
Considerazioni sulla sicurezza
!
Simbolo di riferimento alla documentazione. Se il prodotto è
contrassegnato da questo simbolo, fare riferimento alla documentazione sul prodotto per ulteriori informazioni su di esso.
WARNING
La dicitura WARNINGdenota un pericolo che può causare lesioni o
morte.
Caution
La dicituraCaution denota un pericolo che può danneggiare le attrezzature.
Non procedere oltre un avviso di WARNING o di Cautionprima di
aver compreso le condizioni di rischio e aver provveduto alle misure
del caso.
Questo prodotto è omologato nella classe di sicurezza I ed ha un terminale protettivo
di collegamento a terra. Dev'essere installato un collegamento a terra di sicurezza, non
interrompibile che vada dalla fonte d'alimentazione principale ai terminali d'entrata,
al cavo d'alimentazione oppure al set cavo d'alimentazione fornito con il prodotto.
Ogniqualvolta vi sia probabilità di danneggiamento della protezione, disinserite il cavo
d'alimentazione fino a quando il collegaento a terra non sia stato ripristinato.
Per la messa a terra dei cavi LAN:
■
se la vostra LAN copre un'area servita da più di un sistema di distribuzione
elettrica, accertatevi che i collegamenti a terra di sicurezza siano ben collegati
fra loro;
■
i cavi LAN possono occasionalmente andare soggetti a pericolose tensioni
transitorie (ad esempio, provocate da lampi o disturbi nella griglia d'alimentazione della società elettrica); siate cauti nel toccare parti esposte in
metallo della rete.
Safety and EMC Regulatory
Statements
Nessun componente di questo prodotto può essere riparato dall'utente. Qualsiasi
lavoro di riparazione, messa a punto, manutenzione o assistenza va effettuato esclusivamente da personale specializzato.
Questo apparato non possiede un commutatore principale; si mette scotto tensione
all'inserirsi il cavo d'alimentazione.
C-4
Safety and EMC Regulatory Statements
Consideraciones sobre seguridad
Consideraciones sobre seguridad
!
Símbolo de referencia a la documentación. Si el producto va
marcado con este símbolo, consultar la documentación del
producto a fin de obtener mayor información sobre el producto.
WARNING
Una WARNING en la documentación señala un riesgo que podría
resultar en lesiones o la muerte.
Caution
Una Caution en la documentación señala un riesgo que podría
resultar en averías al equipo.
No proseguir después de un símbolo de WARNING o Caution hasta
no haber entendido las condiciones peligrosas y haber tomado las
medidas apropiadas.
Este aparato se enmarca dentro de la clase I de seguridad y se encuentra protegido por
una borna de puesta a tierra. Es preciso que exista una puesta a tierra continua desde
la toma de alimentación eléctrica hasta las bornas de los cables de entrada del aparato,
el cable de alimentación o el juego de cable de alimentación suministrado. Si existe la
probabilidad de que la protección a tierra haya sufrido desperfectos, desenchufar el
cable de alimentación hasta haberse subsanado el problema.
Puesta a tierra del cable de la red local (LAN):
■
Si la LAN abarca un área cuyo suministro eléctrico proviene de más de una
red de distribución de electricidad, cerciorarse de que las puestas a tierra
estén conectadas entre sí de modo seguro.
■
Es posible que los cables de la LAN se vean sometidos de vez en cuando a
voltajes momentáneos que entrañen peligro (rayos o alteraciones en la red
de energía eléctrica). Manejar con precaución los componentes de metal de
la LAN que estén al descubierto.
Este aparato no contiene pieza alguna susceptible de reparación por parte del usuario.
Todas las reparaciones, ajustes o servicio de mantenimiento debe realizarlos solamente el técnico.
C-5
Safety and EMC Regulatory
Statements
Este producto no tiene interruptor de potencia; se activa cuando se enchufa el cable
de alimentación.
Safety and EMC Regulatory Statements
Safety Information (Japan)
Safety and EMC Regulatory
Statements
Safety Information (Japan)
Japan Power
Cord Warning
C-6
Safety and EMC Regulatory Statements
Safety Information (China)
Safety Information (China)
Safety and EMC Regulatory
Statements
C-7
Safety and EMC Regulatory Statements
EMC Regulatory Statements
EMC Regulatory Statements
U.S.A.
FCC Class A
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause interference to radio communications.
Operation of this equipment in a residential area may cause interference in which case the user
will be required to correct the interference at his own expense.
Canada
This product complies with Class A Canadian EMC requirements.
Australia/New Zealand
This product complies with Australia/New Zealand EMC Class A requirements.
Japan
VCCI Class A
Safety and EMC Regulatory
Statements
Korea
Taiwan
C-8
Safety and EMC Regulatory Statements
EMC Regulatory Statements
European Community
DECLARATION OF CONFORMITY
according to ISO/IEC 17050-1 and EN 17050-1
DoC #: RSVLC-0704-030909
Hewlett-Packard Company
8000 Foothills Blvd., Roseville, CA 95747 U.S.A.
Supplier’s Name:
Manufacturer's Address:
declares, that the product
Product Name2:
HP ProCurve 6600-24G
HP ProCurve 6600-24G-4XG
HP ProCurve 6600-24XG
HP ProCurve 6600-48G
HP ProCurve 6600-48G-4XG
Product Number(s):
J9263A, J9266A, J9264A, J9267A, J9265A, J9268A
J9451A, J9452A
1
Regulatory Model No : RSVLC-0704
Product Options:
J9269A – Power supply
conforms to the following Product Specifications and Regulations:
EMC: Class A
EN 55022:2006/CISPR 22: 2005
EN 55024:1998 + A1:2001 + A2:2003
EN 61000-3-2:2006
EN 61000-3-3:1995 + A1:2001 + A2:2005
FCC CFR47 Part 15
Safety:
EN 60950-1:2001
IEC 60950-1: 2001
EN 60825-1:1994 +A1+A2 / IEC 60825-1:1993 +A2 Class 1
Supplementary Information:
The device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
The product herewith complies with the requirements of the Low Voltage Directive 2006/95/EC, the EMC
Directive 2004/108/EC and carries the CE marking accordingly.
Additional Information:
1) This product is assigned a Regulatory Model Number which stays with the regulatory aspects of the design. The
Regulatory Model Number is the main product identifier in the regulatory documentation and test reports, this number
should not be confused with the marketing name or the product numbers.
2) This product was tested with HP branded products only.
Roseville, 09 - March - 2009
Local contact for regulatory information:
EMEA: Hewlett-Packard GmbH, HQ-TRE, Herrenberger Straße 140, D-71034 Böblingen, Germany
U.S.:
Hewlett-Packard, 3000 Hanover St., Palo Alto, CA 94304, U.S.A. 650-857-1501
Safety and EMC Regulatory
Statements
C-9
Safety and EMC Regulatory
Statements
Safety and EMC Regulatory Statements
EMC Regulatory Statements
C-10
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
D
Recycle Statements
Recycle Statements
Waste Electrical and Electronic
Equipment (WEEE) Statements
Disposal of Waste Equipment by Users in Private Household in the European Union
This symbol on the product or on its packaging indicates that this product must not be disposed of with
your other household waste. Instead, it is your responsibility to dispose of your waste equipment by
handing it over to a designated collection point for the recycling of waste electrical and electronic
equipment. The separate collection and recycling of your waste equipment at the time of disposal will
help to conserve natural resources and ensure that it is recycled in a manner that protects human health
and the environment. For more information about where you can drop off your waste equipment for
recycling, please contact your local city office, your household waste disposal service or the shop where
you purchased the product.
Likvidace zařízení soukromými domácími uživateli v Evropské unii
Tento symbol na produktu nebo balení označuje výrobek, který nesmí být vyhozen spolu s ostatním
domácím odpadem. Povinností uživatele je předat takto označený odpad na předem určené sběrné
místo pro recyklaci elektrických a elektronických zařízení. Okamžité třídění a recyklace odpadu
pomůže uchovat přírodní prostředí a zajistí takový způsob recyklace, který ochrání zdraví a životní
prostředí člověka. Další informace o možnostech odevzdání odpadu k recyklaci získáte na
příslušném obecním nebo městském úřadě, od firmy zabývající se sběrem a svozem odpadu nebo v
obchodě, kde jste produkt zakoupili.
Bortskaffelse af affald fra husstande i den Europæiske Union
Hvis produktet eller dets emballage er forsynet med dette symbol, angiver det, at produktet ikke må
bortskaffes med andet almindeligt husholdningsaffald. I stedet er det dit ansvar at bortskaffe kasseret
udstyr ved at aflevere det på den kommunale genbrugsstation, der forestår genvinding af kasseret
elektrisk og elektronisk udstyr. Den centrale modtagelse og genvinding af kasseret udstyr i forbindelse
med bortskaffelsen bidrager til bevarelse af naturlige ressourcer og sikrer, at udstyret genvindes på en
måde, der beskytter både mennesker og miljø. Yderligere oplysninger om, hvor du kan aflevere kasseret
udstyr til genvinding, kan du få hos kommunen, den lokale genbrugsstation eller i den butik, hvor du købte
produktet.
Seadmete jäätmete kõrvaldamine eramajapidamistes Euroopa Liidus
See tootel või selle pakendil olev sümbol näitab, et kõnealust toodet ei tohi koos teiste majapidamisjäätmetega kõrvaldada. Teie kohus on oma seadmete jäätmed kõrvaldada, viies need elektri- ja
elektroonikaseadmete jäätmete ringlussevõtmiseks selleks ettenähtud kogumispunkti. Seadmete jäätmete eraldi kogumine ja ringlussevõtmine kõrvaldamise ajal aitab kaitsta loodusvarasid ning tagada, et
ringlussevõtmine toimub viisil, mis kaitseb inimeste tervist ning keskkonda. Lisateabe saamiseks selle
kohta, kuhu oma seadmete jäätmed ringlussevõtmiseks viia, võtke palun ühendust oma kohaliku linnakantselei, majapidamisjäätmete kõrvaldamise teenistuse või kauplusega, kust Te toote ostsite.
D-1
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Recycle Statements
Laitteiden hävittäminen kotitalouksissa Euroopan unionin alueella
Jos tuotteessa tai sen pakkauksessa on tämä merkki, tuotetta ei saa hävittää kotitalousjätteiden mukana.
Tällöin hävitettävä laite on toimitettava sähkölaitteiden ja elektronisten laitteiden kierrätyspisteeseen.
Hävitettävien laitteiden erillinen käsittely ja kierrätys auttavat säästämään luonnonvaroja ja varmistamaan, että laite kierrätetään tavalla, joka estää terveyshaitat ja suojelee luontoa. Lisätietoja paikoista,
joihin hävitettävät laitteet voi toimittaa kierrätettäväksi, saa ottamalla yhteyttä jätehuoltoon tai liikkeeseen, josta tuote on ostettu.
Élimination des appareils mis au rebut par les ménages dans l'Union européenne
Le symbole apposé sur ce produit ou sur son emballage indique que ce produit ne doit pas être jeté avec
les déchets ménagers ordinaires. Il est de votre responsabilité de mettre au rebut vos appareils en les
déposant dans les centres de collecte publique désignés pour le recyclage des équipements électriques
et électroniques. La collecte et le recyclage de vos appareils mis au rebut indépendamment du reste
des déchets contribue à la préservation des ressources naturelles et garantit que ces appareils seront
recyclés dans le respect de la santé humaine et de l'environnement. Pour obtenir plus d'informations
sur les centres de collecte et de recyclage des appareils mis au rebut, veuillez contacter les autorités
locales de votre région, les services de collecte des ordures ménagères ou le magasin dans lequel vous
avez acheté ce produit.
Entsorgung von Altgeräten aus privaten Haushalten in der EU
Das Symbol auf dem Produkt oder seiner Verpackung weist darauf hin, dass das Produkt nicht über den
normalen Hausmüll entsorgt werden darf. Benutzer sind verpflichtet, die Altgeräte an einer Rücknahmestelle für Elektro- und Elektronik-Altgeräte abzugeben. Die getrennte Sammlung und ordnungsgemäße Entsorgung Ihrer Altgeräte trägt zur Erhaltung der natürlichen Ressourcen bei und garantiert
eine Wiederverwertung, die die Gesundheit des Menschen und die Umwelt schützt. Informationen dazu,
wo Sie Rücknahmestellen für Ihre Altgeräte finden, erhalten Sie bei Ihrer Stadtverwaltung, den örtlichen
Müllentsorgungsbetrieben oder im Geschäft, in dem Sie das Gerät erworben haben
Απόρριψη άχρηστου εξοπλισμού από χρήστες σε ιδιωτικά νοικοκυριά στην Ευρωπαϊκή
Ένωση
Το σύμβολο αυτό στο προϊόν ή τη συσκευασία του υποδεικνύει ότι το συγκεκριμένο προϊόν δεν
πρέπει να διατίθεται μαζί με τα άλλα οικιακά σας απορρίμματα. Αντίθετα, είναι δική σας ευθύνη να
απορρίψετε τον άχρηστο εξοπλισμό σας παραδίδοντάς τον σε καθορισμένο σημείο συλλογής για την
ανακύκλωση άχρηστου ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Η ξεχωριστή συλλογή και
ανακύκλωση του άχρηστου εξοπλισμού σας κατά την απόρριψη θα συμβάλει στη διατήρηση των
φυσικών πόρων και θα διασφαλίσει ότι η ανακύκλωση γίνεται με τρόπο που προστατεύει την
ανθρώπινη υγεία και το περιβάλλον. Για περισσότερες πληροφορίες σχετικά με το πού μπορείτε να
παραδώσετε τον άχρηστο εξοπλισμό σας για ανακύκλωση, επικοινωνήστε με το αρμόδιο τοπικό
γραφείο, την τοπική υπηρεσία διάθεσης οικιακών απορριμμάτων ή το κατάστημα όπου αγοράσατε το
προϊόν.
Készülékek magánháztartásban történő selejtezése az Európai Unió területén
A készüléken, illetve a készülék csomagolásán látható azonos szimbólum annak jelzésére szolgál,
hogy a készülék a selejtezés során az egyéb háztartási hulladéktól eltérő módon kezelendő. A
vásárló a hulladékká vált készüléket köteles a kijelölt gyűjtőhelyre szállítani az elektromos és
elektronikai készülékek újrahasznosítása céljából. A hulladékká vált készülékek selejtezéskori
begyűjtése és újrahasznosítása hozzájárul a természeti erőforrások megőrzéséhez, valamint
biztosítja a selejtezett termékek környezetre és emberi egészségre nézve biztonságos feldolgozását.
A begyűjtés pontos helyéről bővebb tájékoztatást a lakhelye szerint illetékes önkormányzattól, az
illetékes szemételtakarító vállalattól, illetve a terméket elárusító helyen kaphat.
D-2
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Nolietotu iekārtu iznīcināšanas noteikumi lietotājiem Eiropas Savienības privātajās
mājsaimniecībās
Šāds simbols uz izstrādājuma vai uz tā iesaiņojuma norāda, ka šo izstrādājumu nedrīkst izmest kopā ar
citiem sadzīves atkritumiem. Jūs atbildat par to, lai nolietotās iekārtas tiktu nodotas speciāli iekārtotos
punktos, kas paredzēti izmantoto elektrisko un elektronisko iekārtu savākšanai otrreizējai pārstrādei.
Atsevišķa nolietoto iekārtu savākšana un otrreizējā pārstrāde palīdzēs saglabāt dabas resursus un
garantēs, ka šīs iekārtas tiks otrreizēji pārstrādātas tādā veidā, lai pasargātu vidi un cilvēku veselību.
Lai uzzinātu, kur nolietotās iekārtas var izmest otrreizējai pārstrādei, jāvēršas savas dzīves vietas
pašvaldībā, sadzīves atkritumu savākšanas dienestā vai veikalā, kurā izstrādājums tika nopirkts.
Vartotojų iš privačių namų ūkių įrangos atliekų šalinimas Europos Sąjungoje
Šis simbolis ant gaminio arba jo pakuotės rodo, kad šio gaminio šalinti kartu su kitomis namų ūkio
atliekomis negalima. Šalintinas įrangos atliekas privalote pristatyti į specialią surinkimo vietą elektros ir
elektroninės įrangos atliekoms perdirbti. Atskirai surenkamos ir perdirbamos šalintinos įrangos atliekos
padės saugoti gamtinius išteklius ir užtikrinti, kad jos bus perdirbtos tokiu būdu, kuris nekenkia žmonių
sveikatai ir aplinkai. Jeigu norite sužinoti daugiau apie tai, kur galima pristatyti perdirbtinas įrangos
atliekas, kreipkitės į savo seniūniją, namų ūkio atliekų šalinimo tarnybą arba parduotuvę, kurioje
įsigijote gaminį.
Verwijdering van afgedankte apparatuur door privé-gebruikers in de Europese Unie
Dit symbool op het product of de verpakking geeft aan dat dit product niet mag worden gedeponeerd bij
het normale huishoudelijke afval. U bent zelf verantwoordelijk voor het inleveren van uw afgedankte
apparatuur bij een inzamelingspunt voor het recyclen van oude elektrische en elektronische apparatuur.
Door uw oude apparatuur apart aan te bieden en te recyclen, kunnen natuurlijke bronnen worden
behouden en kan het materiaal worden hergebruikt op een manier waarmee de volksgezondheid en het
milieu worden beschermd. Neem contact op met uw gemeente, het afvalinzamelingsbedrijf of de winkel
waar u het product hebt gekocht voor meer informatie over inzamelingspunten waar u oude apparatuur
kunt aanbieden voor recycling.
Pozbywanie się zużytego sprzętu przez użytkowników w prywatnych gospodarstwach
domowych w Unii Europejskiej
Ten symbol na produkcie lub jego opakowaniu oznacza, że produktu nie wolno wyrzucać do zwykłych
pojemników na śmieci. Obowiązkiem użytkownika jest przekazanie zużytego sprzętu do
wyznaczonego punktu zbiórki w celu recyklingu odpadów powstałych ze sprzętu elektrycznego i
elektronicznego. Osobna zbiórka oraz recykling zużytego sprzętu pomogą w ochronie zasobów
naturalnych i zapewnią ponowne wprowadzenie go do obiegu w sposób chroniący zdrowie człowieka
i środowisko. Aby uzyskać więcej informacji o tym, gdzie można przekazać zużyty sprzęt do
recyklingu, należy się skontaktować z urzędem miasta, zakładem gospodarki odpadami lub sklepem,
w którym zakupiono produkt.
D-3
Recycle Statements
Smaltimento delle apparecchiature da parte di privati nel territorio dell'Unione Europea
Questo simbolo presente sul prodotto o sulla sua confezione indica che il prodotto non può essere
smaltito insieme ai rifiuti domestici. È responsabilità dell'utente smaltire le apparecchiature consegnandole presso un punto di raccolta designato al riciclo e allo smaltimento di apparecchiature elettriche ed
elettroniche. La raccolta differenziata e il corretto riciclo delle apparecchiature da smaltire permette di
proteggere la salute degli individui e l'ecosistema. Per ulteriori informazioni relative ai punti di raccolta
delle apparecchiature, contattare l'ente locale per lo smaltimento dei rifiuti, oppure il negozio presso il
quale è stato acquistato il prodotto.
Recycle Statements
Waste Electrical and Electronic Equipment (WEEE) Statements
Recycle Statements
Descarte de Lixo Elétrico na Comunidade Européia
Este símbolo encontrado no produto ou na embalagem indica que o produto não deve ser descartado
no lixo doméstico comum. É responsabilidade do cliente descartar o material usado (lixo elétrico),
encaminhando-o para um ponto de coleta para reciclagem. A coleta e a reciclagem seletivas desse
tipo de lixo ajudarão a conservar as reservas naturais; sendo assim, a reciclagem será feita de uma
forma segura, protegendo o ambiente e a saúde das pessoas. Para obter mais informações sobre locais
que reciclam esse tipo de material, entre em contato com o escritório da HP em sua cidade, com o serviço
de coleta de lixo ou com a loja em que o produto foi adquirido.
Likvidácia vyradených zariadení v domácnostiach v Európskej únii
Symbol na výrobku alebo jeho balení označuje, že daný výrobok sa nesmie likvidovať s domovým
odpadom. Povinnosťou spotrebiteľa je odovzdať vyradené zariadenie v zbernom mieste, ktoré je
určené na recykláciu vyradených elektrických a elektronických zariadení. Separovaný zber a
recyklácia vyradených zariadení prispieva k ochrane prírodných zdrojov a zabezpečuje, že recyklácia
sa vykonáva spôsobom chrániacim ľudské zdravie a životné prostredie. Informácie o zberných
miestach na recykláciu vyradených zariadení vám poskytne miestne zastupiteľstvo, spoločnosť
zabezpečujúca odvoz domového odpadu alebo obchod, v ktorom ste si výrobok zakúpili.
Odstranjevanje odslužene opreme uporabnikov v zasebnih gospodinjstvih v Evropski uniji
Ta znak na izdelku ali njegovi embalaži pomeni, da izdelka ne smete odvreči med gospodinjske
odpadke. Nasprotno, odsluženo opremo morate predati na zbirališče, pooblaščeno za recikliranje
odslužene električne in elektronske opreme. Ločeno zbiranje in recikliranje odslužene opreme
prispeva k ohranjanju naravnih virov in zagotavlja recikliranje te opreme na zdravju in okolju neškodljiv
način. Za podrobnejše informacije o tem, kam lahko odpeljete odsluženo opremo na recikliranje, se
obrnite na pristojni organ, komunalno službo ali trgovino, kjer ste izdelek kupili.
Eliminación de residuos de equipos eléctricos y electrónicos por parte de usuarios particulares en la
Unión Europea
Este símbolo en el producto o en su envase indica que no debe eliminarse junto con los desperdicios
generales de la casa. Es responsabilidad del usuario eliminar los residuos de este tipo depositándolos
en un "punto limpio" para el reciclado de residuos eléctricos y electrónicos. La recogida y el reciclado
selectivos de los residuos de aparatos eléctricos en el momento de su eliminación contribuirá a
conservar los recursos naturales y a garantizar el reciclado de estos residuos de forma que se proteja
el medio ambiente y la salud. Para obtener más información sobre los puntos de recogida de residuos
eléctricos y electrónicos para reciclado, póngase en contacto con su ayuntamiento, con el servicio de
eliminación de residuos domésticos o con el establecimiento en el que adquirió el producto.
Bortskaffande av avfallsprodukter från användare i privathushåll inom Europeiska Unionen
Om den här symbolen visas på produkten eller förpackningen betyder det att produkten inte får
slängas på samma ställe som hushållssopor. I stället är det ditt ansvar att bortskaffa avfallet genom att
överlämna det till ett uppsamlingsställe avsett för återvinning av avfall från elektriska och elektroniska
produkter. Separat insamling och återvinning av avfallet hjälper till att spara på våra naturresurser och
gör att avfallet återvinns på ett sätt som skyddar människors hälsa och miljön. Kontakta ditt lokala
kommunkontor, din närmsta återvinningsstation för hushållsavfall eller affären där du köpte produkten
för att få mer information om var du kan lämna ditt avfall för återvinning.
D-4
Index
Numerics
A
AC power connector
location on back of switch … 1-12
Act LED … 1-8, 1-10
air plenum
not required in port-side mounting … 2-14, 2-19
required in power-side mounting … 2-14, 2-20
two sizes … 2-2, 2-21
auto MDI/MDI-X operation … B-7, B-9
HP Auto-MDIX feature … B-6
B
back of switch
description … 1-12
power connector … 1-12
basic switch configuration
IP address … 3-3
manager password … 3-3
subnet mask … 3-3
switch setup screen … 3-2
C
cables
connecting cables to switch ports … 2-27
effects of non-standard cables … 5-2
fiber-optic, specifications … B-3
infrastructure requirements … 2-5
serial, for direct console connection … 2-30
cables, twisted-pair
category 3, 4, 5 … B-6
connector pin-outs … B-6
cross-over cable pin-out … B-8
HP Auto-MDIX feature … B-6
MDI-X to MDI connections … B-7, B-9
MDI-X to MDI-X connections … B-8
pin-outs … B-7, B-9
straight-through cable pin-out … B-7, B-9
switch-to-computer connection … B-7, B-9
switch-to-switch or hub connection … B-8
wiring rules … B-6
Clear button
deleting passwords … 1-11
description … 1-11
location on switch … 1-4, 1-11
restoring factory default configuration … 1-11,
5-11
to delete password protection … 5-3
command-line interface (CLI)
displaying prompt on console … 2-30
for switch management … 1-14
savepower command … 1-14
system fan-pref-airflow-dir command … 2-9, 5-3
Index – 1
Index
10/100Base-TX ports
location on switch … 1-4
1000Base-BX … B-3
fiber-optic cable specifications … B-3
1000Base-LH … B-3
fiber-optic cable specifications … B-3
1000Base-T
1000Base-T
fiber-optic cable specifications … B-3
2-post telco rack
mounting a 6600 switch … 2-22
mounting brackets … 2-1
rack mount kit … 2-11
4-post rack
HP 10000 Series cabinet … 2-16
mounting a 6600 switch … 2-11–2-12
mounting brackets … 2-2
port-side mounting … 2-13
power-side mounting … 2-13
rack mount kits … 2-2, 2-11
basic troubleshooting tips … 5-1
Bootp
automatic switch configuration … 3-2
for in-band access … 3-5
buttons
Clear button … 1-11
port LED view select button … 1-9
Reset button … 1-11
Index
configuration
checking when troubleshooting … 5-3
DHCP/Bootp … 3-2
IP address … 3-2–3-3
manager password … 3-3
minimal configuration through console
port … 3-1
restoring factory defaults … 1-11, 5-11
subnet mask … 3-3
switch setup screen … 3-2
connecting the switch to a power source … 2-24
console
checking messages during reset … 5-9
configuring IP address for Telnet access … 3-1
displaying CLI prompt … 2-30
in-band connection … 3-5
out-of-band connection … 2-28–2-29
serial cable connection … 2-30
switch management … 2-28
switch setup screen … 3-2
Telnet access … 3-6
terminal configuration … 2-29
console cable
shipped with 6600 switch … 2-2, 2-29
console port
definition … 1-11
location on switch … 1-4
used for minimal switch configuration … 1-4–
1-5, 3-1
cross-over cable
pin-out … B-8
D
deleting passwords … 1-11
description
6600 switches … 1-1
back of switch … 1-12
front of switch … 1-4
LEDs … 1-7
desktop switch
sample topology … 2-32
DHCP
automatic switch configuration … 3-2
for in-band access … 3-5
2 – Index
diagnostic tests … 5-9
checking console messages … 5-9
checking the LEDs … 5-9
end-to-end connectivity … 5-10
testing the switch only … 5-9
testing twisted-pair cabling … 5-10
downloading new switch software … 5-12
dual-personality ports
default operation … 1-6
location on switch … 1-6
on 6600 switches … 1-13
shared RJ-45 and SFP operation … 1-6
E
electrical specifications, switch … A-1
EMC regulatory statements … C-8
environmental specifications, switch … A-1
F
factory default configuration, restoring … 1-11, 5-11
Fan LED on fan tray … 1-7
Fan Status LED … 1-7
fans
replacing fan trays … 4-1
reversing air flow direction … 1-13, 2-8
Fault LED … 1-7
blinking … 1-9
during self test … 2-7
error conditions … 1-7, 5-4
location on switch … 1-4
FDx LED … 1-8, 1-10
features
console … 2-28
switch … 1-13
fiber-optic cables … B-3
1000Base-BX … B-3
1000Base-LH … B-3
1000Base-T … B-3
flashing LEDs
error conditions … 5-4
front of switch … 1-4
10/100Base-TX ports … 1-4
Clear button … 1-11
description … 1-4
dual-personality ports … 1-6
LEDs … 1-7
network ports … 1-6
port LED view select button and LEDs … 1-9
Reset button … 1-11
full-duplex fixed configuration
effects on network connections … 5-1
full-duplex operation of RJ-45 ports … 1-13
H
I
in-band console access
for switch management … 3-1
types of … 3-5
included parts … 2-1
installation
connecting the switch to a power source … 2-24
location considerations … 2-5
network cable requirements … 2-5
overview … 2-4
precautions … 2-3
rack or cabinet mounting … 2-11
site preparation … 2-5
IP address
configuring … 3-3
required for networked management
sessions … 3-1
LEDs
Act … 1-8, 1-10
behavior during self test … 2-7
blinking … 1-9
descriptions of … 1-7
error conditions … 5-4
fan status … 1-7
fan tray … 1-7
fault … 1-7
fault display during self test … 2-7
fault display for error conditions … 5-4
FDx … 1-8, 1-10
link … 1-8
location on switch … 1-4
port … 1-8
Port View, selecting the display … 1-9
power … 1-7
power display during self test … 2-7
power supply status … 1-7
self test … 1-8, 2-7
Spd … 1-8, 1-10
temperature … 1-7
used for troubleshooting … 5-9
Usr … 1-8
Usr Mode … 1-10
Link LED … 1-8
link test … 5-10
location, space in front and back of switch … 2-5
M
MAC addresses in forwarding table … 1-13
MDI-X to MDI network cable … B-7, B-9
MDI-X to MDI-X network cable … B-8
mini-GBICs
See SFP.
mode conditioning patch cord … B-4
mounting a 6600 switch
2-post telco rack … 2-3, 2-22
4-post rack … 2-3, 2-12
HP 10000 Series cabinet … 2-3, 2-16
rack precautions … 2-3
Index – 3
Index
hold-down brackets
used in HP 10000 Series rack mounting … 2-18
hot swapping
fan tray … 4-1
HP 10000 Series cabinet
hold-down brackets required … 2-18
mounting a 6600 switch … 2-11, 2-16
port-side mounting … 2-19
power-side mounting … 2-18
HP Auto-MDIX
feature description … B-6
L
N
network cables
fiber-optic, specifications … B-3
HP Auto-MDIX feature … B-6
required types … 2-5
twisted-pair, connector pin-outs … B-6
twisted-pair, wiring rules … B-6
network devices
connecting to the switch … 2-27
network ports
connecting to … 2-27
location on switch … 1-6
types of … 1-6
non-standard network cables, effects … 5-2
Index
O
out-of-band
console connection required to configure IP
address … 2-30, 3-1
direct connection through console port … 2-28–
2-29
for switch management … 3-1
networked connection through management
port … 1-5–1-6, 3-5
Telnet session for switch management … 3-6
web browser session … 3-6
P
parts, included with the switch … 2-1
password
configuration … 3-3
deleting with the Clear button … 1-11, 5-3
if you lose a password … 5-3
physical specifications, switch … A-1
Ping test … 5-10
pin-outs
twisted-pair cables … B-6
port configuration
checking during troubleshooting … 5-3
Port LED View
indicator LEDs … 1-9
select button … 1-9
selecting the display … 1-9
4 – Index
port LEDs
description … 1-8
link … 1-8
normal operation … 2-7
ports
10/100Base-TX, location on switch … 1-4–1-6
connecting cables … 2-27
console … 2-28
HP Auto-MDIX feature … B-6
network connections … 2-27
port-side mounting
4-post rack … 2-13
in HP 10000 Series cabinet … 2-19
no air plenum required … 2-14, 2-19
reversing air flow direction … 2-8
switch ports face cold aisle … 2-13, 2-19
power connector … 1-12
power cords … 2-2
routing through air plenum … 2-15, 2-21
securing with velcro strap … 2-23
Power LED … 1-7
during self test … 2-7
error conditions … 1-7
location on switch … 1-4
Power Save mode … 1-14
power source
connecting the switch to … 2-24
power supply
replacing … 4-3
Power Supply LED … 1-7
power-side mounting
4-post rack … 2-13
air plenum required … 2-14, 2-20
in HP 10000 Series cabinet … 2-18
power supplies face cold aisle … 2-13, 2-20
precautions
mounting a 6600 switch … 2-3
power requirements … 2-3
preparing the installation site … 2-5
Proactive Network tools
used for diagnostics … 5-8
ProCurve Manager
SNMP-based network management … 1-14
R
rack
S
safety and regulatory statements … C-1
safety specifications … A-3
selecting the Port LED View display … 1-9
self test
Fault LED behavior … 2-7
LED behavior … 2-7
Power LED behavior … 2-7
Self Test LED … 1-8
behavior during factory default reset … 5-11
serial cable
for direct console connection … 2-30
SFP
mini-GBIC transceiver … 1-13, 2-24
supported slots on 6600 switches … 1-4–1-5,
2-26
used in dual-personality ports … 2-24
SFP+
10 Gigabit connectivity … 1-13, 2-24
supported slots on 6600 switches … 1-4–1-5,
2-26
slots supported for mini-GBICs … 1-4
Spanning Tree Protocol … 1-14
T
technology distance specifications … B-3
Telnet session
for switch management … 3-6
Temperature LED … 1-7
terminal configuration … 2-29
Test LED
during self test … 2-7
Index – 5
Index
2-post telco rack … 2-3, 2-22
4-post rack … 2-3, 2-12
HP 10000 Series cabinet … 2-3, 2-16
mounting precautions … 2-3
ranges
voltage … 1-12, 2-6
recycle statements … D-1
regulatory statements … C-8
replacing hardware
fans … 4-1
power supply … 4-3
Reset button
description … 1-11
location on switch … 1-4, 1-11
restoring factory default configuration … 5-11
resetting the switch
factory default reset … 5-11
location of Reset button … 1-11
troubleshooting procedure … 5-9
reversing air flow
from default power-to-port direction … 1-13, 2-8
Spd LED … 1-8, 1-10
specifications
cabling … B-1
distance … B-3
electrical … A-1
environmental … A-1
physical … A-1
safety … A-3
straight-through cable
pin-out … B-7, B-9
subnet mask
configuration … 3-3
switch
6600 product descriptions … 1-1
connecting to a power source … 2-24
downloading new software … 5-12
electrical specifications … A-1
environmental specifications … A-1
front panel description … 1-4
included parts … 2-1
installation … 2-4
LED descriptions … 1-7
MAC addresses in forwarding table … 1-13
manager password … 3-3
minimal configuration through console
port … 3-1
physical specifications … A-1
plug-and-play networking … 1-13
product features … 1-13
verifying operation after installation … 2-5
switch setup screen … 3-2
configuring a subnet mask … 3-3
configuring an IP address … 3-3
field descriptions … 3-3
Index
testing
checking console messages … 5-9
checking the LEDs … 5-9
diagnostic tests … 5-9
end-to-end communications … 5-10
link test … 5-10
Ping test … 5-10
switch operation … 5-9
switch-to-device communications … 5-10
twisted-pair cabling … 5-10
topologies
effects of improper topology … 5-2
sample network with 6600 switches … 2-32
transceivers
connecting cables … 2-27
installation … 2-25
removal … 2-26
SFP (mini-GBIC) and SFP+ supported … 2-24
supported speeds and technologies … 1-3
troubleshooting
basic tips … 5-1
checking console messages … 5-9
checking port configuration … 5-3
checking the LEDs … 5-9
common network problems … 5-1
configuring air flow log message … 2-9, 5-3
connecting to fixed full-duplex devices … 5-1
diagnostic tests … 5-9
effects of improper topology … 5-2
effects of non-standard cables … 5-2
incorrect air flow … 5-3
link test … 5-10
lost password … 5-3
Ping test … 5-10
Proactive Network tools … 5-8
restoring factory default configuration … 5-11
switch hardware … 5-1
testing connections to other devices … 5-10
testing end-to-end communications … 5-10
testing the switch … 5-9
testing the twisted-pair cables … 5-10
twisted-pair cable
cross-over cable pin-out … B-8
pin-outs … B-6–B-7, B-9
straight-through cable pin-out … B-7, B-9
switch-to-computer connection … B-7, B-9
switch-to-switch or hub connection … B-8
testing … 5-10
6 – Index
twisted-pair ports
HP Auto-MDIX feature … B-6
U
USB port
processing USB command file … 1-13
Usr LEDs … 1-8
Usr Mode LED … 1-10
V
VLANs … 1-14
voltage ranges … 1-12, 2-6
VT-100 terminal
serial cable connection … 2-30
W
web browser interface
for switch management … 1-14, 3-6
wiring rules for twisted-pair cables … B-6
Technology for better business outcomes
To learn more, visit www.hp.com/networking/
© Copyright 2011 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty.
HP will not be liable for technical or editorial errors or omissions contained
herein.
August 2011
Manual Part Number
5992-4962
*5992-4962*
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
