Datasheet for Triac-200vrm-25a

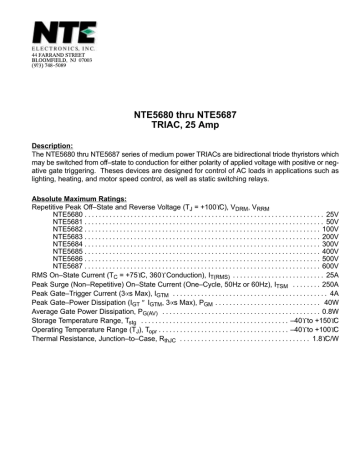

NTE5680 thru NTE5687
TRIAC, 25 Amp
Description:
The NTE5680 thru NTE5687 series of medium power TRIACs are bidirectional triode thyristors which
may be switched from off–state to conduction for either polarity of applied voltage with positive or negative gate triggering. Theses devices are designed for control of AC loads in applications such as
lighting, heating, and motor speed control, as well as static switching relays.
Absolute Maximum Ratings:
Repetitive Peak Off–State and Reverse Voltage (TJ = +100°C), VDRM, VRRM
NTE5680 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
NTE5681 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V
NTE5682 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V
NTE5683 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V
NTE5684 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300V
NTE5685 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V
NTE5686 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500V
NTE5687 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
RMS On–State Current (TC = +75°C, 360° Conduction), IT(RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . 25A
Peak Surge (Non–Repetitive) On–State Current (One–Cycle, 50Hz or 60Hz), ITSM . . . . . . . . 250A
Peak Gate–Trigger Current (3µs Max), IGTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Peak Gate–Power Dissipation (IGT ≤ IGTM, 3µs Max), PGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40W
Average Gate Power Dissipation, PG(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8W
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +150°C
Operating Temperature Range (TJ), Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +100°C
Thermal Resistance, Junction–to–Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.8°C/W
Electrical Characteristics: (At Maximum Ratings, TA = +25°C unless otherwise specified)
Parameter
Symbol
Peak Off–State Current
IDROM
Test Conditions
Min
Typ
Max
Unit
Gate Open, IT = 100A (Peak)
–
–
4
mA
Maximum On–State Voltage
VT
IT = 100A (Peak)
–
–
2.5
V
DC Holding Current
IH
Gate Open
–
–
60
mA
Gate Open, VD = Rated VDROM,
TC = +100°C
–
40
–
V/µs
Commutating Gate Open, VD = Rated VDROM,
dv/dt
IT = 25A, TC = +75°C
–
3
–
V/µs
VD = 24V, RL = 12Ω
–
–
–
–
100
150
mA
mA
VD = 24V, RL = 12Ω
–
–
2.5
V
VD = Rated VDROM, IGT = 300mA,
tr = 0.1µs, It = 10A(Peak)
–
3
–
µs
Critical Rate–of–Rise of Off–State Voltage
Critical Rate–of–Rise of Commutation
Critical
dv/dt
DC Gate Trigger Current
MT2 (+), Gate (+); MT2 (–), Gate (–)
MT2 (+), Gate (–); MT2 (–), Gate (+)
IGT
DC Gate Trigger Voltage
VGT
Gate–Controlled Turn–On Time
tgt
.562
(14.28)
Max
Gate
MT1
.1.193
(30.33)
Max
.200 (5.08) Max
.453
(111.5)
Max
MT2
1/4–28 UNF–2A
