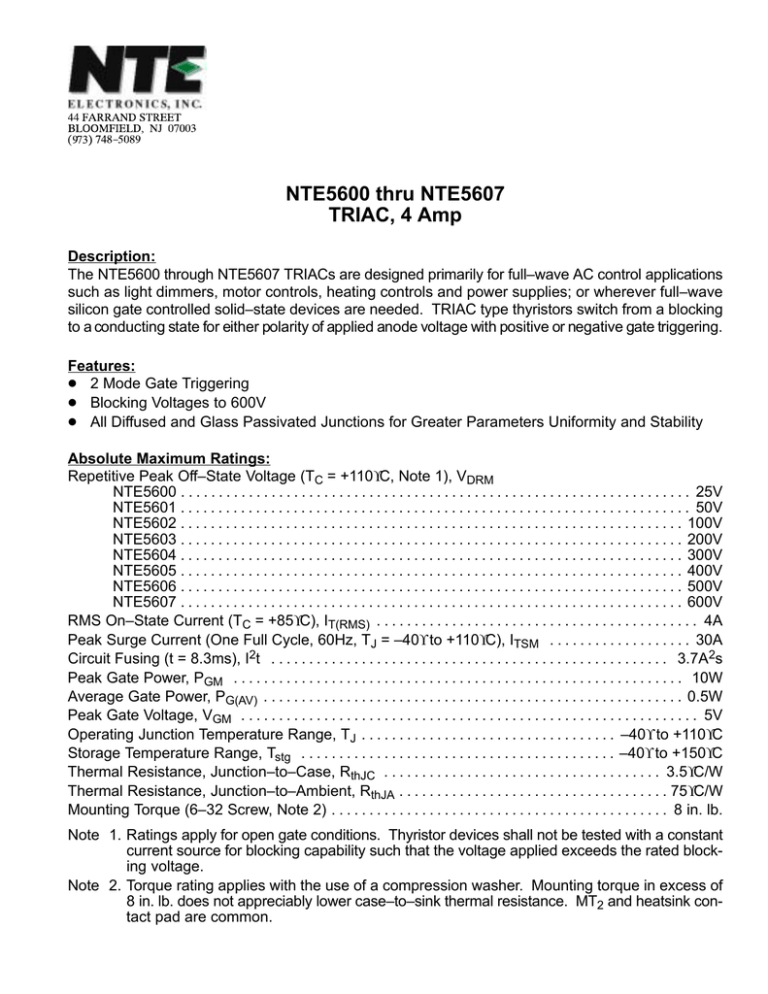

NTE5600 thru NTE5607
TRIAC, 4 Amp
Description:
The NTE5600 through NTE5607 TRIACs are designed primarily for full–wave AC control applications
such as light dimmers, motor controls, heating controls and power supplies; or wherever full–wave
silicon gate controlled solid–state devices are needed. TRIAC type thyristors switch from a blocking
to a conducting state for either polarity of applied anode voltage with positive or negative gate triggering.
Features:
D 2 Mode Gate Triggering
D Blocking Voltages to 600V
D All Diffused and Glass Passivated Junctions for Greater Parameters Uniformity and Stability
Absolute Maximum Ratings:
Repetitive Peak Off–State Voltage (TC = +110°C, Note 1), VDRM
NTE5600 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V
NTE5601 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50V
NTE5602 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V
NTE5603 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V
NTE5604 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300V
NTE5605 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V
NTE5606 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500V
NTE5607 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
RMS On–State Current (TC = +85°C), IT(RMS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4A
Peak Surge Current (One Full Cycle, 60Hz, TJ = –40° to +110°C), ITSM . . . . . . . . . . . . . . . . . . . 30A
Circuit Fusing (t = 8.3ms), I2t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.7A2s
Peak Gate Power, PGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10W
Average Gate Power, PG(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5W
Peak Gate Voltage, VGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +110°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +150°C
Thermal Resistance, Junction–to–Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5°C/W
Thermal Resistance, Junction–to–Ambient, RthJA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75°C/W
Mounting Torque (6–32 Screw, Note 2) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 in. lb.
Note 1. Ratings apply for open gate conditions. Thyristor devices shall not be tested with a constant
current source for blocking capability such that the voltage applied exceeds the rated blocking voltage.
Note 2. Torque rating applies with the use of a compression washer. Mounting torque in excess of
8 in. lb. does not appreciably lower case–to–sink thermal resistance. MT2 and heatsink contact pad are common.
Electrical Characteristics: (TC = +25°C unless otherwise specified)
Parameter
Peak Forward or Reverse
Blocking Current
Symbol
IDRM,
IRRM
On–State Voltage (Either Direction)
VTM
Peak Gate Trigger Voltage
MT2 (+), G (+); MT2 (–), G (–)
MT2 (+), G (–); MT2 (–), G (+)
VGT
Peak Gate Trigger Voltage
MT2 (+), G (+); MT2 (–), G (–)
MT2 (+), G (–); MT2 (–), G (+)
VGT
Holding Current (Either Direction)
IH
Turn–On Time (Either Direction)
Blocking Voltage Application
Rate at Commutation
Gate Trigger Current
Quads I & III
ton
dv/dt
IGT
Test Conditions
Min
Typ
Max
Unit
Rated VDRM or VRRM, Gate Open,
TJ = +25°C
–
–
10
µA
Rated VDRM or VRRM, Gate Open,
TJ = +110°C
–
–
2
mA
ITM = 6A Peak
–
–
2
V
Main Terminal Voltage = 12V,
RL = 100Ω, TJ = –40°C
–
1.4
2.5
V
0.2
–
–
V
Main Terminal Voltage = 12V, Gate Open,
TJ = –40°C, Initiating Current = 1A
–
–
70
mA
Main Terminal Voltage = 12V, Gate Open,
TJ = +25°C
–
–
30
mA
ITM = 14A, IGT = 100mA
–
1.5
–
µs
Rated VDRM, Gate Open, TJ = +85°C
–
5
–
V/µs
Main Terminal Voltage = 12V,
RL = 100Ω, TJ = +25°C
–
–
30
mA
Main Terminal Voltage = 12V,
RL = 100Ω, TJ = –40°C
–
–
60
mA
Main Terminal Voltage = Rated VDRM,
RL = 10kΩ, TJ = +110°C
.330 (8.38)
Max
.175
(4.45)
Max
.450
(11.4)
Max
.118 (3.0)
Dia
.655
(16.6)
Max
.030 (.762) Dia
MT1 MT2
G
.090 (2.28)
.130 (3.3)
Max
