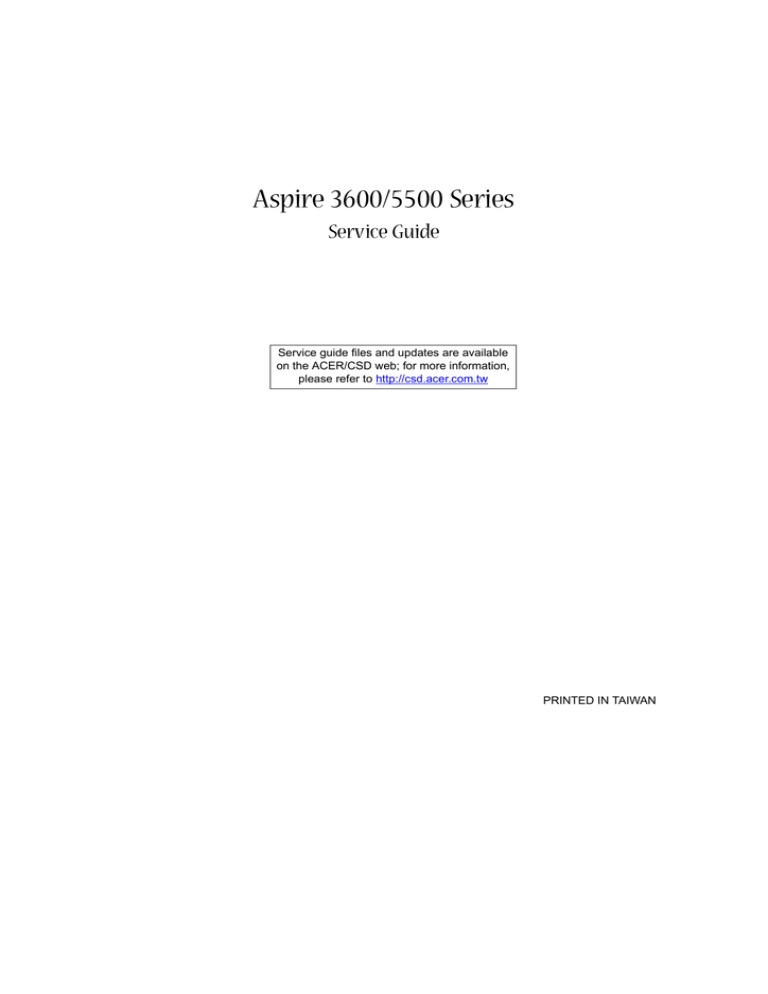

Aspire 3600/5500 Series

Service Guide

Service guide files and updates are available on the ACER/CSD web; for more information, please refer to http://csd.acer.com.tw

PRINTED IN TAIWAN

II

Revision History

Please refer to the table below for the updates made on Aspire 3600/5500 service guide.

2006/7/25

Date

Chapter 2

Chapter Updates

Add removing BIOS password SOP.

Copyright

Copyright © 2005 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.

Intel is a registered trademark of Intel Corporation.

Pentium and Pentium II/III are trademarks of Intel Corporation.

Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE

WARNING

CAUTION

IMPORTANT

Denotes actual messages that appear on screen.

Gives bits and pieces of additional information related to the current topic.

Alerts you to any damage that might result from doing or not doing specific actions.

Gives precautionary measures to avoid possible hardware or software problems.

Reminds you to do specific actions relevant to the accomplishment of procedures.

IV

Preface

Before using this information and the product it supports, please read the following general information.

1.

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2.

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service

Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

V

VI

Chapter 1

System Specifications

Features

Below is a brief summary of the computer’s many feature:

Platform and memroy

Aspire 5500

Intel

®

Centrino

TM

Mobile Technology, featuring: t

Intel

®

Pentium

®

M Processor 730/740/750/760/770 (2 MB L2 cache, 1.60/1.73/1.86/2/2.13 GHz, 533

MHz FSB) t

Intel

®

Pentium

®

M Processor 725 (2MB L2 cache, 1.6 GHz, 400 MHz FSB) t

Intel

®

915GM/PM Express chipset t

Wireless solution: integrated Intel

®

PRO/Wireless 2200BG network connection (dual-band 802.11b/g)

Wi-Fi

®

CERTIFIED

TM

solution, supporting Acer SignalUp wireless technology

Aspire 3600 t

Intel

®

Pentium

®

M Processor 725 (2MB L2 cache, 1.6 GHz, 400 MHz FSB) t

Intel

®

Celeron

®

M Processor 350/360/370 (1 MB L2 cache, 1.30/1.40/1.50 GHz, 400 MHz FSB) t

Intel

®

910GML Express chipset t

Wireless solution: integrated Intel

®

PRO/Wireless 2200BG network connection (dual-band 802.11b/g)

Wi-Fi

®

CERTIFIED

TM

solution, supporting Acer SignalUp wireless technology

T

T

Intel

®

915GM/PM (for Aspire 5500)/Intel

®

910GML (for Aspire 3600)+Intel ICH6-M (Mobile Intel

82801FB)

256/512 MB of DDR2 400/533 MHz memory, upgradeable to 2 GB using two soDIMM modules

(dual-channel support)

Display

T

T

T

T

T

14.1 WXGA color TFT LCD, 1280 x 800 resolution; 16:10 viewing ratio, supporting simultaneous multi-window viewing on dual displays via Acer GridVista 16.7 million colors

Intel

®

915GM/PM (Aspire 5500)/Intel

®

910GML(Aspire 3600) integrated 3D graphics, featuring

Intel Graphics Media Accelerator 900 and up to 128 MB of VRAM, supporting Microsoft

®

DirectX

®

9.0 and dual independent display

ATI MOBILITY

TM

RADEON

TM

X700 with 64 MB or higher of dedicated VRAM, supporting ATI

POWERPLAY

TM

5.0, PCI Express

TM

, Microsoft

®

DirectX

®

9.0 and DualView (Aspire 3600 only)

MPEG-2/DVD hardware-assisted capability

S-video/TV-out (NTSC/PAL) support (Aspire 5500 only)

Storage subsystem

T

40/60/80 GB ATA/100 hard disk drive

T

Optical drive options: t

DVD-Dual slot loading type double layer (Aspire 5500)

Chapter 1 1

T t

DVD-Dual double layer (Aspire 3600) t

DVD/CD-RW combo

5-in-1 card reader (MS/MS PRO/MMC/SD/xD-Picture Card

Input devices

T

T

T

T

T

Acer FineTouch

TM

keyboard

84/85-key keyboard

Touchpad with 4-way integrated scroll button

Four easy-launch buttons

Two front-access LED-buttons: WLAN and Bluetooth

®

Audio

T

T

Audio system with two built-in speakers

MS-Sound compatible

Communication

T

Modem: 56K ITU V.90/V.92 modem with PTT approval; wake-on ring ready

T

T

T

LAN: 10/100/ (TravelMate 3210) or gigabit Ethernet (TravelMate 2400); wake-on ring ready

WLAN: integrated 802.11b/g Wi-Fi

®

CERTIFIED

TM

solution (TravelMate 2400), or Intel

®

PRO/

Wireless 2200BG network connection (dual-band 802.11b/g) Wi-Fi ® CERTIFIED TM solution

(TravelMate 3210)

Acer SignalUp wireless technology support

T

WPAN: integrated Bluetooth

®

Human-centric design and ergonomics

T

Rugged, yet extremely portable design

T

T

T

T

T

Stylish appearance

Full-size keyboard with four programmable launch keys

Ergonomically-centered touchpad pointing device

Acer FineTouch keyboard with a 5-degree curve

Internet 4-way scroll button

I/O Ports

T

T

T

T

T

T

T

T

T

T

T

Three USB 2.0 ports

5-in-1 card reader (MS/MS-PRO/MMC/SD/XD)

PC Card slot (one Type II)

IEEE 1394 port (Aspire 5500 only)

Fast infrared (FIR) port (Aspire 5500 only)

External display (VGA) port

S-video/TV-out (NTSC/PAL) port (Aspire 5500 only)

Headphones/speaker/line-out port

Microphone/line-in jack

Ethernet (RJ-45) port

Modem (RJ-11) port

2 Chapter 1

T

DC-in jack for AC adaptor

Chapter 1 3

4

System Block Diagram

Intel Pentium-M/

Celeron-M CPU

Micro FC-PGA

Thermal Sensor

Clock Generator

CRT & TV-Out Conn.

Daughter Card (M26P)

PCI-Express x16

LVDS Conn.

Mobile Intel 915PM/ GM and 910GML Express

Chipset (Alviso)

DDR II SODIMM 2

DDR II SODIMM 1

Min i-PCI

So cket

BroadCOM

LAN

BCM440 1KFB

/ BCM578 8M

PCMCIA &

CardRead er

Controller

ENE CB7 12

13 94

Con troller

TSB34AB21A

Mobile Intel 82801FB

ICH6-M

RJ45

PCMCIA

Slo t

13 94 Con n.

4 -Pin s

4-in -1

CradReader

Slo t

Super I/O

SMsC LPC47N217

Power ON/ OFF

Circuit

ENE KB910Q

(EC + KBC)

DC/ DC Interface

Circuit

Power DC/DC

Circuit

RTC Circuit

Power-OK Circuit

USB Conn. x3

USB Conn. x1 for BlueTooth

Audio Codec

Amplifier

MDC Conn.

SATA Conn.

PATA Conn.

Speaker

Conn.

Jack x2

RJ-11

Internal K/B

BIOS

Touch-Pad Conn.

Chapter 1

Board Layout

Top View

SW3

JP1

SW2

SW4 SW5 SW6

SW1

2

2

JP7

2

2

JP4

2

JP5

2

JP42

KQ:

2

2

SW3

JP1

SW2

SW4

SW5

SW6

Power Switch

Bluetooth Connector

E-mail Switch

Internet Browser Switch

Emanager Switch

User Programmable Switch

SW1

JP5

JP4

JP42

JP7

JP10

Lid Swtich

Touchpad Connector

Keyboard Connector

Speaker Connector

PCMCIA Slot

Microphone Connector

Chapter 1 5

Bottom View

2

JP21

2

PJP11

JP20

JP39

JP26

JP31

2

JP16

2

JP22

PCN1

2 JP13 JP12

JP14

2

JP19

2

JP3

2

JP17

2

2

2

JP35

2

T2

JP28

Q2 JP29

JP36

2

JP23

JP24

2

JP25

2

JP30

2

U42

2

JP41

JP40

6

JP13

JP12

JP14

JP3

JP17

JP19

JP23

JP21

PJP11

JP20

JP16

JP22

PCN1

Fan Connector

Battery Connector

CPU Socket

LVDS Connector

VGA Board Connector

AC-IN

USB Port

Reserved for Acer ezDock. No ezDock for this model.

Modem Board Connector

External Display Port

S-Video Port

RJ11/RJ45

Modem Cable Connector

JP41

JP28

JP35

U42

JP26

JP31

JP39

JP24

JP25

JP30

JP36

IR

JP40

USB Port

USB Port

IEEE 1394 Port

Card Reader Connector

Infrared Receiver

Headphone out/line-out Jack

(support SPDIF)

Mic-in Jack

HDD Connector

Wireless LAN Card Connector

BIOS

DDR2 Socket

DDR2 Socket

ODD Connector

Chapter 1

An Aspire tour

After knowing your computer features, let us show you around your new TravelMate computer.

Front View

Chapter 1

6

7

4

5

8

9

2

3

#

1

Icon Item

Display screen

Power button

Launch keys

Microphone

Status indicators

Palmrest

Click buttons (left, center and right)

Touchpad

Keyboard

Description

Also called LCD (liquid-crystal display), displays computer output.

Turns the computer on and off.

Buttons for launching frequently used programs. See “Launch keys” section for more details.

Internal microphone for sound recording.

Light-Emitting Diodes (LEDs) that turn on and off to show the status of the computer’s functions and components.

Comfortable support area for our hands when you use the computer.

The left and right buttons function like the left and right mouse buttons; the center button serves as a 4-way scroll button.

Touch-sensitive pointing device which functions like a computer mouse.

For entering data into your computer.

7

Closed Front View

#

1

2

3

4

5

6

7

Icon Item

Speaker-out/line-out/

Headphone jack

Description

Connects to audio line-out devices (e.g., speakers, headphones).

Mic-in jack Accepts inputs from external microphone.

Speakers

Bluetooth

® communication button/ indicator

Left and right speakers deliver stereo audio output.

Press to enable/disable Bluetooth function.

Lights to indicate the status of

Bluetoothcommunications (option only available for TravelMate 3210).

Wireless communication button/ indicator

Press to enable/disable Wireless function.

Lights to indicate the status of wireless

LAN communications.

Power indicator

Lights when the computer is on.

Battery indicator

Lights when the battery is being charged

8 Chapter 1

Left View

Chapter 1

2

3

4

5

6

7

#

1

8

9

10

Icon Item

External display port

Description

Connects a display device (e.g., external monitor, LCD projector).

S-video/TV-out port

Network jack

Connects to a television or display device with S-video input (TravelMate 3210 only).

Connects to an Ethernet 10/100/1000based network.

Modem jack Connects to a phone line.

Two USB 2.0 ports

IEEE 1394 port

PC Card slot

Connects to USB 2.0 devices (e.g., USB mouse, USB camera).

Connects to IEEE 1394 devices

(TravelMate 3210 only).

Connects to one Type II PC Card.

5-in-1 card reader

Infrared port

PC Card slot eject button

Accepts and MS, MS PRO, MMC, SD, or xD-Picture card (manufacturing option).

Note: Only one card can operate at any given time.

Interfaces with infrared devices like infrared printer and IR-aware computer (TravelMate

3210 only).

Ejects the PC Card from the slot.

9

Right View

2

3

#

1

4

5

Icon Item

Optical drive eject button

LED indicator

Optical drive

Ventilation slots

Security Keylock

Description

Ejects the optical drive tray from the drive.

Lights up when the optical drive is active.

Internal optical drive; accepts CDs or DVDs depending on the optical drive type.

Enable the computer to stay cool, even after prolonged use.

Connects to a Kensington-compatible computer security lock.

Rear Panel

#

1

2

3

Icon Item

Battery bay

Power jack

Description

Houses the computer’s battery pack.

Connects to an AC adaptor.

Connect to USB 2.0 devices (e.g., USB mouse, USB camera).

10 Chapter 1

Bottom Panel

7

6

7

4

5

2

3

#

1

Item

Battery bay

Battery lock

Cooling fan

Description

Houses the computer’s battery pack.

Locks the battery in place.

Helps keep the computer cool.

Note: Do not cover or obstruct the opening of the fan.

Memory compartment Houses the computer’s main memory.

Hard disk bay Houses the computer’s hard disk (secured by two screws).

Battery release latch

Wireless LAN card compartment

Releases the battery for removal.

Houses the computer’s mini PCI.

Indicators

The computer has three easy-to-read status indicators on the upper-left above the keyboard, and four on the front panel.

The power, battery and wireless communication status indicators are visible even when the LCD display is closed.

Chapter 1 11

Icon Function

Cap lock

Description

Lights when Cap Lock is activated

Num lock Lights when Num Lock is activated.

Media Activity

Bluetooth

Wireless LAN

Power

Battery

Indicates when the hard disc or optical drive is active.

Indicates the status of Bluetooth communication.

Indicates the status of wireless LAN communication.

Lights up when the computer is on.

Lights up when the battery is being charged.

NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows green when in AC mode.

Easy Launch Buttons

Located at the upper-right, above the keyboard are four buttons. These buttons are called launch keys. The are: mail, Web browser, Acer Empowering key “ “ and one user-programmable button.

Press “ “ to ru the Acer eManager. Please see “Acer eManager”. The mail and Web buttons are pre-set to email and Internet programs, but can be reset by users. To set the Web browser, mail and programmable keys, run the Acer Launch Manager.

12 Chapter 1

Launch key

Mail

Web browser

P

Default application

Email application (user-programmable)

Internet browser (user-programmable)

Acer eManager (user-programmable)

User-programmable

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor responds as you move your finger across the surface of the touchpad. The central location on the palmrest provides optimum comfort and support.

Touchpad Basics

The following teaches you how to use the touchpad:

Chapter 1 13

14

T

T

T

Move your finger across the touchpad (2) to move the cursor.

Press the left (1) and right (4) buttons located beneath the touchpad to perform selection and execution functions. These two buttons are similar to the left and right buttons on a mouse.

Tapping on the touchpad is the same as clicking the left button.

Use the 4-way scroll (3) button to scroll up or down and move left or right a page. This button mimics your cursor pressing on the right scroll bar of Windows applications.

Function

Execute

Left Button (1)

Click twice quickly

Right Button

(4)

Main touchpad

(2)

Tap twice (at the same speed as doubleclicking the mouse button)

Center button (3)

Select

Drag

Click once

Click and hold, then use finger to drag the cursor on the touchpad

Tap once

Tap twice (at the same speed as doubleclicking a mouse button) then hold finger to the touchpad on the second tap to drag the cursor.

Access context menu

Scroll

Click once

Click and hold to move up/down/left/right.

NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response.

Tapping too hard will not increase the touchpad’s responsiveness.

Chapter 1

Using the Keyboard

The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and twelve function keys.

Lock Keys and embedded mumeric keypad

The keyboard has three lock keys which you can toggle on and off.

Lock Key

Caps Lock

Num lock

<Fn>+<F11>

Scroll lock

<Fn>+<F12>

Description

When Caps Lock is on, all alphabetic characters typed are in uppercase.

When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a calculator

(complete with the arithmetic operators +, -, *, and /).

Use this mode when you need to do a lot of numeric data entry. A better solution would be to connect an external keypad.

When Scroll Lock is on, the screen moves one line up or down when you press the up or down arrow keys respectively. Scroll Lock does not work with some applications.

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols are not printed on the keys.

Desired Access

Number keys on embedded keypad

Cursor-control keys on embedded keypad

Main keyboard keys

Num Lock On

Type numbers in a normal manner.

Hold <Shift> while using cursor-control keys.

Hold <Fn> while typing letters on embedded keypad.

Num Lock Off

Hold <Fn> while using cursor-control keys.

Type the letters in a normal manner.

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Chapter 1 15

Key

Windows key

Application key

Icon Description

Pressed alone, this key has the same effect as clicking on the Windows Start button; it launches the

Start menu. It can also be used with other keys to provide a variety of function:

+ <Tab> Activates next taskbar button.

+ <E> Opens the My Computer window

+ <F1> Opens Help and Support.

+ <F> Opens the Find: All Files dialog box.

+ <R> Opens the Run dialog box.

+ <M> Minimizes all windows.

<Shift>+ action.

+ <M> Undoes the minimize all windows

This key has the same effect as clicking the right mouse button; it opens the application’s context menu.

Hot Keys

The computer employs hotkeys or key combinations to access most of the computer’s controls like sreen brightness, volume output and the BIOS utility.

To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.

16

Hot Key

Fn-F1

Fn-F2

Fn-F3

Icon Function

Hot key help

Description

Displays help on hot keys.

Acer eSetting Launches the Acer eSettings in Acer eManager.

Acer ePowerManagement

Launches the Acer ePowerManagement in Acer eManager.

Chapter 1

Fn-F7

Fn-F8

Fn-w

Fn-y

Hot Key

Fn-F4

Fn-F5

Fn-F6

Fn-x

Fn-z

Icon

Sleep

Function Description

Puts the computer in Sleep mode.

Display toggle

Screen blank

Touchpad toggle

Switches display output between the display screen, external monitor (if connected) and both.

Turns the display screen backlight off to save power.

Press any key to return.

Turns the internal touchpad on and off.

Speaker toggle Turns the speakers on and off.

Volume up

Volume down

Increases the speaker volume.

Decreases the speaker volume.

Brightness up Increases the screen brightness.

Brightness down Decreases the screen brightness

Special Key

You can locate the Euro symbol and US dollar sign at the upper-center and/or bottom-right of your keyboard.

To type:

Chapter 1 17

The Euro symbol

1.

Open a text editor or word processor.

2.

Either directly press the <Euro> symbol at the bottom-right of the keyboard, or hold <Alt Gr> and then press the<5> symbol at the upper-center of the keyboard.

The US dollar sign

1.

Open a text editor or word processor.

2.

Either directly press the <Dollar> key at the bottom-right of the keyboard, or hold <Shift> and then press the <4> key at the upper-center of the keyboard.

NOTE: This function varies by the operating system version.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/ typography/faq/faq12.htm for more information.

18 Chapter 1

Hardware Specifications and Configurations

Processor

CPU type

Core logic

Item

CPU package

CPU core voltage

Specification

Aspire 5500

Intel

®

Pentium

®

M Processor 730/740/750/760/770 (2 MB L2 cache, 1.60/

1.73/1.86/2/2.13 GHz, 533 MHz FSB)

Intel ® Pentium ® M Processor 725 (2MB L2 cache, 1.6 GHz, 400 MHz FSB)

Aspire 3600

Intel

®

Pentium

®

M Processor 725 (2MB L2 cache, 1.6 GHz, 400 MHz FSB)

Intel

®

Celeron

®

M Processor 350/360/370 (1 MB L2 cache, 1.30/1.40/1.50

GHz, 400 MHz FSB)

Intel

®

915GM/PM (for Aspire 5500)/Intel

®

910GML (for Aspire 3600)+Intel

ICH6-M (Mobile Intel 82801FB)

Intel socketable 478pin Micro-BGA

1.308V (highest frequency mode) to 0.956V (low frequency mode)

0.748V (deeper sleep mode)

BIOS

Item

BIOS vendor

BIOS Version

BIOS ROM type

BIOS ROM size

BIOS package

Supported protocols

Specification

Phoenix

3A03

SST 39SF040A, 512KX8 CMOS Boot Block Flash Memory

512KB

32-pin PLCC

ACPI 1.0b, PC Card 95, SM BIOS 2.3, IEEE1284-ECP/EPP, PCI 2.2, PnP

1.0a, DMI 2.0, PS/2 keyboard and mouse, USB 2.0, VGA BIOS, CD-ROM bootable, IEEE 1394

Set by setup manual BIOS password control

Second Level Cache

Item

Cache controller

Cache size

1st level cache control

2st level cache control

Cache scheme control

System Memory

Item

Memory controller

Memory size

DIMM socket number

Supports memory size per socket

Supports maximum memory size

Supports DIMM type

Supports DIMM Speed

Supports DIMM voltage

Chapter 1

Specification

Built-in CPU

1MB for Intel

®

Celeron

®

CPU/2MB for Intel

®

Pentium

®

Always enabled

Always enabled

Fixed in write-back

Specification

Intel ® 915GM/PM or Intel ® 910GML built-in

0MB (no on-board memory)

2 sockets

1024MB

2G (by two 1024MB SO-DIMM module)

DDR Synchronous DRAM

400 MHz/533 MHz

2.5V and 1.25V

19

20

System Memory

Item

Supports DIMM package

Memory module combinations

Specification

200-pin soDIMM

You can install memory modules in any combinations as long as they match the above specifications.

Memory Combinations

Slot 1

256MB

256MB

256MB

256MB

512MB

512MB

512MB

512MB

0MB

0MB

0MB

0MB

128MB

128MB

128MB

1284MB

1024MB

1024MB

1024MB

1024MB

1024MB

Slot 2 Total Memory

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.

LAN Interface

Chipset

Supports LAN protocol

Item

LAN connector type

LAN connector location

Features

Specification

BroadCOM BCM5788M(10/100/1000M) ; BCM4401KFB(10/100M)

10/100/1000Mbps

RJ45

Left side

Integrated 10/100 BASE-T transceiver

Wake on LAN support compliant with ACPI 2.0

PCI v2.2

IR Interface

128MB

256MB

512MB

1024MB

128MB

256MB

512MB

1024MB

128MB

256MB

512MB

1024MB

128MB

256MB

512MB

1024MB

0MB

128MB

256MB

512MB

1024MB

384MB

512MB

768MB

1280MB

640MB

768MB

1024MB

1536MB

128MB

256MB

512MB

1024MB

256MB

384MB

640MB

1152MB

1024MB

1125MB

1280MB

1536MB

2048MB

Item Specification

Part name

Package

Performance

VISHAY TFU6102F

8-pin SMT type

4Mbit/s

Chapter 1

IR Interface

Compliant

Item

Modem Interface

Item

Data modem data baud rate (bps)

Supports modem protocol

Modem connector type

Modem connector location

Bluetooth Interface

Item

Chipset

Data throughput

Protocol

Interface

Connector type

IrDA 1.1

56K

V.90/V.92

RJ11

Left side

Specification

Specification

Specification built-in Mobile Intel ® 82801FB (ICH6-M)

723 bps (full speed data rate)

Bluetooth 1.1 (Upgradeable to Bluetooth 1.2 when SIG specification is ratified).

USB 1.1

Mini-USB

Wireless Module 802.11b/g (optional device)

Chipset

Data throughput

Protocol

Interface

5-in-1 card reader

Item Specification built-in Mobile Intel

®

82801FB (ICH6-M)

11~54 Mbps

802.11b+g

Mini-PCI type II

Chipset

Protocol

Item Specification

ENE CB712 support MS/MS PRO/MMC/SD/xD

Hard Disk Drive Interface

Item

Vendor &

Model Name

Specification

SEAGATE ST94019A

Toshiba Pluto

MK4025GAS

SEAGATE N2

ST960821A

Toshiba Pluto

MK6025GAS

60000

512

Capacity (MB) 40000

Bytes per sector

512

Data heads

Drive Format

2/2

Disks

Spindle speed

(RPM)

1/1

4200/4200 RPM

3/4

2/2

4200/4200 RPM

SEAGATE N2

ST9808210A

Toshiba Pluto

MK8025GAS

80000

512

4/4

2/2

4200/4200 RPM

SEAGATE

ST9100822A

TOSHIBA PLUTO

MK1031GAS

100000

512

4/4

2/2

4200/4200 RPM

Chapter 1 21

22

Hard Disk Drive Interface

Item Specification

Performance Specifications

Buffer size 2MB/8192KB

Interface

Max. media transfer rate

(disk-buffer,

Mbytes/s)

ATA/ATAPI-6; ATA-6

372

Data transfer rate

(host~buffer,

Mbytes/s)

100 MB/Sec.

Ultra DMA mode-5

DC Power Requirements

Voltage tolerance

5V(DC) +/- 5%

8192KB

ATA/ATAPI-6; ATA-6

350

8192KB

ATA/ATA-6; ATA-6

350

100 MB/Sec.

Ultra DMA mode-5

5V(DC) +/- 5%

100 MB/Sec.

Ultra DMA mode-5

5V(DC) +/- 5%

8192KB

ATA/ATA-6; ATA-6

373

100 MB/Sec.

Ultra DMA mode-5

5V(DC) +/- 5%

Combo Drive Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

Buffer Memory

Interface

Applicable disc format

Loading mechanism

Power Requirement

Input Voltage

Specification

Philips SCB5265+UJDA770

With CD Diskette

Sustained:

Max 3.6Mbytes/sec

With DVD Diskette

Sustained:

Max 10.8Mbytes/sec

2MB

Enhanced IDE(ATAPI) compatible

Read:

DVD: DVD-ROM, (DVD-5, DVD-9, DVD-10, DVD-18), DVD-Video, DVD-R (3.95 and 4.7G), DVD-RW, DVD+R, DVD+RW, Multi-Border DVD-R/DVD-RW, Multi-

Session DVD+R, DVD+RW and DVD-RAM (optional)

CD: CD-DA, CD-ROM Mode-1, CD-ROM/XA Mode-2 Form-1 and Mode-2

Form-2, CD-i Ready, Video-CD (MPEG-1), Karaoke CD, Super Video CD,

Photo-CD, Enhanced CD, CD Plus, CD Extra, i-trax CD, CD-Text, CD-R, CD-

RW

Write:

CD-DA, CD-ROM Mode-1CD-ROM/XA Mode-2 Form-1 and Mode-2 Form-2,

CD-i, Video-CD, CD-Text

Load: Manual

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release

5 V +/- 5 % (Operating)

DVD-Dual Interface

Item

Vendor & model name

Performance Specification

Transfer rate (KB/sec)

DVD Dual Pioneer DVR-K15RA

DVD Dual Pioneer DVR-K05RA

LiteOn SOSW-833S

Panasonic UJ-845

With CD Diskette

Sustained:

Max 3.6Mbytes/sec

Specification

With DVD Diskette

Sustained:

Max 10.8Mbytes/sec

Chapter 1

DVD-Dual Interface

Buffer Memory

Interface

Item

Applicable disc format for LiteOn

SOSW-833S

Applicable disc format for

Panasonic UJ-845

Applicable disc format for Pioneer

DVR-K15RA

Applicable disc format for Pioneer

DVR-K05RA

Loading mechanism

2MBytes

Enhanced IDE(ATAPI) compatible

Specification

Read:

DVD: DVD single/dual layer (PTP, OTP), DVD-R (3.9G/4.7G), DVD-R multiborders, DVD-R Double Layer, DVD+R, DVD+R multi-sessions, DVD+R Double

Layer, DVD-RW, and DVD+RW discs with diameter of 8 or 12cm

CD: CD-DA, CD-ROM, CD-ROM/XA, Photo-CD, Multi-session, Karaoke-CD,

Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R, and CD-RW discs of 8 or 12 cm diameter

Read:

DVD: DVD-5, 9,10,18, DVD-R (3.95G/4.7G), DVD-RW, DVD_RAM (4.7G),

DVD+R, DVD+RW

CD: CD-Audio, CD-ROM (mode1 and mode 2), CD-ROM XA (mode 2, form 1 and form 2), CD-I (mode 2, form 1 and form 2), CD-I Ready, CD-I Bridge, CD-R,

CD-RW, Photo CD, Video CD, Enhanced Music CD, CD-TEXT

Write:

DVD: DVD-RAM, DVD-R4.7GB, DVD-RW, DVD+R, DVD+RW

CD: CD-R, CD-RW (disc at once, sessionat once, track at once, fixed/variable packet writing, multi-session)

KODAK Photo CD Single and Multi-session

CD Extra (CD PLUS)

Video CD

CD text data (Read / Write)

CD-R discs (Read / Write)

CD-RW discs (Read / Write)

DVD-ROM

DVD-R Ver.2.00 for General (Read / Write)

DVD-R-DL (Read/Write)

DVD-RW Ver.1.0 & 1.1 & 1.2 (Read / Write)

DVD+R Ver.1.0 & 1.11& 1.2 (Read/Write)

DVD+R -DL Ver1.0 (Read / Write)

DVD+RW Ver.1.1 & 1.2 (Read/Write)

DVD-RAM (Ver.2.0 & 2.1) (Read only)

KODAK Photo CD Single and Multi-session

CD Extra (CD PLUS)

Video CD

CD text data (Read / Write)

CD-R discs (Read / Write)

CD-RW discs (Read / Write)

DVD-ROM

DVD-R Ver.2.00 for General (Read / Write)

DVD-RW Ver.1.0 & 1.1 & 1.2 (Read / Write)

DVD+R Ver.1.0 & 1.11& 1.2 (Read/Write)

DVD+R -DL Ver1.0 (Read / Write)

DVD+RW Ver.1.1 & 1.2 (Read/Write)

DVD-RAM (Ver.2.0 & 2.1) (Read only)

Load: Manual (SOSW-833S/DVR-K15)

Auto (UJ-845/DVR-K05)

Release: (a) Electrical Release (Release Button)

(b) Release by ATAPI command

(c) Emergency Release (Except for UJ-845/DVR-K05)

Power Requirement

Input Voltage 5 V +/- 5 % (Operating)

Chapter 1 23

24

Audio Interface

Item

Audio Controller

Audio onboard or optional

Mono or Stereo

Resolution

Compatibility

Mixed sound source

Voice channel

Sampling rate

Internal microphone

Internal speaker / Quantity

Video Interface

Item

Chipset

Package

Interface

Supports ZV (Zoomed Video) port

Video Memory

Chipset

Memory size

Interface

Item

USB Port

Item

Chipset

USB Compliancy Level

OHCI

Number of USB port

Location

Serial port function control

IEEE 1394 Port

Item

Chipset

Number of IEEE 1394 port

Connector type

Specification

ALC250

Built-in

Stereo

18 bit stereo digital to analog converter

18 bit stereo analog to digital converter

AC97

Line-in, CD

8/16-bit, mono/stereo

44,1 KHz (48K byte for AC97 interface)

Yes

Yes/2

Specification

ATI Mobility RADEON

®

X700 (for discrete models)

MBGA 708 pin

PCIE x16

Yes

Specification

ATI Mobility RADEON

®

X700 (for discrete models)

64MB/128MB

DDR

Specification built-in Mobile Intel ® 82801FB (ICH6-M)

2.0

USB 1.1 and USB 2.0 Host controller

3 two on the left side; one on the rear side

Enable/Disable by BIOS Setup

Specification

TSB34AB21A

1

IEEE 1394

Chapter 1

PCMCIA Port

Item

PCMCIA controller

Supports card type

Number of slots

Access location

Supports ZV (Zoomed Video) port

Supports 32 bit CardBus

System Board Major Chips

Item

Core logic

VGA

LAN

IEEE 1394

USB 2.0

Super I/O controller

MODEM

Bluetooth

Wireless 802.11 b+g

PCMCIA

Audio

5-in-1 card reader

Keyboard

Item

Keyboard controller

Total number of keypads

Windows logo key

Internal & external keyboard work simultaneously

Specification

ENE CB712

Type-II

One type-II

Left panel

No ZV support

Yes

Controller

Intel

®

915GM/PM (for Aspire 5500)/Intel

®

910GML (for Aspire

3600)+Intel

®

ICH6-M (Mobile Intel 82801FB)

ATI Mobility RADEON

®

X700 (for discrete models)

BroadCom BCM4401(10/100M for Aspire 3600); BCM5788M(1G for Aspire 5500)

TSB34AB21A built-in Intel ® ICH6-M (Mobile Intel 82801FB)

SMsC LPC 47N217 built-in Intel ® ICH6-M (Mobile Intel 82801FB) built-in Intel

®

ICH6-M (Mobile Intel 82801FB)

ENE CB712

ENE CB712

Specification

KB 910Q

84-/85-key

Yes

1. Plug USB keyboard to the USB port directly: Yes

2. Use port replicator then plug a USB/PS 2 keyboard to the USB port/PS 2 port on the port replicator: Yes

Chapter 1 25

26

Battery

Item

Vendor & model name

Battery Type

Pack capacity

Number of battery cell

Package configuration

Normal voltage

Charge voltage

Specification

BATTERY LI-ION 6 CELLS-SANYO

2000mAH UR18650F

BATTERY LI-ION 6 CELLS-SONY

2000mAH US18650G4

BATTERY LI-ION 6 CELLS-SANYO

2400mAH UR18650F

BATTERY LI-ION 6 CELLS-SONY

2400mAH US18650G7

BATTERY LI-ION 9 CELLS-SANYO

2400mAH UR18650F

Li-ion

4800mAh 6cell and 7200mAh 9cell for Aspire 5500

4000mAh 6cell for Aspire 3600

53.3W 6cell and 79.9W 9cell for

Aspire 5500

44.6W 6cell for Aspire 3600

3 cells in series, 2 series in parallel for 6-cell battery

2 cells in series, 3 series in parallel for 9-cell battery

11.1V

12.6+-0.1v

LCD 14.1 inch

Item

Vendor & model name

Screen Diagonal (mm)

Active Area (mm)

Display resolution (pixels)

Pixel Pitch

Pixel Arrangement

Specification

QDI:

QD14TL01 (Glare)

Surface treatment: glare+hard coating

3H

14.1 inches

303.7x189.8

1280x800 WXGA

0.2373x0.2373

R.G.B. Vertical

Stripe

Normally White

185

Display Mode

Typical White Luminance (cd/m 2 ) also called Brightness

Luminance Uniformity

Contrast Ratio

Response Time (Optical Rise Time/Fall

Time)msec

Nominal Input Voltage VDD

Typical Power Consumption (watt)

Weight

Physical Size(mm)

Electrical Interface

1.25 (5 points)

300

10/15

+3.3V Typ.

N/A

440g

320x206x5.5

1 channel LVDS

QDI

QD14TL01

14.1 inches

303.7x189.8

1280x800 WXGA

0.2373x0.2373

R.G.B. Vertical

Stripe

Normally White

185

1.25 (5 points)

300

10/15

+3.3V

N/A

440g

320x206x5.5

1 channel LVDS

CMO

N141I1-L03

CMO

N141I1-L02 (nonglare)

14.1 inches

303.3x189.6

1280x800 WXGA

0.2373x0.2373

R.G.B. Vertical

Stripe

Normally White

185

N/A

400

5/11

+3.3V

N/A

425g

320x206x5.5

1 channel LVDS

Chapter 1

LCD 14.1 inch

Item

Support Color

Viewing Angle (degree)

Horizontal: Right/Left

Vertial: Upper/Lower

Operating

Storage (shipping)

LCD Inverter

Item

Vendor & model name

Brightness conditions

Input voltage (V)

Input current (mA)

Output voltage (V, rms)

Output current (mA, rms)

Output voltage frequency (k Hz)

AC Adaptor

Item

Input rating

Maximum input AC current

Inrush current

Efficiency

System Power Management

ACPI mode

Mech. Off (G3)

Soft Off (G2/S5)

Working (G0/S0)

Suspend to RAM (S3)

Save to Disk (S4)

Chapter 1

Specification

262K colors (RGB

6-bit data driver)

45/45

20/35

262,144 262,144

45/45

20/35

45/45

20/45

0 to +40 (with high humidity more than

90%RH)

-25 to +60

0 to +40 (with high humidity more than

90%RH)

-25 to +60

0 to +40 (with high humidity more than

90%RH)

-20 to +60

Delta DAC-07B037 B

YEC YNV-C01

SumidaTWS-442-125

Vadj=3.3V

9~21

350 (max)

1600 (starting voltage)

6.2~6.8 (DAC=0)

45~65K Hz

Specification

Specification

90V AC to 264V AC, 47Hz to 63Hz

1.7A

240A@115VAC

240A@230VAC

83% min. @115VAC input full load

Power Management

All devices in the system are turned off completely.

OS initiated shutdown. All devices in the system are turned off completely.

Individual devices such as the CPU and hard disc may be power managed in this state.

CPU set power down

VGA Suspend

PCMCIA Suspend

Audio Power Down

Hard Disk Power Down

CD-ROM Power Down

Super I/O Low Power mode

Also called Hibernate state. System saves all system states and data onto the disc prior to power off the whole system.

27

28 Chapter 1

Chapter 2

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/

Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4

Troubleshooting when problem arises.

To activate the BIOS Utility, press

m

during POST (when “Press <F2> to enter Setup” message is prompted on the bottom of screen).

Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.

Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without entering BIOS SETUP Utility.

Chapter 2 29

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

T

T

To choose a menu, use the cursor left/right keys (zx).

To choose a parameter, use the cursor up/down keys ( wy).

T

T

T

T

To change the value of a parameter, press por q.

A plus sign (+) indicates the item has sub-items. Press e to expand this item.

Press ^ while you are in any of the menu options to go to the Exit menu.

In any menu, you can load default settings by pressing t. You can also press u to save any changes made and exit the BIOS Setup Utility.

Insyde Software SCU May 20, 2003 5:40:09 AM

Main A dvanced S ecurity B oot E x it

----Devices---------------------------------------------------

Product Name = TravelMate 3210

Manufacture Name = Acer

BIOS Version = V1.00

VGA Version = 3104

HDD Model Name = HITACHI_DK23EA-40-(PM)

HDD Serial Number = 123456789

ATAPI Model Name = UJDA740 DVD/CDROM-(SM)

Serial Number = ( 32 bytes)

Asset Tag = (32 bytes)

UUID = (16 bytes)

-----System-------------------------

CPU = Intel® Pentium ® 4

CPU speed = 2.0 GHz

L2 Cache = 2048 KB

----Memory------------------------

System Memory = 640 KB

Extended Memory = 256MB

VGA Memory = 128 MB

Setup system date, time. Enable boot logo and get system information.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a particular menu are shown on the bottom of the screen. Help for parameters are found in the Item

Specific Help part of the screen. Read this carefully when making changes to parameter values. Please

note that system information vary in models.

30 Chapter 2

Main

Insyde Software SCU May 20, 2005 5:40:09 AM

Main A dvanced S ecurity B oot E x it

----Devices---------------------------------------------------

Product Name = TravelMate 3210

Manufacturer Name = Acer

BIOS Version = V1.00

VGA Version = 3104

HDD Model Name = HITACHI_DK23EA-40-(PM)

HDD Serial Number = 123456789

ATAPI Model Name = UJDA740 DVD/CDROM-(SM)

Serial Number = ( 32 bytes)

Asset Tag = (32 bytes)

UUID = (16 bytes)

-----System-------------------------

CPU = Intel® Pentium ® 4

CPU speed = 2.0 GHz

L2 Cache = 2048 KB

----Memory------------------------

System Memory = 640 KB

Extended Memory = 256MB

VGA Memory = 128 MB

Setup system date, time. Enable boot logo and get system information.

NOTE: The system information is subject to different models.

Parameter

Product Name

Manufacturer Name

BIOS Version

VGA Version

HDD Model Name

HDD Serial Number

ATAPI Mode Name

Serial Number

Asset Tag

UUID

CPU

CPU speed

Chapter 2

Description

This field displays the prodcut name of the system.

This field displays the manufacturer name of the system

This field displays the BIOS version of the system.

This field shows the VGA firmware version of the system.

This field shows the model name of HDD installed on primary IDE master.

This field displays the serial number of HDD installed on primary IDE master.

This field displays the mofel name of devices installed on secondary IDE master. The hard disk drive or optical drive model name is automatically detected by the system.

This field displays the serial number of this unit.

This field displays the asset tag of this unit.

This will be visible only when an internal LAN device is presenting.

UUID=32bytes

This field shows the brand name of the system CPU.

31

Parameter

L2 Cache

System Memory

Extended Memory

VGA Memory

Description

This field displays CPU L2 cache size. It varies in CPU type.

This field reports the memory size of system base memory. The size is fixed to 640 KB.

This field reports the memory size of the extended memory in the system. Extended memory size = Total memory size - 2MB

VGA Memory size:

Discrete = 64 or 128MB (depends on actual VRAM size)

TurboCache = 32MB (actual TurboCache VRAM size)

Intel(R) 915 DVMT: you can select the following options:

1. 64MB (8MB pre-allocated + 56MB DVMT)

2. 128MB (8MB pre-allocated + 128MB DVMT)-Default value

3. Max DVMT (160MB on 256MB system memory, 224MB on 512 and above system memory).

The Main screen displays a summary of your computer hardware information, and also includes basic setup parameters. It allows the user to specify standard IBM PC AT system parameters.

32 Chapter 2

Insyde Software SCU May 20, 2005 5:40:09 AM

Main

Date and

T

Advanced Security ime

Boot Exit

Power On Display

----------------Power On Display---------------

ˇ Q

uiet Boot

ˇ L

CD Auto DIM

( ˙ ) Auto

( ) Both

ˇ N

etwork Boot

_ F12 Boot Menu

ˇ

D2D

R

ecovery

OK Cancel

Press <Tab> key to select a control. <OK> button or <Enter> key accept entries. <Cancel> button or <Esc> key reject entries. Use cursor, spacebar, and numeric keys to change values. <Alt> key activates accelerators.

NOTE: The screen above is for your reference only. Actual values may differ.

Chapter 2 33

34

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Parameter

Date and Time

Quiet Boot

Power on display

LCD Auto Dim

Network Boot

F12 Boot Menu

D2D Recovery

Description

The hours are displayed with 12 hour format. The values setin these two fields take effect immediately.

Determines if the system will display customer logo and summary screen or not.

Enable: Customer logo is displayed, and summary screen is disabled.

Disabled: Custoemr logo is not displayed, and summary screen is enabled.

Auto: During power process, the system will detect if any display device is connected on external video port. If any external display device is connected, the power on display will be in CRT

(or projector) only mode. Otherwise it will be in

LCD only mode.

Both: Simultaneously enable both the integrated

LCD screen and the system’s external video port

(for an external CRT or projector).

Determines if the system will automatically dim the LCD brightness in order to save power when

AC is not present.

The system will support an automatic dimming of the LCD backlight when the AC power is NOT available (running on battery power).

Enables, disables the system boot from LAN

(remote server).

Enables, disables Boot Menu during POST.

Enables, disables D2D Recovery function. The function allows the user to create a hidden partition on hard disc drive to store operation system and restore the system to factory defaults.

Format/Option

Option: Enabled or Disabled

Option: Auto or Both

Option: Enabled or Disabled

Option: Enabled or Disabled

Option: Disabled or Enabled

Option: Enabled or Disabled

NOTE: You can also enable Acer disc-to-disc system recovery via Alt+F10 during POST.

Chapter 2

Advanced

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced settings of the system.

Insyde Software SCU May 20, 2005 5:40:09 AM

Main Advanced Security Boot Exit

--------------------------Infrared Port(FIR)-----------------------

Infrared Port (

F

IR)

Max. Graphics Memory

ˇ Legacy

U

SB Support

-----FIR I/O settings---

(˙) Disabled

( ) Enabled

-Mode Setting for IRDA-

( ) Normal (16550)

( ) IrDA (HPSIR)

( ) ASK IR

(˙) FAST IR

DMA Setting For FIR

( ) DMA1

(˙) DMA2

( ) DMA3

OK Cancel

<Tab> <Right> <Left> for block select. <Up> <Down> for item select.

< Enter> for accept. <Cancel> <Esc> for reject. <Alt> activates accelerators.

<Space> for Enable or Disable.

The table below describes the parameters in the screen. Settings in boldface are the default and suggested parameter settings.

.

Parameter

Infrared Port

Max Graphics Memory

Legacy USB support

Description

Enables or disables the infrared port.

This option is only available on Intel (R) 915 UMA system.

This feature allows you to USB keyboard entering

BIOS Setup. This feature also allows you to use a

USB keyboard in DOS without additional driver.

USB floppy boot and Crisis Recovery from USB floppy is also supported.

Options

Disabled /Enabled

64MB/ 128MB /DVMT

Enabled /Disabled

Chapter 2 35

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized use.

Insyde Software SCU May 20, 2005 5:40:09 AM

Boot Exit

Set User Password

Set Supervisor Password

_ Lock HardDisk Drive --------Set Supervisor password----------------

Enter old Supervisor password: . . . . . . . . . .

Enter new Supervisor Password: . . . . . . . . . ..

Verify new Supervisor Password: . . . . . . . . . .

[ ] Boot System

OK

Enter new password. Password will NOT be displayed

Cancel

The table below describes the parameters in this screen. Settings in boldface are the default and suggested parameter settings.

Set Supervisor/User Password

If password on boot is required, the password must be set otherwise it cannot be enabled.

The formats of the password are as follows:

Length 10 characters

Characters Alphanumeric keys only. The shift status i.e. Ctrl, Shift, Alt and Capital are ignored.

Parameter

Set User Password

Set Supervisor Password

Lock HardDisk Drive

Description

Press Enter to set the user password. When set, this password protects the BIOS Setup

Utility from unauthorized access.

Press Enter to set the administrator password.

When set, this password protects the BIOS

Setup Utility from unauthorized access.

Allows the user to specify whether or not a password is required to access hard disk drive.

Option

Disabled or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget your password. If you forget your password, you may have to return your notebook computer to your dealer to reset it.

36 Chapter 2

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.

Insyde Software SCU May 20, 2005 5:40:09

Main Advanced Security Boot

Boot Device `

Exit

----- Boot Device ----

Hard Drive

CD-ROM/DVD Drive

Floppy Device

Network Boot

Press <Tab> key to select a control. <OK> button or <Enter> key accept entries. <Cancel> button or <ESC> key reject entries. Use spacebar and number keys to change value <Alt> key activates accelerators.

Chapter 2 37

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

Insyde Software SCU Nov 26, 2005 5:40:09

Main Advanced Security Boot Exit

Exit Saving Changes

--------------Exit Saving Changes-----------------Exit Discarding Changes

Press <OK> to save the current Load Setup Defaults

Setup parameters to CMOS RAM. Discard Changes

The system will reboot!!!

OK Cancel

<Tab> <Right> <Left> for block select. <Up> <Down> for item select.

< Enter> for accept. <Cancel> <Esc> for reject. <Alt> activates accelerators.

<Space> for Enable or Disable.

The table below describes the parameters in this screen.

Parameter

Exit Saving Changes

Exit Discarding Changes

Load Setup Default

Discard Changes

Description

Exit System Setup and save your changes to CMOS.

Exit utility without saving setup data to CMOS.

Load default values for all SETUP item.

Load previous values from CMOS for all SETUP items.

38 Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T

New versions of system programs

T

T

New features or options

Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not completely loaded.

Fellow the steps below to run the Phlash.

1.

Prepare a bootable diskette.

2.

Copy the Phlash utilities to the bootable diskette.

3.

Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.

Chapter 2 39

Remove BIOS Password

Please find J3 jumper on the main board. Then short the jumper to remove BIOS supervisor password. J3 locates under the memory module. Please see the image below.

40 Chapter 2

Chapter 3

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T

Wrist grounding strap and conductive mat for preventing electrostatic discharge

T

T

Small Philips screw driver

Philips screwdriver

T

Plastic flat head screw driver

T

Tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the screws with the corresponding components to avoid mismatch when putting back the components.

When you remove the stripe cover, please be careful not to scrape the cover.

Chapter 3 41

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1.

Turn off the power to the system and all peripherals.

2.

Unplug the AC adapter and all power and signal cables from the system.

3.

Remove the battery pack.

42 Chapter 3

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence and instructs you on the components that need to be removed during servicing. For example, if you want to remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in that order.

Start

Battery

*2

Middle Cover

I*4

Lower Case

Assembly

*2

Wireless LAN

Cover

*1

Keyboard

*4

LCD Module

*1

*13

RTC Battery

Bluetooth

Module

Wireless LAN

Cover

ODD Module

HDD Bracket

*3

Upper Case

Assembly

*3

DIMM/HDD

Cover

*4

HDD Module

*4

Memory

HDD

Lower Case

Main Board

Assembly

Fan

Speaker Set

*6

VGA Heatsink

*3

CPU Heatsink

*2

Modem Board

Upper Case

CPU

ODD Module

*2

Touchpad

Bracket

Touchpad

Assembly

Touchpad

ODD ODD Bracket

Chapter 3 43

44

LCD Module

4 screw caps

*4

LCD Bezel

*2 *2

LCD Inverter

LCD Panel

LCD

Assembly

*8

LCD

Screw List

L

M

N

J

K

H

I

F

G

D

E

Item

A

B

C

Description

SCW HEX NYL I#R-40/O#4-40 L5.5

SCREW MACH WAFER M2*L4 NI

CPU SCREW M2.5*6.5 (2.7KG)

CPU SCREW M2.5*6.5 (4.5KG)

SCRW WH MS+CBZ M2.5+L4 BLACK

SCREW M2.5-6

SCREW M2*3 NYLON 1JMCPC-420325

SCREW M2.5X6

SCREW M2-3

SCRW M2.5*L3(NON NYLOK)

SCREW M2.5-5

SCREW M3x4(86.9A524.4R0)

SCREW WAFER NYLOK NI 2ML3

SCREW NI M2*6L

LCD Wire

Cable

LCD Brackets

Chapter 3

Removing the Battery Pack

1.

Unlock the battery lock.

2.

Slide the battery latch then remove the battery.

Chapter 3 45

Removing the Wireless LAN Card/the HDD Module/the Memory/the

CPU/the ODD Module and the LCD Module

Removing the Wireless LAN Card and the HDD Module

1.

Remove the two screws fastening the PCI door.

2.

Detach the PCI door.

3.

Disconnect the wireless antennae.

4.

Pop out the wireless LAN card then remove it.

5.

Remove the two screws fastening the HDD cover.

6.

Remove HDD cover carefully.

7.

Pull the HDD module backwards to disconnect the HDD module then remove it from the main unit.

Removing the Memory and the CPU

1.

Remove the two screws fastening DIMM cover.

2.

Then detach the DIMM cover.

3.

Pop out the memory then remove it from the DIMM socket.

46 Chapter 3

4.

Remove the two screws fastening the thermal door.

5.

Detach the thermal door from the main unit.

6.

Remove the four screws holding the thermal module. (Follow the order indicated by the numbers: 4, 3, 2 then1. Please reverse the order when you assemble the system).

7.

Disconnect the fan cablle as shown.

8.

Take out the thermal module from the main unit carefully.

9.

Use a flat headed screwdriver to release the CPU lock.

10. Then remove the CPU from the CPU socket carefully.

Removing the ODD Module and the LCD module

1.

Remove the screws fastening the ODD module as shown.

2.

Use a flat headed screwdriver to push the ODD module outwards then remove it.

Chapter 3 47

3.

Open the LCD module as shown and detach the middle cover carefully.

4.

Remove the two screws fastening the keyboard.

5.

Turn over the keyboard as shown.

6.

Disconnect the keyboard cable then remove the keyboard.

7.

Tear off the mylard festening the wireless antenna set.

8.

Pull out the wireless antenna from the main unit carefully.

9.

Disconnect the LCD cable from the main board.

48

10. Remove two screws holding the LCD module.

11. Remove another two screws fastening the LCD module on the botton.

12. Then detach the LCD module from the main unit carefully.

Chapter 3

Chapter 3 49

Disassembling the Main Unit

Separate the Main Unit Into the Upper and the Lower Case Assembly

1.

To separate the upper and the lower case assembly, remove six screws as shown.

2.

Turn over the main unit, remove 9 screws on the other side.

3.

Separate the main unit into the upper case assembly and the lower case assembly.

Disassembling the Upper Case Assembly

1.

Disconnect the touchpad FFC from the main board.

2.

Disconnect the bluetooth cable.

3.

Detach the bluetooth module from the upper case.

4.

Disconnect the bluetooth cable from the bluetooth card.

5.

Disconnect the touchpad to touchpad board FFC.

6.

Remove the three screws fastening the touchpad board.

50

7.

Detach the touchpad board.

8.

Remove the four-way button from the upper case.

9.

Remove the two screws fastening the touchpad support to the upper case.

Chapter 3

10. Detach the touchpad support from the upper case carefully.

11. Detach the touchpad from the upper case.

12. Disconnect the FFC from the touchpad.

Disassembling the Lower Case Assembly

1.

Remove four screws fastening the main board to the lower case.

2.

Turn over the lower case assembly, then remove one screw on the other side as shown.

3.

Disconnect the speaker cable.

4.

Detach the main board assembly from the lower case carefully.

5.

Remove the three screws fastening the VGA board.

6.

Disconnect the VGA board assembly from the main board.

7.

Remove the three screws fastening the VGA themal to the VGA board.Detach the main board assembly from the lower case carefully. (Follow the order indicated by the numbers: 3, 2 then1. Please reverse the order when you assemble the system).

Chapter 3 51

52

8.

Detach the VGA thermal from the VGA board.

9.

Disconnect the modem cable from the main board.

10. Remove the two screws fastening the modem board as shwon.

11. Disconnect the modem board from the main board.

12. Disconnect the modem cable from the modem board.

13. Remove the two screws holding the speaker set to the lower case.

14. Take out the speaker set from the lower case. This completes the main unit disassembly.

Chapter 3

Disassembling the LCD Module

1.

Remove the four screw caps as shown.

2.

Remove the four screws holding the LCD bezel.

3.

Then detach the LCD bezel from the LCD module.

4.

Remove the screw fastening the LCD inverter.

5.

Disconnect the LCD cable and disconnect the inverter cable, then remove the inverter.

6.

Remove the two screws fastening the LCD assembly to the LCD panel.

.

7.

Take out the LCD assembly from the LCD panel.

8.

Remove the four screws fastening the LCD left bracket then remove it.

9.

Remove the four screws fastening the LCD right bracket.

10. Then remove the LCD right bracket.

11. Tear off the mylar and disconnect the LCD cable from the LCD then remove the cable.

Chapter 3 53

Disassembling the External Modules

Disassembling the HDD Module

1.

Remove the two screws holding the HDD bracket on one side.

2.

Remove another two screws holding the HDD bracket on the other side.

3.

Then take the hard disc drive out of the HDD bracket.

Disassembling the ODD Module

1.

Remove the two screws fastening the ODD bracket.

2.

Remove the ODD bracket from the optical disc drive module.

54 Chapter 3

Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or modified options can give false errors and invalid system responses.

1.

Obtain the failing symptoms in as much detail as possible.

2.

Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating the same operation.

3.

Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified)

Power failure. (The power indicator does not go on or stay on.)

POST does not complete. No beep or error codes are indicated.

POST detects an error and displayed messages on screen.

Other symptoms (i.e. LCD display problems or others).

Symptoms cannot be re-created (intermittent problems).

Go To

“Power System Check” on page 57.

“Power-On Self-Test (POST) Error Message” on page 60

“Undetermined Problems” on page 72

“Error Message List” on page 61

“Power-On Self-Test (POST) Error Message” on page 60

Use the customer-reported symptoms and go to

“Power-On Self-Test (POST) Error Message” on page 60

“Intermittent Problems” on page 71

“Undetermined Problems” on page 72

Chapter 4 55

System Check Procedures

External Diskette Drive Check

Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is required.

NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause damage to the drive or cause the drive to fail.

Do the following to select the test device.

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if FDD Test is passed as the program runs to FDD Test.

3.

Follow the instructions in the message window.

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1.

Reconnect the external diskette drive/DVD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1.

Boot from the diagnostics diskette and start the diagnostics program.

2.

See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3.

Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1.

Reconnect the external diskette drive/CD-ROM module.

2.

Replace the external diskette drive/CD-ROM module.

3.

Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the keyboard cables.

2.

Replace the keyboard.

3.

Replace the main board.

The following auxiliary input devices are supported by this computer:

T

Numeric keypad

T

External keyboard

56 Chapter 4

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1.

Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2.

Go to the diagnostic memory in the test items.

3.

Press F2 in the test items.

4.

Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1.

Remove the battery pack.

2.

Connect the power adapter and check that power is supplied.

3.

Disconnect the power adapter and install the charged battery pack; then check that power is supplied by the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T

“Check the Power Adapter” on page 58

T

“Check the Battery Pack” on page 59

Chapter 4 57

Check the Power Adapter

Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power adapter cable. See the following figure

Pin 1: +19 to +20.5V

Pin 2: 0V, Ground

1.

If the voltage is not correct, replace the power adapter.

2.

If the voltage is within the range, do the following:

T

T

Replace the System board.

If the problem is not corrected, see “Undetermined Problems” on page 72.

T

If the voltage is not correct, go to the next step.

NOTE: An audible noise from the power adapter does not always indicate a defect.

3.

If the power-on indicator does not light up, check the power cord of the power adapter for correct continuity and installation.

4.

If the operational charge does not work, see “Check the Battery Pack” on page 59.

58 Chapter 4

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1.

Check out the Power Management in control Panel

2.

In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3.

Repeat the steps 1 and 2, for both battery and adapter.

4.

This helps you identify first the problem is on recharging or discharging.

From Hardware:

1.

Power off the computer.

2.

Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the following figure

3.

If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50% of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.

Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light up, replace the DC/DC charger board.

Touchpad Check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a non-defective FRU:

1.

Reconnect the touchpad cables.

2.

Replace the touchpad.

3.

Replace the system board.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware problem. No service actions are necessary if the pointer movement stops in a short period of time.

Chapter 4 59

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU replacement does not solve the problem, put the original part back in the computer. Do not replace a non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 72.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

60 Chapter 4

Index of Error Messages

Error Code List

006

010

070

071

072

110

<No error code>

<No error code>

Error Codes Error Messages

Equipment Configuration Error

Causes:

1. CPU BIOS Update Code Mismatch

2. IDE Primary Channel Master Drive Error

(THe causes will be shown before “Equipment Configuration

Error”)

Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)

Real Time Clock Error

CMOS Battery Bad

CMOS Checksum Error

System disabled.

Incorrect password is specified.

Battery critical LOW

In this situation BIOS will issue 4 short beeps then shut down system, no message will show.

Thermal critical High

In this situation BIOS will shut down system, not show message.

Error Message List

Error Messages

Failure Fixed Disk

Stuck Key

Keyboard error

Keyboard Controller Failed

Keyboard locked - Unlock key switch

FRU/Action in Sequence

Reconnect hard disk drive connector.

“Load Default Settings” in BIOS Setup Utility.

Hard disk drive

System board

see “Keyboard or Auxiliary Input Device Check” on page 56. see “Keyboard or Auxiliary Input Device Check” on page 56. see “Keyboard or Auxiliary Input Device Check” on page 56.

Unlock external keyboard

Monitor type does not match CMOS - Run Setup Run “Load Default Settings” in BIOS Setup Utility.

Shadow RAM Failed at offset: nnnn BIOS ROM

System board

System RAM Failed at offset: nnnn

Extended RAM Failed at offset: nnnn

DIMM

System board

DIMM

System board

System battery is dead - Replace and run Setup Replace RTC battery and Run BIOS Setup Utility to reconfigure system time, then reboot system.

System CMOS checksum bad - Default configuration used

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System timer error RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System board

Chapter 4 61

62

Error Message List

CMOS

Error Messages

Real time clock error

Previous boot incomplete - Default configuration used

Memory size found by POST differed from

Diskette drive A error

Incorrect Drive A type - run SETUP

System cache error - Cache disabled

CPU ID:

DMA Test Failed

Software NMI Failed

Fail-Safe Timer NMI Failed

Device Address Conflict

Allocation Error for device

Failing Bits: nnnn

Fixed Disk n

Invalid System Configuration Data

I/O device IRQ conflict

Operating system not found

FRU/Action in Sequence

RTC battery

Run BIOS Setup Utility to reconfigure system time, then reboot system.

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

DIMM

System board

Check the drive is defined with the proper diskette type in BIOS

Setup Utility

See “External Diskette Drive Check” on page 56.

Check the drive is defined with the proper diskette type in BIOS

Setup Utility

System board

System board

DIMM

System board

DIMM

System board

DIMM

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

DIMM

BIOS ROM

System board

None

BIOS ROM

System board

Run “Load Default Settings” in BIOS Setup Utility.

RTC battery

System board

Enter Setup and see if fixed disk and drive A: are properly identified.

Diskette drive

Hard disk drive

System board

Chapter 4

Error Message List

No beep, power-on indicator turns off and LCD is blank.

No beep Error Messages

No beep, power-on indicator turns on and LCD is blank.

No beep, power-on indicator turns on and LCD is blank. But you can see POST on an external

CRT.

FRU/Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 57.

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

LED board.

System board.

Power source (battery pack and power adapter). See “Power

System Check” on page 57.

Reconnect the LCD connector

Hard disk drive

LCD inverter ID

LCD cable

LCD Inverter

LCD

System board

Reconnect the LCD connectors.

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

No beep, power-on indicator turns on and a blinking cursor shown on LCD during POST.

Ensure every connector is connected tightly and correctly.

System board

No beep during POST but system runs correctly. Speaker

System board

Chapter 4 63

Phoenix BIOS Beep Codes

Code

28h

29h

2Ah

2Ch

2Eh

20h

22h

24h

26h

17h

18h

1Ah

1Ch

12h

13h

14h

16h

08h

09h

0Ah

0Bh

02h

03h

04h

06h

0Ch

0Eh

0Fh

10h

11h

2Fh

30h

3Ah

3Ch

3Dh

42h

45h

32h

33h

36h

38h

1-2-2-3

1-3-1-1

1-3-1-3

1-3-4-1

1-3-4-3

1-4-1-1

Beeps

64

POST Routine Description

Verify Real Mode

Disable Non-Maskable Interrupt (NMI)

Get CPU type

Initialize system hardware

Initialize chipset with initial POST values

Set IN POST flag

Initialize CPU registers

Enable CPU cache

Initialize caches to initial POST values

Initialize I/O component

Initialize the local bus IDE

Initialize Power Management

Load alternate registers with initial POST values

Restore CPU control word during warm boot

Initialize PCI Bus Mastering devices

Initialize keyboard controller

BIOS ROM checksum

Initialize cache before memory autosize

8254 timer initialization

8237 DMA controller initialization

Reset Programmable Interrupt Controller

Test DRAM refresh

Test 8742 Keyboard Controller

Set ES segment register to 4 GB

Enable A20 line

Autosize DRAM

Initialize POST Memory Manager

Clear 215 KB base RAM

RAM failure on address line xxxx

RAM failure on data bits xxxx of low byte of memory bus

Enable cache before system BIOS shadow

RAM failure on data bits xxxx of high byte of memory bus

Test CPU bus-clock frequency

Initialize Phoenix Dispatch Manager

Warm start shut down

Shadow system BIOS ROM

Autosize cache

Advanced configuration of chipset registers

Load alternate registers with CMOS values

Initialize interrupt vectors

POST device initialization

Chapter 4

7Eh

80h

81h

82h

70h

72h

76h

7Ch

83h

84h

85h

86h

87h

88h

89h

8Ah

8Bh

67h

68h

69h

6Ah

60h

62h

64h

66h

6Bh

6Ch

6Eh

59h

5Ah

5Bh

5Ch

51h

52h

54h

58h

4Bh

4Ch

4Eh

50h

46h

48h

49h

4Ah

Chapter 4

Code

2-1-2-3

Beeps

2-2-3-1

POST Routine Description

Check ROM copyright notice

Check video configuration against CMOS

Initialize PCI bus and devices

Initialize all video adapters in system

QuietBoot start (optional)

Shadow video BIOS ROM

Display BIOS copyright notice

Display CPU type and speed

Initialize EISA board

Test keyboard

Set key click if enabled

Test for unexpected interrupts

Initialize POST display service

Display prompt “Press F2 to enter SETUP”

Disable CPU cache

Test RAM between 512 and 640 KB

Test extended memory

Test extended memory address lines

Jump to User Patch1

Configure advanced cache registers

Initialize Multi Processor APIC

Enable external and CPU caches

Setup System Management Mode (SMM) area

Display external L2 cache size

Load custom defaults (optional)

Display shadow-area message

Display possible high address for UMB recovery

Display error messages

Check for configuration errors

Check for keyboard errors

Set up hardware interrupt vectors

Initialize coprocessor if present

Disable onboard Super I/O ports and IRQs

Late POST device initialization

Detect and install external RS232 ports

Configure non-MCD IDE controllers

Detect and install external parallel ports

Initialize PC-compatible PnP ISA devices

Re-initialize onboard I/O ports

Configure Motherboard Configurable Devices

(optional)

Initialize BIOS Area

Enable Non-Maskable Interrupts (NMIs)

Initialize Extended BIOS Data Area

Test and initialize PS/2 mouse

65

66

C3h

C4h

C5h

C6h

BFh

C0h

C1h

C2h

B5h

B6h

B9h

BAh

BBh

BCh

BDh

BEh

C7h

C8h

C9h

A4h

A8h

AAh

ACh

AEh

B0h

B2h

B4h

9Eh

9Fh

A0h

A2h

99h

9Ah

9Ch

9Dh

92h

93h

95h

96h

8Ch

8Fh

90h

91h

97h

98h

Code

1-2

1

Beeps POST Routine Description

Initialize floppy controller

Determine number of ATA drives (optional)

Initialize hard-disk controllers

Initialize local-bus hard-disk controllers

Jump to UserPatch2

Build MPTABLE for multi-processor boards

Install CD ROM for boot

Clear huge ES segment register

Fixup Multi Processor table

Search for option ROMs. One long, two short beeps on checksum failure.

Check for SMART drive (optional)

Shadow option ROMs

Set up Power Management

Initialize security engine (optional)

Enable hardware interrupts

Determine number of ATA and SCSI drives

Set time of day

Check key lock

Initialize Typematic rate

Erase F2 prompt

Scan for F2 key stroke

Enter SETUP

Clear Boot flag

Check for errors

POST done- prepare to boot operating system

One short beep before boot

Terminate QuietBoot (optional)

Check password (optional)

Prepare Boot

Initialize DMI parameters

Initialize PnP Option ROMs

Clear parity checkers

Display MultiBoot menu

Clear screen (optional)

Check virus and backup reminders

Try to boot with INT 19

Initialize POST Error Manager (PEM)

Initialize error logging

Initialize error display function

Initialize system error handler

PnPnd dual CMOS (optional)

Initialize notebook docking (optional)

Initialize notebook docking late

Force check (optional)

Extended checksum (optional)

Chapter 4

D2h

Code

E8h

E9h

EAh

EBh

ECh

EDh

EEh

EFh

E4h

E5h

E6h

E7h

E0h

E1h

E2h

E3h

F4h

F5h

F6h

F7h

F0h

F1h

F2h

F3h

Code

1

Beeps

Beeps

POST Routine Description

Unknown interrupt

Initialize the chipset

Initialize the bridge

Initialize the CPU

Initialize the system timer

Initialize system I/O

Check force recovery boot

Checksum BIOS ROM

Go to BIOS

Set Huge Segment

Initialize Multi Processor

Initialize OEM special code

Initialize PIC and DMA

Initialize Memory type

Initialize Memory size

Shadow Boot Block

System memory test

Initialize interrupt vectors

Initialize Run Time Clock

Initialize video

Initialize System Management Mode

Output one beep before boot

Boot to Mini DOS

Clear Huge Segment

Boot to Full DOS

Chapter 4 67

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error

LCD backlight doesn't work

LCD is too dark

LCD brightness cannot be adjusted

LCD contrast cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines displayed.

Action in Sequence

Enter BIOS Utility to execute “Load Setup Default Settings”, then reboot system.

Reconnect the LCD connectors.

Keyboard (if contrast and brightness function key doesn't work).

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

Reconnect the LCD connector

LCD inverter ID

LCD cable

LCD inverter

LCD

System board

LCD inverter ID

LCD inverter

LCD cable

LCD

System board

Indicator-Related Symptoms

Symptom / Error

Indicator incorrectly remains off or on, but system runs correctly

Action in Sequence

Reconnect the inverter board

Inverter board

System board

Power-Related Symptoms

Symptom / Error

Power shuts down during operation

The system doesn’t power-on.

The system doesn’t power-off.

Action in Sequence

Power source (battery pack and power adapter). See “Power

System Check” on page 57.

Battery pack

Power adapter

Hard drive & battery connection board

System board

Power source (battery pack and power adapter). See “Power

System Check” on page 57.

Battery pack

Power adapter

Hard drive & battery connection board

System board

Power source (battery pack and power adapter). See “Power

System Check” on page 57.

Hold and press the power switch for more than 4 seconds.

System board

68 Chapter 4

Power-Related Symptoms

Symptom / Error

Battery can’t be charged

Action in Sequence

See “Check the Battery Pack” on page 59.

Battery pack

System board

PCMCIA-Related Symptoms

Symptom / Error

System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly

System board

PCMCIA slot assembly

Action in Sequence

PCMCIA slot pin is damaged.

Memory-Related Symptoms

Symptom / Error

Memory count (size) appears different from actual size.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings, then reboot system.

DIMM

System board

Speaker-Related Symptoms

Symptom / Error

In Windows, multimedia programs, no sound comes from the computer.

Audio driver

Speaker

System board

Internal speakers make noise or emit no sound.

Speaker

System board

Action in Sequence

Power Management-Related Symptoms

Symptom / Error

The system will not enter hibernation

The system doesn't enter hibernation mode and four short beeps every minute.

The system doesn’t enter standby mode after closing the LCD

The system doesn't resume from hibernation mode.

The system doesn't resume from standby mode after opening the LCD.

Action in Sequence

Keyboard (if control is from the keyboard)

Hard disk drive

System board

See “Save to Disk (S4)” on page 27.

Press Fn+

o

and see if the computer enters hibernation mode.

Touchpad

Keyboard

Hard disk connection board

Hard disk drive

System board

See “Save to Disk (S4)” on page 27.

LCD cover switch

System board

See “Save to Disk (S4)” on page 27.

Hard disk connection board

Hard disk drive

System board

See “Save to Disk (S4)” on page 27.

LCD cover switch

System board

Chapter 4 69

70

Power Management-Related Symptoms

Symptom / Error

Battery fuel gauge in Windows doesn’t go higher than 90%.

System hangs intermittently.

Action in Sequence

Remove battery pack and let it cool for 2 hours.

Refresh battery (continue use battery until power off, then charge battery).

Battery pack

System board

Reconnect hard disk/CD-ROM drives.

Hard disk connection board

System board

Peripheral-Related Symptoms

Symptom / Error

System configuration does not match the installed devices.

External display does not work correctly.

USB does not work correctly

Print problems.

Serial or parallel port device problems.

Action in Sequence

Enter BIOS Setup Utility to execute “Load Default Settings”, then reboot system.

Reconnect hard disk/CD-ROM/diskette drives.

Press Fn+F5, LCD/CRT/Both display switching

System board

System board

Ensure the “Parallel Port” in the “Onboard Devices Configuration” of

BIOS Setup Utility is set to Enabled.

Onboard Devices Configuration

Run printer self-test.

Printer driver

Printer cable

Printer

System Board

Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup

Utility is set to Enabled.

Device driver

Device cable

Device

System board

Keyboard/Touchpad-Related Symptoms

Symptom / Error

Keyboard (one or more keys) does not work.

Touchpad does not work.

Action in Sequence

Reconnect the keyboard cable.

Keyboard

System board

Reconnect touchpad cable.

Touchpad board

System board

Modem-Related Symptoms

Symptom / Error

Internal modem does not work correctly.

Modem phone port modem combo board

System board

Action in Sequence

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 72.

Chapter 4

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1.

Run the advanced diagnostic test for the system board in loop mode at least 10 times.

2.

If no error is detected, do not replace any FRU.

3.

If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

Chapter 4 71

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect, whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 57):

1.

Power-off the computer.

2.

Visually check them for damage. If any problems are found, replace the FRU.

3.

Remove or disconnect all of the following devices:

T

Non-Acer devices

T

T

T

T

Printer, mouse, and other external devices

Battery pack

Hard disk drive

DIMM

T

T

CD-ROM/Diskette drive Module

PC Cards

4.

Power-on the computer.

5.

Determine if the problem has changed.

6.

If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7.

If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T

T

System board

LCD assembly

72 Chapter 4

Chapter 5

Jumper and Connector Locations

Top View

SW3

JP1

SW2

SW4 SW5 SW6

SW1

2

2

JP7

2

2

JP4

2

JP5

2

JP42

KQ:

2

2

SW3

JP1

SW2

SW4

SW5

SW6

Power Switch

Bluetooth Connector

E-mail Switch

Internet Browser Switch

Emanager Switch

User Programmable Switch

SW1

JP5

JP4

JP42

JP7

JP10

Lid Swtich

Touchpad Connector

Keyboard Connector

Speaker Connector

PCMCIA Slot

Microphone Connector

Chapter 5 73

Bottom View

2

JP21

2

PJP11

JP20

JP39

JP26

JP31

2

JP16

2

JP22

PCN1

2 JP13 JP12

JP14

2

JP19

2

JP3

2

JP17

2

2

2

JP35

2

T2

JP28

Q2 JP29

JP36

2

JP23

JP24

2

JP25

2

JP30

2

U42

2

JP41

JP40

74

JP13

JP12

JP14

JP3

JP17

JP19

JP23

JP21

PJP11

JP20

JP16

JP22

PCN1

Fan Connector

Battery Connector

CPU Socket

LVDS Connector

VGA Board Connector

AC-IN

USB Port

Reserved for Acer ezDock. No ezDock for this model.

Modem Board Connector

External Display Port

S-Video Port

RJ11/RJ45

Modem Cable Connector

JP41

JP28

JP35

U42

JP26

JP31

JP39

JP24

JP25

JP30

JP36

IR

JP40

USB Port

USB Port

IEEE 1394 Port

Card Reader Connector

Infrared Receiver

Headphone out/line-out Jack

(support SPDIF)

Mic-in Jack

HDD Connector

Wireless LAN Card Connector

BIOS

DDR2 Socket

DDR2 Socket

ODD Connector

Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 3600/5500 series products. Refer to this chapter whenever ordering for parts to repair or for RMA (Return Merchandise

Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a

DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to return it.

Chapter 6 75

Exploded Diagram

The System

011

012

013

76 Chapter 6

Upper Case Assembly

Chapter 6 77

Lower Case Assembly

78 Chapter 6

LCD Module

Chapter 6 79

HDD Module

ODD Module

80 Chapter 6

Aspire 3600/5500 FRU List

Adapter

Picture No.

NS (Not

Show)

Battery

Board

NS

NS

The

System-

012

Part Name and Description Part Number

ADAPTER 3 PIN 65W DELTA SADP-65KB

BEF 19V 3PIN

ADAPTER 3 PIN 65W LITEON PA-1650-02CO

65W 3 PIN

ADAPTER 3 PIN 65W HIPRO HP-

OK066B13CP 3P 65W

AP.06501.006

AP.06503.007

AP.0650A.004

BATTERY LI-ION 6 CELLS-SANYO 2000mAH

UR18650F

BATTERY LI-ION 6 CELLS-SONY 2000mAH

US18650G4

BATTERY LI-ION 6 CELLS-SANYO 2400mAH

UR18650F

BATTERY LI-ION 6 CELLS-SONY 2400mAH

US18650G7

BATTERY LI-ION 9 CELLS-SANYO 2400mAH

UR18650F

BT.00603.001

BT.00604.004

BT.00604.001

BT.00604.001

BT.00903.002

MODEM BOARD FOXCONN T60M845.01

54.A70V5.001

NS BLUETOOTH CARD WNC 91.BU513.002

54.A70V5.002

NS MINI PCI WIRELESS BOARD 802.11 b+g

INTEL WM3B2200/CH11

KI.CAX01.008

Upper

Case

Assembly-

251

T/P BOARD W/FFC CABLE 55.A70V5.001

Chapter 6 81

Aspire 3600/5500 FRU List

Picture No.

The

System-

013

Part Name and Description

VGA BOARD M26P 64MB

Part Number

55.A70V5.002

Cable

Upper

Case

Assembly-

004

NS

FFC CABLE - T/P TO T/P BOARD

BLUETOOTH CABLE

50.A70V5.001

50.A70V5.002

NS MODEM CABLE 50.A70V5.003

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS CABLE

Case/Cover/Bracket Assembly

The

System-

006

POWER CORD-AUS

POWER CORD-CHINA

POWER CORD-DENMARK

POWER CORD-EC

POWER CORD-INDIA

POWER CORD-ISREL

POWER CORD-ITALIAN

POWER CORD-JP

POWER CORD-KOREA

POWER CORD-SOUTH AFRICA

POWER CORD-SWISS

POWER CORDTWN

POWER CORD-UK

POWER CORD-US

27.A70V5.001

27.A70V5.002

27.A70V5.003

27.A70V5.004

27.A70V5.005

27.A70V5.006

27.A70V5.007

27.A70V5.008

27.A70V5.009

27.A70V5.010

27.A70V5.011

27.A70V5.012

27.A70V5.013

27.A70V5.014

STRIP COVER - AS

Note: The image here is for TravelMate series’ middle cover. For AS strip cover, it does not have 5 degree ergo-curve.

42.A70V5.001

82 Chapter 6

Aspire 3600/5500 FRU List

Picture No.

The

System-

254;

Upper

Case

Assembly-

001

The

System-

002

Part Name and Description

STRIP COVER - AS

LOWER CASE- UMA

Part Number

60.A70V5.001

60.A70V5.002

NS

Upper

Case

Assembly-

002

Upper

Case

Assembly-

003

LOWER CASE- NON UMA

4 - WAY BUTTON

TP SUPPORT

Lower

Case

Assembly-

003

DIMM COVER

Lower

Case

Assembly-

004

PCI DOOR

Lower

Case

Assembly-

005

THERMAL DOOR

Communication Module

NS

CPU/Procussor

NS

NS

NS

Chapter 6

ANTENNA ASSY

CELERON M 350 (1.3G 1M) C0

CELERON M 360 (1.4G 1M) C0

CELERON M 370 (1.5G 1M) C0

60.A70V5.003

42.A70V5.002

33.A70V5.001

42.A70V5.003

42.A70V5.005

42.A70V5.006

50.A70V5.004

KC.NC001.350

KC.NC001.360

KC.NC001.370

83

Aspire 3600/5500 FRU List


NS

No.

NS

NS

NS

NS

Combo Drive

ODD

Module

Part Name and Description

INTEL PENTIUM M DOTHAN 1.6GHZ 2M

UFCBGA SL7EG B-1 STEPPING

INTEL PENTIUM M 1.6G 2M 533FSB uFCPGA2 SL86G C-1 STEPPING

INTEL PENTIUM M 1.73G 2M 533FSB uFCPGA2 SL7SA C-1 STEPPING

INTEL PENTIUM M 1.87G 2M 533FSB uFCPGA2 SL7S9 C-1 STEPPING

INTEL PENTIUM M 2.0G 2M 533FSB uFCPGA2 SL7SM C-1 STEPPING

Part Number

KC.N0001.725

KC.N0001.730

KC.N0001.740

KC.N0001.750

KC.N0001.760

DVD/CDRW COMBO MODULE 24X PHILIPS

SCB5265

6M.A70V5.001

ODD

Module-

001

ODD

Module-

002

ODD

Module-

003

DVD/CDRW COMBO DRIVE 24X PHILIPS

SCB5265

DVD/CDRW COMBO BEZEL

ODD BRACKET

KO.02403.007

42.A70V5.007

33.A70V5.002

DVD RW Drive

84

ODD

Module

ODD

Module-

001

ODD

Module-

002

ODD

Module-

003

ODD

Module

ODD

Module-

001

ODD

Module-

002

ODD

Module-

003

DVD/CDRW COMBO 24X MODULE

PANASONIC UJDA-770

DVD/CDRW COMBO 24X DRIVE

PANASONIC UJDA-770

DVD/CDRW COMBO BEZEL

ODD BRACKET

DVD DUAL MODULE 8X LITE-ON SOSW-

833S (DL) TRAY IN

DVD DUAL 8X DRIVE LITE-ON SOSW-833S

(DL)

DVD DUAL BEZEL - TRAY IN

ODD BRACKET

6M.A70V5.002

KO.02406.013

42.A70V5.007

33.A70V5.002

6M.A70V5.004

KU.00804.012

42.A70V5.008

33.A70V5.002

Chapter 6

Aspire 3600/5500 FRU List

Picture No.

ODD

Module

ODD

Module-

001

ODD

Module-

002

ODD

Module-

003

ODD

Module

ODD

Module-

001

ODD

Module-

002

ODD

Module-

003

ODD

Module

ODD

Module-

001

ODD

Module-

002

ODD

Module-

003

HDD Module

Part Name and Description Part Number

DVD DUAL MODULE 8X HLDS GWA-4082N

(DL)

DVD DUAL 8X DRIVE HLDS GWA-4082N

(DL)

DVD DUAL BEZEL - TRAY IN

6M.A70V5.007

KU.0080D.016

42.A70V5.008

ODD BRACKET 33.A70V5.002

DVD DUAL MODULE PANASONIC UJ-845

(DL) SLOT IN

DVD DUAL 8X DRIVE PANASONIC UJ-845

(DL)

DVD DUAL BEZEL - SLOT IN

6M.A70V5.005

KU.00807.015

42.A70V5.009

ODD BRACKET 33.A70V5.002

DVD DUAL MODULE PIONEER DVR-K05RA

(DL) SLOT IN

DVD DUAL 8X DRIVE PIONEER DVR-K05RA

(DL)

DVD DUAL BEZEL - SLOT IN

6M.A70V5.006

KU.00805.013

42.A70V5.009

ODD BRACKET 33.A70V5.002

Chapter 6 85

Aspire 3600/5500 FRU List

Picture No.

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module

HDD

Module-

001

Part Name and Description

HDD 40G 4200PRM SEAGATE ST94019A

Part Number

KH.04001.010

HDD 40G 2.5 IN. 420RPM TOSHIBA PLUTO

MK4025GAS

HGST 40G 2.5" 4200 MORAGA+

HTS424040M9AT00 13G1132 FW:A71A

HDD 60GB 2.5 IN. 4200RPM SEAGATE N2

ST960821A F/W: 3.01

HDD 60G 2.5IN. 4200RPM TOSHIBA PLUTO

MK6025GAS 2M F/W KA200A

HDD 60GB 2.5IN. 4200RPM MORAGA 60G

IC25N060ATMR04-0 08K0634 F/S:AD4A

HDD 80GB 2.5 IN. 4200RPM SEAGATE N2

ST9808210A F/W: 3.01

HDD 80GB 2.5IN. 4200RPM TOSHIBA

PLUTO MK8025GAS

HDD 80GB 2.5IN. 4200RPM HGST MORAGA

IC25N080ATMR04-0

HDD 100G 4200PRM SEAGATE ST9100822A

F/W:3.01

HDD 100GB 2.5IN. 4200RPM TOSHIBA

PLUTO MK1031GAS F/W AA20

HDD BRACKET

KH.04004.002

KH.04007.012

KH.06001.002

KH.06004.003

KH.06007.006

KH.08001.012

KH.08004.001

KH.08007.007

KH.10001.001

KH.10004.001

33.A70V5.003

Lower

Case

Assembly-

008

HDD DOOR 42.A70V5.011

Keyboard

The

System-

011

Aspire 1670 KEYBOARD Chinese

Note: The image is for TM series’ keyboard.

For Aspire series, the keyboard does not have

5 degree ergo-curve.

KB.A3502.001

Aspire 1670 KEYBOARD US International

Aspire 1670 KEYBOARD Thai

Aspire 1670 KEYBOARD German

Aspire 1670 KEYBOARD UK

Aspire 1670 KEYBOARD Italian

Aspire 1670 KEYBOARD French

Aspire 1670 KEYBOARD Swiss/G

Aspire 1670 KEYBOARD Belgium

Aspire 1670 KEYBOARD Spanish

KB.A3502.002

KB.A3502.003

KB.A3502.004

KB.A3502.005

KB.A3502.006

KB.A3502.007

KB.A3502.008

KB.A3502.009

KB.A3502.010

86 Chapter 6

Aspire 3600/5500 FRU List


LCD Module

No.

LCD

Module

LCD

Module-

001

Part Name and Description

Aspire 1670 KEYBOARD Portuguese

Aspire 1670 KEYBOARD Czech

Aspire 1670 KEYBOARD Hungarian

Aspire 1670 KEYBOARD Russian

Aspire 1670 KEYBOARD Sweden

Aspire 1670 KEYBOARD Norwegian

Aspire 1670 KEYBOARD Danish

Aspire 1670 KEYBOARD Arabic

Aspire 1670 KEYBOARD Brazilian

Portuguese

Aspire 1670 KEYBOARD Canadian French

Aspire 1670 KEYBOARD Greek

Aspire 1670 KEYBOARD Turkish

Aspire 1670 KEYBOARD Hebrew

Part Number

KB.A3502.011

KB.A3502.012

KB.A3502.013

KB.A3502.014

KB.A3502.015

KB.A3502.016

KB.A3502.017

KB.A3502.018

KB.A3502.019

KB.A3502.020

KB.A3502.021

KB.A3502.022

KB.A3502.023

ASSY LCD MODULE 14 .1 WXGA GLARE

QDI (N141V2 QD14TL01 REV 01) W/ANT-AS

LCD 14 .1 WXGA GLARE QDI N141V2

QD14TL01 REV 01

6M.A70V5.009

LK.14109.005

19.A70V5.001

LCD

Module-

007

LCD INVERTER

LCD

Module-

006

LCD WIRE CABLE 50.A70V5.005

LCD

Module-

004

LCD PANEL WITH LOGO W/ANTENNA - AS 60.A70V5.004

LCD PANEL WITH LOGO W/O ANTENNA -

AS

60.A70V5.005

Chapter 6 87

88

Aspire 3600/5500 FRU List

Picture No.

LCD

Module-

005

Part Name and Description

LCD BEZEL

Part Number

60.A70V5.006

LCD

Module-

002, 003

LCD BRACKET SET 6K.A70V5.001

LCD

Module

LCD

Module-

001

ASSY LCD MODULE 14.1 WXGA GLARE

CMO (N141l 1-L03) W/ANT-AS

LCD 14.1 WXGA GLARE CMO (N141l 1-L03)

6M.A70V5.010

LK.1410D.005

19.A70V5.001

LCD

Module-

007

LCD INVERTER

LCD

Module-

006

LCD WIRE CABLE 50.A70V5.005

LCD

Module-

004

LCD PANEL WITH LOGO W/ANTENNA - AS 60.A70V5.004

LCD PANEL WITH LOGO W/O ANTENNA -

AS

60.A70V5.005

Chapter 6

Aspire 3600/5500 FRU List

Picture No.

LCD

Module-

005

Part Name and Description

LCD BEZEL

Part Number

60.A70V5.006

LCD

Module-

002, 003

LCD BRACKET SET 6K.A70V5.001

LCD

Module

LCD

Module-

001

ASSY LCD MODULE 14 .1 WXGA GLARE

QDI (N141V2 QD14TL01 REV 01) W/O ANT-

AS

LCD 14 .1 WXGA GLARE QDI N141V2

QD14TL01 REV 01

6M.A70V5.013

LK.14109.005

19.A70V5.001

LCD

Module-

007

LCD INVERTER

LCD

Module-

006

LCD WIRE CABLE 50.A70V5.005

LCD

Module-

004

LCD PANEL WITH LOGO W/ANTENNA - AS 60.A70V5.004

LCD PANEL WITH LOGO W/O ANTENNA -

AS

60.A70V5.005

Chapter 6 89

90

Aspire 3600/5500 FRU List

Picture No.

LCD

Module-

005

Part Name and Description

LCD BEZEL

Part Number

60.A70V5.006

LCD

Module-

002, 003

LCD BRACKET SET 6K.A70V5.001

LCD

Module

LCD

Module-

001

ASSY LCD MODULE 14.1 WXGA GLARE

CMO (N141l 1-L03) W/O ANT-AS

LCD 14.1 WXGA GLARE CMO (N141l 1-L03)

6M.A70V5.014

LK.1410D.005

19.A70V5.001

LCD

Module-

007

LCD INVERTER

LCD

Module-

006

LCD WIRE CABLE 50.A70V5.005

LCD

Module-

004

LCD PANEL WITH LOGO W/ANTENNA - AS 60.A70V5.004

LCD PANEL WITH LOGO W/O ANTENNA -

AS

60.A70V5.005

Chapter 6

Aspire 3600/5500 FRU List

Picture No.

LCD

Module-

005

Part Name and Description

LCD BEZEL

Part Number

60.A70V5.006

LCD

Module-

002, 003

LCD BRACKET SET 6K.A70V5.001

Mainboard

Memory

Heatsink

The

System-

251

MAINBOARD 915PM FOR VGA GLAN W/

READER PCMCIA SLOT W/O CPU

MEMORY

MAINBOARD 910GML UMA GLAN W/

PCMCIA SLOT W/O READER CPU MEMORY

LB.TAA02.002

LB.TA902.001

NS

NS

The

System-

007

PCMCIA SLOT

MEMORY IFX 256MB/ 533MHZ,

HYS64T32000HDL-3.7-A

MEMORY DDRII533 256MB NANYA

NT256T64UH4A0FN-37B

MEMORY SAMSUNG 512MB/ 533MHz,

M470T3354BG0-CD5

MEMORY DDRII 533 256MB HYNIX

HYMP532S64P6-C4

MEMORY IFX 512MB/ 533MHZ,

HYS64T64020HDL-3.7-A

MEMORY MICRON 512MB/ 533MHZ,

MT8HTF6464HDY-53EA2

CPU THERMAL W/ FAN MODULE

22.A70V5.001

KN.25602.023

KN.25603.020

KN.2560B.011

KN.2560G.006

KN.51202.021

KN.51204.015

60.A70V5.007

The

System-

251

VGA THERMAL 60.A70V5.008

Pointing Device

Chapter 6 91

Aspire 3600/5500 FRU List

Picture No.

Upper

Case

Assembly-

005

Part Name and Description

TOUCHPAD

Speaker

NS SPEAKER SET (R&L)

Part Number

56.A70V5.001

23.A70V5.002

Miscellaneous

NS LCD RUBBER PAD 47.A70V5.001

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

SCREW

NS LCD SCREW PAD 47.A70V5.002

NS LCD RUBBER

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NS

NAME PLATE - AS-5500

NAME PLATE - AS-3600

RUBBER FOOT - ONE PIN

RUBBER FOOT - TWO PINS

SCREW M2*3(NL)

SCREW M2*4

SCREW M2*6

SCREW M2*6(p Ni)

SCREW M2.5*4(NL)

SCREW M2.5*6(NL)

SCREW M2.5*8(NL)

SCREW M3*4 (NL)

SCREW THERMAL SCREW ASSY

47.A70V5.003

47.A71V5.001

47.A70V5.006

47.A70V5.004

47.A70V5.005

86.A70V5.001

86.A70V5.002

86.A70V5.003

86.A70V5.004

86.A70V5.005

86.A70V5.006

86.A70V5.007

86.A70V5.008

86.A70V5.009

92 Chapter 6

Chapter 6 93

Appendix A

Model Definition and Configuration

Aspire 3600/5500 Series

Model

Number

AS5001L

M i

AS5001LC

CPU

ATML28

ATML28

AS5001W

LMi

AS5002L

M

AS5002L

Mi

ATML28

ATML30

ATML30

AS3002LC

AS3002NL

C i

AS3002LC

AS3002NL

Ci

AS3002L

M

AS3002L

Mi

AS3002N

WLCi

AS3003W

LMi

AMD

Sempron processor

2800+

AMD

Sempron processor

2800+

AMD

Sempron processor

2800+

AMD

Sempron processor

3000+

AMD

Sempron processor

2800+

AMD

Sempron processor

2800+

AMD

Sempron processor

2800+

AMD

Sempron processor

2800+

LCD

N15XGA

N15XGA

Memory

SO256M

B*2

SO256M

B

N15.4WXG

AG

N15XGA

N15XGA

SO256M

B*2

SO256M

B*2

SO256M

B*2

N15XGA SO256M

B

HDD

(GB)

N60GB

4.2K

N60GB

4.2K

N60GB

4.2K

N60GB

4.2K

N60GB

4.2K

ODD

NDU8X

NCB24X

NDU8X

NDU8X

NDU8X

N40GB

4.2K

NCB24X

N

N

N

N

Card

Reader

N

N

N

Wireless

LAN

ABT_BRM43

18BG

ABT_BRM43

18BG

N

ABT_BRM43

18BG

N

N15XGA

N15XGA

N15XGA

N15XGA

N15XGA

SO256M

B

SO256M

B

SO256M

B

N40GB

/60GB

4.2K

N40GB

/60GB

4.2K

N40GB

4.2K

NCB24X

NCB24X

NCB24X

N

N

N

SO256M

B*2

N60GB

4.2K

NDU8X N

SO256M

B*2

N60GB

4.2K

NDU8X N

N15.4WXG

AG

SO256M

B

N60GB

4.2K

NCB24X N

N15.4WXG

AG

SO256M

B

N60GB

4.2K

NDU8X N

N

ABT_BRM43

18BG

ABT_BRM43

18BG

N

ABT_BRM43

18BG

ABT_BRM43

18BG

ABT_BRM43

18BG

Appendix A 94

Model

Number

AS3003W

LCi

CPU

AMD

Sempron processor

3000+

LCD

N15.4WXG

AG

Memory

SO256M

B

HDD

(GB)

N60GB

4.2K

ODD

NDU8X N

Card

Reader

Wireless

LAN

ABT_BRM43

18BG

95 Appendix A

Appendix A 96

Appendix B

Test Compatible Components

This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system functions are tested under Windows

®

XP Home environment.

Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.

Regarding configuration, combination and test procedures, please refer to the Aspire 3600/5500 series

Compatibility Test Report released by the Acer Mobile System Testing Department.

Appendix B 97

Microsoft Windows XP Environment Test

Item

Processor

Memory

LCD

LCD

Hard Disk Drive

Specifications

Aspire 3000:

MOBILE SEMPRON 2800+ 25W D

MOBILE SEMPRON 3000+ 25W D

Aspire 5000

MOBILE TURION 64 ML28

MOBILE TURION 64 ML30

MOBILE TURION 64 ML32

MOBILE TURION 64 ML34

MOBILE TURION 64 ML37

SO-DIMM DDR333 1GB EBD11UD8ADD A

SO-DIMM DDR333 256MB HYS64D320 20HDL-6-C 32X64 (.11U)

SO-DIMM DDR333 256MB NT256D64SH8C0GM-6K (.11U)

SO-DIMM DDR333 256MB M470L3224 FT0-CB3 (.13U)

SO-DIMM DDR333 256MB HYMD232M6 46D6-J AA

SO-DIMM DDR333 512MB HYS64D64020HBDL-6-C 64MX64 (0.11U/

GREEN

SO-DIMM DDR333 512MB M470L6524 BT0-CB300 (512MB)

SO-DIMM 512MB HYMD564M646B6-J

15.4" WXGA NB LC AU B154EW01V.5

15.4" WXGA NB LCD SAMSUNGLTN154X3-L01-0 non-glare

15.4" WXGA NB LCD LPL LP154W01-TL12 (lead-free)

15.4" WXGA NB LCD QDI QD15TL02V.01 NON-GLARE TYPE

15.4" WXGA NB LCD QDI QD15TL02-03 NON-GLARE TYPE LEAD-

FREE

15.4" WXGA CMO LCD N154I1-L09

15.4" WXGA NB LCD AUO B154W01V.7 (Glare type)

15.4" WXGA NB LCD LPL LP154W1-A5K2 GLARE TYPE

15.4" WXGA NB LCD QDI QD15TL02-02 GLARE TYPE

15.4" WXGA NB LCD QDI QD15TL02-04 GLARE TYPE LEAD-FREE

15.4" WXGA NB LCD N154I1-L07GLARE TYPE

15" XGA NB LCD AUO B150XG01V2.XXXXX (Driver IC:MEC/TOS

15" XGA NB LCD SAMSUNG LTN150XB-L03-C00 MADE IN CHINA

15" XGA NB LCD LG LP150X08-A3MADE IN CHINA

15" XGA NB LCD QDI QD150XL06-01(160NITS)

15" XGA NB LCD N150X3-L07 V.C2

40G SEAGATE 2.5 4200RPM N1 ST94019A 2M F/W 3.05

40G TOSHIBA 2.5"" 4200RPM PLUTO MK4025GAS (ROHS) F/W

KA100A

40G HGST 2.5" 4.2RPM MORAGA+HTS424040M9AT00 13G1132 F/

W:A71A

60G SEAGATE 2.5" 4.2RPM N2ST960821A F/W 3.01

60G TOSHIBA 2.5" 4200RPM PLUTO MK6025GAS (ROHS) F/W KA200

80G TOSHIBA 2.5" 4200RPM PLUTO MK8025GAS (ROHS) F/W KA023

80G HGST MORAGA 4200RPM IC25N0 80ATMR04-0 08K635 FW:AD4A

98 Appendix B

ODD

Multifunction Card (Combo)

LAN Token Ring

Wireless LAN Card

Modem Adapters

Modem (up to 56K)

ISDN

I/O Peripheral

I/O - Display

I/O - Projector

I/O - Legacy (Parallel) Printer/

Scanner

Item

AC Adapter (3 pin)

Power Cord

Battery Li-Ion, 8 cells

Network Adapters

LAN Ethernet/10baseT/100base

Specifications

24X COMBO KME UJDA-760 FOR K ESTREL

8X DVD DUAL LITEON SOSW-852SSINGLE LAYER FOR KESTREL

#PRS7

8X DVD DUAL , LITEON SOSW-833,DOUBLE LAYER,GBASE FOR

CRANE

8X DVD DUAL,PANASONIC UJ-840BAA2,DOUBLE LAYER,GBASE FR

CRANE

8X SUPERMULTI,PANASONIC UJ-840BAA,DOUBLE

LAYER,GBASE(CRANE)

Delta NB Asapter 65W, SADP-65KB BF

Lite-on NB Adapter 65W, PA-1650-02

LSE NB Adapter 65W, P0335A1965

King Cord

Li-ION KESTREL 4S2P 4.4Ah W/OINDICATOR (W/Z SANYO CELLS)

LI-ION KESTREL 4S2P PANASONIC PACK CELL 4.4AH W/O

INDICATOR

3Com Etherlink III 3C589D

IBM EtherJet CardBus Adapter 10/100

Intel Ether Express Pro/100 Mobile Adapter MBLA3200

Xircom CardBus Ethernet 10/100 32 Bit CBE-10/100BTX

3Com Megahertz 10/100 LAN + 56K Modem PC Card

Xircom RealPort CardBus Ethenet 10/100 + Modem 56

IBM Token Ring 16/4 Adapter II

IBM Wireless LAN Cardbus Adapter

Intel Pro-Wireless LAN PC Card

Proxim Skyline 802.11a Cardbus PC Card

Cisco Aironet 350 series Wireless Lan Card

NeWeb Wireless Lan Card 802.11b

3Com Megahertz 56K Modem PC Card

Xircom Credit Card Modem 56

IBM 56K Double Jack Modem

US Robotics Megahertz 128K ISDN Card 405R17T7117M

IBM OBI International ISDN PC Card

Acer 211c 21”

Viewsonic PF790 19”

Acer FP751 17” TFT LCD

IBM Color TFT LCD 14”

Compaq Color Monitor

NET Color Monitor 20”

Mozo 17” TFT LCD (DVI)

NEC MultiSync MT-1040

Canon BJC-600J

Epson Stylus Color 740 Parallel Interface

HP DeskJet 890C

HP DeskJet 880C Parallel Interface

HP LaserJet 6MP

HP LaserJet 2200

Appendix B 99

100

I/O - IR Printer

Item

I/O - USB Keyboard/Mouse

I/O - Legacy (PS2/Serial) Keyboard/

Mouse

I/O - USB (Printer/Scanner)

I/O - USB (Speaker/Joystick))

I/O - USB Camera

I/O - USB Storage Drive

I/O-USB Flash Drive

I/O - USB Hub

I/O - Access Point (802.11b)

Specifications

HP LaserJet 6MP use IR

HP LaserJet 2200 use IR

Chicony USB Keyboard KU-8933

Microsoft Natural Keyboard Pro

Acer Aspire USB mouse

Logicool US Mouse

Logitech Cordless Mouseman Wheel USB Interface

Logitech USB Wheel Mouse M-BB48

Microsoft IntelliMouse Optical USB Interface

IBM 101 key keyboard

IBM 109 key keyboard

Acer PS2 keyboard

Acer KB-101A

IBM Numeric Keypad III

IBM Numeric Keypad

Acer Mouse

IBM PS2 Mini Mouse

IBM PS2 Mouse

Logitech Cordless MouseMan Wheel PS2 interface

Logitech Serial Mouse M-M35

Microsoft InteliMouse PS2 interface

Microsoft InteliMouse Optical PS2 interface

Logitech First Mouse Three Button Serial Mouse

Epson Stylus Color 740 USB interface

HP DeskJet 880C USB interface

Canon CanonScan D1250 (USB 2.0, JP OS only)

HP ScanJet 3300C Color Scanner

JS USB Digital Speaker

Panasonic USB Speaker EAB-MPC57USB

AIWA Multimedia Digital Speaker

Microsoft SideWinder Precision Pro Joystick

Logitech WingMan RumblePad

Intel Easy PC Camera

Logitech QuickCam Express Internet

Logitech QuickCam Home PC Video Camera

Orange Micro USB 2.0 Web Cam

Logitech CDRW +DVDROM combo USB interface

Iomega USB Zip 250MB

IBM 32MB USB Memory key

Apacer USB Handy Drive 32MB

Apacer USB Handy Drive 256MB

Belkin 4 Port USB Hub

Eizo I Station USB Hub

Elecom USB Hub 4 Port

Sanwa USB Hub 4 Port

4 Port Hub USB 2.0

Hitachi DC-CN3300

Lucent RG-1000

Lucent WavePoint-II

Cisco Aironet 350

Orinoco AP-500

Appendix B

Item

I/O Acess Point (802.11a/b)

I/O Acess Point (802.11a)

PCMCIA

PCMCIA - ATA

PCMCIA - USB 2.0

PCMCIA - 1394

PCMCIA-SCSI

PCMCIA - Bluetooth

Intel Dual Pro/Wireless 5000

Intel Pro/Wireless 5000

Specifications

IBM Microdrive 340MB

IBM Microdrive 1G

Iomega Click! 40MB

Sony Memory Stick 64MB

Sandisk Flash Card 20MB

Apacer SD Flash Card 128MB

Apacer SD Flash Card 256MB

Transcend SD Card 32MB

Transcend SD Card 256MB

Hagiwara sys-com SD Card 256MBT

Apricorn EZ-USB2.0 Cardbus PC Card

DTK USB 2.0 2Port CardBus Host Controller

Adaptec USB2CONNECT

Buffalo 1394 Interface Cardbus IFC-ILCB/DV

I-O Data 1394 Interface Cardbus CB1394/DVC

Pixela 1394 Cardbus PC Card PIX-PCMC/FW1

Adaptec 1408 or B SCSI CB

NewMedia Bus Toaster SCSI II

IBM Community Bluetooth PC Card

Toshiba Bluetooth PC Card

Appendix B 101

102 Appendix B

Appendix C

Online Support Information

This section describes online technical support services available to help you repair your Acer Systems.

If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch office. Acer Branch Offices and Regional Business Units may access our website. However some information sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.

Acer's Website offers you convenient and valuable support resources whenever you need them.

In the Technical Information section you can download information on all of Acer's Notebook, Desktop and

Server models including:

T

T

T

T

Service guides for all models

User's manuals

Training materials

Bios updates

T

T

Software utilities

Spare parts lists

T

TABs (Technical Announcement Bulletin)

For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our technical material.

Also contained on this website are:

T

Detailed information on Acer's International Traveler's Warranty (ITW)

T

T

Returned material authorization procedures

An overview of all the support services we offer, accompanied by a list of telephone, fax and email contacts for all your technical queries.

We are always looking for ways to optimize and improve our services, so if you have any suggestions or comments, please do not hesitate to communicate these to us.

Appendix C 103

104 Appendix C

advertisement

Related manuals

advertisement

Table of contents
