Denon D RCD-M37 Owner`s manual

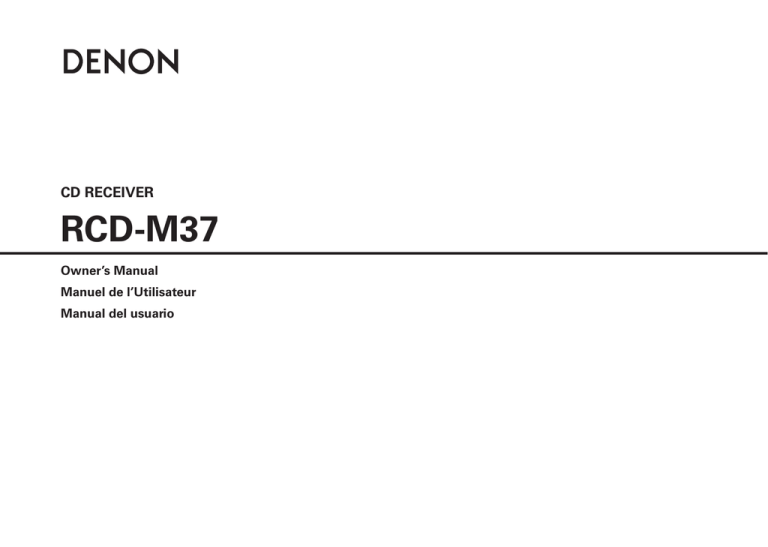

CD RECEIVER
RCD-M37
Owner’s Manual
Manuel de l’Utilisateur
Manual del usuario
ENGLISH FRANCAIS ESPAÑOL
nSAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
CAUTION:
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE
OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
THIS PRODUCT SHOULD NOT BE ADJUSTED OR REPAIRED BY
ANYONE EXCEPT PROPERLY QUALIFIED SERVICE PERSONNEL.
nLaser Class (IEC 60825-1:2001)
$-"44
-"4&3 130%6$5
13.
IMPOTANT SAFETY
INSTRUCTIONS
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water.
Clean only with dry cloth.
Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers, stoves,
or other apparatus (including amplifiers) that produce heat.
Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding
type plug has two blades and a third grounding prong. The wide blade or the
third prong are provided for your safety. If the provided plug does not fit into
your outlet, consult an electrician for replacement of the obsolete outlet.
Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Only use attachments/accessories specified by the manufacturer.
Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been dropped.
15. Batteries shall not be exposed to excessive heat such as sunshine, fire or
the like.
CAUTION:
•The ventilation should not be impeded by covering the ventilation
openings with items, such as newspapers, tablecloths, curtains,
etc.
•No naked flame sources, such as lighted candles, should be
placed on the unit.
•Observe and follow local regulations regarding battery disposal.
•Do not expose the unit to dripping or splashing fluids.
•Do not place objects filled with liquids, such as vases, on the
unit.
ATTENTION:
•La ventilation ne doit pas être gênée en recouvrant les ouvertures
de la ventilation avec des objets tels que journaux, rideaux, tissus,
etc.
•Aucune flamme nue, par exemple une bougie, ne doit être placée
sur l’appareil.
•Veillez à respecter les lois en vigueur lorsque vous jetez les piles
usagées.
•L’appareil ne doit pas être exposé à l’eau ou à l’humidité.
•Ne pas poser d’objet contenant du liquide, par exemple un vase,
sur l’appareil.
PRECAUCIÓN:
•La ventilación no debe quedar obstruida por haberse cubierto las
aperturas con objetos como periódicos, manteles, cortinas, etc.
•No debe colocarse sobre el aparato ninguna fuente inflamable sin
protección, como velas encendidas.
•A la hora de deshacerse de las pilas, respete la normativa para el
cuidado del medio ambiente.
•No exponer el aparato al goteo o salpicaduras cuando se utilice.
•No colocar sobre el aparato objetos llenos de líquido, como
jarros.
CAUTION:
To completely disconnect this product from the mains, disconnect
the plug from the wall socket outlet.
The mains plug is used to completely interrupt the power supply to
the unit and must be within easy access by the user.
PRECAUTION:
nCopyrights / Droits d’auteur / Derechos de Autor
•It is prohibited by law to reproduce, broadcast, rent or play discs in
public without the consent of the copyright holder.
• La reproduction, la diffusion, la location, le prêt ou la lecture
publique de ces disques sont interdits sans le consentement du
détenteur des droits d’auteur.
• De acuerdo con las leyes está prohibido reproducir, emitir, alquilar
o interpretar discos en público sin la autorización del propietario de
los derechos de autor.
I
Pour déconnecter complètement ce produit du courant secteur,
débranchez la prise de la prise murale.
La prise secteur est utilisée pour couper complètement
l’alimentation de l’appareil et l’utilisateur doit pouvoir y accéder
facilement.
PRECAUCIÓN:
Para desconectar completamente este producto de la alimentación
eléctrica, desconecte el enchufe del enchufe de la pared.
El enchufe de la alimentación eléctrica se utiliza para interrumpir por
completo el suministro de alimentación eléctrica a la unidad y debe
de encontrarse en un lugar al que el usuario tenga fácil acceso.
ESPAÑOL FRANCAIS ENGLISH
FCC Information (For US customers)
1. PRODUCT
This product complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this
product may not cause harmful interference, and (2) this product must accept any interference received, including
interference that may cause undesired operation.
2. IMPORTANT NOTICE: DO NOT MODIFY THIS PRODUCT
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements.
Modification not expressly approved by DENON may void your authority, granted by the FCC, to use the product.
3. NOTE
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation.
This product generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this product does cause harmful interference to radio or
television reception, which can be determined by turning the product OFF and ON, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the product into an outlet on a circuit different from that to which the receiver is connected.
•Consult the local retailer authorized to distribute this type of product or an experienced radio/TV technician for
help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
II
ENGLISH FRANCAIS ESPAÑOL
nNOTE ON USE / OBSERVATIONS RELATIVES A L’UTILISATION / NOTAS
SOBRE EL USO
• Avoid high temperatures.
Allow for sufficient heat dispersion when
installed in a rack.
• Eviter des températures élevées.
Tenir compte d’une dispersion de chaleur
suffisante lors de l’installation sur une
étagère.
• Evite altas temperaturas.
Permite la suficiente dispersión del calor
cuando está instalado en la consola.
• Do not let foreign objects into the unit.
• Ne pas laisser des objets étrangers dans
• Keep the unit free from moisture, water,
l’appareil.
and dust.
• No deje objetos extraños dentro del
• Protéger l’appareil contre l’humidité, l’eau
equipo.
et la poussière.
• Mantenga el equipo libre de humedad,
agua y polvo.
• Do not let insecticides, benzene, and
thinner come in contact with the unit.
• Unplug the power cord when not using the • Ne pas mettre en contact des insecticides,
du benzène et un diluant avec l’appareil.
unit for long periods of time.
• Débrancher le cordon d’alimentation • No permita el contacto de insecticidas,
gasolina y diluyentes con el equipo.
lorsque l’appareil n’est pas utilisé pendant
de longues périodes.
• Desconecte el cordón de energía cuando
no utilice el equipo por mucho tiempo.
• Handle the power cord carefully.
Hold the plug when unplugging the cord.
• Manipuler le cordon d’alimentation avec
précaution.
Tenir la prise lors du débranchement du
cordon.
* (For apparatuses with ventilation holes)
• Maneje el cordón de energía con cuidado.
Sostenga el enchufe cuando desconecte el
cordón de energía.
• Do not obstruct the ventilation holes.
• Ne pas obstruer les trous d’aération.
• No obstruya los orificios de ventilación.
III
• Never disassemble or modify the unit in
any way.
• Ne jamais démonter ou modifier l’appareil
d’une manière ou d’une autre.
• Nunca desarme o modifique el equipo de
ninguna manera.
ENGLISH
nContents
Getting Started
Accessories·······················································································2
Cautions on Handling······································································2
Cautions on Installation··································································2
Main Features··················································································2
Discs··································································································2
Discs usable on the RCD-M37························································2
Holding Discs··················································································3
Loading Discs··················································································3
Cautions on Loading Discs······························································3
Cautions on Handling······································································3
Cautions on Storing Discs·······························································3
Cleaning Discs················································································3
About the Remote Control Unit·····················································3
Inserting the Batteries·····································································3
Operating Range of the Remote Control Unit·································4
Part Names and Functions······························································4
Front Panel······················································································4
Display····························································································5
Rear Panel·······················································································5
Remote Control Unit·······································································6
Connections
Preparations·····················································································8
Cables Used for Connections·························································8
Using the AM Loop Antenna···························································8
Assembling the AM Loop Antenna·················································8
Speaker Connections······································································9
Connecting the Speaker Cables······················································9
Connecting the Playback Components······································· 10
Control Dock for iPod···································································· 10
Connecting the Recording Components····································· 10
CD Recorder / MD Recorder / Tape deck······································ 10
Connections to Other Devices······················································ 10
Antenna Terminals········································································· 10
USB Port······················································································· 11
Connecting the Power Cord·························································· 11
Once Connections are Completed··············································· 11
Turning the Power On··································································· 11
Playback
Preparations··················································································· 13
Turning the Power On··································································· 13
Loading Discs················································································ 13
Operations Possible During Playback·········································· 13
Adjusting the Master Volume························································ 13
Input Source Switching································································· 13
Adjusting the Tone········································································· 13
Turning the Sound Off Temporarily (Muting)·································· 13
Switching the Display’s Brightness··············································· 13
Listening with Headphones·························································· 13
CD Playback··················································································· 14
Playing CDs··················································································· 14
Playing Repeatedly <Repeat Playback>········································ 14
Playing Random Order <Random Playback>································ 14
Playing Tracks in the Desired Order <Program playback>············· 15
Switching the Display···································································· 15
Playback of MP3 and WMA Files·················································· 15
About the MP3 and WMA Formats That Can be Played··············· 15
Playing MP3 and WMA Files························································· 16
TUNER Playback············································································ 17
Tuning in Broadcast Stations························································· 17
Automatically Presetting FM Stations (Auto Preset)····················· 17
Presetting FM/AM Stations Manually··········································· 17
Listening to Preset Stations·························································· 18
Naming the Currently Tuned in Broadcast Station························· 18
iPod® Playback·············································································· 18
Preparations·················································································· 18
Listening to Audio········································································· 19
Disconnecting the iPod································································· 19
Playing a Portable Audio······························································· 19
Connecting a Portable Player························································ 19
Playing the Portable Player···························································· 19
USB Playback·················································································20
Playable USB Memory Formats····················································20
Basic Operation·············································································20
Setting the Timer
Timer Playback··············································································22
Setting the Timer···········································································22
Sleep Timer Playback····································································23
Other Functions
Convenient Functions···································································24
Auto Power On··············································································24
Auto Function Selector Function···················································24
Last Function Memory··································································24
Resetting the Microprocessor·······················································24
Using an Optimizing Filter·····························································24
Troubleshooting· ···························································· 25
Specifications··································································· 26
Setup
Setting the Current Time (24-Hour Display)································ 12
ENGLISH
Getting Started
Getting Started
Connections
Thank you for purchasing this DENON product. To ensure proper
operation, please read this owner’s manual carefully before using the
product.
After reading them, be sure to keep them for future reference.
Setup
Accessories
Playback
Check that the following parts are supplied with the product.
Setting the Timer
qRemote control (RC-1097)........................................................ 1
wR03/AAA batteries.................................................................... 2
ePower cord (Cord length: Approx. 6.6 ft / 2 m)......................... 1
rAM loop antenna...................................................................... 1
tFM indoor antenna................................................................... 1
yOwner’s manual....................................................................... 1
uWarranty (for North America model only)................................. 1
iService station list.................................................................... 1
Other Functions
q
e
r
t
Cautions on Handling
Main Features
•Before turning the power switch on
Check once again that all connections are correct and that there are
no problems with the connection cables.
1.High quality amplifier stressing sound quality
Equippd with 30 W + 30 W (6 Ω/ohms) high quality amplifier
circuits.
•Power is supplied to some of the circuitry even when the unit is
set to the standby mode. When traveling or leaving home for long
periods of time, be sure to unplug the power cord from the power
outlet.
2.Tone control and SDB control
Separate bass and treble tone controls for adjusting the tone to your
tastes and Super Dynamic Bass (SDB) circuit for producing powerful
bass sound even when the volume is low.
Source direct position provided for turning off the SDB and tone
control circuitry to make the response flat.
•Sufficiently ventilate the place of installation
If the unit is left in a room full of the smoke from cigarettes, etc., for
long periods of time, the surface of the optical pickup could get dirty,
in which case it will not be able to read the signals properly.
•About condensation
If there is a major difference in temperature between the inside of
the unit and the surroundings, condensation (dew) may form on
the operating parts inside the unit, causing the unit not to operate
properly.
If this happens, let the unit sit for an hour or two with the power
turned off and wait until there is little difference in temperature
before using the unit.
Troubleshooting
•Cautions on using mobile phones
Using a mobile phone near this unit may result in noise. If so, move
the mobile phone away from this unit when it is in use.
3.CD player for digital sound
Compact body integrating a CD section in addition to the FM/AM
tuner and amplifier, allowing playback of CD-R/RW discs.
4.Playback of MP3 and WMA files
Supports playback of discs and USB memory devices on which MP3
and WMA files are recorded. The track name and artist name of the
currently playing track can be displayed on the set’s display.
The characters that can be displayed “Switching the Display”
(vpage 16)
5.Low standby power consumption
Designed with considerations on the environment, with the power
consumption when the power is in standby kept down to about 0.3 W.
•Moving the unit
Turn off the power and unplug the power cord from the power
outlet.
Next, disconnect the connection cables to other system units before
moving the unit.
Specifications
•Note that the illustrations in these instructions may differ from the
actual unit for explanation purposes.
Discs
Discs Usable on the RCD-M37
qMusic CDs
wCD-R/CD-RW
Cautions on Installation
Note:
For proper heat dispersal, do not install this unit in a confined
space, such as a bookcase or similar enclosure.
b Note
b
b
b
Discs marked with the logotype below can be played in this unit.
Wall
ENGLISH
Do not wipe with a circular
motion.
NOTE
Do not use record spray, antistatic agents, or benzene, thinner or other
solvents.
8 cm disc
About the Remote Control Unit
Inserting the Batteries
q Slide the rear lid in the
direction of the arrow and
remove it.
w Load the two batteries properly
as indicated by the marks in the
battery compartment.
Specifications
Cautions on Storing Discs
•Place 8 cm discs in the inner tray guide without using an adapter.
•Be sure to remove discs after using them.
•Be sure to store discs in their cases to protect them from dust,
scratches, warping, etc.
•Do not store discs in the following places:
1.Places exposed to direct sunlight for long periods of time
2.Dusty or humid places
3.Places exposed to heat from heating appliances, etc.
Troubleshooting
Inner tray guide
•Do not get fingerprints, oil or dirt on discs.
•Take special care not to scratch discs when removing them from
their cases.
•Do not bend or heat discs.
•Do not enlarge the hole at the center.
•Do not write on the labeled (printed) surface with ball-point pens,
pencils, etc., or stick new labels on discs.
•Water droplets may form on discs if they are moved suddenly from a
cold place (outdoors for example) to a warm place, but do not try to
dry them off using a hairdryer, etc.
Other Functions
Figure 2
12 cm disc
Gently wipe the disc from the
inside towards the outside.
Setting the Timer
•Set the disc with the labeled side facing up.
•Make sure the disc tray is fully open when inserting the disc.
•Place the discs flatly, 12 cm discs in the outer tray guide (Figure 1), 8
cm discs in the inner tray guide (Figure 2).
Outer tray guide
•Only load one disc at a time. Loading two or more discs can damage
the unit or scratch the discs.
•Do not use cracked or warped discs or discs that have been repaired
with adhesive, etc.
•Do not use discs on which the sticky part of cellophane tape or labels
is exposed or on which there are traces of where labels have been
removed. Such discs can get caught inside the player and damage
it.
Cautions on Handling
Loading Discs
Figure 1
Cautions on Loading Discs
Playback
Do not touch the signal surface.
•If there are fingerprints or dirt on discs, wipe them off before using
the disc. Fingerprints and dirt can impair sound quality and cause
interruptions in playback.
•Use a commercially available disc cleaning set or a soft cloth to clean
discs.
Setup
Holding Discs
NOTE
Do not push the disc tray in by hand when the power is turned off.
Doing so could damage the set.
Cleaning Discs
Connections
bWhat is finalization?
Finalization is the process that
makes recorded CD-R/CD-RW discs playable on compatible
players.
•“00 Tr 00 : 00” is displayed if a disc that cannot be played is loaded.
•“00 Tr 00 : 00” is displayed if the disc is loaded upside-down or if no
disc is loaded.
Getting Started
NOTE
•Discs with special shapes (heart-shaped discs, octagonal discs, etc.)
cannot be played. Do not attempt to play them, as doing so can
damage the product.
•Some discs and some recording
formats may not be playable.
•Non-finalized discs cannot be
played.
e Put the rear cover back on.
ENGLISH
Getting Started
NOTE
Connections
Setup
Playback
•Replace the batteries with new ones if the set does not operate even
when the remote control unit is operated close to the unit.
•The supplied batteries are only for verifying operation.
•When inserting the batteries, be sure to do so in the proper direction,
following the “q” and “w” marks in the battery compartment.
•To prevent damage or leakage of battery fluid:
•Do not use a new battery together with an old one.
•Do not use two different types of batteries.
•Do not attempt to charge dry batteries.
•Do not short-circuit, disassemble, heat or dispose of batteries in
flames.
•If the battery fluid should leak, carefully wipe the fluid off the inside
of the battery compartment and insert new batteries.
•Remove the batteries from the remote control unit if it will not be in
use for long periods.
Part Names and Functions
For buttons not explained here, see the page indicated in parentheses ( ).
Front Panel
Q6
Q5
Q4
Q3
Setting the Timer
Operating Range of the Remote Control
Unit
Q2
Q0
Point the remote control unit at the remote sensor when operating it.
Other Functions
Approx. 23 feet / 7 m
Troubleshooting
q w
30°
e
r
t
y
u
i
o
Q1
30°
qPower operation button
Specifications
NOTE
The set may function improperly or the remote control unit may not
operate if the remote control sensor is exposed to direct sunlight,
strong artificial light from an inverter type fluorescent lamp or infrared
light.
wPower indicator······································································· (13)
eUSB port (USB)······································································· (11)
rDisplay
tPortable jack (PORTABLE IN)················································· (19)
yHeadphones jack (PHONES)·················································· (13)
uSOURCE button······································································ (13)
iRevers-skip/Forward-skip buttons
(ON/STANDBY)······································································· (13)
(8/–, +/9)·································································· (14, 17)
oMaster volume control knob
(VOLUME)··············································································· (13)
Q0MENU/SET button··························································· (12, 22)
Q1SDB/TONE button ································································· (13)
Q2BAND/Stop button (BAND/2)········································· (14, 17)
Q3Play/Pause button (1/3)························································ (14)
Q4Disc tray open/close button (5)············································ (13)
Q5Remote control sensor ···························································(4)
Q6Disc tray ···················································································(3)
ENGLISH
q w
Rear Panel
e
r
t
y
y
u i
Getting Started
Display
tr
Connections
Setup
Playback
qInformation display
Various information is displayed here, depending
on the operation mode.
Setting the Timer
w1: (the play indicator) lights when a disc is
playing.
3: (the pause indicator) lights when a disc is
pausing.
eSDB, TONE indicator… ………………………(13)
Other Functions
rReception mode indicator……………………(17)
tTOTAL indicator
Lights when the total number of tracks and total
time of the CD are displayed.
q
w
e
yPlay mode indicator··································· (14)
iF:Flashes when remote control signals are
received.
Troubleshooting
uTimer indicator··········································· (23)
qMonaural audio connector
(MONO OUT)················································(9)
Specifications
wSpeakers terminals·······································(9)
eAC inlet (AC IN)··········································· (11)
rFM/AM antenna terminals························· (10)
tDOCK CONTROL jack································· (10)
yAUX1/AUX2
Analog audio connectors··························· (10)
ENGLISH
Getting Started
Remote Control Unit
Buttons Operable for All Functions (CD, TUNER, iPod and USB)
Buttons Operable When the Function is Set to “CD”
The buttons listed at “Buttons Operable for All Functions” can also be used.
Connections
qDIMMER button··········································· (13)
wMaster volume control buttons
q
t
Setup
y
(VOLUME)···················································· (13)
Playback
eSDB/TONE button······································· (13)
rMENU/SET button······································ (12)
tON/STANDBY button·································· (13)
ySLEEP button··············································· (23)
uMUTE button··············································· (13)
iCLOCK button·············································· (12)
q
Setting the Timer
NOTE
i
The DAB/RDS button cannot be used.
Other Functions
Q1Reverse-skip/Forward-skip buttons
Q0
Q2Stop button (2)············································ (14)
Q3Cursor buttons (uio p)··························· (16)
t
Q2
Q1
Troubleshooting
y
Specifications
Q3
i
(6, 7) ···················································· (14)
o
u
r
w
e
r
w
e
qNumber buttons·········································· (14)
wPROG/DIRECT button································· (15)
eRANDOM button········································· (14)
rSOURCE button··········································· (14)
tCD 1/3 button············································· (14)
yFOLDER MODE button································ (16)
uTIME/DISPLAY button································· (15)
iCLEAR/DEL button······································ (15)
oREPEAT button············································· (14)
Q0Fast-reversing/Fast-forwarding buttons
u
(8, 9)···················································· (14)
ENGLISH
Buttons Operable When the Function is Set to “iPod”, “USB”
The buttons listed at “Buttons Operable for All Functions” can also be used.
The buttons listed at “Buttons Operable for All Functions” can also be used.
q
(6, 7) ···················································· (21)
oReverse-skip/Forward-skip buttons
r
u
t
i
e
y
o
u
Q0
Q1
r
t
y
Troubleshooting
i
o
Other Functions
w
Setting the Timer
w
e
(8, 9)···················································· (21)
Q0USB 1/3 button·········································· (20)
Q1Stop button (2)············································ (21)
Q2iPod 1/3 button········································· (19)
Q3ENTER/MEMO button································· (19)
Q4Cursor buttons (uio p)··························· (19)
Q5REMOTE/BROWSE button·························· (18)
Playback
Setup
q
qNumber buttons·········································· (21)
wRANDOM button········································· (21)
eSOURCE button··········································· (20)
rMENU/SET button······································ (19)
tFOLDER MODE button································ (21)
yTIME/DISPLAY button································· (19)
uREPEAT button············································· (21)
iFast-reversing/Fast-forwarding buttons
Connections
qNumber buttons·········································· (18)
wSOURCE button··········································· (17)
eTUNER button·············································· (17)
rCLEAR/DEL button······································ (18)
tTuning +, – buttons (TU+, TU–)··················· (17)
yChannel +, – buttons (CH+, CH–)················ (17)
uStop button (2)············································ (17)
iENTER/MEMO button································· (17)
oCursor buttons (uio p)··························· (17)
Getting Started
Buttons Operable When the Function is Set to “TUNER”
Q2
Q3
Q4
Q5
Specifications
ENGLISH
Getting Started
Connections
Connections
Connections for all compatible audio signal formats are described
in this owner’s manual. Please select the types of connections
suited for the equipment you are connecting.
With some types of connections, certain settings must be made
on the RCD-M37. For details, refer to the instructions for the
respective connection items below.
Setup
NOTE
Playback
Setting the Timer
•Do not plug in the power cord until all connections have been
completed.
•When making connections, also refer to the owner’s manual of the
other components.
•Be sure to connect the left and right channels properly (left with left,
right with right).
•Do not bundle power supply cords together with connection cables.
Doing so can result in humming or noise.
Preparations
Using the AM Loop Antenna
Cables Used for Connections
nTo use suspended on a wall
Suspend directly on the wall without assembling.
Select the cables according to the equipment being connected.
Audio cables
Nail, tack, etc.
Analog connections (stereo)
(White)
L
L
(Red)
R
R
Stereo pin-plug cable
nTo use standing alone
Use the procedure below to assemble.
Analog connections (subwoofer)
Other Functions
(Black)
Pin-plug cable
Speaker connections
Troubleshooting
Assembling the AM Loop Antenna
Speaker cable
Signal direction
Specifications
Audio signal:
Output
Input
Input
Output
1
Bend in the direction of the arrow.
2
Insert into the hole.
ENGLISH
Subwoofer
with built-in
amplifier
Speaker SC-M37 (Supplied)
Check the left (L) and right (R) channels and the + (red) and – (black)
terminals on the set and the speakers to be used and interconnect
the cables to the same polarities.
Peel off about 10 mm of the sheathing at
w
q
w
q
to loosen it.
3
base of the speaker terminal.
4
to tighten it.
Insert the speaker cable’s core wire into the
Turn the speaker terminal counterclockwise
Tighten the speaker terminal firmly before inserting the banana
plug.
The protection circuit will be activated in the following cases:
•When the speaker cable's core wires are touching the rear
panel or screws or when the speaker cable’s + and – sides are
touching
•When the surrounding temperature is extremely high
•When the internal temperature rises due to extended use with a
high output
If this happens, unplug the power cord, then check the connections
of the speaker cables and input cables. If the set’s temperature
is extremely high, wait for it to cool off and improve surrounding
ventilation. After doing this, plug the power cord back in.
If the protection circuit is activated though there are no problems
in ventilation around the set or in connections, the set could be
damaged. Turn off the power, then contact a DENON servicing and
inquiry outlet.
Other Functions
When using a banana plug
Protector circuit
Setting the Timer
2
Turn the speaker terminal counterclockwise
Playback
*/
(L)
Setup
(R)
the tip of the cable, twist the core wire and
terminate it.
Connections
1
NOTE
•Use speakers with an impedance of 6 to 16 Ω/ohms. The protection
circuit may be activated if speakers with an impedance other than
specified are used.
•Connect the speaker cables in a way that they do not stick out of the
speaker terminals. The protection circuit may be activated if the core
wires touch the rear panel or screws or if the + and – sides touch.
•Never touch the speaker terminals while the power is on. Doing so
could cause electric shock.
Getting Started
Connecting the Speaker Cables
Speaker Connections
Troubleshooting
Specifications
ENGLISH
Getting Started
Connecting the Playback
Components
Connecting the Recording
Components
Connections to Other Devices
Antenna Terminals
Connections
Control Dock for iPod
Use a DENON Control Dock for iPod (ASD-1R or ASD-3N/3W, sold
separately ) to connect the set with an iPod.
Setup
iPod
CD Recorder / MD Recorder / Tape deck
CD recorder /
MD recorder /
Tape deck
-
"6%*0
3
065
3
Playback
"4%/8
Setting the Timer
R
The AM and FM reception sensitivity depends on the place the antenna
is set and the direction in which it is set. Set it so that reception is
best.
"6%*0
*/
R
AM/FM
L
R
L
R
L
R
L
R
AM loop antenna
(Supplied)
FM indoor antenna
(Supplied)
Black
White
L
L
Other Functions
Troubleshooting
Specifications
Note to CATV system installer:
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC which provides guidelines
for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building,
as close to the point of cable entry as practical.
•When using a Control Dock for iPod, the Control Dock for iPod must
be set. For details, refer to the operating instructions of the Control
Dock for iPod.
•To use an iPod, see “iPod® Playback” (vpage 18).
10
ENGLISH
USB Port
Connecting the Power Cord
USB
Insert the conductor.
Return the lever.
Power cord (Supplied)
NOTE
Troubleshooting
Once Connections are
Completed
Other Functions
•It is not possible to connect and use a computer via the RCD-M37’s
USB port using a USB cable.
•For details about USB memory devices, see “Playable USB Memory
Formats” (vpage 20).
Setting the Timer
NOTE
•Only use the supplied power cord.
•Be sure the power cord is unplugged from the power outlet before
connecting or disconnecting it to the AC IN.
Playback
•Make sure the AM loop antenna lead terminals do not touch metal
parts of the panel.
•Do not connect two FM antennas simultaneously.
Setup
To household power outlet
(AC 120 V, 60 Hz)
NOTE
Connections
1
2
3
Push the lever.
Getting Started
nConnecting the AM loop antenna
Turning the Power On (vpage 13)
Specifications
11
ENGLISH
Getting Started
Setup
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
Setup
8, 9
<5> <1/3> SDB/TONE
Setting the Current Time
(12-Hour Display)
GExampleH Setting the current time to 10:15 am
1
2
3
Press ON/STANDBY to turn the power on.
nChecking the current time when the power is on
Press [CLOCK].
When pressed again or if a different operation is performed, the
normal display reappears.
nChecking the current time when the power is set
to standby
Press MENU/SET or [CLOCK].
Press again to turn off display.
Playback
Press [CLOCK].
The current time is displayed.
Setting the Timer
Press
MENU/SET for over 1 second to set the manual
time setting mode.
The “hours” display flashes.
Other Functions
4
Use 8,
5
TIME Adj AM12:00
9 or [o p] to set the “hours”.
TIME Adj AM10:00
Press MENU/SET or [ENTER/MEMO].
ON/STANDBY <PHONES>
SOURCE <VOLUME>
MENU/SET
Troubleshooting
[DIMMER]
ON/STANDBY
6
The “minutes” display flashes.
TIME Adj AM10:00
Use 8,
7
9 or [o p] to set the “minutes”.
TIME Adj AM10:15
Press MENU/SET or [ENTER/MEMO].
Specifications
SOURCE
8, 9
[CD 1/3]
[VOLUME df]
12
SDB/TONE
[MUTE]
MENU/SET
[ENTER/MEMO]
[o p]
[CLOCK]
The current time is set, and the normal display reappears.
•Displaying the time when the power is set to standby consumes
electricity. To reduce electric consumption, turn the time display off.
•When the function is set to iPod, the current time cannot be set.
ENGLISH
Getting Started
Playback
Turning the Power On
•Power continues to be supplied to some of the circuitry even when
the power is in the standby mode. When leaving home for long
periods of time or when traveling, either press ON/STANDBY to turn
off the power, or unplug the power cord from the power outlet.
•Be sure to stop playback before turning the power off.
Either turn <VOLUME> or press [VOLUME df].
VOLUME 00 ~ 45, VOLUME MAX
Press SOURCE to select the input source.
NOTE
Do not place any foreign objects in the disc tray. Doing so could
damage it.
The “MUTE ON” is displayed.
Adjusting the Tone
1
Switching the Display’s Brightness
Select the item to be adjusted with SDB/TONE.
SDB
BASS
S.DIRECT
TREBLE
Press [DIMMER].
100 %
GAbout the displayH
When the SDB is on∙∙∙∙∙∙∙∙∙∙∙∙∙ “SDB” is displayed.
When BASS or TREBLE is set to something other than 0 dB
∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ “TONE” is displayed.
29
Display the mode you want to adjust, then use
tone.
To cancel, press [MUTE] again.
(The mute mode is also canceled when the <VOLUME> control is
turned or a [VOLUME df] is pressed.)
8,
and [o p] to turn on or off and to adjust the
bIf no operation is performed for 5 seconds, the adjustment is
retained and the normal display reappears.
70 %
40 %
OFF
bThe display’s brightness switches each time the button is
pressed.
Listening with Headphones
Plug the headphones (sold separately) into the <PHONES>.
bThe sound from the speakers is automatically cut off.
NOTE
Be careful not to set the volume too high when using headphones.
13
Specifications
Press <5> again.
bThe disc tray also closes when <1/3>, [CD 1/3] or SOURCE is
pressed.
Press [MUTE].
AUX1
(AUX1/Dock)
AUX2
b“AUX1/Dock” is displayed when a Control Dock for iPod is
connected to “AUX1”.
b“PORTABLE IN” is only displayed when connected.
b“Loading discs” (vpage 3).
nTo close the disc tray
PORTABLE IN
[Variable range] –10dB ~ +10dB
S.DIRECT : Turns SDB, bass and treble off.
Troubleshooting
In the stop mode, press <5> to open the disc tray.
USB
[Variable range] –10dB ~ +10dB
Other Functions
Loading Discs
TUNER
: Adjusts the treble sound.
Turning the Sound Off Temporarily
(Muting)
Input Source Switching
CD
TREBLE
Settings made upon purchase :
•SDB······················ OFF
•TREBLE················· 0 dB
•BASS··················· 0 dB
•S. DIRECT··············OFF
[Variable range]
Unplug the power cord from the wall outlet.
bNote that the time setting is cleared when the power cord is
unplugged from the outlet.
bThe settings made for the various functions may be cleared if the
power cord is left unplugged from a power outlet for an extended
period of time.
The volume level is displayed.
nCompletely turning off the power
: Adjusts the bass sound.
Setting the Timer
NOTE
BASS
Adjusting the Master Volume
: Switches Super Dynamic Bass on and off.
Playback
•The power turns on. Press again to set the power to standby.
•Power indicator
Standby∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙Red
Power on∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙Green
When the timer is set∙∙∙∙∙∙∙∙∙∙∙∙∙Orange
SDB
Setup
Press ON/STANDBY.
[Selectable modes]
Operations Possible During
Playback
Connections
Preparations
ENGLISH
Getting Started
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
<1/3>
8, 9
CD Playback
Playing CDs
Playing Repeatedly <Repeat Playback>
Press [REPEAT].
Playback in the respective repeat mode starts.
Press <1/3> or [CD 1/3].
Single-track repeat
The “1” indicator lights and playback begins.
All-track repeat
Repeat off
(indicator turns off)
Setup
•If the function is set to something other than “CD”, press [CD 1/3]
to switch the function to “CD” and start playback ( vpage 24 “Auto
Function Selector Function”).
•The function can also be switched to “CD” using SOURCE.
Playback
nStopping Playback
Setting the Timer
Press <BAND/2> or [2].
[Selectable items]
1 (Single-track repeat)
:O
nly 1 track is played repeatedly.
ALL (All-track repeat)
: All tracks are played repeatedly.
Repeat off (indicator turns off)
: Normal playback resumes.
nStopping Playback Temporarily
Press <1/3> or [CD 1/3].
The “3” is displayed.
bTo resume playback, press <13> or [CD 1/3].
SOURCE
<BAND/2>
nFast-Forwarding and Fast-Reversing (searching)
Other Functions
During playback, press and hold in [6, 7].
nMoving to the Beginning of Tracks (skipping)
Troubleshooting
During playback, press 8, 9.
bThe disc is skipped the number of tracks equal to the number of
times the button is pressed.
bWhen pressed once in the return direction, playback returns to the
beginning of the currently playing track.
[NUMBER]
Specifications
[RANDOM]
[PROG/DIRECT]
SOURCE
[CD 1/3]
[TIME/DISPLAY]
14
[CLEAR/DEL]
[REPEAT]
[6, 7]
8, 9
[2]
nTo Play the Desired Track
(Remote Control Unit Only)
Press [NUMBER] (0 ~ 9, +10) to select the track.
GExampleH : Track 4 : [4]
GExampleH : Track 12 : [+10], [2]
GExampleH : Track 20 : [+10], [+10], [0]
Playing Random Order <Random Playback>
1
2
In the stop mode, press [RANDOM].
The “RANDOM” indicator lights.
Press <1/3> or [CD 1/3].
The tracks start playing in random order.
NOTE
Random play cannot be set or canceled during playback.
nCanceling Random Playback
In the stop mode, press [RANDOM].
The “RANDOM” indicator turns off.
NOTE
When [REPEAT] pressed during random playback, the tracks are played
in a different random order after this turn.
ENGLISH
<Program playback>
Up to 25 tracks can be programmed.
In the stop mode, press [PROG/DIRECT].
The “PGM” indicator lights.
Use [NUMBER] (0 ~ 9, +10) to select the traks.
There are many music distribution sites on the Internet allowing you
to download music files in MP3 or WMA (Windows Media® Audio)
format. The music (files) downloaded from such sites can be stored on
CD-R or CD-RW discs and played on the RCD-M37.
“Windows Media” and “Windows” are registered trademarks or
trademarks in the United States and other countries of Microsoft
Corporation of the United States.
Press <1/3> or [CD 1/3].
Playback starts in the programmed order.
In the stop mode, press 9 or 8.
The track numbers are displayed in the programmed order each
time the button is pressed.
nTo clear the last track programmed
nTo clear one programmed track at a time
In the stop mode, use 9 or 8 to select the track to be
cleared, then press [CLEAR/DEL].
In the stop mode, press [PROG/DIRECT].
The “PGM” indicator turns off.
.MP3
32, 44.1, 48 kHz 64 ~ 160 kbps
.WMA
•Be sure to give files the extension “.MP3” or “.WMA”. Files with any
other extensions or with no extensions cannot be played.
•Recordings you have made should only be used for your personal
enjoyment, and as per copyright laws may not be used in other ways
without permission of the copyright holder.
About the MP3 and WMA Formats That
Can be Played
CD-R and CD-RW discs created in the format described below can be
played.
Writing software format
ISO9660 level 1
bWhen written in other formats, it may not be possible to play the
disc properly.
Maximum number of playable files and folders
Total number of folders + files: 512
Maximum number of files in a folder: 255
File format
MPEG-1 Audio Layer-3
WMA (Windows Media Audio)
Tag data
Specifications
When [REPEAT] is pressed, the tracks are played repeatedly in the
programmed order.
32, 44.1, 48 kHz 32 ~ 320 kbps
Troubleshooting
nClearing the all programmed track
MP3
WMA
Other Functions
In the stop mode, press [CLEAR/DEL].
The last track programmed is cleared each time the button is
pressed.
Extension
Setting the Timer
nChecking the order of the programmed tracks
Bit rate
Playback
3
File format
ID3-Tag (Ver.1x)
META-Tag (Compatible with title, artist and album names)
Switching the Display
Press [TIME/DISPLAY].
Elapsed time of
currently playing track
Setup
bGExampleHTo program tracks 3, 12, 7 to play in that order:
Press [PROG/DIRECT], [3], [+10], [2], [7].
Playable MP3/WMA file
Sampling
frequency
Connections
1
2
Playback of MP3 and WMA Files
Getting Started
Playing Tracks in the Desired Order
Remaining time of
currently playing track
Remaining time for
all remaining tracks
bThe display switches each time the button is pressed.
15
ENGLISH
Getting Started
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
SOURCE <1/3> <BAND/2>
Playing MP3 and WMA Files
1
Load a CD-R or CD-RW disc containing music files in
2
Setup
Playback
Setting the Timer
8, 9
MENU/SET
Other Functions
3
4
5
the MP3 or WMA format into the disc tray (vpage
3).
Press
nSwitching the Display
During playback, press [TIME/DISPLAY].
File name display
Title/artist display
Title/album display
bThe characters that can be displayed are as follows:
[FOLDER MODE] and select “Folder Mode” or
A to Z a to z 0 to 9 ^ ’ ( ) * + , - . / = (space)
“Disc Mode”.
GAbout the displayH
When “Folder Mode” is selected∙∙∙∙∙∙“FLD” is displayed.
When “Disc Mode” is selected∙∙∙∙∙∙∙∙∙“FLD” is not displayed.
Folder Mode :
All the files in the selected folder are played.
Disc Mode :
After the selected folder and files are played, all the files in all the
folders are played.
nTo Play Repeatedly
Press [REPEAT].
Playback starts in the respective repeat mode.
bThe selectable repeat modes differ in the “Folder Mode” and the
“Disc Mode”.
When “Folder Mode” is selected:
Single-track repeat
Use [ui] to select the folder to be played.
Repeat of all the
tracks in the folder
Repeat off
Use
8, 9 or [o p] to select the file to be
When “Disc Mode” is selected:
played.
Press <1/3> or
Single-track repeat
All-track repeat
Repeat off
(indicator turns off)
[CD 1/3].
nTo switch the Folder or File During Playback
Troubleshooting
[NUMBER]
Specifications
SOURCE
[TUNER]
[CD 1/3]
[REPEAT]
[TU –, TU +]
8, 9
[CH –, CH +]
[2]
[TIME/DISPLAY]
16
bThe file numbers are set automatically when the disc is loaded.
[Selectable items]
When “Folder Mode” is selected:
1FLD : Only the selected track is played repeatedly.
FLD : All the files in the selected folder are played repeatedly.
FLD
Copyright-protected files cannot be played.
(The “Not Support” is displayed.)
Note that depending on the software used for burning and other
conditions, some files may not play or display correctly.
: Folder mode playback resumes.
When “Disc Mode” is selected:
“Playing Repeatedly <Repeat playback>” (vpage 14)
nSetting random playback
“Playing Random Order <Random playback>” (vpage 14)
MENU/SET
[FOLDER MODE]
•Folder
Use [ui] to select the folder.
•File
Use 8, 9 to select the file, or use [NUMBER] (0 ~ 9, +10) to
select the file number.
[ENTER/MEMO]
[uio p]
Programmed playback is not possible with MP3/WMA discs.
ENGLISH
The “ST” indicator lights when receiving stereo broadcasts.
Tuning in Broadcast Stations
1
Press
band.
[TUNER] or <BAND/2> to select the reception
FM AUTO
FM MONO
AM
reception band.
When a station is received, the “TUNED” indication will light.
nTo Tune Automatically
nTo Stop Auto Tuning
Press <8/–, +/9> or [TU –, TU +].
nTo Tune Manually
A humming sound may be heard when using a TV nearby while
receiving AM programs. If this happens, move the system as far from
the TV as possible.
Press <8/–> while pressing <BAND/2>.
The “TUNING” indicator flashes for about 5 seconds.
The “AUTO PRESET” is displayed.
Press MENU/SET again.
“Search” flashes and auto presetting starts.
Broadcast stations whose antenna signal are weak cannot be preset
automatically. If you wish to preset such stations, tune them in
manually.
nTo Cancel Auto Presetting
Press <BAND/2> or [2].
The “Search” indicator turns off.
Presetting FM/AM Stations Manually
Up to 40 stations (total for AM and FM) can be preset.
1
2
3
Tune in the station.
Press [ENTER/MEMO].
The smallest non-registered preset number flashes.
Use <8/–, +/9>, [CH –, CH +] or [o p] to select
the number, then press [ENTER/MEMO].
The preset number, reception band and reception frequency are
displayed.
17
Specifications
The reception frequency switches each time <8/–, +/9> or
[TU –, TU +] is pressed.
nTo switch to the tuning mode
Press and hold in MENU/SET.
Troubleshooting
Press and hold in <8/–, +/9> or [TU –, TU +] to automatically
search and tune in broadcast stations.
bStations whose signal is weak cannot be tuned in.
Press <+/9> while pressing <BAND/2>.
The “PRESET” indicator flashes for about 5 seconds.
[TUNER] to select “FM AUTO” or “FM
MONO”.
Other Functions
•If the function is set to something other than “TUNER”, press
[TUNER] to switch the function to “TUNER” (vpage 24 “Auto
Function Selector Function”).
•The function can also be switched to “TUNER” using SOURCE.
nTo switch to the preset mode
Press
Setting the Timer
<8/–, +/9> or [TU –, TU +] to select the
Use <8/–, +/9> to perform the tuning and preset channel
operations. Switch to the mode to be operated before operating.
1
2
3
Playback
2
Use
About Switching the Tuning Mode and Preset Mode
Setup
GAbout the displayH
When FM AUTO is selected∙∙∙∙∙∙∙∙∙∙∙∙∙∙“AUTO” is displayed.
When FM MONO is selected∙∙∙∙∙∙∙∙∙∙∙∙“MONO” is displayed.
When AM is selected∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙The reception mode is not
displayed.
If the signal is weak and stable stereo reception is not possible, select
“FM MONO” to receive in monaural.
Up to 40 stations can be preset.
Auto preset is not possible with AM broadcast stations.
Connections
Connect the antenna beforehand (vpage 10).
Automatically Presetting FM Stations
(Auto Preset)
Getting Started
About the FM Broadcast Reception Status Display
TUNER Playback
ENGLISH
Getting Started
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
Listening to Preset Stations
Use <8/–, +/9>, [CH –, CH +] or [NUMBER] (0 ~ 9,
+10) to select the preset number.
bOperate <8/–, +/9> after switching to the preset mode
(vpage 17).
iPod® Playback
With the RCD-M37, you can listen to music on an iPod. It
is also possible to operate the iPod from the main unit or
remote control unit.
iPod is a trademark of Apple Inc., registered in the U.S.
and other countries.
<8/–, +/9> MENU/SET
Setup
Naming the Currently Tuned in Broadcast
Station
bThe iPod may only be used to copy or play contents that are not
copyrighted or contents for which copying or playback is legally
permitted for your private use as an individual. Be sure to comply
with applicable copyright legislation.
Playback
Names of up to 8 characters can be input.
1
2
Press [NUMBER] (0 ~ 9, +10) for the preset number to
be named.
Setting the Timer
Press MENU/SET three times.
The “STATION NAME” is displayed.
bOperate within 5 seconds.
ON/STANDBY
SOURCE
Other Functions
ON/STANDBY
3
4
Press [o p].
The name input mode is set.
Use
set.
[ui] to select the character, then press [p] to
bCharacters that can be input.
Troubleshooting
[NUMBER]
A to Z a to z 0 to 9 ^ ’ ( ) * + , - . / = (space)
[CLEAR/DEL]
bPress [o p] to move the cursor.
Use this to correct input characters.
SOURCE
Specifications
5
Press [ENTER/MEMO].
[CH–, CH+]
Naming mode is finished.
nChanging the Broadcast Station Name
MENU/SET
[ENTER/MEMO]
[TIME/DISPLAY]
18
[iPod 1/3]
[uio p]
[REMOTE/BROWSE]
qCall out the preset name to be changed, then press MENU/SET
three times.
wPerform steps 3, 4 and 5 at “Naming the Currently Tuned In
Broadcast Station”.
bPress [CLEAR/DEL] to delete the characters.
Preparations
1
2
3
Set the iPod on the DENON Control Dock for iPod.
(vSee the Control Dock for iPod’s operating instructions.)
Press SOURCE to select “AUX1/Dock”.
Press
mode.
[REMOTE/BROWSE] to select the display
The mode switches each time the button is pressed.
[Selectable mode]
Display location
Browse mode
Remote mode
Main unit display
iPod display
Playable
files
Audio file
Video file
S
A
S
Sz
Active
buttons
Remote
control unit
(RCD-M37)
S
S
iPod
A
S
z:V
ideo may not be output, depending on the combination of ASD1R and iPod.
ENGLISH
1
Use [ui] to select the item, then press [ENTER/
MEMO] or [p] to select the music file to be played.
During playback, press [TIME/DISPLAY].
The display switches each time the button is pressed.
Title name
Album title
Press [iPod 1/3].
Playback starts.
Remote control and iPod button relations
2
Operation on the RCD-M37
Play the track.
Play the track from the beginning/
Play the next track.
6, 7
Fast-reverse the track/
Fast-forward the track.
Click Wheel
ENTER/MEMO
Select
REMOTE/
BROWSE
–
Switch between the browse
mode and the remote mode.
REPEAT
–
Switch the repeat function
RANDOM
–
Switch the shuffle function
MENU/SET
MENU
Portable
)&"%1)0/&
Select an item.
Enter the selection or plays the
track.
NOTE
•DENON will accept no responsibility whatsoever for any loss of iPod
data.
•Depending on the type of iPod and the software version, some
functions may not operate.
Playing the Portable Player
1
2
Specifications
Display the menu or return to the
previous menu.
Connect the RCD-M37 and portable audio player using a separately
sold mini-stereo audio cable.
Troubleshooting
o, p, u, i
Other Functions
b Play/Pause in remote mode
8, 9
8, 9
Remove the iPod from the Control Dock for iPod.
Setting the Timer
13
Press ON/STANDBY to set the standby mode.
Playback
iPod 1/3
Setup
1
iPod buttons
Connecting a Portable Player
Disconnecting the iPod
•If the function is set to something other than “AUX1/Dock”, press
[iPod 1/3] to switch the function to “AUX1/Dock” and start playback.
(vpage 24 “Auto Function Selector Function”)
•The function can also be switched to “AUX1/Dock” using SOURCE.
Remote control unit buttons
Your portable audio player can be connected to the RCDM37’s portable jack to play tracks on the portable audio
player.
Connections
2
Artist name
Playing a Portable Audio
Getting Started
To Switch the Display
Listening to Audio
Press SOURCE to select “PORTABLE IN”.
Play the portable audio player.
The Portable Audio are output.
bAlso read the portable audio player’s operating instructions.
NOTE
When using the portable player’s headphones jack, set the volume on
the portable player to an appropriate level.
19
ENGLISH
Getting Started
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
8, 9
<1/3>
USB Playback
Basic Operation
Set the USB port to be used.
Playable USB Memory Formats
Playback starts automatically.
Files stored on USB memory devices created in the formats below
can be played.
USB-Compatible File Systems
bWhen a USB memory device is connected, playback starts
automatically when the operation below is performed.
•Switch the function to “USB” using SOURCE.
•Press [USB 1/3].
Setup
“FAT16” or “FAT32”
bIf the USB memory device is divided into multiple partitions, only
the top drive can be selected.
Playback
Maximum number of playable files and folders
Setting the Timer
Maximum number of files in a folder: 255
Maximum number of folders: 255
File Format
Other Functions
SOURCE
<BAND/2>
MPEG-1 Audio Layer-3
WMA (Windows Media Audio)
Tag Data
ID3-Tag (Ver.1x)
META-Tag (Compatible with title, artist and album names)
Troubleshooting
Playable MP3/WMA file
[NUMBER]
Specifications
[RANDOM]
SOURCE
[2]
[FOLDER MODE]
[TIME/DISPLAY]
20
File format
[REPEAT]
[6, 7]
8, 9
[USB 1/3]
[ui]
Sampling
frequency
Bit rate
Extension
MP3
32, 44.1, 48 kHz 32 ~ 320 kbps
.mp3
WMA
32, 44.1, 48 kHz 64 ~ 192 kbps
.wma
Only music files that are not copyright-protected can be played on this
set.
bContents downloaded from pay sites on the Internet are copyright
protected. Also, files encoded in WMA format when ripped from a
CD, etc., on a computer may be copyright protected, depending on
the computer’s settings.
•If the function is set to something other than “USB”, press [USB
1/3] to switch the function to “USB” and start playback.
(vpage 24 “Auto Function Selector Function”)
•The function can also be switched to “USB” using SOURCE.
ENGLISH
NOTE
•DENON will take no responsibility whatsoever for any loss or damage
to data on USB memory devices when using the USB memory
device connected to the RCD-M37.
•USB memory devices will not work via a USB hub.
•DENON does not guarantee that all USB memory devices will
operate or be suppled power. When using a USB connection type
portable hard disk of the type for which power can be supplied by
connecting an AC adapter, we recommend using the AC adapter.
Connections
Press [FOLDER MODE].
GAbout the displayH
When “Folder Mode” is selected∙∙∙∙∙∙∙∙∙“FLD” is displayed.
When “Memory Mode” is selected∙∙∙∙∙“FLD” is not displayed.
Folder Mode :
All the files in the selected folder are played.
Memory Mode :
After the selected folder and files are played, all the files in all the
folders are played.
Getting Started
nTo Switch the “Folder Mode” or “Memory Mode”
Setup
nTo Switch the Folder or File During Playback
Playback
•Folder
Use [ui] to select the folder.
•File
Use 8, 9 to select the file, or use [NUMBER] (0 ~ 9, +10)
to select the file number.
Setting the Timer
nStopping Playback
Press <BAND/2> or [2].
nStopping Playback Temporarily
Press <1/3> or [USB 1/3].
The “3” is displayed.
bTo resume playback, press <1/3> or [USB 1/3].
Other Functions
nFast-Forwarding and Fast-Reversing (searching)
During playback, press and hold in [6, 7].
nPlaying Repeatedly (Memory mode only)
Press [REPEAT].
nPlaying Random Order (Memory mode only)
Troubleshooting
In the stop mode, press [RANDOM].
nSwitching the Display
During playback, press [TIME/DISPLAY].
File name display
Title/artist display
Title/album display
Specifications
bThe characters that can be displayed are as follows:
A to Z a to z 0 to 9 ^ ’ ( ) * + , - . / = (space)
21
ENGLISH
Getting Started
Setting the Timer
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
4
Timer Playback
Use 8 ,
The everyday timer, once timer and sleep timer can be set.
played.
CD
Timer order of priority
Setup
The order of priority when the times set for the different
timers overlap is as follows:
1. Sleep timer
2. Once timer
3. Everyday timer
MENU/SET <BAND/2>
9 or [o p] to select the function to be
TUNER
USB
AUX1
(AUX1/Dock)
AUX2
E<
Playback
5
Press MENU/SET or [ENTER/MEMO].
6
-qUse
C D
>
The function to be played is set.
bIf the function is set to anything other than the tuner, the setting
display shown in step 7 is displayed.
Setting the Timer
Setting the Timer
•Everyday timer playback
Other Functions
Playback starts (the power turns on) and stops (the power
turns off) at the set times each day.
•Once timer playback
Playback starts (the power turns on) and stops (the power
turns off) once only at the set times.
ON/STANDBY
8, 9 VOLUME
1
The “TIMER” is displayed.
Troubleshooting
bOperate within 5 seconds.
[SLEEP]
ON/STANDBY
2
Use
8, 9 or [o p] to select the timer play
mode.
ONCE
EVERYDAY
z “1” : Once timer, “E” : Everyday timer
Specifications
3
8, 9
[2]
VOLUME
MENU/SET
22
[ENTER/MEMO]
[o p]
-wPress MENU/SET or [ENTER/MEMO].
The broadcast station for the selected preset number is
set.
8, 9 or [o p] to set the “hours” for the
timer start time.
Use
E
8
9
10
11
EVERYDAY
>
ON
AM12:00
Press MENU/SET or [ENTER/MEMO].
The “hours” for the timer start time are set.
Use 8 ,
<
Press MENU/SET or [ENTER/MEMO].
The timer play mode is set.
E<P02:REG_NAME>
7
Press MENU/SET.
GOnly when the “TUNER” function is selectedH
8, 9 or [o p] to select the preset
number.
9 or [o p] to set the “minutes” for the
timer start time.
E
AM10:00
Press MENU/SET or [ENTER/MEMO].
The “minutes” for the timer start time are set.
8, 9 or [o p] to set the “hours” for the
timer stop time.
Use
E
12
ON
Press MENU/SET or [ENTER/MEMO].
The “hours” for the timer stop time are set.
OFF AM12:00
ENGLISH
Use 8 ,
9 or [o p] to set the “minutes” for the
timer stop time.
E
Press MENU/SET or [ENTER/MEMO].
The “minutes” for the timer stop time are set.
15
Use 8 ,
9 or [o p] to turn timer playback on.
q Press MENU/SET.
The “TIMER” is displayed.
w Press 8, 9 or [o p].
The “EVERYDAY” or “ONCE” is displayed.
e Press MENU/SET.
The display switches each time the button is pressed.
nTo change the timer settings
1_OFF/E_ON
1_off/E_off
OFF
OFF
1_on/E_on
ON
ON
1_off/E_on
OFF
ON
1_on/E_off
ON
OFF
bWhen turned on, “
” lights.
The timer setting is set.
Adjust the volume for when the timer starts using
.
18
Set the power to standby.
The timer playback standby mode is set.
Press MENU/SET twice.
At step 15 under “Setting the Timer”, use 8, 9 or [o p] to
turn off the timer on/off indicator and turn off “
”.
qPress MENU/SET.
The “TIMER” is displayed.
wPress 8, 9 or [o p].
The “EVERYDAY” or “ONCE” is displayed.
eWhile “EVERYDAY” or ”ONCE” is displayed, press <BAND/2> or
[2] for at least 2 seconds.
nIf there is a power failure
The time setting and the timer settings are cleared. Reset the
current time, then reset the timer.
nWhen performing a timer setting with DENON
control dock for iPod (ASD-3N or ASD-3W)
Pause the track you want to play, and keep the power on for DENON
control dock for iPod.
70
60
50
40
10
20
30
The “SLEEP” indicator flashes.
3
Press
[SLEEP] while the “SLEEP” indicator is
flashing.
The set time is displayed.
bAfter about 5 seconds, the set returns to as it was before the
sleep timer was set, and the “SLEEP” indicator lights.
nCanceling the sleep timer
Either press [SLEEP] at step 2 under “Sleep Timer Playback” until
“OFF” is displayed, or press ON/STANDBY.
nTo change the setting while the sleep timer is set
Press [SLEEP].
nChecking the time remaining until the sleep timer
starts
Press [SLEEP].
Return to step 2 under “Sleep Timer Playback”.
Specifications
When the function is set to iPod, the timer cannot be set. To set the
timer, first switch to a function other than iPod.
80
OFF
(“SLEEP “ indicator turns off)
nTo clear the timer settings
90
Troubleshooting
nCanceling the timer
Press <BAND/2> or [2].
Return to step 2 under “Setting the Timer” (vpage 22). Repeat
the procedure.
Press [SLEEP] and select the setting time.
Other Functions
16
17VOLUME
Press MENU/SET or [ENTER/MEMO].
Select and play the desired function.
Setting the Timer
Everyday timer
1
2
Playback
Once timer
nTo change the setting while setting the timer
Use this function to automatically switch the power to the
standby mode after a specific amount of time (minutes).
The sleep timer can be set to up to 90 minutes, in steps
of 10 minutes.
Setup
Display
Repeat the procedure under “Setting the Timer” (vpage 22).
Sleep Timer Playback
Connections
14
OFF AM12:00
nTo check the timer settings
Getting Started
13
23
ENGLISH
Getting Started
Other Functions
Symbols used to indicate buttons in this manual
Connections
Button located on both the main unit and the remote control
unit
BUTTON
Button only on the main unit
<BUTTON>
Button only on the remote control unit
[BUTTON]
Setup
<5>
1/3 MENU/SET
Convenient Functions
Auto Power On
Playback
Setting the Timer
When the power is in standby, the power turns on when
any of the buttons below other than ON/STANDBY is
operated, and the respective operation is performed.
•<5>∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ The disc tray opens.
•1/3 for the different functions
∙ ∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Playback of that source starts.
•[TUNER]∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ Playback of the tuner starts.
NOTE
The Auto Power On function cannot be used with iPods.
Other Functions
Auto Function Selector Function
ON/STANDBY
< 8/–, +/9 >
Troubleshooting
ON/STANDBY
When one of the buttons below is pressed, the function
switches to the respective function and playback of that
source starts.
•[CD 1/3]∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ T
he function switches to “CD” and the
Specifications
CD starts playing.
•[USB 1/3]∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙The function switches to “USB” and the
USB starts playing.
•[iPod 1/3]∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ The function switches to “AUX1/Dock”
and the iPod starts playing.
•[TUNER]∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙∙ The functions switches to “TUNER” and
the band last set is tuned in.
Resetting the Microprocessor
Perform this procedure if the display is abnormal or if
operations cannot be performed.
When the microprocessor is reset, all the settings are
reset to their default values.
1
2 <8/–> <MENU/SET>
3 [CLOCK]
Unplug the power cord.
Plug the power cord into a power outlet while pressing
and
Press
simultaneously.
.
The “AM12:00” display flashes.
If “AM12:00” is not flashed in step 3, start over from step 1.
Using an Optimizing Filter
An optimizing filter suited for the properties of the speakers
(SC-M37) can be used.
1
2
3
Press MENU/SET to select “SP OPTIMISE”.
Use
<8/–, +/9> or [o p] to select “ON” or
“OFF”.
Press MENU/SET to set.
[TUNER]
[CD 1/3]
MENU/SET
[CLOCK]
24
Last Function Memory
[USB 1/3]
This stores the settings as they were directly before the
standby mode was set.
When the power is turned back on, the settings are
restored to as they were directly before the standby mode
was set.
[Selectable items]
ON
OFF
: The response is optimized for the speakers (SC-M37,
supplied).
: The response is flat.
[iPod 1/3]
[o p]
When the function is set to iPod, the set cannot be switched between
on and off.
ENGLISH
Getting Started
Troubleshooting
Cause
Countermeasure
Page
24
•Device you want to play and set •Select an appropriate input
input source do not match.
source.
•Volume control set to minimum. •Turn volume up to suitable level.
•MUTING is on.
•Switch off MUTING.
13
Display is off.
•The Dimmer setting is set to •Set to something other than
“OFF”.
“OFF”.
13
Power turns off
suddenly and
power indicator
flashes red.
•Protection circuit activated due •Turn off the power, wait for the
to rise of internal temperature.
set to fully cool down, then turn
the power back on.
•Place the set in a well-ventilated
place.
•Core wires of two speakers are •First unplug the power cord,
touching each other or a core then twist the core wires tightly
wire is sticking out of the terminal or terminate the speaker cables,
and touching the set’s rear panel, then reconnect.
activating the protection circuit.
•Set is damaged.
•Turn off the power and contact a
DENON service center.
9
11
Page
3
4
•Insert the batteries in the
proper direction, following the
polarity marks in the battery
compartment.
•Move the set to a place in which
the remote control sensor will
not be exposed to strong light.
3
4
4
Setting the Timer
•External noise or interference is •Reset the microprocessor.
causing the set to malfunction.
•Power cord not plugged in •Check the connections on
securely.
the set's rear panel and the
connection of the power plug to
the power outlet.
Countermeasure
•Replace with new batteries.
•Operate within the specified
range.
•Remove the obstacle.
Playback
Symptom
GCDH
13
13
9
•Wipe the dirt off the disc or
replace the disc.
3
A specific part
of a disc is not
played.
•Wipe the dirt off the disc or
replace the disc.
3
A CD-R or CD-RW •The disc has not been finalized. •Finalize the disc then play it.
disc cannot be
•The recording conditions are bad •Use a properly recorded disc.
played.
or the quality of the disc itself it
poor.
MP3 and WMA
•The file formats, extensions or •Create discs with file formats,
files cannot be
settings made when disc was extensions or settings compatible
played.
created are not compatible with with the RCD-M37.
the RCD-M37.
2
–
•The disc is dirty or scratched.
Page
3
Specifications
–
Countermeasure
•Reload the disc.
Troubleshooting
9
Symptom
Cause
“00 Tr 00 : 00”
•The disc is not properly loaded.
is shown on the
display even
though a CD is
loaded.
Disc is not played •The disc is dirty or scratched.
when CD 1/3
button is pressed.
Other Functions
Set does not
operate properly.
Display not lit
and sound not
produced when
power switch set
to on.
Display lit but
sound not
produced.
Symptom
Cause
Set does not work •Batteries are worn.
properly when
•You are operating outside of the
remote control
specified range.
unit operated.
•Obstacle between main unit and
remote control unit.
•The batteries are not inserted in
the proper direction, as indicated
by the polarity marks in the
battery compartment.
•The set’s remote control sensor
is exposed to strong light (direct
sunlight, inverter type fluorescent
bulb light, etc.).
Setup
GGeneralH
GRemote Control UnitH
Connections
If a problem should arise, first check the following:
1. Are the connections correct?
2. Is the set being operated as described in the owner’s manual?
3. Are the other components operating properly?
If this unit does not operate properly, check the items listed in the table below. Should the problem persist,
there may be a malfunction.
In this case, disconnect the power immediately and contact your store of purchase.
15
25
ENGLISH
Getting Started
GTunerH
Connections
Setup
Symptom
Continuous noise
is heard when
receiving FM
programs.
Hissing or
continuous noise
is heard when
receiving AM
programs.
Cause
Countermeasure
•Antenna cable is not properly •Connect the antenna cable
connected.
properly.
•Connect an outdoor antenna.
Page
10
•This may be noise from a TV or •Turn off the TV.
interference from a radio station. •Change the position and direction
of the AM loop antenna.
–
10
–
Playback
Setting the Timer
Cause
Countermeasure
•Device you want to play and set •Select an appropriate input
input source do not match.
source.
•Cable is not properly connected. •Reconnect.
•Control Dock for iPod’s AC •Plug the Control Dock for iPod’s
adapter is not connected to AC adapter into a power outlet.
power outlet.
Page
18
10
–
Other Functions
Troubleshooting
Specifications
Files on a USB
memory device
cannot be played.
26
• Power amplifer
Rated output:
30 W + 30 W (6 Ω/ohms, 1 kHz T.H.D 10 %)
Reception frequency range:
Receiving sensitivity:
FM stereo separation:
FM: 87.5 MHz ~ 107.9 MHz
FM: 1.5 μV/75 Ω/ohms
35 dB (1 kHz)
nTuner section
AM: 520 kHz ~ 1710 kHz
AM: 20 μV
Cause
Countermeasure
•The set cannot recognize a USB •Check the connection.
memory device.
•A USB memory device not •Connect a USB memory device
conforming to mass storage class conforming to mass storage
or MTP standards is connected.
class or MTP standards.
•A USB memory device that •This is not a malfunction. DENON
the set cannot recognize is does not guarantee that all USB
connected.
memory devices will operate or
receive power.
•USB memory device is connected •Connect the USB memory device
via USB hub.
directly to the USB port.
•USB memory device is in format •Set the format to FAT16 or
other than FAT16 or FAT32.
FAT32. For details, refer to the
USB memory device’s operating
instructions.
•USB memory device is divided •When divided into multiple
into multiple partitions.
partitions, only files stored in the
top partition can be played.
•Files are stored in a non- •Record the files in a compatible
compatible format.
format.
•You are attempting to play a file •Files that are copyright protected
that is copyright protected.
cannot be played on this set.
Playback frequency response:
Wow & flutter:
Sampling frequency:
2 Hz ~ 20 kHz
Below measurable limits (± 0.001%)
44.1 kHz
nClock/Timer section
Clock method:
Timer:
Crystal oscillator (Within 1 ~ 2 minutes per month)
Everyday/Once timer: One system each
Sleep timer: 90 minutes, maximum
nGeneral
GUSBH
Symptom
When a USB
memory device
is connected,
“USB” is not
displayed.
nAudio section
nCD section
GiPodH
Symptom
iPod cannot be
played.
Specifications
Page
11
–
–
Power supply:
Power consumption:
Maximum external dimensions:
Weight:
AC 120 V, 60 Hz
65 W
Approx. 0.3 W (standby)
210 (W) x 115 (H) x 308.5 (D) mm (8-17/64” x 4-33/64” x 12-9/64”)
4.3 kg (9 lbs 7 oz)
nRemote control unit (RC-1097)
Remote control method:
Power supply:
Maximum external dimensions:
Weight:
IR pulse method
R03/AAA Type (two batteries)
49 (W) x 220 (H) x 24 (D) mm (1-59/64” x 8-21/32” x 15/16”)
110 g (Approx. 3 oz) (including batteries)
bFor purposes of improvement, specifications and design are subject to change without notice.
–
–
–
20
20
www.denon.com
Denon Brand Company, D&M Holdings Inc.
Printed in China 5411 10028 000D
SPEAKER
SC-M37
Owner’s Manual
Bedienungsanleitung
Manuel de l’Utilisateur
Manuale delle istruzioni
Manual del usuario
Gebruiksaanwijzing
Bruksanvisning
ENGLISH
DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA
nSAFETY PRECAUTIONS
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE
COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product’s enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral triangle is intended
to alert the user to the presence of important operating
and maintenance (servicing) instructions in the literature
accompanying the appliance.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
nFor Europe model
•DECLARATION OF CONFORMITY
We declare under our sole responsibility that this product, to which this
•DECLARACIÓN DE CONFORMIDAD
Declaramos bajo nuestra exclusiva responsabilidad que este producto al
declaration relates, is in conformity with the following standards:
EN55013 and EN55020.
Following the provisions of 2004/108/EC Directive.
que hace referencia esta declaración, está conforme con los siguientes
estándares:
EN55013 y EN55020.
Siguiendo las provisiones de las Directivas 2004/108/EC.
•ÜBEREINSTIMMUNGSERKLÄRUNG
Wir erklären unter unserer Verantwortung, daß dieses Produkt, auf das sich
diese Erklärung bezieht, den folgenden Standards entspricht:
EN55013 und EN55020.
Entspricht den Verordnungen der Direktive 2004/108/EC.
•DECLARATION DE CONFORMITE
Nous déclarons sous notre seule responsabilité que l’appareil, auquel se
réfère cette déclaration, est conforme aux standards suivants:
EN55013 et EN55020.
D’après les dispositions de la Directive 2004/108/EC.
•DICHIARAZIONE DI CONFORMITÀ
Dichiariamo con piena responsabilità che questo prodotto, al quale la nostra
waarop deze verklaring betrekking heeft, in overeenstemming is met de
volgende normen:
EN55013 en EN55020.
Volgens de bepalingen van de Richtlijnen 2004/108/EC.
•ÖVERENSSTÄMMELSESINTYG
Härmed intygas helt på eget ansvar att denna produkt, vilken detta intyg
avser, uppfyller följande standarder:
EN55013 och EN55020.
Enligt stadgarna i direktiv 2004/108/EC.
dichiarazione si riferisce, è conforme alle seguenti normative:
EN55013 e EN55020.
In conformità con le condizioni delle direttive 2004/108/EC.
A NOTE ABOUT RECYCLING:
DENON Europe
Division of D&M Germany GmbH
An der Landwehr 19, Nettetal,
D-41334 Germany
NOTA RELATIVA AL RICICLAGGIO:
This product’s packaging materials are recyclable and can be reused. Please dispose of any materials
in accordance with the local recycling regulations.
When discarding the unit, comply with local rules or regulations.
Batteries should never be thrown away or incinerated but disposed of in accordance with the local
regulations concerning chemical waste.
This product and the accessories, packed together constitute the applicable product according to the
WEEE directive except batteries.
I materiali di imballaggio di questo prodotto sono riutilizzabili e riciclabili. Smaltire i materiali conformemente alle
normative locali sul riciclaggio.
Per smaltire l’unità, osservare la normativa in vigore nel luogo di utilizzo.
Non gettare le batterie, né incenerirle, ma smaltirle conformemente alla normativa locale sui rifiuti chimici.
Questo prodotto e gli accessori inclusi nell’imballaggio sono applicabili alla direttiva RAEE, ad eccezione delle
batterie.
HINWEIS ZUM RECYCLING:
Los materiales de embalaje de este producto son reciclables y se pueden volver a utilizar. Disponga de estos materiales
siguiendo los reglamentos de reciclaje de su localidad.
Cuando se deshaga de la unidad, cumpla con las reglas o reglamentos locales.
Las pilas nunca deberán tirarse ni incinerarse. Deberá disponer de ellas siguiendo los reglamentos de su localidad
relacionados con los desperdicios químicos.
Este producto junto con los accesorios empaquetados es el producto aplicable a la directiva RAEE excepto pilas.
Das Verpackungsmaterial dieses Produktes ist für zum Recyceln geeignet und kann wieder verwendet werden. Bitte
entsorgen Sie alle Materialien entsprechend der örtlichen Recycling-Vorschriften.
Beachten Sie bei der Entsorgung des Gerätes die örtlichen Vorschriften und Bestimmungen.
Die Batterien dürfen nicht in den Hausmüll geworfen oder verbrannt werden; bitte geben Sie die Batterien gemäß
örtlichen Bestimmungen an den Sammelstellen oder Sondermüllplätzen ab.
Dieses Produkt zusammen mit den Zubehörteilen ist das geltende Produkt der WEEE-Direktive, davon ausgenommen
sind die Batterien.
UNE REMARQUE CONCERNANT LE RECYCLAGE:
Les matériaux d’emballage de ce produit sont recyclables et peuvent être réutilisés. Veuillez disposer de tout matériau
conformément aux réglements de recylage locaux.
Lorsque vous mettez cet appareil au rebut, respectez les lois ou réglementations locales.
Les piles ne doivent jamais être jetées ou incinérées, mais mises au rebut conformément aux réglements locaux
concernant les déchets chimiques.
Ce produit et les accessoires emballés ensemble sont des produits conformes à la directive DEEE sauf pour les piles.
I
•EENVORMIGHEIDSVERKLARING
Wij verklaren uitsluitend op onze verantwoordelijkheid dat dit produkt,
ACERCA DEL RECICLAJE:
EEN AANTEKENING WAT BETREFT HET RECYCLEREN:
Het inpakmateriaal van dit product is recycleerbaar en kan opnieuw gebruikt worden. Er wordt verzocht om zich van elk
afvalmateriaal te ontdoen volgens de plaatselijke voorschriften.
Volg voor het wegdoen van de speler de voorschriften voor de verwijdering van wit- en bruingoed op.
Batterijen mogen nooit worden weggegooid of verbrand, maar moeten volgens de plaatselijke voorschriften betreffende
chemisch afval worden verwijderd.
Op dit product en de meegeleverde accessoires, m.u.v. de batterijen is de richtlijn voor afgedankte elektrische en
elektronische apparaten (WEEE) van toepassing.
EN KOMMENTAR OM ÅTERVINNING:
Produktens emballage är återvinningsbart och kan återanvändas. Kassera det enligt lokala återvinningsbestämmelser.
När du kasserar enheten ska du göra det i överensstämmelse med lokala regler och bestämmelser.
Batterier får absolut inte kastas i soporna eller brännas. Kassera dem enligt lokala bestämmelser för kemiskt avfall.
Denna apparat och de tillbehör som levereras med den är de som uppfyller gällande WEEE-direktiv, med undantag av
batterierna.
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH
nNOTE ON USE / HINWEISE ZUM GEBRAUCH / OBSERVATIONS RELATIVES A L’UTILISATION / NOTE SULL’USO /
NOTAS SOBRE EL USO / ALVORENS TE GEBRUIKEN / OBSERVERA
CAUTION:
•The ventilation should not be impeded by covering the ventilation openings with items,
such as newspapers, tablecloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
• Attention should be drawn to the environmental aspects battery disposal.
• Do not expose the set to dripping or splashing fluids.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.
ACHTUNG:
• Do not let foreign objects into the set.
• Keine fremden Gegenstände in das Gerät kommen lassen.
• Keep the apparatus free from moisture, water, and dust.
• Avoid high temperatures.
• Halten Sie das Gerät von Feuchtigkeit, Wasser und Staub • Ne pas laisser des objets étrangers dans l’appareil.
Allow for sufficient heat dispersion when installed in a rack.
• E’ importante che nessun oggetto e inserito all’interno
fern.
• Vermeiden Sie hohe Temperaturen.
dell’unità.
• Protéger l’appareil contre l’humidité, l’eau et la poussière.
Beachten Sie, dass eine ausreichende Belüftung gewährleistet • Tenete l’unità lontana dall’umidità, dall’acqua e dalla • No deje objetos extraños dentro del equipo.
wird, wenn das Gerät auf ein Regal gestellt wird.
• Laat geen vreemde voorwerpen in dit apparaat vallen.
polvere.
• Eviter des températures élevées.
• Se till att främmande föremål inte tränger in i apparaten.
• Mantenga el equipo libre de humedad, agua y polvo.
Tenir compte d’une dispersion de chaleur suffisante lors de • Laat geen vochtigheid, water of stof in het apparaat
l’installation sur une étagère.
binnendringen.
• Evitate di esporre l’unità a temperature elevate.
• Utsätt inte apparaten för fukt, vatten och damm.
Assicuratevi che vi sia un’adeguata dispersione del calore
quando installate l’unità in un mobile per componenti audio.
• Evite altas temperaturas.
Permite la suficiente dispersión del calor cuando está
instalado en la consola.
• Vermijd hoge temperaturen.
Zorg vocr een degelijk hitteafvoer indien het apparaat op
een rek wordt geplaatst.
• Do not let insecticides, benzene, and thinner come in
• Undvik höga temperaturer.
contact with the apparatus.
Se till att det finns möjlighet till god värmeavledning vid • Unplug the power cord when not using the apparatus for • Lassen Sie das Gerät nicht mit Insektiziden, Benzin oder
long periods of time.
montering i ett rack.
Verdünnungsmitteln in Berührung kommen.
• Wenn das Gerät längere Zeit nicht verwendet werden soll, • Ne pas mettre en contact des insecticides, du benzène et
trennen Sie das Netzkabel vom Netzstecker.
un diluant avec l’appareil.
• Débrancher le cordon d’alimentation lorsque l’appareil n’est • Assicuratevvi che l’unità non venga in contatto con
pas utilisé pendant de longues périodes.
insetticidi, benzolo o solventi.
• Disinnestate il filo di alimentazione quando avete I’intenzione • No permita el contacto de insecticidas, gasolina y diluyentes
di non usare il filo di alimentazione per un lungo periodo di
con el equipo.
tempo.
• Laat geen insektenverdelgende middelen, benzine of
• Desconecte el cordón de energía cuando no utilice el equipo
verfverdunner met dit apparaat in kontakt komen.
por mucho tiempo.
• Se till att inte insektsmedel på spraybruk, bensen och
• Neem altijd het netsnoer uit het stopkontakt wanneer het
thinner kommer i kontakt med apparatens hölje.
apparaat gedurende een lange periode niet wordt gebruikt.
• Koppla ur nätkabeln om apparaten inte kommer att användas
i lång tid.
• Handle the power cord carefully.
Hold the plug when unplugging the cord.
• Gehen Sie vorsichtig mit dem Netzkabel um.
Halten Sie das Kabel am Stecker, wenn Sie den Stecker
herausziehen.
• Manipuler le cordon d’alimentation avec précaution.
Tenir la prise lors du débranchement du cordon.
• Manneggiate il filo di alimentazione con cura.
Agite per la spina quando scollegate il cavo dalla presa.
• Maneje el cordón de energía con cuidado.
Sostenga el enchufe cuando desconecte el cordón de
energía.
• Hanteer het netsnoer voorzichtig.
Houd het snoer bij de stekker vast wanneer deze moet
worden aan- of losgekoppeld.
• Hantera nätkabeln varsamt.
Håll i kabeln när den kopplas från el-uttaget.
•Die Belüftung sollte auf keinen Fall durch das Abdecken der Belüftungsöffnungen durch
Gegenstände wie beispielsweise Zeitungen, Tischtücher, Vorhänge o. Ä. behindert
werden.
•Auf dem Gerät sollten keinerlei direkte Feuerquellen wie beispielsweise angezündete
Kerzen aufgestellt werden.
•Bitte beachten Sie bei der Entsorgung der Batterien die geltenden Umweltbestimmungen.
•Das Gerät sollte keiner tropfenden oder spritzenden Flüssigkeit ausgesetzt werden.
•Auf dem Gerät sollten keinerlei mit Flüssigkeit gefüllten Behälter wie beispielsweise Vasen
aufgestellt werden.
ATTENTION :
•La ventilation ne doit pas être gênée en recouvrant les ouvertures de la ventilation avec des
objets tels que journaux, rideaux, tissus, etc.
• Aucune flamme nue, par exemple une bougie, ne doit être placée sur l’appareil.
• Veillez à respecter I’environnement lorsque vous jetez les piles usagées.
• L’appareil ne doit pas être exposé à l’eau ou à l’humidité.
• Aucun objet conten ant du liquide, par exemple un vase, ne doit étre placé sur l’appareil.
PRECAUZIONI:
•Le aperture di ventilazione non devono essere ostruite coprendole con oggetti, quali
giornali, tovaglie, tende e così via.
• Non posizionate sull’unità fiamme libere, come ad esempio le candele accese.
•Prestate attenzione agli aspetti legati alla tutela dell’ambiente quando si smaltisce la
batterie.
• L’apparecchiatura non deve essere esposta a gocciolii o spruzzi.
•Non posizionate sull’apparecchiatura nessun oggetto contenente liquidi, come ad esempio
i vasi.
PRECAUCIÓN:
•La ventilación no debe quedar obstruida por haberse cubierto las aperturas con objetos
como periódicos, manteles, cortinas, etc.
•No debe colocarse sobre el aparato ninguna fuente inflamable sin protección, como velas
encendidas.
•A la hora de deshacerse de las pilas, respete la normativa para el cuidado del medio
ambiente.
• No exponendrà el aparato al goteo o salpicaduras cuando se utilice.
• No se colocaràn sobre el aparato objetos llenos de líquido, como jarros.
WAARSCHUWING:
* (For apparatuses with ventilation holes)
• Do not obstruct the ventilation holes.
• Die Belüftungsöffnungen dürfen nicht verdeckt werden.
• Ne pas obstruer les trous d’aération.
• Non coprite i fori di ventilazione.
• No obstruya los orificios de ventilación.
• De ventilatieopeningen mogen niet worden beblokkeerd.
• Täpp inte till ventilationsöppningarna.
• Never disassemble or modify the apparatus in any way.
• Versuchen Sie niemals das Gerät auseinander zu nehmen
oder auf jegliche Art zu verändern.
• Ne jamais démonter ou modifier l’appareil d’une manière ou
d’une autre.
• Non smontate mai, né modificate l’unità in nessun modo.
• Nunca desarme o modifique el equipo de ninguna manera.
• Nocit dit apparaat demonteren of op andere wijze
modifieren.
• Ta inte isär apparaten och försök inte bygga om den.
•De ventilatie mag niet worden belemmerd door de ventilatieopeningen af te dekken met
bijvoorbeeld kranten, een tafelkleed, gordijnen, enz.
• Plaats geen open vlammen, bijvoorbeeld een brandende kaars, op het apparaat.
• Houd u steeds aan de milieuvoorschriften wanneer u gebruikte batterijen wegdoet.
• Stel het apparaat niet bloot aan druppels of spatten.
• Plaats geen voorwerpen gevuld met water, bijvoorbeeld een vaas, op het apparaat.
OBSERVERA:
•Ventilationen bör inte förhindras genom att täcka för ventilationsöppningarna med föremål
såsom tidningar, bordsdukar, gardiner osv.
• Inga blottade brandkällor, såsom tända ljus, bör placeras på apparaten.
• Tänk på miljöaspekterna när du bortskaffar batteri.
• Apparaten får inte utsättas för vätska.
• Inga objekt med vätskor,såsom vaser, får placeras på apparaten.
II
ENGLISH
ENGLISH
Getting Started
Contents
Before Using
Connections Removing the Speaker Net
Getting Started
Accessories·······················································································1
Before Using····················································································1
Cautions on Installation···································································1
Acoustic Sponge·············································································2
How to Install··················································································2
Cleaning··························································································2
Other Cautions················································································2
Getting Started
Cautions on Installation
Thank you for purchasing this DENON product. To ensure proper
operation, please read this owner’s manual carefully before using the
product.
After reading them, be sure to keep them for future reference.
Accessories
Connections
Connections·····················································································3
Check that the following parts are attached in addition to the main
unit:
Removing the Speaker Net···························································· 3
q Owner’s Manual....................................................................... 1
w Service station list.................................................................... 1
e Speaker cable (Approx. 9.8 ft / 3 m)......................................... 2
r Foam plug................................................................................. 2
t Anti-slip pads (8 pcs. / 1sheet)................................................. 1
Specifications·················································································· 4
Specifications
e
t
[Front]
[Rear]
Note that the illustrations in this instructions may differ from the actual
set for explanation purposes.
1
r
The quality of the sound produced from the speaker is affected by the
size and type of the room, as well as by the method of installation.
Consider the points listed below before installing the speaker.
•If the bass sound is overemphasized when the speakers are installed
directly on the floor, set them on concrete blocks or other hard
stands.
•Note that placing the speaker on the same stand or shelf as a record
player may result in howling.
•Also note that if there is a magnet or any device generating magnetic
force nearby, interaction between this device and the speakers can
cause the colors on the TV to become blotchy.
WARNING
•Fasten the speaker cables to the wall, etc., to avoid catching them on
your hands or feet and causing the unit to fall.
•Be sure to check for safety after installing the speakers. Afterwards,
perform safety inspections at regular intervals to make sure there at
the speakers will fall.
DENON will accept no responsibility for damages or accidents
caused by inappropriate choice of the place of installation or improper
installation procedures.
ENGLISH
ENGLISH
How to Install
Attach four of the included anti-slip pads to the bottom of the unit as
shown on the diagram below.
[Bottom]
•Use a wiping cloth and wipe lightly to remove dirt from the cabinet
and operation panel.
※ When using chemically treated cloths, follow the precautions that
have been written for them.
•Do not use benzene, thinners, or other organic solvents or insecticides
on the main unit since they may cause a change in quality or color.
Other Cautions
Anti-slip pads
Foam plug
•Raising the amplifier’s volume excessively and playing with distorted
sound could damage the amplifier and speakers. Enjoy the sound at
a reasonable volume level.
•When moving the unit, note that applying strong force to the surface
of the speaker through the saran net could damage the speaker.
Connections Removing the Speaker Net
hen installing on a desktop or in the corner of your room, the bass
W
may emphasized. Insert sound foam plug in the bass-reflex duct at the
back of the SC-M37.
You can adjust the bass sound with the amount of sound foam plug
you insert.
Cleaning
Getting Started
Acoustic Sponge
Specifications
CAUTION
•Do not insert the foam plug too deep. The foam plug could fall in and
get stuck inside.
•If the foam plug cannot be removed or falls inside, stop using the
unit immediately and consult your store of purchase or your nearest
repair and inquiry center.
2
ENGLISH
Getting Started
Connections
Connections
Connections Removing the Speaker Net
When connecting, be sure to read the amplifier’s owner’s manual
carefully and connect properly.
•Connect the input terminals on the rear panel of the speaker with the
speaker output terminals on the amplifier, using the speaker cables
(Supplied).
•Connect the speaker for the left channel to the “L” terminal on the
amplifier, the speaker for the right channel to the “R” terminal on the
amplifier, making sure to check the polarities (“+” and “–”).
•There are various types of speaker output terminals on amplifiers.
Check your amplifier’s owner’s manual.
CAUTION
Specifications
•Be sure to turn the amplifier’s power off before connecting the
speakers to the amplifier.
•If the polarities are inverted, the phase may be off and the sound
may have no bass component, making it seem unnatural. Be sure to
connect the polarities properly.
Use the included speaker cable to connect the input terminals on the
back of the speakers to the amplifier’s speaker output terminals.
“–” side
terminal: Black
“+” side terminal: Red
Connect to amplifier’s
“+”side: Plain core
Connect to amplifier’s
“–” side: Striped core
1
Twist firmly the wires by hand so
2
Loosen the terminal by turning to the left and insert
3
Tighten the terminal by turning to the right and check
that they do not stick out and cause
short-circuits.
Sheath
the speaker cable through the hole in the speaker
terminal.
that the core wire is not protruding from the hole.
Once connections are completed, pull gently on the speaker cables to
check that they are securely connected.
CAUTION
Do not let the core wires of two speaker cables touch each other.
Doing so will short-circuit the amplifier circuitry and damage the
amplifier.
3
Removing the Speaker Net
•The net on the front of the speakers can be removed.
•To remove, grasp both sides of the net and pull forward.
•To mount, line up the projecting pieces in the four corners of the
speaker net with the holes in the four corners of the cabinet and
press in.
ENGLISH
Getting Started
Specifications
Connections Removing the Speaker Net
Type:
Frequency range:
Input impedance:
Max. input:
Sensitivity:
Crossover frequency:
Speakers:
Maximum external dimensions:
Weight:
2-way · 2-speakers
Low-leakage-flux, Reflex box
45 Hz ~ 40 kHz
6 Ω/ohms
60 W (IEC), 120 W (PEAK)
86 dB (1 W · 1 m)
3 kHz
12 cm (4-3/4”) cone bass-mid x 1
2.5 cm (1”) soft dome high range x 1
145 (W) x 233 (H) x 234 (D) mm
(5-45/64” x 9-11/64” x 9-7/32”)
3.8 kg (8 lbs 6 oz)
Specifications
b For improvement purposes, specifications and design are subject to change without notice.
4
www.denon.com
Denon Brand Company, D&M Holdings Inc.
Printed in China 5411 10061 007D
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
