Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
Audio System
Tools
Microphones
(Wired)
Microphones
(Wireless)
Portable P.A.
150

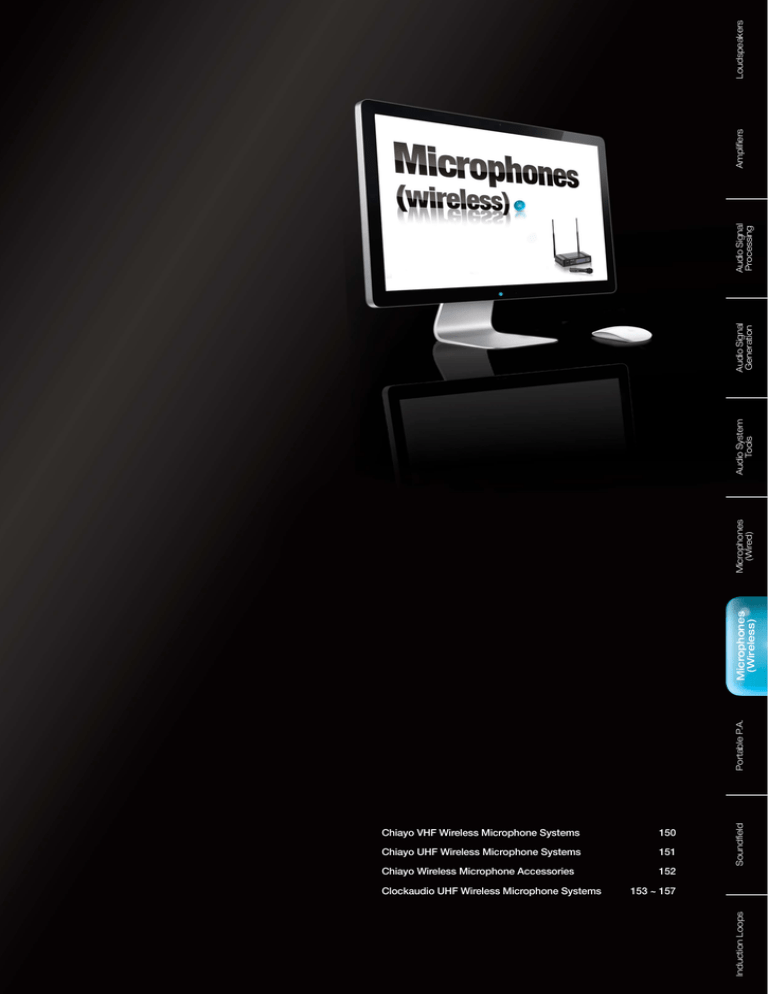

Chiayo UHF Wireless Microphone Systems
151
Chiayo Wireless Microphone Accessories
152
153 ~ 157
Induction Loops
Clockaudio UHF Wireless Microphone Systems
Soundfield
Chiayo VHF Wireless Microphone Systems
Loudspeakers
Amplifiers
Audio Signal
Processing
• UNITY SYSTEM 1H:
VHF 16 Channel Handheld System
• UNITY SYSTEM 1BT:
VHF 16 Channel Beltpack/Tieclip System
• UNITY SYSTEM 1BH:
VHF 16 Channel Beltpack/Headset System
The new Unity System 1 Series of VHF 16 Channel Wireless
Microphone Systems brings high performance and simplicity together
to provide a full range of ready to use, complete systems.
Supplied in strong, lightweight ABS cases for safe storage and
transportation.
• 16 Channel VHF
• High sensitivity and excellent image rejection
• Single compander design
• Pilotone control
• True Diversity reception
• Half-19” Receiver casing
• Balanced audio output (XLR) / Unbalanced audio output (phono jack)
• Selectable MIC or LINE output level
• RF test function
• AF, RF and Diversity LED bar indicators
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Features:
Portable P.A.
Specifications:
Model:
UNITY SYSTEM 1 SERIES
Frequency Range
160 ~ 260MHz
Channels per Band
16 Selectable
Special Functions
Compander, Pilotone
Transmitters:
Controls
ON/OFF, Channel Set, Gain
Power
3 x AA batteries. Up to 16 hours operating time*
Soundfield
Receiver:
Display Screen
LCD bar indicators
Antennas
Compact (supplied). High gain external (optional)
Controls
ON/OFF, Channel Select, Squelch, Volume Control, RF Test
Indicators
AF, RF, Power On
Outputs
Balanced/Unbalanced
Power
12v DC via 230v PSU
Induction Loops
* Measured with high quality (‘Duracel’ Alkaline) batteries
150
Shop online now at: www.
.com
Loudspeakers
Amplifiers
• UNITY SYSTEM 7H:
UHF 100 Channel Handheld System
• UNITY SYSTEM 7BT:
UHF 100 Channel Beltpack/Tieclip System
• UNITY SYSTEM 7BH:
UHF 100 Channel Beltpack/Headset System
Audio Signal
Processing
The new Unity System 7 Series of UHF 100 Channel Wireless
Microphone Systems utilise the highest quality technology and
components for true high performance, multichannel, wireless
sound.
These high specification UHF systems offer 100 channel selection
for greater control and resistance to interference.
Supplied as ready to use, complete systems and housed in strong,
lightweight ABS cases for safe storage and transportation.
Audio Signal
Generation
Features:
Microphones
(Wireless)
Microphones
(Wired)
Audio System
Tools
• 100 factory preset user-selectable UHF frequencies
• Advanced microprocessor control, with improved signal performance for
interference-free, multi-channel operation
• Auto Scan function searches for the cleanest frequency
• True Diversity for highest quality reception with no dropouts
• Battery signal indicator on receiver panel monitors transmitter
battery status
• LCD on both receiver and transmitter
• High sensitivity, high selectivity and high image/spurious rejections
• Anti-interference Pilotone control and RF Noise Squelch circuitries
• Balanced and unbalanced audio outputs
• Rack mountable with 19” rack mount kit (optional)
• UP, DOWN, MENU, SET function buttons
• White-in-blue LCD display
• RF/AF signal strength, Diversity A/B indicators
• Easy to read, programmable, multi-function LCD
Model:
UNITY SYSTEM 7 SERIES
Frequency Range
CH38: 600 ~ 900MHz
Channels per Band
100 Selectable
Special Functions
Compander, Pilotone
Portable P.A.
Specifications:
Transmitters:
Display Screen
LCD, Channel/Frequency, Sensitivity, Battery Level indicator
Controls
ON/OFF, Gain, Channel Set
Power
2 x AA batteries. Up to 12 hours operating time*
Display Screen
LCD showing full function read out
Antennas
Compact (supplied). High gain external (optional)
Controls
Volume, Channel, Auto Scan, Squelch via LCD readout
Indicators
Diversity reception, Weak TX Battery Alarm, RF & AF signal strengths
Outputs
Balanced/Unbalanced
Power
12v DC via 230v PSU
Soundfield
Receiver:
Need help choosing the right product?
Call our technical support team now on:
Tel. +44(0)115
977 0075
+44 (0)115 977 0075
[email protected]
151
Induction Loops
* Measured with high quality (‘Duracel’ Alkaline) batteries
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
• Microphone Options for use with all UHF
& VHF Systems:
(Must be used with Beltpack Transmitter)
MC-76X
MC-73X
MC-70X
MC-15X
MC520X
MC75X
AD-15
RA-10
RA-80
AB-80
Models:
Model:
Description
MC-76X
Slimline Headset Microphone
MC-73X
High Performance Headset Microphone
MC-70X
Aerobics Headset Microphone
MC-15X
Tieclip Microphone (Cardioid)
MC520X
Tieclip Microphone (Omni)
MC75X
Collar Microphone
• Unity System 1 Accessories:
Models:
Model:
Description
AD-15
VHF Antenna Divider
RA-10
VHF Remote Antenna
• Unity System 7 Accessories:
AD-85
Models:
Model:
Description
AD-85
UHF Antenna Divider
RA-80
UHF Remote Antenna
AB-80
UHF Antenna Booster
DA-80
UHF Directional Antenna
DA-80
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
• The Chiayo range of Portables and Wireless Microphone Systems are available with a whole
host of options, accessories and ‘separates’ to enhance or expand your system, including:
Induction Loops
Soundfield
• All Unity System Accessories:
FM-800
Models:
Model:
Description
FM-800
Front-mounting Antenna Extender
MP-50
Rackmount Kit for UHF & VHF Receiver Units
MP-12
Rackmount Filler Panel
152
Shop online now at: www.
.com
MP-50
MP-12
Loudspeakers
• CW9000 Series: UHF Multi-channel Radio
Microphone System
Amplifiers
• CW9000R Receiver
Beltpack Transmitter
Desktop Transmitters
Handheld Transmitter
• CW9004T
• CW9006T
• CW9001T Beltpack Transmitter
• CL 6 Lavalier Cardioid Microhone
• CW9000T Handheld Radio
Microphone
• CW9006T
Audio Signal
Generation
• CW9000R: UHF Receiver
Audio Signal
Processing
Versatile, flexible and easy to use, multi-channel system with two
receiver, full diversity reception. UHF operation for resistance to
interference (bands within the range 630 ~ 960MHz according to local
regulation). 192 PLL pre-selectable channels per band. Compact half
rack size, full diversity receiver with full controls, comprehensive LED
display and balanced/unbalanced outputs.
Available with a choice of beltpack transmitter with lavalier microphone,
handheld transmitter microphone or our innovative new wireless
desktop base mounts for use with Clockaudio’s full range of
gooseneck microphones.
Each transmitter option features LCD display for frequency and battery
status, easy-to-use controls for ON/OFF, frequency selection and
AF levels. A full range of included and optional accessories are also
available to complement the CW9000 Series.
Receiver
Specifications:
CW9000R
System FM Carrier
UHF
Frequency Range
630 ~ 960MHz (bands according to regulation)
Channel Frequencies
192 PLL selectable channels per band
Frequency Stability
± 0.005%
S/N Ratio
>100dB
Audio Output Level
-12dB
AF Output Impedance
600W
Squelch
‘Pilot Tone’ and ‘Noise Mute’
Power
External 12v DC; 500mA
Audio System
Tools
Model:
• CW9000T: UHF Handheld Radio Microphone
Dynamic Cardioid
LCD Display Information
Frequency, AF level and battery status
Power
2 x AA batteries giving more than 10 hours use
Microphones
(Wireless)
• CW9001T: UHF Beltpack Transmitter
Model:
CW9001T
System FM Carrier
UHF for reduced interference
Frequency Range
630 ~ 960MHz (bands according to regulation)
Channel Frequencies
192 PLL selectable channels per band
RF Output
10mW
Frequency Stability
±0.005%
Frequency Deviation
±48kHz
Frequency Response
50Hz ~ 15kHz
Dynamic Range
> +110dB
Controls
Power ON/OFF, Frequency and AF level set
• Beltpack Microphone
Options
(see page 156 ~ 157 for details)
Lavalier Tieclip
Microphone: CL4
Portable P.A.
Specifications:
Micro Lightweight
Headworn Boom Mic:
CMH2000
[email protected]
Rugged Lightweight
Headworn Boom Mic:
HW1500
Lightweight Headworn
Boom Mic: HW1200
+44 (0)115 977 0075
153
Soundfield
CW9000T
Microphone
Induction Loops
Model:
Microphones
(Wired)
Specifications:
Loudspeakers
Microphones for use with CW 9004T Unit
(See page 119 for full specifications):
Model:
Length
Shaft
C3100
100mm
Flexible
C310-R
100mm
Rigid
C312-SR
200mm
Semi-rigid
C313-SR
300mm
Semi-rigid
C314-SR
400mm
Semi-rigid
CW9004T
Audio Signal
Generation
Audio Signal
Processing
Amplifiers
• CW9004T: UHF Desk Wireless Microphone
Transmitter - Tini QG XLR
• CW9005T: UHF Desk Wireless Microphone
Transmitter - Built-in Microphone
• CW9006T: UHF Desk Wireless Microphone
Transmitter - XLR
CW9006T
Audio System
Tools
CW9005T
Specifications:
Model:
CW9004T
Frequency Range Channel Frequencies Microphones
(wired)
CW9005T
192 PLL selectable channels per frequency band
Polar Pattern -
Omni-directional
-
Audio Bandwidth -
50Hz ~ 18kHz
-
RF Output 10mW
Frequency Deviation ±48kHz
S/N Ratio > 102dB
Audio Frequency Response 50Hz ~ 15kHz
Dynamic Range Microphones
(wireless)
Portable P.A.
Soundfield
Induction Loops
> +110dB
LCD Information Frequency and battery status
Switching Programmable touch switch and LED indicator
Power Supply -
-
24v Phantom Power
Connections 3 Pin Tini Q Mini XLR
-
3 Pin XLR
• CU2: Intelligent Battery Charger
Features:
• Processor controlled
• Built-in active monitoring circuitry
• Pulse charging system
• Temperature sensor
• Two dedicated compartments for charging
two CW9004T, CW9005T or CW9006T
Transmitters
• Charging time: 6 hours
• Power Supply: Input 90 ~ 260v AC
Output 12v DC 1.25A
154
Shop online now at: www.
2 x AA batteries giving more than 9 hours use
Output Dimensions & Weight
CW9006T
630 ~ 960MHz (According to local regulation)
.com
115(W) x 40(H) x 125(D) mm / 0.4kg
Loudspeakers
Amplifiers
Wireless Microphone Accessories
• S210X (shown here with C816E microphone)
Audio Signal
Processing
The S 210-X has a fixed height, folding, long legged stand with a
die-cast base for stability and ease of transport. Fitted with a 3 pin
XLR connector at the base and the top. Overall height 1023 mm.
(For use with CW 9006T Transmitter)
470 ~ 870MHz
Antenna Inputs
2 (BNC)
Antenna Outputs 4 x pairs (BNC)
Output Connector Isolation 24dB
Nominal Cascade Gain 3dB
Inline Antenna Power 12v DC, 120mA
Power Supply 4 x 12v DC
Mains Input Voltage
90 ~ 264v AC 50/60 Hz
Audio Signal
Generation
AA9000
Carrier Frequency
Audio System
Tools
Model:
Specifications:
Model:
CW9000C
Type Condenser (Back Electret)
Polar Diagram Cardioid
Frequency Response 60Hz ~ 18kHz
Impedance 400W
Sensitivity -50dB (0dB=1v/Pa)
Microphones
(Wireless)
• CW9000C: Interchangeable
Microphone Head
Specifications:
Microphones
(Wired)
• AA9000: Antenna
Distribution Amplifier
AB9000
Carrier Frequency 470 ~ 870MHz
Antenna Gain 1.8dBi
Booster Gain 0dB +2/-1
Antenna Coverage 360°
Operating Voltage 12 ~ 18v DC
Inline Antenna Power 12v DC, 120mA
Soundfield
Model:
Portable P.A.
Specifications:
[email protected]
+44 (0)115 977 0075
155
Induction Loops
• AB9000: Antenna Booster
Loudspeakers
Amplifiers
An extremely lightweight and low profile
professional microphone for use in theatres,
presentations, broadcast studios and places
of worship. Shaped and lightly sprung to fit
any head contour and remain in place even
during high activity. Flexible boom arm for
optimum positioning of microphone.
Features:
• Omni-directional back electret condenser
microphone
• Perspiration drip barrier to protect microphone
• Wide band, smooth response
• Black or beige, easy-clean finish
Portable P.A.
Model:
CMH2000
Microphone
Condenser (back electret)
Polar Pattern
Omni-directional
Frequency Response
30Hz ~ 18kHz
Sensitivity -33dB ±3dB @ 1kHz
0dB=1v/Pa)
Impedance
4.4kW
Power Requirements
1.5 ~ 9v (Standard operating
voltage 1.5v)
Termination
Tini Q Female 4 pin connector
Rugged and lightweight microphone for use
in presentations, commentaries, broadcast
reporting and by instructors - waterproof
microphone makes it particularly suitable
for aerobic and fitness instructors. Shaped,
lightly sprung and with headband to fit all head
contours comfortably and remain in place
even with vigorous activity.
Features:
• Plastic injected headband, gooseneck and
capsule head for protection against corrosion
• Flexible boom arm for optimum positioning of
microphone
• Waterproof bi-directional close talking back
electret condenser microphone with smooth
low feedback response
Specifications:
Model:
HW1500
Microphone
Condenser (back electret)
Polar Pattern
Bi-directional close talking with
W15 Windshield
Frequency Response
300Hz ~ 5kHz
Sensitivity
-44db ±3dB @ 1kHz
(0dB=1v/Pa)
Impedance
1kW
Power Requirements
1.3 ~ 12v (Standard operating
voltage 1.5v)
Termination
Tini Q Female 4 pin connector
Includes W 15 windshield
• HW1200: Lightweight Headworn Microphone
A lightweight cardioid microphone for use
in presentations, guided tour systems and
telesales applications.
Specifications:
Soundfield
Induction Loops
Specifications:
• HW1500: Rugged Lightweight Headworn Microphone
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
• CMH2000: Micro Lightweight Headworn Microphone (Black)
• CMH2000B:Micro Lightweight Headworn Microphone (Beige)
156
Shop online now at: www.
Model:
HW1200
Microphone
Condenser (back electret)
Polar Pattern
Cardioid
Frequency Response
50Hz ~ 18kHz
Sensitivity
-50db @ 1kHz (0dB=1v/Pa)
Impedance
680W
Power Requirements
1.5 ~ 9v DC (standard
operating voltage 1.5v)
Termination
Tini Q Female 4 pin connector
.com
Includes W 12 windshield
Loudspeakers
Amplifiers
• CTH100: Throat Microphone
This throat microphone has been engineered to provide superb
speech intelligibility even in high background noise environments.
Special attention has been given to ensure a comfortable wear
over long durations with ergonomic strap and transducer housing
design.
Features:
Audio Signal
Generation
Audio Signal
Processing
• Available with a variety of IP67 terminations and PTT switches
• Water immersion resistant
• Rugged and durable
Model:
CTH100
Generating Element Electret Condenser
Frequency Response 350Hz ~ 8kHz
Sensitivity Equivalent output to standard microphones
Current Drain 0.54mA @ 2.5v through 2.2kW
Bias Voltage
2.5 ~ 6v DC
Output Impedance 900W
Operating Temperature -20ºC ~ +70ºC
Storage Temperature -40ºC ~ +70ºC
Weight 0.05kg
Audio System
Tools
Specifications:
Microphones
(Wired)
• CL4: Lavalier Omni-directional Microphone (Black)
• CL4B:Lavalier Omni-directional Microphone (Beige)
Portable P.A.
Microphones
(Wireless)
Ultra miniature, omni-directional lavalier condenser microphone
suitable for hands-free applications in pro-audio. Available in black
or beige, complete with windshield and tie clip.
CL4
Frequency Response
50Hz ~ 18kHz
Sensitivity
-44dB @ 1kHz (0dB=1v/Pa)
Impedance
1kW
Power Requirements
1.5 ~ 9v (standard operating voltage 1.5v)
Termination
Tini Q Female 4 pin connector
[email protected]
+44 (0)115 977 0075
157
Induction Loops
Model:
Soundfield
Specifications:
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
Audio System
Tools
Microphones
(Wired)
Microphones
(Wireless)
Portable P.A.
160
Focus505 Wireless Portable PA Systems - UHF
161
Focus500/IR Wireless Portable PA Systems - Infrared
162
Challenger1004 Wireless Portable PA Systems - UHF
163
Guided Tour Wireless Systems - UHF
164 ~ 167
168
Induction Loops
Accessories
Soundfield
Coach400 Wireless Portable PA System - UHF
Loudspeakers
Amplifiers
Audio Signal
Processing
• Coach400: Wireless Portable PA System
(Wired Mic or UHF)
The new Coach 400 is an ideal ‘personal’ portable PA system,
designed to be worn over the shoulder for walking tour guides,
demonstrations and coaching or mounted on the Chiayo ST-30 tripod
for use in classrooms, lecture theatres, trade fairs, etc.
Supplied as standard with handheld wired microphone, the
Coach 400 can also be supplied with the SQ5016AT UHF handheld
wireless microphone, or SM5016 beltpack & headset/tieclip
microphone options.
This stylish, compact and lightweight little unit features an in-built 25W
class D amplifier, 4” full-range loudspeaker, rechargeable battery and
USB 2.0 MP3 player. Other features as standard include 2 alarm
sounders for emergency broadcasting, Aux inputs & outputs and
detachable shoulder strap for ease of carrying.
• High efficiency output power with built-in 25W class D power amplifier
• Truly wireless! Battery operation eliminates all cables so you can take it
anywhere!
• 4” full range speaker system
• USB 2.0 MP3 player with LCD display
• 16 Channel UHF microphone receiver
• 2 alarm sounds for emergency broadcasting
• Lithium battery offers extended operation time and minimises
weight and size
• 3.5mm stereo Aux In/Out connectors
• Can be worn over the shoulder or mounted on ST-30 tripod stand
• Suitable for indoor and outdoor applications
See page 166 for a full range of accessories.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Features:
Induction Loops
Soundfield
Portable P.A.
Specifications:
160
Shop online now at: www.
.com
Model:
Coach400
Output Power 25W (RMS)
Speaker System
4” full range
THD
<0.5%
Audio Inputs
Mic In / Aux In / USB2.0
Audio Outputs
Aux Out
Power Supply
230v 1.5A/20v DC 2.5A
Battery Type
14.8v/2.4AH (Lithium)
Operating Life
Music: 5 ~ 6 hours, Voice: 10 ~ 12 hours
Charging Time
4 hours (approx.)
Frequency Response
50Hz ~ 20kHz ±3dB
Dimensions
156(W) x 156(H) x 205(D) mm
Weight
1.6kg
Loudspeakers
Amplifiers
• Focus System 16H:
Focus 505 with Handheld Mic (UHF)
• Focus System 16BH:
Focus 505 with Headset Microphone (UHF)
• Focus System 16BT:
Focus 505 with Tieclip Microphone (UHF)
Audio Signal
Processing
The new design Focus 505 has to be one of the most compact,
lightweight, full-function portable systems there is!
This little unit features internal UHF microphone receiver, built-in 30W
amplifier, full-range loudspeaker, CD with pitch control and USB MP3
player - all squeezed into a box no bigger than A4!
With output power and sound quality you’d expect from something
much bigger, the Focus 505 is capable of coverage up to 400m².
Main Features:
Audio System
Tools
Audio Signal
Generation
• Truly wireless! Battery operation eliminates all cables for true portability
• Choice of wireless microphone options (Beltpack or Handheld)
• Choice of single or dual channel microphone receivers
• CD player with pitch control, plus complete USB MP3 player & IR remote
control
• Built-in 30W amplifier
• Built-in 6½” full range speaker
• MIC IN / AUX IN with dedicated volume control
• AUX OUT to connect to PA system or input of AV system
• Loudspeaker Output for Focus extension speaker
• Charging / battery status indicators
• Tone control
• Tripod mountable (ST-40)
• Dual power supply AC or DC operation
Radio Frequency Features:
• For indoor & outdoor use
• UHF 16 CH Receiver
• Non-diversity receiving
• Compander circuit improves signal-to-noise ratio and reduces
background noise
• Anti-interference pilotone circuit
• Built-in receiving antenna
Active extension speaker
for Focus 505: PA505R
See page 166 for a full range of accessories.
Microphones
(Wired)
Passive extension speaker
for Focus 505: SP505
Focus 505
Output Power
30W (RMS)
Frequency Range
CH 38 ~ 606.125, 606.975, 607.650, 608.150, 608.475,
609.225, 609.750, 610.625, 610.975, 611.425, 611.750, 612.250, 612.575, 612.975, 613.450, 613.975
Licence required (visit www.jfmg.co.uk)
Oscillation Type
Quartz locked fixed frequency
Frequency Stability
±0.005%
Receiving Method
Non-Diversity
Frequency Response
50Hz ~ 15kHz
Speaker
6½” Full Range Driver
Audio Inputs
MIC IN, AUX IN
Audio Outputs
AUX OUT
Power Supply
230v AC / Internal Battery
Battery Recharge
3 ~ 4 hours
Battery Life
Music: 5 ~ 6 hours / Voice: 10 ~ 12 hours
Dimensions
213(W) x 313(H) x 215(D) mm
Weight 5.5kg
[email protected]
+44 (0)115 977 0075
Soundfield
Model:
Portable P.A.
Specifications:
161
Induction Loops
• Focus System 16H: Focus 505, 16 channel UHF with CD, USB MP3 and
IR remote with UHF handheld microphone transmitter & canvas carry case
• Focus System 16BH: Focus 505, 16 channel UHF with CD, USB MP3
and IR remote with UHF beltpack transmitter, headset microphone &
canvas carry case
• Focus System 16BT: Focus 505, 16 channel UHF with CD, USB MP3
and IR remote with UHF beltpack transmitter, tieclip microphone & canvas
carry case
Microphones
(Wireless)
System Package Details:
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
• Focus500/IR: Compact Portable
Presentation System (Infrared)
The new Focus 500IR is an infrared version of our highly popular Focus
range. With all the same features as our UHF versions (built-in amplifier
& loudspeaker, CD player, USB MP3 player, 230v AC/internal battery
operation, etc), the Focus500IR features an infrared microphone
receiver/transmitter which allows for any number of adjacent,
multi-room systems without the limitations of number of channels.
As the infrared microphone signal is light-based, the simple separation
of walls and doors will allow any number of adjacent systems - such
as a number of classrooms - without signal interference.
Features:
• Truly wireless! Battery operation and IR signal eliminates all cables for
true portability
• Infrared wireless microphone signal for multi-room systems
• Supplied as standard with IR handheld microphone
• CD player with integrated USB MP3 player and IR remote control
• Built-in 30W amplifier
• Built-in 6½” full range speaker
• Dual power supply AC or DC operation
System Package Details:
(Please Note: The IR model is not suitable for outdoor use due to high light
levels affecting the infrared signal.)
See page 166 for a full range of accessories.
Infrared Pendant
Microphone: IWM-402
Infrared Handheld
Microphone: IWH-401
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
• Focus System IRH: Focus 500 Infrared with CD, USB MP3 players
infrared handheld microphone/transmitter & canvas carry case
Induction Loops
Soundfield
Specifications:
162
Shop online now at: www.
.com
Model:
Focus500/IR
Output Power
30W (RMS)
Receiving Method
Infrared
Frequency Response
50Hz ~ 15kHz
Speaker
6½” Full Range Driver
Audio Inputs
MIC IN, AUX IN
Audio Outputs
AUX OUT
Power Supply
230v AC / Internal Battery
Battery Recharge
3 ~ 4 hours
Battery Life
Music: 5 ~ 6 hours / Voice: 10 ~ 12 hours
Dimensions
213(W) x 313(H) x 215(D) mm
Weight
5.5kg
Loudspeakers
Amplifiers
• Challenger System 16H: Challenger 1004
with Handheld Microphone (UHF)
• Challenger System 16BH: Challenger 1004
with Headset Microphone (UHF)
• Challenger System 16BT: Challenger 1004
with Tieclip Microphone (UHF)
Audio Signal
Processing
Now further upgraded with a new 120W class D built-in amplifier,
the new Challenger 1004 UHF is an all-in-one, multi-functional,
multi-purpose, wireless portable sound system designed for both
indoor and outdoor use, capable of high quality sound coverage
up to 800m².
Compact and lightweight, it features CD player with pitch control
and integrated USB MP3 player and will now allow for up to 4 UHF
microphone receivers.
Audio Signal
Generation
The Challenger 1004 also features easy to use controls and retractable
handle to allow the unit to be easily transported.
Features:
Audio System
Tools
• New 120W (RMS) class D internal amplifier and full-range loudspeaker
• Integral UHF wireless microphone receiver (plus option for an additional
three receivers!)
• CD player with pitch control, complete with USB MP3 player & IR remote
control
• Wired microphone/auxiliary inputs, plus line level output
• Extension loudspeaker output (8W)
• Optional matching extension loudspeaker (C1000 Companion)
• Internal rechargeable battery or mains operation
• Retractable handle & integrated wheels
• Tripod mountable
• Protective cover
System Package Details:
• Challenger System 16H: Challenger 1004, 16 channel UHF with CD,
USB MP3 and IR remote with UHF handheld microphone transmitter and
canvas cover
• Challenger System 16BH: Challenger 1004, 16 channel UHF with CD,
USB MP3 and IR remote with UHF beltpack transmitter, lightweight
headset microphone and canvas cover
• Challenger System 16BT: Challenger 1004, 16 channel UHF with CD,
USB MP3 and IR remote with UHF beltpack transmitter, tie clip
microphone and canvas cover
Microphones
(Wired)
Now allowing up to
4 UHF Receivers!
The new Challenger 1004 now allows for up to
four UHF receivers (therefore allowing for up
to 4 different microphone channels).
See page 166 for a full range of accessories.
Microphones
(Wireless)
Combined with the new RP-6016M Wireless
Transmitter Module (seen overleaf), the new
portable models now allow for
even greater
coverage, channel
flexibility and the
true freedom of
‘going wireless’!
Challenger 1004
Output Power
120W (RMS)
Frequency Range (UHF / PLL)
CH 38 ~ 606.125, 606.975, 607.650, 608.150, 608.475,
609.225, 609.750, 610.625, 610.975, 611.425, 611.750, 612.250, 612.575, 612.975, 613.450, 613.975
Licence required (visit www.jfmg.co.uk)
Speaker
10” Full Range Driver
Battery Life
Music: 5 ~ 6 hours / Voice:10 hours
Battery Life (constant CD player use)
5 ~ 6 hours
Battery Recharge Time
(approx)
6 hours
Built-in Charger
Yes
Music Options
CD Player with pitch control and integrated USB MP3 player
Power Requirement
230v AC / Internal Battery
Dimensions
350(W) x 500(H) x 300(D) mm
Weight
21kg
+44 (0)115 977 0075
163
Induction Loops
[email protected]
Soundfield
Model:
Portable P.A.
Specifications:
Loudspeakers
Amplifiers
• RP-6016M: Portable PA Wireless Transmitter
Module (UHF)
Module for multiple unit wireless-linked systems. Where larger wirefree systems are required, the inclusion of the RP-6016M Module will
transmit from a Master Unit to multiple active slave units, providing
the same signal output as well as remote volume control to all units
on the system.
Audio Signal
Processing
The RP-6016M is compatible with all Challenger 1004 Systems.
Presenter
Active
slave unit
Active
slave unit
Audio Signal
Generation
Active
slave
unit
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Master Unit fitted
with RP-6016M
164
Shop online now at: www.
.com
Loudspeakers
Amplifiers
• Portable PA System Controls on Rear Panels
• Coach 400:
13
1 On/Off & Master Volume
2 USB2.0 MP3 Player Port
3 MP3 Player Display
4 Alarm Tones
5 DC Power Supply Input
6 Aux Output
7 Aux Input
8 Wired Mic Input
9 Mic Volume Control
10 Aux/USB MP3 Volume Control
11 Tone Control
12 USB MP3 Player Controls
13 UHF Receiver Channel Selector
1
12
2
11
3
10
Audio Signal
Processing
4
9
5
6
7
8
7
4
3
10
Audio System
Tools
8
12
5
14
9
Microphones
(Wired)
11
13
5
Microphones
(Wireless)
7
3
4
6
8
1
Portable P.A.
1 CD Player Module
2 USB MP3 Player Input
3 RF Receiver Module
4 Optional RP-6016M Wireless Transmitter
Module (Module slot can alternatively be
used for a 4th Receiver Module)
5 RP-6016M Antenna
6 Additional Receiver Module Slot
7 Retractable Handle
8 Optional Receiver Module Slot
9 Wired Microphone Input 1
10 Wired Microphone Input 2
11 Wired Microphone 1 Level Control
12 Wired Microphone 2 Level Control
13 Line Inputs/Outputs
14 Master Volume Control
15 Tone Control
16 Line Level Control
17 CD/MP3 Level Control
18 Active Bus Input/Output
19 Master/Slave Selector
20 Slave Bus Level Control
21 External/Extension Loudspeaker Output
22 Mains Power Input
23 Power On/Off
24 Voice Priority On/Off
25 Charging Indicator
2
6
2
17
16
15
11
14
18
9
13
21
22
23 24
[email protected]
Soundfield
• Challenger 1004:
1
25
+44 (0)115 977 0075
165
Induction Loops
1 CD Player Module
2 USB MP3 Player Input
3 Wired Microphone Input
4 Wired Microphone Level Control
5 Line Input/Output
6 Line Level Control
7 Tone Control
8 Wireless Microphone Level Controls
9 External/Extension Loudspeaker Output
10 Power On/Off
11 Voice Priority On/Off
12 DC Power Supply Input
13 Wireless Microphone Channel Selection
Audio Signal
Generation
• Focus 505 & Focus 500IR:
Loudspeakers
Amplifiers
• The Chiayo range of Portables and Wireless Microphone Systems are available with a whole host of options, accessories and ‘separates’ to
enhance or expand your system, including:
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
• Coach, Focus & Challenger Transmitter Options:
SQ1016/38
SM1016/38
SP505
PA505R
ST-40
SB21
RP-6016M
03180
C1000
DC40
MC-76X
MC-73X
MC-70X
MC-15X
MC520X
MC75X
Models:
Model:
Description
SQ1016/38
16ch UHF Handheld Microphone Transmitter
SM1016/38
16ch UHF Beltpack Transmitter
• Focus Accessories:
SDR-500M
Models:
Model:
Description
SDR-500M
Additional UHF 16ch Mic Receiver (Factory fitted only)
SP505
Passive Extension Loudspeaker
PA505R
Active Extension Loudspeaker
ST-40
Tripod Stand
SB21
Canvas Carry Case
• Challenger 1004 Accessories:
SDR6116M
Models:
Model:
Description
SDR6116M
Additional UHF 16ch Receiver Module
RP-6016M
UHF 16ch Transmitter Module
03180
Tripod Stand
C1000 SLAVE
Slave Challenge Active Companion Loudspeaker
DC40
Challenger Canvas Cover
• Microphone Options for use with all UHF
& VHF Systems (must be used with
Beltpack Transmitter):
Models:
Model:
Description
MC-76X
Slimline Headset Microphone
MC-73X
High Performance Headset Microphone
MC-70X
Aerobics Headset Microphone
MC-15X
Tieclip Microphone (Cardioid)
MC520X
Tieclip Microphone (Omni)
MC75X
Collar Microphone
166
Shop online now at: www.
.com
Loudspeakers
Amplifiers
• IWM402: Infrared Pendant Microphone
Transmitter
Discreet neck worn IR transmitter with built-in microphone.
Provides hands-free transmission of voice and AUX signals as part of
an installed voice reinforcement system in schools, universities, AV
installations and conference venues.
Audio Signal
Processing
The use of IR transmission allows the system to be used licence free,
and also provides a secure signal that will not overspill to adjoining
rooms or systems.
Features:
Audio Signal
Generation
• Pendant transmitter with inbuilt condenser microphone
• 2 x Input jacks (2.5mm) for use with external headset microphone & Aux line level
• Bicolor LED indicates power on and battery low
• 2 channels switchable
• Input audio level control serves as remote volume control
• Operating time up to 7 hours with one dedicated 1.2v NiMH battery
• Dedicated drop-in charger (HC-40) available
Audio System
Tools
• IWH401: Infrared Handheld Microphone
Transmitter
Features:
Microphones
(Wireless)
Microphones
(Wired)
• Multiple emitter array of high efficiency infrared emission LEDs for optimum
IR transmission
• Bicolor LED indicates power-on and battery low
• 2 channels switchable
• Unidirectional condenser cartridge for optimum audio, minimal handling
noise and maximum feedback rejection
• Rugged steel mesh ball with anti-roll ring
• Operating time up to 7 hours with one dedicated 1.2v NiMH battery
• Also can be suspended around the neck with a lanyard
• Dedicated drop-in charger (HC-40) available
Portable P.A.
• HC40: Infrared Microphone Drop-in Charger
[email protected]
+44 (0)115 977 0075
167
Induction Loops
Soundfield
For use with IWM402 and IWH401 infrared microphones.
Loudspeakers
Amplifiers
Audio Signal
Processing
• GT Set One:
9 x Receiver Guided Tour System (UHF)
• GT Set Two:
19 x Receiver Guided Tour System (UHF)
A licence-free system of lightweight, 16 channel personal portable
units developed for commentary or narration on guided tours, for
individuals or for groups in situations such as museums, zoos,
factories, gardens or outside events. Also suitable for language tuition,
talk-back and multi-language translation.
UHF for reduced interference. 16 PLL selectable channels for easy
and reliable operation.
Built-in microphone or loudspeaker for handheld use and external
microphone or earpiece for use when clipped to a belt or pocket.
Open space range >100m.
• UHF PLL Licence-free
• 16 Selectable Channels
• Single or multi receiver capability
• Lightweight portable units with audio level adjustment
• Receiver with built-in loudspeaker for handheld use, and external ear
piece for use when clipped to a belt or pocket
• Transmitter with built-in condenser microphone for handheld use, and
external microphone for use when clipped to a belt or pocket
• Powered by two AA Ni-MH rechargeable batteries giving 10 ~ 12 hours
use on full charge
• Intelligent chargers for 2, 10, 20 units
• Accessories available - lanyard and disposable ear pads
System Package Details:
• GT Set One: 1 x DC 320 Charging Flight Case
9 x GT 300R Receiver
1 x GT 300T Belt Pack Transmitter
• GT Set Two: 1 x DC 320 Charging Flight Case
19 x GT 300R Receiver
1 x GT 300T Belt Pack Transmitter
Charging Flight Case
(Transmitters sold
separately): DC 320
Hand Held Transmitter:
GT 402T
Transmitter: GT 502T
GT 300R Receiver
GT300T Belt Pack Transmitter
Specifications:
Model:
GT402T
GT502T
System FM Carrier
UHF PLL Synthesized
UHF PLL Synthesized
Frequency Range
740MHz ~ 865MHz (bands
according to regulation)
740MHz ~ 865MHz (bands
according to regulation)
Channel Frequencies
16 Pre-programmed switchable
16 Pre-programmed
switchable
Frequency Stability
±0.005%
±0.005%
Maximum Deviation
±50kHz with level limiting
±50kHz with level limiting
Dynamic Range
<80dB
<80dB
Powering
2 x AA Ni-MH batteries averaging 10 hours use
on full charge
External 12v DC 500MA,
AC Adaptor 115v ~ 230v AC
Model:
GT300R
GT300T
Includes
Ear piece
Omni-directional Condenser
Microphone
System FM Carrier
UHF PLL Synthesized
UHF PLL Synthesized
Frequency Range
UHF 740 ~ 865MHz (according to local regulations)*
UHF 740 ~ 865MHz (according
to local regulations)*
Channel Frequencies
16 Pre-programmed switchable
16 Pre-programmed switchable
Switchable Bandwidth
12MHz
12MHz
Frequency Stability
±0.005%
±0.005%
Maximum Deviation
±50kHz with level limiter
±50kHz with level limiter
Dynamic Range
<80dB
<80dB
Frequency Response
150Hz ~ 10kHz
-
RF Output
-
10mW
Powering
2 x AA Ni-MH batteries averaging 10 hours use on full
charge
2 x AA Ni-MH batteries
averaging 10 hours use on full
charge
*UK licence free 863 ~ 865 MHz (CH70)
2 unit desktop charger:
DC 302
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Features:
2 unit desktop charger:
DC 302
Model:
DC320 Charging Flight Case
Capacity 20 (receiver or transmitter belt style only)
Indicator LED
Red charging, green fully charged
Charging Current
120mA
Charging Time
NI-MH (1300mAH) 10 ~ 12 hours
Charging Control
PWM (timer power OFF detector)
Induction Loops
DC 302 2 Unit Desktop Charger (for hand held or belt style transmitter / receiver)
DC 310 10 Unit Charger in fitted flight case
168
Shop online now at: www.
.com
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
Audio System
Tools
Microphones
(Wired)
Microphones
(Wireless)
Portable P.A.
‘In-ceiling’ Soundfield Systems
172
Surface-mount Soundfield Systems
173
Outreach Plates - Audio Input Extension System
174
Soundfield
170 ~ 171
Induction Loops
What is Soundfield Classroom
Voice Reinforcement?
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
Audio System
Tools
•Soundfield Classroom Voice Reinforcement Systems
Young people spend at least 45% of their school day engaged in
active listening activities, with today’s classroom serving as a primarily
auditory verbal environment.
However, a study in the journal of the American Medical Association
showed that 14.9% of children aged 6 ~ 19 suffer from some degree
of hearing impairment, either permanently or temporarily due to illness,
infection or allergies.
Studies estimate that 80% of school children will have some form
of hearing loss during an academic year and, with the importance
of auditory learning in the classroom, the use of technology to
enhance listening performance ultimately allows children to learn
more efficiently.
One of the simplest and most effective solutions is an i-ceilings
‘Soundfield Voice Reinforcement System’. Functioning as a
mini public address system, it features an infrared wireless
microphone, receiver, amplifier and either one or two ‘i-ceilings
Sound Panel’ loudspeakers (dependent upon the size of
classroom).
Thorn Grove Primary School’s SEN inclusion scheme ensures that both
its mainstream and hard of hearing pupils benefit from clear, effective
communication using i-ceilings Soundfield Systems in all its classrooms.
‘Soundfield’ or a ‘Soundfield Voice Reinforcement System’ is essentially the integration of a ‘mini-PA system’ in the classroom.
Teachers’ normal voice coverage
Using Soundfield Voice Reinforcement
Without Soundfield, the clarity and volume of a teacher’s voice will be
less effective toward the back of the room.
Using i-ceilings Soundfield Voice Reinforcement, the teacher’s
amplified voice will be heard at the same clear, effective level by all
pupils in the room.
Under quiet classroom conditions, most teachers have enough natural
volume in their voice to communicate effectively with a standard sized
class. However, a number of acoustic factors (lively/noisy classes,
reverberant room conditions, ambient noise from equipment and
outdoor activities, hearing difficulties, etc.) can have a significant effect
on clear, effective teacher/pupil communication.
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
• What is a Soundfield System?
170
Shop online now at: www.
.com
The inclusion of a Soundfield System in the classroom will raise the
teacher’s voice above this ambient noise level, to give even voice
coverage throughout the room and without the need to shout or raise
one’s voice. This will provide significant benefits for teacher/pupil
communication and understanding.
Loudspeakers
The inclusion of Soundfield Voice Reinforcement in the classroom provides wide ranging benefits not only to pupils and hard of hearing
students, but also to teachers and acoustic/architectural designers and specifiers.
In addition to the above outstanding benefits, pupils also benefit from:
Pupils:
• More effective deciphering of language in early
learning years
• Better understanding of teacher’s voice for
‘second language’ learning
• Assists temporary hearing deficiency, common
in early learning years
Audio Signal
Generation
Teacher wears
lightweight ‘pendant’
infrared wireless
microphone
Audio Signal
Processing
• Less repetition required
• Understanding of instructions
• Improved verbal recognition
Teachers:
Audio System
Tools
• Improved clarity of voice and understanding
• Reduced voice strain, illness and stress
• Less repetition required
• Assists inclusive teaching for SEN students
SEN students:
Microphones
(Wired)
• Assists inclusive learning
• Easily integrates with induction loop systems
• Proven learning improvements for pupils with
ADHD
• Many children with Down syndrome who have
fluctuating conductive hearing loss perceive
significantly more speech
Specifiers and Installers:
Soundfield
Portable P.A.
Microphones
(Wireless)
• Unparalleled even sound coverage
• Reduced number of loudspeakers required
• Reduced microphone feedback
• Reduced loudspeaker theft or damage
• Secure wireless signal for privacy rooms
[email protected]
+44 (0)115 977 0075
171
Induction Loops
• Task behaviour
• Reduced voice strain
• Attentiveness
• Better attendance
Amplifiers
• The benefits of Soundfield in the classroom...
All children benefit from the improved speech clarity of a Soundfield System. Academic improvements are consistently noted in:
Loudspeakers
Audio Signal
Generation
Audio Signal
Processing
Amplifiers
• The i-ceilings Soundfield Solution
3)
In its simplest form, a Soundfield System consists of the following
components:
2)
• Wireless microphone worn by the teacher
• Wireless microphone receiver
• Amplifier
• Loudspeakers
• Connection cables
1)
The i-ceilings Soundfield Solution benefits from further unique
component features to provide what we truly believe is the most
advanced and effective system on the market.
1)
2)
3)
Teacher-worn Infrared Microphone
Infrared Microphone Receiver
i-ceilings unique Sound Panel Loudspeaker
and Integrated Amplifier
The unique i-ceilings Soundfield System features:
•i-ceilings Sound Panel Loudspeakers
Audio System
Tools
Our ‘i-ceilings Sound Panel’ is a unique loudspeaker which fits into a suspended ceiling
in the same manner as a standard ceiling tile.
This revolutionary Sound Panel loudspeaker provides unparalleled levels of even sound
coverage, ensuring all students hear an equal volume level of the teacher’s voice.
Furthermore, i-ceilings panels are virtually unidentifiable in the ceiling ensuring aesthetic
consistency and greatly reducing any problems of loudspeaker theft or vandalism.
Microphones
(wired)
•Infrared Wireless Microphone Technology
The i-ceilings Soundfield System also benefits from the use of an ‘infrared’ microphone
system.
Many systems on the market use ‘RF’ (radio frequency) wireless microphone systems,
which have many operational limitations such as the number of available frequency
channels, license costs and signal overspill.
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Our IR wireless system overcomes these limitations, being license-free and, by using
light to transmit the microphone signal (just like your TV remote control), the signal cannot
‘overspill’ into adjoining classrooms; providing the ideal multi-room solution.
For more information on the benefits and application of
Soundfield in the classroom, go online to:
www.soundfield.uk.com
172
Shop online now at: www.
.com
Loudspeakers
Audio Signal
Processing
• Soundfield PACK A: i-ceilings CS4000 / infrared Installed
Soundfield System - (60m² coverage)
Audio Signal
Generation
• 1 x CS4000ME/AMP
Amplified i-ceilings Sound Panel
CD/MP3/Laptop Input Wallplate
• 1 x APA/APL Pendant Transmitter/Microphone
• 1 x IWM-402
Infrared Sensors
• 2 x IS-20A
• 1 x HC-40
Drop-in Charger for IWM-402
Infrared Receiver
• 1 x IWR-220
...plus connecting cables, equipment support tray, safety clip & wire,
Transmitter batteries and manuals
Audio System
Tools
• Soundfield PACK B: i-ceilings 2 x CS4000/ infrared Installed
Soundfield System - (120m² coverage)
Microphones
(Wired)
• 1 x CS4000ME/AMP
Amplified i-ceilings Sound Panel
i-ceilings Sound Panel (Slave)
• 1 x CS4000ME CD/MP3/Laptop Input Wallplate
• 1 x APA/APL
Pendant Transmitter/Microphone
• 1 x IWM-402
• 2 x IS-20A
Infrared Sensors
• 1 x HC-40
Drop-in Charger for IWM-402
Infrared Receiver
• 1 x IWR-220
...plus connecting cables, equipment support tray, safety clips & wires,
Transmitter batteries and manuals
Microphones
(Wireless)
• Soundfield PACK C: i-ceilings PRO AMP / infrared Installed
Soundfield System - (60m² coverage)
These Soundfield Packs feature the IWM-402 Pendant Microphone /
Transmitter as standard. A handheld microphone option is also available
(Part No. IWH-401).
Portable P.A.
• 1 x PRO ME/AMP
Amplified i-ceilings PRO Sound Panel
CD/MP3/Laptop Input Wallplate
• 1 x APA/APL
Pendant Transmitter/Microphone
• 1 x IWM-402
• 2 x IS-20A
Infrared Sensors
• 1 x HC-40
Drop-in Charger for IWM-402
Infrared Receiver
• 1 x IWR-220
...plus connecting cables, equipment support tray, safety clip & wire,
Transmitter batteries and manuals
NB: Infrared Transmitters and Microphones:
Amplifiers
• Unobtrusive, yet highly effective voice reinforcement in the classroom
• Unidentifiable loudspeaker solution reduces damage or loss due to theft or vandalism
• Infrared wireless microphone technology allows unlimited adjacent room systems without
licensing issues
• Easily integrated with other classroom/teaching technologies such as induction loops, personal
FM hearing assistance systems, interactive whiteboards, laptops, etc,...
Headset Microphone:
MC-76SJ
Pendant Microphone /
Transmitter: IWM-402
Handheld Microphone:
IWH-401
Need help choosing the right product?
Call our technical support team now on:
Tel. +44(0)115
977 0075
+44 (0)115 977 0075
[email protected]
173
Soundfield
Our flagship i-ceilings infrared Soundfield
systems are arguably the most technically
advanced and acoustically effective
systems on the market.
System Benefits:
Induction Loops
• i-ceilings ‘in-ceiling’
Soundfield Systems
Loudspeakers
Though much of the success of our Soundfield systems has been
based on our unique i-ceilings Sound Panel Loudspeakers, there
are an increasing number of systems being installed into classrooms
which do not feature a suspended ceiling.
Our Packs F & G have been developed for either wall-mounting
(PACK F) or surface mounting to a solid or plasterboard ceiling
(PACK G). Both systems feature our own UK designed and built
IRX Wallmount Integrated Amplifier/Infrared Receiver, developed
specifically for Soundfield classroom voice reinforcement.
Designed to be completely safe and child-friendly, the IRX features
20W amplifier, infrared wireless microphone technology, microphone
& line inputs (for integration of laptop, MP3, DVD, etc) and level/tone
control, whilst remaining extremely tamper-proof against potential
‘wandering hands’.
• Soundfield PACK F: Wallmount Loudspeakers / infrared
Installed Soundfield System - (60m² coverage)
• 1 x IRX
Wallmount Amplifier/IR Receiver
• 4 x FBT Project 315WT Wallmount Loudspeakers
Pendant Transmitter/Microphone
• 1 x IWM-402
Infrared Sensors
• 2 x IS-20A
• 1 x HC-40
Charger for IWM-402
...plus connecting cables, safety clips & wires, Transmitter batteries and manuals
• Soundfield PACK G: i-ceilings Ceiling Surface-mount / infrared
Installed Soundfield System - (60m² coverage)
• 1 x IRX
Wallmount Amplifier/IR Receiver
Surface-mount i-ceilings Sound Panel Loudspeaker
• 1 x CS4500 Pendant Transmitter/Microphone
• 1 x IWM-402
Infrared Sensors
• 2 x IS-20A
• 1 x HC-40
Charger for IWM-402
...plus connecting cables, safety clip & wire, Transmitter batteries and manuals
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
Amplifiers
• ‘Surface-mount’ Soundfield Systems
NB: Infrared Transmitters and Microphones:
These Soundfield Packs feature the IWM-402 Pendant Microphone /
Transmitter as standard. A handheld microphone option is also available
(Part No. IWH-401).
174
Shop online now at: www.
.com
Headset Microphone:
MC-76SJ
Pendant Microphone /
Transmitter: IWM-402
Handheld Microphone:
IWH-401
Loudspeakers
Amplifiers
• Outreach Plates: Audio Input Extension
System
A range of wall, ceiling and desk mountable single gang audio input
plates specifically designed to increase the audio input capability of
any audio system. A total of six plates are available - one to suit virtually
every conceivable variant of audio input connector - and each featuring
a built-in mixer, pre-amp, input level control and balancing output.
Audio Signal
Processing
See page 186 ~ 187 for full details of the Outreach Plate
product range.
Audio Signal
Generation
• APJ: 3.5mm Jack Outreach Plate
Accepts balanced or unbalanced microphones with 3.5mm mono jack plugs. Includes an
onboard mic to line level converter, high gain pre-amplifier and 8V phantom power.
• APL: Dual Phono Line Level Outreach Plate
Audio System
Tools
Accepts two line-level signals (usually from a stereo source such as a TV, CD, tape or DVD).
Includes an on-board dual phono to mono converter. An ALS SCART to dual phono lead is
also available to facilitate the connection of TVs, VCRs, etc, to the APL.
• APQ: ¼” Jack Outreach Plate
Microphones
(Wired)
Accepts balanced or unbalanced microphones with 6.35mm (1/4”) jack plugs. Includes an
on-board mic to line level converter, high gain pre-amplifier and 8v phantom power.
• APXM: XLR Microphone Level Outreach Plate
Microphones
(Wireless)
Accepts balanced or unbalanced microphones with standard 3 pin female XLR connectors.
Includes an on-board mic to line level converter, high gain pre-amplifier and 8v
phantom power.
• APXL: XLR Line Level Outreach Plate
Accepts standard 3 pin female XLR feeds from audio equipment such as stage or church
mixing desks, etc.
Portable P.A.
• APM: Omni-Directional Plated Mic Outreach Plate
[email protected]
+44 (0)115 977 0075
175
Induction Loops
Soundfield
A self-contained omni-directional electret microphone complete with on-board mic to line level
converter. Ideal for mounting in ceilings, walls or desks, the unit offers excellent coverage
(typically up to 25m2 when located at a ceiling height of 2.5 ~ 3 metres).
Parkfields Middle School, Blyth England
Parkfields Middle School’s newly-built science laboratories embrace a whole host of educational technologies including
interactive whiteboards, overhead PTZ cameras and remote control blackout blinds. Communication with students is
significantly enhanced using i-ceilings Soundfield Classroom Voice Reinforcement.
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
Audio System
Tools
Microphones
(Wired)
179 ~ 182
Medium ~ Large Induction Loops
183 ~ 184
Induction Loop Testers
185
Outreach Plates - Audio Input Extension System
186 ~ 187
Portable Induction Loops
188 ~ 190
Securicom Through-Glass Speech
Transfer Systems
Portable P.A.
Microphones
(Wireless)
Small Room Induction Loops
Soundfield
178
191
Induction Loops
Choosing the right Induction Loop System
Loudspeakers
Amplifiers
• Which Induction Loop System should I use?
The PDA range of induction loop equipment is one of the most
comprehensive in the UK. It comprises a huge range of amplifiers,
microphones, connector plates and test equipment covering virtually
every conceivable AFILS application.
To calculate the size of the area in square metres, multiply the length
by the width. For example, a room 6m x 6m in size would equal 36m².
The coverage provided by an AFILS amplifier is also quoted in square
metres. The chart below, and information in the rest of this section, will
help you select the best PDA Range product(s) for the job.
Designed to meet or exceed the requirements of BS7594 and
EN60118-4 when correctly installed, all of the amplifiers in the PDA
range offer excellent intelligibility, true current mode amplification,
phantom power (for electret microphones) and full compatibility with
the ‘outreach plate’ audio input extension system (except the PL1,
VL1 and DL50). Many are also available in kit format for ease of
specification, purchase and installation.
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
Before deciding which induction loop system to use, you first need
to ascertain the size of the area to be covered in square metres (m2).
Bear in mind it may not be necessary to cover the whole of the area,
for example in a church only the pews may require coverage.
• Induction Loop Amplifier Selection Chart
SIZE OF AREA REQUIRING COVERAGE
PDA PRODUCT
PL1 portable loop kit
ML1/K counter loop kit
PDA102C counter loop kit
VL1/B1 vehicle loop kit
PDA102L/R/S small room kits
DL50/K domestic loop kit
Counters, desks,
tables & other
small areas up
to 1.2m2
Rooms up to 49m2
(7 x 7 m)
AK RANGE loop kits
PDA200E amplifier
PDA200/2 professional
loop amplifier
Rooms up to 120m2
(11 x 11 m)
Rooms up to 200m2
(14 x 14 m)
Rooms up to 500m2
(22 x 22 m)
Induction Loops
Soundfield
PDA500/2
professional
loop amplifier
Rooms up to 900m2
(30 x 30 m)
PDA1000/2 professional
loop amplifier
178
Shop online now at: www.
.com
Loudspeakers
Amplifiers
• ML1/K: Counter Induction Loop System
The ML1/K counter induction loop amplifier is ideal for use in post
offices, banks, building societies, ticket offices and reception
areas.
Mountable on a standard UK 25mm double gang back box, it can
generate a loop listening field of approximately 1 to 1.5 metres and
includes one microphone input, one balanced line level audio input
and indicators for input peak, mains on and loop strength.
Audio Signal
Processing
A number of easy to adjust user and engineer controls are also
provided.
Microphone and loop cable are supplied as part of the kit.
Features:
Microphones
(Wireless)
Microphones
(Wired)
Audio System
Tools
Audio Signal
Generation
• Attractive, compact design blends with any decor
• Ideal for banks, post offices, small meeting rooms, reception desks,
ticket booths and any other application requiring restricted or small
area coverage
• Requires no specialist audio experience or connectors - can be fitted
by any competent electrician
• Space-saving double-gang wall-mounting amplifier fits standard UK
25mm back boxes (requires fixed mains wiring)
• Omni-directional AMT microphone (supplied) plugs directly into 3.5mm
socket on the amplifier’s front
• Line/outreach socket also provided (max. 3 outreach plates per system)
• User-adjustable mic. sensitivity and engineer adjustable loop drive and
input level controls
Model:
ML1/K
Type Wall mounting (requires fixed mains wiring and a 25mm back box)
Coverage 1.2m² approx.
Inputs 1kHz 1 x 3.5 mm remote mic. socket; 1 x Line/Outreach socket
Indicators Input level; power on; loop drive meter
Controls On/off button; adjust auto-shut off timer
Kit Content ML1 amplifier; AMT microphone; TX2 pre-formed counter loop;
‘AFILS fitted’ sticker
Dimensions 143(W) x 83(H) x 32(D) mm
Weight 0.3kg (amplifier only)
[email protected]
+44 (0)115 977 0075
179
Induction Loops
Specifications:
Soundfield
Portable P.A.
Typical ML1/K counter/ticket booth application:
Loudspeakers
SigNET’s PDA102 audio frequency induction loop amplifier is ideal
for any application requiring restricted or small area coverage.
Available in a variety of cost-effective kit formats, it includes a 3.5mm
microphone input (with 9v phantom power) and a unique ‘Outreach’
input which allows the connection of multiple microphone and line level
inputs via a series of single gang audio connector plates.
The amplifier’s input(s) can be easily adjusted for optimum performance
using the rotary level control provided on its front and an adjustable
drive control is also included, allowing the amplifier’s output stage to
be set-up to suit the exact characteristics of any room.
The PDA102’s state-of-the-art audio processor features an automatic
gain control which compensates for poor microphone techniques
and helps suppress loud noises, hisses and clicks. The amplifier’s
true current mode amplification circuitry guarantees excellent and
consistent sound quality for the hearing impaired.
The amplifier is designed to be free-standing or wall-mounted using
the keyholes provided and installation is further aided by the provision
of two set-up indicators (Peak and Limit) and a ‘Power On’ LED.
Features:
• Ideal for ticket counters, desktops, TV lounges, interview rooms, etc
• Provides max. square room coverage of 49m2 (7 x 7 m). Kitted ‘counter
loop’ version provides approximately 1.2m2 coverage
• Attractive, compact design
• Includes one 3.5mm microphone input with 9v phantom power
• Compatible with SigNET’s unique ‘Outreach plate’ audio input extension
system (allows the connection of up to 10 additional mic. or line level
inputs via a series of separately available audio connector plates)
• Input Limit, Output Peak and Power On indicators
• Adjustable Limit and Drive controls
• Compact free-standing design with keyholes provided for optional
wall-mounting
• Available in a variety of cost-effective kit formats that are suitable for use
in ticket counters, small meeting rooms and TV lounges
• Designed to meet or exceed the requirements of BS7594 and EN60118-4
when correctly installed
• Can be used to help building managers and service providers comply with
the requirements of BS8300, the Disability Discrimination Act and the Care
Standards Act
• PDA102C: Counter Loop Kit
Everything required for a stand-alone counter loop system for a ticket
office, reception desk, meeting room or any other area where a degree
of privacy is required. Includes an AMT tie/desk microphone, a TX121
counter loop and two ‘loop in use’ stickers.
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
Amplifiers
• PDA102 Series: Induction Loop Kits
Induction Loops
Soundfield
• PDA102L: Small Room Kit (Tie/Desk
Microphone version)
Ideal for council chambers, seminar rooms and doctors’ surgeries up
to 7m x 7m in size. Includes an AMT tie/desk microphone, 30m of
loop cable and two ‘Loop in Use’ stickers.
180
Shop online now at: www.
.com
Loudspeakers
Amplifiers
• PDA102R: Small Room Loop Kit (Plated
Microphone version)
Audio Signal
Processing
The PDA102R is similar to the PDA102L but instead of an AMT tie/desk
mic. it includes an APM omni-directional plated microphone which is
ideal for mounting in suspended ceilings. Also includes 30m of loop
cable and two ‘Loop in Use’ stickers.
• PDA102S: TV / Music Lounge Loop Kit
Audio System
Tools
Audio Signal
Generation
The PDA102S is designed for use in areas such as nursing home TV
lounges where it allows hearing aid users to enjoy TV/radio broadcasts.
It includes an APS scart lead, an APL dual phono Outreach connection
plate, 30m of loop cable and two ‘Loop in Use’ stickers.
Specifications:
PDA-102C/L/R/S
Rated supply voltage and frequency
230v AC @ 50/60Hz
Rated power consumption 20W
Maximum r.m.s. output current 2.1A
Maximum peak output current 2.8A
Maximum r.m.s. load voltage 5.5V
Total harmonic distortion <0.1%
Maximum area of a square loop 49m2 (7m x 7m)
Recommended loop conductor size 0.5mm2 @ <35metres loop length or 1.0mm2 @ >35metres
to <50metres loop length (inc. tails)
Recommended number of turns 1
Frequency response –3dB 120Hz ~ 5kHz as per IEC 60118-4
Input signal level Mic: -50dBV Unbalanced, Outreach: -10dBV balanced (referenced to
full output 1kHz sine wave into 1W load with controls at max.)
Input impedance Mic: 1kW; Outreach: 20kW
Microphone phantom power 9v DC
Signal to noise ratio -62dB
AGC Ratio 2:1
Amplifier mode
True Current Mode
Control & indicator labels / functions
Green Power LED, Red Limit LED, Red Peak LED, Limit control,
Drive control
Special features Outreach plate connector allowing the connection
of up 10 outreach plates
Connections Mains - IEC Socket 230v 20W;
Loop Output - 2 Way Push Terminal;
Outreach – 4 Way Plugable screw terminal;
Microphone – 3.5mm mono jack socket
Dimensions 136(W) x 56(H) x 175(D) mm
Weight
1.25kg
[email protected]
+44 (0)115 977 0075
Portable P.A.
Microphones
(Wireless)
Microphones
(Wired)
Model:
Soundfield
The PDA102 Series is fully compatible with SigNET’s unique ‘Outreach Plate’
audio input extension system. This system allows the connection of multiple
microphone or line level inputs via a range of specially designed single gang
connector plates covering the most common variants of audio connector
including XLR line, XLR mic., 3.5mm jack, dual phono and 1/4” jack.
A maximum of 10 plates (any mix) can be daisychained to the amplifier’s
Outreach socket using standard two pair audio cable such as Belden 8723.
181
Induction Loops
Outreach Compatible:
Loudspeakers
Amplifiers
• DL50/K: Domestic Induction Loop System
(50m2 coverage)
SigNET’s DL50/K domestic loop amplifier kit includes everything you
need to create a high quality stand-alone induction loop system for
a bedroom, living room, TV lounge or study.
Audio Signal
Processing
Carefully designed to sit discreetly alongside all types of audio-visual
equipment, the amplifier features one set of phono inputs (for direct
connection to television sets, etc), two microphone inputs and an alert
input (for connection to fire alarms, doorbells, etc).
Screwdriver-adjustable drive, level, mix and tone controls are provided,
allowing the system to be tailored to suit the exact requirements of any
room, with installation further aided by the provision of a headphone
socket, output current meter, input peak LED and an easy-to-follow
installation guide.
• Kit includes: 1 x DL50 induction loop amplifier
1 x Plug-top power supply
1 x 33m reel of induction loop cable
1 x SCART-to-double-phono audio lead
1 x Microphone c/w mounting attachments
1 x Microphone c/w mounting attachments
• Free-standing - ideal for bedrooms, living rooms, TV lounges, studies and
other domestic applications
• Simple to adjust, tamper-resistant drive, level, tone and mic. priority
controls
• Input peak, output current, signal present and power on LEDs
• Alert tone input for doorbells, fire alarms, security systems, etc.
• Attractively-designed amplifier provides max. square room coverage
of 50m² (7m x 7m) or max. rectangular room coverage of up to
100m² (5 x 20 m) (Longer lengths of loop cable may be required
for rectangular rooms)
• Headphone socket aids system set-up
• Connections provided for two 3.5mm electret microphones (one mic. is
provided in the DL50/K kit) and one SCART-todouble-phono audio lead
(other leads are available for purchase if required)
• Automatic compressor limiter
• Full 2W drive current capability for increased coverage at higher frequencies
• Fully compliant with EN60118-4 (formerly BS6083) and BS7594:1993
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Features:
Soundfield
Specifications:
Induction Loops
Typical DL50/K domestic TV lounge application
182
Shop online now at: www.
.com
Model:
DL50/K
Type Free standing, Plugtop mains lead supplied
Coverage 50m² approx.
Inputs:1kHz 2 x 3.5 mm microphone sockets, 1 x dual phono (line) socket,
1 x alert
Indicators Input level; loop current meter; power on
Controls Input level, loop drive, tone, microphone priority
Kit Content DL50 amplifier, plug-top power supply, 33m of loop cable,
SCART-to-double-phono lead, AMT microphone, ‘AFILS fitted’ sticker
Dimensions 185(W) x 40(H) x 85(D) mm
Weight 0.55kg
Loudspeakers
Amplifiers
• PDA200E: Wall-mounting Induction Loop
Amplifier (120m² coverage)
The PDA200E has revolutionised the induction loop marketplace by
bringing the ability to understand, install and appreciate the technology
involved to a whole new client base.
Audio Signal
Processing
Straightforward internal screw connectors and preset controls mean
no specialist audio experience or audio connectors are required. By
following the simple set-up procedure, no further adjustments are
necessary, allowing a top quality assistive listening system for the
hard of hearing to be set-up in its entirety by new and experienced
installers alike.
No less than four easy-to-access inputs are provided:
• Balanced/unbalanced mic (with phantom power for use with
electret mics)
• Balanced/unbalanced line (for the connection of TV and other
audio feeds)
• Ideal for meeting rooms, lecture theatres, churches, schools, TV lounges,
shops and other small to medium sized applications
• Provides max. square room coverage of 120m2 (11 x 11 m) or max.
rectangular room coverage of 250m2 (10 x 25 m)
• Straightforward internal screw connectors
• Wall mountable for permanent installation – ideal for schools and colleges
where rooms are often left unsupervised
• Internal tamper-resistant drive, level and tone controls
• One balanced/unbalanced microphone input
• One balanced/unbalanced line level input
• Alert tone switch input for doorbells, fire alarms, security systems, etc
• 100v line input for PA system connection
• Fully automatic compressor-limiter
• Full 2W drive capability for increased coverage at higher frequencies
• Compatible with SigNET’s unique ‘outreach plate’ input extension system
• Available in a variety of kit formats to suit a host of typical loop installations
• Fully compliant with EN60118-4 (formerly BS6083) and BS7594:1993
PDA200E
Three 5mm screw connector inputs are available - mic., line & 100v. If more than one is used, the
signals are mixed
MICROPHONE
Input impedance 600W balanced/unbalanced
Sensitivity 2 ~ 5mv (-46dB to -50dB)
Phantom 12v
Audio System
Tools
Features:
Model:
LINE
Input impedance >10kW balanced/unbalanced
Sensitivity 0dBv (300mv rms to 1.5v rms)
100V LINE
Input impedance 200kW
Sensitivity +40dBv
ALERT Closing a volt-free switch across this input generates a 2kHz tone
through the loop.
Outputs:
Model:
PDA200E
Type Current mode
Loop connector Screw connector
Cable 1.0-2.5m2
Loop coverage (square room) 120m2 max. (e.g. 11 x 11 m)
Loop coverage (rectangular room) Up to 250m2 when shortest side of loop is no greater than 10m
(e.g. 10 x 25 m)
Loop drive current 4A peak; 1.8A average
Loop impedance 0.2 ~ 2W @ 1kHz
Model:
PDA200E
Mains voltage 230v AC
Power consumption <80vA
Fuses Internal mains input fuse 1A 20 mm (HRC)
Bandwidth 40Hz ~ 8kHz
Input dynamic range 36dB
Distortion <0.5% THD
Portable P.A.
Specifications:
Microphones
(Wired)
The amplifier’s state-of-the-art current drive audio processing
circuitry includes an automatic compressor/limiter which maintains
the loop signal within a small dynamic range to improve intelligibility.
Manual adjustments can also be made using the amplifier’s internal
tamperresistant drive, level and tone controls, allowing the system to
be tailored to suit the exact requirements of any room.
Inputs:
Microphones
(Wireless)
alarms, etc)
• 100v line (for the connection of PA system audio feeds)
Audio Signal
Generation
• Alert tone switch (a tone generator for use with doorbells, fire
Input peak (limit); output drive (1,2,3 peak current); power on (power)
User controls One level control, adjustable between -35dB to +0dB for both line
and microphone
One output drive control, giving a loop current adjustable between
40mA & 2.1A
One mid-range cut & boost tone control
(frequency = 1kHz; cut= -17dB: boost =+17dB)
Dimensions
273(W) x 200(H) x 77(D) mm
Weight
2.9kg
[email protected]
+44 (0)115 977 0075
183
Induction Loops
A typical PDA200E meeting/seminar room
installation using items supplied in our AKM1 kit
LED indicators Soundfield
The PDA200E includes an amplitude compression stage that limits overload and has a dynamically
variable ratio from 1:1 to10:1
Loudspeakers
Amplifiers
Audio Signal
Processing
Audio Signal
Generation
• PDA200/2: Professional Induction Loop
Amplifier (200m2 coverage)
• PDA500/2: Professional Induction Loop
Amplifier (500m2 coverage)
• PDA1000/2:Professional Induction Loop
Amplifier (900m2 coverage)
This professional range of current mode audio-frequency induction
loop amplifiers offer outstanding sound quality at a competitive
price.
Each amplifier includes one balanced microphone input and one
switchable balanced mic. or line level input, both of which will accept
standard 3 pin XLR connectors. Optional 11v phantom power is also
available on both inputs to allow the use of electret or condenser
microphones.
By popular demand, each amplifier also features a four-way ‘Outreach’
input offering full compatibility with SigNET’s unique Outreach Plate
audio input extension system. This system allows the connection
of up to 10 additional microphone or line level inputs via a range of
specially designed single gang connector plates.
Other features include three level controls (one for each input), a loop
drive control, an output current meter and a ‘compression’ activity
display giving visible indication of the amplifier’s compressor.
• Ideal for theatres, cinemas, churches, conference halls and other
applications where top quality sound is a must
• Attractive free-standing design (optional wall and 19” rack-mounting kits
available)
• Improved drive current capability provides up to 50% extra coverage
• Two XLR 3 pin input sockets - one balanced mic. and one switchable
balanced mic./line
• Optional 11v phantom power available for electret or condenser
microphones
• ‘Outreach’ input allows the connection of up to 10 additional mic. or line
level inputs via a series of separately available single gang connector plates
• Adjustable level controls provided for all inputs - can be used individually
or together as a three-input mixer
• Adjustable drive control allows the loop current to be adjusted to suit a
room’s individual characteristics
• Metal compensation control helps offset the frequency response problems
associated with excessive metal in a building
• True output current meter
• Visible indication of the amplifier’s compressor action via two LEDs
• 3.5mm headphone socket allows true monitoring of the output signal
• Advanced audio signal processing with automatic gain control
• On-board cooling fan on PDA500/2 and PDA1000/2 promotes stable
operating temperature and increased reliability
• All models designed to meet or exceed the requirements of BS7594 and
EN60118-4 when correctly installed
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Features:
Induction Loops
Typical PDA Pro-Range place of worship application
184
Shop online now at: www.
.com
Pro-Range Amplifier
Max Sq. Room Coverage
Max 2:1 aspect ratio
coverage
PDA200/2
200m2
240m2
PDA500/2
500m2
600m2
PDA1000/2
900m2
1100m2
Specifications:
Model:
PDA Pro Range
Type Free-standing (optional wall or 2U 19” rack mount kits available);
plugtop IEC mains lead provided
Coverage 200m² (PDA200/2); 500m² (PDA500/2); 900m² (PDA1000/2)
Inputs:1kHz 2 x XLR (one mic; one mic/line) and one outreach connector
Indicators Loop drive meter; compression (high/low); power on
Controls 3 x input level controls, loop drive, metal compensation, on/off switch
Output type Current mode
Loop connector Four way binding posts
Recommended loop
impedance 0.5 ~ 1W @ 1kHz. Will drive higher impedance loops with
reduced area of coverage
Loop drive current @ 1W PDA200/2: 6A, PDA500/2: 9A, PDA1000/2: 12A
Peak loop drive current
(Measured over 5mS
integration time)
PDA200/2: 8 Amps @ 1W, 13 Amps @ 0.5W,
PDA500/2: 12 Amps @ 1W, 19 Amps @ 0.5W,
PDA1000/2: 14 Amps @ 1W, 24 Amps @ 0.5W
Headphones 3.5mm jack socket allows monitoring of the loop signal
via >32W headphones
Maximum area coverage For a 400mA/M field strength ± 1dB
PDA200/2 @ 6A max short term current: Square room = 200m²;
Rectangular room (2:1 aspect ratio) = 240m²
PDA500/2 @ 9A max short term current: Square room = 500m²;
Rectangular room (2:1 aspect ratio) = 600m²
PDA1000/2 @ 12A max short term current: Square room = 900m²;
Rectangular room (2:1 aspect ratio) = 1100m²
Performance Frequency response: 20Hz ~ 14 kHz + -3dB; Distortion: Less than
0.5%, S ~ N ratio: Better than –65dB any input
Metal Compensation True 3dB/octave design counteracts frequency dependent absorption
by metal in the proximity of the installation over a bandwidth of
approximately 100Hz ~ 10kHz
Dimensions 380(W) x 80(H) x 220(D) mm
Weight 3.74kg (PDA200/2) / 3.46kg (PDA500/2) / 4.54kg (PDA1000/2)
Loudspeakers
Amplifiers
• FPROK: Fosmeter Induction Loop Test Kit
SigNET’s new FPROK Fosmeter Pro induction loop test kit is designed
to simplify the setup of an induction loop system and ensure its
compliance with the latest version of BS EN 60118-4 (Magnetic
field strength in audio-frequency induction loops for hearing aid
purposes).
The kit includes the FPRO Fosmeter Pro induction loop tester
(pictured right), an MP3 player c/w pre-loaded test tones and a set
of headphones.
Audio Signal
Processing
The Fosmeter Pro is a 400mA magnetic field strength meter and loop
listener, complete with circuitry for measuring background noise,
frequency response and metal compensation. It includes:
• A digital LCD display with a user-friendly interface to
simplify testing
•Two ‘soft’ buttons which dynamically change their functions to
suit the menu options being accessed
Audio Signal
Generation
•Battery low indication and an auto-power off function that kicks in
after 10 minutes of Fosmeter inactivity
•A 3.5mm headphone jack socket allowing users to listen to
the loop signal using a set of HEAD1 headphones (supplied
in FPROK kit)
The unit is powered from a 9v PP3 battery (provided) and is supplied
in a protective canvas carrying case.
Test Menus:
Field strength
Background Noise
Good
Acceptable
-41.8 dB L
+0.2 dB L
Hold
Frequency Resp.
Exit
Hold
Exit
-12
100Hz
Hold
-10
1kHz
-13
5kHz
Exit
2
4
8
Exit
Microphones
(Wireless)
1
Hold
Portable P.A.
• RXti2: Induction Loop Receiver
The RXti2 Induction Loop Receiver picks up audio signals from the
loop through a pair of headphones (not supplied) and allows the signal
quality to be assessed for testing purposes.
Designed to allow installers and the non hard of hearing to test and
assess the quality and availability of a loop system. The RXTi2 may
also be used in non hard of hearing applications such as multi-lingual
translations, museum talk-through systems and stage talk-back
systems.
Soundfield
Features:
• Soft start function
• 50Hz filter (to cut out mains hum pick up)
• Compact size
• 3.5mm headphone socket (for headset / earbud)
• Powered by 2 x AAA batteries
Microphones
(Wired)
Metal Comp.
CAUTION: The audio output from the RXTi2 can exceed 100mW into 8W. This may
cause hearing damage with long term exposure. Care should be taken not to use
excessive volume when testing loop systems.
[email protected]
+44 (0)115 977 0075
185
Induction Loops
The Fosmeter Pro’s test results are typically shown on its LCD as shown
right. A summary of these tests appears below:
• Field Strength Test: Detects a pulsed 1kHz signal in accordance with
BS EN 60118-4, calibrated at 400mA/m = 0dB L.
• Background Noise Test: Advises if the signal is acceptable, tolerable or
too high in accordance with BS EN 60118-4.
• Frequency Response Test: Detects 100Hz, 1kHz and 5kHz in
accordance with BS EN 60118-4. All three frequency readings are
displayed on the same screen allowing you tell at a glance if the setup
is within the +/- 3dB L required by the standard.
• Metal Compensation Test: This test goes beyond the scope of
BS EN 60118-4 but adheres to the 3rd octave frequency spectrum
advised in the standard, measuring 1kHz through 8kHz. For use with
amplifiers with metal compensation controls/functions such as the
PDA200/2, 500/2 & 1000/2.
• Subjective Listening Test: This test is designed to ensure hearing aid
users receive an undistorted and clear signal in the covered area and is
performed using a set of headphones (supplied) plugged into the unit’s
headphone socket.
Audio System
Tools
One FPROK Kit (plus ancillaries such as MP3 player/amplifier
connection leads) is all it takes to ensure your loop installations comply
with current British Standards.
Loudspeakers
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
Amplifiers
• Outreach Plates:Audio Input Extension System
A range of wall, ceiling and desk mountable single gang audio input
plates specifically designed to increase the audio input capability of
any audio system. A total of six plates are available - one to suit virtually
every conceivable variant of audio input connector - and each featuring
a built-in mixer, pre-amp, input level control and balancing output.
Up to ten plates of any mix can be daisy-chained to one balanced line
level input with cable lengths in excess of 100m easily achievable using
standard two-pair audio cable (i.e. Belden 8723) with no recognisable
degradation of audio signal quality.
All plates are surface mountable on 25mm single-gang back boxes
and can be installed at the most convenient point on an installation,
thus overcoming the need for long and potentially hazardous
microphone/audio leads.
The system is ideal for conference centres, schools, leisure
complexes, etc., where the need to have separate and spatially
distributed audio inputs is a must.
An external DC power supply (Part No. APV) is available for standalone systems or for use with audio equipment that does not have a
12/24v auxiliary output.
Features:
• Can be connected to the balanced line level input of any audio system
• Fully cascadable – up to ten outreach plates can be daisy-chained to one
balanced line level input
• Plates can be located at any convenient point on an installation
• Standard two-pair audio cable is ideal for most applications
• Network lengths of 100m easily achievable with no degradation of sound
quality
• Built-in pre-amp, mixer and level controls included on all variants
• Overcomes the need for excessively long microphone and audio leads
• 12 ~ 32v DC operation
• +6dB overload capability
• Surface mountable on 25mm UK single gang back boxes
• Effectively acts as a multi-point distributed mixer with individual level
controls
• Optional wall-mounting ‘AFILS ACTIVE’ and magnetic field strength
indicators available for use with audio-frequency induction loop systems
A typical outreach plate system (shown connected to an
audio-frequency induction loop amplifier)
Induction Loop
Amplifier
APF
Magnetic Field
Strength Meter
Balance Line Input
Standard Two-Pair
Audio Cable
(Belden 8723
or similar)
APM
APL
Self-Contained
Dual Phono
Omni-Directional Mic Line Level Plate
Scart Input
From TV
Optional APV 12v 250mA
PSU (for stand-alone system
or for use with amplifiers
that do not have an auxilary
12/24v output)
Power Requirements:
Supply volts 12 ~ 32v
Supply current 12 ~ 15mA
Common Specifications:
Common outreach plate characteristics between balanced line in
and balanced line out
Input - balanced/unbalanced
line
1v (0dBv)
Output - balanced line 1v (0dBv) + 6dB (overload)
Frequency response 40Hz ~ 20kHz
Input impedence >10KW
Output impedence <100W
Insertion loss/gain < ± 0.05dB
Insertion signal to noise ratio >95dB
Insertion THD + noise <0.01%
186
Shop online now at: www.
API
‘Afils Active’
Indicator
APJ
3.5mm Mono
Jack Plate
APXL
XLR Line
Level Plate
APO
¼” Stereo
Jack Plate
Desktop
Microphone
Audio Feed From
Mixing Desk
Handheld
Microphone
Individual Outreach Plate Specifications:
Model:
APJ Plate
APL Plate
APQ Plate
Input signal level -50dBv (5mv mic) -12dBv ~ +6dBv -50dBv (5mv mic)
Gain 55dB +6dB 55dB
Level control 0 ~ -46dB -30dBv to +6dB 0 ~ -46dB
Input impedance 500W >10kW 500W balance
Phantom volts 0, 8v (link select) n/a 0, 8v (link select)
Signal to noise ratio >75dB >92dB >75dB
THD + noise <0.02% <0.1% <0.02%
Model:
APXM Plate
APXL Plate
APM Plate
Input signal level -50dBv (5mv mic) -12dBv to +6dBv n/a
Gain 55dB +6dB 55dB
Level control 0 ~ -46dB -30dBv ~ +6dB 0 ~ -46dB
Input impedance 500W balanced >10kW n/a
Phantom volts 0, 8v (link select) n/a n/a
Signal to noise ratio >75dB >92dB >75dB
THD + noise <0.02% <0.1% <0.02%
.com
Loudspeakers
Amplifiers
• System Overview
The system normally has two inputs per outreach plate - a balanced line level input from the
previous outreach plate and its own adjustable input. These inputs are mixed in a way that
ensures the input from the previous stage is virtually unaffected whilst generating a composite
signal for the output in the form of a balanced line level signal.
As very low levels of insertion loss and signal-to noise ratios can be guaranteed and the inherent
interference advantage of having balanced and floating line level inputs and outputs, very long
lengths of interconnecting cable may be used without significantly degrading the signal.
Audio Signal
Processing
This, coupled with the system’s cascadability, allows the designer to effectively ‘tailor make’ a
distributed multiple input mixer that is compatible with virtually any audio system.
The Outreach Plate range:
Up to ten of the following outreach plates (any mix) can be daisy-chained to an audio system’s balanced
line level input:
Audio Signal
Generation
• APJ: 3.5mm Jack Outreach Plate
Accepts balanced or unbalanced microphones with 3.5mm mono jack plugs. Includes an
onboard mic-to-line level converter, high gain pre-amplifier and 8v phantom power.
• APL: Dual Phono Line Level Outreach Plate
Audio System
Tools
Accepts two line-level signals (usually from a stereo source such as a TV, CD, MP3 or DVD).
Includes an on-board dual phono to mono converter. An ALS SCART to dual phono lead is
also available to facilitate the connection of TVs, VCRs, etc, to the APL.
• APQ: ¼” Jack Outreach Plate
Accepts balanced or unbalanced microphones with 1/4” jack plugs. Includes an on-board
mic-to-line level converter, high gain pre-amplifier and 8v phantom power.
Microphones
(Wired)
• APXM: XLR Microphone Level Outreach Plate
Accepts balanced or unbalanced microphones with standard 3 pin female XLR connectors.
Includes an on-board mic-to-line level converter, high gain pre-amplifier and 8v
phantom power.
• APXL: XLR Line Level Outreach Plate
Microphones
(Wireless)
Accepts standard 3 pin female XLR feeds from audio equipment such as stage or church
mixing desks, etc.
• APM: Omni-Directional Plated Mic Outreach Plate
A self-contained omni-directional electret microphone complete with on-board mic-to-line
level converter. Ideal for mounting in ceilings, walls or desks, the unit offers excellent coverage
(typically up to 25m2 when located at a ceiling height of 2.5 ~ 3 m).
Portable P.A.
Ancillary Devices:
Should the Outreach network be connected to an induction loop system, any of the following
ancillary devices can be added:
• API: ‘AFILS Active’ Outreach Plate
• APF: Field Strength Meter Outreach Plate
Indicates the magnetic field strength generated by an induction loop system via three LEDs,
labelled +6dB, 0dB and –6dB. The LEDs illuminate as appropriate whenever a signal is present
and can be easily set up to indicate the magnetic field strength in the room centre.
[email protected]
+44 (0)115 977 0075
187
Induction Loops
Soundfield
Includes two ultra-bright LEDs in a translucent diffuser overprinted with the induction loop
‘ear’ symbol. The LEDs illuminate when the outreach network is powered to indicate that an
AFILS system is installed. Current consumption is 30mA max.
Loudspeakers
Amplifiers
• PL1/K1: Portable Induction Loop System
(1.2m² coverage)
With more than 10% of the population suffering from some kind of
hearing impairment, the PL1 is the ideal portable device to ensure that
your environment meets the standards laid out by the DDA.
Made from durable ABS plastic, the unit is lightweight and tough
enough to be transported and an integral battery allows the unit to
be used in most environments.
The unit will cover an area of 1 ~ 2 m² and uses an integral microphone to
pick up speech and conversations, (however, an external microphone
may be added if required). Built-in ‘cut-off timer’ automatically shuts
down the system after 10, 30, 60 minutes if the unit is not being used,
helping to maintain battery life for prolonged use.
Features:
• Ideal for restricted person-to-person contact in areas such as banks, post
offices, small meeting rooms, reception desks, open plan offices and
ticket booths
• Portable, lightweight design means the system can be moved easily from
location to location
• Simple one button operation
• Integral high performance microphone
• Five years’ expected battery life under normal operating/charging
conditions
• Auto shut-off facility (user selectable for 10, 30 or 60 minutes) helps
preserve battery life
• Unit can be used as normal whilst charging from the mains
Typical PL1/K1 meeting room application
Typical PL1/K1 counter / ticket booth application
Specifications:
Induction Loops
Soundfield
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
The attractively designed PL1 can be used in schools, shops, nursing
homes, leisure centres, hotels, banks, GP surgeries, reception desks
as well as many other private, public or civil applications where there
is no permanent loop facility installed.
188
Shop online now at: www.
.com
Model:
PL1/K1
Type
Portable
Coverage
1.2m2 approximately
Inputs
2 x mic (one built-in mic. and one 3.5mm remote mic socket
for AMT or AMD mics)
Indicators
Power on; input level; charging required; charging in progress, audio
warning of imminent shutdown
Controls
On/off button; adjust auto-shut off timer
Dimensions
250(W) x 100(H) x 300(D) mm
Weight
1.7kg (including battery)
Loudspeakers
Amplifiers
• IL-PL20: Portable Induction Loop System
(1.2m² coverage)
The Contacta Portable Induction Loop System has been designed
specifically to aid communication with people with hearing difficulties
who wear a hearing aid featuring a ‘T’ facility. The system consists
of two components; the main unit, stylishly constructed from robust
ABS plastic, and a plug-in power adaptor.
Audio Signal
Processing
It incorporates a rechargeable battery system to maintain performance
at its peak and will give a minimum of 8 hours use. The battery life is
monitored at all times using standby mode, incorporating a two colour
display to show battery status. The display also shows that the unit is
operational as it flashes in conjunction with any sounds present.
The unit is fully operational at all times and may still be used when
recharging becomes necessary. An in-built socket allows for
expansion using optional boundary microphones, etc. The IL-PL20
Portable Induction Loop is easy to carry and can be easily set up for
use in a matter of seconds.
• Simple, stylish, robust design
• Lightweight and easy to carry
• In-built microphone and rechargeable battery
• Provides a minimum of 8 hours usage
• Battery status & operation LED display
• Microphone input for optional expansion boundary microphone
• Set-up for use in a matter of seconds
Storage Shelf: IL-PL26
Microphones
(Wired)
Audio System
Tools
Soft Carry Case: IL-PL25
Rigid Carry Case: IL-PL24
Audio Signal
Generation
Features:
Model:
IL-PL20
Internal Microphone Electret
Connections:
Auxiliary Microphone Power 2.5mm Jack plug
2.1mm Jack plug
Controls: Power On Rocker switch
Output Voltage 12v DC
Battery Life 8 hours (min)
Dimensions 275(W) x 250(H) x 110(D) mm
Weight 1.6kg (including battery)
Microphones
(Wireless)
Specifications:
Portable P.A.
• IL-PL21: External Boundary Microphone
[email protected]
+44 (0)115 977 0075
189
Induction Loops
Soundfield
Only for use with the IL-PL20 InfoLoop and IL-CL10 Clipboard Loop,
this microphone features a notch filter for use when magnetic security
fields are present.
Loudspeakers
Amplifiers
• IL-CL10: Clipboard Portable Induction Loop
(1.2m2 coverage)
Designed for highly discreet communication with those with hearing
difficulties who wear a hearing aid featuring the ‘T’ facility.
Made from high impact ABS the unit is lightweight and includes internal
battery (lasts up to 8 hours on a single charge), microphone and LED
indicators which show if the unit is active or needs recharging.
Features:
• Simple, very discreet, robust design
• Lightweight and easy to carry
• In-built microphone and rechargeable battery
• Battery status & operation LED
• Microphone input for optional expansion boundary microphone
(Part No. IL-PL21)
• Set-up for use in a matter of seconds
Portable P.A.
Microphones
(wireless)
Microphones
(wired)
Audio System
Tools
Audio Signal
Generation
Audio Signal
Processing
Ideal for small group and one-to-one applications such as schools,
colleges and training rooms, as well as interviews, doctors surgeries,
customer service counters in retail, banking and public buildings.
Induction Loops
Soundfield
Specifications:
190
Shop online now at: www.
.com
Model:
IL-CL10
Integral Microphone Electret
Connections:
Auxiliary Microphone Power 2.5mm Jack plug
2.1mm Jack plug
Controls: Power On Rocker switch
Output Voltage 12v DC
Battery Life 28 hours (max)
Dimensions 230(W) x 320(H) x 40(D) mm
Weight 1.02kg (including battery)
Loudspeakers
Amplifiers
• STS-K001L: SecuriCom Thru’ Glass Speech
Transfer System - Bridge Bar with Loop
• STS-K002L: SecuriCom Thru’ Glass Speech
Transfer System - Surface Mount with Loop
• STS-K003L: SecuriCom Thru’ Glass Speech
Transfer System - Flush Mount with Loop
Audio Signal
Processing
Contacta SecuriCom™ systems enable clear voice communication
between customers and service staff through glass security screens.
Transactions can therefore be conducted efficiently and confidentially
– without difficulty or delay – even in noisy environments. So business
throughput and profitability can be maximised – and customer goodwill
enhanced.
Every SecuriCom™ system uses the most advanced electronic
circuitry. Its purpose-designed speaker and microphone modules
ensure superb voice reproduction and reliable performance – year
after year. Fitting is very straightforward, whether as part of a new build
project or into existing counter facilities. Each system is stand-alone
and individually plugged into the mains supply.
Audio Signal
Generation
STS-K001L
In use, it is hands-free for both staff and customer and is designed
to remain ‘ON’ continuously during service hours. Communication is
fully ‘duplex’, so there is no clipping of speech.
To provide communication assistance for users of hearing aids, any
SecuriCom™ installation can be integrated with an Induction Loop
system. This will aid compliance with the Disability Discrimination
Act 1995.
Microphones
(Wired)
• Police stations
• Post offices
• Prisons and detention centres
• Reception counters
• Specialist vehicle applications
• Stations and airports
• Theatre information and sales kiosks
...and many more
Features:
• For use in noisy environments which require communication privacy
• Proximity microphones on both ‘staff’ and ‘customer’ side of screen
• Optimal voice pick-up with minimum background noise
• Easy installation: particularly suitable for retro-fitting
Portable P.A.
Microphones
(Wireless)
STS-K002L
Model:
STS-K001L / STS-K002L / STS-K003L
Coverage
Up to 1.2m²
Operating Current
1A
Speaker Impedance
4, 8W
Field Strength
Conforms to BS 6803 Pt14:1981
Quiescent Current
>50mA
Harmonic Distortion
Typically >0.02%
Power Requirement
Audio Amplifier -12v DC
Soundfield
Specifications:
Need help choosing the right product?
Call our technical support team now on:
Tel. +44(0)115
977 0075
+44 (0)115 977 0075
[email protected]
191
Induction Loops
• Banks and building societies
• Benefit agencies
• Booking offices
• Bureaux de change
• Consulates and embassies
• Petrol stations
• High security environments
• Hospitals and clinics
• Passport offices
Audio System
Tools
Typical Applications:
Christchurch Council Chambers
Christchurch Council Chambers in Dorset now benefits from greater clarity and flexibility during meetings, thanks to a
fully-integrated Clockaudio wireless conference system designed and built by the CIE-Group in-house technical services
team. The 40U rack features 14 x Clockaudio CW9000R UHF receivers, InterM QD amplifiers & EQs and induction loop
systems, together with integrated charging stations for the 14 CW9005T wireless boundary microphones.
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
AV Signal
Distribution
Faceplates
Cables
Connectors
194
Standard 19” Enclosures
195
Extra Deep 19” Enclosures
195
Accessories
195 ~ 200
Power Distribution Units
201 ~ 203
204
DVRs
Dedicated Rack Design
& Build Facility
Cameras
High Specification 19” Enclosures
Racks &
Cabinets
Brackets
• HT Series: High Specification 19” Rack
Enclosures
Hi-tech Series of 19” enclosures, supplied in self assembly (flat pack)
format for ease of transportation and storage.
Interactive &
Projectors
Manufactured in 2mm plate steel, the units are sturdy and robust
when assembled, with enclosures finished in RAL7035 (light grey) to
blend into any environment.
Adjustable 19” profiles in both the front and rear of the enclosure allow
flexibility for fitting equipment of various sizes into the housing.
A locking glazed door is also supplied to stop any unauthorised access
to the enclosure contents. Further standard features include height
adjustable feet, steel rear panel, removable access plate in bottom
of enclosure and venting in the sides and top panels to assist with
equipment cooling.
A full range of accessories is available (see pages 196 ~ 200).
• Self assembly (flatpack)
• High quality manufacture
• Adjustable 19” profiles (front & rear)
• Locking glazed door
• Adjustable feet
• Cable access via bottom plate
• Venting
• Stable when assembled
• 5 sizes available
Hi-tech rack cabinet, self-assembly kit, composed of:
• one base (L:595/D:525mm) with cable access (300 x 300 mm) and 4
attachments with M10 thread
• one roof (L:595/D:525mm) with cable access (200 x 100 mm), provided
to install up to 4 fans
• two sides with vent slots
• one rear cover panel
• one lockable steel door with plexiglass panel, which can be hung either left
or right handed as desired (2 x keys)
• four “omega”-section bars for adjustment in depth of vertical rack strips;
• four “L”-section vertical 19’’ rack strips
• four 90° fixing squares
• four adjustable levelling feet
• set of mounting hardware
• assembly instructions
DVRs
Cameras
Connectors
Cables
Faceplates
AV Signal
Distribution
Signage/3D
Features:
Specifications:
Model:
01511
01512
01513
01514
01515
Usable Height 12U 18U 22U 36U 40U
Master Pack A: 0.057m³, 22kg A: 0.057m³, 22kg A: 0.057m³, 23kg A: 0.057m³, 24kg A: 0.057m³, 24kg
B: 0.035m³, 18kg B: 0.055m³, 26.8kg B: 0.068m³, 31.3kg B: 0.071m³, 20kg B: 0.072m³, 27kg
C: 0.072m³, 21.6kg C: 0.071m³, 24.5kg
Mounting Height 1600mm 1778mm
532mm 800mm 978mm External Height 616mm 884mm 1062mm 1684mm 1862mm
Internal Depth 450mm (max) 450mm (max) 450mm (max) 450mm (max) 450mm (max)
External Depth 525mm 525mm 525mm 525mm 525mm
Weight 37.6kg 46.5kg 53.3kg 60.9kg 70.8kg
194
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• LP Series: Standard 19” Rack Enclosures
Euromet’s cost-effective range of 19” enclosures, supplied in
self-assembly (flat pack) format for ease of transportation and
storage.
Manufactured in 2mm plate steel, the units are sturdy and robust when
assembled and are finished in RAL9005 matt black. Fixed 19” profiles
are standard in the front and back of the enclosure.
Interactive &
Projectors
Other features include height adjustable feet and louvred venting and
removable vented rear panel to assist with cooling of the installed
equipment.
A full range of accessories is available (see pages 196 ~ 200).
Features:
AV Signal
Distribution
Signage/3D
• Self-assembly (flat pack)
• High quality manufacture
• Adjustable feet
• Venting
• Removable rear panel
• Available in 5 different sizes
• Stable construction
• Optional glazed door (supplied as option, see below)
Model:
01226 01227
01228 01229 01230
Usable Height 8U 12U 18U 22U 26U
Master Pack 0.036m³, 20kg 0.04m³, 23.50kg 0.059m³, 28kg 0.059m³, 31.5kg 0.064m³, 33kg
External Height* 400mm 578mm 843mm 1022mm 1200mm
Internal Depth** 435mm 435mm 435mm 435mm 435mm
External Depth 500mm 500mm 500mm 500mm 500mm
Weight 11.2kg 22.6kg 26.8kg 30.3kg 31.7kg
Faceplates
Specifications:
*External height dimensions without wheels or feet
**When used with the Inter-M range of products the optional door will not fit to the front of the enclosure without the removal of the equipment’s mounting handles.
Featuring extra deep internal useable depth (535 mm as opposed
to the standard 435mm) the 19” Enclosures provide greater flexibility
and space for work / equipment.
In addition, if required the 12U and 18U units can be ‘stacked’ to
make a 30U Enclosure.
Specifications:
Model:
05370
05371
Useable Height
12U
18U
External Height
578mm
846mm
Internal Depth
535mm
535mm
External Depth
640mm
640mm
Cables
• Extra Deep 19” Rack Enclosures
Connectors
• Enclosure Door Options
Lockable plexiglass doors, supplied with 2 keys and matt nickel-plated
hinges with a maximum of 170° opening.
00540: 00541: 00542: 00543: 00544:
Master Pack Weight 1.7kg
2.68kg
3.7kg
4.59kg
5.25kg
Height
350mm
524mm
790mm
970mm
1150mm
Width
500mm
500mm
500mm
500mm
500mm
Weight 1.2kg
2.08kg
2.9kg
3.74kg
4.25kg
[email protected]
+44 (0)115 977 0075
195
DVRs
Model:
Cameras
Specifications:
Racks &
Cabinets
Brackets
• 00536: 1U Rack Shelf
Rack shelf manufactured from steel plate (1.5 mm), finished RAL 9005,
1U, for accomodation of non-19” mounting equipment.
Interactive &
Projectors
*Max load 40kg using this accessory:
Pair of horizontal
equipment supports:
00565
Signage/3D
Specifications:
Model:
00536
Thickness
1.5mm
Materials
Steel
Net Weight
2.2kg
Max Load
20kg *
AV Signal
Distribution
• 01911: 2U Rack Shelf
Rack shelf manufactured from steel plate (1.5 mm), finished RAL 9005,
2U, for accomodation of non-19” mounting equipment.
Faceplates
*Max load 40kg using this accessory:
Pair of horizontal
equipment supports:
00565
Connectors
Cables
Specifications:
Model:
01911
Thickness
1.5mm
Materials
Steel
Net Weight
2.35kg
Max Load
20kg *
• 01912: 2U Lockable Rack Drawer
Lockable rack drawer manufactured from steel plate (1.5/2 mm) with
telescopic slides, finished RAL 9005, 2U, for accomodation of tools,
handbooks and small spare parts. Comes with two keys.
DVRs
Cameras
Specifications:
196
Shop online now at: www.
.com
Model:
01912
Thickness
1.5/2mm
Materials
Steel
Net Weight
6kg
Max Load
20kg
Racks &
Cabinets
Brackets
• EU/R-P1: 1U Rack Front Cover Panel
Front rack cover panel, 1U, made of aluminium (2mm), finished
RAL9005, for blanking off unused sections.
Model:
EU/R-P1
Thickness
2mm
Materials
Aluminium
Colour
RAL 9005
Weight
0.15kg
Interactive &
Projectors
Specifications:
Signage/3D
• EU/R-P2: 2U Rack Front Cover Panel
Front rack cover panel, 2U, made of aluminium (2mm), finished
RAL9005, for blanking off unused sections.
Model:
EU/R-P2
Thickness
2mm
Materials
Aluminium
Colour
RAL 9005
Weight
0.27kg
AV Signal
Distribution
Specifications:
Faceplates
• EU/R-P3: 3U Rack Front Cover Panel
Front rack cover panel, 3U, made of aluminium (2mm), finished
RAL9005, for blanking off unused sections.
Model:
EU/R-P3
Thickness
2mm
Materials
Aluminium
Colour
RAL 9005
Weight
0.39kg
Cables
Specifications:
Connectors
• EU/R-P4: 4U Rack Front Cover Panel
Front rack cover panel, 4U, made of aluminium (2mm), finished
RAL9005, for blanking off unused sections.
EU/R-P4
Thickness
2mm
Materials
Aluminium
Colour
RAL 9005
Weight
0.53 kg
[email protected]
+44 (0)115 977 0075
197
DVRs
Model:
Cameras
Specifications:
Racks &
Cabinets
Front panel, 1U, in aluminium (2 mm), finished RAL 9005, punched
for ventilation.
Interactive &
Projectors
Brackets
• 00618: 1U Rack Front Ventilation Panel
Signage/3D
Specifications:
Model:
00618
Thickness
2mm
Materials
Aluminium
Colour
RAL 9005
Net Weight
0.14kg
Front panel, 1U, made of steel plate (1.2 mm), finished RAL 9005,
punched, for protection of projecting equipment.
Faceplates
AV Signal
Distribution
• 02014: 1U Rack Front Security Panel
Connectors
Cables
Specifications:
Model:
02014
Thickness
1.2mm
Materials
Aluminium
Colour
RAL 9005
Net Weight
0.35kg
• 02015: 2U Rack Front Security Panel
Front panel, 2U, made of steel plate (1.2 mm), finished RAL 9005,
punched, for protection of projecting equipment.
DVRs
Cameras
Specifications:
198
Shop online now at: www.
.com
Model:
02015
Thickness
1.2mm
Materials
Aluminium
Colour
RAL 9005
Net Weight
0.48kg
Racks &
Cabinets
Brackets
• 02012: 1U Plexiglass Security Rack Cover
Interactive &
Projectors
Front panel, 1U, made of steel plate (1.2 mm), finished RAL 9005,
with plexiglass window, to protect equipment. Avoids unauthorised
access.
Model:
02012
Thickness
1.2mm
Materials
Steel
Colour
RAL 9005
Net Weight
0.41kg
Signage/3D
Specifications:
AV Signal
Distribution
• 02013: 2U Plexiglass Security Rack Cover
Faceplates
Front panel, 2U, made of steel plate (1.2 mm), finished RAL 9005,
with plexiglass window, to protect equipment. Avoids unauthorised
access.
02013
Thickness
1.2mm
Materials
Steel
Colour
RAL 9005
Net Weight
0.59kg
[email protected]
+44 (0)115 977 0075
199
DVRs
Cameras
Connectors
Model:
Cables
Specifications:
Racks &
Cabinets
Brackets
• Hi-Tech Rack Upright Supports
Additional pair of ‘omega’-section 19’’ rack strips with fixing holes,
finished RAL7035. Permits fixing in different positions in depth on
‘omega’-section horizontal strips.
Guarantees additional support for heavyweight equipment.
Interactive &
Projectors
Specifications:
Model:
Hi-Tech Rack Upright Supports
Link With
Rack Series hi-tech
Thickness
2mm
Materials
Steel
Colour
RAL 7035
AV Signal
Distribution
Signage/3D
Specifications:
Model
Item Net Weight Height
01841
12U
Usable Height Pair Rack Hi-Tech Upright
12U, RAL7035
1.4kg
532mm
01842
18U
Pair Rack Hi-Tech Upright
18U, RAL7035
2.1kg
800mm
01843
22U
Pair Rack Hi-Tech Upright
22U, RAL7035
2.6kg
978mm
01844
36U
Pair Rack Hi-Tech Upright
36U, RAL7035
4.2kg
1600mm
01845
40U
Pair Rack Hi-Tech Upright
40U, RAL7035
4.7kg
1778mm
Faceplates
• 02021: Non-Lockable Rack Wheels
Specifications:
Model:
02021
Net Weight
0.24kg
Max Load
50kg
Connectors
Cables
• 02020: Lockable Rack Wheels
Specifications:
Model:
02020
Net Weight
0.24kg
Max Load
50kg
• 00565: Pair of Equipment Support Brackets
Pair of brackets made of steel plate (2mm), galvanized.
These bars guarantee an additional support of heavyweight equipment.
Fixed by coupling on ‘omega’-section uprights.
DVRs
Cameras
Specifications:
Model:
00565
Thickness
2mm
Materials
Steel
Treatments
Galvanization - Zincatura 8005
Net Weight
0.056kg
200
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• PDUA-MH1023-0801: 8 Port Monitored PDU - 10A
• PDUA-MH1623-0801: 8 Port Monitored PDU - 16A
This monitored Power Distribution Unit provides live current
consumption monitoring to its built-in current meter and remotely via
web interface.
Interactive &
Projectors
When current consumption exceeds the pre-set threshold, the
monitored PDU will send email alerts or ‘trap’ network notifications
and isolate the PDU to prevent damage to the system.
Free Power Management Software is bundled in with the PDU,
displaying power consumption and event data and allowing control
of power conditioning.
Features:
Specifications:
PDU
PDU
PDU
PDUA-MH1623-0801
8
8
Capacity 10A
16A
Input Voltage
230v
230v
Output Socket
IEC
Interface
Frequency
Remote Monitor with
Power Management Software
LED indicator
Rack
Rack
Rack
PDU
PDU
Warning: 1 beeps per second
Overload: 3 beeps per second
Circuit Breaker: triggered - continuously beeps
Meter
3 Digital Meter x 1
Range: 0A ~ 20A (true RMS)
Resolution: 0.1A
Precision: +/- 0.1 AMP
PDU
Operating Temperatures
Storage Temperatures
Humidity
Rack
Rack
Rack
Rack
50/60HZ full range
Yellow LED x 1 (Current Meter), Green LED x 1 (IP Address)
Alarm
Rack
LAN / WAN
HUB
PDU
IEC
RJ45: Ethernet for connecting to PC
Height
[email protected]
Cameras
PDU
PDUA-MH1023-0801
Number of Ports
0 ~ 40°C
-25 ~ 65°C
0 ~ 90%
44mm (1u)
+44 (0)115 977 0075
201
DVRs
System Racks with Monitored PDU installed
Model:
Connectors
Cables
Faceplates
AV Signal
Distribution
Signage/3D
• Built-in web server for real-time monitoring of current consumption
• Built-in true RMS current meter
• Audible alarm should power consumption exceed set threshold
• Email alert sent to remote monitor and powertrip, should power
consumption exceed set threshold
• Built-in circuit breaker
• Only 1U high and suitable for rack mounting
Racks &
Cabinets
Brackets
• PDUA-PH1623-0801: 8 Port Per-Outlet Monitoring PDU
This intelligent power management unit provides live current
consumption monitoring per power outlet port, reporting directly to the
unit’s built-in current meter and remotely via web interface.
Features:
• Per-outlet port consumption monitoring
• Built-in web server for real-time monitoring of current consumption
• Built-in true RMS current meter
• Audible alarm (should power consumption exceed set threshold)
• Email alert sent to remote monitor and power trips (should power
consumption exceed set threshold)
• Real time, remote on/off power control of each unit
• Built-in circuit breaker
• SNMP support
• Outlet and circuit status LED indicators
• Supports power-up sequence
• Only 1U high and suitable for rack mounting
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
When current consumption of any individual power port exceeds the
pre-set threshold, the POM PDU will send an email alert to the remote
monitor (such as a computer, tablet, etc) and will isolate the individual
outlet port to protect the system.
Cables
Specifications:
Connectors
System Racks with Monitored PDU installed
PDU
PDU
PDU
Remote Monitor with
Power Management Software
Rack
Rack
Rack
Rack
Cameras
LAN / WAN
HUB
PDU
Rack
DVRs
PDU
202
PDU
Rack
Shop online now at: www.
PDU
Rack
PDU
Rack
.com
Model:
PDUA-PH1623-0801
Number of Ports
8
Capacity 16A
Input Socket
1/EC 320 C20
Output Socket
8/EC 320 C13
Power Cord
1/EC 320 C19 to C20, 3 metres
Circuit Breaker
1/16 Amp
Nominal Voltage
160 ~ 320v
Voltage
230v
Frequency
47, 63Hz full range
Temperature
-5 ~ 45°C
Humidity
0 ~ 90%
Conformance
FCC, CE, Ready for the UL
Meter
RJ-45 for Ethernet / Supports up to 8 PDUs via RJ-11 / 1RJ-11 for
temperature/humidity detection / Reset for Hardware reset / 3Digits
+ 1Digit / Warning and Overload: 1 beep in 1 second/3 beeps in 1
second /
Range: 0A ~ 20A (true RMS) / Resolution: 0.1A /
Precision: /-2% +/-0.1 AMP / 1 digital for POM PDU identifcation
LED Indicator
Yellow LED:SSL is enabled
Green LED: IP address
Red LED: POM PDU connecting status
Dimensions
160(W) x 432(H) x 44(D) mm
Weight
6kg
Racks &
Cabinets
Interactive &
Projectors
Brackets
• PDUA-SH1623-0801: 8 Port SNMP Switched POM PDU with
Current Meter (horizontal)
• PDUA-SV1623-1601: 16 Port SNMP Switched POM PDU with
Current Meter (vertical)
• PDUA-SH3223-2403: 24 Port SNMP Switched POM PDU with
Current Meter (vertical)
The DataBay SNMP switched PDUs provide remote power
management solutions which allow I.T. administrators to monitor
servers and network devices should any power consumption issues
arise.
Signage/3D
These units allow remote and on-site power monitoring through event
alerts by email, ‘TRAP’ (network notifications) and audible alarm.
Each unit’s built-in digital current meter will indicate the total power
consumption of each power strip. Using the software supplied, these
units also provide remote on/off switching functionality.
Features:
Cables
Faceplates
AV Signal
Distribution
• Integrated web server manages real time current consumption of PDU
• Built-in true RMS current meter
• Easy set up, meter display IP address
• Audible Alarm - 2 separate warning audible signals for threshold warning
and overload
• Email and SNMP traps sent when power exceeds warning threshold or
overload threshold
• Free utility software for managing multiple PDUs
• Circuit breaker power protection
• Low profile, slim design makes it easy to mount in server cabinets
• Real time, remote on/off power control of each unit
• LED on each unit to indicate power status
• Power-on sequencing to avoid in-rush of power
Model:
PDUA-SH1623-0801
PDUA-SV1623-1601
PDUA-SV3223-2403
Number of Ports
8
16
24
Input Voltage 230v
230v
230v
Capacity
16A
16A
32A
Breakers
1CB
1CB
Frequency
LED Indicator
Audible
Meter
Operating Temperature
Storage Temperature
Humidity
3CB
RJ45 for Ethernet
50 ~ 60Hz full range
Yellow LED: SSL is enabled / Green LED: IP address
Warning: 1 beep per second
Overload: 3 beeps per second
Circuit Breaker: triggered-continuous beeps
3 Digitals
Warning and overload - Meter will flash once per second
Range: 0A ~ 20A (true RMS)
Resolution: 0A ~ 20A: 0.1A
Precision: 0.A ~ 20A: +/- 2% +/-0.1 Amp
Cameras
Interface
Connectors
Specifications:
0 ~ 40°C
-25 ~ 65°C
0 ~ 90%
[email protected]
+44 (0)115 977 0075
203
DVRs
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
AV Signal
Distribution
For many years, CIE-Group customers have also
benefited from our comprehensive Audio Rack
System Design & Build Service, to provide ‘ready
to install’ PA, VA and AV Racks in some of the UK’s
largest and most successful installations.
Using our extensive portfolio of professional audio products, our highly
skilled, UK-based Technical Services have a reputation for consistently
producing some of the UK’s highest quality, ready-to-install PA rack systems
to customers’ specifications.
There is no set limit to the size of system we can produce; anything
from a small single zone speech-only system, to a multi-zone system
combining speech and music. Monitoring and battery back-up can also be
accommodated by our in-house Technical Services Facility.
To ensure that we build your system to your specific requirements, we have
produced a technical questionnaire which, once completed by yourselves or
with our assistance, outlines requirements such as number of zones, music
sources, number of microphones, etc.
Each system is supplied assembled, wired and fully tested before leaving
our workshops. As part of the Build Package, each System is supplied with
a comprehensive operations manual incorporating user instructions for each
individual piece of equipment, a schematic drawing of the System, a visual
of the Rack layout and easy to use connection details. Finally, each System
is given a unique identification number specific to your installation which
allows our Technical Services Team to easily identify any system we have
assembled, to efficiently assist with any after sales service requirements.
Call the CIE-Group sales desk or your area representative on +44 (0)115 9770075 for advice, free UK site surveys and a highly
competitive quotation.
DVRs
Cameras
Connectors
Cables
Faceplates
Dedicated Rack Design
& Build Facility
204
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
AV Signal
Distribution
Faceplates
Cables
Connectors
208
LCD/TFT Display Brackets
209 ~ 213
Projector Brackets
214 ~ 217
Projector Tripod Stand
Cameras
Loudspeaker Tripod Stands
206 ~ 207
218
DVRs
Loudspeaker Brackets
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
• SB10: Low-Cost Loudspeaker Bracket
Low cost loudspeaker wall mounting bracket with 50 ~ 70 mm fixing
centres.
Specifications:
Model:
SB10
Tilt
15° up/down, pan/swivel: 90°
Maximum load weight
5kg
Weight
0.1kg
• 01463: Utility Swivel Loudspeaker Bracket
Wall-mounting bracket with wall plate (118 x 30 x 4 mm) and speaker
fixing plate (111 x 40 x 4 mm). This assembly swivels in the horizontal
plane and may also be tilted.
Lockable in optimum position by fixing the swivel nut.
AV Signal
Distribution
Specifications:
Model:
01463
Material Steel
Mount Rotates 180°
Maximum Load 5kg
Weight 0.55kg
Faceplates
• 01936: Loudspeaker Bracket
Wall-mounting bracket with wall plate (30 x 40 x 3 mm) and speaker
fixing plate (30 x 50 x 3 mm). This assembly swivels in the horizontal
plane and may also be tilted.
Lockable in optimum position by fixing the swivel nut.
DVRs
Cameras
Connectors
Cables
Specifications:
Model:
01936
Material Steel
Mount Rotates 180°
Maximum Load 5kg
Weight 0.15kg
• CIE-Group recommend that safety
cables are fitted with all wall-mounted
loudspeaker brackets.
Local regulations may be in force in certain areas concerning the safe
fixing of objects in public areas.
Specifications:
Model:
03279 03280 03281 03284
03518
Description Safety Wire Safety Wire Safety Wire Safety Wire
Security Clip
Gauge 3mm 3mm 3mm 1.5mm
-
Length 200mm 400mm 600mm 600mm
-
Supports 50kg 50kg 50kg 50kg
30kg
206
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• 00479: Medium Duty Speaker Bracket
Wall-mounting bracket featuring speaker fixing plate with 6 holes.
Model:
00479
Material Steel
Mount Rotates 360°
Maximum Load 10kg
Weight 0.8kg
Interactive &
Projectors
Specifications:
Signage/3D
• 00498: Adjustable Heavy Duty Speaker
Bracket
Adjustable wall-mounting bracket with arm L=260 mm and male
attachment H=120mm, 35(Ø) mm to hold speaker. The arm, with
an adjustable support to clamp the speaker, swivels in the horizontal
plane and may also be tilted.
AV Signal
Distribution
Position of support from the centre of male attachment min. 180mm,
max. 260 mm. Wall plate 250 x 140 mm with 4 holes 10(Ø) mm to
fix bracket.
Model:
00498
Material Steel
Mount Rotates 120°
Female Attachment Dimensions
36(Ø)mm
Male Attachment Dimensions
35(Ø)mm
Maximum Load 40kg
Weight 2.3kg
Faceplates
Specifications:
Cables
• 03433: Speaker Bracket with Rotational
Adjustment
Connectors
Adjustable wall-mounting bracket with 320 mm long arm and male
attachment (120(L) mm x 35(Ø) mm). Features progressive inclination
of 4° through a nylon wheel joint.
03433
Material Steel
Mount Rotates 120°
Male Attachment Dimensions 35(Ø)mm
Maximum Load 40 kg
Weight 2.1kg
[email protected]
+44 (0)115 977 0075
207
DVRs
Model:
Cameras
Specifications:
Racks &
Cabinets
Brackets
• 03180: Tripod Speaker Stand
Floor-standing with tripod legs and full aluminium structure. The 03180
features solid centre pole and extra strength bracketed supports
ensuring no breakage through twist or bend.
Height adjustable and lockable using nylon fixing clamp. Tripod
legs can be fully closed for minimum space requirement during
transportation.
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
Finished in black.
Specifications:
Model:
03180
Material Aluminium
Female Attachment Dimensions
36(Ø)mm
Male Attachment Dimensions
35(Ø)mm
Footprint Diameter 1000mm
Closed Length 1255mm
Min/Max. Height 1305 ~ 2250 mm
Maximum Load 40kg
Weight 3.4kg
Aluminium tripod stand with adjustable height using a nylon fixing
clamp. Comes with nylon flange with holes and slots for mounting
of speaker.
Fully closing tripod legs assist in space reduction during transit.
DVRs
Cameras
Connectors
Cables
Faceplates
• 00564: Tripod Loudspeaker Stand
Specifications:
Model:
00564
Material Aluminium
Female Attachment Dimensions
26(Ø)mm
Male Attachment Dimensions
25(Ø)mm
Footprint Diameter 880mm
Closed Length 950mm
Min/Max. Height 1090 ~ 1830 mm
Maximum Load 15kg
Weight 1.6kg
208
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• 04754: LCD/TFT Monitor Wall Bracket - White
Adjustable monitor wall bracket, nylon made. Plate 120 x 120 x
4 mm, 4 holes 4.5(Ø) mm distance 75 and 100mm, 4.5(Ø) mm
(Standard Vesa).
The monitor is tiltable (± 25°) working on the central part of the swivel,
fixable by its spanner which is supplied with the bracket. Wall plate
95(Ø) mm with 2 holes 4.5(Ø) mm, to fix bracket.
Signage/3D
Interactive &
Projectors
This support is fixable with all LCD/TFT monitors.
Model:
04754
Tilt Angle 50°
Materials Nylon Base/Steel VESA Plate
Treatment RAL 9010 White
Thickness 4mm
Closed Length
105mm
Max Load
5kg
Net Weight 0.98kg
AV Signal
Distribution
Specifications:
Faceplates
• 04929: LCD/TFT Monitor Wall Bracket - Black
Adjustable monitor wall bracket, nylon made. Plate 120 x 120 x
4 mm, 4 holes 4.5(Ø) mm distance 75 and 100 mm, 4.5(Ø) mm
(Standard Vesa).
The monitor is tiltable (± 25°) working on the central part of the swivel,
fixable by its spanner which is supplied with the bracket. Wall plate
95(Ø) mm with 2 holes 4.5(Ø) mm, to fix bracket.
Connectors
Cables
This support is fixable with all LCD/TFT monitors.
04929
Tilt Angle 50°
Materials Nylon Base/Steel VESA Plate
Treatment RAL 9005 Black
Thickness 4mm
Closed Length
105mm
Max Load
5kg
Net Weight 0.98kg
[email protected]
+44 (0)115 977 0075
209
DVRs
Model:
Cameras
Specifications:
Racks &
Cabinets
Brackets
• 04681: LCD/TFT Monitor Wall Bracket - White
Adjustable monitor wall bracket, steel made. Plate 120 x 120 x
3 mm, 4 holes 4.5(Ø) mm distance 75 and 100 mm, 4.5(Ø) mm
(Standard Vesa).
The monitor is tiltable (± 25°) working on the central part of the swivel,
fixable by its spanner which is supplied with the bracket. Wall plate
95(Ø) mm with 2 holes 4.5(Ø ) mm, to fix bracket.
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
This support is fixable with all TFT monitors.
Specifications:
Model:
04681
Tilt Angle 50°
Materials Steel
Treatment RAL 7035
Thickness 3mm
Closed Length
105mm
Max Load
15kg
Net Weight 1.77kg
Faceplates
• 05199: LCD/TFT Monitor Wall Bracket - Black
Adjustable monitor wall bracket, steel made. Plate 120 x 120 x 3 mm,
4 holes 4.5(Ø) mm distance 75 and 100 mm, 4.5(Ø) mm (Standard
Vesa).
The monitor is tiltable (± 25°) working on the central part of the swivel,
fixable by its spanner which is supplied with the bracket. Wall plate
95(Ø) mm with 2 holes 4.5(Ø ) mm, to fix bracket.
Connectors
Cables
This support is fixable with all TFT monitors.
DVRs
Cameras
Specifications:
Model:
05199
Tilt Angle 50°
Materials Steel
Treatment RAL 9005
Thickness 4mm
Closed Length
105mm
Max Load
15kg
Net Weight 1.77kg
210
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• BF2750: Low-cost Display Screen Mount
(Flat to Wall)
Features:
Signage/3D
Interactive &
Projectors
• For screen sizes of 13” ~ 27”
• Integrated spirit level bubble
• Two-piece lockable design
• Maximum load weight: 25kg
• Aluminium allow construction
AV Signal
Distribution
• BT2750: Low-cost Display Screen Mount
(Adjustable)
Features:
Cables
Faceplates
• For screen sizes of 13” ~ 27”
• 15° up/down, 90° pan rotation
• Integrated spirit level bubble
• Two-piece lockable design
• Maximum load weight: 20kg
• Aluminium allow construction
Connectors
• BF7510: Low-cost Large Display Screen
Mount (Flat to Wall)
Features:
Need help choosing the right product?
Call our technical support team now on:
Tel. +44(0)115
977 0075
+44 (0)115 977 0075
[email protected]
211
DVRs
Cameras
• For screen sizes of 27” ~ 75”
• Integrated spirit level bubble
• Expandable wall plate
• Maximum load weight: 90kg
• Steel construction
Racks &
Cabinets
This stand allows you to mount monitors with fittings with a
284 ~ 700 mm horizontal pitch and 80 ~ 480 mm vertical pitch.
The base has four arms for feet or castor installation.
Interactive &
Projectors
Brackets
• 08000: LCD/Plasma Screen Floor Stand
Signage/3D
Specifications:
Model:
08000
Link With H290 ~ 760 V 85 ~ 480
Materials Steel
Treatment Anthracite
Closed Length
700(W) x 1820(H) x 700(D) mm
Max Load
50kg
Net Weight 22.5kg
Features:
• For monitors 35” ~ 50”
• Height adjustable from 1250 ~ 1650 mm, measured from floor to the
media line of the monitor
• Designed so that the floor supports can be replaced with wheels,
upon request
• Ideal for rental arrangements
• The folding legs of the base reduce the bulk of the support
• Can include a shelf for recording or decoder equipment
Available for mounts measuring:
• 200 x 200 mm
• 200 x 100 mm
• 120 x 150 mm
• 150 x 150 mm
• 100 x 100 mm
• 75 x 75 mm
Optional shelf: 07900
Connectors
Cables
Faceplates
AV Signal
Distribution
• 07500: LCD/Plasma Screen Floor Stand
DVRs
Cameras
Specifications:
Model:
07500
Closed Length
160(W) x 1950(H) x 160(D) mm
Max Dimension
1000(W) x 1950(H) x 1000(D) mm
Max Load
50kg
Ship Weight
17kg
212
Shop online now at: www.
1m
.com
1m
Racks &
Cabinets
Brackets
• 08100: LCD/Plasma Screen Floor Stand
with Wheels
This stand allows you to mount screens with VESA fittings 75 x 75,
100 x 100, or 200 x 100 mm.
Interactive &
Projectors
The base can easily go through doorways and the four castors can
be hidden.
Steel
Treatment Anthracite
Footprint Diameter
1000mm
Min/Max Height
1120 ~ 1520 mm
Closed Length
870(W) x 1250(H) x 520(D) mm
Max Load
30kg
Net Weight 17.5kg
AV Signal
Distribution
0°
Materials Faceplates
360°
Tilt Angle
Cables
Mount Rotates
Connectors
VESA Fino a 200 x 200
Cameras
08100
Link With [email protected]
+44 (0)115 977 0075
213
DVRs
Model:
Signage/3D
Specifications:
Racks &
Cabinets
Features:
• Adjustable tilt, 360° rotation and integrated cable management
• Maximum load weight: 15kg
• Aluminium alloy construction
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
Brackets
• P100L: Low-cost Projector Ceiling
Mount Bracket
• 04382: Universal Projector Ceiling Mount
Bracket - Silver
• 04325: Universal Projector Ceiling Mount
Bracket - Black
It is tiltable in vertical (+-25°) and in the horizontal plane (360°) working
on the central part (H40 mm) of the assembly swivel. It can be fixed
by its spanner which is supplied with the bracket.
The support will be fixed to the ceiling by a plate 160(Ø) mm with
38 mm holes and 3 buttonholes grant a very quick inspection for
maintenance. To apply the Dia-Video to the support, you have to use
4 arms of different dimensions (78, 138, 168mm).
Connectors
Cables
Universal ceiling mount bracket, adjustable for dia/video-projectors,
steel made, with arm L150 mm.
DVRs
Cameras
Specifications:
Model:
04382 / 04325
Mount Rotates
360°
Tilt Angle
50°
Materials Steel
Thickness
1.5, 4mm
Closed Length
250mm
Max Load
10kg
Net Weight 2.20kg
214
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• 04326: Telescopic Universal Projector Ceiling
Mount Bracket - Black (400~600mm)
Ceiling mount bracket, adjustable for dia/video-projectors, steel
made, with arm L:400~600mm. It is tiltable in vertical (±25°) and in
the horizontal plane (360°) working on the central part (h40mm) of
the assembly swivel. It can be fixed by its spanner which is supplied
with the bracket.
Connectors
Cables
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
The support will be fixed to the ceiling by a plate 160(Ø) mm with
38 mm holes and 3 buttonholes grant a very quick inspection for
maintenance. To apply the Dia-Video to the support, use 4 arms of
different dimensions (78, 138, 168mm).
04326
Mount Rotates
360°
Tilt Angle
50°
Max Monitor Size
No Limits
Materials Steel
Treatment Anthracite
Thickness
1.2, 4mm
Min/Max Height
400 ~ 600 mm
Closed Length
415mm
Max Load
10kg
Net Weight 2.60kg
[email protected]
+44 (0)115 977 0075
215
DVRs
Model:
Cameras
Specifications:
Racks &
Cabinets
Brackets
• 04934: Telescopic Universal Projector Ceiling
Mount Bracket - Black (780~1100mm)
• 05399: Telescopic Universal Projector Ceiling
Mount Bracket - Silver (780~1100mm)
It’s tiltable in the vertical (±25°) and in the horizontal plane (360°)
working on the central part (H 40mm) of the assembly swivel. It can
be fixed by its spanner which is supplied with the bracket. The support
will be fixed to the ceiling by a plate 200(Ø) mm with 3 holes of 8mm,
and 3 buttonholes grant a very quick inspection for maintenance.
To apply the Dia-Video to the support, you have to use 4 arms of
different dimensions (78, 138, 168mm).
Connectors
Cables
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
Universal ceiling mount bracket, adjustable for dia/video-projectors,
steel made, with arm L: 780 ~ 1100 mm. There are two holes
D: 65 x 30 mm to enable the passage of the cables included VGA.
DVRs
Cameras
Specifications:
216
Shop online now at: www.
.com
Model:
04934 / 05399
Mount Rotates
360°
Tilt Angle
50°
Max Monitor Size
No Limits
Materials Steel
Treatment Anthracite
Thickness
1.5, 2mm
Min/Max Height
780 ~ 1100 mm
Closed Length
780mm
Max Load
10kg
Net Weight 3.90kg
Racks &
Cabinets
Brackets
• 04327: Universal Projector Wall Mount
Bracket - Black
Wall mount bracket, adjustable for dia/video-projectors, steel made,
with arm L: 350mm.
Interactive &
Projectors
It is tiltable in vertical (±25°) and in the horizontal plane (360°) working
on the central part (H 40mm) of the assembly swivel. It can be fixed
by its spanner which is supplied with the bracket. The support will be
fixed to the ceiling by a plate 160(Ø) mm with 3 8mm holes, and 3
buttonholes grant a very quick inspection for maintenance.
Signage/3D
To apply the Dia-Video to the support, you have to use 4 arms of
different dimensions (78, 138, 168mm).
AV Signal
Distribution
• 05054: Universal Projector Wall Mount
Bracket - Silver
Wall mount bracket, adjustable for dia/video-projectors, steel made,
with arm L: 350mm.
It is tiltable in vertical (±25°) and in the horizontal plane (360°) working
on the central part (H 40mm) of the assembly swivel. It can be fixed
by its spanner which is supplied with the bracket. The support will be
fixed to the ceiling by a plate 160(Ø) mm with 3 8mm holes, and 3
buttonholes grant a very quick inspection for maintenance.
Connectors
Cables
Faceplates
To apply the Dia-Video to the support, you have to use 4 arms of
different dimensions (78, 138, 168mm).
04327
05054
Mount Rotates
360°
360°
Tilt Angle
50°
50°
Materials Steel
Steel
Treatment Anthracite
Silver
Thickness
1.5, 4mm
1.5, 4mm
Min/Max Height
1040 ~ 1850 mm
1040 ~ 1850 mm
Closed Length
415mm
415mm
Max Load
10kg
10kg
Net Weight 2.70kg
2.70kg
[email protected]
+44 (0)115 977 0075
217
DVRs
Model:
Cameras
Specifications:
Racks &
Cabinets
Brackets
Dia/Video adjustable steel and aluminium floor stand. Thanks to the
new tilting system it is possible to tilt the steel plate working on the
knob.
The steel plate is: 415 x 355 x 2 mm in order to prevent the equipment
from falling down, we placed a small tube structure that gives a very
nice design and utility. The height of the stand is adjustable from
1040 ~ 1850 mm working directly on it.
To facilitate transport and to save space the top plate section can
be separated.
Connectors
Cables
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
• 05322: Projector Floor Stand with Tripod Legs
DVRs
Cameras
Specifications:
218
Shop online now at: www.
.com
Model:
05322
Mount Rotates
360°
Tilt Angle
±12°
Materials Aluminium
Footprint Diameter
1000mm
Thickness
1.5mm tubes
Min/Max Height
1040 ~ 1850 mm
Closed Length
1000mm
Max Load
10kg
Net Weight 6.75kg
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
AV Signal
Distribution
Faceplates
Cables
Connectors
Projector-to-Wireless Converter
Projection Screens
221 ~ 223
224
225 ~ 226
Touchscreen Displays
227
Android Tablets
228
Cameras
Virtual Interactive Projector Systems
220
DVRs
Digital Interactive Pen
Racks &
Cabinets
Windows and Apple Mac Compatible
Brackets
• Duo-Pen: Digital Interactive Pen
The DuoPen digital pen is an innovative USB input device which can
convert any ordinary laptop or desktop computer monitor into a fully
interactive touch screen device.
DuoPen adds the ability to operate the PC mouse facilities via the
screen, incorporates handwriting and drawing options and is ideal as
an interactive interface for design and gaming options.
Simple to install, the DuoPen immediately upgrades the PC/Laptop
to provide full interactive functionality by using a combination of
ultrasonic waves and infrared to plot or recognise the pen’s location
on the screen.
Features:
• Allows you to write directly onto the screen
• Enables full touchscreen functionality for use with an ordinary
notebook/PC
• Note-taking function allows users to write on a normal piece of paper
which is clipped into the receiver station and saved directly into your
notebook/PC for later use
• Precise and fine writing ability with DuoPen’s patented technology and
Microsoft Ink Library
• Hover mode function which enables it to operate in free space,
for smooth writing and gaming applications
• Virtual writing means no actual pressure is placed on the screen. Used for
drawing delicate pictures and using air brush effects
• Word recognition supported on Windows Vista Premium and higher
(including Windows 7) or by installing software from CD or internet
free downloads
• Gesture (motion) recognition (also known as ‘pen flicks’), allows the user
to execute various pre-defined functions easily when using internet, e-mail
or selected software
• Carry bag supplied with spare pen and fibre nib tips. Fibre nibs supplied
for use on plastic LCD or LED screens.
• Real ball-point pen tip and electronic pen tip also included
r
you PC
s
t
r
ve
op/
con d lapt ss
r
le
nda
wire
sta to a creen
chs
tou blet!
ta
Connectors
Cables
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
Using DuoPen you can enhance and improve the potential of your
computer/PC’s capabilities.
DVRs
Cameras
Specifications:
Model:
Duo-Pen
Operating Area
170mm ~ 358mm
Power Source
5v DC (USB) / LR41 cell batteries
Technology
Ultrasonic and Infrared
Sampling Rate
Over 70Hz
Device Standard
HID pen device
Operating Temp/humidity
0 ~ 40°C / 20 ~ 80% Humidity
System Requirements:
220
Shop online now at: www.
.com
CPU
1GHz Pentium compatible
RAM
Over 512MB
OS
Windows XP / VISTA / Windows 7
Interface
USB port / CD-ROM driver
Racks &
Cabinets
Windows and Apple Mac Compatible
Brackets
• U-Board: ‘Carry-anywhere’ Virtual
Interactive System
• U-Board/Wireless: Wireless
‘Carry-anywhere’ Virtual Interactive System
Interactive &
Projectors
Our new UBoard system provides the ultimate in ‘retrospective Virtual
Interactive Systems’: converting any conventional projector into a high
performance virtual interactive board solution.
Stylish, simple to set-up and extremely portable, UBoard consists of a
small magnetic-mount System Controller/Transmitter and UBoard EPen.
By mounting the UBoard Controller/Transmitter onto the edge of any
conventional dry-wipe board - or simply onto any clear, light coloured wall
- any flat surface can be immediately transformed into a fully-interactive
working/teaching space; providing an advanced interactive software
drawing/annotation package plus full control of any standard software
installed on your computer.
Signage/3D
Performance, functionality and incredible interactive features in this ‘goanywhere’ pocket-sized solution!...
Features:
• High performance
• Dedicated ASIC chipset
• Fast response time
• High resolution
• Ultra smooth response
Best Writing Quality:
AV Signal
Distribution
• Smooth writing touch and feel
• Virtual Pressure Brush effects without programming
• State-of-art noise filtering
Excellent Usability:
• 120” working area
• Slim, distinctive & stylish design
• Wireless connectivity
• High portability
• Rechargeable Battery
• No software installation
• Integrated Laser Pointer
• 100% Microsoft & Apple compatibility
USB
VGA Cable
Computer
Standard Projector
USB Device Class Microsoft HID Pen
Sampling Frequency 40kHz
Power USB 5v/100mA
Dimension 30(W) x 17(H) x 22(L) mm
UBoard: Digital Pen
Power 3.7v/180AH
Battery Rechargeable Lithiumpolymer battery
Rechargeable terminal 3.5mm jack
Button Right & Left Mouseclick
Battery monitoring 2 step LED Indicator
Full recharging time 2 hours
Continuous Operating time 15 hours
Power saving mode Activating automatic power saving logic after 20 sec idle time
USB recharging cable 70cm
Active Laser pointer Attachable to the digital pen / Shares power with the digital Pen
Model:
UBoard: Interface
Computer IBM PC Compatible
CPU Intel Pentium or Above Inter Compatible Type
Interface USB 2.0 full speed or USB 1.1
Operating System Windows XP/Vista/7/Apple Mac
RAM Minimum 1Gb
Model:
UBoard: Environment and Software
Humidity 0 ~ 90RH +35°C (non condensing)
Recommended operating
temperature
15° ~ 40°C
[email protected]
+44 (0)115 977 0075
Cables
Model:
Connectors
120 Inches
Cameras
Dry-wipe Board or
any vertical flat surface
UBoard: Station
Effective Working Area 221
DVRs
UBoard
Model:
Faceplates
Specifications:
Racks &
Cabinets
Brackets
• PVI2600:
ProVue Interactive Projector
• PVI2500SP: ProVue Ultra Short Throw
Interactive Projector
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
Our new Pro-Vue Interactive projectors provide a whole new dimension
to interactive teaching and presentation; all the benefits of an interactive
whiteboard... without the whiteboard!
The Pro-Vue features integrated infrared technology which means that
virtually any surface can be used as an interactive screen!
From a conventional dry-wipe whiteboard, to retractable tripod screens
- or simply walls, ceilings or even floors! - any surface can be used
as a fully interactive screen. In addition, the size of your interactive
‘screen’ is only limited to the space available (imagine how big the
screen could be using a simple, clear wall in the school hall?).
... And your interactive projector is fully portable. Easily stored/
transported in a lightweight canvas bag, Pro-Vue Interactive can be
taken anywhere your interactive presentation needs to go; whether it be
room-to-room, city-to-city or even international travel (try transporting
conventional interactive whiteboard setup on your next flight!)
ble
porta
ly
e
let
! comp activity uired!
r
q
inte
rd re
a
o
b
hite
no w
Features:
• Available as Standard and new Ultra Short Throw versions
• High brightness: 2600 ANSI Lumens
• Supplied with both E-Pen & extendable E-Wand tools
• Easy installation & maintenance even when ceiling mounted:
- Built-in auto detector sensor
- Side change filter
- Side change lamp
• Integrated security features:
- Electric pin lock
- Metal anchor lock
• Image freeze
• 4 x digital zoom
• 7 display modes
• 8W audio speaker
• Quiet (33dB at ECO-mode)
• Multi-language on-screen display
• RJ45 LAN remote control (optional)
• User definable start-up screen (logo capture)
• Low power consumption
• 6 auto functions: search, sync, ceiling, keystone, filter & lamp alert
• Superb quality images
Specifications:
Model:
PVI2600 Speaker Power Requirement 100v AC ~ 240v, 50/60Hz
Power Consumption Max 285W, Standby < 2.6W
Standard Accessories E-Wand, E-Pen, Remote Control, Canvas Carry Case, Driver CD-Rom,
1.5M USB Cable, User Manual
Dimensions 325(W) x 97(H) x 260(D) mm
360(W) x 132(H) x 348(D) mm
3.4kg
4.1kg
Cables
Weight 310W
Optical
Projection System Brightness 3LCD technology
2600 lumens
Contrast Ratio Connectors
PVi2600: 1.2X zoom lens, f = 18.53 ~ 22.18 mm
F/1.65 ~ F/1.93
Lamp 200W UHP
Fan Noise 1.11 ~ 10.57 m (approx. 100” at 2.88M)
1.41 ~ 1.7
Cameras
Interactive Functions
.com
210W UHP
33dB @ ECO
Throw Ratio Shop online now at: www.
500:1
Native: XGA (1024 x 768)
Maximum: UXGA (1600 x 1200)
Aperture ratio: 4:3 native / 16:9 compatible
Projection Lens 222
2500 lumens
500:1
Resolution Throw Distance DVRs
PVI2500SP
Mono 8W x 1
Light emitted Infrared
CMOS Camera Built into projector
Power Requirement E-Pen - 2 x AAA Batteries
E-Wand - 2 x AA Batteries
E-Wand Extendable Length 620 ~ 920 mm
0.636 ~ 1.26 m
0.63
Racks &
Cabinets
Brackets
• PVI14V: ProVue Interactive Adaptor
This cost-saving ‘Adaptor-only’ version of ProVue Interactive allows
any existing standard projector to be simply and effectively converted
to an interactive projector, allowing almost any surface (such as walls,
dry-wipe boards, curtains, ceilings or floors!) to be used as a virtual,
fully interactive screen!
Interactive &
Projectors
In addition, the size of your virtual interactive screen is only limited
to the space available and positioning of your projector (imagine
how big the screen could be using a simple, clear wall in the school
assembly hall?).
Features:
• Converts your standard projector to interactive
• No whiteboard required
• Supplied with both E-Pen and extendable E-Wand control tools
• Ceiling mount, USB connection cable and software supplied
• Powered from USB interface connection
• Flexible positioning of unit
Faceplates
AV Signal
Distribution
Signage/3D
hes
ac y
t
t
a an
tor ert ector
p
a
v
j
Ad con pro e!
d
o
r
tiv
t
da erac
n
sta o int
t
Specifications:
PVI14V
Interactive Technology
Infrared
Sensor Accuracy
±6 pixels
Throw Ratio
1.4
Screen Size
Up to 120 inch screen diagonal
Included Standard Accessories E-Pen, extendable E-Wand, USB cable, mounting bracket,
Quick Start Guide, Light Pen II Software
Power Consumption
<0.5W (powered from USB interface cable)
Dimensions
110(W) x 20(H) x 80(D)mm
Weight
0.8kg
Connectors
Cables
Model:
Infrared
CMOS Camera
Built into adaptor
Power Requirement
Adaptor via USB connection, E-Pen - 2 x AAA Batteries,
E-Wand - 2 x AA Batteries
E-Wand Extendable Length
620 ~ 920 mm
System Requirements
OS Required
Microsoft, Windows 98/2000/XP/Vista/Macintosh
Processor Type
Intel Pentium or above
RAM Size
128Mb (256Mb or above recommended)
Minimum Hard Drive Space
30Mb CD-Rom Driver & available USB 2.0 port
[email protected]
+44 (0)115 977 0075
223
DVRs
Light emitted
Cameras
Interactive Functions
Racks &
Cabinets
Brackets
Interactive &
Projectors
The Wi-View 300V VGA Wireless Converter is an easy-installation
unit which converts your standard VGA projector (or VGA screen,
etc) to a wire-free device, allowing users to easily connect via their
PC/laptop’s wireless LAN facility.
With plug-and-play of the Wi-View hardware to the projector and
simple, secure access software from the PC/laptop; fast, easy and
wirefree presentation in the classroom/conference room is immediately
available.
Supporting multi-user switching, any member of a conference/class
can easily log into the Wi-View Server, switching their individual
computer screen to the projector without moving computers or
reconnecting cables.
Features:
• Fast, simple wireless presentation; no more cable swapping or
trailing leads!
• Compatible with all projectors and screens featuring a VGA input
• Supports output resolution up to 1280x768 with 24 bit colour
• No installation CD required; software is directly downloaded from the
Wi-View device
• Web-based user interface for easy configuration
• Conference control function, allowing host/chairperson to control multiple
users during meetings
• Up to 128 (max) users in conference mode
• Also features standard Wireless LAN access point function
Faceplates
AV Signal
Distribution
Signage/3D
• WI-VIEW300V: Projector-to-Wireless
Converter
Connectors
Cables
Specifications:
PC/Laptop
WLAN
Cameras
WLAN
Projector
DVRs
VGA Cable
224
Shop online now at: www.
.com
Model:
Wi-View300V
Wireless Standards
IEEE 802.11g
LAN Standards
IEEE 802.3u
Data Rate
Wireless: up to 54Mbps
LAN: 10/100 Mbps with auto MDI/MDIX
Protocol
TCP/IP
IP Configuration
Automatic: DHCP
Manual: static IP address
Security
IEEE Standard 64/128 bit WEP
Antenna
Detachable antenna with SMA connector
Transmission Power
2dBi external dipole antenna
Receiving Sensitivity
– 65dBm @ 54Mbps
– 80dBm @ 11Mbps at 10-5 BER
Wireless Link Coverage
Up to 300 feet/100m (dependant on environment)
Video Streaming
MPEG1/2/4, HD Video Support
Supported Video Format
MPEG1/MPEG2/MPEG4(DivX, Xvid)/WMV9
Supported PC/NB Resolution
Colour Depth
16/32 bit colour depth
Supported PC/NB Resolution
SVGA (800x600), XGA (1024x768), WXGA (1280x768)
Supported Output Resolution SVGA (800x600). XGA (1024x768), WXGA (1280x768)
Supported Operation System Windows Vista/XP/2003/2000
Power
5v DC, 2.5A
Interfaces
15-pin VGA, RJ-45, Power switch, Reset button, Stereo phono jack, Audio output
Dimensions
117(W) x 27(H) x 140(D) mm
Weight
0.28kg
Racks &
Cabinets
Brackets
• Projection Screens
Features:
Interactive &
Projectors
• Full 7 year warranty!
• Aesthetically pleasing aluminium extruded case
• Brackets (reversible) can be mounted anywhere along the case
for easy installation
• Quiet motor
• Compact tensioned
• Tabs are cut out of surface to prevent marking or coming off
• Flat tab-tensioned surface
Signage/3D
• Manual Projection Screens: Rollerwall
Fibre Glass Matt White Surface, housed in a new design white square
steel case. Four mounting points on each endcap ensure the screen
can be firmly fixed to the wall or ceiling.
Cables
Faceplates
AV Signal
Distribution
New robust design, 3cm black borders to all sides, (4cm on 244cm
wide screens). 25cm additional black leader on 16/9 and 16/10
formats.
Diag
VA: cm
50” Diag 127 x 127 cm
106060 1/1 60” Diag
152 x 152 cm
107070 1/1 70” Diag
180 x 180 cm
108484 1/1 84” Diag
213 x 213 cm
109696 1/1 95” Diag
244 x 244 cm 1075D
4/3
75” Diag
152 x 114 cm
1089D
4/3
89” Diag
180 x 135 cm
10100D
4/3
100” Diag
203 x 152 cm
10120D
4/3
120” Diag
244 x 183 cm
1082D
16/9
82” Diag
180 x 101 cm
1092D
16/9
92” Diag
203 x 114 cm
10110D
16/9
110” Diag
244 x 137 cm
1084D
16/10
84” Diag
180 x 113 cm
1094D
16/10
94” Diag
203 x 127 cm
10113D
16/10
113” Diag
244 x 153 cm
[email protected]
Cameras
Format
1/1 +44 (0)115 977 0075
225
DVRs
Model
105050 Connectors
Model Dimensions:
Racks &
Cabinets
Brackets
Interactive &
Projectors
• Electric Projection Screens: Small - Non
Tensioned, F-Type Electric c/w IR Control
This Mid Range Electric Screen with Fibre Glass Matt White Surface
and a Tubular motor with limit switches, housed in a new design Matt
White shaped steel case.
Sliding rear brackets with quick attach fixings assist easy fixed to the
wall or ceiling. 3cm black borders to all sides, (4cm on 244cm wide
screens). 25cm additional black leader on 16/9 and 16/10 formats.
Supplied with IR control unit.
Faceplates
AV Signal
Distribution
Signage/3D
Model Dimensions:
Model
Format
Diag
Overall size: cm
5084D 4/3 84” Diag 171 x 128 cm
50100D 4/3 100” Diag
203 x 152 cm
50120D 4/3 120” Diag
244 x 183 cm
50150D 4/3 150” Diag
305 x 229 cm
5077D
16/9
77” Diag
171 x 96 cm
5092D
16/9
92” Diag
203 x 114 cm
50110D
16/9
110” Diag
244 x 137 cm
50138D
16/9
138” Diag
305 x 172 cm
5079D
16/10
79” Diag
180 x 101 cm
5094D
16/10
94” Diag
203 x 114 cm
50113D
16/10
113” Diag
244 x 137 cm
50142D
16/10
142” Diag
305 x 191 cm
• Electric Projection Screens: Small - Non
Tensioned, Compact
High quality electric screen with quiet motor, ideal for small to medium
rooms. Equipped with sliding brackets.
A wide choice of fabrics, standard is Matt White (Gain 1.2). Options
for Lumi Grey, Cinesound and Rear Plus - call for pricing. 4/3, 16/10
versions come with 5cm black borders.
Cameras
Connectors
Cables
Custom sizes available.
Model Dimensions:
Model
Format
VA: cm
COM160X160 1/1 160 x 160 cm
COM180X180 1/1 180 x 180 cm
COM200X200 1/1 200 x 200 cm
COM250X250 1/1 250 x 250 cm
COM160X120/4BB
4/3
160 x 120 cm
COM180X135/4BB
4/3
180 x 135 cm
COM200X150/4BB
4/3
200 x 150 cm
COM220X165/4BB
4/3
220 x 165 cm
COM250X190/4BB
4/3
250 x 190 cm
COM300X225/4BB
4/3
300 x 225 cm
COM160X100/4BB
16/10
160 x 100 cm
COM180X113/4BB
16/10
180 x 113 cm
COM200X125/4BB
16/10
200 x 125 cm
COM220X138/4BB
16/10
220 x 138 cm
COM250X156/4BB
16/10
250 x 156 cm
COM300X188/4BB
16/10
300 x 188 cm
DVRs
For Lumi Grey surface add 5% to the trade price, for Rear Plus fabric add 10%, for Microperforated add 35%
226
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
• TS-15R: 15” Touch Screen Display
• TS-17R: 17” Touch Screen Display
Stylish 15” and 17” touch screen displays with superb touch panel
sensitivity and long-term durability built to last in demanding point-of-sale
environments. The units provide durable touch screen functionality and
feature highly accurate 5-wire resistive touch technology.
Interactive &
Projectors
Their slim design demands less space than competing touch screen
displays, and the VESA compliant design makes for easy mounting in a
variety of environments.
Specially designed for use in point-of-sale systems, information kiosks,
museum displays and other high-traffic public environments.
Specifications:
TS-15R
TS-17R
Panel Type
TFT LCD
TFT LCD
Panel Size
15.0” (381 mm)
17.0” (432 mm)
Max. Resolution
XGA 1024 x 768
SXGA 1280 x 1024
Pixel Pitch
0.297 mm
0.264 mm
Brightness
250 cd/m2 (Typical)
300 cd/m2 (Typical)
Contrast Ratio
700:1 (Typical)
800:1 (Typical)
Surface Treatments
Hard Coating (3H), Anti-glare Treatment
Viewing Angle (H/V)
130°/120° (Typical)
160°/160° (Typical)
Display Colour
16.2M
16.2M
Response Time
4ms (GTG)
4ms (GTG)
Panel Life Time
50,000hrs (Minimum)
50,000hrs (Minimum)
Frequency (H/V) H: 30kHz ~ 60 kHz
V: 56Hz ~ 75Hz
H: 30kHz ~ 80kHz
V: 56Hz ~ 75Hz
Max. Pixel Clock 80MHz
140MHz
Input: Touch Interface
Analogue
Digital
8-Pin Mini Dim
15-Pin D-Sub
-
8-Pin Mini Dim
15-Pin D-Sub
24-Pin DVI-D
Power: AC-DC Adaptor
Power
Consumption
External
AC 100 ~ 240v, 50 ~ 60Hz
< 36W (On)
< 2W (Stand-by)
< 1W (Off)
External
AC 100 - 240v, 50 ~ 60Hz
< 42W (On)
< 2W (Stand-by)
< 1W (Off)
Touch Screen:
Technology
Optical Transmission
Positional Accuracy
Panel Resolution
Active Force
Panel Interface
Glass Thickness
Life Performance
5-wire Resistive
> 80%
< 2% of true position
1024 x 1024
5.1 ~ 8.16 gw
Dual RS-232/USB interface
0.0787/2.0 mm
35million touches at single point
5-wire Resistive
> 80%
< 1% Deviation Error
1024 x 1024
< 300g
Dual RS-232/USB interface
2.1 mm
35 million hits (finger)
DCC 2B
DCC 2B ; DCC/CI
0 °C ~ 40 °C
10% ~ 90%
0 °C ~ 40 °C
10% ~ 90%
Storage Conditions:
Temperature
Humidity
-20 °C ~ 60 °C
5% ~ 95%
-20 °C ~ 60 °C
5% ~ 95%
Mounting: VESA FPMPMI Yes (100 mm)
Yes (100 mm)
Tilt 5° ~ 25° (+10° when bracket hooked)
Dimensions: 386(W) x 360(H) x 169(D) mm
436(W) x 427(H) x 200(D) mm
Product Weight
4.6kg
7.5kg
[email protected]
Quick Guide, CD ROM (user
manual and drivers), 15-Pin
D-Sub cable, 24-Pin DVI-D
cable, AC power cord, power
adaptor RS-232 cable and USB
cable, support bracket
+44 (0)115 977 0075
227
Cameras
Accessories Supplied Quick Guide, CD ROM (user manual and touch screen drivers), 15-Pin D-Sub cable, power cord, power adaptor, RS-232 cable and USB cable
Connectors
Plug & Play: VESA Operating Conditions:
Temperature
Humidity
Cables
Faceplates
AV Signal
Distribution
Model:
DVRs
• Scratch resistant touch panel
• 5-wire resistive touch technology
• Sharp contrast ratio
• High brightness
• Lifetime 30 million finger-touch hits
• Dual serial touch interface
• Auto-adjustment for optimal settings
• Kensington security socket
• VESA compliant for wall/arm mounting
Signage/3D
Features:
Racks &
Cabinets
Brackets
• DI705M: SmartPad 7” Android Tablet
Our latest entry to the exploding MID Market (moble internet devices),
our new ‘SmartPad’ is an ultra-compact 7” interactive tablet built
around the Google Android operating system.
Packed with a whole host of high-end features; including bright,
responsive 7” touchscreen, WiFi, webcam, 2Gb internal memory +
SD card expansion, HDMI & HD support and internal loudspeakers
- plus access to thousands of AV control, education, business and
entertainment applications; the new MediaTouch gives you a whole
lot more Tablet for a whole lot less money!
Features:
• Android 2.1 800MHz ARM11
• 7.0” 800 x 480 4:3 touch screen
• 512M DDR2 RAM
• 2Gb memory built-in, micro SD card expandable up to 32Gb
• Wi-Fi, HDMI, Webcam, TV-OUT, vibrate motor, remote controller
• HOST port for 3G dongle, USB flash drive, keyboard, mouse, GPS, etc
external device connection
• Full HD 1080P supports MPEG-2, MPEG-4, AVS, H.264, WMV, AVI,
MP4, RMVB, FLV, MKV
• Ebook support PDF, EPUB, TXT, HTM, HTML, RTF
• G-sensor
• 3400mAH polymer rechargeable battery for 6hrs use
• Music, movies, G-mail, e-mail, MSN, Skype, Facebook, Adobe Reader,
FB Reader, Google Maps, YouTube, Flash
• 3 x 1W, 7W speakers
• 3.5mm earphone jack
• 5 Pin USB port
• 5v DC In
• Brushed Aluminium casing
Cables
Faceplates
AV Signal
Distribution
Signage/3D
Interactive &
Projectors
Combining sleek, compact styling with powerful mobile media and
internet computing, this ‘go-anywhere’ device is ideal for wire-free,
mobile AV control, interactive teaching & learning or simply for personal
work and play.
DVRs
Cameras
Connectors
Pre-loaded with:
228
Shop online now at: www.
.com
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
AV Signal
Distribution
Faceplates
Cables
Connectors
Glasses-free 3D Digital Signage
231
Glasses-free 3D LCD Screens
232 ~ 233
HD Display Screens
234
Multi-Screen Video Walls
235
Cameras
230
DVRs
All-in-One Digital Signage
Racks &
Cabinets
Brackets
• Luminis AiO: All-in-One Digital Signage
Clever Little Box’s latest generation Luminis AiO is the all-in-one
solution for creating and running your own unique on-screen digital
channel for enhancing communications and delivering eye-catching
information.
Signage/3D
Interactive &
Projectors
Luminis AiO is straight out of the box and ready to use. It supports
all Windows media file formats and allows you to create your own
on-screen messages or play back web-based content.
Luminis AiO can be operated stand alone or can be configured in a
network as ‘Server’ or ‘Client’ (same model configurable) networked
and controlled remotely. Up to 100 Luminis ‘client’ players can be
connected to your network.
Features:
• Latest generation high efficiency, low power consumption media player
• Fast and easy installation; up and running in minutes
• All-in-one plug and play solution
• Stand-alone or fully networked
• Simple and intuitive user interface
• Control locally or via web browser
• Use pre-designed display templates
• Design your own display templates
• Landscape & portrait display options
Live and
recorded TV
feeds
Powerpoint
Presentations
• Rich Site Summary (web feed)
• Still and moving images
• Video
• Flash animation
• Tickertape messages
• Powerpoint
• Web pages
• 5.1 audio playback
• Optional live TV feeds (Part No. USBTV)
Faceplates
AV Signal
Distribution
Play Back:
RSS
feeds
Slideshows
and still
images
Tickertape
Messages
Flash Animations
Create, amend and control your own digital signage
templates, content and schedules with Luminis AiO...
DVRs
Cameras
Connectors
Cables
Specifications:
230
Shop online now at: www.
.com
Model:
Luminis AiO
CPU
Intel Core 2 Duo, T3400
Chipset
Intel GM45 + ICH9M
Memory
200pin DDRII
So-DIMM, 1Gb
Graphics
Intel GMA X4500MHD, HDMI Port x 1, D-Sub VGA Port x 2
Controller
Max Shared Video Memory is 512Mb
LAN
Intel Gigabit Ethernet 10/100/1000
Audio
Realtek ALC662 HD Audio
CODEC on-board, stereo CH 5.1 with HDMI
Storage
SATA 2.5” HDD 160Gb
External I/O
2 x VGA Ports
4 x USB 2.0 Ports
1 x RS232 Port 1 x HDMI Port
2 x Audio connectors
1 x Audio Set Live Out
1 x Audio Set Mic-in
1 x Upgrade for Antenna Port
Power Requirements
Auto-ranging 110 ~ 240v , 4 ~ 2A , 60 ~ 50Hz, with IEC320 power inlet
Dimensions
166(W) x 48(H) x 157(D) mm
Weight
1.22kg
Racks &
Cabinets
Brackets
• Luminis 3D: Auto-Stereoscopic, Glasses-
Free 3D Digital Signage
Using the same Windows-based digital signage platform
as our 2D ‘Luminis AiO’, Luminis 3D combines all the
functionality and ease of use of ‘standard’ digital signage with
state-of-the-art lenticular screen technology, to provide what are the
most truly ‘outstanding’ signage results you can imagine!!
Interactive &
Projectors
Luminis 3D can be operated as a stand-alone unit, or can be configured
in a network as ‘Server’ or ‘Client’ (same Model configurable). Individual
Client units in stand-alone mode can be controlled directly or on the
local network via a web interface. Alternatively, if a number of units
are networked, they can be controlled and updated over a wide area
network.
Featuring fully-controllable templates and schedules, the Luminis
signage platform supports a combination of both 3D and 2D media
content, supporting video, Flash, RSS, streamed images, web pages,
PowerPoint, tickertape, plus much more!
Signage/3D
Adopting lenticular screen technology provides the only true solution
to glasses-free 3D – essential, of course, for public signage where
there is no control over the audience (and certainly no chance to
hand-out free spectacles to every passer-by!)
As digital signage becomes the ‘norm’, the ability to catch an
audience’s attention and literally stop them in their tracks is the
ultimate goal; Luminis 3D delivers.
Features:
Faceplates
AV Signal
Distribution
• Outstanding glasses-free 3D system
• Windows platform, supporting all standard Windows media files
• Fast and easy installation; up and running in minutes
• All-in-one, plug and play solution
• Simple and intuitive browser-based user interface
• Control and update locally or remotely via web browser
• Pre-designed and self-configured display templates
• ‘Unlimited’ number of media/content channels
• Fully-programmable scheduling
• Configurable user permissions
Supported 2D content:
See page 232 ~ 233 for details of the Magnetic 3D Range of glasses-free
Auto-Stereoscopic 3D LCD Screens.
BIOSTAR TA780G M2+
CPU
AMD Socket AM2 Athlon 64 x 2, 4400+ (2.3GHz)
Chipset
AMD 780G
Memory
2048Mb Corsair DDR2 800MHz
4 x DDR2 DIMM Memory Slot
Max. Supports up to 4GB Memory
Graphics Controller
GeForce 9600GT GPU with DDR3 512MB
LAN
Realtek 8168C/8111C on-chip, supporting 1000/100/10M bps
Audio
ATI 791A. Realtek High Definition Audio
Storage
1 x 120GB 3½” SATA II hard disk drive
External I/O
1 x PS/2 Mouse, 1 x PS/2 Keyboard
1 x Standard VGA Port
4 x USB 2.0 ports
1 x RS232 port
1 x DVI port
3 x Audio connectors
1 x RJ-45 10/100/1Gb Base-T Ethernet LAN connector
Watchdog
1 x Hardware watchdog
Cables
Luminis 3D
Mother board
Connectors
• 3D Studio Max*
• MAYA*
• Live-action filmed in 3D*
(*requires processing to auto-stereoscopic format
via ‘Mixture’ software application)
Model:
Indicators
Power On switch and indicator
System Management
CPU temperature monitoring, system temperature monitoring, and voltage monitoring of Vcore, +3.3v, +5v, +12v, -12v are all
available to the application for monitoring and reporting.
Power Requirements
230v AC with IEC320 power inlet.
Environmental Conditions
Operating temperature range +5 °C to +40 °C in free air
Shock and vibration compatible with light industrial usage.
Dimensions
360(W) x 45(H) x 240(D) mm
Weight
3.5kg
Need help choosing the right product?
Call our technical support team now on:
Tel. +44(0)115
977 0075
+44 (0)115 977 0075
[email protected]
231
Cameras
Supported 3D content:
Specifications:
DVRs
• Flash
• JPEG/BMP/GIF stills and slideshows
• MPEG/AVI video
• html/web pages
• PowerPoint
• Rich Site Summary (RSS feed)
• Optional live TV feeds (Part No. USBTV)
• …plus 5.1 audio playback
Racks &
Cabinets
Brackets
• ENABL3D: Auto-Stereoscopic, Glasses-
Free, 3D LCD Screens
The new Enabl3D range from Magnetic represents the cutting edge
of ‘glasses-free’ 3D screen technology.
Interactive &
Projectors
Using the latest generation of auto-stereoscopic (or ‘lenticular’) LCD
technology, Magnetic Enabl3D screens allow incredible resolution and
outstanding 3D large format displays without the need for any special
glasses, eyewear, headgear or projectors.
Providing the ultimate in eye-catching, crowd-stopping displays, media
and digital signage; video images and content appear to fly out of the
screen and float in mid air!
The effect truly has to be seen to be believed.
The Magnetic 3D proprietary overlay and industry-leading 3D render
software combine to deliver truly stunning visual effects - all without
the need for viewers to wear 3D glasses...
Faceplates
AV Signal
Distribution
Signage/3D
Features:
• Glasses-free 3D screen technology
• Autostereoscopic, Full-HD 1080p LCD screens
• 9-point multi-viewing 3D zones
• 176° ultra-wide viewing angle
• 50,000 hours viewing time
• Durable and discreet design and build
• IRFM technology helps prevent ‘screen burn’
• Configurable Inputs/Outputs
• Active ambient light sensor for energy saving control
Part Numbers:
Part Number: Screen sizes:
22Enable3D
22” 3D Stereoscopic Enabled Display Screen
26Enable3D 26” 3D Stereoscopic Enabled Display Screen
32Enable3D 32” 3D Stereoscopic Enabled Display Screen
42Enable3D 42” 3D Stereoscopic Enabled Display Screen
42Enable3DOF 42” 3D Stereoscopic Enabled open-frame Display Screen
47Enable3D 47” 3D Stereoscopic Enabled Display Screen
55Enable3D 55” 3D Stereoscopic Enabled Display Screen
57Enable3D 57” 3D Stereoscopic Enabled Display Screen
26”
22”
• How does 3D Auto-stereoscopic screen technology work?..
Also known as ‘lenticular’, this glasses-free system is regarded as the ideal
long-term 3D solution. A sheet of transparent, cylindrical lenses (known
as ‘lenticules’) is fixed to a professional-grade, high definition LCD screen.
These lenticules reflect light in specific, duplex acute angles to generate
different images to each eye.
DVRs
Cameras
Connectors
Cables
55”
232
Shop online now at: www.
.com
42”
32”
57”
47”
Racks &
Cabinets
Specifications:
Model:
22Enabl3D
26Enabl3D
32Enabl3D
42Enabl3DOF
3D Viewing Angle (Left/Right)
50°/50°
50°/50°
50°/50°
50°/50°
2D Viewing Angle
170°/160°
176°/176°
176°/176°
176°/176°
Brightness
280 nits
350 cd/m²
450 cd/m²
660 cd/m²
Contrast Ratio
1000:1
1500:1
3000:1
4000:1
Response Time
5ms
8ms
6.5ms
6.5ms
Supported Colours
TBD
16.7M colours
16.7M colours
16.7M colours
Horizontal/Vertical Frequency
30 ~ 82kHz, 50 ~ 75kHz
30 ~ 80kHz, 56 ~ 75kHz
35 ~ 65kHz, 56 ~ 75kHz
30 ~ 80kHz, 56 ~ 75kHz
Input/Output Connectors
VGA/DVI
DVI/VGA/Component/
AV/S-video
DVI/VGA/Component/
AV/S-video
DVI/VGA/Component/
AV/S-video
100 x 100mm VESA
200 x 200mm VESA
200 x 200mm VESA
12v DC
230v AC
230v AC
230v AC
Normal Operation Power
<50W
<168W
<168W
<230W
Source Auto Detect
Yes
Yes
Yes
Operating Temperature
5° ~ 40°C
5° ~ 40°C
5° ~ 40°C
5° ~ 40°C
Display Diagonal
22”
26”
32”
42”
Optimum Viewing Distance
1.2 ~ 3 m
1.8 ~ 3.7 m
1.8 ~ 3.7 m
2.4 ~ 6 m
Perceived 3D Depth
0.3 m
0.45 m
0.5 m
0.6 m
Signage/3D
Mount Type
Power Supply
Interactive &
Projectors
Brackets
• ENABL3D: (contd)
16:9
16:9
16:9
16:9
1680 x 1050
1920 x 1200
1366 x 768
1920 x 1080
Dimensions (W x H x D)
503(W) x 418(H) x 240(D) mm
608(W) x 440(H) x 161(D) mm
793(W) x 483(H) x 94(D) mm
1018(W) x 610(H) x 124(D) mm
Weight
7.8kg
9kg
14kg
28kg
Faceplates
AV Signal
Distribution
Aspect Ratio
Display Resolution (WXGA)
42Enabl3D
22Enabl3D
26Enabl3D
32Enabl3D
3D Viewing Angle (Left/Right)
50°/50° 50°/50°
50°/50°
50°/50°
2D Viewing Angle
176°/176° 170°/160°
176°/176°
176°/176°
Brightness
661 cd/m² 280 nits
350 cd/m²
450 cd/m²
Contrast Ratio
4000:1 1000:1
1500:1
3000:1
Response Time
6.5ms 5ms
8ms
6.5ms
16.7M colours TBD
16.7M colours
16.7M colours
30 ~ 80kHz, 56 ~ 75kHz 30 ~ 82kHz, 50 ~ 75KHz
30 ~ 80kHz, 56 ~ 75kHz
35 ~ 65kHz, 56 ~ 75kHz
Input/Output Connectors
DVI/VGA/Component /
AV/S-video
VGA/DVI
DVI/VGA/Component/
AV/S-video
DVI/VGA/Component/
AV/S-video
200 x 200mm VESA 100 x 100mm VESA
200 x 200mm VESA
200 x 200mm VESA
230v AC 12v DC
230v AC
230v AC
Normal Operation Power
<230W
<50W
<168W
<168W
Source Auto Detect
Yes
Yes
Yes
Operating Temperature
5° ~ 40°C 5° ~ 40°C
5° ~ 40°C
5° ~ 40°C
Display Diagonal
42” 47”
55”
57”
Optimum Viewing Distance
3~6m
3.7 ~ 7.3 m
4 ~ 7.8 m
4.8 ~ 8.5 m
Perceived 3D Depth
0.6 m 0.7 metres
0.8 metres
0.98 metres
Cameras
Mount Type
Power Supply
Connectors
Supported Colours
Horizontal/Vertical Frequency
Aspect Ratio
16:9 16:9
16:9
16:9
Display Resolution (WXGA)
1920 x 1080 1920 x 1080
1920 x 1079
1920 x 1080
Dimensions (W x H x D)
1022(W) x 615(H) x 124(D) mm 1136(W) x 686(H) x 126(D) mm
1265(W) x 835(H) x 135(D) mm
1358(W) x 793(H) x 154(D) mm
Weight
30kg 40kg
55kg
136kg
[email protected]
+44 (0)115 977 0075
233
DVRs
Model:
Cables
Additional Specifications:
Racks &
Cabinets
Brackets
Interactive &
Projectors
Signage/3D
A full HD, full-featured 42” display protected by NeoVTM Optical Glass and
Anti-Burn-inTM technology.
With a feature list as big as its 42” screen, the RX-W42 brings the ideal
combination of size and specs to the professional AV environment.
Review highly-detailed, smooth and accurate images on a bright Full
HD display with AG Neovo’s Advanced Image Platform™. Save costs
and time by taking advantage of multiple video inputs and convenient
Picture-in-Picture (PIP) options.
And thanks to protective NeoVTM Optical Glass, Anti-Burn-inTM technology,
long-life screen and a durable metal frame, this display will be performing
for years to come.
Features:
• 1920 x 1080 Full HD resolution
• 4000:1 contrast ratio
• NeoV™ Optical Glass
• Anti-Burn-in™ technology
• Smart Omni Viewer: PIP, PBP & VOV functions
• Built-in Image enhancer: 3D Comb Filter/Deinterlace/Noise Reduction
• Multiple video inputs (BNC in x 2, BNC out x 2)
• RS-232 for individual and multi-display control
• Horizontal resolution up to 630TVL (NTSC), 650TVL (PAL)
• Built-in HDCP allows HD-format video
• Power DC-out design to power connected peripherals
• Selectable aspect ratio for ultimate image: Native, Overscan, Underscan
• NTSC/PAL/SECAM video system support
• Quick signal-switching time (≤0.8 sec)
• IR remote control
• Durable metal housing
• VESA standard wall mount
• Rigorous screening of the components for mission-critical
24/7 applications
NeoV™ Optical Glass protects
against scratches, impacts and
other physical damage
Viewing versatility with Picture-inPicture (PIP), Picture-by-Picture
(PBP) and Video-on-Video (VOV)
DVRs
Cameras
Connectors
Cables
Faceplates
AV Signal
Distribution
• RX-W42: 42” Widescreen Full HD
Display Screen
Anti-Burn-in™ technology
prevents image sticking
234
Durable metal casing for
enhanced strength and secure
mounting
Shop online now at: www.
.com
Specifications:
Model:
RX-W42
Panel -
Panel Type
Panel Size
Max. Resolution
Pixel Pitch
Brightness
Contrast Ratio
Viewing Angle (H/V)
Display Colour
Response Time
TFT LCD
42.0” (1067mm)
FHD 1920 x1080
0.48455mm
450 cd/m2 (Typical)
4000:1 (Typical)
178°(H), 178°(v) (Typical)
16.7M
6.5ms (GTG)
Horizontal resolution - TV Lines
630TVL (NTSC), 650TVL (PAL)
Frequency (H/V) H: 24 ~ 82 kHz, V: 50 ~ 85 Hz
Input -
VGA
DVI
CVBS
S-Video
Component(Y PbPr)
15-Pin D-Sub
24-Pin DVI-D
BNC x 2
4-Pin mini DIN
RCA x 2
Output - CVBS S-Video
BNC x 2
4-Pin mini DIN
Audio - Audio In
Audio Out
Speaker
1 x stereo audio in for PC (3.5Ø), 1 x stereo audio in for CVBS (RCA), 1 x stereo audio in for S-Video (RCA), 2 x stereo audio in for YPbPr (RCA)
1 x stereo audio out for CVBS (RCA)
2W x 2
Power -
DC Output
Power
Consumption
12v, 350 mA, DC jack 2.5Ø
100 ~ 240v, 50 ~ 60 Hz
< (165) W (On), < (10) W (Off)
NeoV™ Optical Glass -
Thickness
Reflection Rate
Transmission Rate
Coating Hardness
3.0mm (0.12”)
<1%
>96%
>9H
Operating Conditions -
Temperature
Humidity
0 °C ~ 40 °C
10% ~ 85%
Mounting - VESA FPMPMI Yes (600 x 400 mm, 400 x 200 mm)
Dimensions -
w/o base
w/ base
1011(W) x 604(H) x 106(D) mm
1011(W) x 667(H) x 190(D) mm
Weight -
w/o base
w/ base
27.0 kg
28.4 kg
Accessories User manual, 15-Pin VGA cable, 24-Pin DVI cable, power cord, audio cable, IR remote control
Racks &
Cabinets
Interactive &
Projectors
Brackets
• DS-42A22: 2 x 2 Multi-Screen Video Wall
System
• DS-42A33: 3 x 3 Multi-Screen Video Wall
System
• DS-42A44: 4 x 4 Multi-Screen Video Wall
System
• DS-42A55: 5 x 5 Multi-Screen Video Wall
System
• DS-MSC: Multi-Screen Controller
Flexibility is the key to the CYP Digital Signage Solutions. There are three
standard packages which provide a complete system solution for many
commercial applications. The packages include a Single 42” screen
option, 2x2, 3x3, 4x4 and a 5X5 complete digital signage system.
Signage/3D
All CYP screen packages include built-in control modules and use the
latest LED technology with screens operating at full HD resolutions of
1920 x 1080P, with bi-directional RS-232 control functionality enabled.
All package solutions are supplied with a full mounting system to enable
the installer to secure the system to any wall or display area.
Features:
Faceplates
AV Signal
Distribution
• Supports 4-Screen (2 x 2), 9-Screen (3 x 3), or 16-Screen (4 x 4), or 25-
screen (5 x 5) video wall panel combinations
• Supports Full HD 1920 x 1080 resolution LCD panels
• Full two-way RS-232 Control
• Horizontal or Vertical Screen Orientation (both Mounting Kits available)
• Single Image or Independent Split Screen Images
• Independent Controller available for integration with third-party Screens
• 10mm Bezel
• ALSO AVAILABLE IN 47” 6mm Bezel option: Contact for details
Connectors
Cables
PC / HDMI Source
DS-42A22
DS-42A33
DS-42A44 DS-42A55
For use with third party screens to emulate a video wall.
This controller will control the digital signage content for each
screen on a video wall system using up to 16 screens.
One controller is required per screen. If the user has only one
HDMI or VGA source, then an appropriate Distribution Amplifier
will be required to split the source signal to each of the
Muilt-Screen Controllers.
2 x 2 Video Wall System
4 x 42” 1080P LCD Screens
(with HDMI & VGA Connections)
4 x Wallmount Kit
1 x 4-way splitter
1 x IR remote and cable
3 x 3 Video Wall System
9 x 42” 1080P LCD Screens
(with HDMI & VGA Connections)
9 x Wallmount Kit
1 x 10-way splitter
1 x IR remote and cable
4 x 4 Video Wall System
16 x 42” 1080P LCD Screens
(with HDMI & VGA Connections)
16 x Wallmount Kit
1 x 16-way splitter
1 x IR remote and cable
5 x 5 Video Wall System
25 x 42” 1080P LCD Screens
(with HDMI & VGA Connections)
25 x Wallmount Kit
2 x 16-way splitter
1 x IR remote and cable
[email protected]
+44 (0)115 977 0075
235
DVRs
DS-MSC (Multi-Screen Controller) Cameras
Specifications:
See page 255 for full details.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
