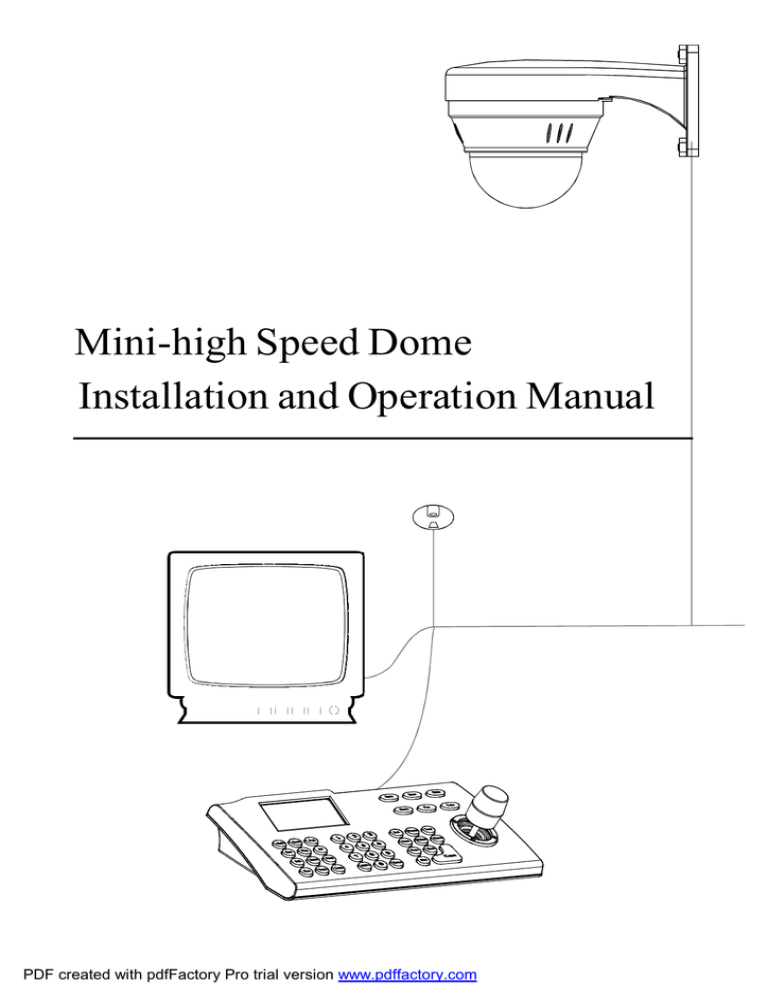

Mini-high Speed Dome
Installation and Operation Manual
PDF created with pdfFactory Pro trial version www.pdffactory.com
TABLE OF CONTENT
1.Precaution----------------------- -- --------------- ------------------------------------------------ 1
2.Performance & Feature--------------------------------- - ------- - -------------------------------2
2.1 Dome parameter--------------- ------------------------------- ------ ----- -----------------2
2.2 Camera parameter----------- ------------------------------------- ------------------------2
2.3 Dome performance& Feature----------- ------------------------ -------------------------3
3.Function instru ction----------------------------------------- ---- ------------ ---- -4
3.1 Auto execute funct ion--------- ---- --------------------------------------------------- 4
3.2 Surveillance function----------- ---------------------------- ---------------------------4
3.3 Constant temperature function----- ----------------------------- ----------------------- 5
3.3 Constant temperature function----- ----------------------------- ----------------------- 5
3.4 Constant temperature Function ----- ----------------------------- ---------------------- 5
4.System setting---------------------------------------------------------- -- ----------------------6
4.1 Basic operation------------------ ----- --------------------------- ---------- ---------------6
4.1.1 Self-testing------- ------------------ --- --------- ------ -- -- ---------- ---------------6
4.1.2 Call the main menu------------ -------------------------- ----- - ----- ---------------6
4.1.3 Basic operation of menu and keyboard------- ----- --------- -- ---- ---------------6
4.2 Edit dome label----------- ------------------------------------ ------- - ----- ---------------- 7
4.3 Display initial information------------ ---------------------- --------- - -- - ---------------8
4.4 Display setup--------------- -------------------------------- - ---------- -- ---------------- 9
4.5 Systematic motion control--------------------------------------- - ----------------------10
4.5.1 Auto-flip------------ ------------------------- ----------- ---------------------------10
4.5.2 Speed proportion--- ------- ----------- --------------------------------------------- 10
4.5.3 Park action-------------- ------------------------- -------- ---- --------------------- 11
4.5.4 Power up action--------------------------------------------------- --------------- 11
4.5.5 Fan startup by temperature-------------------------------------------------------11
4.6 Clear-------------------- ------------------ -------- --------- ------------ -- ---------------- 12
4.7 Password setting-------------------- ------------------ - ------- --------- ------------ -- -- 13
4.8 Date and clock setting-------------------- ------------------- ------- --- ------ ---------- 14
4.9 Setup dome parameter-------------------- ------------------- ------- -- ------- ----------15
5.Ca mera setting------------------------------------------------ - ----------- -- ----------------16
5.1 Zoom speed---------------------------- ------- ------ - ------- ---------------------------16
5.2 Digital zoom control------------- --------------- ------- ------- ------- ---------- -------17
5.3 Ba ck light com pensation---------------------------- ------- ------- ------- -------------18
5.4 Slow shutter c ontrol------------- --------------- ------- ------- ------- ---------- --------19
5.5 Ir cut fi lter ------------------------------------------------------ ----------------------20
5.6 Advance setting ----------------------------------------------------------------------21
5.6.1 AE mode ------------------------------------------------------------------------21
5.6.2 White balance mode -----------------------------------------------------------22
6.Function setting-------------- -------------------------- ----------- ------- --------------------23
6.1 Preset setting------------- ------------------- ------- ------- ------ ------------------------- 23
6.2 Scan---- -------- - --------------- ------- ------- ------ ------- ----------------------------------24
6.3 Pattern------- -------- ------------------------------------------------------------------------25
6.4. Tour------------------------------- -------- ---------------- ---------------------------------- 26
6.5 Zone setting- --------------------------------------- -------- ------- --------------------------27
6.6 Tour Time Setting ---------------- --------------------------------------- --------------------28
PDF created with pdfFactory Pro trial version www.pdffactory.com
7. Privacy zone masking---------------------------------------------------------------------------29
8. Installation instruction-------------------------------------------------------------------------30
8.1 Dimension of product--------------------------------------------------------------------- 30
8.2 Installation of product---------------------------------------------------------------------30
8.3 Installation of camera----------------------------------------------------------------------31
9. Appendix----------------------------------------------------------------------------------------33
9.1 Menu index------------------------------------------------------------------------------33
9.2 Trouble shooting------------------------------------------------------------------------ 34
9.3 The cleaning of the transparent cover------------------------------------------------- 34
9.4 Rs485 Bus basic knowledge---------------------------------------- ----- ----------------35
PDF created with pdfFactory Pro trial version www.pdffactory.com
Precaution
1、 Precaution
Please read the manual and product label carefully before installing the speed dome.
Ø Law
1.The product installation and use of the product must comply with the relevant laws of the country.
Ø Electrical safety
1.Strictly conform to country and local electrical safety standard when using or installing the product.
2.Using factory's power adapter. This dome uses DC12V/1500MA DC power supply. About the rated inputting
voltage, please refer to power label.
Ø Transportation
1.The dome should be protected against extremes of pressure, vibration humidity and other damage during
storage and transportation.
2.The dome should be shipped in parts disassembled as the original integrated packing during the transportation.
Damage caused by improper transportation is not within the warranty.
Ø Installation of care
1. Please refer to user manual when installation, and sufficient strength of the wall or ceiling should be ensured .
2. Power must be cut off when installation.
3. Please handle with care ,do not squeeze and press structure parts, which may cause mechanical damage.
4. Down cover and lens of camera are precise optical items. Please don't touch it directly to avoid scratch
which will affect the image quality.
Ø Requirements to service personnel
1.All the service work should be done by qualified technicians.
Ø Do not disassemble the pan/tilt module
Ø Environmental requirements
=Operation environment temperature:-10℃-+50℃
Humidity:< 90%
Air pressure:86-106Kpa
Ø Don't place lens of the camera to strong light objects (like sun etc.)
Ø Cleaning of down cover
1.when the image is unclear or there is so much dust on the down cover, please use soft cloth to clean or please
use the water to wash the down cover and then wipe up.
1
PDF created with pdfFactory Pro trial version www.pdffactory.com
Installation instruction
2. Installation of product
1.2 Item no corresponding sheet
P i c t u re
M ou nt
P l a ce
C eil i ng
I n door on ly
W a ll
I n d o or a nd
ou t door
1 Get the products out from the packages.
As Picture 2.1-1
1.3 details of relevant parts
1
2
3
# 2. 1 -1
4
5
1.wall bracke t
2.base board
3.power cable
4.spee d dome
5.transparent cover
# 1-1
2 Drill holes and fix base board on the ceiling floor
by using of 3 M4 bolts.(Like picture 8.2-2)
2. Installation instruction
2. 1
1. Dimension of product
as picture below
# 2. 1 -2
2
PDF created with pdfFactory Pro trial version www.pdffactory.com
Installation instruction
3. Insert three screws in the mini dome into the
apertures on the base board(pls refer to ), then
turn 15 degrees in clockwise(pls refer to! ).
2.2
1. Dimension of product
as picture below
249
!
# 2 . 1 -3
Picture2.2
4 . Using 3 additional M3*5 screws to lock tightly.
2. Installation of product
1 Get the products out from the packages.
As picture 2.1-1
# 2. 1 -4
5. Connect the power cable, video cable and
Rs485control-cable. As the picture below.
Video end
G r een
Y el l ow
P ow er p ort
# 2. 2-1
# 2. 1 -5
3
PDF created with pdfFactory Pro trial version www.pdffactory.com
Installation instruction
2、Make the wall bracket as the model on
installation wall, and draw the central position
of the drill hole. (As picture 2.2-2)
75.00
Picture2.2-4
5、Pls make the wall bracket aims at the M8 screw,
so that the output cable will be locked in the hole of
motherboard bracket, and use the M8 screw to lock
the wall bracket tightly. As picture 2.2-5.
Picture2.2-2
3、Please drill four installation holes for M8
metal expand screw with the lashed electric drill
on the installation surface, and be sure with the
installation hole of 75mm depth approximately
and M8 expand metal screw. (As picture 2.2-3)
Picture2.2-5
6、Connect the power cable, video cable and Rs485
control-cable. As the picture below.
Picture2.2-3
4、Get the water-proof output cable of mini
dome through the wall bracket, and make the
three screw of cover board in the mini dome into
the aperture on the base board, then turn 15 degrees in clockwise, and be sure that central position of the two ear holes of base board and cover
board are matched, and then lock it tightly using
the additional M3*5 screw.
4
PDF created with pdfFactory Pro trial version www.pdffactory.com
Dome performance
4.Dome performance
4. 1 Dome parameter
Setting
Power supply
Power supply
DC12V
Baudrate(RS485)
Cosumption
9W
Communication Protocol
360°
0-255
Physical
Built-in
Pan rotation
Pelco-D、Pelco-P、Factory
ID setting
Operational
Decoder
2400/4800/9600/19200bps
Operation temperature
-10℃ — +50℃
Tilt rotation
Tilt90°,with auto-flip
Environmental humidity
0—95%(no condensation)
Rotation speed
Pan1°- 200°/S
Tilt1°-150°/S
Mount way
Wall mount/Ceiling
Preset
128
Weight
N: 1.4kg
Monitor way
Preset/tour/scan/
pattern
Bracket
N: 1.25kg
Speed
Limitless variable-speed controlling
Material
G: 1.7kg
G: 1.45kg
Aluminum, iron and carbon alloy, plastic
4. 2 Camera parameter
Mode l
Spe c i fic ati on/p ar amet er
Imaging Element
1/4"C CD
Scanning System
625lines, 50field/s
White Balance
Auto/manual
Gain Control
Auto Gain Control
S/N
≥50dB
Shutter
Auto: 1/50-1/120,000 s continuously/manual
Lens
10 times optical magnified lens
Magnification
100times(10 times optical × 10 times digital)
Video Output
Multiple Video Output, 1.0Vp-p
Environmental Temperature
-10℃-50℃
Environmental Humidity
0~95%(no condensation)
8
PDF created with pdfFactory Pro trial version www.pdffactory.com
Dome performance
3.3 Dome performance and features
This product is high-technology surveillance product with high definition and color camera, variable-speed
pan/tilt and multifunction decoder. It can reduce the connection and installation process between systematic
parts at a max limit, and also can improve the stability and reliability of the system. Meanwhile, it is easy to
install and repair, and it has the following advantages: beautiful shape, rotate lightly and neatly, little noise,
simple operation and so on.
1、Built-in digital camera
● High sensitivity, high resolution, and integrated digital processing
● Auto-focus
● Auto-Iris
● Auto brightness control
● Auto white balance
● IR cut filter
● Auto back light compensation
● Auto slow shutter
2、Built-in high resolution color camera with pre-focus lens.
a、Prefocus lens 6mm, 8mm, 12mm(Optional)
b、Auto brightness controlling
c、Auto white balance
d、Auto back-light compensation
e、Auto aperture
f、Auto focus
3、Integrated and multi-protocol decoder
a. Figure design, all the data are stored in the inner of camera pan/tilt,when power off, the storage data
can't be lose.
b. Built-in decoder,Integrated and multi-protocol,includePELCO-D、 PELCO-P、FACTORY
and mainstream protocols;
c. 128 presets can be set, support auto tour(but can transfer 1-80 presets), and 1 tour can store up to 32 presets.
d. 4 pattern tour
e. 4 scan
f. Built-in direction indicator
g. Built-in temperature indicator
h. Built-in clock setting
i. Rs485 bus controlling in series, and dome ID;1-255
(optional)
4.Built-in pan/tilt
◆ Iron and carbon alloy structure, high intensity, and good heat dissipation.
◆ Precise stepping motor, rotate smoothly, react sensitivity and orientate accurately.
◆ Exquisite mechanical drive, support pan 360°continuously and tilt 0-90°, and may rotate180°
with auto flip.
◆ rotate slowly at pan 1°/s, and the image doesn't jitter.
5.OS D menu
◆ All the menu option are displayed in English.
◆ Video OSD menu. It is direct and simple to revise the dome information and parameter by keyboard and
menu display.
◆ May set park action, and set power up action or arrive appointed action.
6.Internal temperature test
◆
when the temperature exceeds the upper limit, the screen will display alarm information.
◆
According to the real-time temperature, the fan will measure if it starts or not, and prolong the life of fan.
9
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
4.Function in structure
This passage mainly describes the main function and general principle of integrated speed dome, and does
not refer to the concrete operation methods. Different system platform has different operation methods,
generally we should according to the system manufactory's operation manual. Please contact dealer to get
necessary information, under some conditions there are have some particular requirements and operations.
4. 1Auto-run motion
◆ Focus/speed proportion pan
When manually adjusting, for far focus situation, the dome responds at a high-speed so that touching
rocker slightly may make picture move rapidly, thus cause the picture to lose. To base on humanized design,
the dome automatically adjust pan and tilt rotation according to zoom near and far, which make it is
convenient to operate manually to make tracks for the object. In the menu, you may change system
parameter setting proportion pan as ON, thus you may run this function.
◆ Auto flip
If user holds the joystick in the down position, the camera rotates pan 180 degrees, then t he camera rotates
tilts up to 90 degrees, you may directly watch the rear view to realize surveillance all pr ocesses in portrait 180
degrees . In the menu, you may set the system parameter setting AUTO FLIP as ON, thus you may run this
function.
◆ Park action
By the menu“ park time” and “park action”, user may set auto-call preset or run tour, pattern, and
sca n, etc after pointing a few minutes if the dom e doesn't run any m otions.
◆ Power up action
By the m enu“ powe r up action” , after the dome powers up or restarts, user m ay set auto- resum e
m otions before power up and auto- call preset or run tour, pattern, and scan etc .
4 . 2 Camera control
Ø Magnification control
The user can adjust zoom far and near of the image by keyboard controller “Wide/Tele” to obtain
panora mic image or close view that you need . The speed dome support digital zoom and optical zoom .
Ø Focus control
System defaults Auto focus. When the lens changes, camera will a uto-adjust focus a ccording to the
center of the im age to get legible image; user also can manually focus to get desire image by operating
keyboard “FAR/N EAR”. W hen operating keyboard joystick, camera r esum es to auto focus.
The camera cannot auto focus in the following status:
●Target is not the center of the im age
●Observation the target near and far an the same tim e, can not be clear at the same tim e..
●Target is a strong light object, such as spotlight & etc.
●Target move s too fast
●Target area suc h as wall
●Target is too dark or vague
●Target image is too sm all
10
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
Ø Iris control
System defaults Auto Iris. Camera can rapidly adjust size of Iris, through the automaticly induct the
changing of environment ray, and thus make the brightness of deferent image stable.
User may adjust Iris by controller keyboard “open/close” to get required brightness that you need.
User also can resume auto Iris by joystick operation. When controlling the Iris manually, the dome locks current
position you manually controlled; when operating joystick, the dome resume auto Iris.
Ø
Auto back light compensation
Camera sub-area can carry out auto back light compensation. Under a strong light background, camera
will auto compensate light for the darker object and adjust daylight to the bright background. In order to avoid
making the image mess by the background is too high in luminance, and the object is unable to recognize
because of darkness, thus gain legible image.
Ø
Auto white balance
Camera can automatically adjust white balance in accordance with the alteration of background lightness to reach a true colour.
4. 3 Monitor function
◆Set and call preset
Preset function is that dome stores the horizontal angle, slope angle, camera lens focus position and
parameters of current pan/tilt into the memory. When necessary dome can call these parameters, and
adjust pan/tilt and camera to this position.
User can call presets easily and promptly by using keyboard controlling. The dome can support 128 presets.
◆Tour
Tour is the built-in function in the speed dome. It can appoint setting in advance, and make presets
arranged in needful order in tour dwell. By inserting presets in tour dwell, to make the camera tour between
these presets. Tour order can be programmed, each time you run tour, you can set park time. A tour can store
32 presets.
◆Scan
User can easily preset right limit and left limit by controlling menu and menu, in order to make the
camera scanned between right limit and left limit at a setting speed.
◆Pattern
Pattern is built-in function in the speed dome; the dome can record the tracks that are not less than 180s,
when running pattern, the dome moves repeatedly according to the recorded tracks. A dome can set up to 4
pattern tours.
◆Lens position display
The position that the speed dome has finished to self-testing as 0 point of pan rotation and tilt
rotation. The pan range is 0-360°, and tilt range is 0-90°. According to the displayed information, to set the
position of camera lens, and the position can display on the screen.
4. 4 Constant temperature Function
Inner temperature sensor check temperature inside of the dome. When the dome work in the high
temperature, the dome will automatically to start-up the fan to reduce the heat, to make sure the dome work
in the reliable temperature environment, increase its stability and prolong the life time of the dome.
11
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
5.System setting
5. 1 Basic operation
5. 1. 1 Current-carrying to dome and self-testing
The dome conducts self-testing after current-carrying,and it rotates slowly until displaying pan origin that is default
setting, then moving to tilt origin, the lens will be pulled far to near and near to far, when self-testing is finished, there
is relevant system information displaying on the screen, as follow:
S/N of the dome
Soft edition
Protocol
Dome ID
Communication parameter
The information will not disappear until you stop to operate the system. If you set“power up action”, the dome
will automatically activate motions after self-testing. How to operate the function? We will explain detail introduction
in following passages.
5.1.2 Call the main menu
The system enters into the main menu by 95preset or twice transfer 9 preset within 3 seconds . All the menu setting must
enter into the main menu at first. You need input password when you sign in the menu if you set up password and have
a super- password for the time of forget the password (super-password "892226"), then the password will turn to factory
setting (original password"000000". You need set the password again if you need it, the detail of information show in
password setting 6.7.
5.1.3 Menu and keyboard operation
Ø Keyboard operation:
【OPEN】 when choosing picture, it means to increase Iris; when setting menu, it means to enter into the
next menu or setting, or save after finishing setting.
【Close】when choosing pictures, it means to reduce Iris; close to cancel.
【FAR】Focus to far
【NEAR】 Focus to near
【TELE】Increase magnification
【WIDE】Reduce magnification
Joystick to up: When choosing menu, it means to choose the former one; when choosing picture, it
means camera tilt up.
Joystick to down: when choosing menu, it means to choose the next one; when choosing picture, it
means camera tilt down.
Joystick to left: when choosing menu, it is equal with【Close】, when choosing picture, it means camera
tilt left .
Joystick to right: when choosing menu, it is equal with【Open】, when choosing picture, it means
camera tilt right.
Press【TELE】and【WIDE 】 at the same time, it means 3D joystick rotates joystick cap.
Ø Menu operation
“Back” : Back to the former menu
“Exit” : Exit to menu
“ On” : Open some setting
“Off ” : Close some setting
12
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
SYST EM SE TTIN G
C AMERA SE TTI NG
5. 2 Edit dome label
When using a lot of systems of the dome , in order to identify to each
dome, the systems support title setting. The setting ways as follow:
FUNC TIO N S ETT ING
W IND OW BLANK ING
EXIT
1、The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
2、Moving joystick to 【SYSTEM SETTING】press【OPEN】to enter the next
menu.
SYSTEM SETTING
EDIT DOME LABEL
INITIAL INFO
DISPLAY SETU P
MOTION
CLEAR
PASSWORD SETTING
CLOCK SETTING
COMM SETTING
BACK
EXIT
EDIT DOME LABEL
3、Moving joystick to【EDIT DOME LABEL】press【OPEN】to enter the
label setting menu.
4、Moving joystick to【LABEL】 ,press【OPEN】to edit current label.
5、When the cursor is twinkling at the first character of the label, moving
joystick t to choose character, after editing, Pressing【OPEN】to save.
6、Moving joystick to 【BACK】,press【OPEN 】to back to the former
menu.
Notice: The label may set 16 characters, and doesn't need editing
characters. Pressing 【OPEN】continuously to jump over and using
spacebar to replace the deleted characters. When you finish to edit a
character, pressing 【OPEN】to enter into the next editing character,
when you editing the last character, pressing【OPEN】to save.
LABEL: SP EE D DO ME
BACK
EXI T
Press 【CLOSE】 to exit character of label is suitable for choosing as
follow:0-9、A-Z、:<>-.,Space.Other labels’input ways are the
same as above.
13
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
5. 3 Display initial information
SYSTEM SETTIN G
1.The system enters into the main menu by calling 95 preset or by calling
C AMERA SE TTI NG
9 preset twice within 3 seconds.
FUNCTIO N S ETTING
W IND OW BLANK ING
2、Tilt up/down joystick to 【SYSTEM SETTING】, press 【OPEN】
EXIT
to enter submenu.
3、Tilt up/down joystick to【INITIAL INFO】, press 【OPEN】to
display initial information, which as below the left picture shows.
SYSTEM SETTING
EDI T DOME LABEL
INITIAL INF O
DIS PLAY SE TU P
MOT ION
CLEAR
PAS SWORD SETTIN G
CLOCK SET TING
COMM SET TING
BACK
EXIT
Initial information includes S/N of the dome, the name of manufacturer, soft edition, camera address, communication parameter. System
setting may change the numerical value of initial information.
INITIAL INFO
S/N 4JKAA7824000058
FIRMWARE
V2.40
PROTOCOL:FACTORY
DOME ADDRESS :001
COMM: 4800,N,8,1
BACK
EXIT
14
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
5. 4 Display setup
1.The system enters into the main menu by calling 95 preset or by calling
SYST EM SETTIN G
C AMERA SE TTING
FUNC TIO N S ETT ING
W IND OW BLANK ING
EXIT
9 preset twice within 3 seconds.
2、Tilt up/down joystick to【SYSTEM SETTING】,press【OPEN】to enter
submenu.
3、Tilt up/down joystick to 【DISPLAY SETUP】 ,press【OPEN】to enter
display setup menu, may setting the content of the display setup as follow:
● 【DOME LABEL】: dome label display setting
● 【PRESET LABEL】:preset label or scan label display setting
● 【ZOOM LABEL】: magnification display setting
SYSTEM SETTING
EDIT DOME LABEL
INITIAL INFO
DISPLAY SETUP
MOTION
CLEAR
PASSWORD S ETT ING
CLOCK SETTING
COMM SETTING
BACK
EXIT
● 【ZONE LABEL】: zone label display setting
● 【DIRECTION LABEL】 :direction label display setting
● 【TEMPERATURE LABEL】:temperature label display setting
● 【TIME LABEL】:time label display setting
● 【DATE LABEL】:date label display setting
4、Taking “display dome label”as an example to explain the operation
process.
Tilt up/down joystick to move cursor to 【DOME LABEL OFF】,press
【OPEN】, there is a sign
besides【DOME LABEL】, the cursor is
twinkling besides【OFF】, as left picture shows.
DISPLAY SETUP
DOME LABEL
OFF
PRESET LABEL
OFF
ZOOM LABEL
OFF
ZONE LABEL
OFF
DIRECTION LABEL OFF
TEMPERATURE LABEL OFF
TIME LABEL
OFF
DATE LABEL
OFF
BACK
EXIT
5、Joystick tilts up/down, setting switch between ON/OFF, when displaying
【ON】, it means to display dome label, press【OPEN】, the cursor jump
back to 【DOME LABEL】, label setting is finished, move the cursor to
【EXIT】,exit to the menu setting.
The display information on the screen will change by the dome rotation
, user can see current dome inside temperature, magnification, display zone etc.
When all the labels are displayed, the dome works as the following picture
shows: (in the picture “305” means pan angel,“45”means tilt angle.)
Pres et label
Zone label
Time
Date
Direction label
Zoom m ag nifica tio n label
PDF created with pdfFactory Pro trial version www.pdffactory.com
15
System setting
5. 5 Systematic motion control
MAIN MENU
Systematic motion controlling may control a series of motions of the
SYST EM SE TTIN G
dome, and plays an important role in controlling the image of the dome.
C AMERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
1.The system enters into the main menu by calling 95 preset or by calling
EXIT
9 preset twice within 3 seconds.
2、Tilt up/down joystick to 【SYSTEM SETTING】,press【OPEN】
to enter submenu.
3、Tilt up/down joystick to【MOTION】,press【OPEN】to enter
SYSTEM SETTING
EDIT DO ME LAB EL
I NITI AL I NFO
D ISPLAY SE TUP
M OT ION
C LEA R
PASSWO RD SETTIN G
C LOC K S ET TING
C OM M S ET TING
BACK
EXIT
systematic motion controlling menu, as left picture shows.
5. 5. 1 Auto flip
1、Operate joystick, move the cursor to 【AUTO FLIP】,
press【OPEN】to enter auto flip setting, tilt up/down joystick, for example;
choosing ON to open auto flip; choosing OFF to close auto flip. Press
【OPEN】to save.
5. 5. 2 Speed proportion pan
1、Operate joystick, move the cursor to 【PROPORTIONAL PAN】;
press 【OPEN】 to enter“ proportion pan” setting, tilt up/down
joystick to choose, if choosing 【ON】, it means to open proportion
pan; if choosing【OFF】, it means to close proportion pan , press
MOTION
【OPEN】 to save.
AUTO FLIP
ON
PROPORTION PAN ON
PARK TIME
005
PARK ACTION
SCAN
Operation knacks
POWER UP AC TION AU TO
FAN ENABLED
BACK
EXIT
when opening the auto flip function, user holds the
040
joystick in the down position, the camera rotates pan 180 degrees,
after the camera rotates tilts up to 90 degrees, you may directly
watch the rear view to surveillance all process in portrait 180
degrees.
16
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
6. 5. 3 Park action
MOTION
AUTO FLIP
ON
PROPORTION PAN ON
PARK TIME
005
PARK ACTION
SCAN
POWER UP ACTION AUTO
FAN ENABLED
040
BACK
EXIT
MOTION
AUTO FLIP
ON
PROPORTION PAN ON
PARK TIME
005
PARK ACTION
SCAN
POWER UP ACTION AUTO
FAN ENABLED
BACK
EXIT
040
This setting allows the dome to run an appointed action after it enters
vacancy for a few time (1-240minutes). If default sets as 0, it means
not to run this action.
1、 Operate joystick, move the cursor to【PARK TIME】, press 【OPEN】
to tilt up/down joystick to set park time, the range is 0-240 (minute),
press【OPEN 】 to save.
【PARK ACTOIN 】 is running action at park time, when 【PARK TIME】
sets as 0, this item can't be set.
2、Operate joystick, move the cursor to【PARK ACTON】, press 【OPEN】
there will be a sign
in the front of 【PARK ACTON】, the cursor jump
to right, after tilting up/down joystick to choose“ park action” ,
there are options for choosing as follow, press【OPEN】 to save.
● 【NONE】- (default) none action
● 【PRESET】 -use preset 1
● 【SCAN】 - run scan
● 【PAT1】 - run pattern X
● 【TOUR】 - run tour
6 . 5. 4
Power up action
The dome stats to run actions after self-testing, if nobody intervenes
with it , the dome will repeatedly run this action continuously , if default
sets as 【NONE】.
1、 Operate joystick, move the cursor to 【POWER UP ACTION】: press
【OPEN】 to jump to the following choice, tilt up/down joystick to
choose “power up action”, press 【OPEN】 to save.
● 【NONE】 - none action
● 【AUTO】 - the dome resumes the primary action and
direction before power up.
● 【PRESET】 - use preset 1
● 【SCAN】 - run scan
● 【PAT1】 - run pattern X
● 【TOUR】 - run tour
MOTION
AUTO FLIP
ON
PROPORTION PAN ON
PARK TIME
005
PARK ACTION
SCAN
POWER UP ACTION AUTO
FAN ENABLED
BACK
EXIT
040
6. 5. 5 Fan startup by temperature
The temperature of the dome will rise when its environment is in high
temperature. The fan will open automatically when the temperature reaches
to a temperature value in order to make sure the stability of the dome.
Operate joystick, move the cursor to 【FAN ENABLED】: press
【OPEN】 , the cursor will skip to the back option. The user can press
【OPEN】 to save it in actual condition.
The default setting temperature of the fan startup is 40 OC. The user
also can enter into the fan startup setting to adjust the temperature of fan
O
startup. As picture shows: the temperature range is 0-60 C.
17
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
6. 6 Clear
1.The system enters into the main menu by calling 95 preset or by calling
SYST EM SETTIN G
C AMERA SE TTI NG
9 preset twice within 3 seconds.
FUNC TIO N S ETT ING
W IND OW BLANK ING
2、Tilt up/down joystick to【SYSTEM SETTING】 ,press
EXIT
【OPEN】to enter submenu.
3、Tilt up/down joystick to 【CLEAR】, press【OPEN】to enter
submenu, as left picture shows.
SYSTEM SETTING
EDIT DO ME LAB EL
INITI AL I NFO
D ISPLAY SE TUP
M OT ION
C LEA R
PASSWO RD SETTING
C LOC K S ETTING
C OM M S ETTING
BACK
EXIT
●
【CLEAR ALL ZONES】
●
【CLEAR ALL PRESETS】
●
【CLEAR ALL PATTERNS】
●
【CLEAR ALL TOURS 】
●
【CLEAR ALL WINDOWS】
●
【FACTORY DEFAULTS】: resume the Factory default. Run
this function, the camera parameter and system parameter will resume
before production, clear all windows and alarm setting. Please be
cautious to use this function.
●
【RESTART】The dome restart.
4、Set clear zone as an example to explain the process. Tilt up/down
joystick
to【CLEAR ALL ZONES】,press【OPEN】to clear all zones.
CLEAR
C LEA R A LL ZONES
C LEA R A LL PRESETS
C LEA R A LL PATT ER NS
C LEA R A LL TOU RS
C LEA R A LL WIN DOW S
FACTORY DEFAULTS
R ESTART
BACK
EXIT
Notice: once clear all commands in the controlling menu,
they does not resume, so please be careful of using.
18
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
6. 7 Password Setting
Password setting is the built-in function of high speed dome, By
SYST EM SETTIN G
C AMERA SE TTI NG
setting password (6 bits) it is very useful to protect the dome setting,
FUNC TIO N S ETT ING
if no password, you can't enter the setting menu. the initial password
W IND OW BLANK ING
of the dome is "000000".
EXIT
1.The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
2.Tilt up and down the joystick and move the cursor to 【SYSTEM
SETTING】, press【OPEN】to call the submenu.
3.Tilt up and down the joystick and move the cursor to 【PASSWORD
SETTING】, press【OPEN】to call System motion controlling menu,
SYSTEM SETTING
EDIT DO ME LAB EL
INITI AL I NFO
D ISPLAY SE TUP
M OT ION
C LEA R
PASSWO RD SETTING
C LOC K S ETTING
C OM M S ETTING
BACK
EXIT
as the left picture shows.
4.Input old password: Operate joystick, move the cursor to【OLD
PASSWORD】, press【OPEN】, there will be a
to display in
the front of【OLD PASSWORD】, the cursor jumps to the first
character on the right, tilt up and down the joystick to set the first
password, its option rage is 0-9, by tilting left and right the
joystick to input the other bits, press【OPEN】to save.
5.Input new password: Operate joystick, move the cursor to【OLD
PASSWORD】, press【OPEN】, there will be a
to display in the
front of【NEW PASSWORD 】, the cursor jumps to the first
character on the right, according to the above instruction user can
ordinally input the password by tilting up/down joystick, press
【OPEN】to over.
PASSWORD SETTING
6. Confirm the new password: Input the user's needful password again
according to above method. Failing to modify the password if
OLD PASSWORD:******
inputted password is different with the fifth step.
NEW PASSWORD:******
7. Start password or not: operate joystick, move cursor to 【ENABLE
CONF PASSWORD:******
ENABLE PASSWORD OFF
PASSWORD】. Pressing 【OPEN】, moving joystick up and down,
BACK
switch setup value between ON/OFF, show 【ON】, means the setting
EXIT
password is valid, show 【OFF】, means the setting password is
invalid.
19
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
6. 8 Date and clock setting
1.The system enters into the main menu by calling 95 preset or by calling
SYST EM SETTING
CAMERA SETTI NG
9 preset twice within 3 seconds.
FUNCTION S ETTING
WIND OW BLANKING
2.move the cursor to【System setting】by up and down the joystick,
EXIT
press【OPEN】to enter into the next menu
3.move the cursor to【Clock setting】by up and down the joystick.
Press【OPEN】to call clock setting, you could set the following
●
●
SYSTEM SETTING
EDIT DO ME LAB EL
I NITI AL INFO
D ISPLAY SE TUP
M OT ION
C LEA R
PASSWO RD SETTING
C LOCK SET TING
C OM M SET TING
BACK
EXIT
【TIME】
【DATE】
4. For example. move the cursor to【TIME】by up and down the joystick,
press【OPEN】. Pls move the cursor to the first number (the three number
means hour, minute, second, it also means year, month, date under the
【DATE】. Setting the [Hour] by up and down the joystick. Setting the
【MINUTE】、【SECOND】by turning right and left the joystick. Press
【OPEN】to save.
CLOCK SETTING
TIME:
DATE:
BACK
EXIT
15:11:41
07/08/27
20
PDF created with pdfFactory Pro trial version www.pdffactory.com
System setting
MAIN MENU
SYST EM SETTIN G
C AMERA SE TTI NG
FUNC TIO N S ETT ING
6. 9 Setup Dome parameter
1.The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
W IND OW BLANK ING
2.Moving joystick up and down to move the cursor to 【SYSTEM
EXIT
SETTING】, and pressing 【OPEN】to enter into the next menu.
3.Moving joystick up and down to move the cursor to 【COMM
SETTING】, and pressing 【OPEN】to enter into Dome parameter setup
menu.
SYSTEM SETTING
EDIT DO ME LAB EL
INITI AL I NFO
D ISPLAY SE TUP
M OT ION
C LEA R
PASSWO RD SETTING
C LOC K S ETTING
C OM M S ETTING
BACK
EXIT
S/N : Show Series NO. of the dome ex-work.
CONF : Using to edit, the series NO. of the dome is the same as S/N
series Number.
SITE ID: Setting up the ID Number of the dome, address scope (001-255).
COMM SPEED: Baud rate setup. The user can choose 4 kinds of Baudrate (2400 BPS, 4800 BPS, 9600 BPS, 19200 BPS).
PROTOCOL:set protocol,the user can choose 16 kinds of protocol:
PELCO 、FACTORY、 DYNACOLOR、 ISD、 HUNDA、 VIDO B02 、
LILIN、KALATEL、 DIAMOND 、 SAMSUNG 、PANASONIC、
SANTACHI、 VICON 、MOLYNX、 VCL 、SAE.
Remark: below operation can not be continue when above
COMM SETTING
two series Number are not the same.
S/N: 4JKAA7824000058
CONF: 4JKAA7824000058
SITE ID
001
COMM SPEED 4800BPS
BACK
EXIT
21
PDF created with pdfFactory Pro trial version www.pdffactory.com
Camera setting
MAIN MENU
SYSTEM SE TTIN G
7. Camera setting
7. 1 Zoom speed
C AM ERA SE TTING
1.The system enters into the main menu by calling 95 preset or by calling
FUNCTIO N SETTING
9 preset twice within 3 seconds.
WINDOW BLANK ING
EXIT
2、Tilt up/down joystick to【CAMERA SETTING】 , press 【OPEN】to
enter submenu.
3、 Operate joystick, move the cursor to 【ZOOM SPEED】; press【OPEN 】
will appear a sign
in the front of 【ZOOM SPEED】, the cursor moves to
right, tilt up/down joystick to choose 【HIGH】 or 【LOW】.
CAMERA SETTING
4、 Press 【OPEN】 to save, press 【CLOSE】 to cancel.
ZOO M S PEED
HIGH
DIGITAL ZOOM
ON
BLC MO DE
O FF
SLOW S HUTTER X2
IR C UT FILTER
ADVANCE SETTING
BACK
EXIT
22
PDF created with pdfFactory Pro trial version www.pdffactory.com
Camera setting
7. 2 Digital zoom control
MAIN MENU
1.The system enters into the main menu by calling 95 preset or by calling
SYST EM SE TTIN G
9 preset twice within 3 seconds.
C AMERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
2、Tilt up/down joystick to 【CAMERA SETTING】, press 【OPEN】 to
EXIT
enter camera setting.
3、Operate joystick, move the cursor to 【DIGITAL ZOOM】, press
【OPEN】 to enter digital zoom setting, tilt up/down joystick, to choose
【ON】 means open digital zoom control which can be pulled near,
if pulling the digital zoom near again, the dome enters into“ digital zoom
increase”; to choose 【OFF】 means to close digital zoom control.
CAMERA SETTING
ZOO M S PE ED
HIGH
DIG ITAL ZOOM
ON
BLC MO DE
OFF
SLOW S HU TTER X2
IR C UT FILTER
ADVANCE SETTING
BACK
EXIT
4、Press【OPEN】 to save.
OPERATION KNACKS
When di gital zoom be set as ON, the maximum zoom magnification of the dome is digital zoom magnification times optical
zoom magnification; w hen digi tal zoom be set as OFF, the maximum
zoom magnification of the dome is optical zoom magnification.
The option of the digital zoom is ON/ OFF when the
NOTICE
camera module is SONY 、LG、CNB 、HITACHI .
23
PDF created with pdfFactory Pro trial version www.pdffactory.com
Camera setting
MAIN MENU
7. 3 Back light compensation
1.The system enters into the main menu by calling 95 preset or by calling
SYST EM SE TTIN G
9 preset twice within 3 seconds.
C AMERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
2、Operate joystick, move the cursor to 【CAMERA SETTING】 to enter
EXIT
submenu.
3、Operate joystick, move the cursor to 【BLC MODE】, press 【OPEN】,
There will be a sign
in the front of【BLC MODE】, the cursor jump to
right, tilt joystick to open or close back light compensation function. If choosing ON means to open back light compensation mode; if choosing 【OFF】
means to close back light compensation mode.
CAMERA SETTING
ZOO M S PE ED
HIGH
DIG ITAL ZOOM
ON
BLC MO DE
OFF
SLOW S HU TTER X2
IR C UT FILTER
ADVANCE SETTING
BACK
EXIT
4、Press 【OPEN 】 to save.
OPERATION KNACKS
Strong background ray can make backlighting objects engender
shadow, (back light compensation), the speed dome can auto-adjust
iris to match with the changes of various ray, and auto-revise the
main lightness to make the pictures more legible.
This functi on relates to models and parameters of the built-in
camera in the dome, when open black compensation, it has two
functions which are auto-adjust (when you choose ON) or
NOTICE
manual adjust(0-255) according to the different of the camera.
Without back light compensation, in
strong sunshine, the back light side is
subject to dark.
24
PDF created with pdfFactory Pro trial version www.pdffactory.com
With back light compensation, the
image is in gear.
Camera setting
7. 4 Slow shutter control
MAIN MENU
1.The system enters into the main menu by calling 95 preset or by calling
SYSTEM SETTIN G
9 preset twice within 3 seconds.
C AMERA SE TTING
FUNCTIO N SETTING
W INDOW BLANK ING
2、Operate joystick, move the cursor to【CAMERA SETTING】 to enter
EXIT
submenu.
3、Operate joystick , move the cursor to [SLOW SHUTTER], press[OPEN],
then there will have a sign
in the front of [SLOW SHUTTER], The cursor
moves to right, you can make your choice when tilt up/down joystick. (Can
choose from X2、X4、X6、X8、X10、X12、X14、X16、X24、X32、
X64、X128, which according to the time of lighting in turn, the more the
CAMERA SETTING
ZOOM SPE ED
HIGH
DIG ITAL ZOOM
ON
BLC MODE
OFF
SLOW SHU TTER X2
IR CUT FILTER
ADVANCE SETTING
BACK
EXI T
long lighting).
4、Press【OPEN】to save.
OPERATION KNACKS
When the dome monitors at night or dark environment, because
the ray i s not enough, the image on the screen is too dark, setting slow
shut ter can lengthen the time of lighting so that make the pi cture that
is shoot i n dark more legible.
NOTICE
This function depends on the models and parameters
of built-in cam era i n dome, i f the cam era haven't this
funct ion, then this function is invalid.
25
PDF created with pdfFactory Pro trial version www.pdffactory.com
Camera setting
MAIN MENU
7. 5 IR cut filter
1、The system enters into the main menu by calling 95 preset or by
SYST EM SE TTIN G
calling 9 preset twice within 3 seconds.
C AMERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
EXIT
2、Operate joystick, move the cursor to 【CAMERA SETTING】 to
enter submenu.
3、 Operate joystick, move the cursor to 【IR CUT FILTER】; press
【OPEN】, there will be a sign
in the front of【IR CUT FILTER】,
the cursor jumps to right, move joystick to“ IR cut filter”, choices as
follow, 【AUTO】is default.
● 【AUTO】IR cut filter mode, it means the dome automatically
CAMERA SETTING
ZOO M S PE ED
HIGH
DIG ITAL ZOOM
ON
BLC MO DE
OFF
SLOW S HU TTER X2
IR C UT FILTER
ADVANCE SETTING
BACK
EXIT
transfers according to sensitivity.
● 【TIME】 Can set black/color time; for example, can set color
image in day and set black in the night.
● 【COLOR】set as color mode
● 【BLACK】 set as black and white mode
4、Press 【OPEN】 to save.
OPERATION KNACKS
IR cut fi lter function uses color in day; use bl ack and white at
night. This functi on not only guarantees the quality of image, but
also saves the room of storage.
IR CUT FILTER
I R CUT FILTER
AUTO
I R CUT ON TIME N/A
I R CUT OFF TIME N/A
BACK
EXIT
NOTICE
This function depends on the models and parameters
of built-in camera in dome, if the camera haven't t his
function, then this function is invali d.(N/A)
26
PDF created with pdfFactory Pro trial version www.pdffactory.com
Camera setting
7. 6 Advance setting
MAIN MENU
SYST EM SE TTIN G
1、The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
C AM ERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
2、Operate joystick, move the cursor to 【CAMERA SETTING】 to enter
submenu.
EXIT
3、Operate joystick, move the cursor to 【ADVANCE SETTING 】; press
【OPEN】 to enter submenu, as left picture shows;
5. 6 . 1 AE mode
CAMERA SETTING
ZOOM SPEED
HIGH
DIGITAL ZOOM
ON
BLC MODE
OFF
SLOW SHUTTER X2
IR CUT FILT ER
ADVANCE SETTING
BACK
EXIT
1、Operate joystick, move the cursor to 【AE MODE】, press 【OPEN】,
tilt up/down joystick to choose AE mode, modes for choosing as follow:
● 【AUTO 】: default setting, auto Iris mode
● 【BRIGHT】: brightness priority mode
● 【IRIS】: iris priority mode
● 【SHUTTER】 : shutter priority mode
2、Choose Iris priority mode 【IRIS】, press 【OPEN】to save.
3、Move joystick to the sub-choices of AE mode 【IRIS F1.4】, press
【OPEN】 to choose adequate Iris, press 【OPEN】 to save.
● 【 SHUTTER
1/50】it means shutter speed, when AE mode is shutter
priority, this function can be set.
● 【 IRIS
F1.4】 it means the size of iris, when AE mode is iris
priority, this function can be set.
● 【BRIGHT
F2.0/ODB】it means brightness, when AE mode is brightness priority, this function can be set.
OPERATION KNACKS
ADVANCE SETTING
AE MODE
S HUTTER
WB MO DE
R GAI N
B GAI N
BACK
EXIT
AUTO
N/ A
AUTO
N/A
N/A
Quality of photo relat es to exposure amount, that is to say how
much light can make CCD receives legible im age. Exposure
amount is relative to t he time of lighten (be up to shutter speed)
and the area of lighten (be up to the size of iri s).
The camera can automatically calculate suitable exposure amount according to brightness of scenery and CCD sensitivity, in the situation that the
exposure amount is certain: 【SHUTTER】 (shutter priority) is to fix shutter
speed, the camera will auto decide to use how much iris; 【IRIS】(iris priority) is to fix the size of iris, and auto-decide to use shutter speed. 【BRIGHT】
(brightness priority)is point that the camera TTL check the light directly and
control the brightness of image.
27
PDF created with pdfFactory Pro trial version www.pdffactory.com
Camera setting
7. 6. 2 White balance mode
MAIN MENU
System supports 【AUTO】 、indoor mode 【INDOOR】 、outdoor
SYST EM SE TTIN G
mode 【OUTDOOR】 、auto track mode 【ATW】 、single mode 【OPW 】 、
C AMERA SE TTI NG
【OPT】 mode、manual mode 【MANUAL】 and kinds of white balance
FUNC TIO N S ETT ING
W IND OW BLANK ING
modes, etc. Detail setting as follow:
1、The system enters into the main menu by calling 95 preset or by calling
EXIT
9 preset twice within 3 seconds. click each command enter into“ advanced
setting” menu according to the order in left picture .
2、Operate joystick, move the cursor to【WB MODE 】 to choose white
balance mode, press 【OPEN】 to save.
Auto mode 【AUTO】 is the default mode of speed dome, which is autoCAMERA SETTING
revert real color after the white balance sensor check the environment by
camera. When choosing manual mode【MANUAL】, adjust the numerical
ZOOM SPEED
HIGH
DIGITAL ZOOM
ON
BLC MODE
OFF
SLOW SHUTTER X2
IR CUT FILT ER
ADVANCE SETTING
BACK
EXIT
value of 【R GAIN】and【B GAIN】.
●
【R GAIN】t he range is 1-225; the numerical value is bigger, it means
that adding red is more, the tone changes to be warm.
●
【B GAIN】the range is 1-225; the numerical value is bigger, it means
that adding green is more, the tone changes to be cold.
That m eans the curre nt camera has no suc h func tion wh en
the setting op tion sh ows N/A.
NOTICE
ADVANCE SETTING
AE MODE
S HUTTER
WB MO DE
R GAI N
B GAI N
BACK
EXIT
AUTO
N/ A
AUTO
N/A
N/A
28
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
MAIN MENU
8. Function setting
8. 1 Preset setting
SYST EM SE TTIN G
C AM ERA SE TTI NG
1.The system enters into the main menu by calling 95 preset or by calling
FUNC TIO N S ETT ING
9 preset twice within 3 seconds. according to the order of the left picture,
W IND OW BLANK ING
to click each command to enter“ presetmenu”, various functions as follow:
EXIT
●
【 PRES ET NUMBER 】sele ct pres et num ber as c urrent preset
● 【 SET
P RESE T】
●
【 SHO W PRE SET】
●
【 CLEAR PRESET】
● 【 EDIT
PRES ET LABEL】
Define preset and display preset function can be set by keyboard
operation, input preset number at first, then click the key“ save reset/call
FUNCTION SETTING
PRESET S
SCAN
PATTERNS
TOU R
ZON ES
TIME RU NNING
BACK
EXIT
preset” to carry out.
2、Define current preset number: move the cursor to【PRESET N
UMBER】,press【OPEN】to choose preset number, the range is 01-128,
as the left picture shows, here chooses number 5 as current preset, the
following operations aim at the current preset.
3、Define current preset: move the cursor to 【SET PRESET】, press
【OPEN】, by operating joystick to adjust magnification, to choose good
objective image, press 【OPEN】 to save. If the image is very near, the
image is belong in digital zoom; when setting preset, the image will jump
to maximal optical zoom.
Operation knacks
PRESETS
Preset function is that dome stores current pan/tilt angle,
zoom and other position parameters into the memory. When necessary
PRES ET NUMBE R 05
SET PRESET
SHOW PRES ET
C LEA R P RESET
EDIT PRESE T LABEL
BACK
EXIT
dome recalls these parameters and adjust camera to that position.
4、Display current preset: move the cursor to 【SHOW PRESET】,
press 【OPEN】, the screen will display the current preset;
5、Clear current preset: move the cursor to 【CLEAR PRESET 】,
press【OPEN】, the current preset is cleared.
6、Edit current preset label: move the cursor to【EDIT PRESET LABEL】,
press 【OPEN】to enter into editing preset submenu,
system auto-sets label as PRESET-XX, press 【OPEN】to revise label.
EDIT PRESET LABEL
LABE L: PRESET-05
BACK
EXIT
Notice :
1.When running to program , displa y, clea r preset and ed it labe l, should choo se
prese t numb er at fi rst.
2.The l abel ma y set u p to 16 charac ters, an d does n't nee d editin g char acters. Press
【Ope n】 co ntinuously to jump o ver and use sp acebar to repl ace the deleted chara cters.
Whe n you finish to edit a charact er, pre ss 【Op en】 toenter into the next e diting
chara cter ; when yo u finish to edi t the la st chara cter, p ressing 【Ope n】to s ave. Pr ess
【Close】to e xit.
Ch aracter of lab el is su itable f or choo sing a s follow : 0-9、 A-Z、 :<>-. , space.
29
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
8. 2 Scan
MAIN MENU
SYST EM SETTIN G
C AMERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
EXIT
FUNCTION SETTING
PRESETS
SCAN
PAT TERNS
TOUR
ZONES
TIM E RUNN ING
BACK
EXI T
Scan is that pre-set two points , then the camera repeatedly scan
between the two points at a stable speed, the same magnification and
pan . A dome only has one scan tour.
1.The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds. click menu to enter “scan” menu, as
the left picture shows.
● 【SCAN SPEED 】
● 【SET LEFT LIMIT 】
● 【SET RIGHT LIMIT】
● 【RUN SCAN 】
● 【CLEAR SCAN】
● 【EDIT SCAN LABEL】
2、Define current scan number: operate joystick ,move the cursor to scan
number ,press open ,tilt up/downjoystick to choose scan number,
press open to save .the following operations aim at the current scan
number.
3 Scan speed setting: operate joystick to 【SCAN SPEED 】, press
【OPEN】, tilt up/down joystick to adjust scan speed, press 【OPEN】
to save.
4 Left limit setting: operate joystick to 【SET LEFT LIMIT】, press
【OPEN】, operate joystick to choose objective image, press 【OPEN】
to save.
SCAN
SCAN NUMBER
01
SCAN SPEED
50
SET LEF T LIMIT
SET RIGHT LIMIT
R UN SCAN
C LEAR SCAN
EDIT SCAN LAB EL
BACK
EXIT
5 Edit scan label: operate joystick, move the cursor to 【EDIT SCAN
LABEL】, press 【OPEN】 to enter submenu“ edit label”, move the
cursor to 【LABEL】, the system will auto-set the label as AUTO SCAN,
press【OPEN】 to revise.
Notice: The label can set up to 16 chara cters, a nd doe sn't ne ed edit ing
charac ters. Pressing 【Ope n】co ntinuo usly to jump o ver an d using spacebar
to rep lace the deleted characters. When you fin ish to edit a c haract er,
pressin g【Op en】to enter into th e next editing charac ter; when you finish
to edit the las t chara cter, pressing【Ope n】 to save.
Press 【Clos e】 to exit.
Characte r of label is suitable for choosing as follow: 0-9 、A-Z 、
:<>-. , space. The editing ways of other labels are the same a s abov e.
EDIT SCAN LABEL
LABEL: AU TOS CAN
BACK
EXI T
6、Run scan: operate joystick to【RUN SCAN】, press 【OPEN】 to exit
the menu, and it stars to run scan.
Notice:1. left limit and right limit of scan can't be set the same point.
2.Under scan process, speed, magnification and tilt direction won't
change, if the speed, magnification and tilt direction of the two limits
are inconsistent, run scan is base on left limit.
30
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
8. 3 Pattern
MAIN MENU
SYSTEM SE TTING
Pattern is built-in function in camera; the speed dome can record
tracks that are no less than 180s. (A series of pan/tilt controlling and
CAM ERA SETTI NG
lens controlling command). A dome may set up to 4 pattern tours.
FUNCTION SETTING
1.The system enters into the main menu by calling 95 preset or by calling
WINDOW BLANKING
9 preset twice within 3 seconds.
EXIT
2、Operate joystick, move the cursor to 【FUNCTION SETTING】,
press 【OPEN】 to enter submenu.
3、Operate joystick to 【PATTERN】, press 【OPEN】 to enter menu
“Pattern”.
FUNCTION SETTING
● 【PATTERN NUMBER】choose current pattern number
as the current pattern.
PRESET S
SCAN
PAT TER NS
TOU R
ZON ES
TIM E RU NN ING
BACK
EXI T
● 【PROGRAM PATTERN】define the track of the current
pattern
● 【RUN PATTERN】run current pattern
● 【CLEAR PATTERN】clear current pattern
● 【EDIT PATTERN LABEL】 edit current pattern label
4、Choose pattern number: move the cursor to 【PATTERN NUMBER】,
press 【OPEN】, pattern you choose as current pattern, the following
operations aim at the current pattern;
PATTERNS
PATTERN NUMBER
PROGRAM PATTERN
RUN PATTERN
CLEAR PATTERN
EDIT PATTERN LABEL
BACK
EXIT
5、Define current pattern tour: move the cursor to 【PROGRAM
PATTERN】, press 【OPEN】 to set pattern track, move the image
wantonly, and draw the focus. The dome has a tour that is no less than
180s, a series of park time, magnification, focus will be recorded,
press 【OPEN】 to save.
6、Run pattern: Operate joystick to 【RUN PATTERN】, press 【OPEN】
to run, the dome will continuously and repeatedly record the specific
track.
Notice:
When carry out program, run, clear pattern and edit label,
EDIT PATTERN LABEL
should choose pattern number at first.
LABEL: PATTERN-1
BACK
EXIT
31
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
8. 4
MAIN MENU
SYST EM SETTIN G
Tour
Tour is the built-in function in the speed dome, it will arrange
the presets into the queue of auto-tour, and can set how long it will park
C AMERA SE TTING
at preset. Operate auto-tour is a process of incessantly transfer each
FUNC TIO N S ETT ING
preset. One tour can store 32 presets at most.
W IND OW BLA NK ING
1.The system enters into the main menu by calling 95 preset or by calling
EXIT
9 preset twice within 3 seconds.
2、 Operate joystick, move the cursor to 【FUNCTION SETTING】,
press 【OPEN】enter submenu.
FUNCTION SETTING
PRESETS
SCAN
PATTERNS
TOUR
ZONES
TIME RUNNING
BACK
EXIT
3、Operate joystick, move the cursor to 【TOUR】, press【OPEN】
to enter menu “tour”.
4、Set the park time of preset: Operate joystick, move the cursor to
【TOUR DWELL】 press 【OPEN】, there will be a sign
in the front
of 【TOUR DWELL】, the cursor jumps to right, tilt up/down to set
park time, and the range is 000-255(s).
5、Set tour: move the cursor to tour dwell 【00-00-00...00】, press
【OPEN】, the first dwell is activated, tilt up/down joystick to choose
preset number, press【OPEN】, the cursor jumps to the next dwell,
press 【CLOSE】, the cursor jumps to the former dwell. After finishing
TOUR
the last dwell of a line, press 【CLOSE】to save. Press 【CLOSE】 to
PO-S-TM
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
BACK
EXIT
PO-S-TM
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
PO-S-TM
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
exit. If set the presets of the second line, move the cursor to the second
line, press 【OPEN】 to edit continuously. When the numerical value
is "00", the following presets are invalid. A tour can set up to 32 presets.
6、 Run tour: Operate joystick, move the cursor to 【RUN TOUR】,
press 【OPEN】to exit the menu, it stars to run tour.
PO: Preset Number, optional scope: 00-80;
S: Movement speed of the dome ( user can choose between 0-8 , the
dome run fastest when choose 8 , slowest when choose 1, the dome at
rest when choose 0.);
TM: Stay time setup, optional scope: 00-60 (second).
Remark: the system will leap over the preset automatically when the
stay time of one item setting up on 0; The dome will not run the tour
of latter preset when preset or movement speed setting up on 0 .
32
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
8. 5
MAIN MENU
Zone setting
A dome may be set up to 8 zones; the regional scene can't be
SYST EM SE TTIN G
overlapped. User will set label for each zone. When setting【ZONE
C AM ERA SE TTI NG
LABEL】 as ON, the dome will display zone label as it runs some zone.
FUNC TIO N S ETT ING
W IND OW BLANK ING
It is convenient to know the zone that the camera shoots by setting zone
EXIT
label.
1.The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
FUNCTION SETTING
2、Operate joystick, move the cursor to 【FUNCTION SETTING】,
press 【OPEN】 to enter submenu.
PRESET S
SCAN
PATTERNS
TOUR
ZONES
TIME RU NNING
BACK
EXIT
3、Operate joystick, move the cursor to 【ZONES 】, press 【OPEN】 to
enter submenu, as the left picture shows.
● 【ZONES NUMBER】choose zone number as current zone,
there choices in the menu aim at current zone.
● 【SET LEFT LIMIT】set current zone's left limit
● 【SET RIGHT LIMIT】set current zone's right limit
ZONES
ZONES NUMBER
SET LEF T LIMIT
SET RIGHT LIMIT
C LEAR ZONE
EDIT ZONE LABE L
BACK
EXIT
● 【CLEAR ZONE 】clear current zone setting
1
● 【EDIT ZONE LABEL 】edit current zone label, as zone number
is 1. Zone label will auto-change as ZONE-1
Regard the left/right limit as the demarcation line, and set the
middle part as a zone. Various operational ways are the same as other
settings in the menu. Therefore we won't explain it again.
EDIT ZONE LABEL
LABEL: ZO NE-1
BACK
EXIT
33
PDF created with pdfFactory Pro trial version www.pdffactory.com
Function instruction
8. 6 Tour Time Setting
MAIN MENU
SYST EM SE TTIN G
C AM ERA SE TTI NG
1.The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
FUNC TIO N S ETT ING
W IND OW BLANK ING
EXIT
2.Operate joystick, move the cursor to【FUNCTION SETTING】, press
【OPEN】to call the submenu.
3.Operate joystick, move the cursor to【TIME RUNNING】, Tilt up and
down the joystick to set time channel, this system can set up to 4 time
FUNCTION SETTING
PRESETS
SCAN
PATTERNS
TOUR
ZONES
TIME RUNNING
BACK
EXIT
channels, press【OPEN】, the time channel that you choose is the
current time channel, the following operations is only for current time
channel.
4. Set the start and end of the time: move the cursor to【START TIME】,
by tilting up and down the joystick to set the start time, press【OPEN】
to save; move the cursor to【END TIME 】, by tilting up and down the
joystick to set the end time, press【OPEN】to save.
5. Motion setting: operate joystick, move the cursor to【RUNNING】,
TIME RUNNING
TIME CHANNEL
I
START TIME
00:00
END TIM E
00:00
RUNNING
NONE
press 【OPEN】, there will be a
to display in the front of【RUNGING】,
the cursor jumps to right, tilt up and down the joystick to choose the motion in corresponding time channel, press【OPEN】to save. The following
items can be selected.
34
PDF created with pdfFactory Pro trial version www.pdffactory.com
Privacy zone masking
9、Privacy zone masking
MAIN MENU
Privacy function can show someone piece of regional shielding while
protecting. For example, protect the window of bedroom or ATM of bank. A
dome can set up to 24 privacy windows.(Masking setting function is relative with the model of camera module. The masking numbers will be different according to the different cameras.)
SYST EM SE TTIN G
C AMERA SE TTI NG
FUNC TIO N S ETT ING
W IND OW BLANK ING
EXIT
Hi tachi Camera: It can be set 8 masking at most in 360° surveillance
range,can set 2 m asking at most per screen. The screen wi ll note" please
move" when the position can not be set. It can not set masking when the
dome rotates down in the level ≥45°.
Sony Camera: It can be set 24 masking at most in 360°surveillance range.
( Sony 45 series can be set 8 m asking at most ). It can not set masking
when the dome rotates down in the level ≥20°. LG,C NB Camera m odule
have no masking function.
WINDOW BLANKING
W IND OW NU MBER
01
EDIT WIN DO W
ENAB LE WIN DO W
C LEA R W IND OW
BACK
EXIT
1、The system enters into the main menu by calling 95 preset or by calling
9 preset twice within 3 seconds.
OFF
2、Operate joystick to 【WINDOW BLANKING】, press 【OPEN】to enter menu“ window blanking”.
● 【WINDOW NUMBER】 choose window number as current privacy window, other choices in the menu just aim at current privacy window;
● 【EDIT WINDOW 】program current window;
● 【ENABLE WINDOW】 permit/prohibit current privacy window,
there are two choices: ON---permit current privacy window/OFF---prohibit
current privacy window
● 【CLEAR WINDOW】clear current privacy window, after clearing
it, the window will auto- change as OFF.
3、Program current privacy window: Firstly choose window number, then
do the following operations:
a. Operate joystick, move the cursor to 【EDIT WINDOW】, press 【OPEN】 to move the image that need privacy window to display in the screen.
b . Press【OPEN】, there will be a square displaying in the center of the screen, operate joystick, and move the square to the central place that need
to conceal.
Privacy zo ne masking
c. Press【OPEN】, operate joystick to adjust the size of privacy zone: joystick to up, the height is increased; joystick to down, the height is reduced;
joystick to right, the width is increased; joystick to left, the width is reduced.
d. Press 【OPEN】 to save the current privacy zone setting, and the window
will auto-change as ON at the same time.
35
PDF created with pdfFactory Pro trial version www.pdffactory.com
Appendix
10. Appendix
10. 1 Dome menu index
MAIN MENU
SYSTEM SETTING→
CAM ERA SETT ING→
FUNC TION SET TING →
WIND OW BLA NKIN G→
EXIT
CAMERA SETTING
SYSTEM SETTING
ED I T DO M E LAB EL→
IN IT IA L IN F O→
D I S P LAY S E TU P→
M O TI O N →
CL EA R→
PA S S WO R D S E T TI NG→
CL OC K S ETT I N G→
CO M M S E T TI N G→
BA CK
EX I T
ZO OM S PEE D
H IGH
DI GITAL ZO OM
ON
BL C NODE
OF F
SLO W SH UTTER
X2
IR CU T FI LTER→
AD VA NC E S ETTI NG →
BACK
EX IT
I R C U T FI LT E R
INITIAL INFO
S/N 4JKAA7824000058
FIRMWARE V2.40
PROTOCOL :FACTORY
DOME ADDRESS: 001
COMM: 4800 . N.8.1
BACK
EXIT
IR CUT FILT ER
IR CUT ON TI M E
IR CUT OF F TI ME
BACK
EX IT
A UTO
N /A
N /A
AD VA N C E SE T T I N G
DISPLAY SETUP
DOM E LABEL
PRESET LABEL
ZONE LABEL
ZOOM LABEL
DIRECTION LABEL
TEMPERATURE LABEL
TIME LABEL
DATE LABEL
BACK
EXIT
OFF
OFF
OFF
OFF
ON
OF F
OFF
OFF
WINDOW NUMBER 01
EDIT WINDOW
ENABLE WINDOW OFF
CLEAR WINDOW
BACK
EXIT
PRESETS
EDIT DOME LABEL
LABE L:SPEED D OME V1. 00
BA CK
EXIT
WINDOW BLANKING
FUNCT ION SETTING
PR ESETS→
SC AN→
PATTER NS→
TOUR→
ZONES→
TIME RUNNING→
BACK
EXIT
AE M OD E
S HU TTER
WB MO DE
R GAI N
B GAI N
BACK
EX IT
AUTO
N/A
A UTO
N/A
N/A
EDIT PRESET LABEL
PR ESE T NUMBE R
SE T PRE SET
SH OW PRESET
CL EAR PRESE T
ED IT PRES ET LA BEL →
BA CK
EX IT
01
L ABEL:PRE SET-0 1
BACK
E XIT
SCAN
SCAN SPEED
63
SET LEF T LIMIT
SET RIGHT LIMIT
CLEAR SCAN
RUN SCAN
EDIT SCAN LABE L→
BACK
EXIT
EDIT SCAN LABEL
LABEL: AUTO SCAN
BACK
EXIT
PATTERNS
EDIT PATTERN LABEL
PATTERN NUMBER
1
PROGRAM PATTERN
RUN PATTERN
CLEAR PATTERN
EDIT PATTERN LABEL→
BACK
EXIT
LABE L:PATT ERN-1
BACK
EXIT
TOUR
MOTION
AU TO FLIP
PROPORTION PAN
PARK TIME
PARK ACTIO N
POWER UP ACT ION
FAN ENABLED
BACK
EXIT
CLEAR
CLEAR ALL ZONES
CLEAR ALL PRESETS
CLEAR ALL PATTERNS
CLEAR ALL TOURS
CLEAR ALL WINDOWS
FACTORY DEFAULTS
RESTART
BACK
EXIT
PO-S-TM
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
BACK
EXIT
ON
ON
005
SCAN
AUTO
40
ZONES NUMBER
SET LEFT LIMIT
SET RIGHT LIMIT
CLEAR ZONE
EDIT ZONE LABEL→
BACK
EXIT
15:11:41
07/08/27
1
EDIT ZONE LABEL
LABEL :ZONE-1
BACK
EXIT
TIME RUNNING
CLOCK SETTING
TI ME :
DATE:
BACK
EX IT
PO-S-TM
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
ZONES
PASSWORD SETTING
OLD PASSWOR D:******
NEW PASSWORD:******
CONF PASSWORD:******
EN ABLE PASSWORD OFF
BACK
EX IT
PO-S-TM
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
00 - 0- 00
TIME CHANNEL
START TIME
END TIME
RUNNING
1
00:00
00: 00
NONE
COMM SETTING
S/N:4JKAA7824000058
CONF:4JKA A7824000058
SITE ID
001
COMM SPEED 4800BPS
PRO TOCOL VID O B02
BACK
EX IT
PDF created with pdfFactory Pro trial version www.pdffactory.com
36
Appendix
10. 2 Trouble shooting
Trouble
No action, no
video after
power up
Solution
Possible causes
Power supply is damage or
power consumption is not enough
Replace
Power line is bad conne ction
Correct
Engineering line is malfunction
Check and repair
Refer to switch setting, reset the switch
The dome DIP switch setting is incorrect
Self-testing and
image are normal
Check Rs485connection, confirm
the connection is correct and
good in contact
Rs485 may carve out a way
but the dome is
uncontrollable
Pls consult appendix“Rs485
Bus acknowledge”
Rs485 is in malfunction
Video image
is not steady.
Elimi nate
Video line is bad connection
Power consumption is not enough
Replace right power adapter, it is better to p ut
the switch an d pow er adapter near the dome
Power consumption is not enough
Replace the power
Video image is not
steady and the
motor is malfunction
D ome controlling
is not smooth.
Controlling line is bad connection
1.Connect 120Ω resistance in the dome pan/tilt
Rs 485 load s so many o r th e dis tance
that is far from the controller
2.Increase distributor
o f commun ication is much far
10. 3 The cleaning of clear down cover
To obtain constant clear videos, user should
clean the down cover periodically.
●
Be caution when cleaning, hold the down cover
ring only to avoid direct touch to the acrylic down
cover. The acid sweat mark of fingerprint will corrode
the coating of down cover and scratch on down cover
will cause vague image.
●
Use soft dry cloth or the substitute to clean the inner and outer surfaces
●
For hand contamination, use neutral detergent. Any cleanser for high grade furniture
is applicable.
37
PDF created with pdfFactory Pro trial version www.pdffactory.com
Appendix
A+
10. 4 Rs485Bus basic knowledge
B-
D
A+
Ø Characteristics of Rs485 Bus
As specified by Rs485 standard, Rs485 Bus is
B-
120Ω
1#
120Ω
2#
3#
4#
32#
of half-duplexed data transmission cables with
Pict ure10-4.2
characteristic impedance as 120Ω. The maximum
load capacity is 32unit loads(including main
controller and controller equipment)
Ø The connection of 120Ω temination resistor:
Ø Transmission distances of Rs485 Bus
The termination resistor is ready on the protocol
When user selects the 0.56mm(24AWG) twisted
PCB. The are two kinds of connection(as show 10-4.3
pair wires as data transmission cable, the maximum
form). It is the factory default connection. The jumper
theoretical transmitting distance are as follow:
cap of switchboard is seated on pin 2&Pin 3 and the
termination resistor120Ωis not connected.
When connecting the 120Ω termination resistor,
Baud rate
Max distance
2400BPS
1800m
user should pull out the protocol PCB and plug the
4800BPS
1200m
jumper on Pin1&pin2. Install the PCB back and the
9600BPS
800m
19200BPS
600m
termination resistor is connected.
(as show the picture10-4.3)
If user selects thinner cables, or installs the
dome in an environment with strong electromagnetic
interference, or connects lots of equipment to the
Rs485Bus, the maximum transmitting distance will
be decreased. To increase the maximum transmitting
distance, do the contrary.
Ø Connection and termination resistor
The Rs485Bus standards require a daisy-chain
connection between the equipment. There must be
termination resistors with 120Ω(as the picture104.1). Please refer to picture 10-4.2 for simple
Connection of120Ωsetting
Factory default setting
1
On
Off
Picture10-4.3
1#
12 0Ω
2#
3#
4#
3
Off
On
On means insert the jumper cap
connection. D should not exceed 7m.
1 20Ω
2
On
On
32#
Picture10-4.1
38
PDF created with pdfFactory Pro trial version www.pdffactory.com
Appendix
Ø Problems in practical connection
In some circumstances user adopts a star
configuration in practical connection. The
termination resistors must be connected to the two
equipment 1# and 5# in picture 10-4.4. As the star
configuration is not in conformity with the
requirements of Rs485 standards, problems such as
signal reflections, lower antiinterference performance arise when the cables are
long in the connection. The reliability of control
signals is decreased with the phenomena that the dome
does not respond to or just responds at intervals
to the controller, or does continuous operation
without stop.
In such circumstances the Factory recommends
the usages of Rs485 distributor. The distributor can
change the star configuration connection to the mode
of connection stipulated in the Rs485 standards. The
new connection achieves reliable data transmission.
(Refer to picture 10-4.5)
Rs 4 8 5 Di s t r ib u t o r
A+
B-
12 0Ω
1 2 0Ω
1#
1 2 0Ω
2#
1 2 0Ω
3#
1#
6#
Ma in c on t ro ll e r
Pic ture 10 -4.5
32#
1 2 0Ω
1 5#
Pi cture10-4.4
Ø Rs485Bus troubles shooting
Trouble
Dom e can
do s elf-testing
but cannot
Possible cause
A、The address and baud rate setting of dome
are not in conformity with those of controller.
B、 The + and - connection of Rs485 Bus is incorrect
C、bad connection
be c ontrolled D、there are circuit in the Rs485Bus。
Solution
A、Chage the address and baud rat e of controller or dome
B、Adjust the + and -connection of Rs485;
C、Make sure the connections are fully seated;
D、Change Rs485 Bus wires
The dome can
A、the Rs485Bus is not in good contact with the connectors
A、Secure the connection;
be controlled
B、One wire of Rs485bus is broken
B、Replace Rs485 bus wires
C、The dome is very far from controller
C、Add termination resistors to the system
but the operation
is not smooth
D、There are two many domes connected in the system
D、Install Rs485 distributor
39
PDF created with pdfFactory Pro trial version www.pdffactory.com
Maintenance
7.Maintenance service terms
1.Range of warranty
●
The product will be maintained free for one year.
●
The product will be obtained the free maintenance service if the same malfunction
appears again within three months.
●
Malfunction of products caused by force majeure (such as war, earthquake, lightning
strike and so on ), abuse, non-standard operation, change of construction, non-normal
wear or accident are non-free of warranty.
●
Please prevent from the damage which is caused by heavy pressure , the fierce vibration
and soaks in the process of transportation and storage, which does not belong to the
free maintenance scope.
●
Please adopt the way of fission package or original package to transport because the
product damage dose not belong to the free maintenance scope if you use the whole
packing way , not the original packing way.
●
The maintenance services will not be free when the pan/tilt module is disassembled
or serviced by the user voluntarily.
●
Our company implements the lifetime payable service if the product in malfunction has
surpassed the warranty period.
●
To the products with defect :if it's in the period of warranty, please fill in the form of
warranty information correctly, describe the trouble in details , and provide the
trouble in details , and provide original sales invoice or its copy.
●
For the damage and loss which was caused by the user's specifically application,
factory won't bear any risk and responsibility. The factory compensation made by
breach of faith, negligence or tortious won't exceed the amount of the products. The
factory won't bear any responsibility for the special, unexpected and continue
damage caused by any other reasons.
●
Our company has the final right of explanation for the above terms.
2.Warranty terms
●
If the products are within the warranty time, the buyer should fill in the warranty card
and send back together with the products.
3.Shipping
●
If the product needs repaired , you can return it to the manufacturer through the supplier
or directly. If you choose the later , please contact us in order to speed up the process.
And our company only undertake the one-way freight from manufacturer to customer
after maintenance.
40
PDF created with pdfFactory Pro trial version www.pdffactory.com
Shortcut list for some Functions:
Call preset 92 to save Left Limit (Scan)
Call preset 93 to save Right Limit (Scan)
Call preset 99 or 97 to Run Scan
Call Preset 94 to restart the Camera
Call Preset 98 to Run Tour.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
