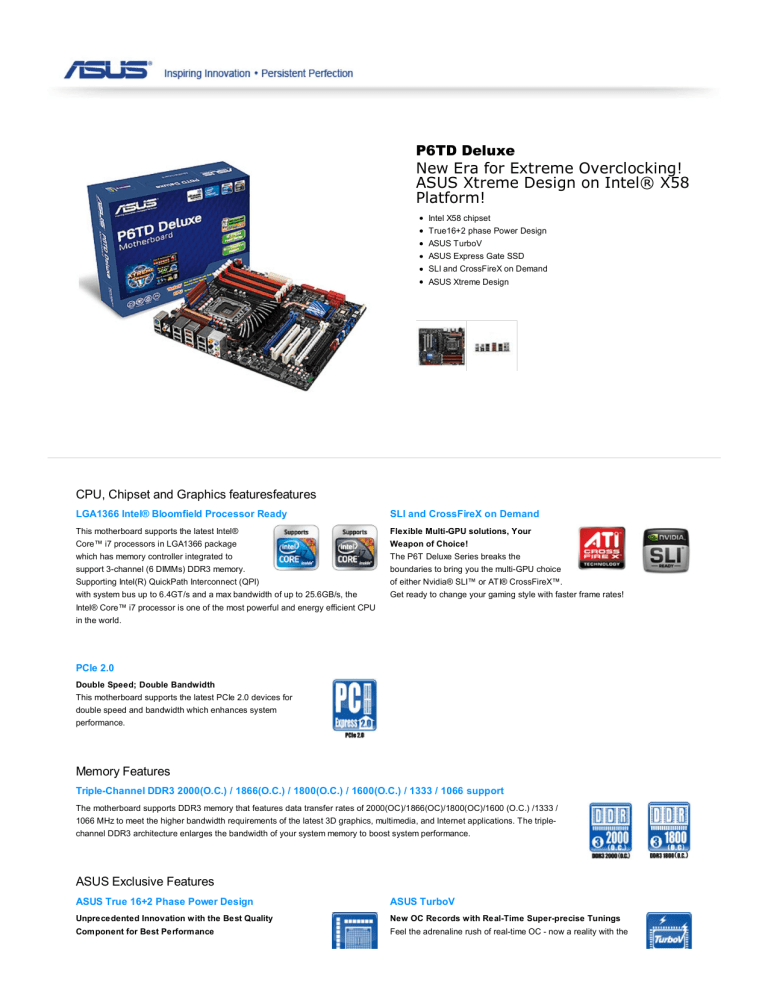

P6TD Deluxe
P6TD Deluxe
New Era for Extreme Overclocking!
ASUS Xtreme Design on Intel® X58
Platform!
Intel X58 chipset
True16+2 phase Power Design
ASUS TurboV
ASUS Express Gate SSD
SLI and CrossFireX on Demand
ASUS Xtreme Design
CPU, Chipset and Graphics featuresfeatures
LGA1366 Intel® Bloomfield Processor Ready
SLI and CrossFireX on Demand
This motherboard supports the latest Intel®
Core™ i7 processors in LGA1366 package
Flexible Multi-GPU solutions, Your
Weapon of Choice!
which has memory controller integrated to
The P6T Deluxe Series breaks the
support 3-channel (6 DIMMs) DDR3 memory.
Supporting Intel(R) QuickPath Interconnect (QPI)
with system bus up to 6.4GT/s and a max bandwidth of up to 25.6GB/s, the
boundaries to bring you the multi-GPU choice
of either Nvidia® SLI™ or ATI® CrossFireX™.
Get ready to change your gaming style with faster frame rates!
Intel® Core™ i7 processor is one of the most powerful and energy efficient CPU
in the world.
PCIe 2.0
Double Speed; Double Bandwidth
This motherboard supports the latest PCIe 2.0 devices for
double speed and bandwidth which enhances system
performance.
Memory Features
Triple-Channel DDR3 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600(O.C.) / 1333 / 1066 support
The motherboard supports DDR3 memory that features data transfer rates of 2000(OC)/1866(OC)/1800(OC)/1600 (O.C.) /1333 /
1066 MHz to meet the higher bandwidth requirements of the latest 3D graphics, multimedia, and Internet applications. The triplechannel DDR3 architecture enlarges the bandwidth of your system memory to boost system performance.
ASUS Exclusive Features
ASUS True 16+2 Phase Power Design
ASUS TurboV
Unprecedented Innovation with the Best Quality
New OC Records with Real-Time Super-precise Tunings
Component for Best Performance
Feel the adrenaline rush of real-time OC - now a reality with the
The groundbreaking 16+2 phase VRM design is brrought to the
ASUS TurboV. This extreme OC tool lets you set new ambitions
ASUS motherboards. 16+2 phase power design, 16-phase for
on the OC stage with an advanced and easy-to-use interface -
vCore and extra 2-phase for QPI/Memory controller inside CPU,
can provide the highest power efficiency, and hence generates less heat to
allowing you to overclock without exiting or rebooting the OS.
With micro adjustments of the CPU PLL, NB, NB-PCIe, and DRAM voltages in
effectively enhance the overclocking capability. With the high quality power
components such as low RDS (on) MOSFETs, Ferrite core chokes with lower
0.02v intervals, there are no limits - only extreme results to break new OC
records!
hysteresis loss and 100% Japan-made high quality conductive polymer
capacitors, ASUS 16+2 phase VRM design also ensure longer component life
and minimum power loss.
ASUS Power Saving Solution
ASUS EPU
ASUS Express Gate SSD
0 to Internet in Seconds!
Express Gate™ is an ASUS exclusive OS that provides you with
quick access to the Internet and key applications before entering
Windows®.
System Level Energy Saving
The ASUS EPU providing total system power savings by
detecting current PC loadings and intelligently moderating power
in real-time. It automatically provides the most appropriate power
usage for the CPU, VGA card, memory, chipset, hard drives, and
system fan- helping save power and money!
AI Nap
Minimize noise and power consumption when temporarily
away!
With AI Nap, users can instantly snooze your PC without
terminating the tasks. System will continue operating at minimum
power and noise when user is temporarily away. It keeps
downloading files or running applications in quietest state while
you´re sleeping. Simply click keyboard or mouse, you can swiftly wake up the
system in few seconds.
ASUS Quiet Thermal Solution
Wind-Flow Thermal Design
Up to 20°C(36°F) Cooler - Stack Cool 3+
Super-cool, Super-quiet Thermal Design
Enjoy a super cool and quiet PC environment with the innovative
Wind Flow Thermal Design. With specifically-engineered copper
Effective Fanless Heat Dissipation at 0dB
Stack Cool 3+ is a fanless cooling solution offered exclusively by
ASUS. It effectively and noiselessly transfers heat generated by
pipes, this thermal design effectively manages the airflow of the
CPU fan and directs system heat away from the PC - resulting in
efficient heat dissipation to lower overall system temperature
the critical components to the other side of the specially
designed PCB (printed circuit board) for effective heat
dissipation - making temperatures cooler by up to 20°C.
and prolong system lifespans.
Fan Xpert
Active Quiet & Cool
ASUS Fan Xpert intelligently allows users to adjust both the
CPU and chassis fan speed according to different ambient
temperature , which is caused by different climate conditions in
ASUS Crystal Sound
different geographic regions and system loading.Built-in variety
of useful profiles offer flexible controls of fan speed to achieve a
quiet and cool environment.
Noise Filtering
Eliminate background noise while recording
This feature detects repetitive and stationary noises like computer
fans, air conditioners, and other background noises then eliminates
it in the incoming audio stream while recording.
ASUS EZ DIY
Q- Shield
Q-Connector
Easy and Comfortable Installations
Make connection quick and accurate!
The specially designed ASUS Q-Shield does without the usual
"fingers" - making it convenient and easy to install. With better
The ASUS Q-Connector allows you to connect or disconnect
chassis front panel cables in one easy step with one complete
electric conductivity, it ideally protects your motherboard against
module. This unique adapter eliminates the trouble of plugging
static electricity and shields it against Electronic Magnetic
in one cable at a time, making connection quick and accurate.
Interference (EMI).
O.C. Profile
EZ-Flash 2
Conveniently store or load multiple BIOS settings
Simply update BIOS from a USB flash disk before entering
Freely share and distribute favorite overclocking settings The
the OS
EZ Flash 2 is a user-friendly BIOS update utility. Simply launch
motherboard features the ASUS O.C. Profile that allows users to
conveniently store or load multiple BIOS settings. The BIOS
this tool and update BIOS from a USB flash disk before entering
settings can be stored in the CMOS or a separate file, giving
the OS. You can update your BIOS only in a few clicks without
users freedom to share and distribute their favorite overclocking
preparing an additional floppy diskette or using an OS-based
settings.
flash utility.
Industry Standard
SATA on the Go
Dual Gigabit LAN
The motherboard supports the next-generation hard drives
The integrated dual Gigabit LAN design allows a PC to serve as
based on the Serial ATA (SATA) 3Gb/s storage specification,
a network gateway for managing traffic between two separate
delivering enhanced scalability and doubling the bus bandwidth
networks. This capability ensures rapid transfer of data from
for high-speed data retrieval and saves. The external SATA port
located at the back I/O provides smart setup and hot-plug
WAN to LAN without any added arbitration or latency.
functions. Easily backup photos, videos and other entertainment
contents on external devices.
High Definition Audio
IEEE 1394a interface
Enjoy high-end sound system on your PC!
IEEE 1394a interface provides high speed digital interface for
The onboard 8-channel HD audio (High Definition Audio,
previously codenamed Azalia) CODEC enables high-quality
192KHz/24-bit audio output, jack-sensing feature, retasking
audio/video appliances such as digital television, digital video
camcorders, storage peripherals & other PC portable devices.
functions and multi-streaming technology that simultaneously
sends different audio streams to different destinations. You can
now talk to your partners on the headphone while playing a multi-channel
network games. All of these are done on one computer.
S/PDIF-out on Back I/O Port
This motherboard provides convenient connectivity to
external home theater audio systems via coaxial and optical
S/PDIF-out (SONY-PHILIPS Digital Interface) jacks. It
allows to transfer digital audio without converting to analog
format and keeps the best signal quality.
RoHS
GreenASUS
The motherboard and its packaging comply with the European Union´s Restriction on the use of Hazardous Substances (RoHS). This is in
line with the ASUS vision of creating environment-friendly and recyclable products and packaging to safeguard consumers´ health while
minimizing the impact on the environment.
Specifications
CPU
Intel® Socket 1366 Core™ i7 Processor Extreme Edition/Core™ i7 Processor Supports Intel® Dynamic Speed
Technology
Chipset
Intel® X58 / ICH10R
System Bus
Up to 6400 MT/s ; Intel® QuickPath Interconnection
6 x DIMM, Max. 24 GB, DDR3 2000(O.C.)*/1866(O.C.)*/1800(O.C.)*/1600(O.C.)/1333*/1066 Non-ECC,Un-buffered
Memory
Memory
Triple channel memory architecture
Supports Intel® Extreme Memory Profile (XMP)
*Hyper DIMM support is subject to the physical characteristics of individual CPUs.
**Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts).
3 x PCIe 2.0 x16 (at x16/x16/x1 or x16/x8/x8 mode)
Expansion Slots
Multi-GPU Support
1 x PCIe x4
2 x PCI
Supports NVIDIA® 2-Way or Quad-GPU SLI™ Technology*
Supports ATI® Quad-GPU CrossFireX™ Technology
Southbridge
6 xSATA 3 Gb/s ports
Storage
Intel Matrix Storage Technology Support RAID 0,1,5,10
Marvell 88SE6111
1 xUltraDMA 133/100/66 for up to 2 PATA devices
1 xExternal SATA 3.0 Gb/s port (SATA On-the-Go)
LAN
Dual Gigabit LAN controllers 2*Marvell88E8056® PCIe Gigabit LAN controller featuring AI NET2
ADI® AD2000B 8-Channel High Definition Audio CODEC
Audio
- Support Jack-Detection, Multi-Streaming, and Front Panel Jack-Retasking
- Coaxial / Optical S/PDIF out ports at back I/O
IEEE 1394
VIA® VT6308 controller supports 2 x 1394a port(s) (one at mid-board; one at back panel)
USB
14 USB 2.0/1.1 ports (6 ports at mid-board, 8 ports at back panel)
ASUS Xtreme Design
ASUS Exclusive Features:
- ASUS TurboV
- ASUS True 16+2 Phase Power Design
- Express Gate SSD
ASUS Power Saving Solution
- ASUS EPU-6 Engine
ASUS Unique Features
- ASUS AI Nap
ASUS Quiet Thermal Solution:
- ASUS Fanless Design: Wind-Flow Heat-pipe solution
- ASUS Fanless Design: Stack Cool 3+
- ASUS Fan Xpert
- ASUS Optional Fan for Water-cooling or Passive-Cooling only
ASUS Crystal Sound:
- ASUS Noise Filter
ASUS EZ DIY:
- ASUS Q-Shield
- ASUS Q-Connector
- ASUS O.C. Profile
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 2
Intelligent overclocking tools
ASUS TurboV utility
Precision Tweaker 2
- vDIMM: 49 -step DRAM voltage control
- vCore: Adjustable CPU voltage at 0.00625V increment
- vChipset 31-step chipset voltage control
Overclocking Features
- vCPU PLL: 36-step reference voltage control
- vNB-PCIe: 65-step chipset-PCIe voltage control
SFS (Stepless Frequency Selection)
- PCI Express frequency tuning from 100 MHz up to 180MHz at 1MHz increment
- Internal Base Clock tuning from 100MHz up to 500MHz at 1MHz increment
Overclocking Protection
- ASUS C.P.R.(CPU Parameter Recall)
Special Features
Multi-language BIOS
ASUS MyLogo 2
1 x PS/2 Keyboard/Mouse Combo port
1 x External SATA
Back Panel I/O Ports
1 x S/PDIF Out (Coaxial + Optical)
1 x IEEE 1394a
2 x LAN(RJ45) port
8 x USB 2.0/1.1
8 -Channel Audio I/O
3 x USB connectors support additional 6 USB ports
1 x IDE connector
6 x SATA connectors
1 x IEEE 1394a connector
1 x CPU Fan connector
Internal I/O Connectors
3 x Chassis Fan connector
1 x Power Fan connector
1 x S/PDIF Out Header
Front panel audio connector
Chassis Intrusion connector
CD audio in
24-pin ATX Power connector
1 x 8-pin ATX 12V Power connector
System Panel(Q-Connector)
BIOS
16 Mb Flash ROM AMI BIOS, PnP, DMI2.0, WfM2.0, SM BIOS 2.3, ACPI 2.0a, Multi-language BIOS, ASUS EZ Flash 2,
ASUS CrashFree BIOS 3
Manageability
WfM 2.0,DMI 2.0,WOL by PME,WOR by PME,PXE
User's manual
1 x UltraDMA 133/100/66 cable
Accessories
6 x SATA cable(s)
ASUS Q-Shield
2 in 1 Q-connector
1 x 2-port USB2.0 / eSATA module
1 x SLI bridge cable
2 x Screw pillar
1 x Optional Fan for Water-Cooling or Passive-Cooling only
Drivers
Support Disc
ASUS PC Probe II
ASUS AI Suite
Anti-virus software (OEM version)
ASUS Update
Image-Editing Suite
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
