HP ProLiant BL465c Generation 7 (G7) Server Blade
Overview

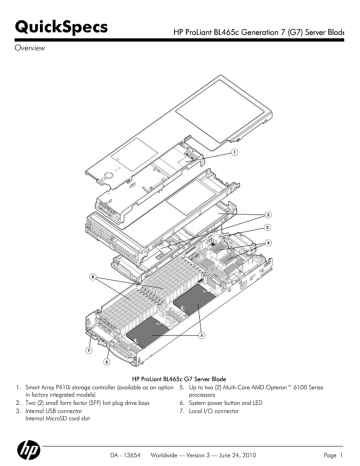

HP ProLiant BL465c G7 Server Blade
1. Smart Array P410i storage controller (available as an option 5. Up to two (2) Multi-Core AMD Opteron™ 6100 Series
in factory integrated models)
processors
2. Two (2) small form factor (SFF) hot plug drive bays
6. System power button and LED
3. Internal USB connector
7. Local I/O connector
Internal MicroSD card slot
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 1
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Overview
4. Two (2) mezzanine I/O expansion slots
8. Sixteen (16) PC3-8500 DDR3 Registered DIMMs, PC3-10600
DDR3 Registered DIMMs, or PC3-10600 DDR3 Unbuffered
DIMMs
At A Glance
This document covers the HP ProLiant BL465c G7 server blade only. For more information on HP BladeSystem c-Class Enclosures
and HP BladeSystem c-Class Interconnect Components, please see the following QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
HP BladeSystem c-Class Interconnect Components QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html
The BL465c G7 helps simplify network connections, lower infrastructure costs, and delivers the performance you expect for
demanding application workloads.
HP ProLiant BL465c G7 server blade includes:
Processor:
Processor
Up to two (2) Multi-Core AMD Opteron™ 6100 Series processors
Twelve-Core supports up to 2.2 GHz; 512 KB Level 2 cache memory per core; 12 MB Level 3 cache
Eight-Core supports up to 2.4 GHz; 512 KB Level 2 cache memory per core; 12 MB Level 3 cache
AMD SR5690 and SP5100 chipsets
Memory:
Memory
Sixteen (16) DIMM slots
Up to 256GB of PC3-8500 DDR3 Registered (RDIMM) memory, operating at 1066 MHz when fully populated at 2
DIMMs per channel in 16 slots
Up to 128GB of PC3-10600 DDR3 Registered (RDIMM) memory, operating at 1333 MHz when fully populated at 2
DIMMs per channel in 16 slots
Up to 64GB of PC3-10600 DDR3 Unbuffered (UDIMM) memory, operating at 1333 MHz when fully populated at 2
DIMMs per channel in 16 slots
Supporting memory interleaving (2:1)
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or two singlerank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two QR or one QR and one
SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus will operate one
speed slower when low voltage (1.35V, PC3L) memory is installed. Memory bus speeds may be further limited by the
speed of the memory used as well.
Storage Controller:
Controller
Smart Array P410i RAID controller with 1 GB flash-backed write cache (FBWC). Supports RAID 0,1.
NOTE: The HP Smart Array P410i controller is required for all blades that support hot plug drives. See Factory
Integrated Models section for more information.
Internal Drive Support:
Support
Up to two (2) small form factor (SFF) SAS or SATA hot plug hard disk drives or SATA solid state drives
Network Controller:
Controller
One (1) integrated NC551i Dual Port FlexFabric 10Gb Converged Network Adapter supporting stateless TCP/IP
offload, TCP Offload Engine (TOE), Fibre Channel over Ethernet (FCoE) and iSCSI protocols
NOTE: Flex-10 capability requires the use of an HP Virtual Connect Flex-10 10Gb Ethernet module. Learn more at:
www.hp.com/go/virtualconnect
NOTE: Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect FlexFabric 10Gb/24-
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 2
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Overview
port Module. Learn more at: www.hp.com/go/virtualconnect.
NOTE: Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1 Gb HP BladeSystem c-Class interconnect
components. Both ports will operate at the same speed.
One (1) additional embedded 10/100 network adapter dedicated to iLO 3 management
Mezzanine Support:
Support
Two (2) I/O expansion mezzanine slots
Supports up to two (2) mezzanine cards
Dual-Port Fibre Channel Mezzanine (4-Gb or 8-Gb) options for SAN connectivity
Dual-Port FlexFabric Converged Network Adapter
iSCSI Ethernet mezzanine option for optimized iSCSI connectivity
Ethernet server adapter mezzanine options for additional network ports
InfiniBand (IB) Mezzanine options for low latency server interconnectivity
I/O Accelerator mezzanine options for high transaction rate local storage
Internal Media Support:
Support
One (1) internal USB 2.0 connector for security key devices and USB drive key
One (1) internal Micro SD-HC card slot
Trusted Platform Module:
Module
One (1) internal TPM 1.2 module connector
Form Factor:
Factor
HP ProLiant BL465c G7 server blade plugs into the BladeSystem c3000 and c7000 enclosures
Infrastructure Management:
Management
HP Integrated Lights-Out 3 management processor for simplified server setup, health monitoring and recovery, power
and thermal control, and lights-out remote administration.
HP Insight Control, a product option, delivers essential infrastructure management that can help save time and money
by making it easy to deploy, migrate, monitor, control and optimize your IT infrastructure through a single, simple
management console. Insight Control supports both Windows and Linux-based central management servers.
HP Insight Dynamics for ProLiant, a product option, is an integrated command center that enables IT Staff personnel to
continuously analyze and optimize a converged infrastructure, while automating and reducing the cost of common data
center tasks by as much as 40 percent. This ultimately enables them to dynamically keep pace with the organization's
changing business requirements.
Operating Systems and Virtualization Software:
Software
Supports Windows, RHEL, SLES, OEL, VMware ESX, Citrix XenServer
Enclosures:
Enclosures
HP offers three (3) different c-Class server blade enclosures to meet your individual needs:
The HP BladeSystem c7000 rack enclosure is 10U high and holds up to sixteen (16) ProLiant BL465c G7 servers
plugged vertically.
The HP BladeSystem c3000 rack enclosure is 6U high and holds up to eight (8) HP ProLiant BL465c G7 servers
plugged horizontally.
The HP BladeSystem c3000 tower enclosure is designed with casters for sites without racks and holds up to eight
(8) HP ProLiant BL465c G7 servers plugged vertically.
Server blades, storage blades, and interconnect modules are all designed to fit into the c7000 and c3000 enclosures.
For additional enclosure information, please see:
http://h18004.www1.hp.com/products/blades/components/enclosures/c-class/index.html.
NOTE: For optimal cooling and system performance the BL465c G7 requires the c7000 enclosure to be configured
with 10 fans and the c3000 enclosure to be configured with 6 fans.
Warranty:
Warranty
This product is covered by a global limited warranty and supported by HP Services and a worldwide network of HP
Authorized Channel Partners. Hardware diagnostic support and repair is available for three years from date of
purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to
warranty services are available through HP Care Pack services or customized service agreements. Hard drives have
either a one year or three year warranty; refer to specific hard drive QuickSpecs for details.
NOTE: Server warranty includes 3-year Parts, 3- year Labor, 3-year on-site support. Warranty repairs may be
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 3
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Overview
accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory
CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a
Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity.
Customers may choose to have HP replace Optional CSR parts at no charge. Additional information regarding
worldwide limited warranty and technical support is available at:
http://h18004.www1.hp.com/products/servers/platforms/warranty/index.html
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 4
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
Processor
Twelve-Core Processors
AMD Opteron™ processor Model 6174 (2.2 GHz, 12 MB L3 Cache, 80W ACP)
AMD Opteron processor Model 6172 (2.1 GHz, 12 MB L3 Cache, 80W ACP)
Low Power AMD Opteron processor Model 6164 HE (1.7 GHz, 12 MB L3 Cache, 65W ACP)
Eight-Core Processors
AMD Opteron processor Model 6136 (2.4 GHz, 12 MB L3 Cache, 80W ACP)
AMD Opteron processor Model 6134 (2.3 GHz, 12 MB L3 Cache, 80W ACP)
Low Power AMD Opteron processor Model 6128 HE (2.0 GHz, 12 MB L3 Cache, 65W ACP)
NOTE: Processor wattage references reflect Average CPU Power (ACP). For more information on ACP
visit: http://www.amd.com/powernow.
Upgradeability
Upgradeable to dual (2) processors
Cache Memory
512 KB Level 2 cache memory per core
12 MB Level 3 cache memory
Chipset
AMD SR5690 and SP5100
Memory
Type
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
Standard
8 GB (2 x 4 GB)
Maximum (RDIMM)
256 GB (16 x 16 GB) at 1066 MHz
Maximum (UDIMM)
64 GB (16 x 4 GB) at 1333 MHz
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one quad-rank (QR) or
two single-rank/dual-rank (SR/DR) DIMMs per processor memory channel and 1066 MHz with up to two
QR or one QR and one SR/DR DIMMs per processor memory channel with standard voltage (1.5V, PC3)
DIMMs. Memory bus will operate one speed slower when low voltage (1.35V, PC3L) memory is installed.
Memory bus speeds may be further limited by the speed of the memory used as well. Please see the
Online Memory Configuration Tool at: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on ProLiant Energy
Efficient Features, see: www.hp.com/go/ddr3memory-configurator
DDR3 memory options part number decoder
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 5
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
Network Controller
One (1) integrated NC551i Dual Port FlexFabric 10Gb Converged Network Adapter
NOTE: Flex-10 capability requires the use of an HP Virtual Connect Flex-10 10Gb Ethernet module.
Learn more at: www.hp.com/go/virtualconnect.
NOTE: Fibre Channel over Ethernet (FCoE) capability requires the use of an HP Virtual Connect
FlexFabric 10Gb/24-port Module. Learn more at: www.hp.com/go/virtualconnect.
One (1) additional 10/100 network adapter dedicated to iLO 3 Management
I/O Expansion Slots
Two (2) I/O expansion mezzanine slots (All x8 PCI Express)
Integrated Manageability HP Integrated Lights-Out 3
Storage Controller
HP Smart Array P410i
1GB memory module with flash-backed write cache (FWBC). Supports RAID
Controller
0,1.
NOTE: The HP Smart Array P410i controller is required for all blades that support hot plug drives. See
Factory Integrated Models section for more information.
Maximum Internal
Storage
Hot Plug SAS
Hot Plug SATA
Hot Plug SATA SSD
Graphics
Integrated ATI RN-50 1280 x 1024 x 16M color
Graphics Resolution
Supported
Resolution Color Depths
DA - 13654
1TB SAS (2 x 500GB) Serial SCSI
1TB SATA (2 x 500GB) Serial ATA
240GB SATA SSD (2 x 120GB) Serial ATA SSD
Depths 1280 x 1024, 16.7M , 64k, 256,16
1024 x 768, 16.7M, 64k, 256, 16
800 x 600, 16.7M, 64k, 256, 16
640 x 480, 16.7M, 64k, 256, 16
Worldwide — Version 3 — June 24, 2010
Page 6
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
Fibre Channel Support
Four optional dual-port Fibre Channel HBAs are supported by the HP ProLiant BL685c G7. Each
mezzanine circuit board connects directly to the server blade system board. These Fibre Channel HBAs
are available via option kits and must be ordered separately.
HBA mezzanine card option kits:
Emulex LPe1105-HP 4Gb FC HBA (403621-B21)
Field-proven reliability and performance for a broad range of applications using drivers and
management tools that are fully compatible with all Emulex HBAs
Emulex LPe 1205-HP 8Gb FC HBA (456972-B21)
Exceptional performance, enhanced security, and scalable management for virtual server and
enterprise-class applications
QLogic QMH2462 4Gb FC HBA (403619-B21)
Uses common drivers which means that customers can standardize on one QLogic driver whether
they are using the QMH2462 or other HBAs powered by QLogic
QLogic QMH2562 8Gb FC HBA (451871-B21)
Provides a first step into the 8Gb future, advanced, embedded support for virtualized
environments and reduced power consumption
Brocade 804 8Gb FC HBA for HP BladeSystem c-Class (590647-B21)
Application oriented Quality of Service (AQoS) providing the ability to configure, prioritize, and
optimize traffic flows from virtual machines and/or applications to the target port
Brocade, Emulex and QLogic Fibre Channel HBAs for HP BladeSystem c-Class feature:
Optimal performance utilizing PCI Express
4/2/1Gb/s auto negotiating speeds (4Gb HBAs)
8/4/2Gb/s auto negotiation speeds (8Gb HBAs)
Dual-ports for redundant path connections
Up to two FC HBAs per server blade providing redundant FC HBA support
Optimized for HP StorageWorks and supported by third party SAN vendors
Support for Microsoft® Windows®, Linux, VMware ESX and Citrix XenServer™ operating system
environments
Compatible SAN
HP ProLiant BL465c G7 server blades are optimized for HP StorageWorks MSA, EVA, and XP
HP ProLiant BL465c G7 server blades are compatible with select 3rd party SANs (please see blade
storage page for more details:
http://h18004.www1.hp.com/products/blades/components/c-class-sans.html)
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 7
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
HP Virtual Connect
HP Virtual Connect is an interconnect option for BladeSystem c-Class that simplifies server connectivity to
data and storage networks, and reduces costs. Unique HP Flex-10 and FlexFabric technologies make
maximum use of network bandwidths, provide dynamic tuning and enable extreme flexibility to meet
individual server and infrastructure requirements. HP Virtual Connect Enterprise Manager (VCEM)
provides a central console to administer network connections and workloads for thousands of servers.
For more information on Virtual Connect Ethernet, Fibre Channel, Converged Network and
management options see: www.hp.com/go/virtualconnect
HP Insight management
software
HP Insight Foundation
Managing the growing number of servers can be complex and expensive for
your organization. IT managers need to address changing business needs
with tools that meet the challenges of managing today's complex
Datacenters.
HP provides management solutions that are designed to simplify a server's
installation, configuration and maintenance throughout the entire server
lifecycle. This provides the customer with higher levels of operational
efficiency and highly reliable systems: http://www.hp.com/go/foundation.
The foundation pack includes:
HP SmartStart
HP Management
HP ProLiant Firmware Maintenance
HP Integrated Lights-Out
(iLO)
HP Insight Control
SmartStart version supported (minimum): SmartStart 8.4.
http://www.hp.com/servers/smartstart
HP Integrated Lights-Out (iLO) simplifies server setup, health monitoring,
power and thermal control, and lights-out remote administration of ProLiant
ML, DL, and BL servers. HP iLO functions without additional software and
can be accessed from any location via a web browser. HP iLO works handin-hand with HP Systems Insight Manager, Insight Control suites, and Insight
Dynamics for ProLiant, helping customers unleash the value of the ProLiant
platform and deliver the highest possible quality of IT service. For more
information, visit: www.hp.com/go/iLO
HP Insight Control, a product option, delivers essential infrastructure
management that can help save time and money by making it easy to
deploy, migrate, monitor, remote control, and optimize your IT infrastructure
through a single, simple management console.
Two versions of Insight Control are available, to serve environments requiring
either a Linux-based or a Windows-based central management server: HP
Insight Control for Linux, and HP Insight Control. See
www.hp.com/go/insightcontrol
HP Insight Dynamics for
ProLiant
DA - 13654
HP Insight Control includes one year of 24 x 7 HP Software Technical
Support and Update Service ensuring rapid access to HP support staff and
proactive delivery of software updates. For more information about this
service, please visit: http://www.hp.com/services/insight.
HP Insight Dynamics for ProLiant, a product option, is advanced
infrastructure management software that enables IT staff to instantly adjust
Worldwide — Version 3 — June 24, 2010
Page 8
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
their environments to meet dynamic business demands by provisioning,
optimizing and protecting complex infrastructure in minutes. It's a powerful
toolkit, integrated-by-design, that accelerates complex technology projects
and simplifies daily operations, transforming data center economics. With
Insight Dynamics IT professionals can plan capacity and power continuously,
balance workloads across physical and virtual resources, and ensure costeffective high availability. It also enables IT organizations to provision
infrastructure consistently and automatically from pools of shared resources
using a self-service portal. Resources provisioned can range from a single
virtual machine to complex multi-tier environments and their associated
physical and virtual resource requirements. In addition to the previous
functional benefits, it also provides a cost-effective disaster recovery for
physical and virtual environments that works with HP StorageWorks
Continuous Access software for both the Enterprise Virtual Array and the XP
storage array allowing application environments to be reactivated in minutes
with the touch of a button to a remote location.
NOTE: For more information, visit:
http://www.hp.com/go/insightdynamics
High Performance
Clusters
HP Cluster Platforms
HP Cluster Platforms are specifically engineered, factory-integrated largescale ProLiant clusters optimized for High Performance Computing, with a
choice of servers, networks and software. Operating system options include
specially priced offerings for Red Hat Enterprise Linux and Novell SLES, as
well as Microsoft Windows HPC Server. A Cluster Platform Configurator
simplifies ordering. http://www.hp.com/go/clusters
HP HPC Interconnects
High Performance Computing (HPC) interconnect technologies are available
for this server as part of the HP Cluster Platform portfolio. These high-speed
InfiniBand and Gigabit interconnects are fully supported by HP when
integrated within an HP cluster. Flexible, validated solutions can be defined
with the help of configuration tools.
http://www.hp.com/techservers/clusters/ucp/index.html
HP Cluster Management HP Cluster Management Utility (CMU) is an HP-licensed and HP-supported
Utility
suite of tools that are used to manage large-scale Linux ProLiant systems.
CMU includes software for the centralized provisioning, management and
monitoring of nodes. CMU makes the administration of clusters user friendly,
efficient, and effective. http://www.hp.com/go/cmu
HP HPC Linux Value Pack HP HPC Linux Value Pack (Value Pack) is an HP-licensed and HP-supported
specially priced software bundle for the development and deployment of
applications on HPC Cluster Platforms. Value Pack includes the Platform LSF
workload scheduler, the HP-MPI parallelization library, the HP Unified
Parallel C compiler and the HP Shmem library, as well as the execution
environments for the libraries and compiler. HP HPC Linux Value Pack.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 9
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
Operating Systems and
Virtualization Software
Microsoft Windows Server
Red Hat Enterprise Linux (RHEL)
SUSE Linux Enterprise Server (SLES)
Oracle Enterprise Linux (OEL)
VMware ESX
Citrix XenServer
NOTE: For more information on HP's Certified and Supported ProLiant Servers for OS and Virtualization
Software and latest listing of software drivers available for your server, please visit our Support Matrix at:
http://www.hp.com/go/supportos and our driver download page:
http://www.hp.com/support/BL465cG7
Availability
Dual-Port Fibre Channel Mezzanine Card for redundant SAN connection
Embedded dual-port 10Gb Converged Network Adapter for redundant LAN connections
Two (2) hot-plug SAS/SATA/SSD drive bays and integrated RAID (Smart Array P410i) controller with
flash-backed write cache
Redundant ROM on each server blade
Multiple mezzanine I/O expansion
ECC Memory
Network adapter teaming (network fault tolerance, transmit load balancing, switch-assisted load
balancing)
Industry Standard
Compliance
ACPI 2.0 Compliant
PCI 2.2 Compliant
WOL Support
Microsoft® Logo certifications
USB 2.0 Support
Security
Power-on password
Administrator's password
Integrated Lights-Out 3 has 12 customizable user accounts and SSL encryption
Security - Trusted Platform The TPM (Trusted Platform Module) is a microcontroller chip that can securely store artifacts used to
Module
authenticate the server platform. These artifacts can include passwords, certificates and encryption keys.
Windows® BitLocker™ Drive Encryption (BitLocker) is a data protection feature available in Windows
Server® 2008. BitLocker leverages the enhanced security capabilities of a Trusted Platform Module
(TPM) version 1.2. The TPM works with BitLocker to help protect user data and to ensure that a server
running Windows Server 2008 has not been tampered with while the system was offline.
NOTE: For more information about TPM, including a white paper, go to: www.hp.com/go/TPM.
NOTE: ProLiant OS pre-installed units will come with the partition required for TPM deployment.
NOTE: The TPM key is unique to every TPM deployed server and must be retained. Misplacing or losing
the key could result in data loss.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 10
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Standard Features
Factory Express Portfolio
for Servers and Storage
HP Factory Express offers configuration, customization, integration and deployment services for HP
servers and storage products. Customers can choose how their factory solutions are built, tested,
integrated, shipped and deployed.
Factory Express offers service packages for simple configuration, racking, installation, complex
configuration and design services as well as individual factory services, such as image loading, asset
tagging, and custom packaging. HP products supported through Factory Express include a wide array of
servers and storage: HP Integrity, HP ProLiant, HP ProLiant Server Blades, HP BladeSystem, HP 9000
servers as well as the MSAxxxx, VA7xxx, EVA, XP, rackable tape libraries and configurable network
switches.
For more information on Factory Express services on your specific server model please contact your sales
representative or go to: http://www.hp.com/go/factory-express.
HP Enterprise
Configurator
The HP eConfigure Enterprise Configurator now provides factory default racking for our HP hardware
portfolio. This approach is aligned with our strategic direction to meet the needs and expectations of our
valued customers. If you require "custom" rack configuration, please contact HP's Customer Business
Center or an Authorized Partner for assistance. http://www.hp.com/products/configurator.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 11
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Service and Support
Service and Support
For increased uptime, productivity and ROI - HP Care Pack packaged services for Servers
These days, you need to get the most out of your server investment - you can't afford not to. When you
buy HP server products and solutions, it's also a good time to think about what levels of service and
support you may need. To help take the worry out of deploying, designing, maintaining, and managing
your environment, we've designed a portfolio of service options that are as: flexible, reliable and scalable
as your server. Unlike server-only vendors, we take a holistic approach to your entire environment,
bridging storage, servers, blades, software and network infrastructures with our HP Care Pack packaged
services for Servers.
Protect your business beyond the warranty
When it comes to robustness and reliability, standard warranties on today's computing equipment have
matured just as the technologies have matured. Good news on some fronts - but also a source of
potential problems and subsequent consequences that come from depending on standard warranties
alone. Standard warranty protects against product defects and some causes of downtime - but not the
business. By using a standard approach to warranty uplifts, such as HP Care Pack Services, you can
reduce downtime risks and be more certain of operational consistency for both mission-critical and
standard business computing. Simply put, HP Care Pack Services normalize the warranty of combined
products - helping you proactively guard against unplanned downtime.
Extending warranties with HP Care Pack Services
For cost-effective upgrading or extending your standard warranty, HP Care Pack Services offer a suite of
standard reactive hardware and software support services that are sold separately, or combined as with
our Support Plus and Support Plus 24 services. The portfolio also provides a combination of proactive
and reactive services, such as Proactive 24 Service and Critical Service. In addition, with HP Proactive
Select we offer an innovative approach to service delivery that gives you the flexibility to acquire the
specific proactive services you need today, then add services as your needs evolve. HP Proactive Select
offers a broad set of technical or per-event type service options - including server, storage, and network,
SAN device, and software, environment, installation and education services. Services that you can mix
and match depending on your specific requirements, from preliminary planning and equipment delivery
to installation, configuration, integration, and testing, through every level of ongoing support. Our HP
Care Pack packaged services for Servers assures help when you need it most. And for many products,
post-warranty HP Care Pack Services are available when your original warranty has expired.
HP Server Services: Offering reliability, flexibility and value - just like your storage
HP Server Services offers a full spectrum of customer care, from technology support to complex
migrations to complete completely managed services. HP Factory Express provides customization,
integration and deployment services for turnkey solutions. HP Education offers flexible, comprehensive
training on server networking and server software to help your IT staff get the most out of your
investments. And HP Financial solutions extend innovative financing and asset management programs to
cost-effective buy, manage and eventually retire your older equipment.
HP Server Services, the trusted business technology experts who manage your technology in action,
because when technology works, business works. http://www.hp.com/services/servers,
http://www.hp.com/services/storage
NOTE: Care Pack Services availability may vary by product and country.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 12
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Service and Support
HP Care Pack Services are sold by HP and HP Authorized Service Partners:
Services for customers purchasing from HP or an enterprise reseller are quoted using HP order
configuration tools.
Customers purchasing from a commercial reseller can find HP Care Pack Services at:
http://www.hp.com/go/lookuptool
Recommended HP Care Pack Services for optimal satisfaction with your HP product
Recommended Services
Hardware Support - 3-Year HP 24x7 6-hour call to repair Care Pack
3-Year HP 24x7 6-hour call to repair Care Pack - This cost-effective service helps you minimize system
downtime due to hardware failure. It features a commitment to resolve hardware problems within 6
hours from the time your service call is received. (Please note repair-time restrictions below.)
When you experience system problems, your call is immediately connected to an HP-certified resolution
engineer for troubleshooting. If your problem cannot be resolved remotely, an experienced support
professional is dispatched to your site to begin hardware repair activities.
HP is committed to repairing your hardware within a maximum of six hours. The benefits include:
Improved system uptime
Predictable repair times
More effective IT resource planning
Consistent level of hardware support across yourmulti-technology systems
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
Hardware Support - 3 - Years 24x7 24 hour Call-to-Repair
3-Year HP 24x7 24-hour call to repair Care Pack - This cost-effective service helps you minimize system
downtime due to hardware failure. It features a commitment to resolve hardware problems within 6
hours from the time your service call is received. (Please note repair-time restrictions below.)
When you experience system problems, your call is immediately connected to an HP-certified resolution
engineer for troubleshooting. If your problem cannot be resolved remotely, an experienced support
professional is dispatched to your site to begin hardware repair activities.
HP is committed to repairing your hardware within a maximum of six hours. The benefits include:
Improved system uptime
Predictable repair times
More effective IT resource planning
Consistent level of hardware support across yourmulti-technology systems
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6636ENN
ProLiant Servers Installation and Startup Service
HP Installation and Startup of HP ProLiant Servers provides for the installation of your new HP ProLiant
server and operating system. This will assist you in bringing your new HP ProLiant server and operating
system into operation in a timely and professional manner.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 13
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Service and Support
This service provides a trained HP service specialist to perform an installation that meets HP quality
standards, for:
Delivery of the service at a mutually scheduled time convenient to your organization
Availability of an HP service specialist to answer basic questions during the onsite delivery of this
service
Custom installation as detailed in "Delivery specifications" or in a Statement of Work (SOW)
Verification prior to installation that all service prerequisites are met
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982?7572ENN
Optional HP Care Pack Services that will enhance your HP product experience
Optional Services
3-Year HP Support Plus 24 Service Care Pack
As an alternative to our recommended support level, for customers who need access to responsive 24x7
hardware and software support plus software updates on HP and selected third party products:
HP Support Plus 24 helps you increase performance and availability with comprehensive, consistent
hardware and software services. Working with your IT team, HP Services engineers deliver onsite
hardware support and over-the-phone software support around-the-clock 365 days per year. Service
coverage encompasses HP products and selected multi-vendor hardware and software.
In addition, this convenient HP Care Pack packaged service makes software updates available to you at
substantial savings.
Choose Support Plus 24 when you need to:
Improve uptime with responsive hardware and software services available anytime
Cost-effectively obtain expert 24x7 multi-vendor hardware and software support
Enjoy consistent service coverage across geographically dispersed sites
Update HP and selected third-party software at a predictable cost
Take advantage of subscription savings on software updates
http://h20195.www2.hp.com/V2/GetPDF.aspx/5981-6638EEE
3 Year HP Proactive 24
As an alternative to our recommended support level, for customers who want enhanced operational
effectiveness and proactive problem identification:
HP Proactive 24 Service (P24) integrates hardware and software support to help you improve the stability
and operational effectiveness of your IT environment. An HP Account Manager acts as your primary
point of contact to ensure that HP meets your support needs effectively.
P24 provides the maximum value when multiple technologies in the environment (e.g. servers, storage,
SAN and the network), are all covered. It provides an environment-wide view and consistent support of
all of these components which affect stability of your key applications.
Choose P24 when you want to:
enhance operational effectiveness with proactive problem identification and recommendations
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 14
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Service and Support
from HP
partner with technical experts who help coordinate support, provide hands-on assistance, and
share knowledge with your staff
rapidly access support and expertise spanning your environment
obtain personalized services tailored to your business environment and critical success factors
anticipate necessary change - and execute it correctly the first time
efficiently manage infrastructure resources to meet your performance objectives
http://h20195.www2.hp.com/V2/GetPDF.aspx/4AA0-1614ENUC
Hardware Support - 3-Year, 24x7 Same-Business-Day, On-site. 4-Hour response coverage
As an alternative to our recommended support level, for customers who need same day response service
level 24x7.
3-Year, 24x7 Same-Business-Day, On-site. 4-Hour response coverage provides high-quality remote
assistance and onsite support for your covered hardware, helping you to improve product uptime. You
have the flexibility to choose between different service-level options featuring different response times and
coverage windows, as well as between several coverage periods to address your specific service needs.
Service benefits
Help improve or maintain system uptime
Convenient onsite support
Reliable response times
Remote problem diagnosis and support
Onsite hardware support
Materials included
Service-level options with different coverage windows and response times
Work to completion
Escalation management
Access to electronic support information and services
HP electronic remote monitoring and support solution (for eligible products only)
Optional Defective Media Retention Service
http://h20195.www2.hp.com/V2/GetPDF.aspx/5982-6547EEE
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 15
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Service and Support
eSupport
HP eSupport is a portfolio of technology-based services that assist you with managing your business
environment - from the desktop to the data center.
Support Portal
The HP support portal provides one-stop access to the information, tools and services you need to
manage the daily operations of your IT environment.
Features include:
Access to self-solve tools (including search technical knowledge base)
Efficient logging and tracking of support cases
Collaboration with other business and IT professionals
Download of patches and drivers
Access to diagnostic tools
Proactive notification of relevant information
HP Insight Remote Support software delivers secure remote support for your HP Servers and Storage, 24
X 7, so you can spend less time solving problems and more time focused on your business. You can
have your systems remotely monitored for hardware failure using secure technology that's been proven at
thousands of companies around the world. In many cases, you can avoid problems before they occur.
HP Services Awards
HP Services continues to be recognized for service and support excellence by customers, partners,
industry organizations and publications around the world. Recent honors and award reflect our services
team's dedications, technical expertise, professionalism and uncompromising commitment to customer
satisfaction. For a list of all our awards, please visit:
http://h10033.www1.hp.com/hpinfo/hpawards/index.asp
Additional Services
Information
For more information about HP Care Pack Services for Servers, please visit:
http://www.hp.com/services/servers
To learn more on HP ProLiant servers and HP BladeSystem, please contact your HP sales representative
or HP Authorized Channel Partner, or visit: http://www.hp.com/services/proliant or
http://www.hp.com/services/bladesystem
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 16
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Models
Twelve-Core Models
HP BL465c G7 6174
12C, 8G (1P )
518859-B21
HP BL465c G7 6172
12C, 8G (1P)
518851-B21
Processor(s)
One of the following
depending on model
Cache Memory
One of the following
depending on model
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
(1) AMD Opteron™ processor Model 6174 (2.2 GHz)
(1) AMD Opteron processor Model 6172 (2.1 GHz)
512 KB Level 2 cache memory per core
12 MB Level 3 cache memory
8 GB (2 x 4 GB) PC3-10600, Registered DDR3-1333
One (1) embedded HP NC551i Dual Port FlexFabric 10Gb Converged
Network Adapter
Smart Array P410i RAID controller with 1 GB cache flash-backed write cache
(FBWC)
None ships standard; (2) SFF SAS/SATA/SSD drive bays
Up to 1TB SAS
Up to 1TB SATA
Up to 240GB SATA SSD
None ships standard
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Eight-Core Models
HP BL465c G7 6136 8C, Processor(s)
8G (1P)
One of the following
518854-xx1
depending on model
Cache Memory
HP BL465c G7 6128HE One of the following
8C, 8G (1P)
depending on model
518867-B21
Memory
Network Adapter
Storage Controller
Hard Drives
Internal Storage
Optical Drive
Form Factor
DA - 13654
(1) AMD Opteron processor Model 6136 (2.4 GHz)
(1) Low Power AMD Opteron processor Model 6128 HE (2.0 GHz)
512 KB Level 2 cache memory per core
12 MB Level 3 cache memory
8 GB (2 x 4 GB) PC3-10600, Registered DDR3-1333
One (1) embedded HP NC551i Dual Port FlexFabric 10Gb Converged
Network Adapter
Smart Array P410i RAID controller with 1 GB cache flash-backed write cache
(FBWC)
None ships standard; (2) SFF SAS/SATA/SSD drive bays
Up to 1TB SAS
Up to 1TB SATA
Up to 240GB SATA SSD
None ships standard
Up to eight (8) half-height blades supported in the HP BladeSystem c3000
Enclosure
Up to sixteen (16) half-height blades supported in HP BladeSystem c7000
Enclosure
Worldwide — Version 3 — June 24, 2010
Page 17
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Models
Country Code Key
xx=20
Brazil
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 18
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Configuration Information - Factory Integrated Models
NOTE: This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are
ordered, HP recommends the use of an HP approved configurator. Contact your local sales representative for information on CTO
product offerings and requirements.
NOTE: HP does not allow factory integration of options into standard models listed above.
Configure-to-order servers must start with a CTO Chassis.
NOTE: FIO indicates that this option is a Factory Installable Option.
Step 1: Base Server Blade Configuration
HP Models
HP ProLiant BL465c G7 CTO Blade
Configurable Model ships with:
One (1) integrated HP NC551i Dual Port FlexFabric 10Gb Converged Network
Adapter and one (1) additional 10/100 server adapter dedicated to iLO 3
management
Two (2) small form factor (SFF) SAS/SATA/SSD hot plug drive bays
HP Integrated Lights-Out 3 (iLO 3)
518857-B21
Step 2: Choose Required Options (one of the following from each list unless otherwise noted)
HP Processors
HP Memory
For single (1) processor configuration choose (one of the following):
NOTE: If two (2) processors are desired, select one xxxxxx-L21 and one xxxxxx-B21.
Twelve-Core Processors
AMD Opteron processor Model 6174 (2.2 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit, FIO Base
AMD Opteron processor Model 6172 (2.1 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit, FIO Base
Low Power AMD Opteron processor Model 6164 HE (1.7 GHz, 12 MB L3 Cache,
65W ACP) Processor Option Kit, FIO Base
Eight-Core Processors
AMD Opteron processor Model 6136 (2.4 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit, FIO Base
AMD Opteron processor Model 6134 (2.3 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit, FIO Base
Low Power AMD Opteron™ processor Model 6128 HE (2.0 GHz, 12 MB L3 Cache,
65W ACP) Processor Option Kit, FIO Base
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7
Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
DA - 13654
Worldwide — Version 3 — June 24, 2010
518860-L21
518852-L21
596207-L21
518855-L21
518863-L21
518868-L21
593911-B21
604500-B21
593913-B21
604502-B21
593915-B21
Page 19
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Configuration Information - Factory Integrated Models
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one
quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory
channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per
processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus
will operate one speed slower when low voltage (1.35V, PC3L) memory is installed.
Memory bus speeds may be further limited by the speed of the memory used as well.
593921-B21
593923-B21
Step 3: Choose Additional Factory Integration Options
HP Storage Controller
HP Smart Array P410i Controller for BL465c G7/BL685c G7, FIO
NOTE: Includes 1 GB cache with flash-backed write cache (FBWC).
NOTE: The Smart Array P410i controller is required for all blades that support hot
plug drives.
588184-B21
Step 4: Choose Additional Options for Factory Integration
NOTE: For additional Core Options and Additional Options please see options sections below. For additional options, including
server blade enclosures interconnect options and power subsystem options; please see the following QuickSpecs:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/12810_div.html
and HP BladeSystem c-Class Interconnect Components QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12524_div/12524_div.html.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 20
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Core Options
NOTE: Some options may not be integrated at the factory. Contact your local sales representative for additional information.
Gigabit Ethernet Mezzanines
Ethernet Mezzanine
Options
HP NC325m PCI Express Quad Port 1Gb Server Adapter for c-Class BladeSystem
416585-B21
NOTE: If the NC325m is installed in mezzanine slot 1 of a half-height server,
connectivity will be provided on only 2 of the 4 ports.
HP NC360m Dual Port 1GbE BL-c Adapter
445978-B21
HP NC364m Quad Port 1GbE BL-c Adapter
447883-B21
NOTE: If the NC364m is installed in mezzanine slot 1 of a half-height server,
connectivity will be provided on only 2 of the 4 ports.
HP NC382m Dual Port 1GbE Multifunction BL-c Adapter
453246-B21
10 Gigabit Ethernet Mezzanines
HP NC522m Dual Port Flex-10 10GbE Multifunction BL-c Adapter
NOTE: The NC522m requires a minimum of 2 GB of server memory.
NOTE: The NC522m supports linking at 1000Mbps or 10000Mbps when not
connected to a Flex-10 enabled module and will link with all current 1Gb switches at
1Gb.
HP NC532m Dual Port Flex-10 10GbE Multifunction BL-c Adapter
NOTE: The NC532m requires a minimum of 2 GB of server memory.
NOTE: The NC532m supports linking at 1000Mbps or 10000Mbps when not
connected to a Flex-10 enabled module and will link with all current 1Gb switches at
1Gb.
HP NC542m Dual Port Flex-10 10GbE BLc Adapter
NOTE: The NC542m requires a minimum of 2 GB of server memory.
NOTE: The NC542m supports linking at 1000Mbps or 10000Mbps when not
connected to a Flex-10 device. The NC542m will only support 1000Mbps when
connected to a 1Gb Ethernet interconnect.
HP NC550m 10GbE 2-port PCIe x8 Flex-10 Ethernet Adapter
NOTE: The NC550m network adapter card is required for each server blade
connecting to a 10Gb interconnect in bays 3-8 (HP BladeSystem c7000 Enclosure) or
bays 3-4 (HP BladeSystem c3000 Enclosure)
NOTE: The NC550m requires a minimum of 2 GB of server memory.
NOTE: The NC550m supports linking at 1000Mbps or 10000Mbps when not
connected to a Flex-10 device. The NC550m will only support 1000Mbps when
connected to a 1Gb Ethernet interconnect.
HP Fibre Channel
Mezzanine Options
4Gb Fibre Channel Mezzanines
Emulex LPe1105 FC Dual Channel 4Gb, PCI-E-to-Fibre Channel Host Bus Adapter
QLogic QMH2462 4Gb FC HBA for HP c-Class BladeSystem
8Gb Fibre Channel Mezzanines
HP BLc Emulex LPe1205- 8Gb FC HBA for HP c-Class BladeSystem
QLogic QMH2562 8Gb FC HBA for HP BladeSystem c-Class
Brocade 804 8Gb FC HBA for HP BladeSystem c-Class
DA - 13654
Worldwide — Version 3 — June 24, 2010
467801-B21
467799-B21
539857-B21
581204-B21
403621-B21
403619-B21
456972-B21
451871-B21
590647-B21
Page 21
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Core Options
HP Processors
HP Memory
Twelve-Core Processors
AMD Opteron processor Model 6174 (2.2 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit
AMD Opteron processor Model 6172 (2.1 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit
Low Power AMD Opteron processor Model 6164 HE (1.7 GHz, 12 MB L3 Cache,
65W ACP) Processor Option Kit
Eight-Core Processors
AMD Opteron processor Model 6136 (2.4 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit
AMD Opteron processor Model 6134 (2.3 GHz, 12 MB L3 Cache, 80W ACP)
Processor Option Kit
Low Power AMD Opteron™ processor Model 6128 HE (2.0 GHz, 12 MB L3 Cache,
65W ACP) Processor Option Kit
NOTE: HP ProLiant BL465c G7 processor option kits contain one (1) processor.
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7
Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator.
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one
quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory
channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per
processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus
will operate one speed slower when low voltage (1.35V, PC3L) memory is installed.
Memory bus speeds may be further limited by the speed of the memory used as well.
DA - 13654
Worldwide — Version 3 — June 24, 2010
518860-B21
518852-B21
596207-B21
518855-B21
518863-B21
518868-B21
593911-B21
604500-B21
593913-B21
604502-B21
593915-B21
593921-B21
593923-B21
Page 22
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Core Options
HP Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller,
firmware, and the server backplane) should operate at the same data transfer rate or
the system bandwidth will be negotiated down to an acceptable level for all
components.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific
hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
HP 300GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 146GB 6G SAS 10K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
HP 72GB 6G SAS 15K rpm SFF (2.5-inch) Dual Port Enterprise 3yr Warranty Hard
Drive
NOTE: Please see the for Technical Specifications and additional information:
http://h18000.www1.hp.com/products/quickspecs/12244_div/12244_div.html
(Worldwide)
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 6G SAS 7.2K rpm SFF (2.5-inch) Dual Port Midline 1yr Warranty Hard
Drive
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
HP 500GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
HP 160GB 3G SATA 7.2K rpm SFF (2.5-inch) Midline 1yr Warranty Hard Drive
SATA Hot Plug Midline (MDL) Solid State Drives
HP 120GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive
HP 60GB 3G SATA SFF (2.5-inch) Midline 1yr Warranty Solid State Drive
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13021_div/13021_div.html
(Worldwide)
DA - 13654
Worldwide — Version 3 — June 24, 2010
507127-B21
512547-B21
507125-B21
512545-B21
507610-B21
507750-B21
530888-B21
572073-B21
572071-B21
Page 23
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Additional Options
HP Insight Software
HP Insight Control
HP Insight Control, No Media, Electronic License including 1 year of 24x7 Technical
Support and Updates
HP Insight Control, No Media 1-Server License including 1 year of 24x7 Technical
Support and Updates
HP Insight Software Media Kit
NOTE: Insight Software DVD media without licenses. Contains Insight Control, Insight
Dynamics and Virtual Connect Enterprise Manager. Uses an integrated installer to
perform quick and accurate software installation and updates.
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
HP Insight Control for Linux
HP Insight Control for Linux, 1-server license, including one year of 24x7 Technical
Support and Updates, Electronic
HP Insight Control for Linux, No Media, 1-Server license, including one year of 24x7
Technical Support and Updates
HP Insight Control for Linux, Media pack (DVD) - No licenses included
NOTE: Media pack DVD contains the ISO image for HP Insight Control for Linux, HP
Systems Insight Manager, HP Insight Control power management, HP Insight Control
virtual machine management, and an integrated installer. Servers must be acquired
separately.
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at: http://www.hp.com/go/ic-linux (click
on Download button).
NOTE: Electronic software is available in all countries except China and Japan.
Customers in China and Japan should order the physical equivalent.
NOTE: Electronic and Flexible-Quantity licenses can be used to purchase multiple
licenses with a single set of activation keys.
NOTE: For additional License Kits, including electronic licensing options, please see
the QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/13019_div/13019_div.html
HP iLO Advanced for BladeSystem
HP Integrated Lights-Out (iLO) Advanced for BladeSystem, No Media, Electronic
License, including 1 year of 24x7 Technical Support and Updates
HP Integrated Lights-Out (iLO) Advanced for BladeSystem, No Media, 1-Server
License, including 1 year of 24x7 Technical Support and Updates
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
DA - 13654
Worldwide — Version 3 — June 24, 2010
T9074BAE
452148-B22
436222-B21
TC213AAE
TC209A
TC208A
TA851AAE
512488-B21
Page 24
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Additional Options
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits, including electronic delivery options, please see the
HP Integrated Lights-Out (iLO) QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/12362_div/12362_div.html
HP Insight Control server deployment
HP Insight Control server deployment Electronic License including 1 year 24x7
Technical Support and Updates
HP Insight Control server deployment 1-Server License including 1 year 24x7
Technical Support and Updates
NOTE: Licenses ship without media. The Media Kit for Insight Control for Linux can be
ordered separately, or can be downloaded at: http://www.hp.com/go/insightupdates.
NOTE: Electronic licenses can be used to purchase multiple licenses with a single
activation key, and is available in all countries except China and Japan. Customers in
China and Japan should order the physical equivalent.
NOTE: Customer will receive a license entitlement certificate, which must be
redeemed online or via fax in order to obtain the license activation key(s). Includes
one year of 24 x 7 HP Software Technical Support Service.
NOTE: For additional license kits please see the Insight Control QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12631_div/12631_div.html
High Performance
Clusters
HP Cluster Management Utility Compute Node License
NOTE: This part number can be used to purchase one certificate for multiple licenses
with a single activation key. Each license is for one node (server). Customer will
receive a printed end user license agreement and license entitlement certificate via
physical shipment. The license entitlement certificate must be redeemed online in
order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
HP Cluster Management Utility Media and Management License
NOTE: Order a minimum of one license per cluster to purchase media including
software and documentation, which will be delivered to the customer, and also
licenses CMU management. No license key is delivered or required.
NOTE: For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/12612_div/12612_div.html
HP HPC Linux Value Pack One Processor License
NOTE: This part number can be used to purchase one certificate for multiple licenses
with a single activation key. Each license is for one socket (a.k.a. processor).
Customer will receive a printed end user license agreement and license entitlement
certificate via physical shipment. The license entitlement certificate must be redeemed
online in order to obtain a license key.
NOTE: For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html
DA - 13654
Worldwide — Version 3 — June 24, 2010
T9082AAE
452151-B21
436284-B21
433257-B21
TC293A
Page 25
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Additional Options
HP HPC Linux Value Pack Media
NOTE: This part number can be used to purchase media including software and
documentation, which will be delivered to the customer.
NOTE: For additional license kits please see the QuickSpecs at:
http://h18004.www1.hp.com/products/quickspecs/13485_div/13485_div.html
TC294A
HP Security - TPM
HP Trusted Platform Module (TPM) Kit
NOTE: The TPM key is unique to every TPM deployed server and must be retained.
Misplacing or losing the key could result in data loss.
488069-B21
HP Storage Controller
HP Smart Array P700m/512 Controller
508226-B21
HP Smart Array P700m/256 Controller
HP Smart Array P700m/512 Battery Option Kit
NOTE: Supports all HP ProLiant Server Blades, except the HP ProLiant BL2x220c and
BL685c G7 server blades.
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13175_div/13175_div.html
(Worldwide)
507925-B21
452348-B21
HP I/O Expansion
Options
HP StorageWorks 80GB IO Accelerator for BladeSystem c-Class
HP StorageWorks 160GB IO Accelerator for BladeSystem c-Class
HP StorageWorks 320GB IO Accelerator for BladeSystem c-Class
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/13220_div/13220_div.html
AJ876A
AJ877A
AJ878A
HP InfiniBand Mezzanine QLogic 4X QDR IB Dual Port Mezzanine HCA for HP BladeSystem c-Class
Options
HP 4X QDR IB CX2 Dual Port Mezz HCA for HP BladeSystem c-Class
HP 4X DDR IB Dual Port Mezzanine HCA for HP BladeSystem c-Class
NOTE: Please see the QuickSpecs for Technical Specifications and additional
information:
http://h18000.www1.hp.com/products/quickspecs/12586_div/12586_div.html
583210-B21
592519-B21
448262-B21
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 26
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Additional Options
HP Ultrium Tape Blades
HP StorageWorks SB1760c Tape Blade
NOTE: LTO-4 Ultrium technology
HP StorageWorks SB920c Tape Blade
NOTE: LTO-3 Ultrium technology
NOTE: Please see the QuickSpecs for Technical Specifications and additional
configuration information at:
http://h18000.www1.hp.com/products/quickspecs/12729_div/12729_div.html
NOTE: Please visit the BladeSystem c-Class enclosure QuickSpecs for a complete list
of recommended data protection solutions for BladeSystem c-Class enclosures:
http://h18004.www1.hp.com/products/blades/components/enclosures/cclass/index.html.
AQ697A
AJ401A
HP StorageWorks SB40c HP StorageWorks SB40c Storage Blade
Storage Blade
NOTE: Please see the QuickSpecs for Technical Specifications and additional
configuration information at:
http://h18000.www1.hp.com/products/quickspecs/12587_div/12587_div.html
(Worldwide)
411243-B21
HP Expansion Blade
448018-B21
HP PCI Expansion Blade
NOTE: Ships with one pre-installed PCI-X connect board. Also includes one PCIe
connect board which requires installation.
NOTE: Please see the QuickSpecs Technical Specifications and additional
configuration information at:
http://h18000.www1.hp.com/products/quickspecs/12753_div/12753_div.html
HP USB and SD Options HP USB 2-Button Optical Scroll Mouse (Carbonite/Silver)
HP USB Standard Keyboard
HP 2GB USB Flash Media Drive Key
NOTE: HP qualified blank USB key for use with HP ProLiant servers that support the
VMware virtualization environment and other HP value-add software like SmartStart.
HP recommends this industry standard USB flash device for use with VMware ESXi.
USB device must be installed in the internal slot of the ProLiant server for use with
VMware ESXi. Refer to HP VMware Getting Started Guide for installation instructions.
HP Care Pack Services
NOTE: The HP Care Pack service part numbers below for ProLiant BL c-Class server
blades, cover the server blade and all HP branded hardware options qualified for the
server, purchased at the same time or afterwards, internal to the server.
Hardware Services On-site Service
4-Hour On-site Service, 5-Day x 13-Hour Coverage, 3 Years, Electronic
4-Hour On-site Service, 7-Day x 24-Hour Coverage, 3 Years, Electronic
6-Hour Call to Repair, On-site Service, 7-Day x 24-Hour Coverage, 3 Years,
Electronic
DA - 13654
Worldwide — Version 3 — June 24, 2010
DC172B
DT528A#ABA
608447-B21
UK065E
UK066E
UK067E
Page 27
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Memory
NOTE: Memory configurations listed do not apply to "Factory Integrated Models".
DDR3 Memory Population Guidelines
For detailed memory configuration rules and guidelines, please use the Online DDR3 Memory Configuration Tool:
www.hp.com/go/ddr3memory-configurator
Some DIMM installation guidelines are summarized below:
For the HP ProLiant BL465c G7 server blade with sixteen (16) memory slots:
There are four (4) channels per processor; eight (8) channels per server
There are two (2) DIMM slots for each memory channel; sixteen (16) total slots.
Memory channel 1 consists of the two (2) DIMMs that are furthest from the processor
Memory channel 4 consists of the two (2) DIMMs that are closest from the processor
DIMM slots that are white should be populated first
Do not mix Unbuffered memory (UDIMMs) with Registered memory (RDIMMs)
Do not install DIMMs if the corresponding processor is not installed
If only one (1) processor is installed in a two (2) CPU system, only half of the DIMM slots are available
To maximize performance, balance the total memory capacity between all installed processors
To maximize performance, balance the total memory capacity on any given processor across the memory channels
You may only have up to eight (8) ranks installed per channel
You may install up to two (2) quad-rank DIMMs per channel
If mixing DIMM voltage is a requirement, please note that the DIMMs will run at 1.5V since all 1.35V are capable of
supporting 1.5V operations
When running virtualization software, a minimum of two (2) DIMMs per processor are required. Populate DIMM sockets 1A
and 5B for each processor socket populated.
DIMM slot/capacity/populated speed table
DIMM Type
DIMM Rank
DIMM Capacity
DIMM Native Speed (MHz)
DIMM Voltage
Registered DIMMS (RDIMMs)
Single Rank
Dual Rank
Quad Rank
(1R)
(2R)
(4R)
4GB
2GB
8GB
16GB
1333
1333
1333
1066
LV/Reg
Reg
LV/Reg
Reg
Unbuffered with ECC DIMMs
(UDIMMs)
Dual Rank
(2R)
2GB
4GB
1333
1333
Reg
Reg
SLOTS THAT CAN BE POPULATED
16 slot servers
16
16
16
16
16
16
MAXIMUM CAPACITY (GB)
16 slot servers
64
32
128
256
32
64
1333
1333
1333
1333
1333
1333
1066
1066
1333
1333
1333
1333
POPULATED DIMM SPEED (MHz)
1 DIMM Per Channel
2 DIMM Per Channel
NOTES:
PC3-10600 DIMMs have a maximum speed of 1333MHz. PC3-8500 DIMMs have a maximum speed of 1066MHz.
If you do mix DIMM speeds, the memory bus will default to the minimum clock rate of all DIMMs in the system - even if the
slower DIMM is on the other processor
If you install 1x 1066MHz DIMM in channel 1 and 1x 1333MHz DIMM in channel 2, the maximum speed will be 1066MHz
If you install 1x 1066MHz DIMM in channel 1 and 7x 1333MHz DIMMs with 1 DIMM Per Channel (DPC) in each of the other
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 28
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Memory
channels, the maximum speed will be 1066MHz
References to the above MHz speeds are for the various speeds of DDR3 DIMMs; 1333 refers to DDR3-1333, etc.
HP ProLiant BL465 G7 Server Blade DIMM slot and configuration diagrams
Basic memory slot and population diagram
Population order; start with "A" first, "B" second, "C" third, etc.
Chnl 1
slot #
1
2
16 DIMM SLOTS (8 per CPU node)
CPU1
CPU2
population order
slot #
population order
A
1
A
E
2
E
Chnl 1
Chnl 2
3
4
C
G
3
4
C
G
Chnl 2
Chnl 3
5
6
B
F
5
6
B
F
Chnl 3
Chnl 4
7
8
D
H
7
8
D
H
Chnl 4
HP ProLiant BL465c G7 Server Blade (1P Model)
Standard memory configuration (1 CPU model)
8GB, consisting of two (2) 4GB single-rank PC3-10600 RDIMMs
Chnl 1
slot #
1
2
CPU1
population order
A: 4GB DIMM
E: empty
slot #
1
2
CPU2
population order
A: empty
E: empty
Chnl 1
Chnl 2
3
4
C: empty
G: empty
3
4
C: empty
G: empty
Chnl 2
Chnl 3
5
6
B: 4GB DIMM
F: empty
5
6
B: empty
F: empty
Chnl 3
Chnl 4
7
8
D: empty
H: empty
7
8
D: empty
H: empty
Chnl 4
Standard Memory Plus Optional Memory (1 CPU model)
104GB, consisting of two (2) 4GB RDIMMs plus six (6) 16GB RDIMMs
2 x 4GB single-rank PC3-10600 RDIMMs
6 x 16GB quad-rank PC3-8500 RDIMMs
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 29
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Memory
Chnl 1
slot #
1
2
CPU1
population order
A: 4GB DIMM
E: 16GB DIMM
slot #
1
2
CPU2
population order
A: empty
E: empty
Chnl 1
Chnl 2
3
4
C: 16GB DIMM
G: 16GB DIMM
3
4
C: empty
G: empty
Chnl 2
Chnl 3
5
6
B: 4GB DIMM
F: 16GB DIMM
5
6
B: empty
F: empty
Chnl 3
Chnl 4
7
8
D: 16GB DIMM
H: 16GB DIMM
7
8
D: empty
H: empty
Chnl 4
Standard Memory Replaced with Optional Memory (1 CPU model)
128GB, consisting of eight (8) 16GB quad-rank PC3-8500 RDIMMs
Chnl 1
slot #
1
2
CPU1
population order
A: 16GB DIMM
E: 16GB DIMM
slot #
1
2
CPU2
population order
A: empty
E: empty
Chnl 1
Chnl 2
3
4
C: 16GB DIMM
G: 16GB DIMM
3
4
C: empty
G: empty
Chnl 2
Chnl 3
5
6
B: 16GB DIMM
F: 16GB DIMM
5
6
B: empty
F: empty
Chnl 3
Chnl 4
7
8
D: 16GB DIMM
H: 16GB DIMM
7
8
D: empty
H: empty
Chnl 4
UDIMM maximum configuration (1 CPU model)
32GB, consisting of eight (8) 4GB dual-rank PC3-10600 UDIMMs
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 30
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Memory
Chnl 1
slot #
1
2
CPU1
population order
A: 4GB DIMM
E: 4GB DIMM
slot #
1
2
CPU2
population order
A: empty
E: empty
Chnl 1
Chnl 2
3
4
C: 4GB DIMM
G: 4GB DIMM
3
4
C: empty
G: empty
Chnl 2
Chnl 3
5
6
B: 4GB DIMM
F: 4GB DIMM
5
6
B: empty
F: empty
Chnl 3
Chnl 4
7
8
D: 4GB DIMM
H: 4GB DIMM
7
8
D: empty
H: empty
Chnl 4
Standard Memory Replaced with Optional Memory (2 CPU Model)
RDIMM maximum configuration
256GB, consisting of sixteen (16) 16GB quad-rank PC3-8500 RDIMMs
Chnl 1
slot #
1
2
CPU1
population order
A: 16GB DIMM
E: 16GB DIMM
slot #
1
2
CPU2
population order
A: 16GB DIMM
E: 16GB DIMM
Chnl 1
Chnl 2
3
4
C: 16GB DIMM
G: 16GB DIMM
3
4
C: 16GB DIMM
G: 16GB DIMM
Chnl 2
Chnl 3
5
6
B: 16GB DIMM
F: 16GB DIMM
5
6
B: 16GB DIMM
F: 16GB DIMM
Chnl 3
Chnl 4
7
8
D: 16GB DIMM
H: 16GB DIMM
7
8
D: 16GB DIMM
H: 16GB DIMM
Chnl 4
UDIMM maximum configuration (2 CPU model)
64GB, consisting of sixteen (16) 4GB dual-rank PC3-10600 UDIMMs
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 31
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Memory
Chnl 1
slot #
1
2
CPU1
population order
A: 4GB DIMM
E: 4GB DIMM
slot #
1
2
CPU2
population order
A: 4GB DIMM
E: 4GB DIMM
Chnl 1
Chnl 2
3
4
C: 4GB DIMM
G: 4GB DIMM
3
4
C: 4GB DIMM
G: 4GB DIMM
Chnl 2
Chnl 3
5
6
B: 4GB DIMM
F: 4GB DIMM
5
6
B: 4GB DIMM
F: 4GB DIMM
Chnl 3
Chnl 4
7
8
D: 4GB DIMM
H: 4GB DIMM
7
8
D: 4GB DIMM
H: 4GB DIMM
Chnl 4
NOTE: Capacity references are rounded to the common Gigabyte values.
2GB = 2048MB
4GB = 4096MB
8GB = 8192MB
16GB = 16384MB
HP Memory
Registered DIMMs (RDIMMs)
HP 4GB (1x4GB) Single Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9
Memory Kit
HP 4GB (1x4GB) Single Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
HP 8GB (1x8GB) Dual Rank x4 PC3-10600 (DDR3-1333) Registered CAS-9 Memory
Kit
HP 8GB (1x8GB) Dual Rank x4 PC3L-10600 (DDR3-1333) Registered CAS-9 Low
Power Memory Kit
HP 16GB (1x16GB) Quad Rank x4 PC3-8500 (DDR3-1066) Registered CAS-7
Memory Kit
Unbuffered with ECC DIMMs (UDIMMs)
HP 2GB (1x2GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
HP 4GB (1x4GB) Dual Rank x8 PC3-10600 (DDR3-1333) Unbuffered CAS-9
Memory Kit
NOTE: All DDR3 memory option kits consist of one DIMM per kit. For detailed
memory configuration rules and guidelines, please use the Online DDR3 Memory
Configuration Tool: www.hp.com/go/ddr3memory-configurator
NOTE: Kits described as PC3L include Low Power DIMMs. For more information on
ProLiant Energy Efficient Features, see: www.hp.com/go/proliant-energy-efficient.
DA - 13654
Worldwide — Version 3 — June 24, 2010
593911-B21
604500-B21
593913-B21
604502-B21
593915-B21
593921-B21
593923-B21
Page 32
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Memory
NOTE: Each processor memory bus will operate at up to 1333 MHz with either one
quad-rank (QR) or two single-rank/dual-rank (SR/DR) DIMMs per processor memory
channel and 1066 MHz with up to two QR or one QR and one SR/DR DIMMs per
processor memory channel with standard voltage (1.5V, PC3) DIMMs. Memory bus
will operate one speed slower when low voltage (1.35V, PC3L) memory is installed.
Memory bus speeds may be further limited by the speed of the memory used as well.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 33
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Storage
1-2
2 x SFF SAS or SATA Hot Plug Hard Drives, or
2 x SFF SATA Hot Plug SSD Drives
Hard Drives
NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane) should
operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.
NOTE: Simultaneous operation of hot plug hard drives and solid state drives is not supported.
NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.
SAS Hot Plug SFF (2.5-inch) Enterprise (ENT) Drives
Quantity
Position
Supported
Supported
Controller
300GB 6G SAS 10K DP
2
1-2
Smart Array P410i Controller
146GB 6G SAS 15K DP
146GB 6G SAS 10K DP
72GB 6G SAS 15K DP
SAS Hot Plug SFF (2.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
500GB 6G SAS 7.2K DP
2
1-2
SATA Hot Plug SFF (2.5-inch) Midline (MDL) Drives
Quantity
Position
Supported
Supported
500GB 3G SATA 7.2K
2
1-2
160GB 3G SATA 7.2K
SATA Hot Plug Midline (MDL) Solid State Drives
Quantity
Position
Supported
Supported
120GB 3G SATA SSD
2
1-2
60GB 3G SATA SSD
DA - 13654
Controller
Smart Array P410i Controller
Controller
Smart Array P410i Controller
Controller
Smart Array P410i Controller
Worldwide — Version 3 — June 24, 2010
Page 34
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Technical Specifications
System Unit
Dimensions
(H x W x D)
Weight
(approximate)
Power Specifications
7.154 x 2.19 x 20.058 in (18.17 x 5.56 x 50.95 cm)
Maximum
13.9 lb (6.3 kg)
(all hard drives, DIMMs,
and processors installed)
Minimum
9.8 lb (4.45 kg)
(no hard drives, two
DIMMs, and one
processor installed)
For power specifications including Input Requirements, BTU Rating, and
Power Supply Output, please see the HP BladeSystem c-Class Enclosures
QuickSpecs located at URL:
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html
To review typical system power ratings use the HP BladeSystem Power Sizer
which is available via the online tool located at URL:
http://www.hp.com/go/bladesystem/powercalculator
NOTE: For optimal cooling and system performance the BL465c G7
requires the c7000 enclosure to be configured with 10 fans and the c3000
enclosure to be configured with 6 fans.
System Inlet Temperature Operating
10° to 35°C (50° to 95°F) at sea level with an
altitude derating of 1.0°C per every 305 m
(1.8°F per every 1000 ft) above sea level to a
maximum of 3050 m (10,000 ft), no direct
sustained sunlight. Maximum rate of change is
10°C/hr (18°F/hr). The upper limit may be
limited by the type and number of options
installed. System performance may be reduced if
operating with a fan fault, or above 30°C (86°F).
Non-operating
-30° to 60°C (-22° to 140°F). Maximum rate of
change is 20°C/hr (36°F/hr).
Relative Humidity
Operating
10 to 90% relative humidity (Rh), 28°C (82.4°F)
(non-condensing)
maximum wet bulb temperature, noncondensing.
Non-operating
5 to 95% relative humidity (Rh), 38.7°C
(101.7°F) maximum wet bulb temperature, noncondensing.
Altitude
Operating
3050 m (10,000 ft). This value may be limited by
the type and number of options installed.
Non-operating
Maximum allowable altitude change rate is 457
m/min (1500 ft/min).
Acoustic Noise
For acoustic noise specifications, please see the HP BladeSystem c-Class
Enclosures QuickSpecs located at URL:
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 35
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Technical Specifications
HP BladeSystem c3000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12790_div/
12790_div.html
HP BladeSystem c7000 Enclosure QuickSpecs:
http://h18000.www1.hp.com/products/quickspecs/12810_div/
12810_div.html
HP Smart Array P410i
Controller
Disk Drive and Enclosure 6G SAS (Serial Attached SCSI)
Interface
3.0 G SATA (Serial Advanced Technology Attachment)
2 internal (SFF8484) x4 wide port connectors
SAS Connectors
DDR2-533MHz with 40 or 72-bit wide bus provides up to 4.2 GB/s
Cache Memory Speed
maximum bandwidth.
x4 5G PCIe Gen2 provides 2 GB/s maximum bandwidth.
Server Interface
x2 6G SAS provides 1.2 GB/s maximum bandwidth.
SAS Speed
72-bit 1GB cache; ECC protection, capacitor-backed
Cache Memory
Logical Drives Supported Up to 32 logical drives
Maximum Logical Drive 2 TB (2 x 1 TB)
Capacity
Host Memory Addressing 64-bit, supporting greater than 4 GB server memory space
RAID 1 (Mirroring)
RAID Support
RAID 0 (Striping)
Upgradeable Firmware with recovery ROM feature
Upgradeable Firmware
Integrated HP NC551i
Dual Port FlexFabric
10Gb Converged
Network Adapter
Type
Network Processor
Data Transfer Method
Network Transfer Rate
IEEE Compliance
Standard Features
DA - 13654
Integrated dual-port KR 10GbE with FlexFabric (FCoE or iSCSI) capability
Blade Engines 2 (BE2)
x8 PCI Express 2.0
Two ports, each at 20 Gbps full duplex; 40 Gbps aggregate full duplex
theoretical bandwidth
NOTE: Each port is autosensing 1 Gb / 10 Gb, and can interoperate with 1
Gb HP BladeSystem c-Class interconnect components. Both ports will
operate at the same speed.
NOTE: Each port on the NC551i adapter transmits from the server at 20
Gbps (theoretical) full duplex.
802.1p QoS, 802.1Q VLAN tagging, 802.3ad link aggregation, 802.3ap
10GBase-KR, and 802.3x flow control
ProLiant Teaming including Network Fault Tolerance, Transmit Load
Balancing, and Switch-Assisted Load Balancing
9K Jumbo frames (4K Jumbo frames when in FCoE mode)
Microsoft Windows Receive Side Scaling (RSS)
Accelerated FCoE or iSCSI
Worldwide — Version 3 — June 24, 2010
Page 36
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Technical Specifications
HP Integrated Lights-Out Architecture
3 (iLO 3)
Processor
integrated on system
Upgradeability
board
Video Support
Interfaces
Memory
Operating System
Support
PCI Express based health and remote management ASIC
PCI Express RISC processor core running at 250MHz
Option firmware upgradeable via Flash ROM
1600 x 1200 DVR max resolution
One Ethernet network connection (10/100Mb/s)
128-MB DDR with ECC
Microsoft Windows 2008 R2
Microsoft Windows 2008 (32 bit and 64 bit)
Microsoft Windows Server 2008 Standard Edition (32bit and 64bit)
Microsoft Windows Server 2008 Enterprise Edition (32bit and 64bit)
Microsoft Windows Server 2003 and Windows Server 2003 R2, and
Windows Server 2003 for Extended Systems Standard Edition, Enterprise
Edition
Red Hat Enterprise Linux 5.4 (32 bit and 64 bit)
SUSE LINUX Enterprise Server 11 (32bit and 64bit)
SUSE LINUX Enterprise Server 10 (32bit and 64bit)
VMware ESX 4.0
VMware ESX 3.5.0
Client System Support
Microsoft Windows 7
Microsoft Windows XP Professional Edition
Microsoft Windows Vista Business and Ultimate Editions
Red Hat Enterprise Desktop 5.00
SUSE Linux Enterprise Desktop 11
SUSE Linux Enterprise Desktop 10
Client Browser Support
Microsoft Internet Explorer 8
Microsoft Internet Explorer 7
Microsoft Internet Explorer 6
Firefox 3.5 (on supported Windows and Linux systems)
Firefox 3.0 (on supported Windows and Linux systems)
Command Line Support Secure Shell and serial port access
Secure Socket Layer
Secure Shell version 2
Security
Advanced Encryption Standard (AES) and Triple Data Encryption Standard
(3DES) on browser, CLP and XML scripting interface
AES encryption of video
RC4 encryption of video
Directory Support Services Active Directory v1.0 (Windows 2003)
Driver Support
HP ProLiant iLO3 Management Controller Driver Package
SNMP, IPMI 2.0 (system and LAN interface), DMTF Systems Management
Management protocols
supported
Architecture for Server Hardware Command Line Protocol (SMASH CLP), HP
RIBCL XML
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 37
QuickSpecs
HP ProLiant BL465c Generation 7 (G7) Server Blade
Technical Specifications
Environment-friendly
Products and Approach
End-of-life Management
and Recycling
Hewlett-Packard offers end-of-life HP product return, trade-in, and recycling
programs in many geographic areas. For trade-in information, please go to:
http://www.hp.com/go/green. To recycle your product, please go to:
http://www.hp.com/go/green or contact your nearest HP sales office.
Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide
treatment information for each product type for use by treatment facilities.
This information (product disassembly instructions) is posted on the Hewlett
Packard web site at: http://www.hp.com/go/green. These instructions may
be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.
© Copyright 2010 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft and Windows NT are US registered trademarks of Microsoft Corporation.
AMD is a US registered trademark of AMD Corporation.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less.
DA - 13654
Worldwide — Version 3 — June 24, 2010
Page 38
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
