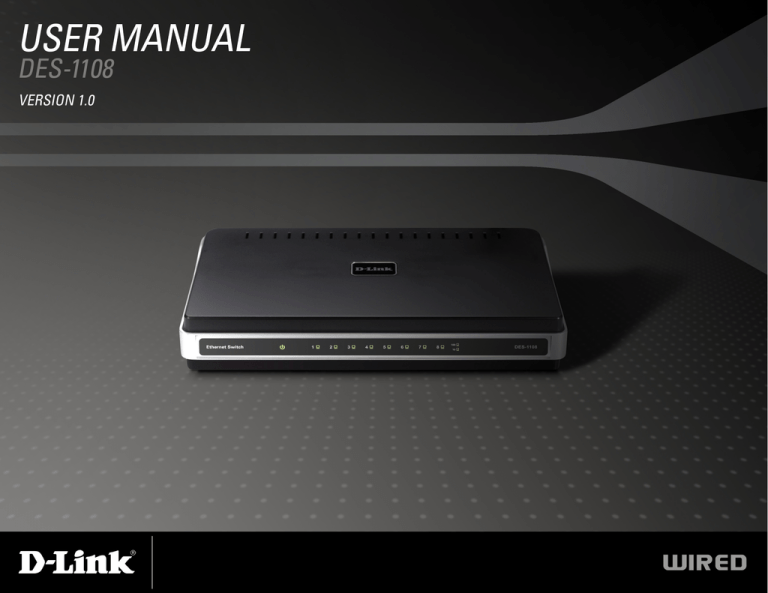

D-Link DES-1108 - Switch User manual
Table of Contents
Table of Contents
Product Overview ........................................................ 3
Package Contents ................................................... 3
Setup ....................................................................... 3
Introduction .............................................................. 4
Features................................................................... 6
Hardware Overview ................................................. 8
Front Panel (LEDs) ............................................ 8
Rear Panel (Connections).................................. 9
Technical Specifications ........................................... 16
DES-1108 Specifications ....................................... 16
RJ-45 Pin Specifications ........................................ 17
Contacting Technical Support .................................. 18
Warranty ..................................................................... 19
Registration................................................................ 24
Installation.................................................................. 10
Connecting the Switch ........................................... 10
PC to DES-1108 .............................................. 10
Hub/Switch to DES-1108 ................................. 10
DES-1108 to Other Devices............................. 10
Port Speed & Duplex Mode ............................. 11
Mounting the Switch on the Wall............................ 12
Mounting on a cement wall .............................. 12
Mounting on a wood wall ................................. 12
Troubleshooting......................................................... 13
Networking Basics .................................................... 14
Check your IP address .......................................... 14
Statically Assign an IP address ............................. 15
D-Link DES-1108 User Manual
2
Section 1 - Product Overview
Product
PackageOverview
Contents
• D-Link DES-1108 8-port Switch
• Manual and Warranty on CD
• Four (4) Rubber Feet
• Wall Mount Kit
• Power Adapter
Setup
The setup of the DES-1108 can be performed using the following steps:
• The power outlet should be within 1.82 meters (6 feet) of the Switch.
• Visually inspect the DC power jack and make sure that it is fully secured to the power adapter.
• Do not cover the ventilation holes on the sides of the Switch, and make sure there is adequate ventilation
around it.
• Do not place heavy objects on the switch.
D-Link DES-1108 User Manual
3
Section 1 - Product Overview
Introduction
Fast Ethernet Technology
The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need
for high performance networks. 100BASE-TX (Fast Ethernet) provides a cost-effective and high-performance solution for
small workgroups, SMBs (Small to Medium Businesses), and any network supporting bandwidth-intensive applications.
Fast Ethernet technology operates at 10 times the speed of traditional Ethernet, offering maximum performance and
enhanced capability for existing Ethernet-based networks.
100Mbps Fast Ethernet is a standard specified by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps
Ethernet standard with the ability to transmit and receive data at 100Mbps, while maintaining the CSMA/CD Ethernet
protocol. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet environments, it provides
a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel
training.
Switching Technology
Switching is a cost-effective way of increasing the total network capacity available to users on a LAN. If an Ethernet
network begins to display symptoms of congestion, low throughput, slow response times, and high rates of collision,
installing a switch to a network can preserve much or all of the existing network’s cabling and workstation interface card
infrastructure, while still greatly enhancing the throughput for users. A switch is a viable solution even if demanding
applications, such as multimedia production and video conferencing, are on the horizon. The most promising techniques,
as well as the best return on investment, could well consist of installing the right mixture of Ethernet switches.
A switch increases capacity and decreases network loading by dividing a local area network into different LAN
segments. Dividing a LAN into multiple segments is one of the most common ways of increasing available bandwidth.
If segmented correctly, most network traffic will remain within a single segment, enjoying the full-line speed bandwidth
of that segment.
D-Link DES-1108 User Manual
4
Section 1 - Product Overview
Switches provide full-line speed and dedicated bandwidth for all connections. This is in contrast to hubs, which use the
traditional shared networking topology, where the connected nodes contend for the same network bandwidth. When
two switching nodes are communicating, they are connected with a dedicated channel between them, so there is no
contention for network bandwidth with other nodes. As a result, the switch reduces considerably, the likelihood of traffic
congestion.
For Ethernet networks, a switch is an effective way of eliminating the problem of chaining hubs beyond the “two-repeater
limit.” A switch can be used to split parts of the network into different collision domains, making it possible to expand
your Ethernet network beyond the 205-meter network diameter limit for 100BASE-TX networks. Switches supporting
both 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for bridging between existing 10Mbps networks and
newer 100Mbps networks.
Switching LAN technology is a marked improvement over the previous generation of network hubs and bridges, which
were characterized by higher latencies. Routers have also been used to segment local area networks, but the cost of
a router, the setup and maintenance required, make routers relatively impractical. Today switches are an ideal solution
to most kinds of local area network congestion problems.
D-Link DES-1108 User Manual
5
Section 1 - Product Overview
Features
• The DES-1108 is a high performance switch designed specifically for environments where traffic on the
network and the number of users increase continuously.
• The DES-1108, with its small, compact size, was specifically designed for small to mid-sized workgroups.
The DES-1108 can be installed where space is limited; moreover, it provides immediate access to a
rapidly growing network through a wide range of user-reliable functions.
• The DES-1108 is ideal for deployment with multiple high-speed servers for 10Mbps or 100Mbps sharedbandwidth workgroups. With the highest bandwidth at 200Mbps (100Mbps full-duplex mode), any port
can provide workstations with a congestion-free data pipe for simultaneous access to the server.
• The DES-1108 is scalable, allowing two or more DES-1108 switches to be cascaded together. Since all
ports support 200Mbps, any one of its five ports may be used to cascade to an additional switch to open
a Full-Duplex Fast Ethernet pipe.
• The DES-1108 is the perfect choice for a department or office planning to upgrade to Fast Ethernet.
The DES-1108 can accommodate 10Mbps or 100Mbps devices, providing a flexible solution for existing
(10Mbps) Ethernet workgroups.
• The DES-1108 combines dynamic memory allocation with store-and-forward switching to ensure that the
buffer is effectively allocated for each port; and it controls the data flow between the transmit and receive
nodes to guarantee against possible packet loss.
• The DES-1108 is an unmanaged 10/100Mbps Fast Ethernet switch that offers solutions for the accelerating
bandwidth needs of small Ethernet workgroups.
D-Link DES-1108 User Manual
6
Section 1 - Product Overview
Other key features include:
• Store-and-forward switching scheme capability. As the result of complete frame checking and error frame
filtering, this scheme prevents error packages from transmitting among segments.
• Auto-MDI/MDI-X function supports automatic MDI/MDI-X crossover detection, giving true ‘plug and play’
capability—Crossover or Straight-Through CAT5 cables can be plugged into any port.
• Nway Auto-negotiation for any port. This allows for auto-sensing of speed (10/100Mbps), providing an
automatic and flexible solution for the network.
• Flow control for any port. This minimizes dropped packets by sending out collision signals when the port’s
receiving buffer is full.
• Data filtering rate eliminates all error packets, runts, etc., per port at wire-speed for 100Mbps operation
and 10Mbps operation.
D-Link DES-1108 User Manual
7
Section 1 - Product Overview
Hardware Overview
Front Panel (LEDs)
Power:
This green indicator light is on when the DES-1108 is receiving power; otherwise, it is off.
Link/Activity (1-8):
This LED indicator light is green when the port is connected to a 100Mbps Fast Ethernet station. The green indicator
blinks as Ethernet data is transmitted or received. The indicator light is amber when the port is connected to a 10Mbps
Ethernet station, or other network device. The amber indicator blinks as Ethernet data is transmitted or received.
D-Link DES-1108 User Manual
8
Section 1 - Product Overview
Rear Panel (Connections)
Auto MDI/MDI-X Ports:
All ports support automatic MDI/MDI-X crossover detection. The AutoMDI/MDI-X function makes it simple to connect
to the switch—just plug either a Crossover or Straight-Through CAT5 cable into any port.
DC Power Jack:
Power is supplied through an external DC power adapter. Check the technical specification section for information
about the DC power input voltage.
Since the DES-1108 does not require a power button, plugging its power adapter into a power outlet will immediately
power it on.
D-Link DES-1108 User Manual
9
Section 2 - Installation
Installation
This section will explain how to connect Ethernet devices to your new D-Link switch and how to mount the switch.
Connecting the Switch
PC to DES-1108
A computer can be connected to the DES-1108 via a two-pair Category 3, 4, 5 UTP/STP Straight-Through or Crossover
cable. A computer equipped with a RJ-45 10/100Mbps port can be connected to any of the eight DES-1108 ports.
The LED indicators for the PC connection depend on the capability of the computer’s Ethernet card. If the LED indicators
are not lit after making a proper connection, check the computer’s Ethernet card, the cable, and the DES-1108’s
conditions and connections.
Hub/Switch to DES-1108
A hub (10 or 100BASE-TX) can be connected to the DES-1108 via a two-pair Category 3, 4, or 5 UTP/STP
Straight-Through or Crossover cable. For 100Mbps operation a Category 5 cable must be used. The connection is
accomplished from any port of the hub to any port of the DES-1108.
DES-1108 to Other Devices
The DES-1108 can be connected to another switch or other devices (routers, bridges, etc.) via a two-pair Category 3, 4,
5 UTP/STP Straight-Through or Crossover cable. A Category 5 (or higher) cable must be used for 100Mbps operation.
The connection can be accomplished from any (MDI-X) port on the DES-1108 to any of the 10Mbps or 100Mbps
(MDI-X) ports on another switch or other devices.
D-Link DES-1108 User Manual
10
Section 2 - Installation
Port Speed & Duplex Mode
After plugging the selected cable to a specific port, the system uses auto-negotiation to determine the transmission
mode, auto-detecting the network speed (10Mbps or 100Mbps) for any new twisted-pair connection.
If the attached device does not support auto-negotiation or has auto-negotiation disabled, an auto-sensing process is
initiated to select the speed and half-duplex mode is selected.
D-Link DES-1108 User Manual
11
Section 2 - Installation
Mounting the Switch on the Wall
The DES-1108 can also be mounted on a wall. Two mounting slots are provided on the bottom of the switch for this
purpose. Please make sure that the front panel is exposed in order to view the LEDs. Please refer to the illustration
below:
Mounting on a cement wall
1. Mount the Nylon screw anchors into a cement wall.
2. Drive the T3 x 15L screws into the Nylon screw anchors.
3. Hook the mounting holes of the switch back on the screws.
Mounting on a wood wall
1. Drive the T3 x 15 L screws into the wood wall.
2. Hook the mounting holes of the switch back on the screws.
(1) 3/4 inch minimum for wood wall
(2) 3 inch minimum for cement wall.
D-Link DES-1108 User Manual
12
Section 3 - Troubleshooting
Troubleshooting
1. Why can´t I share my Internet connection to multiple computers when using my D-Link DES-1108 switch?
If you are connecting directly to a Cable or DSL modem, you will need a router to “share” your Internet connection or
a computer using ICS (Internet Connection Sharing) or Proxy. Switches and hubs do not allow you to share a single
IP address to multiple computers.
Another alternative is to contact your ISP and purchase extra IP addresses for each additional computer.
2. Does the DES-1108 switch have an uplink port?
The DES-1108 has Auto-MDI ports which automatically sense the type of cable being used (e.g. Straight-through or
Crossover) and adjust themselves accordingly to pass data over the network.
3. What is the maximum length of Category 3, 4 or 5 twisted pair cable that can be used between the DES-1108
and other devices such as routers, switches, computers, etc.?
The maximum length of Category 3, 4 or 5 twisted pair cable that can be used between computers and other devices
on a network is 100 meters or about 328 feet. Keep in mind that this is a theoretical limit. Usually, you will want to keep
the distance between devices well below the limit.
4. What is Store-and-Forward switching?
Store-and-Forward switching will wait until the entire frame has arrived prior to forwarding it. This method stores the
entire frame in memory. Once the frame is in memory, the switch checks the destination address, source address,
and the CRC. If no errors are present, the frame is forwarded to the appropriate port. This process ensures that the
destination network is not affected by corrupted or truncated frames.
D-Link DES-1108 User Manual
13
Appendix A - Networking Basics
Networking Basics
Check your IP address
After you install your new D-Link adapter, by default, the TCP/IP settings should be set to obtain an IP address from a
DHCP server (i.e. wireless router) automatically. To verify your IP address, please follow the steps below.
Click on Start > Run. In the run box type cmd and click OK.
At the prompt, type ipconfig and press Enter.
This will display the IP address, subnet mask, and
the default gateway of your adapter.
If the address is 0.0.0.0, check your adapter
installation, security settings, and the settings
on your router. Some firewall software programs
may block a DHCP request on newly installed
adapters.
D-Link DES-1108 User Manual
14
Appendix A - Networking Basics
Statically Assign an IP address
If you are not using a DHCP capable gateway/router, or you need to assign a static IP address, please follow the steps
below:
Step 1
Windows® XP - Click on Start > Control Panel > Network Connections.
Windows® 2000 - From the desktop, right-click My Network Places > Properties.
Step 2
Right-click on the Local Area Connection which represents your D-Link network adapter and select Properties.
Step 3
Highlight Internet Protocol (TCP/IP) and click Properties.
Step 4
Click Use the following IP address and enter an IP address that is on the same subnet as your network or the LAN
IP address on your router.
Example: If the router´s LAN IP address is 192.168.0.1, make your IP address
192.168.0.X where X is a number between 2 and 99. Make sure that the number
you choose is not in use on the network. Set Default Gateway the same as the LAN
IP address of your router (192.168.0.1).
Set Primary DNS the same as the LAN IP address of your router (192.168.0.1). The
Secondary DNS is not needed or you may enter a DNS server from your ISP.
Step 5
Click OK twice to save your settings.
D-Link DES-1108 User Manual
15
Appendix B - Technical Specifications
Technical Specifications
DES-1108 Specifications
Standards
IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
Protocol
CSMA/CD
Data Transfer Rate
Ethernet:
Fast Ethernet:
10Mbps (half duplex)
20Mbps (full-duplex)
100Mbps (half duplex)
200Mbps (full- duplex)
Topology
Star
Network Cables
10BASE-T:
100BASE-TX:
Number of Ports
8 x 10/100Mbps auto-negotiation, auto MDI-X ports
DC inputs
DC 5V/1.2A
2-pair UTP Cat. 3,4,5 (100 m), EIA/TIA- 568 100-ohm STP (100 m)
2-pair UTP Cat. 5 (100 m), EIA/TIA-568 100-ohm STP (100 m)
Power Consumption 3.9 watts (Max.)
Temperature
Operating: 0° ~ 50° C (32º to 122º F)
Storage: -10° ~ 70° C (14ºto 158º F)
Humidity
Operating: 10% ~ 90% RH, Non-condensing
Storage: 5% ~ 90% RH, Non-condensing
D-Link DES-1108 User Manual
16
Appendix B - Technical Specifications
Dimensions (W x H x D):
(approx.) 190.5 x 116.84 x 35 mm (7.5 x 4.6 x 1.38 inch)
EMI:
FCC Class B, CE Class B
Transmission Method:
Store-and-forward
RAM Buffer:
64Kbytes per device
Filtering Address Table:
1K entries per device
Packet Filtering / Forwarding Rate:
10Mbps Ethernet: 14,880/pps100Mbps Fast Ethernet: 148,800/pps
MAC Address Learning:
Automatic update
RJ-45 Pin Specifications
The following table shows the standard RJ-45 receptacle/connector and their pin assignments.
RJ-45 Connector pin assignment
Contact
Media Direct Interface Signal
1
Rx +(receive)
2
Rx - (receive)
3
Tx + (transmit)
4
Not used
5
Not used
6
Tx - (transmit)
7
Not used
8
Not used
D-Link DES-1108 User Manual
17
Appendix C - Contacting Technical Support
Contacting Technical Support
D-Link provides free technical support for customers within the United States and within Canada for the duration of
the warranty period on this product. U.S. and Canadian customers can contact D-Link technical support through our
web site or by phone.
Before you contact technical support, please have the following ready:
• Model number of the product (e.g. DES-1108)
• Hardware Revision (located on the label on the bottom of the switch (e.g. rev A1))
• Serial Number (s/n number located on the label on the bottom of the switch).
You can find software updates and user documentation on the D-Link website as well as frequently asked questions
and answers to technical issues.
For customers within the United States:
For customers within Canada:
Phone Support:
(877) 453-5465
24 hours a day, seven days a week.
Phone Support:
(800) 361-5265
Monday to Friday 7:30am to 9:00pm EST
Internet Support:
http://support.dlink.com
support@dlink.com
Internet Support:
http://support.dlink.ca
email:support@dlink.ca
D-Link DES-1108 User Manual
18
Appendix D - Warranty
Warranty
Subject to the terms and conditions set forth herein, D-Link Systems, Inc. (“D-Link”) provides this Limited Warranty:
• Only to the person or entity that originally purchased the product from D-Link or its authorized reseller or distributor, and
• Only for products purchased and delivered within the fifty states of the United States, the District of Columbia, U.S. Possessions
or Protectorates, U.S. Military Installations, or addresses with an APO or FPO.
Limited Warranty:
D-Link warrants that the hardware portion of the D-Link product described below (“Hardware”) will be free from material defects in
workmanship and materials under normal use from the date of original retail purchase of the product, for the period set forth below
(“Warranty Period”), except as otherwise stated herein.
• Hardware (excluding power supplies and fans): Three (3) year
• Power supplies and fans: One (1) year
• Free Technical Support - Basic Installation: Ninety (90) days
The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under this Limited Warranty will be, at DLink’s option, to repair or replace the defective Hardware during the Warranty Period at no charge to the original owner or to refund the
actual purchase price paid. Any repair or replacement will be rendered by D-Link at an Authorized D-Link Service Office. The replacement
hardware need not be new or have an identical make, model or part. D-Link may, at its option, replace the defective Hardware or any part
thereof with any reconditioned product that D-Link reasonably determines is substantially equivalent (or superior) in all material respects
to the defective Hardware. Repaired or replacement hardware will be warranted for the remainder of the original Warranty Period or ninety
(90) days, whichever is longer, and is subject to the same limitations and exclusions. If a material defect is incapable of correction, or if
D-Link determines that it is not practical to repair or replace the defective Hardware, the actual price paid by the original purchaser for the
defective Hardware will be refunded by D-Link upon return to D-Link of the defective Hardware. All Hardware or part thereof that is replaced
by D-Link, or for which the purchase price is refunded, shall become the property of D-Link upon replacement or refund.
D-Link DES-1108 User Manual
19
Appendix D - Warranty
Limited Software Warranty:
D-Link warrants that the software portion of the product (“Software”) will substantially conform to D-Link’s then current functional specifications
for the Software, as set forth in the applicable documentation, from the date of original retail purchase of the Software for a period of ninety
(90) days (“Software Warranty Period”), provided that the Software is properly installed on approved hardware and operated as contemplated
in its documentation. D-Link further warrants that, during the Software Warranty Period, the magnetic media on which D-Link delivers the
Software will be free of physical defects. The customer’s sole and exclusive remedy and the entire liability of D-Link and its suppliers under
this Limited Warranty will be, at D-Link’s option, to replace the non-conforming Software (or defective media) with software that substantially
conforms to D-Link’s functional specifications for the Software or to refund the portion of the actual purchase price paid that is attributable
to the Software. Except as otherwise agreed by DLink in writing, the replacement Software is provided only to the original licensee, and
is subject to the terms and conditions of the license granted by D-Link for the Software. Replacement Software will be warranted for the
remainder of the original Warranty Period and is subject to the same limitations and exclusions. If a material non-conformance is incapable
of correction, or if D-Link determines in its sole discretion that it is not practical to replace the non-conforming Software, the price paid by
the original licensee for the non-conforming Software will be refunded by D-Link; provided that the non-conforming Software (and all copies
thereof) is first returned to D-Link. The license granted respecting any Software for which a refund is given automatically terminates.
Non-Applicability of Warranty:
The Limited Warranty provided hereunder for Hardware and Software portions of D-Link’s products will not be applied to and does not cover
any refurbished product and any product purchased through the inventory clearance or liquidation sale or other sales in which D-Link, the
sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product and in that case, the product is being sold
“As-Is” without any warranty whatsoever including, without limitation, the Limited Warranty as described herein, notwithstanding anything
stated herein to the contrary.
Submitting A Claim:
The customer shall return the product to the original purchase point based on its return policy. In case the return policy period has expired
and the product is within warranty, the customer shall submit a claim to D-Link as outlined below:
• The customer must submit with the product as part of the claim a written description of the Hardware defect or Software
nonconformance in sufficient detail to allow DLink to confirm the same, along with proof of purchase of the product (such
as a copy of the dated purchase invoice for the product) if the product is not registered.
• The customer must obtain a Case ID Number from D-Link Technical Support at 1-877-453-5465, who will attempt to assist
the customer in resolving any suspected defects with the product. If the product is considered defective, the customer must
obtain a Return Material Authorization (“RMA”) number by completing the RMA form and entering the assigned Case ID
Number at https://rma.dlink.com/.
D-Link DES-1108 User Manual
20
Appendix D - Warranty
• After an RMA number is issued, the defective product must be packaged securely in the original or other suitable shipping
package to ensure that it will not be damaged in transit, and the RMA number must be prominently marked on the outside
of the package. Do not include any manuals or accessories in the shipping package. DLink will only replace the defective
portion of the product and will not ship back any accessories.
• The customer is responsible for all in-bound shipping charges to D-Link. No Cash on Delivery (“COD”) is allowed. Products
sent COD will either be rejected by D-Link or become the property of D-Link. Products shall be fully insured by the customer
and shipped to D-Link Systems, Inc., 17595 Mt. Herrmann, Fountain Valley, CA 92708. D-Link will not be held responsible
for any packages that are lost in transit to D-Link. The repaired or replaced packages will be shipped to the customer via
UPS Ground or any common carrier selected by D-Link. Return shipping charges shall be prepaid by D-Link if you use an
address in the United States, otherwise we will ship the product to you freight collect. Expedited shipping is available upon
request and provided shipping charges are prepaid by the customer. D-Link may reject or return any product that is not
packaged and shipped in strict compliance with the foregoing requirements, or for which an RMA number is not visible from
the outside of the package. The product owner agrees to pay D-Link’s reasonable handling and return shipping charges
for any product that is not packaged and shipped in accordance with the foregoing requirements, or that is determined by
D-Link not to be defective or non-conforming.
What Is Not Covered:
The Limited Warranty provided herein by D-Link does not cover:
Products that, in D-Link’s judgment, have been subjected to abuse, accident, alteration, modification, tampering, negligence, misuse, faulty
installation, lack of reasonable care, repair or service in any way that is not contemplated in the documentation for the product, or if the
model or serial number has been altered, tampered with, defaced or removed; Initial installation, installation and removal of the product for
repair, and shipping costs; Operational adjustments covered in the operating manual for the product, and normal maintenance; Damage
that occurs in shipment, due to act of God, failures due to power surge, and cosmetic damage; Any hardware, software, firmware or other
products or services provided by anyone other than D-Link; and Products that have been purchased from inventory clearance or liquidation
sales or other sales in which D-Link, the sellers, or the liquidators expressly disclaim their warranty obligation pertaining to the product.
While necessary maintenance or repairs on your Product can be performed by any company, we recommend that you use only an Authorized
D-Link Service Office. Improper or incorrectly performed maintenance or repair voids this Limited Warranty.
Disclaimer of Other Warranties:
EXCEPT FOR THE LIMITED WARRANTY SPECIFIED HEREIN, THE PRODUCT IS PROVIDED “AS-IS” WITHOUT ANY WARRANTY
OF ANY KIND WHATSOEVER INCLUDING, WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A
PARTICULAR PURPOSE AND NONINFRINGEMENT.
D-Link DES-1108 User Manual
21
Appendix D - Warranty
IF ANY IMPLIED WARRANTY CANNOT BE DISCLAIMED IN ANY TERRITORY WHERE A PRODUCT IS SOLD, THE DURATION OF
SUCH IMPLIED WARRANTY SHALL BE LIMITED TO THE DURATION OF THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE.
EXCEPT AS EXPRESSLY COVERED UNDER THE LIMITED WARRANTY PROVIDED HEREIN, THE ENTIRE RISK AS TO THE QUALITY,
SELECTION AND PERFORMANCE OF THE PRODUCT IS WITH THE PURCHASER OF THE PRODUCT.
Limitation of Liability:
TO THE MAXIMUM EXTENT PERMITTED BY LAW, D-LINK IS NOT LIABLE UNDER ANY CONTRACT, NEGLIGENCE, STRICT LIABILITY
OR OTHER LEGAL OR EQUITABLE THEORY FOR ANY LOSS OF USE OF THE PRODUCT, INCONVENIENCE OR DAMAGES OF ANY
CHARACTER, WHETHER DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL (INCLUDING, BUT NOT LIMITED TO, DAMAGES FOR
LOSS OF GOODWILL, LOSS OF REVENUE OR PROFIT, WORK STOPPAGE, COMPUTER FAILURE OR MALFUNCTION, FAILURE OF
OTHER EQUIPMENT OR COMPUTER PROGRAMS TO WHICH D-LINK’S PRODUCT IS CONNECTED WITH, LOSS OF INFORMATION
OR DATA CONTAINED IN, STORED ON, OR INTEGRATED WITH ANY PRODUCT RETURNED TO D-LINK FOR WARRANTY SERVICE)
RESULTING FROM THE USE OF THE PRODUCT, RELATING TO WARRANTY SERVICE, OR ARISING OUT OF ANY BREACH OF
THIS LIMITED WARRANTY, EVEN IF D-LINK HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. THE SOLE REMEDY
FOR A BREACH OF THE FOREGOING LIMITED WARRANTY IS REPAIR, REPLACEMENT OR REFUND OF THE DEFECTIVE OR
NONCONFORMING PRODUCT. THE MAXIMUM LIABILITY OF D-LINK UNDER THIS WARRANTY IS LIMITED TO THE PURCHASE
PRICE OF THE PRODUCT COVERED BY THE WARRANTY. THE FOREGOING EXPRESS WRITTEN WARRANTIES AND REMEDIES
ARE EXCLUSIVE AND ARE IN LIEU OF ANY OTHER WARRANTIES OR REMEDIES, EXPRESS, IMPLIED OR STATUTORY.
Governing Law:
This Limited Warranty shall be governed by the laws of the State of California. Some states do not allow exclusion or limitation of incidental
or consequential damages, or limitations on how long an implied warranty lasts, so the foregoing limitations and exclusions may not apply.
This Limited Warranty provides specific legal rights and you may also have other rights which vary from state to state.
Trademarks:
D-Link is a registered trademark of D-Link Systems, Inc. Other trademarks or registered trademarks are the property of their respective
owners.
Copyright Statement:
No part of this publication or documentation accompanying this product may be reproduced in any form or by any means or used to make
any derivative such as translation, transformation, or adaptation without permission from D-Link Corporation/D-Link Systems, Inc., as
stipulated by the United States Copyright Act of 1976 and any amendments thereto. Contents are subject to change without prior notice.
Copyright ©2005-2006 by D-Link Corporation/D-Link Systems, Inc. All rights reserved.
D-Link DES-1108 User Manual
22
Appendix D - Warranty
CE Mark Warning:
This is a Class B product. In a domestic environment, this product may cause radio interference, in which case the user may be required
to take adequate measures.
FCC Statement:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
For detailed warranty information applicable to products purchased outside the United States, please contact the corresponding local DLink office.
D-Link DES-1108 User Manual
23
Appendix E - Registration
Registration
Product registration is entirely voluntary and failure to complete or return this form will not diminish your warranty
rights.
Version 1.0
02/08/2006
D-Link DES-1108 User Manual
24
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
