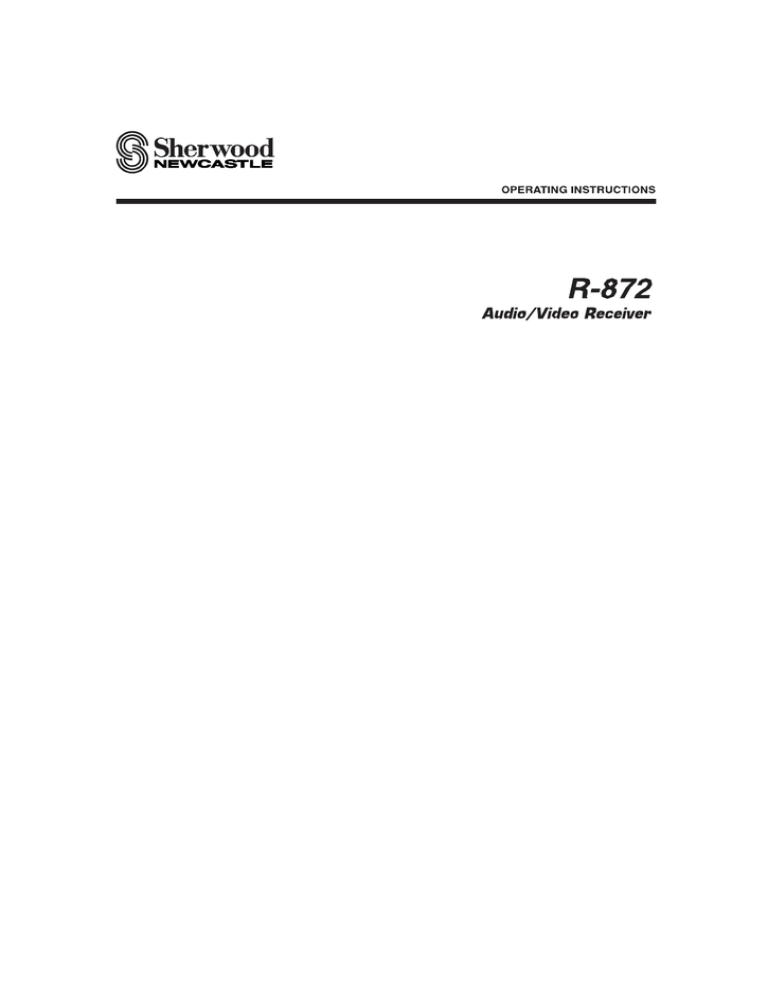

Sherwood R-872 Operating instructions

Sherwood R-872 Operating instructions
SAFETY INSTRUCTIONS
1. Read Instructions - All the safety and operating instructions should
be read before the product is operated.
2. Retain instructions - The safety and operating instructions should
be retained for future reference.
3. Heed Warnings - All warnings on the product and in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be
followed.
5. Cleaning - Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for
cleaning.
6. Attachments - Do not use attachments not recommended by the
product manufacturer as they may cause hazards.
7. Water and Moisture - Do not use this product near water - for
example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in
a wet basement, or near a swimming pool; and the like.
8. Accessories - Do not place this product on an unstable cart, stand,
tripod, bracket, or table. The product may fall, causing serious injury
to a child or adult, and serious damage to the product. Use only with
a cart, stand, tripod, bracket, or table recommended by the
manufacturer, or sold with the product. Any mounting of the product
should follow the manufacturer’s instructions, and should use a
mounting accessory recommended by the manufacturer.
9. A product and cart combination should
be moved with care. Quick stops,
excessive force, and uneven surfaces
may cause the product and cart
combination to overturn.
10. Ventilation - Slots and openings in the
cabinet are provided for ventilation and
to ensure reliable operation of the
product and to protect it from
overheating, and these openings
PORTABLE CART WARNING
must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug, or other similar
surface. This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is provided or
the manufacturer’s instructions have been adhered to.
11. Power Sources - This product should be operated only from the
type of power source indicated on the marking label. If you are not
sure of the type of power supply to your home, consult your product
dealer or local power company. For products intended to operate
from battery power, or other sources, refer to the operating
instructions.
12. Grounding or Polarization - This product may be equipped with a
polarized alternating-current line plug (a plug having one blade
wider than the other). This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug should still fail
to fit, contact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the polarized plug.
Alternate Warnings - This product is equipped with a three-wire
grounding-type plug, a plug having a third(grounding) pin. This plug will
only fit into a grounding-type power outlet. this is a safety feature. If you
are unable to insert the plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the safety purpose of the
grounding-type plug.
13. Power-Cord Protection - Power-supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from the
product.
14. Outdoor Antenna Grounding - If an outside antenna or cable
system is connected to the product, be sure the antenna or cable
system is grounded so as to provide some protection against
voltage surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides information with
regard to proper grounding of the mast and supporting structure,
grounding of the lead-in wire to an antenna discharge unit, size of
2
grounding conductors, location of antenna-discharge unit,
connection to grounding electrodes, and requirements for the
grounding electrode. See Figure 1.
15. Lightning - For added protection for this product during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna or
cable system. This will prevent damage to the product due to
lightning and power-line surges.
16. Power Lines - An outside antenna system should not be located in
the vicinity of overhead power lines or other electric light or power
circuits, or where it can fall into such power lines or circuits. When
installing an outside antenna system, extreme care should be taken
to keep from touching such power lines or circuits as contact with
them might be fatal.
17. Overloading - Do not overload wall outlets, extension cords, or
integral convenience receptacles as this can result in a risk of fire or
electric shock.
18. Object and Liquid Entry - Never push objects of any kind into this
product through openings as they may touch dangerous voltage
points or short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.
19. Servicing - Do not attempt to service this product yourself as
opening or removing covers may expose you to dangerous voltage
or other hazards. Refer all servicing to qualified service personnel.
20. Damage Requiring Service - Unplug this product form the wall
outlet and refer servicing to qualified service personnel under the
following conditions:
a) When the power-supply cord or plug is damaged,
b) If liquid has been spilled, or objects have fallen into the product, c)
If the product has been exposed to rain or water,
d) If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions as an improper adjustment
of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to
its normal operation.
e) If the product has been dropped or damaged in any way, and
f) When the product exhibits a distinct change in performance - this
indicates a need for service.
21. Replacement Parts - When replacement parts are required, be
sure the service technician has used replacement parts specified by
the manufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric shock, or
other hazards.
22. Safety Check - Upon completion of any service or repairs to this
product, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
23. Wall or Ceiling Mounting - The product should be mounted to a
wall or ceiling only as recommended by the manufacturer.
24. Heat - The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.
Introduction
READ THIS BEFORE OPERATING YOUR UNIT
This symbol is intended to alert the user to the presence of
uninsulated "dangerous voltage" within the product's
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
CAUTION
: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
WARNING : TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
Caution regarding installation
Note : For heat dispersal, do not install this unit in a confined space such as a bookcase or similar enclosure.
Do not block ventilation openings or stack other equipment on the top.
Note to CATV System Installer :
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of
cable entry as practical.
FCC INFORMATION
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Caution : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la Classe B est conforme à la norme NMB-003 du Canada.
FOR YOUR SAFETY
U.S.A
CANADA
120 V
Units shipped to the U.S.A and CANADA are designed for operation on 120 V AC only.
Safety precaution with use of a polarized AC plug.
However, some products may be supplied with a nonpolarized plug.
: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
CAUTION
ATTENTION
: Pour éviter chocs électriques, introduire la lame la plus large de la fiche dans la borne
correspondante de la prise et pousser jusqu’ au fond.
CAUTION
• Leave a space around the unit for sufficient ventilation.
• Avoid installation in extremely hot or cold locations, or in an area that is exposed to direct sunlight or heating equipment.
• Keep the unit free from moisture, water, and dust.
• Do not let foreign objects in the unit.
• The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• Please be care the environmental aspects of battery disposal.
• The unit shall not be exposed to dripping or splashing for use.
• No objects filled with liquids, such as vases, shall be placed on the unit.
• Do not let insecticides, benzene, and thinner come in contact with the set.
• Never disassemble or modify the unit in any way.
Notes on the AC power cord and the wall outlet.
• The unit is not disconnected from the AC power source(mains) as long as it is connected to the wall outlet, even if the unit has been turned off.
• To completely disconnect this product from the mains, disconnect the plug from the wall socket outlet.
• When setting up this product, make sure that the AC outlet you are using is easily acceptable.
• Disconnect the plug from the wall outlet when not using the unit for long periods of time.
3
CONTENTS
• SAFETY INSTRUCTIONS . . .
.2
• Introduction
READ THIS BEFORE OPERATING YOUR UNIT . . .
.3
• System Connections
.5
• Front Panel Controls
. . . 16
• Universal Remote Controls . . .
OPERATING COMPONENTS WITH REMOTE CONTROL . . .
REMOTE CONTROL OPERATION RANGE . . .
LOADING BATTERIES . . .
USING FUNCTIONS OF REMOTE CONTROL . . .
• ROOM 2 Remote Controls
REMOTE CONTROL OPERATION RANGE . . .
LOADING BATTERY . . .
• Operations
LISTENING TO A PROGRAM SOURCE . . .
SURROUND SOUND . . .
ENJOYING SURROUND SOUND . . .
LISTENING TO RADIO BROADCASTS . . .
LISTENING TO XM SATELLITE RADIO . . .
(XM Satellite Radio (only for North America))
RECORDING . . .
DIGITAL AUDIO RECORDING WITH MD RECORDER . . .
OTHER FUNCTIONS . . .
ROOM 2 SOURCE PLAYBACK . . .
• OSD Menu Settings . . .
SETTING THE SYSTEM SETUP . . .
SETTING THE INPUT SETUP . . .
SETTING THE SPEAKER / ROOM EQ SETUP . . .
SETTING THE CH LEVEL SETUP . . .
SETTING THE SOUND PARAMETER . . .
SETTING THE MULTI ROOM SETUP . . .
• Troubleshooting Guide
. 18
. 20
. 20
. . 20
. . 21
. 30
. 30
. 31
. 34
. . . 36
. 40
. 42
. 45
. 46
. 47
. . 48
. . 50
. 52
. . . 56
. 61
. . 67
. . 69
. . . 73
. 75
• Specifications . . .
. . . 76
• Setup Code Table . . .
. . . 77
4
System Connections
• Please be certain that this unit is unplugged from the AC outlet before making any connections.
• Since different components often have different terminal names, carefully read the operating instructions of the
component connected.
• Be sure to observe the color coding when connecting audio, video and speaker cords.
• Make connections firmly and correctly. If not, it can cause loss of sound, noise or damage to the receiver.
1
13
5
4
12
11
6
3
9
8 9 10
7
2
9
15
14
1. CONNECTING ANTENNAS
• Change the position of the FM indoor antenna
until you get the best reception of your favorite
FM stations.
• A 75Ω outdoor FM antenna may be used to further improve the reception. Disconnect the
indoor antenna before replacing it with the outdoor one.
• Place the AM loop antenna as far as possible from the
receiver, TV set, speaker cords and the AC input cord
and set it to a direction for the best reception.
• If the reception is poor with the AM loop antenna, an
AM outdoor antenna can be used in place of the AM
loop antenna.
5
2. CONNECTING VIDEO COMPONENTS
• The jacks of VIDEO 1 may also be connected to a DVD recorder or other digital video recording
component. For details, refer to the operating instructions of the component to be connected.
• The jacks of VIDEO 2/VIDEO 3 can also be connected to an additional video component such as a cable TV
tuner or satellite system.
• Connect the jacks of VIDEO 3 to the video component in the same way.
HDMI (High Definition Multimedia Interface) connection : (*1)
• You can connect the source component (DVD player, etc.) to the
display component (TV, projector, etc.) through this receiver with using a
commercially available HDMI cord.
• The HDMI connection can carry uncompressed digital video signals and
digital audio signals.
• The HDMI video stream signals (video signals) are theoretically
compatible with DVI-D. When connecting to a TV monitor, etc.,
equipped with DVI-D connector, it is possible to connect using a
commercially available HDMI-DVI converter cord.
Since the HDMI-to-DVI connection cannot carry any audio signals, you
should make audio connections to play the audio signals on the
component equipped with DVI-D connector. (For details, refer to the
operating instructions of its.)
• If you connect the HDMI INs to your video components, it is easier to do so
following the default settings.
• If your HDMI connection is different from the default setting, you should assign the HDMI INs you
used with the "When selecting the HDMI ASSIGN" procedure on page 57.
• The default settings are as follows :
HDMI 1 : VIDEO 1, HDMI 2 : VIDEO 2, HDMI 3 : VIDEO 3, HDMI 4 : VIDEO 4
Copyright protection system
• This unit supports HDCP (High-bandwidth Digital Contents Protection), technology to protect copyright of
digital video signals against illegal duplication. HDCP must also be supported on the components connected to
this unit.
• This unit is HDMI Ver. 1.3 compatible.
• HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of
HDMI licensing LLC.
6
Continued
Notes :
• For stable signal transfer, we recommend using HDMI cords that are a maximum of 5 meters in length.
• Among the components that support HDMI, some components can control other components via the HDMI
connector. However, this unit cannot be controlled by another component via the HDMI connector.
• The audio signals from the HDMI connector (including the sampling frequency and bit length) may be limited by the
component that is connected.
• The video signals will not be output properly if a component incompatible with HDCP is connected.
• If the resolutions of the video signals which are output from the MONITOR OUTs and your monitor TV are not
matched, the picture is not clear, natural or displayed. In this case, change the setting of the resolution on either
this unit or the source component (DVD player, etc.) to one which the monitor TV can handle. (For details, refer
to "When selecting the VIDEO SCALING" on page 58 or the operating instructions of the source component.)
• When you want to enjoy only the picture on your TV, not the sound, you should set the HDMI AUDIO OUT to OFF
not to output the digital audio signal from the HDMI MONITOR OUT of this receiver. (For details, refer to "When
selecting the HDMI AUDIO OUT" on page 53.)
Component video input default settings: (*2)
• If you connect the COMPONENT VIDEO INs to your video components, it is easier to do so following the
default settings.
• If your component video connections are different from the default setting, you should assign the COMPONENT
VIDEO INs you used with the "When selecting the VIDEO ASSIGN" procedure on page 57.
• The default settings are as follows:
COMPONENT IN 1 : VIDEO 1, COMPONENT IN 2 : VIDEO 2, COMPONENT IN 3 : VIDEO 3
• There are three types of video jacks (COMPONENT, S-VIDEO, (composite) VIDEO) for analog video
connections and the HDMI connectors for digital video and audio connections.
Connect them to the corresponding video jacks according to their capability.
• For your reference, the excellence in picture quality is as follows : "HDMI” > "COMPONENT" > "S-VIDEO" >
"(composite) VIDEO" .
• When making COMPONENT VIDEO connections, connect "Y" to "Y", "PB/CB" to "CB"(or "B-Y", "PB") and
"PR/CR" to "CR"(or "R-Y", "PR").
• When recording video program sources through VIDEO 1 OUT jacks or viewing ROOM 2 source through
ROOM 2 OUT jacks, you must use the same type of video jacks that you did connect to video playback
components such as DVD player, cable TV tuner, etc.
Video conversion
• This unit is equipped with a function that up-converts the video signals to the higher quality video signals and
down-converts the video signals to the lower quality video signals and outputs them from the MONITOR OUTs.
• Because of this, the MONITOR OUT jack(s) can be connected to the monitor TV with a set of cord(s) offering a
higher quality, regardless of how to make video connections between this unit and video playback components.
• After connecting the video components, you should set the VIDEO MODE correctly to output the video signals
from the connected MONITOR OUT(s). (For details, refer to "When selecting the VIDEO MODE" on page 57.)
The flow of the video signals
VIDEO INs
MONITOR OUTs
HDMI
HDMI
COMPONENT
COMPONENT
S-VIDEO
S-VIDEO
S-VIDEO
(COMPOSITE)
VIDEO
(COMPOSITE)
VIDEO
(COMPOSITE)
VIDEO
VIDEO 1 / ROOM 2 OUTs
7
Continued
Notes :
• When the VIDEO MODE is set to "AUTO" or "HDMI", if the 480i ~ 1080i video signals are input into the HDMI IN
connector, the HDMI video signals are output from the HDMI MONITOR OUT only.
• When the VIDEO MODE is set to "AUTO" or "COMPONENT" and no video signals are input into the HDMI IN, if
480i video signals are input into the COMPONENT INs, the component video signals are output from the
MONITOR OUTs.
However, if 480p ~ 1080i video signals are input, the component video signals are output from the
COMPONENT and the HDMI MONITOR OUTs.
• When the VIDEO MODE is set to "AUTO", "HDMI" or "COMPONENT", if 1080p video signals are input into the
HDMI IN or the COMPONENT INs, no video signals will be output from the HDMI or the COMPONENT
MONITOR OUTs regardless of VIDEO SCALING setting.
• When the component video signals or the HDMI video signals are input and these signals are output from the
MONITOR OUTs, the momentary OSD cannot be displayed.
Audio conversion
• Depending on the AUDIO MODE setting, this unit can convert the analog audio signals (which are input into the
(analog) AUDIO INs) or the digital audio signals (which are input into the OPTICAL or the COAXIAL DIGITAL IN)
to the PCM 2 channel signals and output them from the HDMI MONITOR OUT. (For details, refer to "When
selecting the AUDIO MODE" on page 58.)
• The digital audio signals (which are input into the HDMI IN, the OPTICAL or the COAXIAL DIGITAL IN) can be
output from the OPTICAL DIGITAL OUT.
However, depending on the digital audio signal format input into the HDMI IN, some digital signals cannot be
output from the OPTICAL DIGITAL OUT.
The flow of the audio signals
Note :
• The analog audio signals which are input from the EXTERNAL INs cannot be output from any AUDIO OUTs.
8
3. CONNECTING AUDIO COMPONENTS
• The TAPE IN/OUT jacks can be connected to audio recording equipment such as a tape deck, an MD
recorder, etc.
4. CONNECTING EXTERNAL INS
• Use these jacks to connect the corresponding
outputs of a DVD player or external decoder,
etc. that has 6, 7 or 8 channel analog audio
outputs.
• In case of 6 or 7 channel outputs, do not connect
both of the SURROUND BACK L and R inputs or
the SURROUND BACK R input of this unit. (For
details, refer to the operating instructions of the
component to be connected.)
9
5. CONNECTING DIGITAL INS AND OUT
• The OPTICAL and the COAXIAL DIGITAL OUTs of the
components that are connected to this unit can be
connected to these DIGITAL INs.
• A digital input should be connected to the components
such as a CD player, DVD player, etc. capable of
outputting DTS Digital Surround, Dolby Digital or PCM
format digital signals, etc.
• If the component with OPTICAL IN jack is connected to
the OPTICAL OUT jack of this unit, you can record the
high quality sound of CDs, etc. without degradation.
• For details, refer to the operating instructions of the
component connected.
• When making the COAXIAL DIGITAL connection, be
sure to use a 75 Ω COAXIAL cord, not a conventional
AUDIO cord.
• All of the commercially available optical fiber cords
cannot be used for the equipment. If there is an optical
fiber cord which cannot be connected to your
equipment, consult your dealer or nearest service
organization.
Notes :
• Be sure to make either a OPTICAL or a COAXIAL DIGITAL connection on each component. (You don’t need to
do both.)
• Depending on the digital audio signal format input into the HDMI IN connector, some digital signals cannot be
output from the OPTICAL OUT jack.
Digital input default settings
• If you connect the DIGITAL INs to your components, it is easier to do so following the default settings.
• If your DIGITAL connections are different from default settings, you should assign the DIGITAL INs you used with
the "When selecting the AUDIO ASSIGN" procedure on page 57.
• The default settings are as follows :
OPTICAL IN 1:VIDEO 1, OPTICAL IN 2:VIDEO 2, OPTICAL IN 3:VIDEO 3, (Front) OPTICAL IN 4: VIDEO 4,
COAXIAL IN 1 : CD, COAXIAL IN 2 : AUX.
6. CONNECTING PRE OUTS
• Use these jacks when adding additional
power amplifiers.
• Connect the PRE OUT jacks to the powered
speakers or the power amplifiers connected
to speakers respectively.
• When using only one surround back
speaker, connect the SURROUND BACK
LEFT jack to the power amplifier.
• To emphasize the deep bass sounds,
connect a powered subwoofer.
Notes :
• After installing the speakers, first adjust the
speaker settings according to your
environment and speaker layout (For
details, "SETTING THE SPEAKER/ROOM EQ
SETUP" on page 61.)
• According to speaker settings, some
channels of PRE OUTs cannot output
audio signals.
10
7. CONNECTING SPEAKERS
• Be sure to connect speakers firmly and
correctly according to the channel(left and
right) and the polarity (+ and -). If the
connections are faulty, no sound will be
heard from the speakers, and if the polarity
of the speaker connection is incorrect, the
sound will be unnatural and lack bass.
• For installing the speakers, refer to "Speaker
placement" on page 12.
• After installing the speakers, first adjust the
speaker settings according to your
environment and speaker layout. (For
details, refer to "SETTING THE SPEAKER
/ROOM EQ SETUP" on page 61.)
Surround back speakers
• When using only one surround back
speaker, you should connect it to
SURROUND BACK/MULTI LEFT channel.
• Because this receiver cannot drive the
surround back speakers and the ROOM 2
speakers simultaneously, you should assign
their power amplifier correctly depending on
how to use them. (For details, refer to
"CONNECTING ROOM 2 OUTS" on page
13 and "When selecting the AMP ASSIGN"
on page 52.)
Front Bi-Amp Connections.
• Some speakers are equipped with two sets
of input terminals, for bi-amplification.
• If no other surround back speakers are
used, you can connect the FRONT and the
SURROUND BACK/MULTI channels to the
bi-amp-capable speakers. (For details, refer to
the operating instructions of your bi-ampcapable speakers.)
• To drive the bi-amp-capable speakers, you
should assign the power amplifier to "BIAMP".
Note :
• Before making bi-amp connections, remove
the short-circuiting bars from the terminals of
your speakers.
Caution :
• Be sure to use the speakers with the
impedance of 6 ohms or above.
• Do not let the bare speaker wires touch each
other or any metal part of this unit. This
could damage this unit and/or the speakers.
11
Speaker placement
Ideal speaker placement varies depending on the
size of your room and the wall coverings, etc. The
typical example of speaker placement and
recommendations are as follows :
Front left and right speakers and center speaker
• Place the front speakers with their front surfaces as
flush with TV or monitor screen as possible.
• Place the center speaker between the front left and
right speakers and no further from the listening
position than the front speakers.
• Place each speaker so that sound is aimed at the
location of the listener’s ears when at the main
listening position.
Surround left and right speakers
• Place the surround speakers approximately 1 meter
(40 inches) above the ear level of a seated listener
on the direct left and right of them or slightly behind.
Surround back left and right speakers
• Place the surround back speakers at the back facing
the front at a narrower distance than front speakers.
• When using a single surround back speaker, place it
at the rear center facing the front at a slightly higher
position (0 to 20 cm ) than the surround speakers. •
We recommend installing the surround back
speaker(s) at a slightly downward facing angle. This
effectively prevents the surround back channel
signals from reflecting off the TV or screen at the
front center, resulting in interference and making the
sense of movement from the front to the back less
sharp.
1. TV or Screen
2. Front left speaker
3. Subwoofer
4. Center speaker
5. Front right speaker
6. Surround left speaker
7. Surround right speaker
8. Surround back left speaker
9. Surround back right speaker
10. Surround center speaker
11. Listening position
Subwoofer
• The subwoofer reproduces powerful deep bass
sounds.
Place a subwoofer anywhere in the front as desired.
Notes :
When using a conventional TV, to avoid interference with the TV picture, use only magnetically shielded front left
and right and center speakers.
To obtain the best surround effects, the speakers except the subwoofer should be full range speakers.
12
8. CONNECTING XM (only for North America)
• Connect the XM terminal to the XM Mini-Tuner system
(sold separately).
• Position the XM Mini-Tuner system near a south-facing
window to receive the best signal.
When making connections, also refer to the operating
instructions of the XM Mini-Tuner system.
• For the best reception, check the signal strength of the
XM radio signal with using signal strength display mode,
then adjust the position of the XM Mini-Tuner system
until "SIGNAL : GOOD" is displayed. (For details, refer to
"Displaying XM information" on page 44.)
• To listen to XM Satellite Radio, refer to "XM Satellite
Radio (only for North America)" on page 42.
9. CONNECTING ROOM 2 OUTS
• ROOM 2 playback feature allows you to play a different program source in another room as well as one
source in the main room at the same time.
• For ROOM 2 playback, connect the ROOM 2 OUT jacks to the amplifier, TV, etc. installed in another room, or
connect the ROOM 2 speaker terminals to the speakers.
• Because this receiver cannot drive the surround back speakers and the ROOM 2 speakers simultaneously, you
should assign their power amplifier correctly depending on how to use them. (For details, refer to "When selecting
the AMP ASSIGN" on page 52.)
Notes :
• To minimize hum or noise, use high quality connection cords.
• You cannot use the digital audio signal for ROOM 2 playback.
or
13
10. CONNECTING RF REMOTE ANTENNA
• Connect the supplied antenna to receive the RF (Radio Frequency)
beams from the universal remote control.
• If the antenna is connected to this receiver, even though there are
obstacles such as walls, furniture, etc. in the way, you can control this
receiver with the universal remote control. Therefore, you can control this
receiver from another room with the universal remote control without
connecting the multi-room system kit. (For details, refer to
"CONNECTING MULTI-ROOM SYSTEM KIT" below.)
Note:
• If the walls are too thick or the distance exceeds the operation range,
you cannot control this receiver with the universal remote control. In
such a case, connect the multi-room system kit to this receiver and set
the transmission signal mode to "IR" (Infrared). (For details, refer to
"Changing the transmission signal" on page 29.)
11. CONNECTING MULTI-ROOM SYSTEM KIT
• The multi-room system kit(sold separately ) is essential for operation from a remote location .
For information on the multi-room system kit, contact the Xantech corporation at 1-800-843-5465 or
www.xantech.com.
• IR IN jack allows you to control this receiver from another room with the remote control unit.
• To control this receiver from another room with the remote control unit, connect the IR IN jack to the output of the
connecting block.
• If this receiver is located inside a cabinet or other enclosure where the signals from the remote control unit
cannot enter, then operation with the remote control unit will not be possible. In such a case, connect the IR IN jack
to the output of the connecting block.
• To control other compatible component from another room with the universal remote control unit, connect the IR
OUT jack to the IR emitter.
Notes :
• Remote operation may become unreliable if the IR receiver is exposed to strong light such as direct sunlight or
inverted fluorescent.
• When the transmission signal mode is set to "RF", the IR receiver cannot accept the RF beams from the
universal remote control and remote operation will become unreliable. However, because the IR emitter can
emit the IR beams into which the RF beams are converted, you can control other compatible component via it.
14
12. CONNECTING DC TRIGGER OUT
• Connect a component to DC TRIGGER OUT
jack that allows DC 12V to turn on when a
specific input source is selected.
• For details, refer to the operating instructions of
the components to be connected.
• To link DC TRIGGER OUT with a specific input
source, refer to "When selecting the DC TRIGGER" on page 59.
Notes :
• This output voltage (12V d.c., 100mA) is for (status) control only, it is not sufficient for drive capability.
• When making DC TRIGGER connection, you should use the stereo mini cord, not a mono mini cord.
13. CONNECTING PC FOR UPGRADES
• This receiver incorporates USB as well as RS-232C
terminal that may be used in the future to update the
operating software so that it will be able to support
new digital audio formats, external control by using an
external device and the like.
• Connect either USB or RS-232C terminal to your PC
(you don't need to do both).
Notes:
• Programming for upgrades and external control requires specialized programming knowledge and for that
reason we recommend that it only be done by qualified installers. For more information on future upgrades
and external control, visit the Sherwood web site at www.sherwoodamerica.com or contact your dealer.
• Do not disconnect the connection cable while updating the operating software, etc.
Should this happen, it may be result in malfunction or cause damage to the unit.
14. SWITCHED AC OUTLETS
• These outlets are switched on (power-on mode)
and off (standby mode) according to power control
as follows (Maximum total capacity is 120 W (1A)).
Standby mode - Switched AC outlet off
Power - on mode - Switched AC outlet on
15. AC INPUT
• Plug the supplied AC input cord into this AC inlet
and then into the wall AC outlet.
Note:
• Do not use an AC input cord other than the one
supplied with this unit. The AC input cord
supplied is designed for use with this unit and
should not be used with any other device.
15
Front Panel Controls
1. POWER switch
2. POWER ON/STANDBY button/indicator
3. VIDEO INPUT SELECTOR button
4. AUDIO INPUT SELECTOR button
5. EXTERNAL IN button
6. TUNER button
7. AUDIO ASSIGN button
8. MASTER VOLUME CONTROL knob
9. HEADPHONE jack
10. SPEAKER button
11. PURE AUDIO button
12. SURROUND MODE button
13. STEREO button
14. SETUP button
15. CHANNEL LEVEL button
16. CONTROL UP( )/DOWN(
) buttons
17. ROOM 2 button
18. MEMORY/ENTER button
19. TUNING UP(+)/DOWN(-) buttons
20. PRESET UP(+)/DOWN(-) buttons
21. MULTI CONTROL knob
22. REMOTE SENSOR
23. PURE AUDIO indicator 24.
FLUORESCENT DISPLAY
For details, see below.
25. SETUP MIC jack
For details, see next page.
26. AUX IN jack
For details, see next page.
27. VIDEO 4 IN jacks
For details, see next page.
FLUORESCENT DISPLAY
20
1
19
3
4
5 671
8
9
10
11
12 15
14 13
16 17
18
2
1. Dolby surround mode indicators
2. Auto surround indicator
3. Speaker(/channel output : outer box) indicators
4. Input signal indicators
5. REMASTERING indicator
6. HDMI indicator
7. ROOM 2 amp indicators
8. ROOM-EQ indicator
9. Input, frequency, surround mode, operating information, etc.
10. DIGITAL INPUT indicator
16
11. TONE indicator
12. SLEEP indicator
13. CINEMA EQ indicator
14. STEREO indicator
15. MEMORY indicator
16. TUNED indicator
17. MUTE indicator
18. Preset number, volume level, sleep time display
19. VIDEO UPSCALE indicator
20. SPEAKER indicator
SETUP MIC JACK
• To use Auto Setup function, connect the supplied
microphone to the SETUP MIC jack.(For details, refer
to "When selecting the AUTO SETUP" on page 61.)
Notes:
• Because the microphone for Auto Setup is designed
for use with this receiver, do not use a microphone
other than the one supplied with this receiver.
• After you have completed the auto setup procedure,
disconnect the microphone.
AUX IN JACK
• The AUX IN jack can be connected to an additional
audio component such as an MP3 player, etc.
Note :
• When connecting this jack to an MP3 player, etc., you
should use the stereo mini cord, not a mono mini cord.
VIDEO 4 IN JACKS
• The VIDEO 4 input jacks may be also connected
to an additional video component such as a
camcorder, a video game player, etc.
• If the OPTICAL IN 4 is connected to the
component connected to VIDEO 4, it is easier to
do so following the default settings.(For details,
refer to "Digital input default settings" on page 10.)
• If the OPTICAL IN 4 connection is different from
the default settings, you should assign the
DIGITAL INs you used with the "When selecting
the AUDIO ASSIGN" procedure on page 57.
• If you connect the COMPONENT VIDEO INs on the
rear panel to your video component, you
should assign the COMPONENT VIDEO INs you
used with the "When selecting the VIDEO
ASSIGN" procedure on page 57.
• If you connect the HDMI INs on the rear panel to
your video component, you should assign the
HDMI INs you used with the "When selecting the
HDMI ASSIGN" procedure on page 57.
When not using
the VIDEO 4 IN
jacks, cover these
jacks with the
supplied cap.
17
Universal Remote Controls
This universal remote control can operate not only this receiver but also most popular brands of audio and video components such
as CD players, tape decks, TVs, cable boxes, VCRs, DVD players, satellite receivers, etc.
• To operate 7 components other than this receiver , you should enter the setup code for each component. (For
details, refer to “USING FUNCTIONS OF REMOTE CONTROL” on page 21.)
• The numbered buttons on the remote control have different functions in different device modes. For details, refer to
"FUNCTION TABLE of the NUMBERED BUTTONS" on the next page.
About the transmission signal
This remote control can emit not only the infrared beams which the conventional remote control(including the ROOM 2 remote
control) uses but also the RF(Radio Frequency) beams which are stronger than those.
To operate this receiver and other components, this remote control should emit the infrared beams.
To operate this receiver only from longer distance even if there are obstacles such as walls, furniture, etc. in the way, this
remote control should emit the RF beams.
Therefore, depending on how to use this remote control, you should set the transmission signal mode to "IR"(default value) or
"RF". (For details, refer to "Changing the transmission signal" on page 29.)
Notes :
• To receive the RF beams, you should connect the RF remote antenna to this receiver. (For details, refer to "CONNECTING RF
REMOTE ANTENNA" on page 14.)
• If the transmission signal mode is set to "RF", this remote control cannot control other audio and video components.
However, if the IR emitter is connected to the IR OUT jack, you can control other component via it. (For details, refer to
"CONNECTING MULTI-ROOM SYSTEM KIT" on page 14.)
18
FUNCTION TABLE of the NUMBERED BUTTONS.
Notes :
• Some functions for each component may not be available or may work differently.
• Depending on other kinds of components that are available for each DEVICE button, some functions may not be
available or may work differently, too.
• For details about functions, refer to the operating instructions of each component.
19
REMOTE CONTROL OPERATION RANGE
OPERATING COMPONENTS WITH REMOTE CONTROL
In case that this remote control emits the infrared beams •
Use the remote control within a range of about 7 meters
(23 feet) and angles of up to 30 degrees aiming at the
remote sensor.
1. Enter the setup code for each
component other
than this receiver. For details, refer to "Entering
a setup code" on page 21.
2. Turn on the component you want to operate.
3. Press the DEVICE button on the
remote control
corresponding to the component you wish to
operate.
4. Aim the remote control at the REMOTE
SENSOR of the component you wish to control
and press the button corresponding to the
operation you want.
Notes :
• When you cannot operate any component, check if the
transmission signal mode is set to "RF". (For details,
refer to "Changing the transmission signal" on page 29.)
• In this case, to operate the component, connect the IR
emitter to the IR OUT jack and use the remote control
toward this receiver. (For details, refer to "CONNECTING
RF REMOTE ANTENNA" and "CONNECTING MULTIROOM SYSTEM KIT" on page 14.)
In case that this remote control emits the RF beams • Use the
remote control within a distance of about 15 meters
(50 feet) toward this receiver.
LOADING BATTERIES
When the remote control does not operate, the old batteries should be replaced. In this case, load new batteries
within several minutes after removing old batteries.
If the batteries are removed or have been exhausted for a longer period of time, memorized contents will be
cleared. Should this happen, you should memorize them again.
1. Remove the cover.
2. Load four alkaline batteries ("AAA" size, 1.5V)
matching the polarity.
• Remove the batteries when they are not used for a
long time.
• Do not use the rechargeable batteries (Ni-Cd type).
• Be sure to use alkaline batteries.
20
USING FUNCTIONS OF REMOTE CONTROL
• This remote control can control up to 8 different components.
• Before operating audio and video components other than this receiver with using this remote control, the
setup code for each component should be entered.
• For system remote control operation, "000" was stored previously in the memory of the device button "CD" for
Sherwood CD player, "DVD" for Sherwood DVD player, "AUX" for Sherwood tape deck and "TV" for Sherwood TV
respectively as its factory setup code. So, you don’t need to enter its code for each Sherwood component except in such
a case that its code does not work.
Note :
• If the transmission signal which this remote control emits is changed into "RF"(Radio Frequency), this remote control cannot
control other audio and video components. (For details, refer to "Changing the transmission signal" on page 29.)
4. While "LEARN" is displayed, press the CURSOR
Entering a setup code
UP( )/DOWN( ) buttons to select the setup
code mode ("CODE"), then press the ENTER
button.
• Setup code entry is the easiest way to program
this remote control for operating audio and video
components.
1. Turn on the component you want to operate.
2. Find the setup codes according to the type and
the brand name of your component, referring to
"Setup Code Table" on page 77.
• Each time the CURSOR UP( )/DOWN( )
buttons are pressed, the mode changes as
follows :
LEARN
RF-IR DELETE
MACRO
CODE
PUNCH
• Then "PRESET" and 3 digit number are
displayed.
• If "PRESET", etc. go off, start again from the
above step 3.
3. Press and hold down both the ENTER button
and the desired one of the DEVICE buttons for
more than 2 seconds.
5. While "PRESET", etc. are displayed, enter a 3
digit code and press the ENTER button.
Example: When entering "001".
• Then "LEARN" is displayed on the LCD screen for
several seconds.
• Then "OK" is displayed on the LCD screen.
• To be sure that the setup code is correct, press
the POWER ON (or STANDBY) button, aiming
the remote sensor on the component.
• If the setup code is correct, your component will
be turned off.
• When your component is not turned off, repeat
the above steps 2 to 5, trying entering each code
for your component until you find one that works.
• If "NG" is displayed, retry entering the correct
setup code while "PRESET" and 3 digit number
are displayed.
Notes :
• The AUDIO button is unavailable for the audio
components other than this receiver.
• During setting operation, to exit from the setting
mode, press any of the DEVICE buttons.
21
6. Operate the component using the corresponding
3. While "PRESET" is displayed, search a setup
function buttons.
code, aiming the remote control at the remote
sensor on the component.
• If any of buttons fails to operate as they should,
start from the step 1 again to enter the correct setup
code.
Note :
• Manufacturers may use different setup codes for
the same product category. For that reason, it is
important that you check to see if the code you
have entered operates as many controls as
possible. If only a few functions operate, check to
see if another code will work with more buttons.
7.
• Each time the CURSOR UP( )/DOWN(
)
buttons are pressed, the setup code is selected
one by one.
• If the selected code is correct, your component
will be turned off.
• When your component is not turned off, repeat
this step until you find one that works.
Repeat the above steps 1 to 6 for each of your
other components.
Searching a setup code
4. While "PRESET" is displayed, press the ENTER
• In addition to enter a setup code using "Setup
Code Table" on page 77, it is also possible to
search through all the codes that are stored in the
library of this remote control.
button to store the setup code.
1. Turn on the component you want to operate.
2. Perform the steps 3 and 4 in "Entering a setup
code" procedure on page 21 to select the setup
code mode ("CODE").
• Then "OK" is displayed on the LCD screen.
5.
Operate the component using the corresponding
function buttons.
• If any of buttons fails to operate as they should,
start from the step 1 again to find the correct
setup code.
6.
Repeat the above steps 1 to 5 for each of your
other components.
22
4. While "SEL" is flickering, on this remote control,
Programming the commands from other
remote controls (LEARNING mode)
press the button corresponding to the function to
be learned.
• If the setup codes are not available for your
component or you want to program a missing or
special function into one button of a device, the
learning function enables this remote control to
learn the commands from other remote controls.
Example: If the function to be learned is playback,
press the PLAY( ) button.
1. Place this remote control and other remote
control facing each other at a distance of 5 to 15
cm (2 to 6 inches ) apart.
• Then "READY" is displayed.
Note:
• You cannot program a function into some buttons
such as DEVICE, MACRO and LIGHT buttons.
2. Press and hold down the ENTER button and the
5. While
"READY" is displayed, on the other
remote control, press the button of the function
to be learned.
desired one of the DEVICE buttons for more
than 2 seconds.
• If the command has been learned successfully,
"OK" is displayed and then "SEL" is flickering.
• If "ERROR" is displayed and then "SEL" is
flickering, it means that for some reason the
command was not learned. In this case, repeat
the above steps 4 and 5.
Notes :
• If an incorrect signal has been sent or, in some
cases, the command from other remote control
simply cannot be learned.
• In some "ERROR" cases, the remote controls just
need to be moved closer together or farther
apart.
• Then "LEARN" is displayed on the LCD screen
for several seconds
Note :
• During setting operation, to exit from the setting
mode, press any of the DEVICE buttons.
3.
6. While "SEL" is flickering, repeat the above steps
4 and 5 to program all the commands you want
to the buttons on this remote control under the
same device mode.
While "LEARN" is displayed, press the ENTER
button.
To exit from the setting mode, press any of the
DEVICE buttons.
7.
Repeat the above steps 1 to 6 to program the
commands from a different remote control.
8. Operate the newly programmed buttons to make
sure the learning function was performed
properly.
• Then "SEL" is flickering.
• If "SEL" goes off, start again from the above
step 2.
23
Erasing the programmed command from
one button
Erasing all the commands programmed
under a device mode
1. Perform the steps 3 and 4 in "Entering a setup
1. Perform the steps 3 and 4 in "Entering a setup
code" procedure on page 21 to select the
deleting mode ("DELETE").
code" procedure on page 21 to select the
deleting mode ("DELETE").
• Then "BTTN" is displayed on the LCD screen for
several seconds.
• Then "BTTN" is displayed on the LCD screen for
several seconds.
2. While "BTTN" is displayed, press the CURSOR
2. While "BTTN" is displayed, press the CURSOR
UP( )/DOWN( ) buttons to select the one
command deleting mode (BTTN), then press the
ENTER button.
UP( )/DOWN( ) buttons to select the all
command deleting mode ("LEARN"), then press
the ENTER button.
• Each time the CURSOR UP( )/DOWN(
)
buttons are pressed, "BTTN" or "LEARN"(all
command deleting mode) is selected.
• Then "SEL" is flickering.
• If "SEL" goes off, start again from the above
step 1.
3.
• Then "SURE?" is displayed .
• If "SURE?" goes off, start again from the above
step 1
3.
While "SURE?" is displayed, press the ENTER
button.
While "SEL" is flickering, press the button for the
command you want to erase.
Example: When the button for the command to be
erased is PLAY button.
• Then all the commands programmed are erased.
4. To erase all the commands programmed under
other device mode, repeat the above steps 1 to
3.
• "OK" is displayed and then "SEL" is flickering.
4.
While "SEL" is flickering, repeat the above step
3 to erase other commands.
24
Programming a macro function
• The macro function enables you to program a
series of button operations(up to 15) on this
remote control into a single button.
• You can store up to three separate macro
command sequences into "M1", "M2" and "M3"
buttons.
3. While "SEL" is flickering, press the operation
buttons you want to program in order.
Example: When playing a DVD on the DVD player
connected to VIDEO 2 jacks of this
receiver.
. Press "AUDIO" button to control this receiver.
. Press "POWER ON" button to turn this
receiver on.
. Press "VIDEO 2(7)" button to select the
desired input source.
. Press "DVD" button to control the DVD player.
. Press "POWER ON" button to turn the DVD
player on.
. Press "PLAY ( )" button to start playback.
1. Perform the steps 3 and 4 in "Entering a setup
code" procedure on page 21 to select the macro
mode ("MACRO").
• Then "M1" is displayed on the LCD screen for
several seconds.
• During macro setting operation, pressing any of
the DEVICE buttons cannot exit from the macro
mode.
2. While "M1" is displayed, press the CURSOR
UP( )/DOWN( ) buttons to select the MACRO
button to be programmed into, then press the
ENTER button.
• Each time the operation buttons are pressed, the
programmed order is displayed.
4. Press any of the MACRO buttons (M1~M3) to
complete the programming.
• Each time the CURSOR UP( )/DOWN( )
buttons are pressed, "M1", "M2" or "M3" is
selected.
• Then "SEL" is flickering.
• If "SEL" goes off, start again from the above
step 1.
• Then "OK" is displayed.
To erase a macro program
• When erasing a macro program, perform the
above steps 1, 2 and 4, but ignore the step 3.
To change a macro program
• When a new macro program is stored into a
MACRO button with performing the above steps
1 to 4, the previous macro program is erased
from the memory of the MACRO button.
25
Operating a macro function
• Aim the remote control at the REMOTE
SENSORs of the components to be controlled
and press the MACRO button you want.
Example : When pressing "M1" button.
2. While "VOL" is displayed, press the CURSOR
UP( )/DOWN( ) buttons to select the desired
punch-through mode, then press the ENTER
button.
Notes:
• The codes programmed into a MACRO button will
be transmitted at an interval of 0.5 seconds.
However, some components may not be able to
complete one operation in 0.5 seconds and may
miss the next code.
In this case, the macro function cannot control the
corresponding components correctly.
• Be sure to use the remote control within the remote
control operation range of the components.
• Depending on the operation status of the
components, etc., the macro function cannot
control the corresponding components correctly.
• Each time the CURSOR UP( )/DOWN(
)
buttons are pressed, the mode changes as
follows:
VOL : The volume punch -through mode
allows the "VOLUME / " and
"MUTE" buttons to operate a different
device.
DELETE : All punch-through deleting mode.
PLAY : The transport punch-through mode
allows the " ", " ", " ", "
", " ",
"
","
" and " " buttons to
operate a different device.
Programming a punch-through function
CH : The channel punch-through mode
allows the "CHANNEL / " and "CH.
LEVEL" buttons to operate a different
device.
• The punch-through function allows the volume
controls, channel controls or transport controls to
link to a different device while a device is
controlled with this remote control as a master
device.
• For example, since this receiver will likely be
used as the sound system while watching TV,
you may want to use volume controls to operate
this receiver although this remote control is set to
control the TV.
• Then the device to which you can link the
selected punch-through mode is displayed.
1. Perform the steps 3 and 4 in "Entering a setup
code" procedure on page 21 to select a master
device and the punch-through mode ("PUNCH").
• Then "VOL" is displayed on the LCD screen for
several seconds.
26
Continued
Operating a punch-through function
3. While the device is displayed, press the
• While this remote control is set to control a
master device, aim the remote control at the
REMOTE SENSOR of the punch-through device
and press the desired button of the programmed
punch-through controls.
Example: When pressing "PLAY ( )" button.
CURSOR UP( )/DOWN( ) buttons to select
the desired punch-through device, then press
the ENTER button.
• Each time the CURSOR UP( )/DOWN( )
buttons are pressed, depending on the selected
punch-through mode, punch-through devices and
the one punch-through deleting mode
("DELETE") are selected as follows :
• Then the punch-through device is displayed on
the LCD screen.
Erasing the programmed punch-through
function
• In case of the volume punch-through,
AUDIO DELETE TV
• In case of the transport punch-through,
CD DELETE DVD VCR AUX
1. Perform the steps 3 and 4 in "Entering a setup
code" procedure on page 21 to select a master
device and the punch-through mode ("PUNCH").
• In case of the channel punch-through,
TV DELETE SAT CABLE VCR
• Then "VOL" is displayed on the LCD screen for
several seconds.
• Then "OK" is displayed and the current punchthrough mode is displayed.
2. While "VOL" is displayed, press the CURSOR
4. While the punch-through mode is displayed,
UP( )/DOWN( ) buttons to select the punchthrough mode to be erased, then press the
ENTER button.
repeat the above steps 2 and 3 to program other
punch-through function under the same master
device mode.
5. To program punch-through functions
under
other master device mode, repeat the above
steps 1 to 4.
• Each time the CURSOR UP( )/DOWN( )
buttons are pressed, the mode changes as
follows:
VOL DELETE PLAY CH
• Then the device is displayed .
27
Continued
3. While the device is displayed, press the
2. While "VOL" is displayed, press the CURSOR
CURSOR UP( )/DOWN( ) buttons to select
the one punch-through deleting mode
("DELETE"), then press the ENTER button.
UP( )/DOWN( ) buttons to select the all
punch-through deleting mode ("DELETE").
• Each time the CURSOR UP( )/DOWN(
)
buttons are pressed, the mode changes as
follows:
VOL DELETE
PLAY CH
• Each time the CURSOR UP( )/DOWN( )
buttons are pressed, depending on the
selected punch-through mode, the punchthrough devices and the deleting mode
("DELETE") are selected.
• Then "OK" is displayed and the current punchthrough mode is displayed .
• Then "DELETE" is displayed .
3. While "DELETE" is displayed, to erase all the
punch-through functions programmed under the
master device mode, press ENTER button.
4. While the punch-through mode is displayed,
repeat the above steps 2 and 3 to erase other
punch-through function under the same master
device mode.
5. To erase punch-through functions under other
master device mode, repeat the above steps 1
to 4.
• Then "OK" is displayed and "DELETE" is
displayed.
• To exit from the deleting mode, press any of the
DEVICE buttons.
Erasing all the punch-through functions
programmed under a master device mode
1. Perform the steps 3 and 4 in "Entering a setup
code" procedure on page 21 to select a master
device and the punch-through mode ("PUNCH").
4. To erase all the punch-through functions
programmed under other master device mode,
repeat the above steps 1 to 3.
• Then "VOL" is displayed on the LCD screen for
several seconds.
28
3. While "RF" (or "IR") is displayed, press the
Changing the transmission signal
CURSOR UP( )/DOWN( ) buttons to select
the desired transmission signal, then press the
ENTER button.
• This remote control can emit not only the infrared
beams which the conventional remote control
uses but also the RF(Radio Frequency) beams
which are stronger than those.
• When you want to control this receiver from longer
distance even if there are obstacles such as walls,
furniture, etc. in the way, change the transmission
signal into "RF"(Radio Frequency).
Notes:
• When the RF remote antenna is not connected,
remote operation will become unreliable. (For
details, refer to "CONNECTING RF REMOTE
ANTENNA" on page 14.)
• If the transmission signal mode is set to "RF"
(Radio Frequency), this remote control cannot
control other audio and video components.
• In this case, to control the component, connect the
IR emitter to the IR OUT jack. (For details, refer to
"CONNECTING MULTI-ROOM SYSTEM KIT" on
page 14.)
• Each time the CURSOR UP( )/DOWN( )
buttons are pressed, the mode changes as
follows :
"RF" : This remote control emits the RF(Radio
Frequency) beams which stronger than the
infrared beams.
"IR" : This remote control emits the infrared
beams which the conventional remote
control uses.
• Then "OK" is displayed.
1. Press and hold down the ENTER button and the
AUDIO button for more than 2 seconds.
When "RF" is set to.
4.
• Then "LEARN" is displayed on the LCD screen for
several seconds.
Note:
• During setting operation, to exit from the setting
mode, press any of the DEVICE buttons.
To pair up this remote control and the receiver,
press the CONTROL DOWN( ) button and the
MEMORY/ENTER button simultaneously on the
receiver.
• "RF REMOCON PAIRING MODE" is displayed for
several seconds on the display of the receiver.
• If "RF REMOCON PAIRING MODE" goes off,
press these buttons again.
2. While "LEARN" is displayed, press the
CURSOR UP( )/DOWN( ) buttons to select
the transmission signal mode("RF-IR"), then
press the ENTER button.
5. While "RF REMOCON PAIRING MODE" is
displayed, press the ENTER button, aiming at the
receiver.
• Then "RF" (or "IR") is displayed.
• If "RF" (or "IR") goes off, start again from the
above step 1.
• Then "PAIRING SUCCESS" is displayed.
29
ROOM 2 Remote Controls
This remote control unit is an additional remote control unit for the ROOM 2 source playback only.
• You can use the ROOM 2 functions with this remote control unit more conveniently in another room than with the
universal remote control unit.
• For details on ROOM 2 operation, refer to "ROOM 2 SOURCE PLAYBACK" on page 48.
REMOTE CONTROL OPERATION RANGE
• Aim the ROOM 2 remote control at the IR
receiver installed in another room.(For details,
refer to "CONNECTING MULTI-ROOM SYSTEM
KIT" on page 14.)
• When you operate the ROOM 2 function in the
main room, aim the ROOM 2 remote control at the
remote sensor of the receiver.
LOADING BATTERY
1. Remove the cover.
2. Load the battery(CR2025) matching the polarity.
• Remove the battery when it is not used for a long
time.
30
Operations
Notes:
• Before operating this receiver with the supplied remote control, refer to "Universal Remote Controls" on page
18 for details about operation.
• Before operating this receiver, first set this unit as desired for optimum performance, doing the OSD menu
setting procedures. (For details, refer to "OSD Menu Settings" on page 50.)
LISTENING TO A PROGRAM SOURCE
3. Select the desired input source.
Before operation
• Enter the standby mode.
• The POWER ON/STANDBY button
lights up amber. This means that the
receiver is not disconnected from the
AC mains and a small amount of
current is retained to support the
operation readiness.
• To switch the power off, push the
POWER switch again.
Then the power is cut off and the
POWER ON/STANDBY button goes off.
• Each time the "AUDIO" button on the front panel
is pressed, the input source changes as follows:
CD AUX
TAPE
1. In the standby mode, turn the power on.
• Each time the "VIDEO" button on the front panel
is pressed, the input source changes as follows:
VIDEO 1 VIDEO 2
- - - VIDEO 4
• Each time the "TUNER" button is pressed, the
band changes as follows:
FM STEREO
FM MONO
AM XM
When selecting the EXTERNAL IN as desired,
• Each time the POWER ON/STANDBY button on
the front panel is pressed, the receiver is turned on to
enter the operating mode (the POWER ON/
STANDBY button lights up blue) or off to enter the
standby mode(the POWER ON/STANDBY button
lights up amber).
• On the remote control, press the POWER ON
button to enter the operating mode or press the
STANDBY button to enter the standby mode.
2. Switch the speakers on.
• Depending on the power amplifier setting for the
surround back channels and the surround back
speaker setting, "EXT. IN" is displayed and 8(/7/6)
separate analog signals from the component
connected to this input pass through the volume
circuits only and can be heard from your
speakers.
• Select the desired input source to cancel the
external in function.
• These analog signals can be heard only, not
recorded.
• Then the SPEAKER indicator (
)
lights up and the sound can be heard
from the speakers connected to the
speaker terminals.
• When using the headphones for private
listening, press the SPEAKER button
again to switch the speakers off.
31
6. Operate the selected component for playback.
When CD, AUX, VIDEO 1~ 4 is selected as
an input source
• When playing back the program sources with
surround sound, refer to "ENJOYING
SURROUND SOUND" on page 36.
• If the AUDIO MODE is set to the mode other
than "DIGITAL" for the corresponding input
source on the INPUT SETUP menu, you cannot
hear the sound from the selected digital input.
(For details, refer to "SETTING THE INPUT
SETUP" on page 56.)
7. Adjust the (overall) volume.
4. Press the AUDIO ASSIGN button.
Muting the sound
• "AUDIO ~ " is displayed for several seconds.
• "AUDIO ~ " disappears, press the AUDIO ASSIGN
button again.
5.
Select the desired of the digital inputs connected
while displaying "AUDIO ~ ".
• "MUTE" flickers.
• To resume the previous sound level, press it again.
• Each time the MULTI CONTROL knob is rotated
or the CURSOR LEFT( )/RIGHT( ) buttons are
pressed, the corresponding input is selected as
follows :
Notes:
• When the selected digital input is not connected,
the "DIG." indicator flickers and no sound will be
heard.
• The selected digital input is automatically
assigned to the corresponding input source on
the INPUT SETUP menu. (For details, refer to
"SETTING THE INPUT SETUP" on page 56.)
• The sound from the component connected to the
selected digital input can be heard regardless of
the selected input source.
32
Listening with headphones
Achieving higher purity of sound quality
• The PURE AUDIO indicator lights up, the
fluorescent display goes off and all the videorelated circuits are turned off, meaning no video
signal transfer.
• When the pure audio is activated, the optimum
surround mode (or stereo mode, etc.) will be
automatically selected depending on the signal
format being input.
• Press this button again to cancel the pure audio
function.
• Ensure that the SPEAKER button is set to off.
• Depending on the signal format which is being
input, you can listen in Dolby Headphone mode,
stereo mode, etc. (For details, refer to "Listening
in Dolby Headphone mode" on page 37).
• When the EXTERNAL IN is selected as an input
source, only front left and front right channel
signals can be reproduced through the
headphones.
Note:
• Be careful not to set the volume too high when
using headphones.
33
SURROUND SOUND
• This receiver incorporates a sophisticated Digital Signal Processor that allows you to create optimum sound quality and sound
atmosphere in your personal Home Theater.
Surround modes
DTS Digital Surround
Dolby Digital
DTS Digital Surround(also called simply DTS) supports up to
5.1 discrete channels and uses less compression for high
fidelity reproduction. Use it with DVDs and CDs bearing the
DTS logo.
Dolby Digital is the multi-channel digital signal format
developed by Dolby Laboratories. Discs bearing the Dolby
Digital logo includes the recording of up to 5.1 channels of
digital signals. This will put you right in the middle of the
action, just like being in a movie theater or concert hall.
DTS-ES™ Discrete 6.1
This is a 6.1 channel discrete digital audio format adding a
surround back channel to the DTS digital surround sound. The
seven totally separate audio channels provide better spatial
imaging and 360 degrees sound localization, perfect for sounds
that pan across the surround channels. Use it with DVDs
bearing the DTS-ES logo, especially those with a DTS-ES
Discrete sound track.
This mode expands 5.1-channel sources for 6.1/7.1 channel
playback. It's especially suited to Dolby Digital EX
soundtracks that include a matrix-encoded surround back
channel. The additional channel adds an extra dimension and
provides an enveloping surround sound experience, perfect for
rotating and fly-by sound effects.
DTS - ES™ Matrix 6.1
This is a 6.1 channel discrete digital audio format inserting a
surround back channel to the DTS digital surround sound
through matrix encoding. Use it with DVDs bearing the DTS-ES
logo.
Developed for use with HDTV, including the new video disc
formats Blu-ray and HD DVD, this is the latest multichannel
audio format from Dolby. It supports up to 7.1 channels with
48 kHz/24-bit sampling rate and signal resolution.
Dolby Digital EX
Dolby Digital Plus
DTS Neo : 6™ surround
Dolby TrueHD
DTS Neo : 6 is a matrix decoding technology for achieving 7.1
channel surround playback with 2 channel sources. It includes
"DTS Neo : 6 Cinema" suited for playing movies and "DTS
Neo : 6 Music" suited for playing music.
Designed to take full advantage of the additional storage
space offered by the new Blu-ray and HD DVD disc formats,
this new Dolby format offers up to 7.1 discrete channels of
lossless audio performance with 96 kHz/24 bit sampling rate
and signal resolution.
This receiver supports 7.1-channel sources up to 96 kHz and
5.1-channel sources up to 192 kHz.
DTS 96/24
This is high resolution DTS with a 96 kHz sampling rate and 24
bit resolution, providing superior fidelity. Use it with DVDs
bearing the DTS 96/24 logo.
Dolby Pro Logic IIx surround
This mode expands any 2-channel source for 7.1-channel
playback. It provides a very natural and seamless surround
sound experience that fully envelopes the listener. As well as
music and movies,video games can also benefit from the
dramatic spatial effects and vivid imaging. It includes "Dolby Pro
Logic IIx Movie" suited for playing movies, "Dolby Pro Logic IIx
Music" suited for playing music and "Dolby Pro Logic IIx Game"
suited for playing games.
DTS-HD High Resolution Audio
Developed for use with HDTV, including the new video disc
formats Blu-ray and HD DVD, this is the latest multi-channel
audio format from DTS. It supports up to 7.1 channels with
96 kHz/24 bit sampling rate and signal resolution.
DTS-HD Master Audio
Designed to take full advantage of the additional storage
space offered by the new Blu-ray and HD DVD disc formats,
this new DTS format offers up to 7.1 discrete channels of
uncompressed digital audio with 96 kHz/24 bit sampling rate
and signal resolution.
This receiver supports 7.1 channel sources up to 96 kHz and
5.1 channel sources up to 192 kHz.
Dolby Pro Logic II surround
If you are not using any surround back speakers, Dolby Pro
Logic II surround will be used instead of Dolby Pro Logic IIx
surround. It incudes Dolby Pro Logic II Movie, Dolby Pro Logic
II Music and Dolby Pro Logic II Game like Dolby Pro Logic IIx
surround.
Manufactured under license under U.S. Patent #'s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S.
and worldwide patents issued & pending.
DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and
DTS-HD Master Audio are trademarks of DTS, Inc.
1996-2007 DTS, Inc. All Rights Reserved.
34
under the US and foreign patents pending and other related
technology owned by Neural Audio Corporation.
Dolby Virtual Speaker
This mode creates a virtual surround sound field using as few as
two front speakers, allowing you to experience listening from 5.1
channel speakers.
This mode is effective not only for 5.1 channel sources but
also for 2 channel sources.
Dolby VIrtual Speaker includes two listening mode as follows:
Neural Surround is a trademark owned by Neural Audio
Corporation, THX is a trademark of THX Ltd., which may be
registered in some jurisdictions. All rights reserved.
• Dolby Virtual Speaker Reference
The width of the front sound image is defined by the actual
distance between front speakers.
• The following modes apply conventional 2-channel signals
such as digital PCM or analog stereo signals to high
performance Digital Signal Processor to recreate sound
fields artificially. Select one of the 7 provided surround
modes according to the program source you want to play.
• Dolby Virtual Speaker Wide
The width of the front sound image seems to extend beyond
the front speakers.
Theater
This mode provides the effect of being in a movie theater
when watching a play.
Hall
This mode provides the ambience of a concert hall for
classical music sources such as orchestral, chamber music or
an instrumental solo.
Dolby Headphone
The Dolby Headphone function simulates 5.1 channel
surround sound , which allows you to enjoy 5.1 channel
surround sound through 2 channel headphones, just like
listening from 5.1 channel speakers.
This mode is effective not only for 5.1 channel sources but
also for 2 channel sources.
Stadium
This mode provides the expansive sound field to achieve the
true stadium effect when watching baseball or soccer games.
Dolby and the double-D symbol are registered trademarks of
Dolby Laboratories.
Room
This mode provides the sound field of a house with a low
ceiling and hard walls for jazz music.
Neural Surround™
Neural Surround represents the latest advancement in
surround technology developed for music and is adopted by
XM Satellite Radio for digital radio broadcast of surround
recordings and live events in surround sound.
Neural Surround employs psychoacoustic frequency-domain
processing, which allows delivery of a more detailed sound
stage, with superior channel separation and localization of
audio elements. System playback is scalable from 5.1 to 7.1
multichannel surround playback.
Panorama
This mode provides a dynamic and broad sound space to
heighten the overall impact of the sound track.
Classic
This mode provides the acoustic effects of a large concert
hall for classical music.
Multi CH Stereo
This mode is designed for playing background music. The
front, surround and surround back channels create a stereo
image that encompasses the entire area.
This product contains technology manufactured under
license from Neural Audio Corporation. Sherwood
Corporation hereby grants the user a non-exclusive,
nontransferable, limited license right to use this product
• When using the EXTERNAL INs to play back the sound from the additional multi-channel decoder for surround sound, you can enjoy
the corresponding surround sound, too. (For details, refer to the operating instructions of the component to be
connected.)
For your reference, the sound from each channel can be reproduced according to the surround modes as follows:
Modes
Channels
FRONT L/R
CENTER
SURROUND L/R
SURROUND BACK L/R
SUBWOOFER
DTS-HD HIGH RESOLUTION AUDIO/MASTER AUDIO
DTS, DTS 96/24
DTS ES DISCRETE/MATRIX
DTS NEO: 6 CINEMA/MUSIC
(*)
DOLBY DIGITAL PLUS / DOLBY TRUEHD
DOLBY DIGITAL
DOLBY DIGITAL EX
DOLBY PRO LOGIC IIx MOVIE/MUSIC/GAME
DOLBY PRO LOGIC II MOVIE/MUSIC/GAME
DOLBY VIRTUAL SPEAKER
(*)
MULTI PCM
Other Surrounds
(*)
STEREO
(*)
EXTERNAL IN
(*): Depending on the subwoofer setting, the sound from the subwoofer channel may be reproduced.
• Depending on the speaker settings and the number of the encoded channels, etc., the sound from the corresponding channels
cannot be reproduced.(For details, refer to "SETTING THE SPEAKER / ROOM EQ SETUP" on page 61.)
35
ENJOYING SURROUND SOUND
Notes:
• Before surround playback, first perform the speaker setup procedure, etc. on the OSD menu for optimum performance. (For
details, refer to "SETTING THE SPEAKER/ROOM EQ SETUP" on page 61.)
• When playing digital signals from the Dolby Digital program source or selecting the surround mode such as Dolby Pro Logic II
/Dolby Pro Logic IIx Music, Dolby Headphone, Dolby Virtual Speaker modes, you can adjust their parameters for optimum surround
effect. (For details, refer to "SETTING THE SOUND PARAMETER" on page 69.)
• When the EXTERNAL IN is selected as an input source, the surround modes cannot be selected.
Depending on how to select a surround mode, select the auto surround mode or the manual surround mode.
• Each time this button is pressed, the mode changes as
follows :
Auto surround mode : The optimum surround mode will be
("AUTO" lights up.)
automatically selected depending on the signal
format being input.
Manual surround mode : You can select the desired of different
("AUTO" goes off.)
surround modes selectable for the signal
being input with using the MULTI
CONTROL knob or the SURROUND MODE
UP/DOWN (
) buttons.
Notes :
• Even when the auto surround mode is selected and the same type of digital signal format is being input, the
optimum surround mode may vary depending on whether the speaker type is set to "NO" or not.
• When the auto surround mode is selected, the surround modes other than the optimum surround mode
cannot be selected.
When selecting the manual surround mode with pressing the SURROUND MODE button on the front panel.
Select the desired surround mode.
• Each time the MULTI CONTROL knob is rotated or
the SURROUND MODE UP / DOWN ( >/< )
buttons are pressed, the surround mode changes
depending on the input signal format as follows :
Signal format being input
Dolby Digital Plus sources
Dolby TrueHD sources
Dolby Digital EX 6.1 channel sources,
Dolby Digital 5.1 channel sources
Dolby Digital 2 channel sources
Selectable surround mode
DOLBY DIGITAL +
Dolby TrueHD
<DOLBY DIGITAL EX, DOLBY D + PLIIx MUSIC>, (DOLBY D + PLIIx MOVIE), DOLBY DIGITAL,
DOLBY VS REF, DOLBY VS WIDE
<DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC, DOLBY PLIIx GAME>, [DOLBY PLII MOVIE,
DOLBY PLII MUSIC, DOLBY PLII GAME], DOLBY VS REF, DOLBY VS WIDE
DTS-HD High Resolution Audio sources
DTS-HD Master Audio sources
DTS ES Discrete/Matrix 6.1 channel
sources
DTS sources,
DTS 96/24 sources
PCM (multi-channel) sources*
96 kHz PCM (2 channel) sources**
PCM (2 channel) sources,
Analog stereo sources
DTS-HD HI RES
DTS-HD MSTR
<corresponding DTS ES mode, DTS + PLIIx MUSIC>, (DTS + PLIIx MOVIE), DTS, DOLBY VS REF,
DOLBY VS WIDE
corresponding DTS mode, DOLBY VS REF, DOLBY VS WIDE, <DTS + NEO:6, DTS + PLIIx MUSIC>,
(DTS + PLIIx MOVIE)
MULTI PCM, <DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC>, DOLBY VS REF, DOLBY VS WIDE
<DOLBY PLIIx MOVIE, DOLBY PLIIx MUSIC, DOLBY PLIIx GAME>, [DOLBY PLII MOVIE, DOLBY
PLII MUSIC, DOLBY PLII GAME], DOLBY VS REF, DOLBY VS WIDE, NEO:6 CINEMA, NEO:6
MUSIC, NEURAL, THEATER, HALL, STADIUM, ROOM, PANORAMA, CLASSIC, MULTI-CH STEREO
• Depending on surround back speaker setting, some surround modes can be selected or not as follows:
< >: Possible only when surround back speaker is not set to "NO".
[ ] : Possible only when surround back speaker is set to "NO".
( ): Possible only when surround back speaker is set to " 2CH".
* : Depending on the signal format being input, the Dolby Pro Logic IIx modes and the Dolby Virtual Speaker modes may not be selected. ** :
While playing 96kHz PCM(2channel) sources, the Neural Surround mode cannot be selected.
36
Continued
To cancel the surround mode for stereo operation
• Depending on the signal format which is being input, either the
stereo mode or the 2CH downmix mode is selected.
• To cancel either the stereo mode or the 2CH downmix mode,
select the surround mode with using the MULTI CONTROL knob
on the front panel or the SURROUND MODE
UP/DOWN ( >/< ) buttons on the remote control.
2CH downmix mode
• This mode allows the multi-channel signals encoded in DTS or Dolby Digital format, etc. to be mixed down into 2 front
channels and to be reproduced through only two front speakers or through headphones.
• When the SPEAKER button is set to off to listen with headphones, if the STEREO button is pressed while playing the
multi-channel digital signals from DTS or Dolby Digital sources, etc., it will enter the 2CH downmix mode automatically.
• To cancel the 2CH downmix mode, select the Dolby Headphone mode with using the MULTI CONTROL knob on the
front panel or the SURROUND MODE UP/DOWN ( >/< ) buttons on the remote control.
Listening in Dolby Headphone mode
• The Dolby Headphone function simulates 5.1 channel surround sound, which allows you to enjoy 5.1 channel
surround sound through 2 channel headphones, just like listening from 5.1 channel speakers.
Note :
• Only when the SPEAKER button is set to off, the Dolby Headphone mode can be selected.
• Switch the speakers off to listen with headphones.
• Then "
Headphone" (or "
H ~ ") is displayed and the
Dolby Headphone mode is selected.
• To cancel the Dolby Headphone mode, press the
SPEAKER button again.
Adjusting each channel level with test tone
2. At each channel, adjust the level as desired until
• The volume level of each channel can be
adjusted easily with the test tone function.
Note : When the SPEAKER button is set to off,
the test tone function does not work.
the sound level of each speaker is heard to be
equally loud.
1. Enter the test tone mode.
• You can select the desired channel with pressing
the CONTROL UP/DOWN (
) buttons or the
CURSOR UP/DOWN (
) buttons.
3. Cancel the test tone function.
• The test tone will be heard from the speaker of
each channel for 2 seconds as follows:
Front Left
Subwoofer
Front Right
Surround Left
Surround Back
Surround Right
Surr.Back Left
Surr.Back Right
• When the speaker setting is "NO", the test tone of the
corresponding channel is not available.
• ( ) : Possible depending on whether the surround
back channel is set to "2 CH" or "1 CH".
37
Adjusting the current channel level
• After adjusting each channel level with test tone, adjust the channel levels either according to the program
sources or to suit your tastes.
• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s
memory ("CALIBRATE"), not into preset memory("REFERENCE 1", "REFERENCE 2").
1. Press the CHANNEL LEVEL button.
3. Adjust the level of the selected channel as
desired.
• Then the memory mode ("CALIBRATE" or
"REFERENCE 1") is displayed for several
seconds.
• When the memory mode or channel level
disappears, press this button again.
2.
• The LFE level can be adjusted within the range of
-10 ~ 0 dB and other channel levels within the
range of -15 ~ +15 dB.
• In general, we recommend the LFE level to be
adjusted to 0 dB.(However, the recommended
LFE level for some early DTS software is -10 dB.)
If the recommended levels seem too high, lower
the setting as necessary.
Select the desired channel.
4. Repeat the above steps
channel level.
• Each time these buttons are pressed, the
corresponding channel is selected as follows:
DTS LFE or Dolby Digital LFE
( ): Possible depending on whether the surround back channel is
set to "2 CH" or "1 CH".
< >: Possible only when the digital signals from Dolby Digital or
DTS program sources that include LFE signal are input.
• Depending on the speaker settings("NO", etc.)
and surround mode, etc., some channels cannot
be selected.
• When the SPEAKER button is set to off, only the
Front Left, Front Right(and LFE) channels can be
selected.
38
2 and 3 to adjust each
Recalling the memorized channel levels
Memorizing the adjusted channel levels
• You can memorize the adjusted channel levels
into preset memory("REFERENCE 1",
"REFERENCE 2") and recall the memorized
whenever you want.
1. Press the CHANNEL LEVEL button.
1. After performing the steps 1~4 in "Adjusting the
current channel level" procedure on page 38,
press the (MEMORY/)ENTER button.
• "REFERENCE 1" (or "CALIBRATE") is
displayed for several seconds.
• If the channel level mode display disappears,
press this button again.
2. Select the desired one of REFERENCE 1 and
• The "1" of "REFERENCE 1" indication flickers for
several seconds.
2.
REFERENCE 2.
Select the desired one of REFERENCE 1 and
REFERENCE 2.
• Then the channel levels memorized into the
selected preset memory are recalled.
• If the preset memory disappears, perform the
above step 1 again.
3. Confirm your selection.
• The adjusted channel levels have now been
memorized into the selected memory.
39
LISTENING TO RADIO BROADCASTS
Manual tuning
Auto tuning
• Manual tuning is useful when you already know
the frequency of the desired station.
• After selecting the desired band, press the
TUNING UP(+)/DOWN(-) buttons repeatedly until
the right frequency has been reached.
1. Select the desired band.
Auto presetting
• Auto presetting function automatically searches
for FM stations only and store them in the
memory.
• While listening to FM or AM radio broadcasts,
press and hold down the MEMORY/ENTER button
for more than 2 seconds.
• Then "AUTO MEMORY" flickers
and this receiver starts auto
presetting.
• Up to 30 FM stations can be
stored.
• Each time this button is pressed, the band
changes as follows :
FM STEREO
FM MONO
AM
XM
• When FM stereo broadcasts are poor because of
weak broadcast signals, select the FM mono
mode ("STEREO" goes off) to reduce the noise,
then FM broadcasts are reproduced in monaural
sound.
• To listen to XM Satellite Radio, select XM mode.
(For details, refer to "XM Satellite Radio (only for
North America)" on page 42.)
2.
Notes:
• FM stations of weak strength
cannot be memorized.
• To memorize AM stations or weak stations,
preform "Manual presetting" procedure with using
"Manual tuning" operation.
Press the TUNING UP(+)/DOWN(-) buttons for
more than 0.5 second.
• The tuner will now search until a station of
sufficient strength has been found. The display
shows the tuned frequency and "TUNED".
• If the station found is not the desired one, simply
repeat this operation.
• Weak stations are skipped during auto tuning.
40
Manual presetting
Tuning to preset stations
• You can store up to 30 preferred stations in the
memory.
1.
• After selecting the tuner as an input source, select
the desired preset number.
Tune in the desired station with auto or manual
tuning.
2. Press the MEMORY/ENTER button.
Scanning preset stations in sequence
• "MEMORY" is flickering for several seconds.
3.
Select the desired preset number (1~30) and
press the MEMORY/ENTER button.
• The receiver will start scanning the stations in the
preset sequence and each station is received for 5
seconds.
• At the desired station, press this button again to
stop scanning.
• The station has now been stored in the memory.
• A stored frequency is erased from the memory by
storing another frequency in its place.
• If "MEMORY" goes off, start again from the above
step 2.
4. Repeat the above steps 1 to 3 to memorize
other stations.
MEMORY BACKUP FUNCTION
The following items, set before the receiver is
turned off, are memorized.
• INPUT SELECTOR settings
• Surround mode settings
• Preset stations,etc.
41
XM Satellite Radio (only for North America)
• This receiver is the XM Ready® receiver. You can receive XM Satellite Radio® by connecting to the XM Mini-Tuner system (sold
separately) and subscribing the XM service.
About XM Satellite Radio for U.S. & Canadian products
XM Satellite Radio offers an extraordinary variety of commercial-free music, plus the best in sports, news, talk and
entertainment. XM is broadcast in superior digital audio from coast to coast. From rock to reggae, from classical to hip hop, XM has
something for every music fan. XM’s dedication to playing the richest selection of music is matched by its passion for live sporting
events, talk radio, up-to-the-minute news, stand-up comedy, children’s programming, and much more. For U.S.
customers, information about XM Satellite Radio is available online at www.xmradio.com. For Canadian customers, information
about XM Canada is online at www.xmradio.ca.
XM Ready® legal for U.S. & Canadian products
Hardware and required monthly subscription sold separately. Other fees and taxes, including a one-time activation fee may apply.
Subscription fee is consumer only. All fees and programming subject to change. Channels with frequent explicit language are
indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (US residents) and 1-877GET-XMSR (Canadian residents). For a full listing of the XM commercial-free channels and advertising-supported channels, visit
lineup.xmradio.com (US residents) or xmradio.ca (Canadian residents). Subscriptions subject to Customer Agreement available
at xmradio.com (US residents) and xmradio.ca (Canadian residents). Only available in the 48 contiguous United States and
Canada. ©2006 XM Satellite Radio Inc. All rights reserved. All other trademarks are the property of their respective owners.
XM Ready® subscriptions for U.S. Products & Canadian products
Once you have installed the XM Mini-Tuner Dock, inserted the XM Mini-Tuner, connected the XM Dock to your XM Ready®
home audio system, and installed the antenna, you are ready to subscribe and begin receiving XM programming. There are three
places to find your eight character XM Radio ID: on the XM Mini-Tuner, on the XM Mini-Tuner package, and on XM Channel 0.
Record the Radio ID in the following eight squares for reference.
Note: The XM Radio ID does not use the letters “I”, “O”, “S” or “F”. Activate your XM Satellite Radio service in the U.S. online at
http://activate.xmradio.com or call 1-800-XM-RADIO (1-800-967-2346). You will need a major credit card. XM will send a signal from
the satellites to activate the full channel lineup. Activation normally takes 10 to 15 minutes, but during peak busy periods you may
need to keep your XM Ready home audio system on for up to an hour. When you can access the full channel lineup on your XM
Ready home audio system you are done. For more information or to subscribe in Canada, visit XM on the Web at
www.xmradio.ca or call XM’s Listener Care at 1-877-GET-XMSR (1-877-438-9677).
LISTENING TO XM SATELLITE RADIO
Signing up for XM Satellite Radio
• Before using XM Satellite Radio, you must first sign up
for an account. You will need a major credit card and
your XM Satellite Radio ID, which you can get from this
receiver as explained below.
1.
2. Press the TUNING UP(+)/DOWN(-) buttons
repeatedly to select XM CH 000.
Press the TUNER button repeatedly to select XM
mode.
• Then your XM Satellite Radio ID is displayed. • You can
find the XM Satellite Radio ID on the XM MiniTuner itself and the XM Mini-Tuner package. too.
3. To sign up, access the
• Then XM CH ~ is displayed.
website at
"http://activate.xmradio.com" or call "1-800-9672346".
42
Channel search
• In the XM mode, press the TUNING UP (+)/DOWN (-) buttons repeatedly to select the desired channel.
Direct search
• Direct search is useful when you already know the channel
number.
2. While displaying "DIRECT SEARCH", select
the desired channel number with pressing the
NUMERIC (0 ~ 9) buttons.
1. In the XM mode, select the direct search mode.
Examples: For "3" :
For "27" :
For "124" :
• When "DIRECT SEARCH" disappears, repeat again
from the above step 1.
• Each time this button is pressed, the search mode
changes as follows:
DIRECT SEARCH
CATegory search
OFF
Note:
• When using channel search or preset search, press this
button to select the search off.
Category search
2. While displaying "CAT : ~ ", press the SELECT
• Category search allows you to select the desired
channel by the selected category.
1.
buttons to select the desired category,
then press the ENTER button.
In the XM mode, select the category search
mode.
• Each time the SELECT
buttons are pressed, one
of different categories is selected.
• When "CAT : ~ " disappears, repeat again from the
above step 1.
• "CAT : ~ " is displayed.
43
Continued
3. Select displaying the selected category, select the desired channel.
Presetting channels
Preset search
• You can store up to 30 preferred channels in the memory.
• In the XM mode, select the desired preset channel.
1. Select the desired channel with preforming
channel search, direct search or category search.
2. To memorize the channels, perform the steps 2 to
4 in "Manual presetting" procedure on page 41.
Displaying XM information
• You can display XM information such
as channel name, artist name, song title and signal strength.
• Each time the DISPLAY button is pressed, the display
mode changes as follows:
• In the XM mode,
Channel name
Artist name
Song title
Surround mode
Signal strength
Category
Note:
• If the information on artist name, song title or category is
not available, it will not be displayed correctly.
Signal strength display mode
• If the reception is poor, you can check the signal strength
of the XM radio signal and adjust the position of the XM
antenna until "SIGNAL : GOOD" is displayed.
Error message and status
• If an operation takes longer than usual or an error occurs, one of the following messages may be displayed.
Message
Status
CHECK ANTENNA
The XM antenna is not connected correctly. Check the antenna.
UPDATING
The XM user encryption code is being updated. Please wait.
NO SIGNAL
The signal is too weak. Check the antenna connection and reposition it for the best reception.
LOADING
This receiver is tuning or decoding audio or text data. Please wait.
OFF AIR
The selected XM channel is not currently broadcasting. Select another channel.
44
RECORDING
• The analog signals from the EXTERNAL INs as well as the digital signals from the HDMI IN, the OPTICAL or COAXIAL
DIGITAL IN can be heard but cannot be recorded.
• When recording the analog signals from CD, AUX, VIDEO 1~4, be sure to select "ANALOG" for the AUDIO MODE.
(For details, refer to "When selecting the AUDIO MODE" on page 58.)
• When recording the video signals from VIDEO 2~4, be sure to select "COMPOSITE" or "S-VIDEO" for the VIDEO MODE.
(For details, refer to "When selecting the VIDEO MODE" on page 57.)
• The volume and tone (bass, treble) settings have no effect on the recording signals.
Dubbing the audio and video signals
separately onto VIDEO 1
Recording with TAPE
1. Select the desired input as a recording source
Example: When dubbing the VIDEO 2 video signal and
the CD audio signal separately onto VIDEO 1.
except for TAPE.
1. Select VIDEO 2 as a video recording source.
2. Start recording on the TAPE.
2. Select CD as
3. Start play on the desired input.
an audio recording source.
Dubbing from video components onto
VIDEO 1
1. Select the desired of VIDEO 2 ~ 4 as a recording
source except VIDEO 1.
3. Start recording on the VIDEO 1.
4. Start play on the VIDEO 2 and the CD
respectively.
2. Start recording on the VIDEO 1.
• The audio signal from the CD and the video
signal from the VIDEO 2 will be dubbed and you
can enjoy them on the TV set and from the
speakers.
3. Start play on the desired input.
Note :
• Be sure to observe the order of the above steps 1
• The audio and video signals from the desired
input will be dubbed onto the VIDEO 1 and you
can enjoy them on the TV set and from the
speakers.
and 2.
45
DIGITAL AUDIO RECORDING WITH MD RECORDER
2. For digital recording, select the digital input as
• Only when the OPTICAL DIGITAL OUT of this
receiver is connected to the OPTICAL DIGITAL IN
of the MD recorder or CD recorder, you can enjoy
high-quality sound of digital recording
without converting the original signals. Refer to
"CONNECTING VIDEO COMPONENTS",
"CONNECTING AUDIO COMPONENTS" and
"CONNECTING DIGITAL INS AND OUT" on
pages 6 ~10 and the operating instructions of the MD
recorder or CD recorder.
Notes:
• Depending on the digital audio signal format
input into the HDMI IN connector, some digital
signals cannot be output from the OPTICAL
DIGITAL OUT jack.
• Digital recording is available for the digital audio
program sources such as CDs, MDs, some
DVDs, etc.
• There are some restrictions on recording digital
signals. When making digital recordings, refer to
the operating instructions of your digital
recording equipment to know what restrictions
are imposed.
1.
recording signal input.
Note :
• If the AUDIO MODE is set to the mode other than
"DIGITAL" for the corresponding recording source
on the INPUT SETUP menu, the digital audio
signals from the selected digital input will not be
output and there will be no recording. (For details,
refer to "When CD, AUX, VIDEO 1~ 4 is selected
as an input source" on page 32 and "When
selecting the AUDIO MODE" on page 58.)
Select the desired of CD, AUX, VIDEO 1~4 as a
recording source.
3. Start recording on the component connected to
the OPTICAL DIGITAL OUT.
4. Start play on the desired input.
In case of recording the digital audio signal
input into a HDMI IN connector
• Select the desired recording source to which the
HDMI IN is connected and assigned and then
perform the steps 3 and 4 (, but ignore the step 2).
Note :
• If the AUDIO MODE is set to the mode other than
"HDMI" for the corresponding recording source on
the INPUT SETUP menu, the digital audio signals
will not be output and there will be no recording.
(For details, refer to "When selecting the AUDIO
MODE" on page 58.)
46
OTHER FUNCTIONS
Operating the sleep timer
Displaying the audio information
• The sleep timer allows the system to continue to
operate for a specified period of time before
automatically shutting off.
• To set the receiver to automatically turn off after
the specified period of time.
• You can check the audio information on the input
source on your monitor TV.
Note :
• When the component video signals or the HDMI
video signals are input and these signals are
output from the MONITOR OUTs, the audio
information cannot be displayed.
• During playback,
• Each time this button is pressed, the sleep time
changes as follows:
10
20
30
---
90
OFF
Unit : minutes
• While operating the sleep timer, "
" lights up.
• When the sleep time is selected, the fluorescent
display is dimly lit.
• Depending on whether the input signal is digital
or analog signal, the corresponding information
is displayed for several seconds.
Adjusting the brightness of the
fluorescent display
Example : When playing the digital signals from
the Dolby Digital source.
• Each time this button is pressed, the brightness
of the fluorescent display changes as follows:
ON
dimmer
• When XM satellite radio function is available in
your country, for details on the XM information,
see "Displaying XM information" on page 44.
OFF
• In the display OFF mode, pressing any button will
cancel the display OFF mode for several seconds
to display the operation status.
47
ROOM 2 SOURCE PLAYBACK
• This function allows enjoying one source in the main room and playing another in a different room at the same time.
• When you connect the multi-room system kit to the IR IN jack of this receiver, you can control this receiver with not only the
universal remote control unit but also the ROOM 2 remote control unit in a different room, too. (For details, refer to
"CONNECTING MULTI-ROOM SYSTEM KIT" on page 14 and "ROOM 2 Remote Controls" on page 30.)
Notes:
• The analog signals from the EXTERNAL INs and the digital signals cannot be output to the different room, meaning no
playback in a different room.
• The HDMI video signals and the component video signals cannot be output to the different room, too.
• You cannot play the ROOM 2 source in any surround mode.
When using the buttons on the remote control unit
1. Turn on the ROOM 2 function.
When selecting the tuner as a ROOM 2 source
• Tune in the desired preset station using the ROOM
2 remote control.
• ROOM 2 ~ is displayed for several seconds.
• On the ROOM 2 remote control, press the ROOM 2 ON
( I ) button to enter the ROOM 2 ON mode or press the
ROOM 2 OFF ( ) button to enter the ROOM 2 OFF
mode.
• Each time the ROOM 2 button on the universal remote
control is pressed, the ROOM 2 mode changes as
follows :
ON : To turn on the ROOM 2 function.
("
" lights up.)
OFF : To turn it off. ("
" or "
"
goes off depending on the AMP ASSIGN setting.)
Note :
• When the ROOM 2 mode is set to OFF, you cannot
adjust the ROOM 2 volume and tone (bass and treble).
3. Adjust the ROOM 2 volume.
• You can adjust the volume on the power amplifier
assigned to "BACK
ROOM 2" or "ROOM 2" when
the ROOM 2 speaker terminals are connected to the
speakers in a different room. (For details, refer to "When
selecting the AMP ASSIGN" on page 52.)
• The MUTE button on the ROOM 2 remote control can be
available only when the ROOM 2 function is operating.
2. Select the desired input as a ROOM 2 source.
4.
• Each time the INPUT button on the universal
remote control is pressed, the ROOM 2 input
can be selected among MAIN source, TUNER,
CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4.
Adjust the tone (bass and treble) for ROOM 2
source.
• The tone level can be adjusted within the range
of -10 ~ +10 dB.
• In general, we recommend the bass and treble to
be adjusted to 0 dB (flat level).
• Extreme settings at high volume may damage
your speakers.
5.
48
Start play on the component related to the
ROOM 2 source.
Continued
When using the buttons on the front panel
1. Press the ROOM 2 button to enter the ROOM 2
3. Set the selected mode as desired.
mode.
• ROOM 2 ~ is displayed for several seconds. •
When the ROOM 2 setting mode disappears,
press the ROOM 2 button again.
2.
When selecting the ROOM 2 mode.
ON : To turn on the ROOM 2 function.
("
" lights up.)
" or "
"
OFF : To turn it off. ("
goes off depending on the AMP ASSIGN
setting.)
Select the desired mode while displaying the
ROOM 2 setting mode.
When selecting the ROOM 2 input.
• You can select the desired among MAIN source,
TUNER, CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4
as a ROOM 2 source.
When selecting the ROOM 2 volume.
• You can adjust the volume on the power amplifier
assigned to "BACK
ROOM 2" or "ROOM 2"
when the ROOM 2 speaker terminals are
connected to the speakers in a different room.
(For details, refer to "When selecting the AMP
ASSIGN" on page 52.)
• Each time these buttons are pressed, the mode
changes as follows :
ROOM 2 ~
: To turn on or off the ROOM 2
(ROOM 2 mode)
function.
INPUT ~
: To select the desired ROOM 2
(ROOM 2 input) source.
VOLUME ~
: To adjust the volume on the
(ROOM 2 volume) power amplifier assigned to
ROOM 2.
4. Start play on the component related to the
ROOM 2 source.
Note :
• When the ROOM 2 mode is set to OFF, the
ROOM 2 input and the ROOM 2 volume cannot be
selected.
Notes:
• When the EXTERNAL IN is selected as a main input, if the MAIN source is selected as a ROOM 2 input, no audio
signal can be heard in the different room (ROOM 2).
• Even when this receiver enters the standby mode, in such a case that "
" lights up still and the
POWER ON/STANDBY button lights up blue as it does in the operating mode, meaning only the ROOM 2
circuitry operates, the ROOM 2 source can be played independently.
• When you do not use the ROOM 2 function, turn off the ROOM 2 function to save electricity.
49
OSD Menu Settings
• The OSD (On-Screen Display) menu is a setting menu that is displayed on the monitor TV and allows you to perform the
setup procedures easily. In most situations, you will only need to set this once during the installation and layout of your home
theater, and it rarely needs to be changed later.
The OSD menu consists of 6 main menus ; system setup, input setup, speaker / room EQ setup, CH level setup,
sound parameter and multi room setup. These menus are then divided up into various sub-menus.
Note:
• When the component video signals or the HDMI video signals are input and these signals are output from the
MONITOR OUTs, the momentary OSD cannot be displayed.
Navigating through the OSD menu
• The explanations here assume you are using the buttons on the remote control when performing the OSD menu
operation. However, you can use the buttons on the front panel as well.
The buttons on the front panel correspond to those on the remote control as shown below.
1. Turn the menu screen on.
MULTI
• The main menu will be shown.
• To turn the menu screen off, press this button again.
2. Select the desired menu using the CURSOR UP(
)/DOWN(
50
) buttons.
3. Confirm your selection.
When selecting the SYSTEM SETUP
When selecting the INPUT SETUP
52
56
When selecting the SPEAKER /ROOM EQ SETUP
When selecting the CH LEVEL SETUP
61
67
When selecting the SOUND PARAMETER
When selecting the MULTI ROOM SETUP
69
73
• For the setting details, see page in
• Adjust the setting(s) in each setting category to your preference.
• When the SETUP button is pressed on a sub-menu, the menu screen will be turned off.
51
SETTING THE SYSTEM SETUP
• AMP ASSIGN : To assign the surround back channels' power
amplifier correctly depending on how to use the
speakers.
• SUBWOOFER MODE : To select the desired subwoofer mode.
• HDMI AUDIO OUT : To output the digital audio signals from the
HDMI MONITOR OUT connector.
• TONE CONTROL : To adjust the tone (bass and treble) as
desired.
• CINEMA EQ : To select the desired cinema EQ mode.
• MOMENTARY OSD : To turn on or off the OSD that shows the
status corresponding to each operation
momentarily.
• OSD POSITION ADJUST : To adjust the position of the
momentary OSD and the OSD menu.
When selecting the AMP ASSIGN
When selecting the items other than OSD
POSITION ADJUST
1. Press the CURSOR UP( )/DOWN(
• The surround back channels' power amplifier can
drive the surround back speakers, the ROOM 2
speakers or the front bi-amp capable speakers.
Depending on how to use the speakers, you
should assign the power amplifier correctly. (For
details, refer to "CONNECTING SPEAKERS" on
page 11 and "CONNECTING ROOM 2 OUTS" on
page 13.)
) buttons
to select the desired item.
BACK
ROOM 2 : When connecting this
receiver to the surround back
speakers and the ROOM 2 speakers
both, the power amplifier
automatically drives the surround
back speakers or the ROOM 2
speakers depending on whether the
ROOM 2 function is turned off or on.
BI - AMP : To drive the front bi-amp capable
speakers when connecting the FRONT
and the SURROUND BACK/MULTI
channels to them.
SURR BACK : To drive the surround back
speakers when connecting the
SURROUND BACK/MULTI
channels to them.
ROOM 2 : To drive the ROOM 2 speakers when
connecting the ROOM 2 channels to
them. ("
" lights up.)
2. Press the CURSOR LEFT( )/RIGHT( )
buttons to set the selected item as desired.
52
Continued
When selecting the SUBWOOFER MODE
• "SW PLUS " mode is valid only when "FRONT" and "CENTER" are set to "FULL RANGE" and
"SUBWOOFER" is set to "YES" on the SPEAKER/ROOM EQ SETUP menu. (For details, refer to "SETTING
THE SPEAKER/ ROOM EQ SETUP" on page 61.)
NORMAL : When the low frequency signals of channels set to "FULL RANGE " are reproduced from those
channels only. In this mode, the low frequency signals that are reproduced from the subwoofer
channel is only the low frequency signals of LFE (from the multi-channel sources that contains LFE
(Low Frequency Effects) channel, also called the ".1" channel) and the channels set to the setting value
other than "FULL RANGE".
SW PLUS : When the low frequency signals of channels set to "FULL RANGE" are reproduced
simultaneously from those channels and the subwoofer channel.
In this mode, the low frequency range expands more uniformly through the room, but depending on
the size and shape of the room, interference may result in a decrease of the actual volume of the low
frequency range.
When selecting the HDMI AUDIO OUT
• The HDMI connection can carry uncompressed digital video signals and digital audio signals.
Depending on whether the digital audio signals are output from the HDMI MONITOR OUT of this receiver or not,
you should set the HDMI AUDIO OUT correctly.
• Depending on the AUDIO MODE setting, when outputting the HDMI digital audio signals, the PCM 2 channel
digital audio signals are output from the HDMI MONITOR OUT regardless of the signal format of digital audio
signals input into the HDMI IN.
• This unit can convert the analog audio signals (which are input into the (analog) AUDIO INs) or the digital
audio signals (which are input into the OPTICAL or the COAXIAL DIGITAL IN) to the PCM 2 channel signals
and output them from the HDMI MONITOR OUT, too. (For details, refer to "When selecting the AUDIO MODE" on
page 58.)
OFF : Not to output the digital audio signals from the HDMI MONITOR OUT of this receiver, meaning these
signals are heard from the speakers connected to this receiver.
ON : To output PCM 2 channel digital audio signals depending on the AUDIO MODE setting, meaning these
signals are heard from the speakers of your TV.
Note:
• When the HDMI AUDIO OUT is set to ON, no sound will be heard from the speakers connected to this
receiver (except ROOM 2 speakers) even though any input source is selected.
When selecting the TONE CONTROL
OFF : To listen to a program source without the tone effect. ("TONE" goes off.) ON
: To adjust the tone for your taste. ("TONE" lights up.)
When the TONE CONTROL is set to ON to adjust the tone (bass and treble)
. Press the ENTER button to enter the tone adjustment mode.
53
Continued
. Press the CURSOR UP(
)/DOWN(
. Press the CURSOR LEFT( )/RIGHT(
) buttons to select the desired tone mode.
) buttons to adjust the selected tone as desired.
• The tone level can be adjusted within the range of -10 ~
+10 dB.
• In general, we recommend the bass and treble to be
adjusted to 0 dB (flat level).
• Extreme settings at high volume may damage your
speakers.
• To complete tone adjustment, repeat the above steps
and
When selecting the CINEMA EQ
OFF : To turn off the cinema EQ function. ("CINEMA-EQ" goes off.)
ON : To compensate for edgy or shrill movie sound tracks. ("CINEMA-EQ" lights up.)
When selecting the MOMENTARY OSD
ON : To turn on the OSD function that shows the status corresponding to each operation on this unit
momentarily.
OFF : To turn it off.
Note :
• When the component video signals or the HDMI video signals are input and these signals are output from the
MONITOR OUTs, the momentary OSD cannot be displayed.
54
When selecting the OSD POSITION ADJUST
• You can adjust the position of the momentary OSD and the OSD menu that are displayed on the monitor TV.
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the OSD POSITION ADJUST, then press the
ENTER button.
2. Press the CURSOR UP(
)/DOWN(
OSD and the OSD menu as desired.
)/LEFT(
)/RIGHT(
55
) buttons to adjust the position of the momentary
SETTING THE INPUT SETUP
• This menu allows you to make the various settings
depending on how to use the input sources connected to this
receiver.
When selecting the items other than NAME
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the desired input source, then press the ENTER
button.
Example: When selecting the VIDEO 1
When selecting the menu of page 2 or page 1.
• Press the CURSOR UP( )/DOWN( ) buttons to
select "GO TO NEXT ~ ", then press the ENTER
button.
2. Press the CURSOR UP(
)/DOWN(
) buttons to select the desired item.
Note :
• Depending on the input source, some items other than DC
TRIGGER cannot be selected.
3. Press the CURSOR LEFT(
)/RIGHT(
) buttons to set the selected item as desired.
56
Continued
When selecting the HDMI ASSIGN
• You should assign the connected HDMI INs to the desired of VIDEO 1 ~ VIDEO 4.
(For details, refer to "CONNECTING VIDEO COMPONENTS" on pages 6 ~ 8.)
• You can select the desired of HDMI 1 ~ HDMI 4.
Note :
• In such a case that a HDMI IN is assigned to two input sources or more, when these input sources are selected, the
uncompressed digital video signals (and digital audio signals when the HDMI AUDIO OUT is set to ON) input into the
same HDMI IN can be output from the HDMI MONITOR OUT of this receiver.
When selecting the VIDEO ASSIGN
• You should assign the connected COMPONENT VIDEO INs to the desired of VIDEO 1 ~ 4. (For
details, refer to "CONNECTING VIDEO COMPONENTS" on pages 6 ~ 8.)
• You can select the desired of COMP 1 ~ 3.
Note :
• In such a case that a COMPONENT VIDEO IN is assigned to two input sources or more, when these input
sources are selected, the component video signals can be viewed from the same COMPONENT VIDEO IN.
When selecting the VIDEO MODE
• You can select the video input signal to be output from the MONITOR OUTs.
AUTO : When there are multiple video input signals, the video input signals are detected and the video input signal
to be output from the MONITOR OUTs is selected automatically in the priority order of them :
"HDMI" > "COMPONENT" > "S-VIDEO" > "(composite) VIDEO"
HDMI : The signal that is input into the HDMI IN connector is always played. The HDMI video input signal is output
from the HDMI MONITOR OUT only with no video conversion.
COMPOSITE : The signal that is input into the (composite) VIDEO IN jack is always played.
The composite video signal is converted and output from the MONITOR OUTs.
S-VIDEO : The signal that is input into the S-VIDEO IN jack is always played.
The S-Video signal is converted and output from the MONITOR OUTs.
COMPONENT : The signals that are input into the COMPONENT IN jacks are always played.
The component video signals are converted and output from the MONITOR OUTs.
• For details on the video input signal to be output, refer to "Video conversion" on page 7.
Note :
• When the VIDEO MODE is set to "AUTO" and the HDMI video signals are input into the HDMI IN connector, the video
signals are output from the HDMI MONITOR OUT only.
When selecting the AUDIO ASSIGN
• You should assign the connected DIGITAL INs to the desired of CD, AUX and VIDEO 1 ~ VIDEO 4. (For
details, refer to "CONNECTING DIGITAL INS AND OUT" on page 10.)
• You can select the desired of OPT 1 ~ 4 and COAX 1 ~ 2.
Note :
• In such a case that a DIGITAL IN is assigned to two input sources or more, when these input sources are
selected, the digital audio signals can be heard from the same DIGITAL IN.
57
Continued
When selecting the AUDIO MODE
• You can select the desired audio input signal to be played.
Notes :
• Be sure to set the AUDIO MODE to the audio input which is connected and assigned to the selected input
source.
• When the HDMI AUDIO OUT is set to ON, no sound will be heard from the speakers connected to this receiver
(except ROOM 2 speakers).
• When the HDMI AUDIO OUT is set to ON to play the audio signal on your TV, depending on the AUDIO MODE
setting, this unit can convert the corresponding audio signal to the PCM 2 channel signals and output them from the
HDMI MONITOR OUT. (For details, refer to "Audio conversion" on page 8.)
• When the AUDIO MODE is set to HDMI, you should connect the HDMI INs and set the HDMI ASSIGN correctly. If not,
the "HDMI" indicator flickers on the unit's display and no sound will be heard.
• When the AUDIO MODE is set to DIGITAL, you should connect the DIGITAL INs and set the AUDIO ASSIGN
correctly. If not, the "DIG." indicator flickers on the unit's display and no sound will be heard.
AUTO : When there are multiple audio input signals, the audio input signals are detected and the audio input
signal to be played is selected automatically in the priority order of them :
HDMI audio > DIGITAL audio > ANALOG audio
HDMI : The signal that is input into the HDMI IN is always played.
DIGITAL : The signal that is input into the OPTICAL or the COAXIAL DIGITAL IN is always played.
ANALOG : The signal that is input into the analog AUDIO INs is always played.
When selecting the VIDEO SCALING
• Depending on the resolution compatible with your TV, you can set the resolution of video signals to be output from
the HDMI MONITOR OUT connector or the COMPONENT MONITOR OUT jacks. (For details on the resolution
compatible with your TV, refer to the operating instructions of your TV.)
• When the HDMI MONITOR OUT connector is connected to an HDMI-compatible TV, the TV reports to this unit
what resolutions it supports. Therefore, if you set the VIDEO SCALING to "AUTO", this unit outputs the video
signals of the highest resolution acceptable for your TV.
Notes :
• If the resolutions of the video signals which are output from the HDMI MONITOR OUT connector or the
COMPONENT MONITOR OUT jacks and your TV are not matched, the picture is not clear, natural or
displayed.
• Some of HDMI-compatible TVs may not report their resolution information. In this case, if you set the VIDEO
SCALING to "AUTO", the 480p video signals will be output from the HDMI MONITOR OUT connector.
• When the VIDEO MODE is set to "AUTO", "HDMI" or "COMPONENT", if 1080p video signals are input into the
HDMI IN or the COMPONENT INs, no video signals will be output from the HDMI or the COMPONENT
MONITOR OUTs regardless of VIDEO SCALING setting.
AUTO : To convert the video signals being input to the video signals of the highest resolution acceptable for TV
and to output them from the HDMI MONITOR OUT connector, and to output the video signals from the
COMPONENT MONITOR OUT jacks as they were input.
480P : To convert the video signals to 480p video signals and to output them from the HDMI MONITOR OUT
connector or the COMPONENT MONITOR OUT jacks.
720P : To convert the video signals to 720p video signals and to output them.
1080i : To convert the video signals to 1080i video signals and to output them.
1080P : To convert the video signals to 1080p video signals and to output them.
58
Continued
When selecting the AUTO SURROUND
• Depending on how to select a surround mode, you can select the auto surround mode or the manual
surround mode.
ON
: The optimum surround mode will be automatically selected depending on the signal
(Auto surround mode)
format being input.
OFF
(Manual surround mode)
: You can select the desired of different surround modes selectable for the signal being
input with using the MULTI CONTROL knob or the SURROUND MODE UP/DOWN
( >/< ) buttons. (For details, refer to "When selecting the manual surround mode with
pressing the SURROUND MODE button on the front panel" on page 36.)
Notes :
• Even when the auto surround mode is selected and the same type of digital signal format is being input, the
optimum surround mode may vary depending on whether the speaker type is set to "NO" or not.
• When the auto surround mode is selected, the surround modes other than the optimum surround mode
cannot be selected.
When selecting the AV SYNC
• There may be a slight time delay between the video and audio signals in case that some video playback
equipments may process the video signals later than the audio signals due to signal processing procedure,
etc.. Should this happen, you can adjust the time delay of audio signals to synchronize the sound with the
picture.
• The time delay can be adjusted within the range of 0 ~ 200 msec.
When selecting the DC TRIGGER
• To turn on the component connected to the DC TRIGGER OUT jack when this input source is selected, you
should set the DC TRIGGER to ON for this input source.
OFF : To turn off the DC trigger function.
ON: To turn it on.
• For details, refer to "CONNECTING DC TRIGGER OUT" on page 15.
When selecting the HD AUDIO
• When the source components that cannot support the HD audio signal format (such as Dolby Digital Plus,
Dolby TrueHD, DTS-HD High Resolution Audio, DTS-HD Master Audio, etc.) are connected to the HDMI IN of this
receiver, some components may not output any audio signals from its HDMI OUT.
In this case, you should set the HD AUDIO to OFF to play the audio signals other than the HD audio signals. (For
details on the audio signal format, refer to the operating instructions of the source component.)
ON : To play the audio signals (including the HD audio signals).
OFF : To play the audio signals other than the HD audio signals.
59
When selecting the NAME
• You can give names to the input sources other than
tuner.
• Up to 7 characters can be entered for each name.
3. Press the CURSOR LEFT( )/ RIGHT( )
buttons to select the desired digit.
1. Press the CURSOR UP(
)/DOWN( ) buttons
to select the desired input source, then press
the ENTER button.
• Then the selected digit will flicker.
4. Press the CURSOR UP( )/DOWN(
) buttons
to enter the desired character on the flickering
digit.
Example: When selecting the VIDEO 1
• You can enter the desired among blank, A ~ Z,
a ~ z, 0 ~ 9, (, ), , +, , , -, ., /.
2. Press the CURSOR UP( )/DOWN(
) buttons
to select the NAME, then press the ENTER
button.
5. Repeat the above steps 3 and 4 to enter the
desired characters on the rest of the digits.
6. Confirm your entry.
• The name is stored in the memory.
• The first digit flickers.
To resume its factory input source name.
• Make a blank on each digit and press the ENTER
button.
60
SETTING THE SPEAKER / ROOM EQ SETUP
• After you have installed this receiver and connected all the components, you should adjust the speaker
settings for the optimum sound acoustics according to your environment and speaker layout.
• Even when you change speakers, speaker positions, or the layout of your listening environment, you should
adjust the speaker settings, too.
• When performing the AUTO SETUP procedure, you need not perform the SPEAKER CONFIGURATION,
SPEAKER DISTANCE, SPEAKER CROSSOVER and CH LEVEL SETUP procedures.
• AUTO SETUP : To set the speaker setup and channel level setup
automatically.
• SPEAKER CONFIGURATION : To adjust the speakers depending on
whether they are connected or not.
• SPEAKER DISTANCE: To select the distance between the listening
position and each speaker to set the delay
time automatically for optimum surround
playback.
• SPEAKER CROSSOVER : To select the desired crossover
frequency.
• ROOM EQ SETUP : To select the desired room EQ mode.
When selecting the AUTO SETUP
• Auto Setup lets you avoid troublesome listening-based speaker setup and achieve good surround sound. Auto
Setup has the feature that provides the optimum listening environment at the listening position in your room, where
there are often multiple listeners viewing programs together.
You should connect the supplied microphone to the SETUP MIC jack so that this receiver can analyze the
information from a series of test tones emitted from speakers at main listening position and can adjust the
configuration, distance, sound level, crossover frequency and frequency response of each speaker
automatically.
• If you want to personalize your speaker setup and channel level setup by making the settings manually, perform the
"When selecting the SPEAKER CONFIGURATION" on page 63, "When selecting the SPEAKER
DISTANCE" on page 64, "When selecting the SPEAKER CROSSOVER" on page 65, "Adjusting each channel level
with test tone" on page 37 and "Adjusting the current channel level" on page 38.
• After the auto setup has been completed, set the room EQ as desired. (For details, refer to "When selecting the
ROOM EQ SETUP" on page 66.)
Preparations
. Check that the speakers are securely connected
to this receiver.
• If your subwoofer has adjustable volume and
crossover frequency, set the volume halfway
and set the crossover frequency to the
maximum or the low pass filter off.
. Connect the supplied microphone to the SETUP
MIC jack on the front panel.(For details, refer to
"SETUP MIC JACK" on page 17.)
Notes :
• Because the microphone for Auto Setup is designed
for use with this receiver, to use the auto setup
function, do not use a microphone other than the
one supplied with this receiver.
• After you have completed the auto setup procedure,
disconnect the microphone.
1. Place the microphone on a flat level surface at the listening position.
• If possible, use a tripod, etc. to attach the microphone at the same height as your ears would be when you are
seated in your listening position.
• Ensure there are no obstacles between the speakers and the microphone.
61
Continued
2. Press the CURSOR UP(
)/DOWN(
) buttons to select the AUTO SETUP, then press the ENTER button.
3. Press the CURSOR UP(
)/DOWN(
) buttons to select the START, then press the ENTER button.
When the auto setup has been completed.
• Loud test tones are output successively and then if a series of auto setup procedure has been completed,
"COMPLETED" will be displayed.
• To stop the auto setup procedure while performing it, press the ENTER button.
In such a case that the auto setup procedure is stopped before "COMPLETED" is displayed, the results of
each adjustment can not be memorized.
• If there may be a problem with speaker or microphone connection, error message will be displayed. In this case,
turn off the power, check the connection and then retry the auto setup procedure.
Notes :
• Because the test tones are loud, ensure there no infants or small children in the room.
• For best results, ensure the room is as quiet as possible during the auto setup procedure. If
there is too much ambient noise, the results may not be satisfactory.
4.
To memorize the results, press the CURSOR LEFT(
the ENTER button.
)/ RIGHT(
) buttons to select the APPLY, then press
• Then the results are memorized and the SPEAKER/
ROOM EQ SETUP menu is displayed.
• Each time the CURSOR LEFT( )/ RIGHT( ) buttons are
pressed, the APPLY or the CANCEL is selected.
• When the CANCEL is selected, the results are not
memorized.
• Check the results on each setup menu(SPEAKER CONFIGURATION menu on page 63, SPEAKER
DISTANCE menu on page 64, SPEAKER CROSSOVER menu on page 65 and CH LEVEL SETUP menu for
"CALIBRATE" mode on page 67).
• If the results are not satisfactory, you can retry the auto setup procedure or personalize your speaker setup
and channel level setup by making the settings manually. (For details, refer to "When selecting the
SPEAKER CONFIGURATION" on page 63, "When selecting the SPEAKER DISTANCE" on page 64, "When
selecting the SPEAKER CROSSOVER" on page 65, "Adjusting each channel level with test tone" on page 37 and
"Adjusting the current channel level" on page 38.)
62
Continued
When selecting the SPEAKER CONFIGURATION
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the SPEAKER CONFIGURATION, then press the
)/DOWN(
) buttons to select the desired speaker.
ENTER button.
2. Press the CURSOR UP(
3. Press the CURSOR LEFT(
)/ RIGHT(
buttons to set the selected speaker as desired.
YES/NO: Select the desired depending on whether the
speakers are connected or not.
2CH/1CH: Select the desired depending on the number of
speakers connected to SURROUND BACK/
MULTI channels.
Notes :
• When speakers are not set to "NO", you should set their distances from listening position and crossover
frequencies according to their frequency characteristics. (For details, refer to "When selecting the SPEAKER
DISTANCE" on page 64 and "When selecting the SPEAKER CROSSOVER" on page 65.)
• When the "SURROUND" is set to "NO", "BACK/MULTI" cannot be set to "2CH" or "1CH".
• When the surround back channels' power amplifier is assigned to "BI-AMP" or "ROOM 2", the "BACK/MULTI"
cannot be selected. (For details, refer to "When selecting the AMP ASSIGN" on page 52.)
4. Repeat the above steps 2 and 3 until the speakers are all set as desired.
63
When selecting the SPEAKER DISTANCE
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the SPEAKER DISTANCE, then press the ENTER
)/DOWN(
) buttons to select the desired item.
button.
2. Press the CURSOR UP(
Note :
• You cannot select the subwoofer and the speakers set
to "NO".
3. Press the CURSOR LEFT(
)/RIGHT(
) buttons to set the selected item as desired.
When selecting the desired unit
• You can select either METERS or FEET.
• Once a unit is selected, the distances are
automatically changed in the selected unit.
When setting the distance
• You can set the distance within the range of 0.1 ~ 9.0
meters in 0.1 meter intervals (or 0.5 ~ 30 feet in 0.5 feet
intervals).
4. Repeat the above steps 2 and 3 until
the distances are all set as desired.
About the speaker distance
When enjoying multi-channel surround playback with Dolby Digital and DTS sources, etc., it is ideal that the
center, surround and surround back speakers should be the same distance from the main listening position as
the front speakers. By entering the distance between the listening position and each speaker, the delay times of
center, surround and surround back speakers are automatically adjusted to create an ideal listening environment
virtually as if the center, surround and surround back speakers were at their ideal locations respectively.
64
When selecting the SPEAKER CROSSOVER
• Set the crossover frequency according to the frequency characteristics of the speakers connected.
(For details on the frequency characteristics, refer to the operating instructions of the speakers.)
• If the frequency range of your speaker is 100 Hz ~ 20 kHz, the crossover frequency should be set to 100 Hz (or
slightly higher).
• The low frequencies below the crossover frequency are to output from subwoofer or the speakers which are set
to "FULL RANGE" (when not using a subwoofer).
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the SPEAKER CROSSOVER, then press the
)/DOWN(
) buttons to select the desired speaker.
ENTER button.
2. Press the CURSOR UP(
Note :
• You cannot select the subwoofer and the speakers set
to "NO".
3. Press the CURSOR LEFT(
)/RIGHT(
) buttons to set the crossover frequency as desired.
• You can adjust the crossover frequency within the
range of 40 ~ 250 Hz.
• Select "FULL RANGE" when the selected speaker
can fully reproduce the low frequencies below 40 Hz.
4. Repeat the above steps
2 and 3 until the crossover frequencies are all set as desired.
65
When selecting the ROOM EQ SETUP
• The room EQ is a kind of room equalizer for your speakers. According to the acoustic characteristics of your
room measured by the auto setup, the room EQ automatically adjusts the frequency response of your
speakers.
• If you use different brands or sizes of speakers for some channels or have a room with unique acoustic
characteristics, such as walls, furniture, and the dimensions or the shape of the room, we recommend using the
room EQ.
Note :
• To use the room EQ, first you should finish measuring the acoustic characteristics of your room performing the
auto setup.
(For details, refer to "When selecting the AUTO SETUP" on page 61.)
1.
Press the CURSOR UP(
button.
2. Press the CURSOR LEFT(
)/DOWN(
)/RIGHT(
) buttons to select the ROOM EQ SETUP, then press the ENTER
) buttons to select the desired room EQ mode.
OFF : When turning off the room EQ.
ON : To adjust the frequency response of all speakers to
the flattest response.
66
SETTING THE CH LEVEL SETUP
Memory mode
Note :
• Depending on the speaker settings("NO", etc.),
some channels cannot be selected.
Adjusting the current channel level
• You can adjust the current channel levels as desired. These adjusted levels are just memorized into user’s
memory("CALIBRATE"), not into preset memory("REFERENCE 1", "REFERENCE 2").
• After adjusting each channel level with test tone, adjust the channel levels either according to the program
sources or to suit your tastes.(For details, refer to "Adjusting each channel level with test tone" on page 37.)
1. Press the CURSOR UP(
)/DOWN(
When adjusting the LFE LEVEL
Press the CURSOR UP( )/DOWN(
button.
Press the CURSOR UP( )/DOWN(
2. Press the CURSOR LEFT( )/RIGHT(
) buttons to select the desired channel.
) buttons to select the LFE LEVEL SETUP, then press the ENTER
) buttons to select the desired program source.
) buttons to adjust the level of the selected channel or program
source's LFE as desired.
• The LFE level can be adjusted within the range of -10
~ 0 dB and other channel levels within the range of -15
~ +15 dB
• In general, we recommend the LFE level to be
adjusted to 0 dB.(However, the recommended
LFE level for some early DTS software is -10 dB.) If
the recommended levels seem too high, lower setting
as necessary.
3. Repeat the above steps
1 and 2 to adjust each channel level.
67
Memorizing the adjusted channel levels
• You can memorize the adjusted channel levels into preset memory("REFERENCE 1", "REFERENCE 2") and
recall the memorized whenever you want.
1. After performing the steps 1~3 in "Adjusting the current channel level" procedure on page 67, press the
CURSOR UP( )/DOWN( ) buttons to select a channel (, not the MODE (memory mode) and the LFE
LEVEL SETUP), then press the ENTER button.
• The "REFERENCE 1" indication flickers.
2.
Press the CURSOR LEFT(
ENTER button.
)/RIGHT(
) buttons to select the desired preset memory, then press the
• Each time the CURSOR LEFT( ) or RIGHT( )
button is pressed, "REFERENCE 1" or
"REFERENCE 2" is selected.
• The adjusted channel levels have now been
memorized into the selected memory.
Recalling the memorized channel levels
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the MODE(memory mode).
• "CALIBRATE" may be displayed instead of
"REFERENCE 1" or "REFERENCE 2".
2. Press the CURSOR
LEFT(
)/RIGHT(
) buttons to select the desired one of REFERENCE 1 and
REFERENCE 2.
• Then the channel levels memorized into the
selected preset memory are recalled.
68
SETTING THE SOUND PARAMETER
• NIGHT MODE : To adjust the dynamic range compression that
makes faint sound easier to hear at low volume
levels.
• DOLBY PLII MUSIC : To adjust the various surround
parameters for optimum surround effect.
• DOLBY HEADPHONE : To select the desired listening mode for
Dolby Headphone mode.
• DOLBY VIRTUAL SPEAKER : To select the speaker layout to be
used actually for each Dolby
Virtual Speaker mode.
When selecting the NIGHT MODE
• This function compresses the dynamic range of previously specified parts of the Dolby Digital sound track
(with extremely high volume) to minimize the difference in volume between the specified and non-specified
parts.
This makes it easy to hear all of the sound track when watching movies at night at low levels.
Notes:
• The night mode setting is valid only when the digital signals from the Dolby Digital program source are being
input.
• In some Dolby Digital softwares, the night mode setting may not be valid.
1. Press the CURSOR UP(
2. Press the CURSOR LEFT(
)/DOWN(
) buttons to select the NIGHT MODE, then press the ENTER button.
)/ RIGHT(
) buttons to adjust the dynamic range compression as desired.
0.0 (OFF)
0.1
Lower compression
0.2
:
:
:
0.9
Higher compression
1.0 (MAX)
69
When selecting the DOLBY PLII MUSIC
• You can adjust the various surround parameters for optimum surround effect.
Note:
• The parameter settings are valid only when listening in either Dolby Pro Logic II Music mode or the Dolby Pro
Logic IIx Music mode.
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the DOLBY PLII MUSIC, then press the ENTER
)/DOWN(
) buttons to select the desired parameter.
button.
2. Press the CURSOR UP(
3. Press the CURSOR LEFT(
)/ RIGHT(
) buttons to adjust the selected parameter as desired.
When selecting the PANORAMA mode
This mode extends the front stereo image to include the
surround speakers for an exciting "wraparound" effect with
side wall imaging. Select "OFF" or "ON"(default value:OFF).
When selecting the CENTER WIDTH control
This adjusts the center image so it may be heard only from the
center speaker, only from the left/right speakers as a
phantom image, or from all three front speakers to varying
degrees. The control can be set in 8 steps from 0 to 7
(default value : 3).
When selecting the DIMENSION control
This gradually adjusts the soundfield either towards the
front or towards the rear. The control can be set in 7 steps
from -3 to +3(default value : 0).
4. Repeat the above steps 2 and 3 to adjust other parameters.
70
When selecting the DOLBY HEADPHONE
• You can select the desired listening mode for Dolby Headphone mode.
Note:
• The listening mode setting is valid only when playing analog stereo, PCM 2 channel or Dolby Digital 2
channel source.
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the DOLBY HEADPHONE, then press the ENTER
button.
2. Press the CURSOR LEFT(
)/ RIGHT(
) buttons to select the desired listening mode.
MOVIE : This provides the surround effect suitable for movie
sources.
MUSIC 1 : This provides the surround effect suitable for
music sources.
MUSIC 2 : This provides less surround effect compared to
MUSIC 1 mode.
71
When selecting the DOLBY VIRTUAL SPEAKER
• You can select the speaker layout to be used actually for each Dolby Virtual Speaker mode.
Note:
• The speaker layout settings are valid only when listening in a Dolby Virtual Speaker mode.
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the DOLBY VIRTUAL SPEAKER, then press the
)/DOWN(
) buttons to select the desired Dolby Virtual Speaker mode.
ENTER button.
2. Press the CURSOR UP(
3. Press the CURSOR LEFT(
)/RIGHT(
) buttons to select the desired speaker layout.
When selecting the Dolby Virtual Speaker Reference mode
2 SPK : When using 2 front speakers only.
3 SPK : When using 2 front and center speakers.
When selecting the Dolby Virtual Speaker Wide mode
2 SPK : When using 2 front speakers only.
3 SPK : When using 2 front and center speakers.
4 SPK : When using 2 front and 2 surround speakers.
5 SPK : When using 2 front, center and 2 surround speakers.
Note:
• When the speakers are set to "NO", the corresponding speaker layouts cannot be selected.
4. Repeat the above steps 2 and 3 to select
the desired speaker layout for another Dolby Virtual Speaker
mode.
72
SETTING THE MULTI ROOM SETUP
• The ROOM 2 function allows enjoying one source in the main room while playing another in a different
room at the same time.
• ROOM 2 : To turn on or off the ROOM 2 function.
• INPUT : To select the desired ROOM 2 source.
• VOLUME : To adjust the volume on the power
amplifier assigned to "BACK
ROOM 2"
or "ROOM 2".
• BASS and TREBLE : To adjust the tone (bass and treble)
of ROOM 2 source as desired.
Notes:
• The analog signals from the EXTERNAL INs and the digital signals cannot be output to the different room,
meaning no playback in a different room.
• You cannot play the ROOM 2 source in any surround mode.
1. Press the CURSOR UP(
)/DOWN(
) buttons to select the desired item.
Note:
• The VOLUME setting is invalid when the AMP ASSIGN is
assigned to "BI-AMP" or "SURR BACK".
(For details, refer to "When selecting the AMP ASSIGN" on
page 52.)
2. Press the CURSOR LEFT(
)/RIGHT(
) buttons to set the selected item as desired.
73
Continued
When selecting the ROOM 2
OFF : To turn off the ROOM 2 function.
ON : To turn it on.
Notes:
• When the ROOM 2 is set to OFF, the INPUT, the VOLUME, the BASS and the TREBLE cannot be selected.
• When you do not use the ROOM 2 function, set the ROOM 2 to OFF to save electricity.
When selecting the INPUT
• You can select the desired among MAIN source, TUNER, CD, AUX, TAPE, VIDEO 1 ~ VIDEO 4 as a
ROOM 2 source.
Note:
• When the EXTERNAL IN is selected as a main input, if the MAIN source is selected as a ROOM 2 input, no
audio signal can be heard in the different room (ROOM 2).
When selecting the VOLUME
• You can adjust the volume on the power amplifier assigned to "BACK
ROOM 2" or "ROOM 2" when
the ROOM 2 speaker terminals are connected to the speakers in a different room.
Note:
• You can adjust the VOLUME only when the surround back channels' power amplifier is assigned to "BACK
ROOM 2" or "ROOM 2". (For details, refer to "When selecting the AMP ASSIGN" on page 52.)
When adjusting the tone (BASS and TREBLE)
1. Press the CURSOR UP(
)/DOWN(
2. Press the CURSOR LEFT(
)/RIGHT(
) buttons to select the desired tone mode.
) buttons to adjust the selected tone as desired.
• The tone level can be adjusted within the range of -10 ~ +10
dB.
• In general, we recommend the bass and treble to be
adjusted to 0 dB (flat level).
• Extreme settings at high volume may damage your
speakers.
• To complete tone adjustment, repeat the above steps 1
and 2.
74
Troubleshooting Guide
If a fault occurs, run through the table below before taking your receiver for repair.
If the fault persists, attempt to solve it by switching the receiver off and on again. If this fails to resolve the situation, consult your dealer.
Under no circumstances should you attempt to repair the receiver yourself. This could void the warranty.
PROBLEM
POSSIBLE CAUSE
REMEDY
No power
• The AC input cord is disconnected.
• Poor connection at AC wall outlet or the outlet is
dead or off.
• Connect cord securely.
• Check the outlet using a lamp or another
appliance.
No sound
• The speaker wires are disconnected.
• The master volume is adjusted too low.
• The MUTE button is pressed to ON.
• Incorrect selection of input source.
• Incorrect connections between the components.
• The HDMI AUDIO OUT is set to ON.
• Check the speaker connections.
• Adjust the master volume.
• Press the MUTE button to cancel the muting effect.
• Select the desired input source correctly.
• Make connections correctly.
• Set it to OFF. (For details, refer to "When
selecting the HDMI AUDIO OUT" on page 53.)
• Set the settings correctly. (For details, refer to
"SETTING THE INPUT SETUP" on page 56.)
• The settings related to audio are set incorrectly.
No sound from the surround
speakers
• Surround mode is switched off(stereo mode).
• Master volume and surround level are too low.
• Monaural source is used.
• Surround speaker setting is "NO".
• Select a surround mode.
• Adjust master volume and surround level.
• Select a stereo or surround source.
• Select the desired surround speaker setting.
No sound from the center
speaker
• Dolby Virtual Speaker, stereo mode, etc is
selected.
• Center speaker setting is "NO".
• Master volume and center level are too low.
• Select the desired surround mode.
No sound from the surround back
speakers
• The input signal format or the current surround
mode cannot support the 7.1(or 6.1) surround.
• The surround back channels' power amplifier is
assigned to "BI-AMP" or "ROOM 2".
• Master volume and surround back level are too low.
• Surround back speaker setting is "NO".
No picture
• Video connections between this unit and the
monitor TV are not made correctly.
• Incorrect selection of input source on the monitor
TV.
• The settings related to video are set incorrectly.
• Select the desired center speaker setting.
• Adjust master volume and center level.
• Under the proper situations, perform the 7.1(or
6.1) surround playback.(For details, refer to
"ENJOYING SURROUND SOUND" on page 36.)
• Assign the power amplifier to the surround back
channels.(For details, refer to "When selecting
the AMP ASSIGN"on page 52.)
• Adjust master volume and surround back level.
• Select the desired surround back speaker setting.
• Make proper video connections.
• Select the input source correctly.
• Set the settings correctly. (For details, refer to
"SETTING THE INPUT SETUP" on page 56.)
• HDMI connection between this unit and the
monitor TV are not made correctly.
• The monitor TV or other equipments do not
support HDCP.
• Make proper HDMI connection.
Noise or distorted picture
• Video format of your monitor TV, DVD player, etc.
is different from NTSC.
• Change the video format to NTSC.
Stations cannot be received
• No antenna is connected.
• The desired station frequency is not tuned in.
• Antenna is in wrong position.
• Connect an antenna.
• Tune in the desired station frequency.
• Move antenna and retry tuning.
Preset stations cannot be
received
• An incorrect station frequency has been memorized.
• The memorized stations are cleared.
• Memorize the correct station frequency.
• Memorize the stations again.
Poor FM reception
• No antenna is connected.
• The antenna is not positioned for the best reception.
• Weak signals.
• Connect an antenna.
• Change the position of the antenna.
• Install an outdoor FM antenna.
Continuous or intermittent hissing
noise during AM reception,
especially at night.
• Noise is caused by motors, fluorescent lamps or
lightning, etc.
• Keep the receiver away from noise sources.
Remote control unit does not
operate.
• Batteries are not loaded or exhausted.
• The remote sensor is obstructed.
• Replace the batteries.
• Remove the obstacle.
OSD function is not available.
• Video connections between this unit and the
monitor TV are not made correctly.
• Make proper video connections.
No picture with an HDMI
connection
• This unit will not output video signal unless the
connected equipments supports HDCP.
• Install an outdoor AM antenna.
75
Specifications
AMPLIFIER SECTION
• Power output, stereo mode, 8 Ω, THD 1.0 %, 40 Hz~20 kHz
| 2 100 W
• Total harmonic distortion, 8 Ω, 95 W, 1 kHz
| 0.05%
• Intermodulation distortion
60 Hz : 7 kHz= 4 : 1 SMPTE, 8 Ω, 95 W
| 0.1%
• Input sensitivity/impedance
Line (CD, TAPE, VIDEO)
| 230 mV/47kΩ
• Signal to noise ratio, IHF "A" weighted
Line (CD, TAPE, VIDEO)
| 95 dB
• Frequency response
Line (CD, TAPE, VIDEO), 20 Hz ~ 55 kHz
| +0, -3 dB
• Output level
TAPE, ROOM 2 OUT, 2.2 kΩ
| 200 mV
PREOUT (Front, Center, Surround, Surround back, Subwoofer), 1 kΩ
|
• Bass/Treble control, 100 Hz/10 kHz
| ±10 dB
• Surround mode, only channel driven
Front power output, 8 Ω, 1 kHz, THD 1.0 %
| 110 W / 110W
Center power output, 8 Ω, 1 kHz, THD 1.0 %
| 110 W
Surround power output, 8 Ω, 1 kHz, THD 1.0 %
| 110 W / 110W
Surround back (/MULTI) / ROOM 2 power output, 8 Ω, 1 kHz, THD 1.0 %
1.0 V
| 110 W / 110W
DIGITAL AUDIO SECTION
• Sampling frequency
| 32, 44.1, 48, 96, 192 kHz
• Digital input level
Coaxial, 75 Ω
| 0.5 Vp-p
Optical, 660 nm
| -15 ~ -21 dBm
VIDEO SECTION
• Video format
| NTSC
• Input sensitivity(=Output level), 75 Ω
Video (Composite(normal))
|
S-Video (luminance signal)
|
(chrominance signal)
Component video (R-Y signal)
(B-Y signal)
(Y signal)
• HDMI connector
| 19 pin
1 Vp-p
1 Vp-p
| 0.286 Vp-p
| 0.53 Vp-p
| 0.53 Vp-p
| 1.0 Vp-p
FM TUNER SECTION
• Tuning frequency range
| 87.5~108 MHz
• Usable sensitivity, THD 3%, S/N 30 dB
| 12.8 dBf
• 50 dB quieting sensitivity, mono/stereo
| 20.2 / 45.3 dBf
• Signal to noise ratio, 65 dBf, mono/stereo
| 70 / 65 dB
• Total harmonic distortion, 65 dBf,1 kHz, mono/stereo
| 0.5 / 0.8 %
• Frequency response, 30 Hz~15 kHz
| ±3 dB
• Stereo separation, 1 kHz
| 32 dB
• Capture ratio
| 4.0 dB
• IF rejection ratio
| 60 dB
AM TUNER SECTION
• Tuning frequency range
| 520~1710 kHz
• Usable sensitivity
| 500 µV/m
• Signal to noise ratio
| 40 dB
• Selectivity
| 25 dB
RF REMOTE SECTION
• Operating frequency
| 2.433 GHz
100 kHz
• RF range | 15 ~ 30 meters (50 ~ 100 feet), depending on the environment
• Sensitivity
| Min. -90 dBm
GENERAL
• Power supply
| 120 V ~ 60 Hz
• Power consumption
| 5A
• Switched AC outlets
| TOTAL 120 W (1 A) max.
• Dimensions (W H D, including protruding parts)
|
• Weight (Net)
| 15.1 kg (33.1 Ibs)
440
171
421 mm(17-3/8
Note: Design and specifications are subject to change without notice for improvements.
76
6-3/4
16-1/2 inches)
Setup Code Table
TV
AOC
005
003
Goldstar
005
025
Admiral
041
031
Gradiente
009
011
Aiko
014
Grunpy
027
026
Akai
005
Hallmark
025
Alaron
026
Harley Davidson
026
Ambassador
024
Harman/Kardon
010
America Action
027
Havard
027
Ampro
043
Hitachi
016
Anam
027
047
048
049
Infinity
010
Audiovox
030
027
014
034
Inteq
002
Baysonic
027
JBL
010
Belcor
003
JCB
050
Bell & Howell
019
JVC
009
Bradford
027
KEC
027
Brockwood
003
KTV
027
005
Broksonic
028
Kenwood
005
003
CXC
027
Candle
005
Carnivale
001
031
LG
011
LXI
007
005
Logik
001
Carver
010
Luxman
011
Celebrity
050
MGA
Cineral
030
014
MTC
Citizen
012
005
Concerto
Contec
011
011
003
011
018
046
006
010
019
020
017
005
025
003
012
005
003
011
Magnavox
010
005
026
011
Majestic
001
027
Marantz
010
Craig
027
Matsushita
042
Crosley
010
Magatron
025
016
Crown
027
006
Memorex
019
042
031
017
025
Curtis Mathes
007
012
010
005
019
016
008
011
Midland
001
007
002
008
006
015
022
032
038
040
Minutz
004
Daewoo
030
003
006
014
Mitsubishi
041
017
025
003
Daytron
003
Motorola
041
Denon
016
Multitech
027
Dumont
002
003
NAD
020
025
022
Dwin
044
036
NEC
005
003
011
Electroband
050
NTC
014
Emerson
019
028
031
027
029
025
Nikko
005
025
014
003
026
006
024
034
035
Onwa
027
022
011
006
014
030
001
034
041
006
035
025
005
011
Envision
005
Optimus
019
042
Fisher
019
Optonica
041
021
Fujitsu
026
Orion
028
031
Funai
027
Panasonic
008
042
Futuretech
027
Penney
007
020
008
012
005
025
GE
004
003
011
006
015
040
Pilco
010
031
005
016
003
Philips
010
Gibralter
026
023
007
008
030
041
004
015
038
040
002
005
003
029
025
77
026
Pilot
005
Pioneer
022
Portland
003
Prism
008
Proscan
007
Proton
025
032
Pulsar
002
003
Quasar
008
042
021
RCA
007
008
041
003
037
038
039
040
007
019
021
027
003
011
006
027
Radio Shack
Realistic
Runco
003
006
006
Vidtech
025
003
Wards
010
021
005
026
011
001
White Westinghouse
031
034
035
Yamaha
005
003
Zenith
002
031
Admiral
027
021
Adventura
000
014
015
005
025
025
021
011
006
003
Aiko
025
005
Aiwa
005
026
033
SSS
027
003
Sampo
005
006
America Action
025
005
America High
004
006
Asha
023
030
Audiovox
005
031
Beaumark
023
019
Bell & Howell
017
003
Brocksonic
021
025
Broksonic
020
018
Scott
028
027
025
003
026
CCE
015
025
Sears
007
010
019
020
025
Calix
005
Canon
004
027
Carver
016
020
Cineral
025
041
Citizen
005
015
Samsux
Sansei
Sansui
Sanyo
Scimitsu
Scotch
012
011
Semivox
Semp
Sharp
025
003
011
045
026
023
021
014
021
001
006
025
Sherwood
000
Colt
Shogun
003
Craig
005
012
023
015
Signature
001
Curtis Mathes
013
004
026
028
Sony
050
Cybernex
023
027
Daewoo
010
008
000
018
027
023
Soundesign
025
026
Squareview
023
Denon
Starlite
027
Dynatech
000
050
Electrohome
005
010
Electrophonic
005
023
Emerex
002
025
Emerson
Supreme
Sylvania
Symphonic
005
005
020
025
Fisher
012
017
026
Fuji
004
003
008
010
Funai
000
GE
013
Garrard
000
011
GoldStar
005
Toshiba
019
Gradiente
000
Totevision
006
HI-Q
012
005
Harley Davidson
000
009
Harman/Kardon
016
010
Harwood
015
Tandy
041
Technics
008
Technoi Ace
Techwood
Teknika
011
Telefunken
Vector Research
Victor
Vidikron
011
024
042
011
027
001
020
017
006
012
003
026
014
012
78
024
025
001
TMK
003
000
Akai
Samsung
001
004
VCR
019
002
005
013
025
004
006
006
009
021
Headquarter
011
Hitachi
000
008
Realistic
JVC
014
026
Jensen
026
KEC
005
KLH
015
Kenwood
014
026
Kodak
004
005
LXI
Lloyd’s
Logik
015
026
004
005
027
033
012
000
024
017
011
Runco
007
STS
008
Samsung
023
010
Sanky
027
007
Sansui
000
014
021
026
Sanyo
012
023
017
011
005
Scott
020
010
018
009
000
Sears
004
005
012
000
025
006
008
017
016
023
011
MEI
004
MGA
023
MGN Technology
023
MTC
023
Magnasonic
025
Magnavox
004
Magnin
023
Marantz
004
Marta
005
Matsushita
004
028
029
Memorex
004
005
027
007
012
000
017
021
011
031
Semp
010
Sharp
027
Shintom
015
Shogun
023
Singer
015
Sony
004
002
000
003
Syvania
004
016
000
009
Symphonic
000
TMK
023
Tatung
026
023
Teac
000
026
032
Technics
004
028
Teknika
004
005
Thomas
000
009
000
007
016
000
019
016
Minolta
008
Mitsubishi
027
014
Motorola
004
016
Toshiba
010
009
Multitech
000
015
Totevision
005
023
NEC
017
014
Unitech
023
Nikko
005
Vector
010
Noblex
023
Vector Research
006
Olympus
004
Video Concepts
010
Opimus
005
027
Videosonic
023
031
032
Orion
020
021
001
Panasonic
004
028
022
029
Penny
004
005
023
008
Pentax
008
Philco
004
021
Philips
004
016
Pilot
005
Pioneer
014
Profitronic
023
009
026
017
006
028
029
030
000
Wards
013
004
027
012
019
White WestingHouse
008
025
015
031
000
021
006
XR-100
004
000
015
Yamaha
006
Zenith
007
000
021
003
VCR - TV/VCR
Proscan
013
Protec
015
Pulsar
Quarter
007
011
Quartz
011
Quasar
004
028
029
031
RCA
013
004
027
023
Radio Shack
000
Radix
005
Randex
005
008
019
Ameira High
004 (TV use 008)
Brocksonic
001
Colt
015
Cutis Mathes
004 (TV use 008)
Daewoo
025
Emerson
001
Funai
000
GE
004 (TV use 008) 013 (TV use 007)
027 (TV use 041) 023
Hitachi
79
004 (TV use 008) 000
HQ
000
Lloyds
000
MGA
023
Megavox
016 (TV use 010) 004 (TV use 008)
Magnin
CBL
002
003
009
030
006
008
000
ABC
037
107
036
059
062
066
023
072
038
040
047
Memorex
005
Adelphia
063
085
Mitsubishi
027 (TV use 041)
Allegro
018
021
Orion
001
Altrio
063
Panasonic
004 (TV use 008) 028 (TV use 042)
Americast
103
Penney
004 (TV use 008) 023
Archer
018
028 (TV use 042)
Armstrong
085
Quasar
004 (TV use 008) 028 (TV use 042)
AT&T Broadband
085
RCA
013 (TV use 007) 004 (TV use 008)
Atlantic Broadband
063
027 (TV use 041)
Bell South
103
Sansui
000
Bell&Howell
009
Sanyo
023
Blue Ridge
063
Sear
000
Bresnan
085
Sharp
027 (TV use 041)
Bright House
063
Sony
002 (TV use 050)
Buckeye Comm
085
Symphonic
000
Cablevision
063
Zenith
000
Centurion
096
Century
018
040
Charter
063
085
Citizen
018
021
Cogeco
085
Combano
089
090
015
Comcast
063
085
Harman/Kardon
009
Comsat
085
JVC
008
Comtronics
014
005
Contec
011
024
Cox Digital
063
Mitsubishi
001
Digicable
105
Onkyo
024
Eagle
050
052
060
013
Eastern
001
076
081
Philips
024
006
Echostar
110
Pioneer
003
014
Electricord
054
002
Emerson
026
002
Everquest
010
Samsung
017
Focus
022
Sherwood
001
Garrard
018
Gemini
010
041
073
General Electric
084
033
032
006
034
085
107
004
013
068
069
028 (TV use 042)
005
DVD
Apex
Kenwood
Megavox
Panasonic
Proscan
RCA
018
Sony
004
Technics
013
023
019
026
012
020
011
021
000
016
022
General Instrument
014
Toshiba
024
GNC
013
007
Golden Channel
052
010
GoldStar
017
Goodmind
026
Zenith
024
085
085
114
085
112
040
114
085
014
108
Theta Digital
Yamaha
026
Hamlin
103
012
074
80
014
020
107
074
Hitachi
006
Insight
085
Stargate
010
014
Jasco
010
018
021
Starquest
010
Jerrold
002
007
033
032
009
010
Susquehanna
063
006
034
035
036
037
041
Teleview
014
Time Warner
063
085
Tocom
007
008
071
026
041
052
059
060
075
101
108
085
042
043
082
085
107
Magnavox
043
045
080
088
099
Massillon
085
Toshiba
000
Media One
111
Tusa
010
Medicom
074
TV86
015
Memorex
000
Unika
018
Mitsubishi
106
United Cable
037
072
Motorola
085
114
113
Universal
018
019
038
040
047
054
Movie Time
015
028
054
Moxi
106
Videotron
Nctc
085
Viewstar
048
049
092
093
NSC
015
048
051
058
Oak
011
053
057
072
Optimus
031
097
104
Pace
063
085
Panasonic
000
016
Paragon
000
071
Philips
018
036
047
048
038
019
098
071
106
056
015
045
094
095
Wide Open West
063
103
Zenith
000
024
071
078
Zentek
022
024
049
050
083
031
064
067
039
045
046
050
091
017
025
063
107
055
070
079
086
109
063
SAT
099
Pioneer
AlphaStar
008
Cablevision/voom
031
Popular Mechanics
022
Chaparral
001
Prucer
077
Directv
053
Pulsar
000
Echostar/dish
009
Quasar
000
Expreevu
009
RCA
031
067
Radio Shack
010
021
Recoton
022
102
Regal
012
020
Regency
001
076
Rembrandt
006
Rodgers
063
Hughes
Runco
000
Samsung
017
014
052
Scientific Atlanta
003
023
030
027
063
036
061
062
065
066
071
026
068
028
069
044
Expressvu
024
General Electric
033
021
032
General Instrument
016
015
018
Goi
024
Hitachi
011
028
029
HTS
009
024
043
044
022
023
Hughes Net.Sys
007
JVC
009
024
Jerrold
016
015
019
031
Seren
063
LG
052
Service Electric
085
Magnavox
027
Shaw
085
Megavox
006
Sherwood
000
Memorex
006
Sigecom
063
Mitsubishi
019
Signal
010
Motorola
031
Signature
006
Next Level
018
031
SL Marx
014
Panasonic
017
030
042
Sony
100
112
Pansat
027
Sprucer
031
067
087
006
005
034
035
Starcom
002
010
035
036
027
022
023
014
Philips
037
041
042
81
005
036
AUX-CD AMP
Primestar
016
015
Proscan
033
021
Radio Shack
018
031
RCA
003
000
Realistic
014
RSA
033
021
032
Samsung
025
037
045
Sherwood
000
SKY
046
Sony
004
020
Star Choice
018
031
Toshiba
010
026
019
036
Uniden
006
005
014
027
Zenith
013
041
032
002
012
051
054
039
040
AUX-MD
Sherwood
035 (for Mini Disc)
Aiwa
030
Carver
023
Curtis Mathes
027
Denon
037
Harman/Kardon
040
Linn
023
Megavox
023
Marantz
023
Panasonic
039
Philips
023
040
Pioneer
003
027
Sony
019
033
Technics
039
Wards
003
Yamaha
028
AUX-HOME AUTOMATION
AUX-LD
GE
043
Lutron
044
One For All
042
Denon
007
Radio Shack
043
Mitsubishi
007
Security System
042
NAD
007
Universal X10
042
Pioneer
007
X10
042
Sony
017
018
AUX-DBS
AUX-TAPE
Aiwa
004
Carver
004
Harman/Kardon
016
JVC
022
Kenwood
008
Megavox
Marantz
Onkyo
034
004
024
004
004
012
Opimus
002
Panasonic
038
Pioneer
002
Sansui
004
Sherwood
000
Sony
021
Technics
038
Victor
024
Wards
002
Yamaha
010
025
020
019
011
014
026
Aiwa
045
Fisher
005
Harman/Kardon
046
JBL
046
JVC
047
Jerrold
031
RCA
006
Scientific Artlanta
032
Sony
045
Starcom
031
029
AUX-VIDEO ACCESSORY
009
82
Archer
013
GC Electronics
013
Jebsee
013
Rabbit
036
Radio Shack
013
Telecaption
015
CD
Aiwa
010
Burmester
019
030
California Audio Lab
002
Carver
010
DKK
001
Denon
028
Emerson
035
Fisher
012
Garrard
019
018
Genexxa
004
035
Harman/Kardon
010
011
Hitachi
004
JVC
007
Kenwood
003
Krell
010
LXI
035
Linn
010
MCS
002
MTC
019
Megavox
010
035
Marantz
002
010
Mission
010
NSM
010
Nikko
033
Onkyo
008
026
Opimus
001
004
019
009
Panasonic
002
031
Parasound
019
Philips
010
023
Pioneer
004
Proton
010
QED
010
Quasar
002
RCA
Realistic
012
020
034
033
024
025
012
035
029
021
020
035
021
017
012
035
006
036
012
019
013
Rotel
010
019
SAE
010
Sansui
010
Sanyo
012
Scott
035
Sears
035
Sharp
029
013
037
Sherwood
013
027
038
014
022
029
016
013
035
039
040
041
000
Sony
001
Soundesign
009
83
Tascam
019
Teac
019
018
Technics
002
031
Victor
007
Wards
010
006
Yamaha
005
015
Yorx
032
033
013
