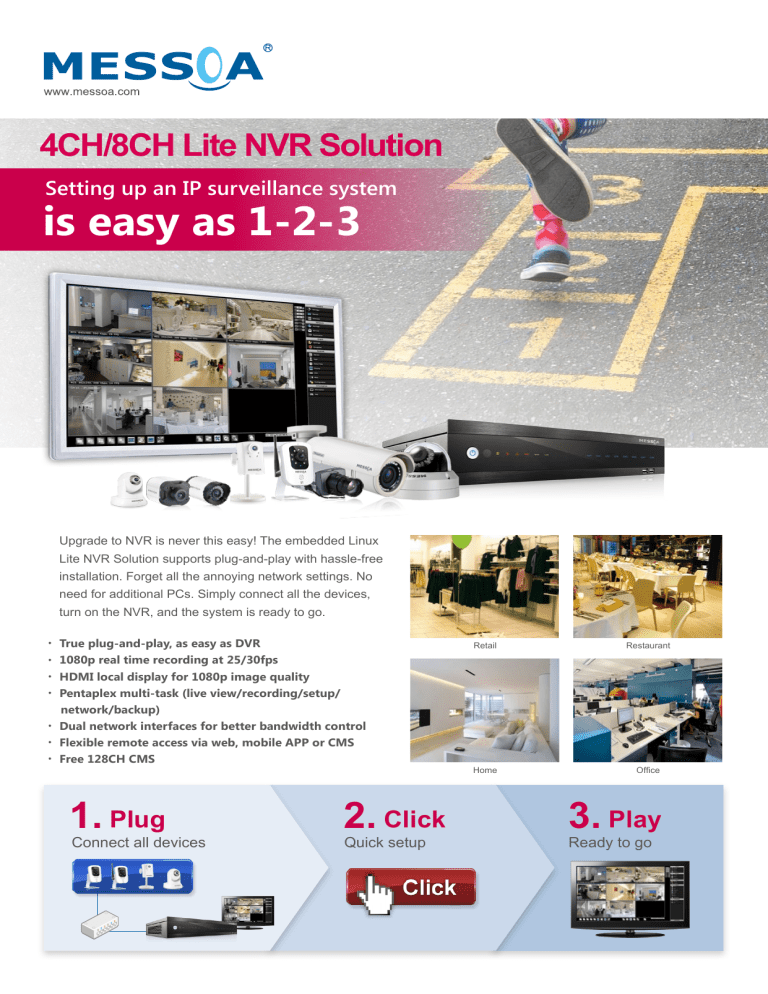

4CH/8CH Lite NVR Solution
Setting up an IP surveillance system
is easy as 1-2-3
Upgrade to NVR is never this easy! The embedded Linux
Lite NVR Solution supports plug-and-play with hassle-free
installation. Forget all the annoying network settings. No
need for additional PCs. Simply connect all the devices,
turn on the NVR, and the system is ready to go.
‧ True plug-and-play, as easy as DVR
‧ 1080p real time recording at 25/30fps
‧ HDMI local display for 1080p image quality
‧ Pentaplex multi-task (live view/recording/setup/
network/backup)
‧ Dual network interfaces for better bandwidth control
‧ Flexible remote access via web, mobile APP or CMS
‧ Free 128CH CMS
1. Plug
Connect all devices
2. Click
Quick setup
Retail
Restaurant
Home
Office
3. Play
Ready to go
Applications
Home Surveillance, Single Site
Imaging
Local Storage & Control
Remote Access
NDR720
Bedroom
NCC700
Storage
Office
Web Browser
Switch/Hub
Lite NVR
Internet
Broadband
Router
NCB750
Living Room
On the Road
Mobile APP
NDZ760
Entrance
LAN
WAN
Retail/Office Surveillance, Multiple Sites w/ CMS
Imaging
Local Storage & Control
NCB855PRO
Remote Access
NDF831PRO
NDF821PRO
NDF820PRO
Internet
Branch A
VPN tunnel
Switch/Hub
Lite NVR
Branch B
Broadband
Router
NCB855PRO
Branch C
NDF820PRO
NDF831PRO
NDF821PRO
Remote Site
Web Browser
NCB855PRO + NDF820/821/831PRO Total: 8 cameras
On the Road
Mobile APP
Control Center
LAN
WAN
NVR Specifications
System
Recommended Cameras
4 Channel
Operating System
Operations
Decompression
IP Camera Inputs
Output
Remote View
Alarm
Dimensions
1MP Cameras
Live, Recording, Playback, Backup & Remote access
H.264 HP / MP/BP, up to [email protected]
4 channels;
each one is up to 1080p
8 channels;
each one is up to 1080p
NCB750
NDR720
1.3MP Cameras
Yes, Via IE Web Viewer, CMS
NCC700
Yes (iOS & Android)
Up to 120fps at
Full HD (1920x1080)
NDZ760
NDF821E *
NCR870E *
2MP Cameras
Up to 240fps at
Full HD (1920x1080)
Up to 3 SATA HDDs
1x10/100Mbps (WAN), 1x10/100/1000Mbps (LAN)
4 in / 1 out
NCC800(WL)
NCR875PRO(H)
NCB855PRO
NDF820PRO
NDF821PRO
NDF831PRO
8 in / 2 out
355 (W) x 72 (H) x 264 (D) mm ± 5mm
* SATA HDD not included
Corporate Headquarters
NCR770
1x HDMI (1920x1080 / 60Hz), 1xVGA (1920x1080 / 60Hz)
Internal Storage*
Ethernet
8 Channel
* US only
Embedded Linux
Mobile Viewing on
Smartphone/Tablet PC
Recording Capability
CMS
3F., No.2-1, Wuquan Rd., Wugu Dist.
New Taipei City 24886, Taiwan (R.O.C.)
Tel : +886-2-2298-3908 / Fax: +886-2-2298-3909
E-mail: [email protected]
USA Office
13611 12th St, Unit B Chino, CA 91710, USA
Tel:+1-909-590-5955 / Fax:+1-909-590-2374
E-mail: [email protected]
NDR891PRO(H)
www.messoa.com
Infra-red Illuminators
Secure with true night vision
300M
Super Long
Range
LumiiFlex
TM
Most crimes take place in the cover of darkness.
The SLI080 Series Infra-red (IR) Illuminators
optimize the low light performance of any
surveillance cameras at night to enable effective, highquality video footage around the clock, all year round.
LumiiFlex™ Technology
Proprietary LumiiFlex Adjustable Diffuser Technology not only frees images from overexposure and hot
spots, it provides flexibility to ensure even light distribution at all beam angles across the entire field of view.
TM
Patented 5-step Adjustable Diffuser
This proprietary technology allows the angle of illumination to be manually adjusted to suit any
specific installations until the optimized light intensity and coverage is achieved.
o
OFF(10 )
LumiiFlex
TM
4 (ON)
3 (3/4 ON)
2 (2/4 ON)
1 (1/4 ON)
0 (OFF)
o
ON(50 )
Diffuser Position Control
3 Dimensional Even Illumination
Eliminate hot spots to ensure no detail is missed
over the entire field of view.
Without diffuser: overexposure on human face
and front field
With diffuser ON: very clear image on human
face, cloths and the front field
Even illumination achieved not only horizontally,
but also on foreground and background objects.
Overexposure on foreground
Clearly Identifiable faces on both foreground
and background
Advanced Features
1
Cascade Connection
2
The SLI080 supports cascade connection of
multiple illuminators, significantly increasing
lighting distances and achieving complete view
illumination coverage needed, especially for
PTZ domes.
Remote Adjustment
LED light intensity, shutter speed, and IR
sensitivity can be remotely configured without
the need of physically visiting the job sites that
are usually difficult to access.
1
2
3
30
0m
ON
3
Power Saving up to 80%
By syncing its LED pulse with the camera’s
shutter, the SLI080 can provide higher power
outputs when the shutter activates, delivering
on-target, on-demand illumination, while
reducing power consumption up to 80%.
4
Long distance Illumination
Up to 300 meters (984 feet), suitable for
securing ports, coast lines, borders, or any
other applications with long-range lighting
requirement.
Solid design with EnduraLight™ Technology
The SLI080 Series offers significant savings on
operational and maintenance costs with a life
expectancy beyond 10 years and requires very
little maintenance.
Robust high quality aluminum extrusion
Covert profile
Top-tier OSRAM LEDs 100,000hr life time (60°C)
EnduraLight
TM
IP68-rated waterproof
design
Highly IR transmitted polycarbonate with enhanced
surface protection
Fin-array heat sink
Wide range of applications
The SLI080 Series is engineered to optimize
performance of any day/night surveillance cameras,
providing the unparalleled low light image quality.
‧ Improving CMOS sensor sensitivity
‧ Saving bandwidth and storage consumption
‧ Ensuring complete area coverage
‧ Reinforcing sensitivity
due to mechanical limitations
Trafic
eed Dome
Sp
twork/IP
Ne
IR Illuminator
CCTV
‧ Enhanced LPR/ANPR results
‧ Non-distractive IR covert
lighting
‧ Optimizing night visibility
‧ Reducing video noise
Installation Options
The SLI080 Series is designed to be fitted with various installation formats for all needs.
Standalone Wall Mount
SAL081
SAL082
SAL081/SAL082+SAL083
SAL081/SAL082+SAL084
Single L-type Wall Mount
Dual L-type Wall Mount
Single/Dual L-Type Pole Mount
Single/Dual Corner Mount
Distance:
Distance:
300m
Distance:
300m
Distance:
300m
300m
1
1
1
1
HFOV
HFOV
: 52m
HFOV
: 52m
HFOV
: 52m
: 52m
Distance:
Distance:
240m
Distance:
240m
Distance:
240m
240m
HFOV:
HFOV:
85m
HFOV:
85m
HFOV:
85m85m
Distance:
Distance:
170m
Distance:
170m
Distance:
170m
170m
HFOV:
HFOV:
125m
HFOV:
125m
HFOV:
125m
125m
Distance:
Distance:
130m
Distance:
130m
Distance:
130m
130m
HFOV:
HFOV:
150m
HFOV:
150m
HFOV:
150m
150m
SLI08010D
SLI08020D
SLI08040D
SLI08060D
High efficiency & high power surface mount LEDs
LED array
No. of LEDs
30
Wavelength
850nm
10°~50°
20°~60°
40°~80°
60°~100°
300m (984ft)
240m (787ft)
170m (558ft)
130m (427ft)
View angle
Max distance
Dual (DC12/AC24V)
Voltage
55W (max.)
Power consumption
3m waterproof cable for power input/ RS-485/ LED failure alarm
Power cable
IP68
Protection
-50 ~ +60°C
Operating temp.
233(w) x 310(h) x 167(d)mm (9.1 x 12.2 x 6.57")
Dimensions
5.6kg (12.3lb)
Weight
Power saving mode, Cascade connection, RS-485 Remote Control
Features
1
HFOV: Horizontal Field of view
2
Integration with Full Range of Cameras
Model
Camera Type
SLI08010D
SLI08020D
SLI08040D
CCTV
700TVL: SCB267, SCR367, SCR368
Network/IP
2MP: NCB855PRO, NCR870, NCR875PRO, NDF821, NDF831, NDR891
3MP: NDR8932, NDF8232
5MP: NCB858, NCR878
PTZ
CCTV: SDS710PRO, SDS730PRO, SDS750PRO
IP: NIC910HPRO, NIC930HPRO, NIC950HPRO, NIC990
Traffic
Low-speed: SCR505, SCR506R
High-speed: SCR510, SCR515PRO, NCR516
View range
Super long-range
2
Long-range
Mid-range wide-angle
SLI08060D
Short range wide-angle
The SLI080 Series is also designed to work in conjunction with any day/night cameras featuring mechanical IR-cut filter.
Corporate Headquarters
No.8, Wuquan Road, New Taipei Industrial Park,
Wugu District, New Taipei City 24886, Taiwan, R.O.C.
Tel: +886-2-2298-3908
Fax: +886-2-2298-3909
E-mail: [email protected]
USA Office
13611 12th St, Unit B Chino, CA 91710, USA
Tel: +1-909-590-5955
Fax: +1-909-590-2374
E-mail: [email protected]
Greater China Office
Room 301, Yuanzhong Office Building, No.2007
Hongmei Rd., Xuhui District, Shanghai 201103, China
Tel: +86-21-6495-9236
Fax: +86-21-6495-9238
E-mail: [email protected]
Japan Office
8F Salute Bldg 72 Yoshidamachi,
Naka-Ku Yokohama Kanagawa 231-0041, Japan
Tel: +81-45-2500680
Fax: +81-45-2500681
E-mail: [email protected]
2012-11-1000 version
All brand names and registered trademarks referred in this document are the property of their respective owner(s).
All designs and specifications are subject to change without prior notice.
www.messoa.com
Network Cameras
Smart IP, smarter protection
MegaSmart
TM
MESSOA offers a full range of
network cameras, delivering
superior video quality, intelligent
features, system flexibility, and
cost-effectiveness. The MESSOA IP
network cameras are your powerful
surveillance solution that get your system
ready for the future’s challenging tasks!
Supreme Network Capabilities
Unmatched Clarity and Coverage
The next-generation network cameras deliver superior HDTV video quality up to 5-megapixel resolution with full frame rates
and larger area coverage, providing users with the clearest video images and the widest field of view possible in the finest
detail.
VGA 640 X 480
2MP 1920 X 1080
Conventional
3MP 2048 X 1536
HDTV 1080p
5MP 2592 X 1944
H.264 Compression
H.264 is a cost-saving compression format which consumes very little storage and bandwidth resources while maintaining
premium image quality. Multiple streams can also be provided for different quality needs and bandwidth limitations.
Superior image and high frame
rate with smaller data size
H.264
MPEG4
MJPEG
Image quality
High
Medium
Low
Image complexity
High
Medium
Low
Bandwidth consumption
Small
Medium
Large
M-JPEG
MPEG-4
H.264
Lumii
TM
Technology
All network cameras are built on the strength of our proprietary Lumii™ Technology. Lumii™’s high
sensitivity, noise reduction and uniform light intensity bring superior imaging performance in difficult
lighting conditions on a 24/7 basis.
Lumii™ Optimizes Night Performance
Mechanical ICR Day / Night Function
All cameras are enhanced by MESSOA’s proprietary
Lumii™ Technology which optimizes surveillance image
quality in low light settings conditions.
Featuring mechanical ICR filter, the camera automatically
switches between monochrome and color mode according
to the light intensity and enables the camera to deliver
razor-sharp images during both day and night.
Competing brand
MESSOA
Day mode
Night mode
Uniform Light Intensity
HyperDynamic
IR illumination is further enhanced by Lumii Technology to
deliver effective, even lighting output, while avoiding flares
at closer range to provide greater visibility across the
entire scene at night.
The HyperDynamic improves from conventional WDR
(Wide Dynamic Range), featuring more sophisticated
algorithm and enhanced sensitivity to allow the camera
capturing a clear shot of the monitored scene under
high-contrast lighting.
Competing brand
MESSOA
HyperDynamic off
HyperDynamic on
MegaSmart
TM
Intelligent Engine
Smart Focus
Smart Encoding
Smart Focus helps users verify whether the focus is
achieved at a user-defined spot in the monitored scene
and remotely fine-tune the focus until image quality is
optimized as the indicator turns green.
By defining regions of interest (ROI) for higher video
quality, this feature helps users see details where needed
and utilize the bandwidth and storage in the most efficient
manner.
Overview: lower bit rate
ROI: higher bit rate
Intelligent Detection
The network cameras feature versatile intelligent capabilities of detecting face, sound, blur, motion, Ethernet disconnection
and other external user-defined parameters, allowing users to get immediately informed and to keep track of the events
when triggered. Configurable actions include email notification and video/image recording uploaded to an FTP server or the
local storage (applicable when a memory card is inserted).
Recording of event uploaded to a
desiqnated remote FTP server
E-mail notification
Motion
Blur
Alarm
Sound
Recording of event saved
in the local storage
Face
Alarm
Ethernet Disconnection
Dual BIOS
ONVIF & PSIA
The network cameras are
designed with dual BIOS
technology to reinforce camera
stability and reliability by ensuring
the cameras can automatically
recover from any BIOS failure
in case of sudden power outage
or system crash.
The MESSOA network cameras are both ONVIFand PSIA-compliant that guarantees full interoperability
with other branded network video solutions for enhanced
system integration and scalability.
Box Cameras
Cube Cameras
NCB750 1MP
NCB855PRO 2MP
NCB858 5MP
NCC700 1.3MP
NCC800(WL) 2MP
Fixed lens, 4mm
[email protected]
ICR day/night
30/[email protected]
ICR day/night
30/[email protected]
ICR day/night
Fixed lens, 4.3mm
[email protected]
Digital day/night
Fixed lens, 3.1mm
30/[email protected]
Digital day/night
10m(33ft) IR, Wi-Fi
NDR720 1MP
NDF820 2MP
NDF820PRO 2MP
NDF821 2MP
NDF821PRO 2MP
Fixed lens, 4mm
[email protected]
ICR day/night
10m(33ft) IR
Fixed lens, 4mm
30/[email protected]
Digital day/night
Fixed lens, 4mm
30/[email protected]
Digital day/night
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night
Dome Cameras
Coming
soon
NDR891PRO 2MP
NDF831 2MP
NDF831PRO 2MP
NDR891 2MP
NDF301 3MP
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night, 25m(82ft) IR
IP67, IK10
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night
IP67, IK10
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night
IP67, IK10
Vari-focal lens, 3-9mm
30/[email protected],
ICR day/night, 25m(82ft) IR
IP67, IK10
Motorized lens,3-9mm
30/[email protected]
ICR day/night
Bullet Cameras
Coming
soon
NDR302 3MP
NCR770 1MP
NCR870 2MP
NCR875PRO 2MP
NCR878 5MP
Motorized lens, 3-9mm
30/[email protected]
ICR day/night, 15m(49ft) IR
IP66
Fixed lens, 4.2mm
[email protected]
ICR day/night, 7m(23ft) IR
IP67
Fixed lens, 3.1mm
30/[email protected]
ICR day/night, 25m(82ft) IR
IP67
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night, 25m(82ft) IR
IP67, IK10
Vari-focal lens, 3-9mm
30/[email protected]
ICR day/night, 20m(65ft) IR
IP67, IK10
P/T & PTZ Cameras
NDZ760 1.3MP
NIC910HPRO D1
NIC930HPRO D1
NIC950HPRO D1
NIC990 2MP
Fixed lens, 4.2mm
[email protected]
ICR day/night, 3m(11ft) IR
216X, 30/[email protected] D1
ICR day/night
IP67, IK10
336X, 30/[email protected] D1
ICRday/night
IP67, IK10
432X, 30/[email protected] D1
ICR day/night
IP67, IK10
240X, [email protected]
ICR day/night
IP67, IK10
Network Video Recorder
Corporate Headquarters
3F., No.2-1, Wuquan Road, New Taipei Industrial Park,
Wugu District, New Taipei City 24886, Taiwan, R.O.C.
Tel: +886-2-2298-3908
Fax: +886-2-2298-3909
E-mail: [email protected]
USA Office
13611 12th St, Unit B Chino, CA 91710, USA
Tel: +1-909-590-5955
Fax: +1-909-590-2374
E-mail: [email protected]
China Office
Room 301, Yuanzhong Office Building, No.2007
Hongmei Rd., Xuhui District, Shanghai 201103, China
Tel: +86-21-6495-9236
Fax: +86-21-6495-9238
E-mail: [email protected]
Japan Office
8F Salute Bldg 72 Yoshidamachi,
Naka-Ku Yokohama Kanagawa 231-0041, Japan
Tel: +81-45-2500680
Fax: +81-45-2500681
E-mail: [email protected]
2013-09-1000 version
All brand names and registered trademarks referred in this document are the property of their respective owner(s).
All designs and specifications are subject to change without prior notice.
www.messoa.com
Speed Dome Cameras
Wide-range precision monitoring
Network
Model Name
Optical Zoom
Lens
Max. Zoom Limit
Highest Resolution (NTSC / PAL)
Min. Illumination (@10 IRE)
NIC910HPRO
NIC930HPRO
NIC950HPRO
NIC990
18X
28X
36X
20X
f:4.1~73.8mm
f:3.5~98mm
f:3.4~122.4mm
f:4.7~94mm
216X
324X
432X
240X
720 x 480 / 720 x 576
720 x 480 / 720 x 576
720 x 480 / 720 x 576
1920 x 1080
0.035 lux (color) /
0.0005 lux (B/W)
0.05 lux (color) /
0.0075 lux (B/W)
0.07 lux (color) /
0.0075 lux (B/W)
0.05 lux (color) /
0.0075 lux (B/W)
H.264 / MPEG-4 / MJPEG
H.264 / MJPEG
LAN x 1, WAN x 1, Ethernet
(10/100 Base-T)
30 / 25fps at 1080p
Web browser configuration
LAN x 1, WAN x 1, Ethernet (10/100 Base-T)
Network Capability
30 / 25fps at full D1 resolution
Web browser configuration
AC24V +/- 10%
AC24V +/- 10%
AC24V +/- 10%
AC24V / PoE+
Power Consumption (Max.)
46W
46W
46W
55W
Weight (approx.)
3.8kg
3.8kg
3.8kg
3.8kg
Mechanical ICR D/N
Yes
Yes
Yes
Yes
WDR
Yes
Yes
Yes
Yes
IK10, IP67
IK10, IP67
IK10, IP67
IK10, IP67
Yes
Yes
Yes
Yes
FCC, UL, CE
FCC, UL, CE
FCC, UL, CE
FCC, UL, CE
Outdoor
Outdoor
Outdoor
Outdoor
SDS710PRO
SDS712PRO
SDS730PRO
SDS750PRO
18X
18X
28X
36X
f:4.1~73.8mm
f:4.1~73.8mm
f:3.5~98mm
f:3.4~122.4mm
216X
216X
324X
432X
Horizontal Resolution
560TVL
560TVL
560TVL
560TVL
Min. Illumination
0.0004
0.0004
0.0003
0.0005
Power Source
Protection
Heater & Blower
Regulation
Applications
CCTV
Model Name
Optical Zoom
Lens
Max. Zoom Limit
AC24V +/- 10%
Power Source
Power Consumption (Max.)
46W
18W
46W
46W
Weight (approx.)
3.8kg
3.5kg
3.8kg
3.8kg
Mechanical ICR D/N
Yes
Yes
Yes
Yes
WDR
Yes
Yes
Yes
Yes
IK10, IP67
-
IP67
IP67
Yes
-
Yes
Yes
FCC, UL, CE
FCC, UL, CE
FCC, UL, CE
FCC, UL, CE
Outdoor
Indoor
Outdoor
Outdoor
Protection
Heater & Blower
Regulation
Applications
Corporate Headquarter
No.8, Wuquan Road, New Taipei Industrial Park,
Wugu District, New Taipei City 24886, Taiwan, R.O.C.
Tel: +886-2-2298-3908
Fax: +886-2-2298-3909
E-mail: [email protected]
USA Office
13611 12th St, Unit B Chino, CA 91710, USA
Tel: +1-909-590-5955
Fax: +1-909-590-2374
E-mail: [email protected]
Greater China Office
Room 301, Yuanzhong Office Building, No.2007
Hongmei Rd., Xuhui District, Shanghai 201103
Tel: +86-21-6495-9236
Fax: +86-21-6495-9238
E-mail: [email protected]
Japan Office
8F Salute Bldg 72 Yoshidamachi,
Naka-Ku Yokohama Kanagawa 231-0041, Japan
Tel: +81-45-2500680
Fax: +81-45-2500681
E-mail: [email protected]
2012-06-1000 version
All brand names and registered trademarks referred in this document are the property of their respective owner(s).
All designs and specifications are subject to change without prior notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
