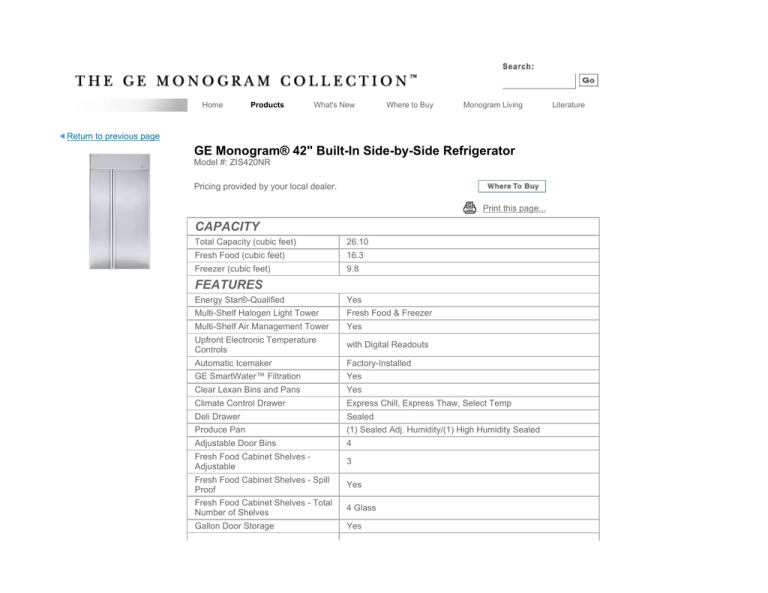

GE Monogram® 42" Built-In Side-by-Side Refrigerator
Model #: ZIS420NR
Pricing provided by your local dealer.
Print this page...
CAPACITY
Total Capacity (cubic feet)
26.10
Fresh Food (cubic feet)
16.3
Freezer (cubic feet)
9.8
FEATURES
Energy Star®-Qualified
Yes
Multi-Shelf Halogen Light Tower
Fresh Food & Freezer
Multi-Shelf Air Management Tower
Yes
Upfront Electronic Temperature
Controls
with Digital Readouts
Automatic Icemaker
Factory-Installed
GE SmartWater™ Filtration
Yes
Clear Lexan Bins and Pans
Yes
Climate Control Drawer
Express Chill, Express Thaw, Select Temp
Deli Drawer
Sealed
Produce Pan
(1) Sealed Adj. Humidity/(1) High Humidity Sealed
Adjustable Door Bins
4
Fresh Food Cabinet Shelves Adjustable
3
Fresh Food Cabinet Shelves - Spill
Proof
Yes
Fresh Food Cabinet Shelves - Total
Number of Shelves
4 Glass
Gallon Door Storage
Yes
Literature
Butter Dish
Glass Covered
Dairy Compartment
2 Sealed
Egg Storage Bin
Yes
Wine Caddy
Yes
Freezer Cabinet Shelves (Wire)
4 Adj.
Freezer Door Shelves
5
Freezer Utility Baskets
2
Slide-Out Can Rack
Yes
Certified Sabbath Mode Kit
Optional
ECONOMICAL / QUIET
Sealed Toe Kick
Black
APPEARANCE
Color Appearance
Door Panels Required
Door Panels Required
Yes
Handle
Full-Length Adjustable Handle
Master Light Control Switch
Yes
Adjustable Door Stop (90/130 Deg)
Yes
Easy Access Hinged Grille
Yes
Four-Point Leveling System
Yes
Industry Standard Flush Installation
Yes
Concealed Door Hinge
Yes
WEIGHTS & DIMENSIONS
Approximate Shipping Weight
725 lb
Net Weight (lbs.)
688 lb
Overall Depth
23 7/8 in
Overall Height
84 in
Overall Width
42 in
POWER / RATINGS
Volts/Hertz/Amps
115V; 60Hz; 20A
WARRANTY
Parts Warranty
Limited 2-year entire appliance; Limited 5-year sealed
refrigerating system; Limited 12-year sealed refrigerating
system
Labor Warranty
Limited 2-year entire appliance; Limited 5-year sealed
refrigerating system
Warranty Notes
For models produced on or after January 1, 2006; See written
warranty for full details
top
Service & Support | Register Your Appliance | Monogram in the News | e-Newsletter
Contact Us | Recall Information | Site Map | Terms of Use | Privacy Policy | GE.com
© 2006 General Electric Company and its licensors.
ZIS420NR – GE Monogram 42" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
The Installation Space
41-1/2"
84-1/2" max
83-1/2" min
Finished
Opening
6"
Electrical
Area
5"
75" From Floor
to Bottom
of Electrical
Area
24"
5"
* Shipping height.
The refrigerator
can be adjusted to
fit into a cutout that
is 83-1/2" min. to
84-1/2" max. height
*84" From
The top case trim
Floor to
Top Frame at the front is 1/2"
higher and will
overlap upper
cabinetry or soffit.
Use leveling legs
and wheels for a
maximum 1" height
42"
adjustment.
Frame to Frame
41"
Case Width
Water Supply 5"
3-1/2"
3-1/2"
*83-1/2"
at
Rear
27-3/4"
including
handle
25-3/4"
Door Swing Clearances
Space is the first consideration when planning the installation.
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond adjacent
cabinetry, depending on your installation.
194Dia4
The cutout depth beneath a soffit
When installed beneath a soffit, the soffit cannot exceed the
24" installation depth shown. The top case trim overlaps the
bottom of the soffit.
The installation must allow for clearances to adjacent walls or
cabinets. These refrigerators are equipped with a 2-position
door stop. The factory-set 130° door swing can be adjusted to
90° if clearance to adjacent cabinets or walls is restricted.
429Dia8
13"
130° Door Swing
19"
90° Door Swing
23-7/8"
Behind
Frame
Electrical
A 115V, 60Hz., 15 or 20 amp power supply is required. An
individual properly grounded branch circuit or circuit breaker
is recommended. Install a properly grounded 3-prong electrical
receptacle recessed into the back wall. Electrical must be
located on rear wall as shown.
Note: GFI (ground fault interrupter) is not recommended.
Water Line
All models are equipped with an automatic icemaker. The
water line can enter the opening through the floor or back
wall. Route 1/4" O.D. copper tubing or GE QuickConnect
kit between the cold water line and the water connection
location. The copper tubing should be long enough to extend
to the front of the refrigerator. The installation of an easily
accessible shut-off valve in the water line is required.
Specification Created 1/04
110165
R
Listed by
Underwriters
Laboratories
20-5/8"
4" Min.
Wall
Allow minimum clearances for freezer door and fresh tofood
door for a full 130° door swing and to allow for pan removal.
• 4" minimum clearance is required when door swing is
adjusted to 90°. If the 90° door stop position is used, pan
access is maintained, but pan removal is restricted.
• See door swing illustrations to determine interaction with
adjacent cabinets or countertops.
Installation Information: Before installing, consult
installation instructions packed with product, or online at
Monogram.com, for current dimensional data.
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
ZIS420NR – GE Monogram 42" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
Customization Basics: Framed or Overlay Panels, Custom Handles and Accessory Kits
Trimmed Refrigerators
Door Handles
ZIS420NRSS, ZISW420DRSS, ZISB420DRSS
Trimmed refrigerators are designed to be customized with decorative
panels. Field-installed custom door and grille panels are required.
The supplied handles can be adjusted to accommodate both framed
or overlay panels. Custom handles of your choice, supplied by your
cabinet maker, can also be installed. If desired, you may order ZKHSS2
Monogram stainless steel tubular handle kit for overlay panels.
Framed Panels
You may install 1/4"-thick custom panels from your cabinet
manufacturer. The decorative panels slide into the factory-installed
trim. Or, order black, white and stainless steel accessory panels
from your Monogram dealer.
Side Panels
Side panels must be used whenever
the sides of the refrigerator will be
exposed. The 1/4" side panels will
slip into the side case trim. Secure
the panels to the refrigerator with
stick-on hook and loop fastener strips.
Order the side panels from the
cabinet manufacturer.
• Cut a notch in the top front corner
as shown to allow clearance for
*84"
corner keys in the front side trim.
24"
3/16"
1-7/8"
Framed Panel
Standard supplied handles shown in 1/4" panel position.
*3" to 4"
Overlay Panels
You may also choose to install custom overlay panels from your
cabinet manufacturer. This design provides a seamless appearance
which integrates smoothly with surrounding cabinetry.
605Dia6
2-9/16"
*Depending on installation height.
Optional Accessory Kit
ZKHSS2: Tubular Stainless Steel handles designed to fit
3/4" overlay panels.
Accessory Panels
White or black acrylic and stainless steel accessory panels are
available from your Monogram supplier. Panels are cut to size and
ready to install. These panel kits must be ordered separately.
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Models
ZISW420D
ZISB420D
ZIS420D
Standard supplied handles shown in 3/4" overlay panel position.
R
696Dia2
Specification Created 1/04
110165
White
Acrylic
ZPW420D
ZPW420N
Listed by
Underwriters
Laboratories
Black
Acrylic
ZPB420D
ZPB420N
Stainless
Steel
ZPS420D
ZPS420D
ZPS420N
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
ZIS420NR – GE Monogram 42" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
3/4" Overlay Panel Dimensions
For a more custom appearance, overlay
panels may be installed on trimmed
models. The overlay panel must be
secured to a 1/4"-thick backer panel
which slides into the trim. A spacer
panel 0.10" thick must be placed
between the overlay and backer panels.
Important Note: Maximum total
panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille panel – 18 lbs.
A
Door
.250" + .10" + .750" =
1.100" Total Panel Thickness
1/4"
Backer
Panel
B
C
.10"
Spacer
Overlay Panel
Center each panel over the other.
Assemble the panels with glue
and screws. Screws must be
countersunk into the backer panel.
Grille Panel
3/4"
Overlay
Panel
Freezer
Panel
Fresh Food
Panel
D
E
194Dia58
Spacer Panel
42" Side-by-Side (in inches)
Backer Panel
NOTE: Left-to-right offset
is not always equal to
top-to-bottom offset.
If you choose to install framed panels,
they must be cut to the dimensions
shown. The panels will slide into the
frame on the door and grille.
If the custom panel is less than 1/4" thick,
and it fits loosely in the door frame, it can
be backed up with a piece of filler material
or foam tape to improve the fit.
Important Note: Maximum weight for
fresh food panel is 50 pounds and 30
pounds for freezer panel.
194Dia65
Door
110165
R
Grille Panel
C
68-3/8
67
68-5/8
D
14-9/16
13-1/4
14-13/16
E
24-9/16
23-1/4
24-13/16
9-1/2
17-13/16
Dispenser
Cutout
68-3/8
3-1/8
Listed by
Underwriters
Laboratories
B
9-1/2
8-5/8
9-3/4
39-7/8
5/16"
Trim
Reveal
1/4"
Panel
194Dia59
Specification Created 1/04
194Dia64
1/4" Backer Panel
.10" Spacer Panel
3/4" Spacer Panel
1/4" Framed Panel Dimensions
A
39-7/8
39
40-1/8
Freezer
Panel
Fresh Food
Panel
14-9/16
24-9/16
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
194Dia64
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
ZIS420NR – GE Monogram 42" Built-In Side-by-Side
Refrigerator with Automatic Icemaker
and Water Filter
Advance Planning for Built-In Custom Side-by-Side Refrigerators
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Refrigerator
23-7/8" From
Rear of
Refrigerator
Case
Trim
3/4"
1/2"
Top View
130° Door Swing
(Factory setting)
Scale 1:1
1/4"
1"
1-3/4"
2"
2-3/4"
1-1/2"
2-1/2"
1-1/4"
2-1/4"
1/4"
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with
two dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim fit
to the custom panel depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown
to accomplish a total
1.100" thickness.
1/2"
3/4"
1"
1/4"
696Dia5
Door
R
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
Specification Created 1/04
110165
3"
1/2"
3/4"
1"
1-1/4"
3/4" Overlay
Panel
(Nominal Size)
ZIS420NR – GE Monogram 42" Built-In Side-by-Side
Refrigerator with Automatic Icemaker
and Water Filter
Advance Planning for Built-In
Side-by-Side Refrigerators
Use this page to determine door swing
interaction with adjacent cabinets
or countertops.
Refrigerator
Case Trim
23-7/8"
From Rear of
Refrigerator
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips
to prevent interference with cabinet door swing.
The opening must allow for filler strips.
Top View
90° Door Swing
(Optional setting)
Scale 1:1
1/4"
1/2"
3/4"
1"
IMPORTANT NOTE –
FOR DISPENSER MODELS
Dispenser models are supplied with two dispenser
trims, one to fit framed panels and one for overlay
panels. Dispenser trim fit to the custom panel
depends on correct panel thickness. Framed
panels must be 1/4" nominal. Overlay panels
should be constructed as shown to accomplish
a total 1.100" thickness.
1-1/4"
1-1/2"
1/4"
Door
696Dia6
1/2"
3/4"
R
Listed by
Underwriters
Laboratories
As an ENERGY STAR®
partner, GE has determined
that this product meets the
ENERGY STAR guidelines
for energy efficiency.
For answers to your Monogram,® GE Profile™ or
GE® appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center ® service, 800.626.2000.
Specification Created 1/04
110165
1"
1-1/4"
3/4" Overlay
Panel
(Nominal Size)
ZIS420NR – GE Monogram 42" Built-In Side-by-Side Refrigerator
with Automatic Icemaker and Water Filter
Features and Benefits
• 26.0 cu. ft. total capacity
• Integrated Ice™ System – The ice bucket is integrated
into the icemaker, not the freezer door, freeing up
valuable storage space
• Upfront electronic controls with digital readout
• Climate control drawer with Express Chill,
Express Thaw and Select Temp
• High humidity sealed produce pan with full
extension slides
• Sealed adjustable humidity produce pan with
easy access lid and full extension slides
• Adjustable sealed deli pan with full extension slides
• 4 spill proof glass fresh food cabinet shelves
(3 adj./1 fixed)
• Model ZIS360NR – Non-dispenser model
ZIS420NR
Specification Created 1/04
110165
Installation
Instructions
If you have questions, call 800.626.2000 or visit our website at: www.monogram.com
Side by Side Refrigerators
ZIS360N, ZISB360D, ZISW360D
ZISS360N, ZISS360D
ZIS420N, ZISB420D, ZISW420D
ZISS420N, ZISS420D
ZIS480N, ZISB480D, ZISW480D
ZISS480N, ZISS480D
Design Guide
With Installation Instructions
Safety Information
Skill Level – Installation of this refrigerator
requires basic mechanical, carpentry and plumbing
skills. Proper installation is the responsibility of the
installer. Product failure due to improper installation
is not covered under the GE Appliance Warranty.
See the Owner’s Manual for warranty information.
BEFORE YOU BEGIN
Read these instructions completely and carefully.
•
IMPORTANT
– Save these instructions
for local inspector’s use. Observe all governing codes
and ordinances.
• Note to Installer – Be sure to leave these
instructions with the Consumer.
• Note to Consumer – Keep these instructions
with your Owner’s Manual for future reference.
WARNING:
• These refrigerators are top-heavy and must
be secured to prevent the possibility of tipping
forward. Anti-Tip protection is required. See
page 12 for details.
• Use this appliance only for its intended purpose.
• Immediately repair or replace electric service cords
that become frayed or damaged.
• Unplug the refrigerator before cleaning or making
repairs.
• Repairs should be made by a qualified service
technician.
WARNING:
This appliance must be properly grounded. See
“Grounding the Refrigerator,” page 10.
AVERTISSEMENT
Cet appareil doit être correctement mis à la terre.
Consulter « Mise à la terre du réfrigérateur », page 10.
AVERTISSEMENT
If you received a damaged refrigerator, you should
immediately contact your dealer or builder.
• Ces réfrigérateurs sont lourds en haut et il faut les
arrimer pour éviter leur basculement. Il faut avoir
un système de protection contre le renversement.
Voir les détails page 12.
• Il ne faut utiliser cet appareil que pour l’utilisation
appropriée.
• Réparer ou remplacer immédiatement tout cordon
électrique effiloché ou endommagé.
• Il faut débrancher le réfrigérateur avant le
nettoyage ou toute intervention.
• Les réparations doivent être faites par un
technicien qualifié.
For Monogram local service in your area, call
1.800.444.1845.
For Monogram service in Canada, call
1.888.880.3030
For Monogram Parts and Accessories, call
1.800.626.2002.
www. monogram.com
CAUTION:
Due to the weight and size of this refrigerator, and
to reduce the risk of personal injury or damage to
the product – THREE PEOPLE ARE REQUIRED
FOR PROPER INSTALLATION OF A 36" WIDE
UNIT. FOUR PEOPLE ARE REQUIRED FOR
INSTALLATION OF A 42" OR 48" WIDE MODEL.
PRUDENCE
À cause du poids et de la taille de ce réfrigérator et
pour réduire le risque de blessure et de dommages,
IL FAUT TROIS PERSONNES POUR INSTALLER
CORRECTEMENT D’UN APPAREIL DE 91 cm (36 po)
DE LARGE. IL FAUT QUATRE PERSONNES POUR
L’INSTALLATION D’UN MODÈLE DE 107 OU 122 cm
(42 OU 48 po) DE LARGE.
CONTENTS
Planning Guide
The Installation Space ....................................3
Dimensions and Clearances ..........................3
130° Door Swing ..............................................4
90° Door Swing ................................................5
Customization Basics ......................................6
1/4" Framed Panel Dimensions ......................7
3/4" Overlay Panel Dimensions ......................8
Raised Overlay Panel Design ........................9
Side Panels......................................................10
Installation Instructions
Tools, Hardware, Materials ........................10
Grounding the Refrigerator ..........................10
Step 1, Remove Packaging ..........................11
Step 2, Install Water Line ............................11
Step 2A, RO Water Line ................................12
Step 3, Install Side Panels ..........................12
Step 4, Install Anti-Tip Brackets ................12
Step 5, Level Refrigerator ............................13
Step 6, Alternate Anti-Tip Procedure ........13
Step 7, Secure Refrigerator to Cabinetry ..14
2
Step 8, Adjust Door Swing ..........................14
Step 9, Install Grille Panel ............................14
Step 10, Install Framed Panels ....................15
Step 10A, Install Overlay Panels ..........16–17
Step 11, Install Dispenser Trim ....................18
Step 12, Connect Water Supply ..................18
Step 13, Connect Power ..............................19
Step 14, Start Icemaker ................................19
Step 15, Install Toekick ................................19
Design Guide
THE INSTALLATION SPACE
DIMENSIONS AND CLEARANCES
36" Models 12"
42" Models 18"
48" Models 20"
35", 41", or 47"
Case Width
*Finished Width
84 1/2" max
83 1/2" min
Finished
Opening
6"
Electrical
Area
5"
5"
*83-1/2"
at
Rear
75" From Floor
to Bottom
of Electrical
Area
24"
Water Supply 5"
25-3/8" Framed Models
25-3/4" Stainless Steel Models
Case Depth
* Shipping height. The
refrigerator can be
adjusted to fit into a
cutout that is 83-1/2"
min. to 84-1/2" max.
*84" From height. Note that the
Floor to
top case trim at the
Top Frame front is 1/2" higher
and will overlap
upper cabinetry or
soffit. Use leveling
legs and wheels for a
maximum 1” height
adjustment.
3 1/2"
36", 42", or 48"
Frame to Frame
3 1/2"
Depth Including Handles:
26-7/8" Framed Models
27-3/4" Stainless Steel Models
*The finished cutout width must be:
35-1/2" for 36" models
41-1/2" for 42" models
47-1/2" for 48" models
Product Clearances
These refrigerators are equipped with a 2 position
door stop. The factory set 130° door swing can be
adjusted to 90° if clearance to adjacent cabinets or
walls is restricted.
Water And Electrical Locations
The opening must be prepared with the electrical
and water supply located as shown.
130° Door Swing
The cutout depth must be 24"
The refrigerator will project forward, slightly beyond
adjacent cabinetry, depending on your installation.
90° Door Swing
B
A
90° Door Swing
Cutout depth beneath a soffit:
When installed beneath a soffit, the soffit cannot
exceed the 24" installation depth shown. The top case
trim overlaps the bottom of the soffit.
23-7/8"
Behind
Frame
C
Additional Specifications
• A 115 volt 60Hz., 15 or 20 amp power supply is
required. An individual properly grounded branch
circuit or circuit breaker is recommended. Install
a properly grounded 3-prong electrical receptacle
recessed into the back wall. Electrical must be
located on rear wall as shown.
NOTE: GFI (ground fault interrupter) is not
recommended.
• Water line can enter the opening through the floor
or back wall. The water line should be 1/4" O.D.
copper tubing or GE SmartConnect™ kit between
the cold water line and water connection location,
long enough to extend to the front of the
refrigerator. Installation of an easily accessible
shut off valve in the water line is required.
Models
36"
42"
48"
A
13"
13"
15"
B
15"
19"
20"
C
20-5/8"
26-5/8"
28-5/8"
4" Min.
to Wall
Allow minimum clearances for freezer door
(Dimension A) and fresh food door (Dimension B)
for a full 130° door swing and to allow for pan
removal.
4" minimum clearance is required when door swing
is adjusted to 90°. If the 90° door stop position is
used, pan access is maintained, but pan removal is
restricted.
See illustrations pages 4 and 5 to determine
door swing interaction with adjacent cabinets or
countertops.
3
Design Guide
Refrigerator
Frameless Cabinets: The case trim overlaps
cabinets at the top and sides. Therefore,
frameless cabinets may require filler strips to
prevent interfeence with cabinet door swing.
The opening must allow for filler strips.
23-7/8" From
Rear of
Refrigerator
2"
1"
Case
Trim
1/2"
1/4"
3"
1-3/4"
3/4"
1-1/2"
2-3/4"
2-1/2"
1-1/4"
2-1/4"
1/4"
1/2"
3/4"
1"
St
3/4" Overlay
Panel
(Nominal Size)
ain
les
sS
tee
l
Top View
130° DOOR SWING
(factory setting)
Scale 1:1
Door
1/4"
IMPORTANT NOTE –
FOR DISPENSER MODELS:
Dispenser models are supplied with two
dispenser trims, one to fit framed panels
and one for overlay panels. Dispenser trim
fit to the custom panel depends on correct
panel thickness. Framed panels must be
1/4" nominal. Overlay panels should be
constructed as shown to accomplish a total
1.100" thickness. See pages 7 and 8 for details.
4
1/2"
3/4"
1"
1-1/4"
Design Guide
Frameless Cabinets:
The case trim overlaps
cabinets at the top
and sides. Therefore,
frameless cabinets may
require filler strips to
prevent interference
with cabinet door swing.
The opening must allow
for filler strips.
Refrigerator
Case Trim
23-7/8"
From Rear of
Refrigerator
1/4"
1/2"
3/4"
1"
1-1/4"
1-1/2"
Stainless Steel
Top View
90° DOOR SWING
(optional setting)
Scale 1:1
Door
IMPORTANT NOTE –
FOR DISPENSER MODELS:
Dispenser models are supplied
with two dispenser trims, one to fit
framed panels and one for overlay
panels. Dispenser trim fit to the
custom panel depends on correct
panel thickness. Framed panels
must be 1/4" nominal. Overlay panels
should be constructed as shown to
accomplish a total 1.100" thickness.
See pages 7 and 8 for details.
3/4" Overlay
Panel
(Nominal Size)
1/4"
1/2"
3/4"
1"
1-1/4"
5
Design Guide
CUSTOMIZATION BASICS:
Framed Or Overlay Panels, Custom Handles and Accessory Kits
Stainless Steel Wrapped Models
36" wide models - ZISS360N, ZISS360D
42" wide models - ZISS420N, ZISS420D
48" wide models - ZISS480N, ZISS480D
Trimmed Models
36" wide models - ZIS360N, ZISB360D, ZISW360D
42" wide models - ZIS420N, ZISB420D, ZISW420D
48" wide models - ZIS480N, ZISB480D, ZISW480D
Overlay panels
You may also choose to install custom overlay panels
from your cabinet manufacturer. This design provides
a seamless appearance which integrates smoothly with
surrounding cabinetry.
Stainless Steel Wrapped Refrigerators
Stainless Steel wrapped refrigerators have wrapped
doors and grille panel, beveled edges, and tubular
stainless steel handles that coordinate with other
Monogram appliances. These models are shipped
ready for installation.
3/4" Overlay Panel
.10" Thick Spacer Panel
1/4" Thick Backer Panel
Trimmed Refrigerators
Trimmed refrigerators are designed to be customized
with decorative panels. Field installed custom door
and grille panels are required.
Standard Door Handles
Standard supplied handles shown in 3/4" overlay panel position.
Door Handles
The standard supplied handles can be adjusted to
accommodate both framed or overlay panels. Custom
handles of your choice, supplied by your cabinet maker
can also be installed on 3/4" overlay panels. If desired,
you may order ZKHSS2 Monogram stainless steel
tubular handle kit for 3/4" overlay panels.
Framed panels
You may install 1/4" thick custom panels from your
cabinet manufacturer. The decorative panel slides into
the factory installed trim. Or, order black, white and
stainless steel accessory panels from your Monogram
dealer.
Side Panels
Side panels must be used whenever the sides of the
refrigerator will be exposed.
Framed Panel
Standard Door Handles
Standard supplied handles shown in 1/4" panel position.
Models
Optional Accessory Kits
ZKHSS2: Monogram Tubular Stainless Steel handles
designed to fit 3/4" overlay panels.
ZISW480D
ZISB480D
ZIS480N
ZISW420D
ZISB420D
ZIS420N
ZISW360D
ZISB360D
ZIS360N
Accessory Panels
White, black and stainless steel accessory panels are
available from your Monogram dealer. Panels are
cut to size and ready to install.
6
White
Acrylic
ZPW480D
ZPW480N
ZPW420D
ZPW420N
ZPW360D
ZPW360N
Black
Acrylic
ZPB480D
ZPB480N
ZPB420D
ZPB420N
ZPB360D
ZPB360N
Stainless
Steel
ZPS480D
ZPS480D
ZPS480N
ZPS420D
ZPS420D
ZPS420N
ZPS360D
ZPS360D
ZPS360N
Design Guide
1/4" FRAMED PANEL DIMENSIONS
5/16"
Trim
Reveal
Door
If you choose to install framed panels, they must be
cut to the dimensions shown. The panels will slide
into the frame on the door and grille.
1/4"
Panel
Non-Dispenser Models
If the custom panel is less than 1/4" thick and it fits
loosely in the door frame it can be backed up with
a piece of filler material or foam tape to improve
the fit.
IMPORTANT NOTE: Maximum total panel weight:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille Panel – 18 lbs.
IMPORTANT NOTE – DISPENSER MODELS
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
• If the panel is less than 0.250" thick a noticeable
gap may be created around the dispenser trim.
Foam tape may be applied on the door to improve
the fit.
• If the panel is more than 0.250" thick, the
dispenser trim cannot be secured to the door.
See Dispenser Trim Fit Example, page 9.
Dispenser Cutout
A
Grille Panel
The framed panel must be 1/4" nominal thickness
to fit the dispenser trim.
B
15-3/8"
Dispenser
Cutout
F
9-5/8"
C
G
Freezer
Panel
Fresh Food
Panel
D
E
Side-by-Side (in inches)
A
36” Models
33-7/8
42” Models
39-7/8
48” Models
45-7/8
Dispenser
Cutout Position
B
9
9-1/2
9-1/2
7
C
68-3/8
68-3/8
68-3/8
D
14-9/16
14-9/16
18-9/16
E
18-9/16
24-9/16
26-9/16
F
17-13/16
17-13/16
17-13/16
G
3-1/8
3-1/8
5-1/8
Design Guide
3/4" OVERLAY PANEL DIMENSIONS
Overlay Panel
Door
For a more custom appearance, overlay panels may be
installed on trimmed models. The overlay panel must
be secured to a 1/4" thick backer panel which slides
into the trim. A spacer panel 0.10" thick must be
placed between the overlay and backer panel.
Assemble the panels with glue and screws.
• Center the spacer panel on the backer panel, left to
right and top to bottom. Secure the panels with glue.
• Center the spacer and backer panel on the overlay
panel and secure with glue and screws. Screws must
be countersunk into the backer panel.
1/4"
Backer
Panel
Grille Panel
B
F
.10"
Spacer
• The overlay panel must be constructed according to
the specifications shown to achieve the correct total
thickness.
• Alternative panel construction methods such as
securing a 3/4" panel to a 1/4" backer panel cannot
be used. Another method, routing a 3/4" thick
panel on all sides cannot be used. These methods
will not result in the required 1.100" panel thickness.
When a raised panel design is to be used, a custom
middle rail is required. See page 9 for details.
*Cut the dispenser opening after the backer, spacer and overlay
panels have been assembled.
15-3/8"
Dispenser
Cutout
NOTE: Left-to-right offset
is not always equal to
top-to-bottom offset.
.250" + .10" + .750" = 1.100" Total Panel Thickness
See Dispenser Trim Fit Example, page 9.
Dispenser Cutout
Spacer Panel
Backer Panel
IMPORTANT NOTE – DISPENSER MODELS
The refrigerator is supplied with two dispenser trims,
one for framed panels and one for overlay panels.
The overlay dispenser trim is designed to fit a total
panel thickness of 1.100".
• If the panel is less than 1.100" a noticeable gap may
be created around the dispenser trim.
• If the panel is more than 1.100" the dispenser trim
cannot be secured to the door.
A
3/4"
Overlay
Panel
IMPORTANT NOTE: Maximum total weight for the assembled
panels:
• Fresh food door panel – 75 lbs.
• Freezer door panel – 53 lbs.
• Grille Panel – 18 lbs.
9-5/8"
C
G
Freezer
Panel
Fresh Food
Panel
D
E
*Dispenser
Cutout Position
36” Side-by-Side (in inches)
A
1/4” Backer Panel
33-7/8
.10” Spacer Panel
33
3/4" Overlay Panel
34-1/8
B
9
8-3/8
9-1/4
C
68-3/8
67
68-5/8
D
14-9/16
13-1/4
14-13/16
E
18-9/16
17-1/4
18-13/16
42” Side-by-Side (in inches)
A
1/4” Backer Panel
39-7/8
.10” Spacer Panel
39
3/4" Overlay Panel
40-1/8
B
9-1/2
8-5/8
9-3/4
C
68-3/8
67
68-5/8
D
14-9/16
13-1/4
14-13/16
E
24-9/16
23-1/4
24-13/16
48” Side-by-Side (in inches)
A
1/4” Backer Panel
45-7/8
.10” Spacer Panel
45
3/4" Overlay Panel
46-1/8
B
9-1/2
8-5/8
9-3/4
C
68-3/8
67
68-5/8
D
18-9/16
17-1/4
18-13/16
E
26-9/16
25-1/4
26-13/16
8
F
G
17-15/16
3-1/4
F
G
17-15/16
3-1/4
F
G
17-15/16
5-1/4
Design Guide
DISPENSER MODELS:
RAISED OVERLAY PANEL DESIGN
1/4" Backer Panel
.10" Spacer
3/4" Overlay Panel
When a raised panel design is to be used, a
custom wide middle rail is required to accept
the dispenser trim.
• The middle rail must be wide enough to allow
for the dispenser trim to overlap the opening.
• The middle rail must be 1.100" total thickness
to accept the dispenser trim.
Dispenser
Trim
Wide
Middle
Rail is
Required
16-3/4"
10-5/8"
DISPENSER TRIM FIT EXAMPLES:
(NOT TO SCALE)
1/4" FRAMED PANEL
• The dispenser trim fits over the
custom panel and snaps into the
freezer door.
• The clips will not engage the door if
the panel is more than 0.250" thick.
• If the panel is less than 0.250" thick,
a noticeable gap may be created
around the dispenser trim.
3/4" OVERLAY PANEL
• The dispenser trim fits over the
custom panel and snaps into the
freezer door.
• The clips will not engage the door if
the panel is more than 1.100" thick.
• If the panel is less than 1.100" thick,
a noticeable gap may be created
around the dispenser trim.
FREEZER DOOR
1/4"
Framed
Panel
0.250"
Thick
Ice / Water Dispenser
1/4" Dispenser Trim
1/4" Backer Panel
FREEZER DOOR
1.100"
Total Thickness
.10" Spacer
Panel
3/4" Overlay
Panel
Ice / Water Dispenser
3/4" Overlay Dispenser Trim
9
Design Guide
24"
SIDE PANELS
Side panels must be used
whenever the sides of the
refrigerator will be
exposed. The 1/4" side
panels will slip into the
side case trim. Secure the
panels to the refrigerator
*84"
with stick-on hook and
loop fastener strips. Order
the side panels from the
cabinet manufacturer.
• Cut a notch in the top
front corner as shown
to allow clearance for
corner keys in the front
side trim.
FLOORING
For proper installation, this refrigerator must be
placed on a level surface of hard material that is
at the same height as the rest of the flooring. This
surface should be strong enough to support a fully
loaded refrigerator, or approximately 1,500 lbs.
3/16"
1-7/8"
NOTE: Protect the finish of the flooring. Cut a large
section of the cardboard carton and place under the
refrigerator where you are working.
GROUNDING THE REFRIGERATOR
IMPORTANT – (Please read carefully)
*3" to 4"
FOR PERSONAL SAFETY, THIS APPLIANCE MUST
BE PROPERLY GROUNDED.
2-9/16"
* Depending on installation height.
The power cord of this appliance is equipped with
a 3-prong (grounding) plug which mates with a
standard 3-prong (grounding) wall receptacle to
minimize the possibility of electric shock hazard
from this appliance.
TOOLS REQUIRED
• Tinsnips to cut banding
• Stepladder
• Bucket
• Level
• Appliance Hand Truck
• Tubing cutter
• 7/16" open-end wrench
• #2 Phillips screwdriver
• Drill and appropriate bits
• 5/16", 7/16" socket
• Safety glasses
• 1-1/4" open end wrench
• Pliers
• 1/4" ratchet wrench
• #2 Stubby Phillips screwdriver
Have the wall outlet and circuit checked by a
qualified electrician to make sure the outlet is
properly grounded.
Where a standard 2-prong wall outlet is encountered,
it is your personal responsibility and obligation to
have it replaced with a properly grounded 3-prong
wall outlet.
DO NOT, UNDER ANY
CIRCUMSTANCES, CUT
OR REMOVE THE THIRD
(GROUND) PRONG
FROM THE POWER CORD.
DO NOT USE AN ADAPTER PLUG TO CONNECT
THE REFRIGERATOR TO A 2-PRONG OUTLET.
HARDWARE SUPPLIED
• Water filter bypass plug
• Anti-Tip brackets
• 1/4" nut and ferrule
• Dispenser trims for 1/4" and 3/4" overlay panels
• Aluminum cover trim for 3/4" overlay panels with
custom handles. Includes 22 flat head screws and
4 endcaps.
DO NOT USE AN EXTENSION CORD WITH THIS
APPLIANCE.
MATERIALS REQUIRED
• 35" long 2x4 for Anti-Tip support
• 1/4" copper water line tubing or GE
SmartConnect™ Refrigerator Tubing kits
• Water shut-off valve (optional but recommended)
• Custom panels for doors and grille panel
• Screws to secure refrigerator to cabinetry
• Stick-on hook and loop fastener strips for
1/4" side panels
10
Installation Instructions
• Remove the four 7/16"
bolts securing the straps
to the skid.
STEP 1 REMOVE PACKAGING
CAUTION: Refrigerator is much heavier at the
CAUTION:
DO NOT
ATTEMPT TO ROLL
UNIT OFF SKID.
top than at the bottom – be careful when moving.
When using a hand truck, handle from side only.
Toekick
PRUDENCE: Le réfrigérateur est beaucoup
plus lourd en haut qu'en bas. Il faut être prudent lors
des déplacements. Si un diable est utilisé, il faut
soulever le réfrigérateur sur le côté seulement.
PRUDENCE:
IL NE
Remove
Tie Downs FAUT PAS ESSAYER DE
FAIRE ROULER LE
RÉFRIGÉRATEUR POUR
L'ENLEVER DE LAY
PALETTE.
• Carefully cut banding at the top and bottom,
remove outer carton.
• Slide out back corner posts (2).
• Slide carton off top of cabinet.
NOTE: IT IS NOT NECESSARY TO LAY CABINET
DOWN IN ORDER TO REMOVE SKID!
• The unit is secured to the skid with 4 slotted
tie-down straps. Remove the four 5/16" bolts
from the base channels in the tie-downs.
• Support blocks on the bottom of the refrigeration
case must be removed before the refrigerator is
taken off the skid or damage will occur. Carefully,
tilt refrigerator and slide blocks out from beneath.
• Remove toekick, set aside for final installation.
• Lift the refrigerator off the skid with an appliance
dolly. Handle from the sides.
STEP 2 INSTALL WATER LINE
• A cold water supply is required for automatic
icemaker operation. The water pressure must be
between 40 and 120 p.s.i.
• Route 1/4" OD copper or GE SmartConnect™
plastic tubing between house cold water line and
the water connection location.
• Tubing should be long enough to extend to the
front of the refrigerator. Allow enough tubing to
accommodate bend leading into the water line
connection.
NOTE: The only GE approved plastic tubing is
supplied in the GE SmartConnect™ Refrigerator
Tubing kits. Do not use any other plastic water supply
line because the line is under pressure at all times.
Other types of plastic may crack or rupture with age
and cause water damage to your home.
GE SmartConnect™ Refrigerator Tubing Kits are
available in the following lengths:
2' (.6 m) WX08X10002
6' (1.8 m) WX08X10006
15' (4.6 m) WX08X10015
25' (7.6 m) WX08X10025
Floor
Copper Tubing
Shut off the main water supply.
Turn on the nearest faucet long enough to clear the
line of water.
• Install a shut-off valve between the icemaker water
valve and cold water pipe in a basement or cabinet.
The shut-off valve should be located where it will
be easily accessible.
• Turn on the main water supply and flush debris.
Run about a quart of water through the tubing into
a bucket. Shut off water supply at the shut-off valve.
NOTE: Saddle type shut-off valves are included in
many water supply kits. Before purchasing, make
sure a saddle type valve complies with your local
plumbing codes.
NOTE: Commonwealth of Massachusetts Plumbing
Codes 248CMR shall be adhered to. Saddle valves
are illegal and use is not permitted in Massachusetts.
Consult with your licensed plumber.
11
Installation Instructions
STEP 2A INSTALLATION WITH
HOUSEHOLD WATER
FILTRATION SYSTEM
STEP 4 INSTALL ANTI-TIP BRACKETS
WARNING:
ANTI-TIP PRECAUTIONS
The refrigerator is top-heavy and must be secured to
prevent the possibility of tipping forward.
Skip this step if you do not have a household
water filtration system
If the water supply to the refrigerator is from any
household water filtration system, the filter cartridge
should be removed. For better ice and water
performance, remove the filter and install the filter
bypass plug.
Rotate
Clockwise
To Remove
ATTENTION: PRECAUTIONS CONTRE LES
BASCULEMENTS
Le réfrigérateur est beaucoup plus lourd en haut et il
faut le maintenir en place pour éviter la possibilité de
son basculement vers l’avant.
• Cut a 2" x 4" block, 35" long and secure the block
to the mounting brackets provided using #12 or #14
wood screws.
2 x 4 Cut
35" Length
Filter
Bypass
Plug
Installation
Height
From Floor
Mounting
Bracket
STEP 3 INSTALL SIDE PANELS
Screws Mounted into
Vertical Wall Studs
Skip this step when not using side panels.
If you are using 1/4" side panels, they should be
inserted into the case trim. Fasten the panels to the
refrigerator with stick-on hook and loop fastener
strips before setting refrigerator in place.
• Secure the bracket with wood block to the back wall
so that it is 84" (or your installation height) from
the finished floor. Use #12 or #14 wood screws.
See illustration.
Brackets
Required
Soffit
Block
Height
From
Floor
to
Bottom
of Wood
Block
Brackets
Not Required
Beneath a
Soffit
Side View
• Screws must penetrate at least one inch into vertical
wall studs.
• Before pushing the refrigerator into the opening,
plug the power cord into the receptacle. Open the
grille panel and reach into the opening at the back
to grasp the power cord. Pull the power cord into
the opening as you push the refrigerator back.
• Gently push refrigerator into the opening with
hands against front corners.
IMPORTANT NOTE: When the refrigerator is installed under a soffit or
if there is not enough height for this method of security, brackets cannot
be used. Proceed to step 5 to level the refrigerator and then to step 7
to secure refrigerator to cabinets. See step 6 if you have metal wall
studs. The refrigerator must be secured to prevent tipping.
12
Installation Instructions
STEP 6 ALTERNATE ANTI-TIP
PROCEDURE
STEP 5 LEVEL REFRIGERATOR
All models have 4-point leveling. The front is
supported by leveling legs, the rear is supported by
adjustable wheels. Both are accessible from the front
of the refrigerator.
• To level the back of the refrigerator, turn the
7/16" hex nut located above the front wheels. Turn
clockwise to raise or counterclockwise to lower the
refrigerator.
• For front leveling, use a 1-1/4" open-end wrench.
• Adjust height of refrigerator to match installation
cutout opening 83-1/2" to 84-1/2". The refrigerator
should be level and plumb with cabinetry.
The refrigerator must be secured to prevent tipping.
The anti-tip brackets cannot be used on metal wall
studs. Use this Alternate Procedure to secure the
refrigerator against tip-over whenever metal wall studs
are encountered and there is no soffit.
3/4"
Min.
Top Case Trim
Hex Nut Adjusts
Rear Wheels
Leveling Leg
Side View
Top Case Trim
Install Four
1-1/2" Drywall Screws
Through Trim and Into Soffit
or 3/4" Min. Wood Brace
• Raise the grille panel to access case trim.
• Use a 3/16" bit to drill four evenly spaced clearance
holes through the metal top case trim.
• Use a 1/16" bit to drill to pilot holes through the
metal clearance holes and into the wood soffit. The
holes should be centered in the soffit or a 3/4" min.
wood brace. The brace spanning the enclosure must
be securely fastened to cabinets on both sides.
• Install four, 1-1/2" drywall screws into the pilot holes.
CAUTION:
The rear leveling wheels and front leveling legs are
limited to a maximum height adjustment of 1". If the
installation requires more than 84-1/2" height, the
installer should elevate the refrigerator on a sheet
of plywood or runners. Cabinetry trim could also be
added across the top of the opening to shorten the
opening. If you attempt to raise the refrigerator
more than 1", you will damage the front leveling
legs and the rear leveling wheels.
PRUDENCE
Les roues de nivellement arrière et les pattes de
nivellement avant permettent un réglage maximal
de 25 mm (1 po). Si l’ouverture pour le réfrigérateur
a une hauteur supérieure à 2,15 m (84-1/2 po),
l’installateur doit élever le réfrigérateur sur une
feuille de contre-plaqué ou des glissières. Il est
également possible d’ajouter des baguettes de
finition des placards sur le haut de l’ouverture afin
de la réduire. Lever le réfrigérateur de plus de
25 mm (1 po) endommage les pattes de nivellement
avant et les roues de nivellement arrière.
13
Installation Instructions
STEP 7 SECURE REFRIGERATOR
TO CABINETRY
STEP 9 INSTALL GRILLE PANEL
To insert framed or overlay panel into the grille:
• Raise the grille panel to stop position.
Whenever possible, perform this step for anti-tip
security, or when anti-tip brackets cannot be used.
The refrigerator must be secured to prevent tipping.
• Raise the grille panel to access case trim.
• Drill hole in trim and drive screw through the trim
into adjacent cabinet.
• Follow the same procedure on the opposite side.
Raise Grille Panel
to Stop Position
Loosen
Side
Trim
Screw
Drive Screws
Through Case Trim Into
Adjacent Cabinets
Raise
Grille
Panel
Adjust Nut Below
Spring to Accommodate
Panel Weight
• Loosen screws on side trim behind frame. Remove
bottom trim.
STEP 8 ADJUST DOOR SWING
CAUTION:
NOTE: This refrigerator has a 2-position door stop.
When space does not allow the door to swing open
fully to 130°, you may change the door swing to a 90°
opening. Skip this step if door opening is satisfactory
for your installation situation.
Metal panel may be
slippery. Grip metal panel firmly, so the panel does
not slip out of the frame and cause personal injury
or damage to the frame.
PRUDENCE :
90˚
Loosen
Side
Trim
Screw
Le panneau en métal
peut bêtre glissant. Tenir fermement le panneau en
métal, de manière à ce que le panneau ne glisse pas
en dehors du cadre en provoquant des blessures
corporelles ou des dommages au cadre.
• Slide panel over the metal backer panel and into
the trim.
• If necessary, tap with a wood block until panel slips
under the top trim piece.
• Reassemble bottom trim. Tighten screws.
• Adjust the hinge spring to accommodate the panel
weight, if necessary.
130˚
Interior
Door
Hinge
• Open the door to view the bottom hinge. Note the
door stop pin locations. The pin is factory installed
in the 130° position.
• Close the door. From below, use pliers to unscrew
the door stop and reinstall into the 90° position.
14
Installation Instructions
STEP 10 INSTALL 1/4” FRAMED PANELS
Go to Step 9A for Overlay Panels
Handle
Trim
Door Trim
Refrigerator
Door
Supplied
Handle Shown
in 1/4" Panel
Position
Install door panels:
• Open door to 90°. Remove the 6 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Remove 6 screws holding trim, lift off trim. Retain
screws.
• Slide framed panel into the door trim.
Dispenser Models Only:
• The dispenser controls protrude beyond the face of
the freezer door. To avoid damage to the dispenser,
the trim at the top of the door should be removed.
• Remove the screws holding the top trim in place.
• Place the freezer panel into the bottom channel and
slide into the hinge side trim.
• Reinstall the top trim piece with screws.
• There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original
screws in the FRONT screw holes.
• Secure the handle to the door using the REAR screw
holes.
• Follow the same procedures to install the opposite
panel.
• Check to be sure handles are evenly aligned with each
other at the top. To adjust, loosen handle screws and
slide up or down. Tighten screws.
NOTE: Aluminum cover trim is supplied for use with
custom handles on overlay panels. It is not intended for
use with 1/4" panels. Discard the cover trim when using
1/4" framed panels.
Use Front Holes
to Secure Trim
Use Rear Holes
to Secure Handle
15
Installation Instructions
STEP 10A INSTALL OVERLAY PANELS
Door Trim
Handle
Trim
Refrigerator
Door
Move
Forward
For 3/4"
Panel
Supplied Handle
Shown in Overlay
Panel Position
Install door panels:
• Open door to 90°. Remove the 6 Phillips head screws
from the door handle.
• Remove handle. Retain all screws.
• Remove 6 screws holding trim, lift off trim. Retain
screws.
• Slide overlay panel into the door trim.
Dispenser Models Only:
• The dispenser controls protrude beyond the face of
the freezer door. To avoid damage to the dispenser,
the trim at the top of the door should be removed.
• Remove the screws holding the top trim in place.
• Place the assembled freezer panel into the bottom
channel and slide into the hinge side trim.
• Reinstall the top trim piece with screws.
• There are two sets of holes in the handle side trim.
Replace handle side trim by installing the original
screws in the REAR screw holes.
• Secure the handle to the door using the FRONT screw
holes.
• Follow the same procedures to install the opposite
panel.
• Check to be sure handles are evenly aligned with each
other at the top. To adjust, loosen handle screws and
slide up or down. Tighten screws.
Use Front Holes
to Secure Handle
Use Rear Holes
to Secure Trim
16
Installation Instructions
STEP 10A (continued)
STEP 10A (continued)
Custom Handles
• If you are using custom handles, the handle must be
properly secured to the overlay panel before sliding
the panel into the trim.
• The cabinet manufacturer will supply the custom
handle and hardware.
• Discard the supplied handle.
• Carefully place the aluminum cover trim into top
end cap so that the recess is aligned with the cap.
Use the top to bottom grooves along the handle side
to align the cover trim accurately. Pull tape a few
inches at a time while pressing the trim against the
door. Press and hold approximately 10 seconds
before continuing along the length of the door.
• Install another end cap at the bottom of the door
to secure the cover trim. Use a stubby Phillips head
screwdriver and 2 screws provided.
• NOTE: Make sure there are no gaps in the installation.
• Follow the same procedure on the opposite door.
Reinstall all original screws.
• Reinstall the handle side trim using all 12 supplied
flat-head screws, plus the 12 flat-head screws
originally installed in the handle trim.
• Install a supplied end cap onto the top of the door
using a Phillips head screwdriver and 2 screws
provided. Hand-tighten screws into end caps. Do not
overtighten; damage will occur.
• Clean the aluminum trim with rubbing alcohol –
do not use alcohols with oil or lanolin that will
prevent adhesion of double-sided tape.
• Slip aluminum cover trim behind the top end cap to
check fit. The aluminum cover trim has a recess on
each end which fits the end cap.
End Cap
Cover Trim
Insert
Aluminum
Trim Into
End Cap.
End Cap
Top End Cap Fits
Over the Aluminum
Trim. Secure Cap
with 2 Screws.
• Remove the trim. Peel away a few inches of the
adhesive backing.
IMPORTANT: Tape is very sticky and strong. Once it
adheres to a surface, it cannot be removed without
damaging both surfaces. Do not install the trim before
the final wood panels are in place. Be sure to align the
trim carefully before removing the paper backing.
17
Installation Instructions
STEP 11 INSTALL DISPENSER
TRIM
STEP 12 CONNECT WATER SUPPLY
Skip this step is you are installing a stainless
steel wrapped or a non-dispenser refrigerator.
There are two dispenser trims shipped with your
refrigerator. Select the appropriate trim for your
application.
Framed
Panel
Trim
Refrigerator
Water Supply
Overlay
Panel
Trim
House
Water Supply
• Locate and bring tubing to the front of the cabinet.
• Turn the water on to flush debris from line. Run
about a quart of water through tubing into a bucket,
then shut-off water.
Compare the dispenser trims. Note that the inside
depth of the frames are different. Choose the trim
with less depth for framed panels, choose the
deeper one for overlay panels.
Copper Tubing:
• Slip a 1/4" nut and ferrule (provided) over both
ends of the copper tubing. Insert tube into the
union fitting on the unit and tighten nut to union.
• Turn on the water to check for leaks.
Dispenser trim fit over the custom panel depends on
correct panel thickness. See pages 7 and 8 for panel
construction information.
GE SmartConnect™ Tubing:
• Insert the molded end of the tubing into the
refrigerator connection. Tighten the compression
nut until it is just hand tight.
• Tighten one additional turn with a wrench.
Overtightening can cause leaks!
• Turn on the water to check for leaks.
NOTE: Make sure excess tubing length does not
interfere with toekick installation.
• Press and snap the dispenser trim into the
dispenser recess on the refrigerator door.
If an excessive gap exists around the dispenser trim
or if the panel fits loosely in the door frame, foam
tape may be applied to help improve the fit. Remove
the trim and panel and apply foam tape to the door
around the dispenser and in the corners.
18
Installation Instructions
STEP 15 INSTALL TOEKICK
STEP 13 CHECK POWER, CLOSE
GRILLE PANEL
• Locate the supplied toekick (shipped taped to
the side of the refrigerator). Install with 2 screws
provided, adjust to desired height and tighten
screws.
• A custom toekick can be installed to match or
complement the surrounding cabinetry. Use the
supplied toekick as a template to cut the shape.
• Check to be sure the power cord is plugged into
the receptacle.
Raise
Grille
Panel
Supplied Toekick
Master Light
Switch
Electrical
Outlet
1/4" or Thicker Toekick
• Check to make sure power to refrigerator is on by
opening refrigerator door to see if interior lights
are on.
• The temperature controls are preset at 37°F for
the fresh food section and 0°F for the freezer.
• Allow 24 hours to stabilize before making
adjustments.
INSPECT FINAL INSTALLATION
Check door alignment
Stand back away from the refrigerator to inspect the
final installation.
• Check to be sure handles are evenly aligned with
each other at the top. To adjust, loosen handle
screws and slide up or down. Tighten screws.
• During shipping or the addition of heavy door
panels may have caused the doors to move slightly
out of alignment.
STEP 14 START ICEMAKER
Power Switch
Door Out of
Alignment
Feeler Arm
Green Power Light
• Flip the switch to I (ON). The icemaker will begin
operation automatically.
• Be sure nothing interferes with the sweep of the
feeler arm.
• Discard the first full bucket of ice cubes.
• To turn the icemaker off, set the switch to O (OFF).
Bushing
Door Hin
ge
Case Hing
Raise
e
5/16" Wrench
• If necessary, the fresh food door may be adjusted
up or down to align with the freezer door.
• Use a 5/16" wrench to adjust the hinge pin as
shown.
19
NOTE: While performing installations described in this book,
safety glasses or goggles should be worn.
For Monogram® local service in your area, call
1.800.444.1845.
NOTE: Product improvement is a continuing endeavor at
General Electric. Therefore, materials, appearance and
specifications are subject to change without notice.
Pub. No. 49-60314
Dwg. No. 197D5947P001
01-04 JR
26054-0
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
