1

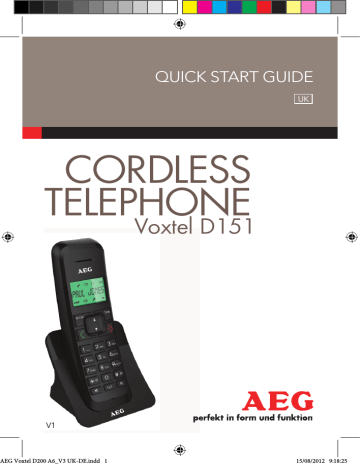

QUICK START GUIDE
UK
CORDLESS
TELEPHONE
Voxtel D151
V1
AEG Voxtel D200 A6_V3 UK-DE.indd 1
15/08/2012 9:18:25
2
P1
P2
8
1
2
7
3
6
5
P3
4
P4
AEG Voxtel D200 A6_V3 UK-DE.indd 2
P5
9
15/08/2012 9:18:26
3
BECAUSE WE CARE
Thank you for purchasing this product. This product has been designed
and assembled with utmost care for you and the environment. This is
why we supply this product with a quick installation guide to reduce the
number of paper (pages) and therefor save trees to be cut for making this
paper.
A full and detailed user guide with all the features descripted can be
found on our website www.aegtelephones.eu. Please download the full
user guide in case you want to make use of all the advanced features of
your product. To save the environment we ask you not to print this full user
guide. Thank you for supporting us to protect our environment.
2
UK
1
IMPORTANT SAFETY INSTRUCTIONS
When using your telephone, basic safety precautions should always be
followed to reduce the risk of fire, electric shock and injury, including the
following:
1. Read and understand all the instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug the power adapter from the wall outlet before cleaning. Do not
use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Keep your phone away from hot, humid conditions or strong sunlight
and don’t let it get wet or use this product near water (for example,
near a bath tub , kitchen sink, swimming pool).
5. Do not overload wall outlets and extension cords as this can result in
the risk of fire or electric shock.
6. Unplug this product from the wall outlet under the following conditions:
•When the power supply cord or plug is damaged.
•If the product does not operate normally by following the operating
instructions.
•If the product has been dropped and the cabinet has been damaged.
•If the product exhibits a distinct change in performance.
7. NEVER use your phone outdoors during a thunderstorm-unplug the
base from the telephone line and the mains socket when there are
storms in your area. Damage caused by lightning is not covered by
the guarantee.
8. Do not use the telephone to report a gas leak in the vicinity of the leak.
9. Use only the supplied NiMH (Nickel Metal Hydride) batteries!
AEG Voxtel D200 A6_V3 UK-DE.indd 3
15/08/2012 9:18:26
4
10.The use of other battery types or non-rechargeable batteries/primary
cells can be dangerous. These may cause interference and/or damage
to the unit or surroundings. The manufacturer will not be held liable for
damage arising from such non-compliance.
11.Do not use third party charging bays. Damage may be caused to the
batteries.
12.Please ensure the batteries are inserted in the correct polarity.
13.Dispose of batteries safely. Do not immerse them in water, burn them,
or put them where they could get punctured.
3
INTENDED USE
This telephone is intended to be connected to a public analogue
telephone network or to an analogue extension of an compatible PBX
system.
4
UNPACKING YOUR PHONE
In the box you will find:
•1 Handset
•1 Base station
•1 Mains power adapter
•1 Telephone line cord
•2 Rechargeable batteries
•1 User manual
Keep the packing materials in a safe place in case you later need to
transport the device.
AEG Voxtel D200 A6_V3 UK-DE.indd 4
15/08/2012 9:18:26
5
GETTING TO KNOW YOUR PHONE
5.1
Handset overview (see P1)
UK
5
#
Meaning
1
Up key
•In idle mode: press to access the call list
•In menu mode: press to scroll up the menu items
•In phonebook list / redial list / call list: press to scroll up
the list
•During a call: press to increase the earpiece volume
•During ringing: press to increase the ringer volume
2
Right soft key (clear/back/mute/intercom)
•In main menu mode: press to go back to idle screen
•In sub-menu mode: press to go back to previous level
•In sub-menu mode: press and hold to go back to idle
screen
•In editing / predialling mode: press to clear a character/
digit
•In editing / predialling mode: press and hold to delete all
the characters / digits
•During a call: press to mute / unmute the microphone
•In idle mode: press to intercom another handset
3
Off / hang up key
•During a call: press to end a call and go back to idle
screen
•In menu / editing mode: press to go back to previous
menu
•In idle mode: press and hold to power off the handset
•In idle mode (when the handset is powered off): press
and hold to power on the handset
4
R
Flash key
•In idle / predialling mode: press to insert a flash
•During a call: press to generate flash signal
AEG Voxtel D200 A6_V3 UK-DE.indd 5
15/08/2012 9:18:27
6
5
Speakerphone key
•During a call: press to turn on / off the speakerphone.
•Call list / phonebook entry: press to make a call with
speakerphone
•During ringing: press to answer a call with speakerphone
6
Down key (redial/down)
•In idle mode: press to access the redial list
•In menu mode: press to scroll down the menu items
•In phonebook list / redial list / call list: press to scroll
down the list
•During a call: press to decrease the earpiece volume
•During ringing: press to decrease the ringer volume
7
Talk key
•In idle / predialling mode: press to make a call
•In redial list / call list / phonebook list: press to make a
call to the displayed entry
•During ringing: Press to answer a call
8
Left soft key (menu/ok)
•In idle mode: press to access the main menu
•In sub-menu mode: press to confirm the selection
•During a call: press to access Intercom/phonebook/
redial list/ call list
OK
5.2
Display icons and symbols (see P2)
The LCD display gives you information on the current status of the
telephone.
Meaning
Steady when the handset is in range of the base.
Flashes when out of range of the base or not registered to the
base.
Steady when an intercom call is in progress.
Flashes when there is an incoming internal call.
Indicates a call is in progress on that handset.
AEG Voxtel D200 A6_V3 UK-DE.indd 6
15/08/2012 9:18:28
7
UK
Indicates that speakerphone is being used.
Indicates that the handset ringer is switched off.
Steady when an alarm is set.
Flashes when the alarm is sounding.
Indicates that the keypad is locked.
Indicates when you have a new Voice Mail message.
(This is a caller display service from the network operator.)
Indicates when the battery is fully charged.
Whole icon flashes when the battery is charging.
Internal block icon flashes when the battery is in final charging
stage.
Indicates when the battery needs charging.
Flashes when low battery power level is detected.
Indicates when there are more characters or numbers in front
of those
being displayed.
Indicates when there are more characters or numbers after those
being
displayed.
Left soft key function. Press to access the main menu.
Left soft key function. Press to confirm the current selection.
Indicates new TAM message / new call in TAM message list /
call list.
Indicates more options available in lists, above or below.
Right soft key function. Press to start an intercom call.
AEG Voxtel D200 A6_V3 UK-DE.indd 7
15/08/2012 9:18:29
8
Right soft key function. Press to go back to the previous menu
(back) level or cancel the current action.
Right soft key function. Press the alarm or mute/unmute the
microphone during a call.
5.3
Base station (see P4)
#
9
6
Meaning
Find
Press to page your registered handset(s).
Press and hold to start the registration process.
INSTALLATION
6.1
Connecting the base station (see P5)
•Plug the power supply and line cord into the base station.
•Plug the power adapter into a 100-240Vac 50/60Hz mains socket and
the line cord into your telephone line socket.
Warning:
Use only the provided adaptor, using other power supplies may cause a
hazard or damage the phone.
Install the base unit in a position where the mains adapter plug will reach
an easily accessible mains socket to unplug in case needed. Never try to
lengthen the mains power cable.
Note:
The base unit needs mains power for normal operation, not just for
charging the handset batteries.
6.2
Installing and charging the batteries (see P3)
•Place the 2 supplied batteries into the battery compartment with
the polarity markings. Use only the NiMH rechargeable battery type
provided with the telephone.
•Position the battery compartment cover over the batteries and slide up
to click into place.
AEG Voxtel D200 A6_V3 UK-DE.indd 8
15/08/2012 9:18:29
•Put the handset on the base and charge for 15 hours before using the
handset for the first time.
>The
>
handset will give a beep when it is properly placed on the base
or charger.
7
TELEPHONE OPERATION
7.1
Make a call
UK
9
7.1.1 Preparatory dialling
•Enter the phone number and press to connect to the line and dial the
number.
>When
>
entering the number, if you make a mistake, press “ “(
)
to delete digits.
7.1.2 Direct dialling
•Press to connect to the line and then enter the phone number.
7.1.3 Call from the phonebook
•Press , , OK to access the phonebook and press
desired phonebook entry.
•Press to dial out the selected phonebook entry.
/
to select the
Note:
The alphanumeric keys provide a short-cut to find entries beginning with
the corresponding letters.
7.1.4 Call from the call list (only available with caller display)
•Press
to access the call list and press / to select the desired call
list entry.
•Press to dial out the selected call list entry.
7.1.5 Call from the redial list
•Press
to access the redial list and press /
redial number.
•Press to dial out the selected redial number.
AEG Voxtel D200 A6_V3 UK-DE.indd 9
to select the desired
15/08/2012 9:18:30
10
7.1.6 Call timer
Your handset automatically times the duration of every call.
The call timer is displayed as soon as you answer a call or 15 seconds after
dialling and remains on the screen for 5 seconds after the end of the call.
It is shown in hours, minutes and seconds format (HH:MM:SS).
7.2
Answer a call
If the handset is not on the charging cradle:
•When the phone rings, press to answer a call.
Note:
If “AUTO ANSWER” is set to “ON”, then lifting the handset off the base or
charger will answer the call automatically and no keys need to be pressed.
7.3
End a call
•During a call press
to end the call.
OR
•Put the handset on the base station or charger to end the call.
7.4
Handset speakerphone
During a call, you can press
to alternate between hands-free
speakerphone and normal handset use.
7.5
Adjust volume
There are 5 levels (“VOLUME 1” to “VOLUME 5”) to choose from for each
of the earpiece and speaker volumes.
During a call:
•Press / to select volume 1-5. The current setting is shown.
>When
>
you end the call, the setting will remain at the last selected
level.
7.6
Turn off the handset ringer
In idle, press and hold # to turn off the handset ringer. The
displayed on the LCD.
icon is
Note:
The display will still flash the call icon
and show “CALL” or the caller
display number, when there is an incoming call, even if the ringer is turned
off. To turn the ringer back on, press and hold # again.
AEG Voxtel D200 A6_V3 UK-DE.indd 10
15/08/2012 9:18:30
7.7
Turn on the keypad lock
You can lock the keypad so that it cannot be used accidentally while
carrying it around.
•In idle, press and hold * to turn on the keypad lock and the
icon will
display.
UK
11
Note:
You can still use to answer a call when the handset is ringing.
To turn the keypad lock off, press and hold * again.
7.8
Redial the last number
You can redial any of the 5 last numbers called. If you have stored a name
in phonebook to go with the number, the name will be displayed instead.
The most recent last number will display at the top of the redial list.
7.8.1 Redial a number from the redial list
•In idle mode, press
to access the redial list.
Note:
If the redial list entry shows a name, press # to view the number of this
entry.
•Press
•Press
/ to browse the redial list.
to dial to the selected redial number.
Note:
If there are no numbers in the redial list, the display shows “EMPTY ”.
7.9
Find the handset
You can locate the handset by pressing the find key . All the handsets
registered to the base will produce the paging tone and show “PAGING“
on the display for 60 seconds.
You can stop the paging by pressing
on any handset or
on the
base again.
Note:
If there is an incoming call during paging, the phone will ring with the
incoming call instead of paging.
AEG Voxtel D200 A6_V3 UK-DE.indd 11
15/08/2012 9:18:30
12
8
PRIVATE PHONEBOOK
Each handset can store up to 20 private phonebook entries with names
and numbers. Each phonebook entry can have a maximum of 20
digits for the phone number and 12 characters for the name. You can
also select different ringtones for your phonebook entries. (Note: the
different ringtones only play when you receive a call if you subscribe to
caller display and the incoming number matches the stored number.)
Phonebook entries are stored alphabetically by name.
8.1
Add a new phonebook entry
In idle:
•Press
and
/
to select “PHONEBOOK” and then press OK to
access the phonebook.
•Press OK to show “ADD”.
•Press OK and then enter the name.
•Press OK and then enter the number.
•Press OK and / to select the desired ringtone for your phonebook
entry.
•Press OK to store the phonebook entry.
8.2
Search for a phonebook entry
In idle:
•Press
and
/
to select “PHONEBOOK” and then press OK to
access the phonebook.
•Enter the first letter of the name using the alphanumeric keys (e.g. if it
begins with C, press the 2 key three times) and then / to scroll to
the entry you want.
8.3
Edit a phonebook entry
In idle:
•Press
and
/
to select “PHONEBOOK and then press
access the phonebook.
•Press / to select the desired phonebook entry.
•Press OK and / to select “EDIT”.
•Press OK to display the current name.
•Edit the name and press OK.
OK to
•Edit the number and press OK.
•Press / to select the ringtone and press OK to confirm.
AEG Voxtel D200 A6_V3 UK-DE.indd 12
15/08/2012 9:18:31
8.4
Delete a phonebook entry
In idle:
•Press
and
/
to select “PHONEBOOK” and then press
access the phonebook.
•Press / to select the desired phonebook entry.
•Press OK and / to select “DELETE”.
•Press OK to confirm, and the entry will be deleted.
9
OK to
UK
13
CALLER DISPLAY (NETWORK DEPENDENT)
This feature is available if you have subscribed to the calling Line
Identification service with your network service provider. Your phone can
store up to 10 received calls with date/time information in the call list. The
number will be shown on the handset display when the phone is ringing.
If the number matches with one of the entries in your private phonebook,
the caller‘s name stored in the private phonebook will be displayed
alternately with the number, and the handset will ring with the ringtone
associated with that phonebook entry.
If the call is from someone who withheld their number, “WITHHELD” will
display.
If the call is from someone whose number is unavailable, e.g. an
international call or from a private exchange, “OUT OF AREA” will display.
If you‘ve got new caller display records, the handset will display “X NEW
CALLS“ in standby mode. The New calls indication will remain until all the
new call records have been viewed on that handset.
9.1
View the call list
All received calls are saved in the call list with the latest call at the top of
the list. When the call list is full, the oldest call will be replaced by a new
call. Any unanswered calls which have not been viewed are marked with a
icon at the centre of the bottom line of the display.
•Press
to access the call list.
OR Press and / to show “CALL LIST”, then press OK.
•Press / to select the desired entry.
•Press # to view the caller’s number if applicable.
•Press ,
/
to show “DETAILS”, and then OK to display the date
and time of the call.
•Press OK to go back to the previous screen.
AEG Voxtel D200 A6_V3 UK-DE.indd 13
15/08/2012 9:18:31
14
9.2
Delete an entry in the call list
•Follow steps 1 and 2 in section “9.1 View the call list”.
•Press and / to select “DELETE”.
•Press OK to confirm.
9.3
Delete all call list entries
Follow steps 1 and 2 in section “9.1 View the call list”.
•Press and / to select “DELETE ALL”.
•Press OK to display “CONFIRM?”.
•Press OK to confirm.
>All
> entries will be deleted and the display will show “EMPTY”.
10
PHONE SETTINGS
Your phone comes with a selection of settings that you can change to
personalise your phone the way you like it to work.
10.1 Set the handset language
•Press and / to select “HS SETTINGS”.
•Press OK and / to select “LANGUAGE”.
•Press OK and / to select the desired language.
•Press OK to confirm.
10.2
Base Settings
10.2.1 Set the base ringer melody
•Press and / to select “BS SETTINGS”.
•Press OK and / to select “BS RINGER”.
•Press OK and
/
to select the desired melody you want from a
choice of 5.
•Press OK to confirm.
Note:
The respective ringer melody will be played while browsing the melody
list.
10.2.2 Set the ringer volume
•Press and / to select “BS SETTINGS”.
•Press OK and / to select “RING VOLUME”.
AEG Voxtel D200 A6_V3 UK-DE.indd 14
15/08/2012 9:18:32
•Press OK and
/
to select the desired ringer volume (a total of 6
ringer volume levels including “VOLUME OFF”).
•Press OK to confirm.
UK
15
Note:
The respective ringer volume will be played during your selection.
10.3
Handset registration
Important:
When you purchase your phone, all handsets are already registered to
your base, so you do not need to register them.
Handset registration is only necessary when you buy extra handsets or if a
handset has become faulty.
You can register additional handsets to have up to five handsets per base
unit, with each handset‘s number (1 to 5) shown on its display. (Note: each
handset can only be registered to one base.)
To register a new handset to your base:
•Press and hold
on the base station for more than five seconds, to
put the base station into registration mode. It will stay in registration
mode for about 1 minute, so the following handset sequence must be
completed within this time.
•Press and / to select “REGISTRATION”.
•Press OK to display “PIN?------”.
•Enter the 4-digit system PIN (default 0000).
•Press OK to confirm, and the display will show “SEARCHING”.
If the handset registration is successful, you will hear a confirmation tone
and the
will stop flashing.
The handset will automatically be allocated the next available handset
number. This handset number is shown in the handset display in standby
mode. If the handset registration is unsuccessful, the
will still flash.
AEG Voxtel D200 A6_V3 UK-DE.indd 15
15/08/2012 9:18:32
16
11
GUARANTEE AND SERVICE
The phone is guaranteed for 24 months from the date of purchase shown
on your sales receipt. This guarantee does not cover any faults or defects
caused by accidents, misuse, fair wear and tear, neglect, faults on the
telephone line, lightning, tampering with the equipment, or any attempt
at adjustment or repair other than through approved agents.
Please keep your sales (till) receipt this is your proof of guarantee.
11.1 While the unit is under Guarantee
•Disconnect the base unit from the telephone line and the mains
electricity supply.
•Pack up all parts of your phone system, using the original package.
•Return the unit to the shop where you bought it, making sure you take
your sales receipt.
•Remember to include the mains adapter.
11.2 After the Guarantee has expired
If the unit is no longer under Guarantee, contact us via www.
aegtelephones.eu
This product works with rechargeable batteries only. If you put
nonrechargeable batteries in the handset and place it on the base, the
handset will be damaged and this in NOT covered under the warranty
conditions.
12
TECHNICAL DETAILS
Standard
Digital Enhanced Cordless Telecommunication
(DECT)
1.88 to 1.9 GHz (bandwidth = 20 MHz)
Channel bandwidth
1.728 MHz
Operating range
Up to 300m outdoors; Up to 50m indoors
Operating time
Standby: 100 hours, Talking: 10 hours
Battery charge time:15 hours
Temperature range
Operating 0° C to 40° C,
Storage -20° C to 60° C
AEG Voxtel D200 A6_V3 UK-DE.indd 16
15/08/2012 9:18:32
Electrical power
13
Base unit:
input 100-240VAC 50/60Hz 150mA,
output 6VDC 450mA
Battery information:
Type Ni-MH (rechargeable battery)
Voltage Rating 400mAh, 2 X 1.2V AAA size
UK
17
CE DECLARATION
This product is in compliance with the essential requirements and other
relevant provisions of the R&TTE directive 1999/5/EC.
The Declaration of conformity can be found on: www.aegtelephones.eu
14
DISPOSAL OF THE DEVICE (ENVIRONMENT)
At the end of the product lifecycle, you should not throw this product
into the normal household garbage but bring the product to a collection
point for the recycling of electrical and electronic equipment. The symbol
on the product, user guide and/or box indicate this. Some of the product
materials can be re-used if you bring them to a recycling point. By reusing
some parts or raw materials from used products you make an important
contribution to the protection of the environment. Please contact your
local authorities in case you need more information on the collection
points in your area.
Batteries must be removed before disposing of the device. Dispose of
the batteries in an environmental manner according to your country
regulations.
15
CLEANING AND CARE
Do not clean any part of your phone with benzene, thinners or other
solvent chemicals as this may cause permanent damage which is not
covered by the Guarantee.
When necessary, clean it with a damp cloth.
Keep your phone system away from hot, humid conditions or strong
sunlight, and don‘t let it get wet.
AEG Voxtel D200 A6_V3 UK-DE.indd 17
15/08/2012 9:18:32
© 2014 Binatone Electronics International Limited
All rights reserved
Subject to avaibility. Rights of modification reserved.
AEG is a registered trademark used under license from AB Electrolux (publ)
AEG Voxtel D200 A6_V3 UK-DE.indd 36
www.aegtelephones.eu
15/08/2012 9:18:36
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
