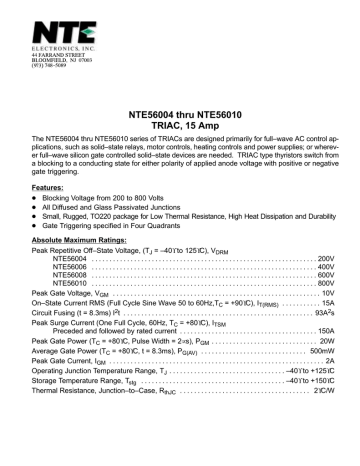

NTE56004 thru NTE56010
TRIAC, 15 Amp
The NTE56004 thru NTE56010 series of TRIACs are designed primarily for full–wave AC control applications, such as solid–state relays, motor controls, heating controls and power supplies; or wherever full–wave silicon gate controlled solid–state devices are needed. TRIAC type thyristors switch from
a blocking to a conducting state for either polarity of applied anode voltage with positive or negative
gate triggering.
Features:
D Blocking Voltage from 200 to 800 Volts
D All Diffused and Glass Passivated Junctions
D Small, Rugged, TO220 package for Low Thermal Resistance, High Heat Dissipation and Durability
D Gate Triggering specified in Four Quadrants
Absolute Maximum Ratings:
Peak Repetitive Off–State Voltage, (TJ = –40° to 125°C), VDRM
NTE56004 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200V
NTE56006 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400V
NTE56008 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 600V
NTE56010 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 800V
Peak Gate Voltage, VGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V
On–State Current RMS (Full Cycle Sine Wave 50 to 60Hz,TC = +90°C), IT(RMS) . . . . . . . . . . . 15A
Circuit Fusing (t = 8.3ms) I2t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93A2s
Peak Surge Current (One Full Cycle, 60Hz, TC = +80°C), ITSM
Preceded and followed by rated current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150A
Peak Gate Power (TC = +80°C, Pulse Width = 2µs), PGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20W
Average Gate Power (TC = +80°C, t = 8.3ms), PG(AV) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500mW
Peak Gate Current, IGM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2A
Operating Junction Temperature Range, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +125°C
Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . –40° to +150°C
Thermal Resistance, Junction–to–Case, RthJC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2°C/W
Electrical Characteristics (TC = 25°C, and either polarity of MT2 to MT1 Voltage, unless
otherwise noted)
Characteristics
Symbol
Peak Forward or Reverse Blocking Current
TJ=25°C
(Rated VDRM, or VRRM, Gate open)
TJ=125°C
IDRM,
IRRM
Peak On–State Voltage
(ITM = 21 A Peak; Pulse Width = 1 to 2ms,
Duty Cycle ≤ 2%)
VTM
Gate Trigger Current (Continuous dc)
(VD = 12Vdc, RL = 100 Ohms)
MT2(+) G(+), MT2(+) G(–), MT2(–) G(–)
MT2(–), G(+)
IGT
Gate Trigger Voltage (Continuous dc)
(VD = 12Vdc, RL = 100 Ohms)
MT2(+) G(+), MT2(+) G(–)
MT2(–) G(–)
MT2(–) G(+)
(VD = Rated VDRM, RL = 10k Ohms, TJ = 110°C)
MT2(+) G(+), MT2(–) G(–), MT2(+) G(–)
MT2(–) G(+)
VGT
Min
Typ
Max
Unit
–
–
–
–
10
2
µA
mA
–
1.3
1.6
Volts
mA
–
–
–
–
50
75
Volts
–
–
–
0.9
1.1
1.4
2
2
2.5
0.2
0.2
–
–
–
–
Holding Current (Either Direction)
(VD = 12Vdc, IT = 200mA, Gate Open)
IH
–
6
40
mA
Turn–On Time
(VD = Rated VDRM, ITM = 17A)
(IGT = 120mA, Rise Time = 0.1µs, Pulse Width = 2µs)
tgt
–
1.5
–
µs
dv/dt(c)
–
5
–
V/µs
Critical Rate of Rise of Commutation Voltage
(VD = Rated VDRM, ITM = 21 A, Commutating
di/dt = 8A/ms, Gate Unenergized, TC = 80°C)
.420 (10.67)
Max
.110 (2.79)
MT2
.147 (3.75)
Dia Max
.500
(12.7)
Max
.250
(6.35)
Max
.500
(12.7)
Min
.070 (1.78) Max
MT1
.100 (2.54)
Gate
MT2
