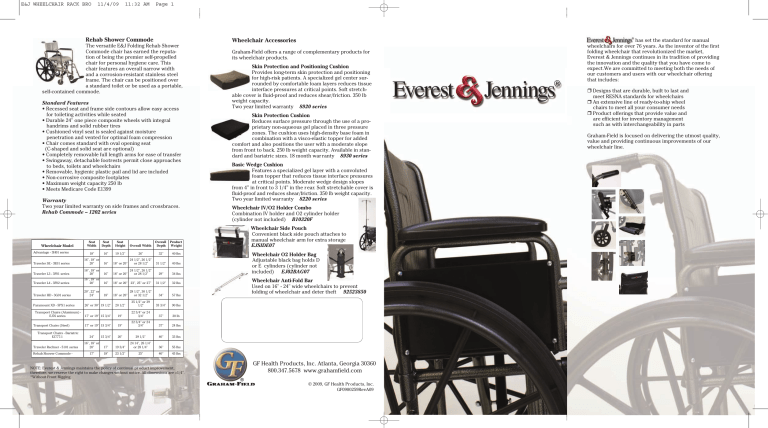

E&J WHEELCHAIR RACK BRO
11/4/09
11:32 AM
Page 1
Rehab Shower Commode
The versatile E&J Folding Rehab Shower
Commode chair has earned the reputation of being the premier self-propelled
chair for personal hygiene care. This
chair features an overall narrow width
and a corrosion-resistant stainless steel
frame. The chair can be positioned over
a standard toilet or be used as a portable,
self-contained commode.
Standard Features
• Recessed seat and frame side contours allow easy access
for toileting activities while seated
• Durable 24" one piece composite wheels with integral
handrims and solid rubber tires
• Cushioned vinyl seat is sealed against moisture
penetration and vented for optimal foam compression
• Chair comes standard with oval opening seat
(C-shaped and solid seat are optional)
• Completely removable full length arms for ease of transfer
• Swingaway, detachable footrests permit close approaches
to beds, toilets and wheelchairs
• Removable, hygienic plastic pail and lid are included
• Non-corrosive composite footplates
• Maximum weight capacity 250 lb
• Meets Medicare Code E1399
Warranty
Two year limited warranty on side frames and crossbraces.
Rehab Commode – 1202 series
Seat
Width
Seat
Depth
Seat
Height
Overall Width
Overall
Depth
Product
Weight
Advantage - 3H01 series
18"
16"
19 1/2"
26"
32"
40 lbs
Traveler SE - 3E01 series
16", 18" or
20"
16"
24 1/2", 26 1/2"
18" or 20"
or 28 1/2"
31 1/2"
40 lbs
Traveler L3 - 3F01 series
16", 18" or
20"
16"
18" or 20"
29"
34 lbs
Traveler L4 - 3F02 series
16", 18" or
20"
16"
18" or 20" 23", 25" or 27"
31 1/2"
32 lbs
Traveler HD - 3G01 series
20", 22" or
24"
18"
18" or 20"
28 1/2", 30 1/2"
or 32 1/2"
34"
57 lbs
20 1/2"
35 1/2" or 39
1/2"
33 3/4"
90 lbs
19"
22 3/4" or 24
3/4"
37"
20 lb
19"
22 3/4" or 24
3/4"
37"
24 lbs
20"
29 1/2"
40"
33 lbs
36"
55 lbs
40"
45 lbs
Wheelchair Model
Paramount XD - 5PX1 series
Transport Chairs (Aluminum) EJ76 series
Transport Chairs (Steel)
Transport Chairs - Bariatric
EJ777-1
Traveler Recliner - 5101 series
Rehab Shower Commode -
26" or 30" 19 1/2"
17" or 19" 15 3/4"
17" or 19" 15 3/4"
24"
15 3/4"
24 1/2", 26 1/2"
or 28 1/2"
16", 18" or
20"
17"
19 3/4"
24 14", 26 1/4"
or 28 1/4"
17"
18"
23 1/2"
25"
NOTE: Everest & Jennings maintains the policy of continual pr oduct improvement,
therefore, we reserve the right to make changes without notice. All dimensions are ±1/4".
*Without Front Rigging.
Wheelchair Accessories
Graham-Field offers a range of complementary products for
its wheelchair products.
Skin Protection and Positioning Cushion
Provides long-term skin protection and positioning
for high-risk patients. A specialized gel center surrounded by comfortable foam layers reduces tissue
interface pressures at critical points. Soft stretchable cover is fluid-proof and reduces shear/friction. 350 lb
weight capacity.
Two year limited warranty 8920 series
Skin Protection Cushion
Reduces surface pressure through the use of a proprietary non-aqueous gel placed in three pressure
zones. The cushion uses high-density base foam in
combination with a visco-elastic topper for added
comfort and also positions the user with a moderate slope
from front to back. 250 lb weight capacity. Available in standard and bariatric sizes. 18 month war ranty 8930 series
Basic Wedge Cushion
Features a specialized gel layer with a convoluted
foam topper that reduces tissue interface pressures
at critical points. Moderate wedge design slopes
from 4” in front to 3 1/4” in the r ear. Soft stretchable cover is
fluid-proof and reduces shear/friction. 350 lb weight capacity.
Two year limited warranty 8220 series
Wheelchair IV/O2 Holder Combo
Combination IV holder and O2 cylinder holder
(cylinder not included) B10320F
Wheelchair Side Pouch
Convenient black side pouch attaches to
manual wheelchair arm for extra storage
EJSIDE07
Wheelchair O2 Holder Bag
Adjustable black bag holds D
or E cylinders (cylinder not
included) EJ02BAG07
Wheelchair Anti-Fold Bar
Used on 16" - 24" wide wheelchairs to prevent
folding of wheelchair and deter theft 92523850
GF Health Products, Inc. Atlanta, Georgia 30360
800.347.5678 www.grahamfield.com
®
© 2009, GF Health Products, Inc.
GF0900259RevA09
has set the standard for manual
wheelchairs for over 76 years. As the inventor of the first
folding wheelchair that revolutionized the market,
Everest & Jennings continues in its tradition of providing
the innovation and the quality that you have come to
expect.We are committed to meeting both the needs of
our customers and users with our wheelchair offering
that includes:
 Designs that are durable, built to last and
meet RESNA standards for wheelchairs
 An extensive line of ready-to-ship wheel
chairs to meet all your consumer needs
 Product offerings that provide value and
are efficient for inventory management
such as with interchangeability in parts
Graham-Field is focused on delivering the utmost quality,
value and providing continuous improvements of our
wheelchair line.
E&J WHEELCHAIR RACK BRO
11/4/09
11:33 AM
Page 2
Advantage®
The Advantage wheelchair
provides comfort and durability at
an affordable price. Designed as a
low maintenance wheelchair, it
offers a silver vein durable
hammertone steel finish that is
both attractive and long lasting.
Standard Features
• Black, padded nylon upholster y
• Industry compatible “tool-free” adjustable front rigging
with heel loops standard on swing away footrests
• Sleek, hammertone silver vein finish
• Comfortable padded armrests
• Chart pocket on back
• Push to lock brakes
• 250 lb. weight capacity
• Meets Medicare code K0001
Warranty
Limited one year on side frames and cr ossbraces
Advantage wheelchairs – 3H01series
Traveler® SE
The Traveler SE is the standard
wheelchair of choice. Designed
with dual rear axles and adjustable
casters, this wheelchair can convert from a K0001 Medicare code
to a K0002 Medicare code.
The Traveler SE has industr y
compatible front rigging and has
vinyl upholstery constructed with a strong inner lining for
added support.
Standard Features
• Black vinyl upholster y
• Chart pocket on back
• Industry compatible “tool-free” adjustable front rigging
with heel loops standard on swing away footrests
• Hammertone paint provides a long lasting and
durable finish
• Two position axle and caster fork pr ovides 2" seat
height adjustment
• 250 lb. weight capacity
• Meets Medicare code K0001 and K0002
Warranty
Limited one year on side frames and cr ossbraces
Traveler SE wheelchairs – 3E01series
Traveler® L3
The Traveler L3 lightweight frame
weighs less than 36 pounds
making it the ideal K0003 Medicar e
coded wheelchair built for shor t
and long term use as well as r ental
needs. Designed with dual axles
and multi-position caster forks, this
wheelchair provides an adjustable
seat height of 18 or 20 inches.
Standard Features
• Weighs less than 36 lbs. without fr ont rigging
• Durable, long lasting carbon steel frame
• Black, padded nylon upholster y
• Chart pocket on back
• Industry compatible “tool-free” adjustable front rigging
with heel loops standard on swing away footrests
• Non-marking polyurethane rear tires
• Detachable Desk and Full Length Ar mrest options
• 250 lb. weight capacity
• Meets Medicare code K0003
Warranty
Limited Lifetime Warranty on side frame and cr ossbraces
Traveler L3 wheelchairs – 3F01series
Traveler® L4
The new Traveler L4 is a high
strength; lightweight Medicare
approved K0004 wheelchair
designed for both the home and
rehab markets. Weighing less than
34 lbs, it features a dual position
axle, multi-position caster forks for
18 or 20 inch seat height adjustment and offers flip back desk and
full length arm options for easy lateral movement. Pr ecision
bearings and non-marking polyurethane rear tires also
expand the longevity of the wheelchair.
Standard Features
• Black, padded nylon upholster y
• Chart pocket on back
• Anti-tippers come standard
• Non-marking polyurethane tires
• Industry compatible “tool-free” adjustable front rigging
with heel loops standard on swing away footrests
• Flip back desk and full ar m options for lateral transfers
• Height adjustable back
• 250 lb. weight capacity
• Meets Medicare code K0004
Warranty
Limited lifetime warranty on sideframe and crossbraces
Traveler L4 wheelchairs – 3F02 series
Traveler® HD
Built to support up to 500 lb; this
heavy duty wheelchair was
designed with precise engineering
and key reinforcements throughout
its structure. Double cross braces,
precision bearings and reinforced
gussets add strength to this wheelchair. The vinyl upholster y with
double inner lining prevents sagging. The Traveler HD,
available in 20", 22" and 24" wide options of fers 24"
polyurethane tires along with durable aluminum footplates
to withstand everyday use.
Standard Features
• Embossed black upholster y with double
inner lining for durability
• Hammertone silver vein style provides a long lasting
and durable finish
• Reinforced frame at all critical load-bearing points
• Industry compatible “tool-free” adjustable front rigging
with heel loops standard on swing away footrests
• Chart pocket standard
• 24" x 1" black plastic wheels with black handrims and
non-marking polyurethane tires
• Durable aluminum black footplates
• Available in Detachable Desk and Full Length Ar mrests
• Two position axle and caster fork pr ovides 2" seat
height adjustment
• 500 lb. weight capacity
• Meets Medicare code K0007
Warranty
5 year warranty on side frame and cr ossbraces
Traveler HD wheelchairs – 3G01 series
Paramount® XD
The Paramount XD is ideal for the
bariatric user that requires a larger
seat. With 26" and 30" seat width
options and 19 1/2" seat depth,
this wheelchair is designed to pr ovide additional comfort and support up to a 650 lb weight capacity.
Standard Features
• Black reinforced, padded nylon
upholstery
• Reinforced welds and gussets on frame
• Desk arm with optional Swingaway footrest and
Elevating legrest front rigging
• Maximum weight capacity of 650 lbs.
• 8"x 2" Solid casters
• 24" Solid rear wheels
Warranty
Limited lifetime warranty on side frame and cr ossbraces
Paramount HD wheelchairs – 5PX1 series
Transport Chairs
The Everest & Jennings Transport Chair is an
affordable alternative for those individuals
with limited mobility. Its compact size and
lighter weight allow a companion to lift and
store the chair with ease.
Standard Features:
• Stylish painted finishes (Red, Blue and
Silver options)
• 250 lb weight capacity
• Black, padded, nylon upholster y
• Full length arms are padded for comfort
• Fold down back makes transpor t and storage easy
• Comes standard with seat positioning belt
• Available in both Steel and Aluminum
• 17" and 19" Seat width options
• Industry compatible swingaway footrests
• Bariatric model supporting 400 lb also available
• Meets Medicare code E1038 and E1039 (Bariatric model)
Warranty
One year (three year on bariatric) war ranty on side
frames and crossbraces
Aluminum Transport Chair – EJ76 series
Steel Transport Chair – EJ765-6 series
Bariatric Transport Chair –EJ777-1
Traveler® Recliner
The same built-in quality as the standar d
Traveler wheelchair with the addition of a
full reclining back. The back features
unlimited adjustments using easy,
finger-trigger hinge and cable mechanisms.
The Traveler Recliner comes with a higher
back and removable full support headrest.
The Traveler Recliner offers a 250 lb weight capacity in 16", 18"
and 20" seat width options.
Standard Features
• Durable, low maintenance chrome-plated steel frame
• Rear axles are mounted further back than on standard
Traveler for added stability
• Deep Blue upholster y with inner lining (Burgundy and Black
upholstery available as options. Please see Price List/Or der
Form for available options)
• Detachable desk and full length ar m options with padding
for comfort
• Anti-tippers come standard
• Meets Medicare K0001 / E1226 (Recliner Back) / E0966 (Head
Rest Extension) specifications for wheelchairs.
Warranty
Two year limited warranty on frames and crossbraces
Traveler Recliner 5101 series
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
