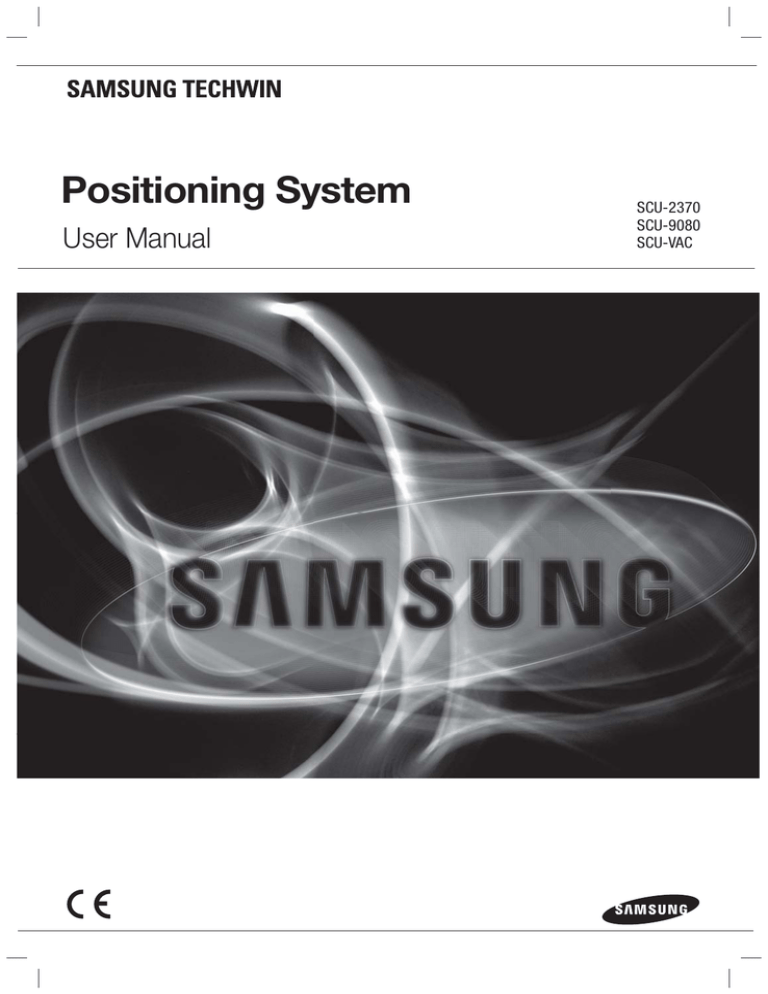

Positioning System
User Manual
SCU-2370
SCU-9080
SCU-VAC
Positioning System
User Manual
Copyright
©2012 Samsung Techwin Co., Ltd. All rights reserved.
Trademark
is the registered logo of Samsung Techwin Co., Ltd.
The name of this product is the registered trademark of Samsung Techwin Co., Ltd.
Other trademarks mentioned in this manual are the registered trademark of their respective company.
Restriction
Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document
shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.
Disclaimer
Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but
no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the
user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without
prior notice.
Warranty
If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve
the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:
• If the system behaves abnormally because you run a program irrelevant to the system operation.
• Deteriorated performance or natural worn-out in process of time
™Design and specifications are subject to change without prior notice.
safety information
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION:
This symbol indicates that dangerous voltage consisting a risk of electric shock is present within
this unit.
This symbol indicates that there are important operating and maintenance instructions in the
literature accompanying this unit.
WARNING
• To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.
• To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation
instructions.
- REPLACE WITH SAME TYPE F8AL 250V FUSE(F1, F2)
WARNING
1. Be sure to use only the standard adapter that is specified in the specification sheet.
Using any other adapter could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or
damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause abnormal heat
generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.
6. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water
on top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately
disconnect the power source and contact the service center. Continued use in such a condition may cause
fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product
in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.
CAUTION - Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
CAUTION
1. Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to
excessive vibration or magnetic interference.
2. Do not install in a location subject to high temperature (over 50°C), low temperature (below -50°C), or high
humidity. Doing so may cause fire or electric shock.
3. If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.
4. Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause fire
or damage to the product.
English - 3
● SAFETY INFORMATION
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
safety information
5. Keep out of direct sunlight and heat radiation sources. It may cause fire.
6. Install it in a place with good ventilation.
7. Avoid aiming the camera directly towards extremely bright objects such as sun, as this may damage the
CCD image sensor.
8. Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases,
shall be placed on the apparatus.
9. Do not expose the camera to radioactivity. Radioactivity exposure may damage the CCD.
FCC Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions :
1) This device may not cause harmful interference, and
2) This device must accept any interference received including interference that may cause undesired operation.
CAUTION
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
IC Compliance Notice
This Class A digital apparatus meets all requirements of the Canadian Interference.-Causing
Equipment Regulations of ICES-003.
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection systems)
This marking on the product, accessories or literature indicates that the product and its electronic
accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at
the end of their working life. To prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate these items from other types of waste and recycle them responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or their local
government office, for details of where and how they can take these items for environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase contract.
This product and its electronic accessories should not be mixed with other commercial wastes for disposal.
Correct disposal of batteries in this product
(Applicable in the European Union and other European countries with separate battery return systems.)
This marking on the battery, manual or packaging indicates that the batteries in this product should not be
disposed of with other household waste at the end of their working life. Where marked, the chemical symbols
Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC
Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human
health or the environment.
To protect natural resources and to promote material reuse, please separate batteries from other types of
waste and recycle them through your local, free battery return system.
4_ safety information
important safety instructions
Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such
as vases, shall be placed on the apparatus
Service Instruction
CAUTION - These servicing instructions are for use by Qualified service personnel only. To
reduce the risk of electric shock, do not perform any servicing other than taht
contained in the operating instructions unless you are qualified to do so.
WARNING
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the
installation instructions.
CAUTION
These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric
shock, do not perform any servicing other than that contained in the operating instructions unless you are
qualified to do so.
English - 5
● IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near warter.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and
a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus
combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
14. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.
PRECAUTIONS ON INSTALLATION AND USE
y Be sure to install the product vertically. Do never place it in other ways or reversely.
y For safety reasons to prevent a risk of accidental drop-off, use a strong safety chain while installing
the product.
y The wall where you intend to install the product should be firm and solid as well as the screws in
order to prevent a risk of drop-off.
y Pay special attention to safe transportation. A sudden impact may cause a damage to the product.
y When connecting the power, communication, video and lightening device using the cable gland,
seal off the cable gland with a Teflon tape (PTFE) so that no water can inflow.
y If you need to open the housing for the installation work, be sure to turn off the product before
proceeding.
y Use only the provided or rated AC adapter.
y Use only power adapter with 24V AC, 6A or higher that satisfies the power specifications.
(UL Listed Class 2 Adapter)
y Replace the battery if “Invalid RTC” message appears on the screen when turning on/off. (Note that
the message “Invalid RTC” can appear when the time has been initialized too. Be sure to set the
time when purchased or after the system initialization.)
consulting, contact your nearest retailer. Note that servicing may be chargeable for using a special equipment such
M  Foras anproduct
extension ladder.
 This is an assistant device to the monitoring system; the company do not take responsibility for any financial or physical damage
to the product that may occur due to theft, fire or natural disasters.
CAUTIONS FOR OPERATING TEMPERATURE
1. The camera cannot operate properly at temperatures lower than -50ºC.
2. Even if the surrounding temperature is -50ºC or higher, the camera may not thaw itself and
operate properly depending on the installation environment.
3. Always keep the power on, so the camera can maintain its internal temperature at -10ºC or higher.
4. If the camera was turned on after being left at temperatures lower than -50ºC for a long duration:
- If the internal temperature is lower than -20ºC, the camera does not transmit video signals
and displays a black screen along with the “Wait to warm up(xx Left)” message, instead of
operating properly.
- If the internal temperature is higher than -20ºC and lower than -10ºC, the “Wait to warm up(xx
Left)” message disappears as the camera resets itself and enters the operation mode.
However, only manual P/T operation is in effect while the Sequence and Turbo commands are
limited in use.
- If the internal temperature is higher than -10ºC, the camera activates all Sequence and Turbo
commands.
Samsung Techwin cares for the environment at all product manufacturing stages to
preserve the environment, and is taking a number of steps to provide customers with
more environment-friendly products.The Eco mark represents Samsung Techwin’s
will to create environment-friendly products, and indicates that the product satisfies
the EU RoHS Directive.
6_ important safety instructions
contents
INTRODUCTION
8
12
SETUP
26
TROUBLESHOOTING
12
15
16
18
SCU-VAC Wiring Diagram
Camera Wiring Interface Board
Camera and Appliances Wiring Diagram
Communication Protocol DIP Switch
Settings
21
22
23
24
Camera ID DIP Switch Settings
Preparing Adapter and Cables
Product Configurations
Camera Installation
26
27
28
29
40
46
56
62
63
66
67
Interface Symbols
Using and setting the menus
OSD Menu Chart
Camera Setup (SCU-2370)
Camera Setup (SCU-9080/VAC)
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
68 Troubleshooting
68
PRODUCT SPECIFICATIONS
71
71 Product Specifications
75 External dimensions (SCU-2370/
VAC/9080)
76 Internal Dimensions (SCU-2370/
VAC/9080)
English - 7
● CONTENTS
CONNECTION &
INSTALLATION
8 Features
9 What’s included
10 Component Names and Functions
introduction
Features
y Versatile protocols and coaxial communication
Supports RS-422/485 communications and coaxial communication (Pelco-C).
- RS-422/485 (10 species) : SAMSUNG-T, SAMSUNG-E, Pelco(D/P), Panasonic, Honeywell, AD,
Vicon, GE, Bosch.
- Coaxial Communications: Pelco Coaxitron
y Wide Range Auto Security Functions
- Multiple Preset Function Saving (SCU-2370) :
Up to 12 camera image properities can be saved individually to provide high quality pictures.
- Image Holding (SCU-2370):
Provides Preset Freeze to reduce the eye fatigue of the observer when moving the group.
- PTZ Trace :
Patterns operated with the joystick can be saved and replayed by users.
- Swing :
Using the Swing function commands the camera to move between 2 selected locations,
monitoring the route.
- Group Search :
Maximum 255 Preset positions are toured in order.
y Area Masking (SCU-2370/VAC)
If a monitoring location includes a highly private area, the area can be selectively masked on the
screen.
y Smart P/T (SCU-2370)
The Smart P/T function automatically adjusts the control speed of the Pan and Tilt functions
according to the current zoom ratio. It is useful to adjust the functions manually for detailed controls
when monitoring at high zoom ratios. (SCU-2370)
y Day & Night (SCU-2370/VAC)
With its daytime & nighttime switch and Sens-Up functions based on the ICR (Infrared Cut filter
Removal) method, the camera provides high quality pictures regardless of whether it is day or night.
- Sens-Up increases the CCD sensitivity by electrically extending the camera’s exposure time.
- Day & Night enables you to select between color and B/W modes depending on the lighting
conditions.
y OSD(On Screen Display)
The camera IDs, camera preset numbers, preset names, area names, and camera operation status
are displayed on the monitor, allowing set up of various camera functions through the OSD menu
screen.
y Preset Position Saving and Loading
Up to 255 preset positions can be set. Using this function saves and brings up the camera feed of
a selected monitoring location.
8_ introduction
WHAT’S INCLUDED
Check if the following items are included in the product package.
● INTRODUCTION
Main Body
Sunsheild/Screw (M5) X 2
Positioning System
User Guide
Fuse (2EA)
L-type hexagon wrenches (4.0mm)
SCU-2370
SCU-9080
SCU-VAC
User Manual
CD Manual
Mount
The following items are sold separately from the camera.
SBU-220PM
Pedestal Mount
SBU-500WM
Wall Mount
SBU-550IM
Light Projector Mount
English - 9
introduction
COMPONENT NAMES AND FUNCTIONS
Front
➌
❶
➋
(SCU-2370/VAC)
(SCU-9080)
❶ Lens
❷ Wiper : Use it to wipe out the front glass of the housing.
❸ Sunshield
M  SCU-VAC models support various lens and camera installations upon user’s requirement.
10_ introduction
Back
● INTRODUCTION
❶
➋
➌
➍
❶
❷
❸
❹
COM/ID Setup Switch
Video Out Cable
Communication Cable
Power Cable
M  For the DIP switch settings, please refer to the on Pages 18~21.
English - 11
connection & installation
SCU-VAC WIRING DIAGRAM
y Assembling Lens and Camera
Lens
y SLA-880
y SLA12240
y Basic Wiring
485-
Camera
y SHC-745
y SCB-3000
y SCB-4000
PCB
y How to connect (SHC-745)
485+
Power module
Communication /
Control (485)
y How to connect (SCB-3000)
Light
Projector
Power
Module
MD
(Motion Detection)
GND
* The power adaptor (AC) has no polarity.
12_ connection & installation
y How to connect (SCB-4000)
y How to connect (SLA-880)
ALC
FOCUS_MOTOR
LEVEL
ZOOM_MOTOR
- +
- +
CABLE 7Lines : Adjusting the zoom and focus
Auto Iris Jack
Board Label
GREEN (Far)
FOCUS_MOTOR+
BLACK (Near)
FOCUS_MOTOR-
YELLOW (Wide)
ZOOM_MOTOR+
RED (Tele)
ZOOM_MOTOR-
Focus
Zoom
y How to connect (SLA-12240)
FOCUS_MOTOR
5V
AD_FOCUS_P
AD_ZOOM_P
ZOOM_MOTOR
+
+ CCTV ZOOM LENZ
SLA-12240 12-240mm 1:1.6
Made in Japan
Lens Label
Lens Cable No.
Lens Cable Color
Board Label
Zoom Wiper
1
Pink
AD_ZOOM_P
Focus Wiper
3
Sky Blue
AD_FOCUS_P
Pot. Supply
7
Orange
+5V
Focus
5
Blue
FOCUS_MOTOR+
White +Near
2
White
FOCUS_MOTOR-
Zoom
4
Green
ZOOM_MOTOR+
Red +Tele
6
Red
ZOOM_MOTOR-
Pot. Return
8
Gray
GND
English - 13
● CONNECTION & INSTALLATION
Lens Label
connection & installation
y SCU-VAC/9080
Protocol
Samsung-T
SCB-3000
SCB-4000
: OFF
: ON
Camera
R+
GND
RS-485
(SCU-9080)
Cam I/F Board
485+
D-
M/D
SCB-4000
 Check !! ID=1, Baudrate=9600-N-1
 When shipped, all switches are set to OFF by default.
14_ connection & installation
Samsung-E
D/N
GND
Alarm
SHC-745, SCB-3000
M
GND
M/D
D/N
GND
MD
Motion
Detection
(SCU-VAC)
Video
Camera Cam I/F Board
DN
GND
Camera Cam I/F Board
SLA-880
(SCU-VAC)
Samsung-T
SHC-745
SCU-VAC
Iris Type
485-
SCB-9080
SCU-9080
Lens
R-
SW1 SW2 SW3 SW4
D+
Model
Camera Wiring Interface Board
For the camera wiring, please refer to the picture below.
(When using coaxial communication, a separate control signal connection is not required.)
Video
Alarm Input
Lighting Power
Alarm Output
Communication/Control Signal Diagram
y RS-422 Communications
y RS-485 Communications
Camera
RXD+
RXD-
Controller
or DVR
Camera
TXD+
TXDRXD+
RXD-
RXD+
RXDTXD+
TXD-
RXD+
RXD-
RXD+
RXDTXD+
TXD-
Controller or DVR
TXD+
TXDRXD+
RXD-
Alarm Connections
y Alarm Output
y Alarm Input
Name
Descriptions
IN1
Alarm Signal Input 1
IN2
Alarm Signal Input 2
IN3
GND
Alarm Signal Input 3
Type
Alarm
Output
Ground
External
Device
Name
Descriptions
COM1
Alarm Out 1 (Common)
1N.O
Alarm Out 1 (for Normal Open)
1N.C
Alarm Out 1 (for Normal Close)
COM2
Alarm Out 2 (Common)
2N.O
Alarm Out 2 (for Normal Open)
2N.C
Alarm Out 2 (for Normal Close)
COM
External Device (AUX) Terminal
N.O
External Device (for Normal
Open) Terminal
English - 15
● CONNECTION & INSTALLATION
Power Supply
Communications/
Control Signal
connection & installation
Power Module Connection Diagram
Ú The power adaptor (AC) has no polarity.
maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and 250VAC/0.25A.
M  The
A separate relay driver device is required if used with an adaptor which exceeds specified nominal specifications.
 Connecting the power connector and GND incorrectly to the NC/NO and COM ports may cause a short circuit and fire,
damaging the camera.
CAMERA AND APPLIANCES WIRING DIAGRAM
Connecting with Samsung Techwin’s “Stand Alone DVR”
y RS-485 :
Camera
RXD+
RXD-
Stand Alone DVR
T(TXD)+
T(TXD)-
y RS-422 :
Camera
Stand Alone DVR
RXD+
RXD-
T(TXD)+
T(TXD)-
TXD+
TXD-
R(RXD)+
R(TXD)-
16_ connection & installation
Connecting with the Samsung Techwin Controller SPC-6000
y RS-485 :
Camera
TXD+
TXD-
TX
RX
+ -
TX
G
+ -
+ -
RX
+
-
y RS-422 :
TX
+ -
Camera
RX
+ -
G
TX
+ -
RX
+
-
MENU
SEARC
H
MULTI
REC
MENU
PRESE
T
CAM
TXD+
TXD-
RXD+
RXD-
RXD+
RXD-
TXD+
TXD-
GROUP
PTZ
1
6
MON
2
7
3
8
DVR
TRACK
MTX
SETUP
4
9
5
ESC
FUNC
ENTER
CLOSE
OPEN
0
NEAR
WIDE
FAR
TELE
<Controller>
To connect to Samsung PC DVR
y RS-485 :
Camera
PC DVR
RXD+
RXD-
SRP-1610/1650
English - 17
● CONNECTION & INSTALLATION
RXD+
RXD-
connection & installation
COMMUNICATION PROTOCOL DIP SWITCH SETTINGS
Pin No.
Purpose
1~4
Protocol Settings
5
Transfer Method (RS-485/422) Settings
6
Response Mode Settings
7
Terminal Resistance TX
8
Terminal Resistance RX
9
TEST
10
Factory Default
Protocol Settings
Select a communication protocol for the camera.
No
Protocol
#4
#3
#2
#1
1
SAMSUNG-T
OFF
OFF
OFF
OFF
2
SAMSUNG-E
OFF
OFF
OFF
ON
3
Pelco-D
OFF
OFF
ON
OFF
4
Pelco-P
OFF
OFF
ON
ON
5
Panasonic
OFF
ON
OFF
OFF
6
Vicon
OFF
ON
OFF
ON
7
Honeywell
OFF
ON
ON
OFF
8
AD
OFF
ON
ON
ON
8
GE
ON
OFF
OFF
OFF
10
Bosch
ON
OFF
OFF
ON
18_ connection & installation
Communication Method Settings
Select a communication method for the camera.
Function
Transfer Mode Switch
#5
ON
RS-422(4Wire)
OFF
RS-485(2Wire)
Select a communication response method for the camera and controller: Response or No Response.
#6
Function
ON
OFF
Response Mode Switch
Response
No Response
Termination Settings
To prevent the attenuation of communication signals between the camera and controller, the items at
the end of line must be set up with the termination settings.
Camera Input Position
#7
#8
Terminal Resistance TX
ON
OFF
Terminal Resistance RX
OFF
ON
I  When terminating for RS-485: #8 l ON
 When terminating for RS-422: #7, #8 l ON
Initialize
Initialize the system using the Initialize switch on the rear of the product.
Once initialized, all current settings will return to the factory default.
#10
Initialize
Do not use initialization
ON
OFF
you do not set the Reset witch to OFF after resetting the system, all stored data will be lost when you restart the
I  Ifsystem.
English - 19
● CONNECTION & INSTALLATION
Communication Response Settings
connection & installation
Baud Rate Settings
Select the transfer speed of a selected communication protocol.
No
Baud Rate(BPS)
#9
#10
1
2,400
ON
ON
2
4,800
ON
OFF
3
9,600
OFF
OFF
4
19,200
OFF
ON
M  To use a third party controller with this product, please contact our After-Sales Service or Technology Department.
 Controls Using Different Protocols
AD Protocol
VICON Protocol
GE Protocol
Entering Camera OSD
3+Auxilary ON
IRIS OPEN
IRIS OPEN
Exiting Camera OSD
3+Auxilary OFF
IRIS CLOSE
IRIS CLOSE
ENTER
IRIS OPEN
IRIS OPEN
IRIS OPEN
ESC
IRIS CLOSE
IRIS CLOSE
IRIS CLOSE
 For more information about the protocols, refer to our official website.
 The product’s DIP switch is set to OFF when shipped, and the default values are presented as shadowed in corresponding
settings table.
 Remove the rubber packing of the DIP switch cover to reveal the switch settings.
20_ connection & installation
CAMERA ID DIP SWITCH SETTINGS
Assign a unique number for each camera to identify itself from others.
For coaxial communication, it only works if the camera’s ID dip switch is set to OFF.
● CONNECTION & INSTALLATION
128
64
32
16
8
4
2
1
2. Each switch has a unique value, and the board ID is the sum of
the values of the switches.
1. By default, all switches are set to “1” initially.
ON
 Refer to the example below for the board ID.
Example 2
128
128
64
64
32
16
16
4
4
2
8
8
8
4
2
2
1
1
1
ON
ON
ON
OFF
OFF
OFF
1+2 = 3 (Board ID = 3)
4+32 = 36 (Board ID = 36)
16
32
32
64
128
Example 3
Example 1
OFF
1+2+4+8+16+32+64+128
= 255 (Board ID = 255 )
M  Use a unique ID for each Camera.
English - 21
connection & installation
PREPARING ADAPTER AND CABLES
y Power Adapter
Power adapter has the capacity of AC 24V/6A. (UL Listed Class 2 Adapter)
y Video Cable
The camera’s video output port is connected to the monitor with a BNC coaxial cable, shown below :
If the distance between the camera and the monitor exceeds the recommended maximum, please use
an auxiliary video amp.
Distance
Recommended Cable
Specification
300m
4C2V(RG-59/U)
450m
5C2V(RG-6/U)
600m
7C2V(RG-11/U)
the camera is controlled through coaxial communication, please use a video amp intended for coaxial communications.
M  IfRegular
video amps do not transfer coaxial signals.
y Communications Cable
For the camera to communicate with the controller, a
RS-485/422 communications line is required. To ensure the
quality of long distance communication and the accuracy of the
overall communication it is recommended using a twisted pair
cable such as UTP.
M  Depending on the camera’s environment, the communications distance may vary.
 Neither the video nor communications cable is enclosed with the camera.
22_ connection & installation
PRODUCT CONFIGURATIONS
● CONNECTION & INSTALLATION
RS-485
SRD Series
RS-485
SRD Series
Coaxial Communication
SRD Series
Coaxial Communication
SRD Series
CONTROLLER (MAIN)
CONTROLLER (SUB)
MENU
SEARC
MENU
SEARC
H
H
MULTI
MULTI
REC
REC
MENU
MENU
PRESE
T
CAM
MON
2
7
3
8
PRESE
T
CAM
GROUP
PTZ
1
6
DVR
9
5
ESC
6
FUNC
ENTER
CLOSE
OPEN
0
NEAR
WIDE
MON
GROUP
PTZ
1
TRACK
MTX
SETUP
4
2
7
3
8
DVR
TRACK
MTX
SETUP
4
9
5
ESC
FUNC
ENTER
CLOSE
OPEN
0
NEAR
FAR
TELE
CONTROL LINE
VIDEO LINE
CONTROL/VIDEO LINE
WIDE
FAR
TELE
English - 23
connection & installation
CAMERA INSTALLATION
y Pedestal Mount
y Wall Mount
not connect the camera to a power outlet until the installation is complete. Supplying power in the middle of the
M  Doinstallation
may cause fire or damage the product.
 Bend back the wiper before opening the housing.
 Ensure that the housing is closed completely before you turn on the product. Do not reset the system with the housing
open. Otherwise, it may cause damage to the product.
24_ connection & installation
y To install the light projector
1. Fix 4 hex screws to secure the camera on the bracket through the
holes prepared, from the bottom side of the bracket.
● CONNECTION & INSTALLATION
2. To secure the light projector on the bracket, fix 4 hex screws through
the holes prepared on the boundary of the bracket, from the bottom
side. Fix the center hex screw from the upper side of the bracket
mount towards the light projector.
* Mounting and securing the light projector may vary depending on
the light projector type.
3. Connect the cables.
4. Insert the projector cables through the rear hole of the camera.
5. Light projector cable is to be connected to the power module.
English - 25
setup
INTERFACE SYMBOLS
y Motion Detection Standby/Operation Display :
When in standby mode, the “
if motion is detected.
” in the upper right of the screen blinks and then changes to “
”
y Thermal Detect Standby / Operation Display: (SCU-9080) :
When in standby mode, the “ ” in the upper right of the screen blinks and then changes to “
if thermal is detected.
y Alarm Input Port Status Display :
"1", "2" and "3" in the upper right of the screen blink.
y Current Alarm Port Display According to Input Alarm Ports(Priority) :
Only one of " ˙", " ˚", " ˛" in the upper right of the screen blinks.
Ú The alarm port indicator blinks only when the sequence is set .
y Preset Number Display Settings :
‘*’ : Preset exists already.
'H' : If the preset is set to the Home Position.
T : If the preset’s Thermal Detection is enabled.
Camera Name
y PTZ Function Screen :
Alarm Input
.PUJPO5IFSNBM%FUFDU
Area Display
Sequence Status
Preset Info
ID=001
Area1 Area Name
G-SEQ1
PRESET : 001 Preset Name
P:300 T:040 010X
y Preset Number Setting Screen :
PTZF Setting
Preset=011* (1~255)
26_ setup
❸123
”
USING AND SETTING THE MENUS
OSD (On-screen Display) Indicators
Has no submenu
● SETUP
Has submenu
Camera Setting
偓Focus & Zoom
White Balance
-----------
ATW
Operating Your Camera
z Panning and Tilting :
Use the joystick of the controller or its direction buttons.
z Controlling Zoom :
Move the joystick clockwise (Tele) or counterclockwise (Wide), or use the zoom buttons.
z Accessing Screen Menus:
Press the Menu or OSD button on the controller.
more detailed information about controls using a third party controller or a DVR, refer to the user’s manual of the
M  Forproduct.
OSD Commands, Function Chart, and Menu Controls
This camera can be operated using two methods: Using hot keys on its dedicated controller, or
accessing the OSD (On Screen Display) on the video output.
The OSD menu commands are as follows:
Command
Function
Move the joystick up/down/left/right
Moves the OSD menus up/down/left/right, respectively.
Enter/Focus Far
Selects a menu and allows access to the sub menus.
ESC/Focus Near
Cancels a command and moves back to an upper-level menu.
English - 27
setup
OSD Menu Chart
You can have an overall view of the menu structure. For more information, refer to the applicable page or
section in the manual.
Ú For more information about SCU-VAC, refer to the “Camera Setting” section in the manual that was
provided when you purchased the camera module.
<SCU-2370>
<SCU-VAC>
Focus & Zoom
Protocol Type
White Balance
Lens Type
Exposure
Open Camera Menu
Back Light
Camera Setting
AGC
SSNR
<SCU-9080>
Open Camera Menu
SSDR
Day & Night
Others
Preset
Swing SEQ.
Group SEQ.
Sequence Setting
PTZ Trace
Auto Run
Power On Resume
Pan Limit
MD Dwell Time (SCU-2370/VAC)
Tilt Limit
TD Dwell Time (SCU-9080)
Area Setting
P/T Setting
Area Masking (SCU-2370/VAC)
Housing Load (SCU-VAC)
Wiper (SCU-2370/VAC)
Prop.P/T (SCU-2370)
Image Hold (SCU-2370)
Camera ID
Camera Name
Preset Number
Preset Name
OSD Setting
Sequence Status
PTZ Position
Language
Clock
Alarm Enable
Alarm Setting
Alarm Input
Alarm Output
Aux. Output
IR Illuminator (SCU-2370/VAC)
Power On Reset
Initialize
Factory Default Set
Camera Default Set (SCU-2370)
Status
28_ setup
CAMERA SETUP (SCU-2370)
Ú The camera setting section in this manual is explained based on SCU-2370.
For SCU-9080, refer to page 40. For SCU-VAC products, refer to the own user manual provided separately.
Focus and Zoom Settings
- AUTO : Performs continuous auto-focus.
- MANUAL : Changes the camera mode to Manual Focus.
- ONE SHOT : Auto-focuses the camera once after the Pan,
Tilt, or Zoom function is used.
z Digital Zoom
Enables the maximum digital zoom.
Digital zoom magnifies from x2 to x16, which provides with
zooming up to x592 in maximum when applied with the optical
zoom.
● SETUP (SCU-2370)
z Focus Mode
Main Menu
偓Camera Setting
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
Camera Setting
偓Focus & Zoom
the optical zoom, the graphics quality of the digital zoom decreases
M  Unlike
as its zoom ratio increases.
 The auto-focus function may not operate normally under the following
conditions :
- When background illumination is low
- While Slow-Shutter is in operation
- If the zoom level is set too high
- When background illumination is too high
- If a long distance object and a close distance object appear together
within a monitoring area
- If there is no contrast, e.g. the sky or a wall
- If the camera is facing a thin horizontal line
 Auto Focus focuses on an object in the center of the screen; objects around the
White Balance
Exposure
Back Light
AGC
SSNR
SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
Æ
Focus & Zoom
偓Focus Mode
ONE SHOT
Zoom Tracking
Digital Zoom OFF
screen edges may not be properly in focus.
English - 29
setup
Zoom Tracking
Through this menu you can set up the camera’s focus mode when zooming.
z Mode
- AUTO : Auto-focuses when zooming.
- TRACKING : Focuses manually when zooming.
- OFF : Disable the focus modes when zooming. (Full manual
mode)
z Speed
SLOW/MEDIUM/FAST : Adjusts the zooming speed.
Main Menu
偓Camera Setting
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
Camera Setting
偓Focus & Zoom
White Balance
Exposure
Back Light
AGC
SSNR
SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
Æ
Focus & Zoom
###Focus Mode
ONE SHOT
偓Zoom Tracking
Digital Zoom
OFF
Æ
Zoom Tracking
偓Mode
Speed
30_ setup
AUTO
FAST
White Balance
The White Balance menu adjusts the balance of the screen colors under different lighting conditions.
Main Menu
z INDOOR : Adjusts the screen color to be optimal in an indoor
偓Camera Setting
environment.
z OUTDOOR : Adjusts the screen color to be optimal in an
outdoor environment.
z AWC : Adjusts the screen color to be optimized to the current
lighting and monitor conditions. Using this setting
may require an readjustment if the lighting conditions
changes.
z MANUAL : Enables customization the Red and Blue gains.
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
● SETUP (SCU-2370)
z ATW : Adjusts the screen color automatically.
#
Æ
Camera Setting
Focus & Zoom
偓White Balance
Exposure
Back Light
AGC
SSNR
SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
M  White Balance may not work properly under the following conditions.
➊ When the color temperature of the environment surrounding the subject is out of the control range.(e.g. Clear sky or sunset)
➋ When the ambient illumination of the subject is dim.
➌ If the camera is directed towards a fluorescent light or is installed in a place where illumination changes dramatically, White
Balance adjustments may not deliver consistent results.
English - 31
setup
Exposure
The Exposure settings are to control the camera’s exposure meter.
z Brightness : Adjusts the screen brightness.
(Over 50: Brighter, Under 50: Darker)
z Iris
- AUTO : Automatically adjusts the exposure meter.
- MANUAL : Enables manual adjustment of the exposure
meter. (F1.6~Close: 18 levels)
z Shutter : Controls the camera’s electronic shutter.
- --- : The shutter speed is fixed at 1/60 for NTSC and 1/50
for PAL. Operates when Iris is on the Auto Mode.
- ESC : Adjusts the shutter speed automatically according to the
screen brightness. Operates when Iris is on the Manual
Mode.
- A.FLK : Select this setting when you experience picture
flickering. Flickering can happen when artificial
lighting frequencies clash with camera frame rates.
- MANUAL : Enables manual adjustment of the shutter
speed.
z Sens-Up
- AUTO : Automatically detects light levels and maintains a
clear picture at night or under low-light conditions.
- Sens-Up Limit : Adjusts to the maximum-powered zoom
per frame.
Main Menu
偓Camera Setting
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
Camera Setting
Focus & Zoom
White Balance
偓Exposure
Back Light
AGC
SSNR
SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
Æ
Exposure
偓Brightness
optimal performance of the A.FLK mode, avoid using the mode in
M  Forconjunction
with Backlight.
 While the Internal Sync mode is in effect, setting the shutter to ‘---’ and facing

32_ setup
the camera directly to a bright light source may cause poor camera
performance.
Sens-Up is disabled when the shutter is in Manual or A. FLK mode.
Iris
Shutter
Sens-Up
050
AUTO
--AUTO
Back Light
Unlike other cameras, Samsung Techwin’s unique W-V DSP chip gives you a clear image of the
subject even with bright backlight.
z Back Light Mode
Main Menu
偓Camera Setting
● SETUP (SCU-2370)
- OFF : Disables the Backlight mode.
- HLC : Activates the High Light Compensation mode.
- BLC : Activates a user defined backlight compensation mode.
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
Camera Setting
Focus & Zoom
White Balance
Exposure
偓Back Light
AGC
SSNR
SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
” HLC Setting
The HLC settings selectively eliminates high lights in a limited
environment such as the entrance to an apartment parking lot
or gas station, and is useful to detect a small objects like car
license plates.
HLC Setting
偓Level
Mask Color
MEDIUM
07
HLC is disabled during the daytime. While monitoring nigh time
car traffic, if car headlights reflects too much bright light on the screen, the camera automatically
eliminates the headlamp lights and adjusts the color of the license plate accordingly.
English - 33
setup
HLC Masking Area
<HLC ON>
<HLC OFF>
- Level : Adjusts the HLC sensitivity level.
- Mask Color : Adjusts the mask color on the high lighted area.
M  Even if HLC is on, car license plates may not be detectable depending on the location and angle of the camera as well as
the lighting condition.
 HLC does not function if in Digital Zoom or Freeze function is in use.
” BLC Setting
You can selectively choose a screen area to see objects within
the area more clearly than others.
- Four-direction Joystick Controls :
Moving the joystick in all four directions—upward,
downward, left, and right—adjusts the location and size of a
selected area.
- Zoom Control :
y Zoom Tele : Enlarges the size of a selected area.
y Zoom Wide : Reduces the size of a selected area.
34_ setup
Ć: UP ć:DN ą:LEFT Ą: RIGHT
W : INCREASE T : DECREASE
AGC(Auto Gain Control)
AGC (Automatic Gain Control) adjusts the camera’s gain control and the screen brightness if the
camera has captured an object under low-light conditions.
z OFF:
z LOW/MEDIUM/HIGH:
As the level increases to HIGH, brighter the captured screen in a
dark lighting.
z MANUAL:
AGC can be fine tuned by adjusting the level (5dB ~ 41dB).
Main Menu
偓Camera Setting
● SETUP (SCU-2370)
AGC does not function.
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
Camera Setting
Focus & Zoom
White Balance
Exposure
Back Light
偓AGC
SSNR
SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
English - 35
setup
SSNR(Samsung Super Noise Reduction)
SSNR significantly reduces the amount of low luminance noise.
- OFF : Disables the noise reduction function.
- LOW : Reduces only a small amount of noise, but generates
almost no afterimage.
- MEDIUM : The most commonly used mode. Reduces a suitable
amount of noise while generating a subtle afterimage.
- HIGH : Reduces noise significantly, but generates obvious
afterimages.
Main Menu
偓Camera Setting
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
#
Æ
Camera Setting
Focus & Zoom
White Balance
Exposure
Back Light
AGC
偓SSNR
SSDR
Day & Night
Others
M  SSNR is not available if AGC is set to OFF or MANUAL.
36_ setup
ATW
OFF
MEDIUM
MEDIUM
SSDR(Samsung Super Dynamic Range)
SSDR illuminates darker spots of an image while retaining the same light level for brighter spots to even
out the overall brightness of the image with high contrast between bright and dark spots.
Main Menu
44%30/
44%30''
- Mode : Enables or disables SSDR.
- Range : Defines a range of SSDR.
- Level : Changes the contrast between bright and dark spots
by the level.
● SETUP (SCU-2370)
偓Camera Setting
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
Camera Setting
Focus & Zoom
White Balance
Exposure
Back Light
AGC
SSNR
偓SSDR
Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
Æ
SSDR
偓Mode
Range
Level
ON
NARROW
08
English - 37
setup
Day & Night
The Day & Night function allows the camera to switch between the Color and B/W modes.
z MODE
- AUTO : Operates in Color mode most times, and switches
to B/W mode if a low light level is detected during
nighttime.
- COLOR : Operates in Color mode at all times.
- B/W : Operates in B/W mode at all times. By using the Burst
On/Off sub menu, burst signals can be retained or
disabled.
Ú If the camera is in B/W mode and connected to equipment
that requires external sync through burst signals, set the Burst
On/Off option to “On”.
Main Menu
偓Camera Setting
#
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
z Duration :
- The camera’s light sensitivity is adjustable as in the chart
below. The camera’s ambient light diversion performance
may vary depending on its environment.
Color p B/W
B/W p Color
FAST
2.5Lux
4Lux
SLOW
0.8Lux
6Lux
z Dwell Time :
- The duration of both the lighting conditions can be customized to
let the camera divert between the daytime and nighttime settings.
Camera Setting
Focus & Zoom
White Balance
Exposure
Back Light
AGC
SSNR
SSDR
偓Day & Night
Others
ATW
OFF
MEDIUM
MEDIUM
Æ
Day & Night
偓Mode
Duration
Dwell Time
M  Auto mode is not available if AGC is set to OFF or MANUAL. Only available if it is set to COLOR or B/W.
 Using B/W mode under sunlight or a halogen lamp may decrease the focusing performance.
38_ setup
AUTO
FAST
05 SEC
Others
z Sync : Enables selecting Internal Synchronization or the
external Line Lock.
偓Camera Setting
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
z Stabilizer : The Stabilizer compensates for any small
movements of the camera caused by due to the
wind and other reasonable causes.
Stabilizer uses the digital zoom and may cause low picture quality.
M  The
The Stabilizer is disabled if the ambient light is too low.
 The Stabilizer is disabled if the field of view has very low or no contrast,
e.g. The sky or a white wall.
z Image Adj :
- Sharpness : Sharpens outlines of an image.
- Color : Adjusts the color density of an image.
z Freeze : Stops or reanimates an image.
#
● SETUP (SCU-2370)
- INTERNAL : Synchronizes the camera’s output timing to the
internal crystal.
- LINE LOCK : Synchronizes the camera’s output timing to
the AC adapter power to synchronize multiple
cameras. This option is useful when using a
switch such as Matrix Switcher.
- LINE LOCK PHASE : Enables setting the adapter’s
synchronization phase between 0 and 359°.
Main Menu
#
Æ
Camera Setting
Focus & Zoom
White Balance
Exposure
Back Light
AGC
SSNR
SSDR
Day & Night
偓Others
ATW
OFF
MEDIUM
MEDIUM
Æ
Others
偓Sync
Stabilizer
Image Adj
Freeze
INTERNAL
OFF
OFF
English - 39
setup
CAMERA SETUP (SCU-9080/VAC)
Ú This setup guide is intended for SCU-9080/VAC that may differ depending on the camera module.
z Protocol Type (SCU-VAC)
- This enables you to specify the protocol type of
the camera module. Improper protocol settings
may result in an abnormal operation of the
product.
- SAMSUNG-T: SCB-3000/SHC-745
- SAMSUNG-E: SCB-4000
z Lens Type (SCU-VAC)
Main Menu
► Camera Setting
Sequence Setting
P/T Setting
OSD Setting
Alarm Setting
Initialize
Status
- FEEDBACK / NON F/B /SLA-12240 /
SLA-880:
Select a model if using a Samsung product
Camera Setting
(SLA-12240/SLA-880); select a model that
#偓##Protocol Type#
SAMSUNG-T
supports feedback if using a third-party
Lens Type
SLA 880
product.
Open Camera Menu
- Reversed Zoom:
Depending on the wiring direction, Tele/Wide
<SCU-VAC>
can be controlled reversely. This is what you
can use to make the product work properly
without changing the wiring. (OFF: Disabled,
Camera Setting
ON: Enabled)
► Open Camera Menu
- Zoom Tele Pos.(Feedback/SLA-12240 Lens
Specification):
<SCU-9080 >
If the feedback value from the motorized zoom
lens increases when you perform the zoom tele, you must set the value to Increase (Default)
so that the zoom factor will be displayed accordingly.
However, if an abnormal zoom factor is displayed, you must set the value to Decrease so that
the zoom factor will be displayed accordingly.
- Reversed Focus :
Depending on the wiring direction, Far/Near can be controlled reversely. This is what you can
use to make the product work properly without changing the wiring.
- Focus Near Pos.(Feedback/SLA-12240 Lens Specification):
If the feedback value from the motorized zoom lens increases when you perform Focus Near,
you must set the value to Increase (Default) so that the Focus function works properly.
However, if the Focus function does not work properly, you must set it to Decrease so that it
works properly.
- Display Zoom (Feedback/SLA-12240 Lens Specification):
Select this if you want to display the value of the zooming position according to the feedback
from the motorized zoom lens. (However, the displayed value is a position value rather than
the zoom factor.)
40_ setup
z Open Camera Menu (SCU-9080)
You can access the camera setup menu.
M  The OSD language of the camera setup menu does not sync with the positioning system.
 The communication settings should be configured in accordance with the camera specification. Otherwise, the product
 Per communication settings of the camera module
- SCU-VAC: ID=1, baud rate =9600, communication mode= 8-N-1
Ú This instruction applies to SCU-9080. For VAC camera settings, refer to each product’s user
manual.
SYSTEM
You can configure the preference settings.
y TEMP RANGE : Specify the temperature range for the
incoming video signal. You can select
NARROW or WIDE according to the
temperature range.
MAIN MENU
► SYSTEM
NUC
- AUTO : If you select Auto, the mode will switch between
NARROW and WIDE automatically according to the ambient
temperature.
SYSTEM
- NARROW : Activated in a temperature range of between -40 ► RANGE
and 150.
UNIT
- WIDE : Activated in a temperature range of between 0 and
TV TYPE
500.
LANGUAGE
INFO
 The tolerance of the temperature measurement is ±15°C for
RESET
NARROW, and ±20°C for WIDE within the distance of 3m from
RETURN
the object.
AUTO
°C
NTSC
ENGLISH
M
y TEMP UNIT : Set the temperature unit to °C or °F to your
preference.
y TV TYPE : Specify the video output type. Select NTSC or PAL as appropriate to your area.
If the TV Type is changed, the camera will perform MENU RESET to reset itself.
y LANGUAGE : Select one from English, Korean, German, Spanish, Italian, Chinese, Russian, Polish,
Japanese, French, Turkish, Czech, Portuguese, Rumanian, Serbian, Taiwanese,
Danish, Swedish, Thai.
English - 41
● SETUP (SCU-VAC)
may not work properly.
setup
y INFO : Display the operation status and software version.
- TV TYPE : Current TV type
- PROTOCOL : Current protocol
- CAMERA ID : ID of the current camera
- BAUDRATE : Current baud rate
- PARITY : Current parity bit settings
- VERSION : S/W version of the camera
- UFPA NO. : Unique data code for each product
- SERIAL NO. :Serial number
INFO
TV TYPE
PROTOCOL
CAMERA ID
BAUDRATE
PARITY
VERSION
UFPA NO.
SERIAL NO.
[NTSC]
[SAMSUNG-T]
[001]
[9600]
[NONE]
[X.XX_XXXXXX]
[m0430071]
[ ]
SET KEY TO RETURN
y RESET : Return the menu settings to the factory default.
y RETURN : Save your settings and return to the main menu screen.
NUC
NUC (Non-uniformity Correction) regulates different characteristics of the screen pixels, which results in
reproduction of a sharper and clearer image.
y MODE : Select an operation mode.
- AUTO: Operate automatically.
 INTERVAL: Specify the NUC operation interval by 1 minute.
- MANUAL: You can manipulate a desired operation manually.
MAIN MENU
SYSTEM
► NUC
y INSTANT NUC : Activate NUC.
y RETURN : Save your NUC settings and return to the main
menu screen.
42_ setup
AUTO
► INTERVAL
RETURN
00H 1M
You can adjust the image settings to your preference.
MAIN MENU
y CONTRAST : Adjust the contrast level to between 0 and 32.
y AE MODE
- BYPASS: Do not adjust the contrast and brightness levels,
and output the incoming brightness level as it is.
- MIN/MAX: In normal conditions, correct the minimum and
maximum values of brightness for an incoming source to
optimize the contrast and brightness.
- WEIGHT: If an incoming source shows a great difference
in brightness, this function optimizes the contrast
and brightness to prevent too dark or too bright
image.
► CONTRAST
SHARPNESS
BRIGHTNESS
AE MODE
SSNR
DZOOM
ROTATION
RETURN
16
16
16
MIN/MAX
MID
OFF
OFF
y SSNR : Reduce the background noise for a low contrast image.
- OFF : Do not activate SSNR.
- LOW : Reduce the noise less but no afterimage remains.
- MID : Normally accepted mode. Reduce the noise as appropriate with less after image.
- HIGH : Excellent noise reduction but the after image remains badly.
y DZOOM : Configure the digital zoom settings for the camera.
You can set the zoom factor to up to x4. You can move to a sub menu item and change
the zoom factor or zooming area to your preference.
y ROTATION : Flip or rotate the image.
y RETURN : Save your image settings and return to the main menu screen.
M  If you change the digital zoom factor to focus on a specific portion of the screen, the bottom temperature bar will show

the temperature figures specified right before the other portion of the screen gets out of the screen.
Next time it restarts, no temperature information will be displayed on the screen but the temperature background color.
The contrast can be adjusted only to below 16 in the option setting of Color 1 or Color 2.
English - 43
● SETUP (SCU-9080)
SYSTEM
NUC
y SHARPNESS :Adjust the sharpness level to between 0 and 32.
► IMAGE
COLOR
y BRIGHTNESS : Adjust the brightness level to between 0 and 32.
setup
COLOR
Configure the color settings for the temperature indication.
MAIN MENU
y PALETTE : Specify the color for each specific temperature.
- BW : White indicates an area with a high temperature while
black indicates a low-temp area.
- WB : Black indicates an area with a high temperature while
white indicates a low-temp area.
- COLOR1 : White and yellow indicate an area with a high temperature while black and green indicate a low-temp area.
- COLOR2 : Indicate the temperature specifically using three
colors: red, yellow and green.
y ISOTHERM : You can specify the temperature threshold
by between -40 and 500 degrees. Only a
temperature exceeding the threshold will be
displayed in the specified color.
y RETURN : Save your color settings and return to the
main menu screen.
44_ setup
SYSTEM
NUC
► COLOR
DISPLAY
COLOR
► PALETTE
ISOTHERM
RETURN
ISOTHERM
► THRESHOLD
RETURN
BW
OFF
0 °C
DISPLAY
You can configure the OSD (On Screen Display) settings to your preference.
MAIN MENU
y CAMERA ID : Specify the display of the camera ID.
y INDICATOR : Specify the display of the color bar.
● SETUP (SCU-9080)
y DZOOM MAG : Specify the display of the digital zoom
factor.
SYSTEM
NUC
COLOR
► DISPLAY
EXIT
y POINTER : Specify the display of the pointer and its
position.
y TEMP AREA : Specify the display of the temperature area
and the display type.
y ISOTHERM : Specify the display of the threshold values
that are defined in the ISOTHERM menu.
y RETURN : Save your OSD settings and return to the main
menu screen.
DISPLAY
► CAMERA ID
DZOOM MAG
INDICATOR
POINTER
TEMP AREA
ISOTHERM
RETURN
OFF
OFF
ON
ON
OFF
OFF
EXIT
Exit the Function Setup menu.
English - 45
setup
Sequence Setting
Preset
This function enables the memorization of a selected location and activates the Pan, Tilt, and Zoom
functions at that location. Saved locations can be recalled using the Preset Execute command.
z Setting Up Preset Numbers :
Main Menu
Selecting the Preset Setting menu brings up a screen as shown
below. Move the joystick in all four directions to select the
desired number.
PTZF Setting
Preset = 001
(1~255)
z Saving Preset Locations :
Selecting a preset number and pressing the Enter key redirects
the menu to the screen shown below.
Using the joystick, adjust the location of the Pan and Tilt
functions and then set the Zoom and Focus command.
In Preset Settings, the Zoom and Focus command is
controllable only by the Zoom command.
PTZF Setting
P 000
T 000
Z 001X
F 1107
Camera Setting
偓Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
#
Æ
Sequence Setting
偓Preset
Swing SEQ
Group SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time
ON
OFF
Æ
Preset
MODE:ENT/ESC,FUNC.:W/T KEY
EXIT PTZ ‡ˆ PTF SAVE
46_ setup
偓PTZF Setting
Edit
Home Position
Execute
Clear
Status
001
OFF
” PTZF Setting (SCU-VAC)
1. If you open the PTZF setup menu, you will see the following
window. You can use the joystick to select a desired number.
Preset = 001 (1~255)
● SETUP
2. Select a preset number and press ENTER. You will move
to the setup screen.
Using the joystick, adjust the location of the Pan and Tilt
functions and then set the Zoom and Focus command.
In Preset Settings, the Zoom and Focus command is
controllable only by the Zoom command.
For switching modes, refer to the menu bar in the bottom.
PTZF Setting
Æ
EDIT PRESET 001
P0
T0
Z0
F
MODE : ENT/ESC, FUNC. : W/T KEY
EXIT PTZ wx PTF SAVE
” Edit
With this feature, you can edit or save the video-related
settings for each preset of the camera.
- Focus Mode : Refer to the section entitled Setting Up Your Camera.
- Brightness : Refer to the section entitled Setting Up Your Camera.
- Iris : Refer to the section entitled Setting Up Your Camera.
- Back Light : Refer to the section entitled Setting Up Your Camera.
- Day & Night : Refer to the section entitled Setting Up Your Camera.
Preset
PTZF Setting
偓Edit
Home Position
Execute
Clear
Status
Æ
- SSNR : Refer to the section entitled Setting Up Your Camera.
- After Action : Enables setting up an automatic action after the
camera arrives at a selected preset location.
MD : Commands the camera to perform the Motion Detection function.
If Focus mode is set to Auto, the MD function may not work
properly in a challenging environment.
OFF : Select this when no action is desired.
- Others : You can set AGC, Stabilizer, SSDR, Shutter, Sens-Up
and White Balance functions. For terms related to settings,
refer to the camera settings commands.
001½
OFF
Preset Edit
偓PTZ
Focus Mode
Brightness
Iris
Back Light
Day & Night
SSNR
After Action
Others #
[001]
000/000/01X
ONE SHOT
050
AUTO
OFF#
AUTO
MEDIUM
OFF
English - 47
setup
” Preset Edit (SCU-9080)
This feature performs editing and saving preset settings of SCU-9080.
 After Action : You can specify the operation to be performed when the
camera reached preset position.
- OFF : No operation is performed when reached the position.
- TD : Performs Thermal Detection when reached the position.
※ TD waits for 1.5 seconds once reached the preset position before performing. TD is triggered if the temperature of the scene is metered as in
the range defined by HIGH/LOW.
※ DATA : Thermal Detection judges the temperature as detected based on
the minimum / maximum / average temperature of the scene, according
to the MIN / MAX / AVG setting respectively.
※ The unit of Fahrenheit/Celsius follows the camera setup.
※ The difference between the maximum / minimum temperatures should be
bigger than 15 °C.
Preset Edit
偓PT
After Action
[001]
000/000
TD
After Action
偓DATA
HIGH
LOW
AVG
000˚C
000˚C
Preset Edit
偓PTZ
After Action
[001]
000/000/1X
OFF
” Preset Edit (SCU-VAC)
 MD Function’s Prerequisite when using SCU-VAC (SCB-3000) :
Set Alarm Out of Camera Setting – Open Camera Menu – Special
Intelligence menu to ON.
 For SCU-VAC, the MD function will be activated 1.5 seconds after you have
moved to the preset position.
 For SCB-3000
- The MD function will operate normally after 1.5 seconds of system stabilization and 5 seconds of intelligence
stabilization.
- If using Group SEQ, set the dwell time to at least 8 seconds.
 MD restrictions according to the box camera module
For SCU-VAC, the MD function is the only after-action.
- SHC-745 : Only motion detection is available.
- SCB-3000 : If you come to use MD at the preset point while in intelligence mode, the current Intelligence mode will be
deactivated.
- SCB-4000 : If you come to use MD at the preset point while using “Advanced” of the intelligence functions, the current
“Advanced” function will stay active.
Ú The PTZ menu may be displayed “PT”, depending on the lens.
48_ setup
” Preset Name Setting
Using this function, you can add names to preset locations.
up to 12 characters.
Once a name is entered, use the joystick and the Enter key to
perform the Set command and save the name.
Main Menu
#
● SETUP
Camera Setting #
Sequence Setting
P/T Setting #
偓OSD Setting #
....#
Æ
OSD Setting
Camera ID
Camera Name
Preset Number
偓Preset Name
....
ON
ON
Æ
Preset Name
On/Off
Edit
OFF
Æ
Preset Name Edit
Preset = 001* (1~255)
Æ
Preset Name Edit
[001]
[
]
0123456789 : . ,&/ #►©Â% >@!
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
BACK SPACE CLEAR SET
English - 49
setup
” Home Position
Preset
Sets one of the currently configured preset positions as the home
position.
” Execute
PTZF Setting
Edit
偓Home Position
Execute
Clear
Status
001H
001H
Preset
Recalls a saved preset location.
While in Sequence mode operation, the actual movement can be
slower than the specified when moving the camera in the direction
of Pan and Tilt at the same time.
PTZF Setting
Edit
Home Position
偓Execute
Clear
Status
001H
001H
” Clear
Deletes the selected preset location.
Preset
PTZF Setting
Edit
Home Position
Execute
偓Clear
Status
001H
001H
” Status
Opens a map of saved preset locations.
An area saved as a preset location is displayed with the ‘ ’ icon.
Preset Status
001 : þþþþþþþþþþþþþþþþþþþþ
021 : þþþþþþþþþþþþþþþþþþþþ
041 : þþþþþþþþþþþþþþþþþþþþ
061 : þþþþþþþþþþþþþþþþþþþþ
081 : þþþþþþþþþþþþþþþþþþþþ
101 : þþþþþþþþþþþþþþþþþþþþ
121 : þþþþþþþþþþþþþþþþþþþþ
141 : þþþþþþþþþþþþþþþþþþþþ
50_ setup
Preset Status
161 : þþþþþþþþþþþþþþþþþþþþ
181 : þþþþþþþþþþþþþþþ þþþþþ
201 : þþþþþþþþþþþþþþþ þþþþþ
221 : þþþþþþþþþþþþþþþ þþþþþ
241 : þþþþþþþþþþþþþþþ
Preset
PTZF Setting
Edit
Home Position
Execute
Clear
偓Status
001H
001H
Swing SEQ
The Swing function commands the camera to move between 2 selected locations, monitoring the
route.
Main Menu
z Pan Swing :
z Tilt Swing :
Activates the Tilt function for the Swing operation.
z P&T Swing :
Activates both the Pan and Tilt functions for the Swing operation.
Camera Setting
偓Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
z Swing Setting/Execute/Clear
#
Æ
Each of the Swing menus have sub menus with the settings.
Sequence Setting
Pan Swing
偓Setting
Execute
Clear
Æ
Pan Swing
[001½]ƒ„[***]
Speed
Dwell Time
#
● SETUP
Activates the Pan function for the Swing operation.
=54 (1~64)
=003s(3~128)
Preset
偓Swing SEQ
Group SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time
ON
OFF
Æ
Swing SEQ
偓Pan Swing
Select 2 preset locations by using the joystick.
Speed indicates the camera’s movement speed. DWELL TIME
indicates the camera’s duration of stay at a preset location.
- Execute: Executes the Swing operation.
- Clear: Deletes data in the Swing memory.
Tilt Swing
P&T Swing
in Sequence mode operation, the actual movement can be slower than the specified when moving the camera in the
M  While
direction of Pan and Tilt at the same time.
English - 51
setup
Group SEQ
Selecting Group SEQ recalls a group of multiple preset locations in a consecutive manner. Up to 6
groups can be defined and up to 255 presets can be memorized
for each group.
Main Menu
z Setting :
Using the joystick,enter desired preset numbers into the PSET
section. DWT indicates the camera’s duration of stay at a preset
location. SPD shows the camera’s movement speed by 64
different levels.
Group 1 Setting
NO
001:
002:
003:
004:
005:
006:
007:
PSET
*** :
*** :
*** :
*** :
*** :
*** :
*** :
DWT(s)
003 :
003 :
003 :
003 :
003 :
003 :
003 :
SPD
54
54
54
54
54
54
54
z Execute :
Executes the group operation.
Camera Setting
偓Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
Sequence Setting
Preset
Swing SEQ
偓Group SEQ
PTZ Trace
Auto Run
Power On Resume
MD Dwell Time
Æ
Deletes the selected group.
Group SEQ
偓Group 1
Group 2
Group 3
....
Æ
Group 1
M
52_ setup
than the specified when moving the camera in the direction of Pan and Tilt
at the same time.
#
Æ
z Clear :
 While in Sequence mode operation, the actual movement can be slower
#
偓Setting
Execute
Clear
ON
OFF
PTZ Trace
Maximum 4 patterns of the manual operation paths (for Pan, Tilt, Zoom and Focus) are memorized and
replayed.
Main Menu
z Replay :
z Memorize :
The time for storing the event differs depending on the
complexity of PTZ operations of your choice. When the memory
is full, any further storing will be stopped.
You can stop replay by using the MENU (used for OSD menu)
button.
Camera Setting
偓Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
Protocol
Representative
Model
Stop saving the
trace
PELCO-D/P
KDB300A
Ack, Iris Open
SAMSUNG-E
SSC-5000
OSD ON, Iris Open
PANASONIC
WV-CU161C
OSD ON
VICON
V1300X-DVC
Iris Open
HONEYWELL
HTX-3000
Iris Open
OSD ON, Iris Open
AD
Bosch
#
Æ
Ú Using other protocols
GE
#
● SETUP
Replays a route saved by the Trace function. You can stop
replay by using the MENU (used for OSD menu) button.
KTD-405
Sequence Setting
Preset
Swing SEQ
Group SEQ
偓PTZ Trace
Auto Run
Power On Resume
MD Dwell Time
ON
OFF
Iris Open
Æ
Iris Open
PTZ Trace
偓Trace 1
Trace 2
Trace 3
Trace 4
Æ
Trace 1
偓Replay
Memorize
English - 53
setup
Auto Run
If there is no controller operation by the user for a certain time, the sequence operation designated by
the user will be executed.
Main Menu
z Mode :
- HOME : Auto run Home Position (Refet to the Preset Menu.)
- PRESET : Auto run a selected preset number.
- SWING : Auto run a selected Swing mode.
- GROUP : Auto run a selected Group mode.
- TRACE : Auto run a selected trace mode.
- A.PAN : Auto run a 360-degree pan. To activate the
panning command, you need to set up the
camera’s tilt angle and auto pan speed manually.
- SCHEDULE : Execute Auto Run on the selected day of the
week.
z Time :
Enables setting up an Auto Run duration. (The duration can be 10~60
seconds, or 1~60 minutes.)
Camera Setting
偓Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
#
Æ
Sequence Setting
Preset
Swing SEQ
Group SEQ
PTZ Trace
偓Auto Run
Power On Resume
MD Dwell Time
ON
OFF
Æ
Auto Run
偓Mode
Time
54_ setup
OFF
30 SEC
Setting the Power on Resume & MD/TD Dwell Time
z Power On Resume :
z MD Dwell Time (SCU-2370/VAC) :
When Motion Detection under the Preset Edit menu is
selected, MD Dwell Time performs the Group function.
While the camera is performing a sequence action,
if motion is detected from a selected preset location, the
camera pauses the sequence action operation and starts
monitoring the location instead for a duration that is set under
the MD Dwell Time menu.
If the motion is no longer detectable or the duration expires, the
camera aborts the monitoring operation and then resumes the
sequence action.
z TD Dwell Time (SCU-9080) :
This function is provided for using the Thermal Detection
function with the Preset Edit command and performing a
Group action.
During performing a sequence action, it monitors on the current
preset position for the time specified by TD Dwell Time if a
thermal detection event occurs on a preset position.
If thermal detection expires with no thermal activity and
the dwell time ends, resumes and continues the sequence
operation.
Main Menu
Camera Setting
偓Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
● SETUP
This is useful when the power is disconnected and
reconnected due to power failures or other power interruptions.
If the camera was performing a sequence action prior to a
power disconnection, the camera automatically resumes the
action when the power is reconnected.
#
#
Æ
Sequence Setting
Preset
Swing SEQ
Group SEQ
PTZ Trace
Auto Run
偓Power On Resume
MD Dwell Time
ON
OFF
<SCU-2370/VAC>
Sequence Setting
Preset
Swing SEQ
Group SEQ
PTZ Trace
Auto Run
偓Power On Resume
TD Dwell Time
ON
OFF
<SCU-9080>
English - 55
setup
P/T Setting
Pan/Tilt Limit
The moving ranges in the Pan/Tilt directions can be limited.
z Position :
Selecting the Position menu brings up the following screen if it is for the Pan Limit setting. Move
the joystick left and right to select a movement range from the
starting point to the end.
Main Menu
START PAN
END PAN
ENTER: SET ESC: EXIT
ENTER: SET ESC: EXIT
Camera Setting #
Sequence Setting
偓P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
The following picture shows the Tilt Limit setting.
Move the joystick left and right to select a movement range from
the starting point to the end.
START TILT
ENTER: SET ESC: EXIT
END TILT
ENTER: SET ESC: EXIT
z ON/OFF :
Sets the configured Pan/Tilt Limit function to use or not.
56_ setup
#
Æ
P/T Setting
偓Pan Limit
Tilt Limit
Area Setting
Area Masking
Housing Load
Wiper
Prop. P/T #
Image Hold #
03 KG
ON
OFF
Area Setting
The Area Setting menu enables selecting certain locations in the course of the Pan and Tilt operation, and then display the
areas with the OSD (On Screen Display) texts when the camera passes through them. Up to 8 areas can be selected.
z Area Name :
Edit Area Name 1
[„
]
0123456789 : . ,&/ ►©Â% >@!
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
BACK SPACE CLEAR SET
Main Menu
Camera Setting #
Sequence Setting
偓P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
As shown in the picture below, move the joystick to select the upper
left corner and lower right corner of an area.
ENTER: SET ESC: EXIT
END POSITION
ENTER: SET ESC: EXIT
P/T Setting
Pan Limit
Tilt Limit
偓Area Setting
Area Masking
Housing Load
Wiper
Prop. P/T #
Image Hold #
The effective positioning range is between -45° and 40° in the tilting
angle at the zoom factor of 1x.
Cancels or activates the display function of selected areas.
 Area naming for SCU-9080/VAC
START POSITION
03 KG
ON
OFF
Æ
Area Setting
z ON/OFF :
M
#
Æ
z Position :
START POSITION
● SETUP
You can add names to selected areas. Names can be up to 12
characters and can be entered via the joystick and the Enter
key. Once a name is entered, use the joystick and the Enter key
to perform the Set command and save the name.
END POSITION
偓Area 1
Area 2
Area 3
Area 4
....
Æ
Area 1
ENTER: SET ESC: EXIT
ENTER: SET ESC: EXIT
SCU-VAC/9080 supports only the pan positioning regardless of the tilting angle.
偓Area Name
Position
On/Off
OFF
English - 57
setup
Area Masking (SCU-2370/VAC)
If a monitoring location includes a highly private area, the area can be selectively excluded from monitoring.
Main Menu
z Position :
As shown in the picture below, move the joystick to select the upper
left corner and lower right corner of an area.
START POSITION
END POSITION
ENTER: SET ESC: EXIT
ENTER: SET ESC: EXIT
The effective positioning range is between -45° and 40° in the
tilting angle at the zoom factor of 1x.
z ON/OFF :
Cancels or activates the Area Masking function.
M  Area masking setting for SCU-VAC
START POSITION
END POSITION
Camera Setting #
Sequence Setting
偓P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
P/T Setting
Pan Limit
Tilt Limit
Area Setting
偓Area Masking
Housing Load
Wiper
Prop. P/T #
Image Hold #
03 KG
ON
OFF
Æ
ENTER: SET ESC: EXIT
ENTER: SET ESC: EXIT
If the custom area includes the masking settings, the entire screen will be
masked.
Area Masking
偓Mask 1
Mask 2
Mask 3
Mask 4
....
Æ
Mask 1
偓Position
On/Off
58_ setup
OFF
Wiper (SCU-2370/VAC)
You can use Wiper to wipe out the front glass of the housing so as to secure a clear view.
To activate Wiper, set the menus below to your preference.
Main Menu
Activate or deactivate the pump function.
- On: Activate the pump function that is connected to the
wiper. Creates detailed submenu items related to the
Pump function.
- Off: Deactivate the pump function that is connected to the
wiper.
Ú With Enable On, the Aux output function in Alarm Setting will
be disabled.
Camera Setting #
Sequence Setting
偓P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
Ú If “Enable” is set to On, you can operate the wiper using the
command of “AUX1 On”.
● SETUP
z Pump Enable:
#
Æ
P/T Setting
z Wiper :
Pan Limit
Tilt Limit
Area Setting
Area Masking
Housing Load
偓Wiper
Prop. P/T #
Image Hold #
Activate or deactivate the wiper function.
z Preset :
Select a Preset run with Wiper function.
Set the preset to face the pump’s water outlet.
z Pump Delay :
Operating time of the pump. (1 ~ 30 seconds)
03 KG
ON
OFF
Æ
z Duration :
Operating time of the pump and wiper. (6 ~ 30 seconds)
If the pump is turned off, means operating time of the wiper.
Wiper
偓Pump Enable
Wiper
Duration
z Delay Off :
Operating time of the wiper. (6 ~ 30 seconds)
OFF
OFF
06 SEC
Æ
Wiper
Pump Delay
: Pumps water
towards the
housing’s front
glass.
Duration
: Wiper clears the
housing during the
pumping.
(Wiper & Pump Operation)
Delay Off
: Wiper clears out
remaining water.
偓Pump Enable
Wiper
Preset
Pump Delay
Duration
Delay Off
ON
OFF
001
03 SEC
06 SEC
06 SEC
English - 59
setup
Prop. P/T (SCU-2370)
This commands the camera to change the Pan and Tilt speed
automatically according to the current zoom ratio. Moving the
joystick clockwise (Tele) slows down and counterclockwise (Wide)
accelerates the Pan and Tilt speed, allowing detailed adjustments.
Turning this “Off” executes the function the optical 1x zoom speed
regardless of how far the lens is zoomed in.
Main Menu
Camera Setting #
Sequence Setting
偓P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
#
Æ
P/T Setting
Pan Limit
Tilt Limit
Area Setting
Area Masking
Housing Load
Wiper
偓Prop. P/T #
Image Hold #
60_ setup
03 KG
ON
OFF
Image Hold (SCU-2370)
Main Menu
Camera Setting #
Sequence Setting
偓P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
Status
● SETUP
While in Group Trace, this will display still image of the last preset
video until the camera moves to the next preset position.
This is useful to help the screen observer keep sharp eyes and to
monitor multiple locations within a network.
#
Æ
P/T Setting
Pan Limit
Tilt Limit
Area Setting
Area Masking
Housing Load
Wiper
Prop. P/T #
偓Image Hold #
03 KG
ON
OFF
English - 61
setup
OSD SETTING
In this menu, you can configure the OSD (On Screen Display) settings.
z Camera ID :
Displays or hides Camera ID in the upper left of the screen.
z Camera Name :
Add a name to the camera. (First check the Note.)
z Preset Number :
Displays or hides Preset Numbers on the screen.
z Preset Name :
Main Menu
Camera Setting #
Sequence Setting
P/T Setting #
偓OSD Setting #
Alarm Setting #
Initialize #
Status
#
Add names to preset locations. (First check the Note.)
Æ
z Sequence Status :
Displays or hides the status of a sequence action that is in
progress.
z PTZ Position :
Displays or hides the status of the Pan, Tilt, and Zoom operation
that is in progress.
z Language :
Enables changing the system language. This camera supports
English, Chinese, French, German, Spanish, Italian and
Portuguese.
OSD Setting
偓Camera ID #
Camera Name
Preset Number #
Preset Name
Sequence Status #
PTZ Position #
Language #
Clock
ON
ON
ON
ON
ENGLISH
z Clock
Specify the time and date settings to your preference.
XXX Name 001
[NONE
]
0123456789 : . ,&/ ►©Â% >@!
ABCDEFGHIJKLMNOPQRSTUVWXYZ
abcdefghijklmnopqrstuvwxyz
BACK SPACE CLEAR SET
62_ setup
selecting the Camera Name and Preset Name, the screen displays the Left
M  When
keypad.
 Names can be up to 12 characters and can be entered via the joystick and the
Enter key. Once a name is entered, use the joystick and the Enter key to perform
the Set command and save the name.
ALARM SETTING
Setting Up Alarm Input
On/Off : Enables or disables the Alarm function.
z MOD
Enables selecting an Alarm Input method.
- NO (Normally Open)
IN 1.2.3
IN 1.2.3
Main Menu
Camera Setting #
Sequence Setting
P/T Setting #
OSD Setting #
偓Alarm Setting #
Initialize #
Status
Ä
ALM GND
ALARM ON
< Alarm input when N.O. is enabled >
- NC (Normally Closed)
IN 1.2.3
Alarm Setting
Alarm Enable
偓Alarm Input
Alarm Output
Aux Output
IR Illuminator
IN 1.2.3
Æ
ALM MOD P SEQ. NO
ALM GND
ALARM OFF
OFF
Alarm Input
Ä
ALM GND
#
Æ
ALM GND
ALARM OFF
● SETUP
z Alarm Enable :
ALARM ON
< Alarm input when N.C. is enabled >
IN1 OFF 1 OFF
IN2 OFF 2 OFF
IN3 OFF 3 OFF
shown in the picture above, the Alarm Input must be entered with the Open or Closed switch signals. Supplying power
M  Aswithout
entering the signals may damage the product.
English - 63
setup
z P(Priority) :
Set the priority of Alarm Inputs. If more than one alarm is simultaneously activated,
the alarm with the highest priority activates before the others. Once the alarm is canceled, the next
highest priority alarm activates.
z SEQ. :
Enables setting up a sequence action for the camera in response to an alarm. Available sequence
actions are Preset, Swing, Group, Trace and A.Pan.
Alarm Output
z Setting 1,2 :
Enables selecting an Alarm Output method.
Main Menu
- Optional items 1, 2, 3 and MD(TD) means alarm input
ports and motion/thermal detection input respectively. You
can set alarm outputs individually for 3 alarm inputs and
one MD(TD). Or, you can map 2 or more alarm inputs and
MD(TD) input to 1 alarm output port.
Camera Setting #
Sequence Setting
P/T Setting #
OSD Setting #
偓Alarm Setting #
Initialize #
Status
z Timer 1, 2 :
- On : Retains an alarm output for a set duration from a
minimum of 1 second to a maximum of 60 hours upon
the alarm occurrence.
- MOMENT : Retains an alarm output only until the alarm is canceled.
- The Alarm Output is equipped with a relay circuit. The
operation of the alarm output port is as shown in the
diagram below. (Based on NO – Normal Open)
/0
$0.
/$
Alarm Out OFF
64_ setup
/0
Ä
$0.
Æ
Alarm Setting
Alarm Enable
Alarm Input
偓Alarm Output
Aux Output
IR Illuminator
/$
Alarm Out ON
#
OFF
Æ
Alarm Output
偓Setting1
þ1þ2þ3þMD
Timer1
Setting2
Timer2
OFF
þ1þ2þ3þMD
OFF
the power connector and GND incorrectly to the NC/NO and COM ports may cause a short circuit and fire,
M  Connecting
damaging the camera.
 The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and 250VAC/0.25A. Operating the
camera beyond the capacity may decrease the camera’s lifespan and damage it.
● SETUP
Aux Output
AUX Output menu is to operate the camera’s peripheral devices
such as lamps and sirens through the controller and switches as
well as through network communications.
z On/Off :
Cancels or activates the Aux function.
z Time :
Enables setting up a duration for the Aux output when the Aux
command is transmitted from the controller. A duration can
be selected from a minimum of 1 second to a maximum of 60
minutes.
NO
COM
AUX Off
NO
Ä
COM
AUX On
Main Menu
Camera Setting #
Sequence Setting
P/T Setting #
OSD Setting #
偓Alarm Setting #
Initialize #
Status
#
Æ
Alarm Setting
Alarm Enable
Alarm Input
Alarm Output
偓Aux Output
IR Illuminator
OFF
Æ
Aux Output
偓On/Off
Time
OFF
OFF
the power connector and GND incorrectly to the Aux terminal’s NO and COM ports may cause a short circuit and fire,
M  Connecting
damaging the camera.
 The maximum power capacity of the built-in relay is 30VDC/2A, 125VAC/0.5A, and 250VAC/0.25A. Operating the camera beyond
the capacity may decrease the camera’s lifespan and damage it.
※ The Aux Output of Alarm Setting is not available if Wiper function is set to ON.
- For more information, see page 59.
English - 65
setup
IR Illuminator Settings (SCU-2370/VAC)
With IR Illuminator, you can control the red-infrared lighting.
z On/Off :
Activate or deactivate IR Illuminator.
z Time:
Operates the infrared illuminator for the time specified by user
(1 second ~ 60 hours).
M  The infrared illuminator is an optional accessory (sold separately).
Main Menu
Camera Setting #
Sequence Setting
P/T Setting #
OSD Setting #
偓Alarm Setting #
Initialize #
Status
#
Æ
Alarm Setting
Alarm Enable
Alarm Input
Alarm Output
Aux Output
偓IR Illuminator
OFF
Æ
IR Illuminator
偓On/Off
Time
OFF
OFF
INITIALIZE
z Power On Reset :
Restarts the camera.
z Factory Default Set :
Enables resetting the camera to its factory default settings. When the
mode is selected, all custom data such as preset locations is deleted
from the camera.
Use this function if it is necessary to reset the settings of the camera.
66_ setup
Main Menu
Camera Setting #
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
偓Initialize #
Status
#
z Camera Default Set : (SCU-2370)
Initialize
偓Power On Reset
Factory Default Set
Camera Default Set
● SETUP
This mode can be used if the camera module has been
replaced and you want to keep the camera’s existing settings
for the new module.
To reset the camera, first replace the old module with a new
camera module. When the replacement is properly installed,
turn on the module, then execute this command.
STATUS
Displays the settings and version of the camera.
z CAMERA INFO :
Display the model and zoom factor of the connected camera.
z CAMERA VER. :
Display the software version of the connected camera.
z MOTION VER. :
Main board F/W version
z PROTOCOL:
Main Menu
Camera Setting #
Sequence Setting
P/T Setting #
OSD Setting #
Alarm Setting #
Initialize #
偓Status
#
Protocol settings
Æ
z CONTROLLER :
Communication mode settings
z INNER VER. :
Inner board F/W version
z DRIVER VER. :
Display the DSP F/W version of the main board.
Status
CAMERA INFO.
CAMERA VER.
MOTION VER.
PROTOCOL
CONTROLLER
INNER VER.
DRIVER VER.
= SCM2370/NTSC
= V2.00_100527
= V1.00_100726
= SAMSUNG-T
= S-9600
= V1.00_100726
= V1.00_100726
English - 67
troubleshooting
TROUBLESHOOTING
If the product does not function properly, please see the below for trouble shooting.
Problem
Cause and Solution
Page
► Check if the camera and peripheral devices are properly connected.
23
► Verify the setups of ID, protocol, and baud rates.
18~21
► Check if power cable is securely connected to the camera and the monitor.
Check if the video cable is properly connected. Consult the operation manual
of the system controller connected to the camera.
12~17
► Check if the iris of the lens is closed.
Adjust the menu for the iris of the lens.
32
► Check the camera’s fixed shutter speed.
Adjust the camera’s shutter menu.
32
The picture is too dark/bright.
► Check the camera’s Brightness menu.
Adjust the camera’s Brightness menu.
32
The monitor displays a white
image.
► Check if the iris of the lens is open.
Adjust the menu for the iris of the lens.
32
► Check if the cover or the camera lens is dirty or smudged.
If it is, clean the dirt off.
-
► Verify the distance between the camera and the subject, as well as the
subject’s surroundings. Camera may have difficulty focusing on a subject
against a white background.
-
► If Auto Focusing is having difficulty focusing on a particular subject, set Focus
Mode to Manual and adjust the focus by yourself.
29~30
► Use the camera’s reset menu to restore the camera settings in order to
default.
66
► Adjust Sharpness level.
39
► Check if the video cable is properly connected.
-
► Make sure that the power cable and video cable do not exceed the
recommended maximum lengths.
22
► Adjust Sharpness level.
39
Controller does not work.
No picture is displayed on
monitor.
Picture is out of focus.
Digital noise appears in picture.
68_ troubleshooting
Problem
Cause and Solution
Page
31
► Adjust Color Menu in Image Adj.
39
► Check if the cover or the camera lens is dirty or smudged.
If it is, clean the dirt off.
-
The picture is flickering.
► Check if the camera is pointing directly at a fluorescent light or sunlight. If so,
change the camera’s direction to remove the flickering.
-
Afterimages appear in picture.
► Check Sens-Up settings.
32
Camera switches between color
and B&W modes frequently.
► Adjust Duration and Dwell Time in Day & Night menu.
38
► Check if power cable is securely connected to the camera and the monitor.
Check if the video cable is properly connected.
Consult the operation manual of the system controller connected to the
camera.
12~17
► Check if Pan Limit and/or Tilt Limit are set.
If so, remove the limit(s).
56
► A motor or the lens may be overheated.
If so, contact your service personnel or system provider for assistance.
-
The camera’s position differs from
the position defined in a preset.
► This phenomenon may happen, since the motors have a margin error of ±0.1˚.
-
Sequence configuration of the
camera does not work.
► Check if Preset or another operation mode has been set.
46~50
Camera suddenly turns on or
moves to a preset position by
itself.
► Check the Auto Run settings.
Auto Run puts a camera through a predefined action sequence if the user
54
does not use the Controller to operate the camera for a certain period of time.
The camera suddenly resets itself
while displaying the black screen.
► Such symptoms may occur if the camera’s temperature increases from -20º
or lower to -20º or higher.
6
“Auto Refresh(Wait)” appears and
the camera reboots.
► Such symptoms may occur if the camera’s temperature increases from -10º
or lower to -10º or higher to prevent the malfunction of motor.
-
The screen displays “Invalid RTC”.
► Appears if the clock is not set or the battery is completely discharged. If the
warning message appears after setting the clock, please replace the battery
with a new one.
62
Picture’s colors are not good.
Pan, tilt, zoom, and/or focus do
not work.
► The product initialization has been abnormally finished.
“Check System Homing Fail[XY]”
appears.
► Check if installation site has enough free space for proper product operation.
-
► Do not operate the product by force, turn off and consult your dealer.
English - 69
● TROUBLESHOOTING
► Check the White Balance.
troubleshooting
Problem
When coaxial communication is
not available.
Cause and Solution
Page
► Make sure that the camera and monitor are installed within the
recommended distance.
-
► Use the video amplifier equivalent to coaxitron if the recommended
installation distance is exceeded.
-
► Check if the camera’s ID dip switch is set to OFF, for all switches.
-
Check the Power cord’s by periods
y The Power cord’s coating has
been damaged.
y The power cord is hot to touch
when the product is in operation.
y The power cord gets hot after
being folded or pulled on.
70_ troubleshooting
Continuing to use the product when its power cord is damaged constitutes an
electrical and fire hazard. The power plug must be removed from the outlet
immediately, and a qualified service personnel or your system provider should be
contacted for assistance.
-
product specifications
PRODUCT SPECIFICATIONS
<SCU-2370>
SCU-2370N
SCU-2370P
1/4” Exview HAD CCD
811(H) x 508(V)
Effective Pixels
Scanning System
768(H) x 494(V)
2:1 Interlace
752(H) x 582(V)
Synchronization
Internal / Line Lock
Internal / Line Lock
Frequency
Horizontal Resolution
H : 15.734KHz / V : 59.94Hz
H : 15.625KHz / V : 50Hz
Color : 600 TV lines / B/W : 700 TV lines
Color : 0.2Lux @ F1.6, 0.0004 Lux (Sens-up, 512x)
B/W : 0.02 Lux @ F1.6, 0.00004 Lux ( Sens-up, 512x )
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75 composite
Min. Illumination
S/N (Y Signal)
Video Output
Lens Type
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View
Min. Object Distance
Focus Control
Zoom Movement Speed
Pan / Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Preset
Preset Accuracy
Operational
On Screen Display
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise Reduction
Digital Image Stabilization
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
● PRODUCT SPECIFICATIONS
Video
Imaging Device
Total Pixels
795(H) x 596(V)
3.5~129.5mm ( Optical 37x )
1:1.6 (Wide) ~ 3.9 (Tele)
H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele)
150cm
AUTO / MANUAL / ONE-SHOT
2.8 sec
360° Endless
Preset : 0.1°~120°/sec, Manual : 0.1°/sec ~ 36°/sec (Turbo: 120°/sec)
-85° ~ 40°
Preset : 0.1°~36°/sec, Manual : 0.1°/sec ~ 36°/sec
255
±0.1º
English, Chinese, French, German, Spanish, Italian, Portguese
Off / On (Displayed 12 characters)
COLOR / B/W / Auto
OFF / HLC / BLC
SSDR ( Off/On )
SSNR (Off/On )
Off / On
Off / On
Off / On (8 area)
2x ~ 512x
OFF / LOW / MEDIUM / HIGH / MANUAL
ATW / INDOOR / OUTDOOR / Manual / AWC
English - 71
product specifications
<SCU-2370>
SCU-2370N
Electronic Shutter Speed
Digital Zoom
Schedule
IR Illuminator (Optional)
Alarm
Communication
Protocol
Environmental
Operating Temperature /
Humidity
Ingress Protection
Electrical
Input Voltage/Current
Power Consumption
Mechanical
Color / Material
Dimension (WxHxD)
Weight
SCU-2370P
AUTO(1/60 ~ 1/120,000 sec) / MANUAL / A.FLK AUTO(1/50 ~ 1/120,000 sec) / MANUAL / A.FLK
Off / On (2x ~ 16x)
Day / Time
On/On (1~60 (SEC), 1~60 (MIN))/OFF
3 In 2 Out 1 Aux
RS-485, Coaxial Control ( SPC-300 Compatible )
Coax : Pelco-C ( Coaxitron )
RS-485: Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Vicon, Honeywell, AD, GE,
Bosch
-50°C ~ +55°C (-58°F ~ +122°F) / Less than 90% RH
IP66
24VAC±10%
Max. 40W / Max. 144W ( Heater & Fan )
Ivory / Aluminum
217.3 (W) × 587.5 (H) × 500 (D) mm
17.5Kg
Ú The specification for this product may change without prior notice for product improvement.
72_ product specifications
<SCU-VAC>
SCU-VAC
Pan / Tilt
Pan Range
360° Endless
Pan Speed
Preset : 0.1°~120°/sec, Manual : 0.1°/sec ~ 36°/sec (Turbo: 120°/sec)
-85° ~ 40°
Tilt Speed
Preset : 0.1°~36°/sec, Manual : 0.1°/sec ~ 36°/sec
Preset
Max. 255
Preset Accuracy
±0.1°
Operational
Camera ID
1~255
Motion Detection
Off / On
Protocol
Coax : Pelco-C ( Coaxitron )
RS-485: Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Vicon, Honeywell, AD,
GE, Bosch
Alarm
3 In, 2 Out
Aux
1 Out
Environmental
Operating Temperature /
-50°C ~ +55°C (-58°F ~ +122°F) / Less than 90% RH
Humidity
Ingress Protection
IP66
Electrical
Input Voltage
24VAC±10%
Power Consumption
Max. 40W / Max. 144W ( Heater & Fan )
Mechanical
Color / Material
Ivory / Aluminum
Dimensions (WxHxD)
217.3(W) × 587.5(H) × 500(D) mm
Weight
17Kg
Ú The specification for this product may change without prior notice for product improvement.
English - 73
● PRODUCT SPECIFICATIONS
Tilt Range
product specifications
<SCU-9080>
SCU-9080
Video
Imaging Device
Sensor Pitch
Measured wavelength range
Video Ratio ( Sensor )
ISOTherm
Thermal Sensitivity (NETD)
Video Output
Lens Type
Focal Length (Zoom Ratio)
Max. Aperture Ratio
Angular Field of View ( H×V )
Min. Object Distance
IFOV (Instaneous Field of View)
Pan / Tilt
Pan Range
Pan Speed
Tilt Range
Tilt Speed
Preset
Preset Accuracy
Operational
On Screen Display
Pseudo Color
Sharpness
Contrast
Digital Noise Reduction
Alarm Out
Communication
Protocol
Environmental
Operating Temperature / Humidity
Ingress Protection
Electrical
Input Voltage/Current
Power Consumption
Mechanical
Color / Material
Dimension (WxHxD)
Weight
320(H)x240(H) Uncooled VOX Microbolometer
23.5μm
8 ~ 14um, LWIR
30fps
25fps
Isolated Temperature Display
80mK @ F1.0
CVBS : 1.0 Vp-p / 75 composite
50mm ( Fixed )
1:1.4
8.6° x 6.5°
27M ~∞, Pan focus
0.47mrad
360° Endless
Preset : 0.1°~120°/sec, Manual : 0.1°/sec ~ 36°/sec (Turbo: 120°/sec)
-85° ~ 40°
Preset : 0.1°~36°/sec, Manual : 0.1°/sec ~ 36°/sec
255
±0.1º
Main Unit’s OSD: English / French / German / Spanish / Italian / Portuguese / Russian
Camera OSD: English / Korean / German / Spanish / Italian / Chinese / Russian / Polish / Japanese
/French / Turkish / Czech / Portuguese / Romanian / Serbian / Taiwanese / Danish / Swedish / Thai
B/W, W/B, Color1, Color2 selectable
32 Steps Adjustable
32 Steps Adjustable
2D/3D Adaptive DNR ( 4 Step : Low / Medium / High / Off )
3 In 2 Out 1 Aux
Coaxial Control ( SPC-300 Compatible ) & RS-485
Coax : Pelco-C ( Coaxitron )
RS-485: Samsung-T, Samsung-E, Pelco-D, Pelco-P, Panasonic, Vicon, Honeywell, AD, GE, Bosch
-50°C ~ +55°C (-58°F ~ +122°F) / Less than 90% RH
IP66
24VAC±10%
Max. 40W / Max. 144W ( Heater & Fan )
Ivory / Aluminum
217.3 (W) × 587.5 (H) × 500 (D) mm
17.5Kg
Ú The specification for this product may change without prior notice for product improvement.
74_ product specifications
EXTERNAL DIMENSIONS (SCU-2370/VAC/9080)
● PRODUCT SPECIFICATIONS
English - 75
product specifications
INTERNAL DIMENSIONS (SCU-2370/VAC/9080)
76_ product specifications
y Wall Mount
6.5
153.7
● PRODUCT SPECIFICATIONS
150
420
80
496.8
10
72.1
170
135
72.1
6
9.2
154.7
4-
10
120
18
102
y Pedestal Mount
120
177
34.2
72.1
72.1
4-
10
102
English - 77
DECLARATION OF CONFORMITY
Application of Council Directive(s)
2004/108/EC
Manufacturer's Name
SAMSUNG TECHWIN CO., LTD
Manufacturer's Address
SAMSUNG TECHWIN CO., LTD
42, SUNGJU-DONG CHANGWON-CITY,
KYUNGNAM, KOREA, 641-716
Equipment Type/Environment
Positioning System
Model Name
SCU-2370/VAC/9080
Conformance to
EN 55022 : 2006
EN 50130-4 : 2003
We, the undersigned, hereby declare that the equipment specified above conforms to the
above Directive(s).
Manufacturer SAMSUNG TECHWIN CO., LTD
Legal Representative in Europe
Signature
Signature
Full Name
BONJENG GU
Full Name
Position
QUALITY CONTROL MANAGER
Position
Place
CHANGWON, KOREA
Place
MEMO
