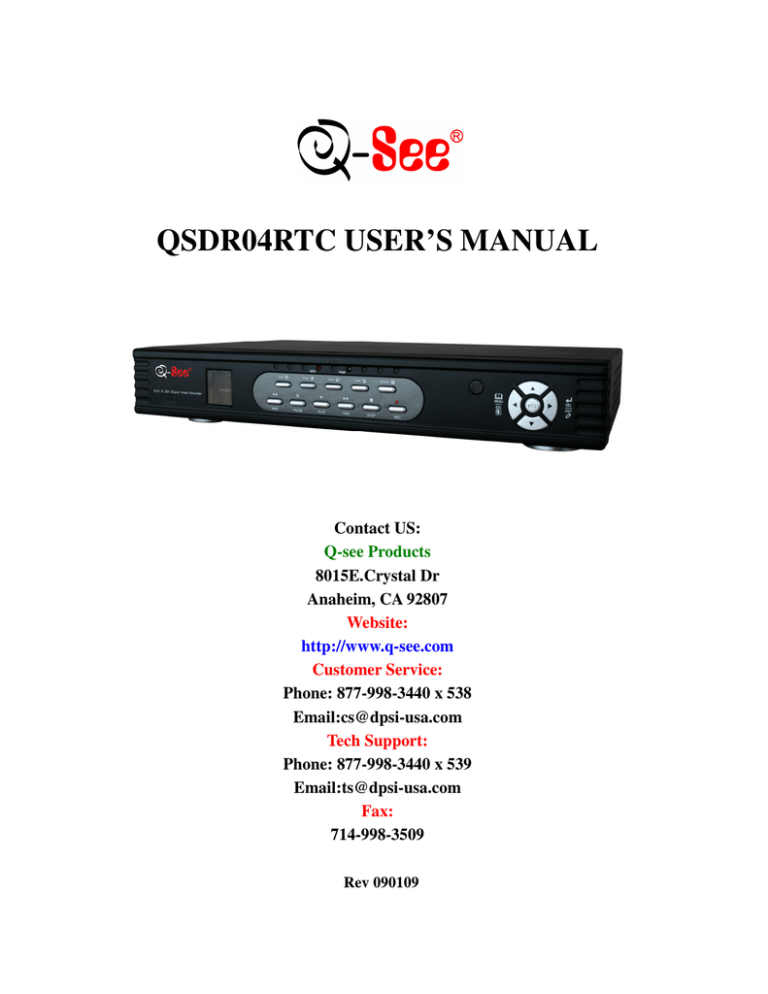

QSDR04RTC USER’S MANUAL
Contact US:
Q-see Products
8015E.Crystal Dr
Anaheim, CA 92807
Website:
http://www.q-see.com
Customer Service:
Phone: 877-998-3440 x 538
Email:cs@dpsi-usa.com
Tech Support:
Phone: 877-998-3440 x 539
Email:ts@dpsi-usa.com
Fax:
714-998-3509
Rev 090109
CONTENTS
Chapter 1: DVR Features ...................................................................................................................................................2
Chapter 2: Layout ..............................................................................................................................................................3
2.1 Front Panel ....................................................................................................................................................................3
2.2 Rear Panel......................................................................................................................................................................4
2.3 Remote Control ..............................................................................................................................................................5
Chapter 3: DVR Installation...............................................................................................................................................6
3.1 Hard Drive Installation ..................................................................................................................................................6
3.2 Camera and Monitor Connection...................................................................................................................................6
3.3 Power Supply connection ...............................................................................................................................................6
Chapter 4: DVR Boot up ....................................................................................................................................................7
4.1 System Initialization .......................................................................................................................................................7
4.2 Main Interface................................................................................................................................................................7
Chapter 5: DVR Menu .........................................................................................................................................................7
5.1 Main Menu Preview .......................................................................................................................................................8
5.2 Main Menu .....................................................................................................................................................................8
5.2.1 Camera setup ......................................................................................................................................................9
5.2.2 Record setup........................................................................................................................................................9
5.2.3 Network Setup ...................................................................................................................................................10
5.2.3.1 DHCP.............................................................................................................................................................10
5.2.3.2 PPPoE ............................................................................................................................................................11
5.2.3.3 Static ..............................................................................................................................................................11
5.2.3.4 Port Forwarding .............................................................................................................................................12
5.2.3.5 Pop-ups & ActiveX Controls .........................................................................................................................12
5.2.4 Recording Search..............................................................................................................................................13
5.2.5 Multi player .........................................................................................................................................................14
5.2.6 Device Management .........................................................................................................................................16
5.2.6.1 HDD Management .........................................................................................................................................16
5.2.6.2 Alarm Set .......................................................................................................................................................17
Email Alarm Notification...........................................................................................................................................18
5.2.6.3 PTZ Setup ......................................................................................................................................................19
5.2.6.4 Mobile............................................................................................................................................................19
Mobile Phone Access.................................................................................................................................................19
5.2.6.5 Motion Detect ................................................................................................................................................24
5.2.7 System Function................................................................................................................................................25
5.2.7.1 Time Set .........................................................................................................................................................25
5.2.7.2 Password ........................................................................................................................................................25
5.2.7.3 Video Setup....................................................................................................................................................25
5.2.7.4 Language........................................................................................................................................................26
5.2.7.5 Info.................................................................................................................................................................26
5.2.7.6 System Maintenance ......................................................................................................................................26
5.3 Menu Lock....................................................................................................................................................................26
5.4 Video Search.................................................................................................................................................................26
5.5 PTZ Control .................................................................................................................................................................27
5.6 Record ..........................................................................................................................................................................27
5.7 Stop recording ..............................................................................................................................................................27
Chapter 6: Net-Viewer Program .....................................................................................................................................28
6.1 Plug-ins download and installation .............................................................................................................................28
6.2 Log-in to NetViewer .....................................................................................................................................................28
6.3 Main Interface of Net-viewer .......................................................................................................................................29
6.3.1 Menu column......................................................................................................................................................29
6.3.1.1 Live ................................................................................................................................................................29
6.3.1.2 Replay ............................................................................................................................................................29
6.3.1.3. Setup .............................................................................................................................................................30
6.3.1.4
Log out ......................................................................................................................................................32
6.3.2 PTZ Control ........................................................................................................................................................32
6.3.3 Live Play Control ...............................................................................................................................................32
Chapter 7: Specifications.....................................................................................................................................................33
Chapter 8: Appendix............................................................................................................................................................32
8.1 Operation Function Table ............................................................................................................................................32
8.2 Recording Alarm setting...............................................................................................................................................33
8.3 Troubleshooting............................................................................................................................................................33
8.4
System Connections...................................................................................................................................................34
8.5 Accessories (Included) .................................................................................................................................................34
Q-See Product Warranty..................................................................................................................................................35
User Manual
Safety Instructions
1.
Use proper power source.
Do not use this product with a power source that applies more than specified voltage (100-240V AC).
2.
Never insert anything metallic into the DVR case.
Putting something into the DVR case can be a source of dangerous electric shock.
3.
Do not operate in wet & dusty area or use near water.
Avoid places like a damp basement or dusty hallway.
4.
Do not expose this product to rain or use near water.
If this product accidentally gets wet, unplug it and contact an authorized dealer immediately.
5.
Keep product surfaces clean and dry.
To clean the outside case of the DVR, use a cloth lightly dampened with water (no solvents).
6.
Provide proper ventilation.
This DVR has a built in fan that properly ventilates the system.
7.
Do not attempt to remove the top cover.
If there are any unusual sounds or smells coming from the DVR, unplug it immediately and contact an
authorized dealer or service center.
8.
Do not attempt to remove the top cover.
Warning: You may be subjected to severe electrical shock if you remove the cover of the DVR.
9.
Handle DVR box carefully.
If you accidentally drop your DVR on any hard surface, it may cause a malfunction. If the DVR doesn’t
work properly due to physical damage, contact an authorized dealer for repair or exchange.
10. Use standard lithium cell battery. (NOTE: Manufacturer has preinstalled battery.)
The standard lithium cell 3v battery located on the mother board should be replaced if the time clock
does not hold its time after the power is turned off. Warning: unplug the DVR before replacing battery or you
may be subjected to severe electrical shock. Properly dispose of old batteries.
11. Make sure there is good air circulation around the unit.
This DVR system uses a hard drive for video storage, which generates heat during operation. Do not
block air holes (bottom, upper, sides and back) of the DVR that cool down the system while running. Install
or place this product in an area where there is good air circulation.
.
1
User Manual
Chapter 1: DVR Features
Real time monitoring
Supports real time surveillance via Monitor
Saves Recordings
DVR saves real-time recording image to HDD
Backup Recordings
Supports DVR backup via USB flash drive and hard drive.
Playback Recordings
Supports DVR single CH and multiple CH playback of recorded files
Network operation
Supports remote surveillance by multiple users simultaneously
Alarm Setting
Supports HDD & video input alarm management and external alarm signal
inputs
Mouse Operation
Supports Mouse operation for faster menu navigation.
PTZ Control
Supports PTZ camera operations through RS-485.
:
Other Features
H. 264 video compression format, supports D1, HD1, CIF resolution
ADPCM audio compression format
Windows Graphical interface
BNC and VGA video out ports
Supports remote live viewing via 3G mobile networks
Supports sending email alerts when motion is detected by system
Triplex (recording, playback and net transmitting at the same time)
Supports USB mouse, IR remote control operation
Rear USB2.0 ports for backup, upgrade and mouse operation.
Supports Double Encode bit network transmission
The video package time is adjustable
Multiple alarm record mode
Multiple language OSD
Supports auto maintenance
2
User Manual
Chapter 2: Layout
2.1 Front Panel
Item
Key title/Indicator
Marks
1
HDD indicator
HDD
When the “Red” indicator flashes it means the hard drive is being read or written to.
Power indicator
PWR
If the “Green” indicator is on the system is getting power
2
Functions
IR Receiver
Receives signal from Remote Control
4
Channel Select:
CH1 CH2 CH3 CH4
Select Single Channel Display
5
QUAD
Display all cameras in Live display or playback mode
6
REW
7
PAUSE
8
PLAY
Play
9
FWD
Move Right / Play Forward
10
STOP
Stop Playback; stop manual recording
11
REC
12
MENU/ESC
Enter into main menu or exit menu
13
Up
Move Up
14
SEL/EDIT
Select key / Edit
15
Down
Move Down
16
PTZ
17
USB 2.0 Port
3
:
Move Left / Reverse
Pause / play frame by frame, dwell time (Sequential Channel Switch) during single
camera display
Start Manual recording
:
Enter PTZ control mode
Backup to USB Flash Drive and USB Hard Drive
3
User Manual
2.2 Rear Panel
Item
Physical port
Connection method
1
Video input
Connect CH1-4 ( BNC interface)
2
Video output
Connect monitor output ( BNC interface)
3
Audio input
Connect CH1-4 audio signal input (RCA interface)
4
Audio output
Connect audio signal output (RCA interface)
5
Ethernet Port
Connect intranet, internet (RJ45 interface)
6
USB Port
Connect USB Mouse
7
RS-485/Sensor/Alarm
RS485/Sensor/Alarm interface (see pin outs below)
8
Power Port
Connect power supply - DC12V 3A
9
VGA Port
Connect to VGA monitor
10
Power Switch
Turn Power on and off
4
User Manual
2.3 Remote Control
1-8
Channel Select 1-8 ; Numeric key
2
9, 0
Numeric Keys
3
ALL
Preview all Channels
4
Menu
Enter/Exit Main Menu
5
▲
Up Key
6
▼
Down Key
7
◄/
Left / Right Keys
8
SEL
Select Key/ Edit Key
1
9
Rewind key
10
Play Key, Enter recording search menu
11
Forward Key
12
Manual Recording
●
Pause / Frame Play
13
14
■
Stop manual recording; Stop Playback
15
Audio
Undefined
16
Mute
Undefined
Mouse Operation
You can use a mouse instead of front panel buttons or remote control.
In menu lock mode, Enter into pop-up menu and clicking any sub menu to pop up Log-in
window; on menu unlock mode, enter into pop-up menu, and then clicking left key to
enter into any sub menu directly.
After entering main menu, clicking left key could enter into any sub menu; On[Detailed
file] menu mode, clicking left key could playback one recording file.
Click left key of
Mouse
Change the status of check box and motion detection area.
Clicking combo box to access pull-down menu
By clicking left key you can adjust Color control bar and volume control bar.
By clicking left key you can select values in edit boxes or pull-down menu and supports
Chinese word input, special symbol, numeric and character input, use instead of
[Enter] or [Backspace
]
In the [Detailed file] menu mode, clicking left key will playback one recording file.
Click right key of
Mouse
Double-click Left
key of Mouse
In live display mode, clicking right key will display pop-up menu (shown as Picture 5-1).
In Main menu or sub menu mode, clicking right key will exit current menu.
In live display or playback mode, double-clicking left key will maximize the screen.
Moving Mouse
Select menu item
Sliding Mouse
On motion mode, sliding mouse will select motion area; On [Color set] menu mode,
sliding mouse will adjust color control bar and volume control bar.
5
User Manual
Chapter 3: DVR Installation
3.1 Hard Drive Installation
: Please do not Install or take out hard drive when DVR is running!
Caution
(1) Remove screws and open DVR upper cover carefully;
(2) Insert Power Cord and data cable into Pin of hard drive securely;
(3) Put the upper cover back carefully, re-attach screws.
3.2 Camera and Monitor Connection
Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC
connector (Refer to section2.2-Rear Panel); or
If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR
respectively (refer to system figuration on Chapter 8).
3.3 Power Supply connection
Please only use the power adapter supplied with the DVR.
6
User Manual
Chapter 4: DVR Boot up
4.1 System Initialization
After connecting the power adapter and turning
On the power button, the system will boot-up and start
initializing.
Picture 4-1
4.2 Main Interface
Picture 4-2
After finishing system initialization the system will enter into main
interface. Picture 4-2 is the main interface displayed by system, which
is showing no video input status. Once there are video inputs, the
interface will display live images from the cameras. In main interface
mode, if you use the mouse to double-click the live image of any
channel, the image will be maximized to full screen, by double-clicking
again, the display will be come back to quad mode displaying all
cameras; clicking the right button of the mouse, will enter into Pop-up
Menu; by clicking the left button of the mouse, you select menu items;
when clicking any area outside the menu, you will exit the Pop-up
Chapter 5: DVR Menu
Pop-up Menu
After finishing system initialization, click right key of mouse on main
interface mode to enter into Pop-up Menu. Now you could proceed parameter
setting and operate for Main Menu, Menu Lock, Video Search, PTZ, Start
record, Stop Record and also operate for Start Cruise after successful PTZ
parameter setting etc.
Picture 5-1
7
User Manual
5.1 Main Menu Preview
Color set
Camera
Dwell time display
Recording
Network
Search
Playback
Rec. Search
Detail File
File Backup
Main Menu
HDD Management
Alarm Setting
Device
Management
E-mail setting
PTZ Setting
Mobile
Motion
Area setting
Time Setting
User password
Video Setting
System
Language Select
System Information
System Maintenance
5.2 Main Menu
Picture 5-2
After clicking right button of mouse, pop-up menu will be displayed
on the screen. You can click [main menu] button on pop-up menu
to enter into Main menu interface (Shown as Picture 5-2). You can
also use the Menu button on the front panel to bring up the window,
when using the front panel buttons use the FWD and REW button
to move in the menu, and the SEL button to select the icon. You
use the ESC button to return to previous window. In Main Menu
mode, you can control device management settings, such as
Camera, Recording, Network, Recording search, HDD, Alarm, PTZ
Control, Mobile Phone & motion detection etc, you can also set
system function settings, such as Time setting, User password,
Audio/Video setting, Language select, and access system information, system maintenance etc.
8
User Manual
5.2.1 Camera setup
Go to [Main Menu Camera] to set up the name display
and position display of each channel (Shown as Picture 5-3), You
can also adjust image brightness, saturation, contrast and hue
settings of each channel after entering into [Color] Menu and set
up whether each channel can be previewed or not under Live
display and/or Recording mode.
Please note that the name of each channel supports up to
eight characters or four Chinese characters.
Picture 5-3
Below is the Color Menu where you can adjust image
brightness, saturation, contrast and hue parameters of each
channel. (shown as picture 5-4)
Picture 5-4
:
Explanation
1. The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu windows
and being prompted to save and then clicking [ok] button.
2. If you want to cancel the modification, click [Exit] button to exit the menu.
3. When clicking [DEFAULT] button, all system default values will be reset to default value.
4. System default value indicates the value pre-set at the factory.
Click [AUTOSEQ] button to start auto rotation function.
(setting sub menu shown as Picture 5-4A. After starting auto
rotation function, system will auto rotate the video images among
CH1, CH2, CH3, CH4 and Quad in turn.
Default rotation time: 5 second
Settable time range: 0~10 second
Picture 5-4A
5.2.2 Record setup
Click [Main Menu] [Record] to enter into [Record Setup]
menu (Shown as Picture 5-5)
Functions
1. The [Rec Mode] button allows you to setup recording 24
hours, on motion, or on a set schedule.
2. [PACK time] indicates maximum continuous time length of
recorded files (15, 30, 45, 60 min).
:
Picture 5-5
9
User Manual
The [Record Setup] menu allows you set up recording status (on/off) of each channel, it also allows you
setup recording image resolution and quality, and turn audio on/off. This menu also allows you select
recording mode (recording after power on and scheduled recording) and recording file length.
Once a channel is set to “on” the channel can record, if it is set to “off” the video from the channel will not
be recorded. Resolution options are D1 (702x480), HD1 (702x240) and CIF (352x240); and Quality
options are Best, Good and Normal.
When Audio is set to “On”, system will also record audio from the channels and will have audio output on
playback mode; if it is set to “off” you can not record audio and will have no audio output available on
playback mode.
To record 24 hours a day set the Rec Mode to Always. To record on motion or a set schedule, select
Time Schedule Record and click the “Schedule” option, the Schedule interface will open as shown in (picture
5-6):
Recording options include All, CH-1, CH-2, CH-3, CH-4
respectively. Please click the channel you need, the channel you
select will be highlighted in “Blue” unselected channels will be “Grey”.
To setup weekly schedules, click on the box of the recording
status you want (Alarm, General, or No Record) and then click on
each box in the schedule time line that you want this method to apply
to. You can use the [From – To] pull-down menus and Copy button to
copy settings from one day to another day or all days. After you
Picture 5-6
complete the schedule you activate it by clicking the [Apply] button.
You can also click on the Default button to use the system defaults. The system default settings are:
Hr 01:00 am - 07:59 am: No recording
Hr 08:00 am -18:59 pm: Normal recording
Hr 19:00 pm - 00:59 pm: Alarm recording
Explanation: Under the recording Set menu and recording search menu, original color stands for no
recording, “Red” stands for alarm recording, “Green” stands for normal recording and “Blue” stands for the
channel and date you have selected.
5.2.3 Network Setup
Enter into [Main MenuNetwork Set] to setup the network configuration (Shown as picture 5-7):
After selecting network mode - such as DHCP, PPPOE, or
static allocation and setting up web ports (80 and 9000 by default),
you can view DVR remotely over a network or the internet.
Picture 5-7
5.2.3.1 DHCP
When selecting DHCP the router will allocate DVR IP address automatically After you exit the menu. You
might want to write down the addresses assigned and then switch to static and re-inter the addresses so the
router does not change them later.
10
User Manual
5.2.3.2 PPPoE
When selecting PPPoE, you need to input user and
password provided by your internet service provider and set up
web port (for details refer to the below picture 5-8)
.
Picture 5-8
5.2.3.3 Static
When selecting static allocation, You will need to setup the network settings on the DVR to match the
settings of the router that you attach the DVR to. To get the router settings you would go to the Run option on
a computer attached to the same router as the DVR and type cmd and hit OK to bring up a command prompt
(Picture 5-9), then type ipconfig at the prompt (RED arrow on Picture 5-9) to access the router settings. Write
down the gateway and subnet mask numbers (GREEN arrows on (Picture 5-9) so you can copy them into the
network settings on the DVR (Picture 5-10). To get to the NETWORK SETUP window, Go to [Main
MenuNetwork Set] then use the Direction Keys on the DVR to go to the TYPE dropdown and select
STATIC
Picture 5-10
Picture 5-9
For the DVRs IP address you would enter the same first 3 sets of numbers as the gateway and select a
fourth set of numbers that is different then any other device attached to the same router. If the IP address of
your computer in the ipconfig (BLUE arrow in Pic 5) was a single or two digit number you should be ok with
any three digit number, if the computer IP address ends with a number in the 100s then you should go with a
200 number (LIGHT BLUE box in Pic 6). After you enter the addresses hit the OK button.
At the bottom of the NETWORK SETUP window there is an option to setup the DVR to be accessed
through a DDNS service. When you click on the DDNS button it brings up the window displayed as Picture
5-11.You can access the DVR through a static or dynamic IP address; however a dynamic address can
change from time to time. How often depends on your service provider
When it changes you need to go to a website such as
www.myipaddress.com from a computer attached to the same router
as the DVR to find out what the new IP address is. There are two
solutions to this problem. One would be to get a static IP address from
your service provider so that you do not have to be concerned with the
address changing. Another solution would to use a dynamic domain
name service to get a domain name that can be linked to your dynamic
address. You can register on our company’s myq-see.com website and
get a domain name, user name, and password. You can then enter
Your dynamic domain name into an Internet Explorer browser instead of an IP address and be directed to
whatever the current dynamic IP address is, so that you can always access the DVR by entering the same
address. This DVR also supports the DDNS service provided by dyndns. You can get more information on
how to use these services from the myq-see.com or www.dyndns.com website.
11
User Manual
5.2.3.4 Port Forwarding
To access the DVR from a remote computer over the internet you would then need to forward port 80 and
port 9000 on the router the DVR is attached to, to the IP address of the DVR. You can get instructions on how
to do this for most popular routers by going to the www.portforward.com website. On this website click on the
orange “Routers” link in the second paragraph (RED box in Picture 5-12), which will open a list of router
manufactures, then find the brand and model of your router on the list and click on the link. On the next page
that opens click on the orange “Default Guide” link (BLUE box in Picture 5-13), this will take you to the port
forwarding instructions for your router.
Picture 5-13
Picture 5-12
When you access the DVR from a remote computer you also need
to use a different address in the Internet Explorer browser window.
Instead of entering the IP address of the DVR you need to enter
the public IP address of the router the DVR is attached to. You can
get this address by going to www.myipaddress.com from a
computer that is attached to the same router as the DVR. This
Picture 5-14
website will display the box in Picture 5-14 below that shows the IP address you need to use. It will be in the
space where the below example shows 76.254.183.54.
5.2.3.5 Pop-ups & ActiveX Controls
To access the DVR through Internet Explorer: once you have setup the network settings on the DVR to
match the settings of your router and forwarded the ports needed by the DVR (for remote access over the
internet), you need to modify your browser controls. You need to allow Pop-ups. To do so go to the Internet
Explorer tool bar and select the "tools" option (RED box in Picture 5-15), then select the "Pop up Blocker"
option and select "Turn Off Pop-up Blocker” (BLUE arrows in Picture 5-15). You will also need to enable
Active X controls. To do so go to the Internet Explorer tool bar and select the "tools" option, then "Internet
Options"(GREEN arrow in Picture 5-15), In the windows that opens (Picture 5-16) Go to "Security" (RED
box in Picture 5-16), then click the "Custom Level" button (GREEN box in Picture 5-16), then click on OK
(BLUE arrow in Picture 5-16). This will open the page shown in Picture 5-17. On this page scroll down to the
ActiveX Controls and Plug Ins and make sure they are all set to either prompt (RED arrows) or enabled
(BLUE arrows).
Picture 5-15
12
User Manual
Picture 5-17
Picture 5-16
To connect to the DVR from the remote computer you would then open an Internet Explorer browser
window and enter the internet IP of your router that you got by going to www.myipaddress.com.
Notice: If you cannot use HTTP port 80 or 9000 because it is being used by another program, or it is being blocked by your service
provider, you can use another port in the same range. If you do so then you need to forward the IP address of the router to the other port,
change the port in the DVR NETWORK settings, and you need to add the port number after the IP address. For example, if you set the
HTTP port as 82, you need to enter the IP address as 192.168.0.25:82.
User name and password here are the same as what you use on the DVR.
If you get a error message that says the program cannot load because the publisher is unknown or the
program is unsigned, go to internet explorer, tools, internet options (refer to Picture 5-15), then go to the
“Advanced” tab (RED box in Picture 5-18), this will open the window in Picture 5-19, scroll down to “Security”,
and select the options to “Allow software to run or install even if the signature is invalid”, and “Allow Active
Content to Run Files on My Computer” (RED box in Picture 5-19).
Picture 5-18
Picture 5-19
5.2.4 Recording Search
Click [Main menu search] to enter into [Video Search] menu (shown as the below picture 5-20).
Searched playback:
If you input specific date and click [Search], you will find all the
recordings for that day. When you select [Date] item, you will
playback the recordings in 4 channel mode; or, click [File list] button
to display File list interface, where you can playback or backup the
file you selected. See File List heading below.
Picture 5-20
13
User Manual
You can play video Forward at 2x, 4x, and 8x speeds, Slow play at 1/2x, 1/4x, and 1/8x, normal play,
pause and play frame by frame using the playback control bar, and adjust volume by clicking or sliding tune
control bar. When playback has finished, system will return to previous menu.
File list
On the [Video search] menu mode, click [File list] to pop up the sub-menu shown below as Picture 5-21.
This option will allow you to view all of the available files by channel and type (all, normal, or alarm).
You can select a file and push the SEL button to playback the file, or use the FWD button and down button to
select the option and backup the recording file you selected. You can also put a checkmark in the box at the
end of multiple files if you want to backup more then one file.
:
First Indicates the first page of recording history you have
searched. When you view other pages, clicking [First] button brings
you back to Page one.
PRE (Previous page): When viewing event list, clicking
[Previous page] button will take you back to page before the one you
are currently viewing (except the first page).
NEXT (Next page): When viewing event list, clicking [Next page]
button will take you to the page after the one you are currently viewing
(except the last page).
Picture 5-21
LAST (Last page): Indicates the last page of recording history you have searched. When you view other
pages, clicking [Last page] button will take you to the Last page.
ALL (Select All): Allows you to select all the events on the current page.
INVERSE (Select Invert): Allows you to select other events on the current page except those you have
currently selected.
Recording File Backup
If you want to backup one recording from the file list, you just select the recording and click [Backup]
button. When the backup is completed you will be notified. Please click [OK] button to save your backup
(shown as Picture 5-22).
Explanation: Backup file will be in H264 format, you can convert it to AVI format using the Multimedia
Player program that comes with the DVR or through the net-viewer program, so you can use any player
which supports AVI format.
Picture 5-22
Picture 5-23
5.2.5 Multi player
1. Copy backup file to your PC.
2. Open multimedia player and click [File Local File] to find/select the backup file, and then click [open]
button
Note: the file type you have selected should be *.264 format.
14
User Manual
Picture 5-24
、
Picture 5-25
3 Open backup file:
1. Click [Play] menu (P) on the top of multimedia player interface
to select playing the backup file;
Picture 5-26
2. Click pop-up menu button
on the bottom of multimedia player and [Play-
] button, then the
backup file will be played on the according channel.
3. The Menu brief on the bottom of multimedia player:
recording date for the current backup file shown as right corner;
Date:
24H recording time: lie under [Date] menu. Black number button stands for current recording
playback is normal recording for the time line.
0~60 Minute recording time quantum: Green part on play processing bar stand for recording length
for one hour recording.
Recording date and time processing for the current recording file
1
2
3
4
5
6
7
8
9
Play
Previous recording file
Pause
Stop
Previous frame / Next frame
Slow play, Normal play, Fast Play
Next Hour
Capture picture
Reduce window
15
10
11
12
13
14
15
16
17
18
Display all the windows
Add window
Start
Cut
Delete
Convert AVI
On Screen Display
Mute switch
Volume adjust
User Manual
4. Please refer to the below [Video on] setting procedure (System default - video for every channel is on)
SettingVideo
play
setting
Normal
video
BarSelect the channel you want to display Select
to play the videoApplyOK
Picture 5-27
Picture 5-27A
5. Refer to the below for [Audio on] setting procedure. (Setting parameter will be available after re-starting
multimedia player after [Audio on] set up.)
SettingAudio channel setting Normal video BarSelect the channel you want to playback the
audioSelect
the channel has audio filesApplyOK.
Picture 5-28B
Picture 5-28A
After successfully setting the above, when you playback the current channel, you can open the channel’s
audio function at the same time as the video
5.2.6 Device Management
Options in device management include Hard drive,
External Alarm, PTZ control, Mobile Phone Monitoring, and
Motion Detection.
Picture 5-29
5.2.6
5.2.6.1 HDD Management
Click [Main MenuDevice HDD] to enter [HDD
Management] menu (shown as Picture 5-30)
Picture 5-30
16
User Manual
When you install a HDD, the system will automatically detect
if HDD is formatted or not; If HDD needs to be formatted, HDD
status will be shown as “Not format”, otherwise, the HDD status
will be shown as “Normal” (refer to Picture 5-31)
TOTAL SPACE: Indicates total space available on Hard
Drive.
FREE SPACE: Indicates unused space available on the
Hard Drive.
USEABLE REC TIME: Based on current image
Picture 5-31
detail/quality and frame rate, system will show you how
Recording time you have left on the Hard Drive.
OVERWRITE: If you select “on” the system will automatically overwrite the oldest recordings once the
hard drive is full; if you select “off”, recording will stop once the hard drive is full.
HDD FORMAT: You use this option to format the hard drive, you can not record files to the hard drive
until it has been formatted. Click [Format HDD] button to start formatting. When selecting [Format HDD]
option the system will prompt you – “Format HDD will loss all the data, do you confirm?” ; click “OK”, system
will prompt you – “Is formatting…” and “successful format”; and then system will restart automatically.
USB FORMAT: Use this option to format USB devices.
5.2.6.2 Alarm Set
Click [Main MenuDevice Alarm] to enter into [Alarm setup]
menu to setup Alarm warnings (shown as Picture 5-32).
I/O STATUS
Options include NO (Normal-open), NC
(Normal-close) and OFF. Set to “Normal-open” if you use external
sensor alarms that are normally open, Set to “Normal-close” if you
use external sensor alarms that are normally closed, set to “off” if you
are not going to use external sensor alarms. You can use the DVRs
internal motion detection to record when motion is detected; you do
:
Picture 5-32
not external sensors to record on motion detection.
HDD LOSS: Options are On and Off. If you select On there will be a buzzer sound and “H” sign on screen
when HDD is not detected or not formatted; on the contrary, if you close the function, there is only “H” sign to
indicate HDD not found, but no alarm sound when HDD not found or not formatted.
HDD SPACE: Options are On and Off. When the alarm function is on, there are alarm sounds when the
HDD is running out of space; when the function is off, there are no alarm sounds.
VIDEO LOSS: Options are On and Off. When the function is on, system will issue alarm sound and
display video loss on the preview interface; when the function is off, system will have no alarm sound, but the
preview interface will display video loss.
ALARM MANAGE Alarm Output 0s,10s,20s,40s,60s
Buzzer time (0s,10s,20,40s,60s) and alarm
duration time 0s, 30s, 1minute 2minute 5minute
(
Alarm Type
Video Loss
Motion Detection
I/O Status
HDD loss
:
,
(
,
)。
)、
Function
Sends alarm when DVR can’t receive video signal (such as camera damage, cable broken or damaged
or power supply malfunction).
When an object moves into motion detection area, alarm will be triggered. You can adjust
sensitivity level to suit the needs of your actual application environment.
System can convert alarm signal triggered by external sensor into signal identified by system.
When Hard Drive is not detected (HDD damage, power supply malfunction), or HDD auto-overwrite
is off, and there is not enough free space, an alarm will be triggered.
List 5-1
17
User Manual
Email Alarm Notification
(to send notice to email account when motion alarm is triggered)
Click the [Email setup] menu to enter into its sub menu
(shown as Picture 5-33).
Picture 5-33
On the [Email setup] mode, refer to its parameter setup
shown as picture 5-34 when setting email alarm to “on”.
SSL: is a security link transport protocol. You can encrypt your
communication info (including your email) using SSL to prevent hackers from
monitoring your email or communication info and even your password.
Picture 5-34
Please set SSL to “On” via Gmail.com server, and set to “Off” via other mail server.
If your setting is still not right, please contact the web site where you have applied for your email box to
get SMTP server and SSL of mail box.
Picture 5-35
SMTP Port: indicates sender port of SMTP server. Generally the SMTP port value is 25, but
there are exceptions, for example, SMTP port of G-mail server should be 465.
SMTP server: indicates server address you use.
Sender email: indicates sender’s email address. The email address should be consistent with the server
you use. That is to say, when you use email address – aaa@gmail.com, the according server should be
smtp.gmail.com.
Receiver address: indicates receiver’s email address. The email address is used to receive ima
ge transmitted from motion detection alarm of DVR. Please clear the images you have received as
18
User Manual
soon as possible to avoid overloading your email account. For detailed SMTP protocols settings
refer to the below picture 5-35A.
Picture 5-35A
5.2.6.3 PTZ Setup
Enter into [Main menuDevice PTZ Setup] to select
the channel you want to control and set PTZ protocol
(Pelco-D or Pelco-P), Baud Rate (1200, 2400, 4800, 9600),
Stop bit (1, 2), Parity Check (None, Odd, Even Mark Space),
Address Code and Cruise status respectively. Please note
the above mentioned channel settings must match the
settings of the PTZ camera.
Picture 5-36
5.2.6.4 Mobile
Picture 5-37
Click [Main menuDeviceMobile] to enter into [Mobile]
menu.
User Name: indicate user name of DVR.
User password: indicate user password of DVR
Server port: Mobile monitoring port. Setting range is between
1024 and 65535. Please note that
Explanation: Please connect DVR to Internet before
setting DVR port number and the server port no is not equal to
network menus.
Mobile Phone Access
The DVR is currently compatible with mobile phones running Windows Mobile and Symbian operating
systems on 3G networks.
Before you can access the DVR from a mobile phone you need to setup the Network Configuration on
the DVR. Go to section 5.2.3 Network Setup on page 14 of the product manual for instructions on how to do
this. You also need to go to the Main Menu then Devices then Mobile and enter your user name and
password, and set the Server Port to 18600. This port also needs to be forwarded to the IP address of the
DVR along with the ports from 5.2.3 Network Setup.
Explanation: You can only see one channel at a time when viewing from a mobile phone. The
speed of the display depends on the speed of the internet connection.
19
User Manual
When accessing from a mobile phone with Windows Mobile operating system, use the following
procedure:
1. Webcam installation
First you need to install the webcam program that is included on the CD that comes with the DVR by
copying the “QQeye.CAB” file to the mobile phone. You can do this by attaching the mobile phone to a
computer and copying the file from the CD to the memory card on the phone, or by copying the file from the
computer to the phone’s memory card through a memory card reader or through a Bluetooth connection.
Pic 1
Pic 2
Pic 3
2. Click the windows mobile folder (red box in Pic 1) and choose the file
QQeye” Select the file which will open the window in Pic 3. The file is generally faulted to save as Device,
direct to phone, (shown in Pic 3) but you can save it to Device or Storage Card.
3. Choose storage location and click [Install] button (red box in Pic 3) to start the installation (please refer
to display in Pic 4 below)
Pic 4
Pic 5
Pic 6
4. After installation finishes, click the icon named QQeye (red box in Pic 5) to run the program. This will
display the program screen in Pic 6.
5. Settings: Click [Setting] button (red box in Pic 6) to enter the Setting menu shown as Pic 7
Pic 9
Pic 7
Pic 8
User name: same as user name setup in DVR under Menu, Devices, Mobile
Password: same as password setup in DVR under Menu, Devices, Mobile
Server address: Public IP address of router DVR is connected to.
Web port: Same as the Server Port you setup in the DVR, it needs to be forwarded to the IP address of
20
User Manual
the DVR, setting range is between 1024 and 65535, the default setting is 18600. Note: this port is in addition
to the ports used for standard remote access.
Channel: Select the channel from the DVR you want to monitor and click [OK] button (red box in Pic 7) to
display the screen in Pic 8 and start video connection.
6. Main interface operation (Pic 8)
Click [Disconnect] button to stop displaying live image of the channel.
Click [Setting] button to modify the settings.
7. Video connection Display
Normal Mode:
You will find network connection status info under the video image:
Display on the left corner: Network transmission speed, Frame rate and Resolution.
Display on right corner: percentage of buffer display, Connection success,Connection fail, Play and Stop.
Function of Buttons under the video image from left to right: PTZ control (Left, Right, Up and
Down), area select (Zoom out and Zoom in), Focus (Add “+” and deduct “-”) and Iris (Add “+” and
deduct “-”) and Snap to capture screen image.
8. Display mode: You can convert normal display into full-screen display by clicking
the screen on the mobile phone (displayed as Pic 9)
When accessing from a mobile phone with Symbian operating system, use the following
procedure:
1. First you need to copy the file with suffix “QQeye.CAB” that is included on the CD disk to the mobile
phone.
Copying file is save to storage card by default, and the file can also be transmitted from the CD through a
computer by Bluetooth technology to save to Inbox (Pic 1). Select the QQEye program (red box in Pic 1)
which will display Pic 2.
2. Select the QQEye icon in this window (red box in Pic 2) to install it, this will display Pic 3).
Pic 1
Pic 2
Pic 3
After the phone finishes preparation it will display Pic 4 asking for permission to install the program.
Select the Yes button (red box in Pic 4). This will display the window in Pic 5.
``
Pic 4
Pic 5
21
Pic 6
User Manual
3. Click the Continue button (red box in Pic 5) on the information box displaying the program and current
version. This will display the window in Pic 6.
4. Next choose where you want to install the program, to phone memory or to the memory card, and click
on the Select option (red box in Pic 6). This will display the window in Pic 7, click on Continue (red box in Pic
7) which will display the screen in Pic 8 and tell you it is installing the program (red box in Pic 8).
Pic 7
Pic 8
Pic 9
5. Once the installation is complete the window in Pic 9 will be displayed to tell you that installation is
completed. Then you can go to the Applications folder and select the QQEye program (white box in Pic 10)
and click on the Open option (red box in Pic 10) to display the settings menu. After you complete the settings
and click on the Done button (red box in Pic 11) the Video window in Pic 12 will be displayed.
Open
Pic 10
:
Pic 11
Pic 12
Default Access Point
Input the access point. System default for the access point is GPRS connection.
Server Address
Input the public IP address of the router the DVR is attached to (refer to section 5.2.3 Network Setup on
page 14 of the product manual).
Server Port
Web port: Same as the web port setting on the DVR, you need to forward this port from the Router to the
DVR. Setting range is between 1024 and 65535, the default setting is 18600. Note: this port is in addition to
the ports used for standard remote access.
User Name:
Same as user name setup in DVR under Menu, Devices, Mobile
Password
Same as password setup on DVR. (Please press Function key to save the password, left soft key won’t be able
to save the password)
Channel:
Select the channel you want to monitor and click [OK] button to start video connection
Network connection status: percentage of buffer display, connection success, connection fail, play and
stop.
Channel select, PTZ control, Zoom in/out, Focus and Iris
Play/Stop, Full screen/ Normal Display, Capture, Parameter setting and Exit
:
:
:
【】
22
User Manual
By clicking on the image you can see it full screen as in Pic 13
Pic 13
When accessing from an iphone, use the following procedure:
On the DVR:
The DVR must have the latest Firmware version 090706 or newer
Go to Menu – Devices – Mobile
Set User name and password. Example admin / admin
Set the port: 18004
From the PC, forward port 18004 in the router going to the IP of DVR.
On the iPHONE:
Open APP STORE
Search for APLAYER, click FREE and click Install (you need to have itunes account)
You will see an icon for Aplayer.
Click on the Aplayer icon.
Click Setting button (red box) at the bottom right corner of screen.
Enter the Server IP (your public IP ) / Keep port as 18004 / enter same user ID you put in the DVR (in
menu-devices-mobile) and enter password. Then click Back (red box) on the top.
23
User Manual
Click Play button on the bottom left corner (red box in first picture below) to connect to DVR. After
connecting, CH1 will display as shown in the second picture below. You can change to CH2 by push # 2 (red
box in second picture below).
If you have an 8 camera system you would click on the down arrow in the bottom row (red box in first picture
below) to view the buttons to access the next 4 cameras (as shown in the red box in the second picture below).
If you have a 16 camera system continue to click on the down arrow to access the rest of the cameras.
If you like this application, please leave good feedback in appstore.
5.2.6.5 Motion Detect
Picture 5-38
Click [MainDeviceMotion] to enter into the [Motion Detection]
menu to setup motion detection recording.
The [Motion detection] Menu has three sections, including
Channel Status, Sensitivity and Motion area.
Channel STATUS: This option allow you enable motion detection
on any channel.
SENSITIVITY: This option allows you to set sensitivity level of
motion detection from 1 to 4 with 4 being the most sensitive.
MD AREA: This option allows you select the area you want to be
sensitive to motion. The channel is separated into a 13*10 area. When
any object moves into the motion detection area, and the area where
the object is located is displayed in red recording will be triggered. In
the semi-transparent area the motion detection is off.
Picture 5-39
24
User Manual
5.2.7 System Function
The [System] Menu includes the below sub-menus: Time
Set, User Password, Audio/Video Setting, Language select,
System Info and System Maintenance.
After entering into the [System], you can configure the
system to meet your needs.
Picture 5-40
5.2.7.1 Time Set
Click the [Main menuSystemDate/Time] in turn to Enter
into the time setup menu shown as Picture 5-41 to not only
modify system date, time, date/time format and time zone, but
also setup DST (day saving time) status and mode.
Picture 5-41
5.2.7.2 Password
This option allows you set the device ID for the DVR and set
the system password if you want to use one. The new passwords
will be available after clicking [APPLY] button.
.
Picture 5-42
When you set Password Enabled to “ON” (shown as Picture
5-43), you can setup a user password and administrator password
respectively. The password supports up to 6 characters.
Picture 5-43
5.2.7.3 Video Setup
Click [Main MenuSystemVIDEO] to setup Video, here you can
set Camera system PAL, NTSC In the USA we use NTSC.
You can also set the resolution for the VGA video out port. Your
options are 600x480, 800x600, or 1024x768, or 1280x1024.
(
Picture 5-44
25
)
User Manual
5.2.7.4 Language
Enter into [System Language] menu to select the language
you want to use on the DVR (shown as Picture 5-45) and click
[APPLY] button. The selection will be available after system Auto
restarts.
Picture 5-45
5.2.7.5 Info.
Click [Main Menu SystemInfo] to enter into [System
Information] menu to view system info, including Device type, Software
(firmware) version and MAC address etc.
Picture 5-46
5.2.7.6 System Maintenance
This option allows you reset the DVR to factory default settings,
update system software (firmware), and set system auto-maintenance.
Click [Main menuSystemMaintain] to enter into the [System
Maintain] menu (shown as Picture 5-47).
When opening auto-maintain function, you can setup system to restart
regularly.
Picture 5-47
5.3 Menu Lock
Picture 5-48
As a system safety feature you can click [Menu Lock] menu to
lock menu when leaving the DVR. If you want to login to the DVR,
you would input device code and password (refer to the Menu
Locking interface- Picture 5-48).
Explanation: User only has the authority to search
recordings, but Administrator has full authority over Main
Menu operations
5.4 Video Search
Click pop-up menu video search to enter into [Video Search] menu you search files and playback
recordings. For more information on this operation refer to the previous section 5.24.
26
User Manual
5.5 PTZ Control
We introduced setting PTZ parameters previously in chapter 5.2.5.3.
Here we will discuss how to operate PTZ controls.
Click pop-up menu to show PTZ option and enter into PTZ control
interface (shown as Picture 5-49). You can now click Z+&Z- keys to zoom In
or out, click F+&F- keys to control camera focus and click I+&I- to adjust iris.
Picture 5-49
Cruise Set
Open auto cruise function on PTZ setting menu if you want to setup cruise function (system default: on),
and set up cruise channel, cur point and total quantity and stop time etc.
Channel select: select the channel with the PTZ camera
Total: set up presetting bit quantity
Cur Point: System has default starting (current) cruise point as 01. You
can use this option to set additional cruise points.
Stop time: sets the pause time at each stop.
GOTO select this option to go to specific preset points
:
Set: save the preset point. After setting channel and setting the position by adjusting PTZ direction key you
click [Set] button to setup the pre-set point. Please note you will click the [Save] button to finish the setting
successfully. If you want to combine Zoom, Iris, Focus and direction keys into the pre-set setting, please
return to previous menu (shown as Picture 5-56) to add additional settings, and then enter into Cruise Set
again and click [Set] and [Save] to make sure your setting is setup successfully.
Clean: remove settings.
Note: this DVR model supports up to 100 pre-set points. But actual quantities may be restricted by the
PTZ camera you are using.
5.6 Record
When you want the system to start recording click [ Rec ] button to start manual recording.
5.7 Stop recording
If you want to stop manual recording click [Stop Record.] menu or [Stop] button
27
User Manual
Chapter 6: Net-Viewer Program
6.1 Plug-ins download and installation
Open IE browser and input IP address and web port of DVR, such as http://172.18.6.202 and confirm to
download and install webcam. If your computer is connected to internet, computer will auto download and
install the webcam.
Reminder: If the webcam is not downloaded successfully, please check if your browser’s safety level or
firewall setting is too advanced. Also refer to section 5.2.3 Network Setup to make sure network configuration
is correct, ports are forwarded correctly, and ActiveX is enabled.
6.2 Log-in to NetViewer
Picture 6-1
After webcam installs plug-ins, please select log-in
language (Chinese or English) and enter password and
click [Log-in] button, and now you can view DVR
remotely through NetViewer.
Please note default password is empty. System
allows Administrator to set new password as per
instructions in section 5.2.6.2 - [Password set] menu.
Note: If you want to delete old IE webcam at DVR
system update, run the command characters:
“regsvr32/u dvrocx.ocx”
After successful Log-in to Net-viewer, system will
enter into live display interface and connect to
audio/video feed automatically (shown as Picture 6-2).
Picture 6-2
28
User Manual
6.3 Main Interface of Net-viewer
Picture 6.3
Log in Net-viewer and show the interface as follows
6.3.1 Menu column (Section 1 on Picture 6-3)
6.3.2 PTZ Control (Numbers 2, 3, 4 on Picture 6-3)
6.3.3 Live Play Control (Numbers 6 through 10 on Picture 6-3)
6.3.1 Menu column (Section 1 on Picture 6-3)
Menu column include [Live] menu, [Replay] menu and [Setup] menu and [Logout] menu.
6.3.1.1 Live
After Logging-in to system, system will enter into Live display (shown as Picture 6-3).
6.3.1.2 Replay
This option allows you to playback recordings
remotely.
First select the day, channel and type and
proceed searching and refreshing; second select
any event from search result list to playback.
Please note you can control playing speed by
sliding the playing-control bar on the bottom of
the interface (shown as Picture 6-4).
Picture 6-4
Play button: [Play]/[Pause]
Stop button: stop playing recording.
29
User Manual
F.F. button: fast forward playback recording
Slow button: slow playback recording.
Next Frame: play frame by frame.
264 TO AVI button: convert file from H.264 format to AVI format
The native format of the backup files is H.264, you can convert H.264 format into more familiar AVI format
by clicking the key of 264 to AVI.
6.3.1.3. Setup
Click [Setup] menu to enter into its sub menu, including [Recording Mode] menu, [Alarm Mode] menu,
[PTZ Control] Menu, [Network Setting] menu, [System Setting] menu and [Host Info] menu.
Explanation: Only when DVR is on the status of live display, you could modify and save its parameters
remotely at this moment, the settings are available. The modification method to DVR via Net-viewer is the
same as local adjustment of DVR.
① Record
Enter into sub menu – [Recording Mode] menu, you can
select on/off for every channel, and adjust recording
parameters (resolution, quality, audio, REC mode and
Schedule) remotely via Net-viewer.
Picture 6-5
Click the [Schedule] menu to enter into its sub menu
(shown as Picture 6-6).
Remote setup methods are the same as local DVR
setup. Please refer to Section 5.2.2 Record Setup
Picture 6-6
② Alarm
Click [Alarm] menu to enter into its sub menu (shown as
Picture 6-7).
You can set I/O alarm for every channel, motion detection
alarm, motion recording, motion trace, motion sensitivity, video
loss alarm, HDD not enough space alarm, HDD not found
alarm and alarm output time etc.
For details on setup method please refer to section
5.2.5.2.
Picture 6-7
30
User Manual
System allows you setup motion detection settings for each channel
of DVR remotely (shown as Picture 6-8)
Picture 6-8
③ PTZ Control
Click [PTZ control] to setup PTZ cameras. Remote
setup methods are the same as local DVR setup.
Please refer to Section 5.2.5.3 (shown as Picture
6-9).
④ Network
Picture 6-9
Click [Network] to enter into [Network]
menu. Remote setup methods are the same as
local DVR setup.
Please refer to Section 5.2.3. – Network
Set.
⑤ Setting
Picture 6-10
⑥ Host InfoPicture 6-11
Click [setting] menu to enter into the menu interface
(shown as Picture 6-11);
Click […] button to preview net-viewer recording
saving path and screen capture saving path.
The menu also allows you to set a lower bandwidth for
Internet video transmission, set user password, turn
daylight saving time on/off, etc.
Click [Host Info.] to enter into the sub menu (shown as
Picture 6-12). Here you can check Usage rate of HDD,
available recording time, software version and MAC address.
Picture 6-12
31
User Manual
6.3.1.4
Log out
Log out of the system.
6.3.2 PTZ Control (Numbers 2, 3, 4 on Picture 6-3)
Note: below-mentioned series no will be consistent with the remark no shown as Picture 6-2.
2 .PTZ direction control: Control PTZ moving direction
3 .Zoom, Focus and Iris Control: control direction, zoom, focus and iris of PTZ.
4 .Presetting bit Control
CUR display current presetting bit or input a presetting bit you want to fix at according edit box
Load Load one presetting bit setting you have saved last time.
○
○
○
:
:
。
Save: Save presetting bit.
Set: set presetting bit parameter (Details setting method please refer to section 5.5- cruise set.
GOTO: on the preview mode, please input one presetting bit no and click [GOTO] button, you could
fix the presetting bit quickly.
Clean: clean presetting bit setting
Cruise: control cruise status (including on and off).
6.3.3 Live Play Control (Numbers 6 through 10 on Picture 6-3)
⑤On / Off Live display [
:
] When Live display status is “On”, Clicking the button closes Live display. When
“Off” clicking the button opens the Live display.
⑥.Capture [ ]:Capture Screen image and save to PC as *bmp image.
⑦.Recording [ ]:Operate DVR recording remotely
⑧Channel display [
]:The icons stand for Single Channel display, Quad Channel display, 3x3
Channel display and 4x4 Channel display respectively.
⑨.Volume control [
] Click or slide the control bar to adjust sound volume.
32
User Manual
Chapter 7: Specifications
QSDR04RTC
Model
Video System
NTSC / PAL(Optional)
Compression Format
Video
Video Input/Output
4-CH BNC Input/ 2-CH BNC Output / 1-VGA output
Audio I/O
4-CH RCA audio Input / 2-CH RCA audio Output
Display Resolution
D1
:H.264 / Audio:8kHz*16bit ADPCM
Frame rate
:704×576(PAL) 704×480 (NTSC)
Single CH PAL:25 fps ,NTSC:30 fps
Recording Resolution
PAL: CIF(352*288), HD1(704*288) D1 (704*576
)
NTSC:CIF(352*240),HD1(704*240) D1 (704*480)
:
:
PAL 25 fps@D1, 50 fps@HD1, 100 fps@CIF
Recording Frame Rate (shared)
NTSC 30 fps@D1, 60 fps@HD1,120 fps@CIF)
;
HDD
1 SATA HDD, up to 1024GB USB removable HDD (backup)
Video Mode
Always / schedule / manual /motion detection / sensor triggered
Record Pack Time
15/30/45/60min
Video backup
USB flash drive / removable HDD USB Burner, Network backup to AVI File Format
Playback Mode
PLAY /SLOW /FWD/Frame by Frame
Alarm I/O
4-CH alarm inputs, 1-CH alarm output
Alarm Type
Motion/ sensor triggered/Video loss/HDD Space/HDD Loss
PTZ Control
Built-in RS-485 port, supports PELCO-P & PELCO-D
,
Supports USB mouse
USB 2.0 Ports
,removable HDD,USB flash drive to backup to AVI file and upgrade
system
Ethernet
One RJ-45 10M/100M self-adaptable Ethernet interface
Network Protocol
Supports TCP/IP, DHCP, UDP, DDNS, PPPOE network Protocol
Support preview live display remotely via mobile phone and real time monitoring via IE-based
Network Function
browser and/or network, and support parameter setting of DVR remotely.
~15W
Power consumption
10
Power Adapter
DC 12V / 3A
Working Temperature
50°F to 104°F (10
Working humidity
10%~90%
Dimension (W x D x H)
11.75 x 9 x 2 in (300 × 220 × 47 mm)
(exclude HDD)
℃ to 40℃)
33
User Manual
Chapter 8: Appendix
8.1 Operation Function Table
Type
Title
Time setting
Language Select
CH Setting
Principle
Setting
Setting
Network
Setting
Network
Function
Auxiliary
function
Menu
button
Setting system date, time and format and day-light saving time setting
Setting system language
Setting CH title and position; adjusting image color parameter value; setting CH display to
ON / Off and time display/recording time overlaying to On/Off.
Rec. Setting
Setting image quality, resolution, volume, recording mode an pack time
Rec. Search
Time based search, channel based search and rec. mode based search.
Rec. Playback
Specified time playback, scheduled playback, file list playback
Playback mode
Play, play frame by frame, multi-speed forward and multi-speed rewind
File backup
U flash disk and removable HDD backup, DVD recorder backup and network
download backup
HDD Manage
Check HDD status, usage space, setting HDD auto-overwrite
VID/AUD Setting
Adjust VGA resolution, select system and volume control
User password
Setting or modifying user password
Alarm setting
Advanced
Description
Setting HDD lost, HDD space, video loss, I/O status, alarm management and Email alarm
Motion detection
Setting on/off status of MD; select sensitivity and setting motion detection area.
PTZ control
Selecting CH and setting PTZ protocol, baud rate and PTZ address for the CH
MP Monitor
Setting user name, password and server port.
System
Maintenance
Setting system auto maintenance, maintenance time regularly, system upgrade,
ex-factory default value recovery and manual restart system
Network and Port
setting
Selecting network mode and setting net-viewer port, web port, DNS and DDNS
parameters.
Live display
Real time video input remotely
Remote recording
Setting recording mode and status of DVR remotely
Remote playback
Check local recording history via network
PTZ control
Remotely control PTZ camera, position, focus, zoom and iris etc.
parameter set of
DVR remotely
Setting local CH display, recording, alarm, PTZ control parameter value via
network
Network download
Backup recording file via network
System info
Check device model, software version and MAC address
()
In addition to illustrating picture, Parenthesis generally indicate optional
parameter value of previous menu.
Confirm
The button allows you save the modification of parameter value.
Recover default
The button allows you recover default value of current menu or system
Exit
The button allows you exit the current menu.
Next
On multi-channel mode, the button allows you check or modify other channel’s
parameter; on [File list] mode, the button allows you display next page.
32
User Manual
8.2 Recording Alarm setting
⊥
Please refer the below matrix: “ ” stand for “only alarm but no recording”; “AMR” stand for “alarm recording”;
“NLR” stand for “normal recording”; and “NOR” stand for “ no recording”. Once alarm is triggered, alarm icon will
occur, and when many alarms are triggered, alarm remarks will occur on the screen.
Recording Mode
Timing
recording
Recording alarm setting
Alarm icon
Recording after
Manuel Recording
power on
AMR NLR NOR
Alarm
mode
MD alarm
I/O triggered alarm
AMR
AMR
HDD loss, HDD space full
Video Loss
Video Loss
⊥
⊥
AMR
AMR
⊥
⊥
NLR
NLR
⊥
⊥
⊥ NLR
⊥ NLR
⊥ ⊥
⊥ ⊥
When DVR is in recording mode, [ ] icon or [ ] icon will appear on the screen. But when there are [ ] icon
and [ ] icons on the screen it indicates a motion alarm was triggered. When [ ] icon appears on the screen, that
mean a hard drive alarm has occurred.
8.3 Troubleshooting
1. Q: What can I do if the system does not detect the HDD?
A: Check the data and power cables and make sure they are securely connected.
2. Q: We have changed the password but do not remember the new password, how can we access the system?
A: If you forget system password, enter 519070 into the password field to reset the password
3. Q: We are not getting any video signal on the DVR, what is wrong?
A: Check to make sure the cables are securely connected to the BNC ports on the DVR. You can also try another
cable to make sure there is not a problem with the cable. Make sure you have selected the correct video format for
your country (NTSC or PAL), is the USA we use NTSC.
4. Q: Can the DVR have problems if it gets too hot, how can I prevent this?
A: The DVR has a fan to help it dissipate heat while it is working. Please place the DVR in a place where there is
good air circulation and away from high temperatures to increase stability and life of the DVR.
5. Q: My remote control does not work when the DVR is in Live mode but the front panel buttons are working,
what is wrong?
A: Make sure nothing is blocking the LED on the remote, or the receiver on the DVR, if both are ok, check the
batteries.
6. Q: Can I use the hard drive from my PC in the DVR?
A: You can if the hard drive is the same type and the size is supported by the DVR. If you install it in the DVR it
will be formatted for use in the DVR and the PC will not be able to read it.
7. Q: Do I have to stop recording to playback files on the DVR?
A: No you do not have to stop recording, the DVR will support both functions at the same time.
8. Q: Can I erase files from the hard drive of the DVR?
A: You can not erase individual files, you would need to format the hard drive which will erase all of the files
9.Q: Why can’t I log-in to the Net-viewer program?
A: Please verify that the Net mode is correct, The cable to the RJ-45 port is well connected to the DVR and the
router, and that you are using the correct password.
10. Q: We have attached a PTZ camera but can not control it, what is wrong?
A: Verify that the Protocol, baud rate, address, and other settings on the PTZ camera match the settings you have
put into the DVR. Make sure the data cables are attached firmly to the RS485 port on the DVR.
11. Q: Why does the Buzzer keep sounding?
A: Please check to see if motion detection is on and the system has detected motion, make sure the hard drive is
being detected and has sufficient space available, and that none of your cameras have lost video. You can turn off the
buzzer in the Alarm setup option.
33
User Manual
8.4
System Connections
(Diagram is for reference only to show where to attach various devices to the DVR, the
cameras, external alarms, USB flash drives, monitors and computers are not included
with the standard DVR package)
8.5 Accessories (Included)
Power Cord
Software CD
Ethernet Cable
Power Adaptor
Remote Control
USB Mouse
34
User Manual
BNC to RCA Video Cable
User Manual
Q-See Product Warranty
Thank you for choosing our products.
All of our products users have a conditional free warranty repair service for hardware within
12 months starting from purchase date, and a free exchange service within one month (valid for
manufacturing defects). Permanent upgrading service is provided for the software.
Liability Exclusions:
Any product malfunction, abnormalities in operation or damage caused by following
reasons are not within the free service scope of our company. Please select payable service.
(1) Equipment damage caused by improper operation
(2) Improper environment and conditions in/on which the equipment operates, e.g., improper
power, environment temperature, humidity and lightening strike etc. that cause equipment
damage.
(3) Damage caused by acts of nature: earthquake and fire etc.
(4) Equipment damage caused by the maintenance of personnel not authorized by our
company.
(5) Product sold over 12 months ago.
In order to provide various services to you, please complete registration procedure after
you purchase the product. Cut off or copy User’s Information Card and fax or mail it to us after
the card is filled in. You can also register the product by going to the www.q-see.com website
and clicking on the Register link.
If you have questions:
Contact Us
Mailing Address:
Customer Service:
DPS Inc.
Phone: 877-998-3440 x 538
8015 E. Crystal Dr
Email: cs@dpsi-usa.com
Anaheim, CA 92807
Live Chat from website
Website:
Tech Support:
http://www.q-see.com
Phone: 877-998-3440 x 539
Fax:
Email: ts@dpsi-usa.com
714-998-3509
Live Chat from website
35
User Manual
Customer Information Card
User’s Name
Mr./Mrs.
Company
Name
Postal
Address
Postal code
Phone
Number
E-mail
Model Number
of Product
Serial Number
of Product
Purchase Date
Distributor
The material in this document is the intellectual property of our company.
No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by
any means without our company’s prior written permission.
1. Our products are under continual improvement and we reserve the right to make changes without notice.
But no guarantee is given as to the correctness of its contents.
2. We do not accept any responsibility for any harm caused by using our product.
3. The product picture may differ from the actual product, which is only for your reference. The accessories
will probably be different according to the different selling areas. For details of accessories, please refer to
your local distributor.
Copyright reserved
37
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
