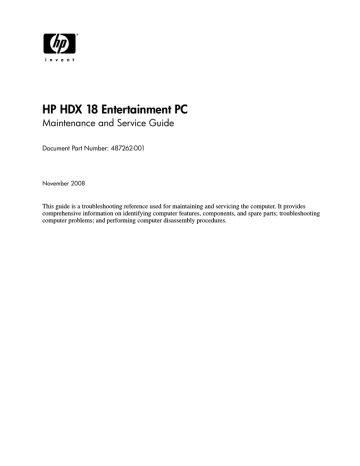

HP HDX 18 Entertainment PC
Maintenance and Service Guide
Document Part Number: 487262-001
November 2008
This guide is a troubleshooting reference used for maintaining and servicing the computer. It provides
comprehensive information on identifying computer features, components, and spare parts; troubleshooting
computer problems; and performing computer disassembly procedures.
© Copyright 2008 Hewlett-Packard Development Company, L.P.
Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel and Core are trademarks or
registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and
Windows Vista are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.
The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in
the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
First Edition: November 2008
Document Part Number: 487262-001
Safety warning notice
Å
WARNING: To reduce the possibility of heat-related injuries or of overheating the computer, do not place the computer directly
on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface,
such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow
the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of
Information Technology Equipment (IEC 60950).
Contents
1 Product description
2 External component identification
Top components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Buttons, speakers, and fingerprint reader . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Pointing devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Right-side components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Left-side components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear component . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bottom components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2–1
2–1
2–2
2–4
2–5
2–6
2–7
2–7
2–8
2–8
2–9
3 Illustrated parts catalog
Service tag . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1
Computer major components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2
Display assembly components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7
Mass storage devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8
Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9
Miscellaneous parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–10
Sequential part number listing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11
4 Removal and replacement procedures
Preliminary replacement requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Tools required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Service considerations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Grounding guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Unknown user password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5
Component replacement procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Service tag. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6
Computer feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7
Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–8
Optical drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–9
Hard drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11
TV tuner module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13
RTC battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–14
Memory module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–15
WLAN module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16
Switch cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–18
Keyboard cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–20
Power button board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–22
Contents
iv
Bluetooth module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power button board cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bluetooth module cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LED board cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speaker assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Display assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Top cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TouchPad on/off button board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Subwoofer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/infrared board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
USB board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power connector cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TV tuner module cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fan/heat sink assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4–23
4–24
4–27
4–28
4–29
4–30
4–31
4–38
4–42
4–44
4–47
4–48
4–50
4–51
4–52
4–53
4–54
4–56
5 Setup Utility
Starting the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the language of the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Navigating and selecting in the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displaying system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restoring default settings in the Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using advanced Setup Utility features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Closing the Setup Utility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Setup Utility menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Main menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Security menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System Configuration menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5–1
5–1
5–1
5–2
5–2
5–2
5–3
5–3
5–3
5–3
5–4
5–4
6 Specifications
Computer specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18.4-inch display specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hard drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Blu-ray ROM DVD±RW SuperMulti DL Drive specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System DMA specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System memory map specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System interrupt specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
System I/O address specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6–1
6–2
6–3
6–5
6–5
6–6
6–6
6–7
7 Screw listing
Phillips PM2.5×7.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1
Phillips PM2.0×4.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5
Phillips PM2.5×6.0 captive screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–11
Phillips PM3.0×4.0 screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–12
Phillips PM2.5×5.0 broadhead screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13
Phillips PM2.5×11.0 captive screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–14
Phillips PM2.5×5.0 captive screw . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–15
Contents
v
8 Backup and recovery
Recovering system information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Creating recovery discs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backing up your information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
When to back up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Backup suggestions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using system restore points . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Performing a recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recovering from the recovery discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Recovering from the dedicated recovery partition (select models only) . . . . . . . . . . . . . . . . . . . . . . .
8–1
8–1
8–2
8–2
8–2
8–3
8–4
8–4
8–4
9 Connector pin assignments
1394 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio-in (microphone). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio-out (headphone) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
External monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HDMI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RJ-45 (network) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Universal Serial Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9–1
9–1
9–2
9–2
9–3
9–4
9–4
10 Power cord set requirements
Requirements for all countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–1
Requirements for specific countries and regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–2
11 Recycling
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11–1
Index
Contents
vi
1
Product description
Category
Description
Product name
HP HDX 18 Entertainment PC
Processors
Intel® Core™2 Duo processors:
■ QX9300 2.53-GHz processor, 12-MB L2 cache, 1066-MHz front side bus (FSB)
■ QX9100 2.26-GHz processor, 12-MB L2 cache, 1066-MHz FSB
■ QX9000 2.00-GHz processor, 12-MB L2 cache, 1066-MHz FSB
■ T9600 2.80-GHz processor, 6-MB L2 cache, 1066-MHz FSB
■ T9500 2.53-GHz processor, 6-MB L2 cache, 1066-MHz FSB
■ P8600 2.40-GHz processor, 3-MB L2 cache, 1066-MHz FSB
■ P8400 2.26-GHz processor, 3-MB L2 cache, 1066-MHz FSB
Chipset
Northbridge: Intel PM45
Southbridge: Intel ICH9M
Graphics
nVidia GeForce 9650M GT with 1024 MB or 512 MB of dedicated video memory
Panel
18.4-inch dual-channel low-voltage differential signaling (LVDS), full high-definition (FHD),
AntiGlare (1920×1080) display assembly with dual lamps
16:9 ultra wide aspect ratio
Typical brightness: 250 nits
Supports flush glass AntiGlare panel cover support
Lighted logo on display enclosure
All display assemblies include 2 wireless local area network (WLAN) antennae
Memory
2 customer-accessible/upgradable memory module slots
Supports dual-channel memory
Supports up to 8 GB of system RAM
PC2-6400, 800-MHz, DDR2
Supports the following configurations:
■ 8192-MB total system memory (4096 x 2, dual-channel)
■ 4096-MB total system memory (2048 × 2, dual-channel)
■ 3072-MB total system memory (2048 + 1024)
■ 2048-MB total system memory (1024 × 2, dual-channel)
■ 2048-MB total system memory (2048 × 1)
■ 1024-MB total system memory (1024 × 1)
(Continued)
Product description
1–1
Category
Description
Hard drives
Supports 9.50-mm, 6.35-cm (2.50-inch) hard drives
Supports second hard drive
Supports HP 3D DriveGuard protection
Customer-accessible
Serial ATA
Supports the following hard drives:
■ 500-GB, 5400-rpm
■ 400-GB, 5400-rpm
■ 320-GB, 7200-rpm
■ 320-GB, 5400-rpm
■ 250-GB, 7200-rpm
■ 250-GB, 5400-rpm
■ 160-GB, 7200-rpm
■ 160-GB, 5400-rpm
■ 80-GB, 5400-rpm
Supports the following dual hard drive configurations:
■ 1000-GB, 5400-rpm (500-GB × 2)
■ 800-GB, 5400-rpm (400-GB × 2)
■ 640-GB, 5400-rpm (320-GB × 2)
■ 500-GB, 5400-rpm (250-GB × 2)
■ 320-GB, 7200-rpm (160-GB × 2)
■ 320-GB, 5400-rpm (160-GB × 2)
■ 160-GB, 5400-rpm (80-GB × 2)
Optical drives
12.7-mm tray load
Serial ATA (SATA)
Fixed (removal of 1 screw required)
Customer-accessible
Parallel ATA
Supports no-optical-drive option
Supports the following drives:
■ Blu-ray ROM DVD±RW SuperMulti DL Drive with LightScribe
■ Blu-ray ROM DVD±RW SuperMulti DL Drive
■ Blu-ray ROM DVD±RW SuperMulti Drive
Microphone
2 omni-directional, dual-array digital microphones with beam-forming, echo-cancellation,
noise-suppression software
(Continued)
Product description
1–2
Category
Description
Audio
High-definition audio
Integrated subwoofer
Supports Microsoft® premium requirements
2 Altec Lansing Pavilion-branded speakers
Webcam
Low-light VGA camera
Fixed (no tilt)
Activity LED 640 × 480 by 30
24 frames per second
Modem
56K V.92 1.5-inch data/fax modem with digital line guard
Modem cable is not included
Ethernet
Intel Realtek 8111C 10/100/1000 network interface card (NIC)
Intel Realtek 8102E 10/100 NIC
Ethernet cable included
Wireless
Integrated WLAN options by way of wireless module:
2 wireless antennae built into display assembly
Supports no-WLAN option
Support for the following WLAN formats:
■ Intel WiFi Link 5100 802.11a/b/g/n
■ Intel WiFi Link 5100 802.11a/b/g/n with Bluetooth®
■ Intel WiFi Link 5100 802.11a/b/g
■ Intel WiFi Link 5100 802.11a/b/g with Bluetooth
■ Atheros 802.11a/b/g/n
■ Atheros 802.11a/b/g/n with Bluetooth
TV tuner
DVB-T TV tuner module
DVB-T/ANG TV tuner module
NTSC/ATSC/ANG TV tuner module
TV tuner antennae with F-PAL and PAL jacks
External media cards
One ExpressCard slot, supporting optional ExpressCard/54 cards
Digital Media Slot supporting Memory Stick (MS), Memory Stick Pro (MSP), MultiMediaCard
(MMC), Secure Digital (SD) Memory Card, and xD-Picture Card (XD)
(Continued)
Product description
1–3
Category
Description
Ports
1394
Audio-in (mono microphone)
Audio-out (stereo headphones, 2)
Consumer infrared
eSATA
HDMI
Multi-pin AC power
RJ-45 (Ethernet, includes link and activity lights)
TV tuner
USB (3)
VGA (Dsub 15-pin) supporting 1600 × 1200 external resolution at 75 GHz (hot plug/unplug
with auto-detect)
Docking
Supports expansion port 3 docking connector
Keyboard/pointing devices
Spill-resistant keyboard
TouchPad with 2 TouchPad buttons
Supports 2-way scroll
Taps enabled as default
Power requirements
120-W AC adapter with localized and pointing stick cable plug support (3-wire plug with
ground pin, supports 3-pin DC connector)
8-cell, 2.55-Ah (73-Wh) Li-ion battery
Security
Security cable slot
Fingerprint reader with Digital Persona software support
Operating system
Preinstalled:
Windows Vista® Ultimate (64 bit)
Windows Vista Premium (32 and 64 bit)
Windows Vista Home Basic (32 bit)
FreeDOS
RedFlag
Serviceability
End-user replaceable parts:
AC adapter
Battery (system)
Hard drive
Memory module
Optical drive
WLAN module
Product description
1–4
2
External component identification
Top components
Display components
Item
Component
Description
1
Internal display switch
Turns off the display if the display is closed while the computer is on.
2
Wireless antennae (2)
Send and receive wireless signals to communicate with WLANs.
antennae are not visible from the outside of the computer.
✎ The
For optimal transmission, keep the areas immediately around the
antennae free from obstructions.
3
Internal digital dual-array
microphones (2)
Record sound.
4
Webcam light
On: The webcam is in use.
5
Webcam
Records audio and video and captures still photographs.
see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies
✎ To
to your country or region. These notices are located in Help and Support.
External component identification
2–1
Buttons, speakers, and fingerprint reader
Item
Component
Function
1
Power button*
■ When the computer is off, press the button to turn on the computer.
■ When the computer is on, briefly press the button to initiate Sleep.
■ When the computer is in the Sleep state, briefly press the button to
exit Sleep.
■ When the computer is in Hibernation, briefly press the button to
exit Hibernation.
If the computer has stopped responding and Windows shutdown procedures
are ineffective, press and hold the power button for at least 5 seconds to turn
off the computer.
To learn more about your power settings, select Start > Control Panel >
System and Maintenance > Power Options.
2
Speakers (2)
Produce sound.
3
Media button
Starts the MediaSmart program from any power state.
computer has been set up to require a logon password, you may
✎ Ifbetheasked
to log on to Windows. MediaSmart starts after you log on.
For more information on using MediaSmart, select Start > Help and
Support.
4
Previous/rewind button
■ Plays the previous track or chapter when the button is pressed once.
■ Rewinds media when the button is pressed in combination with the fn key.
5
Play/pause button
Plays or pauses media.
6
Next/fast forward button
■ Plays the next track or chapter when the button is pressed once.
■ Fast forwards media when pressed in combination with the fn key.
7
Stop button
Stops playback.
8
Optical drive button
Releases the media tray.
9
Volume mute button
Mutes and restores speaker sound.
(Continued)
External component identification
2–2
Item
Component
Function
-
Volume scroll zone
Adjusts speaker volume. To decrease volume, slide your finger to the left, or
press and hold the minus (-) sign. You can also tap the minus sign. To
increase volume, slide your finger to the right, or press and hold the plus (+)
sign. You can also tap the plus sign.
q
Treble/bass button
Press the button to alternate between the treble and bass functions.
w
Treble or bass scroll zone
Adjusts treble or bass level in the audio. (Select treble or bass by pressing the
treble/bass button.) To decrease the treble/bass level, slide your finger to the
left, or press and hold the minus (-) sign. You can also tap the minus sign. To
increase the treble/bass level, slide your finger to the right, or press and hold
the plus (+) sign. You can also tap the plus sign.
e
Wireless button
Turns the wireless feature on or off but does not establish a wireless
connection.
must set up or access a wireless network in order to establish a
✎ You
wireless connection.
r
Fingerprint reader
Allows a fingerprint logon to Windows, instead of a password logon.
*This table describes factory settings. For information about changing factory settings, refer to the user guides located in
Help and Support.
External component identification
2–3
Keys
Item
Component
Function
1
esc key
Displays system information when pressed in combination with the fn key.
2
fn key
Executes frequently used system functions when pressed in combination with
a function key or the esc key.
3
Windows logo key
Displays the Windows Start menu.
4
Windows applications key
Displays a shortcut menu for items beneath the pointer.
5
Integrated numeric keypad keys
Can be used like the keys on an external numeric keypad.
6
Function keys
Execute frequently used system functions when pressed in combination with
the fn key.
External component identification
2–4
Lights
Item
Component
Function
1
Power lights (2)*
■ On: The computer is on.
■ Blinking: The computer is in the Sleep state.
■ Off: The computer is off or in Hibernation.
2
Battery light
■ On: A battery is charging.
■ Blinking: A battery that is the only available power source has reached a
low battery level or a critical battery level.
■ Off: If the computer is plugged into an external power source, the light is
turned off when all batteries in the computer are fully charged. If the
computer is not plugged into an external power source, the light stays off
until the battery reaches a low battery level.
3
Drive light
■ Blinking: The hard drive or optical drive is being accessed.
■ Amber: HP ProtectSmart Hard Drive Protection has temporarily parked the
internal hard drive.
4
Caps lock light
On: Caps lock is on.
5
Volume mute light
■ White: Computer sound is on.
■ Amber: Computer sound is off.
6
Volume down light
On: The volume scroll zone is being used to decrease speaker volume.
7
Volume up light
On: The volume scroll zone is being used to increase speaker volume.
8
Treble/bass down light
On: The treble or bass scroll zone is being used to decrease the level of treble
or bass in the audio.
9
Treble/bass up light
On: The treble or bass scroll zone is being used to increase the level of treble
or bass in the audio.
-
Wireless light
■ Blue: An integrated wireless device, such as a wireless local area network
(WLAN) device and/or a Bluetooth device, is on.
■ Amber: All wireless devices are off.
q
Num lock light
On: Num lock is on or the embedded numeric keypad is enabled.
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
External component identification
2–5
Pointing devices
Item
Component
Function
1
TouchPad light
■ White: TouchPad is enabled.
■ Amber: TouchPad is disabled.
2
TouchPad*
Moves the pointer and selects or activates items on the screen.
3
Left TouchPad button*
Functions like the left button on an external mouse.
4
TouchPad on/off button
Enables/disables the TouchPad.
5
TouchPad scroll zone
Scrolls up or down.
6
Right TouchPad button*
Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device references, select Start > Control Panel > Hardware
and Sound > Mouse.
External component identification
2–6
Front components
Item
Component
Function
1
Digital Media Slot
Supports the following optional digital card formats:
■ Memory Stick (MS)
■ Memory Stick Pro (MSP)
■ MultiMediaCard (MMC)
■ Secure Digital (SD) Memory Card
■ xD-Picture Card (XD)
2
Digital Media Slot light
On: A digital card is being accessed.
3
Consumer infrared lens
Receives a signal from the HP Remote Control (select models only).
Right-side components
Item
Component
Function
1
Audio-in (microphone) jack
Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
2
Audio-out (headphone) jacks (2)
Produce sound when connected to optional powered stereo speakers,
headphones, ear buds, headsets, or television audio.
3
USB ports (2)
Connect optional USB devices.
4
Optical drive
Reads optical discs and, on select models, also writes to optical discs.
5
Optical drive light
Blinking: The optical drive is being accessed.
6
TV antenna/cable jack (select
models only)
Connects an optional TV antenna or an optional digital cable device that
receives standard or high-definition TV broadcasts.
7
Power connector
Connects an AC adapter.
External component identification
2–7
Left-side components
Item
1
Component
Function
Security cable slot
Attaches an optional security cable to the computer.
security cable is designed to act as a deterrent, but it may not
✎ The
prevent the computer from being mishandled or stolen.
2
External monitor port
Connects an external VGA monitor or projector.
3
Expansion port 3
Connects the computer to an optional docking device or optional expansion
product.
computer has only one expansion port. The term expansion port
✎ The
3 describes the type of expansion port.
4
RJ-45 (network) jack
Connects a network cable.
5
HDMI port
Connects an optional video or audio device, such as a high-definition
television, or any compatible digital or audio component.
6
eSATA/USB port
Connects an optional high-performance eSATA component, such as an
eSATA external hard drive, or connects an optional USB device.
7
USB port
Connects an optional USB device.
8
1394 port
Connects an optional IEEE 1394 or 1394a device, such as a camcorder.
9
ExpressCard slot
Supports optional ExpressCards.
Rear component
Component
Function
Vent
Enables airflow to cool internal components.
computer fan starts up automatically to cool internal components
✎ The
and prevent overheating. It is normal for the internal fan to cycle on and
off during routine operation.
External component identification
2–8
Bottom components
Item
Component
Function
1
Battery bay
Holds the battery.
2
Battery release latch
Releases the battery from the battery bay.
3
Vents (11)
Enable airflow to cool internal components.
computer fan starts up automatically to cool internal components
✎ The
and prevent overheating. It is normal for the internal fan to cycle on and
off during routine operation.
4
Hard drive bay
Holds 1 or 2 hard drives (depending on the model), the TV tuner module
(select models only), and the 2 memory module slots.
5
WLAN module compartment
Holds the WLAN module.
Ä
6
Subwoofer
External component identification
To prevent an unresponsive system, replace the wireless module only
with a wireless module authorized for use in the computer by the
governmental agency that regulates wireless devices in your country or
region. If you replace the module and then receive a warning message,
remove the module to restore computer functionality, and then contact
technical support through Help and Support.
Contains the subwoofer speaker.
2–9
3
Illustrated parts catalog
Service tag
When ordering parts or requesting information, provide the computer serial number and model description
provided on the service tag.
Item
Component
Description
1
Product name
This is the product name affixed to the front of your computer.
2
Serial number (s/n)
This is an alphanumeric identifier that is unique to each product.
3
Part number/Product number (p/n)
This number provides specific information about the product’s
hardware components. The part number helps a service
technician to determine what components and parts are needed.
4
Model description
This is the number you use to locate documents, drivers, and
support for your computer.
5
Warranty period
This number describes the duration (in years) of the warranty
period for this computer.
Illustrated parts catalog
3–1
Computer major components
Illustrated parts catalog
3–2
Item
Description
Spare Part Number
(1)
18.4-inch, AntiGlare, dual-lamp, display assembly (includes 2 WLAN antenna
transceivers and cables, webcam, microphones, and logo)
498166-001
✎ See “Display assembly components” on page 3-7 for information on display assembly spare part numbers.
(2)
Switch cover
496882-001
(3)
Keyboard cover (includes LED board and cable)
496883-001
(4)
Keyboard (includes cable)
For use in Belgium
496878-A41
For use in Brazil
496878-201
For use in the Czech Republic
496878-221
For use in Denmark, Finland, and Norway
509474-DH1
For use in France
496878-051
For use in French Canada
509474-121
For use in Germany
496878-041
For use in Greece
496878-DJ1
For use in Italy
496878-061
For use in Japan
509474-291
For use in Latin America
496878-161
For use in the Netherlands
496878-B31
For use in Portugal
496878-131
For use in Russia
496878-251
For use in Saudi Arabia
509474-171
For use in South Korea
509474-AD1
For use in Spain
496878-071
For use in Switzerland
496878-111
For use in Taiwan
496878-AB1
For use in Thailand
509474-281
For use in Turkey
496878-141
For use in the United Kingdom
496878-031
For use in the United States
496878-001
(5)
Power button board (includes cable)
498325-001
(6)
Bluetooth module
483113-001
Bluetooth module spare part kit does not include a Bluetooth module cable.
✎ The
The Bluetooth module cable is available using spare part number 496872-001.
(7)
Bluetooth module cable
496872-001
Plastics Kit (see “Plastics Kit” on page 3-9 for more Plastics Kit spare part information)
496888-001
(8a)
ExpressCard slot bezel
(8b)
Hard drive cover
(8c)
WLAN module compartment cover
(Continued)
Illustrated parts catalog
3–3
Item
Description
Spare Part Number
(9a)
Base enclosure, includes:
496880-001
(9b)
Power connector cable
Power connector cable bracket (not illustrated)
7 rubber feet (not illustrated)
Rubber Feet Kit (not illustrated, includes 7 rubber feet)
496889-001
(10)
Speaker assembly
496887-001
(11)
Top cover (includes fingerprint reader board, fingerprint reader board cable, TouchPad,
and TouchPad cables)
496881-001
(12)
TouchPad on/off button board (incudes cable)
500506-001
(13)
System board (includes replacement thermal material)
For use only with computer models equipped with the Intel Core2 Duo QX9300,
2.53-GHz processor, includes 512 MB of graphics subsystem memory
506494-001
For use with computer models equipped with all processors except the Intel Core2 Duo QX9300,
2.53-GHz processor
(14)
(15)
Includes 1024 MB of graphics subsystem memory
506495-001
Includes 512 MB of graphics subsystem memory
496871-001
Processor (includes replacement thermal material)
Intel Core2 Duo QX9300 2.53-GHz processor with 12-MB L2 cache and 1066-MHz FSB
500606-001
Intel Core2 Duo Q9100 2.26-GHz processor with 12-MB L2 cache and 1066-MHz FSB
510398-001
Intel Core2 Duo Q9000 2.00-GHz processor with 12-MB L2 cache and 1066-MHz FSB
510399-001
Intel Core2 Duo T9600 2.80-GHz processor with 6-MB L2 cache and 1066-MHz FSB
500604-001
Intel Core2 Duo T9500 2.53-GHz processor with 6-MB L2 cache and 1066-MHz FSB
500603-001
Intel Core2 Duo T8600 2.40-GHz processor with 3-MB L2 cache and 1066-MHz FSB
500601-001
Intel Core2 Duo T8400 2.26-GHz processor with 3-MB L2 cache and 1066-MHz FSB
500600-001
Fan/heat sink assembly (includes replacement thermal material)
For use only with computer models equipped with the Intel Core2 Duo QX9300,
2.53-GHz processor
512184-001
For use with computer models equipped with all processors except the Intel Core2 Duo
QX9300, 2.53-GHz processor
496894-001
(16)
Audio/infrared board (includes cable)
496892-001
(17)
USB board (includes cable)
497706-001
(18)
Fan
514290-001
Cable Kit, includes:
496891-001
(19)
TV tuner module cable
(20)
Subwoofer (includes 3 mounting grommets)
496893-001
(Continued)
Illustrated parts catalog
3–4
Item
Description
Spare Part Number
(21)
Hard drive (includes left and right hard drive brackets, Mylar sleeve, connector, and isolators)
500-GB, 5400-rpm
501911-001
400-GB, 5400-rpm
501912-001
320-GB, 7200-rpm
507553-001
320-GB, 5400-rpm
503485-001
250-GB, 7200-rpm
507552-001
250-GB, 5400-rpm
503484-001
160-GB, 7200-rpm
503486-001
160-GB, 5400-rpm
503393-001
80-GB, 5400-rpm
500607-001
(22)
RTC battery
449729-001
(23)
Memory modules
667-MHz, PC3-8500, 1-DIMM
4096-MB
510402-001
2048-MB
510401-001
1024-MB
510400-001
667-MHz, PC2-6400, 1-DIMM
4096-MB
506591-001
2048-MB
497693-001
1024-MB
497692-001
(Continued)
Illustrated parts catalog
3–5
Item
Description
(24)
WLAN module:
(25)
Spare Part Number
■ Atheros AR9280 802.11a/b/g/n WLAN module for use in Antigua and Barbuda,
Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and
Tobago, the U.S. Virgin Islands, and the United States
482260-001
■ Atheros AR9280 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria,
Andorra, Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria,
Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize,
Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil,
the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape
Verde, the Central African Republic, Chad, Chile, the People's Republic of China,
Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic,
Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El
Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French
Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada,
Guadeloupe, Guatemala, Guinea, Guinea-Bissau, Guyana, Haiti, Honduras, Hong
Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan,
Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia,
Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the
Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria,
Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the
Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda,
Samoa, San Marino, Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the
Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands,
Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St. Lucia, St.
Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan,
Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
482260-002
■ Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions
except Pakistan, Russia, and the Ukraine
480985-001
■ Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use only in Pakistan, Russia, and
the Ukraine
482957-001
TV tuner module
TV tuner module spare part kit does not include a TV tuner module cable. The TV tuner module cable is
✎ The
included in the Cable Kit, spare part number 496891-001.
DVB-T TV tuner module
482899-003
DVB-T/ANG TV tuner module
482899-002
NTSC/ATSC/ANG TV tuner module
482899-001
TV tuner external antenna cable (not illustrated)
(26)
(27)
With F-PAL jack
482900-002
With PAL jack
482900-001
Optical drive (includes bezel and optical drive bracket)
Blu-ray ROM DVD±RW SuperMulti DL Drive with LightScribe
503489-001
Blu-ray ROM DVD±RW SuperMulti DL Drive
503488-001
Blu-ray ROM DVD±RW SuperMulti Drive
503487-001
Battery
8-cell, 73-Wh, 2.55-Ah Li-ion battery for use in all countries and regions except Germany
497705-001
8-cell, 73-Wh, 2.55-Ah Li-ion battery for use only in Germany
497705-002
Illustrated parts catalog
3–6
Display assembly components
Item
Description
Spare part number
(1)
Display enclosure
496873-001
Display Cable Kit, includes:
496876-001
(2a)
Wireless antenna transceivers and cables
(2b)
Webcam/microphone module cable
(2c)
Display panel cable
(3)
Display hinge cover
496875-001
Display Hinge Kit, includes:
496874-001
(4a)
Display hinge bracket
(4b)
Display left and right hinges
(5)
Webcam/microphone module
499242-001
(6)
Display inverter
498324-001
Illustrated parts catalog
3–7
Mass storage devices
Item
1
2
Illustrated parts catalog
Description
Spare part number
Hard drives (include left and right hard drive brackets, Mylar sleeve, connector, and isolators)
500-GB, 5400-rpm
501911-001
400-GB, 5400-rpm
501912-001
320-GB, 5400-rpm
503485-001
320-GB, 7200-rpm
507553-001
250-GB, 7200-rpm
507552-001
250-GB, 5400-rpm
503484-001
160-GB, 7200-rpm
503486-001
160-GB, 5400-rpm
503393-001
80-GB, 5400-rpm
500607-001
Optical drives (include bezel and optical drive bracket)
Blu-ray ROM DVD±RW SuperMulti DL Drive with LightScribe
503489-001
Blu-ray ROM DVD±RW SuperMulti DL Drive
503488-001
Blu-ray ROM DVD±RW Drive
503487-001
3–8
Plastics Kit
Item
Description
Spare part number
Plastics Kit
496888-001
1
ExpressCard slot bezel
2
Hard drive cover (includes five captive screws, secured by C-clips)
3
WLAN module compartment cover (includes one captive screw, secured by a C-clip)
Illustrated parts catalog
3–9
Miscellaneous parts
Description
Spare part number
AC adapter
120-W AC adapter for use in all countries and regions except Germany
463953-001
120-W AC adapter for use only in Germany
513117-001
Bluetooth laser mouse
455916-002
Power cords
For use in Argentina
490371-D01
For use in Australia
490371-011
For use in Brazil
490371-201
For use in Denmark
490371-081
For use in Europe, the Middle East, and Africa
490371-021
For use in India
490371-D61
For use in Italy
490371-061
For use in Japan
490371-291
For use in the People’s Republic of China
490371-AA1
For use in South Korea
490371-AD1
For use in Taiwan
490371-AB1
For use in the United Kingdom and Singapore
490371-031
For use in Canada, Mexico, and the United States
490371-001
Remote controls
Full function remote control with teletext
465541-001
Full function remote control without teletext
465540-001
Screw Kit, includes:
■ Phillips PM3.0×4.0 screws
■ Phillips PM2.5×11.0 captive screws
■ Phillips PM2.5×7.0 screws
■ Phillips PM2.5×6.0 captive screws
■ Phillips PM2.5×5.0 captive screws
■ Phillips PM2.5×5.0 broadhead screws
■ Phillips PM2.0×4.0 screws
496890-001
Wired headset with volume control
371693-001
Illustrated parts catalog
3–10
Sequential part number listing
Spare part number
Description
371693-001
Wired headset with volume control
449729-001
RTC battery
455916-002
Bluetooth laser mouse
463953-001
120-W AC adapter for use in all countries and regions except Germany
465540-001
Full function remote control without teletext
465541-002
Full function remote control with teletext
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions except
Pakistan, Russia, and the Ukraine
482260-001
Atheros AR9280 802.11a/b/g/n WLAN module for use in Antigua and Barbuda, Barbados, Belize,
Canada, the Cayman Islands, Guam, Puerto Rico, Trinidad and Tobago, the U.S. Virgin Islands, and
the United States
482260-002
Atheros AR9280 802.11a/b/g/n WLAN module for use in Afghanistan, Albania, Algeria, Andorra,
Angola, Antigua and Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan,
the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan,
Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria,
Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, the
People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech
Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El
Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon,
Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea,
Guinea-Bissau, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy,
the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia,
the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico,
Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the
Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan,
Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal,
the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome and Principe,
Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the
Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts and Nevis, St.
Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden, Switzerland, Taiwan,
Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu,
Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu,
Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
482899-001
NTSC/ATSC/ANG TV tuner module
TV tuner module spare part kit does not include a TV tuner module cable. The TV tuner
✎ The
module cable is included in the Cable Kit, spare part number 496891-001.
482899-002
DVB-T/ANG TV tuner module
TV tuner module spare part kit does not include a TV tuner module cable. The TV tuner
✎ The
module cable is included in the Cable Kit, spare part number 496891-001.
482899-003
DVB-T TV tuner module
TV tuner module spare part kit does not include a TV tuner module cable. The TV tuner
✎ The
module cable is included in the Cable Kit, spare part number 496891-001.
482900-001
TV tuner external antenna cable with PAL jack
482900-002
TV tuner external antenna cable with F-PAL jack
482957-001
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module for use only in Pakistan, Russia, and the Ukraine
(Continued)
Illustrated parts catalog
3–11
Spare part number
Description
483113-001
Bluetooth module
Bluetooth module spare part kit does not include a Bluetooth module cable.
✎ The
The Bluetooth module cable is available using spare part number 496872-001.
490371-001
Power cord for use in Canada, Mexico, and the United States
490371-011
Power cord for use in Australia
490371-021
Power cord for use in Europe, the Middle East, and Africa
490371-031
Power cord for use in the United Kingdom and Singapore
490371-061
Power cord for use in Italy
490371-081
Power cord for use in Denmark
490371-201
Power cord for use in Brazil
490371-291
Power cord for use in Japan
490371-AA1
Power cord for use in the People’s Republic of China
490371-AB1
Power cord for use in Taiwan
490371-AD1
Power cord for use in South Korea
490371-D01
Power cord for use in Argentina
490371-D61
Power cord for use in India
496871-001
System board with 512 MB of graphics subsystem memory for use with computer models equipped
with all processors except the Intel Core2 Duo QX9300, 2.53-GHz processor (includes replacement
thermal material)
496872-001
Bluetooth module cable
496873-001
Display enclosure
496874-001
Display Hinge Kit (includes display hinge bracket and display left and right hinges)
496875-001
Display hinge cover
496876-001
Display Cable Kit (includes wireless antenna transceivers and cables, webcam/microphone module
cable, and display panel cable)
496878-001
Keyboard for use in the United States
496878-031
Keyboard for use in the United Kingdom
496878-041
Keyboard for use in Germany
496878-051
Keyboard for use in France
496878-061
Keyboard for use in Italy
496878-071
Keyboard for use in Spain
496878-111
Keyboard for use in Switzerland
496878-131
Keyboard for use in Portugal
496878-141
Keyboard for use in Turkey
496878-161
Keyboard for use in Latin America
496878-201
Keyboard for use in Brazil
496878-221
Keyboard for use in the Czech Republic
496878-251
Keyboard for use in Russia
496878-A41
Keyboard for use in Belgium
496878-AB1
Keyboard for use in Taiwan
(Continued)
Illustrated parts catalog
3–12
Spare part number
Description
496878-B31
Keyboard for use in the Netherlands
496878-DJ1
Keyboard for use in Greece
496880-001
Base enclosure (includes power connector cable, power connector cable bracket, and 7 rubber feet)
496881-001
Top cover (includes fingerprint reader board, fingerprint reader board cable, TouchPad, and
TouchPad cable)
496882-001
Switch cover
496883-001
Keyboard cover (includes LED board and cable)
496887-001
Speaker assembly
496888-001
Plastics Kit
✎ See “Plastics Kit” on page 3-9 for more Plastics Kit spare part information.
496889-001
Rubber Feet Kit (includes 7 rubber feet)
496890-001
Screw Kit
496891-001
Cable Kit
496892-001
Audio/infrared board (includes cable)
496893-001
Subwoofer (includes 3 mounting grommets)
496894-001
Fan/heat sink assembly for use with all processors except the Intel Core2 Duo QX9300, 2.53-GHz
processor (includes replacement thermal material)
497692-001
1024-MB memory module (667-MHz, PC2-6400, 1-DIMM)
497693-001
2048-MB memory module (667-MHz, PC2-6400, 1-DIMM)
497705-001
8-cell, 73-Wh, 2.55-Ah Li-ion battery for use in all countries and regions except Germany
497705-002
8-cell, 73-Wh, 2.55-Ah Li-ion battery for use only in Germany
497706-001
USB board (includes cable)
498166-001
18.4-inch, AntiGlare, dual-lamp, display assembly (includes 2 WLAN antenna transceivers and
cables, webcam, microphones, and logo)
See “Display assembly components” on page 3-7 for information on display assembly spare
✎ part
numbers.
498324-001
Display inverter
498325-001
Power button board (includes cable)
499242-001
Webcam/microphone module
500506-001
TouchPad on/off button board (incudes cable)
500600-001
Intel Core2 Duo T8400 2.26-GHz processor with 3-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
500601-001
Intel Core2 Duo T8600 2.40-GHz processor with 3-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
500603-001
Intel Core2 Duo T9500 2.53-GHz processor with 6-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
500604-001
Intel Core2 Duo T9600 2.80-GHz processor with 6-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
500606-001
Intel Core2 Duo QX9300 2.53-GHz processor with 12-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
500607-001
80-GB, 5400-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector, and
isolators)
(Continued)
Illustrated parts catalog
3–13
Spare part number
Description
501911-001
500-GB, 5400-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
501912-001
400-GB, 5400-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
503393-001
160-GB, 5400-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
503484-001
250-GB, 5400-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
503485-001
320-GB, 5400-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
503486-001
160-GB, 7200-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
503487-001
Blu-ray ROM DVD±RW Drive (includes bezel and optical drive bracket)
503488-001
Blu-ray ROM DVD±RW SuperMulti DL Drive (includes bezel and optical drive bracket)
503489-001
Blu-ray ROM DVD±RW SuperMulti DL Drive with LightScribe (includes bezel and optical drive
bracket)
506494-001
System board with 512 MB of graphics subsystem memory for use only with computer models
equipped with the Intel Core2 Duo QX9300, 2.53-GHz processor
506495-001
System board with 1024 MB of graphics subsystem memory for use with computer models equipped
with all processors except the Intel Core2 Duo QX9300, 2.53-GHz processor
506591-001
4096-MB memory module (667-MHz, PC2-6400, 1-DIMM)
507552-001
250-GB, 7200-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
507553-001
320-GB, 7200-rpm hard drive (includes left and right hard drive brackets, Mylar sleeve, connector,
and isolators)
509474-121
Keyboard for use in French Canada
509474-DH1
Keyboard for use in Denmark, Finland, and Norway
509474-171
Keyboard for use in Saudi Arabia
509474-281
Keyboard for use in Thailand
509474-291
Keyboard for use in Japan
509474-AD1
Keyboard for use in South Korea
510398-001
Intel Core2 Duo Q9100 2.26-GHz processor with 12-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
510399-001
Intel Core2 Duo Q9000 2.00-GHz processor with 12-MB L2 cache and 1066-MHz FSB (includes
replacement thermal material)
510400-001
1024-MB memory module (833-MHz, PC3-8500, 1-DIMM)
510401-001
2048-MB memory module (833-MHz, PC3-8500, 1-DIMM)
510402-001
4096-MB memory module (833-MHz, PC3-8500, 1-DIMM)
512184-001
Fan/heat sink assembly for use only with the Intel Core2 Duo QX9300, 2.53-GHz processor
(includes replacement thermal material)
513117-001
120-W AC adapter for use only in Germany
514290-001
Fan
Illustrated parts catalog
3–14
4
Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
■
Flat-bladed screwdriver
■
Magnetic screwdriver
■
Phillips P0 and P1 screwdrivers
Service considerations
The following sections include some of the considerations that you must keep in mind during disassembly and
assembly procedures.
you remove each subassembly from the computer, place the subassembly (and all accompanying screws)
✎ As
away from the work area to prevent damage.
Plastic parts
Ä
CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the
plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Cables and connectors
Ä
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations during the reassembly
process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the
cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid
bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or
snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.
Removal and replacement procedures
4–1
Drive handling
Ä
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the computer, damage to a
drive, or loss of information, observe these precautions:
■ Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in
Hibernation, turn the computer on, and then shut it down through the operating system.
■ Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the
connector.
■ Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical
drive tray is closed.
■ Handle drives on surfaces covered with at least one inch of shock-proof foam.
■ Avoid dropping drives from any height onto any surface.
■ After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
■ Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
■ Avoid exposing a drive to temperature extremes or liquids.
■ If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label
the package “FRAGILE.”
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the
degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD
contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and may work perfectly throughout a normal cycle.
Or the device may function normally for a while, and then degrade in the internal layers, reducing its life
expectancy.
Ä
CAUTION: To prevent damage to the computer when you are removing or installing internal components, observe these
precautions:
■ Keep components in their electrostatic-safe containers until you are ready to install them.
■ Use nonmagnetic tools.
■ Before touching an electronic component, discharge static electricity by using the guidelines described in this section.
■ Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
■ If you remove a component, place it in an electrostatic-safe container.
Removal and replacement procedures
4–2
The following table shows how humidity affects the electrostatic voltage levels generated by different activities.
Ä
CAUTION: A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPS from plastic tube
2,000 V
700 V
400 V
Removing DIPS from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPS from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
■
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
■
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
■
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
■
Place items on a grounded surface before removing items from their containers.
■
Always be properly grounded when touching a component or assembly.
■
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.
■
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized
equipment used for moving materials is wired to ground and that proper materials are selected to avoid static
charging. When grounding is not possible, use an ionizer to dissipate electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
■
Cover the workstation with approved static-shielding material.
■
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and
equipment.
■
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
■
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe materials.
■
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.
■
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items
only at static-free workstations.
■
Avoid contact with pins, leads, or circuitry.
■
Turn off power and input signals before inserting or removing connectors or test equipment.
Removal and replacement procedures
4–3
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
■
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a
minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly
against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a
wrist strap.
■
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at
standing workstations and are compatible with most types of shoes or boots. On conductive floors or
dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the
operator and ground. To be effective, the conductive strips must be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
■
Antistatic tape
■
Antistatic smocks, aprons, and sleeve protectors
■
Conductive bins and other assembly or soldering aids
■
Nonconductive foam
■
Conductive tabletop workstations with ground cords of one megohm resistance
■
Static-dissipative tables or floor mats with hard ties to the ground
■
Field Service Kits
■
Static awareness labels
■
Material-handling packages
■
Nonconductive plastic bags, tubes, or boxes
■
Metal tote boxes
■
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material
Use
Voltage protection level
Antistatic plastic
Bags
1,500 V
Carbon-loaded plastic
Floor mats
7,500 V
Metallized laminate
Floor mats
5,000 V
Removal and replacement procedures
4–4
Unknown user password
If the computer you are servicing has an unknown user password, follow these steps to clear the password:
✎ These steps also clear CMOS.
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the real-time clock (RTC) battery (see “RTC battery” on page 4-14).
6. Wait approximately 5 minutes.
7. Replace the RTC battery and reassemble the computer.
8. Connect AC power to the computer. Do not reinsert any batteries at this time.
9. Turn on the computer.
All passwords and all CMOS settings have been cleared.
Removal and replacement procedures
4–5
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 95 screws, in 8 different sizes, that must be removed, replaced, or loosened when servicing
the computer. Make special note of each screw size and location during removal and replacement.
Service tag
When ordering parts or requesting information, provide the computer serial number and model description
provided on the service tag.
Item
Component
Description
1
Product name
This is the product name affixed to the front of your computer.
2
Serial number (s/n)
This is an alphanumeric identifier that is unique to each product.
3
Part number/Product number (p/n)
This number provides specific information about the product’s
hardware components. The part number helps a service
technician to determine what components and parts are needed.
4
Model description
This is the number you use to locate documents, drivers, and
support for your computer.
5
Warranty period
This number describes the duration (in years) of the warranty
period for this computer.
Removal and replacement procedures
4–6
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Feet Kit, spare part
number 496889-001. There are 7 rubber feet, in two different sizes (1 and 2), that attach to the base enclosure in
the locations illustrated below.
Removal and replacement procedures
4–7
Battery
Description
Spare part number
8-cell, 73-Wh, 2.55-Ah Li-ion battery for use in all countries and regions except
Germany
497705-001
8-cell, 73-Wh, 2.55-Ah Li-ion battery for use only in Germany
497705-002
Before disassembling the computer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
Remove the battery:
1. Turn the computer upside down on a flat surface, with the front toward you.
2. Slide the battery release latch 1 to release the battery.
3. Pivot the battery 2 upward and remove it 3 from the computer.
To insert the battery, insert the rear edge of the battery into the battery bay and pivot the front edge of the battery
downward until it is seated. The battery release latch automatically locks the battery into place.
Removal and replacement procedures
4–8
Optical drive
✎ The optical drive spare part kit includes an optical drive bezel and bracket.
Description
Spare part number
Blu-ray ROM DVD±RW SuperMulti DL Drive with LightScribe
503489-001
Blu-ray ROM DVD±RW SuperMulti DL Drive
503488-001
Blu-ray ROM DVD±RW SuperMulti Drive
503487-001
Before removing the optical drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
Remove the optical drive:
1. Position the computer with the left side toward you.
2. Remove the Phillips PM2.5×7.0 screw 1 that secures the optical drive to the computer.
3. Insert a paper clip or similar tool into the optical drive tab access 2 and push the tab forward to release the
optical drive from the computer.
4. Remove the optical drive 3 from the computer.
Removal and replacement procedures
4–9
5. If it is necessary to replace the optical drive bracket:
a. Position the optical drive with the rear toward you.
b. Remove the two Phillips PM2.0×4.0 screws 1 that secure the optical drive bracket to the optical drive.
c. Remove the optical drive bracket 2.
Reverse this procedure to reassemble and install an optical drive.
Removal and replacement procedures
4–10
Hard drive
✎ The hard drive spare part kit includes a left and right bracket, Mylar sleeve, connector, and four isolators.
Description
Spare part number
500-GB, 5400-rpm
501911-001
400-GB, 5400-rpm
501912-001
320-GB, 7200-rpm
507553-001
320-GB, 5400-rpm
503485-001
250-GB, 7200-rpm
507552-001
250-GB, 5400-rpm
503484-001
160-GB, 7200-rpm
503486-001
160-GB, 5400-rpm
503393-001
80-GB, 5400-rpm
500607-001
Before removing the hard drive, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
Remove the hard drive:
1. Loosen the five Phillips PM2.5×6.0 captive screws 1 that secure the hard drive cover to the computer.
2. Lift the rear edge of the hard drive cover 2, swing it up and forward, and then remove the cover 3. The hard
drive cover is included in the Plastics Kit, spare part number 496888-001.
Removal and replacement procedures
4–11
3. Disconnect the hard drive cable 1 from the system board.
4. Grasp the Mylar tabs 2 on the hard drive and slide the hard drive 3 away from the hard drive connector.
5. Remove the hard drive 4 from the hard drive bay.
6. If it is necessary to replace the left and right hard drive brackets, Mylar sleeve, connector, and isolators:
a. Remove the two Phillips PM3.0×4.0 hard drive bracket screws 1 from each side of the hard drive.
b. Remove the left and right hard drive brackets 2.
c. Lift the Mylar sleeve 3 straight up to remove it from the hard drive.
d. Remove the hard drive connector 4.
e. Remove the four isolators 5.
Reverse this procedure to reassemble and install the hard drives.
Removal and replacement procedures
4–12
TV tuner module
Description
Spare part number
DVB-T TV tuner module
482899-003
DVB-T/ANG TV tuner module
482899-002
NTSC/ATSC/ANG TV tuner module
482899-001
Before removing the TV tuner module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the hard drive cover (see “Hard drive” on page 4-11).
Remove the TV tuner module:
1. Disconnect the TV tuner module antenna cable 1 from the terminal on the TV tuner module.
2. Remove the two Phillips PM2.0×4.0 screws 2 that secure the TV tuner module to the computer. (The edge of
the module opposite the slot rises away from the computer.)
3. Remove the TV tuner module 3 by pulling the module away from the slot at an angle.
✎ The TV tuner module is designed with a notch 4 to prevent incorrect insertion into the TV tuner module slot.
Reverse this procedure to install the TV tuner module.
Removal and replacement procedures
4–13
RTC battery
the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords and CMOS
✎ Removing
settings to be cleared.
Description
Spare part number
RTC battery
449729-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the hard drive cover (see “Hard drive” on page 4-11).
Remove the RTC battery:
»
Lift the RTC battery from the socket.
Reverse this procedure to install the RTC battery.
Removal and replacement procedures
4–14
Memory module
Description
Spare part number
4096-MB (667-MHz, PC3-8500, 1-DIMM)
510402-001
2048-MB (667-MHz, PC3-8500, 1-DIMM)
510401-001
1024-MB (667-MHz, PC3-8500, 1-DIMM)
510400-001
4096-MB (667-MHz, PC2-6400, 1-DIMM)
506591-001
2048-MB (667-MHz, PC2-6400, 1-DIMM)
497693-001
1024-MB (667-MHz, PC2-6400, 1-DIMM)
497692-001
Before removing the memory module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the hard drive cover (see “Hard drive” on page 4-11).
Remove the memory module:
top memory module slot contains the expansion memory module. The bottom slot contains the primary
✎ The
memory module.
1. Spread the retaining tabs 1 on each side of the memory module slot to release the memory module. (The edge
of the module opposite the slot rises away from the computer.)
2. Remove the memory module 2 by pulling the module away from the slot at an angle.
✎ Memory modules are designed with a notch 3 to prevent incorrect insertion into the memory module slot.
Reverse this procedure to install a memory module.
Removal and replacement procedures
4–15
WLAN module
Description
Spare part number
Atheros AR9280 802.11a/b/g/n WLAN module
■ for use in Antigua and Barbuda, Barbados, Belize, Canada, the Cayman Islands, Guam, Puerto
Rico, Trinidad and Tobago, the U.S. Virgin Islands, and the United States
482260-001
Atheros AR9280 802.11a/b/g/n WLAN module
■ for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,
Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados,
Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana,
Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon,
Cape Verde, the Central African Republic, Chad, Chile, the Republic of China, Colombia,
Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti,
Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea,
Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia,
Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissau,
Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory
Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon,
Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi,
Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius,
Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru,
Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway,
Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland,
Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino,
Sao Tome and Principe, Saudi Arabia, Senegal, Serbia, the Seychelles, Sierra Leone, Singapore,
Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka,
St. Kitts and Nevis, St. Lucia, St. Vincent and the Grenadines, Suriname, Swaziland, Sweden,
Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey,
Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay,
Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe
482260-002
Intel Wi-Fi Link 5100 802.11a/b/g/n WLAN module
■ for use in all countries and regions except Pakistan, Russia, and the Ukraine
480985-001
Intel Wi-Fi Link 5100 802.11a/b/g WLAN module
■ for use only in Pakistan, Russia, and the Ukraine
482957-001
Before removing the WLAN module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
Removal and replacement procedures
4–16
Remove the WLAN module:
1. Loosen the Phillips PM2.5×6.0 captive screw 1 that secures the WLAN module compartment cover to the
computer.
2. Lift the right side of the WLAN module compartment cover 2, swing it up and to the left, and then remove the
cover 3. The WLAN module compartment cover is included in the Plastics Kit, spare part number
496888-001.
3. Disconnect the WLAN antenna cables 1 from the terminals on the WLAN module.
black WLAN antenna cable is connected to the WLAN module “Main” terminal. The white WLAN antenna
✎ The
cable is connected to the WLAN module “Aux” terminal.
4. Remove the two Phillips PM2.0×4.0 screws 2 that secure the WLAN module to the computer. (The edge of the
module opposite the slot rises away from the computer.)
5. Remove the WLAN module 3 by pulling the module away from the slot at an angle.
WLAN modules are designed with a notch 4 to prevent incorrect insertion into the WLAN module slot.
✎
Reverse this procedure to install the WLAN module.
Removal and replacement procedures
4–17
Switch cover
Description
Spare part number
Switch cover
496882-001
Before removing the switch cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
Remove the switch cover:
1. Remove the two Phillips PM2.5×7.0 screws 1 that secure the switch cover to the computer
2. Remove the four Phillips PM2.0×4.0 screws 2 that secure the switch cover to the computer.
Removal and replacement procedures
4–18
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Lift the right side of the switch cover 1 until it detaches from the computer.
6. Remove the switch cover 2 by lifting it straight up.
Reverse this procedure to install the switch cover.
Removal and replacement procedures
4–19
Keyboard cover
Description
Spare part number
Keyboard cover (includes LED board and cable)
496883-001
Before removing the keyboard cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the switch cover (see “Switch cover” on page 4-18).
Remove the keyboard cover:
1. Release the keyboard cover 1 by lifting the front edge until it rests at an angle.
2. Lift the keyboard cover 2 as far as the power button board cable allows.
Removal and replacement procedures
4–20
3. Disconnect the LED board cable from the LED board.
4. Remove the keyboard cover.
Reverse this procedure to install the keyboard cover.
Removal and replacement procedures
4–21
Power button board
Description
Spare part number
Power button board (includes cable)
498325-001
Before removing the power button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the switch cover (see “Switch cover” on page 4-18).
6. Remove the switch cover (see “Keyboard cover” on page 4-20).
Remove the power button board:
1. Disconnect the power button board cable 1 from the low insertion force (LIF) connector on the power
button board.
2. Remove the Phillips PM2.0×4.0 screw 2 that secures the power button board to the computer.
3. Remove the power button board 3.
Reverse this procedure to install the power button board.
Removal and replacement procedures
4–22
Bluetooth module
Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module cable is
✎ The
available using spare part number 496872-001. See “Bluetooth module cable” on page 4-28 for Bluetooth
module cable removal information.
Description
Spare part number
Bluetooth module
483113-001
Before removing the Bluetooth module, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Power button board (see “Power button board” on page 4-22)
Remove the Bluetooth module:
1. Remove the Phillips PM2.0×4.0 screw 1 that secures the Bluetooth module to the top cover.
2. Release the Bluetooth module 2 as far as the Bluetooth module cable allows.
3. Disconnect the Bluetooth module cable 3 from the Bluetooth module.
Reverse this procedure to install the Bluetooth module.
Removal and replacement procedures
4–23
Keyboard
Description
Spare part number
For use in Belgium
496878-A41
For use in Brazil
496878-201
For use in the Czech Republic
496878-221
For use in Denmark, Finland, and Norway
509474DH1
For use in France
496878-051
For use in French Canada
509474121
For use in Germany
496878-041
For use in Greece
496878-DJ1
For use in Italy
496878-061
For use in Japan
509474291
For use in Latin America
496878-161
For use in the Netherlands
496878-B31
For use in Portugal
496878-131
For use in Russia
496878-251
For use in Saudi Arabia
509474-171
For use in South Korea
509474-AD1
For use in Spain
496878-071
For use in Switzerland
496878-111
For use in Taiwan
496878-AB1
For use in Thailand
509474-281
For use in Turkey
496878-141
For use in the United Kingdom
496878-031
For use in the United States
496878-001
Before removing the keyboard, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the switch cover (see “Switch cover” on page 4-18).
6. Remove the keyboard cover (see “Keyboard cover” on page 4-20).
Removal and replacement procedures
4–24
Remove the keyboard:
1. Turn the computer upside down, with the front toward you.
2. Remove the two Phillips PM2.5×7.0 screws that secure the keyboard to the computer.
3. Turn the computer display-side up, with the front toward you.
4. Open the computer as far as possible.
5. Remove the four Phillips PM2.0×4.0 screws that secure the keyboard to the computer.
Removal and replacement procedures
4–25
6. Lift the rear edge of the keyboard 1 until it rests at an angle.
7. Release the keyboard 2 by sliding it back to disengage the tabs on the front edge of the keyboard from the
top cover and rest it on the display.
8. Release the zero insertion force (ZIF) connector 1 to which the keyboard cable is attached and disconnect the
keyboard cable 2 from the system board.
9. Remove the keyboard.
Reverse this procedure to install the keyboard.
Removal and replacement procedures
4–26
Power button board cable
✎ The power button board cable is included with the power button board, spare part number 498325-001.
Before removing the power button board cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Power button board (see “Power button board” on page 4-22)
d. Keyboard (see “Keyboard” on page 4-24)
Remove the power button board cable:
1. Disconnect the power button board cable 1 from the LIF connector on the system board.
2. Remove the power button board cable 2.
Reverse this procedure to install the power button board cable.
Removal and replacement procedures
4–27
Bluetooth module cable
Description
Spare part number
Bluetooth module cable
496872-001
Before removing the Bluetooth module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Power button board (see “Power button board” on page 4-22)
d. Keyboard (see “Keyboard” on page 4-24)
Remove the Bluetooth module cable:
1. Disconnect the Bluetooth module cable 1 from the system board.
2. Remove the Bluetooth module cable 2.
Reverse this procedure to install the Bluetooth module cable.
Removal and replacement procedures
4–28
LED board cable
✎ The LED board cable is included with the keyboard cover, spare part number 496883-001.
Before removing the LED board cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Keyboard (see “Keyboard” on page 4-24)
Remove the LED board cable:
1. Release the ZIF connector 1 to which the LED board cable is attached and disconnect the LED board cable
from the system board.
2. Remove the LED board cable 2.
Reverse this procedure to install the LED board cable.
Removal and replacement procedures
4–29
Speaker assembly
Description
Spare part number
Speaker assembly
496887-001
Before removing the speaker assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Keyboard (see “Keyboard” on page 4-24)
Remove the speaker assembly:
1. Disconnect the speaker assembly cable 1 from the system board.
2. Remove the Phillips PM2.0×4.0 screw 2 that attaches the speaker assembly to the top cover.
3. Release the wireless antenna cables from the routing channel 3 built into the right side of the
speaker assembly.
4. Remove the speaker assembly 4.
Reverse this procedure to install the speaker assembly.
Removal and replacement procedures
4–30
Display assembly
Description
Spare part number
18.4-inch, AntiGlare, dual-lamp, display assembly (includes 2 WLAN antenna transceivers and
cables, webcam, microphones, and logo)
498166-001
Before removing the display assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Switch cover (see “Switch cover” on page 4-18)
b. Keyboard cover (see “Keyboard cover” on page 4-20)
c. Keyboard (see “Keyboard” on page 4-24)
d. Speaker assembly (see “Speaker assembly” on page 4-30)
Remove the display assembly:
1. Open the computer as far as possible.
2. Disconnect the display panel cable 1 from the system board.
3. Disconnect the webcam/microphone module cable 2 from the system board.
4. Remove the WLAN antenna cable 3 from the opening and the routing channel built into the top cover.
Removal and replacement procedures
4–31
Ä
CAUTION: Support the display assembly when removing the following screws. Failure to support the display assembly can
result in damage to the display assembly and other computer components.
5. Remove the four Phillips PM2.5×7.0 screws 1 that secure the display assembly to the computer. Be sure to
hold the display before removing the last screw to prevent damage to the display.
6. Lift the display assembly 2 straight up and remove it.
7. If it is necessary to replace the display enclosure or any of the display assembly internal components, remove
the rubber screw covers 1 and the four Phillips PM2.5×7.0 screws 2 on the display bezel lower edge.
Removal and replacement procedures
4–32
8. Turn the display assembly upside down, with the bottom edge toward you.
9. Release the display enclosure bottom edge 1 as far as the wireless antenna cables and display logo LED cable
allow.
10. Remove the wireless antenna cables 2 from the slot built into the display hinge cover.
11. Disconnect the display logo LED cable 3 from the display logo LED board.
12. Remove the display enclosure 4. The display enclosure is available using spare part number 496873-001.
13. If it is necessary to replace the wireless antenna transceivers and cables, remove the Phillips PM2.0×4.0
screw 1 that secures each transceiver to the display enclosure.
14. Detach the transceivers 2 from the display enclosure.
15. Release the retention tabs 3 built into the display enclosure and remove the wireless antenna cables from
the tabs. The wireless antenna transceivers and cables are included in the Display Cable Kit, spare part number
496876-001.
Removal and replacement procedures
4–33
16. If it is necessary to replace the webcam/microphone module, remove the Phillips PM2.0×4.0 screw 1 that
secures the module to the display bezel.
17. Release the webcam/microphone module 2 as far from the display bezel as the webcam/microphone module
cable allows.
18. Disconnect the webcam/microphone module cable 3 from the webcam/microphone module, and remove the
webcam/microphone module. The webcam/microphone module is available using spare part number
499242-001.
19. If it is necessary to replace the display hinge cover, display inverter, or webcam/microphone module cable,
remove the four Phillips PM2.0×4.0 screws 1 that secure the display hinge cover to the display bezel.
20. Remove the display hinge cover 2 from the display bezel. The display hinge cover is available using spare part
number 496875-001.
Removal and replacement procedures
4–34
21. If it is necessary to replace the webcam/microphone module cable, remove the cable from the display panel.
The webcam/microphone module cable is included in the Display Cable Kit, spare part number 496876-001.
22. If it is necessary to replace the display panel cable, detach the adhesive reinforcement strip 1 that secures the
display panel cable to the display panel.
23. Disconnect the display panel cable 2 from the display panel.
24. Disconnect the display panel cable from the display inverter 3, and remove the display panel cable 4.
The display panel cable is included in the Display Cable Kit, spare part number 496876-001.
Removal and replacement procedures
4–35
25. If it is necessary to replace the display inverter, release the display inverter 1 as far from the display bezel as
the backlight cables and display panel cable allow.
26. Disconnect the two backlight cables 2 and the display panel cable 3 from the display inverter, and remove the
display inverter. The display inverter is available using spare part number 498324-001.
27. If it is necessary to replace the display hinges, remove the two Phillips PM2.0×3.0 screws 1 that secure the
display hinge bracket to the display bezel.
28. Remove the display hinge bracket 2.
Removal and replacement procedures
4–36
29. Remove the four Phillips PM2.0×4.0 screws 1 that secure the display hinges to the display panel.
30. Remove the four Phillips PM2.5×7.0 screws 2 that secure the display hinges to the display panel.
31. Remove the display hinges 3. The display hinges and display hinge bracket are included in the Display
Hinge Kit, spare part number 496874-001.
Reverse this procedure to reassemble and install the display assembly.
Removal and replacement procedures
4–37
Top cover
Description
Spare part number
Top cover (includes fingerprint reader board, fingerprint reader board cable, TouchPad, and
TouchPad cables)
496881-001
Before removing the top cover, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
When replacing the top cover, be sure that the following components are removed from the defective top cover and
installed on the replacement top cover:
■
Power button board (see “Power button board” on page 4-22)
■
Bluetooth module (see “Bluetooth module” on page 4-23)
■
Bluetooth module cable (see “Bluetooth module cable” on page 4-28)
Removal and replacement procedures
4–38
Remove the top cover:
1. Turn the computer upside down, with the front toward you.
2. Remove the 12 Phillips PM2.5×7.0 screws that secure the top cover to the base enclosure.
3. Remove the seven Phillips PM2.0×4.0 screws that secure the top cover to the base enclosure.
Removal and replacement procedures
4–39
4. Turn the computer right-side up, with the front toward you.
5. Disconnect the following cables from the system board:
1 TouchPad board cable
2 TouchPad on/off button board cable
3 USB board cable
4 Power connector cable
6. Release the power connector cable 1 and USB board cable 2 from the clips and routing channel built into the
top cover.
Removal and replacement procedures
4–40
7. Remove the two Phillips PM2.5×7.0 screws that secure the top cover to the base enclosure.
8. Lift the rear edge 1 of the top cover until it rests at an angle.
9. Slide the top cover 2 back until the fingerprint reader board cable is accessible.
10. Release the ZIF connector 1 to which the fingerprint reader board cable is attached and disconnect the
fingerprint reader board cable from the system board.
11. Remove the top cover 2.
Reverse this procedure to install the top cover.
Removal and replacement procedures
4–41
TouchPad on/off button board
Description
Spare part number
TouchPad on/off button board (incudes cable)
500506-001
Before removing the TouchPad on/off button board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
Removal and replacement procedures
4–42
Remove the TouchPad on/off button board:
1. Turn the top cover upside down, with the front toward you.
2. Remove the Phillips PM2.0×4.0 screw 1 that secures the TouchPad on/off button board to the top cover.
3. Remove the TouchPad on/off button board 2.
Reverse this procedure to install the TouchPad on/off button board.
Removal and replacement procedures
4–43
System board
✎ The system board spare part kit includes replacement thermal material.
Description
Spare part number
Includes 1024-MB of graphics subsystem memory
506495-001
Includes 512-MB of graphics subsystem memory
506494-001
Before removing the system board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
When replacing the system board, be sure that the following components are removed from the defective system
board and installed on the replacement system board:
■
RTC battery (see “RTC battery” on page 4-14)
■
Fan/heat sink assembly (see “Fan/heat sink assembly” on page 4-54)
■
Processor (see “Processor” on page 4-56)
Removal and replacement procedures
4–44
Remove the system board:
1. Turn the computer upside down, with the front toward you.
2. Disconnect the subwoofer cable from the system board.
3. Turn the computer right-side up, with the front toward you.
4. Disconnect the fan cable 1 from the system board.
5. Release the ZIF connector to which the audio/infrared board cable 2 is attached and disconnect the
audio/infrared board cable from the system board.
6. Disconnect the USB board cable 3 from the system board.
7. Disconnect the power connector cable 4 from the system board.
Removal and replacement procedures
4–45
8. Remove the three Phillips PM2.5×7.0 screws that secure the system board to the base enclosure.
9. Use the optical drive connector 1 to lift the system board 2 until it rests at an angle.
10. Remove the system board 3 by sliding it up and to the right.
Reverse this procedure to install the system board.
Removal and replacement procedures
4–46
Fan
Description
Spare part number
Fan
514290-001
Before removing the fan, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
l. System board (see “System board” on page 4-44)
Remove the fan:
1. Remove the two Phillips PM2.0×4.0 screws 1 that secure the fan to the base enclosure.
2. Remove the fan 2 from the base enclosure.
Reverse this procedure to install the fan.
Removal and replacement procedures
4–47
Subwoofer
Description
Spare part number
Subwoofer (includes 3 mounting grommets)
496893-001
Before removing the subwoofer, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
l. System board (see “System board” on page 4-44)
Removal and replacement procedures
4–48
Remove the subwoofer:
1. Remove the three Phillips PM2.5×5.0 broadhead screws 1 that secure the subwoofer to the base enclosure.
2. Remove the subwoofer 2 by lifting it straight up.
rubber grommets 3 should be inspected and replaced in the correct locations 4 on the subwoofer. These
✎ The
grommets are critical for satisfactory subwoofer performance.
Reverse this procedure to install the subwoofer.
Removal and replacement procedures
4–49
Audio/infrared board
Description
Spare part number
Audio/infrared board (includes cable)
496892-001
Before removing the audio/infrared board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
Remove the audio/infrared board and cable:
1. Release the ZIF connector 1 to which the audio/infrared board cable is attached and disconnect the
audio/infrared board cable from the system board.
2. Remove the Phillips PM2.0×4.0 screw 2 that secures the audio/infrared board to the base enclosure.
3. Remove the audio/infrared board 3 by lifting it straight up.
Reverse this procedure to install the audio/infrared board.
Removal and replacement procedures
4–50
USB board
Description
Spare part number
USB board (includes cable)
497706-001
Before removing the USB board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
Remove the USB board and cable:
1. Remove the Phillips PM2.0×4.0 screw 1 that secures the USB board to the base enclosure.
2. Remove the USB board and cable 2 by lifting them straight up.
Reverse this procedure to install the USB board.
Removal and replacement procedures
4–51
Power connector cable
✎ The power connector cable is included in the base enclosure spare part kit, spare part number 496880-001.
Before removing the power connector cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
Remove the power connector cable:
1. Remove the Phillips PM2.0×4.0 screw 1 that secures the power connector and bracket to the base enclosure.
2. Remove the power connector bracket 2.
3. Remove the power connector and cable 3.
Reverse this procedure to install the power connector cable.
Removal and replacement procedures
4–52
TV tuner module cable
✎ The TV tuner module cable is included in the Cable Kit, spare part number 496891-001.
Before removing the TV tuner module cable, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
Remove the TV tuner module cable:
1. Remove the TV tuner module cable connector 1 from the clip in the base enclosure.
2. Remove the TV tuner module cable 2.
Reverse this procedure to install the TV tuner module cable.
Removal and replacement procedures
4–53
Fan/heat sink assembly
Description
Spare part number
Fan/heat sink assembly (includes replacement thermal material)
496894-001
ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side of the computer.
✎ ToTheproperly
computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed
to turn on automatically when high temperature conditions exist. These conditions are affected by high external
temperatures, system power consumption, power management/battery conservation configurations, battery fast
charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side
of the computer.
Before removing the fan/heat sink assembly, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
l. System board (see “System board” on page 4-44)
Removal and replacement procedures
4–54
Remove the fan/heat sink assembly:
1. Disconnect the fan cable 1 from the system board.
2. Loosen the four Phillips PM2.0×10.0 captive screws 2 and the two Phillips PM2.5×5.0 captive screws 3 that
secure the fan/heat sink assembly to the system board.
to the adhesive quality of the thermal material located between the fan/heat sink assembly and system board
✎ Due
components, it may be necessary to move the fan/heat sink assembly from side to side to detach the assembly.
3. Remove the fan/heat sink assembly 4.
thermal material must be thoroughly cleaned from the surfaces of the fan/heat sink assembly and the system
✎ The
board each time the fan/heat sink assembly is removed:
■
Thermal paste is used on the processor 1 and the heat sink section 2 that services it.
■ Thermal pads are used on the Northbridge chip 3 and the heat sink section 4 that services it.
■ Thermal pads are used on various other system board components 5 and 7, and sections of the heat sink 6
and 8.
Replacement thermal material is included with all fan/heat sink assembly, system board, and processor spare part kits.
Reverse this procedure to install the fan/heat sink assembly.
Removal and replacement procedures
4–55
Processor
✎ The processor spare part kit includes replacement thermal material.
Description
Spare part number
Intel Core2 Duo processors (12-MB L2 cache, 1066-MHz FSB):
■ QX9300 2.53-GHz processor
500606-001
■ Q9100 2.26-GHz processor
510398-001
■ Q9000 2.00-GHz processor
510399-001
Intel Core2 Duo processors (6-MB L2 cache and 1066-MHz FSB):
■ T9600 2.80-GHz processor
500604-001
■ T9500 2.53-GHz processor
500603-001
Intel Core2 Duo processors (3-MB L2 cache and 1066-MHz FSB):
■ T8600 2.40-GHz processor
500601-001
■ T8400 2.26-GHz processor
500600-001
Before removing the processor, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then
unplugging the AC adapter from the computer.
4. Remove the battery (see “Battery” on page 4-8).
5. Remove the following components:
a. Optical drive (see “Optical drive” on page 4-9)
b. Hard drive (see “Hard drive” on page 4-11)
c. TV tuner module (see “TV tuner module” on page 4-13)
d. Memory module (see “Memory module” on page 4-15)
e. WLAN module (see “WLAN module” on page 4-16)
f. Switch cover (see “Switch cover” on page 4-18)
g. Keyboard cover (see “Keyboard cover” on page 4-20)
h. Keyboard (see “Keyboard” on page 4-24)
i. Speaker assembly (see “Speaker assembly” on page 4-30)
j. Display assembly (see “Display assembly” on page 4-31)
k. Top cover (see “Top cover” on page 4-38)
l. System board (see “System board” on page 4-44)
m. Fan/heat sink assembly (see “Fan/heat sink assembly” on page 4-54)
Removal and replacement procedures
4–56
Remove the processor:
1. Turn the processor locking screw 1 one-half turn counterclockwise until you hear a click.
2. Lift the processor 2 straight up and remove it.
gold triangle 3 on the processor must be aligned with the triangle icon 4 embossed on the processor socket
✎ The
when you install the processor.
Reverse this procedure to install the processor.
Removal and replacement procedures
4–57
5
Setup Utility
The Setup Utility is a ROM-based information and customization utility that can be used even when your
Windows operating system is not working.
The utility reports information about the computer and provides settings for startup, security, and other preferences.
✎ The fingerprint reader (select models only) does not work when accessing the Setup Utility.
Starting the Setup Utility
To start the Setup Utility:
1. Turn on or restart the computer.
2. Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left corner of the
screen, press f10.
Changing the language of the Setup Utility
The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not
already running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to enter setup”
is displayed in the lower-left corner of the screen.
2. Use the arrow keys to select System Configuration > Language, and then press enter.
3. Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.
4. When a confirmation prompt with your preference selected is displayed, press enter to save your preference.
5. To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the screen.
Your preferences go into effect when the computer restarts in Windows.
Navigating and selecting in the Setup Utility
Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are
by keystroke.
■ To choose a menu or a menu item, use the arrow keys.
■ To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use either the
arrow keys or f5 or f6.
■ To select an item, press enter.
■ To close a text box or return to the menu display, press esc.
■ To display additional navigation and selection information while the Setup Utility is open, press f1.
Setup Utility
5–1
Displaying system information
The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not
open, begin at step 1. If the Setup Utility is open, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to enter setup”
is displayed in the lower-left corner of the screen.
2. Access the system information by using the Main menu.
3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit Discarding
Changes, and then press enter. (The computer restarts in Windows.)
Restoring default settings in the Setup Utility
The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already
running, begin at step 1. If the Setup Utility is already running, begin at step 2.
1. To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to enter setup”
is displayed in the lower-left corner of the screen.
2. Select Exit > Load Setup Defaults, and then press enter.
3. When the Setup Confirmation is displayed, press enter to save your preferences.
4. To set your preferences and exit the Setup Utility, press f10, and then follow the instructions on the screen.
The Setup Utility default settings are set when you exit the Setup Utility and go into effect when the
computer restarts.
✎ Your password, security, and language settings are not changed when you restore the factory default settings.
Using advanced Setup Utility features
This guide describes the Setup Utility features recommended for all users. For more information about the Setup
Utility features recommended for advanced users only, refer to Help and Support, which is accessible only when
the computer is in Windows.
The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and
settings for boot order preferences.
The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the
computer is started or restarted in Windows is the prompt for a Network Service Boot.
The “Press <F9> to change boot order” message that is displayed in the lower-left corner of the screen each time
the computer is started or restarted in Windows is the prompt to change the boot order.
Setup Utility
5–2
Closing the Setup Utility
You can close the Setup Utility with or without saving changes.
■ To close the Setup Utility and save your changes from the current session, use either of the
following procedures:
❏ Press f10, and then follow the instructions on the screen.
– or –
❏ If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to
select Exit > Exit Saving Changes, and then press enter.
When you use the f10 procedure, you are offered an option to return to the Setup Utility. When you use the
Exit Saving Changes procedure, the Setup Utility closes when you press enter.
■ To close the Setup Utility without saving your changes from the current session:
If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to
select Exit > Exit Discarding Changes, and then press enter.
After the Setup Utility closes, the computer restarts in Windows.
Setup Utility menus
The menu tables in this section provide an overview of Setup Utility options.
✎ Some of the Setup Utility menu items listed in this chapter may not be supported by your computer.
Main menu
Select
To do this
System information
■ View and change the system time and date.
■ View identification information about the computer.
■ View specification information about the processor, memory size, system
BIOS, and keyboard controller version (select models only).
Security menu
Select
To do this
Administrator password
Enter, change, or delete an administrator password.
Power-On
Password Enter, change, or delete a power-on password.
Setup Utility
5–3
System Configuration menu
Select
To do this
Language Support
Change the Setup Utility language.
Boot Options
Set the following boot options:
■ f10 and f12 Delay (sec.)—Set the delay for the f10 and f12 functions of the
Setup Utility in intervals of 5 seconds each (0, 5, 10, 15, 20).
■ CD-ROM boot—Enable/disable boot from CD-ROM.
■ Floppy boot—Enable/disable boot from Floppy.
■ Internal Network Adapter boot—Enable/disable boot from Internal
Network Adapter.
■ Boot Order—Set the boot order for:
❐ USB Floppy
❐ ATAPI CD-/DVD-ROM Drive
❐ Hard drive
❐ USB Diskette on Key
❐ USB Hard drive
❐ Network adapter
Button Sound (select models only)
Enable/disable the Quick Launch Button tapping sound.
Virtualization Technology
Enable/disable the processor Virtualization Technology.
Processor C4 State
Enable/disable the processor C4 sleep state.
Diagnostics menu
Select
To do this
Hard Disk Self Test
Run a comprehensive self-test on the hard drive.
models with two hard drives, this menu option is called the
✎ On
Primary Hard Disk Self Test.
Secondary Hard Disk Self Test
(select models only)
Run a comprehensive self-test on a secondary hard drive.
Memory Test
Run a diagnostic test on the system memory.
Setup Utility
5–4
6
Specifications
Computer specifications
Metric
U.S.
Length
28.6 cm
11.26 in
Width
43.6 cm
17.17 in
Height (front to rear)
3.4 to 4.4 cm
1.34 to 1.73 in
Weight
4.0 kg
8.83 lbs
Dimensions
Input power
Operating voltage
19.0 V dc @ 4.74 A - 65 W
Operating current
4.74 A
Temperature
Operating (not writing to optical disc)
0°C to 35°C
32°F to 95°F
Operating (writing to optical disc)
5°C to 35°C
41°F to 95°F
Nonoperating
-20°C to 60°C
-4°F to 140°F
Relative humidity
Operating
10% to 90%
Nonoperating
5% to 95%
Maximum altitude (unpressurized)
Operating
-15 m to 3,048 m
-50 ft to 10,000 ft
Nonoperating
-15 m to 12,192 m
-50 ft to 40,000 ft
Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this
✎ range
of temperatures.
Specifications
6–1
18.4-inch display specifications
Metric
U.S.
Height
23.0 cm
9.06 in
Width
39.9 cm
15.71 in
Diagonal
46.7 cm
18.40 in
Number of colors
Up to 16.8 million
Contrast ratio
250:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.279 × 0.279 mm
Format
1920 × 1080
Configuration
RGB vertical stripe
Backlight
Edge lit
Character display
80 × 25
Total power consumption
4.0 W
Viewing angle
±40° horizontal, +120°/-40° vertical (typical)
Specifications
6–2
Hard drive specifications
500-GB*
400-GB*
320-GB*
Height
9.5 mm
9.5 mm
9.5 mm
Width
70 mm
70 mm
70 mm
Weight
101 g
101 g
101 g
Interface type
SATA
SATA
SATA
Transfer rate
100 MB/sec
100 MB/sec
100 MB/sec
Security
ATA security
ATA security
ATA security
Single track
3 ms
3 ms
3 ms
Average
13 ms
13 ms
13 ms
Maximum
24 ms
24 ms
24 ms
Logical blocks
976,809,728
781,446,402
625,127,124
Disc rotational speed
5400 rpm
5400 rpm
7200 rpm and
5400 rpm
Dimensions
Seek times (typical read, including setting)
Operating temperature
5°C to 55°C (41°F to 131°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.
✎ Certain restrictions and exclusions apply. Contact technical support for details.
(Continued)
Specifications
6–3
250-GB*
160-GB*
80-GB*
Height
9.5 mm
9.5 mm
9.5 mm
Width
70 mm
70 mm
70 mm
Weight
101 g
101 g
101 g
Interface type
SATA
SATA
SATA
Transfer rate
100 MB/sec
100 MB/sec
100 MB/sec
Security
ATA security
ATA security
ATA security
Single track
3 ms
3 ms
3 ms
Average
13 ms
13 ms
13 ms
Maximum
24 ms
24 ms
24 ms
Logical blocks
488,397,168
312,581,808
234,441,648
Disc rotational speed
7200 rpm and
5400 rpm
7200 rpm and
5400 rpm
5400 rpm
Dimensions
Seek times (typical read, including setting)
Operating temperature
5°C to 55°C (41°F to 131°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.
✎ Certain restrictions and exclusions apply. Contact technical support for details.
Specifications
6–4
Blu-ray ROM DVD±RW SuperMulti DL Drive specifications
Applicable disc
Read:
Write:
BD-ROM, BD-ROM-DL, BD-R,
BD-R-DL, BD-RE, BD-RE-DL,
DVD-ROM, DVD+R,
DVD+R-DL, DVD+RW, DVD-R,
DVD-R-DL, DVD-RW,
DVD-RAM (Ver.2), CD-DA,
CD-ROM (mode 1 and
mode 2), CD-ROM XA
(mode 2, form 1 and form 2),
Photo CD (single and multiple
sessions), CD Extra, CD-R,
CD-RW, and CD-TEXT
DVD-RAM (Ver.2), DVD+R,
DVD-R, CD-R, and CD-ROM
Access time
BD
DVD
Random
< 230 ms
< 180 ms
Cache buffer
4.5 MB
Data transfer rate
2X BD-RAM
9 MB/sec
8X DVD
2,400 KB/sec
16X CD-R
2,400 KB/sec
16X CD-RW
2,400 KB/sec
System DMA specifications
Hardware
DMA System function
DMA0
Not applicable
DMA1*
Not applicable
DMA2*
Not applicable
DMA3
Not applicable
DMA4
Direct memory access controller
DMA5*
Not applicable
DMA6
Not assigned
DMA7
Not assigned
*ExpressCard controller can use DMA 1, 2, or 5.
Specifications
6–5
System memory map specifications
Size
Memory address
System function
640 KB
00000000-0009FFFF
Base memory
128 KB
000A0000-000BFFFF
Video memory
64 KB
000C0000-000CFFFF
Video BIOS
64 KB
000E8000-000FFFFF
System BIOS
00100000- XFFFFFFF
Extended memory (based on memory
installed)
(X+1)0000000-FEDFFFFF
PCI bus
FED00000-FED003FF
High precision event timer
FEE01000-FFFFFFFF
PCI bus
System interrupt specifications
Hardware IRQ
System function
IRQ0
System timer
IRQ1
Standard 101-/102-key or Microsoft Natural Keyboard
IRQ8
System CMOS/real-time clock
IRQ12
Synaptics PS/2 TouchPad
IRQ13
Numeric data processor
IRQ16
Intel ICH9 Family USB universal host controller 2937
Mobile Intel 4 Series Express Chipset Family
IRQ17
High definition audio controller
Intel ICH9 Family USB universal host controller 2938
Marvell Yukon 88E8072 PCIE-gigabit Ethernet controller
IRQ18
Intel ICH9 Family USB universal host controller 2939
Intel ICH9 Family USB universal host controller 2936
IRQ19
Intel ICH9 Family USB2 enhanced controller 293C
IRQ20
Intel ICH9 Family USB2 enhanced controller 293A
Intel ICH9 Family USB universal host controller 2934
IRQ21
Intel ICH9M-E/M SATA AHCI controller
IRQ22
Intel ICH9 Family USB universal host controller 2935
*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.
Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial port
✎ PC
may assert IRQ3 or IRQ4.
✎ For operating systems after Windows 2000, APIC (Advanced programming interrupt controller) is used.
Specifications
6–6
System I/O address specifications
I/O address (hex)
System function (shipping configuration)
000 - 01F
DMA controller
020 - 021
Program interrupt controller
024 - 025
Program interrupt controller
028 - 029
Program interrupt controller
02C - 03D
Program interrupt controller
02E - 02F
Motherboard resources
030 - 031
Program interrupt controller
034 - 035
Program interrupt controller
038 - 039
Program interrupt controller
03C- 03D
Program interrupt controller
040 - 043
System timer
04E-04F
Motherboard resources
050-053
System timer
060
Standard 101-/102-key or Microsoft Natural Keyboard
061
Motherboard resources
062
Microsoft ACPI-compliant embedded controller
063
Motherboard resources
064
Standard 101-/102-key or Microsoft Natural Keyboard
065
Motherboard resources
066
Microsoft ACPI-compliant embedded controller
067
Motherboard resources
070
Motherboard resources
071-077
System CMOS/real time clock
080
Motherboard resources
081-091
Direct memory access controller
092
Motherboard resources
093-09F
Direct memory access controller
0A0-0A1
Program interrupt controller
0A4-0A5
Program interrupt controller
0A8-0A9
Program interrupt controller
0AC-0AD
Program interrupt controller
0B0-0B1
Program interrupt controller
0B2-0B3
Motherboard resources
0B4- 0B5
Program interrupt controller
0B8-0B9
Program interrupt controller
0BC- 0BD
Program interrupt controller
(Continued)
Specifications
6–7
I/O address (hex)
System function (shipping configuration)
0C0- 0DF
Direct memory access controller
0F0- 0F0
Numeric data processor
0200-027F
Motherboard resources
3B0-3BB
Mobile Intel 4 Series Express Chipset Family
3C0-3DF
Mobile Intel 4 Series Express Chipset Family
400-47F
Motherboard resources
4D0-4D1
Programmable interrupt controller
500-57F
Motherboard resources
1000-1003
Motherboard resources
1010-101F
Motherboard resources
2000-20FF
Marvell Yukon 88E8072 PCI-E Gigabit Ethernet controller
2000-2FFF
ICH9 family PCI express root port6-294A
3000-4FFF
ICH9 family PCI express root port5-2948
5000-6FFF
ICH9 family PCI express root port3-2944
7000-701F
ICH9M-E/M SATA AHCI controller
7020-703F
ICH9 family USB universal host controller-2936
7040-705F
ICH9 family USB universal host controller-2935
7060-707F
ICH9 family USB universal host controller-2934
7080-709F
ICH9 family USB universal host controller-2939
70A0-70BF
ICH9 family USB universal host controller-2938
70C0-70DF
ICH9 family USB universal host controller-2937
70E0-70E7
ICH9M-E/M SATA AHCI controller
70E8-70EF
ICH9M-E/M SATA AHCI controller
70F0-70F7
Mobile Intel 4 Series Express Chipset Family
70F8-70FB
ICH9M-E/M SATA AHCI controller
70FC-70FF
ICH9M-E/M SATA AHCI controller
EF80-EF9F
Motherboard resources
FE00-FE0F
Motherboard resources
FE80-EF8F
Motherboard resources
FFFF
Motherboard resources
Specifications
6–8
7
Screw listing
This section provides specification and reference information for the screws used in the computer. The screws
listed in this section are available in the Screw Kit, spare part number 496890-001.
Phillips PM2.5×7.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
34
7.0 mm
2.5 mm
5.0 mm
Where used:
1 One screw that secures the optical drive to the computer
2 Two screws that secure the switch cover to the computer
3 Two screws that secure the keyboard to the computer
Screw listing
7–1
Where used: 4 screws that secure the display assembly to the computer
Where used: 4 screws that secure the display enclosure to the display assembly
Screw listing
7–2
Where used: 4 screws that secure the display hinges to the display panel
Where used: 12 screws that secure the top cover to the base enclosure
Screw listing
7–3
Where used: 2 screws that secure the top cover to the base enclosure
Where used: 3 screws that secure the system board to the base enclosure
Screw listing
7–4
Phillips PM2.0×4.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
41
4.0 mm
2.0 mm
4.5 mm
Where used: 2 screws that secure the optical drive bracket to the optical drive
Where used:
1 Two screws that secure the TV tuner module to the system board
2 Two screws that secure the WLAN module to the system board
Screw listing
7–5
Where used: 4 screws that secure the switch cover to the computer
Where used: One screw that secures the power button board to the top cover
Screw listing
7–6
Where used:
1 One screw that secures the Bluetooth module to the top cover
2 Four screws that secure the keyboard to the computer
3 One screw that secures the speaker assembly to the computer
Where used: 2 screws that secure the wireless antenna transceivers to the display enclosure
Where used: One screw that secures the webcam/microphone module to the display panel
Screw listing
7–7
Where used: 4 screws that secure the display hinge cover to the display panel
Where used: 4 screws that secure the display hinges to the display panel
Where used: 7 screws that secure the top cover to the base enclosure
Screw listing
7–8
Where used: One screw that secures the TouchPad on/off button board to the top cover
Where used: 2 screws that secure the fan to the base enclosure
Screw listing
7–9
Where used:
1 One screw that secures the audio/infrared board to the base enclosure
2 One screw that secures the USB board to the base enclosure
Where used: One screw that secures the power connector cable bracket to the base enclosure
Screw listing
7–10
Phillips PM2.5×6.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
6
6.0 mm
2.5 mm
5.0 mm
Where used:
1 Five captive screws that secure the hard drive cover to the computer (screws are secured by C clips)
2 One captive screw that secures the WLAN module compartment cover to the computer (screw is secured by
a C clip)
Screw listing
7–11
Phillips PM3.0×4.0 screw
Color
Quantity
Length
Thread
Head diameter
Silver
4
4.0 mm
3.0 mm
5.0 mm
Where used: 4 screws that secure the hard drive left and right brackets to the hard drive
Screw listing
7–12
Phillips PM2.5×5.0 broadhead screw
Color
Quantity
Length
Thread
Head diameter
Silver
3
5.0 mm
2.5 mm
8.0 mm
Where used: 3 screws that secure the subwoofer to the base enclosure
Screw listing
7–13
Phillips PM2.5×11.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Silver
4
11.0 mm
2.5 mm
6.0 mm
Where used: 4 captive screws that secure the fan/heat sink assembly to the system board (screws are secured by
O rings)
Screw listing
7–14
Phillips PM2.5×5.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Silver
2
5.0 mm
2.5 mm
5.0 mm
Where used: 2 captive screws that secure the fan/heat sink assembly to the system board (screws are secured by
O rings)
Screw listing
7–15
8
Backup and recovery
Recovering system information
Recovery after a system failure is as complete as your most current backup. HP recommends that you create
recovery discs immediately after software setup. As you add new software and data files, you should continue to
back up your system on a regular basis to maintain a reasonably current backup.
Tools provided by the operating system and Recovery Manager software are designed to help you with the
following tasks for safeguarding your information and restoring it in case of a system failure:
■
Creating a set of recovery discs (Recovery Manager software feature). Recovery discs are used to start up
(boot) your computer and restore the operating system and software programs to factory settings in case of
system failure or instability.
■
Backing up your information regularly to protect your important system files.
■
Creating system restore points (operating system feature). System restore points allow you to reverse
undesirable changes to your computer by restoring the computer to an earlier state.
■
Recovering a program or driver (Recovery Manager software feature). This feature helps you reinstall a
program or driver without performing a full system recovery.
■
Performing a full system recovery (Recovery Manager software feature). With Recovery Manager, you can
recover your full factory image if you experience system failure or instability. Recovery Manager works from a
dedicated recovery partition (select models only) on the hard drive or from recovery discs you create.
If your computer includes a solid-state drive (SSD), you may not have a recovery partition. Recovery discs have
been included for computers that do not have a partition. Use these discs to recover your operating system and
software. To check for the presence of a recovery partition, select Start > Computer. If the partition is present,
an HP Recovery drive is listed in the Hard Disk Drives section of the window.
Creating recovery discs
recommends that you create recovery discs to be sure that you can restore your system to its original factory
✎ HP
state if you experience serious system failure or instability. Create these discs after setting up the computer for
the first time.
these discs carefully and keep them in a safe place. The software allows the creation of only one set of
✎ Handle
recovery discs.
Note the following guidelines before creating recovery discs:
■
You will need high quality DVD-R, DL DVD-R, DVD+R, DL DVD+R, BD-R (writable Blu-ray), or
CD-R discs. All these discs are purchased separately. DVDs and BDs have a much higher capacity than CDs.
If you use CDs, up to 20 discs may be required, whereas only a few DVDs or BDs are required.
discs, such as CD-RW, DVD±RW, DL DVD±RW, and BD-RE (rewritable Blu-ray) discs, are not
✎ Read-write
compatible with the Recovery Manager software.
■
The computer must be connected to AC power during this process.
■
Only one set of recovery discs can be created per computer.
Backup and recovery
8–1
■
Number each disc before inserting it into the computer optical drive.
■
If necessary, you can exit the program before you have finished creating the recovery discs. The next time you
open Recovery Manager, you will be prompted to continue the disc creation process.
To create a set of recovery discs:
1. Select Start > All Programs > Recovery Manager > Recovery Manager.
Recovery Manager opens.
2. Click Advanced Options.
are operating the computer on battery power, you will be prompted to connect to AC power before you can
✎ Ifgoyou
to the next step.
3. Click Recovery disc creation, and then click Next.
4. Follow the on-screen instructions.
Backing up your information
When to back up
■
■
■
On a regularly scheduled basis
✎ Set reminders to back up your information periodically.
Before the computer is repaired or restored
Before you add or modify hardware or software
Backup suggestions
■
Create a set of recovery discs using Recovery Manager.
■
Create system restore points using the Window System Restore feature, and periodically copy them to disc.
■
Store personal files in the Documents folder and back up this folder periodically.
■
Back up templates stored in their associated programs.
■
Save customized settings in a window, toolbar, or menu bar by taking a screen shot of your settings. The screen
shot can be a time saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document, follow these steps:
a. Display the screen.
b. Copy the screen:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
c. Open a word-processing document, and then select Edit > Paste.
Backup and recovery
8–2
Using system restore points
When you back up your system, you are creating a system restore point. A system restore point allows you to save
and name a snapshot of your hard drive at a specific point in time. You can then recover back to that point if you
want to reverse subsequent changes made to your system.
to an earlier restore point does not affect data files saved or e-mails created since the last restore
✎ Recovering
point.
You also can create additional restore points to provide increased protection for your system files and settings.
When to create restore points
■
Before you add or extensively modify software or hardware
■
Periodically, whenever the system is performing optimally
✎ If you revert to a restore point and then change your mind, you can reverse the restoration.
Create a system restore point
1. Select Start > Control Panel > System and Maintenance > System.
2. In the left pane, click System Protection.
3. Click the System Protection tab.
4. Under Automatic restore points, select the disk for which you want to create a restore point.
5. Click Create.
The System Protection window opens.
6. Follow the on-screen instructions.
Restore to a previous date and time
To revert to a restore point (created at a previous date and time), when the computer was functioning optimally,
follow these steps:
1. Select Start > Control Panel > System and Maintenance > System.
2. In the left pane, click System protection.
3. Click the System Protection tab.
4. Click the System Restore button, and then click Next.
The System Restore window opens.
5. Follow the on-screen instructions.
Backup and recovery
8–3
Performing a recovery
can recover only files that you have previously backed up. HP recommends that you use Recovery Manager
✎ You
to create an entire drive backup as soon as you set up your computer.
Recovery Manager software allows you to repair or restore the system if you experience system failure or
instability. Recovery Manager works from recovery discs that you create or from a dedicated recovery partition
(select models only) on the hard drive. However, if your computer includes a solid-state drive (SSD), you may not
have a recovery partition. If that is the case, recovery discs have been included with your computer. Use these discs
to recover your operating system and software.
has its own built-in repair features, such as System Restore and driver roll-back capabilities. If you
✎ Windows
have not already tried these features, try them before using Recovery Manager.
Manager recovers only software that was preinstalled at the factory. Software not provided with this
✎ Recovery
computer must be downloaded from the manufacturer's Web site or reinstalled from the disc provided by the
manufacturer.
Recovering from the recovery discs
To restore the system from the recovery discs:
1. Back up all personal files.
2. Insert the first recovery disc into the optical drive and restart the computer.
3. Follow the on-screen instructions.
Recovering from the dedicated recovery partition (select models only)
computer includes a solid-state drive (SSD), you may not have a recovery partition. You will not be able
✎ Ifto your
recover using this procedure. Recovery discs have been included for computers that do not have a partition.
Use these discs to recover your operating system and software.
On some models, you can perform a recovery from the partition on the hard drive from either the Start button
or f11. This restores the computer to its factory condition.
To restore the system from the partition, follow these steps:
1. Access Recovery Manager in either of the following ways:
❏ Select Start > All Programs > Recovery Manager > Recovery Manager.
– or –
❏ Restart the computer and press f11 while the “Press <F11> for recovery” message is displayed on the
screen. Then select Recovery Manager.
Recovery Manager opens.
2. Click Advanced Options.
3. Click System recovery, and then click Next.
4. Follow the on-screen instructions.
Backup and recovery
8–4
9
Connector pin assignments
1394
Pin
Signal
1
TPB-
2
TPB+
3
TPA-
4
TPA+
Audio-in (microphone)
Pin
Signal
1
Audio signal in
2
Audio signal in
3
Ground
Connector pin assignments
9–1
Audio-out (headphone)
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
External monitor
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
Connector pin assignments
9–2
HDMI
Pin
Signal
1
Transition minimized differential signal (TDMS) data 2+
2
TDMS data 2 shield
3
TDMS data 2-
4
TDMS data 1+
5
TDMS data 1 shield
6
TDMS data 1 shield
7
TDMS data 0+
8
TDMS data 0 shield
9
TDMS data 0-
10
TDMS clock +
11
TDMS data clock shield
12
TDMS data clock-
13
Consumer electronics control
14
Not connected
15
Display data channel (DDC) clock
16
DDC data
17
Ground
18
+5V Power
19
Hot plug detect
Connector pin assignments
9–3
RJ-45 (network)
Pin
Signal
1
Transmit +
2
Transmit -
3
Receive +
4
Unused
5
Unused
6
Receive -
7
Unused
8
Unused
Universal Serial Bus
Pin
Signal
1
+5 VDC
2
Data
3
Data +
4
Ground
Connector pin assignments
9–4
10
Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120 volts AC
or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the country or region
where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or region where
the computer is used.
Requirements for all countries and regions
The requirements listed below are applicable to all countries and regions:
■
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
■
All power cord sets must be approved by an acceptable accredited agency responsible for evaluation in the
country or region where the power cord set will be used.
■
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage rating of 125 or
250 V AC, as required by the power system of each country or region.
■
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard Sheet C13
connector for mating with the appliance inlet on the back of the computer.
Power cord set requirements
10–1
Requirements for specific countries and regions
Country/region
Accredited agency
Applicable note number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
The People’s Republic of China
CCC
5
South Korea
EK
4
Sweden
SEMKO
1
Switzerland
SEV
1
Taiwan
BSMI
4
The United Kingdom
BSI
1
The United States
UL
2
1. The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
2. The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding type
with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3. The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the Japanese
Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall plug must be a
two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4. The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
5. The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler and wall
plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it will be used.
Power cord set requirements
10–2
11
Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general household waste.
Follow the local laws and regulations in your area for computer battery disposal.
Display
Å
WARNING: The backlight contains mercury. Caution must be exercised when removing and handling the backlight to avoid
damaging this component and causing exposure to the mercury.
Ä
CAUTION: The procedures in this chapter can result in damage to display components. The only components intended for
recycling purposes are the liquid crystal display (LCD) panel and the backlight. When you remove these components, handle
them carefully.
disposal. This HP product contains mercury in the backlight in the display assembly that might
✎ Materials
require special handling at end-of-life. Disposal of mercury may be regulated because of environmental
considerations. For disposal or recycling information, contact your local authorities, or see the Electronic
Industries Alliance (EIA) Web site at http://www.eiae.org.
This section provides disassembly instructions for the display assembly. The display assembly must be
disassembled to gain access to the backlight 1 and the liquid crystal display (LCD) panel 2.
procedures provided in this chapter are general disassembly instructions. Specific details, such as screw
✎ The
sizes, quantities, and locations, and component shapes and sizes, can vary from one computer model to another.
Recycling
11–1
Perform the following steps to disassemble the display assembly:
1. Remove all screw covers 1 and screws 2 that secure the display bezel to the display assembly.
2. Lift up and out on the left and right inside edges 1 and the top and bottom inside edges 2 of the display bezel
until the bezel disengages from the display assembly.
3. Remove the display bezel 3.
Recycling
11–2
4. Disconnect all display panel cables 1 from the display inverter and remove the inverter 2.
5. Remove all screws 1 that secure the display panel assembly to the display enclosure.
6. Remove the display panel assembly 2 from the display enclosure.
7. Turn the display panel assembly upside down.
8. Remove all screws that secure the display panel frame to the display panel.
Recycling
11–3
9. Use a sharp-edged tool to cut the tape 1 that secures the sides of the display panel to the display panel frame.
10. Remove the display panel frame 2 from the display panel.
11. Remove the screws 1 that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover 2 and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
15. Remove the backlight cables 1 from the clip 2 in the display panel.
Recycling
11–4
16. Turn the display panel upside down.
17. Remove the backlight frame from the display panel.
Å
WARNING: The backlight contains mercury. Exercise caution when removing and handling the backlight to avoid damaging
this component and causing exposure to the mercury.
18. Remove the backlight from the backlight frame.
Recycling
11–5
19. Disconnect the display cable 1 from the LCD panel.
20. Remove the screws 2 that secure the LCD panel to the display rear panel.
21. Release the LCD panel 3 from the display rear panel.
22. Release the tape 4 that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
Recycling
11–6
Index
1394 port
connector pinout 9–1
location 2–8
A
AC adapter, spare part numbers 3–10, 3–11, 3–14
administrator password 5–3
advanced Setup Utility features 5–2
antennae
disconnecting 4–17
locations 2–1
removal 4–33
spare part number 4–33
audio product description 1–3
audio/infrared board
removal 4–50
spare part number 3–4, 3–13, 4–50
audio-in jack
connector pinout 9–1
location 2–7
audio-out jack
connector pinout 9–2
location 2–7
B
backup and recovery 8–1
base enclosure, spare part number 3–4, 3–13
bass scroll zone 2–3
battery
removal 4–8
spare part numbers 3–6, 3–13, 4–8
battery bay 2–9
battery light 2–5
battery release latch 2–9
Bluetooth module
removal 4–23
spare part number 3–3, 3–12, 4–23
Bluetooth module cable
removal 4–28
spare part number 3–3, 3–12, 4–28
Blu-ray ROM DVD±RW SuperMulti DL Drive
precautions 4–2
removal 4–9
spare part numbers 3–6, 3–14, 4–9
specifications 6–5
Index
boot options 5–4
boot order 5–4
bottom components 2–9
button components 2–2
button sound 5–4
buttons
media 2–2
next/fast forward 2–2
optical drive 2–2
play/pause 2–2
power 2–2
previous/rewind 2–2
stop 2–2
TouchPad 2–6
TouchPad on/off 2–6
treble/bass 2–3
volume mute 2–2
wireless 2–3
C
Cable Kit
spare part number 3–4, 3–13
caps lock light 2–5
changing the Setup Utility language 5–1
chipset product description 1–1
closing the Setup Utility 5–3
CMOS clearing 4–5
components
bottom 2–9
buttons 2–2
display 2–1
fingerprint reader 2–2
front 2–7
keys 2–4
left-side 2–8
lights 2–5
pointing device 2–6
rear 2–8
right-side 2–7
speakers 2–2
top 2–1
computer feet
removal 4–7
spare part number 3–4, 3–13
computer specifications 6–1
Index–1
connector pinout
1394 port 9–1
audio-in jack 9–1
audio-out jack 9–2
external monitor port 9–2
HDMI port 9–3
headphone jack 9–2
microphone jack 9–1
monitor port 9–2
network jack 9–4
RJ-45 jack 9–4
USB port 9–4
D
Diagnostics menu, Setup Utility 5–4
Digital Media Slot 2–7
Digital Media Slot light 2–7
diskette drive, precautions 4–2
display assembly
removal 4–31
spare part number 3–3, 3–13, 4–31
Display Cable Kit, spare part number 3–7, 3–12, 4–33
display components
illustrated 2–1
recycling 11–1
spare part numbers 3–7
display enclosure
removal 4–32
spare part number 3–7, 3–12, 4–33
display hinge
removal 4–36
spare part number 3–7, 3–12, 4–37
display hinge bracket, removal 4–36
display hinge cover
removal 4–34
spare part number 3–7, 3–12, 4–34
Display Hinge Kit, spare part number 3–7, 3–12, 4–37
display inverter
removal 4–36, 11–3
spare part number 3–7, 3–13, 4–36
display panel cable
removal 4–35
spare part number 4–35
display panel product description 1–1
display switch 2–1
displaying system information 5–2
docking product description 1–4
drive light 2–5
drives, boot order 5–4
E
electrostatic discharge 4–2
eSATA/USB port 2–8
esc key 2–4
Ethernet product description 1–3
Index
expansion port 3 2–8
ExpressCard slot 2–8
ExpressCard slot bezel, illustrated 3–9
external media card product description 1–3
external monitor port
connector pinout 9–2
location 2–8
F
fan
removal 4–47
spare part number 3–4, 3–14, 4–47
fan/heat sink assembly
removal 4–54
spare part number 3–14, 4–54
spare part numbers 3–4, 3–13
feet
removal 4–7
spare part number 3–4, 3–13
fingerprint reader 2–3, 5–1
fn key 2–4
front components 2–7
function keys 2–4
G
graphics product description 1–1
grounding guidelines 4–2
H
hard drive
precautions 4–2
product description 1–2
removal 4–11
spare part numbers 3–5, 3–8, 3–13, 3–14, 4–11
hard drive bay 2–9
hard drive bracket, removal 4–12
hard drive cover
illustrated 3–9
removal 4–11
hard drive self test 5–4
HDMI port
connector pinout 9–3
location 2–8
headphone jack
connector pinout 9–2
location 2–7
headset, spare part number 3–10, 3–11
I
infrared lens 2–7
integrated numeric keypad keys 2–4
J
jacks
audio-in 2–7
audio-out 2–7
Index–2
headphone 2–7
microphone 2–7
network 2–8
RJ-45 2–8
TV antenna/cable 2–7
K
key components 2–4
keyboard
product description 1–4
removal 4–24
spare part numbers 3–3, 3–12, 3–13, 3–14, 4–24
keyboard cover
removal 4–20
spare part number 3–3, 3–13, 4–20
keys
esc 2–4
fn 2–4
function 2–4
integrated numeric keypad 2–4
Windows applications 2–4
Windows logo 2–4
L
language support 5–4
LED board cable, removal 4–29
left-side components 2–8
light components 2–5
lights
battery 2–5
caps lock 2–5
Digital Media Slot 2–7
drive 2–5
num lock 2–5
optical drive 2–7
power 2–5
TouchPad 2–6
treble/bass down 2–5
treble/bass up 2–5
volume down 2–5
volume mute 2–5
volume up 2–5
wireless 2–5
M
Main menu, Setup Utility 5–3
mass storage devices
illustrated 3–8
spare part numbers 3–8
media button 2–2
memory module
removal 4–15
spare part numbers 3–5, 3–13, 3–14, 4–15
memory product description 1–1
Index
microphone
locations 2–1
product description 1–2
microphone jack
connector pinout 9–1
location 2–7
miscellaneous parts, spare part numbers 3–10
model name 3–1, 4–6
modem product description 1–3
monitor port
connector pinout 9–2
location 2–8
mouse, spare part number 3–10, 3–11
N
navigating in the Setup Utility 5–1
network jack
connector pinout 9–4
location 2–8
next/fast forward button 2–2
num lock light 2–5
O
operating system product description 1–4
optical drive
location 2–7
precautions 4–2
product description 1–2
removal 4–9
spare part numbers 3–6, 3–8, 3–14, 4–9
specifications 6–5
optical drive bracket, removal 4–10
optical drive button 2–2
optical drive light 2–7
P
packaging and transporting guidelines 4–3
password clearing 4–5
passwords 5–3
plastic parts 4–1
Plastics Kit
contents 3–9
spare part number 3–3, 3–9, 3–13
play/pause button 2–2
pointing device
illustrated 2–6
product description 1–4
ports
1394 2–8
eSATA/USB 2–8
expansion 3 2–8
external monitor 2–8
HDMI 2–8
monitor 2–8
USB 2–7, 2–8
Index–3
ports product description 1–4
power button 2–2
power button board
removal 4–22
spare part number 3–3, 3–13, 4–22
power button board cable, removal 4–27
power connector 2–7
power connector cable
removal 4–52
power cord
set requirements 10–1
spare part numbers 3–10, 3–12
power light 2–5
power requirements product description 1–4
power-on password 5–3
previous/rewind button 2–2
processor
product description 1–1
removal 4–56
spare part numbers 3–4, 3–13, 3–14, 4–56
product description
audio 1–3
chipset 1–1
display panel 1–1
docking 1–4
Ethernet 1–3
external media card 1–3
graphics 1–1
hard drive 1–2
keyboard 1–4
memory 1–1
microphone 1–2
modem 1–3
operating system 1–4
optical drive 1–2
pointing device 1–4
ports 1–4
power requirements 1–4
processor 1–1
security 1–4
serviceability 1–4
TV tuner 1–3
webcam 1–3
wireless 1–3
product name 1–1, 3–1, 4–6
R
rear components 2–8
recovery discs, creating 8–1
recycling
battery 11–1
display components 11–1
remote control, spare part numbers 3–10, 3–11
restore points 8–3
Index
restoring default settings in the Setup Utility 5–2
right-side components 2–7
RJ-45 jack
connector pinout 9–4
location 2–8
RTC battery
removal 4–14
spare part number 3–5, 3–11, 4–14
Rubber Feet Kit, spare part number 3–4, 3–13
S
Screw Kit
contents 3–10
spare part number 3–10, 3–13
screw listing 7–1
secondary hard drive self test 5–4
security cable slot 2–8
Security menu, Setup Utility 5–3
security product description 1–4
selecting in the Setup Utility 5–1
sequential part number listing 3–11
serial number 4–6
service considerations 4–1
service tag 3–1, 4–6
serviceability product description 1–4
Setup Utility
changing the language 5–1
closing 5–3
Diagnostics menu 5–4
displaying system information 5–3
Main menu 5–3
navigating and selecting 5–1
restoring default settings 5–2
Security menu 5–3
starting 5–1
System Configuration menu 5–4
using 5–1
using advanced features 5–2
speaker assembly
removal 4–30
spare part number 3–4, 3–13, 4–30
speakers 2–2
specifications
Blu-ray ROM DVD±RW SuperMulti DL Drive 6–5
computer 6–1
display assembly 6–2
optical drive 6–5
system DMA 6–5
system I/O address 6–7
system interrupt 6–6
system memory map 6–6
static-shielding materials 4–3
stop button 2–2
Index–4
subwoofer
location 2–9
removal 4–48
spare part number 3–4, 3–13, 4–48
switch cover
removal 4–18
spare part number 3–3, 3–13, 4–18
system board
removal 4–44
spare part numbers 3–4, 3–12, 3–14, 4–44
System Configuration menu, Setup Utility 5–4
system DMA specifications 6–5
system I/O address specifications 6–7
system information 5–3
backing up 8–2
performing a recovery 8–4
recovering 8–1
system interrupt specifications 6–6
system memory map specifications 6–6
T
tools required 4–1
top components 2–1
top cover
removal 4–38
spare part number 3–4, 3–13, 4–38
TouchPad 2–6
TouchPad button 2–6
TouchPad light 2–6
TouchPad on/off button 2–6
TouchPad on/off button board
removal 4–42
spare part number 3–4, 3–13, 4–42
TouchPad scroll zone 2–6
treble scroll zone 2–3
treble/bass button 2–3
treble/bass down light 2–5
treble/bass up light 2–5
TV antenna/cable jack 2–7
TV tuner external antenna cable, spare part numbers
3–6, 3–11
TV tuner module
removal 4–13
spare part numbers 3–6, 3–11, 4–13
TV tuner module cable, removal 4–53
TV tuner product description 1–3
V
vent 2–8, 2–9
volume down light 2–5
volume mute button 2–2
volume mute light 2–5
volume scroll zone 2–3
volume up light 2–5
W
warranty period 3–1, 4–6
webcam
location 2–1
product description 1–3
webcam light 2–1
webcam/microphone module
removal 4–34
spare part number 3–7, 3–13, 4–34
webcam/microphone module cable, removal 4–35
Windows applications key 2–4
Windows logo key 2–4
wireless antennae
disconnecting 4–17
locations 2–1
removal 4–33
spare part number 4–33
wireless button 2–3
wireless light 2–5
wireless product description 1–3
WLAN module
removal 4–16
spare part numbers 3–6, 3–11, 4–16
WLAN module compartment 2–9
WLAN module compartment cover
illustrated 3–9
removal 4–17
U
Universal Serial Bus (USB) board
removal 4–51
spare part number 3–4, 3–13, 4–51
Universal Serial Bus (USB) port
connector pinout 9–4
location 2–7, 2–8
unknown password 4–5
Index
Index–5
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
