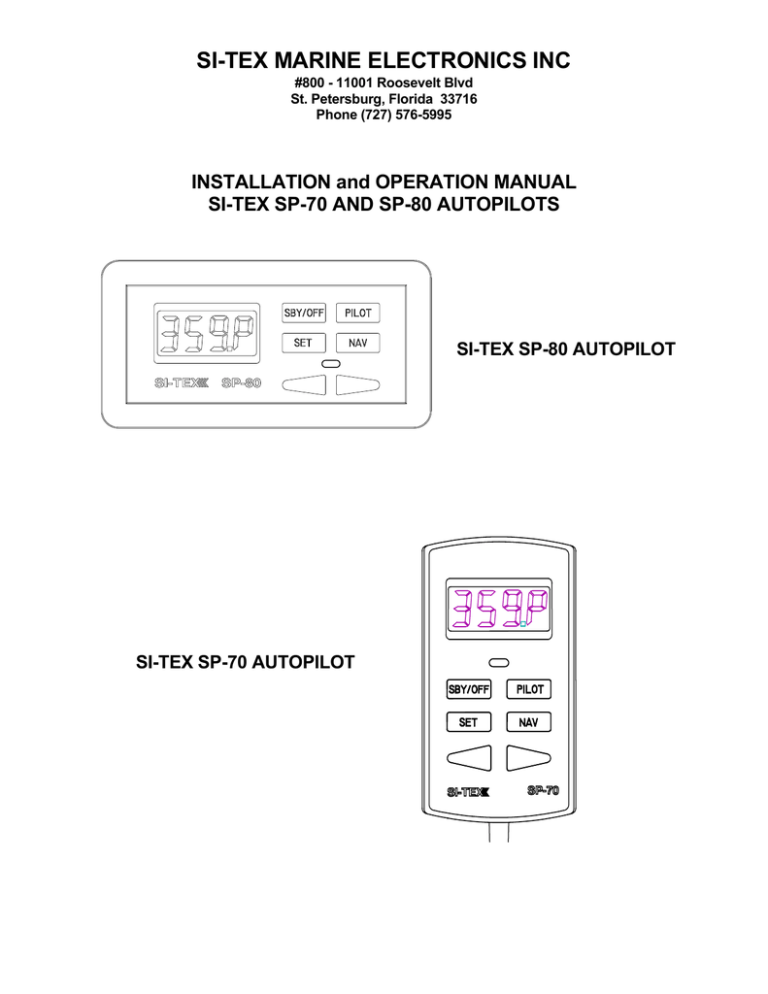

INSTALLATION and OPERATION MANUAL
SI-TEX SP-70 AND SP-80 AUTOPILOTS
SI-TEX SP-80 AUTOPILOT
SI-TEX SP-70 AUTOPILOT
P/N 29010049 V1.2
2
WARNING
This Autopilot will automatically steer your vessel, however, it is only an aid to
navigation. Its performance can be affected by many factors including
equipment failure, environmental conditions and improper handling or use.
This system does not reduce your responsibility for the control of the vessel
when underway. You must always be in a position to monitor the course,
supervise the Autopilot, and resume manual control if the need to do so
arises.
Whenever underway, your vessel must be under the control of
a qualified and alert person.
P/N 29010049 V1.2
3
SI-TEX SP-70 and SP-80 Autopilot Manual
Owner’s Manual for Installation and Operation
Part Number: 29010049
SI-TEX MARINE ELECTRONICS INC
#800 – 11001 Roosevelt Blvd
St. Petersburg, FL 33716
Telephone: (727) 576-5995
P/N 29010049 V1.2
4
TABLE OF CONTENTS
PRODUCT DESCRIPTION .................................................................................................................................................. 7
SP-70/SP-80 System layout
8
SI-TEX SP-70/SP-80 PARTS LIST ....................................................................................................................................... 9
INSTALLATION INSTRUCTIONS .................................................................................................................................. 13
SI-TEX MARINE REVERSING PUMP
Tools And Materials Required To Install Pump
Hydraulic Connections For Two-Line Steering Systems
Hydraulic Connections For Three-Line Steering Systems
Technical Specifications
Specifications Common To Both Pumps
13
14
17
18
19
19
INSTALLATION INSTRUCTIONS .................................................................................................................................. 21
Planning
Tools
Clip Installation
Power Cable Installation
Fluxgate Compass Installation
Rotary Rudder Feedback Installation
Attaching the Rudder Feedback Linkage.
Outboard Feedback Installation
Wiring the Processor
Mounting the Processor
Setting Slow Speed Rudder Response
Turns and Changing Course
Setting Fast Speed Rudder & Counter- Rudder Response.
Fast Speed Turns and Course Changes
Adjusting Your Digital Rudder Angle Indicator (RAI)
Using Your Navigation Interface
The Navigation Interface
NMEA 0183
21
22
23
24
24
25
27
31
35
41
60
61
63
64
66
67
68
68
ADJUSTMENT COMMANDS............................................................................................................................................ 73
USER CODES FOR THE SI-TEX SP-70 & SP-80 ........................................................................................................... 74
PROBLEMS WITHOUT AN ERROR CODE.................................................................................................................. 77
APPENDIX A ......................................................................................................................................................................... 78
Connections to 4 and 5 Wire Motors
APPENDIX A
78
79
APPENDIX B.......................................................................................................................................................................... 80
Connections to Solenoid Valves
P/N 29010049 V1.2
80
5
APPENDIX C ......................................................................................................................................................................... 81
Connecting a Second Location or Second Station Options
Second Location Kit
Second Station Kit
81
81
82
APPENDIX D ......................................................................................................................................................................... 84
Connecting a Rudder Angle Indicator
84
APPENDIX E.......................................................................................................................................................................... 85
Connecting the NMEA 0183 Heading Output
85
CERTIFICATE OF LIMITED WARRANTY .................................................................................................................. 87
P/N 29010049 V1.2
6
PRODUCT DESCRIPTION
SI-TEX SP-70 or SP-80 Autopilots are
reliable, accurate and easy to use aids to
navigation. They feature four operating
modes, watertight design, and built-in
navigation interface.
The SP-70/SP-80 contains a program called
Ghost Rudder. Should the Rudder Feedback
fail, the Autopilot will use its memory of the
rudder movement to calculate new rudder
positions. The Ghost Rudder program will not
allow the Autopilot to steer as well as it can
with the Rudder Feedback. It will allow the
Autopilot to be used until repairs can be
made to the Rudder Feedback.
The 4 operating modes are:
• STANDBY MODE allows manual steering
while displaying compass information.
• POWER STEERING MODE features
push button steering control, and displays
compass or rudder information.
• PILOT MODE steers to a constant
heading.
• NAV MODE steers along a course line
when the SP-70 or SP-80 is connected to
an appropriate navigation device.
The design of the SP-70/SP-80 includes
many circuit protection devices such as;
reverse power connection protection, output
circuitry overload protection, protection
against overheating, protection against
computer failure or program error.
SPECIFICATIONS
Voltage: 10VDC - 40 VDC
Steering Outputs: 20 Amperes Maximum
In both PILOT and NAV Mode, pressing the
Red or Green Key allows use of the
Dodge/Course-change feature.
To steer a constant heading, the SP-70 or
SP-80
compares
compass
heading
information with the course heading that is
entered into memory. If the vessel is not on
the correct heading, the Autopilot calculates
the rudder position that will bring the vessel
onto the correct heading. The Autopilot uses
a drive unit to move the rudder. Information
from the Rotary Feedback or Outboard
Feedback is used to calculate new rudder
positions and to verify that the steering
system
has
followed
the
Autopilot
commands.
LXWXH
SP-70 Control:
2.75 x 5.13 x 1.0 in.
(7.0 x 13.3 x 2.5 cm.)
6.0 x 3.1 x 1.0 in
(15.4 x 7.9 x 2.5 cm)
6.3 X 15 X 2.7 in.
(16.0 x 38.1 x 6.9 cm.)
5.6 x 4.2 x 3.4 in.
(14.2 x 10.7 x 7.6 cm)
4.8 x 7.5 x 4 in.
(12.2 x 19.0 x 10.2
SP-80 Control:
Processor:
Compass:
Pump:
cm.)
When steering along a course line, both
Autopilots use information from the compass
to monitor the heading. They also use
position information received in NMEA 0183
format from LORAN, GPS, or plotter. Using
both of these inputs, the SP-70/SP-80
calculates a course to steer and keeps the
vessel on the course line.
P/N 29010049 V1.2
Sizes
7
SP-70/SP-80 System layout
P/N 29010049 V1.2
8
SI-TEX SP-70/SP-80 PARTS LIST
Parts are not drawn to any scale.
Si-Tex Processor: Part Number 30080003. Used
on both SP-70 and SP-80 Autopilot packages.
FOR SP-70 AUTOPILOT PACKAGES
SP-70 Control Unit. Part Number 20080009. This part includes a curly
cord wired to the Control Unit.
SP-70 Control Unit Clip and Spacer. Part
Number 65610010.
FOR SP-80 AUTOPILOT PACKAGES
SP-80 Control Unit and Mounting Bracket. Part Number 20080011.
This part includes a 25 foot (7.7 meter) cable wired to the Control Unit.
P/N 29010049 V1.2
9
SP-70/SP-80 Fluxgate Compass. Part Number
20320003. This part includes 40 feet (12.2 m) of
cable wired to the compass.
In this group, one part OR the other part will be included:
Rotary Rudder Feedback: Part Number 20330008. This part includes 50 feet (15.2 m) of cable
wired to the Rudder Feedback. This part will always come with:
Rotary Rudder Feedback Linkage Kit.
Part Number 20330007
OR
Outboard Feedback: Part Number 20330002. This part
includes 30 feet (9.1 m) of cable wired to the Rudder
Feedback.
P/N 29010049 V1.2
10
Also included but not drawn:
•
•
•
•
Power Cable: Seven and a half feet (2.3 m) of cable provided for connection of Processor and
breaker.
Accessory Kit: Contains a small screwdriver, extra terminal sockets and gland.
Control Unit Interconnection Cable (SP-70 systems only): 10 feet (3.05 m) of cable with a
receptacle and cap on one end. Labelled as cable one.
Si-Tex SP-70 and SP-80 Autopilot Manual. Part Number 29010049.
Adjustable Reversing Pump. Part Number 20810016 (12VDC/18CI),
20810031 (24VDC/18CI), 20810018 (12V/30CI) and 20810035
(24V/30CI). 18CI pumps are for installations where the steering ram
size is from 7 in3 (115 cm3) up to 18 in3 (295 cm3). 30CI pumps are for
installations where the steering ram size is from 15 in3 (245cm3) up to
30 in3 (490 cm3).
P/N 29010049 V1.2
11
This page is intentionally blank.
P/N 29010049 V1.2
12
INSTALLATION INSTRUCTIONS
SI-TEX MARINE REVERSING PUMP
Part Nos. 20810016, 20810031, 20810018 & 20810035
GENERAL:
The reversing pump consists of a hydraulic pump and a motor. The pump is a piston type, driven
by a reversing permanent magnet motor. The pump is designed in such a way that it will keep oil
from returning through the pump when is not running or correcting. There is also a bleed-to tank to
allow the use of unbalanced cylinders. The pump is compatible with all hydraulic steering systems
including pressurized steering systems such as Hynautic.
SPILL VALVE
ADJUSTMENT
To adjust flow rate, loosen pump housing screws and turn pump housing. Clockwise will decrease
flow rate, anti-clockwise to increase flow rate.
Part Nos. 20810016(12V) & 20810031(24V) 18CI Pumps
The pumps above can be ordered with a 12VDC or 24VDC motor and have an adjustable flow rate that will
deliver from 36 in3 to 73 in3 (600 cm3 – 1200 cm3) per minute of oil at 500 PSI (3,440 kPa) (34 Bar). It is
suitable for rams with displacements ranging from 7 in3 (115 cm3) to 18 in3 (295 cm3)) displacement.
Part No. 20810018(12V) and 20810035(24V) 30CI Pumps
The pumps above can be ordered with a 12VDC or 24VDC motor and have an adjustable flow rate that will
deliver from 61 in3 to 122 in3 (1000 cm3 – 2000 cm3) per minute of oil at 500 PSI (3,440 kPa) (34 Bar). It is
suitable for rams with displacements ranging from 15 in3 (246 cm3) to 30 in3 (495 cm3) displacement.
P/N 29010049 V1.2
13
***** IMPORTANT *****
If the system you purchased includes a reversing motor pumpset, it is important that you apply
and install this unit correctly. To ensure that you get the most from your purchase, read this
installation and instruction manual carefully. By following the step-by-step procedure and using
only basic tools and materials, you will find the installation easy to do.
Caution
This Pump is not waterproof and is therefore not warranted against water damage.
This Pump is not warranted against damage caused by improper installation.
If you are installing this pump on a Capilano or Syten steering system, you probably have
a 3-line steering system. Read the 3-line steering installation instructions carefully.
Tools And Materials Required To Install Pump
1)
Basic Tool Kit
2)
Pipe Cutter
8)
Tubing (check with steering gear
manufacturer for type and size)1
9)
Hydraulic Oil (check with steering
gear manufacturer for type)1
3)
Funnel with Filter (a coffee filter will do)
4)
3/8" Electrical Drill
10)
Teflon based thread sealer (such as
LOCTITE™ P.S.T.)
5)
2 gallon (9 L.) bucket (to catch excess
oil).
11)
Miscellaneous
Hardware
(for
mounting pump and securing lines)
6)
7)
Rags or Paper Towels
1. Consult with your steering system manufacturer to get detailed
information about factory authorized materials. Failure to do so could void
your warranty.
Pipe Fittings (check with steering
gear manufacturer for type & size)1
P/N 29010049 V1.2
14
Planning
The pump can be mounted in any orientation
except with Port C facing downward. If Port
C is facing downward then air will not be able
to rise out of the pump and the pump will not
have a supply of oil.
Installation of the pump consists of:
• Finding a mounting location for the
pump
• Partially draining the steering system
There are two ways to connect the pump to
the steering system. The first is to leave the
system completely filled and be careful not to
spill hydraulic fluid. The second is to drain
the system of fluid completely before cutting
or opening any lines.
• Mounting and connecting the pump to
the existing steering lines
• Filling and
system.
bleeding
the
steering
If you follow the first method, remember that
when you disconnect or cut the steering
lines, there will be a constant slow discharge
of oil due to gravity draining the system.
Have a container ready to catch all excess
oil. Do not reuse any oil reclaimed from your
system.
A suitable mounting location for the pump
MUST:
• Be dry
• Be lower than at least one of the helm
pumps in the steering system
Draining your System
• Provide a solid mounting base
If you wish to follow the second method and
drain the system, use the following simple
procedure.
1. Have a large container, about 2 gallons,
ready.
2. Disconnect the delivery lines at a low
point, usually where the lines connect to
the steering cylinder.
3. Turn the wheel of the highest helm pump
in both directions until no more fluid
comes out of the lines.
4. Repeat the previous step on each lower
helm pump in turn.
• Be at least 4 feet (3.1 m) from the
vessel’s compass.
A mounting location for the pump SHOULD:
• Provide easy access to the pump
• Provide an easy connection point to
the steering system
• Minimize the length of the pump hoses
• Minimize the length of the wires to the
motor.
Types of Steering Systems
A typical mounting location would be in the
engine compartment or the steering console.
There are two general types of steering
systems, two-line systems, and three-line
systems. The pump connection to the
steering system is different for each type.
Separate instructions are supplied for both
types of steering systems.
You have a three-line system if the helm pump is a Capilano Model 250 or 275 (Made by
Teleflex), or if there is a Uniflow valve mounted close to the steering cylinder.
P/N 29010049 V1.2
15
You have a two-line system if you do not have the above components in your system.
CAUTION
CLEANLINESS must be maintained while making hydraulic connections. Contamination
introduced into the steering system fluid can cause steering components to malfunction, possibly
resulting in a loss of steering.
Before beginning to connect the pump to the steering system, review the following installation
hints:
• Cap or cover the ends of hoses with a
clean rag before pushing them
between bulkheads.
Do not place thread sealer on female pipe
threads.
• When tightening fittings into the pump
lockvalve, hold the lockvalve, not the
motor. That way, the lockvalve will not
twist out of alignment with the rest of
the pump.
• Wipe copper filings off freshly cut and
reamed copper tube. Do not blow the
filings off.
• Teflon based thread sealer, such as
'LOCTITE™ P.S.T.' must be used on
all male pipe threads. Do not place
thread sealer on the first two threads.
Do not use a tape-type thread sealer.
These can shred and enter the
steering system fluid.
• Connection of the pump lines is most
easily made at existing breaks in the
steering system lines. For example:
valves, t-joints and other fittings.
CAUTION
Opening your hydraulic steering system will introduce air into your steering system. This air will be
expelled if the steering system is bled properly. After you refill your system and during the "Set-up
Routine", your autopilot can be used for bleeding the air. Ensure that you follow the Compensating
Line installation instructions very carefully as all air is expelled through this line when bleeding your
system. If the Compensating Line does not prime properly and allow fluid to get to the autopilot
pump, the pump will not perform properly. The Compensating Line does not have to be a highpressure hose. In fact, even a clear hose can be used allowing for easy visual confirmation of proper
Compensating Line operation.
P/N 29010049 V1.2
16
Hydraulic Connections For Two-Line Steering Systems
A simple schematic of the pump installation is shown below.
2 Line Steering System Installation
Delivery Lines:
Ports A and B in the diagram above are the input/output ports of the pump and must be
connected to the steering lines coming from the steering cylinder. It does not matter which
pump port is connected to which steering line.
Compensating Line:
In the above diagram Port C is the compensating or bleed line, and must be connected to the
steering system's reservoir. This connection can be made at: a helm pump; remote reservoir (if
there is one); the compensating line connecting two helm pumps; or the compensating line
connecting a helm pump to the remote reservoir. If the connection is being made directly to the
helm pump, ensure that the bleed line is connected to the LOWER helm bleed port.
The compensating line MUST have a gradual rise from the pump, to the connection, to the
steering system. This allows air to rise out of the pump, ensuring a constant supply of oil to the
pump.
INSTALLATION OF SHUT-OFF VALVES RECOMMENDED
P/N 29010049 V1.2
17
Hydraulic Connections For Three-Line Steering Systems
A simple schematic of the pump installation is shown below.
3 Line Steering System Installation
Delivery Lines:
In the above diagram, Ports A and B are the input/output ports of the pump and must be
connected to the steering lines between the steering cylinder and the Uniflow valve. The
simplest method of doing this is to install a tee in each of the cylinder ports of the Uniflow valve
itself and connect to these tees. It does not matter which pump port is connected to which
steering line.
Compensating Line:
Port C is the compensating or bleed line and must be connected to the steering systems’
reservoir. This connection can be made at a helm pump; a remote reservoir (if there is one); the
return line connecting two helm pumps; or the return line between a pump and the Uniflow
valve. If the connection is being made directly to the helm pump, ensure that the bleed line is
connected to the LOWEST bleed port of the pump.
The connection MUST be at least six feet (1.83 m) from the Uniflow valve as shown above. If the
connection is too close to the Uniflow valve, the manual steering system may not work well.
The compensating line MUST have a gradual rise from the pump, to the connection, to the
steering system. This allows air to rise out of the pump, ensuring a constant supply of oil to the
pump.
INSTALLATION OF SHUT-OFF VALVES RECOMMENDED
P/N 29010049 V1.2
18
Re-Fill And Bleed
After you have installed your Pump, refill and bleed your manual steering system according to the
manufacturer's directions. Any air, which is in the pump, will be expelled during the Set-up Routine.
Technical Specifications
Part Number:
20810016
20810031
20810018
20810035
Model Number:
18CI
18CI
30CI
30CI
Operating Voltage:
12VDC
24VDC
12VDC
24VDC
Max Displacement @ 200PSI:
73 in3
73 in3
122 in3
122 in3
Current @ 200 PSI:
4.5 Amps
3.0 Amps
6.0 Amps
3.0 Amps
Max Pressure:
800 PSI
800 PSI
500PSI
500PSI
Specifications Common To Both Pumps
Port Sizes:
Displacement (18CI):
Displacement (30CI):
Min Stall Pressure:
Oil Type:
Operating Temperature:
Lockvalve:
Lockvalve Leakage:
Unbalanced Cylinder:
Weight:
Size:
Size (metric):
Shaft Seal:
P/N 29010049 V1.2
- 3/8 inch compression fittings supplied
- Adjustable, from 26in3 (600cm3) to 73in3 (1200cm3)
- Adjustable, from 61in3 (1000cm3) to 122in3 (2000cm3)
- 1200 PSI (84.0 Bar) (8,268 kPa)
- Any approved hydraulic steering fluid
- 0 to 50 Degrees Celsius (32 to 122 Fahrenheit)
- Yes
- Negligible
- Yes, up to 3/4 (1.9cm) diameter rod
- 5.0 lbs (2.27 kg) including wire
- 10 inches x 3.75 inches x 4.75 inches
- 254mm x 95mm x 121mm
- 100 PSI (6.89 Bar) (689 kPa) minimum
19
Connection between SP-70 Control Unit and Receptacle on Cable Number 1
SP-80 Control Unit and cable going to Si-Tex Processor
P/N 29010049 V1.2
20
INSTALLATION INSTRUCTIONS
SP-70 and SP-80 AUTOPILOTS
Planning
If you are going to use a sealant when
flush mounting the SP-80 Control Head,
be careful to not cover the small square
hole in the middle of the bottom side.
This hole must vent to atmosphere.
Caution
Using ordinary electric tools near water is
very dangerous. To minimize the dangers of
electric shock and personal injury, we
recommend using cordless rechargeable
tools or hand tools.
Do not mount the Processor near heat
sources, such as heat radiators, or over
engines. If you can, mount the Processor so
that the cooling fins are vertical.
Processor Location
Power Connection
Allow at least a foot or 30 cm of clearance on
either end of the Processor in the space
where it is to be located.
There is a 7.5 foot (2.3 metre) power cable
included with your SI-TEX SP-70/SP-80. We
recommend that you do not lengthen this
cable.
In choosing a location for your SI-TEX
SP-70/SP-80, remember that the Control Unit
Interconnection Cable or Number 1 Cable,
and the cable from the Compass to the
Processor should not be cut or lengthened.
Excess cable may be loosely coiled behind a
panel.
If you must extend the cable:
•
•
•
Number 1 Cable from the SP-70 Control Unit
Receptacle to the Processor is 10 feet long
(3.05 metres). Number 1 cable from the SP80 Control Unit to Processor is 25 feet long
(7.7 metres).
•
The cable from the Compass to the
Processor is 40 feet long (12.2 metres).
You will want to have the Control unit near
the steering station you use the most. On SP70’s try to position the Receptacle so that the
curly cord will also reach other convenient
locations such as the place that you use
when docking your vessel.
P/N 29010049 V1.2
21
Use the smallest extension length
possible.
Use no less than 10 A.W.G. (6mm2)
conductor. Splice and solder the joints.
The extension must be less than 10 feet
(3 metres).
Make the joints watertight by using heatshrink tubing and silicon, or some other
watertight covering.
Grounding
Compass Location
The Power Cable also contains a grounding
wire. Connecting this wire to a proper ground
(*see below) may reduce static on radios and
improve LORAN reception.
When choosing a location for the Compass,
try to locate it as close as possible to the
most stable spot on your boat. Usually this
spot will be close to the water line level, in the
middle of the boat and two-thirds towards the
stern from the bow.
Many different grounding connections could
be used:
1.
2.
3.
Do not install your Compass near wires or
devices carrying large electric currents such
as battery chargers, electric pumps, motors
or televisions.
If you have a small vessel, the
negative battery post can be used.
If you have several electronic
instruments,
each
could
be
individually attached to the battery
post. Do not connect one instrument
to another instrument and then to the
post.
If you have a ground plane for a radio
on your boat, connect the ground wire
to that ground plane.
Do not mount your Compass near any iron or
steel objects.
Tools
You will need the following tools to install
your SI-TEX Autopilot:
*A proper ground connection point must be at
the same voltage potential as battery
negative. Any voltage difference between
battery negative and the ground point may
indicate a problem and the ground wire
should not be used. Ensure that connection
wires are as short as possible and that
connections are clean.
SCREWDRIVER: One Phillips and one
medium slot screwdriver
WIRE CUTTERS: A pair of ordinary wire
cutters suitable for general work around your
house.
DRILL and a selection of DRILL BITS
SMALL ADJUSTABLE WRENCH
If you purchased a SP-70 or SP-80 with a
Rotary Rudder Feedback you may need one
stainless steel band clamp which is more
than large enough to fit around your rudder
post.
You may also wish to have a supply of tie
wraps for securing cable lengths and tools
specific to your own boat.
P/N 29010049 V1.2
22
SP-70 Receptacle Installation
The Receptacle is attached to the Number 1 cable. The diagram to the right shows the Receptacle
mounted in a panel.
Mount the receptacle
near your normal
steering position.
The curly cord on the
Control Unit lets you
move about 5 feet
away
from
the
Receptacle.
A stainless steel ring
is placed between
the bolt heads and
the
receptacle
flange.
Do not
attempt to seal the
receptacle by overtightening the bolts
as the ring will
deform
the
receptacle
and
interfere with plug
Cable 1 Receptacle Installation
insertion. A proper
caulking compound
or sealant should be used instead. The three bolts should only be tightened enough to compress
the lock-washers, no more. As the plug has a tight seal, and insertion into the receptacle may be
stiff, a lubricant has been included in your package.
Hole sizes:
Hole for receptacle:
0.825 inches or 21 mm in diameter.
Use the barrel of the Receptacle to mark holes for the flange.
Holes in the flange are for a number 6 (3mm) screw. You may wish to vary this size depending
upon the panel material.
Clip Installation
The Clip is used for mounting the Control Unit. The Clip is mounted with two number 10 (5mm)
screws or bolts.
The usual mounting location is on the dashboard within easy reach when you are steering your
vessel.
P/N 29010049 V1.2
23
Power Cable Installation
Fluxgate Compass Installation
The Power Cable is labelled with a "5".
Connect the Power Cable to a breaker
capable of supplying twenty Amperes.
CAUTION
Keep the breaker turned off or do not
connect the cable to the breaker.
Fluxgate Compass
Use the white wire for battery positive from
the breaker. Use the black wire for battery
negative. The green wire is a grounding wire.
The fluxgate compass must be correctly
positioned or it will not work.
Extending the cable is not recommended. If
you must extend it, see page 23 for
guidelines on proper extension techniques.
To correctly position the Fluxgate Compass,
mount it so that the surface with the cable
gland is up. On the top surface there is an
arrow labelled "bow". The arrow must point
in the same direction as the bow of your boat.
In cases where the compass is mounted on
a side wall, the bow line arrow may be ± 90
degrees out of alignment. Remove the four
top housing screws and rotate the housing ±
90 degrees. Warning: This unit comes
from the factory watertight. Be careful
with seals and “O” rings if you remove the
housing.
Route the supplied Cable to the Processor
location.
Initially, mount your Fluxgate Compass using
strong adhesive tape or some other
temporary, non-marking fastener. Coil any
excess cable at the Compass location rather
than at the Processor. It may be necessary
to relocate your compass after you have
done the "Set-up Procedure".
P/N 29010049 V1.2
24
Rotary Rudder Feedback Installation
If you have purchased a SP-70 or SP-80 with an Outboard Feedback, please see the instructions
titled, "Outboard Feedback".
Select the following parts from your SP-70 or SP-80 package:
BRASS BALL JOINT
RUDDER FEEDBACK
(INCLUDED WITH LINKAGE)
LINKAGE
RUDDER ARM
You may also need:
• One stainless steel band clamp to hold the Rudder Arm to the rudder post.
• Four screws: #10 size (5 mm), suitable length.
Install the Rudder Feedback Assembly in the stern of the vessel, close to the rudder post. Place
the Rudder Feedback so that it will be protected from objects which may shift position when your
boat is moving.
P/N 29010049 V1.2
25
Mounting the Rudder Feedback
Rudder Feedback correctly installed to rudder post
In the diagram above notice that:
• the Rudder Feedback Arm is above the
cable entry gland;
• the Linkage sockets are on the top of the
ball joints. Do not hang the Linkage from
the ball joints.
Use the Rudder Feedback as a template to
drill holes in the mounting surface. If you
must drill new holes in the flange at the back
of the Rudder Feedback, drill the Rudder
Feedback flange first, and then use it as a
template to drill holes in the surface.
Mount the Rudder Feedback so that the
Rudder Feedback Arm and the Rudder Arm:
• are at the same height and
• separated by less than 24 in. (60.9 cm)
center to center, and
• each makes an angle of 90 degrees with
the Linkage.
Mount the Rudder Feedback using # 10 (5
mm) screws or bolts of suitable length.
To correctly align the Rudder Feedback and
the Rudder Arm, you may need to make a
mounting base for the Rudder Feedback.
Such a base must be firm. It should not flex
when the vessel is moving.
P/N 29010049 V1.2
26
To
Assemble
Feedback Arm
the
Rudder
Loosen the adjustment block that keeps the
two pieces of the Rudder Feedback Linkage
from sliding.
Measure the approximate diameter of your
rudder post in inches.
Snap the Rudder Feedback Linkage onto the
two Brass Balls. Make sure to close the small
release clamps on each Plastic Socket.
The Rudder Arm has several holes drilled
through it. The holes are marked by numbers
on the top surface of the arm.
With the Rudder Feedback Arm directly
above the cable gland and the Rudder Arm
pointing straight ahead, tighten the adjusting
block.
Select the hole on the Rudder Arm marked
by a number equal to the diameter of your
rudder post measured in inches. (1 cm =
0.394 in.)
Caution
Bolt the Brass Ball Joint onto the Rudder Arm
using the selected hole. The ball of the Brass
Ball Joint must be on the same side of the
Rudder Arm as the numbers. Tighten the nut
and lock washer securely.
Carefully watch the Linkage while you move
the rudder through its full range of motion.
The Rudder Feedback and the Rudder
Feedback Linkage should move easily
without binding. The moving parts must not
contact any other objects. If there are any
problems, fix them now.
Attach the Rudder Post Arm to the rudder
post using a stainless steel band clamp. The
Brass Ball Joint must be on top. The Rudder
Post Arm must be at the same height as the
Rudder Follower.
The Rudder Post Arm must point straight
ahead when the rudder is in the straight
ahead steering position.
Run the Rudder Feedback Cable from the
Rudder Feedback to the space where the
Processor will be located. Place the Cable so
that it is protected from abrasion, stretching
and cutting.
Attaching the Rudder Feedback
Linkage.
Turn to the section titled: "Wiring the
Processor".
Move the rudder so it is in the straight ahead
position.
Move the Rudder Feedback Arm so that the
Arm is directly above the point where the
cable enters the Rudder Feedback.
P/N 29010049 V1.2
27
This page is intentionally blank
P/N 29010049 V1.2
28
Flush Mounting the SP-80 Control Head
Cut-out And Radius Dimensions for the SP-80
NOT TO SCALE
P/N 29010049 V1.2
29
This page is intentionally blank
P/N 29010049 V1.2
30
Outboard Feedback Installation
If you have a Rotary Rudder Feedback, see the section titled, "Rotary Rudder Feedback".
Introduction:
The Outboard Feedback sends information
about the rudder or propeller position to the
SP-70 or SP-80.
The Outboard Feedback is provided with 30
feet (9.1 metres) of cable.
The Outboard Feedback can be used with
hydraulic cylinders from 1.25 to 2.25 inches.
(31.8 to 57.1 mm) in diameter. The cylinder
stroke cannot exceed 10.5 inches (266 mm).
The Outboard Feedback can be attached to
the hydraulic steering cylinder by using a
stainless steel band clamp. A stainless steel
bracket attaches one end of the Outboard
Feedback to the steering cylinder rod.
Outboard Feedback
Caution
The Outboard Feedback will be damaged if it is extended more than 10.5 inches. This damage will
not be covered by warranty.
If necessary, the extended length of the steering cylinder can be limited using corrosion-resistant
spacers as shown on page 36.
P/N 29010049 V1.2
31
Mounting Hardware
Mount the Outboard Feedback so that it will not be damaged when the motor is tilted for trailering.
Installation
stainless steel band clamp. The clamp should
be positioned as close as possible to the tube
end where the cable exits.
The Outboard Feedback may be mounted
with the sliding rod facing either left or right.
Remove the nut from the end of the rod on
the hydraulic cylinder. Place the stainless
steel bracket over the threaded end of the rod
and replace the nut. Do not completely
tighten at this time.
Before you install the Feedback, move the
steering gear through its full range of motion
from one side to the other. Measure the
change in length, of the hydraulic steering
cylinder rod. If the rod extends or retracts
more than 10 in. (254 mm), make spacers to
limit the motion of the steering system as
shown on page 35.
Adjust the position of the Outboard Feedback
so that the end of the sliding rod is flush with
the Stainless Bracket. Screw the nut onto the
threaded rod at the end of the Outboard
Feedback.
Turn the motor so that it is centered between
the left and right limits of travel.
Use a tape measure or ruler to position the
Outboard Feedback rod so that it projects
5.25 in. (133 mm) from the body of the
Outboard Feedback.
Loosely clamp the Outboard Feedback to the
tube of the hydraulic cylinder using both
pieces of the two piece mount and the
P/N 29010049 V1.2
32
The Outboard Feedback should now be at
half its full extension and attached to the
outboard motor which is at the center
position.
Adjust the position of the Outboard Feedback
so that as nearly as possible it is parallel with
the hydraulic cylinder both horizontally and
vertically. Tighten the nuts and the stainless
steel band clamp securely.
Run the cable forward to the Processor
location. Choose a route for the cable so that
the minimum bend radius in the cable is at
least 4.2 in. (10.7 cm). This is especially
important in the motor well and other areas
where vibration is present.
Minimum Bend Radius
Complete the autopilot installation and
perform the Set-up Routine as described.
Maintenance
Keep the sliding rod clean. Wipe it occasionally so that dirt cannot enter the Linear Feedback. Use
a clean, soft rag.
After trailering your boat, it is very important to clean the sliding rod.
P/N 29010049 V1.2
33
Outboard Feedback Mounting to Front Mount Cylinder
P/N 29010049 V1.2
34
Wiring the Processor
Place the Processor in front of you with the
lettering right side up. Remove the four
Phillips screws from each end. Remove the
end pieces of the Processor enclosure.
Looking into the open ends of the Processor
you will see several green terminal strips.
These terminal strips are mounted into
sockets. You can remove the terminal strips
from the processor by gently pulling them
away from the end of the Processor.
The terminal strips are labelled with numbers
corresponding to the wiring diagrams on the
following pages.
P/N 29010049 V1.2
35
BLACK ORBROWN
WHITE ORORANGE
J6
J7
Right-hand side. Cable 1, Control Unit
Note: There is an extra yellow wire in the cable that is not used.
Pull all of the terminal strips from the right-hand end of the Processor.
Note that there is an empty socket which does not have a terminal strip. When you replace the
terminal strips, do not accidentally place one into the empty socket.
Pass the wires numbered "1", "2" and "3" through the watertight glands on the right end cap as
shown in the diagrams labelled:
•
Right-Hand Side. Cable 1, Controller
•
Right-Hand Side. Cable 2, Compass
•
Right-Hand Side. Cable 3, Rudder Feedback
Use the same diagrams to wire the individual wires to the terminal strips.
Insert the bared end of the wire into the terminal strip and fasten it there by tightening the screw on
the terminal strip. Start from one end of the terminal strip and work to the other in sequence. Check
your work.
P/N 29010049 V1.2
36
J6
J7
Right-hand side. Cable 2: Compass.
Note: Yellow wire on terminal #2 may be substituted with a brown wire.
Connections for Non SP-70/80 Fluxgate Compasses
Be careful:
The entire stripped end of the wire must be completely inside the terminal strip. Stripped
sections of wire must not be able to touch each other.
Every wire must be connected to the correct terminal.
J6
(12 POS)
SP-70/80
Fluxgate
SP-70/80
Function
Non-SP-70/80
Connections
1
Shield
Ground
Gnd
2
Yellow
Cosine
Cosine *
3
White
Ref
Ref
4
Blue
Sine
Sine *
5
Black
Drive P2
N/C
6
Red
Drive P1
N/C
7
Green
+12V
+12V
* If the reading is reversed, swap these two wires.
P/N 29010049 V1.2
37
J6
J7
Right-hand side. Cable 3, Rudder Feedback
When you have completed the right-hand
wiring, remove the terminal strips from the left
hand end piece.
Place the gland from the accessory kit in the
hole. Fasten it with the supplied plastic nut
and tighten securely.
The optional navigation input may be
connected at this time. Parts for this are in
your Accessory Bag. We do not supply the
cable for this connection. This input is
diagrammed on the next page.
Pass the wires numbered "4" and "5" through
the glands in the left hand end cap as shown
in the diagrams labelled," Cable 4, Pump
Motor", and " Cable 5, Power". Using the
same diagrams, wire the left hand terminal
strips. These drawings do not show the gland
for the optional navigation input.
The gland for this input must be mounted on
the end cap. To locate the hole for the gland,
look on the inside of the end cap. You will
see several places where the plastic has
been formed so that a hole may be easily
drilled. Drill the hole using a 9/32 (7 mm) drill.
P/N 29010049 V1.2
38
J1
J2
Left hand side showing optional navigation input connection
Use the diagram above to wire the navigation input. The terminal strip for this is in your Accessory
Bag. See your LORAN, GPS, or plotter manual for information about wiring connections from that
unit. The cable shield should be connected only to the Nav device.
J1
Left hand side. Cable 4, Pump Motor.
Please see appendixes for wiring to other motors or solenoids.
P/N 29010049 V1.2
39
J1
J2
Left-hand side. Cable 5, power
Connecting the ground
FUSE REPLACEMENT
In the picture above, the ground wire is the
green wire. It is connected to the bolt beside
the terminal sockets for the power
connection.
The Si-Tex Processor is protected against
reversed power connection by a fuse. The
fuse will probably not blow otherwise. If you
need to replace this fuse, check your power
supply for correct polarity.
The green wire is connected by removing
one of the nuts and the lock-washer from the
bolt. Place the connector on the end of the
green wire over the bolt. Replace the lock
washer. Replace the nut and tighten it
securely.
To replace the fuse:
1.
Turn off the power to the Processor.
2.
The other end of this wire should be
connected to the grounding point you have
chosen aboard your boat. See page 24 for
examples of possible grounding points.
Loosen the right side watertight glands.
Remove the end cap. Disconnect the
plugs.
3.
If you are assembling your Autopilot for the
first time, please go to the section titled,
"Mounting the Processor" on the next page.
Remove the 4 Phillips screws holding
the inner end cap. Remove the inner
end cap.
4.
Bend up the copper ground tabs so that
they are parallel to the body of the
Processor.
5. Loosen the left hand side watertight
glands. Remove the outer end cap.
P/N 29010049 V1.2
40
Disconnect the plugs.
6.
7.
The second method is:
Remove the four Phillips screws holding the inner end cap.
Mount the processor in its location.
Hold the left hand inner end cap. Slide
the Processor case to the right. This will
Plug the terminal strips and wires into the
expose the circuit board.
correct locations.
8.
The fuse is located on the top left hand
corner of the board. If it is damaged,
replace it with a 20 Ampere AGC fuse.
9.
Reassemble the Processor by
through the above steps in
order. Recheck your power
before you insert the
connector.
Attach the end pieces. Do not damage any
wires while tightening the screws. Tighten the
nuts on the watertight glands firmly with your
hands. If you must use a tool, be very careful.
It is very easy to damage the glands by using
too much force.
working
reverse
polarity
power
Turn on the breaker for the Autopilot or
connect the Power cable to the breaker.
The black wire connects to the negative
terminal. The white wire connects to the
positive terminal.
The green wire is
ground. See page 24 if you have not
already decided on a ground.
10. Before leaving the dock, turn on the
Autopilot. Press the Red and Green
Keys to move the rudder or outboard
motor. If the new fuse fails at this time,
you still have an electrical problem on
your boat, or the Autopilot needs repair.
The Installation of the SP-70 or SP-80 is
complete. You are now ready to begin the
"Set-up Routine".
Mounting the Processor
Once you have completed and checked the
wiring, you are ready to mount the Processor.
There are two ways this can be done,
depending on the amount of space you have.
The first method will usually be easier.
For ease of wiring, it is recommended that
the Processor be mounted horizontally
rather than vertically.
The first method is:
Plug the terminal strips into their correct
positions on the processor.
Attach the end pieces. Do not cut or crimp
any wires while tightening the screws.
Tighten the nuts on the watertight glands.
Tighten these nuts firmly with your hand. If
you must use a tool, be very careful. It is very
easy to damage the glands by using too
much force.
Mount the Processor in its location.
P/N 29010049 V1.2
41
LOCATING THE “FLUSH KEY”
SP-70 shown in the Pilot mode and steering a heading of 359 degrees
On an SP-70 Control Head, the Flush Key is located immediately below the digital display and is
flush with Control surface to prevent accidental button pushes.
SP-80 shown in the Pilot mode and steering a heading of 359 degrees
On an SP-80 Control Head, the Flush Key is located immediately below the SET and NAV keys
and is flush with Control surface to prevent accidental button pushes.
P/N 29010049 V1.2
42
SP-70 SET-UP ROUTINE (see page 50 for SP-80 set-up routine)
1.
Press and hold the Flush Key (see
page 44). Press and hold the Pilot Key
until the display shows [FrST] and then
[HO S] (Hard over to Starboard) Release
both keys.
The SP-70 must be OFF before you begin
the Set-up Routine. The first part of this
routine can be done at the dock. If you have
a Fluxgate Compass, you will later repeat the
first part away from the dock.
The SP-70 Autopilot will guide you through
the steps of the Set-up Routine. You cannot
leave the routine without completing it.
Turning off the Autopilot will not cause it to
exit from the Routine.
Error Messages will appear if the SP-70 finds
a fault. Correct the fault before proceeding to
the next step.
An explanation of common Error Messages
that may appear is placed inside a box like
the one below. A full list of Error messages is
at the end of this manual.
The error message for steps 2 to 4 is [rEdO] (redo). Press the Pilot Key to cancel the alarm. Then
repeat the step.
If you cannot perform these steps without the alarm sounding, check your Rudder Follower
Installation and your steering system. Ensure that:
• The steering system can move through its full range of motion.
• The steering system has been bled properly.
• The Rudder Follower Linkage is assembled according to instructions.
• The wire connections going from the Rudder Feedback to the Processor are connected to the
correct Processor terminal and terminal numbers.
• The wire connections are mechanically strong and are not becoming intermittent due to loose
connections.
If you have an Outboard Feedback, ensure that:
• The Outboard Feedback travels an equal distance in each direction.
P/N 29010049 V1.2
43
The display will show [HO S]
(Hard Over to Starboard).
The display will next show [HO P] (Hard Over
to Port).
3. Turn the steering wheel fully to the
left. Press the Set Key.
2. Turn the steering wheel fully to the
right. Press the Set Key.
The display will show [UAIt] (Wait) for a few
seconds.
The display will show [UAIt] (Wait) for a few
seconds.
The display will then show [Cntr] (center).
P/N 29010049 V1.2
44
IMPORTANT
The steering gear will move from side to side.
As the Autopilot tests the drive system the
display will show [d’tSt]. As the Autopilot
checks the rudder the display will show [r’tSt].
The Output marks at the top of the display
will show the direction of rudder movement.
The display may also show timing marks.
4. Move the steering wheel to the
center position.
6.
The display will now show [bLEd]
(Bleed). You are now in the bleed
mode.
CAUTION
If you have installed a pump or retrofitted to
an existing mechanical or hydraulic drive unit,
you must now bleed and/or time your pump.
Please see the section titled Pump Bleeding
Instructions.
In the next step, the SP-70 will move the
steering system through its full range of
motion. Pressing and holding the
SBY/OFF KEY will stop the steering
movement immediately.
5.
Press the Set Key.
NOTE:
IF YOU DO NOT NEED TO BLEED OR
TIME YOUR SYSTEM, GO TO STEP 7.
P/N 29010049 V1.2
45
7.
Press the Set Key.
If the compass is a Fluxgate Compass the
display will show [FLUH].
The Autopilot will next display [turn] (Turn).
You must now adjust your compass.
The Autopilot will next display a message
about the compass type.
8.
Press the Set Key. The Autopilot
will turn off.
If you have a magnetic compass the display
will show [nAG] (magnetic).
Go to Step twelve.
The error message for this step is [nC:Er] (No compass Error). Ensure that:
• The compass cable is connected to the correct Processor terminals.
• There are no poor or loose connections on the Compass cable.
• When using a Magnetic Compass Sensor, the sensor reads the Compass card position
properly. Some Magnetic Compasses have magnets so weak that the Sensor will not function
properly.
Press the Pilot Key to clear the alarm, correct the problem, try the step again.
For Fluxgate Compasses
Put your tools and other magnetic objects in
storage places away from the Fluxgate
Compass.
To fully adjust the Fluxgate Compass, it is
necessary to take a short trip with your boat.
P/N 29010049 V1.2
46
Check your hydraulic installation for any
leaks or loose components.
10.
Slowly turn the boat in as small a
circle as possible.
Do not attempt to adjust the compass near a
steel bridge, a submarine cable, or a steel
ship.
It must take at least one minute to complete
the turn. If the Compass adjustment is
satisfactory, the Autopilot will show [nort]. Go
to Step Thirteen.
Move your vessel to a location that is:
• Free from other water traffic.
• Far away from large magnetic objects.
If the Autopilot will not stop displaying [tUrN],
you may have such a strong magnetic field
aboard your vessel that the compass is not
able to sense any motion. If this occurs, try
moving the compass far away from it’s
present location and repeat the turn.
9.
RE-START SET-UP procedure at
Step 1 and follow until display shows
[FLUH]. Go to step 10.
11.
Use four #10 (5mm) screws to
mount your Fluxgate Compass.
These screws should be a non-magnetic
material such as high quality stainless steel
or brass.
If the Compass adjustment is not satisfactory the Autopilot will display
[MovE] (Move).
The Autopilot has been unable to adjust the Compass for the strong magnetic fields in that
location. You must select another location which is further from magnetic materials or power
cables. On small vessels the compass location often is a compromise between the most stable
position and the position which has the least magnetic interference.
Press the Pilot Key to continue the Set-up Routine.
P/N 29010049 V1.2
47
For Magnetic Compasses
For Fluxgate Compasses
12.
If you have a magnetic compass
the Autopilot will display [nort] (North).
13.
Autopilot will display [nort] (north)
after successful calibration of the fluxgate
compass (#10 in Set-up Routine).
As accurately as possible, point your
vessel to magnetic North and press the
Set Key.
Point your vessel, or simply turn the
compass, until the compass is pointing
North. Press the Set Key.
The Autopilot will then turn off.
This
procedure will calibrate your Autopilot
heading display with the actual magnetic
The Autopilot will then turn OFF.
heading.
The Autopilot has not compensated for any
differences between North as shown by your
compass and the real direction of magnetic
North. You alone are responsible for the
accuracy of your compass in its location.
The Autopilot has not compensated for any
differences between North as shown by your
compass and the real direction of magnetic
North. You alone are responsible for the
accuracy of your compass in its location.
Mount your compass in its location using
fasteners made of non-magnetic materials
such as high quality stainless steel or brass.
Mount your fluxgate compass in its location
using fasteners made of non-magnetic
materials such as high quality stainless steel
or brass.
The Set-up Routine is now complete.
The Set-up Routine is now complete.
P/N 29010049 V1.2
48
SP-80 SET-UP ROUTINE
SP-80 MUST BE OFF BEFORE YOU BEGIN
THE Set-up Routine. The first part of this
Routine can be done at the dock. If you have
a Fluxgate Compass, you will later repeat the
first part away from the dock.
1,
Press and hold the Flush Key (see
page 32). Press and hold the Pilot Key
until the display shows [FrST] and then
[Ho S] (Hard over to Starboard). Release
both keys.
The SP-80 Autopilot will guide you through
the steps of the Set-up Routine. You cannot
leave the Routine without completing it.
Turning off the Autopilot will not cause it to
exit from the Routine.
Error messages will appear if the SP-80 finds
a fault. Correct the fault before proceeding to
the next step.
An explanation of common Error messages
that may appear is placed inside a box like
the one below. A full list of Error messages is
at the end of this manual.
The error message for steps 2 to 4 is [rEdO] (redo). Press the Pilot Key to cancel the alarm. Then
repeat the step.
If you cannot perform these steps without the alarm sounding, check your Rudder Follower
Installation and your steering system. Ensure that:
• The steering system can move through its full range of motion.
• The steering system has been bled properly.
• The Rudder Follower Linkage is assembled according to instructions.
• The wire connections going from the Rudder Feedback to the Processor are connected to the
correct Processor terminal and terminal numbers.
• The wire connections are mechanically strong and are not becoming intermittent due to loose
connections.
If you have an Outboard Feedback, ensure that:
• The Outboard Feedback travels an equal distance in each direction.
P/N 29010049 V1.2
49
The display will next show [HO P}
(Hard Over to Port).
The display will show [HO S]
(Hard Over to Starboard).
3. Turn the steering wheel fully to the left.
Press the Set Key.
2.
Turn the steering wheel fully to the
right. Press the Set Key.
The display will show [WAIt] (Wait) for a few
seconds.
The display will then show [Cntr] (Center).
The display will show [WAIt] (Wait) for a few
seconds.
P/N 29010049 V1.2
50
IMPORTANT
The steering gear will move from side to side.
As the Autopilot tests the drive system the
display will show [d’tSt]. As the Autopilot
checks the rudder the display will show [r’tSt].
The Output marks at the top of the display will
show the direction of rudder movement. The
display may also show [O’Cur] and other
timing marks.
4.
Move the steering wheel to the
center position.
6.
The display will now show [bLEd}
(Bleed). You are now in the bleed
mode.
CAUTION
In the next step, the SP-80 will move the
steering system through its full range of
motion.
Pressing and holding the
SBY/OFF KEY will stop the steering
movement immediately.
5.
If you have a hydraulic system and if you
opened the hydraulic lines during the
Autopilot installation, then you must now
bleed and/or time your pump. Please see the
section titled Pump Bleeding Instructions.
Press the Set Key.
NOTE:
IF YOU DO NOT NEED TO BLEED YOUR
SYSTEM, GO TO STEP SEVEN.
P/N 29010049 V1.2
51
7.
Press the Set Key.
If the compass is a Fluxgate Compass the
display will show [FLUH].
The Autopilot will next display [tUrN] (Turn).
You must now adjust your compass.
The Autopilot will next display a message
about the compass type.
If you have a magnetic compass the display
will show [nAG] (magnetic).
8.
Press the Set Key. The Autopilot
will turn off.
Go to Step twelve.
The error message for this step is [nC:Er] (No Compass Error). Ensure that:
• The Compass cable is connected to the correct Processor terminals.
• There are no poor or loose connections on the Compass cable.
• When using a Magnetic Compass Sensor, the sensor reads the Compass card position
properly. Some Magnetic Compasses have magnets so weak that the Sensor will not function
properly.
Press the Pilot Key to clear the alarm. Correct the problem. Try the step again.
P/N 29010049 V1.2
52
For Fluxgate Compasses
10.
Slowly turn the boat in as small a
circle as possible.
To fully adjust the Fluxgate Compass, it is
necessary to take a short trip with your boat.
It must take at least one minute to complete
the turn. If the Compass adjustment is
satisfactory, the Autopilot will show [nort]. Go
to Step Thirteen.
Put your tools and other magnetic objects in
storage places away from the Fluxgate
Compass.
If the Autopilot will not stop displaying [tURN],
you may have such a strong magnetic field
aboard your vessel that the compass is not
able to sense any motion. If this occurs, try
moving the compass far away from it’s
present location and repeat the turn.
Check your hydraulic installation for any leaks
or loose components.
Do not attempt to adjust the compass near a
steel bridge, a submarine cable, or a steel
ship.
11.
Use four #10 (5mm) screws to
mount your Fluxgate Compass.
Move your vessel to a location that is:
• Free from other water traffic.
• Far away from large magnetic objects.
These screws should be a non-magnetic
material such as high quality stainless steel or
brass.
9.
RE-START SET-UP procedure at
Step 1 and follow until display shows [FLUH].
Go to step 10.
This completes the Set-up Routine.
If the Compass adjustment is not satisfactory the Autopilot will display
[MovE] (Move).
The Autopilot has been unable to adjust the Compass for the strong magnetic fields in that location.
You must select another location which is further from magnetic materials or power cables. On
small vessels the compass location often is a compromise between the most stable position and the
position which has the least magnetic interference.
Press the Pilot Key to continue the Set-up Routine.
P/N 29010049 V1.2
53
For Magnetic Compasses
For Fluxgate Compass
12.
If you have a magnetic compass
the Autopilot will display [nort] (North).
13.
If you have a fluxgate compass, the
Autopilot will display [nort] (North) after
successful calibration of the fluxgate compass
(#10 in Set-up Routine).
Point your vessel, or simply turn the
compass, until the compass is pointing
North. Press the Set Key.
As accurately as possible, point your
vessel to magnetic North and press the
Set Key.
The Autopilot will then turn OFF.
The Autopilot has not compensated for any
differences between North as shown by your
The Autopilot will then turn OFF.
This
procedure will calibrate your Autopilot heading
display with the actual magnetic heading.
compass and the real direction of magnetic
North. You alone are responsible for the
accuracy of your compass in its location.
The Autopilot has not compensated for any
differences between North as shown by your
compass and the real direction of magnetic
North. You alone are responsible for the
accuracy of your compass in its location.
Mount your compass in its location using
fasteners made of non-magnetic materials
such as high quality stainless steel or brass.
The Set-up Routine is now complete.
Mount your compass in its location using
fasteners made of non-magnetic materials
such as high quality stainless steel or brass.
The Set-up Routine is now complete.
P/N 29010049 V1.2
54
Pump Bleeding Instructions
1.
have a helper, have them watch the oil
level in the highest reservoir and refill it
when necessary.
Bleed your manual steering system
according
to
the
manufacturer's
instructions. When you have completed
the bleeding, leave the equipment for
the bleeding procedure attached to your
hydraulic steering system.
2.
Fill your highest reservoir completely.
Turn the steering wheel just past the
stop to press as much oil as is possible
into the system.
3.
If you can, use a bottle of recommended
hydraulic oil and a piece of plastic
tubing to add extra capacity to your
highest reservoir.
Adding Capacity
The manufacturer of your system may
provide these items when you purchase
a bleeding kit for your system. If you
P/N 29010049 V1.2
55
4.
Your hydraulic cylinder rod is now fully
extended in one direction. To bleed the
Reversing Pump you will be extending
the cylinder rod in the other direction.
Open one and close the other bleeding
screw just as you did when bleeding the
manual part of your system and you
were extending the cylinder arm in this
direction. Generally, you close the
bleeding screw or nipple closest to the
rod which is now retracted. Open the
bleeding screw closest to the now
extended rod. See diagram on following
page.
5.
Position yourself so that you can see
your hydraulic steering cylinder while
operating the Controller.
6.
You will be able to move the steering
cylinder rod by pressing the Red Key or
the Green Key on the Controller. When
you press the key, the lights will stop
blinking and the red or green light will
turn on. Extend the rod as far as it will
travel in the other direction.
Bleeding cylinder, rod moving left
Bleeding cylinder, rod moving right.
7.
much oil as possible into the system. It
will not damage the pump.
If you are using a Reversing Pump, let
the Autopilot drive the Reversing Pump
until it nearly stops after the rod reaches
the end of it’s travel. This will press as
P/N 29010049 V1.2
The SP-70 or SP-80 will drive the pump
past the electronic rudder limit only when
56
the display shows [bLEd].
11. Refill the highest reservoir.
8.
9.
Refill your steering system from the
highest reservoir.
12. Repeat steps 6 to 10 at least 10 times.
Adjust the bleeding screws so that the
cylinder will be bled when the rod is
extended in the original direction.
Generally, you close the bleeding screw
or nipple closest to the now retracted
rod. Open the bleeding screw closest to
the rod that is now extended.
13. Close all bleeding screws or nipples.
Clean up any oil spills and wipe fittings
clean. Remove any buckets or
equipment a short distance from the
cylinders and fittings.
14. Use the Control Unit to extend the rod
fully in one direction and then the other.
10. Use the Controller to fully extend the
cylinder rod to the other side.
15. Check for leaks by looking for spilled
hydraulic fluid on or near fittings and
cylinders.
16. Check that a hardover to hardover time
of 10 - 15 seconds can be attained with
your drive unit.
17. Return to Step 7 of the Set-up Routine.
****
IMPORTANT
****
If you have installed a ComNav Marine reversing motor pump, a constant running pump or an
engine driven pump, there are several checks that must be done during the first several weeks of
usage in order to prevent poor or dangerous steering performance. During this period you must
check for air or leaks in your hydraulic system.
Residual air in your steering system
Following the initial installation and bleeding of your ComNav pump, some residual air may remain
suspended in the hydraulic fluid. During the first few weeks, this air will gradually bleed out through
the header tank or the highest helm pump and the oil level may go down. Check several times and
add more oil as required.
Leaking fittings or equipment
Following the initial installation and bleeding of your ComNav pump, continuously monitor the oil
level of the reservoir, or the highest helm pump in your steering system and add oil as required. If
this condition persists, it may be an indication of leakage in your steering system. Check all
hydraulic steering fittings and equipment for leakage.
P/N 29010049 V1.2
57
This page is intentionally blank
P/N 29010049 V1.2
58
PILOTING WITH THE SP-70 or SP-80 AUTOPILOT
Some vessels may not use all of the
Rudder & Counter-Rudder Response
settings.
This section will introduce you to your
SI-TEX Autopilot: Learn your Autopilot's
operations step by step, you will find it's one
of the simplest things on your boat.
•
Four: Rudder Response settings.
Turn on the SI-TEX Autopilot by holding
down the Pilot Key for two seconds. The
autopilot will display “SP” first, then software
versions and last, vessel heading followed by
a “P”. You are now piloting with the SP-70 or
SP-80. To get manual command back, press
the Sby/Off Key momentarily.
•
Ten: Sensitivity steps for each Rudder
Response setting.
PILOT MODE
Fast Boat Speed Setting
Steering Control Settings
The SI-TEX Autopilot has a very wide range
of steering control settings. There are:
Each Rudder Response setting controls the
steering in a very different way. The four
Rudder Response settings are:
•
•
•
•
Some vessels always respond quickly to a
small movement of the steering wheel
regardless of the boat speed. These boats
might get the best steering control by always
using the "fast" boat speed setting. When the
boat speed varies, change the sensitivity of
the "fast" Rudder Response by a few steps.
This might give you better steering
performance than using the "slow" boat
speed Rudder Response setting.
Slow Rudder Response
Slow Counter-Rudder Response
Fast Rudder Response
Fast Counter-Rudder Response
The 10 sensitivity steps are numbered zero to
nine. Zero is an active setting and does not
mean OFF.
PILOT MODE
Slow Boat Speed Setting
In this section, you will learn how to:
•
•
•
•
Some vessels always require large amounts
of steering wheel movement to start and stop
a turn. These might get the best steering
performance by using only the "slow" boat
speed Rudder Response setting for all
speeds. When the boat speed varies, change
the Sensitivity of the "slow" Rudder
Response by a few steps. This may be all
that is required.
Use your Autopilot to steer a compass
course.
Select between the “fast” and the “slow”
boat speed Rudder & Counter-Rudder
Response.
Select the correct sensitivity in each
Rudder & Counter-Rudder Response.
Use the features of your Autopilot.
After you have learned how to do this,
experiment with your boat to find the
combination of Rudder & Counter-Rudder
Response settings that work the best for you.
P/N 29010049 V1.2
What is Good Steering Control?
When your SI-TEX Autopilot is working
properly, it will steer your vessel in a straight
line. The boat will not wander back and forth
across the course line nor make any sudden
turns unless you command it (refer to page
67).
59
Setting Slow Speed Rudder Response
OFF
If you wish to turn off the Autopilot, press and
hold the sby/Off Key for 2 seconds.
Immediately after pressing this key, you will
have manual vessel steering control.
It is best to set the slow speed Rudder
Response first. These adjustments are much
easier to do if the water is calm and there is
little wind.
At this point, you will have finished adjusting
your compass and exited the Set-up Routine.
Move your boat to an open area of water
away from docks and other boats.
With the Autopilot on, press the Set Key. For
a five second interval the display will read
either [FASt] (fast) or [SLOU] (slow). This is
the Rudder Response speed setting that your
Autopilot is currently using.
Your vessel may make several turns while
you are setting the Rudder Response. Make
sure that you and your passengers are
braced for unexpected movement.
If the display is reading [FASt], press the
Green Key during the five second interval to
change the display to [SLOU]. Your vessel is
now using the slow boat speed Rudder
Response settings.
Adjust your throttle so that your boat is
moving at a commonly used slow speed. If
you fish often, this could be your trolling
speed. Bring your boat onto a course.
Allow the Autopilot to steer your boat for
a few minutes, so you can measure its
performance. The pilot may move back
and forth across the desired course line.
Turn ON the SP-70 or SP-80 Autopilot. To
turn on the Autopilot, press the Pilot Key.
The Autopilot will fist display SP, then the
software version number. Finally, the present
course followed by a capital letter “P” will be
displayed. [xxxP]. The Autopilot will now
begin to steer the boat along the displayed
course. The autopilot is in PILOT MODE and
is steering by the compass.
This movement occurs when your rudder
sensitivity is too high or your counter rudder
sensitivity is set too low. The autopilot is
over-correcting for course errors (refer to
diagram on page 65).
To decrease the Rudder sensitivity:
Press the Set Key. The display will show
[SLOU] for five seconds. During this five
second interval, press the Set Key again and
the Autopilot will display the Rudder
sensitivity setting.
Press the Red Key once to decrease the
sensitivity setting by one step.
P/N 29010049 V1.2
60
To
increase
sensitivity:
the
Counter-rudder
To
decrease
sensitivity:
the
Counter-Rudder
Press the Set Key. The display will show
[SLOU] for five seconds. During this five
second interval, press the Set Key two more
times to display the Counter-Rudder
sensitivity setting.
Press the Set Key. The display will show
[SLOU] for five seconds. During the five
second interval, press the Set Key two more
times to display the Counter-Rudder
sensitivity setting.
Press the Green Key to increase the
Counter-Rudder sensitivity setting by one
step.
Press the Red Key to decrease the CounterRudder sensitivity setting by one step.
Wait for half a minute to let the vessel settle.
To see how straight a course the Autopilot is
steering, watch the wake of your boat behind
you. If this new setting is still not suitable,
repeat the instructions above. Continue this
process until your vessel is steering well.
Turns and Changing Course
The vessel may also gradually fall off the
desired course line:
Press the Sby/Off Key briefly. The autopilot
is now in STANDBY MODE. This will be
indicated by the mark in the top right corner
of the display. [xxx’]
While you are travelling slowly, it is a good
time to practice using your SI-TEX Autopilot.
Standby
To increase the Rudder sensitivity:
Press the Set Key. The display will show
[SLOU] for five seconds. During this five
second interval, press the Set Key again and
the Autopilot will display the Rudder
sensitivity setting.
In STANDBY MODE, the autopilot will display
the compass heading. You can manually
steer your vessel in STANDBY.
Power Steer
Press the Green Key once to increase the
sensitivity setting by one step.
CAUTION
Wait for half a minute to see if this is suitable.
If you have a mechanical steering
system, activation of either the RED or
GREEN Key while in the POWER
STEER mode, will cause your
steering wheel to move.
If your vessel still does not hold the course,
repeat the instructions above.
P/N 29010049 V1.2
61
Small Course Change
Pressing the Red or Green Key in STANDBY
MODE switches the Autopilot to Power Steer
Mode. The display will have a degree symbol
in the top right corner [xxx º]. You can now
use the Red and Green Keys to steer.
To make a one degree course change to the
right, briefly press and release the Green
Key. The display will change to show your
new course.
To turn right, press the Green Key. To turn
left, press the Red Key.
To make a one degree course change to the
left, briefly press the Red Key. The display
will change to show your new course.
To return to STANDBY MODE and manual
steering control, press the Sby/Off Key
briefly.
Dodge
In POWER STEER MODE, the rudder angle and
the rate of turn will increase as long as you
hold the Red or Green Key down. When you
release the key, your vessel will continue to
turn at a constant rate. To decrease the rate
of turn, or to go straight, press the other key.
To dodge around an object in the water,
press and hold either the Green or Red Key.
The letter at the right-hand side of the display
will change to a “d” [xxxd]. The course will
be displayed.
The course will change as long as you hold
down the Red or Green Key. The Autopilot
will turn your vessel to follow the changing
course. Your vessel will turn at a rate of 5º
per second in “slow” boat speed setting.
Each time you press the Red or Green Key:
• output indicators appear at the top of the
display and,
• the rudder angle is displayed for two
seconds.
After the key is released, the Autopilot will
return to its original course. The display will
again show the course with a capital P [xxxP]
on the right-hand side.
If you wish to always see the rudder angle,
press the Set Key. The display will be locked
on.
Large Course Change
To return to the compass heading display,
press the Set Key.
There are several ways to make large course
changes:
Pilot Mode
1. Press the Red or Green Key until your
vessel is heading on the new course.
Press the Pilot Key.
Press the Pilot Key to place your Autopilot in
PILOT MODE. The Autopilot will now steer by
the compass.
While turning, the vessel’s heading usually
falls behind the Autopilot’s new course. After
you release the Red or Green Key the vessel
will continue to turn until it reaches the
Autopilot’s new commanded course as
displayed.
In PILOT MODE the Autopilot display will show
the commanded course and a capital “P” at
the right-hand side [xxxP].
P/N 29010049 V1.2
62
When your vessel has settled on its new
course, you will likely wish to make fine
course adjustments using the Red and Green
Keys.
sensitivity is too high or your Counter-Rudder
sensitivity is set too low. The autopilot is
over-correcting for course errors (see
diagram on page 67).
2. First estimate or chart the difference in
degrees between your new course and your
present course. Press either the Red Key or
the Green Key until the course to steer
shown on the display is the same as your
new course. Press the Pilot Key. Your
vessel will turn to the new course.
To decrease the Rudder sensitivity:
Press the Set Key. The display will show
[FASt] for five seconds. During this five
second interval, press the Set Key again and
the Autopilot will show the Rudder sensitivity
setting.
Press the Red Key once to decrease the
Rudder sensitivity setting by one step.
The speed of the turn will be governed by the
Autopilot. The Autopilot will turn the vessel at
5º per second if it is set to the “slow” boat
speed setting.
If your vessel continues to wander across the
course line, repeat the above instructions
until the Autopilot steers your boat in a
straight line.
3. A third way to make large course changes
is to press the SBY/OFF Key. The Autopilot
will go to STANDBY MODE. Press the Red or
Green Key to enter POWER STEER MODE and
make your course change.
When your
heading is correct, press the Pilot Key. The
SP-70 or SP-80 will steer along the new
course.
To
increase
sensitivity:
Counter-Rudder
Press the Set Key. The display will show
[FASt] for five seconds. During this five
second interval, press the Set Key two more
times to display the Counter-Rudder
sensitivity setting.
4. Press the SBY/OFF Key. The Autopilot
will go to STANDBY MODE. You will be able to
use the steering wheel to set the new course.
Press the Pilot Key again, and your Autopilot
will steer your boat along your new course.
Press the Green Key to increase the
Counter-Rudder sensitivity setting by one
step.
Setting Fast Speed Rudder &
Counter- Rudder Response.
Wait for half a minute to let the vessel settle.
To see how straight a course the Autopilot is
steering, watch the wake of your boat behind
you. If this new setting is still not suitable,
repeat the instructions above. Continue until
your vessel is steering well.
Press the Pilot Key to steer a course by
compass. Advance the throttle so that your
vessel is moving at cruising speed. With the
autopilot ON, press the Set Key. For a five
second interval the display will show either
[SLOU] (slow) or [FASt] (fast). This is the
rudder response speed setting that your
autopilot is currently using. If the display is
reading [SLOU], press the Green Key during
the five second interval to change the display
to the [FASt] (fast) setting. Your vessel is
now using the fast boat speed Rudder
Response settings.
The vessel may move back and forth
across the desired course line.
If your vessel falls away from the course
line:
The Rudder Response is not sensitive
enough (see diagram on page 67).
This movement occurs when your Rudder
P/N 29010049 V1.2
the
63
Fast Speed Turns and Course
Changes
To increase Rudder sensitivity:
Press the Set Key. The display will show
[FASt] for five seconds. During this five
second interval, press the Set Key again and
the Autopilot will display the Rudder
sensitivity setting.
Your vessel will respond more quickly to a
Red or Green Key press than it did in the
“slow” speed Rudder Response setting. The
rate of turn in the “fast” boat speed setting is
10º per second. Experiment with this so that
you will be familiar with its effect.
Press the Green Key once to increase the
Rudder sensitivity setting one step.
All commands in the fast boat speed Rudder
Response setting work as they did in the slow
speed Rudder Response setting.
If the vessel continues to fall away from its
course, repeat the steps above.
To decrease Counter-Rudder sensitivity:
Press the Set Key. The display will show
[FASt] for five seconds. During the five
second interval, press the Set Key two more
times to display the Counter-Rudder
sensitivity setting.
A table of Autopilot commands is on page 73.
Wait for half a minute to let the vessel settle.
To see how straight a course the autopilot is
steering, watch the wake of your vessel
behind you. If the new setting is still not
suitable, repeat the instructions above.
Repeat until your vessel is steering well.
P/N 29010049 V1.2
64
Correct Vessel Response During a Course Change
P/N 29010049 V1.2
65
Adjusting Your Digital Rudder
Angle Indicator (RAI)
Offset
Many vessels always need the rudder
positioned to the right or left a small amount.
This slightly offset rudder position is needed
to correct for the turning effect of a single
propeller. To the driver, it feels that this
Offset Position is the straight-ahead position
or the 0-degree position.
The SP-70 & SP-80 also provide an
electronic Rudder Angle Indicator.
You can adjust the R.A.I. so that it accurately
reflects your rudder movements.
For this adjustment, you should have your
boat out on the water away from traffic lanes.
If you have power assisted steering, start with
your motor idling so that you can use your
power steering.
To avoid confusion, the RAI can be calibrated
so that it will show zero degrees when the
vessel is travelling straight ahead, even if the
rudder is slightly offset.
While travelling straight ahead at cruising
speed with the Autopilot in POWER STEER,
press the Flush Key. Press the Red and
Green Keys to adjust the RAI to show zero
degrees.
Press the Pilot Key to turn on the autopilot.
Briefly press the Sby/Off Key.
With the Autopilot in STANDBY, use manual
steering to move the steering gear from the
left mechanical limit to the right limit. Watch
the motor or rudder. Estimate in degrees the
size of the arc from left to right.
The Autopilot will return to its previous display
when you have finished.
This must be done manually, as the autopilot
will not move the steering gear so far that the
steering strikes a mechanical limit. The
Autopilot sets these electronic limits during
the Set-up Routine to save wear on your
steering system.
Press the Green Key once and then press
the Flush Key twice. The display now shows
the total degrees of travel of your steering
system. Press the Red and Green Keys to
adjust the number until it is the same as your
estimation of the actual arc.
A short interval after you have completed
your adjustment, the Autopilot will return to its
previous display.
P/N 29010049 V1.2
66
Using Your Navigation Interface
To be safe, learn to use your Navigation
Interface at slow speeds, away from other
vessels.
If the autopilot consistently beeps every five
seconds and displays [n’dAt] (No Data) then
it is not receiving usable data from the
navigation device. The Autopilot will stay in
the NAV MODE and WILL CONTINUE TO STEER
Turn on the navigation device.
TO THE PRESENT HEADING USING COMPASS
INFORMATION.
Please remember that all SI-TEX SP-70 and
SP-80 Autopilots are tested at the factory, so
the first things to check are your wiring and
your navigation device. Read your owner’s
manual for the navigation device to make
sure that it is sending out NMEA 0183
language.
Also see the next section:
“Problem Solving”, for further help.
This could be a LORAN, GPS or plotter.
Give it time to find its position accurately and
turn off its warning indicators.
Enter a Waypoint into the navigation
device.
With some navigation devices, it is necessary
to tell them to send information to the
Autopilot.
If the Autopilot intermittently displays [F’dat]
(Faulty Data), then it is receiving a warning
signal from the navigation device.
With all navigation devices, make sure that it
is sending information in the NMEA 0183
format.
Caution
Look at the Control Unit display. Press
the Nav Key.
It is strongly recommended that you do not
continue to use the NAV MODE if [F’dat] is
displayed.
The autopilot is now in NAV MODE. The
Autopilot will display [xxxn}. The large lower
case “n” at the right side of the display shows
the Autopilot is in NAV MODE.
This signal indicates that the navigation
information may not be accurate. Check your
navigation device for warning indicators such
as a flashing light or message.
If the SI-TEX Autopilot receives usable data
from your navigation device, the display will
show the course changing towards the new
bearing. The SP-70 or SP-80 will bring your
boat onto the new course. It will steer
towards the Waypoint using the information
from the Nav device and the compass.
If the vessel seems to steer away from the
course line, or back to it’s starting point,
push and hold the Flush Key and press the
Green Key once. Please read the section
called “Navigation Interface.”
P/N 29010049 V1.2
67
The Navigation Interface
Because of this, the SI-TEX Autopilot lets you
change the way it interprets the direction of
cross track error. In NAV MODE, press the
Flush Key. The display will show either [---‘n]
(normal) or [---r] (reversed). Use the Green
Key to change the setting.
Your cross track error direction is correct if
the Autopilot is following the course line.
Your SI-TEX Autopilot will receive information
sent to it from a navigation device (such as a
LORAN, plotter or GPS) in NMEA 0183
format.
See page 41 for navigation input connection
instructions.
If the Autopilot is steering
away from the course line
while
the
Navigation
Interface is on, then the cross
track error direction may be incorrect.
Change the cross track error sense. If the
Autopilot begins steering towards the course
line, you have solved the problem.
Using information from a compass and the
navigation device, the Autopilot will steer your
vessel along a course line to a waypoint. The
Autopilot will also steer your vessel through a
series of way points which the navigation
device has grouped together as a route.
The Autopilot cannot steer by the
information from the navigation device
alone.
NMEA 0183
Cross Track Error
The SP-70 AND SP-80 receives information
from LORAN, plotters, and GPS in the
National Marine Electronics Association 0183
language. A list of the usable data sentences
is as follows:
Cross track error is a measure of the distance
your boat has fallen away from the course
line.
Cross track error is measured as the length
of a line drawn from the course line to your
position at right angles to the course line.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
Cross track error also has a left or right hand
direction. For example: The boat can be one
half a mile to the left of the course line.
Manufacturers have defined the direction of
the cross track in different ways. There is no
agreement on whether a left hand cross track
error means that the boat is to the left of the
course line or the course line is to the left of
the boat.
P/N 29010049 V1.2
RMB + RMC
RMB + RMA
APB
APA
XTE + BOD
XTE + HSC
XTE + WBD
VBW
VHW
VTG
Your SI-TEX SP-70 and SP-80 Autopilot
conforms to the standards of the NMEA 0183
language.
68
Be aware that not all LORANS, GPS, or
plotters conform to the NMEA standard.
Statements that a GPS, LORAN, or plotter
provide navigation data may mean that the
data is provided only in the manufacturer’s
own language.
If you are purchasing a LORAN, GPS or
plotter, make sure that it sends out at least
one of the listed sentences.
If you have further questions about the
purchase of a navigation device, or if you
experience difficulties using the NAV MODE of
your SP-70 or SP-80 Autopilot, contact your
SI-TEX dealer.
P/N 29010049 V1.2
69
This page is intentionally blank
P/N 29010049 V1.2
70
SP-70 and SP-80 Operation Commands
COMMAND
Steer by compass
ACTION
RESULT
SP-70/80 is off or in STANDBY
MODE.
Boat will settle on course.
Point bow and press Pilot
Key.
xxxP
Turn OFF
Press and Hold Sby/Off Key
for two seconds.
Immediately upon pressing the
Sby/Off Key you will have
manual steering control. The
Autopilot will turn off in two
seconds.
Course Change: small, left
SP-70/80 in PILOT MODE.
One degree course change to
left.
Press Red Key Once.
Display will show [xxxP].
Course Change: small, right
SP-70/80 in PILOT MODE.
Press Green Key once.
One degree course change to
right.
Course Change: large, left
SP-70/80 in PILOT MODE.
Press and hold Red Key.
Display will show:
Boat will settle on new
heading.
xxxd
Course change: large, right.
xxxP
Displayed course will
decrease. When it reaches
your desired heading release
the key. Press the Pilot Key.
Actual vessel heading will
likely lag behind displayed
course.
SP-70/80 in PILOT MODE.
Press and hold Green Key.
Display will show:
Boat will settle on new
heading.
Display will show:
xxxd
xxxP
Displayed
course
will
increase. When it reaches
your desired heading release
the key. Press the Pilot Key.
Actual vessel heading will
likely lag behind displayed
course.
P/N 29010049 V1.2
Display will show:
71
Operation Commands cont.
Dodge: left
In PILOT or NAV MODE.
Press and hold Red Key.
Display will show:
Vessel turns left.
When key is released PILOT
display returns and vessel returns
to original course.
xxxd
Release Red Key to return to
PILOT or NAV MODE.
Dodge: right
In PILOT or NAV MODE.
Press and hold Green Key.
Display will show:
Vessel turns right.
When key released PILOT display
returns and vessel returns to
original course.
xxxd
Release Red Key to return to
PILOT or NAV MODE.
Rudder response: change
Autopilot will switch to the other set
of rudder response adjustments.
In PILOT MODE.
Press Set Key once.
Display will show either:
FASt
or
SLOU
Press Red or Green Key.
Steer by Loran, GPS or
plotter.
Dim or brighten lights on
Control Unit.
Select Waypoint. Press Nav
Key.
In STANDBY.
Press Set Key once.
Display will show [xxxn]
Pilot will steer by compass and
NMEA data received. If no NMEA
data received, pilot will remain in
NAV mode but will steer by
compass.
Control Unit’s backlight will move
through eight levels of brightness.
Press Green Key to increase
or Red Key to decrease
brightness.
Change from compass
display to permanent rudder
angle display.
P/N 29010049 V1.2
In POWER STEER MODE, press
the Set Key.
72
The SP-70 or SP-80 will constantly
display the rudder angle while in
STANDBY. Pressing the Set Key
again will return to the compass
display.
Adjustment Commands
COMMAND
Rudder sensitivity: increase
ACTION
PILOT or NAV MODE.
Press Set Key twice.
Press Green Key.
Rudder sensitivity: decrease
In PILOT or NAV MODE.
Press Set Key twice.
Press Red Key.
Counter-Rudder sensitivity:
decrease
In PILOT or NAV MODE.
Press Set Key three times.
Press the Red Key.
Counter-Rudder sensitivity:
increase
In Pilot or Nav Mode.
Press Set Key three times.
Press the Green Key.
Cross Track Error Sense:
change
Set-up Routine
P/N 29010049 V1.2
RESULT
Autopilot will steer with a “harder”
turn to correct course deviations,
causing a shorter correction, but
more overshoot of the intended
course. Changes will only affect
the current speed (fast or slow)
sensitivity setting.
Autopilot will steer with a “softer”
turn to correct course deviations,
causing a longer correction
distance but less overshoot of the
intended course. Changes only
affect the current speed (fast or
slow) sensitivity setting).
Autopilot will steer with a “harder”
turn to correct course deviations,
causing a shorter correction, but
more overshoot of the intended
course. Changes will only affect
the current speed (fast or slow)
sensitivity setting.
Autopilot will steer with a “softer”
turn to correct course deviations,
causing a longer correction
distance but less overshoot of the
intended course. Changes only
affect the current speed (fast or
slow) sensitivity setting.
In NAV MODE. Press Flush
Key. Press Green Key.
Autopilot will steer properly along
course line when Cross Track Error
Sense is correct. See Navigation
interface section for more
information.
Pilot is OFF. Press and hold
Flush Key. Press and hold
Pilot Key.
Set-up Procedure begins.
73
User Codes for the SI-TEX SP-70 & SP-80
BLED
[NTR
DTST
EEPR
Bleed mode. See Set-up section.
Center the rudder
Drive Test Display
FAST
Faulty EEPROM. The autopilot will not function. The processor has
failed. Have your autopilot serviced by a SI-TEX dealer.
Momentarily indicates FAST MODE has been selected
FC (digit) (digit)*
Fast mode counter rudder value
F’CMP
The fluxgate or the magnetic compass sensor is faulty and must be
serviced. Contact your nearest SI-TEX dealer.
F’DAT
The autopilot is in NAV MODE. The navigation device is sending the
autopilot a warning signal indicating that the navigation data may be
faulty.
CHECK: The navigation device (LORAN, GPS) for warning signals such
as a flashing display, a blinking light, or a warning message. You may be
able to correct the problem using information from the owner’s manual for
the device.
It is strongly recommended that you do not continue to operate the SITEX SP-70 or SP-80 Autopilot in NAV MODE while it is displaying this error
message.
Fluxgate compass detected.
FLUX
FR (digit) (digit)*
F’RST
GHrd
X8
XEAD*
XEYS
X0 P
X0 S
P/N 29010049 V1.2
Fast mode rudder value
Full reset. The SP-70 or SP-80 requires that the Set-up Routine be
repeated. After the Set-up Routine is done, the problem should be fixed.
If this error message continues to occur, take your Autopilot to a SI-TEX
dealer for servicing.
Ghost Rudder active. The Rudder Feedback has failed and the Ghost
Rudder program is running. Your Autopilot will work but the quality of
steering control will not be as good.
CHECK: The Rudder Feedback wiring at the Processor.
Cancel the alarm using the Pilot Key. The message will reappear
whenever the SP-70 or SP-80 is in Pilot Mode. The digital and analog
RAI will not work.
The battery voltage is more than 40 volts. If this problem is not fixed, the
Processor could be damaged. You could damage your battery if you do
not fix this problem.
CHECK: Your batteries fluid level and the regulator in your generating
system.
Faulty Head
Stuck key in the control head.
Request Rudder Hard Over Port.
Request Rudder Hard Over Starboard.
74
X0T
LBAT
L0AD
LT (digit)(digit)*
M,AG
N[ER
.
M, [ M, P
M,DAT
NORT
N0UE
P/N 29010049 V1.2
The Processor is too hot. This is usually due to a very high demand for
electrical power from the reversing pump. It could also indicate a failure
inside the Processor.
CHECK: The Processor and the Processor space for heat sources.
Should the temperature rise still higher, the SP-70 or SP-80 will turn off
the steering outputs. When the temperature falls, the steering outputs will
turn back on. We recommend that you have the Autopilot serviced by a
SI-TEX dealer before it is used again.
The supply voltage is less than 9.5 Volts. The Autopilot cannot operate
reliably.
CHECK: Your batteries fluid level and the regulator in your generating
system.
This warning indicates that the SP-70 or SP-80 has been producing a
larger than normal output current for a period of time. This might be due
to increased mechanical resistance in your steering system.
If this warning appears after an extended period of use, try to think of
something that might have changed after the Autopilot was installed. Has
the rudder struck any submerged objects? Are there any bearings that
need grease? Is the rudder fouled?
If this warning appears when you first use your Autopilot, check that your
steering gear moves easily.
CHECK: Your wiring is correct. Look for any connections which allow a
short circuit. If you have an electric motor in your steering system, look
for burned or shorted windings.
Light intensity.
Indicates magnetic compass detected.
No compass error during Dockside Set-up.
CHECK:
• The compass cable is connected to the correct Processor terminals.
• There are no poor or loose connections on the Compass cable.
• When using a Magnetic Compass Sensor, the sensor reads the
Compass card position properly. Some Magnetic Compasses have
magnets so weak that the Sensor will not function properly.
Press the Pilot Key to clear the alarm.
Magnetic/fluxgate compass fault
Not receiving NAV Data
North (see Dockside Set-up),
Move. Unsatisfactory compass adjustment. See page 49 or 54.
75
0[VR
0FF
[0RS
P (digit) (digit)*
PRON
The Reversing Pump or the mechanical steering is drawing too much
current from the Processor.
This may be caused by a defective motor or perhaps because the rudder
is stuck. You must take control of the vessel. If you cannot find an
obvious reason for the problem, have the autopilot serviced before you
use it again.
Off course error. Vessel has fallen off course more than 20 degrees for
over 30 seconds.
Port Rudder indicator
EPROM Error. This indicates a failure in the Processor. Take the
Autopilot to a SI-TEX service center.
RAN
Ram Error. This indicates a failure in the Processor. Take the Autopilot
to a SI-TEX service center
RED0
RFU
Occurs during Set up Routine. See page 45 or 51.
RVDR
RT(digit) (digit)*
RTST
S (digit) (digit)*
SC (digit) (digit)*
SL0U
-SP-*
SR (digit) (digit)*
TVRN
UAIT
P/N 29010049 V1.2
Rudder Feedback failure. This message will appear ONLY in PILOT or
NAV modes. Digital and analog RAI’s will not work.
CHECK: The Rudder Feedback.
The rudder is not moving according to the Autopilot’s commands.
CHECK: The rudder mechanism and the Rudder Feedback.
Rudder travel for calibrating the digital rudder angle reading.
Rudder test message
Starboard Rudder indicator.
Slow mode counter rudder value.
Momentarily indicates slow mode has been selected.
Sign-on message.
Slow mode rudder value.
While adjusting compass, if the autopilot will not stop displaying turn, you
may have such a strong magnetic field aboard your vessel that the
compass is not able to sense any motion. If this occurs, try moving the
compass far away from it’s present location.
Wait.
76
Problems Without An Error Code
The Autopilot will not turn on.
You have one of the following problems:
1.
The battery is dead or the battery connections are
faulty.
2.
The computer is faulty.
3.
The program is faulty.
4.
The fuse is faulty and must be replaced. See page 40.
5. A short on the +5V line. Check RFU cable for short
between 1 & 3.
The Autopilot starts the Set-up
Routine. The display shows
[HO S].
The Autopilot detected an error in its memory and then
erased the defective memory. You must now do the Set-up
Routine. You will not have to bleed your hydraulic system
unless you have opened the hydraulic lines or run out of
hydraulic fluid.
The random occurrence of this problem is possible but
unlikely. If this problem occurs twice, your Autopilot may
need servicing. Contact your SI-TEX dealer.
The Control Head display
goes blank, the Autopilot
ceases steering and you have
manual control.
The SP-70 or SP-80 Control Head may be disconnected.
For safety reasons, should the Control Head inadvertently be
disconnected, the Autopilot will automatically switch off.
+5V may be shorted due to short on the Rudder Feedback
Pot or cable.
P/N 29010049 V1.2
77
APPENDIX A
Connections to 4 and 5 Wire Motors
P/N 29010049 V1.2
78
APPENDIX A
Connections to 4 and 5 Wire Motors (using a clutch or lockup valve)
Rated for 3 amps continously/5 amps intermittently
P/N 29010049 V1.2
79
APPENDIX B
Connections to Solenoid Valves
P/N 29010049 V1.2
80
APPENDIX C
Connecting a Second Location or Second Station Options
Your Autopilot system can support remote autopilot operation in one of two ways:
1) The first option is to install one or more Second Location Kits (part #10080034). This allows
the user to connect and use an SP-70 Control head at several locations. If you chose this method,
it is important to note that only one SP-70 Control Head can be connected at any given time. You
are in fact only moving your Control Head from one location to another.
2) The second option is to install a Second Station Kit (part #10080035). This allows the user to
connect two fully functional Control Heads at different locations. Only one of the two Control
Heads can be in command at any time, but transferring command from one to the other is as
simple as holding down the Red & Green Dodge Keys for 2 seconds.
Second Location Kit
Right-hand side showing optional second location connections
Part Number 10080034
The Second Location Kit contains all the items you will require to install a second location outlet for
your autopilot. The kit should contain the following items:
1.
2.
3.
4.
1 only Mounting Clip for the SP-70 Control Unit.
1 only Cable Gland and Nut.
1 only Receptacle and Cap with 30 foot cable.
1 only Stainless Steel mounting washer.
P/N 29010049 V1.2
81
To connect the cable, first loosen off the right-hand cap on the SI-TEX Processor Box and remove
the “knock-out” at the top of the cap by using a 9/32 inch (7mm) drill. Once the “knock-out” has
been removed, install the cable gland and the cable. Next connect the individual wires on the
second location cable to the middle terminal strip, paralleling the existing main receptacle wiring
(Cable 1). Test your connections by disconnecting the control unit from the main receptacle and
connecting it to the second station receptacle. For specific information on the installation of the
receptacle and the mounting clip, please refer to page 25 of this manual.
Second Station Kit
Part Number 10080035
J8
J9
J7
Right-hand side showing optional second station connections
The Second Station Kit contains all the items you will require to install a second station outlet for
your autopilot. The kit should contain the following items:
1.
2.
3.
4.
5.
6.
1 only SP-70 Control Head
1 only Mounting Clip for the SP-70 Control Unit.
1 only Cable Gland and Nut.
1 only Receptacle and Cap with 30 foot cable.
1 only Stainless Steel mounting washer.
1 only 6 pin miniature plug.
To connect the cable, first loosen off the right-hand cap on the SI-TEX Processor Box and remove
the “knock-out” at the top of the cap by using a 9/32 inch (7mm) drill. Once the “knock-out” has
been removed, install the cable gland and the cable. Next connect the second station wires to the
6 position miniature plug according to the above diagram. Insert the plug into the top position on
the right-hand side. For specific information on the installation of the receptacle and the mounting
clip, please refer to page 25 of this manual.
P/N 29010049 V1.2
82
Operation
The Second Station is identical in operation to the Main Station as described in “Piloting with the
SP-70 or SP-80 Autopilot”. Only one of the controls can operate the autopilot at any given time.
The unit that is non-active will have a continuously flashing LCD display and the active control will
have a steady display. To activate the non-active control, press and hold both the Red and Green
pushbuttons for 2 seconds. This control will now become active and go into the same mode as the
previously active control was operating in.
Turning the Autopilot ON From The Main Station or the Second Station
To turn the autopilot on from either the Main Station or the Second Station, press the pilot key on
one of these units. The Autopilot will turn on and the same station will become active. The display
is solid.
Turning the Autopilot off from the Main or Second Station
The autopilot can only be turned off from the active station. From the station that is in command,
press and hold the Off key for 2 seconds. The autopilot system will now turn off.
NON ACTIVE Station: The display keeps blinking or flashing.
P/N 29010049 V1.2
83
APPENDIX D
Connecting a Rudder Angle Indicator
Right-hand side showing optional RAI connection.
The cable gland for a rudder angle indicator is in your Accessory Bag. We do not supply a cable
for this installation but recommend a #22 gauge, two conductor cable that is round in order to
make a water-tight seal. The outer diameter of this cable must not exceed ¼ inch (6.5mm) or be
less than 5/32 inch (4mm). The gland for this input must be mounted on the end cap. To locate
the hole for the gland, look on the inside of the end cap. You will see several places where the
plastic has been formed so that a hole may be easily drilled. Drill the hole using a 9/32 inch (7mm)
drill. Place the gland from the accessory kit in the hole. Fasten it with the supplied plastic nut and
tighten securely.
P/N 29010049 V1.2
84
APPENDIX E
Connecting the NMEA 0183 Heading Output
Location of terminal strip J5
The SP-70 autopilot has a data bus that sends out NMEA 0183 heading information to other
external devices such as radars. Heading data is transmitted once per second and provides two
data sentences: HDM (magnetic heading) and HDG (magnetic heading, deviation & variation).
The signal is transmitted at 4800 baud and has enough output to drive one 0183 "listener". For
applications requiring more than one "listener" please contact the factory.
The NMEA 0183 data output format is a two wire signal. One wire (signal) connects to pin 1 of
terminal strip J5 and the other wire (return) connects to pin 2 of terminal strip J5. Terminal strip J5
is located in the lower right side of the SP-70 Processor circuit board (see above). The two pin
connector required for connecting the heading output is included in your accessory kit.
P/N 29010049 V1.2
85
This page is intentionally blank.
P/N 29010049 V1.2
86
CERTIFICATE OF LIMITED WARRANTY
All Products Except Radar
Providing you present a valid proof of purchase, SI-TEX Marine Electronics Inc. warrants all parts of each new product against defects
in material and workmanship under normal use and will repair or exchange nay parts proven to be defective at no charge for a period of
two years for parts and one year for labor from the date of purchase, except as provided below under Limited Warranty Exceptions.
Defects will be corrected during normal working hours by an authorized SI-TEX Marine Electronics Inc. dealer, service center, or at the
SI-TEX office in Clearwater, Florida. There will be no charge for labor for a period of one year from the date of purchase, except as
provided below under Limited Warranty Exceptions.
This Warranty and Proof of Purchase must be made available to the authorized SI-TEX Marine Electronics Inc. service location or
dealer at the time of service.
LIMITED WARRANTY EXCEPTIONS
SI-TEX Marine electronics Inc. will not be responsible for equipment which has been subjected to water or lightening damage, accident,
abuse, or misuse nor any equipment on which the serial number has been removed, altered, or mutilated.
SI-TEX Marine Electronics Inc. assumes no responsibility for damage incurred during installation.
This Limited Warranty is effective only with respect to the original purchaser.
Any cost associated with transducer replacement, other than the cost of the transducer itself, is specifically excluded from this Limited
Warranty.
Travel cost incurred will not be accepted for SI-TEX Marine Electronics Inc. products.
THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE DESCRIPTION OF THE FACE HEREOF.
SPECIFIC EXCLUSIONS
Charges for overtime, stand-by, holiday and per diem are specifically excluded from the Limited Warranty.
Chart paper, stylus belt, lamps, and fuses are consumable items and are not covered by this Limited Warranty.
Installation workmanship or materials except as provided directly by SI-TEX marine Electronics Inc. are not covered by this Limited
Warranty.
SI-TEX Marine Electronics Inc. equipment or parts thereof which have been repaired or altered except by an authorized SI-TEX Marine
Electronics Inc. dealer or service center are not warranted in any respect.
Transducer, software update, battery, microphone, magnetron, and microwave components and water damage on water resistant VHF
radio are items excluded from the two-year warranty and are covered by warranty for a period of one year for both parts and labor.
SI-TEX Marine Electronics Inc. will not, at any time, assume any costs or labor charges for checkout or external line fuse replacement of
problems not found to be at fault in the equipment itself.
THERE ARE NO WARRANTIES OR GUARANTEES EXPRESSED OR IMPLED WHICH EXTEND BEYOND THE DESCRIPTION ON
THE FACE HEREOF, INCLUDING WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND MERCHANTABILITY. SITEX MARINE ELECTRONICS INC. HAS NOT OTHER LIABILTY TO PURCHASE FOR DIRECT OR CONSIQUENTIAL DAMAGE OR
ANY THEORY INCLUDING ABSOLUTE LIABILITY, TORT, OR CONTRACT, THIS LIMITED WARRANTY CANNOT BE ALTERED OR
MODIFIED IN ANY WAY AND SHALL BE INTERPRETED IN ACCORANCE WITH THE LAWS OF THE STATE OF FLORIDA. THIS
WARRANTY IS LIMITED TO THE CONTINENTAL USA, ALASKA, HAWAII, AND CANADA.
Mailing Address:
SI-TEX Marine Electronics Inc.
#800 – 11001 Roosevelt Blvd.
St. Petersburg, Florida 33716
727-576-5995
HOW TO OBTAIN SERVICE UNDER THIS WARRANTY
To provide greater flexibility, SI-TEX Marine Electronics Inc. gives you the option of obtaining service under this warranty by either:
(a)
Contacting an authorised SI-TEX Marine Electronics Inc. service station (The closest service station may be found by contacting
your dealer of purchase.)
OR
(b)
Shipping your equipment prepaid via UPS or truck with insurance prepaid to SI-TEX Marine Electronics Inc. at the address
provided below. SI-TEX Marine Electronics Inc. will, whenever possible, make all repairs covered by Limited Warranty within two
weeks of receiving the equipment in Florida and return same to you, freight prepaid. For parcel post shipment, use post office
box address given above.
(c)
You must present a copy of your Purchase Sales Slip at the time you request warranty service.
Shipping Address:
SI-TEX Marine Electronics Inc.
#800 – 11001 Roosevelt Blvd.
St. Petersburg, Florida 33716
SI-TEX Marine Electronics Inc. is a leader of quality digital Instruments, LCD and Video Fish Finders, Loran, GPS, VHF Radio, Marine
Stereo, and Radar. For more information, contact your SI-TEX dealer or the main office, location in Clearwater, Florida.
P/N 29010049 V1.2
87
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertising
