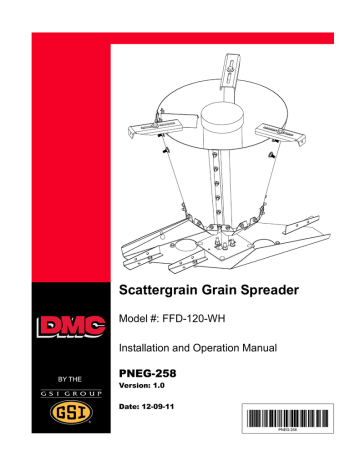

Scattergrain Grain Spreader
Model #: FFD-120-WH
Installation and Operation Manual
PNEG-258
Version: 1.0
Date: 12-09-11
PNEG-258
2
PNEG-258 Scattergrain Grain Spreader
Table of Contents
Contents
Chapter 1 Safety .....................................................................................................................................................4
Safety Guidelines .................................................................................................................................. 4
General Safety Statement ..................................................................................................................... 5
Safety Instructions ................................................................................................................................. 6
Chapter 2 Safety Alert Decals ...............................................................................................................................8
Chapter 3 Grain Spreader Assembly Instructions ............................................................................................11
Chapter 4 Installation ..........................................................................................................................................12
Grain Spreader Installation ................................................................................................................. 12
Chapter 5 Instructions .........................................................................................................................................14
Operating Instructions ......................................................................................................................... 14
Adjustment for Bin Fill ......................................................................................................................... 15
Chapter 6 Maintenance ........................................................................................................................................16
Chapter 7 Troubleshooting Guide ......................................................................................................................17
Correct Spreading Pattern .................................................................................................................. 17
Chapter 8 Power Spreader Parts Assembly ......................................................................................................18
Scattergrain Spreader 1/2 HP Parts (FFD-120-WH) ........................................................................... 18
Chapter 9 Warranty ..............................................................................................................................................21
PNEG-258 Scattergrain Grain Spreader
3
1. Safety
Safety Guidelines
This manual contains information that is important for you, the owner/operator, to know and understand.
This information relates to protecting personal safety and preventing equipment problems. It is the
responsibility of the owner/operator to inform anyone operating or working in the area of this equipment
of these safety guidelines. To help you recognize this information, we use the symbols that are defined
below. Please read the manual and pay attention to these sections. Failure to read this manual and its
safety instructions is a misuse of the equipment and may lead to serious injury or death.
This is the safety alert symbol. It is used to alert you
to potential personal injury hazards. Obey all safety
messages that follow this symbol to avoid possible
injury or death.
DANGER
WARNING
4
DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION, used with the safety alert symbol, indicates a
hazardous situation which, if not avoided, could result in
minor or moderate injury.
NOTICE
NOTICE is used to address practices not related to
personal injury.
PNEG-258 Scattergrain Grain Spreader
1. Safety
General Safety Statement
Our foremost concern is your safety and the safety of others associated with grain handling equipment.
This manual is to help you understand safe operating procedures and some problems that may be
encountered by the operator and other personnel.
As owner and/or operator, you are responsible to know what requirements, hazards, and precautions exist
and inform all personnel associated with the equipment or in the area. Safety precautions may be required
from the personnel. Avoid any alterations to the equipment, which may produce a very dangerous
situation, where SERIOUS INJURY or DEATH may occur.
You should consider the location of the bin site relative to power line locations or electrical transmission
equipment. Contact your local power company to review your installation plan or for information
concerning required equipment clearance. Clearance of portable equipment that may be taken to the bin
site should also be reviewed and considered. Any electrical control equipment in contact with the bin
should be properly grounded and installed in accordance with National Electric Code provisions and other
local or national codes.
This product is intended for the use of grain storage only. Any other use is a misuse of the product.
This product has sharp edges, which may cause serious injury. To avoid injury, handle
sharp edges with caution and always use proper protective clothing and equipment.
Sidewall bundles or sheets must be stored in a safe manner. The safest method of storing sidewall
bundles is laying horizontally with the arch of the sheet upward, like a dome. Sidewall sheets stored on
edge must be secured so that they cannot fall over and cause injury. Use care when handling and moving
sidewall bundles.
Personnel operating or working around equipment should read this manual. This manual must be
delivered with equipment to its owner. Failure to read this manual and its safety instructions is a
misuse of the equipment.
PNEG-258 Scattergrain Grain Spreader
5
1. Safety
Safety Instructions
Our foremost concern is your safety and the safety of others associated with this equipment. We want to
keep you as a customer. This manual is to help you understand safe operating procedures and some
problems that may be encountered by the operator and other personnel.
As owner and/or operator, it is your responsibility to know what requirements, hazards, and precautions
exist, and to inform all personnel associated with the equipment or in the area. Safety precautions may be
required from the personnel. Avoid any alterations to the equipment. Such alterations may produce a very
dangerous situation where SERIOUS INJURY or DEATH may occur.
This equipment shall be installed in accordance with the current installation codes and applicable
regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be
consulted before installations are made.
Follow Safety Instructions
Carefully read all safety messages in this manual and
safety signs on your machine. Keep signs in good
condition. Replace missing or damaged safety signs. Be
sure new equipment components and repair parts include
the current safety signs. Replacement safety signs are
available from the manufacturer.
Learn how to operate the machine and how to use controls
properly. Do not let anyone operate without instruction.
Keep your machinery in proper working condition.
Unauthorized modifications to the machine may impair
the function and/or safety and affect machine life.
Read and Understand Manual
If you do not understand any part of this manual or need
assistance, contact your dealer.
Practice Safe Maintenance
Understand service procedures before doing work. Keep area
clean and dry.
Never lubricate, service, or adjust machine while it is in operation.
Keep hands, feet, and clothing away from rotating parts.
Keep all parts in good condition and properly installed. Fix
damage immediately. Replace worn or broken parts. Remove any
built-up grease, oil, and debris.
6
Maintain Equipment
and Work Area
PNEG-258 Scattergrain Grain Spreader
1. Safety
Prepare for Emergencies
Be prepared if fire starts.
Keep a first aid kit and fire extinguisher handy.
Keep emergency numbers for doctors, ambulance service,
hospital, and fire department near your telephone.
Keep Emergency Equipment
Quickly Accessible
Wear Protective Clothing
Wear close-fitting clothing and safety equipment appropriate
to the job.
Eye Protection
Remove all jewelry.
Tie long hair up and back.
Gloves
Wear safety glasses at all times to protect eyes from debris.
Wear gloves to protect your hands from sharp edges on
plastic or steel parts.
Wear steel-toed boots to help protect your feet from falling
debris. Tuck in any loose or dangling shoestrings.
Steel-Toed Boots
Respirator
A respirator may be needed to prevent breathing potentially
toxic fumes and dust.
Wear a hard hat to help protect your head.
Hard Hat
Wear appropriate fall protection equipment when working at
elevations greater than six feet (6').
Fall Protection
PNEG-258 Scattergrain Grain Spreader
7
2. Safety Alert Decals
GSI Group recommends contacting your local power company and having a representative survey your
installation so the wiring is compatible with their system and adequate power is supplied to the unit.
Safety decals should be read and understood by all people in the grain handling area. Decal (DC-GBC 1A)
on Page 9 should be present on the inside bin door cover of the 2 ring door, on the cover of the 24" porthole
door and on the roof manway cover. DC-1224 and DC-1225 or similar decals, should be present on
the bin. Please contact the dealer or factory for free replacements. All decals must be replaced if they
are destroyed, missing, painted over or can no longer be read.
If a decal is damaged or is missing contact:
Contact:
GSI Decals
1004 E. Illinois St.
Assumption, IL. 62510
Phone: 1-217-226-4421
A free replacement will be sent to you.
NOTE: Decals not to scale.
WARNING
Stay clear of rotating
blade. Blade could start
automatically. Can cause
serious injury. Disconnect
power before servicing.
DC-1225
DC-1225
DC-1224
8
PNEG-258 Scattergrain Grain Spreader
2. Safety Alert Decals
Rotating flighting will
kill or dismember.
Flowing material will
trap and suffocate.
Crusted material will
collapse and suffocate.
Keep clear of all augers.
DO NOT ENTER this bin!
If you must enter the bin:
1. Shut off and lock out all power.
2. Use a safety harness and safety line.
3. Station another person outside the bin.
4. Avoid the center of the bin.
5. Wear proper breathing equipment or respirator.
Failure to heed these
warnings will result in
serious injury or death.
DC-GBC-1A
DC-GBC-1A
PNEG-258 Scattergrain Grain Spreader
9
2. Safety Alert Decals
DC-1639 Located on the cone segment.
DC-1639
Grain spreader can
unhook and fall if not
attached properly.
Bolt securely to peak ring
center collar. Failure to do
so can result in serious
injury or death.
DC-368 Located on the cone segment.
WARNING
High voltage.
Will cause injury or
death. Lockout power
before servicing.
Stay clear of rotating
blade. Blade could start
automatically. Can cause
serious injury. Disconnect
power before servicing.
DC-1225
DC-1611
DC-1612
DC-1612 Located on the cone segment.
10
PNEG-258 Scattergrain Grain Spreader
3. Grain Spreader Assembly Instructions
1. Carefully unpack the unit and inspect for shipping damage.
2. Check tightness of all bolts in the cone and blade assemblies.
3. Select the proper number of diverter segments required. (See diverter segments chart below.)
Diverter Segments Chart
Fill Auger (Diameter)
Diverter Segments (# Required)
6"
8
8"
4 (Equally Spaced)
10" or Larger
0
NOTE: The various types of grain, moisture content, bin diameter and capacity of fill auger are all
conditions that impact the evenness of spread. Some experimentation is needed to attain the
ideal spread pattern.
PNEG-258 Scattergrain Grain Spreader
11
4. Installation
Grain Spreader Installation
1. Adjust hanger extensions to fit roof opening and install the power spread unit.
2. Use the 9/32" hole at the end of each hanger extension and bolt hanger extensions to hatch collar.
3. Tighten all bolts holding hanger extensions.
4. Once unit is installed, use a carpenter’s level across the top of the spreader cone to confirm it is level
in all directions. (See Figure 4A.)
Figure 4A Mount Spreader and Check with Level
5. If the unit is not level, add spacer washers between hanger brackets and hanger extensions to level
unit. (See Figure 4B.)
Figure 4B Use Washers to Level Unit
12
PNEG-258 Scattergrain Grain Spreader
4. Installation
Grain Spreader Installation (Continued)
The Scattergrain 1/2 HP motor is protected with an internal automatic reset overload.
Before servicing, all power to the unit must be disconnected and locked out to avoid
WARNING a possible re-set/re-start and serious injury.
Before connecting and applying power, rotate the spreader blade by hand to be
certain it rotates freely without obstruction. The motor turns the spreader blade
counterclockwise as viewed from above the unit. The power spread unit requires
115 volt power supply. The minimum wire size is 14 gauge for runs up to 200'. It is
advisable to provide additional protection such as 15 amp slow blow fuses or
20 amp circuit breaker. Consult a licensed electrician for wire size on longer runs.
Regardless of grain type and bin size, the grain flow must be directly down (vertical)
and centered (horizontal) within the spreader cone. (See Figure 4C.) This must be
done in order to prevent high and low grain surface areas from one side of the bin to
the other.
Figure 4C Grain flow must be centered within the spreader cone.
PNEG-258 Scattergrain Grain Spreader
13
5. Instructions
Operating Instructions
The grain spreader blade assembly has four (4) features to adjust the grain flow pattern.
1. Tilt adjusts the entire spreader blade, which controls overall grain spread. To adjust tilt, loosen the
two (2) U-bolts that allow the blade to tip up and down. This may vary according to bin diameter and
fill rate. (See Figure 5A.)
Figure 5A Adjustment of the Tilt
2. Spreader diverters (grain guide baffles) are used to increase or decrease grain flow resistance over
the spreader blade. With the diverters straight, the grain will travel farther. Angled grain diverters
shorten the throwing distance. (See Figure 5B.)
Figure 5B Four (4) Features for Adjusting the Grain Flow Pattern
3. Blade extension is used when extra throwing distance is required for larger bins.
4. Dampers are used to control center filling.
14
PNEG-258 Scattergrain Grain Spreader
5. Instructions
Adjustment for Bin Fill
Large Bin
36" Diameter and Greater
Small Bin
24" Diameter and Less
Operation/Procedure
Operation/Procedure
Ref #
Part
Type
1
Spreader Blade
Tilt
Decrease (flatten)/loosen U-bolts and
pivot the blade to horizontal. Always
refer to single diverter side as gauge.
Increase/loosen U-bolts and pivot the
blade (single diverter side) upward.
Single Side
Decrease (center filling)/loosen bolts
and rotate diverter clockwise.
Increase (center filling)/loosen bolt and
rotate diverter counterclockwise.
Decrease (center filling)/loosen bolts
and rotate diverters clockwise to direct
flow in line with grain stream.
Increase (center filling)/loosen bolt and
rotate diverters counterclockwise to
direct flow across grain stream.
2
Spreader
Diverter
Dual Side
3
Blade Extension
Tilt
Increase/loosen bolt and pivot the
extension upward to maximum
allowance in slotted hole.
Remove blade extension.
4
Damper
Opening
Decrease (center filling)/loosen
bolts and pivot dampers to nearly
closed position.
Increase (center filling)/loosen bolts
and pivot dampers to almost fully
open position.
1. Rotation is always viewed from top of the unit looking down on to the blade.
2. Be sure to fully tighten all bolts after each adjustment is made.
3. These adjustments describe the requirements for both extremes of bin sizes. For bin sizes between
24" and 36" in diameter, start with intermediate adjustments and vary slightly as required to reach
desired results.
PNEG-258 Scattergrain Grain Spreader
15
6. Maintenance
For normal operation, annually re-lubricate both motor bearings with approximately ten (10) drops of
5W-30 oil. The gears of the gearbox assembly are lubricated with a special high temperature, food grade
lubricant (SPD-2109) at the time of manufacturing. The level of grease in the gearbox should be checked
annually and will not normally require further lubrication unless seal breakage occurs. After the grease has
settled to the bottom of the gearbox, the grease level can be checked. The grease level should not be more
than 1/4" below the vent plug. (See Figure 6A.) It may be necessary to insert a wire through vent plug hole
to determine the grease level. The grease level also can be checked by removing motor and viewing
grease level through the hole for the motor pinion gear.
Inspect seals annually for signs of leakage (check bearings annually for tightness).
In the event the motor fails to start, check power supply to the motor. If power supply exists and motor still
fails to start, disconnect power and check blade for freedom of rotation. If power does not exist, check for
blown fuse or flipped circuit breaker.
If motor stops operating for no apparent reason, wait approximately 5 minutes for the automatic overload
protection device to reset and reattempt operation. If problem continues, check power supply for voltage
and check blade of unit for freedom of rotation.
If motor pinion requires removal for any reason, it must be properly installed and located, as shown in the
parts assembly on Page 18.
Figure 6A The gear box assembly showing grease level.
WARNING
Disconnect power supply before attempting any type of service. The motor is
protected with a self-resetting overload protection.
Failure to disconnect power can result in serious injury or death.
DANGER
16
PNEG-258 Scattergrain Grain Spreader
7. Troubleshooting Guide
Correct Spreading Pattern
Grain is slightly depressed in the
center. Grain flow is centered and
the spreader is level.
Trouble
Large doughnut shaped ring caused by
grain hitting high on bin wall.
Probable Cause
Illustration
Tilt blade downward, decrease bite.
Remove blade extension.
Spreader blade too flat
Grain is high in center of bin, small
dough nut.
Flatten blade, increase bite, decrease grain
flow to spreader. Add blade extension.
Spreader blade too steep
Grain is high on one side of bin.
Level spreader, correct grain flow to
spreader, (never allow grain to flow into
spreader at an angle or off center).
Not level, not centered
PNEG-258 Scattergrain Grain Spreader
17
8. Power Spreader Parts Assembly
Scattergrain Spreader 1/2 HP Parts (FFD-120-WH)
18
PNEG-258 Scattergrain Grain Spreader
8. Power Spreader Parts Assembly
Scattergrain Spreader 1/2 HP (FFD-120-WH) Parts List
Ref #
Part #
Description
1
002-1337-1
Motor, 1/2 HP 1 PH
2
S-4276
Bolt, HHCS 5/16"-18 x 1-1/4" ZN Grade 5
3
S-1147
Split lock Washer 5/16" ZN
4
321-1001-7
Gearbox Gasket
5
SPD-2186
Gearbox Pinion
5
017-1535-8
Sleeve, Pinion Gearbox
6
308-1007-1
Gearbox, 1/2 HP
7
S-6606
Flange Bolt 5/16"-18 x 3/4" ZN Grade 5
8
401-1032-2
Cone Segment
9
306-1169-3
Gearbox Mounting Bracket
10
S-3611
Flange Nut 5/16"-18 YDP Grade 2
11
SPD-2008
Hanger Extension
12
SPD-2095
Flow Diverter Segment
6" Auger Use 8 Segments
8" Auger Use 4 Segments
10" Auger Use 0 Segments
13
S-456
Hex Nut 3/8"-16 YDP Grade 5
14
S-1054
Split lock Washer 3/8" ZN
15
SPD-2001
Spreader Blade
16
SPD-2006
Damper
17
SPD-2004
Upper Back Up Plate
18
SPD-2013-GY
Drive Shaft Weldment
19
S-6077
U-Bolt
20
SPD-2005
Lower Back Up Plate
21
S-6079
Pin, Spring 1/4" x 1" Plain Steel Slotted Rolled
22
S-6078
Set Screw 5/16"-18 x 1/4"
23
SPD-2003
Spreader Diverter
24
S-6076
Carriage Bolt 5/16"-18 x 3/4" ZN Grade 2
25
S-248
Flat Washer 3/8" 7/16" I.D. 1" O.D. YDP
26
SPD-2002
Blade Extension
27
S-8680
Flange Bolt 1/4"-20 x 3/4" ZN Grade 5
28
S-7215
Flange Nut 1/4"-20 ZN
29
SPD-2176
Cord Shield
30
S-6381
Fitting, Heyco 1247 BLK Strain Relief
31
SPD-2149
Hanger Bracket
32
S-248
Flat Washer 3/8" 7/16" I.D. 1" O.D. YDP
33
S-2071
Bolt, HHCS 3/8"-16 x 1-1/4" ZN Grade 5
34
S-277
Bolt, HH Bin 5/16"-18 x 1-1/4" YDP Grade 5
PNEG-258 Scattergrain Grain Spreader
19
NOTES
20
PNEG-258 Scattergrain Grain Spreader
9. Warranty
GSI Group, LLC Limited Warranty
The GSI Group, LLC (“GSI”) warrants products which it manufactures to be free of defects in materials and workmanship
under normal usage and conditions for a period of 12 months after sale to the original end-user or if a foreign sale,
14 months from arrival at port of discharge, whichever is earlier. The end-user’s sole remedy (and GSI’s only obligation)
is to repair or replace, at GSI’s option and expense, products that in GSI’s judgment, contain a material defect in materials
or workmanship. Expenses incurred by or on behalf of the end-user without prior written authorization from the GSI
Warranty Group shall be the sole responsibility of the end-user.
Warranty Extensions:
The Limited Warranty period is extended for the following products:
Product
Warranty Period
Performer Series Direct Drive Fan Motor
3 Years
* Warranty prorated from list price:
All Fiberglass Housings
Lifetime
0 to 3 years - no cost to end-user
All Fiberglass Propellers
Lifetime
3 to 5 years - end-user pays 25%
Feeder System Pan Assemblies
5 Years **
Feed Tubes (1-3/4" and 2.00")
10 Years *
** Warranty prorated from list price:
Centerless Augers
10 Years *
0 to 3 years - no cost to end-user
Watering Nipples
10 Years *
3 to 5 years - end-user pays 50%
Grain Systems
Grain Bin Structural Design
5 Years
Grain Systems
Farm Fans
Zimmerman
Portable and Tower Dryers
2 Years
Portable and Tower Dryer Frames and
Internal Infrastructure †
5 Years
AP Fans and Flooring
Cumberland
Feeding/Watering
Systems
5 to 7 years - end-user pays 50%
7 to 10 years - end-user pays 75%
† Motors, burner components
and moving parts not included.
Portable dryer screens included.
Tower dryer screens not included.
GSI further warrants that the portable and tower dryer frame and basket, excluding all auger and auger drive components,
shall be free from defects in materials for a period of time beginning on the twelfth (12th) month from the date of purchase
and continuing until the sixtieth (60th) month from the date of purchase (extended warranty period). During the extended
warranty period, GSI will replace the frame or basket components that prove to be defective under normal conditions
of use without charge, excluding the labor, transportation, and/or shipping costs incurred in the performance of this
extended warranty.
Conditions and Limitations:
THERE ARE NO WARRANTIES THAT EXTEND BEYOND THE LIMITED WARRANTY DESCRIPTION SET FORTH
ABOVE. SPECIFICALLY, GSI MAKES NO FURTHER WARRANTY OF ANY KIND, EXPRESS OR IMPLIED,
INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE OR USE IN CONNECTION WITH: (I) PRODUCT MANUFACTURED OR SOLD BY GSI OR (II) ANY ADVICE,
INSTRUCTION, RECOMMENDATION OR SUGGESTION PROVIDED BY AN AGENT, REPRESENTATIVE OR
EMPLOYEE OF GSI REGARDING OR RELATED TO THE CONFIGURATION, INSTALLATION, LAYOUT, SUITABILITY
FOR A PARTICULAR PURPOSE, OR DESIGN OF SUCH PRODUCTS.
GSI shall not be liable for any direct, indirect, incidental or consequential damages, including, without limitation, loss of
anticipated profits or benefits. The sole and exclusive remedy is set forth in the Limited Warranty, which shall not exceed
the amount paid for the product purchased. This warranty is not transferable and applies only to the original end-user. GSI
shall have no obligation or responsibility for any representations or warranties made by or on behalf of any dealer, agent
or distributor.
GSI assumes no responsibility for claims resulting from construction defects or unauthorized modifications to products
which it manufactured. Modifications to products not specifically delineated in the manual accompanying the equipment at
initial sale will void the Limited Warranty.
This Limited Warranty shall not extend to products or parts which have been damaged by negligent use, misuse, alteration,
accident or which have been improperly/inadequately maintained. This Limited Warranty extends solely to products
manufactured by GSI.
Prior to installation, the end-user has the responsibility to comply with federal, state and local codes which apply to the
location and installation of products manufactured or sold by GSI.
9101239_1_CR_rev7.DOC
PNEG-258 Scattergrain Grain Spreader
(revised July 2009)
21
This equipment shall be installed in accordance with
the current installation codes and applicable
regulations, which should be carefully followed in
all cases. Authorities having jurisdiction should be
consulted before installations are made.
For more information, contact the DMC Distribution Center closest to you.
Illiana Distribution Center
1004 E. Illinois St.
Assumption, Illinois 62510
Phone: 1-217-226-5100
Fax: 1-217-226-5070
Clear Lake Distribution Center
5205 4th Ave South
Clear Lake, Iowa 50428
Phone: 1-641-357-3386
Fax: 1-641-357-1928
www.dmc-davidmanufacturing.com
Copyright © 2011 by GSI Group
Printed in the USA
CN-204460
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
