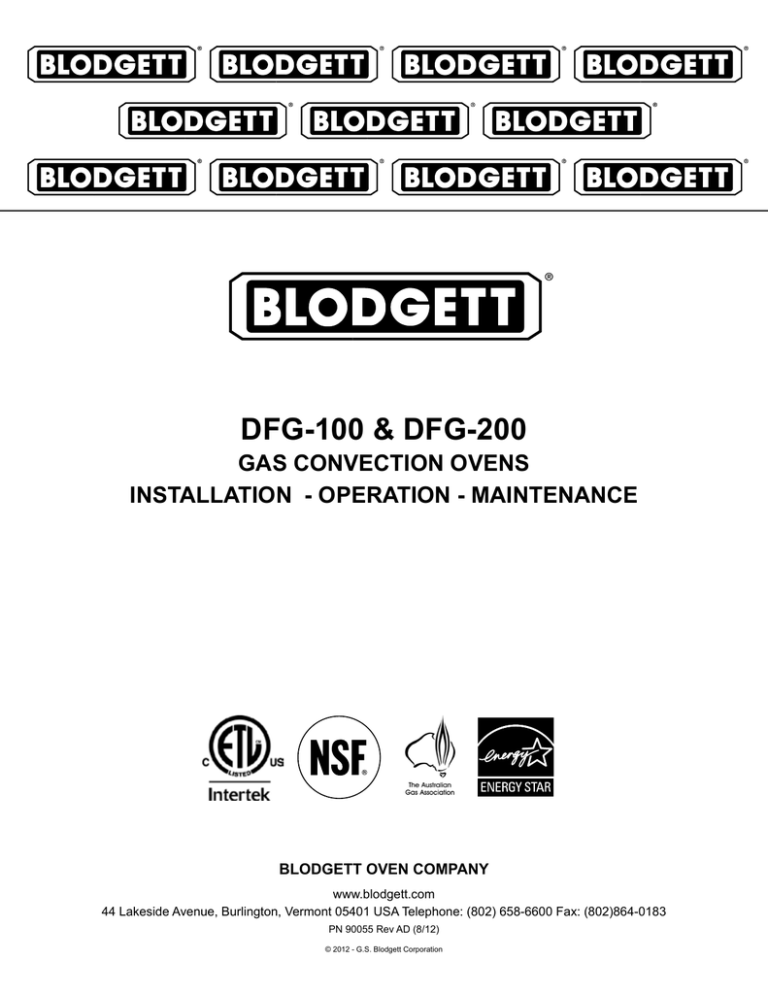

dfg-100 & dfg-200
gas convection ovens
INSTALLATION - OPERATION - MAINTENANCE
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802)864-0183
PN 90055 Rev AD (8/12)
© 2012 - G.S. Blodgett Corporation
Your Service Agency’s Address:
Model
Serial number
Oven installed by
Installation checked by
IMPORTANT
WARNING: Improper installation, adjustment, alternation,
service or maintenance can
cause property damage, injury or death. Read the instllation, operation and maintenance instructions thoroughly
before installing or servicing
this equipment.
INSTRUCTIONS TO BE FOLLOWED IN THE EVENT THE
USER SMELLS GAS MUST BE
POSTED IN A PROMINENT LOCATION. This information may
be obtained by contacting your
local gas supplier.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids in the vicinity of this or any
other appliance.
The information contained in this
manual is important for the proper installation, use, and maintenance of this oven. Adherence
to these procedures and instructions will result in satisfactory
baking results and long, trouble free service. Please read
this manual carefully and retain
it for future reference.
ERRORS: Descriptive, typographic or pictorial errors are
subject to correction. Specifications are subject to change
without notice.
TABLE OF CONTENTS
INSTALLATION
Oven Description and Specifications..................................................................... 2
Delivery and Location............................................................................................ 3
Oven Assembly..................................................................................................... 4
NSF Bolts........................................................................................................ 4
Leg Attachment............................................................................................... 5
Caster Assembly............................................................................................. 5
Double Section Assembly............................................................................... 6
Oven Leveling................................................................................................. 6
Ventilation.............................................................................................................. 7
Utility Connections - Standards and Codes........................................................... 9
Gas Connection................................................................................................... 10
Electrical Connection........................................................................................... 13
Initial Startup....................................................................................................... 14
OPERATION
Safety Information............................................................................................... 15
Solid State Manual Control with Digital Timer..................................................... 16
Solid State Manual Control.................................................................................. 17
Solid State Digital Control................................................................................... 18
Blodgett IQ2™ Vision Control.............................................................................. 20
SmartTouch Touchscreen Control....................................................................... 30
How Cook & Hold Works..................................................................................... 43
General Guidelines for Operating Personnel...................................................... 44
Suggested Times and Temperatures................................................................... 45
MAINTENANCE
Cleaning and Preventative Maintenance............................................................. 46
Troubleshooting Guide........................................................................................ 47
Installation
Oven Description and Specifications
Cooking in a convection oven differs from cooking in a
conventional deck or range oven since heated air is constantly recirculated over the product by a fan in an enclosed chamber. The moving air continually strips away
the layer of cool air surrounding the product, quickly allowing the heat to penetrate. The result is a high quality product, cooked at a lower temperature in a shorter
amount of time.
Blodgett convection ovens represent the latest advancement in energy efficiency, reliability, and ease of operation. Heat normally lost, is recirculated within the cooking
chamber before being vented from the oven: resulting in
substantial reductions in energy consumption and enhanced oven performance.
Air Flow Pattern for Blodgett DFG Convection Ovens
Figure 1
gas ratings - dfg-100-3 & dfg-200-l
Natural Gas
US Units
SI Units
US, Canada and General Export
Heating Value
Specific Gravity (air=1.0)
Oven Input
DFG-100-3
DFG-200-L
Main Burner Orifice Size
DFG-100-3
DFG-200-L
DFG-100-3 for Australia
Oven Input
Main Burner Orifice Size
NOTE: * - Multiple Twist Drill
Propane
US Units
SI Units
1000 BTU/cu.ft.
0.63
37.3 MJ/m3
0.63
2550 BTU/cu. ft.
1.53
95.0 MJ/m3
1.53
55,000 BTU/hr
16.2 kW
55,000 BTU/hr
16.2 kW
60,000 BTU/hr
17.6 kW
60,000 BTU/hr
17.6 kW
40 MTD*
2.5 mm
53 MTD*
1.5 mm
38 MTD*
2.6 mm
1/16” dia.
1.55 mm
—
38 MTD*
58 MJ/h
2.6 mm
—
1/16” dia.
58 MJ/h
1.6 mm
2
Installation
Delivery and Location
Delivery and inspection
The following clearances must be available for servicing.
All Blodgett ovens are shipped in containers to prevent
damage. Upon delivery of your new oven:
•
Oven body sides - 12” (30cm)
•
Oven body back - 12” (30cm)
•
Inspect the shipping container for external damage.
Any evidence of damage should be noted on the
delivery receipt which must be signed by the driver.
•
Uncrate the oven and check for internal damage.
Carriers will accept claims for concealed damage if
notified within fifteen days of delivery and the shipping container is retained for inspection.
NOTE: On gas models, routine servicing can usually
be accomplished within the limited movement
provided by the gas hose restraint. If the oven
needs to be moved further from the wall, the
gas must first be turned off and disconnected
from the oven before removing the restraint.
Reconnect the restraint after the oven has been
returned to its normal position.
The Blodgett Oven Company cannot assume responsibility for loss or damage suffered in transit. The carrier assumed full responsibility for delivery in good order when
the shipment was accepted. We are, however, prepared
to assist you if filing a claim is necessary.
It is essential that an adequate air supply to the oven be
maintained to provide a sufficient flow of combustion and
ventilation air.
•
Place the oven in an area that is free of drafts.
oven location
•
The well planned and proper placement of your oven will
result in long term operator convenience and satisfactory
performance.
Keep the oven area free and clear of all combustibles such as paper, cardboard, and flammable
liquids and solvents.
•
NSF requires 6” of clearance on the bottom and
sides of the unit for cleaning. Do not place the oven
on a curb base or seal to a wall.
•
The location must provide adequate clearance for
the air opening into the combustion chamber.
The following clearances must be maintained between
the oven and any combustible or non-combustible construction.
DFG100
•
Oven body right side - 2” (5cm)
•
Oven body left side - 2” (5cm)
•
Oven body back - 0” (0cm)
•
Oven body bottom - 6” (15cm)
Before making any utility connections to this oven, check
the rating plate to be sure the oven specifications are
compatible with the gas and electrical services supplied
for the oven.
1. Remove the combustion compartment cover. The rating plate is attached to the frame on the left side of the
combustion compartment.
DFG200
•
Oven body right side - 6” (15cm)
•
Oven body left side - 6” (15cm)
•
Oven body back - 6” (15cm)
•
Oven body bottom - 6” (15cm)
3
Installation
Oven Assembly
NSF Bolts
These bolts are required by NSF to block any exposed
hole on the back of an oven. This includes:
1. Locate the 5/16” bolts that were shipped with the
oven.
•
any unit, single or stacked, without a back panel.
2. Install the bolts as shown.
•
any holes in stacked units not used for mounting
stacking brackets.
Double Stacked Units
Units without Back Panels
Figure 2
4
Installation
Oven Assembly
Leg Attachment
Caster Assembly
1. Push the oven onto a lift with the bottom of the oven
down.
NOTE: Install the locking casters on the front of the
oven. Install the non-locking casters on the back
of the oven.
2. Align the threaded stud in each leg with the nut located inside each bottom corner of the oven frame. Turn
the legs clockwise and tighten to the nearest full turn.
NOTE: Use a gas hose restraint on all units with casters.
Casters for Single and Double Stacked Ovens:
1. Attach the legs as described.
3. Align the two leg plate holes in each leg with those
in the oven bottom. Secure each leg using two 1/2”
bolts.
2. Pry the adjustable feet out of the legs.
3. Insert one caster into each leg as shown. Tighten the
lock nuts to secure the casters.
NOTE: If using casters see CASTER ASSEMBLY
before proceeding.
4. Level the oven by screwing the adjustable leg feet in
or out as necessary.
Adjustable
Leg Foot
Gas Hose
Restraint Bracket
Caster Assembly
Figure 4
Low Profile Casters for Double Stacked Ovens:
1. Align the three holes in each caster assembly plate
with those in the oven bottom. Secure each caster
using three 1/2” bolts.
6” (15 cm) Legs Shown
Gas Hose Restraint Bracket
Figure 3
Figure 5
5
Installation
Oven Assembly
Double Section Assembly
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
NOTE: Old style ovens refer to units with painted exposed rear angle. New style ovens refer to units
with rear angle iron enclosed in steel.
4. Drill a clearance hole for a 5/16” bolt in the angle iron
of the old style oven. Use the holes in the stacking
brackets as a pilot.
The following instructions apply to stacking two new style
ovens.
5. Attach the stacking brackets to the old style oven with
the 5/16” bolts and nuts provided in the kit.
1. Secure the short legs to the bottom sections as described.
6. Attach the flue connector.
2. Place the upper section in position on top of the lower
oven.
WARNING:
3. Attach the stacking brackets using the remaining
5/16” bolts shipped with the ovens.
When stacking ovens be sure to remove the
single oven flue boxes prior to attaching
three-piece connector.
4. Attach the flue connector.
Oven Leveling
The following instructions apply to stacking a new style
oven on an old style oven.
After assembly, the oven should be leveled and moved to
the operating location.
1. Secure the short legs to the bottom sections as described.
1. The oven can be leveled by adjusting the feet or casters located on the bottom of each leg.
2. Place the upper section in position on top of the lower
oven.
Flue
Connector
Figure 6
6
Installation
Ventilation
Canopy Type Exhaust Hood
On gas models the installation of a proper ventilation system cannot be over emphasized. This system removes
unwanted vapors and products of combustion from the
operating area.
A mechanically driven, canopy type exhaust hood is the
preferred method of ventilation.
The hood should be sized to completely cover the equipment plus an overhang of at least 6” (15 cm) on all sides
not adjacent to a wall. The distance from the floor to the
lower edge of the hood should not exceed 7’ (2.1m).
This oven may be vented using either:
•
A mechanically driven, canopy type, exhaust hood,
or
•
A direct flue arrangement.
The total makeup and exhaust air requirements for hood
capacity should be approximately 30 CFM (.85 m3) for
each oven section.
U.S. and Canadian installations
Installing the canopy hood draft diverter
Refer to your local ventilation codes. In the absence of
local codes, refer to the National ventilation code titled,
“Standard for the Installation of Equipment for the Removal of Smoke and Grease Laden Vapors from Commercial
Cooking Equipment”, NFPA-96-Latest Edition.
Ovens ordered for hood venting are supplied with a draft
diverter. Install the draft diverter as follows:
1. Place the diverter over the flue connector with the
open area facing the front of the oven.
2. Secure both ends with the sheet metal screws provided.
Australia and general export installations
Installation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
Draft
Diverter
WARNING:
Failure to properly vent the oven can be hazardous to the health of the operator and may
result in operational problems, unsatisfactory
baking and possible damage to the equipment.
Front of Oven
Damage sustained as a direct result of improper ventilation will not be covered by the
manufacturer’s warranty.
Figure 7
7
Installation
Ventilation
Direct Flue Arrangement
Installing the draft hood
When the installation of a mechanically driven exhaust
hood is impractical the oven may be vented by a direct
flue arrangement.
Ovens ordered for direct venting are supplied with a draft
hood. Install the draft hood as follows:
1. Place the draft hood over the flue connector.
2. Secure both ends with the sheet metal screws provided.
WARNING!!
It is essential that the direct flue be installed
as follows. Incorrect installation will result in
unsatisfactory baking and oven damage.
Flue
The flue must be class B or better. The height of the flue
should rise 6-8 ft (2-2.5 m) above the roof of the building or any proximate structure. Never direct vent the oven
into a hood. The flue should be capped with a UL Listed
type vent cap to isolate the unit from external environmental conditions.
Drafthood
The direct vent cannot replace air consumed and vented
by the oven. Provisions must be made to supply the room
with sufficient make-up air. Total make-up air requirements for each oven section should be approximately 30
CFM (.85 m3) per section. To increase the supply air entering the room, a ventilation expert should be consulted.
Oven
DFG-100
DFG-200
FLUE DIAMETER
Single
6” (15cm)
6” (15cm)
Front of
Oven
Figure 8
Double
6” (15cm)
8” (20cm)
8
Installation
Utility Connections - Standards and Codes
U.S. and Canadian installations
THE INSTALLATION INSTRUCTIONS CONTAINED
HEREIN ARE FOR THE USE OF QUALIFIED INSTALLATION AND SERVICE PERSONNEL ONLY. INSTALLATION OR SERVICE BY OTHER THAN QUALIFIED
PERSONNEL MAY RESULT IN DAMAGE TO THE OVEN
AND/OR INJURY TO THE OPERATOR.
Installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code,
NFPA54/ANSI Z223.1-Latest Edition, the Natural Gas Installation Code CAN/CGA-B149.1 or the Propane Installation Code, CAN/CGA-B149.2 as applicable.
Qualified installation personnel are individuals, a firm,
a corporation, or a company which either in person or
through a representative are engaged in, and responsible
for:
•
•
Installation must conform with local codes, or in the absence of local codes, with the National Electrical Code,
ANSI/NFPA 70-Latest Edition and/or Canadian National
Electric Code C22.2 as applicable.
the installation or replacement of gas piping and the
connection, installation, repair or servicing of equipment.
Australia and general export installations
Instllation must conform with Local and National installation standards. Local installation codes and/or requirements may vary. If you have any questions regarding the
proper installation and/or operation of your Blodgett oven,
please contact your local distributor. If you do not have a
local distributor, please call the Blodgett Oven Company
at 0011-802-658-6600.
the installation of electrical wiring from the electric
meter, main control box or service outlet to the electric appliance.
Qualified installation personnel must be experienced in
such work, familiar with all precautions required, and have
complied with all requirements of state or local authorities
having jurisdiction.
9
Installation
Gas Connection
gas piping
Maximum Capacity of Iron Pipe in Cubic Feet of
Natural Gas Per Hour
A properly sized gas supply system is essential for maximum oven performance. Piping should be sized to provide a supply of gas sufficient to meet the maximum demand of all appliances on the line without loss of pressure
at the equipment.
(Pressure drop of 0.5 Inch W.C.)
Nominal Size, Inches
3/4”
1”
1-1/4” 1-1/2”
2”
10
360
680
1400 2100 3950
20
250
465
950
1460 2750
30
200
375
770
1180 2200
40
170
320
660
990
1900
50
151
285
580
900
1680
60
138
260
530
810
1520
70
125
240
490
750
1400
80
118
220
460
690
1300
90
110
205
430
650
1220
100
103
195
400
620
1150
From the National Fuel Gas Code Part 10 Table 10-2
Pipe
Length (ft)
Example:
NOTE: BTU values in the following example are for
natural gas.
You purchase a DFG-100 to add to your existing cook
line.
1. Add the BTU rating of your current appliances.
Pitco Fryer
120,000 BTU
6 Burner Range
60,000 BTU
Deck Oven
50,000 BTU
Total
230,000 BTU
2. Add the BTU rating of the new oven to the total.
Previous Total
230,000 BTU
DFG-100
55,000 BTU
New Total
285,000 BTU
Maximum Capacity of Pipe in Thousands of
BTU/hr of Undiluted L.P. Gas at 11” W.C.
(Pressure drop of 0.5 Inch W.C.)
3. Measure the distance from the gas meter to the cook
line. This is the pipe length. Let’s say the pipe length
is 40’ (12.2 m) and the pipe size is 1” (2.54 cm).
Outside Diameter, Inches
3/4”
1”
1-1/2”
10
608
1146
3525
20
418
788
2423
30
336
632
1946
40
287
541
1665
50
255
480
1476
60
231
435
1337
70
215
404
1241
80
198
372
1144
90
187
351
1079
100
175
330
1014
From the National Fuel Gas Code Part 10 Table 10-15
Pipe
Length (ft)
4. Use the appropriate table to determine the total capacity of your current gas piping.
The total capacity for this example is 320,000 BTU. Since
the total required gas pressure, 285,000 BTU is less than
320,000 BTU, the current gas piping will not have to be
increased.
NOTE: The BTU capacities given in the tables are for
straight pipe lengths only. Any elbows or other
fittings will decrease pipe capacities. Contact
your local gas supplier if you have any questions.
10
Installation
Gas Connection
pressure regulation and testing
Each oven is supplied with a regulator to maintain the
proper gas pressure. The regulator is essential to the
proper operation of the oven and should not be removed.
It is preset to provide the oven with 3.5” W.C. (0.87 kPa)
for natural gas and 10.0” W.C. (2.50 kPa) for Propane at
the manifold.
DFG-100-3 ovens are rated at 55,000 BTU/Hr. (16.2
kW) (58 MJ) per section. DFG-200-L ovens are rated at
60,000 BTU/Hr. (17.6 kW) (63 MJ) per section. Each oven
has been adjusted at the factory to operate with the type
of gas specified on the rating plate.
W.C.
kPa
W.C.
kPa
DO NOT INSTALL AN ADDITIONAL REGULATOR
WHERE THE OVEN CONNECTS TO THE GAS SUPPLY
UNLESS THE INLET PRESSURE IS ABOVE MAXIMUM.
Inlet Pressure
Natural
Propane
Min
Max
Min
Max
7.0
10.5
11.0
13.0
1.742
2.61
2.74
3.23
Manifold Pressure
Natural
Propane
3.5
10.0
.87
2.49
•
Inlet Pressure - the pressure of the gas before it
reaches the oven.
•
Manifold Pressure - the pressure of the gas as it
enters the main burner(s).
•
Min - the minimum pressure recommended to operate the oven.
•
Max - the maximum pressure at which the manufacturer warrants the oven’s operation.
Prior to connecting the oven, gas lines should be thoroughly purged of all metal filings, shavings, pipe dope,
and other debris. After connection, the oven should be
checked for correct gas pressure.
The oven and its individual shutoff valve must be disconnected from the gas supply piping system during any
pressure testing of that system at test pressures in excess of 1/2 psig (13.85” W.C., 3.45 kPa).
The oven must be isolated from the gas supply piping
system by closing its individual manual shutoff valve during any pressure testing of the gas piping system at test
pressures equal or less than 1/2 psig (13.85” W.C., 3.45
kPa).
Gas Connection 2.5” (64 mm)
Gas Connection 3.75” (85.7 mm)
Figure 9
11
Installation
Gas Connection
Gas hose restraint
WARNING!!
If the oven is mounted on casters, a commercial flexible
connector with a minimum of 3/4” (1.9 cm) inside diameter must be used along with a quick connect device.
If the restraint is disconnected for any reason it must be reconnected when the oven is
returned to its original position.
The restraint, supplied with the oven, must be used to limit
the movement of the unit so that no strain is placed upon
the flexible connector. With the restraint fully stretched the
connector should be easy to install and quick connect.
U.S. and Canadian installations
The connector must comply with the Standard for Connectors for Movable Gas Appliances, ANSI Z21.69 or
Connectors For Moveable Gas Appliances CAN/CGA6.16 and a quick disconnect device that complies with the
Standard for Quick-Disconnect Devices for Use With Gas
Fuel, ANSI Z21.41 or Quick Disconnect For Use With Gas
Fuel CAN 1-6.9. Adequate means must be provided to
limit the movement of the appliance without depending
on the connection and the quick disconnect device or its
associated piping.
The restraint (ie: heavy gauge cable) should be 1,000 lb.
(453 kg) test load and should be attached without damaging the building. DO NOT use the gas piping or electrical
conduit for the attachment of the permanent end of the
restraint! Use anchor bolts in concrete or cement block.
On wooden walls, drive hi test wood lag screws into the
studs of the wall.
1. Mount the supplied bracket to the leg bolt just below
the gas inlet.
Australie and general export installations
The restraint and quick connect must conform with Local and National installation standards. Local installation
codes and/or requirements may vary. If you have any
questions regarding the proper installation and/or operation of your Blodgett oven, please contact your local distributor. If you do not have a local distributor, please call
the Blodgett Oven Company at 0011-802-658-6600.
2. Attach the clip on restraining cable to the mounting
bracket.
Back of Oven
Restraint Cable
Bracket
Double stacked unit shown. Use the same procedure for single units.
Figure 10
12
Installation
Electrical Connection
Wiring diagrams are located in the control compartment
and on the back of the oven.
WARNING!!
This appliance is equipped with three prong
grounding type plug for your protection
against shock hazard and should be plugged
directly into a properly grounded three prong
receptacle. DO NOT cut or remove the grounding prong from this plug.
This oven is supplied for connection to 115 volt grounded
circuits. The electric motor, indicator lights and related
switches are connected through the 6’ electric supply cord
found at the rear of the oven.
The Blodgett Oven Company cannot assume responsibility for loss or damage suffered as a result oF improper
installATION.
Model
Hz
Volts
ELECTRICAL SPECIFICATIONS
Phase
Amps
U.S. and Canadian Installations
DFG-100-3
60
115
DFG-200-L
60
115
Australia and General Export Installations
DFG-100-3
50
220-240
DFG-200-L
50
220-240
13
Electrical Connection
(minimum size)
1
1
6
6
Cord set provided
Cord set provided
1
1
3
3
Size per local code
Size per local code
Installation
Initial Startup
Adjustments associated with initial installation
The following is a check-list to be completed by qualified
personnel prior to turning on the appliance for the first
time.
3. Turn the combination valve’s manual shut-off to the
on position.
Each oven, and its component parts, have been thoroughly tested and inspected prior to shipment. However, it is
often necessary to further test or adjust the oven as part
of a normal and proper installation. These adjustments
are the responsibility of the installer, or dealer. Since
these adjustments are not considered defects in material or workmanship, they are not covered by the Original
Equipment Warranty. They include, but are not limited to:
4. Turn the selector switch to Cook, and the thermostat
to 50°F (260°C).
•
calibration of the thermostat
•
adjustment of the doors
•
burner adjustments
•
leveling
•
testing of gas pressure
•
tightening of fasteners.
1. Open the manual shut-off valve at the rear of the
oven.
2. jRemove the control panel and combustion covers.
The oven main burner lights, and the Oven Ready Light
comes on. With the main burner on, check the following.
1. Verify there are no gas leaks, by checking all gas connections with a soapy water solution.
2. Verify that the inlet pressure is correct. The inlet pressure can be checked at the pressure tap located on
the combination valve’s inlet side.
No installation should be considered complete without
proper inspection, and if necessary, adjustment by qualified installation or service personnel.
3. Verify that the manifold pressure is correct. The manifold pressure can be checked at the pressure tap located on the manifold.
4. If the above pressure readings are set to the recommended pressure requirements, allow the oven to
burn-off for 2 hours. If the pressure readings are not
set correctly, turn off the oven and readjust accordingly.
WARNING
The break in procedure burns off excess
oils present in the metals during fabrication.
Smoke may be produced. Proper ventilation is
required.
14
Operation
Safety Information
What to do in the event of a power failure:
The information contained in this section is provided for
the use of qualified operating personnel. Qualified operating personnel are those who have carefully read the information contained in this manual, are familiar with the
functions of the oven and/or have had previous experience with the operation of the equipment described. Adherence to the procedures recommended herein will assure the achievement of optimum performance and long,
trouble-free service.
•
Turn all switches to off.
•
DO NOT attempt to operate the oven until the power
is restored.
NOTE: In the event of a shut-down of any kind, allow a
five (5) minute shut off period before attempting
to restart the oven.
General safety tips:
Please take the time to read the following safety and operating instructions. They are the key to the successful
operation of your Blodgett oven.
SAFETY TIPS
For your safety read before operating
•
DO NOT use tools to turn off the gas control. If the
gas cannot be turned off manually do not try to repair it. Call a qualified service technician.
•
If the oven needs to be moved for any reason, the
gas must be turned off and disconnected from the
unit before removing the restraint cable. Reconnect
the restraint after the oven has been returned to its
original location.
•
DO NOT remove the control panel cover unless the
oven is unplugged.
What to do if you smell gas:
•
DO NOT try to light any appliance.
•
DO NOT touch any electrical switches.
•
Use an exterior phone to call your gas supplier immediately.
•
If you cannot reach your gas supplier, call the fire
department.
15
Operation
Solid State Manual Control with Digital Timer
control Description
1. SELECTOR SWITCH - controls power to the oven for
cook or cool down.
1
2. BLOWER SWITCH - controls blower speed, either hi
or lo.
3. LIGHTS SWITCH - controls interior lights.
4. OVEN READY LIGHT - when lit indicates burner operation. When the light goes out the oven has reached
operating temperature.
5. SOLID STATE THERMOSTAT - allows an infinite selection of temperatures from 150-500°F (66-260°C).
2
3
6. DISPLAY - displays cook time
7. TIMER DIAL - used to enter desired cook time
8. HEAT CUTOFF - used to turn gas on or off.
4
operation
1. Turn the SELECTOR Switch (1) to COOK. The blower
and control compartment cooling fan operate and are
controlled automatically by the action of the doors.
The display reads 00:00.
5
2. Set BLOWER Switch (2) to the desired speed.
6
3. Set the SOLID STATE THERMOSTAT (5) to the desired temperature.
4. Preheat until the OVEN READY LIGHT (4) goes out.
7
5. Load product into the oven. Rotate the dial (7) to the
desired time. The timer will begin to countdown after
approximately 1 second.
6. When the buzzer sounds, remove the product from
the oven. Turn the TIMER dial (7) to silence the buzzer.
8
7. Turn the SELECTOR Switch (1) to OVEN OFF.
WARNING!!
A complete five minute shutdown must be
observed before the oven is relighted.
Figure 11
16
Operation
Solid State Manual Control
control Description
1. SELECTOR SWITCH - controls power to the oven for
cook or cool down.
1
2. BLOWER SWITCH - controls blower speed, either hi
or lo. Two speed not available in 50 Hz.
3. LIGHTS SWITCH - controls interior lights.
4. OVEN READY LIGHT - when lit indicates burner operation. When the light goes out the oven has reached
operating temperature.
2
3
5. SOLID STATE THERMOSTAT - allows either 8 preset temperatures to be selected in accordance with
customer requirements, or an infinite selection of
temperatures from 200-500°F (95-260°C). (infinite
control shown)
60 HZ
only
4
6. TIMER - activates an electric buzzer that sounds
when the cook time expires.
operation
1. Turn the SELECTOR Switch (1) to COOK. The blower
and control compartment cooling fan operate and are
controlled automatically by the action of the doors.
5
2. Set BLOWER Switch (2) to the desired speed.
3. Set the SOLID STATE THERMOSTAT (5) to the desired setting or temperature.
4. Preheat until the OVEN READY LIGHT (4) goes out.
6
5. Load product into the oven. Determine cook time and
set the TIMER (6).
6. When the buzzer sounds, remove the product from
the oven. Turn the TIMER knob (6) to OFF to silence
the buzzer.
7. Turn the SELECTOR Switch (1) to OVEN OFF.
WARNING!!
A complete five minute shutdown must be
observed before the oven is relighted.
Figure 12
17
Operation
Solid State Digital Control
control Description
1. SELECTOR SWITCH - turns power to the oven on
or off. Allows selection of Cook or Cool Down Modes
and fan speed (if applicable).
1
2. BLOWER SWITCH - controls blower speed, either hi
or lo. Two speed not available in 50 Hz.
3. LIGHTS SWITCH - controls interior lights.
4. DISPLAY - displays time or temperature and other information related to oven function.
5. HEAT LAMP - lights when heater is on.
2
3
6. PULSE LAMP - lights when Pulsed Fan Mode is
turned on.
60 HZ
only
7. HOLD LAMP - lights when Hold Mode is turned on.
4
6
5
8. DIAL - used to enter set points in display
9. START/STOP KEY - starts or stops the timer.
7
10. TIME KEY - used to show time in the display.
11. TEMP KEY - used to show set temperature in the display.
8
10
NOTE: Actual temperature is shown while the
TEMP key is held down.
11
9
12. HOLD KEY - turns Hold Mode on or off.
13. PULSE KEY - turns Pulse Mode on or off.
13
12
Programming
To set the cook temperature:
1. Press TEMP (11) key.
2. Rotate dial (8) to enter temperature.
To set the cook time:
1. Press TIME (10) key.
2. Rotate the dial (8) to enter time.
NOTE: Time is entered in hours : minutes or minutes : seconds.
To set the hold time:
1. Press HOLD key (12) to turn hold mode on.
NOTE: HOLD light is on.
2. Rotate dial (8) to enter the hold temperature.
3. Press START/STOP key (9)
Figure 13
18
Operation
Solid State Digital Control
To set the pulse time:
Cook with Pulse:
1. Press PULSE KEY (13) to turn pulse mode on.
NOTE: PULSE light is on when pulse mode is on and off
when pulse mode is off.
NOTE: Pulse light is on.
1. Turn the SELECTOR SWITCH (1) to the desired position.
2. Rotate DIAL (8) to enter the pulse time. Pulse time is
a portion of the pre-set cook time.
2. Enter cook time and cook temperature.
operation
3. Press PULSE KEY (13). Enter the pulse time.
Cook Only:
NOTE: Pulse time is a portion of the cook time and
does not increase the previously entered
cook time.
1. Turn the SELECTOR switch (1) to the desired position.
2. Enter the cook time and temperature.
4. Load product into the oven.
3. Load product into the oven.
NOTE: The display reads LOAD when the oven is
near the set temperature.
NOTE: The display reads LOAD when the oven is
near the set temperature.
5. Push START/STOP KEY (9). The timer begins to
count down the cook time. The oven will be in pulse
mode for the set pulse time. Once the set time has expired, the unit will automatically switch to cook mode
and continue counting down.
4. Press the START/STOP key (9). The timer begins to
count down.
5. When the cook timer reaches 00:00 the buzzer
sounds and the display reads DONE.
6. Press the START/STOP key (9) to silence the buzzer.
6. When the cook timer reaches 00:00 the buzzer
sounds and the display reads DONE.
7. Remove the product.
7. Push the START/STOP KEY (9) to turn the buzzer off.
Cook with Hold:
8. Remove the product.
NOTE: HOLD light is on when hold mode is on and off
when hold mode is off.
WARNING!!
A complete five minute shutdown must be
observed before the oven is relighted.
1. Turn the SELECTOR switch (1) to the desired position.
2. Enter the cook time and temperature.
3. Press the HOLD key (12). Enter the hold temperature.
4. Load product into the oven.
NOTE: The display reads LOAD when the oven is
near the set temperature.
5. Push the START/STOP (9) key. Timer begins to count
down.
6. When the cook timer reaches 00:00 the buzzer sounds
and the display reads DONE. The buzzer turns off after a few seconds. The display reads HOLD until the
oven reaches the hold temperature. Then the timer
begins to count up.
7. Push the START/STOP key (9) to stop timer.
8. Remove the product.
9. Push HOLD (12) key to turn off hold mode.
19
Operation
Blodgett IQ2™ Vision Control
component Description
1. OVEN POWER SWITCH - controls power to the oven.
2. DISPLAY - displays temperature and other controller
related information.
1
3. PROGRAM KEY - press to enter the programming
mode.
4. PROGRAM ARROW KEYS - use to move through
programming menus and options
18
2
5. HEAT LED - when lit indicates the control is calling
for heat.
4
3
6. PROG LED - when lit indicates the controller is in the
programming mode.
7
5
7. HIGH FAN LED - when lit indicates the fan is running
at high speed.
8
6
8. LOW FAN LED - when lit indicates the fan is running
at low speed.
9
14
15
10
9. SCAN KEY - Press to view time remaining on multiple
cook cycles and to review recipe programming.
11
10. COOL DOWN KEY - press to enter the cool down
mode.
12
11. TEMP/TOGGLE/CLEAR KEY - press during programming to toggle options.
13
12. HOLD KEY - press to enter hold mode.
13. SET BACK KEY -
16
14. PRODUCT KEYS (1-10) - assigns a key to a programmed recipe and begins a programmed cooking
process. Also used to enter numeric values in the programming mode.
15. PRODUCT LEDS - when lit indicate which product
keys are currently in use or programmed for the current oven temperature and fan speed.
16. SHELF KEYS (1-5) - assigns a shelf key.
17
17. LIGHTS SWITCH - controls interior lights.
18. GAS ON/OFF SWITCH - press to shut off gas to the
oven.
DISCONNECT FROM THE SOURCE OF
SUPPLY BEFORE SERVICING
www.blodgett.com
Figure 14
20
Operation
Blodgett IQ2™ Vision Control
Oven Operation
Oven Startup:
NOTE: Press and hold the selected product key for
three seconds to cancel the cook cycle for
normal operation. To cancel the cook cycle
when using shelf timing, press and hold the
corresponding SHELF KEY (16) for 3 seconds.
1. Toggle the POWER SWITCH (1) to ON. The display
gives the software revision level. The oven preheats
to the lowest programmed first stage temperature.
The LEDS (15) for all products with the same first
stage temperature light.
4. When the cook time expires an alarm sounds and the
DISPLAY (2) reads:
Single Product Cooking Procedure:
NOTE: If the led next to the desired product key is lit
skip step 1.
DONE
Product name
1. Press the desired PRODUCT KEY (14). The oven
preheats to the first stage temperature for the selected product. When the oven reaches 10° of the preheat temperature an alarm sounds and the DISPLAY
(2) read:
5. Press the selected product key to silence the alarm.
Remove the product. If shelf timing is used, press the
flashing SHELF KEY (16) to silence the alarm.
LOAD
Multiple Batch Cooking Procedure:
This procedure is for single stage recipes with the same
cook temperature and fan speed only.
2. Load the product into the oven. Press the desired
PRODUCT KEY (14).
NOTE: If the led next to the first desired product key is lit
skip step 1.
3. If the shelf timing function is toggled to the on position for that product key, the DISPLAY (2) reads:
1. Press the first desired PRODUCT KEY (14). The
LEDS for all recipes with the same cook temperature
and fan speed will light.
PICK SHLF
The oven preheats to the cook temperature for the
selected product. When the oven reaches +10° of the
preheat temperature an alarm sounds and the DISPLAY (2) reads:
Press a SHELF KEY (16) to assign the product to that
shelf and start the cook cycle. Within five seconds,
the DISPLAY (2) scrolls the product name and shelf
number and counts down the remaining cook time.
LOAD
If the shelf timing function is toggled to the off
position for that product, pressing the product key
will start the cook cycle. The DISPLAY (2) scrolls the
product name and counts down the remaining cook
time.
NOTE: If the selected product has a cook time of
greater than 59:59 the DISPLAY (2) switches to hours:minutes.
NOTE: If the selected product is a single stage
recipe the LEDS for all single stage products with the same cook temperature and
fan speed will light. If the selected product
is a multiple stage recipe no other product
LEDS will light.
21
Operation
Blodgett IQ2™ Vision Control
2. Load the product into the oven. Press the desired
PRODUCT KEY (14).
6. Press the SHELF KEY (16) for the finished product
to silence the alarm. Remove the product. Close the
oven door. The DISPLAY (2) scrolls the product name
and counts down the remaining cook time for the
product with the least time remaining.
If the shelf timing function is toggled to the on position for that product key, the DISPLAY (2) reads
7. When the cook time expires an alarm sounds and the
display reads:
PICK SHLF
Press a SHELF KEY (16) to assign the product to that
shelf and start the cook cycle. Within five seconds,
the DISPLAY (2) scrolls the product name and shelf
number and counts down the remaining cook time.
DONE
8. Press the SHELF KEY (16) to silence the alarm. Remove the product.
If the shelf timing function is toggled to the off position
for that product, pressing the product key will start
the cook cycle. The DISPLAY (2) scrolls the product
name and counts down the remaining cook time.
Oven Cool Down:
1. Close the oven door. Press the COOL DOWN KEY
(10).
3. Load the second product. Press the desired PRODUCT KEY (14). the DISPLAY (2) reads
NOTE: Cool down cannot be activated with the
oven door open. Once the cool down cycle
has begun the doors may be opened to
speed the cooling process.
PICK SHLF
To Review Repipe Programming:
Press a SHELF KEY (16) to assign the product to that
shelf and start the cook cycle for product two.
1. Press the SCAN KEY (9). The display reads:
NOTE: Only products with lighted LEDS may be
selected.
RECIPE REVIEW
Select Product
Repeat step 3 for additional products.
4. The DISPLAY (2) scrolls the product name and counts
down the remaining cook time for the product with the
least time remaining.
The LEDs (15) for all previously programmed product
keys light. Press the PRODUCT KEY (14) you wish
to review. The display gives the recipe cook time for
stage 1. Use the PROGRAM ARROW KEYS (4) to
scroll through the recipe programming for the selected product key.
NOTE: To view the remaining cook time for the
other products press and hold the SCAN
KEY (9). The display cycles through the
remaining cook times for each product. Only
the led for the product with the cook time
displayed will be lit.
2. The control will exit recipe review after 30 seconds if
no key is pressed.
5. When a cook time expires an alarm sounds. The display reads
DONE
The led for the finished product lights. All other LEDS
are dark.
22
Operation
Blodgett IQ2™ Vision Control
product key Programming
To enter the product programming mode
To program the product
1. Press and hold the PROGRAM KEY (3). The DISPLAY (2) reads:
4. The display reads:
Shelf Cook
AAA
Prod Cnt
Programming
Definition: Shelf cook enables the operator to
reference product to one of the five shelf positions in the oven. At the end of a shelf cooking cycle the oven will display the name of the
product and the shelf number that is ready to
be pulled. Shelf cooking is not available for
multi-stage recipes.
Use the PROGRAM ARROW KEYS (4) to highlight
Programming. Press the PROGRAM KEY (3) to select. The display reads:
ENTER CODE
Use the PRODUCT KEYS (14) to enter the programming access code 1724. Press the PROGRAM KEY
(3). The display reads:
Use non shelf cooking when you do not need
to reference product to one of the five shelf
positions in the oven. Non shelf cooking may
be used for single stage recipes and MUST be
use for multi-stage recipes.
RECIPE
Press the PROGRAM KEY (3). All of the product
LEDSs will light and the display reads:
Use the PROGRAM ARROW KEYS (4) to select
either YES (for shelf cooking) or NO (for non shelf
cooking). Press the PROGRAM KEY (3).
Select Product
to Program
5. The display reads:
Stage 1 Time
XX:XX
To select the product to program
2. Press the desired product key. The display reads:
Use the PRODUCT KEYS (14) to enter the desired
cook time. Press the PROGRAM KEY (3).
All
Name
6. The display reads:
With All highlighted, press the PROGRAM KEY (3).
The display reads:
Stage 1 Temp
XXXF (or C)
Product Name
AAA
Use the PRODUCT KEYS (14) to enter the desired
cook temperature. Press the PROGRAM KEY (3).
The first alphabetical listing in the product name library appears.
3. To change the product name, use the PROGRAM
ARROW KEYS (4) to scroll through the product name
library. When the desired product name is highlighted,
press the PROGRAM KEY (3) to select.
23
Operation
Blodgett IQ2™ Vision Control
7. The display reads:
Use the PRODUCT KEYS (14) to enter the desired
length of the time the fan should be on in the pulse
cycle. Press PROGRAM KEY (3). The display reads:
Stage 1 Timing
XX:XX
Stage 1 Fan Off
XX:XX
Definition: There are 3 options for timing
mode when shelf cooking: Straight, Flex and
Sensitivity. Straight has no time adjustment.
Flex adjusts the cook time to compensate for
any difference between the setpoint and actual
temperature. Sensitivity enables a product key
to have a flex adjustment for each of the five
shelves. Sensitivity values are set in the manager level programming.
Use the PRODUCT KEYS (14) to enter the desired
length of the time the fan should be off in the pulse
cycle. Press the PROGRAM KEY (3).
10. If you are programming a product using shelf cooking
skip to step 11.
If you are programming a product that does not use
shelf cooking the display reads:
Stage 2 Time
XX:XX
NOTE: Sensitivity is only available when using shelf
cooking.
Use the PROGRAM ARROW KEYS (4) to select the
desired timing mode. Press the PROGRAM KEY (3).
Repeat steps 5 through 10 for each remaining stage.
If you are programming a single stage recipe without
shelf cooking enter at time of 00:00 for stage 2.
8. The display reads:
11. The display reads:
Stage 1 Fan Speed
XX
Alarm 1 Time
XX:XX
Use the PROGRAM ARROW KEYS (4) to select either HIGH or LOW fan speed. Press the PROGRAM
KEY (3).
Definition: If you would like the alarm to sound
prior to the completion of the cook cycle you
may program it here. The alarm time counts
up from the beginning of the cook cycle. For
example, if you want an alarm 9 minutes into
the cook cycle, program the alarm time at 9:00.
9. The display reads:
Stage 1 Fan Cyc
XXX
Use the PRODUCT KEYS (14) to enter the time for
the first alarm to sound. If 00:00 is entered for an
alarm time, skip to step 12.
Definition: There are 3 options for fan cycle
time: Pulse, Heat and Full. Pulse allows the fan
to turn on and off as programmed. Heat allows
the fan to operate with heat only. Full provides
continuous fan operation when door is closed.
Press the PROGRAM KEY (3). If a time other than
00:00 is entered the display reads:
Use the PROGRAM ARROW KEYS (4) to select the
fan cycle. If heat or full are selected skip to step 10. If
pulse is selected the display reads:
Stage 1 Fan On
XX:XX
24
Operation
Blodgett IQ2™ Vision Control
14. The display reads:
Alarm 1 Name
AAA
Hold Done
XXX
To change the alarm name, use the PROGRAM ARROW KEYS (4) to scroll through the alarm name library.
Use the PROGRAM ARROW KEYS (4) to select either AUTOMATIC or MANUAL. Press the PROGRAM
KEY (3).
Press the PROGRAM KEY (3). The display reads:
15. The display reads:
Alarm 1 Done
XXX
Hold Fan Speed
XXX
Use the PROGRAM ARROW KEYS (4) to select either AUTOMATIC or MANUAL.
Use the PROGRAM ARROW KEYS (4) to select
HIGH or LOW. Press the PROGRAM KEY (3).
Press the PROGRAM KEY (3). The display reads:
To exit the program mode
Alarm 1 Tone
XXX
16. The display reads:
Exit
All
Use the PROGRAM ARROW KEYS (4) to select either NONE, SHORT, MEDIUM, LONG, DOUBLE, or
LONG/SHORT.
Press the PROGRAM KEY (3). The display reads:
Use the PROGRAM ARROW KEYS (4) to scroll
down until exit is highlighted. Press the PROGRAM
KEY (3). The display reads:
Alarm 2 Time
AAA
Recipe
Exit
Repeat step 11 for alarm 2. If no Alarm 2 is desired,
enter a time of 0.
12. Press the PROGRAM KEY (3). The display reads:
To program another product key select recipe. To exit
the progam mode select exit. The display reads:
Hold Time
XX:XX
Product Cnt
Programming
Use the PRODUCT KEYS (14) to enter desired hold
time. If a hold time of 00:00 is entered skip to step 13.
Use the PROGRAM ARROW KEYS (4) to scroll down
until exit is highlighed. Press the PROGRAM KEY (3)
to exit the programming mode.
Press the PROGRAM KEY (3).
13. The display reads:
Hold Temp
XXXF
Use the PRODUCT KEYS (14) to enter desired hold
temperature. The minimum hold temperature is 140F.
Press the PROGRAM KEY (3).
25
Operation
Blodgett IQ2™ Vision Control
SYSTEM LEVEL PROGRAMMING
3. The display reads:
Entering the system programming mode
1. Press and hold the PROGRAM KEY (3). The display
reads:
Tone Volume
XXX
Product Cnt
Programming
Use the PROGRAM ARROW KEYS (4) to select
None, 1, 2, 3 or 4. Press the PROGRAM KEY (3) to
select the desired level for all audible signals.
Use the PROGRAM ARROW KEYS (4) to highlight
Programming. Press the PROGRAM KEY (3) to select. The display reads:
4. The display reads:
Temperature
XXX
ENTER CODE
Use the PROGRAM ARROW KEYS (4) to select either F or C. Press the PROGRAM KEY (3) to select
the desired temperature units.
Use the PRODUCT KEYS (14) to enter the programming access code 6647. Press the PROGRAM KEY
(3). The display reads:
5. The display reads:
System
Prod Name Lib
Hold Time
XX:XX
Programming the SYSTEM options
1. With System highlighted, press the PROGRAM KEY
(3) to select. The display reads:
Use the PRODUCT KEYS (14) to enter a hold time.
Press the PROGRAM KEY (3).
6. The display reads:
Appliance Type
XXX
Setback Time
XX:XX
Use the PROGRAM ARROW KEYS (4) to highlight
electric half, electric full, gas half or gas full. Press
the PROGRAM KEY (3) to select the correct appliance type.
Definition: Setback time is an energy savings
feature that automatically lowers the cavity
temperature when the oven is idle.
If the appliance type is changed the display scrolls
“Are you sure, existing recipes will be cleared?” Use
the PROGRAM ARROW KEYS (4) to select either
Use the PRODUCT KEYS (14) to enter a setback
time. Press the PROGRAM KEY (3).
YES or NO.
2. The display reads:
7. The display reads:
Language
XXX
Shelf Sense
XXX
Use the PROGRAM ARROW KEYS (4) to selecteither English or Other. Press the PROGRAM KEY (3)
to select the desired language.
26
Operation
Blodgett IQ2™ Vision Control
This enables you to program a product name. Use
the PROGRAM ARROW KEYS (4) to select either
Yes or No. Press the PROGRAM KEY (3).
Definition: If you are using sensitivity as a timing mode for single stage stage recipes this
feature must be turned on.
12. The display reads:
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
Recipe Shelf
YES
8. The display reads:
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
Shelf 1 Sense
XXX
13. The display reads:
Use the PRODUCT KEYS (14) to enter sensitivity
level of 1-9 for shelf 1. Press the PROGRAM KEY
(3). Repeat for shelves 2-5.
Recipe Fan Speed
YES
9. The display reads:
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
Preheat Time
XXX
14. The display reads:
Recipe Fan Cycle
YES
Definition: This function programs time for the
oven to idle after reaching the preheat temperature allowing heat to saturate the oven cavity.
The preheat time only applies to the initial preheat after a cold start. This is strictly a prompt,
the user may begin a bake cycle even with the
preheat prompt displayed.
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
15. The display reads:
Recipe Alarm
YES
Use the PRODUCT KEYS (14) to enter a preheat
time. Press the PROGRAM KEY (3).
10. The display reads:
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
Recipe Stage
YES
16. The display reads:
Recipe Hold
YES
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
11. The display reads:
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
Recipe Name
YES
27
Operation
Blodgett IQ2™ Vision Control
17. The display reads:
2. Use the up and down PROGRAM ARROW KEYS (4)
to scroll through the existing product names. Or press
the PRODUCT KEY (14) that corresponds with the
first letter of the name you are looking for. Then use
the PROGRAM ARROW KEYS (4) to scroll to the desired name.
Recipe Timing
YES
Use the PROGRAM ARROW KEYS (4) to select either Yes or No. Press the PROGRAM KEY (3).
3. Press the SCAN KEY (9) to edit the name.
4. Use the PRODUCT KEYS (14) to edit the product
name. Press the right arrow key to advance to the
next character.
18. The display reads
Global Timing
YES
To clear the product name, press the TEMP/TOGGLE/CLEAR KEY (11).
NOTE: Use product key 1 for spaces, periods, quotation marks and underlines.
Definition: There are 3 options for timing
mode when shelf cooking: Straight, Flex and
Sensitivity. Straight has no time adjustment.
Flex adjusts the cook time to compensate for
any difference between the setpoint and actual
temperature. Sensitivity enables a product key
to have a flex adjustment for each of the five
shelves. Sensitivity values are set in the manager level programming.
5. Once the product name has been entered, press the
PROGRAM KEY (3). The display reads:
Save Library
ADD
Use the PROGRAM ARROW KEYS (4) to select either ADD, MODIFY or CANCEL. Select ADD to create a new product name. Select MODIFY to change
an existing product name. Select CANCEL to exit the
edit mode without saving your changes.
Use the PROGRAM ARROW KEYS (4) to select the
timing mode. Press the PROGRAM KEY (3).
Programming the PRODUCT NAME
NOTE: To delete an exsisting product name, find
the name in the product library. Press
the TEMP/TOGGLE/CLEAR KEY (11) to
clear the entire product name. Then select
MODIFY to overwrite the name with a clear
screen.
NOTE: Use these instructions to modify an existing
name, to add a product name or to delete a
name already in the library.
NOTE: Names may be up to 16 characters long and can
contain letters and numbers.
1. After entering the manager level programming (see
page 36) the display reads:
6. Press the PROGRAM KEY (3) to exit the product
name library.
System
Prod Name Lib
With ProdName Lib highlighted, press the PROGRAM KEY (3) to select. The display reads:
Product Name Lib
28
Operation
Blodgett IQ2™ Vision Control
Use the PROGRAM ARROW KEYS (4) to select either ADD, MODIFY or CANCEL. Select ADD to create a new alarm name. Select MODIFY to change an
existing alarm name. Select CANCEL to exit the edit
mode without saving your changes.
Programming the ALARM NAME
NOTE: Use these instructions to modify an existing
name, to add an alarm name or to delete a name
already in the library.
NOTE: Names may be up to 16 characters long and can
contain letters and numbers.
NOTE: To delete an exsisting alarm name, find
the name in the product library. Press the
TEMP/TOGGLE/CLEAR KEY (11) to clear
the entire alarm name. Then select MODIFY
to overwrite the name with a clear screen.
1. After entering the system level programming (see
page 36) the display reads:
6. Press the PROGRAM KEY (3) to exit the alarm name
library.
System
Prod Name Lib
Exiting the system program mode
Use the PROGRAM ARROW KEYS (4) to highlight
Alarm Lib. Press the PROGRAM KEY (3) to select.
The display reads:
1. The display reads:
System
Prod Name Lib
Alarm Name Lib
Use the PROGRAM ARROW KEYS (4) to scroll up
until Exit is highlighted. Press the PROGRAM KEY
(3). The display reads:
2. Use the up and down PROGRAM ARROW KEYS (4)
to scroll through the existing alarm names. Or press
the PRODUCT KEY (14) that corresponds with the
first letter of the name you are looking for. Then use
the PROGRAM ARROW KEYS (4) to scroll to the
desired name.
Product Cnt
Programming
3. Press the SCAN KEY (9) to edit the name.
Use the PROGRAM ARROW KEYS (4) to scroll up
until Exit is highlighted. Press the PROGRAM KEY
(3) to exit the programming mode.
4. Use the PRODUCT KEYS (14) to edit the alarm
name. Press the right arrow key to advance to the
next character.
To clear the alarm name, press the TEMP/TOGGLE/
CLEAR KEY (11).
NOTE: Use product key 1 for spaces, periods, quotation marks and underlines.
5. Once the alarm name has been entered, press the
PROGRAM KEY (3). The display reads:
Save Library
ADD
29
Operation
SmartTouch Touchscreen Control
component description
1. DISPLAY - displays controller related information.
2. USB PORT and COVER - Use to transfer recipes and
data to/from the control
3. CORE PROBE CONNECTION - plug core temperature probe in here when using probe cooking
DFG
4. OVEN POWER SWITCH - controls power to the oven.
5. GAS ON/OFF SWITCH - press to shut off gas to the
oven.
1
2
3
4
5
Figure 15
30
Operation
SmartTouch Touchscreen Control
manual mode cooking
1. Select the POWER button to turn on the oven and
proceed to the manual screen.
2. Set the desired cook settings.
A) Temperature - Press the temperature text and
enter the desired oven temperature on the keypad
provided. Press SAVE & EXIT key to return to this
screen.
B) Cook Time - Press the time text and enter the desired cook time on the keypad provided. Press SAVE
& EXIT to return to this screen.
C) Core Probe Cooking - To use the core probe cooking feature, press the PROBE COOK icon. Press the
temperature text that appears and enter the desired
product core temperature on the keypad provided.
Press SAVE & EXIT key to return to the manual cook
screen. Insert a product probe in the probe outlet on
the control panel. To use the HOLD option, press the
HOLD key. Once activated, key will be blue. To escape from probe cooking press the time icon.
D) Fan Speed - Press the fan speed text to toggle
between Low or High.
E) Lights - At any time the lights can be turned on by
pressing the LIGHT icon. The lights will remain on for
15 seconds.
A
C
B
D
E
Figure 16
Figure 17
3. Press START Icon to begin cooking. Press Cancel
key to stop cooking. Press +1 MIN to add 1 minute to
the cook time.
31
Operation
SmartTouch Touchscreen Control
Menu mode cooking
1. On a manual screen, press the ESC key to exit.
4. Select the desired food category for your product.
2. Select the MENU key to cook using the preprogrammed menu items.
Figure 20
5. Within the food category, select the desired product
you wish to cook.
Figure 18
3. Push the SELECT ITEM PRODUCT ICON in the top
right corner of the screen
Figure 21
6. Once selected the control returns to the Menu Cooking screen. Press the START KEY to begin the cook
cycle.
Figure 19
32
Operation
SmartTouch Touchscreen Control
shelf cooking
1. Select the SHELF COOKING key.
3. During the cook cycle, individual shelf cook timers will
count down as the product is cooked. If you wish to
cancel the bake, you can press the PAUSE key, or
you can pause individual shelves.
To add time, select +1 MIN key for individual shelves
or +1 MIN ALL key to add time to all shelves. Each
time the key is pressed, 1 minute of cook time is added.
Press STOP again to reset to the original values.
CLEAR ALL to clear all products from all shelves. All
Shelves must be cleared to escape the screen.
Once the bake is complete the beeper will sound.
Figure 22
2. Select item icon in the upper right corner to select
which item to cook. Select which shelves you intend
to place the selected food item on. Press selected
item icon in the upper right corner of the screen to
add different items that share the same cook temperature but may have different cook times.
Once preheated, start icons will appear. You can
choose start all or start individual shelves.
Figure 24
Figure 23
33
Operation
SmartTouch Touchscreen Control
editing a menu
1. Select the MENU/EDIT icon to edit the recipes in the
menu mode.
3. To edit an existing item, select the item while the EDIT
key at the bottom is highlighted.
To delete an Item, select the item while the DELETE
key is highlighted.
To create a new item, select the NEW ? icon while the
EDIT key is highlighted.
Figure 25
2. Select the EDIT ITEMS icon to edit the menu items.
Figure 27
Figure 26
34
Operation
SmartTouch Touchscreen Control
4. Each recipe is made up of steps containing four settings - temperature, time, fan, etc. A new step is needed when you desire a different setting within a step.
To edit a setting within a particular step, press the
icon for that setting. A keypad will appear for you to
input your value.
To add a step, press the + key icon.
To edit a step, press the arrow keys on the bottom left
hand corner of the screen to highlight the step you
wish to edit. Follow the instructions above to edit the
settings.
To delete a step, use the arrow keys on the bottom
left hand corner of the screen to highlight the step
you wish to delete. Press the red X icon to delete the
highlighted step.
Once you are finished, press the DISK icon to save
the changes.
Figure 28
35
Operation
SmartTouch Touchscreen Control
editing a category
1. Select the MENU/EDIT icon to edit the recipes in the
menu mode.
To delete a category, select the category while the
DELETE key is highlighted.
To create a new category, select the NEW ? icon
while the EDIT key is highlighted.
Figure 29
Figure 31
2. Select the EDIT CATEGORIES icon to select which
items are in each category.
4. Select what you would like to edit.
To edit the name, press the EDIT NAME key. A keyboard will appear, enter the desired name and press
ENTER to return to this menu.
Figure 30
3. To edit an existing category, select the category while
the EDIT key is highlighted.
Figure 32
36
Operation
SmartTouch Touchscreen Control
5. To edit the category icon, press the category icon displayed in the category edit screen. The Select Icon
screen is displayed. Select the desired icon. To view
more icon options, press the arrow key.
6. To edit items within a category, press the SELECT
ITEMS key on the edit category screen.
Select the items you would like to appear within the
category. When complete, press ESC key to return
to the previous menu. Press the DISK icon to save
your changes.
Once the category icon is selected, the category edit
screen is displayed. Press the DISK icon to save your
changes.
Figure 34
Figure 33
37
Operation
SmartTouch Touchscreen Control
creating new menu items
5. Program the recipe steps - Each recipe is made
up of steps containing seven settings - temperature,
time, fan, etc. A new step is needed when you desire
a different setting within a step.
1. Select the EDIT ITEMS key.
To edit a setting within a particular step, press the
icon for that setting. A keypad will appear for you to
input your value.
To add a step, press the + key icon.
To edit a step, press the arrow keys on the bottom left
hand corner of the screen to highlight the step you
wish to edit. Follow the instructions above to edit the
settings.
To delete a step, use the arrow keys on the bottom
left hand corner of the screen to highlight the step
you wish to delete. Press the red X icon to delete the
highlighted step.
Once you are finished, press the DISK icon to save
the changes.
6. To file recipe under an existing category, press the
EDIT CATEGORIES key. Select the desired category. Press the SELECT ITEMS key. Highlight the new
item. Press the ESC key. The disk will be displayed,
press to save your changes.
Figure 35
2. Select New?
3. Select the food icon to be displayed. Use the arrow keys to page through the available icons. Press
the desired icon to select and return to the previous
screen.
4. Name the item. Press the blank shelf below the icon
to name the recipe. A keyboard will appear. Enter the
desired name. Press ENTER when finished to return
to the previous screen.
38
Operation
SmartTouch Touchscreen Control
creating new categories
1. Select the EDIT CATEGORIES key.
4. Press EDIT NAME. A keyboard will appear. Enter the
desired name. Press ENTER when finished to return
to the previous screen.
5. Press SELECT ITEMS. Select items to be filed in the
new category. Items will be highlighted as they are
selected. Press ESC key to return to the previous
screen. The disk will be displayed, press to save your
changes.
6. To display the category, it must be added to the default menu as follows:
Press the EDIT MENUS key. Select the DEFAULT
key. Select the CATEGORIES key. Highlight the new
category. Press the ESC key to return to the previous
screen. The disk will be displayed, press to save your
changes.
Figure 36
2. Select New?
3. Select the category icon to be displayed. Use the arrow keys to page through the available icons. Press
the desired icon to select and return to the previous
screen.
39
Operation
SmartTouch Touchscreen Control
transferring recipes using the usb
To Store Menu Data to a USB
1. Return to the power screen.
1. Press the STORE MENU DATA to USB key to transfer recipes to the USB.
Figure 37
Figure 39
2. Press the TOOLS key. Enter the code 6647 on the
keypad.
2. The keyboard screen is displayed. Use to enter desired file name. Press the ENTER key when finished.
Figure 38
Figure 40
3. Press the MANAGE MENU DATA key. Insert the USB
drive into the Intelliport.
40
Operation
SmartTouch Touchscreen Control
3. The status screen appears to display the download
status. The display returns to the previous screen
when download is complete.
Figure 43
3. The overwrite warning screen appears. Press YES
to continue
Figure 41
4. Press the ESC key to exit USB screen.
To Retrieve Menu Data from USB
1. Press the GET MENU DATA from USB key to transfer
recipes from the USB.
Figure 44
4. The status screen appears to display the upload status. The display returns to the previous screen when
upload is complete.
Figure 42
5. Press the ESC key to exit USB screen.
2. The control displays all menu (.MNU) files on the
USB drive. Select the desired file.
41
Operation
SmartTouch Touchscreen Control
cool down
1. To cool down the unit, press the COOL DOWN icon.
2. The oven will toggle between cooling and open door
in yellow until the oven is cool. Once cool, the oven
will go to standby.
NOTE: If the oven is shut down with the circuit
breaker switch at the bottom of the front
panel, the display will return to the power
screen. Select your option to begin.
Figure 45
Figure 46
42
Operation
How Cook & Hold Works
With the optional COOK & HOLD feature, meat is roasted
at lower temperatures for longer periods of time. This preserves flavor and tenderness and prevents over drying.
There are three phases in cook and hold roasting.
Primary Cooking - controlled by the COOK & HOLD
TIMER. The meat is cooked at a low temperature
until approximately 2/3 done.
•
Cooking from Stored Heat - when the primary cook
time expires, the oven automatically switches to
HOLD. The product continues to cook from the heat
stored in the oven. Meat must remain in the hold
cycle for a minimum of 1-1/2 to 2 hours before being
served.
•
Oven Temp
Product may be
removed and served.
Meat Temp
Hold - holds the product for several hours before
serving without loss of moisture or tenderness.
Time (hours)
All meat should be completely thawed by refrigeration. Using frozen meat increases the cook time causing shrinkage.
Prime rib, bone cap off
14-18 lbs. (6.4-8.1 kg)
Cook
Temp.
200°F
93°C
Prime rib, bone cap on
14-18 lbs. (6.4-8.1 kg)
200°F
93°C
140°F
60°C
Top or bottom rounds
20-22 lbs. (9.1-10.0 kg)
200°F
93°C
140°F
60°C
Pork roast or ham
10-12 lbs. (4.5-5.4 kg)
250°F
121°C
170°F
76°C
Turkey
20-22 lbs. (9.1-10.0 kg)
Leg of Lamb, bone in
8-10 lbs. (4.36-4.5 kg)
250°F
121°C
225°F
107°C
170°F
76°C
160°F
71°C
Product
Stored heat
Product may be
held up to 16 hours
Temperature (°F)
•
Oven switches from cook to hold
Figure 47
Hold Temp.
Quantity
140°F
60°C
1
3
6
1
3
6
1
3
6
2
4
6
1
6
2
4
6
43
Cook Time
(Hrs)
3
3-1/4
3-1/2
3-1/2
4
4-1/2
3-1/2
4
4-1/2
4
4-1/4
4-1/2
3-1/4
4
2-1/2
2-3/4
3
Min. Hold
Time (Hrs)
1
1-1/2
2
1
1-1/2
2
1
1-1/2
2
1
1-1/2
2
1
1-1/2
1
1-1/2
2
Total Time
(Hrs)
4
4-3/4
5-1/2
4-1/2
5-1/2
6-1/2
4-1/2
5-1/2
6-1/2
5
5-3/4
6-1/2
4-3/4
5-1/2
3-1/2
4-1/4
5
Operation
General Guidelines for Operating Personnel
Cook Times and Temperatures
Operating tips
Preheating the oven
Pans and Racks
Always preheat the oven before baking or roasting. We
recommend preheating 50°F (28°C) above the cook temperature to offset the drop in temperature when the doors
are opened and cold product is loaded into the oven. Set
the thermostat to the cook temperature after the product
is loaded.
Product or pan height determines how many racks are
used. The oven holds up to ten 18” x 26” (45.7 x 66.0 cm)
bun pans.
Load the oven from the bottom, centering the pans on the
rack. Never place a pan or aluminum foil on the bottom
of the oven. This obstructs the flow of air and results in
uneven baking and roasting.
NOTE: For frozen product, preheat the oven 100°F
(56°C) above the cook temperature.
Roasting
Cook Temperatures
To reduce shrinkage when roasting, place meat directly on
the racks. Place a sheet pan one-half full of water in the
bottom rack position. The water evaporates, increasing
humidity in the oven chamber. The pan catches grease
from the meat, making oven cleaning easier.
Generally, cook temperatures should be 50°F (28°C) lower than deck or range oven recipes. If the edges of the
product are done but the center is raw, or if there is color
variation, reduce the thermostat setting another 15-25°F
(10-15°C). Continue to reduce the cook temperature on
successive loads until the desired results are achieved.
Baking
Weigh the product to ensure equal distribution in each
pan. Varying amounts of product will cause uneven baking results.
NOTE: Cooking at excessive temperatures will not
reduce cook time, it will produce unsatisfactory
baking and roasting results.
Fans
Cook Time
The fan must be operating for the oven to heat. Use the
Pulse Plus feature to allow light or liquid product to set
in the pan and to avoid rippling towards the fan. If your
oven is not equipped with this feature use the following
procedure.
Check the product in about half the time recommended
for deck or range oven recipes. Record times and temperatures which provide best results for future reference.
NOTE: Cook time will vary with the amount of product
loaded, the type of pan and the temperature.
1. Preheat the oven 25°F (15°C) above the baking temperature.
2. Load the oven with product. Close the doors.
3. Set the thermostat to the baking temperature.
4. Turn the oven off.
5. Allow the product to set for 5-7 minutes with the fan
off. The residual heat in the oven sets the product.
6. Turn the oven on for the remainder of the bake.
Lights
Turn the oven lights off when not viewing the product.
Leaving the lights on for extended periods of time shortens the bulb life considerably.
44
Operation
Suggested Times and Temperatures
product
temperature
time
# shelves
Hamburger Patties (5 per lb)
400°F (205°C)
8-10 mins.
10
Steamship Round (80 lb. quartered)
275°F (135°C)
2 hrs 45 mins.
2
Standing Rib Choice (20 lbs, trimmed, rare)
235°F (115°C)
2 hrs 45 mins.
2
Banquet Shell Steaks (10 oz. meat)
450°F (235°C)
7-8 mins.
5
Swiss Steak after Braising
275°F (135°C)
1 hr.
5
Baked Stuffed Pork Chop
375°F (190°C)
25-30 mins.
5
Boned Veal Roast (15 lbs.)
300°F (150°C)
3 hrs. 10 mins.
2
Lamb Chops (small loin)
400°F (205°C)
7-8 mins.
5
Bacon (on racks in 18” x 26” pans)
Poultry
400°F (205°C)
5-7 mins.
10
Chicken Breast & Thigh
350°F (175°C)
40 mins.
5
Chicken Back & Wing
350°F (175°C)
35 mins.
5
Chicken (21/2 lbs. quartered)
350°F (175°C)
30 mins.
5
Turkey Rolled (18 lb. rolls)
Fish and Seafood
310°F (155°C)
3 hrs 45 mins.
3
Halibut Steaks, Cod Fish (frozen 5 oz)
350°F (175°C)
20 mins.
5
Baked Stuffed Lobster (21/2 lb.)
400°F (205°C)
10 mins.
3
Lobster Tails (frozen)
Cheese
425°F (220°C)
9 mins.
5
Macaroni & Cheese Casserole
350°F (175°C)
30 mins.
5
Melted Cheese Sandwiches
Potatoes
400°F (205°C)
8 mins.
10
Idaho Potatoes (120 ct.)
400°F (205°C)
50 mins.
5
Oven Roasted Potatoes (sliced or diced)
Baked Goods
325°F (165°C)
10 mins.
5
Frozen Berry Pies (22 oz)
325°F (150°C)
35 mins.
5 (30 pies)
Fresh Apple Pie (20 oz.)
350°F (175°C)
25-30 mins.
5 (30 pies)
Pumpkin Pies (32 oz.)
300°F (150°C)
30-50 mins.
5 (20 pies)
Fruit Crisp
300°F (150°C)
25 mins.
5
Bread (24 - 1 lb. loaves)
325°F (155°C)
30 mins.
3
Southern Corn Bread
375°F (190°C)
15-20 mins.
5
Baking Soda Biscuits
400°F (205°C)
6 mins.
5
Brown & Serve Rolls
350°F (175°C)
15 mins.
5
Sheet Cakes (5 lb. mixed batter per pan)
325°F (160°C)
16-18 mins.
5
Chocolate Cake
325°F (160°C)
20 mins.
5
Meats
Brownies
325°F (150°C)
15 mins.
5
NOTE: Actual times and temperatures may vary considerably from those shown above. They are affected by weight of
load, temperature of the product, recipe, type of pan and calibration of thermostat. Should your recipe vary, write
in your proven time and temperature for ready reference.
45
Maintenance
Cleaning and Preventative Maintenance
cleaning the oven
Weekly Cleaning
Be sure the air intake (cooling fan) behind the oven
is free of all lint, grease or other air flow inhibitors.
Keeping the air intake free of obstructions will extend
the life of the oven components.
WARNING!!
Always clean the unit when it is cold.
WARNING!!
preventative maintenance
Be sure to read and follow the MSDS or
safety instructions on the bottle for your oven
cleaner.
The best preventative maintenance measures are, the
proper installation of the equipment and a program for
routinely cleaning the ovens.
Cleaning the Exterior
Annual Maintenance
1. Saturate a cloth with stainless steel cleaner and wipe
down the exterior.
This oven requires no lubrication, however, the venting
system should be checked annually for possible deterioration resulting from moisture and corrosive flue products.
NOTE: Heat tint and heavy discoloration may be
removed with any non-caustic commercial
oven cleaner.
If maintenance or repairs are required, contact your local
Blodgett service company, a factory representative or the
Blodgett Oven company.
2. Dry the oven with a clean cloth.
Cleaning the Oven Interior
WARNING!!
1. Remove the racks, rack supports and blower wheel
cover (back panel) from the oven. Soak the parts in a
solution of ammonia and water.
Always disconnect the appliance from the
power supply before servicing or cleaning.
NOTE: To remove the blower wheel cover loosen
the screws in each corner. Then lift up and
out.
2. The porcelain interior can be cleaned with any commercial oven cleaner. Be sure caustic cleaning compounds DO NOT come in contact with the temperature probe, heating element, and blower wheel. Let
the cleaner sit for 10-20 minutes or the length of time
recommended on your cleaner.
3. Wipe out the cleaner with a wet cloth.
4. Reinstall the racks, rack supports and blower wheel
cover.
46
Maintenance
Troubleshooting Guide
POSSIBLE CAUSE(S)
SYMPTOM: Oven will not fire.
• Gas turned off.
SUGGESTED REMEDY
•
Turn the gas valve to ON.
•
Oven not plugged in.
•
Plug in electrical supply cord.
•
Power switch on the control panel is off.
•
Set the control panel to COOK or OVEN ON.
•
Control set below ambient temperature.
•
Set to desired cook temperature.
•
Doors are open.
•
Close doors.
•
Computerized controls - error code on display.
•
*
SYMPTOM: Oven does not come to ready.
• The oven has not reached preheat temperature.
•
Wait for oven to reach preheat temperature.
•
Gas valve not turned on completely.
•
Check the gas valve, turn on fully if necessary.
•
The quick disconnect is not connected.
•
Reconnect the quick connect. Check all gas connections.
•
Gas pressure to oven is too low.
•
Call your local gas representative.
•
Fan delay feature may be activated, if applicable.
•
Deactivate fan delay feature.
•
Internal problem with main temperature control.
•
*
SYMPTOM: Convection fan does not run.
• Oven is not plugged in.
•
Plug in electrical supply cord.
•
Oven is not set to the cook mode.
•
Set the control panel to COOK or OVEN ON.
•
Circuit breaker tripped.
•
Reset the breaker.
•
Fan delay feature may be activated, if applicable.
•
Deactivate fan delay feature.
•
Doors are open
•
Close doors.
SYMPTOM: General baking problems.
• Computerized controls - incorrect product programming.
•
Reprogram control per Operation section.
•
Thermostat out of calibration.
•
*
•
Improper oven venting.
•
*
*Denotes remedy is a difficult operation and should be performed by qualified personnel only. It is recommended, however, that All repairs and/or adjustments be done by your local Blodgett service agency and not by the owner/operator.
Blodgett cannot assume responsibility for damage as a result of servicing done by unqualified personnel.
WARNING!!
Always disconnect the power supply before cleaning or servicing the oven.
47
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
