HP Workstation xw6000
Overview
HP recommends Microsoft®
Windows® XP Professional

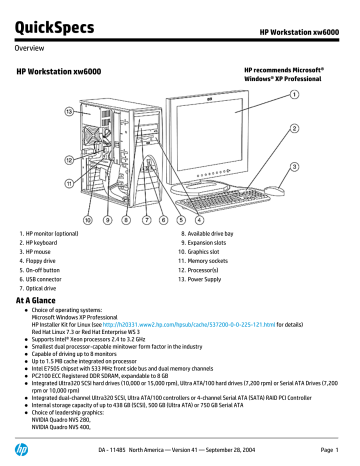

HP Workstation xw6000
1.
2.
3.
4.
5.
6.
7.
HP monitor (optional)
HP keyboard
HP mouse
Floppy drive
On-off button
USB connector
Optical drive
8. Available drive bay
9. Expansion slots
10. Graphics slot
11. Memory sockets
12. Processor(s)
13. Power Supply
At A Glance
Choice of operating systems:
Microsoft Windows XP Professional
HP Installer Kit for Linux (see http://h20331.www2.hp.com/hpsub/cache/537200-0-0-225-121.html for details)
Red Hat Linux 7.3 or Red Hat Enterprise WS 3
Supports Intel® Xeon processors 2.4 to 3.2 GHz
Smallest dual processor-capable minitower form factor in the industry
Capable of driving up to 8 monitors
Up to 1.5 MB cache integrated on processor
Intel E7505 chipset with 533 MHz front side bus and dual memory channels
PC2100 ECC Registered DDR SDRAM, expandable to 8 GB
Integrated Ultra320 SCSI hard drives (10,000 or 15,000 rpm), Ultra ATA/100 hard drives (7,200 rpm) or Serial ATA Drives (7,200
rpm or 10,000 rpm)
Integrated dual-channel Ultra320 SCSI, Ultra ATA/100 controllers or 4-channel Serial ATA (SATA) RAID PCI Controller
Internal storage capacity of up to 438 GB (SCSI), 500 GB (Ultra ATA) or 750 GB Serial ATA
Choice of leadership graphics:
NVIDIA Quadro NVS 280,
NVIDIA Quadro NVS 400,
DA - 11485 North America — Version 41 — September 28, 2004
Page 1
QuickSpecs
HP Workstation xw6000
Overview
NVIDIA Quadro4 380 XGL,
ATI FireGL T2-128,
NVIDIA Quadro FX1100, and
NVIDIA Quadro FX3000
Integrated Gigabit Ethernet adapter
Five total slots - four PCI and one AGP 8X
Five bays (three external and two internal)
CD-ROM, CD-RW, DVD-ROM, DVD+RW, or combo drive (depending on model)
Protected by HP services, including a three-year limited warranty in many countries. Certain restrictions and exclusions apply.
Three-year onsite labor not available in all countries.
DA - 11485 North America — Version 41 — September 28, 2004
Page 2
QuickSpecs
HP Workstation xw6000
Standard Features
Processor
Intel Xeon processor 2.4 GHz, 2.66 GHz, 2.8 GHz, 3.06 GHz and 3.2 GHz (533 MHz front side bus)
Operating System
Microsoft Windows XP Professional preinstall - SP1
HP Installation Kit for Linux (supports custom installations of Red Hat 7.2, 7.3, 8.0, 9 and Enterprise
Workstation Edition 3.)
Red Hat Enterprise Linux WS 3 (update 2)
Cache Memory
512 KB integrated, full speed L2 cache per processor (2.4 GHz, 2.66 GHz, 2.8 GHz, 3.06 GHz)
or 512 KB integrated full speed L2 cache,1 MB integrated, full speed L3 cache (3.2 GHz processors only)
Processor Upgradability
Upgradable to dual processors
Memory
Maximum
8 GB of PC2100 ECC Registered DDR SDRAM-266
NOTE: Microsoft Windows supports 4GB; up to 8GB configurations are supported on Linux only.
Network Controller
Integrated Broadcom 5782 Gb (10/100/1000) Network Interface
Expansion Slots
I/O (Total)
PCI - 32-bit/33 MHz
AGP Pro50, 8X
5 total slots/4 available
4 slots/4 available
1 slot occupied by choice of graphics card
Expansion Bays
(Total/Available)
Internal 3.5 inch
External 5.25 inch
5 total/2 available
2 bays/1 available
3 bays/1 available (1 can be used for third HDD with mounting kit)
DA - 11485 North America — Version 41 — September 28, 2004
Page 3
QuickSpecs
HP Workstation xw6000
Standard Features
Interfaces
Storage
Parallel
USB 2.0
IEEE Firewire
Serial
Ultra320 SCSI
Ultra ATA/100
Keyboard
Pointing Device
Video
Network interface
1 25-pin port, rear
4 (2 front, 2 rear)
Optional – 3 (1 front, 2 rear)
Two 9-pin connectors (rear)
Two 68-pin connectors (1 rear, 1 internal)
2 connectors, primary and secondary (internal)
1 PS/2 keyboard port (rear)
1 PS/2 mouse port (rear)
Choice of professional graphics options
1 RJ-45 connector (rear)
Microphone Jack
Headphone Jack
Line-In Jack
Line-Out Jack
1 (front)
1 (front)
1 (rear)
1 (rear)
Diskette Drive
Removable Media
Hard Drive
1.44 MB
CD-ROM, CD-RW, DVD-ROM, DVD/CD-RW Combo, or DVD+RW
40, 80, 160 or 250 GB Ultra ATA (7,200 RPM)
80, 160 or 250 GB Serial ATA (7,200 rpm)
36, 73 or 146 GB Ultra320 SCSI (10,000 rpm)
36 or 74 GB Serial ATA (10,000 rpm)
36 or 73 GB Ultra320 SCSI (15,000 rpm)
128 or 256 MB HP Drive Key (USB 2.0)
Removable Storage
Graphics
One of the following:
NVIDIA Quadro NVS 280 (64MB, Dual Display, AGP or PCI)
NVIDIA Quadro NVS 400 (64 MB, Quad Display, PCI)
NVIDIA Quadro4 380 XGL (64 MB, Dual Display, AGP)
ATI FireGL T2-128 (128MB, Dual Display, AGP)
NVIDIA Quadro FX1100 (128MB, Dual Display, AGP)
NVIDIA Quadro FX3000 (256MB, Dual Display, AGP)
Input Devices
Easy Access keyboard
3-Button Mouse
Audio
AC97/16-bit stereo full-duplex, with internal speaker
Sound Blaster Audigy 2 ZS PCI card
DA - 11485 North America — Version 41 — September 28, 2004
Page 4
QuickSpecs
HP Workstation xw6000
Standard Features
Manageability
Bios Features
Advanced Configuration and Power Interface (ACPI) 1.0b
Advanced Power Management (APM) 1.2
Desktop Management Interface (DMI) 2.0
System Management (SM) Bios 2.3.1
Asset Control
Security Management
NIC Hardware
Remote Wakeup
Wake on LAN (WoL)
Web Downloads
System Software Manager
Altiris Express
Insight Agent
Remote ROM Flash
Remote Security
Remote Shut Down
Security
Diskette write and boot control
Flash ROM lock
Keyboard password
Network server mode
Parallel interface control
Power-on password
Serial interface control
Setup password
Cable lock provision
Power Supply
460 watts, with Power Factor Correction
Service and Support
Protected by HP Services including a three-year, limited warranty with three-year parts coverage, three
year, on-site service, and three-year labor (in many countries); 7 x 24 hardware technical phone support
and on-line support through the Internet; Pre-Failure Warranty coverage of hard drives, memory, and
processors.
NOTE: Certain restrictions and exclusions apply. Consult the customer support center for details. Threeyear, onsite and labor not available in all countries.
DA - 11485 North America — Version 41 — September 28, 2004
Page 5
QuickSpecs
HP Workstation xw6000
Standard Features Pre-Configured Global Models
X6X/2.4/36S/1/Xd
DS452AW#ABA
X6X/2.66/36S/1/Xd
DS730AW#ABA
Processor
Intel Xeon 2.4 GHz
OS
Microsoft Windows XP Professional
Cache Memory
512 KB
Memory
1 GB (2x512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Mouse
Not included in base configuration – Please Choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP 3-button mouse (PS/2)
Processor
Intel Xeon 2.66 GHz
OS
Microsoft Windows XP Professional
Cache Memory
512 KB
Memory
1 GB (2x512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
36-GB Ultra320 SCSI (10,000 rpm)
Graphics
Not included in base configuration – Please Choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP 3-button mouse (PS/2)
Mouse
DA - 11485 North America — Version 41 — September 28, 2004
Page 6
QuickSpecs
HP Workstation xw6000
Standard Features Pre-Configured Global Models
X6X/2.8/36S/1/Xd
DS453AW#ABA
X6X/2.8+/40A/1/Xd
DS454AW#ABA
Processor
Intel Xeon 2.8 GHz
OS
Microsoft Windows XP Professional
Cache Memory
512 KB
Memory
1 GB (2x512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
36-GB SCSI (10,000 rpm)
Graphics
Mouse
Not included in base configuration – Please Choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP 3-button mouse (PS/2)
Processor
(2) Intel Xeon 2.8 GHz
OS
Microsoft Windows XP Professional
Cache Memory
512 KB
Memory
1 GB (2x512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
40-GB/ATA 100 (7200 rpm)
Graphics
Not included in base configuration – Please Choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP 3-button mouse (PS/2)
Mouse
DA - 11485 North America — Version 41 — September 28, 2004
Page 7
QuickSpecs
HP Workstation xw6000
Standard Features Pre-Configured Global Models
X6X/3.0+/40A/1/Xd
DT495AW#ABA
Processor
Dual Intel Xeon 3.06 GHz
OS
Microsoft Windows XP Professional
Cache Memory
512 KB
Memory
1-GB (2x512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
40-GB Ultra ATA (7,200 rpm)
Graphics
Not included in base configuration – Please Choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP 3-button mouse (PS/2)
Mouse
DA - 11485 North America — Version 41 — September 28, 2004
Page 8
QuickSpecs
HP Workstation xw6000
Standard Features Pre-Configured Regional Models
X6X/2.80+/40A/1/
280v
Processor
Intel Xeon 2.8 GHz
OS
Microsoft Windows XP Professional
DH993U#ABA
2nd Processor
Xeon 2.8 GHz/512KB cache processor
Cache Memory
512 KB
Memory
1 GB (2x512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
48X DVD/CD-RW Combo
Hard Drive
40-GB/ATA 100 (7,200 rpm)
Graphics
NVIDIA Quadro NVS 280 (AGP)
Mouse
HP 3-button mouse (PS/2)
X6x/3.06/36s/1/Xd
Processor
Intel Xeon 3.06GHz
DU232U#ABA
OS
Microsoft Windows XP Professional
Cache Memory
512 KB
Memory
1GB (2 x 512) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
DVD-ROM
Hard Drive
36-GB SCSI (10,000 rpm)
Graphics
Mouse
Not included in base configuration – Please Choose a graphics card option
below:
NVIDIA Quadro NVS 280
NVIDIA Quadro NVS 400 (PCI)
NVIDIA Quadro4 380 XGL
ATI FireGL T2-128
NVIDIA Quadro FX1100
NVIDIA Quadro FX3000
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP 3-button mouse (PS/2)
X6X/3.06/80A/512/
280v
Processor
Intel Xeon 3.06 GHz
OS
Microsoft Windows XP Professional
DH994U#ABA
Cache Memory
512 KB
Memory
512 MB (2x256) PC2100 DDR SDRAM; 4.2 GB/sec throughput
Optical Drive
48X DVD/CD-RW Combo
Hard Drive
80-GB ATA/100I (7,200 rpm)
Graphics
NVIDIA Quadro NVS 280 (AGP)
Mouse
HP 3-button mouse (PS/2)
DA - 11485 North America — Version 41 — September 28, 2004
Page 9
QuickSpecs
HP Workstation xw6000
Configure to order options
Processor
Intel Xeon processor 2.4 GHz/533 MHz front side bus, 512 KB L2 cache
Intel Xeon processor 2.66 GHz/533 MHz front side bus, 512 KB L2 cache
Intel Xeon processor 2.8 GHz/533 MHz front side bus, 512 KB L2 cache
Intel Xeon processor 3.06 GHz/533 MHz front side bus, 512 KB L2 cache
Intel Xeon processor 3.2 GHz/533 MHz front side bus, 1 MB L3 cache
Second Intel Xeon processor 2.4 GHz/533 MHz front side bus, 512 L2 KB cache
Second Intel Xeon processor 2.66 GHz/533 MHz front side bus, 512 L2 KB cache
Second Intel Xeon processor 2.8 GHz/533 MHz front side bus, 512 L2 KB cache
Second Intel Xeon processor 3.06 GHz/533 MHz front side bus, 512 L2 KB cache
Second Intel Xeon processor 3.2 GHz/533 MHz front side bus, 1 MB L3 cache
NOTE: The second processor must be the same as the first.
Operating System
Microsoft Windows XP Professional SP1a
HP Installer Kit for Linux
Red Hat Enterprise Linux WS Edition (32-bit Update 2)
Memory
256 MB PC2100 ECC Registered DDR-266
512 MB PC2100 ECC Registered DDR-266
1 GB PC2100 ECC Registered DDR-266
1.5 GB PC2100 ECC Registered DDR-266
2 GB PC2100 ECC Registered DDR-266
3 GB PC2100 ECC Registered DDR-266
4 GB PC2100 ECC Registered DDR-266
6 GB PC 2100 ECC Registered DDR-266 (available for dual-processor Linux systems only)
8 GB PC 2100 ECC Registered DDR-266 (available for dual-processor Linux systems only)
NOTE: Microsoft Windows supports 4GB; up to 8GB configurations are supported on Linux only.
Monitors
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
HP L2035 20-inch TFT Flat Panel Display
HP L2335 23-inch TFT Widescreen Flat Panel Display
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
DA - 11485 North America — Version 41 — September 28, 2004
Page 10
QuickSpecs
HP Workstation xw6000
Configure to order options
Graphics
NVIDIA Quadro NVS 280 (64MB, Dual Display, AGP)
NVIDIA Quadro NVS 280 (64MB, Dual Display, PCI)
NVIDIA Quadro NVS 400 (64 MB, Quad Display, PCI) for Windows models only
NVIDIA Quadro4 380 XGL (64 MB, Dual Display, AGP)
ATI FireGL T2-128 (128MB, Dual Display AGP)
NVIDIA Quadro FX1100 (128MB, Dual Display, AGP)
NVIDIA Quadro FX3000 (256MB, Dual Display, AGP) for Windows models only
Optical Drives
48X CD-ROM
48X CD-RW
16X DVD-ROM
48X CD-RW/DVD-ROM combo drive
DVD+RW for Windows models only
Secondary Optical Drive Cable
Hard Drives
Ultra320 SCSI Drives
36 GB Ultra320 SCSI, 10,000 rpm
73 GB Ultra320 SCSI, 10,000 rpm
143 GB Ultra320 SCSI, 10,000 rpm
36 GB Ultra320 SCSI, 15,000 rpm
73 GB Ultra320 SCSI, 15,000 rpm
Second 36 GB Ultra320 SCSI, 10,000 rpm
Second 73 GB Ultra320 SCSI, 10,000 rpm
Second 143 GB Ultra320 SCSI, 10,000 rpm
Second 36 GB Ultra320 SCSI, 15,000 rpm
Second 73 GB Ultra320 SCSI, 15,000 rpm
Third 36 GB Ultra320 SCSI, 10,000 rpm
Third 73 GB Ultra320 SCSI, 10,000 rpm
Third 143 GB Ultra320 SCSI, 10,000 rpm
Third 36 GB Ultra320 SCSI, 15,000 rpm
Third 73 GB Ultra320 SCSI, 15,000 rpm
Ultra ATA/100 Drives
40 GB ATA/100, 7,200 rpm
80 GB ATA/100, 7,200 rpm
160 GB ATA/100, 7,200 rpm
250 GB ATA/100, 7,200 rpm
Second 40 GB ATA/100, 7,200 rpm
Second 80 GB ATA/100, 7,200 rpm
Second 160 GB ATA/100, 7,200 rpm
Second 250 GB ATA/100, 7,200 rpm
Serial ATA/100 Drives
80 GB SATA/150, 7,200 rpm
DA - 11485 North America — Version 41 — September 28, 2004
Page 11
QuickSpecs
HP Workstation xw6000
Configure to order options
160 GB SATA/150, 7,200 rpm
250 GB SATA/150, 7,200 rpm
36 GB SATA/150, 10,000 rpm
74 GB SATA/150, 10,000 rpm
Second 80 GB SATA/150, 7,200 rpm
Second 160 GB SATA/150, 7,200 rpm
Second 250 GB SATA/150, 7,200 rpm
Second 36 GB SATA/150, 10,000 rpm
Second 74 GB SATA/150, 10,000 rpm
Third 80 GB SATA/150, 7,200 rpm
Third 160 GB SATA/150, 7,200 rpm
Third 250 GB SATA/150, 7,200 rpm
Third 36 GB SATA/150, 10,000 rpm
Third 74 GB SATA/150, 10,000 rpm
Removable storage
128 MB HP Drive Key (USB 2.0)
256 MB HP Drive Key (USB 2.0)
Communications
IEEE 1394 Firewire Card
HP Gigabit by Broadcom 10/100/1000 GB NIC Adapter
Intel Pro 1000 MT NIC
Input Devices
HP Easy Access keyboard (PS/2)
No Keyboard Kit
HP Three button mouse (PS/2)
HP Scroll Mouse-Carbon (PS/2)
HP Optical Mouse (USB)
SpaceBall 5000
No Mouse Option
DA - 11485 North America — Version 41 — September 28, 2004
Page 12
QuickSpecs
HP Workstation xw6000
After market options/Standalone accessories
Part #:
Operating Systems
Red Hat Enterprise Linux WS Edition (32-bit Update 2)
PD862A
2nd Processor
Intel Xeon processor 2.4 GHz, 512 L3 KB cache
Intel Xeon processor 2.66 GHz, 512 L3 KB cache
Intel Xeon processor 2.8 GHz, 512 L3 KB cache
Intel Xeon processor 3.06 GHz, 512 L3 KB cache
Intel Xeon processor 3.06 GHz, 512 KB L2/1 MB L3 cache
Intel Xeon processor 3.2 GHz, 1 MB L3 cache
AA649B
AA650B
AA651B
AA848B
DG153B
DP041A
NOTE: The second processor must be the same as the first.
Memory (DDR-SDRAM)
128 MB Upgrade Kit PC2100 ECC Registered DDR-266
256 MB Upgrade Kit PC2100 ECC Registered DDR-266
512 MB Upgrade Kit PC2100 ECC Registered DDR-266
1 GB Upgrade Kit PC2100 ECC Registered DDR-266
2 GB Upgrade Kit PC2100 ECC Registered DDR-266
NOTE: Microsoft Windows supports 4GB; up to 8GB configurations are supported on Linux only.
AA654A
DQ744A
AA656A
AA657A
AA834A
Graphics
NVIDIA Quadro NVS 280 (64 MB, Dual Display, PCI)
NVIDIA Quadro NVS 280 (64 MB, Dual Display, AGP)
DVI LFH-59 Cable Kit
NVIDIA Quadro NVS 400 (64 MB, Quad Display, PCI for Windows models only)
NVIDIA Quadro NVS 400 DVI Cables
NVIDIA Quadro4 380 XGL (64 MB, Dual Display, AGP)
ATI FireGL T2-128 (128 MB, Dual Display AGP)
NVIDIA Quadro FX1100 (128 MB, Dual Display, AGP)
NVIDIA Quadro FX3000 (256 MB, Dual Display AGP for Windows models only)
AA932A
AA931A
DL139A
AA605A
AA606A
AA653A
AA929A
DL489A
DL488B
Optical Drives
48X CD-ROM
48X/24X/48X CD-RW
16X DVD-ROM
48X CDRW/DVD-ROM combo drive (with Roxio and WinDVD SW)
8X DVD+RW – 400i for Windows models only
8X DVD+RW – 400i for Linux models only
DC143B
DE205A
AA620A
DE206A
DS703A
DT839A
DA - 11485 North America — Version 41 — September 28, 2004
Page 13
QuickSpecs
HP Workstation xw6000
After market options/Standalone accessories
Hard Drives
Ultra320 SCSI Drives
36 GB Ultra320 SCSI, 10,000 rpm
73 GB Ultra320 SCSI, 10,000 rpm
146 GB Ultra320 SCSI, 10,000 rpm
36 GB Ultra320 SCSI, 15,000 rpm
73 GB Ultra320 SCSI, 15,000 rpm
Ultra ATA/100 Drives
40 GB ATA/100, 7,200 rpm
80 GB ATA/100, 7,200 rpm
160 GB ATA/100, 7,200 rpm
250 GB Ultra ATA/100, 7,200 rpm
Serial ATA Drives (Windows only)
80 GB SATA, 7,200 rpm
160 GB SATA, 7,200 rpm
250 GB SATA, 7,200 rpm
36 GB SATA, 10,000 rpm
74 GB SATA, 10,000 rpm
Storage Controllers
AA612A
AA613A
AA614A
AA616A
AA617A
DC180A
DC181A
DC189A
DC516A
DE705A
DE706A
DS702A
DU962A
DX760A
Ultra320 Dual Channel SCSI Controller Card (PCI)) cable sold separately
Ultra160 SCSI Controller Card (PCI) ) cable sold separately
Adaptec SCSI RAID 2120S Card
4-channel Serial ATA (SATA) RAID PCI Controller
(A power cable is needed for every 2 drives. Power cords sold separately.)
Cable, 3 part SCSI
Cable, SATA power (1 required for every 2 SATA drives)
AA611A
AA610A
AA850A
DM294A
Backup Devices
HP DAT24i Internal DDS3 tape drive
HP DAT24e External DDS3 tape drive
HP DAT40i Internal DDS4 tape drive
HP DAT40e External DDS4 tape drive
HP DAT72i Internal DAT72 tape drive
HP DAT72e External DAT72 tape drive
C1555D
C1556D
C5686B
C5687C
Q1522A
Q1523A
Removable Storage
128 MB HP Drive Key (USB 2.0)
256 MB HP Drive Key (USB 2.0)
DQ819B
DL973B
DA - 11485 North America — Version 41 — September 28, 2004
DY661A
DN733A
Page 14
QuickSpecs
HP Workstation xw6000
After market options/Standalone accessories
Communications
IEEE 1394 Firewire Card
Broadcom GB NIC
Intel Pro 1000 MT NIC
AA638A
DC194A
DC193A
Rack Options
Fixed shelf kit
Sliding Shelf Kit
Depth Adjustable Rails
Input Devices
HP Easy Access Keyboard (carbonite PS/2)
HP Three button Mouse (carbon – PS/2)
DC167B
AA778A
HP Scroll Mouse – (carbon – PS/2)DD440BUSB Optical Mouse (carbon/silver)
USB Two button Optical Mouse (carbonite/silver)
AA852A
DC172B
253449-B21
234672-B21
332558-B21
Support Software CD
Annual Subscription
Single CD-ROM (current month)
Other
Expansion kit
Remote Workstation Sender Software Module
Remote Workstation Receiver Software Module
Sound Blaster Audigy 2 ZS
Monitors
HP L1925 19-inch TFT Flat Panel Display – Analog/Digital
P9626A#ABA
HP L2035 20-inch TFT Flat Panel Display
P9614A#ABA
HP L2335 23-inch TFT Widescreen Flat Panel Display
P9615A#ABA
HP p1230 22-inch (20.0-inch vis) Performance Natural-flat CRT Monitor
P9613A#ABA
NOTE: AssetControl features are accessible with HP workstations featuring Intelligent Manageability.
DA - 11485 North America — Version 41 — September 28, 2004
272505-001S
272505-001
AA857A
DM497A
DM498A
DV440A
Page 15
QuickSpecs
HP Workstation xw6000
Memory
Standard Memory
This system supports 266 MHz DDR SDRAM that is both ECC and Registered* The main board has 4 DIMM slots and ships with either
512-MB or 1-GB as standard, depending on model. It can support a maximum of 8-GB** of RAM when optional memory upgrades are
included. Memory must be installed in like pairs.
*The HP Workstation xw6000 does not support the memory modules for the HP Workstation xw4000, which uses a different type of
RAM.
**Capacities over 4-GB not supported under Windows XP or Windows 2000
NOTE: This Chart does not represent all possible memory configurations.
Here are memory options available from HP:
128-MB Memory Module Upgrade Kit PC2100 DDR-266 ECC Registered
256-MB Memory Module Upgrade Kit PC2100 DDR-266 ECC Registered
512-MB Memory Module Upgrade Kit PC2100 DDR-266 ECC Registered
1-GB Memory Module Upgrade Kit PC2100 DDR-266 ECC Registered
2-GB Memory Module Upgrade Kit PC2100 DDR-266 ECC Registered
DA - 11485 North America — Version 41 — September 28, 2004
Part #:
AA654A
DQ744A
AA656A
AA657A
AA834A
Page 16
QuickSpecs
HP Workstation xw6000
Storage
Drive Bay Locations
Drive Support
1.44-MB Diskette Drive
Optical Drives
CD-ROM Drive
DVD-ROM Drive
CD-RW Drive
DVD+RW
Combo CD-RW/DVD-ROM
Quantity
Supported
Position
Supported
Controller
Up to 1
Up to 2 total
1, 2, 3
Integrated
1, 2
1, 2
1, 2
1
1, 2
Integrated Ultra ATA/100
Integrated Ultra ATA/100
Integrated Ultra ATA/100
Integrated Ultra ATA/100
Integrated Ultra ATA/100
DA - 11485 North America — Version 41 — September 28, 2004
Page 17
QuickSpecs
HP Workstation xw6000
Storage
Hard Drives
Ultra320 SCSI Drives
1-inch
Up to 3
1, 2, 4, 5
Integrated dual-channel Ultra320 SCSI Controller
36-GB Ultra320 SCSI (10K
rpm)
72-GB Ultra320 SCSI (10K
rpm)
146-GB Ultra320 SCSI (10K
rpm)
36-GB Ultra320 SCSI (15K
rpm)
73-GB Ultra320 SCSI (15K
rpm)
Ultra ATA Drives
1-inch
Up to 2
1, 2, 4, 5
Integrated Ultra ATA/100 Controller
1, 2, 4, 5
4-channel Serial ATA (SATA) RAID PCI Controller
40-GB (7200 rpm)
80-GB (7200 rpm)
160-GB (7200 rpm)
250-GB (7200 rpm)
Serial ATA Drives
(Windows or Linux models Up to 3
only)
80-GB (7200 rpm)
160-GB (7200 rpm)
250-GB (7200 rpm)
36-GB (10,000 rpm)
74-GB (10,000 rpm)
Maximum Storage Capacity
Internal
438-GB SCSI
500-GB Ultra ATA
750-GB Serial ATA
DA - 11485 North America — Version 41 — September 28, 2004
Page 18
QuickSpecs
HP Workstation xw6000
Technical Specifications
Base Workstation
System Characteristics
Expansion Options
Expansion Slots
Expansion Bays
Interfaces
System Unit
Processor
Intel Xeon
CPU Bus Speed Supported 533 MHz front side bus
Standard Cache
512 KB integrated, full speed Level 2
1 MB integrated, full speed Level 3 cache with
3.2GHz model processors only
Upgradeable to dual processors
Intel E7505 chipset
Yes
Memory Expansion Slots 4 DIMMs
Memory Type Supported DDR-266 ECC Memory
Maximum Memory
4 GB on Windows models
8 GB on Linux models
I/O (Total)
5 total slots/4 available
PCI - 32-bit/33 MHz
4 slots/4 available
AGP Pro50, 8X
1 slot occupied by choice of graphics card
(Total/Available)
5 total/2 available
Internal 3.5 inch
2 bays/1 available
External 5.25 inch
3 bays/1 available (1 can be used for third HDD
with mounting kit)
Parallel
1 25-pin port, rear
USB 2.0
4 (2 front, 2 rear)
IEEE Firewire
Optional - 3 (1 front, 2 rear)
Serial
Two 9-pin connectors (rear)
Ultra320 SCSI
Two 68-pin connectors (1 rear, 1 internal)
Ultra ATA/100
2 connectors, primary and secondary (internal)
Keyboard
1 PS/2 keyboard port (rear)
Pointing Device
1 PS/2 mouse port (rear)
Video
Choice of professional graphics options
Network interface
1 RJ-45 connector (rear)
Microphone Jack
1 (front)
Headphone Jack
1 (front)
Line-In Jack
1 (rear)
Line-Out Jack
1 (rear)
Tower Dimensions
17.65 x 6.6 x 17.61 in (44.8 x 17 x 44.7 cm)
(HxWxD)
Weight
26 lb (2 kg)
(standard configuration)
Power Supply
Input current
8.6A @ 115 VAC
4.3A @ 230 VAC
Line Frequency
50 Hz to 60 Hz
Maximum Rated Power 720 W input, 460 W
output
DA - 11485 North America — Version 41 — September 28, 2004
Page 19
QuickSpecs
HP Workstation xw6000
Technical Specifications
HP Easy Access Keyboard Dimensions (HxWxD)
Temperature
(Values are subject to
change)
Operating
Humidity
(non-condensing)
(Values are subject to
change)
Maximum Altitude
(nonpressurized)
Operating
50° to 95° F
(10° to 35° C)
4° to 140° F
(-15° to 60° C)
20% to 80%
Non-operating
10% to 90%
Operating
Non-operating
10,000 ft (3,048 m)
30,000 ft (9,144 m)
Non-operating
18.3 x 6.3 x 1.4 in (46.48 x 16.0 x 3.56 cm)
Weight
Approximately 2 lb (0.9 kg)
Input Specifications
Operating Voltage
+ 5VDC ± 5%
Power Consumption
System Interface
ESD
EMI-RFI
50 mA maximum (with 3 LEDs on)
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
30+ available
Mechanical
PC98
Languages
Keycaps
Switch Actuation
Switch Life
Environmental
Switch Type
Key Leveling Mechanism
Cable Length
PC98-99
Acoustics
Operating Temperature
Non-operating
Temperature
Operating Humidity
Non-operating Humidity
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Low-profile design
55 g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Contamination resistant membrane
For all double wide and greater length keys
6 ft (1.8 m)
Mechanically compliant
50 dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
10% to 90% (non condensing at ambient)
20% to 80% (non condensing at ambient)
40 g, 6 surfaces
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
DA - 11485 North America — Version 41 — September 28, 2004
Page 20
QuickSpecs
HP Workstation xw6000
Technical Specifications
1.44-MB Diskette Drive
Size
3.5 in (8.89 cm)
LED Indicators (front
panel)
Read/Write Capacity per
Diskette (high/low)
Green
Drive Height
One-third
Drive Rotation
300 rpm
Transfer Rate (high/low)
500/250 KB/s
Bytes/Sector
512
1.44 MB/720 KB
Sectors/Track (high/low) 18/9
HP 3-Button Mouse
Tracks/Side (high/low)
80/80
Access Times
Track-to-Track (high/low) 3/6 ms
Cylinders (high/low)
Average (high/low)
Settling Time
Latency Average
80/80
Read/Write Heads
Two
Dimensions/Weight
Height
1.42 in (3.6 cm)
Environmental
Length
Width
Weight
Operating Temperature
4.17 in (10.7 cm)
2.87 in (7.4 cm)
5.20 oz (150 g)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
Mechanical
Non-operating
Temperature
Operating Humidity
Resolution
Tracking Speed
Switch Life
10 in/s Maximum
1,000,000 operations (using Hasco modified
tester)
Micro-switches
155 miles (250 km) at average speed of 10 in/s
6 ft (1.8 m)
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, CTick
Regulatory Approvals
Switch Type
Tracking Mechanism Life
Cable Length
PC98-99
Compliant
94/173 ms
15 ms
100 ms
10% to 90% (non condensing at ambient)
400 ± 20% DPI
DA - 11485 North America — Version 41 — September 28, 2004
Page 21
QuickSpecs
HP Workstation xw6000
Technical Specifications
HP Optical Mouse
Dimensions/Weight
Height
1.5 in (3.8 cm)
4.5 in (11.6 cm)
2.5 in (6.3 cm)
0.27 lb (0.12 kg)
Optical Scan
Length
Width
Weight
800 dpi scan rate
Number of Buttons
2
HP 2-Button Scroll Mouse Scroll Wheel
8 mm
Maximum Rotation Speed 30 mm/s
Switch Type
Light force micro-switch
Switch Life
1 million operations
Mechanical Life
Environmental
Minimum 200,000
revolutions
Operating Temperature
-22° to 140° F (-30° to 60° C)
Electrical
Non-operating
Temperature
Operating Humidity
Non-operating Humidity
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Operating Voltage
Power Consumption
System Consumption
ESD
EMI-RFI
15mA
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
400 ± 20% DPI
Mechanical
PC98
Resolution
50° to 122° F (10° to 50° C)
10% to 90% (non condensing at ambient)
20% to 80% (non condensing at ambient)
40 g, 6 surfaces
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
+ 5VDC ± 10%
Tracking Speed
Acceleration
Switch Actuation
Switch Life
Regulatory Approvals
10 in/s Maximum
100 in/s
85 g nominal peak force
1,000,000 operations (using Hasco modified
tester)
Cable Length
2m
PC98-99
Mechanically compliant
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C -Tick
DA - 11485 North America — Version 41 — September 28, 2004
Page 22
QuickSpecs
HP Workstation xw6000
Technical Specifications
4-channel Serial ATA
Dimensions (H x D)
(SATA) RAID PCI Controller RAID level
2.375 x 5.5 in (6 x 14 cm)
Data Transfer Rate
RAID 0+1 striping/mirroring; RAID 1 mirroring;
RAID 0 striping
Up to 266MB/sec (66 MHz PCI); Up to 133MB/sec (33 MHz PCI)
Cache Memory
64 MB (onboard)
Device Support
Up to (4) Serial ATA/150 Drives
Bus Type
32-bit 33/66MHz PCI bus; PCI 2.3 compliant
BIOS
Optimizes drive performance by drive type; flashable for future upgrades;
supports multiple arrays; boots system from any array; BBS compliant; setup
menus for custom array creation
Recognizes drive capacities exceeding 137GB each
48-bit LBA Support
Data Protection Features Mirrors data to second drive or drive pair for RAID 1 and RAID 0+1; offers hot
spare support for instant rebuild of failed drive in 2-drive RAID 1
Advanced Data Features Bus mastering offloads data I/O handling from host CPU; CRC error-checking
of Serial ATA and Ultra ATA drives for data reliability during transfers; tagged
command queuing and elevator seek for optimized data handling
ACPI Support
S1, S3, & S4
Internal Connectors
4 standard 7-pin SATA connectors
External Connectors
None
System Requirements
Intel PC or equivalent with available PCI slot
Operating Temperature
32° F to 131° F (0° C to 55° C)
Power Requirements
4 amps @ +5V
Operating System
Support
Windows 2000 Professional, Windows XP Professional and RedHat Linux
Other
Optimized disk utilization
Monitors status of arrays, hard drives, and controller via TCP/IP
Synchronizes data in fault-tolerant arrays
Email notification for specified array events
S.M.A.R.T. support
NOTE: A power cable is needed for every 2 drives. Power cords sold separately.
DA - 11485 North America — Version 41 — September 28, 2004
Page 23
QuickSpecs
HP Workstation xw6000
Technical Specifications
Adaptec SCSI RAID 2120S Dimensions (H x D)
Card
RAID Level
SpaceBall 5000
2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card
0, 1, 10, 5, JBOD
Data Transfer Rate
Up to 320 MB/s
Cache Memory
64 MB (onboard)
Device Support
Up to 15 SCSI devices
Bus Type
Internal Connectors
64-bit/66MHz PCI
(Also support 32-bit/33MHz PCI)
One 68-pin high-density
External Connectors
One 68-pin VHDCI
System Requirements
Intel PC or equivalent with available PCI slot
Operating Temperature
32°to 131° F (0°to 55° C)
Power Requirements
4 amps @ +5V
Operating System
Support
Windows 2000 Professional, Windows XP Professional
Other
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
Features
Ball Diameter
Six degrees of freedom motion control through the X, Y, Z axis (pitch, roll,
yaw)
2.2 in (5.6 cm)
Dimensions/Weight
Height
3.0 in (7.6 cm)
Environmental
Length
Width
Weight
Operating Temperature
6.0 in (15.2 cm)
8.4 in (21.3 cm)
2.1 lb (9.94 kg)
50° to 104° F (10° to 40° C)
43° to 140° F (6° to 60° C)
Mechanical
Non-operating
Temperature
Operating Humidity
Non-operating Humidity
Force range
Torque range
Resolution
Connector
Cable Length
Data rate
Flow control
Compliant
0.085 – 0.33 oz-in. (6.91 Nmm)
10 bits
9-pin D-subminiature receptacle (DB9S)
12.8 ft. (3.9 m)
9600 bps
Xon/Xoff
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark,
TUV, CISPR 22, EN 50082, IEC 1000 4-2, IEC 10004-3, AS/NZS, VCCI, BSMI, C-Tick
Serial Specifications
Regulatory Approvals
8% to 80% (non-condensing at ambient)
5% to 80% (non-condensing at ambient)
0.5 - 8.2N (1.8 – 29.5 oz)
DA - 11485 North America — Version 41 — September 28, 2004
Page 24
QuickSpecs
HP Workstation xw6000
Technical Specifications
Ultra ATA Hard Drives
40 GB, 4200rpm
80 GB, 7200rpm
160 GB, 7200rpm
Capacity
40 GB
Height
1.0 in (2.54 cm)
Width
2.75 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Single track
Average
Full-stroke
Rotational speed
4200 rpm
Logical blocks
78,140,160
Operating temperature
41° F to 131° F (5° C to 55° C)
Average rotational
latency
4.2 ms
Capacity
80 GB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Rotational speed
Single track
Average
Full-stroke
7200 rpm
Logical blocks
156,301,488
Operating temperature
41° F to 131° F (5° C to 55° C)
Average rotational
latency
4.2 ms
Capacity
160 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Single track
Average
Full-stroke
DA - 11485 North America — Version 41 — September 28, 2004
3 ms
13 ms
24.0 ms
0.8 ms
9.0 ms
17.0 ms
0.8 ms
< 9.1 ms
17.0 ms
Page 25
QuickSpecs
HP Workstation xw6000
Technical Specifications
250 GB, 7200rpm
Ultra320 SCSI Hard Drives 36 GB, 10K rpm
73 GB, 10K rpm
Rotational speed
7200 rpm
Logical blocks
320,173,056
Operating temperature
41° F to 131° F (5° C to 55° C)
Average rotational
latency
4.2 ms
Capacity
250 GB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra ATA/100
Synchronous Transfer
Rate (Maximum)
100 MB/s
Seek time
(typical reads, including
settling)
Rotational speed
Single track
Average
Full-stroke
7200 rpm
Logical blocks
488,397,168
Operating temperature
41° F to 131° F (5° C to 55° C)
Capacity
36,400 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
Seek time
(typical reads, including
settling)
320 MB/s
0.8 ms
9.0 ms
17.0 ms
Rotational speed
Single track
Average
Full-stroke
10,000 rpm
Logical blocks
71,631,920
Operating temperature
41° F to 131° F (5° C to 55° C)
Capacity
73,000 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
320 MB/s
DA - 11485 North America — Version 41 — September 28, 2004
0.6 ms
4.5 ms
11.0 ms
Page 26
QuickSpecs
HP Workstation xw6000
Technical Specifications
Seek time
(typical reads, including
settling)
146 GB, 10K rpm
73 GB, 15K rpm
Serial ATA Hard Drives
80 GB, 7200rpm
(Windows or Linux models
only)
Rotational speed
Single track
Average
Full-stroke
10,000 rpm
0.55 ms
4.9 ms
9.2 ms
Logical blocks
143,374,744
Operating temperature
41° F to 131° F (5° C to 55° C)
Capacity
146,000 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
Seek time
(typical reads, including
settling)
320 MB/s
Rotational speed
Single track
Average
Full-stroke
10,000 rpm
0.55 ms
4.9 ms
9.2 ms
Logical blocks
143,374,744
Operating temperature
41° F to 131° F (5° C to 55° C)
Capacity
73,000 MB
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
Ultra320 SCSI
Transfer rate
synchronous (maximum)
Seek time
(typical reads, including
settling)
320 MB/s
Rotational speed
Single track
Average
Full-stroke
15,000 rpm
Logical blocks
143,337,744
Operating temperature
41° F to 131° F (5° C to 55° C)
Capacity
85,899,345,920 bytes
Height
1.0 in (2.54 cm)
Width
3.5 in (8.9 cm)
Interface
SATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
DA - 11485 North America — Version 41 — September 28, 2004
0.4 ms
3.8 ms
6.7 ms
Page 27
QuickSpecs
HP Workstation xw6000
Technical Specifications
160 GB, 7200rpm
250 GB, 7200rpm
36 GB, 10K rpm
Seek time
(typical reads, includes
controller overhead,
including settling)
Rotational speed
Single track
0.9 ms
Average
9.3 ms
Full-stroke
9.2 ms
Logical blocks
160,086,528
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
171,798,691,840 bytes
Height
1.0 in (2.54 cm)
Width
4 in (10.2 cm)
Interface
SATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek time
(typical reads, includes
controller overhead,
including settling)
Rotational speed
Single track
0.9 ms
Average
9.3 ms
Full-stroke
9.2 ms
Logical blocks
320,173,056
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
250,000,000,000 bytes
Height
1 in (2.6 cm)
Width
Media diameter: 3.5 in (8.9.x cm)
Interface
Physical size: 4 in (10.2 cm)
SATA
7,200 rpm
7,200 rpm
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek time
(typical reads, includes
controller overhead,
including settling)
Rotational speed
Single track
0.8 ms
Average
<9.0 ms
Full-stroke
<17.0 ms
Logical blocks
490,234,752
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
37,019,566,080 bytes
Height
1.028 in (2.54 mm)
Width
Media diameter: 3.3 in (84mm)
7,200 rpm
DA - 11485 North America — Version 41 — September 28, 2004
Page 28
QuickSpecs
HP Workstation xw6000
Technical Specifications
Interface
74 GB, 10K rpm
Physical size: 4 in (10.2 cm)
ESATA
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek time
(typical reads, includes
controller overhead,
including settling)
Rotational speed
Single track
0.3 ms
Average
5.2 ms
Full-stroke
9.5 ms
Logical blocks
72,303,840
Operating temperature
41° to 131° F (5° to 55° C)
Capacity
74,355,769,344 bytes
Height
1.028 in (2.54 mm)
Width
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
ESATA
Interface
10,000 rpm
Synchronous Transfer
Rate (Maximum)
150 MB/s
Buffer
8 MB
Seek time
(typical reads, includes
controller overhead,
including settling)
Rotational speed
Single track
0.3 ms
Average
4.5 ms
Full-stroke
10.2 ms
Logical blocks
145,226,112
Operating temperature
41° to 131° F (5 to 55° C)
10,000 rpm
DA - 11485 North America — Version 41 — September 28, 2004
Page 29
QuickSpecs
HP Workstation xw6000
Technical Specifications
48X CD-ROM Drive
Capacity
700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
1.76 lb (0.8 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates Read
Digital audio extraction (minimum) -1,200 KB/s (8X)
CD read - up to 7,200 KB/s (48X)
Media and Formats - Read Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD (Single and
Multi-session), Mixed Mode (Audio and Data combined), CD-I (FMV), CD Plus,
CD-Extra;
Media: stamped, CD-R, CD-RW
Data Transfer Modes
Access Times (typical)
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode
0 (16.7 MB/s); UltraDMA Mode 2 (33.3 MB/s)
Random
< 75 ms @ 48x
Start-up Time (typical)
Full-Stroke
< 7 s (single session)
Stop Time (typical)
<4s
Read Buffer size
128 KB (minimum)
Audio Output
Line-Out
Configuration Jumper
Block
Operating Conditions
< 150 ms
< 30 s (multisession)
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
65 dB
Master, slave, and cable select modes
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 80%
Approvals/Environmental UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK
16X/40 DVD-ROM Read
Operating Systems
Supported
Microsoft Windows 2000 and Microsoft Windows XP
Supplied Software
None
Height
5.25-inch, half-height
Interface type
ATAPI
Dimensions–External,
Excluding Bezel (W x H)
5.88 x 1.71 in (14.9 x 4.34 cm)
Disc diameter
5 in, 3 in (12 cm, 8 cm)
Disc thickness
0.05 inch (1.2 mm)
Track pitch
1.6 µm (CD), 0.74 µm (DVD)
Disc center hole diameter 0.6 inch (15 mm)
DA - 11485 North America — Version 41 — September 28, 2004
Page 30
QuickSpecs
HP Workstation xw6000
Technical Specifications
Disc formats
Disc capacity
Block size (bytes)
Access times (typical
reads, including settling)
Data transfer rates
Data transfer modes
Power
Audio Output Level
Configuration Jumper
Block
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0; DVDRW version 1.0 and 1.1; DVD-R/RW multi-border; DVD+RW; CD-ROM Mode 1
and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2; CD-extra; CD-text; CD-I Mode
2, Form 1 and 2; CD-I ready; video CD, CD-bridge; PhotoCD (single and multisession); CD-R; CD-RW
DVD-ROM
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB (DVD10), 3.95 GB (DVD-R version 1.0), 4.7 GB (DVD-R
version 2.0), 4.7 GB (DVD-RW version 1.0 and 1.1),
4.7 GB (DVD+ RW)
CD-ROM
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12 cm),
700 MB (80 minimum CD-R and CD-RW), 180 MB
(8 cm)
DVD-ROM – 2048; CD-ROM Mode 0 – 2352; CD-ROM Mode 1 – 2352, 2340,
2336, 2048; CD-ROM Mode 2 – 2352, 2340, 2336, 2048
DVD-ROM single layer
< 120 ms
CD-ROM Mode 1
< 90 ms
Full stroke DVD
< 240 ms (seek)
Full stroke CD
< 160 ms (seek)
2600 – 6000 KB/s (40X CAV CD-ROM mode)
8100 – 21,600 KB/s (16X CAV DVD-ROM mode)
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode
3 (44.4 MB/s)
Source
Four-pin, DC power receptacle
DC power requirement
5 VDC ± 5%—100 mV ripple p-p
12 VDC ± 5%—200 mV ripple p-p
DC current
5 VDC - <800 mA typical, < 1000 mA maximum
12 VDC - < 870 mA typical
0.7 Vrms (typical)
Master, slave, and cable select modes
Data interface connector 40-pin, shrouded and keyed, flat ribbon
Environmental
(all conditions noncondensing)
Temperature (operating)
41° to 122° F (5° to 50° C)
Relative humidity
(operating)
Maximum wet bulb
temperature (operating)
10% to 85%
86° F (30° C)
Certifications, approvals MMC II support, multi-read certification, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE EN60950, EN
55022, EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN 60825-1, UL 60950, CSA
C22.2 60950-2000
Operating systems
Microsoft Windows 2000, Windows XP Professional
supported
48/24/48X CD-RW
Capacity
700 MB CD disc
DA - 11485 North America — Version 41 — September 28, 2004
Page 31
QuickSpecs
HP Workstation xw6000
Technical Specifications
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,800 KB/s (12X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats - Read Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text, Photo CD (single
and multisession);
Media: stamped, CD-R, CD-RW
Data Transfer Rates Write
Media and Formats Write
Write Methods
Data Transfer Modes
Access Times
(typical reads, including
settling)
Start-up Time (typical)
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3000 KB/s (20X) to 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD, CD-Text;
Media: CD-R, CD-RW (including ultra-speed)
Disc-at-once, session-at-once,, track-at-once, incremental fixed and variable
packet, multisession
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode
2 (33.3 MB/s)
CD-ROM Mode 1
100 ms
Full Stroke CD
<4 s (single session), <30 s (multisession)
Stop Time (typical)
<3 s
Write Buffer Size
2 MB
Audio Output
Line-Out
Configuration Jumper
Block
160 ms (seek)
0.7 VRMS
Signal-to-Noise Ratio
80 dB
Channel Separation
70 dB
Master, slave, and cable select modes
Operating Conditions
Temperature
41° to 113° F ( 5° to 45° C)
Approvals/
Environmental
Humidity
10% to 80%
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA
C22.2 No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV,
EN60825-1
DA - 11485 North America — Version 41 — September 28, 2004
Page 32
QuickSpecs
HP Workstation xw6000
Technical Specifications
48/24/48+16X Combo
CD-RW/DVD-ROM
Operating Systems
Supported
Microsoft Windows 2000, Windows XP
Supplied software
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music
and data CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
Capacity
4.7 and 9.4 GB DVD disc/700 MB CD disc
Dimensions (HxWxD)
1.63 x 5.75 x 7.27 in (4.13 x 14.6 x 18.5 cm)
Weight
2.0 lb (0.9 kg)
Interface
ATAPI/EIDE
Mounting Orientation
Horizontal or vertical
Data Transfer Rates –
Read
Digital audio extraction (minimum) —1,200 KB/s (8X)
CD read — up to 7,200 KB/s (48X)
DVD read — up to 21,600 KB/s (16X)
Media and Formats - Read CD Formats: CD-DA, CD-ROM (Modes 1 and 2), CD-ROM XA (Mode 2, Form 1
and 2), Mixed mode, CD-Extra, CD-I FMV, Video CD, Photo CD (single and multisession), CD-Text, CD-Plus
CD Media: stamped, CD-R; CD-RW
Data Transfer Rates Write
Media and Formats Write
Write Methods
Data Transfer Modes
DVD Formats: DVD-ROM, DVD-Video (with application support), DVD-R
(version 1.0 and 2.0), DVD-RW (version 1.0 and 1.1), DVD-R multi-border
DVD Media: stamped (single or dual layer, single sided), DVD+ RW, DVD+ R,
DVD-R, DVD-RW
CD-R write — 600 KB/s (4X)
CD-R write — 1200 KB/s (8X)
CD-R write — 1800 KB/s (12X)
CD-R write — 2400 KB/s (16X)
CD-R write — 3600 KB/s (24X)
CD-R write — 4800 KB/s (32X)
CD-R write — 6000 KB/s (40X)
CD-R write — 7200 KB/s (48X)
CD-RW write — 600 KB/s (4X)
CD-RW write —1500 KB/s (10X)
CD-RW write — 2400 KB/s (16X)
CD-RW write —3600 KB/s (24X)
CD Formats: CD-DA, CD-ROM (Mode 1), CD-ROM XA (Mode 2, Form 1 and 2),
Mixed mode, CD-Extra, CD-I FMV, Video CD, CD-Plus
CD Media: CD-R; CD-RW
Disc-at-once, session-at-once, track-at-once, incremental fixed and variable
packet, multisession
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA Mode
2 (33.3 MB/s)
DA - 11485 North America — Version 41 — September 28, 2004
Page 33
QuickSpecs
HP Workstation xw6000
Technical Specifications
Access Times
(typical reads, including
settling)
Start-up Time (typical)
DVD-ROM Single Layer
120 ms
Random
CD-ROM Mode 1
110 ms
Full Stroke DVD
210 ms
Full Stroke CD
160 ms
<4 seconds (single session), <30 seconds (multisession)
Stop Time (typical)
4s
Write Buffer Size
2 MB (minimum)
Audio Output
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
74 dB
Channel Separation
65 dB
Master, slave, and cable select modes
Configuration Jumper
Block
Operating Conditions
Approvals/
Environmental
Operating Systems
Supported
HP 8X DVD+RW – 400I
(8X/4X/12X/24X/
10X/40X DVD+R/+RW)
Temperature
41° to 122° F (5° to 50° C)
Humidity
10% to 85%
MPC-3 compliant, multi-read requirements, UL 1950, ACA AS/NZS 3548, ANSI
C63.4–1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No. 92A, CSA
C22.2 No. 950-1995, C.I.S.P.R. Pub 22, DHHS/FDA, EMKO-TSE 07/94, TUV,
EN60825-1
Microsoft Windows 2000, Windows XP
Supplied software
Intervideo WInDVD 4.0: Play DVD movies;
Roxio Easy CD Creator 5.3.4: Create or copy CDs and DVDs, including music
and data CDs, and data DVDs;
Dantz Retrospect Express 6.0: Back up systems to CD, DVD, or tape media.
Capacity
4.7 GB 5.25-inch
Orientation
Either horizontal or vertical
Interface Type
ATAPI
Dimensions
(W x H x D)
Track Pitch
8.0 x 5.9 x 1.7 in (20.3 x 15.0 x 4.4 cm) half-height, tray-load
Reference Scanning
Velocity
1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Recording Method
Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed
Packet
DVD+R, DVD+RW, CD-R, CD-RW
Write Support
Read Support
1.6 um (CD), 0.74 um (DVD)
DVD-ROM (single- and dual-layer), DVD+R, DVD+RW, DVD-R, DVD-RW, CDROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD TEXT, Photo CD singleand multi-session), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW (supports AM2)
DA - 11485 North America — Version 41 — September 28, 2004
Page 34
QuickSpecs
HP Workstation xw6000
Technical Specifications
Write Speed
Read Speed
Date Buffer
Access Time
(typical reads, including
settling)
DVD+R
8X CLV (10800 KB/s)
DVD+RW
4X CLV (5400 KB/s)
CD-R
24X CLV (3600 KB/s)
CD-RW
10X CLV (1500 KB/s)
DVD-ROM
12X CAV (6750 - 16200 KB/s)
DVD+R, DVD+RW,
DVD-R, DVD-RW
8X CAV (5400 - 10800 KB/s)
CD-ROM, CD-R,
CD-RW, CD-Audio
40X CAV (2550 to 6000 KB/s)
Read
2 MB
Write
2 MB
Random DVD
< 140 ms (typical)
Random CD
< 125 ms, (typical)
Full Stroke DVD
< 250 ms (seek)
Full Stroke CD
< 210 ms (seek)
Operating Systems
Support
Microsoft® Windows® XP Professional
Power Requirement
5 V, +12 V (1.6A, 1.4A)
Front Panel Features
Disc loading tray, forced eject hole read/write indicator, eject button
Rear Panel Features
ATAPI interface, digital audio output 1, analog audio output, device
configuration jumper, DC input
DC Power Connector, 4 pin; Line Out Connector, 4 pin; IDE Bus Connector, 40
pin; Configuration Jumper Pins; Label to identify each connec
UL, CSA, CB Report, FIMKO, SEMKO, FCC Class B, FDA, CE Marking, C-Tick,
CISPR-229, Korean EMC, Taiwan EMC
DVD+R/+RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator, Roxio
Easy CD Creator, Dantz Retrospect Express Backup Software and DVD+R
media.
Regulatory Approvals
Option Kit contents
DA - 11485 North America — Version 41 — September 28, 2004
Page 35
QuickSpecs
HP Workstation xw6000
Technical Specifications
Broadcom GB NIC
Connector
RJ-45
Controller
Broadcom 5782 PCI LAN Controller
Memory
Integrated 96Kb frame buffer memory
Data rates supported
10/100/1000 Mbps
Compliance
Bus architecture
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and 802.3u
compliant, 802.3x flow control
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
Power requirement
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark for
European Union
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
Dimensions
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Operating temperature
32° to 131° F (0° to 55° C)
Operating humidity
85% at 131° F (55° C)
4.7 x 2.0 x 0.08 inches (12 x 5 x 1.9 cm)
Operating system driver
support
Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft 2000, Microsoft
XP, Linux 2.2, Linux 2.4
Environmental
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Alerting
ASF 1.0
Kit contents
Broadcom 5782, CD, Broadcom Gigabit Ethernet for HP, drivers, quick install
guide, product warranty statement
DA - 11485 North America — Version 41 — September 28, 2004
Page 36
QuickSpecs
HP Workstation xw6000
Technical Specifications
NVIDIA Quadro NVS 280
Graphics Card
2D controller
Integrated Quadro 280 2-D graphics processor unit (GPU)
VGA controller
Integrated into the Quadro GPU
Bus type
AGP 8X
RAMDAC
Dual 350 MHz
Memory speed and type
200 MHz 8M x16 DDR
Memory amount
64 MB
Texture Memory
Unified with frame buffer
Form Factor
ATX
Controller clock speed
275 MHz
Color planes
32-bit color buffer
Overlay planes
1 16-bit Video overlay plane
Maximum vertical refresh 120 Hz
rate
Maximum pixel clock
350 MHz
Dual Screen support
Yes
Single DVI Support
Yes
Dual DVI Support
Yes
Operating systems
Microsoft Windows 2000: Full native Dual View mode, Span or Big Desktop
mode, and Clone mode
Microsoft Windows XP: Full native Dual View mode, Span or Big Desktop mode,
and Clone mode
2.586 x 6.6 in (6.57 x 16.76 cm)
Physical dimensions
High-definition Video
Processor (HDVP)
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
DA - 11485 North America — Version 41 — September 28, 2004
Page 37
QuickSpecs
HP Workstation xw6000
Technical Specifications
NVIDIA Quadro NVS 280
Graphics Card display
resolutions & refresh
rates
NVIDIA Quadro NVS 400
Graphics Card
Analog Resolution
Maximum Colors Supported
Maximum Refresh Rate
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1920 x 1080
1920 x 1200
1920 x 1440
2048 x 1536
Digital Resolution Maximum
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
Colors Supported Maximum
240 Hz
240 Hz
200 Hz
170 Hz
150 Hz
100 Hz
85 Hz
85 Hz
75 Hz
60 Hz
Refresh Rate
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
16.7 M
75 Hz
75 Hz
75 Hz
60 Hz
60 Hz
60 Hz (primary only)
Form Factor
ATX
Graphics Controller
Integrated Quadro4 2D/3D 128-bit graphics processor unit (GPU)
Bus Type
PCI
RAMDAC
Dual 350 MHz
Memory
64 MB 220 MHz, 4mx 32 DDR per GPU, 32 MB per GPU unified frame buffer
Connectors
Dual LFH-60
Dimensions
Low-profile form factor
Multi-monitor support
1 to 4 displays with nView – with two cards (1 PCI per card), up to 8 monitors
can be driven
32-bit color
2048x1536 @ 75Hz maximum resolution
Dual 350MHz RAMDACs
Integrated TMDS
Digital Vibrance Control (DVC)
High-performance 2D rendering engine
Optimized for 32-, 24-, 16-, 15- and 8-bpp modes
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT Motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
nView Hardware
Architecture
High-definition video
processor (HDVP)
DA - 11485 North America — Version 41 — September 28, 2004
Page 38
QuickSpecs
HP Workstation xw6000
Technical Specifications
Supported graphics APIs
Fully compliant with OpenGL 1.3 and DirectX 8.1
Available graphics drivers Microsoft Windows XP and Microsoft Windows 2000, Linux
See: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro NVS 400
Graphics Card display
resolutions & refresh
rates
NVIDIA Quadro4 380 XGL
Graphics Card
Single CRT display
Resolution
Maximum Refresh Rate
Bits per Pixel
640 x 480
800 x 600
1024 x 768
1152 x 864
1280 x 1024
1600 x 1200
1600 x 1200
1920 x 1080
1920 x 1080
1920 x 1200
1920 x 1200
1920 x 1440
1920 x 1440
2048 x 1536
120 Hz
120 Hz
120 Hz
120 Hz
120 Hz
100 Hz
85 Hz
100 Hz
75 Hz
85 Hz
70 Hz
75 Hz
60 Hz
60 Hz
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
8, 16, 24
8, 16
Form Factor
ATX
Graphics Controller
NVIDIA NV18GL GPU
Bus Type
AGP 8x Version 3.0 compliant AGP 4x/2x Version 2.0 compliant
RAMDAC
Dual 350MHz integrated
Memory
64 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
Dimensions
VGA DB-15 and DVI-I analog/digital monitor outputs,
4-pin mini DIN providing TV output
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual monitor
Additional product
features
64 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
TV Output
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support for Windows 2000 and Windows XP
ACPI Version 1.0b Power Management support (all modes)
DA - 11485 North America — Version 41 — September 28, 2004
Page 39
QuickSpecs
HP Workstation xw6000
Technical Specifications
AGP 8x Version 3.0
compliant and 2x/4x
Version 2.0 compliant
including
Sideband Addressing
AGP Texturing (Execute Mode)
Fast writes support
NV18GL GPU featuring:
275 MHz engine clock rate
250 MHz memory clock rate
128-bit memory interface
VGA controller
Dual integrated display controllers supporting up to 1920x1440 @ 85Hz and
2048x1536 @ 75Hz on both displays
4 parallel pixel pipelines
2 parallel geometry engines
nfiniteFX II programmable vertex shader technology and NVIDIA OpenGL
extensions
Full hardware support for NVIDIA Cg shader programming language
Supported graphics APIs OpenGL 1.3 (and OpenGL 2.0 when available) ICD with immediate mode
support for all OGL primitive types
DirectX 8 and above
Available graphics drivers HP-tested Windows 2000, HP-tested Windows XP, HP-tested Linux (1st
Calendar Quarter 2003)
HP qualified drivers may be preloaded or available from the HP support Web
site: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro4 380 XGL
Graphics Card display
resolutions & refresh
rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x720
1280x960
1280x1024
1600x900
240Hz/240Hz
240Hz/200Hz
170Hz/140Hz
170Hz/100Hz
150Hz/120Hz
150Hz/85Hz
150Hz/75Hz
120Hz/75Hz/
No Digital Display Support
100Hz/72Hz/
No Digital Display Support
120Hz/60Hz/
No Digital Display Support
100Hz/60Hz/
No Digital Display Support
100Hz/
No Digital Display Support
85Hz/
No Digital Display Support
100Hz/
No Digital Display Support
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
8, 16, 24
1600x1024
1600x1200
1600x1200
1920x1080
1920x1080
1920x1200
DA - 11485 North America — Version 41 — September 28, 2004
8, 16, 24
8, 16
24
8, 16
24
8, 16
Page 40
QuickSpecs
HP Workstation xw6000
Technical Specifications
1920x1200
85Hz/
No Digital Display Support
85Hz/
No Digital Display Support
75Hz/
No Digital Display Support
75Hz/
No Digital Display Support
60Hz/
No Digital Display Support
1920x1440
1920x1440
2048x1536
2048x1536
ATI FireGL T2-128
Graphics Card
24
8, 16
24
8, 16
24
Form Factor
ATX
Graphics Controller
ATI FGL 9600 VPU
Bus Type
AGP-8x/4x compliant
DAC
Dual 400MHz/16-bit
Memory
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
DVI-I and VGA monitor outputs
Dimensions
Single AGP/ATX card. 230.28 mm x 107.96 mm
Multi-monitor support
DVI-I and VGA connectors support dual display, maximum resolution of
2048x1536 analog, 1600x1200 digital
128 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
64-KB BIOS Serial Flash ROM, reprogrammable by SW, 3.3V only, no Jumpers
2D and 3D acceleration provided for 16-bit and 32-bit RGB? modes
Hardware cursor with full color alpha channel
32-bit (24+8-bit stencil) Z buffer
Bus mastering support for 2D/3D display lists and local memory vertex list
execution
Hardware lighting support for 8 light sources
Bilinear, Trilinear and Anisotropic texturing
Cubic Environment and Perturbation Bump Mapping
Projective Texture, 3D Texture and Video Texture support
Full Scene Anti-Aliasing (FSAA) support with up to 6 subsamples
Video Engine supports YCrCb (4:2:2, 4:1:0, 4:2:0) to RGB conversion
Video scaling and up to 4x4 tap filtering supported for all YUV and
RGB16/32 formats
Per pixel quad buffering on all screen resolutions
VESA compliant Stereoscopic Interface on MiniDin Connector
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Additional product
features
DA - 11485 North America — Version 41 — September 28, 2004
Page 41
QuickSpecs
HP Workstation xw6000
Technical Specifications
AGP4x/8x Version 3.0
compliant including
FGL 9600 GPU featuring
Supported graphics APIs
Processor requirements
Sideband Addressing
AGP Texturing (Execute Mode)
AGP Read and AGP Write Support
8X Fast write support
VGA controller supporting full standard feature set
2D Engine with 128-bit datapath processing multiple pixels per clock
PIXEL TAPESTRY III, 3D rendering engine utilizing 2 parallel pipelines with two
texture blending units each capable, of handling up to 8 texels in a single pass,
delivering 2.4 Gigatexels/s fill rate
CHARISMA ENGINE III, geometry unit utilizing 4 vertex processing engines,
capable of executing two instructions per clock cycle each, thus yielding up to
200 million transformed, clipped and lit triangles per second.
VIDEO IMMERSION III, industry leading video technology supporting MPEG 2
encode/decode
Dual independent display controllers with 4K x 4K address space each
128-bit external frame buffer interface
OpenGL 1.3 ICD with immediate mode support for all OGL primitive types
DirectX 9.0
Intel Pentium 4, or Xeon processor
Available graphics drivers Windows 2000 with SP1 (or higher)
Windows XP
Linux
HP qualified drivers may be preloaded or available from the HP support Web
site: http://www.hp.com/support/workstation_drivers
ATI FireGL T2-128
Graphics Card display
resolutions & refresh
rates
ANALOG and DIGITAL Display WITH 15-PIN VGA CONNECTOR
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x960
1280x1024
1600x1000
1600x1024
1600x1200
1792x1344
1920x1080
1920x1200
2048x1536
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
100Hz
85Hz
85Hz
75Hz
75Hz
75Hz
60Hz
DIGITAL MONITOR WITH DVI CONNECTOR
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
75Hz
75Hz
16, 32
16, 32
DA - 11485 North America — Version 41 — September 28, 2004
Page 42
QuickSpecs
HP Workstation xw6000
Technical Specifications
1024x768
1152x864
1280x1024
1600x1000
1600x1024
1600x1200
NVIDIA Quadro FX1100
Graphics Card
75Hz
75Hz
75Hz
60Hz
60Hz
60Hz
16, 32
16, 32
16, 32
16, 32
16, 32
16, 32
Form Factor
ATX
Graphics Controller
NVIDIA NV36GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400 MHz integrated
Memory
128 MB 650MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture
storage
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Connectors
Multi-monitor support
Dual integrated analog display controllers supporting up to 2048 x1536 @
85Hz on both displays
Dual external digital display controllers supporting up to 1600 x 1200 @ 60Hz
on both displays
Additional product
128 MB DDR2 SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Compliant with Microsoft®/Intel® PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP1x/2x/4x/8x Version Sideband Addressing
3.0 compliant including AGP Texturing (Execute Mode)
Fast writes support
NV35GL GPU featuring
425 MHz engine clock rate
325 MHz memory clock rate
128-bit memory interface
VGA controller
128-bit precision throughout the graphics pipeline
12 bit sub-pixel precision
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs OpenGL 2.0 ICD with immediate mode support for all OGL primitive types
DirectX 8,9
Available graphics drivers Microsoft: Windows® XP, Windows 2000
HP qualified drivers may be preloaded or available from the HP support Web
site: http://welcome.hp.com/country/us/eng/software_drivers.html
DA - 11485 North America — Version 41 — September 28, 2004
Page 43
QuickSpecs
HP Workstation xw6000
Technical Specifications
NVIDIA Quadro FX 1100
Graphics Card display
resolutions & refresh
rates
NVIDIA Quadro FX3000
Graphics Card
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x720
1280x960
1280x1024
1600x900
240Hz/240Hz
240Hz/200Hz
200Hz/140Hz
170Hz/100Hz
150Hz/120Hz
150Hz/85Hz
150Hz/85Hz
120Hz/75Hz
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
1600x1024
1600x1200
1600x1200
1920x1080
1920x1080
1920x1200
1920x1200
1920x1440
2048x1536
100Hz/72Hz
120Hz/60Hz
100Hz/60Hz
100Hz/na
85Hz/na
100Hz/na
85Hz/na
85Hz/na
85Hz/na
8, 16, 32
8, 16
32
8, 16
32
8, 16
32
8,16, 32
8, 16, 32
Form Factor
ATX
Graphics Controller
NVIDIA NV35GL GPU
Bus Type
AGP 8X Version 3.0 compliant
RAMDAC
Dual 400MHz integrated
Memory
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dimensions
AGP full height ATX card. 4.25 x 6.875 in (10.795 x 17.463 cm)
Multi-monitor support
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on
both displays
256 MB DDR SDRAM unified frame buffer, Z-buffer and Texture storage
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
12-bit subpixel precision
128-bit precision graphics pipeline
Occlusion Culling
Dual Link DVI on one output enabling driving digital displays up to 2048x1536
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0 specifications
Additional product
features
DA - 11485 North America — Version 41 — September 28, 2004
Page 44
QuickSpecs
HP Workstation xw6000
Technical Specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
AGP8xVersion 3.0
Sideband Addressing
AGP Texturing (Execute Mode)
compliant including
Fast write support
NV35GL GPU featuring
400 MHz engine clock rate
425 MHz memory clock rate
256-bit memory interface
VGA controller
8 parallel pixel pipelines
3 parallel geometry engines
nfiniteFX II programmable dual Vertex Shader and Pixel Shader technology
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9
Available graphics drivers Windows 2000
Windows XP
HP-tested Linux
HP qualified drivers may be preloaded or available from the HP support Web
site:
See: http://www.hp.com/support/workstation_drivers/
NVIDIA Quadro FX 3000
Graphics Card display
resolutions & refresh
rates
Monitor 1, 2 Analog/Digital
Resolution
Maximum Refresh Rate
Bits per Pixel
640x480
800x600
1024x768
1152x864
1280x720
1280x960
1280x1024
1600x900
1600x1024
1600x1200
1600x1200
1920x1080
1920x1080
1920x1200
1920x1200
1920x1440
2048x1536
3840x1200
3840x2400
240Hz/240Hz
240Hz/200Hz
200Hz/140Hz
170Hz/100Hz
150Hz/120Hz
150Hz/85Hz
150Hz/85Hz
120Hz/75Hz
100Hz/72Hz
120Hz/60Hz
100Hz/60Hz
100Hz/60Hz in Dual Link Mode
85Hz/60Hz in Dual Link Mode
100Hz/60Hz in Dual Link Mode
85Hz/60Hz in Dual Link Mode
85Hz/60Hz in Dual Link Mode
85Hz/60Hz in Dual Link Mode
21Hz/24Hz
13Hz
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16, 32
8, 16
32
8, 16
32
8, 16
32
8,16, 32
8, 16, 32
8, 16, 32
8, 16, 32
Sound Blaster Audigy 2 ZS Audio Quality
Sound Blaster 24-bit ADVANCED HD Quality
DA - 11485 North America — Version 41 — September 28, 2004
Page 45
QuickSpecs
HP Workstation xw6000
Technical Specifications
PCI card
Signal to Noise Ratio
(SNR)
Max. Audio Resolution
Playback
Max. Recording/
Sampling Rate
108dB
24-bit/192kHz in Stereo
24-bit/96kHz in 5.1 DVD-Audio Quality
24-bit/96kHz
DACs
24-bit/192kHz
Max. No. of 3D Voices
64
Max. Channels in
3D Positional Audio
7.1
EAX® and EAX® ADVANCED Yes including Hardware Acceleration of EAX and/or EAX ADVANCED HD
HD™
Connectors
Additional product
features
PCI 2.1 or higher compliant slot
Analog Speakers Support for Headphone, 2.1, 4.1, 5.1, 6.1, 7.1
Digital Speakers Support for Headphone, 2.1, 4.1, 5.1 and 24-bit/96kHz
speakers
One High Speed FireWire® port
Music Playback/
Integrated Digital Music Player
Music Creation
Integrated Digital Music Ripping (in Player) - MP3
& WMA
True Bit Accurate Recording w/o SRC
Advanced Resolution DVD-Audio Playback
EAX® Music Enhancements
EAX Effects
CMSS 3D Up mixing of Stereo to Multi-Channels
Audio Clean-up
Smart Volume Management (SVM)
Karaoke
Multi-Channel Graphic Equalizer
Bass Boost
Virtual Surround over 2 Channel or Headphones
Full Support for Windows® Media 9 24-bit/96kHz
5.1 content
ASIO Low Latency Multi-Track Recording Support
(16-bit/48kHz)
ASIO 2.0 Direct Monitoring
Movies
THX Certification
THX Setup Console
Dolby Digital 5.1 Playback
Dolby Digital EX 6.1 Playback
DTS-ES 6.1 Playback
Gaming
EAX
DA - 11485 North America — Version 41 — September 28, 2004
Page 46
QuickSpecs
HP Workstation xw6000
Technical Specifications
Minimum system
requirements
System RAM
Hard disk
Operating System
Additional requirements Graphics card
for DVD movies, games
and internet radio
Soft-DVD player
DVD drive
Internet radio
HP L1925 19-inch TFT Flat Panel
Panel Monitor
Video Input
600MB free space
Additional 4GB free space (Disk Type: ATA-100,
7,200rpm) for DVD movies, games and internet
radio.
Windows XP SP1
DirectX® 9 and OpenGL® compliant 3D accelerator
with at least 16MB of texture RAM
Intervideo's WinDVD® 2000 or CyberLink's
PowerDVD® 3.0 and above recommended
2nd generation 6X DVD-ROM drive or later with
DMA support for DVD Movie and Audio playback
56kbps modem or faster and an active Internet
connection
Type
Thin film transistor (TFT)
Viewable Image Area
(diagonal)
Screen Opening (WxH)
19 in (48.25 cm) maximum viewable
Viewing Angle (typical)
Brightness (typical)
170 degrees horizontal/170 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)
Up to 500:1 (typical)
Response Rate (typical)
<20 ms (typical rise + fall)
Pixel Pitch
0.294 mm
Color Depth Support
16.7 million colors
Plug and Play
Yes (supports VESA DDC2B; PC2001 compliant)
Input Signal
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Input Impedance
Sync Input
Signal Interface/
EAX ADVANCED HD
Hardware Acceleration of EAX &/or EAX
ADVANCED HD
Up to 64 3D Voices
7.1 Max. Channels in 3D Positional Audio
Speaker Calibration for Optimal 3D Positional
Audio
128MB
14.9 x 11.9 in (37.8 x 30.3 cm)
Video Cable
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA and DVI-D
Video Cable Length
78 in (2.0 m)
Horizontal Frequency
30 to 82 kHz
DA - 11485 North America — Version 41 — September 28, 2004
Page 47
QuickSpecs
HP Workstation xw6000
Technical Specifications
Performance
On Screen Display (OSD)
Controls
Vertical Frequency
56 to 75 Hz
Graphics Controller
Pixelworks 131
Native Resolution
[email protected] analog
1280x [email protected] digital
[email protected] analog
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset VGA Mode
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
Preset SUN Mode
[email protected]
Fail Safe Mode
Yes (limits out of range signal messages)
Maximum Pixel Clock
Speed
140 MHz
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
AssetControl
Yes (accessible on HP/Compaq desktops featuring
Intelligent Manageability)
Yes (6500k, 9300k, Custom User)
Preset MAC Mode
Default Color
Temperature
Buttons or Switches
Languages
User Controls
Power
[email protected] analog
Power on/off; 4-button OSD; second level OSD
buttons include auto adjust and dual-input switch
English, Spanish, French, German, Dutch, Italian
Input Power
Size and Positioning
Contrast
Brightness
Clock, Clock Phase
Selectable Color Temperature
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Auto-ranging, 90 to 265 VAC; internal power
supply, 47.5-63 Hz
100 ~ 240 VAC
Nominal Current
1.5 A maximum
Power Supply
DA - 11485 North America — Version 41 — September 28, 2004
Page 48
QuickSpecs
HP Workstation xw6000
Technical Specifications
Mechanical
Frequency
50 ~ 60 Hz
Average
Maximum
33 watts when displaying standard office
software
< 40 watts
Power Saving
< 2 watts
Off Mode
< 1 watts (switch off)
Power Cable Length
70 in (1.8 m); non-captive
Dimensions
(H x W x D)
Unpacked w/ stand
minimum height
14.8 x 16.4 x 8.2 in
(39.8 x 41.6 x 20.8 cm)
Unpacked w/ stand
maximum height
20 x 16.4 x 8.2 in
(50.8 x 41.6 x 20.8 cm)
Base Area (Footprint
d x w)
Panel only (w/o stand)
(h x w x d)
Packaged
8.2 x 12.2 in
(20.8 x 30.9 cm)
Weight
Environmental
13.5 x 16.4 x 2.6 in
(34.2 x 41.6 x 6.6 cm)
Unpacked w/ stand
26.0 x 26.0 x 26.0 in
(66.0 x 66.0 x 66.0 cm)
17.6 lb (8 kg)
Unpacked w/o stand
12 lb (5.5 kg)
Packaged
23.5 l (10.7 kg)
Tilt Range
-5° to +20°
Swivel Range
± 45° horizontal swivel
Height Adjustable
Yes (4.3 in/110 mm adjustment range)
Pivot Rotation
Yes, 90 °
Base
Ships attached and is removable after installation
Temperature – Operating 41° to 95° F (5° to 35° C)
Temperature – Nonoperating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
20% to 80%
Humidity – Non-operating 5% to 95%
Altitude – Operating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
Options
PC Comm Station
User Guide Languages
Communication/audio hub that includes two
stereo speakers (8 PMPO each), integrated
microphone/dual function headset (phone and PC
support), and USB port. Optional, part number
304251-008 (US) or P8814A (EMEA).
VGA cable, DVI-D cable, user CD-ROM with Portrait
software
English
Other
Accessories Included
Warranty Languages
English
Color
Carbon/Silver
DA - 11485 North America — Version 41 — September 28, 2004
Page 49
QuickSpecs
HP Workstation xw6000
Technical Specifications
VESA Mounting
Certification and
Compliance
Compatibility
Service and Warranty
HP L2035 20-inch TFT Flat Panel
Panel Monitor
On Screen Display
(OSD) Controls
VESA External Mounting
Yes (swing arm/ wall mount not included; base is
shipped attached and must be removed for
mounting options)
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark),
ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Compliant (Pixel Defect
Guidelines), Mexican NOM Approval, MIC Requirements (New Zealand), MPR-II
Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko), PC2001
Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI Approval, TCO
03 (emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI
Approvals, Windows Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP Flat Panel Monitor L1925. The HP
L1925 has been tested for use with Compaq Evo PCs and Thin Clients and
Compaq D315 Business PCs.
NOTE: Features are subject to change without notice.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support at 970-635-1000 (USA) or 905-2064663 (Canada).
Type
20-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
20.1 in (51 cm)
16.2 x 12.17 in (41.1 x 30.9 cm)
Brightness (typical*
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 400:1
Response Rate (typical)*
16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
Buttons or Switches
PiP (Picture in Picture), Input select, auto adjust,
OSD up, OSD down, OSD menu select, power
Languages
English, French, German, Spanish, Italian
User Controls
Brightness, contrast, positioning, color
DA - 11485 North America — Version 41 — September 28, 2004
Page 50
QuickSpecs
HP Workstation xw6000
Technical Specifications
Signal Interface/
Performance
Graphics Controller
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input)
(for modes with pixel clock less than 157 MHz)
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI input)
(for modes with pixel clock less than 157 MHz)
Pixelworks PW171
Native Resolution
1600 x 1200 @ 60 Hz (recommended)
Preset VESA Graphic
Modes (non-interlaced)
Text Mode
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Four connectors, including one 15-pin mini D-sub
VGA, one DVI-I (VGA analog and digital input), one
composite video, and one s-video
75 ohms ± 10%
Horizontal Frequency
Vertical Frequency
Video Input
Input Impedance
Sync Input
Power
Video Cable
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Frequency
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
Maximum
< 75 watts
DA - 11485 North America — Version 41 — September 28, 2004
Page 51
QuickSpecs
HP Workstation xw6000
Technical Specifications
Mechanical
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked w/stand
Unpacked w/o stand
(head only)
Packaged
Environmental
17.36 to 20.9 x 17.8 x
8.27 in
(44.1 to 53.1 x 45.2 x
21.0 cm)
14.29 x 17.8 x 3.19 in
(36.3 x 45.2 x 8.1 cm)
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
With stand: 20.28 lb (9.2
kg);
Without stand: 12.35 lb
(5.6 kg)
26.9 lb (12.2 kg)
Weight
Unpacked
Tilt Range
Packaged
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature – Operating 46° to 95° F (10° to 35° C)
Temperature – Nonoperating
6° to 140° F (-10° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity – Non-operating 5% to 85%
Altitude – Operating
+12,000 ft
Altitude – Non-operating +40,000 ft
Options
Other
HP Desktop Access Center Sold separately, the HP Desktop Access Center
features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Accessories Included
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic card's
DVI-D digital connector to the monitor's input #2
(DVI-I digital) connector
DA - 11485 North America — Version 41 — September 28, 2004
Page 52
QuickSpecs
HP Workstation xw6000
Technical Specifications
User Guide Languages
Color
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa, Japanese,
Danish, Finnish, German, Norwegian, Spanish,
Swedish, Greek, Polish, Russian, Slovenian,
Turkish
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese,
S. Chinese
Carbonite/Silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Warranty Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP L2335 23-inch TFT
Widescreen Flat Panel
Display
Panel
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark),
ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican
NOM Approval, MIC Requirements (New Zealand), MPR-II Compliant, Nordic
Approvals (Nemko, Fimko, Demko, Semko), PC2001 Compliant, PC99 Certified,
S. Korean MIC Approval, Taiwan BSMI Approval, TCO 03 (emissions,
ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows
Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and
Microsoft Windows XP)
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, and HP Business Desktops d300 series.
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply. Consult
HP Customer Service for details.
Type
23-inch Active Matrix TFT (thin film transistor)
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
23 in (58.4 cm)
19.53 x 12.24 in (49.6 x 31.1 cm)
Brightness (typical)*
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Up to 250 nits (cd/m2)
Contrast Ratio (typical)*
Up to 350:1
Response Rate (typical)*
25 ms (typical, rise + fall)
Pixel Pitch
0.258 mm
Color Depth Support
16.7 million colors
DA - 11485 North America — Version 41 — September 28, 2004
Page 53
QuickSpecs
HP Workstation xw6000
Technical Specifications
On Screen Display (OSD)
Controls
* All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust,
OSD Up, OSD Down, OSD Menu Select, Power
Languages
English, French, German, Spanish, Italian
User Controls
Signal Interface/
Performance
Video Input
Vertical Frequency
Brightness, contrast, positioning, color
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI input)
(for modes with pixel clock less than 157 MHz)
48 to 85 Hz (VGA and DVI input)
Graphics Controller
Pixelworks PW172
Native Resolution
1920 x 1200 @ 60 Hz (recommended)
Preset VESA Graphic
Modes (non-interlaced)
Text Mode
1920 x 1200 @ 60Hz
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
720 x 400 @ 70 Hz
Mac Mode
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
Sun Mode
1152 x 900 @ 66 Hz
Maximum Pixel Clock
Speed
202 MHz (VGA input); 162 MHz (DVI input)
User Programmable
Modes
Yes, 10
Anti-Glare
Yes
Anti-Static
Yes
Default Color
Temperature
6500 K
Plug and Play
Yes
Input Signal
Five connectors, including one 15-pin mini D-sub
VGA, one DVI-I (VGA analog and digital input), one
composite video, one s-video, component video
75 ohms ± 10%
Horizontal Frequency
Input Impedance
DA - 11485 North America — Version 41 — September 28, 2004
Page 54
QuickSpecs
HP Workstation xw6000
Technical Specifications
Sync Input
Power
Mechanical
Video Cable
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
Video Cable Length
5.9 ft (1.8 m)
Input Power
Frequency
Auto-Ranging, 90 to 132 VAC and 195 to 265 VAC;
internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
Maximum
< 100 watts
Power Saving
< 5 watts
Power Cable Length
5.9 ft (1.8 m)
Dimensions (H x W x D)
Unpacked
Weight
Unpacked w/o stand
(head only)
Unpacked
Packaged
Environmental
Options
Other
17.36 to 20.90 x 21.46 x
8.27 in
(44.1 to 53.1 x 54.5 x
21.0 cm)
14.57 x 21.46 x 3.35 in
(37.0 x 54.5 x 8.5 cm)
22.27 lb (10.1 kg)
30.87 lb (14.0 kg)
Tilt Range
-5° to + 25° vertical
Swivel Range
-35° to + 35°
Height Adjustable
Yes, range 3.54 in (9.0 cm)
Pivot Rotation
Yes
Base
Attached
Temperature –
Operating
46° to 95° F (10° to 35° C)
Temperature –
Non-operating
6° to 140° F (-10° to 60° C)
Humidity – Operating
20% to 80% non-condensing
Humidity –
Non-operating
5% to 85%
Altitude – Operating
+12,000 ft
Altitude –
Non-operating
+40,000 ft
HP Desktop Access Center Sold separately, the HP Desktop Access Center
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Accessories Included
VGA to VGA cable - connects the graphic card's
VGA analog connector to the monitor's input #1
DA - 11485 North America — Version 41 — September 28, 2004
Page 55
QuickSpecs
HP Workstation xw6000
Technical Specifications
Color
(VGA analog) connector
VGA to DVI-I cable - connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable - connects the graphic card's
DVI-D digital connector to the monitor's input #2
(DVI-I digital) connector
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa, Japanese,
Danish, Finnish, German, Norwegian, Spanish,
Swedish, Greek, Polish, Russian, Slovenian,
Turkish
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T. Chinese,
S. Chinese
Carbonite/silver
VESA External Mounting
Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
User Guide Languages
Warranty Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP p1230 22-inch CRT
Monitor
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark),
ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect Guidelines, Mexican
NOM Approval, MIC Requirements (New Zealand), MPR-II Compliant, Nordic
Approvals (Nemko, Fimko, Demko, Semko), PC2001 Compliant, PC99 Certified,
S. Korean MIC Approval, Taiwan BSMI Approval, TCO 03 (emissions,
ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals, Windows
Certification (Microsoft® Windows® 98, Microsoft Windows 2000, and
Microsoft Windows XP).
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, and HP Business Desktops d300 series.
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply. Consult
HP Customer Service for details.
Tube Type
Diamondtron NF Aperture Grille CRT
Picture Tube Size
(diagonal)
Viewable Image Area
(diagonal)
Aperture Grille Pitch
22 in (55 cm)
Screen Curvature
Flat
Horizontal Frequency
(kHz)
30 to 140 kHz
20 in (51 cm)
0.24 mm
DA - 11485 North America — Version 41 — September 28, 2004
Page 56
QuickSpecs
HP Workstation xw6000
Technical Specifications
Vertical Frequency (Hz)
50 to 160 Hz
Maximum Resolution
2048 x 1536 @ 85 Hz (GTF)
Recommended Resolution 1600 x 1200 @ 85 Hz or 1280 x 1024 @ 85 Hz
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
1920 x 1440 @ 60 Hz, 75 Hz
1792 x 1344 @ 60 Hz, 75 Hz
1600 x 1200 @ 75 Hz, 85 Hz
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1024 x 768 @ 75 Hz, 85 Hz
800 x 600 @ 75 Hz, 85 Hz
640 x 480 @ 60 Hz, 85 Hz
1152 x 870 @ 75 Hz
Preset VGA Mode
640 x 480 @ 60 Hz and 720 x 400 @ 70 Hz
Maximum Pixel Clock
Speed
420 MHz
User Programmable
Modes
15 (10 preset modes and 5 additional modes)
Anti-Glare
Yes
Anti-Static
Yes
Asset Control
Yes
Default Color
Temperature
9300 K
Buttons or Switches
OSD menu, brigthness, contrast, Super Bright, dual input, power on/off
Languages
English, Spanish, French, German, Italian, Japanese
User Controls
Plug and Play
Brightness, contrast, pincushion, pincushion balance, trapezoid, tilt (rotation),
color temperature, degauss, parallelogram, individual color control, zoom,
moiré cancellation, convergence, corner purity, image control, language, OSD
control, factory reset
Yes, DDC/CI compatible
Input Signal
Two 15-pin D-sub connections
Input Impedance
75 ohms
Sync Input
Separate sync (HSYNC/VSYNC)
Video Cable
Detachable 15-pin D-sub mini connector (included)
Video Cable Length
70 in (1.8 m); non-captive
Power Supply
Universal 100-120/220-240 VAC
Frequency
50/60 Hz
Maximum
135 watts
Power Saving
2 watts maximum
Off Mode
0 watts
Power Cable Length
70 in (1.8 m); non-captive
DA - 11485 North America — Version 41 — September 28, 2004
Page 57
QuickSpecs
HP Workstation xw6000
Technical Specifications
Dimensions (HxWxD)
Weight
Unpacked
(including pedestal)
Packaged
19.1 x 19.5 x 18.8 in (48.6 x 49.5 x 47.7 cm)
Unpacked
66.1 lb (30 kg)
Packaged
77.1 lb (35 kg)
25.6 x 25.0 x 25.4 in (65.1 x 63.6 x 64.6 cm)
Tilt Range
10° upward and 5° downward
Swivel Range
90°either side of center
Temperature – Operating 41° to 90° F (5° to 35° C) Non-condensing
Temperature –
Non-operating
-4° to 140° F (-20° to 60° C)
Humidity – Operating
10% to 90% non-condensing
Humidity –
Non-operating
10% to 90%
Altitude – Operating
0 to 7,200 ft (0 to 2,195 m)
Altitude –
Non-operating
0 to 30,000 ft (0 to 9,144 m)
Accessories Included
Power cable, video cable (D-sub to D-sub), documentation kit
User Guide Languages
Color
English, French, German, Spanish, Italian, Dutch, Brazilian Portuguese, Danish,
Finnish, Greek, Japanese, Korean, Latin American Spanish, Norwegian, Polish,
Russian, Slovenian, Turkish, Swedish, Traditional Chinese, Simplified Chinese
English, French, Spanish, Brazilian Portuguese, Danish, German, Castilian
Spanish, French, Italian, Dutch, Norwegian, Finnish, Swedish, Bahasa
Indonesian, Japanese, Korean, T. Chinese, S. Chinese
Carbon and silver
Certification and
Compliance
MPR-II (Low Emissions), TCO '03, Energy Star Compliant, UL Listing, ISO9241-3
VOT Guidelines Approval, FCC Approval, CE Mark (including PFC), GS Mark
Compatibility
Compatible with platforms using the VESA standard video modes and HP
Compaq Business Desktops d500, d300, and d200 Series, Compaq Evo
Desktops, HP workstations, and HP Business Desktops d300 series.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next business day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
Warranty Languages
Warranty
DA - 11485 North America — Version 41 — September 28, 2004
Page 58
QuickSpecs
HP Workstation xw6000
Technical Specifications
© Copyright 2002-2004 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Hyper-Threading Technology requires a computer system with an Intel) Pentium) 4 processor supporting HT Technology and a HyperThreading Technology enabled chipset, BIOS and operating system. Performance will vary depending on the specific hardware and
software you use. See http://www.intel.com/info/hyperthreading/ for more information including details on which processors support
HT Technology.
Microsoft, Windows, and Windows NT are U.S. registered trademarks of Microsoft Corporation. Intel and Pentium are U.S. registered
trademarks the Intel Corporation. All other product names mentioned herein may be trademarks of their respective companies.
The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and
services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 11485 North America — Version 41 — September 28, 2004
Page 59
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
