HP xw4200 Workstation

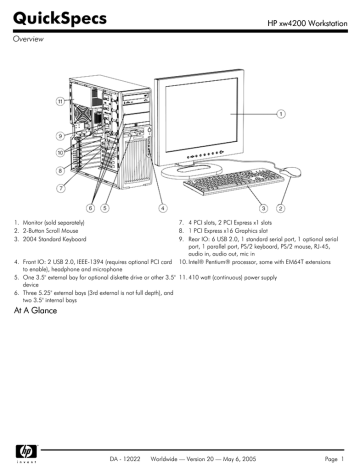

Overview
1. Monitor (sold separately)
2. 2-Button Scroll Mouse
3. 2004 Standard Keyboard
7. 4 PCI slots, 2 PCI Express x1 slots
8. 1 PCI Express x16 Graphics slot
9. Rear IO: 6 USB 2.0, 1 standard serial port, 1 optional serial
port, 1 parallel port, PS/2 keyboard, PS/2 mouse, RJ-45,
audio in, audio out, mic in
10. Intel® Pentium® processor, some with EM64T extensions
4. Front IO: 2 USB 2.0, IEEE-1394 (requires optional PCI card
to enable), headphone and microphone
5. One 3.5" external bay for optional diskette drive or other 3.5" 11. 410 watt (continuous) power supply
device
6. Three 5.25" external bays (3rd external is not full depth), and
two 3.5" internal bays
At A Glance
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 1
QuickSpecs
HP xw4200 Workstation
Overview
Intel® Pentium® processor with Hyper-Threading Technology
Choice of operating systems:
Microsoft Windows XP Professional,
Microsoft Windows XP Professional, x64 Edition (available 3rd quarter, 2005)
Red Hat Enterprise WS 3,
HP Installer Kit for Linux (see http://www.hp.com/workstations/software/linux/ for details)
Support for future Intel® Extended Memory 64 Technology (EM64T) processors
Intel 925X Express chipset
Integrated HP Gbit LAN by Broadcom
800 MHz processor front side bus
Convertible and tool-less minitower chassis
3 PCI-Express slots/4 PCI slots
Dual channel DDR-2 memory at 533 MHz
Four channel SATA Controller with RAID 0 or 1
SoundMax Digital AC97 integrated audio with internal speaker
Pre-loaded Manageability tools
Protected by HP Services, including a 3-3-3 standard warranty. Terms and conditions vary by country. Certain restrictions and
exclusions apply.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 2
QuickSpecs
HP xw4200 Workstation
Standard Features - Custom Components
Processor and Speed –
One of the following
All processors feature Hyper-Threading Technology
Intel® Pentium 4 Processor 2.80 GHz, 1 MB/800 MHz FSB
Intel® Pentium 4 Processor 3.00 GHz, 1 MB/800 MHz FSB
Intel® Pentium 4 Processor 3.20 GHz, 1 MB/800 MHz FSB
Intel® Pentium 4 Processor 3.20 GHz, 1 MB/800 MHz FSB with EM64T
Intel® Pentium 4 Processor 3.40 GHz, 1 MB/800 MHz FSB with EM64T
Intel® Pentium 4 Processor 3.60 GHz, 1 MB/800 MHz FSB with EM64T
Intel® Pentium 4 Processor 3.80 GHz, 1 MB/800 MHz FSB with EM64T
This workstation will support Pentium 4 processors with Extended Memory 64-bit Technology as they
become available from Intel
Operating System –
One of the following
Microsoft Windows XP Professional
Microsoft Windows XP Professional, x64 Edition (available 3rd quarter, 2005)
Red Hat Enterprise Linux Workstation 3 Update 2 (32-bit available as pre-load, 32 & 64-bit available as
an After Market Option)
HP Installer CD for Red Hat Linux 7.2, 7.3 and WS 3 Box Set (32bit and 64 bit)
See http://www.hp.com/workstations/software/linux/
Click on "Hardware support matrix" under "Related links" for details.
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an
IEEE 1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
1st Hard Disk Drive –
One of the following
40 GB 7200 rpm Serial ATA drive
80 GB 7200 rpm Serial ATA drive
160 GB 7200 rpm Serial ATA drive
250 GB 7200 rpm Serial ATA drive
400 GB 7200 rpm Serial ATA drive
74 GB 10K rpm Serial ATA drive
73 GB 10K Ultra320 SCSI drive
300 GB 10K Ultra320 SCSI drive
36 GB 15K Ultra320 SCSI drive
73 GB 15K Ultra320 SCSI drive
146 GB 15K Ultra320 SCSI drive
DA - 12022
Worldwide — Version 20 — May 6, 2005
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
Page 3
QuickSpecs
HP xw4200 Workstation
Standard Features - Custom Components
2nd Hard Disk Drive –
One of the following
Factory Integrated
RAID
2nd hard drive, 40 GB 7200 rpm Serial ATA drive
2nd hard drive, 80 GB 7200 rpm Serial ATA drive
2nd hard drive, 160 GB 7200 rpm Serial ATA drive
2nd hard drive, 250 GB 7200 rpm Serial ATA drive
2nd hard drive, 400 GB 7200 rpm Serial ATA drive
2nd hard drive, 74 GB 10K rpm Serial ATA drive
2nd hard drive, 73 GB 10K Ultra320 SCSI drive
2nd hard drive, 300 GB 10K Ultra320 SCSI drive
2nd hard drive, 36 GB 15K Ultra320 SCSI drive
2nd hard drive, 73 GB 15K Ultra320 SCSI drive
2nd hard drive, 146 GB 15K Ultra320 SCSI drive
RAID 0 Configuration – Striped Array
RAID 1 Configuration – Mirrored Array
NOTE: Requires 2 identical hard drives (speeds, capacity, interface)
Drive controllers
Integrated 4 channel Serial ATA controller with RAID 0, 1
functionality
Optional SCSI controllers (required with SCSI HDDs)
Memory –
One of the following*
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
Windows XP
32-Bit
32-Bit
Red Hat Linux
Windows XP
32-Bit
Red Hat Linux
32-Bit
7.2, 7,3, WS3
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
256 MB DDR-2 PC2-4200 (533 MHz) ECC (1 x 256 MB)
512 MB DDR-2 PC2-4200 (533 MHz) ECC (2 x 256 MB)
1 GB DDR-2 PC2-4200 (533 MHz) ECC (2 x 512 MB)
1.5 GB DDR-2 PC2-4200 (533 MHz) ECC (2 x 256 MB, 2 x 512
MB)
2 GB DDR-2 PC2-4200 (533 MHz) ECC (2 x 1 GB)
32-Bit
7.2, 7,3, WS3
2 GB DDR-2 PC2-4200 (533 MHz) ECC (4 x 512 MB)
32-Bit
7.2, 7,3, WS3
3 GB DDR-2 PC2-4200 (533 MHz) ECC (2 x 512 MB, 2 x 1 GB)
32-Bit
7.2, 7,3, WS3
4 GB DDR-2 PC2-4200 (533 MHz) ECC (4 x 1GB)
32-Bit
7.2, 7,3, WS3
128 MB DDR-2 PC2-3200 (400 MHz) non-ECC (1 x 128 MB)
32-Bit
7.2, 7,3, WS3
256 MB DDR-2 PC2-3200 (400 MHz) non-ECC (2 x 128 MB)
32-Bit
7.2, 7,3, WS3
512 MB DDR-2 PC2-3200 (400 MHz) non-ECC (2 x 256 MB)
32-Bit
7.2, 7,3, WS3
1 GB DDR-2 PC2-3200 (400 MHz) non-ECC (4 x 256 MB)
32-Bit
7.2, 7,3, WS3
NOTE: Do not mix ECC and non-ECC memory. The system will not boot if ECC and non-ECC DIMMs are mixed. Only unbuffered
DDR2 DIMMs are supported. All DIMMs must be either x8 or x16 width.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 4
QuickSpecs
HP xw4200 Workstation
Standard Features - Custom Components
Removable Storage
1.44-MB Diskette Drive
48X CD-ROM Drive
48X/32X/48X CD-RW Drive
16X/40X DVD-ROM with +R Read
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
16X DVD+/-RW, Dual-Layer (Win and RHWS3)
16X DVD+/-RW, Dual-Layer LightScribe (Windows 2K & XP only)
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
48X/32X/48X CD-RW Drive
16X/40X DVD-ROM with +R Read
48X/32X/48X/16X Combo CD-RW/DVD-ROM Drive
16X DVD+/-RW, Dual-Layer (Win and RHWS3)
16X DVD+/-RW, Dual-Layer LightScribe (Windows 2K & XP only)
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
PS/2 Standard Keyboard
USB Standard Keyboard
Windows XP
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
WS3
PS/2 2-Button Scroll Mouse
PS/2 3-Button Mouse
USB 2-Button Optical Scroll Mouse
USB 3-Button Optical Mouse
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
WS3
WS3
Integrated Digital AC97 audio with internal speaker
Sound Blaster Audigy 2 ZS PCI sound card
Windows XP
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
Windows XP
32-Bit
Red Hat Linux
7.2, 7,3, WS3
2nd Removable Storage
Keyboard –
One of the following
Mouse –
One of the following
Audio
NIC
Broadcom BCM5751 NetXtreme™ Gigabit Ethernet Controller for
Workstations (PCI-Express)
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 5
QuickSpecs
HP xw4200 Workstation
Standard Features - Custom Components
Graphics
ATI Entry 2D PCI Express (64 MB)
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
NVIDIA Quadro NVS 400 PCI (64 MB, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7,3, WS3
7.2, 7,3, WS3
Red Hat Linux
Solenoid lock and hood sensor
IEEE 1394 PCI Card
HP EM64T 64-bit Transition Tool Kit
Configure minitower in desktop orientation
Energy Star Settings
Trusted Platform Module
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Miscellaneous
Software
Symantec Norton AntiVirus 2004 (optional)*
HP Performance Tuning Framework*
Altiris Recovery*
HP Client Manager Software v6.0*
* Not available with Linux Operating System.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
7.2, 7,3, WS3
Red Hat Linux
Page 6
QuickSpecs
HP xw4200 Workstation
Standard Features - Specs
Operating System (choice) Microsoft Windows XP Professional
Microsoft Windows XP Professional x64 Edition (available 3rd quarter, 2005)
Red Hat Enterprise Linux Workstation 3 32-bit version. Update 2 in 32- and 64-bit available in Summer
2004 as aftermarket option.
HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions)
Form factor
Minitower
Color
Carbonite/Alloy metallic
Convertibility
Yes. 5.25" drives rotate for Minitower or Desktop orientation.
System Board Form Factor ATX (9.6 x 12 in)
Processor
Single Intel Pentium 4 processors and Hyper-Threading Technology (EM64T technology will be supported
as processors become available from Intel)
CPU Bus Speed Supported 800 MHz FSB
Standard L2 Cache
1 MB L2 cache
Chipset
Intel 925X Express North bridge/ICH6R South bridge
Memory Expansion Slots 4 DIMMs
Memory Type Supported Only unbuffered DDR2 DIMMs are supported. Do not mix ECC and non-ECC memory. The system will
not boot if ECC and non-ECC DIMMs are mixed.
Memory Speed Supported DDR-2 SDRAM PC2-4200 (533 MHz) ECC
DDR-2 SDRAM PC2-3200 (400 MHz) non-ECC
Maximum Memory
4 GB (4 DIMM slots)
Network controller
Integrated Broadcom 5751 10/100/1000 for HP (PCI Express interface)
Audio
Integrated AC'97 digital audio with S/PDif 6-channel pass-through, stereo microphone, and Yamaha XG
Lite Softsynth support
PCI slots
4 PCI slots (full-height, full-length)
2 PCI Express (x1) slots
1 PCI Express x16 graphics slot
AGP slot
None
Bays
Total Bays = 6
Internal Bays
Two 3.5 inch SATA Hard Drive
External Bays
Three 5.25 inch bays
One 3.5 inch bay for optional floppy drive
Parallel Port
1
Serial Port
1 standard, 2nd is optional
Front I/O
2 USB 2.0, IEEE-1394 (requires optional PCI card to function), headphone and microphone.
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE
1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
Rear I/O
6 USB 2.0, 1 standard serial port, 1 optional serial port, parallel port, PS/2 keyboard, PS/2 mouse, RJ45, audio in, audio out, mic in
USB Keyboard
Optional
USB Mouse
Optional
PS/2 Keyboard
1
PS/2 Mouse
1
Chassis Dimensions
17.7 x 6.6 x 17.9 in (45.0 x 16.8 x 45.6 cm)
(H x W x D)
6.6 x 17.7 x 17.9 in (16.8 x 45.0 x 45.6 cm)
Weight
Typical configuration – 35 lb (15.88 kg)
Shipping weight
Typical configuration – 44 lb (19.96 kg)
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 7
QuickSpecs
HP xw4200 Workstation
Standard Features - Specs
Temperature
Operating
40° to 95°F (5° to 35°C)
Non-operating
-40° to 140°F (-40° to 60°C)
Humidity
Operating
8% to 85%
Non-operating
8% to 90%
Maximum Altitude
Operating
10,000 ft (3,000 m)
(nonpressurized)
Non-operating
30,000 ft (9,100 m)
Power Supply
410 watts (continuous)
Auto-ranging within 230V
Interfaces Supported
1 SATA interface (4 Serial-ATA connectors), 1 EIDE interface for optical drives, optional multi-bay
interface
Hard Drive Controller (PCI) Optional Ultra320 or Ultra320 RAID
Supported
Preinstalled Software
Microsoft Windows XP Professional*
Microsoft Windows XP Professional x64 Edition* (available 3rd quarter, 2005)
HP Client Manager Software v6.0*
Altiris Local Recovery*
Alert Standard Format specification*
Norton AntiVirus 2004 (optional preinstall)*
OR Red Hat Enterprise Linux Workstation 3 Update 2 (32-bit only)
OR HP Installer Kit for Linux (includes drivers for both 32-bit & 64-bit OS versions on xw8200, xw6200, xw4200)
CD/DVD software dependent on optical drive choices
* Not available on Linux
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 8
QuickSpecs
HP xw4200 Workstation
Standard Features - Preconfigured Global Models
xw4200X/PD3.20/
B80/G512/XdF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Intel Pentium 4 at 3.20GHz
Windows XP Professional
1 MB L2
512MB (2x256) DDR2-533 ECC
16X DVD-ROM
80 GB SATA/150 7200 rpm (1st)
Not included in base configuration - Please Choose a graphics card
option below:
ATI Entry 2D PCI Express (64 MB)
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
NVIDIA Quadro NVS 400 PCI (64 MB, VGA & DVI)
ATI FireGL V3100 PCI Express (128 MB)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Mouse
Other
xw4200X/PD3.20/B80/G512/XdF/s Country Code Key
PD749AW#ABA
N. America
PD749AW#ABC
Fr. Canadian
PD749AW#ABM
L. America
PD749AW#ACF
Japan (English)
PD749AW#ABJ
Japan (Japanese)
PD749AW#ABU
UK
PD749AW#ABD
Germany
PD749AW#ABF
France
PD749AW#ABZ
Italy
PD749AW#ABE
Spain
PD749AW#AK6
Europe
DA - 12022
Switzerland (German/French)
Switzerland (Italian/English)
Dutch
Denmark
Asia/Pacific (English)
Korea
China
Taiwan
India
Australia
Thailand
PD749AW#AR8
PD749AW#ACN
PD749AW#ABH
PD749AW#ACE
PD749AW#AB4
PD749AW#AB1
PD749AW#AB2
PD749AW#AB0
PD749AW#ACJ
PD749AW#ABG
PD749AW#AKL
Worldwide — Version 20 — May 6, 2005
Page 9
QuickSpecs
HP xw4200 Workstation
Standard Features - Preconfigured Global Models
xw4200X/PD3.40/
B160/G512/XvF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Intel Pentium 4 at 3.40GHz
Windows XP Professional
1 MB L2
512MB (2x256) DDR2-533 ECC
48X DVD-ROM/CDRW Combo
160 GB SATA/150 7200 rpm (1st)
Not included in base configuration - Please Choose a graphics card
option below:
ATI Entry 2D PCI Express (64 MB)
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
NVIDIA Quadro NVS 400 PCI (64 MB, VGA & DVI)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Mouse
Other
xw4200X/PD3.40/B160/G512/XvF/s Country Code Key
PD750AW#ABA
N. America
PD750AW#ABC
Fr. Canadian
PD750AW#ABM
L. America
PD750AW#ACF
Japan (English)
PD750AW#ABJ
Japan (Japanese)
PD750AW#ABU
UK
PD750AW#ABD
Germany
PD750AW#ABF
France
PD750AW#ABZ
Italy
PD750AW#ABE
Spain
PD750AW#AK6
Europe
DA - 12022
Switzerland (German/French)
Switzerland (Italian/English)
Dutch
Denmark
Asia/Pacific (English)
Korea
China
Taiwan
India
Australia
Thailand
PD750AW#AR8
PD750AW#ACN
PD750AW#ABH
PD750AW#ACE
PD750AW#AB4
PD750AW#AB1
PD750AW#AB2
PD750AW#AB0
PD750AW#ACJ
PD750AW#ABG
PD750AW#AKL
Worldwide — Version 20 — May 6, 2005
Page 10
QuickSpecs
HP xw4200 Workstation
Standard Features - Preconfigured Global Models
xw4200X/PD3.40/
C74/G1.0/XdF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Intel Pentium 4 at 3.40GHz
Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-533 ECC
16X DVD-ROM
74 GB SATA/150 10,000 rpm (1st)
Not included in base configuration - Please Choose a graphics card
option below:
ATI Entry 2D PCI Express (64 MB)
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
NVIDIA Quadro NVS 400 PCI (64 MB, VGA & DVI)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Mouse
Other
xw4200X/PD3.40/C74/G1.0/XdF/s Country Code Key
PD751AW#ABA
N. America
PD751AW#ABC
Fr. Canadian
PD751AW#ABM
L. America
PD751AW#ACF
Japan (English)
PD751AW#ABJ
Japan (Japanese)
PD751AW#ABU
UK
PD751AW#ABD
Germany
PD751AW#ABF
France
PD751AW#ABZ
Italy
PD751AW#ABE
Spain
PD751AW#AK6
Europe
DA - 12022
Switzerland (German/French)
Switzerland (Italian/English)
Dutch
Denmark
Asia/Pacific (English)
Korea
China
Taiwan
India
Australia
Thailand
PD751AW#AR8
PD751AW#ACN
PD751AW#ABH
PD751AW#ACE
PD751AW#AB4
PD751AW#AB1
PD751AW#AB2
PD751AW#AB0
PD751AW#ACJ
PD751AW#ABG
PD751AW#AKL
Worldwide — Version 20 — May 6, 2005
Page 11
QuickSpecs
HP xw4200 Workstation
Standard Features - Preconfigured Global Models
xw4200X/PD3.60/
B160/G1.0/XvF/s
Processor
OS
Cache Memory
Memory
Optical Drive
Hard Drive
Graphics
Intel Pentium 4 at 3.60GHz
Windows XP Professional
1 MB L2
1 GB (2x512) DDR2-533 ECC
48X DVD-ROM/CDRW Combo
160 GB SATA/150 7,200 rpm (1st)
Not included in base configuration - Please Choose a graphics card
option below:
ATI Entry 2D PCI Express (64 MB)
NVIDIA Quadro NVS 280 PCI (64 MB, VGA & DVI)
NVIDIA Quadro NVS 280 PCI Express (64 MB, VGA & DVI)
NVIDIA Quadro FX 330 PCI Express (64 MB)
NVIDIA Quadro NVS 400 PCI (64 MB, VGA & DVI)
NVIDIA Quadro FX 540 PCI Express (128 MB)
NVIDIA Quadro FX 1300 PCI Express (128 MB)
NVIDIA Quadro FX 1400 PCI Express (128 MB)
ATI FireGL V5100 PCI Express (128 MB)
NVIDIA Quadro FX 3400 PCI Express (256 MB)
NOTE: Please see Part Numbers in After market options/Standalone
accessories section.
HP scroll mouse (PS/2)
Includes Floppy Drive and Standard PS/2 Keyboard
Mouse
Other
xw4200X/PD3.60/B160/G1.0/XvF/s Country Code Key
PD752AW#ABA
N. America
PD752AW#ABC
Fr. Canadian
PD752AW#ABM
L. America
PD752AW#ACF
Japan (English)
PD752AW#ABJ
Japan (Japanese)
PD752AW#ABU
UK
PD752AW#ABD
Germany
PD752AW#ABF
France
PD752AW#ABZ
Italy
PD752AW#ABE
Spain
PD752AW#AK6
Europe
DA - 12022
Switzerland (German/French)
Switzerland (Italian/English)
Dutch
Denmark
Asia/Pacific (English)
Korea
China
Taiwan
India
Australia
Thailand
PD752AW#AR8
PD752AW#ACN
PD752AW#ABH
PD752AW#ACE
PD752AW#AB4
PD752AW#AB1
PD752AW#AB2
PD752AW#AB0
PD752AW#ACJ
PD752AW#ABG
PD752AW#AKL
Worldwide — Version 20 — May 6, 2005
Page 12
QuickSpecs
HP xw4200 Workstation
After-Market Options
Graphics
Multi display solutions
PCI
NVIDIA Quadro NVS 280 (64 MB,
VGA & DVI)
NVIDIA Quadro NVS 280 (64 MB,
VGA & DVI)
DMS-59 to Dual DVI Cable for NVS
cards
NVIDIA Quadro FX 330 (64 MB)
NVIDIA Quadro NVS 400 (64 MB,
VGA & DVI)
ATI FireGL V3100 (128 MB)
NVIDIA Quadro FX 540 (128 MB)
NVIDIA Quadro FX 1300 (128 MB)
NVIDIA Quadro FX 1400 (128 MB)
ATI FireGL V5100 PCI-E (128 MB)
NVIDIA Quadro FX 3400 (256 MB)
Hard Drives
Controllers
PCIExpress
X
X
X
Windows XP Red Hat Linux
32-Bit
7.2, 7.3, WS3
AA932A
32-Bit
7.2, 7.3, WS3
DY650A
X
DL139A
X
32-Bit
32-Bit
X
X
X
X
X
X
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
X
Part Number
7.2, 7.3, WS3
PB332A
AA605A
7.2, 7.3, WS3
PE949A
PH791A
PB331A
PM979A
PB330A
PB329A
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
SATA Hard Drives
40 GB SATA/150 Hard Drive (7200 rpm)
80 GB SATA/150 Hard Drive (7200 rpm)
160 GB SATA/150 Hard Drive (7200 rpm)
250 GB SATA/150 Hard Drive (7200 rpm)
400 GB SATA/150 Hard Drive (7200 rpm)
74 GB SATA/150 Hard Drive (10,000 rpm)
SCSI Hard Drives
73 GB Ultra320 SCSI Hard Drive (10,000 rpm)
146 GB Ultra320 SCSI Hard Drive (10,000 rpm)
300 GB Ultra320 SCSI Hard Drive (10,000 rpm)
36 GB Ultra320 SCSI Hard Drive (15,000 rpm)
73 GB Ultra320 SCSI Hard Drive (15,000 rpm)
146 GB Ultra320 SCSI Hard Drive (15,000 rpm)
Bracket HDD 3.5" to 5.25"
Cable, 3 port SCSI xw4200/6200
Windows XP
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Red Hat Linux
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
Part Number
PB371A
DE705A
DE706A
DS702A
PM254A
DX760A
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
AA613A
AA614A
DY672A
AA616A
AA617A
DY671A
DY659A
DY661A
SCSI Controllers
Windows XP Red Hat Linux
Part Number
PCI
Ultra320 SCSI Controller, RAID 0,1
& external connection
Ultra320 SCSI RAID Adaptec
2120S (Windows only)
DA - 12022
PCIExpress
X
32-Bit
DZ554A
X
32-Bit
AA850A
Worldwide — Version 20 — May 6, 2005
Page 13
QuickSpecs
HP xw4200 Workstation
After-Market Options
Removable storage
devices
256 MB USB 2.0 Drive Key II
1.44 MB Internal Floppy Drive
HP DAT24i Internal DDS3 tape drive
HP DAT24e External DDS3 tape drive
HP DAT40i Internal DDS4 tape drive
HP DAT40e External DDS4 tape drive
HP DAT72i Internal DAT72 tape drive
HP DAT72e External DAT72 tape drive
Input/Output Devices
Windows XP Red Hat Linux
32-Bit
7.2, 7.3, WS3
32-Bit
7.2, 7.3, WS3
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
Part Number
PH657A
DY670A
C1555D
C1556D
C5686B
C5687C
Q1522A
Q1523A
Windows XP Red Hat Linux
Part Number
Keyboards
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB 2004 Modular Keyboard
Smartcard adapter for modular keyboard
Pointing Devices
HP PS/2 2-Button Scroll Mouse
HP USB 2-Button Optical Scroll Mouse
HP PS/2 3-Button Mouse
HP USB Optical 3-button mouse
USB Spaceball 5000
USB SpaceMouse
Networking
SCSI Controllers
PCI
Intel Pro/1000MT
HP Gigabit by Broadcom (BCM5782)
Broadcom BCM5751 NetXtreme™
Gigabit Ethernet Controller for
Workstations (PCI-Express)
High-Speed 56k PCI Soft Modem
Modem RJ11 adapter kit
DA - 12022
PCIExpress
X
X
X
X
X
32-Bit
32-Bit
32-Bit
32-Bit
7.2, 7.3, WS3
WS3
DT527A
DT528A
DT530A
DT531A
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
32-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
WS3
WS3
WS3
DD440B
DC172B
AA778A
DY651A
DV675A
DZ203A
Windows XP
Red Hat Linux
32-Bit
32-Bit
32-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
7.2, 7.3, WS3
Part
Number
DC193A
DC194A
DZ556A
32-Bit
32-Bit
7.2, 7.3, WS3
7.2, 7.3, WS3
DC132D
DC131C
Worldwide — Version 20 — May 6, 2005
Page 14
QuickSpecs
HP xw4200 Workstation
After-Market Options
Memory (DIMMs)
Windows XP Red Hat Linux
Part Number
533 MHz DDR-2 PC2-4200 ECC Unbuffered
DIMMs
256 MB DDR-2 PC2-4200 (533 MHz) ECC
32-Bit
7.2, 7.3, WS3
DY653A
unbuffered
512 MB DDR-2 PC2-4200 (533 MHz) ECC
32-Bit
7.2, 7.3, WS3
DY654A
unbuffered
1 GB DDR-2 PC2-4200 (533 MHz) ECC unbuffered
32-Bit
7.2, 7.3, WS3
DY652A
400 MHz DDR-2 PC2-3200 Non-ECC Unbuffered
DIMMs
256 MB DDR-2 PC2-3200 (400 Mhz) Non-ECC
32-Bit
7.2, 7.3, WS3
PR661A
unbuffered
NOTE: Only unbuffered DDR2 DIMMs are supported. Do not mix ECC and non-ECC memory. The system will not boot if ECC and
non-ECC DIMMs are mixed.
Monitors (Compatible with TFTs
all Operating Systems
HP TFT L2335 (23-inch)
offered by HP)
HP TFT L2035 (20.1-inch)
HP TFT L1955 (19.1-inch)
HP TFT L1755 (17-inch)
Multimedia
P9615W#
P9614W#
PD974A5
PL777AA
PCI
PCIExpress
Windows XP Red Hat Linux
Part Number
1394 Firewire FH/LP PCI Card
X
32-Bit
PA997A
(Windows only)
NOTE: Although HP Personal Workstations can be ordered with the HP Installer Kit for Linux and an IEEE
1394 card, HP cannot provide customer support for this configuration. Please refer to the Linux
Hardware Support Matrix (http://www.hp.com/support/linux_hardware_matrix) for details, and to the
Linux User Manual (http://www.hp.com/support/linux_user_manual) for tips on user-enablement of the
IEEE 1394 Card.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 15
QuickSpecs
HP xw4200 Workstation
After-Market Options
Optical Drives
Windows XP Red Hat Linux
DVD-ROM Drive
16X/40X DVD-ROM w/ +R read
CD-ROM Drive
48X Max CD-ROM Drive
CD-RW Drive
48X/32X/48X CD-RW Drive (Roxio software)
Combo Drive
48X/32X Combo DVD-ROM/CD-RW Drive (Roxio &
WinDVD)
DVD+/-RW Drive
16X DVD+/-RW, Dual-Layer (Win and RHWS3), for
Windows
16X DVD+/-RW, Dual-Layer, LightScribe (Windows
2K and XP only)
Part Number
32-Bit
7.2, 7.3, WS3
AA620A
32-Bit
7.2, 7.3, WS3
DC143B
32-Bit
7.2, 7.3, WS3
DE205A
32-Bit
7.2, 7.3, WS3
DE206A
32-Bit
7.2, 7.3, WS3
PH205A
32-Bit
DZ555A
Security
Chassis clamp lock, universal, no cable
Chassis clamp lock, universal, with cable
Rear Port controller cover
Brackets/Stands
Depth Adjustable Rails (stationary)
Sliding Shelf kit
Fixed shelf kit
Other Devices
2nd serial port adapter
Front Card Guide and Fan Kit
500 Watt Power Supply Kit
PA716A
DY648A
PK746A
Operating Systems
Red Hat Enterprise Linux Workstation 3 Update 2 (32-bit version)
Red Hat Enterprise Linux Workstation 3 Update 2 (64-bit version)
PD862A
PD863A
Software
Windows XP Red Hat Linux
HP Remote Graphics V2 LTU for HP WS
32-Bit
HP Remote Graphics V2 LTU for non-HP
32-Bit
HP Remote Graphics V2 Receiver LTU
32-Bit
HP Remote Graphics V2 software CD-ROM media
32-Bit
HP Remote SW for HP 1 year Update Subscription
32-Bit
HP Remote SW for non-HP 1 year Update Subscription
32-Bit
HP Remote SW Receiver 1 year Update Subscription
32-Bit
DA - 12022
Worldwide — Version 20 — May 6, 2005
DE817A
DE818A
DE896A
332558-B21
234672-B21
253449-B21
Part Number
PE672A
PE673A
PE674A
PE675A
PN680A
PN681A
PN682A
Page 16
QuickSpecs
HP xw4200 Workstation
Memory
Intel 925X Express chipset
DDR-2 SDRAM ECC MEMORY
Only unbuffered DDR2 DIMMs are supported and must be either x8 or x16 width. It is not necessary to add memory in pairs.
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes. This chart does not represent
all possible memory configurations. The Intel 925X chipset supports ECC 533 MHz (PC2-4200) DDR-2 memory or non-ECC and
ECC 400 MHz (PC2-3200) DDR-2 memory.
For best performance the total amount and type of memory loaded into Channel A and Channel B should be the same. If it is not,
your computer will see all the RAM installed but will run the memory controller at a lower performance mode. For best performance
add the memory in pairs rather than as a single DIMM (two 512 MB DIMMs will have better performance than a single 1 GB
DIMM). Also, add the memory into both channels (e.g. one in socket 1 and one in socket 3) to take advantage of dual channel
performance. If you have unused slots within a channel, make them socket 2 and socket 4. This provides the best margin for the
memory bus.
CAUTION:
Mixing speeds will mean that the memory runs at the speed of the slowest DIMM.
Do not mix ECC and non-ECC memory. The system will not boot if ECC and non-ECC DIMMs are mixed.
Do not mix single-sided and double-sided DIMMs. Both sides of a double-sided DIMM must have the same memory size. Each rank
(side) of the DIMM must be the same size.
MAXIMUM MEMORY
Supports up to 4 GB of DDR-2 SDRAM.
POSSIBLE MEMORY CONFIGURATIONS
Not all memory configurations possible are represented below.
DIMM Size
Slot
256 MB
256 MB
(single channel performance configuration)
1 GB
1 GB
1.5 GB
2 GB
2 GB
4 GB
DA - 12022
1
256 MB
256 MB
2
256 MB
512 MB
256 MB
1 GB
512 MB
1 GB
256 MB
3
4
256 MB
256 MB
512 MB
1 GB
256 MB
512 MB
512 MB
1 GB
512 MB
1 GB
Worldwide — Version 20 — May 6, 2005
256 MB
512 MB
512 MB
1 GB
Page 17
QuickSpecs
HP xw4200 Workstation
Storage
Tower configuration
Quantity Supported
Position Supported
Controller
Convertible Minitower
Optional Diskette Drive
Optical Disk Drives
Hard Disk Drives
1
2
2 standard
(4 SATA w/AMO)
(3 SCSI w/AMO)
4
Diskette
1, 2
IDE
5, 6
SATA (and/or optional SCSI)
(and 2 or 3, for 3rd or 4th
Factory Integrated RAID*
drives using optical bays,
adapter kit(s) required)
* NOTE:
NOTE Factory Integrated RAID 0 Configuration (Striped Array) and RAID 1 Configuration (Mirrored Array) requires 2 hard drives
with identical speeds, capacity and interface.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 18
QuickSpecs
HP xw4200 Workstation
Additional Technical Specifications
System Board
Architecture
Chipset
Super I/O Controller
System Board Form Factor
Processor Socket
DIMM Connectors (DDR2,
1.8V)
AGP Connector (1.5V)
Integrated Graphics
PCI Connectors (5.0V)
PCI Express Connectors
(v1.0a)
Flash ROM
AC97 integrated audio
CD ROM IN (Audio)
AUX IN (Audio)
Internal speaker
Clear CMOS Button
CPU Fan Header
Chassis Fan Header
Chassis Speaker Header
CMOS Battery Holder –
Lithium
Hood Lock Header
Hood Sensor Header
Multibay Header
Integrated SATA RAID
Integrated Broadcom
NetXtreme Gigabit
ethernet for HP
Wake-On-Lan®
ASF 1.0 and 2.0 (Alert
Standard Format)
Power Supply Header
Power Switch, Power LED
& Hard Drive LED Header
Password Clear Header
Riser Connector
HDD activity LED Header
Intel Pentium 4 EM64T/PCI-E
Intel 925X Express North bridge/ICH6R South bridge
SMSC LPC47B397
ATX
LGA775
4
None
None
4 full length 33 MHz 32-bit
1 x 16
2x1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Multiple Volume support to enable RAID 0 and RAID 1 on a single array
Support for 2 RAID arrays on 4 ports
Creation of 2 HDD array on two SATA ports.
RAID 1 spare and auto-rebuild
RAID 0 Configuration – Striped Array
RAID 1 Configuration – Mirrored Array
Yes
Yes
Yes
Yes
Yes
Yes
None
Yes
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 19
QuickSpecs
HP xw4200 Workstation
Additional Technical Specifications
PCI extender that connects
to System Board
None
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 20
QuickSpecs
HP xw4200 Workstation
Technical Specifications
Cooling
Chassis Fan
Processor Heatsink Fan
Power Supply Fan
92 mm
70 mm
92 mm
Power Supply
Full Ranging Input (Line
Select Switch)
Active Power Factor
Correction (APFC) (Input
Current is nearly 1/2 a
non-APFC PS)
Passive Power Factor
Correction (PFC)
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency
Range
Rated Input Current
Maximum Rated Power
Heat Dissipation
Power Supply Fan
PS Size
Energy Star Compliant
FEMP Standby Power
Compliant (<2W in S5 Power Off)
Power Consumption in ES
Mode - Suspend to RAM
(S3) (Instantly Available PC)
Surge Tolerant Full
Ranging Power Supply
Typical configuration
power consumption
Within 230V
Yes
Yes
No
90 – 264 VAC/118 VAC
100 – 240 VAC
50-60 Hz/400Hz
47 – 66 Hz/393 – 407Hz
6.4A/6.4A
410 Watt Continuous
Typical 737.1 btu/hr
Maximum 1228.5 btu/hr
92mm variable speed
3.84 x 5.91 x 6.05 in (97.6 x 150 x 153.71 mm)
Yes
No
2.5 W
Withstands power surges up to 2000V
1 processor (1x 3.4 GHz), 1 GB memory (2 x 512 MB)
Two hard drives (2xSATA 40 GB),
CD-ROM drive
PCI-Express Graphics Card (FX 1300)
Floppy, Monitor
Input Power consumption
@ 120Vac/60Hz
Typical operating mode
216 W
= 737.1 btu/hr
(system busy)
Windows XP Idle
138 W
= 470.9 btu/hr
Standby mode (S3)
2.5 W
= 8.53 btu/hr
Hibernate mode (S4)
2.1 W
= 7.166 btu/hr
Power Off (S5)
2.1 W
= 7.166 btu/hr
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 21
QuickSpecs
HP xw4200 Workstation
Technical Specifications
ROM Features
Description
Instantly Available PC
Allows for very low power consumption with quick resume time
(Suspend to RAM – S3)
ROM Based F10 Setup
Review and customize BIOS settings
Remote System Installation Allows a new or existing system to boot over the network and download software, including the operating
via F12 (PXE) (Remote Boot system
from Server)
System/Emergency ROM Recovers corrupted system BIOS
Flash Recovery with Video
Auto Setup when New
System automatically detects addition of new hardware
Hardware Installed
Serial, Parallel, USB,
Enable or disables serial, parallel, USB, audio, and network ports
Audio, Network,
Enable/Disable Port
Control
Removable Media Write/ Prevents ability to boot from removable media on supported devices (and can disable writes to media)
Boot Control
Power-On Password
Prevents an unauthorized person from booting up the computer
Setup Password
Prevents an unauthorized person from changing the system configuration
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Memory Change Alert
Alerts management console if memory is removed or changed
(Requires HP Client
Manager Software)
Thermal Alert (Requires HP Monitors the temperature state within the chassis. Three modes:
Client Manager Software)
NORMAL – normal temperature ranges
ALERTED – excessive temperatures are detected. Raises a flag so action can be taken to avoid
shutdown or provide for a smoother system shutdown
SHUTDOWN – excessive temperatures are encountered. Automatically shuts down the computer
without warning before hardware component damage occurs
Master Boot Record
Detects changes to MBR and optional restoration, useful in protecting from viruses
Security
Remote ROM Flash
Provides secure, fail-safe ROM image management from a central network console
Remote Wakeup
System administrators can power on, restart, and power off a client computer from a remote
location.
Enables cost-effective power consumption when the administrator needs to distribute software,
perform security management, or update the ROM
ACPI (Advanced
Allows the system to wake from a low power mode
Configuration and Power
Controls system power consumption, making it possible to place individual cards and peripherals
Management Interface)
in a low-power or powered-off state without affecting other elements of the system
Supports ACPI 2.0 for full compatibility with 64-bit operating systems
SMBIOS
System Management BIOS 2.3.5, previously known as DMI BIOS, for system management information
Other deployment &
management features
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 22
QuickSpecs
HP xw4200 Workstation
Technical Specifications
HP Client Management
Solutions
HP Client Management Solutions help simplify management of Workstations and significantly reduce
total ownership costs. These solutions share a common design and are highly integrated due to the
extensive work between HP and its partner Altiris.
HP Client Manager Software is included free with all HP business PCs and Workstations. It enables
central tracking, monitoring, and management of the hardware aspects of HP client systems:
Get valuable hardware information such as CPU, memory, video, and security settings
Monitor system health to fix problems before they occur
Install drivers and BIOS updates without visiting each PC
Remotely configure BIOS and security settings
Automate processes to quickly resolve hardware problems
Additional Altiris solutions (fee-based) are available to address Workstation management challenges
through the entire IT lifecycle including:
Inventory assessment
Software license compliance
Personality migration
Software image deployment
Software distribution
Asset management
Client backup and recovery
Problem resolution
Visit http://www.hp.com/go/easydeploy for more information, to download HP Client Manager Software,
and to evaluate the Altiris solutions.
System Software Manager A free utility that detects and updates BIOS, device drivers, and management agent versions on your
(free)
networked PCs and workstations
Replicated Setup
Saves BIOS settings to diskette or USB disk-on-key in human readable file. Repset.exe utility can then
replicate these settings on machines being deployed without entering ROM-based F10 setup
Software Restore CD
Restores computer to its original factory shipping image
Asset Tag
Repository for storing company-specific property asset numbers for easy tracking
Initially set equal to the system serial number
Stored in a protected section of non-volatile memory that can be accessed and modified with the
F10 Setup program
DIMM Serial Presence
Detects whether or not memory DIMMs are present and their type
Detect
Hard drive serial number, Hard drive manufacturer, model, and serial number is stored in the hard drive firmware and reported in
model, and manufacturer ROM-based F10 setup
System serial number,
System serial number, model, & manufacturer stored in a non-volatile memory and can be retrieved with
model, & manufacturer
management SW or viewed in ROM-based F10 setup
ROM revision levels
Identifies system ROM revision levels and reports in ROM-based F10 setup
Version is stored in an industry standard memory location (SMBIOS) so that management SW
applications can use and report this information
System board revision level
Allows management SW to read revision level of the system board
Revision level is digitally encoded into the HW and cannot be modified
Memory Change Alert
Alerts management console if memory is removed or changed
(Requires HP Client
Manager Software)
Ownership Tag
A user-defined string stored in non-volatile memory that is displayed in the BIOS splash screen
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 23
QuickSpecs
HP xw4200 Workstation
Technical Specifications
Ultra ATA Integrity
Monitoring
(CRC Checking)
Drive Self Tests (DPS)
A feature of SATA and SCSI, Cyclic Redundancy Checking provides data transfer verification and
proactive notification of hard drive data transmission problems with recommendations for enhancing
system performance. It detects all the following errors' types:
single bit errors
double bit errors
an odd number of errors
error bursts up to 32-bits long
Drive Protection System (Adaptec and LSI SCSI controllers do not offer DPS)
A diagnostic hard drive self test. It scans critical physical components and every sector of the hard
drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through the computer's setup
procedure. It produces an evaluation on whether the hard drive is the source of the problem and
needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology (SMART), a continuously
running systems diagnostic that alerts the user to certain types of failures
DPS Access through F10 Setup during Boot (F10 diagnostic access not available with SCSI drives)
SMART Technology
Allows hard drives to monitor their own health and to raise flags if imminent failures were predicted
(Self-Monitoring, Analysis Predicts failures before they occur. Tracks fault prediction and failure indication parameters such as reand Reporting Technology) allocated sector count, spin retry count, calibration retry count.
By avoiding actual hard drive failures, SMART hard drives act as "insurance" against unplanned user
downtime and potential data loss from hard drive failure.
SMART I – Drive Failure Prediction
SMART II – Off-Line Data Collection
SMART III – Off-Line Read Scanning with Defect Reallocation
Security Features
Padlock support
Cable Lock Support
Universal chassis clamp
lock support
Solenoid lock and hood
sensor
Rear port control cover
(optional)
Serial, Parallel, USB
Enable/Disable
Removable Media Write/
Boot Control
Power-On Password
Setup Password
Padlock loop in rear of chassis. Locks side cover and secures chassis from theft. (0.22" diameter)
Kensington lock slot in rear of chassis. Locks side cover and secures chassis from theft. (3mm x 7mm
opening)
Threaded feature in rear of chassis. Locks side cover and locks cables to chassis. Secures chassis from
theft and allows multiple units to be chained together when used with optional cable.
Yes
Locks rear IO cables to prevent cable theft.
Enable or disable serial, parallel or USB ports and hide them form the operating system
Prevents the computer from being booted from removable media on supported devices (and can disable
writes to media)
Prevents an unauthorized person from booting up the computer
Prevents an unauthorized person from changing the system configuration
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 24
QuickSpecs
HP xw4200 Workstation
Technical Specifications
System Software Updating
Product Change
Notification
Remote ROM Flash
Remote Wakeup/
Remote Shutdown
ROM Based Setup (F10)
and Start-up Diagnostics
Support Software CD &
WWW
Other Features
ACPI-Ready Hardware
Program to proactively communicate Product Change Notifications (PCNs) and Customer
Advisories by email to customers, based on a user-defined profile.
PCNs provide advance notification of hardware and software changes to be implemented in the
factory providing time to plan for transition.
Customer Advisories provide concise, effective problem resolution, greatly reducing the need to
call technical support.
Provides secure, fail-safe ROM image management from a central network console
System administrators can power on, restart, and power off a client computer from a remote
location.
Enables cost-effective power consumption when the administrator needs to distribute software,
perform security management, or update the ROM.
Yes
Yes
Advanced Configuration and Power Management Interface (ACPI).
Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and peripherals
in a low-power or powered-off state without affecting other elements of the system
Serviceability Features of
System
Access panel
Tool-less, one-handed
Optical drives
Tool-less
Floppy drive
Tool-less
Hard drives
Tool-less
Expansion cards
Tool-less
Green user touch points Yes, on tool-free internal chassis mechanisms
Color-coordinated cables Yes
and connectors
Memory
Tool-less, can be upgraded without removing any internal components
System board
Tool-less removal
Dual Color Power green – normal
and HD LED on
red – fault
Front of Computer
(Indicates Normal
Operations and
Fault Conditions)
System/Emergency Recovers corrupted system BIOS.
ROM Flash Recovery
with Video
Configuration
Yes
Record SW
Over-Temp Warning Yes
on Screen (Requires
IM Agents)
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 25
QuickSpecs
HP xw4200 Workstation
Technical Specifications
OS CD (Restore OS Restores computer to its original factory shipping image
CD)
Restore CD
Restores the computer to its original factory shipping image
Flash ROM
Yes
3.3V Aux Power LED Yes
on System PCA
Dual Function 5V
Yes
Aux Power LED
(ON)/PS_ON LED
(OFF) on System
PCA
Diagnostic Power
Yes
Switch LED on board
Clear Password
Yes
Jumper
Clear CMOS Button Yes
CMOS Battery
Yes
Holder for easy
Replacement
Processor ZIF Socket Yes
for easy Upgrade
DIMM Connectors Yes
for easy Upgrade
NIC LEDs
Used to determine NIC status
(integrated) (Green
& Amber)
ASF 1.0 support
Industry-standard specification for network alerting in operating system-absent environments
(Alert Standard
Format)
Dual function front Also acts as a reset switch when held for 4 seconds
power switch
Service and Support
On-site Warranty and Service (Note 1): This three-year, limited warranty and service offering delivers
three years of on-site, next business-day (Note 2) service for parts and labor and includes free telephone
support (Note 3) 24 x 7. Global coverage (Note 2) ensures that any product purchased in one country
and transferred to another, non-restricted country will remain fully covered under the original warranty
and service offering.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are
based on commercially reasonable best effort and may vary by country.
NOTE 3:
3 Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party
hardware and software. Toll-free calling and 24 x 7 support may not be available in some countries.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 26
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Audio
AC97 Integrated ADI
1981B Audio
Type
AC ‘97 Stereo Codec
FM Synthesis Support
OPL3 FM Synthesis
Support
Sound Blaster
Compatibility
Audio Jacks
Integrated
Yes
Yes – Yamaha XG Lite
Yes
Yes
Microphone-In (20-K ohm Input Impedance); rear stereo and front analog
microphone ports
Line-In (12-K ohm Input Impedance)
Line-Out * (less than 800 ohms Output Impedance, expects at least a 10-K
ohm load)
Headphone-Out (2.5 Ohms Output Impedance, expects at least a 32 ohm
load)
NOTE: *Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered
externally.
7 kHz – 48 kHz
Sampling
Yes – GM and FM Midi Support, Direct Music and Down Loadable Soundset
Wavetable Syntheses
(software)
(4 Meg DLS Level 1 and 2 Support)
No
3D Positional Sound
Yes
Digital Audio
Yes
Analog Audio
Number of Channels on Stereo (Left & Right channels)
Line-Out
(mono/stereo)
3W
Internal Audio Speaker
Power Rating
Yes
Internal Speaker
Fixed 7 Band ParametricEQ
Hardware Equalizer for
Internal Speaker
Yes
External Speaker Jack
(Line-Out)
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 27
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Communications
HP Gigabit by Broadcom Connector
(BCM5782) NIC
Controller
Memory
Data rates supported
Compliance
RJ-45
Broadcom 5782 PCI LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and
802.3u compliant, 802.3x flow control
Bus architecture
PCI 2.2
Data path width
32-bit, 33/66 MHz bus interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
1.48 watts @ +3.3V AUX supply with 5V tolerance
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.7 x 2.0 x 0.08 in (12 x 5 x 1.9 cm)
Operating system driver Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft Windows
support
2000, Microsoft Windows XP, Linux 2.2, Linux 2.4
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Broadcom mgmt utility
Alerting
ASF 1.0
Kit contents
Broadcom 5782, CD, Broadcom Gigabit Ethernet for HP, drivers, quick
install guide, product warranty statement
Intel Pro 1000 MT
Gigabit NIC
Connector
Controller
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data transfer mode
Hardware certifications
Power requirement
Boot ROM support
DA - 12022
RJ-45
Intel 82540EM Gigabit Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.1A, 802.1P, 802.1P, 802.1Q, 802.2, 802.3, 802.3AB and
802.3u compliant, 802.3x flow control
PCI 2.2
32-bit, 33/66 MHz bus interface
Bus-master DMA
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
1.48 watts @ +3.3V AUX supply with 5V tolerance
Yes
Worldwide — Version 20 — May 6, 2005
Page 28
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Communications
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
6.4 x 4.8 x 0.8 in (16.3 x 12.1 x 1.9 cm)
Operating system driver Microsoft Windows NT 4.0, Microsoft Windows 98, Microsoft Windows
support
2000, Microsoft Windows XP, Linux 2.2, Linux 2.4
Management capabilities ACPI, WOL and DMI 2.0, PXE 2.0, WfM 2.0, Intel PROset II utility
Kit contents
The Intel Pro 1000 MT NIC, CD containing Intel PROset II NIC drivers, quick
install guide, product warranty statement
Broadcom BCM5751
Connector
NetXtreme Gigabit
Controller
Ethernet Controller (PCI-E)
Memory
Data rates supported
Compliance
Bus architecture
Data path width
Data path speed
Data transfer mode
Hardware certifications
RJ-45
Broadcom 5751 PCI-E 1.0a LAN Controller
Integrated 96Kb frame buffer memory
10/100/1000 Mbps
IEEE 802.3, 802.3AB and 802.3u compliant, 802.3x flow control
PCI-E 1.0a
X1
2.5Gbit per sec per direction transfer rate
Bus-master DMA
FCC class B, NRTL Mark Canada and United States, C-Tick for Australia,
BSMI for Taiwan, VCCI for Japan, MIC for Korea, GOST for Russia
Power requirement
3.1 watts @ +3.3V AUX supply
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T, 1000 Mbps
Environmental
32° to 131° F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.4 x 2.2 x 0.08 in (11.2 x 5.5 x .2 cm)
Operating system driver Microsoft Windows 2000 and XP, Red Hat Linux 7.2, 7.3 and Red Hat
support
Enterprise Linux 3
Management capabilities WOL, PXE , Remote cable management
Alerting
ASF 2.0
Kit contents
Broadcom 5751, CD, Broadcom NetXtreme Gigabit Ethernet PCI NIC,
drivers, quick install guide, product warranty statement
High-Speed 56k PCI Soft Data Transmission
Modem Worldwide
DA - 12022
V.92 technology speeds: 56,000 Kbps maximum downstream data
Worldwide — Version 20 — May 6, 2005
Page 29
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Communications
Modem Worldwide
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Operating System
Support
OS Driver Support
Power
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
Health
DA - 12022
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem
speed. FCC limitations allow a maximum of 53 Kbps during download
transmissions.
(Upload only)
33,600/31,200/28,800/26,400/21,600/19,200/16,800/14,400/
12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T V.92, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell
212A, and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Microsoft Windows 2000 and Microsoft Windows XP
Microsoft Windows 2000 and Microsoft Windows XP
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers
and CardBus support
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
Worldwide — Version 20 — May 6, 2005
Page 30
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Communications
Kit Contents
DA - 12022
DC132D : Agere Systems PCI International Softmodem with full-height
bracket attached, additional low-profile bracket, RJ11 modem cable, driver
and documentation CD.
NOTE: RJ11 modem adapter is not included.
DC131C #xxx: RJ11 modem adapter kit for use with DC132D
#ACP: Austria, #ABW: Belgium, #AKB: Czech Republic, #ABU: UK &
former colonies, #ABD: Germany, #ABF: France, #AB7: Greece, #AKC:
Hungary, #ABT; Israel, #ABZ: Italy, #ABH: Netherlands, #UUW; Nordic
countries, #UUZ: Switzerland, #AB8: Turkey, #ABG: Australia, #ACJ:
India.
Worldwide — Version 20 — May 6, 2005
Page 31
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Controllers
LSI Logic LSI20320
Ultra320 SCSI single
channel host adapter
Adaptec SCSI RAID
2120S Card
Bus architecture
Number of supported
devices
Interface protocol
Host bus transfer rate
SCSI data transfer rate
SCSI Bus
Internal connector
External connector
Total connectors
Plug and Play Support
Dimensions (H x L)
Approvals
Operating system support
Kit contents
PCI-X (backward compatible with PCI)
Up to 15 SCSI devices
Dimensions (H x D)
RAID level
Data Transfer Rate
Cache Memory
Device Support
Bus Type
2.5 x 6.6 in (6.4 x 16.8 cm) Low profile card
0, 1, 10, 5, 50, JBOD
Up to 320 MB/s
64 MB (onboard)
Up to 15 SCSI devices
64-bit/66 MHz PCI
(Also support 32-bit/33 MHz PCI)
One 68-pin high-density
One 68-pin VHDCI
Intel PC or equivalent with available PCI slot
32° to 131° F (0° to 55° C)
4 amps @ +5V
Windows 2000 Professional, Windows XP Professional
Internal Connectors
External Connectors
System Requirements
Operating Temperature
Power Requirements
Operating System
Support
Other
Kit Contents
DA - 12022
64 bit, 133MHz PCI-X
Up to 1 MB/s
Up to 320 MB/s per channel
Wide Ultra320, Low Voltage Differential, and Ultra Wide Single-Ended
68-pin HD
68 pin VHDCI
2
No
6.6 x 2.5 in (16.9 x 6.4 cm)
CE, VCCI, Canada, C-Tick, FCC class B, UL 94VO
Microsoft Windows XP
Controller card, driver CD, LED cables, user documentation and warranty
card.
Optimized disk utilization
Online RAID Level Migration
Online capacity expansion
Immediate RAID availability (background initialization)
S.M.A.R.T. support
Controller card, driver CD, LED cables, user documentation and warranty
card.
Worldwide — Version 20 — May 6, 2005
Page 32
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Hard Drives
Serial ATA Hard Drives
(7200 rpm)
40 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
80 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12022
40020664320 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
2 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18.0 ms
7,200 rpm
78,165,360
32° to 140° F (0° to 60° C)
80026361856 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
7,200 rpm
156,301,488
32° to 140° F (0° to 60° C)
Worldwide — Version 20 — May 6, 2005
Page 33
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Hard Drives
160 GB
250 GB
Capacity
Height
Width
160041885696 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
8 MB
Single Track
1.0 ms
Average
8.5 ms
Full-Stroke
18 ms
Logical Blocks
Operating Temperature
312,581,808
32° to 140° F (0° to 60° C)
Capacity
Height
Width
250059350016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12022
7,200 rpm
8 MB
Single Track
0.8 ms
Average
<9.0 ms
Full-Stroke
<17 ms
7,200 rpm
488,397,168
41° to 131°F (5° to 55°C)
Worldwide — Version 20 — May 6, 2005
Page 34
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Hard Drives
400 GB
SATA Hard Drives
(10,000 rpm)
74 GB
Capacity
Height
Width
400,088,457,216 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
8 MB
Single Track
0.8 ms
Average
<11.0 ms
Full-Stroke
<15 ms
Rotational Speed
Logical Blocks
Operating Temperature
7,200 rpm
781,422,768
41° to 131°F (5° to 55°C)
Capacity
Height
Width
74,355,769,344 bytes
1.0 in (2.54 mm)
Media diameter: 3.3 in (84mm)
Physical size: 4 in (10.2 cm)
Serial ATA
150 MB/s
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12022
8 MB
Single Track
0.3 ms
Average
4.5 ms
Full-Stroke
10.2 ms
10,000 rpm
145,226,112
41° to 140° F (5 to 60° C)
Worldwide — Version 20 — May 6, 2005
Page 35
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Hard Drives
Ultra320 SCSI Hard
Drives (10,000 rpm)
73 GB
300 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12022
73,407,865,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
143,374,738
40° to 130° F (5° to 55° C)
300,000,000,000 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
10,000 rpm
585,937,500
40° to 130° F (5° to 55° C)
Worldwide — Version 20 — May 6, 2005
Page 36
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Hard Drives
Ultra320 SCSI Hard
Drives (15,000 rpm)
36 GB
73 GB
146 GB
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 12022
36,420,075,520 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
71,132,960
40° to 130°F (5° to 55°C)
73,407,865,856 bytes
1.0 in (2.54 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
143,374,738
40° to 130°F (5° to 55° C)
146,815,737,856 bytes
1.0 in (2.5 cm)
3.5 in (8.9 cm)
68 pin LVD SCSI
320 MB/s
8 Mbytes
Single Track
0.3 msec
Average
<4.5 msec
Full-Stroke
<11.0 msec
15,000 rpm
143,374,738
40° to 130°F (5° to 55°C)
Worldwide — Version 20 — May 6, 2005
Page 37
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Removable Storage
USB Disk on Key
Dimensions (HxWxD)
Weight
USB Specification
Transfer Rate
Storage Media
Power Supply
Capacity
DA - 12022
0.9 x 0.7 x 3.9 in (2.3 x 1.8 x 9.8 cm)
0.05 lb (0.02 kg)
2.0
Read-1023 KB/Sec; Write-850 KB/Sec
Solid state flash memory, no moving parts
USB Bus-powered, no external power required
256 MB
Worldwide — Version 20 — May 6, 2005
Page 38
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Input/Output Devices
PS/2 OR USB '04
Standard Keyboard
Physical
characteristics
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
2 lb (0.9 kg) minimum
Electrical
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Mechanical
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
Operating system support Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard, keyboard software media, installation guide, warranty card, safety
and comfort
DA - 12022
Keys
Worldwide — Version 20 — May 6, 2005
Page 39
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Input/Output Devices
USB Modular Keyboard
Physical
characteristics
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.59 x 6.73 x 0.90 in (472 x 170 x 23 mm)
with numeric pad attached
Weight
2 lb (0.9 kg) minimum
Electrical
Operating voltage
+ 5VDC ±5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
MicrosoftPC
Functionally compliant
MicrosoftPC 99 - 2001
Mechanical
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Environmental
50° to 122°F (10° to 50°C)
Operating temperature
Non-operating
-22° to 140°F (-30° to 60°C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
442 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
Operating system support Windows 2000 and Windows XP
Approvals
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, USB-IF
Ergonomic compliance
ANSI HFS 100, ISO 9241-4, and TUVGS
Kit contents
Keyboard, numerical keypad, USB cable, I/O Security Software &
Documentation CD including Modular Access Keyboard software &
installation guide, warranty card, safety and comfort guide
DA - 12022
Keys
Worldwide — Version 20 — May 6, 2005
Page 40
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Input/Output Devices
2-Button Scroll Mouse
(PS/2)
Scroll Wheel
Maximum Rotation Speed
Switch Type
Switch Life
Mechanical Life
Environmental
Mechanical
Regulatory Approvals
HP Optical Scroll Mouse Dimensions (H x L x W)
(USB)
Weight
Cable length
System requirements
DA - 12022
8 mm
30 mm/s
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
Operating Temperature 50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
Non-operating
Temperature
10% to 90% (non condensing at ambient)
Operating Humidity
Non-operating Humidity 20% to 80% (non condensing at ambient)
40 g, 6 surfaces
Operating Shock
80 g, 6 surfaces
Non-operating Shock
2 g peak acceleration
Operating Vibration
Non-operating Vibration 4 g peak acceleration
400 ± 20% DPI
Resolution
10 in/s maximum
Tracking Speed
100 in/s
Acceleration
85 g nominal peak force
Switch Actuation
1,000,000 operations (using Hasco modified
Switch Life
tester)
2m
Cable Length
Mechanically compliant
PC98-99
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
Microsoft Windows 95, 98, 2000, Me, and XP
Worldwide — Version 20 — May 6, 2005
Page 41
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Input/Output Devices
HP 3-Button Mouse (PS/2) Dimensions/Weight
Environmental
Mechanical
Height
Length
Width
Weight
Operating temperature
Non-operating
temperature
Operating humidity
Resolution
Tracking speed
Switch life
Switch type
Tracking mechanism life
Cable length
PC98-99
Spaceball 5000 (USB)
Physical characteristics
Environmental
Dimensions (H x W x D)
Ball Diameter
Weight
Features
1.42 in (3.6 cm)
4.17 in (10.7 cm)
2.87 in (7.4 cm)
5.20 oz (150 g)
32° to 104° F (0° to 40° C)
-4° to 140° F (-20° to 60° C)
10% to 90% (non condensing at ambient)
400 20% DPI
10 in/s Maximum
1,000,000 operations (using Hasco modified
tester)
Micro-switches
155 miles (250 km) at average speed of 10 in/s
6 ft (1.8 m)
Mechanically compliant
3.0 x 6.0 x 8.4 in (7.6 x 15.2 x 21.3 cm)
2.2 in (5.6 cm)
2.1 lb (9.94 kg)
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
50° to 104° F (10° to 40° C)
43° to 140° F (6° to 60° C)
Operating temperature
Non-operating
temperature
8% to 80% (non-condensing at ambient)
Operating humidity
Non-operating humidity 5% to 80% (non-condensing at ambient)
Mechanical
12 programmable (unshifted)
Buttons
0.5 - 8.2N/1.8 - 29.5 oz
Ball Force Range
0.085 – 0.33 oz-in. (6.91 Nmm)
Ball Torque Range
10 bits
Resolution
Serial Specifications
USB 1.1 or greater
Connector
12.8 ft. (3.9 m)
Cable Length
USB model – 16 msec
Data Rate
Xon/Xoff (on PS/2 model only)
Flow Control
Software Drivers Available USB model
Microsoft Windows XP
System Requirements
10 MB free disk space
Disk Space
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN
Regulatory Approvals
50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 42
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Input/Output Devices
HP SpaceMouse Plus USB Physical characteristics
Environmental
Dimensions (H x W x D)
Cap Diameter
Weight
Features
7.4 x 4.72 x 1.73 in (18.8 x 12.0 x 4.4 cm)
2 x 6.5 x 6.6 mm
1.5 lb (0.68 kg)
Six degrees of freedom motion control through
the X, Y, Z axis (pitch, roll, yaw)
Certified for leading CAD and DCC applications
41° to 140° F (5° to 60° C)
-13° to 158° F (-25° to 70° C)
Operating temperature
Non-operating
temperature
10 to 98 % RH (non-condensing)
Operating humidity
Non-operating humidity 10 to 98 % RH (non-condensing)
Mechanical
11 programmable (unshifted)
Buttons
0.2 N – 4.5 N
Cap Force Range
4 Nmm to 100 Nmm
Cap Torque Range
8 bit
Resolution
USB Specifications
USB 1.1 or greater
Connector
2m
Cable Length
16 msec
Data Rate
Software Drivers Available Microsoft Windows XP
System Requirements
10 MB free disk space
Disk Space
UL, cUL, EN 950, EN 60950, CSA, FCC, CE Mark, TUV, CISPR 22, EN
Regulatory Approvals
50082, IEC 1000 4-2, IEC 1000-4-3, AS/NZS, VCCI, BSMI, C-Tick
1394 Firewire FH/LP
Card (PCI)
Device Interface Protocol
Data Rate
Devices Supported
Connectors
Bus Interface
Physical
Environmental
Minimum System
Requirements
Regulatory Agency
Approval
DA - 12022
IEEE-1394a
100Mbits/s, 200Mbit/s and 400Mbits/s
IEEE-1394 compliant devices
Two IEEE1394 6-Pin Connector (Bracket Side)
One 10-Pin (9 Contacts) Custom Connector (Internal)
PCI
Low profile PCI card with a full height bracket
32° to 104° F (0° to 50° C)
Operating temperature
-13° to 158° F (-25° to 70° C)
Non-operating
temperature
5% to 95%
Relative humidity
3 cable ports
Ports
Microsoft XP Professional or Red Hat Linux 7.3/9.0 (Class Driver)
Pentium II 266 or faster
64-MB RAM
Available PCI slot
CD-ROM drive
FCC Part 15B, cULus 60950, CE Mark EN55022B(1995)/EN55024-1998
STD, Taiwan BSMI CNS13438, Korea MIC
Worldwide — Version 20 — May 6, 2005
Page 43
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
48X CD-ROM Drive
Capacity
Dimensions (HxWxD)
Weight
Interface
Mounting Orientation
Data Transfer Rates Read
Media and Formats Read
Data Transfer Modes
Access Times (typical)
Start-up Time (typical)
Stop Time (typical)
Read Buffer size
Audio Output
Configuration Jumper
Block
Operating Conditions
Approvals/
Environmental
Operating Systems
Supported
Supplied Software
16X/40X DVD-ROM Drive Height
with +R Read Support
Interface Type
Dimensions (W x H x D)
Disc Formats
DA - 12022
700 MB CD disc
1.63 x 5.83 x 7.27 in (4.13 x 14.6 x 18.5 cm)
1.76 lb (0.8 kg)
ATAPI/EIDE
Horizontal or vertical
Digital audio extraction (minimum) – 1,200 KB/s (8X)
CD read – up to 7,200 KB/s (48X)
Formats: CD-DA, CD-ROM (Mode 1 and 2), CD-XA Ready, Photo CD
Formats
(Single and Multi-session), Mixed Mode (Audio and Data combined), CD-I
(FMV), CD Plus, CD-Extra;
Media:
Media stamped, CD-R, CD-RW
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s); UltraDMA
Mode 0 (16.7 MB/s); UltraDMA Mode 2 (33.3 MB/s)
< 75 ms @ 48x
Random
< 150 ms
Full-Stroke
< 7 s (single session)
< 30 s (multisession)
<4s
128 KB (minimum)
0.7 VRMS
Line-Out
80 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Temperature
41° to 122° F (5° to 50° C)
10% to 80%
Humidity
UL 1950 (US and Canada), CSA, SEMKO, TUV; CE, FDA, FCC, IC, C-TICK
Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions
None
5.25-in, half-height, tray load
ATAPI/EIDE
5.88 x 1.71 x 7.87 [max] in (149.5 x 43.25 x 200.0 [max] mm) (external,
excluding bezel)
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and 2.0;
DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW; DVD+R ;
CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA Mode 2, Form 1 and 2;
CD-extra; CD-text; CD-I Mode 2, Form 1 and 2; CD-I ready; video CD,
CD-bridge; PhotoCD (single and multi-session); CD-R; CD-RW
Worldwide — Version 20 — May 6, 2005
Page 44
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Disc Capacity
DVD-ROM
CD-ROM
Access Times
(typical reads, including
settling)
DVD-ROM Single Layer
CD-ROM Mode 1
Full Stroke DVD
Full Stroke CD
Startup Time
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB
(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7 GB
(DVD-R version 2.0), 4.7 GB (DVD-RW version
1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G
(DVD+R)
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12
cm), 700 MB (80 minimum CD-R and CD-RW),
180 MB (8 cm)
120 ms
90 ms
240 ms (seek)
160 ms (seek)
< 10 seconds (typical)
Stop Time
Data Transfer Modes
Maximum Data Transfer
Rates
Power
Audio Output
Configuration Jumper
Block
Data Interface Connector
Operating Environmental
(all conditions noncondensing)
< 4 seconds
PIO Mode 4 (16.6 MB/s); Multi-word DMA
mode 2 (16.6 MB/s); UltraDMA Mode 3 (44.4
MB/s)
CD-ROM Read
6000 KB/s (40X) Max
DVD-ROM Read
21,600 KB/s (16X) Max
Digital Audio Extraction 6000 KB/s (40X) Max
Source
Four-pin, DC power receptacle
DC Power Requirement
5 VDC ± 5% – 100 mV ripple p-p
12 VDC ± 5% – 200 mV ripple p-p
DC Current
5 VDC – <800 mA typical,
< 1000 mA maximum
12 VDC – < 870 mA typical,
<1800 mA maximum
Line-Out
0.7 VRMS
Signal-to-Noise Ratio
85 dB
Channel Separation
65 dB
Master, slave, and cable select modes
40-pin, shrouded and keyed, flat ribbon
Temperature (operating) 41° to 122° F (5° to 50° C)
10% to 85%
Relative Humidity
(operating)
86° F (30° C)
Maximum Wet Bulb
Temperature (operating)
Certifications, Approvals MMC II support, multi-read certification, Microsoft WHQL certification, ACA
AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE
EN60950, EN 55022, EN55024, EMKO EN60950, EN 60825-1, UL
60950, CSA C22.2 60950-2000, CFR 21 part 1040 class 1, CFR 47
C.I.S.P.R. Pub 22 Class B, DHHS/FDA, ANSI C63.4-1992
Operating Systems
Windows 2000, XP Professional, and XP Professional x64 Edition
Supported
Red Hat Linux 7.2, 7.3 and WS3 Versions
Kit Contents
16X/40X DVD-ROM Drive, InterVideo WinDVD MPEG Movie Playback
software, audio cable, and installation guide.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 45
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
HP 48X CD-RW
Height
Mounting Orientation
Interface
Dimensions (HxWxD)
Weight (max)
Read Only Disc
Parameters
Writeable Disc
Parameters
Access Times
(typical reads, including
settling)
DA - 12022
5.25-inch, half-height, tray-load
Horizontal or vertical
ATAPI/EIDE
1.63 x 5.75 x 7.27 [max] in (4.13 x 14.6 x 18.5 [max] cm) (external,
excluding bezel)
2.0 lb (0.9 kg)
Digital audio extraction (minimum) – 1,800 KB/s
Data Transfer Rates –
Read
(12X)
CD read – up to 7,200 KB/s (48X)
Media and Formats –
Formats: CD-DA, CD-ROM (Mode 1 and 2),
Read
CD-ROM XA (Mode 2, Form 1 and 2), Mixed
Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD,
CD-Text, Photo CD (single and multisession)
Media: stamped, CD-R, CD-RW
CD-R write – 2100 KB/s (14X) to 7200 KB/s
Data Transfer Rates –
Write
(40X)
CD-RW write – 600 KB/s (4X)
CD-RW write (high speed) – 1500 KB/s (10X) to
1800 KB/s (12X)
CD-RW write (ultra high speed) – 2400 KB/s
(16X) to 4800 KB/s (32X)
Media and Formats –
Formats: CD-DA, CD-ROM (Mode 1 and 2),
Write
CD-ROM XA (Mode 2, Form 1 and 2), Mixed
Mode, CD-Plus, CD-Extra, CD-I FMV, Video CD,
CD-Text
Media: CD-R, CD-RW (including ultra-speed)
Disc-at-once, session-at-once,, track-at-once,
Write Methods
incremental fixed and variable packet,
multisession
125 ms
CD-ROM Mode 1
210 ms (seek)
Full Stroke CD
<7 s (single session), <30 s (multisession)
Start-up Time (typical)
<4 s
Stop Time (typical)
2 MB
Write Buffer Size
PIO Mode 4 (16.6 MB/s); Multi-word DMA
Data Transfer Modes
mode 2 (16.6 MB/s); UltraDMA Mode 2 (33.3
MB/s)
Worldwide — Version 20 — May 6, 2005
Page 46
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Power
Source
DC Power Requirement
DC Current
Audio Output
Configuration Jumper
Block
Operating Conditions
Approvals/
Environmental
Operating Systems
Supported
Supplied software
48X Combo CDRW/DVD-ROM
Height
Mounting Orientation
Interface Type
Dimensions (W x H x D)
Weight (max)
DA - 12022
Total Drive Power
(standby mode)
Line-Out
Signal-to-Noise Ratio
Channel Separation
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
0.7 VRMS
74 dB
65 dB
Master, slave, and cable select modes
Temperature
Humidity
41° to 122° F (5° to 50° C)
10% to 90%10% to 90%
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
SFF-8020, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
Windows 2000, XP Professional, and XP Professional x64 Edition
Red Hat Linux 7.2, 7.3 and WS3 Versions
Roxio Easy CD & DVD Creator: Create or copy CDs and DVDs, including
music and data CDs, and data DVDs
Dantz Retrospect Express: Back up systems to CD, DVD, or tape media.
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
5.77 x 1.71 x 7.87 [max] in (14.66 x 4.34 x 20.0 [max] cm) (external,
excluding bezel)
2.6 lb (1.2 kg)
Worldwide — Version 20 — May 6, 2005
Page 47
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Read Only Disc
Parameters
Formats and Modes
Supported
CD-ROM-Mode 1; CD-ROM XA-Mode 2 (forms
1 and 2); CD-Bridge; CD digital audio; CD
Extra; CD-I-Mode 2 (forms 1 and 2) and CD-IReady; Photo CD (single and multi-session);
video CD; DVD (single- and double-layer); DVDR; DVD-RW; DVD-RW Multi-Border; DVD+R;
DVD+R Multisession , and DVD+RW
Capacity
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (Mode
2, 12 cm); 4.7 GB (DVD-5); 8.54 GB (DVD-9);
9.4 GB (DVD-10)
CD-ROM, CD-R, CD-RW 7200 KB/s (48X) Max
read
21,632 KB/s (16X ) Max
DVD ROM read
Writeable Disc
Parameters
Disc Type
Write Methods
Format and Modes
Supported
Capacity
Access Times
(typical reads, including
settling)
DA - 12022
CD-R write
CD-RW write
Random DVD
Random CD
Full Stroke DVD
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Time
Cache Buffer
Data Transfer Modes
CD-R and CD-RW
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD; CD-Bridge; Video CD
180 MB (mode 2, 8 cm); 540 MB (mode 1, 12
cm); 650 MB (mode 2, 12 cm); 700 MB (mode
2, 12 cm)
7200 KB/s (48X) Max
4800 KB/s (32X) Max
< 140 ms (typical)
< 125 ms, (typical)
< 250 ms (seek)
< 210 ms (seek)
< 7 seconds (typical)
< 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 44 Mbytes/s (default)
Worldwide — Version 20 — May 6, 2005
Page 48
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Power
Source
DC Power Requirement
DC Current
Audio Output
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Master, slave, and cable select modes
Configuration Jumper
Block
Data Interface Connector 40-pin, shrouded and keyed, flat ribbon
41° to 122° F (5° to 50° C)
Operating Environmental Temperature
(all conditions nonRelative humidity
10% to 90%
condensing)
Maximum wet bulb
86° F (30° C)
temperature
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
Certifications,
Requirements
SFF-8020, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
Windows 2000, XP Professional, and XP Professional x64 Edition
Operating Systems
Supported
Red Hat Linux 7.2, 7.3 and WS3 Versions
48X Combo CD-RW/DVD-ROM Drive, Roxio Easy CD & DVD Creator,
Option Kit Contents
InterVideo WinDVD MPEG Movie Playback software, Dantz Retrospect
Express Backup software, audio cable, and installation guide.
16X DVD+/-RW, DualLayer (Win and RHWS3)
Height
Orientation
Interface Type
Disc Recording Capacity
Dimensions (W x H x D)
Weight (maximum)
Recording Method
Write Support
Read Support
DA - 12022
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
4.7 GB (single-layer), 8.5 GB (double-layer)
5.9 x 1.7 x 7.9 in (15.0 x 4.4 x 20.0 cm)
2.6 lb (1.2 kg)
Disc-at-once, Track-at-once, and Session-at-once; Variable Packet and Fixed
Packet
DVD+R (1.3), DVD+R DL (1.0), DVD+RW (1.2), DVD-R (2.0), DVD-RW
(1.1), CD-R (OBII Vol2.0 Rev 1.2), CD-RW (LS, HS, US)
DVD-ROM (single- and dual-layer), DVD-Video, DVD+R (include
multisession), DVD+RW, DVD-R (incl. multiborder), DVD-RW, DVD-MRW;
CD-ROM Mode 1, CD-ROM XA (Mode 2, forms 1 and 2), CD-TEXT, Photo
CD single- and multi-session), CD-DA (Audio CD), CD-Extra, CD-R, CD-RW
(supports AM2), VCD, CD-I, UDF (1.02 and 1.50), CD-MRW
Worldwide — Version 20 — May 6, 2005
Page 49
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Write Speed (maximum)
DVD+R
DVD+RW
DVD-R
DVD-RW
Read Speed (maximum)
Access Time (typical
reads, including settling)
Power
CD-R
CD-RW (US)
DVD-ROM
DVD+R, DVD+RW,
DVD-R, DVD-RW
CD-ROM, CD-R,
CD-RW, CD-Audio
Random DVD
Random CD
Full Stroke DVD
Full Stroke CD
Startup Time (single)
Startup Time (multisession)
Stop Timex
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
16X CAV (21,600 KB/s), 8x ZCLV (10,800
KB/s), 2.4-8x CLV (3250-10,800 KB/s)
2.4-4X CLV (3250-5400 KB/s)
2-4X CLV (2700-5400 KB/s), 8X ZCLV (10,800
KB/s)
2-4X CLV (2700-5400 KB/s)
16-40X CAV (2400-6000 KB/s)
4-24X CLV (600-3600 KB/s)
5-16X CAV (6750 - 21,600 KB/s)
4-8X CAV (5400 - 10,800 KB/s)
16-40X CAV (2400 to 6000 KB/s)
< 130 ms (typical)
< 120 ms, (typical)
< 240 ms (seek)
< 200 ms (seek)
< 7 seconds (typical)
< 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s) (default on most HP xw
workstations)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 10%-200 mV ripple p-p
5 VDC (< 2000 mA typical, < 2500 mA
maximum)
12 VDC (< 700 mA typical, < 2000 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Audio Output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Operating Environmental Temperature
41° to 122° F (5° to 50° C)
(all conditions non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
System Configuration
Intel Pentium IV Processor or later with 128 MB of memory (required); 256
MB recommended 2-D or 3-D graphics cards on primary disk drive for
operating system and application software; second disk drive for audio and
video data
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 50
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Operating Systems
Support
Regulatory Approvals
Option Kit contents
16X DVD+/-RW
LightScribe drive
Height
Orientation
Interface Type
Disc Recording Capacity
Dimensions (W x H x D)
Weight (maximum)
Write Speed (maximum)
Read Speed (maximum)
DA - 12022
Windows XP Professional and Linux. (Red Hat Linux 7.2, 7.3, 8, 9.0 may
require additional third party software to make full use of this device)
MPC-3 and MMC-4 compliant, multi-read certified, ATA Spec X3T9.2,
ATAPI Spec T13.1153D, ANSI C63.4-1992, UL 60950, ACA AS/NZS
3548, CB Bulletin No. 96A, CSA C22.2 No. 60950, CFR 47 C.I.S.P.R. Pub
22 Class B, DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1,
MIC Class B, BSMI-CNS 13438, CE EN60950, EN55022:1998 and
EN55024, Microsoft Logo for Windows XP, relevant parts of IEC 61000-4.
16X DVD±R/±RW Drive, InterVideo WinDVD, InterVideo WinDVD Creator,
Roxio Easy Media Creator, Dantz Retrospect Express Backup Software,
installation guide, and DVD+R media.
NOTE: This DVD writer kit does not include any software for burning DVDs
on Linux. DVD burning is supported with the 'growisofs' command. CD
burning is supported with the 'cdrecord' command. Red Hat Enterprise Linux
WS 3 distribution includes both 'cdrecord' and 'growisofs'. Red Hat Linux 7.2,
7.3, 8, 9.0 distributions only include 'cdrecord'. Therefore DVD burning is
only supported on WS 3.
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI/EIDE
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to16X
DVD+R
Up to 4X
DVD+RW
Up to 2.4X
DVD+R DL
Up to 8X
DVD-R
Up to 4X
DVD-RW
Up to 40X
CD-R
Up to 24X
CD-RW
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL
Up to 16X
DVD-ROM
Up to 40X
CD-ROM, CD-R
Up to 32X
CD-RW
Worldwide — Version 20 — May 6, 2005
Page 51
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Optical Devices
Access Time (typical
reads, including settling)
Random
Full Stroke
Startup Time
Stop Time
Cache Buffer
Data Transfer Modes
Power
Source
DC Power Requirement
DC Current
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
DVD: < 240 ms (seek), CD: < 200 ms (seek)
Single-session: < 15 seconds (typical), Multisession: < 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 10%-200 mV ripple p-p
5 VDC (< 2000 mA typical, < 2500 mA
maximum)
12 VDC (< 700 mA typical, < 2000 mA
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
Audio Output
0.7 VRMS
Line-Out
74 dB
Signal-to-Noise Ratio
65 dB
Channel Separation
Operating Environmental Temperature
41° to 122° F (5° to 50° C)
(all conditions non10% to 90%
Relative humidity
condensing)
86° F (30° C)
Maximum wet bulb
temperature
System Configuration
Intel Pentium III Processor or later with 128 MB of memory (required); 256
MB recommended 2-D or 3-D graphics cards on primary disk drive for
operating system and application software; second disk drive for audio and
video data
Operating Systems
Microsoft Windows 2000, Windows XP Professional, Windows XP Home
Support
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI Spec
Regulatory Approvals
T13.1153D, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB Bulletin
No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22 Class B,
DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1, MIC, BSMICNS 13438, CE, Microsoft PC2001 certification, Microsoft Logo for
Windows XP and 2000.
16X DVD+/-RW LightScribe drive, LightScribe software, InterVideo WinDVD,
Option Kit contents
InterVideo WinDVD Creator, Roxio Easy Media Creator 7, Dantz Retrospect
Express Backup Software, installation guide, and DVD+R media.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 52
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 280 Form Factor
(PCI)
Graphic Controller
VGA controller
Bus type
RAMDAC
Memory
Connector
Dimensions
Controller clock speed
Color planes
Overlay planes
Maximum vertical refresh
rate
Maximum pixel clock
Multi-monitor support
Single DVI Support
Dual DVI Support
High-definition Video
Processor (HDVP)
ATX
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI
Dual 350 MHz
64 MB DDR with frame buffer and Texture storage
Single High-density Flex Connector
Low-profile, 2.586 x 6.6 in (6.57 x 16.76 cm)
275 MHz
32-bit color buffer
1 16-bit Video overlay plane
120 Hz
350 MHz
Dual analog or digital monitors
Yes
Yes
Full-screen, full-frame video playback of HDTV and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Available graphics drivers Microsoft Windows 2000 and Microsoft Windows XP (Provides full native
Dual View mode, Span or Big Desktop mode, and Clone mode)
Red Hat Linux
HP qualified drivers may be preloaded or available from the HP support web
site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum resolution
2048 x 1536 analog
1600 x 1200 digital
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 53
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 280 Form Factor
Graphics Card (PCIGraphics Controller
Express)
VGA controller
Bus Type
RAMDAC
Memory
ATX
Integrated Quadro 280 2-D graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI-Express x16 or PCI
Dual 350 MHz integrated
64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
Single High-density Flex Connector
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 1920 x1200 @ 85Hz or two digital displays at 1600x1200 @
60Hz
Additional product
250 MHz
Controller clock speed
features
32-bit color buffer
Color planes
1 16-bit Video overlay plane
Overlay planes
Maximum vertical refresh 120 Hz
rate
350 MHz
Maximum pixel clock
Yes
Single DVI Support
Yes
Dual DVI Support
Full-screen, full-frame video playback of HDTV
High-definition Video
Processor (HDVP)
and DVD content
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video
overlay
Hardware color-space conversion (YUV 4:2:2
and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
PCI-Express
Supports X16 PCI-E
Available graphics drivers Microsoft Windows XP or Windows 2000 (Provides full native Dual View
mode, Span or Big Desktop mode, and Clone mode)
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum resolution
2048 x 1536 analog
1600 x 1200 digital
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 54
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 330
Graphics Card
Form Factor
Graphics Controller
Bus Type
Memory
ATX
NVIDIA Nv37GL
PCI-Express x16
64 MB 000 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
DMS-59 output supporting up to two analog or digital (with optional cable)
displays
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048 x1536 @ 60Hz or two digital displays at 1600x1200 @
60Hz
RAMDAC
Dual 350 MHz integrated
Architecture features
64-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
4x FSAA at 1024x768
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
3D volumetric texture support
Shading architecture
Fully programmable GPU
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output with optional cable – drives dual digital displays at
resolutions up to 1600x1200 @ 60Hz
Internal 350MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 60Hz each
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 55
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro NVS 400 Form Factor
Graphics Card
Graphics Controller
VGA controller
Bus Type
RAMDAC
Memory
Connectors
Controller clock speed
Color planes
Overlay planes
Stencil planes
Alpha planes
Total bits/pixel
Maximum vertical refresh
rate
Maximum pixel clock
Multi-monitor support
Single DVI Support
Dual DVI Support
nView Hardware
Architecture
ATX
Integrated Quadro2 EX 2-D/3-D 128-bit graphics processor unit (GPU)
Integrated into the Quadro GPU
PCI
Dual 350 MHz
64 MB DDR unified frame buffer, Z-buffer and Texture storage
2 High-density Flex Connector
220 MHz
32-bit color buffer
1 16-bit Video overlay plane, software emulation for OpenGL overlay planes
8-bit stencil buffer
8-bit alpha buffer
64
120 Hz
343 MHz based on resolutions shown below
Up to 4 analog or digital monitors
Yes
Yes
32-bit color
2048 x 1536 @ 60 Hz maximum resolution
2D rendering engine optimized for 32-, 24-, 16-, 15-, and 8-bpp modes
High-definition Video
Full-screen, full-frame video playback of HDTV and DVD content
Processor (HDVP)
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Available graphics drivers Microsoft Windows 2000 and Microsoft Windows XP
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 56
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
ATI FireGL V3100
Graphics Card
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Multi-monitor support
ATX
RV370
PCI-Express x16
128MB 200MHz DDR unified frame buffer, Z-buffer and Texture storage
1 DVI-I analog/digital and 1 VGA analog monitor output
Dual integrated display controllers supporting up to 2048x1536 @ 85Hz on
both displays
RAMDAC
Dual 400 MHz integrated
Architecture features
128-bit memory interface
128-bit IEEE floating-point precision
24-bits per RGBA color precision
4-bit sub-pixel precision
2 parallel geometry engines
4 parallel pixel pipelines
2x/4x/6x FSAA
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
Hardware accelerated clip planes
Shading architecture
Smartshader™ technology
Programmable pixel and vertex shaders
16 textures per pass
Pixel shaders up to 160 instructinos with 32-bit floating point precision for
each RGBA component
Multiple render target support
Shadow volume rendering acceleration
High precision 10-bit per channel frame buffer support
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output – drives digital display at resolutions up to 1600x1200
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 57
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 540
PCI-Express Graphics
Card
Form Factor
ATX, 4.376" x 7.0"
Single slot
Graphics Controller
NVIDIA NV43GL
Bus Type
PCI-Express x16, <75W power consumption
RAMDAC
Dual 400 MHz integrated
Memory
128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
8.8 GB/sec graphics memory bandwidth
Connectors
DVI-I + VGA + 10-pin HDTV Out (HD cable purchased separately)
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 75Hz, one digital display at 1600x1200 @
60Hz.
Additional product
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Shading architecture
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output - drives digital display at resolutions up to 1600x1200 @ 60Hz
Internal 400MHz RAMDACs - drives dual analog displays up to 2048x1536
@ 75Hz each
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 58
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 1300 Form Factor
Graphics Card
Graphics Controller
Bus Type
Memory
ATX
NVIDIA NV38GL
PCI-Express x16
128 MB 275 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 60Hz on both displays or dual digital displays at
1600x1200 @ 60Hz
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision graphics pipeline
128-bit color precision
12-bit sub-pixel precision
4x FSAA at 1280x1024
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
3D volumetric texture support
Quad-buffered stereo
Shading architecture
Fully programmable GPU
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1600x1200 @ 60Hz
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 75Hz each
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 59
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 1400 Form Factor
PCI-Express Graphics
Controller
Graphics Controller
Bus Type
RAMDAC
Memory
ATX, 4.376 x 8.5 in (11.12 x 21.59 cm)
Single slot
NVIDIA NV41GL
PCI-Express x16, <75W power consumption
Dual 400 MHz integrated
128 MB 300 MHz DDR SDRAM unified frame buffer, Z-buffer and Texture
storage
19.2 GB/s graphics memory bandwidth
Connectors
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays.
Additional product
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware accelerated Overlay Planes
Hardware accelerated two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
3D Volumetric Texture support
Hardware accelerated Occlusion Culling
Scalable Link Interface (SLI) technology
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Shading architecture
Fully programmable GPU (OpenGL1.5/DirectX 9.0c class)
Long fragment programs (up to 65,536 instructions)
Long vertex programs (up to 65,536 instructions)
Looping and subroutines (up to 256 loops per vertex program)
Dynamic flow control
Conditional execution
Optimized compilers for Cg, OpenGL shading language, and Microsoft
HLSL
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 9.0c
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000 and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
Dual DVI-I output – drives dual digital displays at resolutions up to
1900x1200 @ 60Hz
Internal 400MHz RAMDACs – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 60
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
ATI FireGL V5100
PCI-Express Graphics
Controller
Form Factor
Graphics Controller
Bus Type
Memory
Connectors
Multi-monitor support
ATX
RV423
PCI-Express x16
128 MB 350MHz DDR unified frame buffer, Z-buffer and Texture storage
2 DVI-I analog/digital monitor outputs, 1 3-pin Mini DIN stereo output
Dual integrated display controllers supporting up to two analog displays at
2048x1536 @ 85Hz on both displays.
RAMDAC
Dual 400 MHz integrated
Architecture features
256-bit memory interface
128-bit IEEE floating-point precision
24-bits per RGBA color precision
8-bit sub-pixel precision
6 parallel geometry engines
12 parallel pixel pipelines
2x/4x/6x FSAA
Hardware accelerated antialiased points and lines
Hardware OpenGL overlay planes
Hardware accelerated two-sided lighting
Hardware accelerated clipping planes
Hardware accelerated occlusion culling
Hardware accelerated clip planes
Quad-buffered stereo
Shading architecture
Smartshader™ technology
Programmable pixel and vertex shaders
16 textures per pass
Pixel shaders up to 160 instructions with 32-bit floating point precision for
each RGBA component
Multiple render target support
Shadow volume rendering acceleration
High precision 10-bit per channel frame buffer support
Supported graphics APIs OpenGL 1.5
DirectX 9.0
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site: http://welcome.hp.com/country/us/eng/software_drivers.html.
Maximum Resolution
DVI-I output – drives digital displays at resolutions up to 1600x1200
Internal 400MHz RAMDAC – drives dual analog displays up to 2048x1536
@ 85Hz each
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 61
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Graphics
NVIDIA Quadro FX 3400 Form Factor
PCI-Express Graphics
Graphics Controller
Controller
Bus Type
RAMDAC
Memory
ATX
NVIDIA NV45GL-V
PCI-Express x16
Dual 400 MHz integrated
256 MB 450 MHz GDDR3 SDRAM unified frame buffer, Z-buffer and
Texture storage
Connectors
2 DVI-I (dual-link) analog/digital monitor outputs, 1 3-pin Mini DIN stereo
output
Multi-monitor support
Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays.
Additional product
128 KB BIOS 3.3V Flash ROM reprogrammable by SW
features
Hardware Overlay Planes
Hardware two-sided lighting
Hardware accelerated antialiased points and lines
Quad-buffered Stereo
Diamond exit rule line rasterization for improved line quality
3D Texture support
Occlusion Culling
Dual Link DVI enabling driving digital displays up to 2048x1536
Compliant with Microsoft/Intel PC2001 Workstation requirements
Video Timings compliant with VESA DMT 1.0 and VESA GTF 1.0
specifications
DDC2B+ Monitor support on all OS platforms
ACPI Version 1.0b Power Management support (all modes)
Programmable Vertex and Pixel Shader 3.0
PCI-Express
Supports X16 PCI-E or 16 lane PCI-Express connector 350 MHz engine
clock rate
NV45GL-V GPU featuring 350 MHz memory clock rate
256-bit memory interface
VGA controller
nfiniteFX II programmable vertex and pixel shader technology
Supported graphics APIs OpenGL 1.5 ICD with immediate mode support for all OGL primitive types
DirectX 8, 9
Available graphics drivers HP-tested: Microsoft Windows XP, Windows 2000, and Linux
HP qualified drivers may be preloaded or available from the HP support
Web site:
http://welcome.hp.com/country/us/eng/software_drivers.html.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 62
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
HP L1755 Flat Panel
Monitor
Panel
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Video/Other Inputs
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Color Depth Support
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Signal Interface/
Performance
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
Preset VGA Mode
Preset SUN Mode
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
DA - 12022
Active matrix, thin film transistor (TFT)
17 in (43.2 cm) maximum viewable
13.4 x 10.7 in (33.9 x 27.2 cm)
176 degrees horizontal/176 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Up to 1000:1 (typical)
25 ms (typical rise + fall)
0.264 mm
16.7 million colors
Yes (supports VESA DDC2B; PC2001 compliant)
One upstream, four downstream ports (cable
included)
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green (activated through on-screen
display)
VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA
78 in (2.0 m)
30 to 82 kHz
56 to 75 Hz
1280 x 1024 @ 60 Hz analog
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 75 Hz digital
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Worldwide — Version 20 — May 6, 2005
Page 63
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
Power
Power Supply
Input Power
Nominal Current
Frequency
Average
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Mechanical
Power Cable Length
Dimensions
(H x W x D)
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
DA - 12022
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Italian,
Japanese, Simplified Chinese
Size and positioning, contrast, brightness, clock,
clock phase, selectable color temperature, serial
number, mode displayed, sleep timer, input
selection, factory reset, individual color contrast,
full-screen resolution
Auto-ranging, 90 to 265 VAC; internal power
supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
33 watts when displaying standard office
software
< 40 watts
< 60 watts
<2W
0 watts (when master power switch is in the off
position)
70 in (1.8 m); non-captive
Unpacked with stand 16.1 (minimum) to 21.2
(maximum) x 14.4 x 8.3
in (40.9 (minimum) to
42.2 (maximum) x 36.5
x 21.1 cm)
8.3 x 12.2 in
Base Area
(Footprint D x W)
(21.1 x 30.9 cm)
11.8 x 14.4 x 2.9 in
Panel only (without
stand) (H x W x D)
(30.1 x 40.9 x 7.3 cm)
Unpacked with stand 14.7 lb (6.7 kg)
8.1 lb (3.7 kg)
Unpacked without
stand
20.2 lb (9.2 kg)
Packaged
13 mm left and right, 14 mm top, and 15 mm
bottom
-5° to +35°
± 50° horizontal swivel
Yes (5.1 in/13 cm adjustment range)
Worldwide — Version 20 — May 6, 2005
Page 64
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Pivot Rotation
Base
Environmental
Options
Other
DA - 12022
Yes, 90 °
Ships detached and is removable after
installation
Temperature – Operating 41° to 95° F (5° to 35° C)
Temperature – Non-4° to 140° F (-20° to 60° C)
operating
20% to 80%
Humidity – Operating
5% to 95%
Humidity – Nonoperating
0 to 13,000 ft (0 to 4,000 m)
Altitude – Operating
Altitude – Non-operating 0 to 40,000 ft (0 to 12,192 m)
Features integrated microphone/headset jacks,
HP Desktop Access
Center – Part number:
dual function headset for phone/PC support, a
DK985A
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions. Sold
separately. For more information, refer to the HP
Desktop Access Center QuickSpec document.
Powered directly by the monitor, seamlessly
HP Flat Panel Speaker
Bar – Part number:
attaches to the monitor's bezel to bring full
PF804AA
multimedia support to select HP flat panel
monitors. Features dual speakers with full sound
range and external jack for headphones. Sold
separately. For more information, refer to the HP
Flat Panel Speaker Bar QuickSpec document.
HP Compaq 7000 Series Allows mounting of a 15-, 17- or 19-inch HP flat
Ultra-slim Desktop
panel monitor and an HP Compaq dc7100
Integrated Work Center Ultra-slim Desktop PC on a single stand for the
Stand – Part number:
convenience of an "all-in-one" form factor. Sold
DL641B
separately. For more information, refer to this
product's QuickSpec document
VGA to VGA cable, DVI-D to DVI-D cable, DVI-I
Accessories Included
to VGA cable, USB cable, user CD-ROM with
Pivot Pro software
Pivot Pro software from Portrait Displays, Inc.
Software
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display LiteSaver feature lets you schedule
Software
Sleep mode at preset times to help protect the
display against image retention, drastically lower
power consumption and energy costs, and
extend the lifespan of the monitor.
Worldwide — Version 20 — May 6, 2005
Page 65
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
User Guide Languages
Certification and
Compliance
Compatibility
Service and Warranty
HP L1955 Flat Panel
Monitor
Panel
English, Latin America Spanish, Brazilian
Portuguese, Danish, Dutch, Finnish, French,
German, Italian, Norwegian, Swedish, Greek,
Polish, Russian, Slovenian, Turkish, Simplified
Chinese, Traditional Chinese, Korean, and
Japanese
Warranty Languages
English, Canadian French, Latin America
Spanish, Brazilian Portuguese, Danish, Dutch,
Finnish, French, German, Italian, Norwegian,
Spanish, Swedish, Bahasa Indonesian, Simplified
Chinese, Traditional Chinese, and Korean
Color
Carbonite, two-tone carbonite and silver (EMEA
only)
VESA Mounting
Yes (swing arm/wall mount not included); base
must be removed for mounting options)
VESA External Mounting Yes (standard 4 hole pattern, 100 mm)
Kensington Lock-ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCC Approval, CISPR Requirements, Eastern European Approvals, Energy
Star Compliant, FCC Approval, German Ergonomic (TUV and GS Mark),
ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM Approval,
MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean MIC
Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,
Microsoft Windows Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP L1755 Flat Panel Monitor.
Recommended for use with HP products.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next business day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening (WxH)
Viewing Angle (typical)
Brightness (typical)
Contrast Ratio (typical)
Response Rate (typical)
Pixel Pitch
Color Depth Support
DA - 12022
Active matrix, thin film transistor (TFT)
19 in (48.25 cm) maximum viewable
14.9 x 12.0 in (38.0 x 30.5 cm)
176 degrees horizontal/176 degrees vertical
(10:1 minimum contrast ratio)
Up to 250 nits (cd/m2)
Up to 1000:1 (typical)
<16 ms (typical rise + fall)
0.294 mm
16.7 million colors
Worldwide — Version 20 — May 6, 2005
Page 66
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Video/Other Inputs
Plug and Play
Self Powered USB 2.0
Hub
Input Signal
Input Impedance
Sync Input
Signal Interface/
Performance
Video Cable
Video Cable Length
Horizontal Frequency
Vertical Frequency
Native Resolution
Maximum Resolution
(Analog)
Maximum Resolution
(Digital)
Preset VESA Graphic
Modes (non-interlaced)
Preset MAC Mode
Preset VGA Mode
Preset SUN Mode
Fail Safe Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
AssetControl
Default Color
Temperature
On Screen Display (OSD) Buttons or Switches
Controls
Languages
User Controls
DA - 12022
Yes (supports VESA DDC2B; PC2001 compliant)
One upstream, four downstream ports (cable
included)
Two connectors: one 15-pin mini D-sub analog
VGA; and one DVI-I (VGA analog or digital)
75 ohms ± 2%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green (activated through on-screen
display)
VGA to VGA, DVI-D to DVI-D, and DVI-I to VGA
78 in (2.0 m)
30 to 82 kHz
56 to 75 Hz
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 60 Hz digital
1280 x 1024 @ 75 Hz analog
1280 x 1024 @ 75 Hz digital
640 x 480 @ 60 Hz, 72 Hz, 75 Hz
720 x 400 @ 70 Hz
800 x 600 @ 60 Hz, 72 Hz, 75 Hz
1024 x 768 @ 60 Hz, 70 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75 Hz
832 x 624 @ 75 Hz
1152 x 870 @75 Hz
640 x 480 @ 60 Hz, 72 Hz
1152 x 900 @ 76 Hz
Yes (limits out of range signal messages)
140 MHz
Yes, 15
Yes
Yes
Yes (accessible on HP Compaq Business
Desktops featuring Intelligent Manageability)
Yes (6500k, 9300k, SRGB, Custom User)
Power on/off; 3-button OSD; second level OSD
buttons include dual-input switch, dedicated auto
adjust switch
English, Spanish, French, German, Italian,
Japanese, Simplified Chinese
Size and Positioning
Contrast
Worldwide — Version 20 — May 6, 2005
Page 67
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Power
Power Supply
Input Power
Nominal Current
Frequency
Average
Typical Power
Consumption
Maximum
Power Saving
Off Mode
Mechanical
Power Cable Length
Dimensions
(H x W x D)
Weight
Bezel Width
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
DA - 12022
Brightness
Clock, Clock Phase
Selectable Color Temperature
Serial Number
Mode Displayed
Sleep Timer
Input Selection
Factory Reset
Individual Color Contrast
Full-screen Resolution
Auto-ranging, 90 to 265 VAC; internal power
supply
100 ~ 240 VAC
1.5 A maximum
50 ~ 60 Hz
33 watts when displaying standard office
software
< 40 watts
< 60 watts
< 2 watts
0 watts (when master power switch is in the off
position)
70 in (1.8 m); non-captive
Unpacked with stand 16.8 (minimum) to 22.3
(maximum) x 15.9 x 8.3
in (42.7 (minimum) to
56.6 (maximum) x 40.4
x 21.1 cm)
8.3 x 12.2 in
Base Area
(Footprint D x W)
(21.1 x 30.9 cm)
13.2 x 15.9 x 3.1 in
Panel only (without
stand) (H x W x D)
(33.5 x 40.4 x 7.9 cm)
Unpacked with stand 16.5 lb (7.5 kg)
10.5 lb (4.75 kg)
Unpacked without
stand
23.5 lb (10.7 kg)
Packaged
13 mm left and right, 14 mm top, and 15 mm
bottom
-5° to +35°
± 50° horizontal swivel
Yes (5.1 in/13 cm adjustment range)
Yes, 90 °
Ships detached and is removable after
installation
Worldwide — Version 20 — May 6, 2005
Page 68
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Environmental
Options
Temperature – Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Non-operating
Desktop Access Center
HP Flat Panel Speaker
Bar
Other
Accessories Included
Software
Software
User Guide Languages
Warranty Languages
Color
VESA Mounting
VESA External Mounting
Kensington Lock-ready
DA - 12022
41° to 95° F (5° to 35° C)
-4° to 140° F (-20° to 60° C)
20% to 80%
5% to 95%
0 to 13,000 ft (0 to 4,000 m)
0 to 40,000 ft (0 to 12,192 m)
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions. Sold
separately; part number DK985A. For more
information, refer to the HP Desktop Access
Center QuickSpecs.
Powered directly by the monitor, seamlessly
attaches to the monitor's bezel to bring full
multimedia support to select HP flat panel
monitors. Features dual speakers with full sound
range and external jack for headphones. Sold
separately, part number PF804AA. For more
information, refer to the HP Flat Panel Speaker
Bar QuickSpecs.
VGA to VGA cable, DVI-D to DVI-D cable, DVI-I
to VGA cable, USB cable, user CD-ROM with
Pivot Pro software
Pivot Pro software from Portrait Displays, Inc.
interacts with your PC's native graphics driver to
enable seamless portrait screen redraws with a
simple mouse-click or keyboard command. Pivot
Pro supports 90-degree portrait and landscape
views. Language support is available in English,
Japanese, French, German, Spanish, Italian, and
Traditional and Simplified Chinese.
HP Display LiteSaver feature lets you schedule
Sleep mode at preset times to help protect the
display against image retention, drastically lower
power consumption and energy costs, and
extend the lifespan of the monitor.
English
English
Carbonite, two-tone carbonite and silver (EMEA
only)
Yes (swing arm/wall mount not included); base
must be removed for mounting options)
Yes (standard 4 hole pattern, 100 mm)
Yes
Worldwide — Version 20 — May 6, 2005
Page 69
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Certification and
Compliance
Compatibility
Service and Warranty
HP Flat Panel Monitor
L2035
Panel
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 13406-2 Compliant (Pixel Defect Guidelines), Mexican NOM
Approval, MPR-II Compliant, PC2001 Compliant, PC99 Certified, S. Korean
MIC Approval, Taiwan BSMI Approval, TCO 99 or 03 depending on region
(emissions, ergonomics, environment), TUV-Ergo, UL Listed, VCCI Approvals,
Microsoft® Windows® Certification
VESA Video Signal Standard (VSIS) Compliant video cards have been tested
and proven compatible for use with the HP L1955 Flat Panel Monitor.
Recommended for use with HP products.
Limited three-year parts and repair labor, service provider labor, and on-site
service. Next Business Day advanced exchange direct replacement service
available during warranty period. Certain restrictions and exclusions apply.
For details, contact HP Customer Support.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
On Screen Display
(OSD) Controls
DA - 12022
20-inch Active Matrix TFT (thin film transistor)
20.1 in (51 cm)
16.2 x 12.17 in (41.1 x 30.9 cm)
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Brightness (typical*
Up to 250 nits (cd/m2)
Contrast Ratio (typical)* Up to 400:1
Response Rate (typical)* 16 ms (typical, rise + fall)
Pixel Pitch
0.255 mm
Color Depth Support
16.7 million colors
*All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
PiP (Picture in Picture), Input select, auto adjust,
Buttons or Switches
OSD up, OSD down, OSD menu select, power
English, French, German, Spanish, Italian
Languages
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
Worldwide — Version 20 — May 6, 2005
Page 70
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Signal Interface/
Performance
Horizontal Frequency
Vertical Frequency
Graphics Controller
Native Resolution
Preset VESA Graphic
Modes (non-interlaced)
Video Input
Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
Default Color
Temperature
Plug and Play
Input Signal
Input Impedance
Sync Input
Video Cable
Video Cable Length
Input Power
Power
Frequency
Maximum
Power Saving
Power Cable Length
DA - 12022
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
Pixelworks PW171
1600 x 1200 @ 60 Hz (recommended)
1600 x 1200 @ 60 Hz, 75 Hz (VGA input)
1280 x 1024 @ 60 Hz, 75 Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 85 Hz
640 x 480 @ 60 Hz, 75 Hz, 85 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 66 Hz
202 MHz (VGA input); 162 MHz (DVI input)
Yes, 10
Yes
Yes
6500 K
Yes
Four connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, and one s-video
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
5.9 ft (1.8 m)
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
< 75 W
<5W
5.9 ft (1.8 m)
Worldwide — Version 20 — May 6, 2005
Page 71
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Mechanical
Dimensions (H x W x D)
Unpacked with stand
Unpacked without
stand (head only)
Packaged
Weight
Environmental
Options
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature – Operating
Temperature – Nonoperating
Humidity – Operating
Humidity – Nonoperating
Altitude – Operating
Altitude – Non-operating
HP Desktop Access
Center
DA - 12022
Unpacked
17.36 to 20.9 x 17.8 x
8.27 in
(44.1 to 53.1 x 45.2 x
21.0 cm)
14.29 x 17.8 x 3.19 in
(36.3 x 45.2 x 8.1 cm)
11.5 x 21.9 x 23.9 in
(29.2 x 55.6 x 60.6 cm)
With stand: 20.28 lb
(9.2 kg);
Without stand: 12.35 lb
(5.6 kg)
26.9 lb (12.2 kg)
Packaged
-5° to + 25° vertical
-35° to + 35°
Yes, range 3.54 in (9.0 cm)
Yes
Attached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
5% to 85%
+12,000 ft (+3,657.6 m)
+40,000 ft (+12,192 m)
Sold separately, the HP Desktop Access Center
features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Worldwide — Version 20 — May 6, 2005
Page 72
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Other
Accessories Included
User Guide Languages
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
Certification and
Compliance
Service and Warranty
HP Flat Panel Monitor
L2335
Panel
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Color
Carbonite/Silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
*Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Windows Certification (Microsoft® Windows® 98,
Microsoft Windows 2000, and Microsoft Windows XP)
* Energy Star Compliant available summer 2004.
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply.
Consult HP Customer Service for details.
Type
Viewable Image Area
(diagonal)
Screen Opening
(W x H)
Viewing Angle (typical)*
Brightness (typical)*
Contrast Ratio (typical)*
Response Rate (typical)*
Pixel Pitch
Color Depth Support
DA - 12022
23-inch Active Matrix TFT (thin film transistor)
23 in (58.4 cm)
19.53 x 12.24 in (49.6 x 31.1 cm)
Up to 170° H/170° V (10:1 minimum contrast
ratio)
Up to 250 nits (cd/m2)
Up to 500:1
16 ms (typical, rise + fall)
0.258 mm
16.7 million colors
Worldwide — Version 20 — May 6, 2005
Page 73
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
* All specifications are provided by the component manufacturers.
Performance specifications represent the highest specification of all HP's
component manufacturers' typical level specifications for performance.
Actual performance may vary either higher or lower.
On Screen Display (OSD) Buttons or Switches
PiP (Picture in Picture), Input Select, Auto Adjust,
Controls
OSD Up, OSD Down, OSD Menu Select, Power
English, French, German, Spanish, Italian
Languages
Brightness, contrast, positioning, color
User Controls
temperature, individual color control, serial
number display, full screen resolutions, clock,
clock phase, video picture-in-picture (size and
position), input selection (includes separate direct
access key for dedicated swap between inputs 1
and 2), factory reset
Signal Interface/
Performance
Horizontal Frequency
Vertical Frequency
Graphics Controller
Native Resolution
Preset VESA Graphic
Modes (non-interlaced)
Text Mode
Mac Mode
Sun Mode
Maximum Pixel Clock
Speed
User Programmable
Modes
Anti-Glare
Anti-Static
Default Color
Temperature
Video Input
Plug and Play
Input Signal
Input Impedance
Sync Input
DA - 12022
30 to 94 kHz (VGA input); 30 to 92 KHz (DVI
input) (for modes with pixel clock less than 157
MHz)
48 to 85 Hz (VGA and DVI input)
Pixelworks PW172
1920 x 1200 @ 60 Hz (recommended)
1920 x 1200 @ 60Hz
1600 x 1200 @ 60 Hz, 75 Hz
1280 x 1024 @ 60 Hz, 75Hz, 85 Hz
1280 x 960 @ 60 Hz
1152 x 900 @ 66 Hz
1024 x 768 @ 60 Hz, 75 Hz, 85 Hz
800 x 600 @ 60 Hz, 75Hz
640 x 480 @ 60 Hz, 75 Hz
720 x 400 @ 70 Hz
1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz
1152 x 900 @ 66 Hz
202 MHz (VGA input); 162 MHz (DVI input)
Yes, 10
Yes
Yes
6500 K
Yes
Five connectors, including one 15-pin mini Dsub VGA, one DVI-I (VGA analog and digital
input), one composite video, one s-video,
component video
75 ohms ± 10%
Separate sync (HSYNC/VSYNC); composite sync,
Sync on Green
Worldwide — Version 20 — May 6, 2005
Page 74
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Power
Video Cable
Video Cable Length
Input Power
Mechanical
Frequency
Maximum
Power Saving
Power Cable Length
Dimensions (H x W x D)
Weight
Environmental
Options
DA - 12022
Tilt Range
Swivel Range
Height Adjustable
Pivot Rotation
Base
Temperature –
Operating
Temperature –
Non-operating
Humidity – Operating
Humidity –
Non-operating
Altitude – Operating
Altitude –
Non-operating
HP Desktop Access
Center
VGA to VGA; VGA to DVI-I; DVI-D to DVI-I
5.9 ft (1.8 m)
Auto-Ranging, 90 to 132 VAC and 195 to 265
VAC; internal power supply, 50 Hz/60 Hz
47.5 to 63 Hz
< 100 W
<5W
5.9 ft (1.8 m)
17.36 (min) to 20.9
Unpacked
(max) x 21.46 x 8.27 in
(44.1 (min) to 53.1
(max) x 54.5 x 21.0 cm)
Unpacked withou stand 14.57 x 21.46 x 3.35
(head only)
in (37.0 x 54.5 x 8.5
cm)
11.5 x 25.75 x 23.86
Packaged
in (29. 2 x 65.4 x 60.6
cm)
22.27 lb (10.1 kg)
Unpacked
30.87 lb (14.0 kg)
Packaged
-5° to + 25° vertical
-35° to + 35°
Yes, range 3.54 in (9.0 cm)
Yes
Attached
46° to 95° F (10° to 35° C)
6° to 140° F (-10° to 60° C)
20% to 80% non-condensing
5% to 85%
+12,000 ft (+3,657.6 m)
+40,000 ft (+12,192 m)
Sold separately, the HP Desktop Access Center
Features integrated microphone/headset jacks,
dual function headset for phone/PC support, a
MultiBay slot for adding an optical drive (sold
separately), and four USB ports for easy
integration of third-party digital solutions; part
number DK985A. For more information, refer to
the HP Desktop Access Center QuickSpecs.
Worldwide — Version 20 — May 6, 2005
Page 75
QuickSpecs
HP xw4200 Workstation
Technical Specifications - Monitors
Other
Accessories Included
Certification and
Compliance
Service and Warranty
VGA to VGA cable – connects the graphic card's
VGA analog connector to the monitor's input #1
(VGA analog) connector
VGA to DVI-I cable – connects the graphic card's
VGA connector to the monitor's input #2 (DVI-I
analog) connector
DVI-D to DVI-I cable – connects the graphic
card's DVI-D digital connector to the monitor's
input #2 (DVI-I digital) connector
User Guide Languages
English, B. Portuguese, French, LA Spanish,
Korean, S. Chinese, T. Chinese, Bahasa,
Japanese, Danish, Finnish, German, Norwegian,
Spanish, Swedish, Greek, Polish, Russian,
Slovenian, Turkish
Warranty Languages
English, Canadian French, LA Spanish, Brazilian
Portuguese, Danish, German, Castilian Spanish,
French, Italian, Dutch, Norwegian, Finnish,
Swedish, Bahasa Indonesian, Korean, T.
Chinese, S. Chinese
Color
Carbonite/silver
VESA External Mounting Yes (Standard 4 hole pattern, 100 mm)
Kensington Lock-Ready
Yes
Australian ACA Approval, Canadian Requirements/CSA, CE Marking, China
CCIB/CCEE Approval, CISPR Requirements, Eastern European Approvals,
*Energy Star Compliant, FCC Approval, German Ergonomic (TUV and GS
Mark), ISO 9241-3,7,8 VDT Guidelines, ISO 13406-2 Pixel Defect
Guidelines, Mexican NOM Approval, MIC Requirements (New Zealand),
MPR-II Compliant, Nordic Approvals (Nemko, Fimko, Demko, Semko),
PC2001 Compliant, PC99 Certified, S. Korean MIC Approval, Taiwan BSMI
Approval, TCO 03 (emissions, ergonomics, environment), TUV-Ergo, UL
Listed, VCCI Approvals, Windows Certification (Microsoft® Windows® 98,
Microsoft Windows 2000, and Microsoft Windows XP).
* Energy Star Compliant available summer 2004.
Limited three years parts, labor, and on-site service, including backlight.
Availability varies by region. Certain restrictions and exclusions apply.
Consult HP Customer Service for details.
© Copyright 2005 Hewlett-Packard Development Company, L.P.
All rights reserved. HP and the HP logo are trademarks of the Hewlett Packard Company in the U.S. and/or other countries.
Microsoft and Windows are US registered trademarks of Microsoft Corporation. Intel and Xeon are US registered trademarks or
trademarks of Intel Corporation.
HP shall not be liable for technical or editorial errors or omissions contained herein. The information is provided as is without
warranty of any kind and is subject to change without notice. The warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty.
DA - 12022
Worldwide — Version 20 — May 6, 2005
Page 76
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
