Acer 5220 Laptop User manual

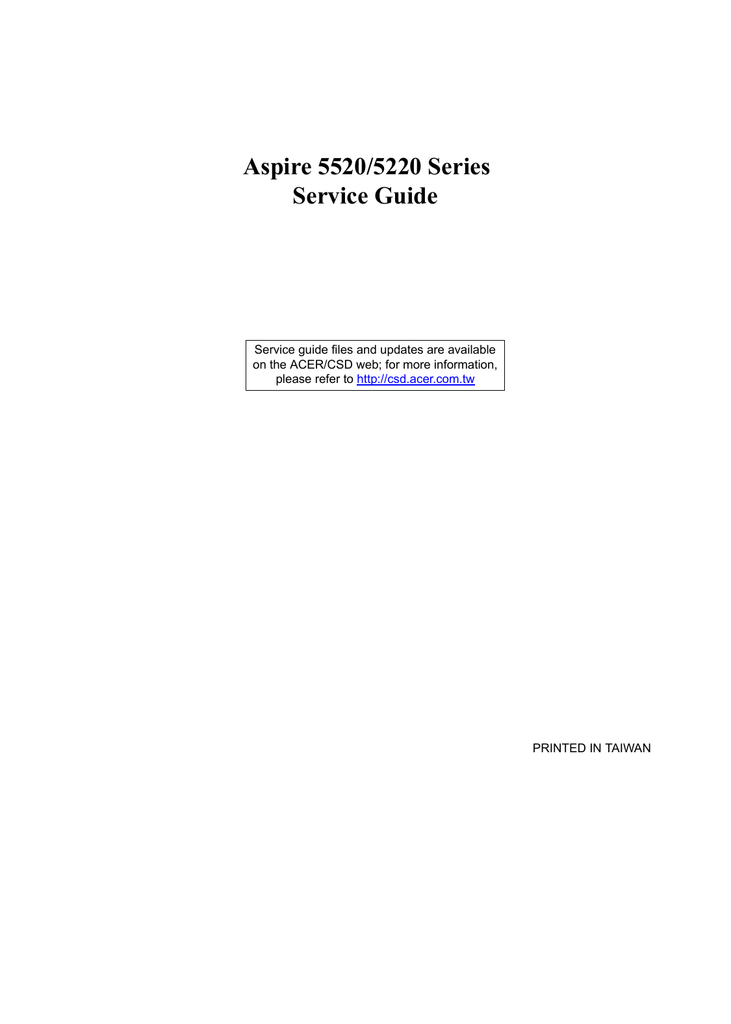

Aspire 5520/5220 Series
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
PRINTED IN TAIWAN
Revision History
Please refer to the table below for the updates made on Aspire 5520/5220 service guide.
Date
II
Chapter
Updates
Copyright
Copyright © 2007 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
III
Conventions
The following conventions are used in this manual:
IV
SCREEN MESSAGES
Denotes actual messages that appear
on screen.
NOTE
Gives bits and pieces of additional
information related to the current
topic.
WARNING
Alerts you to any damage that might
result from doing or not doing specific
actions.
CAUTION
Gives precautionary measures to
avoid possible hardware or software
problems.
IMPORTANT
Reminds you to do specific actions
relevant to the accomplishment of
procedures.
Preface
Before using this information and the product it supports, please read the following general information.
1.
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2.
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
V
Chapter 1
System Specifications
Features
Below is a brief summary of the computer’s many features:
Operating system
q
Windows Vista™ Ultimate
q
Windows Vista™ Home Premium
q
Windows Vista™ Home Basic
q
Windows Vista™ Starter
Platform and memory
q
AMD Better By Design program, featuring:
•
AMD Turion™ 64 X2 dual-core mobile technology TL-66 / TL-64 / TL-60 / TL-58 / TL-56 / TL-52
(2x512 KB L2 cache, 2.3 GHz / 2.2 GHz /2.0 GHz / 1.9 GHz / 1.8 GHz / 1.6 GHz, supporting
AMD HyperTransport® technology (for selected models)
•
AMD Athlon™ 64 X2 Mobile Technology TK-53/TK-55 (1.70/1.80 GHz, 2x 256 KB L2 cache),
supporting AMD PowerNow!™ technology and AMD HyperTransport™ technology (for selected
models)
•
AMD Turion™ 64 Mobile Technology MK-36/MK-38 (2/2.20 GHz, 512 KB L2 cache), supporting
AMD PowerNow!™ technology and AMD HyperTransport™ technology (for selected models)
•
Mobile AMD Sempron™ 3500+ (1.80 GHz, 512 KB L2 cache), 3600+/3800+ (2/2.20 GHz, 256
KB L2 cache) (for selected models)
•
Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED® solution, supporting Acer SignalUp™ wireless
technology
q
Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED® solution, supporting Acer SignalUp™ wireless
technology
q
Core logic: North Bridge NVIDIA nForce® 610M (MCP67-MV) (Single chip)
q
Up to 2GB of DDR2 677 MHz memory, upgradeable to 4GB using two soDIMM modules (dualchannel support)
q
Acer TV-tuner options:
Digital TV-tuner supporting DVB-T (Digital Video Broadcasting Terrestrial) standard (6 MHz to 8
MHz)
q
TV-tuner I/O:
TV-tuner
•
q
TV-tuner cables:
•
q
RF jack for digital/analog TV antenna cable input
PAL cable for digital TV input, PAL/SECAM to NTSC port converter
Acer DVB-T antenna (UHF/VHF reception) supporting Acer SignalUp™ wireless technology
Display and graphics
Chapter 1
q
15.4" WXGA high-brightness (220-nits) Acer CrystalBrite™ TFT LCD, 1280 x 800 pixel resolution,
supporting simultaneous multi-window viewing via Acer GridVista™
q
8 ms response time
q
NVIDIA GeForce® 8400M G with up to 1024MB of Turbocache™ (256MB of dedicated GDDR2
VRAM, up to 768MB of share system memory), supporting Microsoft DirectX 9 and DirectX 10,
1
and PCI Express® (for selected models)
q
NVIDIA GeForce® 8600M GS with up to 1280MB of TurboCache™ technology (512MB of
dedicated GDDR2 VRAM, 768MB of share system memory), Microsoft DirectX 9 and DirectX 10
support, PCI Express®
q
NVIDIA GeForce® 7000M with up to 896MB of Turbocache™ (256MB of dedicated system
memory, up to 640MB of share system memory), Microsoft DirectX 9 and PCI Express (for
selected models)
q
Dual independent display support
q
16.7 million colors (for selected models)
q
MPEG-2/DVD hardware-assisted capability (full decode) (for selected models)
q
WMV9 (VC-1) and H.264 (AVC) support (full decode) (for selected models)
q
S-video/TV-out (NTSC/PAL) support
q
DVI-D (true digital video interface) with High-bandwidth Digital Content Protection (HDCP) support
(for selected models)
q
Acer Arcade™ featuring Acer CinemaVision™ and Acer ClearVision™ technologies
q
Dolby®-certified surround sound system with two built-in stereo speakers
q
Dolby® Home Theater audio enhancement featuring Dolby® Digital, Dolby® Digital Live, Dolby®
PRO LOGIC® II, Dolby® Digital Stereo Creator, Dolby® Headphone and Dolby® Virtual Speaker
technologies
q
High Definition Audio support
q
S/PDIF (Sony/Philips Digital Interface) support for digital speakers
q
Dolby® Digital Live and DTS Neo: PC support
q
MS-Sound compatible
q
Built-in microphone
Audio
Storage subsystem
q
80/120/160/200/250 GB or larger hard disk drive
q
Optical drive options:
q
•
HD-DVD drive (for selected models)
•
DVD-Super Multi double-layer drive (for selected models)
•
DVD/CD-RW combo drive (for selected models)
5-in-1 card reader, supporting Secure Digital (SD), MultiMediaCard (MMC), Memory Stick® (MS),
Memory Stick PROTM (MS PRO), xD-Picture CardTM (xD)
Input devices
q
88-/89-/93-key keyboard, with inverted "T" cursor layout; 2.5 mm (minimum) key travel
q
Seamless touchpad with 4-way scroll button
q
12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric
keypad, international language support, independent US and Euro dollar sign keys, media control
keys
q
Four media control keys: play/pause, stop, next, previous
q
Empowering Key
q
Easy-launch buttons: WLAN, Internet, email, Bluetooth, Acer Arcade™
q
Volume wheel
Communication
q
2
Acer Video Conference, featuring:
Chapter 1
•
Integrated Acer Crystal Eye webcam, supporting Acer PrimaLite™ technology (for selected
models)
•
Acer Xpress VoIP phone (for selected models)
q
WLAN: Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED® network connection, supporting Acer
SignalUp™ wireless technology
q
WPAN: Bluetooth® 2.0+EDR (Enhanced Data Rate) (for selected models)
q
LAN: Gigabit Ethernet; Wake-on-LAN ready
q
Modem: 56K ITU V.92 with PTT approval; Wake-on-Ring ready
q
ExpressCard™/54 slot
q
5-in-1 card reader (SD™/MMC/MS/MS PRO/xD)
q
Four USB 2.0 ports
q
DVI-D port with HDCP support (for selected models)
q
IEEE 1394 port
q
Consumer infrared (CIR) port
q
External display (VGA) port
q
S-video/TV-out (NTSC/PAL) port
q
RF-in jack (for selected models)
q
AV-in port (for selected models)
q
Headphones/speaker/line-out port with S/PDIF support
q
Microphone-in jack
q
Line-in jack
q
Ethernet (RJ-45) port
q
Modem (RJ-11) port
q
DC-in jack for AC adapter
I/O Ports
Options and accesories
q
Acer Xpress VoIP phone featuring Acer Video Conference Manager
q
Acer Media Center remote control
q
512 MB, 1 or 2GB DDR2 667 MHz soDIMM modules
q
8-cell Li-ion battery pack
q
3-pin 90 W AC adapter
q
External USB floppy disk drive
q
Acer Empowering Technology (Acer eNet, ePower, eAudio , ePresentation, eDataSecurity (for
selected models), eLock, eRecovery, eSettings Management)
q
Acer Arcade™ featuring Cinema, Video, Album, Music, AcerHomeMedia
q
Acer Arcade Deluxe™ featuring DV Wizard, SportsCap, VideoMagician, DVDivine and Acer
HomeMedia
q
Acer Crystal Eye
q
Acer GridVista™
q
Acer GameZone™
q
Acer Launch Manager
q
Acer Video Conference Manager
q
Adobe® Reader®
Software
Chapter 1
3
q
CyberLink® PowerProducer®
q
Norton Internet Security™
q
NTI CD-Maker™
q
Microsoft Works 8.5 with Office Home and Student 2007 Trial
NOTE: Software listed above is for reference only. The exact configuration of your PC depends on the model
purchased.
Environment
q
q
Temperature:
•
Operating: 5ºC to 35ºC
•
Non-operating: -20ºC to 65ºC
Humidity (non-condensing):
•
Operating: 20%~80%
•
Non-operating: 20%~80%
Environment
q
Wi-Fi
q
ACPI
q
Mobile PC 2002
q
DMI 2.0
Environment
q
One-year International Travelers Warranty (ITW)
NOTE: The specifications listed above are for reference only. The exact configuration of your PC depends on
the model purchased.
4
Chapter 1
System Block Diagram
Chapter 1
5
Board Layout
Top View
1
2 3 4
7
8
6
5
9
10
15
11
16
12
6
13
14
1
JP1
LVDS Connector
9
U14
2
JP3
Speaker (Left) Connector
10
U15
3
JP34
Speaker (Right) Connector
11
JP9
PCI Express Card Socket
4
JP4
Microphone Connector
12
LED1
Power/Suspend LED
5
JP6
Touchpad Connector
13
LED2
Battery Charge/Discharge LED
6
JP5
Keyboard Connector
14
JP13
Mainboard to Audio Board
Connector
7
JP2
Button Board Connector
15
JP11
Mainboard to USB & TV Board
Connector
8
JP36
LED Board Connector
16
JP12
Bluetooth Module Connector
Chapter 1
Bottom View
1
3
2
9
8
7
5
4
10
6
14
11
12
13
15
16
17
19
20
18
21 22 23
1
PJP1
DC-in Power Jack
13
JP26
IEEE1394 Connector
2
PJP2
Battery Connector
14
JP22
CPU Socket
3
JP14
D-Sub CRT Connector
15
JP27
SATA HDD Connector
4
JP25
ODD Connector
16
SW1
Volume Control
5
JP20
Mini Card (TV-Tuner) Connector
17
JP28
DDRII Memory Socket
6
JP20
Mini Card (WLAN) Connector
18
JP29
DDRII Memory Socket
7
JP21
Mini Card (TV-Tuner) Socket
19
U29
Audio Codec Controller
8
U23
North Bridge
20
JP30
Memory Card Reader
9
JP16
Internal Fan Connector
21
JP31
Line-Out/Headphone/SPDIF Jackt
10
JP18
RJ45 (LAN) Connector
22
JP32
Mic-in Jack
23
JP33
Line-in Jack
11
JP23
USB (Dual) Connectors
12
JP24
S-video/TV-out Connector
Chapter 1
7
Your Acer Notebook Tour
After knowing your computer features, let us show you around your new Aspire computer.
Front View
#
8
Icon
Item
Description
1
Built-in camera
0.3 megapixel web camera for video
communication.
2
Power button
Turns the computer on and off.
3
Easy-launch buttons
Buttons for launching frequently used
programs.
4
Wireless communication
button/indicator
Enables/disables the wireless function.
Indicates the status of wireless LAN
communication.
5
Bluetooth®
communication button/
indicator
Enables/disables the Bluetooth® function.
Indicates the status of Bluetooth
communication.
Chapter 1
6
Keyboard
For entering data into your computer.
7
Touchpad
Touch-sensitive pointing device which
functions like a computer mouse.
8
Click buttons (left,
center, and right)
The left and right buttons function like the
left and right mouse buttons.
Microphone
Description
Display screen
Description
Internal microphone for sound recording.
9
10
#
Item
#
Item
Also called Liquid-Crystal Display (LCD),
displays computer output.
11
Status indicators
Light-Emitting Diodes (LEDs) that light up
to show the status of the computer’s
functions and components.
12
Empowering button
Launches the Empowering Technology
toolbar.
13
Speaker
Left and right speakers deliver stereo audio
output.
14
Palmrest
Comfortable support area for your hands
when
you use
"Easy-launch buttons"
on page
18 the computer.
"Easy-launch buttons" on page 18
Closed Front View
#
#
Icon
Icon
Item
#
Icon
Item
1
Chapter 1
Item Description
Power indicator
Description
Indicates the computer’s power status.
Description
2
Battery indicator
Indicates the computer’s battery status.
3
Line-in jack
Accepts audio line-in devices (e.g., audio
CD player, stereo walkman).
4
Microphone-in jack
Accepts input from external microphones.
5
Headphones/speaker/
line-out jack with S/PDIF
support
Connects to audio line-out devices (e.g.,
speakers, headphones).
6
Infrared port
Interfaces with infrared devices (e.g.
infrared printer and IR-aware computer).
9
Left View
#
Icon
Item
Description
1
Kensington lock slot
Connects to a Kensington-compatible
computer security lock.
2
External display (VGA)
port
Connects to a display device (e.g., external
monitor, LCD projector).
Ethernet (RJ-45)
Description
Connects to an Ethernet 10/100/1000based network (for selected models).
4
2 USB 2.0 port
Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
5
S-video/TV-out (NTSC/
PAL) port
Connects to a television or display device
with S-video input.
6
4-pin IEEE 1394 port
Connects to IEEE 1394 devices.
7
Volume control
Increases and decreases the volume.
8
5-in-1 card reader
Accepts Secure Digital (SD),
MultiMediaCard (MMC), Memory Stick
(MS), Memory Stick PRO (MS PRO), xDPicture Card (xD).
3
#
Icon
Item
Note:
9
PCI Express Card slot
Accepts an Express Card/54 module.
Note: Express Cards are third generation
of PC cards, hot-swapable and smaller
than previous PC Cards. Designed for both
desktop and mobile use, Express Cards
use either USB 2.0 or a single lane PCI
Express technology that provides 500
Mbytes/sec total throughput. Formerly
code named “NEWCARD,” Express Cards
are 5mm thick like Type II PC Cards, but do
not use the same 86x54mm footprint.
Express Cards come in 75x54mm and
75x34mm sizes. Express Card/54 slot
means this notebook accepts 75x54mm
Express Cards.
10
Chapter 1
Right View
#
Icon
Item
Description
1
2 USB 2.0 ports
Connect to USB 2.0 devices (e.g., USB
mouse, USB camera).
2
Optical drive
Internal optical drive; accepts CDs or DVDs
(slot-load or tray-load depending on
model).
3
Optical disk access
indicator
Lights up when the optical drive is active.
4
Optical drive eject
button
Ejects the optical disk from the drive.
5
Emergency eject hole
Ejects the optical drive tray when the
computer is turned off.
6
Modem (RJ-11) port
Connects to a phone line.
Rear view
#
Chapter 1
Icon
Item
Description
1
DC-in jack
Connects to an AC adapter.
2
Ventilation slots
Enable the computer to stay cool, even
after prolonged use.
11
Base view
#
Item
Description
1
Battery bay
Houses the computer’s battery pack.
2
Battery release latch
Releases the battery for removal.
3
Battery lock
Locks the battery in position.
4
Hard disk bay
Houses the computer’s hard disk (secured with screws)
5
Ventilation slots and
cooling fan
Enable the computer to stay cool, even after prolonged use.
Note: Do not cover or obstruct the opening of the fan.
Indicators
The computer has several easy-to-read status indicators.
The front panel indicators are visible even when the computer cover is closed.
12
Chapter 1
Icon
Icon
Function
Description
Power
Lights up when the computer is on.
Battery
Lights up when the battery is being charged.
Wireless LAN
Indicates the status of wireless LAN communication.
Function
Description
Bluetooth
Indicates the status of Bluetooth communication.
HDD
Indicates when the hard disc or optical drive is active.
Num lock
Lights when Num Lock is activated.
Cap lock
Lights when Cap Lock is activated
NOTE: 1. Charging: The light shows amber when the battery is charging. 2. Fully charged: The light shows
green when in AC mode.
Easy-Launch Buttons
To the top of the keyboard there are four easy-launch buttons: Web browser, mail, arcade buttons and an
Empowering Key “
.
Press “
“ to run the Acer Empowering Technology. The mail and Web browser buttons are pre-set to email
and Internet programs, but can be reset by users. To set the Web browser and mail buttons, run the Launch
Manager.
Chapter 1
13
Launch Button
Default application
Acer Empowering Technology (user-programmable)
Web browser
Internet browser (user-programmable)
Mail
Email application (user-programmable)
Arcade
Windows Media Center
Touchpad Basics
The following teaches you how to use the touchpad:
q
Move your finger across the touchpad (2) to move the cursor.
q
Press the left (1) and right (4) buttons located beneath the touchpad to perform selection and
execution functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the touchpad is the same as clicking the left button.
q
The center (3) button to mimics your cursor pressing on the right scroll bar of Windows
applications.
Function
Left Button (1)
Right Button (4)
Main touchpad (2)
Execute
Click twice quickly
Tap twice (at the
same speed as
double-clicking the
mouse button)
Select
Click once
Tap once
Drag
Click and hold, then
use finger on the
touchpad to drag
the cursor.
Tap twice (at the
same speed as
double-clicking a
mouse button); rest
your finger on the
touchpad on the
second tap and
drag the cursor.
Access context
menu
Scroll
Center button (3)
Click once
Click and hold to
move up/down/left/
right.
NOTE: When using the touchpad, keep it - and your fingers - dry and clean. The touchpad is sensitive to finger
movements; hence, the lighter the touch, the better the response. Tapping too hard will not increase the
touchpad’s responsiveness.
14
Chapter 1
Using the Keyboard
The keyboard has full-sized keys and an embedded keypad, separate cursor keys, one Windows key and
twelve function keys.
Lock Keys and embedded numeric keypad
The keyboard has three lock keys which you can toggle on and off.
Lock Key
Description
Caps Lock
When Caps Lock is on, all alphabetic characters typed
are in uppercase.
Num lock
<Fn>+<F11>
When Num Lock is on, the embedded keypad is in
numeric mode. The keys function as a calculator
(complete with the arithmetic operators +, -, *, and /).
Use this mode when you need to do a lot of numeric
data entry. A better solution would be to connect an
external keypad.
Scroll lock
<Fn>+<F12>
When Scroll Lock is on, the screen moves one line up
or down when you press the up or down arrow keys
respectively. Scroll Lock does not work with some
applications.
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters
located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols
are not printed on the keys.
Desired Access
Num Lock On
Num Lock Off
Number keys on embedded
keypad
Type numbers in a normal
manner.
Cursor-control keys on
embedded keypad
Hold <Shift> while using
cursor-control keys.
Hold <Fn> while using
cursor-control keys.
Main keyboard keys
Hold <Fn> while typing
letters on embedded
keypad.
Type the letters in a normal
manner.
Windows Keys
The keyboard has one key that performs Windows-specific functions.
Chapter 1
15
Key
Icon
Windows key
Description
Pressed alone, this key has the same effect as
clicking on the Windows Start button; it launches the
Start menu. It can also be used with other keys to
provide a variety of function:
+ <Tab> Activates next taskbar button.
+ <E> Opens the My Computer window
+ <F1> Opens Help and Support.
+ <F> Opens the Search: All Files dialog box.
+ <R> Opens the Run dialog box.
+ <M> Minimizes all windows.
<Shift>+
action.
+ <M> Undoes the minimize all windows
This key has the same effect as clicking the right
mouse button; it opens the application’s context
menu.
Application key
Hot Keys
The computer employs hotkeys or key combinations to access most of the computer’s controls like screen
brightness, volume output, and the BIOS utility.
To activate hot keys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Hot Key
16
Icon
Function
Description
<Fn>+<F1>
Hot key help
Displays help on hot keys.
<Fn>+<F2>
Acer eSettings
Launches the Acer eSettings in Acer eManager.
<Fn>+<F3>
Acer ePower
Management
Launches the Acer ePower Management in Acer
Empowering Technology. See “Acer Empowering
Technology” on page 19.
<Fn>+<F4>
Sleep
Puts the computer in Sleep mode.
Chapter 1
Hot Key
Icon
Function
Description
<Fn>+<F5>
Display toggle
Switches display output between the display screen,
external monitor (if connected) and both.
<Fn>+<F6>
Screen blank
Turns the display screen backlight off to save power.
Press any key to return.
<Fn>+<F7>
Touchpad toggle
Turns the internal touchpad on and off.
<Fn>+<F8>
Speaker toggle
Turns the speakers on and off.
<Fn>+<x>
Brightness up
Increases the screen brightness.
<Fn>+<z>
Brightness down
Decreases the screen brightness
<Fn>+<Home>
Play/Pause
Plays or pauses the media.
<Fn>+<Pg Up>
Stop
Stops the media playing.
<Fn>+<Pg Dn>
Previous
Returns to previous media file.
Next
Jumps to next media file.
<Fn>+<End>
Special Key
You can locate the Euro symbol and US dollar sign at the upper-center and/or bottom-right of your keyboard.
To type:
The Euro symbol
1.
Open a text editor or word processor.
2.
Either directly press the < > symbol at the bottom-right of the keyboard, or hold <Alt Gr> and then
press the<5> symbol at the upper-center of the keyboard.
NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/
typography/faq/faq12.htm for more information.
Chapter 1
17
The US dollar sign
1.
Open a text editor or word processor.
2.
Either directly press the < > key at the bottom-right of the keyboard, or hold <Shift> and then press the
<4> key at the upper-center of the keyboard.
NOTE: This function varies by the operating system version.
18
Chapter 1
Acer Empowering Technology
Acer’s innovative Empowering Technology makes it easy for you to access frequently used functions and
manage your new Acer notebook. It features the following handy utilities:
q
q
q
q
q
q
q
q
Acer eNet Management hooks up to location-based networks intelligently.
Acer ePower Management extends battery power via versatile usage profiles.
Acer ePresentation Management connects to a projector and adjusts display settings conveniently.
Acer eDataSecurity Management protects data with passwords and advanced encryption algorithms.
Acer eLock Management limits access to external storage media.
Acer eRecovery Management backs up and recovers data flexibly, reliably and completely.
Acer eSettings Management accesses system information and adjusts settings easily.
Acer ePerformance Management improves system performance by optimizing disk space, memory and
registry settings.
For more information, press the <
> key to launch the Empowering Technology toolbar, then click on the
appropriate utility and select the Help or Tutorial function.
Empowering Technology password
Before using Acer eLock Management and Acer eRecovery Management, you must initialize the Empowering
Technology password. Right-click on the Empowering Technology toolbar and select “Password Setup” to do
so. If you do not initialize the Empowering Technology password, you will be prompted to do so when running
Acer eLock Management or Acer eRecovery Management for the first time.
Acer eNet Management
Acer eNet Management helps you to quickly and easily connect to both wired and wireless networks in a
variety of locations. To access this utility, either click on the “Acer eNet Management” icon on your notebook,
or start the program from the Start menu. You also have the option to set Acer eNet Management to start
automatically when you boot up your PC.
Acer eNet Management automatically detects the best settings for a new location, while offering you the
freedom to manually adjust the settings to match your needs.
Chapter 1
19
Acer eNet Management can save network settings for a location to a profile, and automatically switch to the
appropriate profile when you move from one location to another. Settings stored include network connection
settings (IP and DNS settings, wireless AP details, etc.), as well as default printer settings.
Security and safety concerns mean that Acer eNet Management does not store username and password
information.
20
Chapter 1
Acer ePower Management
Acer ePower Management features a straightforward user interface. To launch it, select Acer ePower
Management from the Empowering Technology interface.
AC Mode (Adapter mode)
The default setting is “Maximum Performance.” You can adjust CPU speed, LCD brightness and other
settings, or click on buttons to turn the following functions on/off: Wireless LAN, Bluetooth, CardBus, FireWire
(1394), Wired LAN and Optical Device if supported.
DC Mode (Battery mode)
There are three pre-defined profiles - Balanced, Power Saver, and High Performance. You can also define the
power plan optimized for your needs.
To create new power plan
1.
Select a predefined power plan and click the “
2.
Enter the name for the newly created power plan.
3.
Select one of the predefined power plan that is closest to what you want.
4.
Change the display and sleep settings as desired.
5.
Click “OK“ to apply the setting.
6.
A new power plan is created.
Chapter 1
“ icon shown on the lower left-hand side.
21
Battery status
For real-time battery life estimates based on current usage, refer to the time shown in the “Remaining Battery
Life” field.
For additional power options, click “More Power option”.
Acer ePresentation Management
Acer ePresentation Management lets you project your computer’s display to an external device or project
using the hot key: Fn + F5. If auto-detection hardware is implemented in the system, your system display will
be automatically switched out when an external display is connected to the system.
22
Chapter 1
Acer eDataSecurity Management
Acer eDataSecurity Management is handy file encryption utility that protects your files from being accessed by
unauthorized persons. It is conveniently integrated with Windows explorer as a shell extension for quick and
easy data encryption/decryption and also supports on-the-fly file encryption for MSN Messenger and Microsoft
Outlook.
The Acer eDataSecurity Management setup wizard will prompt you for a supervisor password and default
encryption. This encryption will be used to encrypt files by default, or you can choose to enter your won filespecific password when encrypting a file.
NOTE: The password used encrypt a file is the unique key that the system needs to decrypt it. If you lose the
password, the supervisor password is the only other key capable of decrypting the file. If you lose both
passwords, there will be no way to decrypt your encrypted file! Be sure to safeguard all related
passwords!
Chapter 1
23
24
Chapter 1
Acer eLock Management
Acer eLock Management is a security utility that allows you to lock your removable data, optical and floppy
drives to ensure that data cannot be stolen while your notebook is unattended.
q
q
q
q
Removable data devices - includes USB disk drives, USB pen drives, USB flash drives, USB MP3 drives,
USB memory card readers, IEEE 1394 disk drives and any other removable disk drives that can be
mounted as a file system when plugged into the system.
Optical drive devices - includes any kind of CD-ROM or DVD-ROM drives.
Floppy disk drives - 3.5-inch disks only.
Interfaces - includes serial ports, parallel port, infrared (IR), and Bluetooth.
To activate Acer eLock Management, a password must be set first. Once set, you can apply locks to any of the
devices. Lock(s) will immediately be set without any reboot necessary, and will remain locked after rebooting,
until unlocked.
NOTE: If you lose your password, there is no method to reset it except by reformatting your notebook or taking
your notebook to an Acer Customer Service Center. Be sure to remember or write down your password.
Chapter 1
25
Acer eRecovery Management
Acer eRecovery Management is a powerful utility that does away with the need for recovery disks provided by
the manufacturer. The Acer eRecovery Management utility occupies space in a hidden partition on your
system’s HDD. User-created backups are stored on D:\ drive. Acer eRecovery Management provides you
with:
q
q
q
Password protection.
Recovery of applications and drivers.
Image/data backup:
q
q
Back up to HDD (set recovery point).
q
Back up to CD/DVD.
Image/data recovery tools:
q
Recover from a hidden partition (factory defaults).
q
Recover from the HDD (most recent user-defined recovery point).
q
Recover from CD/DVD.
For more information, please refer to “Acer eRecovery Management”
NOTE: If your computer did not come with a Recovery CD or System CD, please use Acer eRecovery
Management’s “System backup to optical disk” feature to burn a backup image to CD or DVD. To
ensure the best results when recovering your system using a CD or Acer eRecovery Management,
detach all peripherals (except the external Acer ODD, if your computer has one), including your Acer
ezDock.
26
Chapter 1
Acer eSettings Management
Acer eSettings Management allows you to inspect hardware specifications and to monitor the system health
status. Furthermore, Acer eSettings Management enables you to optimize your Windows operating system, so
your computer runs faster, smoother and better.
Acer eSettings Management also:
q
q
Provides a simple graphical user interface for navigating.
Displays general system status and advanced monitoring for power users.
Getting to know your Acer OrbiCam
3
Chapter 1
1
2 3
27
No.
1
Item
Lens
2
Power indicator
3
Rubber grip (selected models only)
Launching the Acer OrbiCam
To launch the Acer OrbiCam, double click on the Acer OrbiCam icon on the screen.
OR
Click Start > All programs > Acer > Acer OrbiCam. The Acer OrbiCam capture window appears.
Changing the Acer OrbiCam resolution
To change the capture resolution, click the displayed resolution button to select the desired resolution.
Using the Acer OrbiCam as webcam
The Acer OrbiCam is automatically selected as the capture device of any instant messenger (IM) application.
To use the Acer OrbiCam as a webcam, open the IM service, then select the video/webcam feature. You can
now broadcast from your location to an IM partner anywhere in the world.
28
Chapter 1
Note:
Using the System Utilities
NOTE: The system utilities work under Microsoft Windows XP only.
Acer GridVista (dual-display compatible)
NOTE: This feature is only available on certain models.
To enable the dual monitor feature of the notebook, firstStart
ensureControl
that the second
is connected, then
Panelmonitor
Display
Note:
select Start, Control Panel,
Display and click on Settings. Select the secondary monitor (2) icon in the
Settings
(2)
display box and then click the check box Extend my windows desktop onto this monitor. Finally, click
Extend
my
windows
desktop
this monitor
Apply to confirm the new settings and click OK to complete the onto
process.
Apply
OK
Settings
Apply
Start Control Panel Display
(2)
Extend my windows desktop onto this monitor
OK
Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows
on the same screen.
To access
this function, please go to Start
All Programs and click on Acer GridVista.
Start
All Programs
Acer> GridVista
All Programs
Acer GridVista
You may choose any one ofStart
the four
display settings indicated
below:
Double (vertical), Triple (primary at left), Triple (primary at right), or Quad Acer Gridvista is dual-display
compatible, allowing two displays to be partitioned independently.
Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
AcerGridVista is simple to set up:
1.
Run Acer GridVista and select your preferred screen configuration for each display from the task bar.
2.
Drag and drop each window into the appropriate grid.
3.
Enjoy the convenience of a well-organized desktop.
Chapter 1
29
NOTE: Please ensure that the resolution setting of the second monitor is set to the manufacturer's
recommended value.Note:
Note:
Launch Manager
Launch Manager allows"Easy-launch
you to set the four
easy-launch
buttons
buttons"
on page
24 (see their locations mentioned in “EasyLaunch Buttons”). You can access the Launch Manager by clicking Start > All Programs > Launch Manager to
start the application.
Start24
All Programs
"Easy-launch buttons" on page
Launch Manager
Start All Programs
Launch Manager
30
Chapter 1
Hardware Specifications and Configurations
Processor
Item
Specification
CPU type
®
AMD RevF/RevG CPU (Turion64) up to 2.3 GHz, 512KB L2 cache,
HyperTransport supporting speed up to 800 MHz
AMD® RevF/RevG CPU (Sempron) up to 2.2 GHz, 512KB L2 cache,
HyperTransport supporting speed up to 800 MHz
Core logic
North Bridge NVIDIA® MCP67-MV (Single chip)
CPU package
S1 Socket package CPU with 638-pin Lindless Micro PGA package
CPU core voltage
0.944~1.3V
CPU Fan True Value Table
TEST Condition: 35W@Ambient 35 degree C
CPU Temperature
Fan Speed
Acoustic Level
Core 0
Core 1
(rpm)
(dBA)
86
86
3700
39
88
88
3450
36.5
91
91
3150
34.5
95
95
2800
31
BIOS
Item
BIOS vendor
Specification
InsydeH2O
BIOS Version
BIOS ROM type
Flash ROM
BIOS ROM size
512KB
BIOS package
32-pin PLCC
Supported protocols
ACPI 1.0b/2.0/3.0, PCI 2.2, System/HDD Password Security Control, INT
13h Extensions, PnP BIOS 1.0a, SMBIOS 2.4, Simple Boot Flag 1.0, Boot
Block, PCI Bus Power Management Interface Specification, USB1.1/2.0,
IEEE 1394 1.0, USB/1394 CD-ROM Boot Up support, PC Card 95
(PCMCIA 3.0 Compliant Device), IrDA 1.0, Intel AC97 CNR Specification,
WfM 2.0, PXE (Preboot Execution Environment), BIS 1.0 (Boot Integrity
Service Application Program Interface), PC99a and Mobile PC2001
Compliant, Intel Enhanced SpeedStep Technology
BIOS password control
Set by setup manual
NOTE: If you need to check PXE version, press F2 to enter BIOS then enable boot from LAN function. After
that, power off the system and remove the HDD. Last, reboot the laptop. Then you will see PXE version
displaying on the screen.
Second Level Cache
Item
Specification
Cache controller
Built-in CPU
Cache size
2MB
1st level cache control
Always enabled
2st level cache control
Always enabled
Cache scheme control
Fixed in write-back
Chapter 1
31
System Memory
Item
Specification
Memory controller
North Bridge NVIDIA MCP67-MV (Single chip)
Memory size
0MB (no on-board memory)
DIMM socket number
2 sockets
Supports memory size per socket
2GB
®
Supports maximum memory size
4GB (by two 1024MB SO-DIMM module)
Supports DIMM type
DDR 2 Synchronous DRAM
Supports DIMM Speed
667 MHz
Supports DIMM voltage
1.8V and 0.9V
Supports DIMM package
200-pin soDIMM
Memory module combinations
You can install memory modules in any combinations as long as they
match the above specifications.
Memory Combinations
Slot 1
Slot 2
Total Memory
0MB
128MB
128MB
0MB
256MB
256MB
0MB
512MB
512MB
0MB
1024MB
1024MB
0MB
2048MB
2048MB
128MB
128MB
256MB
128MB
256MB
384MB
128MB
512MB
640MB
128MB
1024MB
1152MB
128MB
2048MB
2176MB
256MB
128MB
384MB
256MB
256MB
512MB
256MB
512MB
768MB
256MB
1024MB
1280MB
256MB
2048MB
2304MB
512MB
128MB
640MB
512MB
256MB
768MB
512MB
512MB
1024MB
512MB
1024MB
1536MB
512MB
2048MB
2560MB
1024MB
0MB
1024MB
1024MB
128MB
1152MB
1024MB
256MB
1280MB
1024MB
512MB
1536MB
1024MB
1024MB
2048MB
1024MB
2048MB
3072MB
Above table lists some system memory configurations. You may combine DIMMs with various capacities to
form other combinations. On above table, the configuration of slot 1 and slot 2 could be reversed.
32
Chapter 1
System VRAM and VBIOS Options
eSetting
System
Memory
VBIOS Option
in BIOS/
CMOS
512Mb
128MB
256MB
512MB
1024MB
128MB
256MB
512MB
2048MB
128MB
256MB
512MB
4096MB
128MB
256MB
512MB
OS
System
memory size
VRAM size
Dedicated
128MB
Max. available
192MB
Dedicated
256MB
Max. available
320MB
Dedicated
512MB
Max. available
576MB
Dedicated
128MB
Max. available
383MB
Dedicated
256MB
Max. available
511MB
Dedicated
512MB
Max. available
767MB
Dedicated
128MB
Max. available
895MB
Dedicated
256MB
Max. available
1023MB
Dedicated
512MB
Max. available
1279MB
Dedicated
128MB
Max. available
1919MB
Dedicated
256MB
Max. available
2047MB
Dedicated
512MB
Max. available
2303MB
VRAM size
System
memory size
512MB
192MB
512MB
512MB
320MB
512MB
512MB
578MB
512MB
1024MB
383MB
1024MB
1024MB
511MB
1024MB
1024MB
767MB
1024MB
2048MB
895MB
2048MB
2048MB
1023MB
2048MB
2048MB
1279MB
2048MB
4096MB
1919MB
4096MB
4096MB
2047MB
4096MB
4096MB
2303MB
4096MB
LAN Interface
Item
Specification
Chipset
Broadcom 5787
Supports LAN protocol
10/100/1000 Ethernet
Giga LAN
LAN connector type
RJ45
LAN connector location
Left side
Features
Integrated 10/100/1000 BASE-T transceiver
Wake on LAN support compliant with ACPI 2.0
PCI v2.2
Modem Interface
Item
Specification
Data modem data baud rate (bps)
56K
Supports modem protocol
V.92
Modem connector type
RJ11
Modem connector location
Right side
Chapter 1
33
Bluetooth Interface
Item
Specification
Chipset
Broadcom Bluetooth® 2.0+EDR
Data throughput
723 bps (full speed data rate)
Protocol
Bluetooth 1.1 (Upgradeable to Bluetooth 1.2 when SIG
specification is ratified).
Interface
USB 1.1
Connector type
USB
Wireless Module 802.11a/b/g/n
Item
Specification
Chipset
Broadcom 4311/4312 or Atheros XB63
Data throughput
11~54 Mbps
Protocol
802.11a+b+g+Draft-n/802.11a+b+g/802.11b+g
Interface
PCI
Hard Disk Drive Interface
Item
Vendor &
Model Name
HGST HTS541680J9SA00
Seagate ST980811AS
Toshiba MK8037GSX
WD WD800BEVS22RST0
HGST HTS541612J9SA00
Seagate ST9120822AS
Toshiba MK1237GSX
WD WD1200BEVS22RST0
HGST HTS541616J9SA00
Seagate ST9160821AS
Toshiba MK1637GSX
WD WD1600BEVS22RST0
Toshiba MK2035GSS
Capacity (MB)
80000
120000
160000
200000
Bytes per
sector
512
512
512
512
Data heads
2
3 (for Hitachi and
Seagate)
4 (for Toshiba)
4 (for Hitachi)
3 (for Seagate)
Disks
1
1
1
1
Spindle speed
(RPM)
5400 RPM
5400 RPM
5400 RPM
4200 RPM
8192KB
8192KB
8192KB
Drive Format
Performance Specifications
Buffer size
2048KB
Interface
ATA/ATAPI-6; ATA-6
ATA/ATAPI-6; ATA-6
ATA/ATA-6; ATA-6
ATA/ATA-6; ATA-6
Max. media
transfer rate
(disk-buffer,
Mbytes/s)
372
350
350
350
Data transfer
rate
(host~buffer,
Mbytes/s)
100 MB/Sec.
Ultra DMA mode-5
100 MB/Sec.
Ultra DMA mode-5
100 MB/Sec.
Ultra DMA mode-5
100 MB/Sec.
Ultra DMA mode-5
5V(DC) +/- 5%
5V(DC) +/- 5%
5V(DC) +/- 5%
DC Power Requirements
Voltage
tolerance
34
5V(DC) +/- 5%
Chapter 1
DVD-Dual Interface
Item
Specification
Vendor & model name
HLDS COMBO 12.7mm Tray 24X GCC-T10N
SONY COMBO 12.7mm Tray 24X CRX880A LF
PIONEER Super-Multi Drive 12.7mm Tray DVR-K17RS
PANASONIC Super-Multi Drive 12.7mm Tray DL 8X UJ-850
PHILIPS Super-Multi Drive 12.7mm Tray DL 8X DS-8A1P
HLDS Super-Multi Drive 12.7mm Tray LabelFlash 8X GSA-T20N
SONY Super-Multi Drive 12.7mm Tray DL 8X AD-7530A
TOSHIBA HD-DVD Drive 12.7mm Tray TS-L802A
Performance Specification
With CD Diskette
With DVD Diskette
Transfer rate (KB/sec)
Sustained:
Max 3.6Mbytes/sec
Sustained:
Max 10.8Mbytes/sec
Buffer Memory
2MB
Interface
Enhanced IDE(ATAPI) compatible
Applicable disc format
Support disc formats
1. Reads data in each CD-ROM, CD-ROM XA, CD-1, Video CD, CD-Extra and
CD-Text
2. Reads data in Photo CD (single and Multi-session)
3. Reads standard CD-DA
4. Reads and writes CD-R discs
5. Reads and writes CD-RW discs
6. Reads and writes in each DVD+R/RW (Ver. 1.1)
7. Reads data in each DVD-ROM and DVD-R (Ver. 2.0 for Authoring)
8. Reads and writes in each DVD-R (Ver. 2.0 for general), DVD-RW and
DVD+R/RW (Ver1.1)
Loading mechanism
Load: Manual
Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command
(c) Emergency Release
Power Requirement
Input Voltage
5 V +/- 5 % (Operating)
Audio Interface
Item
Specification
Audio Controller
Realtek ALC268
Audio onboard or optional
Built-in
Mono or Stereo
Stereo
Resolution
18 bit stereo full duplex
Compatibility
HD audio Interface; S/PDIF output for PCM or AC-3 content
Sampling rate
1Hz resolution VSR (Variable Sampling Rate)
Internal microphone
Yes
Internal speaker / Quantity
Yes/2 (2W speakers)
Supports PnP DMA channel
DMA channel 0
DMA channel 1
Supports PnP IRQ
IRQ10, IRQ11
Subwoofer
Yes (2W) (Optional)
Chapter 1
35
USB Port
Item
Specification
Chipset
Built-in ICH8M
USB Compliancy Level
2.0
OHCI
USB 1.1 and USB 2.0 Host controller
Number of USB port
4
Location
One on the left side; three on the rear side
Serial port function control
Enable/Disable by BIOS Setup
PCMCIA Port
Item
Specification
PCMCIA controller
TI PCI 7412
Supports card type
Type-II
Number of slots
One type-II
Access location
Left side
Supports ZV (Zoomed Video) port
No ZV support
Supports 32 bit CardBus
Yes
System Board Major Chips
Item
Core logic
Controller
®
North Bridge NVIDIA MCP67-MV (Single chip)
LAN
Realtek RTL8211B
USB 2.0
Built in ICH8M
Super I/O controller
NS 87383
MODEM
Connexant MDC 1.5 Card
Bluetooth
Broadcom 2045 Bluetooth® 2.0+EDR
Wireless LAN
Broadcom 4311/4312 or Atheros XB63
Fox BRM 4311 Minicard BG
PCMCIA
TI PCI 7412
Audio
Realtek ALC268
Keyboard
Item
Keyboard controller
36
Specification
KB926
Total number of keypads
88-/89-key
Windows logo key
Yes
Internal & external keyboard work
simultaneously
Plug USB keyboard to the USB port directly: Yes
Chapter 1
Battery
Item
Vendor & model name
Specification
BATTERY PANASONIC LI-ION 6CELLS
BATTERY SANYO LI-ION 6CELLS
BATTERY SIMPLO LI-ION 6CELLS
BATTERY SONY LI-ION 6CELLS
BATTERY PANASONIC LI-ION 8CELLS
BATTERY SANYO LI-ION 8CELLS
BATTERY SIMPLO LI-ION 8CELLS
BATTERY SONY LI-ION 8CELLS
Battery Type
Li-ion
Pack capacity
2000 mAH or 2400 mAH
Number of battery cell
6 cell or 8cell
Package configuration
9 cells in series, 2 series in parallel
Normal voltage
14.8V
Charge voltage
16.8+-0.2v
LCD 15.4” inch
Item
Specification
LPL
LP154WX4TLB2 (G)
CMO N154I2L05 GLARE
AUO
B154EW02
V7(G)
SAMSUNG
LTN154AT01001(G)
Screen Diagonal (mm)
15.4 inches
15.4 inches
15.4 inches
15.4 inches
Active Area (mm)
304.1x228.1
304.1x228.1
304.1x228.1
Display resolution (pixels)
1440x900
WXGA+
1440x900
WXGA+
1440x900
WXGA+
Pixel Pitch
0.297x0.297
0.099x0.297
0.297x0.297
Pixel Arrangement
R.G.B. Vertical
Stripe
R.G.B. Vertical
Stripe
R.G.B. Vertical
Stripe
R.G.B. Vertical
Stripe
Display Mode
Normally White
Normally White
Normally White
Normally White
Typical White Luminance (cd/m2)
300
300
300
300
Luminance Uniformity
N/A
N/A
70
70
Contrast Ratio
300
300
250
250
Response Time (Optical Rise Time/Fall
Time)msec
8
8
8
8
Nominal Input Voltage VDD
+3.3V Typ.
+3.3V
3.3V
3.3V
Typical Power Consumption (watt)
5.6/5.7
3.96
N/A
N/A
Weight
550
570
600
600
Physical Size(mm)
317.3x242.0x6.
0
317.3x242.0x5.
9
317.3x242.0x6.
5
317.3x242.0x6.
5
Electrical Interface
1 channel LVDS
1 channel LVDS
1 channel LVDS
1 channel LVDS
Support Color
262K colors
(RGB 6-bit data
driver)
262,144
262,144
262,144
Horizontal: Right/Left
40/40
45/45
40/40
40/40
Vertical: Upper/Lower
10/30
15/35
20/40
20/40
Vendor & model name
1440x900
WXGA+
also called Brightness
Viewing Angle (degree)
Chapter 1
37
LCD 15.4” inch
Item
Specification
Temperature Range( ° C)
Operating
0 to +50
0 to +50
0 to +50
0 to +50
Storage (shipping)
-20 to +60
-25 to +60
-20 to +60
-20 to +60
LCD Inverter
Item
Specification
Vendor & model name
Darfon/V189-301GP
Brightness conditions
N/A
Input voltage (V)
9~21
Input current (mA)
2.56 (max)
Output voltage (V, rms)
780V (2000V for kick off)
Output current (mA, rms)
6.5 (max)
Output voltage frequency (k Hz)
65K Hz (max)
AC Adapter
Item
Specification
Input rating
90V AC to 264V AC, 47Hz to 63Hz
Maximum input AC current
1.7A
Inrush current
220A@115VAC
220A@230VAC
Efficiency
82% min. @115VAC input full load
System Power Management
ACPI mode
38
Power Management
Mech. Off (G3)
All devices in the system are turned off completely.
Soft Off (G2/S5)
OS initiated shutdown. All devices in the system are turned off
completely.
Working (G0/S0)
Individual devices such as the CPU and hard disc may be power
managed in this state.
Suspend to RAM (S3)
CPU set power down
VGA Suspend
PCMCIA Suspend
Audio Power Down
Hard Disk Power Down
CD-ROM Power Down
Super I/O Low Power mode
Save to Disk (S4)
Also called Hibernation Mode. System saves all system states and
data onto the disc prior to power off the whole system.
Chapter 1
Chapter 2
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).
Your computer is already properly configured and optimized, and you do not need to run this utility. However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.
To activate the BIOS Utility, press m during POST (when “Press <F2> to enter Setup” message is prompted
on the bottom of screen).
Press m to enter setup. The default parameter of F12 Boot Menu is set to “disabled”. If you want to change
boot device without entering BIOS Setup Utility, please set the parameter to “enabled”.
Press <F12> during POST to enter multi-boot menu. In this menu, user can change boot device without
entering BIOS SETUP Utility.
PhoenixBIOS Setup Utility
Information
Main
Advanced
Memory
Security
Boot
CPU Type :
CPU Speed :
AMD Turion(tm) 64 X2 Mobile Technology TL-60
2000 MHz
HDD Model Name :
HDD Serial Number :
HDD Model Name :
HDD Serial Number :
ATAPI Model Name :
ATAPI Serial Number :
ST9160821AS-(PM)
5MAOTKSQ
None
Power
Exit
OptiarcDVDRWAD-75-(SM)
XXXXXXXXXXXXXXXXX
System BIOS Version : V0.07
VGA BIOS Version : V60.84.07.00.02
Serial Number :
Asset Tag Number :
Product Name :
Manufacturer Name :
XXXXXXXXXXXXXXXXXXXXXXXXXXXX
UUID :
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Chapter 2
Sub-Menu
52
Navigating the BIOS Utility
There are eight menu options: Information, Main, Advanced, Memory, Security, Boot, Power and Exit.
Follow these instructions:
q
To choose a menu, use the cursor left/right keys (zx).
q
To choose a parameter, use the cursor up/down keys (wy).
q
To change the value of a parameter, press por q.
q
A plus sign (+) indicates the item has sub-items. Press e to expand this item.
q
Press ^ while you are in any of the menu options to go to the Exit menu.
q
In any menu, you can load default settings by pressing t. You can also press u to save any
changes made and exit the BIOS Setup Utility.
NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a
particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values. Please
note that system information is subject to different models.
53
Chapter 2
Information
PhoenixBIOS Setup Utility
Information
Main
Advanced
Memory
Security
Boot
CPU Type :
CPU Speed :
AMD Turion(tm) 64 X2 Mobile Technology TL-60
2000 MHz
HDD Model Name :
HDD Serial Number :
HDD Model Name :
HDD Serial Number :
ATAPI Model Name :
ATAPI Serial Number :
ST9160821AS-(PM)
5MAOTKSQ
None
Power
Exit
OptiarcDVDRWAD-75-(SM)
XXXXXXXXXXXXXXXXX
System BIOS Version : V0.07
VGA BIOS Version : V60.84.07.00.02
Serial Number :
Asset Tag Number :
Product Name :
Manufacturer Name :
XXXXXXXXXXXXXXXXXXXXXXXXXXXX
UUID :
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Sub-Menu
NOTE: The system information is subject to different models.
Chapter 2
54
The table below describes the parameters in this screen.
Parameter
Description
CPU Type / CPU Speed
Display the CPU type and speed of the system.
HDD Model Name
Displays the model name of the HDD installed on the primary IDE master.
HDD Serial Number
Displays the serial number of the HDD installed on the primary IDE master.
HDD Model Name
Displays the model name of the HDD installed on the primary IDE slave.
HDD Serial Number
Displays the serial number of the HDD installed on the primary IDE slave.
ATAPI Model Name
Displays the model name of devices installed on the secondary IDE master. The hard disk
drive or optical drive model name is automatically detected by the system.
ATAPI Serial Number
Displays the serial number of devices installed on secondary IDE master. The hard disk
drive or optical drive model name is automatically detected by the system.
System BIOS Version
Displays the system BIOS version.
VGA BIOS Version
Displays the VGA firmware version of the system.
Serial Number
Displays the serial number of this unit.
Asset Tag Number
Displays the asset tag number of the system.
Product Name
Displays the product name of the system.
Manufacturer Name
Displays the manufacturer of this system.
UUID
This will be visible only when an internal LAN device is present.
UUID=32bytes
55
Chapter 2
Main
The Main screen displays a summary of your computer hardware information, and also includes basic setup
parameters. It allows the user to specify standard IBM PC AT system parameters.
Information
Main
PhoenixBIOS Setup Utility
Advanced
Memory
Security
Boot
Power
Exit
Item Specific Help
System Time :
[19:03:49]
System Date :
[01/01/2007]
System Memory :
634 KB
Extended Memory :
766 MB
Video Memory :
256 MB
Quiet Boot :
[Enabled]
Network Boot :
[Enabled]
F12 Boot Menu :
[Disabled]
Wake On Lan :
[Enabled]
D2D Recovery :
[Enabled]
<Tab>, <Shift-Tab>, or
<Enter> selects field.
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Sub-Menu
NOTE: The screen above is for your reference only. Actual values may differ.
Chapter 2
56
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Description
Format/Option
System Time
Sets the system time. The hours are displayed with
24-hour format.
Format: HH:MM:SS
(hour:minute:second) System Time
System Date
Sets the system date.
Format MM/DD/YYYY
(month/day/year) System Date
System Memory
Displays the system memory size. Memory size is
fixed to 634KB
Extended Memory
Displays the total size of the installed memory.
Video Memory
Displays the video memory size.
Quiet Boot
Determines if the Customer Logo and Summary
Screen will be displayed or not during boot up.
Option: Enabled or Disabled
Enabled: Customer Logo is displayed, and
Summary Screen is disabled.
Disabled: Customer Logo is not displayed, and
Summary Screen is enabled.
Network Boot
Enables, disables system boot from LAN (remote
server).
Option: Enabled or Disabled
F12 Boot Menu
Enables, disables the Boot Menu during POST.
Option: Disabled or Enabled
Wake-up on LAN
Enables, disables remote wakeup (power on) via
LAN.
Option: Enabled or Disabled
D2D Recovery
Enables, disables the D2D Recovery function. This
function allows the user to create a hidden partition
on hard disc drive to store the operation system
and restore the system to factory defaults.
Option: Enabled or Disabled
NOTE: The sub-items under each device will not be shown if the device control is set to disabled. This is
because the user is not allowed to control the settings in these cases.
57
Chapter 2
Advanced
The Advanced screen displays advanced settings of the BIOS utility.
Information
Main
PhoenixBIOS Setup Utility
Advanced
Security
Memory
Boot
Power
Exit
Item Specific Help
USB Self-Healing
PCI Hot-Plug Resources :
[Enabled]
I/O :
[256]
Memory :
[2M]
Pre-fetchable Memory:
[2M]
Watchdog Timer :
[Disabled]
Use this feature to
tune USB timing event
for USB devices
Integrated Devices
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Sub-Menu
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Description
Option
USB Self-Healing
This sub menu displays all USB self-healing
options and settings. See the following page
for a description of each setting.
PCI Hot-Plug Resources
Enables, disables support for hot plug devices.
Enabled or Disabled
I/O
Sets the number of I/O bytes assigned to each
hot-plug slot.
256, 512, 1024, 2048, 4096 or
None
Memory
Sets the amount of memory assigned to each
hot-plug slot.
1M, 2M, 4M, 8M, 16M, 32M, 64M
or None
Pre-fetchable Memory
Sets the amount of pre-fetchable memory
assigned to each hot-plug slot.
1M, 2M, 4M, 8M, 16M, 32M, 64M
or None
Watchdog Timer
Enables, disables the watchdog timer function.
Disabled or Enabled
Integrated Devices
This sub menu displays all options and
settings for integrated devices.
See the following page for a
description of each setting.
Chapter 2
58
USB Self-Healing
The USB Self-Healing screen displays all USB self-healing options and settings.
Parameter
Self-Healing
Description
Enables, disables the USB self-healing
function.
Option
Disabled or Enabled
OHCI Self-Healing:
(Open Host Controller Interface - supports USB 1.1 devices)
Duration of Port Reset in MS
Sets the port reset duration.
Enter numeric value (Default: 15)
Reset Recovery Time in MS
Sets the recovery duration following a reset.
Enter numeric value (Default: 30)
Device Power Good Time in MS
Sets the interval between power on and
system availability following a reset.
Enter numeric value (Default: 100)
Attach Signal Debounce in MS
Sets the debounce interval after a USB
device is connected.
Enter numeric value (Default: 100)
EHCI Self-Healing:
(Enhanced Host Controller Interface - supports USB 2.0 devices)
Enter numeric value (Default: 20)
Duration of Port Reset in MS
Sets the port reset duration.
Reset Recovery Time in MS
Sets the recovery duration following a reset.
Enter numeric value (Default: 17)
Device Power Good Time in MS
Sets the interval between power on and
system availability following a reset.
Enter numeric value (Default: 100)
Attach Signal Debounce in MS
Sets the debounce interval after a USB
device is connected.
Enter numeric value (Default: 100)
Integrated Devices
The Integrated Devices screen displays all options and settings for integrated devices.
Parameter
USB Control
Description
Enables, disables USB controllers.
Option
USB1.1+USB2, USB1.1 or
Disabled
USB2 Control
Enables, disables USB2 controllers.
USB1.1+USB2, USB1.1 or
Legacy USB Support
Enables, disables support for Legacy USB.
Enabled or Disabled
MAC LAN
Enables, disables the MAC LAN device.
Enabled or Disabled
MAC Address
Displays the system MAC address.
Azalia Codec
Enables, disables the Azalia audio interface
Enabled or Disabled
SATA0 Mode
Displays the available SATA0 modes.
IDE, RAID, AHCI, Linux AHCI or
Disabled
SATA Hotplug
Enables, disables the SATA hotplug. When
enabled, the SATA controller is always on,
therefore consuming more power.
Enabled or Disabled
SMU
Enables, disables the SMU (System
Management Unit) function
Enabled or Disabled
Software Based PMU FW
Loading
Enables, disables firmware boot up from an
external flash drive containing SBIOS.
Enabled or Disabled
Interrupt Mode
Selects the interrupt mode.
APIC or PIC
PCI Express MSI
Enables, disables the PCI Express MSI
(Message Signaled Interrupt) function.
Enabled or Disabled
Disabled
59
Chapter 2
Memory
The Memory screen displays details and settings for the installed memory in the system.
Information
Main
PhoenixBIOS Setup Utility
Advanced
Memory
Security
Boot
Power
Exit
Item Specific Help
Cache Ram
1024 KB
System Memory :
634 KB
Extended Memory :
784896 KB
Memory Cache :
[Enabled]
Cache System BIOS area :
[uncached]
Cache Video BIOS area :
[uncached]
Cache Base 0-512k :
[uncached]
Cache Base 0-512k-640k :
[uncached]
Sets the state of the
memory cache.
Cache Extended Memory Area : [uncached]
Cache A000 - AFFF :
[Disabled]
Cache B000 - BFFF :
[Disabled]
Cache C800 - CBFF :
[Disabled]
Cache CC00 - CFFF :
Cache D000 - C3FF :
[Disabled]
[Disabled]
Cache D400 - D7FF :
[Disabled]
Chapter 2
60
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Option
Displays the total amount of cache RAM.
System Memory
Displays the total amount of system memory.
Extended Memory
Displays the total amount of extended
memory.
Memory Cache
Enables, disables the memory cache.
Enabled or Disabled
Cache System BIOS area
Sets control of system BIOS caching to
improve system performance.
uncached, Write Through,
Cache Video BIOS area
Sets control of video BIOS caching to
improve video performance.
uncached, Write Through,
Cache Base 0-512K
Sets control of base memory caching up to
512K.
uncached, Write Through,
Sets control of base memory caching
between 512K-640K.
uncached, Write Through,
Cache Extended Memory Area
Sets control of system memory caching
above 1MB.
uncached, Write Through,
Cache fields
(A000-AFFF & B000 -BFFF)
Sets control of caching of specific areas of
memory.
Disabled, USWC Caching,
Cache fields
(C800-CBFF to EC00 - EFFF)
Sets control of caching of specific areas of
memory.
Disabled, Write Through, Write
Cache Base 512K-640K
61
Description
Cache Ram
Write Protect, or Write Back
Write Protect, or Write Back
Write Protect, or Write Back
Write Protect, or Write Back
Write Protect, or Write Back
Write Through, Write Protect, or
Write Back
Protect, or Write Back
Chapter 2
Security
The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.
Information
Main
PhoenixBIOS Setup Utility
Advanced
Memory
Security
Boot
Power
Exit
Item Specific Help
Supervisor Password Is :
User Password Is :
SATA Port 0 Disk Status
Clear
Clear
Clear
Set Supervisor Password
Set User Password
Set SATA Port 0 HDD Password
[Enter]
[Enter]
[Enter]
Password on Boot :
[Disabled]
Supervisor Password
controls access to the
setup utility. It can
be used to boot up when
Password on boot is
enabled.
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Chapter 2
Sub-Menu
62
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Description
Option
Supervisor Password Is
Shows whether the Supervisor Password is set or
not
Clear or Set
User Password is Is
Shows whether the User Password is set or not.
Clear or Set
SATA Port 0 Disk Status
Shows whether the HDD Password is set or not.
Clear or Set
Set Supervisor Password
Press Enter to set the supervisor password. When
set, this password protects the BIOS Setup Utility
from unauthorized access. The user can not either
enter the Setup menu nor change the value of
parameters.
Set User Password
Press Enter to set the user password. When user
password is set, this password protects the BIOS
Setup Utility from unauthorized access. The user
can enter Setup menu only and does not have right
to change the value of parameters.
Set SATA Port 0 HDD
Password
Press Enter to set the hard disk password. When
set, this password protects the BIOS Setup Utility
from unauthorized access. The user can not either
enter the Setup menu nor change the value of
parameters.
Password on Boot
Defines whether a password is required or not
during boot up. This option requires the Supervisor
password to be entered to make changes and will
be grayed out if the user password was used to
enter the setup utility.
Disabled or Enabled
NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget
your password. If you forget your password, you may have to return your notebook computer to your
dealer to reset it.
Setting a Password
Follow these steps as you set the supervisor, user, or hard disk password:
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set
Supervisor Password box appears:
2.
Type a password in the “Enter New Password” field. The password length can not exceed 8 alphanumeric
characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New Password” field.
IMPORTANT: Be very careful when typing your password because the characters do not appear on the
screen.
63
3.
Press e. After setting the password, the computer sets the Supervisor Password parameter to “Set”.
4.
If desired, you can opt to enable the Password on boot parameter.
5.
When you are done, press u to save the changes and exit the BIOS Setup Utility.
Chapter 2
Removing a Password
Follow these steps:
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set
Supervisor Password box appears:
2.
Type the current password in the Enter Current Password field and press e.
3.
Press e twice without typing anything in the Enter New Password and Confirm New Password fields. The
computer then sets the Supervisor Password parameter to “Clear”.
4.
When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.
Changing a Password
1.
Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The Set
Supervisor Password box appears:
2.
Type the current password in the Enter Current Password field and press e.
3.
Type a password in the Enter New Password field. Retype the password in the Confirm New Password
field.
4.
Press e. After setting the password, the computer sets the Supervisor Password parameter to “Set”.
5.
If desired, you can enable the Password on boot parameter.
6.
When you are done, press u to save the changes and exit the BIOS Setup Utility.
If the verification is OK, the screen will display as following.
The password setting is complete after the user presses u.
Chapter 2
64
If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.
If the new password and confirm new password strings do not match, the screen will display the following
message.
65
Chapter 2
Boot
The Boot screen allows the user to decide the order of boot devices to load the operating system. Bootable
devices includes the diskette drive in module bay, the onboard hard disk drive, and the CD-ROM in module
bay.
Information
Main
PhoenixBIOS Setup Utility
Security
Memory
Advanced
Boot
Power
Exit
Item Specific Help
Boot priority order:
1: IDE 4 : ST9160821AS-(S1)
2: IDE 5 :
3: IDE 0 : Optiarc DVD RW AD-7530A-(P
4: PCI BEV : NVIDIA Boot Agent 244.0538
5: USB HDD :
6: USB CDROM :
7: USB FDC :
8: USB KEY :
Use < > or < > to
select a device, then
press <F6> to move it
up the list, or <F5>
to move it down the
list. Press <Esc> to
escape the menu.
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Chapter 2
Sub-Menu
66
Power
The Power screen displays a summary of your computer power settings, and also includes advanced setup
parameters. It allows the user to enable and disable the power management options on the computer and
specify standard power parameters for specific components.
Information
Main
PhoenixBIOS Setup Utility
Advanced
Memory
Security
Boot
Power
Exit
Item Specific Help
C State Configuration
[Auto]
C1E Configuration
[Auto]
CPU Throttle :
[Disabled]
CPU Spread Spectrum :
[Disabled]
iGPU Spread Spectrum :
[Disabled]
PCIE Spread Spectrum :
[Disabled]
SATA Spread Spectrum :
[Disabled]
PState Configuration
[Enabled]
USB CSC Resume
[Disabled]
DIPM
[Disabled]
HIPM
[Enabled]
PCI Clocks :
[Enabled]
Fake Battery Subsystem
[Disabled]
AltVid
[Disabled]
ASPM (L0s/L1)
[Enabled]
Enable or Disable
C2/C3 CPU power states.
Auto enables C2 and C3
if single core is
detected and disables
C2 + C3 if dual
core is detected.
Power Saver
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Select
F10 Save and Exit
Sub-Menu
The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.
Parameter
Description
Option
C State Configuration
Enables, disables C2/C3 CPU power states. Auto
enables C2 and C3 if a single core is detected and
disables C2+C3 if a dual core is detected.
Auto, Disabled, C2, C3, or C2 + C3
C1E Configuration
Enables, disables the C1E power state, which
applies when a dual core is present. Auto enables
C1E only if a dual core is detected.
Auto or Disabled
CPU Throttle
Enables, disables the CPU throttle, to increase
CPU speed and performance.
Disabled or Enabled
CPU Spread Spectrum
Enables, disables the CPU Spread Spectrum
fucntion which allows the user to reduce the EMI of
the front side bus (FSB).
Disabled, 0.50% H.Kiss Up, 0.50%
H.Kiss Down, 0.75% H.Kiss Up, or
0.75% H.Kiss Up.
iGPU Spread Spectrum
Enables, disable the iGPU Spread Spectrum
function.
Disabled, 1.00% Triangular Center,
2.00% Triangular Center, or 3.00%
Triangular Center
PCIE Spread Spectrum
Enables, disables the PCIE Spread Spectrum
function.
Disabled or Triangular Down
SATA Spread Spectrum
Enables, disables the SATA Spread Spectrum
funtion.
Disabled or Triangular Down
PState Configuration
Enables, disables ACPI Pstate support.
Enabled or Disabled
USB CSC Resume
Enables, disables USB CSC resume.
Disabled or Enabled
DIPM
Enables, disables device initiated power
management on the hard disk.
Disabled or Enabled
HIPM
Enables, disables host initiated power
management on the hard disk.
Enabled or Disabled
PCI Clocks
Enables the PCI clock for all devices. Auto enables
the PCI clock for only connected devices.
Enabled or Auto
Fake Battery Subsystem
Enables, disables the Fake Battery Subsytem
feature
Disabled or Enabled
AltVid
Enables, disables the Altvid function, to reduce
processor voltage to the minimal operation level.
Disabled or Enabled
ASPM (L0s/L1)
Enables, disables the Active State Power
Management (ASPM) states (L0s/L1)
Enabled or Disabled
Power Saver
This sub menu displays all power saving options
and settings.
See the following page for a
description of each setting.
Chapter 2
68
Power Saver
The Power Saver screen displays all power saving options and settings.
Parameter
69
Description
Option
LDT Tristate
Enables, disables the transition to tristate during an
LDT stop.
Enabled or Disabled
LDTCLK Clamp
Enables, disables the digital clock clamp function.
Enabled or Disabled
LPLL CML Clamp
Enables, disables the CML clock clamp function.
Disabled or Enabled
Always Active or Deactivate
LPLL Active
Activates, deactivates, ldtpll CML output.
LPFPCI Clock Ratio
Sets the LPFPCI clock ratio.
Enter numeric value (Default: 16)
USB CLK Slow Down
Enables, disables the switch to 32KHz when no
devices are connected.
Disabled or Enabled
USB Clock Ratio
Sets the USB clock ratio.
Enter numeric value (Default: 16)
USB2 Clock Ratio
Sets the USB2 clock ratio.
Enter numeric value (Default: 16)
Aggressive L1 PD
Enables, disables clocck clamp function in L1.
Disabled or Enabled
SPI Output PD
Enables, disables SPI data and clock pads when not
in use.
Enabled or Disabled
IDE Clock Ratio
Sets the IDE clock ratio.
Enter numeric value (Default: 16)
SATA Clock Select
Sets the SATA clock speed.
133Mhz or 200Mhz
SATA Clock Ratio
Sets the SATA clock ratio.
Enter numeric value (Default: 16)
TV Xtal
Enables, disables the TV XTAL function.
Enabled or Disabled
DBG CG
Enables, disables DBG CG.
Enabled or Disabled
DBG Low Power
Enables, disables the DBG low power function for
energy saving.
Enabled or Disabled
AZA Clock Ratio
Sets the AZA clock ratio.
Enter numeric value (Default: 16)
XTAL
Enables, disables the powering down of the XTAL
pad during S3.
Enabled or Disabled
SM Clock slowdown
Enables, disables the slowing down of the SM clock.
Disabled or Enabled
Chapter 2
Exit
The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.
Information
PhoenixBIOS Setup Utility
Advanced
Security
Memory
Main
Boot
Power
Exit
Item Specific Help
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
[Enter]
[Enter]
[Enter]
[Enter]
[Enter]
Exit System Setup and
save your changes to
CMOS.
F1 Help
Select Item
F5/F6 Change Values
F9 Setup Defaults
Esc Exit
Select Menu
Enter Execute Command
F10 Save and Exit
The table below describes the parameters in this screen.
Parameter
Exit Saving Changes
Description
Exit System Setup and save your changes to CMOS.
Exit Discarding Changes
Exit utility without saving setup data to CMOS.
Load Setup Defaults
Load default values for all SETUP item.
Discard Changes
Load previous values from CMOS for all SETUP items.
Save Changes
Save Setup Data to CMOS.
Chapter 2
70
BIOS Flash Utility
The BIOS flash memory update is required for the following conditions:
q
New versions of system programs
q
New features or options
q
Restore a BIOS when it becomes corrupted.
Use the Phlash utility to update the system BIOS flash ROM.
NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery
Diskette before you use the Phlash utility.
NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.
NOTE: Please use the AC adapter power supply when you run the Phlash utility. If the battery pack does not
contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not
completely loaded.
Follow the steps below to run the Phlash.
71
1.
Prepare a bootable diskette.
2.
Copy the flash utilities to the bootable diskette.
3.
Then boot the system from the bootable diskette. The flash utility has auto-execution function.
Chapter 2
Chapter 3
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.
To disassemble the computer, you need the following tools:
q
Wrist grounding strap and conductive mat for preventing electrostatic discharge
q
Small Philips screw driver
q
Philips screwdriver
q
Plastic flat head screw driver
q
Tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
When you remove the stripe cover, please be careful not to scrape the cover.
Chapter 3
68
General Information
Before You Begin
Before proceeding with the disassembly procedure, make sure that you do the following:
69
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
3.
Remove the battery pack.
Chapter 3
Disassembly Procedure Flowchart
The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence
and instructs you on the components that need to be removed during servicing. For example, if you want to
remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in
that order.
Start
Battery Pack
D*5
F*1
Thermal
Door
B*1
D*1
System Fan
F*1
F*2
Mimi Cover
HDD Door
F*1
H*4
ODD Module
Memory
HDD Bracket
HDD
B*4
Thermal
Module
Middle Cover
F*2
CPU
Keyboard
C*2 LCD hinges to logic
D*2 LCD hinges to logic
C*2 on bottom side
LCD Module
C*8 upper case assembly to lower case assembly on bottom side
C*2 upper case assembly to lower case assembly on upper side
Lower Case
Assembly
Upper Case
Assembly
F*1
F*2
Switch Board
(for AS
models)
Modem
Board
F*1
Media Board
(for AS
models)
Touchpad
Bracket
F*1
Main Board
Touchpad
Touchpad
FFC
F*2
Lower Case
Chapter 3
Speaker Set
70
LCD Module
B*4
LCD Bezel
G*1 for 15"
G*2 for 15.4"
LCD Inverter
B*2
LCD
Assembly
LCD Panel
G*2 for 15.4"
Wireless
Antenna Set
F*8 (4 on left; 4 on right)
LCD Bracket
Sets
LCD Cable
LCD
Screw List
Item
71
Description
Part Number
A
SCREW M2.5*3(NL)
MA000006AG0
B
SCREW M2.5*4(NL)
MA0000061G0
B
SCREW M2.5*6(NL)
MA0000062G0
D
SCREW M2.5*12(NL)
MMCK25120G0
E
SCREW M2*2.2
MA000006UG0
F
SCREW M2*3(NL)
MA0000060G0
G
SCREW M2*5(Ni-NL)
MA0000012G0
H
SCREW M M 3.0D 3.0L K
MAAA03032G0
I
SCREW M 2.5D 4.15L K 5.5D ZK NL
MA0000005G0
J
SCREW M 2.5D 3.2L K 6D NI +
MA000006C00
K
SCREW ICW50_CPU_T HERMAL_SCR
AM010000300
L
SCREW M M 2.0D 3L K 5D
MA0000096G0
M
SCREW F 4# 5L K 4.5D ZK NL +
MA000002NG0
Chapter 3
Removing the Battery Pack
1.
Unlock the battery lock (move the battery lock to the unlock position as shown).
2.
Slide the battery release latch then remove the battery.
Chapter 3
72
Removing the HDD Module/Memory/Wireless LAN Card/Modem Card/System
Fan/Thermal Modules/VGA Board/CPU/Keyboard and the LCD Module
Removing the HDD Module
1.
Remove the two screws fastening the HDD cover.
2.
Detach the HDD cover from the main unit.
3.
Pull the tab to remove the HDD module in the direction of the arrow.
Removing the Memory
73
1.
Remove the four screws holding the thermal cover.
2.
Detach the thermal cover from the main unit.
3.
Pop out the memory from the DIMM socket then remove it (If the notebook has two memory, then repeat
this step).
Chapter 3
Removing the Wireless LAN Card/Modem Card and TV Tuner Card
1.
Disconnect the three antennae from the wireless LAN card.
2.
Remove the two screws fastening the wireless LAN card.
3.
Then take out the wireless LAN card from the main unit.
4.
Remove the screw fastening the modem card and detach the modem card from the main board.
5.
Disconnect the RJ-11 cable and remove the modem card.
Chapter 3
74
Removing the System Fan/Thermal Modules/VGA Board and CPU
75
1.
Disconnect the fan cable from the main board.
2.
Remove the three screws holding the system fan.
3.
Remove the four spring screws holding the CPU thermal module.
4.
Then detach the CPU thermal module as shown.
5.
Use a flat screwdriver to release the CPU lock (Turn counter clock-wire).
6.
Remove the CPU from the CPU socket carefully.
Chapter 3
Removing the Keyboard and LCD Module
1.
Turn the notebook over.
2.
Remove the two screws securing the strip cover from the bottom of the notebook.
3.
Detach the strip cover from the front side and remove it.
4.
Gently pull up the keyboard to release it from the four snaps as shown.
5.
Turn over the keyboard as the image shows. Then disconnect the keyboard cable from the main board.
6.
Remove the keyboard from the main unit.
7.
Disconnect the LCD cable and microphone cable from the main board.
8.
Pull out the wireless LAN antennas free from the main unit as shown.
9.
Remove the four screws securing the hinges.
Chapter 3
76
10. Detach the LCD module from the main unit.
77
Chapter 3
Disassembling the Main Unit
Separate the Main Unit Into the Upper and the Lower Case Assembly
1.
Remove the screw fastening the ODD from the bottom of the notebook.
2.
Push the ODD module outwards and gently pull it out as shown.
3.
Press and release the PC dummy card from the PC slot as shown.
4.
Then press the release the memory dummy card from the 5-in-1 card reader slot as shown.
5.
Remove the eight screws fastening the upper case and the lower case assembly on the bottom.
6.
Remove the eight screws fastening the upper case assembly and the lower case assembly on the front
side.
Chapter 3
78
7.
Disconnect the touchpad FFC, left speaker cable, button board FFC, and LED board FFC from the main
board.
8.
Carefully detach the upper case assembly from the lower case assembly.
Disassembling the Lower Case Assembly
79
1.
Disconnect the USB cable from the main board.
2.
Remove the screw fastening the USB board and take out the board and its cable from the lower case.
3.
Then detach the USB cable from the USB board.
4.
Disconnect the Bluetooth cable from the main board.
5.
Take out the Bluetooth module and its cable from the lower case as shown.
6.
Then detach the Bluetooth cable from the Bluetooth module.
7.
Disconnect the right speaker cable from the main board.
8.
Remove the two screws fastening the right speaker, then lift it out from the lower case.
Chapter 3
9.
Remove the screw fastening the main board to the lower case.
10. Detach the main board from the lower case as shown.
11. Turn the main board over, then remove the DC-in connector from the board as shown.
Chapter 3
80
Disassembling the Upper Case Assembly
81
1.
Turn the upper case over.
2.
Remove the two screws fastening the button board.
3.
Detach the button board with FFC from the upper case as shown.
4.
Remove the two screws fastening the LED board.
5.
Detach the LED board with FFC from the upper case as shown.
6.
Remove the two screws fastening the left speaker.
7.
Remove the left speaker from the upper case as shown.
Chapter 3
Disassembling the LCD Module
1.
Remove the four screw rubbers as shown.
2.
Then remove the four screws fastening the LCD bezel.
3.
Detach the LCD bezel from the LCD module carefully.
4.
Remove the four screws holding the LCD to the LCD panel.
5.
Detach the CCD cable connector from the CCD board.
6.
Take out the CCD module from the LCD panel.
7.
Remove the screw fastening the CCD board to the CCD bracket.
8.
Lift out the LCD from the LCD panel as shown.
9.
Detach the two inverter cable connectors from the inverter board.
Chapter 3
82
10. Remove the four screws fastening the left LCD bracket and detach it.
11. Remove the four screws fastening the right LCD bracket and detach it.
12. Disconnect the LCD cable from the rear side of the LCD.
83
Chapter 3
Disassembling the External Modules
Disassembling the HDD Module
1.
Remove the four screws holding the HDD (hard disk drive) case; two on each side.
2.
Carefully slide out the hard disk drive from the HDD case.
Disassembling the ODD Module
1.
Remove the three screws holding the optical bracket.
2.
Then remove the optical bracket from the optical disk drive.
Chapter 3
84
Chapter 4
Troubleshooting
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1.
Obtain the failing symptoms in as much detail as possible.
2.
Verify the symptoms by attempting to re-create the failure by running the diagnostic test or by repeating
the same operation.
3.
Use the following table with the verified symptom to determine which page to go to.
Symptoms (Verified)
Go To
Power failure (The power indicator does not go
on or stay on).
“Power System Check” on page 88
POST does not complete. No beep or error
codes are indicated.
“Power-On Self-Test (POST) Error Message” on
page 91
“Undetermined Problems” on page 103
POST detects an error and displayed messages
on screen.
“Error Message List” on page 92
Other symptoms (i.e. LCD display problems or
others).
“Power-On Self-Test (POST) Error Message” on
page 91
Symptoms cannot be re-created (intermittent
problems).
Use the customer-reported symptoms and go to
“Power-On Self-Test (POST) Error Message” on
page 91
“Intermittent Problems” on page 102
“Undetermined Problems” on page 103
Chapter 4
86
System Check Procedures
External Diskette Drive Check
Do the following to isolate the problem to a controller, driver, or diskette. A write-enabled, diagnostic diskette is
required.
NOTE: Make sure that the diskette does not have more than one label attached to it. Multiple labels can cause
damage to the drive or cause the drive to fail.
Do the following to select the test device:
1.
Boot from the diagnostics diskette and start the diagnostics program.
2.
See if FDD Test is passed as the program runs to FDD Test.
3.
Follow the instructions in the message window.
If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.
If the error still remains:
1.
Reconnect the external diskette drive/DVD-ROM module.
2.
Replace the external diskette drive/CD-ROM module.
3.
Replace the main board.
External CD-ROM Drive Check
Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does
not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.
Do the following to select the test device:
1.
Boot from the diagnostics diskette and start the diagnostics program.
2.
See if CD-ROM Test is passed when the program runs to CD-ROM Test.
3.
Follow the instructions in the message window.
If an error occurs, reconnect the connector on the System board. If the error still remains:
1.
Reconnect the external diskette drive/CD-ROM module.
2.
Replace the external diskette drive/CD-ROM module.
3.
Replace the main board.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable
extending from the keyboard is correctly seated in the connector on the system board.
If the keyboard cable connection is correct, run the Keyboard Test.
If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a
non-defective FRU:
1.
Reconnect the keyboard cables.
2.
Replace the keyboard.
3.
Replace the main board.
The following auxiliary input devices are supported by this computer:
87
q
Numeric keypad
q
External keyboard
Chapter 4
If any of these devices do not work, reconnect the cable connector and repeat the failing operation.
Memory check
Memory errors might stop system operations, show error messages on the screen, or hang the system.
1.
Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board).
2.
Go to the diagnostic memory in the test items.
3.
Press F2 in the test items.
4. Follow the instructions in the message window.
NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.
Power System Check
To verify the symptom of the problem, power on the computer using each of the following power sources:
1.
Remove the battery pack.
2.
Connect the power adapter and check that power is supplied.
3.
Disconnect the power adapter and install the charged battery pack; then check that power is supplied by
the battery pack.
If you suspect a power problem, see the appropriate power supply check in the following list:
Chapter 4
q
“Check the Power Adapter” on page 89
q
“Check the Battery Pack” on page 90
88
Check the Power Adapter
Unplug the power adapter cable from the computer and measure the output voltage at the plug of the power
adapter cable. See the following figure:
Pin 1: +19 to +20.5V
Pin 2: 0V, Ground
1.
If the voltage is not correct, replace the power adapter.
2.
If the voltage is within the range, do the following:
q
Replace the System board.
q
If the problem is not corrected, see “Undetermined Problems” on page 103.
If the voltage is not correct, go to the next step.
NOTE: An audible noise from the power adapter does not always indicate a defect.
q
89
3.
If the power-on indicator does not light up, check the power cord of the power adapter for correct
continuity and installation.
4.
If the operational charge does not work, see “Check the Battery Pack” on page 90.
Chapter 4
Check the Battery Pack
To check the battery pack, do the following:
From Software:
1.
Check out the Power Management in Control Panel
2.
In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total
Battery Power Remaining are correct.
3.
Repeat the steps 1 and 2, for both battery and adapter.
4.
This helps you identify first the problem is on recharging or discharging.
From Hardware:
1.
Power off the computer.
2.
Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the
following figure
3.
If the voltage is still less than 7.5 Vdc after recharging, replace the battery.
To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50%
of the total power remaining when installed in the computer.
If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.
Re-install the battery pack.
If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light
up, replace the DC/DC charger board.
Touchpad Check
If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a
non-defective FRU:
1.
Reconnect the touchpad cables.
2.
Replace the touchpad.
3.
Replace the system board.
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement
can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware
problem. No service actions are necessary if the pointer movement stops in a short period of time.
Chapter 4
90
Power-On Self-Test (POST) Error Message
The POST error message index lists the error message and their possible causes. The most likely cause is
listed first.
NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU
replacement does not solve the problem, put the original part back in the computer. Do not replace a
non-defective FRU.
This index can also help you determine the next possible FRU to be replaced when servicing a computer.
If the symptom is not listed, see “Undetermined Problems” on page 103.
The following lists the error messages that the BIOS displays on the screen and the error symptoms classified
by function.
NOTE: Most of the error messages occur during POST. Some of them display information about a hardware
device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the
way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter
Setup and install Setup defaults or correct the error.
91
Chapter 4
Index of Error Messages
Error Code List
Error Codes
006
Error Messages
Equipment Configuration Error
Causes:
1. CPU BIOS Update Code Mismatch
2. IDE Primary Channel Master Drive Error
(THe causes will be shown before “Equipment Configuration
Error”)
010
Memory Error at xxxx:xxxx:xxxxh (R:xxxxh, W:xxxxh)
070
Real Time Clock Error
071
CMOS Battery Bad
072
CMOS Checksum Error
110
System disabled.
Incorrect password is specified.
<No error code>
Battery critical LOW
In this situation BIOS will issue 4 short beeps then shut down
system, no message will show.
<No error code>
Thermal critical High
In this situation BIOS will shut down system, not show message.
Error Message List
Error Messages
Failure Fixed Disk
FRU/Action in Sequence
Reconnect hard disk drive connector.
“Load Default Settings” in BIOS Setup Utility.
Hard disk drive
System board
Stuck Key
see “Keyboard or Auxiliary Input Device Check” on page 87.
Keyboard error
see “Keyboard or Auxiliary Input Device Check” on page 87.
Keyboard Controller Failed
see “Keyboard or Auxiliary Input Device Check” on page 87.
Keyboard locked - Unlock key switch
Unlock external keyboard
Monitor type does not match CMOS - Run Setup
Run “Load Default Settings” in BIOS Setup Utility.
Shadow RAM Failed at offset: nnnn
BIOS ROM
System board
System RAM Failed at offset: nnnn
DIMM
System board
Extended RAM Failed at offset: nnnn
DIMM
System board
System battery is dead - Replace and run Setup
Replace RTC battery and Run BIOS Setup Utility to reconfigure
system time, then reboot system.
System CMOS checksum bad - Default
configuration used
RTC battery
System timer error
RTC battery
Run BIOS Setup Utility to reconfigure system time, then reboot
system.
Run BIOS Setup Utility to reconfigure system time, then reboot
system.
System board
Chapter 4
92
Error Message List
Error Messages
Real time clock error
FRU/Action in Sequence
RTC battery
Run BIOS Setup Utility to reconfigure system time, then reboot
system.
System board
Previous boot incomplete - Default configuration
used
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Memory size found by POST differed from
CMOS
Run “Load Default Settings” in BIOS Setup Utility.
DIMM
System board
Diskette drive A error
Check the drive is defined with the proper diskette type in BIOS
Setup Utility
See “External Diskette Drive Check” on page 87.
Incorrect Drive A type - run SETUP
Check the drive is defined with the proper diskette type in BIOS
Setup Utility
System cache error - Cache disabled
System board
CPU ID:
System board
DMA Test Failed
DIMM
System board
Software NMI Failed
DIMM
System board
Fail-Safe Timer NMI Failed
DIMM
System board
Device Address Conflict
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Allocation Error for device
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Failing Bits: nnnn
DIMM
BIOS ROM
System board
Fixed Disk n
None
Invalid System Configuration Data
BIOS ROM
System board
I/O device IRQ conflict
Run “Load Default Settings” in BIOS Setup Utility.
RTC battery
System board
Operating system not found
Enter Setup and see if fixed disk and drive A: are properly identified.
Diskette drive
Hard disk drive
System board
93
Chapter 4
Error Message List
No beep Error Messages
No beep, power-on indicator turns off and LCD is
blank.
FRU/Action in Sequence
Power source (battery pack and power adapter). See “Power
System Check” on page 88..
Ensure every connector is connected tightly and correctly.
Reconnect the DIMM.
LED board.
System board.
No beep, power-on indicator turns on and LCD is
blank.
Power source (battery pack and power adapter). See “Power
System Check” on page 88..
Reconnect the LCD connector
Hard disk drive
LCD inverter ID
LCD cable
LCD Inverter
LCD
System board
No beep, power-on indicator turns on and LCD is
blank. But you can see POST on an external
CRT.
Reconnect the LCD connectors.
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
No beep, power-on indicator turns on and a
blinking cursor shown on LCD during POST.
No beep during POST but system runs correctly.
Ensure every connector is connected tightly and correctly.
System board
Speaker
System board
Chapter 4
94
Phoenix BIOS Beep Codes
Code
Beeps
02h
Verify Real Mode
03h
Disable Non-Maskable Interrupt (NMI)
04h
Get CPU type
06h
Initialize system hardware
08h
Initialize chipset with initial POST values
09h
Set IN POST flag
0Ah
Initialize CPU registers
0Bh
Enable CPU cache
0Ch
Initialize caches to initial POST values
0Eh
Initialize I/O component
0Fh
Initialize the local bus IDE
10h
Initialize Power Management
11h
Load alternate registers with initial POST
values
12h
Restore CPU control word during warm boot
13h
Initialize PCI Bus Mastering devices
14h
16h
Initialize keyboard controller
1-2-2-3
BIOS ROM checksum
17h
Initialize cache before memory autosize
18h
8254 timer initialization
1Ah
8237 DMA controller initialization
1Ch
Reset Programmable Interrupt Controller
20h
1-3-1-1
Test DRAM refresh
22h
1-3-1-3
Test 8742 Keyboard Controller
24h
Set ES segment register to 4 GB
26h
Enable A20 line
28h
Autosize DRAM
29h
Initialize POST Memory Manager
2Ah
Clear 215 KB base RAM
2Ch
1-3-4-1
RAM failure on address line xxxx
2Eh
1-3-4-3
RAM failure on data bits xxxx of low byte of
memory bus
2Fh
30h
95
POST Routine Description
Enable cache before system BIOS shadow
1-4-1-1
RAM failure on data bits xxxx of high byte of
memory bus
32h
Test CPU bus-clock frequency
33h
Initialize Phoenix Dispatch Manager
36h
Warm start shut down
38h
Shadow system BIOS ROM
3Ah
Autosize cache
3Ch
Advanced configuration of chipset registers
3Dh
Load alternate registers with CMOS values
42h
Initialize interrupt vectors
45h
POST device initialization
Chapter 4
Code
46h
Beeps
2-1-2-3
48h
POST Routine Description
Check ROM copyright notice
Check video configuration against CMOS
49h
Initialize PCI bus and devices
4Ah
Initialize all video adapters in system
4Bh
QuietBoot start (optional)
4Ch
Shadow video BIOS ROM
4Eh
Display BIOS copyright notice
50h
Display CPU type and speed
51h
Initialize EISA board
52h
Test keyboard
54h
58h
Set key click if enabled
2-2-3-1
Test for unexpected interrupts
59h
Initialize POST display service
5Ah
Display prompt “Press F2 to enter SETUP”
5Bh
Disable CPU cache
5Ch
Test RAM between 512 and 640 KB
60h
Test extended memory
62h
Test extended memory address lines
64h
Jump to User Patch1
66h
Configure advanced cache registers
67h
Initialize Multi Processor APIC
68h
Enable external and CPU caches
69h
Setup System Management Mode (SMM) area
6Ah
Display external L2 cache size
6Bh
Load custom defaults (optional)
6Ch
Display shadow-area message
6Eh
Display possible high address for UMB
recovery
70h
Display error messages
72h
Check for configuration errors
76h
Check for keyboard errors
7Ch
Set up hardware interrupt vectors
7Eh
Initialize coprocessor if present
80h
Disable onboard Super I/O ports and IRQs
81h
Late POST device initialization
82h
Detect and install external RS232 ports
83h
Configure non-MCD IDE controllers
84h
Detect and install external parallel ports
85h
Initialize PC-compatible PnP ISA devices
86h
Re-initialize onboard I/O ports
87h
Configure Motherboard Configurable Devices
(optional)
88h
Initialize BIOS Area
89h
Enable Non-Maskable Interrupts (NMIs)
8Ah
Initialize Extended BIOS Data Area
8Bh
Test and initialize PS/2 mouse
Chapter 4
96
Code
Beeps
8Ch
Initialize floppy controller
8Fh
Determine number of ATA drives (optional)
90h
Initialize hard-disk controllers
91h
Initialize local-bus hard-disk controllers
92h
Jump to UserPatch2
93h
Build MPTABLE for multi-processor boards
95h
Install CD ROM for boot
96h
Clear huge ES segment register
97h
98h
Fixup Multi Processor table
1-2
Search for option ROMs. One long, two short
beeps on checksum failure.
99h
Check for SMART drive (optional)
9Ah
Shadow option ROMs
9Ch
Set up Power Management
9Dh
Initialize security engine (optional)
9Eh
Enable hardware interrupts
9Fh
Determine number of ATA and SCSI drives
A0h
Set time of day
A2h
Check key lock
A4h
Initialize Typematic rate
A8h
Erase F2 prompt
AAh
Scan for F2 key stroke
ACh
Enter SETUP
AEh
Clear Boot flag
B0h
Check for errors
B2h
POST done- prepare to boot operating system
B4h
97
POST Routine Description
1
One short beep before boot
B5h
Terminate QuietBoot (optional)
B6h
Check password (optional)
B9h
Prepare Boot
BAh
Initialize DMI parameters
BBh
Initialize PnP Option ROMs
BCh
Clear parity checkers
BDh
Display MultiBoot menu
BEh
Clear screen (optional)
BFh
Check virus and backup reminders
C0h
Try to boot with INT 19
C1h
Initialize POST Error Manager (PEM)
C2h
Initialize error logging
C3h
Initialize error display function
C4h
Initialize system error handler
C5h
PnPnd dual CMOS (optional)
C6h
Initialize notebook docking (optional)
C7h
Initialize notebook docking late
C8h
Force check (optional)
C9h
Extended checksum (optional)
Chapter 4
Code
Beeps
D2h
POST Routine Description
Unknown interrupt
Code
Beeps
E0h
Initialize the chipset
E1h
Initialize the bridge
E2h
Initialize the CPU
E3h
Initialize the system timer
E4h
Initialize system I/O
E5h
Check force recovery boot
E6h
Checksum BIOS ROM
E7h
Go to BIOS
E8h
Set Huge Segment
E9h
Initialize Multi Processor
EAh
Initialize OEM special code
EBh
Initialize PIC and DMA
ECh
Initialize Memory type
EDh
Initialize Memory size
EEh
Shadow Boot Block
EFh
System memory test
F0h
Initialize interrupt vectors
F1h
Initialize Run Time Clock
F2h
Initialize video
F3h
Initialize System Management Mode
F4h
1
Output one beep before boot
F5h
Boot to Mini DOS
F6h
Clear Huge Segment
F7h
Boot to Full DOS
Chapter 4
98
Index of Symptom-to-FRU Error Message
LCD-Related Symptoms
Symptom / Error
LCD backlight doesn't work
Action in Sequence
LCD is too dark
Enter BIOS Utility to execute “Load Setup Default Settings”, then
reboot system.
LCD brightness cannot be adjusted
Reconnect the LCD connectors.
LCD contrast cannot be adjusted
Keyboard (if contrast and brightness function key doesn't work).
LCD inverter ID
LCD cable
LCD inverter
LCD
System board
Unreadable LCD screen
Reconnect the LCD connector
Missing pels in characters
LCD inverter ID
Abnormal screen
LCD cable
Wrong color displayed
LCD inverter
LCD
System board
LCD has extra horizontal or vertical lines
displayed.
LCD inverter ID
LCD inverter
LCD cable
LCD
System board
Indicator-Related Symptoms
Symptom / Error
Indicator incorrectly remains off or on, but system
runs correctly
Action in Sequence
Reconnect the inverter board
Inverter board
System board
Power-Related Symptoms
Symptom / Error
Power shuts down during operation
Action in Sequence
Power source (battery pack and power adapter). See “Power
System Check” on page 88.
Battery pack
Power adapter
Hard drive & battery connection board
System board
The system doesn’t power-on.
Power source (battery pack and power adapter). See “Power
System Check” on page 88.
Battery pack
Power adapter
Hard drive & battery connection board
System board
The system doesn’t power-off.
Power source (battery pack and power adapter). See “Power
System Check” on page 88.
Hold and press the power switch for more than 4 seconds.
System board
99
Chapter 4
Power-Related Symptoms
Symptom / Error
Battery can’t be charged
Action in Sequence
See “Check the Battery Pack” on page 90.
Battery pack
System board
PCMCIA-Related Symptoms
Symptom / Error
System cannot detect the PC Card (PCMCIA)
Action in Sequence
PCMCIA slot assembly
System board
PCMCIA slot pin is damaged.
PCMCIA slot assembly
Memory-Related Symptoms
Symptom / Error
Memory count (size) appears different from
actual size.
Action in Sequence
Enter BIOS Setup Utility to execute “Load Default Settings, then
reboot system.
DIMM
System board
Speaker-Related Symptoms
Symptom / Error
Action in Sequence
In Windows, multimedia programs, no sound
comes from the computer.
Audio driver
Internal speakers make noise or emit no sound.
Speaker
Speaker
System board
System board
Power Management-Related Symptoms
Symptom / Error
The system will not enter hibernation
Action in Sequence
See “Save to Disk (S4)” on page 45.
Keyboard (if control is from the keyboard)
Hard disk drive
System board
The system doesn't enter hibernation mode and
four short beeps every minute.
Press Fn+oand see if the computer enters hibernation mode.
Touchpad
Keyboard
Hard disk connection board
Hard disk drive
System board
The system doesn’t enter standby mode after
closing the LCD
See “Save to Disk (S4)” on page 45.
LCD cover switch
System board
The system doesn't resume from hibernation
mode.
See “Save to Disk (S4)” on page 45.
Hard disk connection board
Hard disk drive
System board
The system doesn't resume from standby mode
after opening the LCD.
See “Save to Disk (S4)” on page 45.
LCD cover switch
System board
Chapter 4
100
Power Management-Related Symptoms
Symptom / Error
Battery fuel gauge in Windows doesn’t go higher
than 90%.
Action in Sequence
Remove battery pack and let it cool for 2 hours.
Refresh battery (continue use battery until power off, then charge
battery).
Battery pack
System board
System hangs intermittently.
Reconnect hard disk/CD-ROM drives.
Hard disk connection board
System board
Peripheral-Related Symptoms
Symptom / Error
Action in Sequence
System configuration does not match the
installed devices.
Enter BIOS Setup Utility to execute “Load Default Settings”, then
reboot system.
External display does not work correctly.
Press Fn+F5, LCD/CRT/Both display switching
Reconnect hard disk/CD-ROM/diskette drives.
System board
USB does not work correctly
System board
Print problems.
Ensure the “Parallel Port” in the “Onboard Devices Configuration” of
BIOS Setup Utility is set to Enabled.
Onboard Devices Configuration
Run printer self-test.
Printer driver
Printer cable
Printer
System Board
Serial or parallel port device problems.
Ensure the “Serial Port” in the Devices Configuration” of BIOS Setup
Utility is set to Enabled.
Device driver
Device cable
Device
System board
Keyboard/Touchpad-Related Symptoms
Symptom / Error
Keyboard (one or more keys) does not work.
Action in Sequence
Reconnect the keyboard cable.
Keyboard
System board
Touchpad does not work.
Reconnect touchpad cable.
Touchpad board
System board
Modem-Related Symptoms
Symptom / Error
Internal modem does not work correctly.
Action in Sequence
Modem phone port
modem combo board
System board
NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined
Problems” on page 103.
101
Chapter 4
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
1.
Run the advanced diagnostic test for the system board in loop mode at least 10 times.
2.
If no error is detected, do not replace any FRU.
3.
If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
Chapter 4
102
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.
Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).
NOTE: Verify that all attached devices are supported by the computer.
NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power
System Check” on page 88.):
103
1.
Power-off the computer.
2.
Visually check them for damage. If any problems are found, replace the FRU.
3.
Remove or disconnect all of the following devices:
q
Non-Acer devices
q
Printer, mouse, and other external devices
q
Battery pack
q
Hard disk drive
q
DIMM
q
CD-ROM/Diskette drive Module
q
PC Cards
4.
Power-on the computer.
5.
Determine if the problem has changed.
6.
If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.
7.
If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:
q
System board
q
LCD assembly
Chapter 4
Chapter 5
Jumper and Connector Locations
Top View
1
2 3 4
7
8
6
5
9
10
15
11
16
12
13
14
1
JP1
LVDS Connector
9
U14
2
JP3
Speaker (Left) Connector
10
U15
3
JP34
Speaker (Right) Connector
11
JP9
PCI Express Card Socket
4
JP4
Microphone Connector
12
LED1
Power/Suspend LED
5
JP6
Touchpad Connector
13
LED2
Battery Charge/Discharge LED
6
JP5
Keyboard Connector
14
JP13
Mainboard to Audio Board
Connector
7
JP2
Button Board Connector
15
JP11
Mainboard to USB & TV Board
Connector
8
JP36
LED Board Connector
16
JP12
Bluetooth Module Connector
Chapter 5
89
Bottom View
1
3
2
9
8
7
5
4
10
6
14
11
12
13
15
16
17
19
20
18
21 22 23
90
1
PJP1
DC-in Power Jack
13
JP26
IEEE1394 Connector
2
PJP2
Battery Connector
14
JP22
CPU Socket
3
JP14
D-Sub CRT Connector
15
JP27
SATA HDD Connector
4
JP25
ODD Connector
16
SW1
Volume Control
5
JP20
Mini Card (TV-Tuner) Connector
17
JP28
DDRII Memory Socket
6
JP20
Mini Card (WLAN) Connector
18
JP29
DDRII Memory Socket
7
JP21
Mini Card (TV-Tuner) Socket
19
U29
Audio Codec Controller
8
U23
North Bridge
20
JP30
Memory Card Reader
9
JP16
Internal Fan Connector
21
JP31
Line-Out/Headphone/SPDIF Jackt
10
JP18
RJ45 (LAN) Connector
22
JP32
Mic-in Jack
23
JP33
Line-in Jack
11
JP23
USB (Dual) Connectors
12
JP24
TV-out Connector
Chapter 5
Chapter 6
FRU (Field Replaceable Unit) List
This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of Aspire 5520/5220. Refer to this
chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).
Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available on your
regional web or channel. For whatever reasons a part number change is made, it will not be noted on the printed Service
Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from
those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional Acer
office to order FRU parts for repair and service of customer machines.
NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or regulations on how to
dispose it properly, or follow the rules set by your regional Acer office on how to return it.
Chapter 6
91
Aspire 5520/5220 FRU List
Category
No.
Part Name and Description
Acer Part No.
ADAPTER
ADAPTER 65W 3PIN DELTA SADP65KB DBFF
AP.06501.009
ADAPTER 65W 3PIN DELTA SADP65KB DFA
AP.06501.013
ADAPTER 65W 3PIN LITEON PA-165002 LR
AP.06503.012
ADAPTER 65W 3PIN LITEON PA-165002AC
AP.06503.016
ADAPTER 90W 3PIN DELTA ADP-90SB
BBAC
AP.09001.003
ADAPTER 90W 3PIN DELTA ADP-90SB
BBEA
AP.09001.013
ADAPTER 90W 3PIN LITEON PA-190024AR
AP.09003.006
ADAPTER 90W 3PIN LITEON PA-190004 LR
AP.09003.011
BATTERY
BATTERY LI-ION 6CELLS 4KMAH
BT.00605.015
PANASONIC PA 3S2P 4.0AH 7 01K 0FA
BATTERY LI-ION 6CELLS 4KMAH
SANYO SA 3S2P 4AH 7 01K 0FA
BT.00603.033
BATTERY LI-ION 6CELLS 4KMAH
SIMPLO SP PA 3S2P 4.0AH 7 01K 0FA
BT.00607.010
BATTERY LI-ION 6CELLS 4KMAH
SONY SY 3S2P 4.0AH 7 01K 0FA
BT.00604.018
BATTERY LI-ION 8CELLS 4.8MAH
BT.00805.011
PANASONIC PA 4S2P 4.8AH 7 01K 0FA
BATTERY LI-ION 8CELLS 4.8MAH
SANYO SA 4S2P 4.8AH 7 01K 0FA
BT.00803.024
BATTERY LI-ION 8CELLS 4.8MAH
SIMPLO SP PA 4S2P 4.8AH 7 01K 0FA
BT.00807.014
BATTERY LI-ION 8CELLS 4.8MAH
SONY SY 4S2P 4.8AH 7 01K 0FA
BT.00804.020
MODEM BOARD
FX.22500.009
BLUETOOTH BOARD
54.AHE02.001
BOARD
92
MINI WLAN/B INTEL 802.11 B/G
KI.GLN01.005
MINI WLAN/B INTEL 802.11 A/B/G
MOW1 (MM#872612)
KI.GLN01.001
MINI WLAN/B INTEL 802.11 A/B/G
MOW2 (MM#872612)
KI.GLN01.002
Chapter 6
Category
No.
Part Name and Description
Acer Part No.
MINI WLAN/B INTEL 802.11 A/B/G
ROW (MM#872612)
KI.GLN01.003
MINI WLAN/B INTEL 802.11 A/B/G JPN
(MM#875652)
KI.GLN01.004
MINI WLAN/B INTEL 802.11 4965ANG
MOW1 (MM#886224)
KI.KDN01.001
MINI WLAN/B INTEL 802.11 4965ANG
MOW2 (MM#886220)
KI.KDN01.002
MINI WLAN/B INTEL 802.11 4965ANG
ROW (MM#886434)
KI.KDN01.003
MINI WLAN/B INTEL 802.11 4965ANG
JP (MM#886437)
KI.KDN01.004
BUTTON BOARD W/CABLE 15.4"
55.AHE02.001
LED BOARD W/CABLE 15.4
55.AHE02.002
USB BOARD FOR TV
55.AHE02.003
USB BOARD FOR W/O TV
55.AHE02.004
RF BOARD FOR DTV
55.AHE02.005
VGA BOARD-M71M 128MB
VG.71M02.002
VGA BOARD-M71M 256MB W/HDCP
VG.71M02.001
RJ11 CABLE 15.4
50.AHE02.001
CABLE
Chapter 6
FFC CABLE - T/P TO MB
50.AHE02.002
BLUE TOOTH CABLE 15.4
50.AHE02.003
USB CABLE 15.4
50.AHE02.004
93
Category
No.
Part Name and Description
Acer Part No.
RF CABLE 15.4
50.AHE02.005
7 PIN MINI-DIN S-VIDEO TO 4 CABLE
50.ABD02.001
PAL TO NTSC CONNECTOR
20.ABD02.001
SMB JACK
50.ABD02.002
DVB-T ANT
50.ABD02.003
DC-IN CABLE (65W) UMA
50.AHE02.009
DC-IN CABLE (90W) UMA/DIS
50.AHH02.001
POWER CORD US 3 PIN
27.TAVV5.001
POWER CORD EU 3 PIN
27.TAVV5.002
POWER CORD AUS 3 PIN
27.TAVV5.003
POWER CORD UK 3 PIN
27.TAVV5.004
POWER CORD CHINA 3 PIN
27.TAVV5.005
POWER CORD SWISS 3 PIN
27.TAVV5.006
POWER CORD ITALIAN 3 PIN
27.TAVV5.007
POWER CORD DENMARK 3 PIN
27.TAVV5.008
POWER CORD JP 3 PIN
27.TAVV5.009
POWER CORD SOUTH AFRICA 3 PIN
27.TAVV5.010
POWER CORD KOERA 3 PIN
27.TAVV5.011
POWER CORD ISRAEL 3 PIN
27.TAVV5.012
POWER CORD INDIA 3 PIN
27.TAVV5.013
POWER CORD TWN 3 PIN
27.TAVV5.014
MIDDLE COVER 15.4
42.AHE02.001
UPPER CASE ASSY 15.4 W/TP TP
BRACKET TP FFC - DIS
60.AHE02.001
UPPER CASE ASSY 15.4 W/TP TP
BRACKET TP FFC - UMA
60.AHE02.002
LOWER CASE ASSY UMA W/TV-15.4
60.AHE02.003
LOWER CASE ASSY UMA W/O TV-15.4
60.AHE02.004
LOWER CASE ASSY DIS W/TV-15.4
60.AHE02.005
LOWER CASE ASSY DIS W/O TV-15.4
60.AHE02.006
THERMAL DOOR 15.4 UMA
42.AHE02.002
CASE/COVER/BRACKET ASSEMBLY
94
Chapter 6
Category
No.
Part Name and Description
Acer Part No.
THERMAL DOOR 15.4 DIS
42.AHE02.003
INTEL CPU MEROM DUAL CORE
T7700 2.4G LF80537GG0564M SLA43
E1
KC.77001.DTP
INTEL CPU MEROM DUAL CORE
T7500 2.2G LF80537GG0494M SLA44
E1
KC.75001.DTP
INTEL CPU MEROM DUAL CORE
T7300 2.0G LF80537GG0414M SLA45
E1
KC.73001.DTP
INTEL CPU MEROM DUAL CORE
T7100 1.8G LF80537GG0332M SLA4A
M0
KC.71001.DTP
INTEL CPU MEROM DUAL CORE
T5450 1.66G LF80537GF0282M
QWNW M0 SLA4F
KC.54501.DTP
DVD/CDRW 24X COMBO MODULE
6M.AHE02.001
DVD/CDRW COMBP DRIVE HLDS
GCC-T10N VISTA 0FA
KO.0240D.005
DVD/CDRW COMBP DRIVE SONY
CRX880A VISTA 0FA
KO.0240E.005
ODD BEZEL-COMBO
42.AHE02.003
ODD BRACKET 15.4"
33.AHE02.001
CPU/PROCESSOR
COMBO MODULE
DVD-RW DRIVE
DVD SUPER MULTI MODULE TRAY IN 6M.AHE02.002
Chapter 6
DVD SUPER MULTI DRIVE PIONEER
DVR-K17RS 0FA
KU.00805.038
DVD SUPER MULTI DRIVE
PANASONIC UJ-850UAA1-A VISTA
KU.00807.055
95
Category
No.
Part Name and Description
DVD SUPER MULTI DRIVE PHILIPS
DS-8A1P 0FA
Acer Part No.
KU.00809.010
DVD SUPER MULTI DRIVE HLDS GSA- KU.0080D.027
T20N 0FA
DVD SUPER MULTI DRIVE SONY AD7530A 0FA
KU.0080E.002
ODD BEZEL-SUPER MULTI
42.AHE02.004
ODD BRACKET 15.4"
33.AHE02.001
HD-DVD MODULE
TBD
HD-DVD DRIVE TOSHIBA TS-L802A
VISTA 0FA AC05
KV.00101.002
ODD BEZEL-HD DVD
42.AHE02.005
ODD BRACKET 15.4"
33.AHE02.001
HDD SATA 80G 5400RPM HGST
HTS541680J9SA00 SURUGA-B LF F/
W: C70P
KH.08007.021
HDD SATA 80G 5400RPM SEAGATE
ST980811AS SATA 8MB LF 3.ALD
KH.08001.030
HDD SATA 80G 5400RPM TOSHIBA
MK8037GSX Gemini BS SATA LF F/
W:DL230J
KH.08004.010
HDD/HARD DISK DRIVE
KH.08008.033
HDD SATA 80G 5400RPM WD
WD800BEVS-22RST0 ML80 SATA LF F/
W:04.01G04
96
HDD SATA 120G 5400RPM HGST
HTS541612J9SA00 SURUGA-B LF F/
W: C70P
KH.12007.010
HDD SATA 120G 5400RPM SEAGATE
ST9120822AS SATA 8MB LF 3.ALD
KH.12001.031
HDD SATA 120G 5400RPM TOSHIBA
MK1237GSX Gemini BS SATA LF F/
W:DL130J
KH.12004.006
HDD SATA 120G 5400RPM WD
WD1200BEVS-22RST0 ML80 SATA LF
F/W:04.01G04
KH.12008.018
HDD SATA 160G 5400RPM HGST
HTS541616J9SA00 SURUGA-B LF F/
W: C70P
KH.16007.011
HDD SATA 160G 5400RPM SEAGATE
ST9160821AS SATA 8MB LF 3.ALD
KH.16001.026
HDD SATA 160G 5400RPM TOSHIBA
MK1637GSX Gemini BS SATA LF F/W:
DL030J
KH.16004.001
HDD SATA 160G 5400RPM WD
WD1600BEVS-22RST0 ML80 SATA LF
F/W:04.01G04
KH.16008.019
Chapter 6
Category
No.
Part Name and Description
Acer Part No.
HDD SATA 200G 4200RPM TOSHIBA
MK2035GSS Gemini SATA LF F/
W:DK022A
KH.20004.001
HDD DOOR 15.4
42.AHE02.007
HDD BRACKET 15.4
33.AHE02.002
KEYBOARD 14_15KB-FV2 88KS
WHITE US INTERNATIONAL
KB.INT00.036
KEYBOARD 14_15KB-FV2 88KS
WHITE US INTERNATIONAL HEBREW
KB.INT00.037
KEYBOARD 14_15KB-FV2 89KS
WHITE UK
KB.INT00.038
KEYBOARD 14_15KB-FV2 89KS
WHITE TURKISH
KB.INT00.039
KEYBOARD 14_15KB-FV2 88KS
WHITE THAILAND
KB.INT00.040
KEYBOARD 14_15KB-FV2 89KS
WHITE SWISS/G
KB.INT00.041
KEYBOARD 14_15KB-FV2 89KS
WHITE SWEDISH
KB.INT00.042
KEYBOARD 14_15KB-FV2 89KS
WHITE SPANISH
KB.INT00.043
KEYBOARD
Chapter 6
KEYBOARD WHITE 15.4 SLOVAK
KB.INT00.045
KEYBOARD WHITE 15.4 SLO/CRO
KB.INT00.046
KEYBOARD 14_15KB-FV2 88KS
WHITE RUSSIAN
KB.INT00.047
KEYBOARD 14_15KB-FV2 89KS
WHITE PORTUGUESE
KB.INT00.048
KEYBOARD 14_15KB-FV2 89KS
WHITE NORWEGIAN
KB.INT00.050
KEYBOARD 14_15KB-FV2 88KS
WHITE KOREAN
KB.INT00.052
KEYBOARD 14_15KB-FV2 93KS
WHITE JAPANESE
KB.INT00.053
KEYBOARD 14_15KB-FV2 89KS
WHITE ITALIAN
KB.INT00.054
KEYBOARD 14_15KB-FV2 89KS
WHITE HUNGARIAN
KB.INT00.057
KEYBOARD 14_15KB-FV2 88KS
WHITE GREEK
KB.INT00.058
KEYBOARD 14_15KB-FV2 89KS
WHITE GERMAN
KB.INT00.059
KEYBOARD 14_15KB-FV2 89KS
WHITE FRENCH
KB.INT00.060
97
Category
No.
Part Name and Description
Acer Part No.
KEYBOARD 14_15KB-FV2 89KS
WHITE DUTCH
KB.INT00.062
KEYBOARD 14_15KB-FV2 89KS
WHITE DANISH
KB.INT00.063
KEYBOARD 14_15KB-FV2 89KS
WHITE CZECH
KB.INT00.064
KEYBOARD 14_15KB-FV2 88KS
WHITE TRADITIONAL CHINESE
KB.INT00.065
KEYBOARD 14_15KB-FV2 89KS
WHITE CANADIAN FRENCH
KB.INT00.066
KEYBOARD 14_15KB-FV2 89KS
WHITE BRAZILIAN PORTUGUESE
KB.INT00.067
KEYBOARD 14_15KB-FV2 89KS
WHITE BELGIUM
KB.INT00.068
KEYBOARD 14_15KB-FV2 88KS
WHITE ARABIC/ENGLISH
KB.INT00.069
ASSY LCD MODULE 15.4 IN. WXGA
GLARE W/ANTENNA CCD
6M.AHE02.003
LCD 15.4 WXGAG LPL LP154WX4TLB2 (G) 8ms 220nits Nanking
LK.15408.025
LCD 15.4 WXGAG CMO N154I2-L05
Glare :220nits, 8ms 0.6mm/Asahi
LK.1540D.017
LCD 15.4 WXGAG AUO B154EW02
V7(G) 8ms 220nits HW0A
LK.15405.021
LCD
LCD 15.4 WXGAG AUO B154EW02 V7- LK.15405.023
HW1A 154 WX G 0FA
98
LCD 15.4 WXGAG AUO B154EW08 V1
LK.15405.025
LCD 15.4 WXGAG SAMSUNG
LTN154AT01-001(G) 220nits 8ms
LK.15406.021
INVERTER BOARD 15.4
19.AHE02.001
LCD WIRESET 15.4
50.AHE02.006
LCD COVER ASSY 15.4 IN. LOGO W/
MIC W/ANTENNA
60.AHE02.007
LCD BEZEL ASSY 15.4 FOR CCD
60.AHE02.008
Chapter 6
Category
No.
Part Name and Description
Acer Part No.
LCD BRACKET SET R&L 15.4
33.AHE02.003
CCD MODULE 0.3M
57.AHE02.001
CCD BRACKET-15.4
33.AHE02.004
CCD MYLAR-15.4
47.AHE02.001
ASSY LCD MODULE 15.4 IN. WXGA
GLARE W/ANTENNA
TBD
LCD 15.4 WXGAG LPL LP154WX4TLB2 (G) 8ms 220nits Nanking
LK.15408.025
LCD 15.4 WXGAG CMO N154I2-L05
Glare :220nits, 8ms 0.6mm/Asahi
LK.1540D.017
LCD 15.4 WXGAG AUO B154EW02
V7(G) 8ms 220nits HW0A
LK.15405.021
LCD 15.4 WXGAG AUO B154EW02 V7- LK.15405.023
HW1A 154 WX G 0FA
LCD 15.4 WXGAG AUO B154EW08 V1
LK.15405.025
LCD 15.4 WXGAG SAMSUNG
LTN154AT01-001(G) 220nits 8ms
LK.15406.021
INVERTER BOARD 15.4
19.AHE02.001
LCD WIRESET 15.4
50.AHE02.006
LCD COVER ASSY 15.4 IN. LOGO W/
MIC W/ANTENNA
60.AHE02.007
LCD BEZEL ASSY 15.4 FOR W/O CCD
FUNCTION
60.AH902.003
LCD BRACKET SET R&L 15.4
33.AHE02.003
MAINBOARB GM965 UMA W/CARD
READER_EXPRESS CARD W/O CPU
MEMORY
MB.AHE02.001
MAINBOARB PM965 DISCRETE W/
CARD READER_EXPRESS CARD W/O
CPU MEMORY
MB.AHH02.001
MEMORY 512MB DDRII 667 NANYA
NT512T64UH8B0FN-3C
KN.51203.032
MEMORY 512MB DDRII 667
SAMSUNG M470T6554EZ3-CE6
KN.5120B.023
MEMORY 512MB DDRII 667 HYNIX
HYMP564S64CP6-Y5
KN.5120G.019
MAINBOARD
MEMORY
Chapter 6
99
Category
No.
Part Name and Description
Acer Part No.
MEMORY 1GB DDRII 667 NANYA
NT1GT64U8HB0BN-3C
KN.1GB03.014
MEMORY 1GB DDRII 667 SAMSUNG
M470T2953EZ3-CE6
KN.1GB0B.011
MEMORY 1GB DDRII 667 HYNIX
HYMP512S64CP8-Y5
KN.1GB0G.006
FAN
23.AHE02.001
CPU THERMAL MODULE
60.AHE02.009
VGA THERMAL (M71M)-DIS
60.AHE02.010
SPEAKER R 15.4
23.AHE02.002
SPEAKER L 15.4
23.AHE02.003
ANTENNA R 15.4
50.AHE02.007
FAN
HEATSINK
SPEAKER
ANTENNA L-15.4
50.AHE02.008
MIC SET 15.4
23.AHE02.004
REMOTE CONTROLLER EU
LZ.20400.004
ACCESSORY
REMOTE CONTROLLER TS
LZ.20400.005
REMOTE CONTROLLER SC
LZ.20400.006
REMOTE CONTROLLER EN
LZ.20400.007
THERMAL DOOR FRONT RUBBER
15.4
47.AHE02.005
THERMAL DOOR RUBBER 15.4
47.AHE02.006
LOWER CASE RUBBER 15.4
47.AHE02.007
THERMAL PAD
47.AHE02.008
NAMEPALTE - AS5720
40.AHE02.001
NAMEPALTE - AS5320
TBD
LCD SCREW PAD 15.4
47.AHE02.002
LCD SIDE RUBBER 15.4
47.AHE02.003
LCD FRONT RUBBER 15.4
47.AHE02.004
MISCELLANEOUS
100
Chapter 6
Category
No.
Part Name and Description
Acer Part No.
SPEAKER
SPEAKER ASSY
23.TG607.001
SCERW
Chapter 6
SCREW,M2.5*3(Ni-NL)
86.AHE02.001
SCREW,M2.5*6(NL)
86.AHE02.002
SCREW,M2.5*12(NL)
86.AHE02.003
SCREW,M2*2.2
86.AHE02.004
SCREW,M2*3(NL)
86.AHE02.005
SCREW,M2*5(Ni-NL)
86.AHE02.006
SCREW,M 2.5D 3.2L K 6D NI +
86.AHE02.007
SCREW,M M 2.0D 3L K 5D NI +
86.AHE02.008
SCREW,F 4# 5L K 4.5D ZK NL + CR3+
86.AHE02.009
SCREW, M2.5 K 5.2X0.85 4 (NL) R00
86.AHE02.010
101

* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
