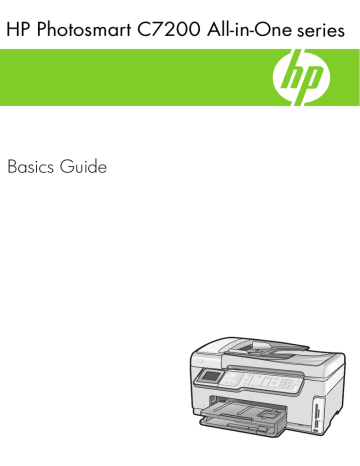

HP Photosmart C7200 All-in-One series
Basics Guide
Hewlett-Packard Company notices
The information contained in this document is subject to change without notice.
All rights reserved. Reproduction, adaptation, or translation of this material is prohibited without prior written permission of Hewlett-Packard, except
as allowed under copyright laws. The only warranties for HP products and services are set forth in the express warranty statements accompanying
such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
© 2007 Hewlett-Packard Development Company, L.P.
Windows, Windows 2000, and Windows XP are U.S. registered trademarks of Microsoft Corporation.
Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.
Intel and Pentium are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries.
1
HP All-in-One overview
The HP All-in-One at a glance....................................................................................................3
Control panel features................................................................................................................4
Find more information.................................................................................................................6
2
Network setup
Wired network setup...................................................................................................................7
What you need for a wired network......................................................................................8
Connect the HP All-in-One to the network............................................................................8
Integrated wireless WLAN 802.11 network setup.......................................................................9
What you need for an integrated wireless WLAN 802.11 network.....................................10
Connect to an integrated wireless WLAN 802.11 network.................................................10
Wireless ad hoc network setup.................................................................................................12
What you need for an ad hoc network................................................................................13
Create a network profile for a Windows XP computer........................................................13
Create a network profile for other operating systems.........................................................14
Connect to a wireless ad hoc network................................................................................14
Install the software for a network connection...........................................................................16
Connect to additional computers on a network........................................................................16
Change the HP All-in-One from a USB connection to a network connection...........................17
Manage your network settings..................................................................................................17
Change basic network settings from the control panel.......................................................17
Change advanced network settings from the control panel settings..................................19
3
Fax setup
Set up the HP All-in-One for faxing..........................................................................................21
Case A: Separate fax line (no voice calls received)...........................................................22
Case B: Set up the HP All-in-One with DSL.......................................................................23
Case C: Set up the HP All-in-One with a PBX phone system or an ISDN line...................24
Case D: Fax with a distinctive ring service on the same line..............................................25
Case E: Shared voice/fax line............................................................................................26
Case F: Shared voice/fax line with voice mail....................................................................27
Change settings on the HP All-in-One to receive faxes...........................................................28
Set the answer mode..........................................................................................................28
Set the number of rings before answering..........................................................................29
Change the answer ring pattern for distinctive ringing.......................................................29
Test your fax setup...................................................................................................................30
Set the fax header....................................................................................................................30
4
Use the HP All-in-One features
Load originals and load paper..................................................................................................32
Load an original in the automatic document feeder............................................................32
Load an original on the glass..............................................................................................33
Load full-size paper............................................................................................................33
Load 10 x 15 cm (4 x 6 inch) photo paper..........................................................................35
1
Contents
Contents
Contents
Avoid paper jams......................................................................................................................36
View and select photos.............................................................................................................36
Scan an image..........................................................................................................................38
Scan an original to a computer...........................................................................................38
Scan an original to a memory card or storage device........................................................38
Make a copy.............................................................................................................................39
Send a basic fax.......................................................................................................................39
Check the estimated ink levels.................................................................................................40
Replace the ink cartridges........................................................................................................41
Clean the HP All-in-One...........................................................................................................43
Clean the glass...................................................................................................................43
Clean the lid backing..........................................................................................................44
5
Troubleshooting and support
Uninstall and reinstall the software...........................................................................................46
Hardware setup troubleshooting...............................................................................................46
Network troubleshooting...........................................................................................................49
Wired network setup troubleshooting.................................................................................49
Wireless setup troubleshooting..........................................................................................51
Network software installation troubleshooting....................................................................53
Fax setup troubleshooting........................................................................................................54
The fax test failed...............................................................................................................54
Clear paper jams......................................................................................................................66
Information on ink cartridges and the print head......................................................................67
Support process.......................................................................................................................68
6
Technical information
System requirements................................................................................................................69
Product specifications...............................................................................................................69
Energy Star® notice.................................................................................................................69
Ink cartridge yield.....................................................................................................................70
Regulatory notices....................................................................................................................70
Warranty...................................................................................................................................71
2
1
HP All-in-One overview
Use the HP All-in-One to quickly and easily accomplish tasks such as making a copy,
scanning documents, printing photos, or sending and receiving faxes You can access
many HP All-in-One functions directly from the control panel, without turning on your
computer.
NOTE: This guide introduces basic operations and troubleshooting, as well as
provides information for contacting HP support and ordering supplies.
The onscreen Help details the full range of features and functions, including use of
the HP Photosmart software that came with the HP All-in-One.
HP All-in-One overview
The HP All-in-One at a glance
Label
Description
1
Automatic document feeder
2
Color graphics display (also referred to as the
display)
3
Output tray
4
Paper-width guide for the main input tray
5
Main input tray (also referred to as the input tray)
6
Paper tray extender (also referred to as the tray
extender)
7
Paper-width and paper-length guides for the
photo tray
HP All-in-One overview
3
Chapter 1
(continued)
HP All-in-One overview
*
Label
Description
8
Paper-length guide for the main input tray
9
Photo tray
10
Ink cartridge door
11
Front USB port for your camera or other storage
device
12
Memory card slots and Photo light
13
Control panel
14
Glass
15
Lid backing
16
Ethernet port
17
Rear USB port
18
Power connection*
19
1-LINE (fax) and 2-EXT (phone) ports
20
Two-sided printing accessory
Use only with the power adapter supplied by HP.
Control panel features
The following diagram and related table provide a quick reference to the HP All-in-One
control panel features.
4
HP All-in-One overview
Label
Name and Description
1
Display: Displays menus, photos, and messages. The angle of the display can be changed for
better viewing. Place a finger in the indented area to the left of the display and then pull up.
2
Attention light: Indicates a problem occurred. See the display for more information.
3
Back: Returns to the previous screen on the display.
4
Directional pad: Allows you to navigate through menu options by pressing the up, down, left,
or right arrow buttons.
5
OK: Selects a menu setting, value, or photo on the display.
6
Zoom out - (magnifying glass icon): Zooms out to show more of a photo. If you press this button
when a photo is shown on the display at 100%, the Fit to Page feature is applied to the photo
automatically.
7
Zoom in + (magnifying glass icon): Zooms in to enlarge the image on the display. You can also
use this button together with the arrows on the directional pad to adjust the crop box for
printing.
8
Photo Menu: Launches the Photosmart Express menu for printing, saving, editing, and
sharing photos.
9
Red Eye Removal: Turns the Red Eye Removal feature On or Off. By default, this feature is
turned off. When the feature is turned on, the HP All-in-One automatically corrects red eye
coloring in the photo currently shown on the display.
10
Copy Menu: Opens the Copy Menu where you can select copy options, such as number of
copies, paper size, and paper type.
11
Reprints: Enables you to make a copy of an original photo placed on the glass.
12
Fax Menu: Presents the Enter Fax Number screen to enter a fax number. If you press it again,
the Fax Menu appears where you can select fax options.
13
Auto Answer: When this button is lit, the HP All-in-One automatically answers incoming phone
calls. When off, the HP All-in-One does not answer any incoming fax calls.
14
Keypad: Enters fax numbers, values, or text.
15
On: Turns the HP All-in-One on or off. When the HP All-in-One is off, a minimal amount of power
is still supplied to the device. You can further reduce power supply by holding down the On
button for 3 seconds. This places the HP All-in-One in Federal Energy Management Program
(FEMP) mode. To completely remove power, turn the HP All-in-One off, and then unplug the
power cord.
16
Wireless radio light: Indicates that the 802.11 b and g wireless radio is turned on.
17
Space and #: Enter spaces and pound signs for fax-related tasks.
Symbols and *: Enter symbols and asterisks for fax-related tasks.
18
Start Fax Color: Starts a color fax.
19
Start Fax Black: Starts a black-and-white fax.
20
Scan Menu: Opens the Scan Menu where you can select a destination for your scan.
21
Start Copy Color: Starts a color copy.
22
Start Copy Black: Starts a black-and-white copy.
Control panel features
5
HP All-in-One overview
If you are zooming in on a photo, you can also use the arrow buttons to pan around the photo
and select a different area to print.
Chapter 1
(continued)
Label
Name and Description
23
Print Photos: Depending on whether you access your photos from the View, Print, or Create
menu, the Print Photos button will display the Print Preview screen or it will print any selected
photo(s). If no photos are selected, a prompt appears asking if you want to print all the photos
on your card or storage device.
24
Cancel: Stops the current operation.
25
Setup: Presents the Setup Menu for generating reports, changing fax and network settings,
and accessing tools and preferences.
26
Help: Opens the Help Menu menu on the display where you can select a topic to learn more
about it. Depending on the topic you select, the topic will appear on your display or on your
computer screen.
From the idle state, pressing Help lists a menu of items for which the user can obtain help. When
viewing screens other than Idle, the Help button provides context sensitive help.
Find more information
HP All-in-One overview
A variety of resources, both printed and onscreen, provide information about setting up
and using the HP All-in-One.
•
•
•
6
Setup Guide
The Setup Guide provides instructions for setting up the HP All-in-One and installing
software. Make sure you follow the steps in the Setup Guide in order.
If you have problems during setup, see Troubleshooting in the last section of the
Setup Guide, or see “Troubleshooting and support” on page 46 in this guide.
Onscreen Help
The onscreen Help provides detailed instructions on features of the HP All-in-One
that are not described in this User Guide, including features that are only available
using the software you installed with the HP All-in-One.
www.hp.com/support
If you have Internet access, you can get help and support from the HP Web site. This
Web site offers technical support, drivers, supplies, and ordering information.
HP All-in-One overview
2
Network setup
This section describes how to connect the HP All-in-One to a network and how to view
and manage network settings.
If you want to:
See this section:
Connect to a wired (Ethernet) network.
“Wired network setup” on page 7
Connect to a wireless network with a wireless
router (infrastructure).
“Integrated wireless WLAN 802.11 network
setup” on page 9
Connect directly to a wireless-capable
computer without a wireless router (ad hoc).
“Wireless ad hoc network setup” on page 12
Install the HP All-in-One software for use in a
networked environment.
“Install the software for a network connection”
on page 16
Add connections to more computers on the
network.
“Connect to additional computers on a
network” on page 16
Change the HP All-in-One from a USB
connection to a network connection.
“Change the HP All-in-One from a USB
connection to a network connection”
on page 17
NOTE: Use the instructions in this section if
you first installed the HP All-in-One with a USB
connection, and you now want to change to
either a wireless or Ethernet network
connection.
View or change the network settings.
“Manage your network settings” on page 17
Find troubleshooting information.
“Network troubleshooting” on page 49
Wired network setup
This section describes how to connect the HP All-in-One to a router, switch, or hub using
an Ethernet cable and how to install the HP All-in-One software for a network connection.
This is known as a wired or Ethernet network.
Network setup
7
Network setup
NOTE: You can connect the HP All-in-One to either a wireless or wired network, but
not both at the same time.
Chapter 2
What you need for a wired network
Before you connect the HP All-in-One to a network, make sure you have all of the required
materials.
❑ A functional Ethernet network that includes a router, switch, or hub with an Ethernet
port.
❑ CAT-5 Ethernet cable.
Network setup
Although standard Ethernet cables look similar to standard telephone cables, they
are not interchangeable. There is a different number of wires in each one, and each
has a different connector. An Ethernet cable connector (also called an RJ-45
connector) is wider and thicker and always has 8 contacts on the end. A phone
connector has between 2 and 6 contacts.
❑ A desktop computer or laptop with an Ethernet connection.
NOTE: The HP All-in-One supports both 10 Mbps and 100 Mbps Ethernet
networks. If you are purchasing, or have purchased, a network interface card
(NIC), make sure it can operate at either speed.
Connect the HP All-in-One to the network
To connect the HP All-in-One to the network, use the Ethernet port on the back of the
device.
To connect the HP All-in-One to the network
1. Remove the yellow plug from the back of the HP All-in-One.
8
Network setup
2. Connect the Ethernet cable to the Ethernet port on the back of the HP All-in-One.
Network setup
3. Connect the other end of the Ethernet cable to an available port on your Ethernet
router, switch, or wireless router.
4. Once you have connected the HP All-in-One to the network, install the software as
described in “Install the software for a network connection” on page 16.
Integrated wireless WLAN 802.11 network setup
For optimal performance and security in your wireless network, HP recommends you use
a wireless router or access point (802.11) to connect the HP All-in-One and the other
network elements. When network elements are connected through a wireless router or
access point, this is called an infrastructure network.
Integrated wireless WLAN 802.11 network setup
9
Chapter 2
The advantages of a wireless infrastructure network as compared to an ad hoc network
include:
•
•
•
•
•
Advanced network security
Enhanced reliability
Network flexibility
Better performance, especially with 802.11 g mode
Shared Broadband Internet access
To set up the HP All-in-One on an integrated
wireless WLAN 802.11 network, you need to
do the following:
See this section:
First, collect all of the required materials.
“What you need for an integrated wireless
WLAN 802.11 network” on page 10
Next, connect the HP All-in-One to the wireless
router, and run the Wireless Setup Wizard.
“Connect to an integrated wireless WLAN
802.11 network” on page 10
Finally, install the software.
“Install the software for a network connection”
on page 16
What you need for an integrated wireless WLAN 802.11 network
Network setup
To connect the HP All-in-One to an integrated wireless WLAN 802.11 network, you will
need the following:
❑ A wireless 802.11 network that includes a wireless router or access point.
❑ A computer with either wireless networking support or a network interface card (NIC).
The computer must be connected to the wireless network that you intend to install
the HP All-in-One on.
❑ Network name (SSID).
❑ WEP key or WPA Passphrase (if needed).
❑ If you connect the HP All-in-One on a wireless network that has Internet access, HP
recommends that you use a wireless router (access point or base station) that uses
Dynamic Host Configuration Protocol (DHCP).
Connect to an integrated wireless WLAN 802.11 network
The Wireless Setup Wizard provides an easy way to connect the HP All-in-One to your
network. You can also use SecureEasySetup, if your wireless router or access point
supports this feature. See the documentation that came with your wireless router or
access point to find out if it supports using EasySetup and for additional setup instructions.
10
Network setup
CAUTION: To prevent other users from accessing your wireless network, HP
strongly recommends using a password or passphrase (WPA or WEP security) and
a unique network name (SSID) for your wireless router. Your wireless router might
have been shipped with a default network name, which is typically the manufacturer
name. If you use the default network name, your network can be easily accessed by
other users using the same default network name (SSID). It also means that the
HP All-in-One might accidently connect to a different wireless network in your area
which uses the same network name. If this happens you will not be able to access
the HP All-in-One. For more information on how to change the network name, see
the documentation that came with your wireless router.
NOTE: Before connecting to a wireless infrastructure network, ensure that the
ethernet cable is not connected to the HP All-in-One.
To connect the HP All-in-One with the Wireless Setup Wizard
1. Write down the following information about your wireless router or access point:
• Network Name (also called SSID)
• WEP Key, WPA Passphrase (if needed)
If you do not know where to find this information, see the documentation that came
with your wireless router or access point. You might be able to find the network name
(SSID) and the WEP key or WPA passphrase on the Embedded Web Server for the
wireless router or access point.
2. On the control panel of the HP All-in-One, press Setup.
3. Press until Network is highlighted, and then press OK.
4. Press to highlight Wireless Setup Wizard, and then press OK.
This runs the Wireless Setup Wizard. The setup wizard searches for available
networks, and then displays a list of detected network names (SSIDs). The networks
with the strongest signal appear first, the weakest appear last.
5. Press to highlight the name of the network you wrote down in step 1, and then
press OK.
If you do not see your network name in the list
a. Select Enter a New Network Name (SSID). If necessary, use the to highlight
it, and then press OK.
The visual keyboard appears.
b. Enter the SSID. Use the arrow buttons on the HP All-in-One control panel to
highlight a letter or number on the visual keyboard, and then press OK to select
it.
NOTE: You must enter the exact uppercase (capital) and lowercase (small)
letters. Otherwise, the wireless connection will fail.
Integrated wireless WLAN 802.11 network setup
11
Network setup
NOTE: HP provides an online tool that might be able to find your wireless
security settings automatically. Go to: www.hp.com/go/networksetup.
Chapter 2
c. When you have finished entering the new SSID, use the arrow buttons to highlight
Done on the visual keyboard, and then press OK.
TIP: If the HP All-in-One is unable to discover the network based on the
network name you entered, you will see the following prompts. You may want
to move the HP All-in-One closer to the computer and try running the Wireless
Setup Wizard again to automatically discover the network.
d. Press until Infrastructure is highlighted, and then press OK.
e. Press until WEP encryption or WPA encryption is highlighted, and then press
OK.
If you do not want to use WEP encryption, press until No, my network does
not use encryption is highlighted, and then press OK. Go to step 7.
6. If prompted, enter your WPA or WEP key as follows:
a. Use the arrow buttons to highlight a letter or number on the visual keyboard, and
then press OK to select it.
NOTE: You must enter the exact uppercase (capital) and lowercase (small)
letters. Otherwise, the wireless connection will fail.
b. When you are finished entering the WPA or WEP key, use the arrow buttons to
highlight Done on the visual keyboard.
c. Press OK to confirm.
The HP All-in-One will attempt to connect to the network. If a message says you
entered an invalid WPA or WEP key, check the key you wrote down for your new
network, follow the prompts to correct the key, and then try again.
7. When the HP All-in-One connects successfully to the network, install the software on
each computer that will use the device over the network.
Network setup
To connect the HP All-in-One with SecureEasySetup
1. Activate SecureEasySetup on your wireless router or access point.
2. On the control panel of the HP All-in-One, press Setup.
3. Press until Network is highlighted, and then press OK.
4. Press to highlight Wireless Setup Wizard, and then press OK.
5. Follow the onscreen prompts on the display to complete the connection.
6. When the HP All-in-One connects successfully to the network, go to your computer
to install the software on each computer that will use the network.
NOTE: If the connection fails, the wireless router or access point might have
timed out after you activated SecureEasySetup. Repeat the above task, ensuring
that you complete the steps on the control panel of the HP All-in-One immediately
after pressing the button on the wireless router or access point.
Wireless ad hoc network setup
Use this section if you want to connect the HP All-in-One to a wireless-capable computer
without using a wireless router or access point.
12
Network setup
NOTE: An ad hoc connection is available if you do not have a wireless router or
access point. However, it provides little flexibility, a low level of network security, and
slower network performance than with a wireless router or access point.
In order to connect the HP All-in-One to your computer (ad hoc), you need to create an
ad hoc network profile on your computer. This includes choosing a network name (SSID)
and WEP security (optional but recommended) for your ad hoc network.
What you need for an ad hoc network
To connect the HP All-in-One to a wireless network, you will need a Windows computer
with a wireless network adapter.
Create a network profile for a Windows XP computer
Prepare your computer for an ad hoc connection by creating a network profile.
To create a network profile
1. In the Control Panel, double-click Network Connections.
2. On the Network Connections window, right-click the Wireless Network
Connection. If you see Enable on the pop-up menu, select it. Otherwise, if you see
Disable on the menu, the wireless connection is already enabled.
3. Right-click the Wireless Network Connection icon, and then click Properties.
4. Click the Wireless Networks tab.
5. Select the Use Windows to configure my wireless network settings check box.
6. Click Add, and then do the following:
a. In Network name (SSID) box, type in a unique network name of your choice.
NOTE: The network name is case sensitive, so it is important to remember
any uppercase (capital) and lowercase (small) letters.
b. If there is a Network Authentication list, select Open. Otherwise, go to the next
step.
c. In the Data encryption list, select WEP.
NOTE: It is possible to create a network that does not use a WEP key.
However, HP recommends using a WEP key in order to secure your network.
Wireless ad hoc network setup
13
Network setup
NOTE: The HP All-in-One comes configured with a network profile with hpsetup as
the network name (SSID). However, for security and privacy HP recommends you
create a new network profile on your computer as described here.
Chapter 2
d. Make sure that the check box is not selected next to The key is provided for me
automatically. If it is selected, click the check box to clear it.
e. In the Network key box, type a WEP key that has exactly 5 or exactly 13
alphanumeric (ASCII) characters. For example, if you enter 5 characters, you
might enter ABCDE or 12345. Or, if you enter 13 characters, you might enter
ABCDEF1234567. (12345 and ABCDE are examples only. Select a combination
of your choosing.)
Alternatively, you can use HEX (hexadecimal) characters for the WEP key. A HEX
WEP key must be 10 characters for 40 bit encryption, or 26 characters for 128 bit
encryption.
f. In the Confirm network key box, type the same WEP key you typed in the
previous step.
g. Write down the WEP key exactly as you typed it, including uppercase and
lowercase letters.
NOTE: You must remember the exact uppercase (capital) and lowercase
(small) letters. If you enter your WEP key incorrectly on the HP All-in-One, the
wireless connection will fail.
h. Select the check box for This is a computer-to-computer (ad hoc) network;
wireless access points are not used.
i. Click OK to close the Wireless network properties window, and then click OK
again.
j. Click OK again to close the Wireless Network Properties Connection window.
Create a network profile for other operating systems
If you have an operating system other than Windows XP, HP recommends that you use
the configuration program that came with your wireless LAN card. To find the
configuration program for your wireless LAN card, access your computer's list of
programs.
Using the LAN card configuration program, create a network profile that has the following
values:
•
Network name (SSID): Mynetwork (example only)
Network setup
NOTE: You should create a network name that is unique and easy for you to
remember. Just remember that the network name is case-sensitive. Therefore,
you must remember which letters are uppercase and lowercase.
•
•
Communication mode: Ad Hoc
Encryption: enabled
Connect to a wireless ad hoc network
You can use the Wireless Setup Wizard to connect the HP All-in-One to a wireless ad
hoc network.
To connect to a wireless ad hoc network
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
14
Network setup
3. Press to highlight Wireless Setup Wizard, and then press OK.
This runs the Wireless Setup Wizard. The setup wizard searches for available
networks, and then displays a list of detected network names (SSIDs). The
infrastructure networks appear first in the list, followed by available ad hoc networks.
The networks with the strongest signal appear first, the weakest appear last.
4. On the display, look for the network name you created on your computer (for example,
Mynetwork).
5. Use the arrow buttons to highlight the network name, and then press OK.
If you found your network name and selected it, go on to step 6.
If you do not see your network name in the list
a. Select Enter a New Network Name (SSID).
The visual keyboard appears.
b. Enter the SSID. Use the arrow buttons on the HP All-in-One control panel to
highlight a letter or number on the visual keyboard, and then press OK to select
it.
NOTE: You must enter the exact uppercase (capital) and lowercase (small)
letters. Otherwise, the wireless connection will fail.
c. When you have finished entering the new SSID, use the arrow buttons to highlight
Done on the visual keyboard, and then press OK.
d. Press until Ad Hoc is highlighted, and then press OK.
e. Press until Yes, my network uses WEP encryption is highlighted, and then
press OK. The visual keyboard displays.
If you do not want to use WEP encryption, press until No, my network does
not use encryption is highlighted, and then press OK. Go to step 7.
6. If prompted, enter your WEP key as follows. Otherwise go to step 7.
a. Use the arrow buttons to highlight a letter or number on the visual keyboard, and
then press OK to select it.
NOTE: You must enter the exact uppercase (capital) and lowercase (small)
letters. Otherwise, the wireless connection will fail.
b. When you are finished entering the WEP key, use the arrow buttons to highlight
Done on the visual keyboard.
7. Press OK again to confirm.
The HP All-in-One will attempt to connect to the SSID. If a message says you entered
an invalid WEP key, check the key you wrote down for your new network, follow the
prompts to correct the WEP key, and then try again.
8. When the HP All-in-One connects successfully to the network, go to your computer
to install the software.
Wireless ad hoc network setup
15
Network setup
TIP: If the HP All-in-One is unable to discover the network based on the
network name you entered, you will see the following prompts. You may want
to move the HP All-in-One closer to the computer and try running the Wireless
Setup Wizard again to automatically discover the network.
Chapter 2
Install the software for a network connection
Use this section to install the HP All-in-One software on a computer connected to a
network. Before you install the software, make sure you have connected the HP All-inOne to a network.
NOTE: If your computer is configured to connect to a series of network drives, make
sure that your computer is currently connected to these drives before installing the
software. Otherwise, HP All-in-One installation software might try to use one of the
reserved drive letters, and you will not be able to access that network drive on your
computer.
NOTE: Installation time can range from 20 to 45 minutes depending on your
operating system, the amount of available space, and the processor speed of your
computer.
Network setup
To install the Windows HP All-in-One software
1. Quit all applications running on your computer, including any virus detection software.
2. Insert the Windows CD that came with the HP All-in-One into the CD-ROM drive on
your computer and follow the onscreen instructions.
3. If a dialog box about firewalls appears, follow the instructions. If you see firewall popup messages, you must always accept or allow the pop-up messages.
4. On the Connection Type screen, select Through the network, and then click
Next.
The Searching screen appears as the Setup program searches for the HP All-in-One
on the network.
5. On the Printer Found screen, verify that the printer description is correct.
If more than one printer is found on the network, the Printers Found screen appears.
Select the HP All-in-One you want to connect.
6. Follow the prompts to install the software.
When you have finished installing the software, the HP All-in-One is ready for use.
7. If you disabled any virus detection software on your computer, make sure to enable
it again.
8. To test your network connection, go to your computer and print a self-test report to
the HP All-in-One.
Connect to additional computers on a network
You can share the HP All-in-One on a network so that more computers can use it. If the
HP All-in-One is already connected to a computer on the network, you must install the
HP All-in-One software for each additional computer. During the installation, the software
will discover the HP All-in-One on the network for each of the computers. Once you have
set up the HP All-in-One on the network you will not need to configure it again when you
add additional computers.
NOTE: You can connect the HP All-in-One to either a wireless or wired network, but
not both at the same time.
16
Network setup
Change the HP All-in-One from a USB connection to a
network connection
If you first install the HP All-in-One with a USB connection, you can later change to either
a wireless or Ethernet network connection. If you already understand how to connect to
a network, you can use the general directions below.
NOTE: For optimal performance and security in your wireless network, use an
access point (such as a wireless router) to connect the HP All-in-One.
To change a USB connection to an integrated wireless WLAN 802.11 connection
1. Unplug the USB connection from the back of the HP All-in-One.
2. On the control panel of the HP All-in-One, press Setup.
3. Press until Network is highlighted, and then press OK.
4. Press to highlight Wireless Setup Wizard, and then press OK.
This runs the Wireless Setup Wizard.
5. Install the software for a network connection, choose Add a Device, and then choose
Through the network.
6. When the installation is complete, open Printers and Faxes (or Printers) in the
Control Panel and delete the printers for the USB installation.
To change a USB connection to a wired (Ethernet) connection
1. Unplug the USB connection from the back of the HP All-in-One.
2. Connect an Ethernet cable from the Ethernet port on the back of the HP All-in-One
to an available Ethernet port on the router or switch.
3. Install the software for a network connection, choose Add a Device, and then choose
Through the network.
4. When the installation is complete, open Printers and Faxes (or Printers) in the
Control Panel and delete the printers from the previous USB installation.
•
•
•
“Wired network setup” on page 7
“Integrated wireless WLAN 802.11 network setup” on page 9
“Wireless ad hoc network setup” on page 12
Manage your network settings
You can manage network settings for the HP All-in-One through the HP All-in-One control
panel. Additional advanced settings are available in the Embedded Web Server, a
configuration and status tool you access from your Web browser using an existing
network connection to the HP All-in-One.
Change basic network settings from the control panel
The HP All-in-One control panel enables you to set up and manage a wireless connection
and to perform a variety of network management tasks. This includes viewing the network
settings, restoring the network defaults, turning the wireless radio on and off, and
changing the network settings.
Change the HP All-in-One from a USB connection to a network connection
17
Network setup
For more detailed instructions on connecting the HP All-in-One to a network, see:
Chapter 2
Use the Wireless Setup Wizard
The Wireless Setup Wizard provides an easy way to set up and manage a wireless
connection to the HP All-in-One.
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
3. Press to highlight Wireless Setup Wizard, and then press OK.
This runs the Wireless Setup Wizard.
View and print network settings
You can display a summary of the network settings on the HP All-in-One control panel,
or you can print a more detailed configuration page. The network configuration page lists
all of the important network settings such as the IP address, link speed, DNS, and mDNS.
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
The Network menu appears.
3. Press until View Network Settings is highlighted, and then press OK.
The View Network Settings menu appears.
4. Do one of the following:
• To display wired network settings, press until Display Wired Summary is
highlighted, and then press OK.
This displays a summary of the wired (Ethernet) network settings.
• To display wireless network settings, press until Display Wireless
Summary is highlighted, and then press OK.
This displays a summary of the wireless network settings.
• To print the network configuration page, press until Print Network
Configuration Page is highlighted, and then press OK.
This prints the network configuration page.
Restore network defaults
You can reset the network settings to what they were when you purchased the HP All-inOne.
Network setup
CAUTION: This will erase all wireless setup information that you have entered. In
order to restore this information, you will need to run the Wireless Setup Wizard again.
1.
2.
3.
4.
On the control panel of the HP All-in-One, press Setup.
Press until Network is highlighted, and then press OK.
Press until Restore Network Defaults is highlighted, and then press OK.
Press OK to confirm that you want to restore the network defaults.
Turn the wireless radio on and off
The wireless radio is off by default. In order to stay connected to a wireless network, the
radio must stay on. When the radio is on, the blue light on the front of the HP All-in-One
is lit. However, if the HP All-in-One is connected to a wired network or you have a USB
connection, the radio is not used. In this case you might want to turn the radio off.
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
18
Network setup
3. Press
4. Press
until Wireless Radio is highlighted, and then press OK.
to highlight On or Off, and then press OK.
Print the wireless network test
The wireless network test performs a series of diagnostic tests to determine whether
network setup is successful. The wireless network test prints automatically when the
Wireless Setup Wizard is run. You also can print the wireless network test at any time.
1. On the control panel of the HP All-in-One, press Setup.
2. Press until Network is highlighted, and then press OK.
3. Press until Wireless Network Test is highlighted, and then press OK.
The Wireless Network Test prints.
Change advanced network settings from the control panel settings
The advanced network settings are provided for your convenience. However, unless you
are an advanced user, you should not change any of these settings.
Set link speed
1. Press Setup.
2. Press until Network is highlighted, then press OK.
The Network menu appears.
3. Press until Advanced Setup is highlighted, and then press OK.
Press until Set Link Speed is highlighted, and then press OK.
4. Press to select the link speed that matches your network hardware, and then press
OK to confirm the setting.
• Automatic
• 10-Full
• 10-Half
• 100-Full
• 100-Half
Change IP settings
The default setting for the IP settings is Automatic, which sets the IP settings
automatically. However, if you are an advanced user, you might want to manually change
the IP address, subnet mask, or the default gateway. To see the IP address and subnet
mask of the HP All-in-One, print a network configuration page from the HP All-in-One.
NOTE: When manually entering an IP setting, you must already be connected to an
active network, otherwise the setting will not stay when you exit from the menu.
CAUTION: Be careful when manually assigning an IP address. If you enter an invalid
IP address during the installation, your network components will not be able to connect
with the HP All-in-One.
1. Press Setup.
2. Press until Network is highlighted, then press OK.
The Network menu appears.
Manage your network settings
19
Network setup
You can change the speed at which data is transmitted over the network. The default is
Automatic.
Chapter 2
3. Press until Advanced Setup is highlighted, and then press OK.
4. Press until IP Settings is highlighted, and then press OK.
If the HP All-in-One is already connected to a wired network, you are prompted to
confirm that you want to change the IP settings. Press OK.
5. Press until Manual is highlighted, and then press OK.
6. Press to highlight one of the following IP settings, and then press OK.
• IP Address
• Subnet Mask
• Default Gateway
7. Enter your changes, and then press OK to confirm the setting.
Network setup
20
Network setup
3
Fax setup
After completing all the steps in the Setup Guide, use the instructions in this section to
complete your fax setup. Please keep your Setup Guide for later use.
In this section, you will learn how to set up the HP All-in-One so that faxing works
successfully with equipment and services you might already have on the same phone
line as the HP All-in-One.
TIP: You can also use the Fax Setup Wizard (Windows) or Fax Setup Utility (Mac)
to help you quickly set up some important fax settings such as the answer mode and
fax header information. You can access the Fax Setup Wizard (Windows) or Fax
Setup Utility (Mac) through the software you installed with the HP All-in-One. After
you run the Fax Setup Wizard (Windows) or Fax Setup Utility (Mac), follow the
procedures in this section to complete your fax setup.
Set up the HP All-in-One for faxing
Before you begin setting up the HP All-in-One for faxing, determine which type of
equipment or services you have on the same phone line. From the first column in the
following table, choose the combination of equipment and services applicable to your
home or office setting. Then look up the appropriate setup case in the second column.
Step-by-step instructions are included for each case later in this section.
Other equipment/services sharing your fax
line
Recommended fax setup
None.
You have a dedicated phone line for faxing.
“Case A: Separate fax line (no voice calls
received)” on page 22
A digital subscriber line (DSL) service through
your telephone company.
“Case B: Set up the HP All-in-One with DSL”
on page 23
(DSL might be called ADSL in your country/
region.)
A private branch exchange (PBX) phone
system or an integrated services digital network
(ISDN) system.
“Case C: Set up the HP All-in-One with a PBX
phone system or an ISDN line” on page 24
A distinctive ring service through your
telephone company.
“Case D: Fax with a distinctive ring service on
the same line” on page 25
Voice calls.
“Case E: Shared voice/fax line” on page 26
You receive both voice and fax calls on this
phone line.
Voice calls and voice mail service.
You receive both voice and fax calls on this
phone line and subscribe to a voice mail service
through your telephone company.
“Case F: Shared voice/fax line with voice mail”
on page 27
Fax setup
Fax setup
For additional fax setup information, in specific countries/regions, see the Fax
Configuration website listed below.
21
Chapter 3
Austria
www.hp.com/at/faxconfig
Germany
www.hp.com/de/faxconfig
Switzerland (French)
www.hp.com/ch/fr/faxconfig
Switzerland (German)
www.hp.com/ch/de/faxconfig
United Kingdom
www.hp.com/uk/faxconfig
Spain
www.hp.com/es/faxconfig
The Netherlands
www.hp.com/nl/faxconfig
Belgium (France)
www.hp.com/be/fr/faxconfig
Belgium (Dutch)
www.hp.com/be/nl/faxconfig
Portugal
www.hp.com/pt/faxconfig
Sweden
www.hp.com/se/faxconfig
Finland
www.hp.com/fi/faxconfig
Denmark
www.hp.com/dk/faxconfig
Norway
www.hp.com/no/faxconfig
Ireland
www.hp.com/ie/faxconfig
France
www.hp.com/fr/faxconfig
Italy
www.hp.com/it/faxconfig
South Africa
www.hp.com/za/faxconfig
Poland
www.hp.pl/faxconfig
Russia
www.hp.ru/faxconfig
North America
www.hp.com/us/faxsetup
Case A: Separate fax line (no voice calls received)
If you have a separate phone line on which you receive no voice calls, and you have no
other equipment connected on this phone line, set up the HP All-in-One as described in
this section.
Fax setup
22
Fax setup
Figure 3-1 Back view of the HP All-in-One
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
To set up the HP All-in-One with a separate fax line
1. Using the phone cord supplied in the box with the HP All-in-One, connect one end to
your telephone wall jack, then connect the other end to the port labeled 1-LINE on
the back of the HP All-in-One.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the HP All-in-One, you might not be able to fax successfully. This special
phone cord is different from the phone cords you might already have in your home
or office.
2. Turn on the Auto Answer setting.
3. (Optional) Change the Rings to Answer setting to the lowest setting (two rings).
4. Run a fax test.
When the phone rings, the HP All-in-One will answer automatically after the number of
rings you set in the Rings to Answer setting. Then it will begin emitting fax reception
tones to the sending fax machine and receive the fax.
Case B: Set up the HP All-in-One with DSL
If you have a DSL service through your telephone company, use the instructions in this
section to connect a DSL filter between the telephone wall jack and the HP All-in-One.
The DSL filter removes the digital signal that can interfere with the HP All-in-One, so the
HP All-in-One can communicate properly with the phone line. (DSL might be called ADSL
in your country/region.)
Fax setup
NOTE: If you have a DSL line and you do not connect the DSL filter, you will not be
able to send and receive faxes with the HP All-in-One.
Set up the HP All-in-One for faxing
23
Chapter 3
Figure 3-2 Back view of the HP All-in-One
1
Telephone wall jack
2
DSL filter and cord supplied by your DSL provider
3
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
To set up the HP All-in-One with DSL
1. Obtain a DSL filter from your DSL provider.
2. Using the phone cord supplied in the box with the HP All-in-One, connect one end to
your telephone wall jack, then connect the other end to the port labeled 1-LINE on
the back of the HP All-in-One.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the HP All-in-One, you might not be able to fax successfully. This special
phone cord is different from the phone cords you might already have in your home
or office.
3. Connect the DSL filter cord to the telephone wall jack.
NOTE: If you have other office equipment or services attached to this phone line,
such as a distinctive ring service, answering machine, or voice mail, see the
appropriate section in this section for additional setup guidelines.
4. Run a fax test.
Case C: Set up the HP All-in-One with a PBX phone system or an ISDN line
If you are using either a PBX phone system or an ISDN converter/terminal adapter, make
sure you do the following:
Fax setup
24
Fax setup
•
If you are using either a PBX or an ISDN converter/terminal adaptor, connect the
HP All-in-One to the port that is designated for fax and phone use. Also, make sure
that the terminal adapter is set to the correct switch type for your country/region, if
possible.
NOTE: Some ISDN systems allow you to configure the ports for specific phone
equipment. For example, you might have assigned one port for telephone and
Group 3 fax and another port for multiple purposes. If you have problems when
connected to the fax/phone port of your ISDN converter, try using the port
designated for multiple purposes; it might be labeled "multi-combi" or something
similar.
•
If you are using a PBX phone system, set the call waiting tone to "off".
NOTE: Many digital PBX systems include a call-waiting tone that is set to "on"
by default. The call waiting tone will interfere with any fax transmission, and you
will not be able to send or receive faxes with the HP All-in-One. Refer to the
documentation that came with your PBX phone system for instructions on how to
turn off the call-waiting tone.
•
If you are using a PBX phone system, dial the number for an outside line before dialing
the fax number.
Make sure you use the supplied cord to connect from the telephone wall jack to the
HP All-in-One. If you do not, you might not be able to fax successfully. This special
phone cord is different from the phone cords you might already have in your home or
office. If the supplied phone cord is too short, you can purchase a coupler from your
local electronics store and extend it.
•
Case D: Fax with a distinctive ring service on the same line
If you subscribe to a distinctive ring service (through your telephone company) that allows
you to have multiple phone numbers on one phone line, each with a different ring pattern,
set up the HP All-in-One as described in this section.
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
Set up the HP All-in-One for faxing
25
Fax setup
Figure 3-3 Back view of the HP All-in-One
Chapter 3
To set up the HP All-in-One with a distinctive ring service
1. Using the phone cord supplied in the box with the HP All-in-One, connect one end to
your telephone wall jack, then connect the other end to the port labeled 1-LINE on
the back of the HP All-in-One.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the HP All-in-One, you might not be able to fax successfully. This special
phone cord is different from the phone cords you might already have in your home
or office.
2. Turn on the Auto Answer setting.
3. Change the Distinctive Ring setting to match the pattern that the telephone company
assigned to your fax number.
NOTE: By default, the HP All-in-One is set to answer all ring patterns. If you do
not set the Distinctive Ring to match the ring pattern assigned to your fax
number, the HP All-in-One might answer both voice calls and fax calls or it might
not answer at all.
4. (Optional) Change the Rings to Answer setting to the lowest setting (two rings).
5. Run a fax test.
The HP All-in-One will automatically answer incoming calls that have the ring pattern you
selected (Distinctive Ring setting) after the number of rings you selected (Rings to
Answer setting). Then it will begin emitting fax reception tones to the sending fax machine
and receive the fax.
Case E: Shared voice/fax line
If you receive both voice calls and fax calls at the same phone number, and you have no
other office equipment (or voice mail) on this phone line, set up the HP All-in-One as
described in this section.
Figure 3-4 Back view of the HP All-in-One
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
Fax setup
26
Fax setup
To set up the HP All-in-One with a shared voice/fax line
1. Using the phone cord supplied in the box with the HP All-in-One, connect one end to
your telephone wall jack, then connect the other end to the port labeled 1-LINE on
the back of the HP All-in-One.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the HP All-in-One, you might not be able to fax successfully. This special
phone cord is different from the phone cords you might already have in your home
or office.
2. Now you need to decide how you want the HP All-in-One to answer calls,
automatically or manually:
• If you set up the HP All-in-One to answer calls automatically, it answers all
incoming calls and receives faxes. The HP All-in-One will not be able to
distinguish between fax and voice calls in this case; if you suspect the call is a
voice call, you will need to answer it before the HP All-in-One answers the call.
To set up the HP All-in-One to answer calls automatically, turn on the Auto
Answer setting.
• If you set up the HP All-in-One to answer faxes manually, you must be available
to respond in person to incoming fax calls or the HP All-in-One cannot receive
faxes. To set up the HP All-in-One to answer calls manually, turn off the Auto
Answer setting.
3. Run a fax test.
4. Plug your phone into the telephone wall jack.
5. Do one of the following, depending on your phone system:
• If you have a parallel-type phone system, remove the white plug from the port
labeled 2-EXT on the back of the HP All-in-One, and then connect a phone to this
port.
• If you have a serial-type phone system, you might plug your phone directly on top
of the HP All-in-One cable which has a wall plug attached to it.
If you pick up the phone before the HP All-in-One answers the call and hear fax tones
from a sending fax machine, you will need to answer the fax call manually.
Case F: Shared voice/fax line with voice mail
If you receive both voice calls and fax calls at the same phone number, and you also
subscribe to a voice mail service through your telephone company, set up the HP All-inOne as described in this section.
Fax setup
NOTE: You cannot receive faxes automatically if you have a voice mail service at
the same phone number you use for fax calls. You must receive faxes manually; this
means you must be available to respond in person to incoming fax calls. If you want
to receive faxes automatically instead, contact your telephone company to subscribe
to a distinctive ring service, or to obtain a separate phone line for faxing.
Set up the HP All-in-One for faxing
27
Chapter 3
Figure 3-5 Back view of the HP All-in-One
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
To set up the HP All-in-One with voice mail
1. Using the phone cord supplied in the box with the HP All-in-One, connect one end to
your telephone wall jack, then connect the other end to the port labeled 1-LINE on
the back of the HP All-in-One.
NOTE: If you do not use the supplied cord to connect from the telephone wall
jack to the HP All-in-One, you might not be able to fax successfully. This special
phone cord is different from the phone cords you might already have in your home
or office.
2. Turn off the Auto Answer setting.
3. Run a fax test.
You must be available to respond in person to incoming fax calls, or the HP All-in-One
cannot receive faxes.
Change settings on the HP All-in-One to receive faxes
In order to receive faxes successfully, you might need to change some settings on the
HP All-in-One. If you are unsure which setting to choose for a specific fax option, refer to
the detailed fax setup instructions provided in this guide.
Set the answer mode
The answer mode determines whether the HP All-in-One answers incoming calls or not.
•
•
Turn on the Auto Answer setting if you want the HP All-in-One to answer faxes
automatically. The HP All-in-One will answer all incoming calls and faxes.
Turn off the Auto Answer setting if you want to receive faxes manually. You must
be available to respond in person to the incoming fax call or the HP All-in-One will not
receive faxes.
Fax setup
28
Fax setup
To set the answer mode
▲ Press Auto Answer to turn the light on or off, as appropriate for your setup.
When the Auto Answer light is on, the HP All-in-One answers calls automatically.
When the light is off, the HP All-in-One does not answer calls.
Set the number of rings before answering
If you turn on the Auto Answer setting, you can specify how many rings should occur
before the HP All-in-One automatically answers the incoming call.
The Rings to Answer setting is important if you have an answering machine on the same
phone line as the HP All-in-One, because you want the answering machine to answer
the phone before the HP All-in-One does. The number of rings to answer for the HP Allin-One should be greater than the number of rings to answer for the answering machine.
For example, set your answering machine to a low number of rings and the HP All-in-One
to answer in the maximum number of rings. (The maximum number of rings varies by
country/region.) In this setup, the answering machine will answer the call and the HP Allin-One will monitor the line. If the HP All-in-One detects fax tones, the HP All-in-One will
receive the fax. If the call is a voice call, the answering machine will record the incoming
message.
To set the number of rings before answering from the control panel
1. Press Setup.
2. Press to highlight Basic Fax Setup and press OK.
3. Press to highlight Rings to Answer and then press OK.
4. Enter the appropriate number of rings by using the keypad, or press or
the number of rings.
5. Press OK to accept the setting.
to change
Change the answer ring pattern for distinctive ringing
Many phone companies offer a distinctive ringing feature that allows you to have several
phone numbers on one phone line. When you subscribe to this service, each number will
have a different ring pattern. You can set up the HP All-in-One to answer incoming calls
that have a specific ring pattern.
If you connect the HP All-in-One to a line with distinctive ringing, have your telephone
company assign one ring pattern to voice calls and another ring pattern to fax calls. HP
recommends that you request double or triple rings for a fax number. When the HP Allin-One detects the specified ring pattern, it will answer the call and receive the fax.
To change the distinctive ring pattern from the control panel
1. Verify that the HP All-in-One is set to answer fax calls automatically.
2. Press Setup.
3. Press to highlight Advanced Fax Setup, and then press OK.
4. Press to highlight Distinctive Ring, and then press OK.
5. Press to highlight the appropriate option, and then press OK.
When the phone rings with the ring pattern assigned to your fax line, the HP All-inOne answers the call and receives the fax.
Change settings on the HP All-in-One to receive faxes
29
Fax setup
If you do not have a distinctive ring service, use the default ring pattern, which is All
Rings.
Chapter 3
Test your fax setup
You can test your fax setup to check the status of the HP All-in-One and to make sure it
is set up properly for faxing. Perform this test after you have completed setting up the
HP All-in-One for faxing. The test does the following:
•
•
•
•
•
•
Tests the fax hardware
Verifies the correct type of phone cord is connected to the HP All-in-One
Checks that the phone cord is plugged into the correct port
Checks for a dial tone
Checks for an active phone line
Tests the status of your phone line connection
The HP All-in-One prints a report with the results of the test. If the test fails, review the
report for information on how to fix the problem and rerun the test.
To test your fax setup from the control panel
1. Set up the HP All-in-One for faxing according to your particular home or office setup
instructions.
2. Insert the ink cartridges and load full-size paper in the input tray before starting the
test.
3. Press Setup.
4. Press to highlight Tools, and then press OK.
5. Press to highlight Run Fax Test, and then press OK.
The HP All-in-One displays the status of the test on the display and prints a report.
6. Review the report.
• If the test passes and you are still having problems faxing, check the fax settings
listed in the report to verify the settings are correct. A blank or incorrect fax setting
can cause problems faxing.
• If the test fails, review the report for more information on how to fix any problems
found.
7. After you pick up the fax report from the HP All-in-One, press OK.
If necessary, resolve any problems found and rerun the test.
Set the fax header
The fax header prints your name and fax number on the top of every fax you send. HP
recommends that you set up the fax header by using the software that you installed with
the HP All-in-One. You can also set up the fax header from the control panel, as described
here.
NOTE: In some countries/regions the fax header information is a legal requirement.
Fax setup
To set a default fax header from the control panel
1. Press Setup.
2. Press to highlight Basic Fax Setup and press OK.
3. Press to highlight Fax Header, and then press OK.
The visual keyboard appears on the display.
30
Fax setup
Fax setup
4. Use the visual keyboard to enter your personal or company name. When you are
finished, highlight Done on the visual keyboard, and then press OK.
5. Enter your fax number by using the numeric keypad, and then press OK.
Set the fax header
31
Use the HP All-in-One features
4
Use the HP All-in-One features
This chapter includes information about how to use the HP All-in-One for basic
operations. In addition, it provides instructions about how to load paper and replace the
ink cartridges.
Load originals and load paper
You can load many different types and sizes of paper in the HP All-in-One, including letter
or A4 paper, legal paper, photo paper, transparencies, envelopes, and HP CD/DVD tattoo
labels. By default, the HP All-in-One is set to detect the size and type of paper you load
in the input tray automatically and then adjust its settings to generate the highest quality
output for that paper.
If you are using special papers, such as photo paper, transparency film, envelopes, or
labels, or if you experience poor print quality using the automatically-adjusted settings,
you can manually set the paper size and type for print and copy jobs.
Load an original in the automatic document feeder
You can copy, scan, or fax a single- or multiple-page letter-, A4-, or legal-size document
by placing it in the document feeder tray.
The automatic document feeder holds up to 50 sheets of letter or A4 paper, or 35 sheets
of legal paper.
NOTE: Some features, such as the Fit to Page copy feature, do not work when you
load your originals in the automatic document feeder. You must load your originals
on the glass.
CAUTION: Do not load photos in the automatic document feeder; this might cause
damage to your photos.
To load an original in the document feeder tray
1. Load your original, with the print side up, into the document feeder tray. Slide the
paper into the automatic document feeder until you hear a beep or see a message
on the display indicating that the HP All-in-One detected the pages you loaded.
If you are loading legal paper, flip open the feeder tray extender before loading the
paper.
TIP: For more help on loading originals in the automatic document feeder, refer
to the diagram engraved in the document feeder tray.
32
Use the HP All-in-One features
NOTE: Remove all originals from the document feeder tray before lifting the lid on
the HP All-in-One.
Load an original on the glass
You can copy, scan, or fax up to letter- or A4-size originals by loading them on the glass.
If your original is legal-size or contains multiple full-size pages, load it in the automatic
document feeder.
NOTE: Many of the special features will not work correctly if the glass and lid backing
are not clean.
To load an original on the scanner glass
1. Remove all originals from the document feeder tray, and then lift the lid on the HP Allin-One.
2. Load your original print side down on the right front corner of the glass.
3. Close the lid.
Load full-size paper
You can load many types of letter, A4, or legal paper into the main input tray of the HP Allin-One.
To load full-size paper
1. Pull out the main input tray, and then slide the paper-width and paper-length guides
to their outermost positions.
Load originals and load paper
33
Use the HP All-in-One features
2. Slide the paper guides inward until they stop at the left and right edges of the paper.
Chapter 4
Use the HP All-in-One features
2. Tap a stack of paper on a flat surface to align the edges, and then check the paper
for the following:
• Make sure it is free of rips, dust, wrinkles, and curled or bent edges.
• Make sure all the paper in the stack is the same size and type.
3. Insert the stack of paper into the main input tray with the short edge forward and the
print side down. Slide the stack of paper forward until it stops.
CAUTION: Make sure that the HP All-in-One is idle and silent when you load
paper into the main input tray. If the HP All-in-One is servicing the ink cartridges
or otherwise engaged in a task, the paper stop inside the device might not be in
place. You could push the paper too far forward, causing the HP All-in-One to
eject blank pages.
TIP: If you are using letterhead, insert the top of the page first with the print side
down. For more help on loading full-size paper and letterhead, refer to the diagram
engraved in the base of the main input tray.
4. Slide the paper-width and paper-length guides inward until they stop at the edges of
the paper.
Do not overload the main input tray; make sure the stack of paper fits within the main
input tray and is no higher than the top of the paper-width guide.
34
Use the HP All-in-One features
Use the HP All-in-One features
5. Push the main input tray back into the HP All-in-One.
6. Pull the output tray extender toward you, as far as it will go.
NOTE: When you use legal-size paper, leave the tray extender closed.
Load 10 x 15 cm (4 x 6 inch) photo paper
You can load up to 10 x 15 cm (4 x 6 inch) photo paper into the photo tray of the HP Allin-One. For the best results, use 10 x 15 cm (4 x 6 inch) HP Premium Plus Photo
Paper or HP Premium Photo Paper.
To load 10 x 15 cm (4 x 6 inch) photo paper in the photo tray
1. Raise the output tray, and then pull out the photo tray.
2. Insert the stack of photo paper into the photo tray with the short edge forward and the
glossy side down. Slide the stack of photo paper forward until it stops.
If the photo paper you are using has perforated tabs, load the photo paper so that the
tabs are closest to you.
3. Slide the paper-length and paper-width guides inward against the stack of photo
paper until the guides stop.
Do not overload the photo tray; make sure the stack of photo paper fits within the
photo tray and is no higher than the top of the paper-width guide.
Load originals and load paper
35
Chapter 4
Use the HP All-in-One features
4. Push in the photo tray, and then lower the output tray.
Avoid paper jams
To help avoid paper jams, follow these guidelines.
•
•
•
•
•
•
•
•
•
Remove printed papers from the output tray frequently.
Do not leave originals on the glass. If you load an original in the automatic document
feeder while there is already an original on the glass, the original can jam in the
automatic document feeder.
Prevent curled or wrinkled paper by storing all unused paper flat in a resealable bag.
Ensure that paper loaded in the input tray lays flat and the edges are not bent or torn.
If you are printing labels, ensure that the label sheets are no more than two years old.
Labels on older sheets might peel off when the paper is pulled through the HP All-inOne, and cause paper jams.
Do not combine different paper types and paper sizes in the input tray; the entire stack
of paper in the input tray must be the same size and type.
Adjust the paper-width guide in the input tray to fit snugly against all paper. Make sure
the paper-width guide does not bend the paper in the input tray.
Do not force paper too far forward in the input tray.
Use paper types that are recommended for the HP All-in-One.
View and select photos
You can view and select photos on your memory card or storage device before or while
printing them.
36
Use the HP All-in-One features
Use the HP All-in-One features
1
CompactFlash (CF) types I and II
2
Secure Digital (SD), Secure Digital Mini (adapter required), Secure Digital High Capacity
(SDHC), MultiMediaCard (MMC), MMC Plus, MMC Mobile (RS-MMC; adapter required),
TransFlash MicroSD Card, or Secure MultiMedia Card
3
Memory Stick, Memory Stick Pro, Memory Stick Select, Memory Stick Magic Gate, Memory
Stick Duo or Duo Pro (adapter optional), or Memory Stick Micro (adapter required)
4
Front USB port (for storage devices)
5
xD-Picture Card
To view, select, and print photos
1. Insert a memory card into the appropriate slot on the HP All-in-One, or connect a
storage device to the front USB port..
The Photosmart Express menu appears, with the most recent photo shown on the
display.
2. Load up to 10 x 15 cm (4 x 6 inch) photo paper in the photo tray or full-size photo
paper in the main input tray.
3. Press until View is highlighted, and then press OK.
The View Photos screen appears.
4. Press or to scroll through the thumbnails of your photos.
5. When the thumbnail of the photo you want to view is highlighted, press OK.
6. When the photo appears by itself on the display, press OK again.
The Photo Options screen appears.
7. With Print Preview highlighted, press OK.
The Print Preview screen appears, showing how your photo will look when printed.
View and select photos
37
Chapter 4
Use the HP All-in-One features
8. If you want to select additional photos to view and print, press to highlight Add
More, press OK, and repeat steps 4–6.
Or, once you're in the Add Photos screen, the quickest way to select multiple photos
(if you don't need the option to edit them) is to press to select a photo, and then
press or to scroll through more photos to select.
9. (Optional) If you want to check and/or modify any of your print settings, press to
highlight Settings and press OK.
10. To print the photo(s), use or to highlight Print Now (or press the Print Photos
button on the control panel).
A print status screen displays the number of pages to print and the estimated time to
complete.
Scan an image
You can start a scan from your computer or from the control panel of the HP All-in-One.
This section explains how to scan from the control panel of the HP All-in-One only.
NOTE: You can also use the software you installed with the HP All-in-One to scan
images. Using this software, you can edit a scanned image and create special projects
using a scanned image.
Scan an original to a computer
You can scan originals placed on the glass by using the control panel.
To scan to a computer
1. Load your original print side down on the right front corner of the glass.
2. Press Scan Menu.
3. Press to highlight Scan to Computer, and then press OK.
4. If the HP All-in-One is connected to one or more computers on a network, do the
following:
a. Press OK to select Select Computer.
A list of the computers connected to the HP All-in-One appears on the display.
NOTE: The Select Computer menu might list computers with a USB
connection in addition to those connected through the network.
b. Press OK to select the default computer, or press to select a different computer,
and then press OK.
The Scan To menu appears on the display, listing the applications on the selected
computer.
If the HP All-in-One is connected directly to a computer with a USB cable, proceed
to step 5.
5. Press OK to select the default application to receive the scan, or press to select a
different application, and then press OK.
A preview image of the scan appears on your computer, where you can edit it.
6. Make any edits to the preview image, and then click Accept when you are finished.
Scan an original to a memory card or storage device
You can send the scanned image as a JPEG image to the memory card that is currently
inserted or a storage device that is currently attached to the front USB port. This enables
38
Use the HP All-in-One features
NOTE: If the HP All-in-One is connected to a network, you can access the scanned
image only if the card or device is being shared across the network.
To save a scan to a memory card or storage device
1. Make sure your memory card is inserted into the appropriate slot on the HP All-inOne, or a storage device is connected to the front USB port.
2. Load your original print side down on the right front corner of the glass.
3. Press the Scan Menu button.
4. Press to highlight Scan to Memory Card, and then press OK.
The HP All-in-One scans the image and saves the file to the memory card or storage
device in the JPEG format.
Make a copy
You can make quality copies from the control panel.
To make a copy from the control panel
1. Make sure you have paper loaded in the input tray.
2. Load your original print side down on the right front corner of the glass or print side
up in the document feeder tray.
3. Press Start Copy Black or Start Copy Color to begin copying.
Send a basic fax
You can easily send a single- or multiple-page black-and-white fax by using the control
panel, as described here.
NOTE: If you need printed confirmation that your faxes were successfully sent,
enable fax confirmation before sending any faxes.
TIP: You can also send a fax manually from a phone or by using monitor dialing.
These features allow you to control the pace of your dialing. They are also useful
when you want to use a calling card to charge the call and you need to respond to
tone prompts while dialing.
For more information about fax reports, sending faxes manually, and other fax features,
see the onscreen Help.
Make a copy
39
Use the HP All-in-One features
you to use the photo print options to print borderless prints and album pages from the
scanned image.
Chapter 4
Use the HP All-in-One features
To send a basic fax from the control panel
1. Load your originals print side up into the document feeder tray. If you are sending a
single-page fax, such as a photograph, you can also load your original print side down
on the glass.
NOTE: If you are sending a multiple-page fax, you must load the originals in the
document feeder tray. You cannot fax a multiple-page document from the glass.
2. Press Fax Menu.
Enter the fax number by using the keypad, press
or press to access speed dials.
to redial the last number dialed,
TIP: To add a pause in the fax number you are entering, press the Symbols
(*) button repeatedly until a dash (-) appears on the display.
3. Press Start Fax Black.
• If the device detects an original loaded in the automatic document feeder,
the HP All-in-One sends the document to the number you entered.
• If the device does not detect an original loaded in the automatic document
feeder, the Feeder Empty prompt appears. Make sure your original is loaded
print side down on the glass, and then press to highlight Fax original from
scanner glass, and press OK.
TIP: If the recipient reports issues with the quality of the fax you sent, you can
try changing the resolution or contrast of your fax.
Check the estimated ink levels
You can easily check the ink supply level to determine how soon you might need to
replace an ink cartridge. The ink supply level shows an estimate of the amount of ink
remaining in the ink cartridges.
NOTE: The HP All-in-One can only detect the ink levels for genuine HP ink. The ink
levels in ink cartridges that are refilled or have been used in other devices might not
register accurately.
NOTE: Ink from the cartridges is used in the printing process in a number of different
ways, including in the initialization process, which prepares the device and cartridges
for printing, and in printhead servicing, which keeps print nozzles clear and ink flowing
smoothly. In addition, some residual ink is left in the cartridge after it is used. For more
information, see www.hp.com/go/inkusage.
To check the ink levels from the control panel
1. Press Setup.
2. Press to highlight Tools, and then press OK.
3. Press to highlight Display Ink Gauge, and then press OK.
The HP All-in-One displays a gauge that shows the estimated ink levels of all
cartridges installed.
40
Use the HP All-in-One features
Use the HP All-in-One features
4. Press any button to return to the Tools menu.
TIP: You can also print a self-test report to see if ink cartridges might need to be
replaced.
Replace the ink cartridges
Follow these instructions when you need to replace ink cartridges.
NOTE: If you are installing ink cartridges in the HP All-in-One for the first time, be
sure to use only the ink cartridges that came with the device. The ink in these
cartridges is specially formulated to mix with the ink in the print head assembly at firsttime setup.
If you do not already have replacement ink cartridges for the HP All-in-One, you can order
them by clicking the Shop for HP Supplies icon on your computer. On a Windows
computer this is located in the HP folder in the Start menu.
For more information see www.hp.com/buy/supplies.
To replace the ink cartridges
1. Make sure the HP All-in-One is turned on.
2. Open the ink cartridge door by lifting from the front center of the device, until the door
locks into place.
3. Squeeze the bottom of the latch below the ink cartridge you want to replace, and then
lift the latch.
If you are replacing the black ink cartridge, lift the latch on the far left.
If you are replacing one of the five color ink cartridges, such as yellow, light cyan
(blue), cyan, light magenta (pink), or magenta, lift the appropriate latch in the center
area.
Replace the ink cartridges
41
Chapter 4
Use the HP All-in-One features
1
Ink cartridge latch for the black ink cartridge
2
Ink cartridge latches for the color ink cartridges
4. Pull the ink cartridge toward you out of its slot to remove it.
5. Remove the new ink cartridge from its packaging, and then, holding it by the handle,
push the ink cartridge into the empty slot.
Match the color and pattern of the ink cartridge to the color and pattern on the print
carriage.
6. Close the latch and make sure it is secure.
42
Use the HP All-in-One features
Use the HP All-in-One features
7. Repeat steps 3 through 6 for each ink cartridge you are replacing.
8. Close the ink cartridge door.
Clean the HP All-in-One
To ensure that your copies and scans remain clear, you might need to clean the glass
and lid backing. You might also want to dust the exterior of the HP All-in-One.
TIP: You can purchase an HP Cleaning Kit for Inkjet Printers and All-in-Ones
(Q6260A) that provides everything needed to safely clean your HP device. For more
information, go to: www.shopping.hp.com/accessories-store/printer.
Clean the glass
Glass that is dirty from fingerprints, smudges, hair, and dust on the main glass surface
slows down performance and affects the accuracy of features such as Fit to Page.
In addition to the main glass surface, you might also need to clean the small glass strip
inside the automatic document feeder. Streaks can occur if the glass strip inside the
automatic document feeder is dirty.
To clean the glass
1. Turn off the HP All-in-One, and raise the lid.
2. Clean the glass with a soft cloth or sponge slightly moistened with a nonabrasive
glass cleaner.
CAUTION: Do not use abrasives, acetone, benzene, or carbon tetrachloride on
the glass, since they can damage it. Do not place or spray liquid directly on the
glass. The liquid might seep under the glass and damage the device.
Clean the HP All-in-One
43
Chapter 4
3. Dry the glass with a dry, soft, lint-free cloth to prevent spotting.
4. Turn on the HP All-in-One.
Use the HP All-in-One features
To clean the glass strip inside the automatic document feeder
1. Turn off the HP All-in-One.
2. Lift the cover of the automatic document feeder.
3. Lift the automatic document feeder mechanism.
There is a glass strip under the automatic document feeder mechanism.
4. Clean the glass strip with a soft cloth or sponge slightly moistened with a nonabrasive
glass cleaner.
CAUTION: Do not use abrasives, acetone, benzene, or carbon tetrachloride on
the glass, since they can damage it. Do not place or spray liquid directly on the
glass. The liquid might seep under the glass and damage the device.
5. Lower the automatic document feeder mechanism, and then close the cover of the
automatic document feeder.
6. Turn on the HP All-in-One.
Clean the lid backing
Minor debris can accumulate on the white document backing located underneath the lid
of the HP All-in-One.
44
Use the HP All-in-One features
CAUTION: Do not use paper-based wipes, as these might scratch the backing.
4. If further cleaning is needed, repeat the previous steps using isopropyl (rubbing)
alcohol, and wipe the backing thoroughly with a damp cloth to remove any residual
alcohol.
CAUTION: Be careful not to spill alcohol on the glass or exterior of the HP Allin-One, as this might damage the device.
Clean the HP All-in-One
45
Use the HP All-in-One features
To clean the lid backing
1. Turn off the HP All-in-One, and raise the lid.
2. Clean the white document backing with a soft cloth or sponge slightly moistened with
a mild soap and warm water.
Wash the backing gently to loosen debris. Do not scrub the backing.
3. Dry the backing with a dry, soft, lint-free cloth.
5
Troubleshooting and support
This chapter contains troubleshooting information for the HP All-in-One. Specific information is
provided for installation and configuration issues, and some operational topics. For more
troubleshooting information, see the onscreen Help that came with your software.
This chapter also provides warranty and support information. For support contact information, see
the inside back cover of this guide.
Many issues are caused when the HP All-in-One is connected to the computer using a USB cable
before the HP All-in-One software is installed on the computer. If you connected the HP All-in-One
to your computer before the software installation screen prompts you to do so, you must follow these
steps:
Troubleshooting and support
Troubleshooting common setup issues
1. Disconnect the USB cable from the computer.
2. Uninstall the software (if you have already installed it).
3. Restart your computer.
4. Turn off the HP All-in-One, wait one minute, then turn it on.
5. Reinstall the HP All-in-One software.
CAUTION: Do not connect the USB cable to the computer until prompted by the software
installation screen.
Uninstall and reinstall the software
If your installation is incomplete, or if you connected the USB cable to the computer before prompted
by the software installation screen, you might need to uninstall and then reinstall the software. Do
not simply delete the HP All-in-One application files from your computer. Make sure to remove them
properly using the uninstall utility provided when you installed the software that came with the HP Allin-One.
To uninstall from a Windows computer and then reinstall
1. On the Windows taskbar, click Start, Settings, Control Panel.
2. Double-click Add/Remove Programs.
3. Select the HP All-in-One, and then click Change/Remove.
Follow the onscreen instructions.
4. Disconnect the HP All-in-One from your computer.
5. Restart your computer.
NOTE: It is important that you disconnect the HP All-in-One before restarting your
computer. Do not connect the HP All-in-One to your computer until after you have reinstalled
the software.
6.
7.
Insert the HP All-in-One CD-ROM into your computer’s CD-ROM drive and then start the Setup
program.
Follow the onscreen instructions and the instructions provided in the Setup Guide that came
with the HP All-in-One.
Hardware setup troubleshooting
Use this section to solve any problems you might encounter while setting up the HP All-in-One
hardware.
The HP All-in-One will not turn on
Cause: The HP All-in-One is not properly connected to a power supply.
46
Troubleshooting and support
•
•
•
1
Power connection
2
Power cord and adapter
3
Grounded power outlet
If you are using a power strip, make sure the power strip is on. Or, try plugging the HP Allin-One directly into a grounded power outlet.
Test the power outlet to make sure it is working. Plug in an appliance that you know works,
and see if the appliance has power. If not, then there might be a problem with the power
outlet.
If you plugged the HP All-in-One into a switched outlet, make sure the switch is on. If it is
switched to on but still does not work, then there might be a problem with the power outlet.
Cause: You pressed the On button too quickly.
Solution: The HP All-in-One might not respond if you press the On button too quickly. Press
the On button once. It might take a few minutes for the HP All-in-One to turn on. If you press
the On button again during this time, you might turn the device off.
CAUTION: If the HP All-in-One still does not turn on, it might have a mechanical failure.
Unplug the HP All-in-One from the power outlet and contact HP. Go to: www.hp.com/
support. If prompted, choose your country/region, and then click Contact HP for information
on calling for technical support.
I connected the USB cable, but I am having problems using the HP All-in-One with
my computer
Cause: The USB cable was connected before the software was installed. Connecting the USB
cable before prompted can cause errors.
Solution: You must first install the software that came with the HP All-in-One before
connecting the USB cable. During installation, do not plug in the USB cable until prompted by
the onscreen instructions.
Once you have installed the software, connecting your computer to the HP All-in-One with a
USB cable is straightforward. Simply plug one end of the USB cable into the back of your
Hardware setup troubleshooting
47
Troubleshooting and support
Solution
•
Make sure the power cord is firmly connected to both the HP All-in-One and the power
adapter. Plug the power cord into a grounded power outlet, surge protector, or power strip.
Chapter 5
computer and the other into the back of the HP All-in-One. You can connect to any USB port on
the back of your computer.
Troubleshooting and support
For more information on installing the software and connecting the USB cable, see the Setup
Guide that came with the HP All-in-One.
The display shows the wrong language
Solution:
You can change the language settings at any time from the Preferences menu.
To set your language and country/region
1. Press Setup.
2. Press
to highlight Preferences, and then press OK.
to highlight Set Language, and then press OK.
3. Press
to scroll through the languages. When the language you want to use appears,
4. Press
press OK.
5. When prompted, press
to highlight Yes or No, and then press OK.
6. Press
to highlight Set Country/Region, and then press OK.
to scroll through the countries/regions. When the country/region you want to use
7. Press
appears, press OK.
8. When prompted, press
to highlight Yes or No, and then press OK.
I received a message on the display that the printer alignment failed
Cause: The incorrect type of paper is loaded in the input tray (for example, colored paper,
paper with text on it or, certain recycled paper).
Solution: Load unused plain white letter or A4 paper into the input tray, and then try the
alignment again.
If the alignment fails again, you might have a defective sensor on the print head assembly.
Contact HP Support. Go to www.hp.com/support. If prompted, choose your country/region, and
then click Contact HP for information on calling for technical support.
The wrong measurements are showing in menus on the display
Cause: You might have selected the incorrect country/region when setting up the HP All-inOne. The country/region you select determines the paper sizes shown on the display.
Solution: To change the country/region, you must reset the language settings. You can
change the language settings at any time from the Preferences menu.
48
Troubleshooting and support
I received a message on the display about a paper jam or a blocked print head
assembly
Solution: If either a paper jam or blocked print head assembly error message appears on the
display, there might be some packing material inside the HP All-in-One. Open the ink cartridge
door, and check for obstructions in the device. Remove any packing materials or other
obstructions.
Solution: If the HP All-in-One and computer are not communicating with each other, try the
following:
•
Look at the On light located on the front of the HP All-in-One. If it is not lit, the HP All-inOne is turned off. Make sure the power cord is firmly connected to the HP All-in-One and
plugged into a power outlet. Press the On button to turn on the HP All-in-One.
•
Make sure the ink cartridges are installed.
•
Make sure you have paper loaded in the input tray.
•
Check that the HP All-in-One does not have a paper jam.
•
Check that the print carriage is not jammed.
Open the ink cartridge door to access the print carriage area. Remove any objects that are
blocking the print carriage, including any packing materials. Turn the HP All-in-One off and
then turn it on again.
•
Check that the HP All-in-One print queue is not paused (Windows) or stopped (Mac). If it
is, choose the appropriate setting to resume printing. For more information about accessing
the print queue, see the documentation that came with the operating system installed on
your computer.
•
Check the USB cable. If you are using an older cable, it might not be working properly. Try
connecting it to another product to see if the USB cable works. If you experience problems,
the USB cable might need to be replaced. Also verify that the cable does not exceed 3
meters (9.8 feet) in length.
•
Make sure your computer is USB ready. Some operating systems, such as Windows 95
and Windows NT, do not support USB connections. Check the documentation that came
with your operating system for more information.
•
Check the connection from the HP All-in-One to your computer. Verify that the USB cable
is securely plugged into the USB port on the back of the HP All-in-One. Make sure the other
end of the USB cable is plugged into a USB port on your computer. After the cable is
connected properly, turn the HP All-in-One off and then on again.
•
If you are connecting the HP All-in-One through a USB hub, make sure the hub is turned
on. If the hub is on, try connecting directly to your computer.
•
Check other printers or scanners. You might need to disconnect older products from your
computer.
•
Try connecting the USB cable to another USB port on your computer. After you check the
connections, try restarting your computer. Turn the HP All-in-One off and then on again.
•
If the HP All-in-One is offline, turn the HP All-in-One off and on again. Start a print job.
•
If necessary, remove and then install the software you installed with the HP All-in-One again.
For more information on setting up the HP All-in-One and connecting it to your computer, see
the Setup Guide that came with the HP All-in-One.
Network troubleshooting
This section addresses problems you might encounter while setting up a network.
Wired network setup troubleshooting
This section addresses problems you might encounter setting up a wired network.
Network troubleshooting
49
Troubleshooting and support
The HP All-in-One does not print
Chapter 5
The computer is unable to discover the HP All-in-One
Cause: Cables are not connected properly.
Solution: Check the following cables to ensure they are connected properly.
•
Cables between the HP All-in-One and the hub or router
•
Cables between the hub or router and your computer
•
Cables to and from your modem or HP All-in-One Internet connection (if applicable)
Cause: Your computer's Local Area Network card (LAN card) is not set up properly.
Solution: Make sure that your LAN card is set up properly.
To check your LAN card (Windows 2000 and XP)
1. Right-click My Computer.
2. In the System Properties dialog box, click the Hardware tab.
3. Click Device Manager.
4. Make sure your card shows up under Network Adapters.
5. Refer to the documentation that came with your card.
Troubleshooting and support
To check your LAN card (Windows Vista)
1. On the Windows taskbar, click Start, Computer, and then click Properties.
2. Click Device Manager.
3. Make sure your card shows up under Network Adapters.
4. Refer to the documentation that came with your card.
Cause: You do not have an active network connection.
Solution: Check to see if you have an active network connection.
To see if you have an active network connection
▲ Check the two Ethernet indicator lights on the top and bottom of the RJ-45 Ethernet jack on
the back of the HP All-in-One. The lights indicate the following:
a. Top light: If this light is a solid green, the device is properly connected to the network,
and communications have been established. If the top light is off, there is no network
connection.
b. Bottom light: This yellow light flashes when data is being sent or received by the device
over the network.
To establish an active network connection
1. Check the cable connections from the HP All-in-One to your gateway, router, or hub to
ensure connections are secure.
2. If the connections are secure, press the On button on the control panel to turn the HP Allin-One off. Then turn off the power on your router or hub. Turn on the router or hub first,
and then press the On button to turn the HP All-in-One on.
Cause: You were able to connect the HP All-in-One to the network previously, but now it will
not connect.
Solution: Turn off the HP All-in-One, the computer, and the router. Wait 30 seconds. Turn on
the router first, and then turn on the HP All-in-One and the computer.
Cause: The HP All-in-One and computer are not connected to the same network.
Solution: Try accessing the Embedded Web Server on the HP All-in-One. To find the IP
address, print a network configuration page.
The Printer not Found screen appears during installation
Cause: The HP All-in-One is not turned on.
50
Troubleshooting and support
Solution:
Turn on the HP All-in-One.
Cause: You do not have an active network connection.
Solution: Make sure you have an active network connection.
Cause: Cables are not connected properly.
Solution: Check the following cables to ensure they are connected properly:
•
Cables between the HP All-in-One and the hub or router
•
Cables between the hub or router and your computer
•
Cables to and from your modem or HP All-in-One Internet connection (if applicable)
Cause: A firewall, anti-virus, or anti-spyware application is preventing the HP All-in-One from
accessing your computer.
Solution: Uninstall the HP All-in-One software, and then reboot your computer. Temporarily
disable anti-virus or anti-spyware applications, and then reinstall the HP All-in-One software.
You can re-enable your anti-virus or anti-spyware applications after installation is complete. If
you see firewall pop-up messages, you must always accept or allow the pop-up messages.
If the screen still appears, try uninstalling the HP All-in-One software, rebooting your computer,
and temporarily disabling your firewall before reinstalling the HP All-in-One software. You can
re-enable your firewall application after installation is complete.
For more information, see the documentation provided with the firewall software.
Cause: A Virtual Private Network (VPN) is preventing the HP All-in-One from accessing your
computer.
Solution: Try temporarily disabling the VPN before proceeding with the installation.
NOTE: The HP All-in-One is not accessible during VPN sessions. However, print jobs are
saved in the print queue. When you exit the VPN session, print jobs in the print queue will
be printed.
Wireless setup troubleshooting
This section addresses problems you might encounter setting up a network. Check the device display
for specific error messages.
NOTE: HP provides an online tool that might be able to find your wireless security settings
automatically. Go to: www.hp.com/go/networksetup.
During wireless network setup you do not see the SSID (network name)
displayed
Cause: Your wireless router is not broadcasting its network name (SSID) because the
Broadcast SSID option is turned off.
Network troubleshooting
51
Troubleshooting and support
To make sure your network connection is active
1. If the connections are secure, turn off the power on the HP All-in-One, and then turn it on
again. Press the On button on the control panel to turn the HP All-in-One off, and press it
again to turn the device on. Also, turn off the power on your router or hub, and then turn it
on again.
2. Check the cable connections from the HP All-in-One to your gateway, router, or hub to
ensure connections are secure.
3. Make sure the HP All-in-One is connected to the network with a CAT-5 Ethernet cable.
Chapter 5
Solution: Access the router's Embedded Web Server and turn on the Broadcast SSID option.
See the user guide that came with your wireless router for information on how to access the
Embedded Web Server and check the Broadcast SSID setting.
For more information, see:
“Connect to an integrated wireless WLAN 802.11 network” on page 10
Troubleshooting and support
Cause: The wireless router (infrastructure) or computer (ad hoc) is too far from the HP All-inOne or there is interference.
Solution: In order to establish a good signal between the HP All-in-One and wireless router
(infrastructure) or computer (ad hoc), you might have to experiment a bit. Assuming the
equipment is functioning properly, try doing the following things separately or in combination:
•
If there is a long distance between your computer or wireless router and the HP All-in-One,
move them closer together.
•
If there are metal objects (such as a metal bookcase or refrigerator) in the transmission
path, clear the path between the HP All-in-One and the computer or wireless router.
•
If a cordless telephone, microwave, or other device that emits radio signals transmitting at
2.4 GHz is nearby, move it farther away to reduce radio interference.
•
If your computer or wireless router is near an external wall, move them away from the wall.
Cause: Your network name (SSID) may be at the bottom of the SSID list that is displayed
when you install the HP All-in-One on a wireless network.
Solution: Press
to scroll to the bottom of the list. Infrastructure entries are listed first, ad
hoc last.
Cause: An Ethernet cable is connected to the HP All-in-One.
Solution: When an Ethernet cable is plugged into the HP All-in-One, the wireless radio turns
off. Unplug the Ethernet cable.
Cannot connect to network during setup
Cause: The equipment is not turned on.
Solution: Turn on the networked devices, such as the wireless router for an infrastructure
network, or the computer for an ad hoc network. For more information on how to turn on the
wireless router, see the documentation that came with your wireless router.
Cause: The HP All-in-One is not receiving a signal.
Solution: Move the wireless router and the HP All-in-One closer together. Then run the
wireless setup again.
For more information, see:
“Integrated wireless WLAN 802.11 network setup” on page 9
Cause: If you manually entered your network name (SSID), you might have entered it
incorrectly.
Solution: Run the wireless setup process again and enter your network name (SSID)
carefully. Remember that the SSID is case-sensitive.
For more information, see:
“Connect to an integrated wireless WLAN 802.11 network” on page 10
Cause: The setting for MAC address filtering might be enabled on your wireless router.
Solution: Disable MAC address filtering on your wireless router until the HP All-in-One has
successfully connected to your network. If you re-enable MAC address filtering on your wireless
52
Troubleshooting and support
router, make sure the MAC address of the HP All-in-One is on the list of acceptable MAC
addresses.
Invalid WEP key during wireless setup
Cause: If you are using WEP security, you might have entered the WEP key incorrectly during
the wireless setup process.
Solution: Some wireless routers provide up to four WEP keys. The HP All-in-One uses the
first WEP key (selected by the wireless router as the default WEP key). Run the wireless setup
process again and be sure to use the first WEP key provided by the wireless router. Enter the
WEP key exactly as it appears in the wireless router settings. The WEP key is case-sensitive.
If you do not know the WEP key, see the documentation that came with your wireless router for
information on how to access the router's Embedded Web Server. You can find the WEP key
by logging onto the router's Embedded Web Server using a computer on the wireless network.
Cause: During the wireless setup process, you might have entered the WPA passphrase
incorrectly.
Solution: Run the wireless setup process again and enter the correct passphrase. The
passphrase is case-sensitive.
The Printer Not Found screen appears during installation
Cause: A firewall, anti-virus, or anti-spyware application is preventing the HP All-in-One from
accessing your computer.
Solution: Uninstall the HP All-in-One software, and then reboot your computer. Temporarily
disable anti-virus or anti-spyware applications, and then reinstall the HP All-in-One software.
You can re-enable your anti-virus or anti-spyware applications after installation is complete. If
you see firewall pop-up messages, you must always accept or allow the pop-up messages.
If the screen still appears, try uninstalling the HP All-in-One software, rebooting your computer,
and temporarily disabling your firewall before reinstalling the HP All-in-One software. You can
re-enable your firewall application after installation is complete. If you still see firewall pop-up
messages, you must always accept or allow the pop-up messages.
For more information, see the documentation provided with the firewall software.
Cause: A Virtual Private Network (VPN) is preventing the HP All-in-One from accessing your
computer.
Solution: Temporarily disable the VPN before proceeding with the installation.
NOTE: The HP All-in-One functionality will be limited during VPN sessions.
Cause: The HP All-in-One is not turned on.
Solution: Turn on the HP All-in-One.
Network software installation troubleshooting
This section addresses network setup problems you might encounter after establishing the network
connection, inserting the CD and starting the software installation.
I received a System Requirements Error: No TCP/IP
Cause: Your Local Area Network (LAN) card is not installed properly.
Solution: Make sure your LAN card is installed properly and set up for TCP/IP. See the
instructions that came with your LAN card.
Network troubleshooting
53
Troubleshooting and support
Invalid passphrase during wireless setup
Chapter 5
The Printer Not Found screen appears during installation
Cause: A firewall, anti-virus, or anti-spyware application is preventing the HP All-in-One from
accessing your computer.
Solution: Uninstall the HP All-in-One software, and then reboot your computer. Temporarily
disable the firewall, anti-virus, or anti-spyware, and then reinstall the HP All-in-One software.
You can re-enable your firewall, anti-virus, or anti-spyware application after installation is
complete. If you see firewall pop-up messages, you must accept or allow the pop-up messages.
For more information, see the documentation provided with the firewall software.
Cause: A Virtual Private Network (VPN) is preventing the HP All-in-One from accessing your
computer.
Solution: Temporarily disable the VPN before proceeding with the installation.
NOTE: The HP All-in-One functionality will be limited during VPN sessions.
Troubleshooting and support
Cause: The Ethernet cable is not plugged in to the router, switch, or hub, or the cable is
defective.
Solution: Reinsert the cables. Or, if necessary, try a different cable.
Cause: The HP All-in-One is assigned an AutoIP address instead of DHCP.
Solution: The HP All-in-One is not connected properly to the network.
Check the following:
•
Make sure all cables are connected properly and securely.
•
If the cables are connected properly, your access point, router, or home gateway might not
be sending an address. If this is the case, you might need to reset the HP All-in-One.
•
Make sure the HP All-in-One is on the correct network.
Cause: The HP All-in-One is on the wrong subnet or gateway.
Solution: Print a network configuration page, and verify that the router and HP All-in-One are
on the same subnet and gateway. For more information, see the onscreen Help that came with
the HP All-in-One.
For more information, see:
“View and print network settings” on page 18
Cause: The HP All-in-One is not turned on.
Solution: Turn on the HP All-in-One.
Fax setup troubleshooting
This section contains fax setup troubleshooting information for the HP All-in-One. If the HP All-inOne is not set up properly for faxing, you might experience problems when sending faxes, receiving
faxes, or both.
The fax test failed
If you ran a fax test and the test failed, review the report for basic information about the error. For
more detailed information, check the report to see which part of the test failed, and then review the
appropriate topic in this section for solutions to try.
•
“The "Fax Hardware Test" failed.” on page 55
•
“The "Fax Connected to Active Telephone Wall Jack" test failed” on page 55
•
“The "Phone Cord Connected to Correct Port on Fax" test failed” on page 56
•
“The "Using Correct Type of Phone Cord with Fax" test failed” on page 57
54
Troubleshooting and support
•
•
“The "Dial Tone Detection" test failed” on page 58
“The "Fax Line Condition" test failed” on page 59
The "Fax Hardware Test" failed.
Solution
•
Turn off the HP All-in-One by using the On button located on the control panel and then
unplug the power cord from the back of the HP All-in-One. After a few seconds, plug the
power cord back in and turn the power on. Run the test again. If the test fails again, continue
reviewing the troubleshooting information in this section.
NOTE: Depending how long the HP All-in-One is unplugged, the date and time might
be erased. You might need to reset the date and time later, when you plug the power
cord back in.
Try to send or receive a test fax. If you can send or receive a fax successfully, there might
not be a problem.
•
If you are running the test from the Fax Setup Wizard, make sure the HP All-in-One is not
busy completing another task, such as making a copy. Check the display for a message
indicating that the HP All-in-One is busy. If it is busy, wait until it is finished and in the idle
state, before running the test.
After you resolve any problems found, run the fax test again to make sure it passes and the
HP All-in-One is ready for faxing. If the Fax Hardware Test continues to fail and you experience
problems faxing, contact HP Support. Go to www.hp.com/support. If prompted, choose your
country/region, and then click Contact HP for information on calling for technical support.
The "Fax Connected to Active Telephone Wall Jack" test failed
Solution
What to do
•
Check the connection between the telephone wall jack and the HP All-in-One to make sure
the phone cord is secure.
•
Make sure you use the phone cord that came with the HP All-in-One. If you do not use the
supplied phone cord to connect from the telephone wall jack to the HP All-in-One, you might
not be able to send or receive faxes. After you plug in the phone cord that came with the
HP All-in-One, run the fax test again.
•
Make sure you have correctly connected the HP All-in-One to the telephone wall jack. Using
the phone cord supplied in the box with the HP All-in-One, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back of
the HP All-in-One.
Fax setup troubleshooting
55
Troubleshooting and support
•
Chapter 5
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One
Troubleshooting and support
•
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the HP All-in-One directly to the telephone wall jack.
•
Try connecting a working phone and phone cord to the telephone wall jack that you are
using for the HP All-in-One and check for a dial tone. If you do not hear a dial tone, contact
your telephone company and have them check the line.
•
Try to send or receive a test fax. If you can send or receive a fax successfully, there might
not be a problem.
After you resolve any problems found, run the fax test again to make sure it passes and the
HP All-in-One is ready for faxing.
The "Phone Cord Connected to Correct Port on Fax" test failed
Solution: Plug the phone cord into the correct port.
1. Using the phone cord supplied in the box with the HP All-in-One, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back of
the HP All-in-One.
NOTE: If you use the 2-EXT port to connect to the telephone wall jack, you will not be
able to send or receive faxes. The 2-EXT port should only be used to connect other
equipment, such as an answering machine or a telephone.
56
Troubleshooting and support
2.
3.
•
•
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One to connect to the "1-LINE" port
After you have connected the phone cord to the port labeled 1-LINE, run the fax test again
to make sure it passes and the HP All-in-One is ready for faxing.
Try to send or receive a test fax.
Make sure you use the phone cord that came with the HP All-in-One. If you do not use the
supplied phone cord to connect from the telephone wall jack to the HP All-in-One, you might
not be able to send or receive faxes. After you plug in the phone cord that came with the
HP All-in-One, run the fax test again.
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the HP All-in-One directly to the telephone wall jack.
The "Using Correct Type of Phone Cord with Fax" test failed
Solution
•
Make sure you used the phone cord supplied in the box with the HP All-in-One to connect
to the telephone wall jack. One end of the phone cord should be connected to the port
labeled 1-LINE on the back of the HP All-in-One and the other end to your telephone wall
jack, as shown below.
1
Telephone wall jack
Fax setup troubleshooting
57
Troubleshooting and support
Back view of the HP All-in-One
Chapter 5
2
•
Phone cord supplied in the box with the HP All-in-One
Check the connection between the telephone wall jack and the HP All-in-One to make sure
the phone cord is secure.
The "Dial Tone Detection" test failed
Troubleshooting and support
Solution
•
Other equipment, which uses the same phone line as the HP All-in-One, might be causing
the test to fail. To find out if other equipment is causing a problem, disconnect everything
except the HP All-in-One from the phone line, and then run the test again. If the Dial Tone
Detection Test passes without the other equipment, then one or more pieces of the
equipment is causing problems; try adding them back one at a time and rerunning the test
each time, until you identify which piece of equipment is causing the problem.
•
Try connecting a working phone and phone cord to the telephone wall jack that you are
using for the HP All-in-One and check for a dial tone. If you do not hear a dial tone, contact
your telephone company and have them check the line.
•
Make sure you have correctly connected the HP All-in-One to the telephone wall jack. Using
the phone cord supplied in the box with the HP All-in-One, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back of
the HP All-in-One.
•
•
58
1
Telephone wall jack
2
Use the phone cord supplied in the box with the HP All-in-One
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the HP All-in-One directly to the telephone wall jack.
If your telephone system is not using a standard dial tone, such as some PBX systems, this
might cause the test to fail. This will not cause a problem sending or receiving faxes. Try
sending or receiving a test fax.
Troubleshooting and support
•
Check to make sure the country/region setting is set appropriately for your country/region.
If the country/region setting is not set or is set incorrectly, the test might fail and you might
have problems sending and receiving faxes.
•
Make sure you connect the HP All-in-One to an analog phone line or you will not be able to
send or receive faxes. To check if your phone line is digital, connect a regular analog phone
to the line and listen for a dial tone. If you do not hear a normal sounding dial tone, it might
be a phone line set up for digital phones. Connect the HP All-in-One to an analog phone
line and try sending or receiving a fax.
After you resolve any problems found, run the fax test again to make sure it passes and the
HP All-in-One is ready for faxing. If the Dial Tone Detection test continues to fail, contact your
telephone company and have them check the phone line.
Solution
•
Make sure you connect the HP All-in-One to an analog phone line or you will not be able to
send or receive faxes. To check if your phone line is digital, connect a regular analog phone
to the line and listen for a dial tone. If you do not hear a normal sounding dial tone, it might
be a phone line set up for digital phones. Connect the HP All-in-One to an analog phone
line and try sending or receiving a fax.
•
Check the connection between the telephone wall jack and the HP All-in-One to make sure
the phone cord is secure.
•
Make sure you have correctly connected the HP All-in-One to the telephone wall jack. Using
the phone cord supplied in the box with the HP All-in-One, connect one end to your
telephone wall jack, then connect the other end to the port labeled 1-LINE on the back of
the HP All-in-One.
•
Other equipment, which uses the same phone line as the HP All-in-One, might be causing
the test to fail. To find out if other equipment is causing a problem, disconnect everything
except the HP All-in-One from the phone line, and then run the test again.
•
If the Fax Line Condition Test passes without the other equipment, then one or more
pieces of the equipment is causing problems; try adding them back one at a time and
rerunning the test each time, until you identify which piece of equipment is causing the
problem.
•
If the Fax Line Condition Test fails without the other equipment, connect the HP Allin-One to a working phone line and continue reviewing the troubleshooting information
in this section.
•
If you are using a phone splitter, this can cause faxing problems. (A splitter is a two-cord
connector that plugs into a telephone wall jack.) Try removing the splitter and connecting
the HP All-in-One directly to the telephone wall jack.
After you resolve any problems found, run the fax test again to make sure it passes and the
HP All-in-One is ready for faxing. If the Fax Line Condition test continues to fail and you
experience problems faxing, contact your telephone company and have them check the phone
line.
The HP All-in-One is having problems sending and receiving faxes
Cause: The HP All-in-One is not set up properly for faxing.
Solution: Follow the instructions in this guide to set up the HP All-in-One properly for faxing,
based on the equipment and services you have on the same phone line as the HP All-in-One.
Then, run a fax test to check the status of the HP All-in-One and to make sure you set it up
properly.
The HP All-in-One prints a report with the results of the test. If the test fails, review the report
for information on how to fix the problem.
Cause:
The HP All-in-One is turned off.
Fax setup troubleshooting
59
Troubleshooting and support
The "Fax Line Condition" test failed
Chapter 5
Solution: Look at the display on the HP All-in-One. If the display is blank and the On button
is not lit, the HP All-in-One is turned off. Make sure the power cord is firmly connected to the
HP All-in-One and plugged into a power outlet. Press the On button to turn on the HP All-inOne.
Cause: You are using a phone line splitter.
Solution: A phone line splitter can cause faxing problems. (A splitter is a two-cord connector
that plugs into a telephone wall jack.) Try removing the splitter and connecting the HP All-inOne directly to the telephone wall jack.
Cause: The telephone wall jack is not working properly.
Solution: Try connecting a working telephone and phone cord to the telephone wall jack you
are using for the HP All-in-One and check for a dial tone. If you do not hear a dial tone, call your
local telephone company for service.
Troubleshooting and support
Cause: The phone line connection is noisy. Phone lines with poor sound quality (noise) can
cause faxing problems.
Solution: If the failure was due to noise on the phone line, contact the sender to have them
resend the fax. The quality might be better when you try again. You can check the sound quality
of the phone line by plugging a phone into the telephone wall jack and listening for static or other
noise. If the problem persists, turn Error Correction Mode (ECM) off and contact your telephone
company.
If you are still having problems faxing, set the Fax Speed to a slower rate such as Medium
(14400) or Slow (9600).
Cause: Other equipment that uses the same phone line as the HP All-in-One might be in use.
Solution: Make sure extension phones (phones on the same phone line, but not connected
to the HP All-in-One) or other equipment are not in use or off the hook. For example, you cannot
use the HP All-in-One for faxing if an extension phone is off the hook, or if you are using a
computer dial-up modem to send e-mail or access the Internet.
Cause: The HP All-in-One shares the same phone line with a DSL service and a DSL filter is
not connected.
Solution: If you use a DSL service, make sure that you have a DSL filter connected or you
will not be able to fax successfully. The DSL service sends out a digital signal on the phone line
that can interfere with the HP All-in-One, preventing the HP All-in-One from sending and
receiving faxes. The DSL filter removes the digital signal and allows the HP All-in-One to
communicate properly with the phone line. To check if you already have a filter installed, listen
to your phone line or dial tone. If you hear noise or static on the line, you probably do not have
a DSL filter installed, or it is installed incorrectly. Obtain a DSL filter from your DSL provider. If
you already have a DSL filter, make sure it is connected correctly.
Cause: Another process has caused an error in the HP All-in-One.
Solution: Check the display or your computer for an error message providing information
about the problem and how to solve it. If there is an error, the HP All-in-One will not send or
receive a fax until the error condition is resolved.
You can also check the status of the HP All-in-One by clicking Status in the HP Solution Center.
Cause: You are using either a PBX or an ISDN converter/terminal adapter.
60
Troubleshooting and support
Solution
•
Make sure the HP All-in-One is connected to the port that is designated for fax and phone
use. Also, make sure that the terminal adapter is set to the correct switch type for your
country/region, if possible.
NOTE: Some ISDN systems allow you to configure the ports for specific phone
equipment. For example, you might have assigned one port for telephone and Group
3 fax and another port for multiple purposes. If you have problems when connected to
the fax/phone port of your ISDN converter, try using the port designated for multiple
purposes; it might be labeled "multi-combi" or something similar.
Cause: The Fax Speed setting is set too fast.
Solution: You might need to send and receive faxes at a slower rate. Try setting the Fax
Speed to Medium (14400) or Slow (9600) if you use one of the following:
•
An Internet phone service
•
A PBX system
•
Fax over Internet Protocol (FoIP)
•
An ISDN service
Cause: The HP All-in-One might be connected to a telephone wall jack that is set up for digital
phones.
Solution: Make sure you connect the HP All-in-One to an analog phone line or you will not be
able to send or receive faxes. To check if your phone line is digital, connect a regular analog
phone to the line and listen for a dial tone. If you do not hear a normal sounding dial tone, it
might be a phone line set up for digital phones. Connect the HP All-in-One to an analog phone
line and try sending or receiving a fax.
Cause: The HP All-in-One shares the same phone line with a DSL service and the DSL modem
might not be properly grounded.
Solution: If the DSL modem is not properly grounded, it can create noise on the phone line.
Phone lines with poor sound quality (noise) can cause faxing problems. You can check the sound
quality of the phone line by plugging a phone into the telephone wall jack and listening for static
or other noise.
If you hear noise
1. Turn off your DSL modem and completely remove power for at least 15 minutes.
2. Turn the DSL modem back on.
3. Listen to the dial tone again. If the dial tone sounds clear (no noise or static), try sending or
receiving a fax.
NOTE: You might notice static on the phone line again in the future. If the HP All-in-One
stops sending and receiving faxes, repeat this process.
If the phone line is still noisy, contact your phone company. For information on turning your DSL
modem off, contact your DSL provider for support.
Cause: You are faxing over the Internet using an IP phone, and there was a problem with the
transmission.
Solution: Try resending your fax at a later time. Also, make sure your Internet service provider
supports faxing over the Internet.
Fax setup troubleshooting
61
Troubleshooting and support
•
For more information on how to set up the HP All-in-One with a PBX phone system or ISDN
line, see “Case C: Set up the HP All-in-One with a PBX phone system or an ISDN line”
on page 24.
Try setting the Fax Speed to Medium (14400) or Slow (9600).
Chapter 5
If the problem persists, contact your Internet service provider.
The HP All-in-One cannot send faxes, but can receive faxes
Cause: The HP All-in-One is not set up properly for faxing.
Solution: Follow the instructions provided in this guide to set up the HP All-in-One properly
for faxing, based on the equipment and services you have on the same phone line as the HP Allin-One. Then, run a fax test to check the status of the HP All-in-One and to make sure you set
it up properly.
The HP All-in-One prints a report with the results of the test. If the test fails, review the report
for information on how to fix the problem.
Troubleshooting and support
Cause: The HP All-in-One might be dialing too fast or too soon.
Solution: You might need to insert some pauses in the number sequence. For example, if you
need to access an outside line before dialing the phone number, insert a pause following the
access number. If your number is 95555555, and 9 accesses an outside line, you might insert
pauses as follows: 9-555-5555. To enter a pause in the fax number you are typing, press the
Space button repeatedly until a dash (-) appears on the display.
If you are using a speed dial entry to send the fax, update the speed dial entry to include pauses
in the number sequence.
You can also send the fax using monitor dialing. This enables you to listen to the phone line as
you dial. You can set the pace of your dialing and respond to prompts as you dial.
Cause: The number you entered when sending the fax is not in the proper format.
Solution: Check to see that the fax number you entered is correct and in the proper format.
For example, you might need to dial a "9" prefix, depending on your phone system.
If your phone line has a PBX system, make sure you are dialing the number for an outside line
before dialing the fax number.
Cause: The receiving fax machine is having problems.
Solution: To check this, try calling the fax number from a telephone and listen for fax tones.
If you cannot hear fax tones, the receiving fax might not be turned on or connected, or a voice
mail service could be interfering with the recipient's phone line. You can also ask the recipient
to check the receiving fax machine for any problems.
The HP All-in-One is having problems sending a manual fax
Cause: The recipient's fax machine might not support receiving faxes manually.
Solution: Check with the recipient to see if their fax machine can receive faxes manually.
Cause: You did not press Start Fax Black or Start Fax Color within three seconds of hearing
fax tones.
Solution: If you are sending a fax manually, make sure that you press Start Fax Black or
Start Fax Color within three seconds of hearing the recipient's fax tones, otherwise the
transmission might fail.
Cause: The Fax Speed setting might be set too fast.
Solution: Try setting the Fax Speed to Medium (14400) or Slow (9600), and then resend the
fax.
Cause: The HP All-in-One is not detecting an original loaded in the document feeder tray.
Solution: If you did not load an original in the document feeder tray, or if the original is not
pushed in far enough, you will be unable to send a fax manually. Load an original in the document
62
Troubleshooting and support
feeder tray, or push the original farther into the tray. Once the HP All-in-One detects the original,
a confirmation message appears on the display.
The HP All-in-One cannot receive faxes, but can send faxes
Cause: Auto Answer is turned off, which means that the HP All-in-One will not answer
incoming calls. You must be available to respond in person to incoming fax calls, or the HP Allin-One will not answer the incoming fax call.
Solution: Depending on your office setup, you might be able to set the HP All-in-One to answer
incoming calls automatically.
If you must have Auto Answer off, you will need to press Start Fax Black or Start Fax Color
to receive a fax.
TIP: If you are not close enough to the HP All-in-One to reach the control panel, wait
several seconds, and then press 1 2 3 on your phone. If the HP All-in-One does not begin
receiving the fax, wait several more seconds and press 1 2 3 again. After the HP All-in-One
begins to receive the fax, you can hang up the phone.
Cause: You subscribe to a voice mail service at the same phone number you use for fax calls.
Solution: Set the HP All-in-One to answer faxes manually. You cannot receive faxes
automatically if you have a voice mail service at the same phone number you use for fax calls.
You must receive faxes manually; this means you must be available to respond in person to
incoming fax calls.
Cause: You have a computer dial-up modem on the same phone line as the HP All-in-One.
Solution: If you have a computer dial-up modem on the same phone line as the HP All-inOne, check to make sure that the software that came with your modem is not set to receive
faxes automatically. Modems that are set up to receive faxes automatically take over the phone
line to receive all incoming faxes, which prevents the HP All-in-One from receiving fax calls.
Cause: If you have an answering machine on the same phone line with the HP All-in-One, you
might have one of the following problems:
•
Your outgoing message might be too long or too loud to allow the HP All-in-One to detect
fax tones, and the sending fax machine might disconnect.
•
Your answering machine might not have enough quiet time after your outgoing message to
allow the HP All-in-One to detect fax tones. This problem is most common with digital
answering machines.
Fax setup troubleshooting
63
Troubleshooting and support
Cause: The HP All-in-One is not set up properly for faxing.
Solution: Follow the instructions in this guide to set up the HP All-in-One properly for faxing,
based on the equipment and services you have on the same phone line as the HP All-in-One.
Then, run a fax test to check the status of the HP All-in-One and to make sure you set it up
properly.
The HP All-in-One prints a report with the results of the test. If the test fails, review the report
for information on how to fix the problem.
Chapter 5
Solution: If you have an answering machine on the same phone line with the HP All-in-One,
do the following:
•
Disconnect the answering machine and then try receiving a fax. If faxing is successful
without the answering machine, the answering machine might be causing the problem.
•
Reconnect the answering machine and record your outgoing message again. Record a
message that is approximately 10 seconds in duration. Speak slowly and at a low volume
when recording your message. Leave at least 5 seconds of silence at the end of the voice
message. There should be no background noise when recording this silent time. Try to
receive a fax again.
Troubleshooting and support
Cause: You have a special ring pattern for your fax phone number (using a distinctive ring
service through your telephone company), and the Distinctive Ring setting on the HP All-inOne does not match.
Solution: If you have a special ring pattern for your fax phone number (using a distinctive ring
service through your telephone company), make sure that the Distinctive Ring setting on the
HP All-in-One is set to match. For example, if the phone company has assigned your number a
double ring pattern, make sure Double Rings is selected as the Distinctive Ring setting.
NOTE: The HP All-in-One cannot recognize some ring patterns, such as those with
alternating short and long ringing patterns. If you are having problems with a ring pattern of
this type, ask your phone company to assign a non-alternating ring pattern.
If you are not using a distinctive ring service, make sure that the Distinctive Ring setting on the
HP All-in-One is set to All Rings.
Cause: The Distinctive Ring setting is not set to All Rings (and you are not using a distinctive
ring service).
Solution: If you are not using a distinctive ring service, make sure that the Distinctive Ring
setting on the HP All-in-One is set to All Rings.
Cause: The fax signal level might not be strong enough, which can cause fax reception
problems.
Solution: If the HP All-in-One shares the same phone line with other types of phone
equipment, such as an answering machine, a computer dial-up modem, or a multi-port switch
box, the fax signal level might be reduced. The signal level can also be reduced if you use a
splitter or connect extra cables to extend the length of your phone. A reduced fax signal can
cause problems during fax reception.
•
If you are using a splitter or extension cables, try removing them and connecting the HP
All-in-One directly to the telephone wall jack.
•
To find out if other equipment is causing a problem, disconnect everything except the HP Allin-One from the phone line, and then try to receive a fax. If you can receive faxes
successfully without the other equipment, one or more pieces of the other equipment is
causing problems; try adding them back one at a time and receiving a fax each time, until
you identify which equipment is causing the problem.
Cause: The memory of the HP All-in-One is full.
Solution: If Backup Fax Reception is enabled and there is an error condition on the HP Allin-One, the memory might become full of faxes that have not yet been printed and the HP Allin-One will stop answering calls. If an error condition exists that is preventing the HP All-in-One
from printing faxes, review the display for information on the error condition. Also, check for the
following problems:
•
The HP All-in-One is not set up properly for faxing.
•
There is no paper loaded in the input tray.
•
There is a paper jam.
64
Troubleshooting and support
•
The ink cartridge door is open. Close the ink cartridge door, as shown below:
The print head assembly is stalled. Turn the HP All-in-One off, remove any objects that are
blocking the print head assembly (including any packing materials), and then turn the HP Allin-One on again.
Resolve any problems found. If there are any unprinted faxes stored in memory, the HP All-inOne will begin printing all stored faxes in memory.
NOTE: To clear the memory, you can also delete the faxes stored in memory by turning
off the HP All-in-One.
Cause: An error condition is preventing the HP All-in-One from receiving faxes and Backup
Fax Reception is set to Off.
Solution: Check for the following problems:
•
The HP All-in-One is turned off. Press the On button to turn on the device.
•
The HP All-in-One is not set up properly for faxing.
•
There is no paper loaded in the input tray.
•
There is a paper jam.
•
The ink cartridge door is open. Close the ink cartridge door.
•
The print head assembly is stalled. Turn the HP All-in-One off, remove any objects that are
blocking the print head assembly (including any packing materials), and then turn the HP Allin-One on again.
NOTE: If Backup Fax Reception is enabled and you turn off the HP All-in-One, all
faxes stored in memory are deleted, including any unprinted faxes that you might have
received while the HP All-in-One was in an error condition. You will need to contact the
senders to ask them to resend any unprinted faxes. For a list of the faxes you have
received, print the Fax Log. The Fax Log is not deleted when the HP All-in-One is
turned off.
After you resolve any problems found, the HP All-in-One can begin answering incoming fax calls.
Fax tones are recorded on my answering machine
Cause: The HP All-in-One is set up to receive faxes manually, which means that the HP Allin-One will not answer incoming calls. You must be available to respond in person to incoming
fax calls, or the HP All-in-One will not receive the fax and your answering machine will record
the fax tones.
Solution: Set up the HP All-in-One to answer incoming calls automatically by turning on Auto
Answer. If it is turned off, the HP All-in-One will not monitor incoming calls and receive faxes.
In this case, the answering machine will answer the fax call and record the fax tones.
Fax setup troubleshooting
65
Troubleshooting and support
•
Chapter 5
Clear paper jams
If the paper was loaded in the input tray, you might need to clear the paper jam from the rear of the
HP All-in-One.
Paper can also jam in the automatic document feeder. Several common actions can cause paper to
jam the automatic document feeder:
•
Placing too much paper in the document feeder tray. The automatic document feeder can hold
up to 50 sheets of letter or A4 paper, or 35 sheets of legal paper.
•
Using paper that is too thick or too thin for the HP All-in-One.
•
Trying to add paper to the document feeder tray while the HP All-in-One is feeding pages.
To clear a paper jam from the Two-sided printing accessory
1. Turn off the HP All-in-One.
2. Press in the tabs on the left and right side of the Two-sided printing accessory. Remove the
accessory by pulling it away from the HP All-in-One.
Troubleshooting and support
CAUTION: Trying to clear a paper jam from the front of the HP All-in-One can damage the
print mechanism. Always access and clear paper jams from the Two-sided printing
accessory of the HP All-in-One.
3.
Gently pull the paper out of the rollers.
CAUTION: If the paper tears when you are removing it from the rollers, check the rollers
and wheels for torn pieces of paper that might be remaining inside the device. If you do not
remove all the pieces of paper from the HP All-in-One, more paper jams are likely to occur.
4.
5.
6.
If the paper jam is cleared, proceed to step 5.
If the paper jam is not cleared, do the following:
a. Open the Two-sided printing accessory by pulling the tabs up.
b. Remove any paper from inside the accessory.
c. Close the Two-sided printing accessory by pressing the tabs down until they lock into place.
Replace the Two-sided printing accessory. Gently push the accessory forward until it snaps into
place.
Turn on the HP All-in-One, and then press OK to continue the current job.
To clear a paper jam in the automatic document feeder
CAUTION: Do not lift the lid of the HP All-in-One and try to remove the jammed document from
the glass. You might damage your original document.
1.
2.
66
Remove all originals from the document feeder tray.
Lift the cover of the automatic document feeder.
Troubleshooting and support
Lift the automatic document feeder mechanism.
4.
Gently pull out any paper that is jammed in the automatic document feeder mechanism.
CAUTION: If the paper tears when you are removing it, check for torn pieces of paper that
might remain inside the mechanism. If you do not remove all the pieces of paper from the
automatic document feeder, more paper jams are likely to occur.
5.
Lower the automatic document feeder mechanism, and then close the cover of the automatic
document feeder.
The cover clicks when it is completely closed.
Information on ink cartridges and the print head
The following tips help maintain HP ink cartridges and ensure consistent print quality.
•
Install the ink cartridge on or before the install by date, which is printed on the ink cartridge
package.
•
Keep all ink cartridges in the original sealed packages until they are needed.
•
Turn off the HP All-in-One by pressing the On button located on the device. Do not turn off the
device by turning off a power strip or unplugging the power cord from the HP All-in-One. If you
improperly turn off the HP All-in-One, the print head assembly might not return to the correct
position.
•
Store ink cartridges at room temperature (15.6°-26.6° C or 60°-78° F).
•
HP recommends that you do not remove the ink cartridges from the HP All-in-One until you have
replacement cartridges available to install.
If you are transporting the HP All-in-One make sure you turn off the device by pressing the
On button to power it down properly. Also, make sure you leave the ink cartridges installed.
Doing these actions will prevent ink leaking from the print head assembly.
•
Clean the print head (via the Printer Toolbox Software maintenance) when you notice a
significant decrease in print quality.
Information on ink cartridges and the print head
67
Troubleshooting and support
3.
Chapter 5
•
•
Do not clean the print head unnecessarily. This wastes ink and shortens the life of the cartridges.
Handle ink cartridges carefully. Dropping, jarring, or rough handling during installation can cause
temporary printing problems.
Support process
Troubleshooting and support
If you have a problem, follow these steps:
1. Check the documentation that came with the HP All-in-One.
2. Visit the HP online support Web site at www.hp.com/support. HP online support is available to
all HP customers. It is the fastest source for up-to-date device information and expert assistance
and includes the following features:
•
Fast access to qualified online support specialists
•
Software and driver updates for the HP All-in-One
•
Valuable HP All-in-One and troubleshooting information for common problems
•
Proactive device updates, support alerts, and HP newsgrams that are available when you
register the HP All-in-One
3. Call HP support. Support options and availability vary by device, country/region, and language.
68
Troubleshooting and support
6
Technical information
The technical specifications and international regulatory information for the HP All-in-One are
provided in this section.
System requirements
Software system requirements are located in the Readme file.
Product specifications
For product specifications, go to the HP Web site at www.hp.com/support.
Paper specifications
•
Input tray capacity: Plain paper sheets: Up to 100 (20 lb./75 gsm. paper)
•
Output tray capacity: Plain paper sheets: Up to 50 (20 lb./75 gsm. paper)
•
Photo tray capacity: 4 x 6 inch (10 x 15 cm) Photo paper: Up to 20 (145 lb /236 gsm paper)
NOTE: For a complete list of supported media sizes, see the printer software.
Physical specifications
•
Height: 24.1cm (9.5inches)
•
Width: 45 cm (17.7 inches)
•
Depth: 44.3 cm (17.4 inches)
•
Weight: 11 kg (24.3 lbs)
Power specifications
•
Power consumption: 32.5 W (Peak) 20.1 W (Average)
•
Input voltage: AC 100 to 240 V ~1A 50–60 Hz
•
Output voltage: DC 32 V===1560mA
Environmental specifications
•
Recommended operating temperature range: 15º to 32º C (59º to 90º F)
•
Allowable operating temperature range: 5º to 40º C (41º to 104º F)
•
Humidity: 20% to 80% RH non-condensing
•
Non-operating (Storage) temperature range: –20º to 60º C (–4º to 140º F)
•
In the presence of high electromagnetic fields, it is possible the output from the HP All-in-One
may be slightly distorted
•
HP recommends using a USB cable less than or equal to 3 m (10 feet) in length to minimize
injected noise due to potential high electromagnetic fields
Energy Star® notice
This product is designed to reduce power consumption and save natural resources without
compromising product performance. It has been designed to reduce total energy consumption both
during operation and when the device is not active. This product qualifies for ENERGY STAR® which
is a voluntary program established to encourage the development of energy-efficient office products.
Technical information
69
Technical information
NOTE: Use only with the power adapter supplied by HP.
Chapter 6
ENERGY STAR is a U.S. registered service mark of the U.S. EPA. As an ENERGY STAR partner,
HP has determined that this product meets ENERGY STAR guidelines for energy efficiency.
For more information on ENERGY STAR guidelines, go to the following Web site:
www.energystar.gov
Ink cartridge yield
Ink from the cartridges is used in the printing process in a number of different ways, including in the
initialization process, which prepares the device and cartridges for printing, and in printhead
servicing, which keeps print nozzles clear and ink flowing smoothly. In addition, some residual ink
is left in the cartridge after it is used. For more information, see www.hp.com/go/inkusage.
Visit www.hp.com/pageyield for more information on estimated cartridge yields.
Regulatory notices
The HP All-in-One meets product requirements from regulatory agencies in your country/region. For
a complete listing of regulatory notices, see the onscreen Help.
Regulatory model identification number
For regulatory identification purposes, your product is assigned a Regulatory Model Number. The
Regulatory Model Number for your product is SDGOB-0713. This regulatory number should not be
confused with the marketing name (HP Photosmart C7200 All-in-One series, etc.) or product
numbers (CC567A, etc.).
Technical information
70
Technical information
Technical information
Warranty
Warranty
71
Chapter 6
Technical information
72
Technical information
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
