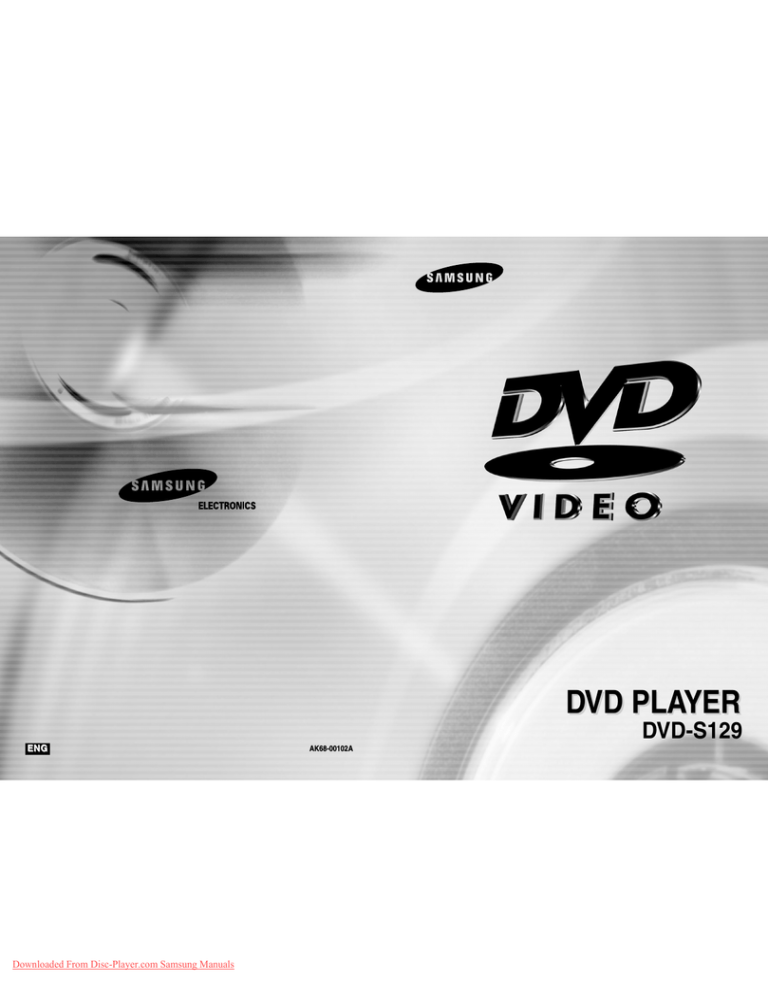

DVD PLAYER
DVD-S129
ENG
Downloaded From Disc-Player.com Samsung Manuals
AK68-00102A
Precautions
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Precautions
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE
COVER(OR BACK).
NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
This symbol indicates “dangerous voltage”
inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important
instructions accompanying the
product.
CAUTION: DVD PLAYERS USE AN INVISIBLE LASER BEAM WHICH CAN
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED.
BE SURE TO OPERATE PLAYER CORRECTLY AS INSTRUCTED.
CAUTIONS
Caution: To prevent electric shock, match wide blade of plug to wide slot, fully insert.
Attention: Pour éviter les chocs électriques, introduíre la lame la plus large de la fiche dans la borne correspondante
de la prise et pousser jusqu au fond.
This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to
other equipment. To prevent electromagnetic interference with electric appliances, such as radios and televisions,
use shielded cables and connectors for connections.
FCC NOTE (for U.S.A):
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of
the following measures.
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect this equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This class B digital apparatus meets all requirements of the Canadian Interference -Causing Equipment Regulations.
WARNING
CAUTION
To reduce the risk of fire
or shock hazard, do not
expose this DVD player
to rain or moisture.
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED
HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT
OPEN COVER AND DO NOT REPAIR YOURSELF. REFER SERVICING TO
QUALIFIED PERSONNEL.
Note:
• This unit can be used only where the power supply is AC 120V, 60Hz. It cannot be used elsewhere.
• This DVD player is designed and manufactured to respond to the Region Management Information.
If the Region number of a DVD disc does not correspond to the Region number of this DVD player,
the DVD player cannot play the disc.
• This device is protected by U.S. patent numbers 4,631,603, 4,577,216, 4,819,098 and 4,907,093
and other intellectual property rights. The use of Macrovision’s copy protection technology in the
device must be authorized by Macrovision and is intended for home and other limited pay-per-view
uses only, unless otherwise authorized in writing by Macrovision.
Reverse engineering or disassembly is prohibited.
Handling Cautions
• Before connecting other components to this player, be sure to turn them all off.
• Do not move the player while a disc is being played, or the disc may be scratched or broken, and the player’s
internal parts may be damaged.
• Do not put a flower vase filled with water or any small metal objects on the player.
• Be careful not to put your hand into the disc tray.
• Do not place anything other than the disc in the disc tray.
• Exterior interference such as lightning and static electricity can affect normal operation of this player. If this
occurs, turn the player off and on again with the POWER button, or disconnect and then reconnect the
AC power cord to the AC power outlet. The player will operate normally.
• Be sure to remove the disc and turn off the player after use.
• Disconnect the AC power cord from the AC outlet when you don’t intend to use the player for long
periods of time.
• Clean the disc by wiping in a straight line from the inside to the outside of the disc.
Disc Storage
Be careful not to harm the disc because the data on these discs is highly vulnerable to the environment.
• Do not keep under direct sunlight.
• Keep in a cool ventilated area.
• Store vertically.
• Keep in a clean protection jacket.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
PRODUCTO LÁSER CLASE 1
2
Downloaded From Disc-Player.com Samsung Manuals
Maintenance of Cabinet
For safety reasons, be sure to disconnect the AC power cord from the AC outlet.
• Do not use benzene, thinner, or other solvents for cleaning.
• Wipe the cabinet with a soft cloth.
3
Safety Instructions
1. Read Instructions-All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions-The safety and operating instructions should be retained for future reference.
3. Heed Warnings-All warnings on the product and in the operating instructions should be adhered to.
4. Follow Instructions-All operating and using instructions should be followed.
5. Cleaning-Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning.
6. Attachments-Do not use attachments not recommended by the product manufacturer as they may cause
hazards.
7. Water and Moisture-Do not use this product near water-for example near a bath tub, wash bowl, kitchen
sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8. Accessories-Do not place this product on an unstable cart, stand, tripod, bracket,
or table.
The product may fall, causing serious injury to a child or adult, and serious damage
to the product. Use only with a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with the product. Any mounting of the product should follow
the manufacturer’s instructions and should use a mounting accessory recommended
by the manufacturer.
9. Cart Usage-A product and cart combination should be moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart combination to overturn.
10. Ventilation-Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of
the product and to protect it from overheating. These openings must not be blocked or covered.
The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11. Power Sources-This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your product dealer or local
power company. For products intended to operate from battery power, or other sources, refer to the operating
instructions.
12. Grounding or Polarization-This product may be equipped with a polarized alternating-current line plug (a
plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a
safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13. Power-Cord Protection-Power-supply cords should be routed so that they are not likely to be walked on or
pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience
receptacles, and the point where they exit from the product.
14. Lightning-For added protection for this product during a lightning storm or when it is left unattended and
unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system.
This will prevent damage to the product due to lightning and power-line surges.
4
Downloaded From Disc-Player.com Samsung Manuals
Safety Instructions
15. Power Lines-An outside antenna system should not be located in the vicinity of overhead power lines or
other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an
outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as
contact with them might be fatal.
16. Overloading-Do not overload wall outlets, extension cords, or integral convenience receptacles as this can
result in a risk of fire or electric shock.
17. Object and Liquid Entry-Never push objects of any kind into this product through openings as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
18. Servicing-Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
19. Damage Requiring Service-Unplug this product from the wall outlet and refer servicing to qualified service
personnel under the following conditions:
a When the power-supply cord or plug is damaged.
b If liquid has been spilled or objects have fallen into the product.
c If the product has been exposed to rain or water.
d If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the product
to its normal operation.
e If the product has been dropped or damaged in any way.
f When the product exhibits a distinct change in performance-this indicates a need for service.
20. Replacement Parts-When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or that have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock, or other hazards.
21. Safety check-Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
22. Heat-The product should be situated away from heat sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce heat.
5
TABLE OF CONTENTS
Before You Start
Accessories
SETUP
General Features ..............................................................................................8
Disc Type and Characteristics .......................................................................... 9
Description-Front Panel ..................................................................................10
Tour of the Remote Control ............................................................................12
Batteries for
Remote Control (AA Size)
Choosing a Connection ..................................................................................14
1
Open the battery cover on the
back of the remote.
3
Replace the battery cover.
• Check the polarity + - of the batteries
(Dry-Cell)
• Check if the batteries are drained.
• Check if remote sensor is blocked by
obstacles.
6
Downloaded From Disc-Player.com Samsung Manuals
Troubleshooting..............................................................................................40
Specifications ................................................................................................41
REFERENCE
• Check if there is any fluorescent lighting nearby.
Using the Setup Menu ....................................................................................34
Setting Up the Language Features ..................................................................35
Setting Up the Parental Control ......................................................................37
Setting Up the Audio Options ........................................................................38
Setting Up the Display Options ......................................................................39
CHANGING
SETUP MENU
two AA batteries. Make
2 Insert
sure that the polarities (+ and -)
are aligned correctly.
If remote doesn’t operate
properly:
S.FIT Play ......................................................................................................22
Digest Play ....................................................................................................23
Using the Disc View Function ..........................................................................24
Slow Repeat play ..........................................................................................25
Selecting the Audio Language ........................................................................26
Selecting the Subtitle Language ......................................................................27
Changing the Camera Angle ..........................................................................28
Using the Instant Replay Function ....................................................................29
Using the Bookmark Function ..........................................................................30
Using the Zoom & 3D Sound Functions ..........................................................................31
MP3 Play ......................................................................................................32
ADVANCED
FUNCTIONS
Install Batteries in the
Remote
Video/Audio Cable
BASIC
FUNCTIONS
Playing a Disc................................................................................................16
Using the Search & Skip Functions ............................................................18
Using the Display Function..............................................................................19
Repeat Play ..................................................................................................20
Program Play & Random Play ........................................................................21
User’s Manual
CONNECTIONS
Remote Control
7
General Features
Screen
Both regular and widescreen(16:9) pictures
can be viewed.
Slow Motion
An important scene can be viewed in slow
motion.
Programmed Play
You can program tracks to play in desired
order.
Parental Control
The parental control allows users to set the
level necessary to prohibit children from
viewing harmful movies such as those with
violence, adult subject matter, etc.
Various On-Screen Menu Functions
You can select various
languages(Audio/Subtitle) and screen angles
while enjoying movies.
Repeat
You can repeat a song or movie simply by
pressing the REPEAT button.
MP3
This unit can play discs created from MP3
files.
This DVD player is capable of playing the following types of discs with the
corresponding logos:
Disc Types
(Logos)
Recording
Types
DVD
VIDEO-CD
AUDIO-CD
* Ability to play back may depend on recording conditions:
• DVD-R
• DVD+RW, -RW
5"
Single-sided
240 min.
Double-sided
480 min.
31/2"
Single-sided
80 min.
Double-sided
160 min.
5"
74 min.
31/2"
20 min.
5"
74 min.
31/2"
20 min.
Audio
• CD-RW
Characteristics
• DVD contains excellent sound
and video due to Dolby Digital
and MPEG-2 system.
• Various screen and audio
functions can be easily selected through the on-screen
menu.
• Video with CD sound, VHS
quality & MPEG-1 compression technology.
Audio
+
Video
* Discs which cannot be played with this player:
• DVD-ROM
• DVD-RAM
• CD-ROM
• CDV
• CDI
• HD layer of super Audio CD
• CDGs play audio only, not graphics.
Max.
Playing Time
Audio
+
Video
Instant Replay
This function is used to replay the previous
10 seconds of the movie from the current
position.
NOTE
Disc Size
SETUP
Excellent Sound
Dolby Digital, a technology
developed by Dolby Laboratories provides
crystal clear sound reproduction.
Disc Type and Characteristics
• CD is recorded as a
Digital Signal with better
audio quality, less distortion and less deterioration
of audio quality over time.
Disc Markings
COPY PROTECTION
• Many DVD discs are encoded with copy protection. Because of this, you should only connect your DVD player
directly to your TV, not to a VCR. Connecting to a VCR results in a distorted picture from copy-protected DVD
~
• Play
Region
Number
NTSC
• NTSC broadcast
system in U.S.A,
Canada, Korea,
Japan, etc.
• Dolby
Digital disc
STEREO
DIGITAL
SOUND
• Stereo disc
• Digital
Audio disc
• DTS disc
• MP3 disc
discs.
• This product incorporates copyright protection technology that is protected by methods claims of certain U.S.
patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home
and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering
or disassembly is prohibited.
8
Downloaded From Disc-Player.com Samsung Manuals
Play Region Number
Both the DVD player and the discs are coded by region. These regional codes must match in order for the disc
to play. If the codes do not match, the disc will not play.
The Region Number for this player is described on the rear panel of the player.
9
Description-Front Panel
Description-Rear Panel
OPEN/CLOSE
1
2
3
4
5
STOP
6
SETUP
PLAY/PAUSE
SKIP
7
Front Panel Controls
1. STANDBY / ON
• When the unit is first plugged in, the indicator lights.
When STANDBY/ON is pressed on again,
the light goes out and the player is turned on.
4. OPEN/CLOSE
• Press to open and close the disc tray.
2. DISC TRAY
• Load the disc here.
6. STOP
• Stops disc play.
3. DISPLAY
• Operation indicators are displayed here.
2
5. PLAY/PAUSE
• Begin or pause disc play.
7. SKIP
• Use to skip a scene or music.
4
5
6
7
1
2
3
4
5
6
Rear Panel
1. DIGITAL AUDIO OUT JACKS
• Use either an optical or coaxial digital cable to connect to a compatible Dolby Digital receiver.
Use to connect to an A/V Amplifier that contains a Dolby Digital or DTS decoder.
2. ANALOG AUDIO OUT JACKS
• Connect to the Audio input jacks of your television, audio/video receiver, or VCR.
3. VIDEO OUT JACK
• Use a video cable to connect to the Video input jack on your television.
4. S-VIDEO OUT JACK
• Use the S-Video cable to connect this jack to the S-Video jack on your television for a higher quality
picture. The S-Video must be selected in the VIDEO OUT SELECT.
1
3
8
Front Panel Display
1. Angle indicator. You can select multiple angles
of a scene recorded by different cameras.
6. Repeat play mode
2. Disc type indicators
8. Displays various messages concerning operations such as
PLAY, STOP, LOAD ...
3. Play / Pause / Forward play
4. DVD : Title, Chapter number.
5. Video/Audio CD : Track number
5. COMPONENT VIDEO OUT JACKS
• Use these jacks if you have a TV with Component Video in jacks. These jacks provide Pr, Pb and Y
video. Along with S-Video, Component Video provides the best picture quality. The Y, Pb, Pr must be
selected in the VIDEO OUT SELECT.
6. VIDEO OUT SELECT SWITCH
• Use the switch to set video out.
• If Y, Pb or Pr is selected, S-Video will not work.
• If S-Video is selected, Y, Pb or Pr will not work.
7. MP3 indicators
no DISC : No disc loaded.
OPEN : The disc tray is open.
LOAD : Player is loading disc information.
10
Downloaded From Disc-Player.com Samsung Manuals
NOTE
* Select the VIDEO OUT SELECT switch in the Stop or Power Off mode.
11
Tour of the Remote Control
Tour of the Remote Control
DVD Function Buttons
13
1. DVD POWER Button
2. NUMBER Buttons
2
3. STEP Button
• Advances play one frame at a time.
4. ZOOM Button
5. S.FIT Button
3
4
5
6
7
8
9
14
15
6. SEARCH Buttons
• Allows you to search forward/backward through a disc.
7. STOP Button
8. MENU Button
16
17
18
19
20
• Brings up the Disc menu.
9. TOP MENU Button
10. CLEAR Button
• Use to remove menus or status displays from the screen.
11. BOOKMARK Button
12. SETUP Button
• Brings up the DVD player’s Setup menu.
13. OPEN/CLOSE Button
21
10
11
12
12
Downloaded From Disc-Player.com Samsung Manuals
22
23
24
14. 3D Button
15. DIGEST Button
SETUP
1
16. PLAY/PAUSE Button
• Begin/Pause disc play.
17. SKIP Buttons
• Use to skip the title, chapter, or track.
18. RETURN Button
• Returns to a previous menu.
19. DISPLAY Button
• Displays the current disc mode.
20. ENTER/DIRECTION Button
(UP/DOWN or LEFT/RIGHT Buttons)
• This button functions as a toggle switch.
21. ANGLE Button
• Use to access various camera angles on a DVD.
22. MODE Button
• Allows you to program a specific order.
23. SUBTITLE Button
24. AUDIO Button
• Use this button to access various audio functions on a disc.
25. REPEAT A-B Button
• Use to mark a segment to repeat between A and B.
26. REPEAT Button
• Allows you to repeat play a title, chapter, track, or disc.
27. I.REPLAY Button
• This function is used to replay the previous 10 seconds of
the movie from the current position.
25
26
27
13
Choosing a Connection
Choosing a Connection
The following show examples of connections commonly used to connect the DVD player with a
TV and other components.
Connection to a TV (For Video)
TV (Normal, Widescreen, Projection, etc..)
Before Connecting the DVD Player
Basic Audio
Method 1
Method 2
Method 3
Good picture
Better picture
Best picture
CONNECTIONS
• Always turn off the DVD player, TV, and other components before you
connect or disconnect any cables.
• Refer to the owner’s manual of the additional components you are connecting for more information on those particular components.
TV
Connection to an Audio System
AV Cable
Method 1
Method 2
2ch Amplifier
Audio Input Jacks
Dolby Digital Decoder
Digital Audio Input Jack
S-Video
Cable
OR
Video Cables
OR
AUDIO
DVD
Audio Output Jacks
Video Output Jack S-Video Jack
Component Video
Jacks
OR
• Method 1
• Method 2
DVD
Analog Audio Out
• Method 3
DVD Player + TV with Video Input Jack
DVD Player + TV with S-Video Input Jack
(If S-Video is selected in the VIDEO OUT SELECT.)
DVD Player + TV with Component Video Jacks
(If Y, Pb or Pr is selected in the VIDEO OUT SELECT.)
Digital Audio Out
NOTE
• If Y, Pb or Pr is selected, S-Video will not work.
• If S-Video is selected, Y, Pb or Pr will not work.
14
Downloaded From Disc-Player.com Samsung Manuals
15
Playing a Disc
Before Play
• Turn on your TV and press the TV/VIDEO button to select the video mode.
• Turn on your Audio System and select AUX, CD or DVD.
After plugging in the player, the first time you press the DVD POWER
button, this screen comes up :
If you want to select the language, press a NUMBER button.
(This screen will only appear the very first time you plug in the player.)
Play
7 Step Motion Play (Except CD)
Press the STEP button on the remote during play.
- Each time the button is pressed, a new frame will appear.
- No sound is heard during STEP mode.
- Press PLAY/PAUSE to resume normal play.
(You can only perform step motion play in the forward direction.)
8 Slow Motion Play (Except CD)
Press the FWD SEARCH or REV SEARCH button on the remote during PAUSE or STEP
mode.
- By pressing the FWD SEARCH or REV SEARCH button, you can select slow motion play for
1/8, 1/4 or 1/2 of normal speed.
- No sound is heard during slow mode.
- Press PLAY/PAUSE to resume normal play.
- When playing a VCD, the reverse slow motion play will not work.
BASIC
FUNCTIONS
1 Press the OPEN/CLOSE button.
a disc gently into the tray with the disc’s label
2 Place
facing up.
the PLAY/PAUSE button or OPEN/CLOSE button
3 Press
to close the disc tray.
4 Stopping Play
5 Removing Disc
6 Pausing Play
Playing a Disc
The STANDBY indicator light goes out and the tray opens.
Press the STOP button during play.
RESUME function
Press the OPEN/CLOSE button.
Press the PLAY/PAUSE or STEP button on the remote during play.
- Screen stops, no sound.
- To resume again, press PLAY/PAUSE button once again.
When you stop disc play, the player remembers where you stopped, so when you press PLAY again, it will pick up
where you left off. (unless the disc is removed, the STOP button is pressed twice or the player is unplugged.)
NOTE
• If the player is left for 5 minutes in pause mode, it will stop.
• If the player is left in the stop mode for more than 30 minutes, the power will automatically shut off.
(Automatic Power-Off Function)
• If the player is left in the stop mode for more than one minute without any user interaction, a screen saver
will be activated, and the TV screen will fade in and out repeatedly. Press the PLAY button to resume normal play.
• This
icon indicates an invalid button press.
16
Downloaded From Disc-Player.com Samsung Manuals
17
Using the Search & Skip Functions
During play, you can search quickly through a chapter or track or use the skip
function to jump to the next selection.
Searching through a Chapter or Track
1
During play, press the FWD SEARCH (¤¤ ) or
REV SEARCH (ˆˆ ) button on the remote.
• Press the REVERSE or FORWARD SEARCH button on the remote
and press again to search at a faster speed on the DVD, VCD, CD.
DVD 2X, 4X, 8X, 16X, 32X, 128X
VCD 4X, 8X
2X, 4X, 8X
• Depending on the disc, audio may not be heard when a disc is in 2X play mode.
Skipping Tracks
1
During play, press the NEXT SKIP (¤¤I) or
BACK SKIP (Iˆˆ ) button.
• When playing a DVD, if you press the NEXT SKIP button, it moves to the
next chapter. If you press the BACK SKIP button, it moves to the beginning
of the chapter.
One more press makes it move to the beginning of the previous chapter.
• When playing a VCD 2.0 in MENU OFF mode, a VCD 1.1 or a CD, if
you press the NEXT SKIP button, it moves to the next track.
If you press the BACK SKIP button, it moves to the beginning of the track.
One more press makes it move to the beginning of the previous track.
• If a track exceeds 15 minutes when playing a VCD and you press the NEXT
SKIP button, it moves forward 5 minutes.
If you press the BACK SKIP button, it moves backward 5 minutes.
• When playing a VCD 2.0 in the MENU OFF or Track View function,
if you press the NEXT SKIP button, it moves to the next MENU or the next
Track View display.
If you press the BACK SKIP button, it moves to the previous
MENU or the previous Track View display. (See page 24.)
18
Downloaded From Disc-Player.com Samsung Manuals
When Playing a DVD
play, press the DISPLAY button
1 During
on the remote.
DVD
T : 01
- Current title, chapter number, elapsed time,
audio, subtitle and volume control will be displayed.
• Use the NUMBER buttons to enter a different
title, then press the ENTER button.
• Use the LEFT/RIGHT or NUMBER buttons to
enter a chapter number, then press the ENTER
button.
• To enter the time from which you want to start,
use the UP/DOWN buttons to select, then use
the NUMBER buttons to enter the time. Then
press the ENTER button.
• Use the LEFT/RIGHT buttons to change the values of the current audio, subtitle and volume.
• To make the screen disappear, press the DISPLAY
C : 02
0 : 01 : 09
ENG 5.1CH
A
ENG
64
BASIC
FUNCTIONS
CD
Using the Display Function
When Playing a CD/VCD
play, press the DISPLAY button
1 During
on the remote.
- Current track number, elapsed time and volume
control will be displayed.
• Use the UP/DOWN buttons to select a track.
Use the LEFT/RIGHT buttons or NUMBER buttons to enter a different track number, then
press the ENTER button.
• To enter the time from which you want to start,
use the UP/DOWN buttons to select, then use
the NUMBER buttons to enter the time.
Press the ENTER button.
• To change the value of the volume, use the
LEFT/RIGHT buttons.
- To make the screen disappear, press the DISPLAY
button again.
* In VCD 2.0 mode (MENU ON mode), only the
volume control will appear on screen.
VCD
VCD
T : 01
0 : 01 : 09
64
CD
CD
T : 01
0 : 01 : 09
64
NOTE
What is a Chapter?
Each Title on a DVD is usually divided into
chapters (similar to tracks on an audio CD).
What is a Title?
A DVD may contain several different titles.
For example, if a disc contains four different
movies, each might be considered a title.
19
Repeat Play
Program Play & Random Play
Repeat the current track, chapter, title, a chosen section (A-B), or all of the disc.
When playing a DVD
DVD
1
Chapter, Title or A-B using the
2 Select
LEFT/RIGHT buttons.
Press the REPEAT button on the remote. Repeat
screen appears.
1 Press the MODE button.
the LEFT/RIGHT buttons to select PROGRAM.
2 Use
Press the ENTER button.
the LEFT/RIGHT buttons to select the first
3 Use
chapter (or track) to add to the program.
Press the ENTER button. The selection numbers
appear in the Program Order box.
the PLAY/PAUSE button. The disc will be
4 Press
played in programmed order.
VCD/CD
3 Press ENTER.
return to normal play, press REPEAT again,
4 Tothen
press the LEFT/RIGHT buttons to select Off
and press ENTER.
BASIC
FUNCTIONS
- Repeat A-B
• Press the REPEAT button. Select A-B on screen with the
LEFT/RIGHT buttons or press the A-B button on the remote.
• Press ENTER at the point where you want the repeat play to
start (A). The B is automatically highlighted.
• Press ENTER at the point where you want the repeat play to
stop (B).
Program Play (DVD/VCD/CD/MP3)
Random Play (DVD/VCD/CD/MP3)
1 Press the MODE button.
the LEFT/RIGHT buttons to select RANDOM.
2 Use
Press the ENTER button.
The disc will be played in random order.
NOTE
• DVD repeats play by chapter or title, CD and VCD repeat play by disc or track.
• Depending on the disc, the Repeat function may not work.
• If the title or track is completed before marking the end (B), the end of title or track becomes B automatically.
• When in VCD 2.0 mode (MENU ON mode), this function does not work.
20
Downloaded From Disc-Player.com Samsung Manuals
NOTE
• Depending on the disc, the Program and Random Play function may not work. (See page 32)
• When in VCD 2.0 mode (MENU ON mode), these functions do not work.
• To resume normal play, press the CLEAR button.
21
S.FIT Play
Digest Play
Screen Fit Play
play, press S.FIT button on remote con1 During
trol.
- Allows you to eliminate the black bars in the top and bottom
of the screen when a movie is playing in the Widescreen
format(16:9).
- Screen Fit will not work when the Zoom mode is active.
(you can not remove the black bars on the screen)
However, Zoom mode will work when Screen Fit is active.
Digest Play
1 During play, press the DIGEST button.
- You'll see the 9 individual windows representing each of the
chapters on the TV screen.
- When each window is displayed, the first 3 seconds of the
chapter will be played.
SKIP button
Up/Down/Left/Right buttons or NUMBER
2 Press
buttons to select the window you'd like to see, and
press the ENTER button.
• Up to 9 windows(chapters) can be displayed on the screen
at a time.
Press the 'Skip' button for the next 9 chapters if the movie
has more than 9.
ADVANCED
ADVANCED
FUNCTIONS
NOTE
• Various aspect ratios are available only in multiple screen format discs.
• This function does not work when a DVD has been recorded in a multi-camera angle format.
• On some DVDs, the black bars cannot be eliminated due to their aspect ratio.
22
Downloaded From Disc-Player.com Samsung Manuals
NOTE
• You can play the DVD player starting with the desired chapter after directly moving to the scene you want.
• 'DIGEST' may not operate depending on the disc in use.
23
Using the Disc View Function
Track View (VCD)
Slow Repeat play
This feature allows you slowly repeat scenes containing sports, dancing,
musical instruments being played etc. so you can study them more closely.
Displays the beginning view of each track and the
track number.
1 During play, press the TOP MENU button.
the UP/DOWN buttons to select TRACK
2 Press
VIEW. Press the ENTER button.
the desired view by pressing the
3 Select
UP/DOWN or LEFT/RIGHT buttons.
Press the SKIP button for the next 9 tracks if
the movie has more than 9.
4 Press the ENTER button.
Index View (VCD)
When playing a DVD
1 During play, press the PLAY/PAUSE button.
the F/SEARCH button to choose the play speed between 1/8X, 1/4X, and
2 Press
1/2X of normal.
3 Press the REPEAT (A-B) button to select the point where the function starts. (A)
4 Press the REPEAT (A-B) button to select the point where the function ends. (B)
ADVANCED
ADVANCED
FUNCTIONS
Displays the equally divided 9 views of the current
playing track.
1 During play, press the TOP MENU button.
UP/DOWN buttons to select INDEX
2 Press
VIEW. Press the ENTER button.
the desired view by pressing
3 Select
UP/DOWN or LEFT/RIGHT buttons.
4 Press the ENTER button.
NOTE
• When pressing the TOP MENU button with a DVD; the disc’s TITLE MENU function comes up. A disc must
have at least two titles for the TITLE MENU function to work.
• When pressing the TOP MENU button with a CD; the unit enters the INTRO mode. INTRO lets you listen
to the beginning of each track for about 10 seconds.
• You can also operate it using the DIGEST button.
24
Downloaded From Disc-Player.com Samsung Manuals
NOTE
• The disc will play from A to B repeatedly at the speed you chose.
• To terminate the function, press the 'CLEAR' button or the 'REPEAT (A-B)' button again.
Then press play to resume normal playback.
• A-B REPEAT does not allow you to set point (B) until at least 5 seconds has elapsed after point (A) has been set.
25
Selecting the Audio Language
You can select a desired language quickly and easily with the AUDIO button.
- The audio languages are represented by
abbreviations.
You can select a desired subtitle quickly and easily with the SUBTITLE button.
Using the SUBTITLE button
Using the AUDIO button
1 Press the AUDIO button.
the UP/DOWN buttons to select the
2 Use
desired language on a DVD.
Selecting the Subtitle Language
DVD
VCD/CD
the UP/DOWN buttons to select
3 Use
Stereo, Right or Left. (On VCD/CD)
1 Press the SUBTITLE button.
the UP/DOWN buttons to select the
2 Use
desired subtitle language.
the LEFT/RIGHT buttons to determine
3 Use
whether or not the subtitle will be displayed.
A
A
- Initially, the subtitling will not appear on screen.
- The subtitle languages are represented by abbreviations.
ADVANCED
ADVANCED
FUNCTIONS
NOTE
• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 8 audio languages.
• How to have the same audio language come up whenever you play a DVD;
Refer to “Setting Up the Language Features” on page 36.
26
Downloaded From Disc-Player.com Samsung Manuals
NOTE
• This function depends on what languages are encoded on the disc and may not work with all DVDs.
• A DVD disc can contain up to 32 subtitle languages.
• How to have the same subtitle language come up whenever you play a DVD;
Refer to “Setting Up the Language Features” on page 36.
27
Changing the Camera Angle
Using the Instant Replay Function
When a DVD contains multiple angles of a particular scene, you can select the Angle function.
Using the Instant Replay function (DVD)
Using the ANGLE button
Press the ANGLE button to see if an ANGLE (
)
mark is present at the upper right hand corner of
the screen.
an ANGLE mark is shown, press the
1 When
ANGLE button, then an ANGLE select icon
will appear at the upper left hand corner of
the screen.
If you miss part of a scene, you can see it again
using this function.
1
If you press the I.REPLAY button, the current
scene moves backward about 10 seconds,
and plays back.
* Depending on the disc, the Instant Replay function
may not work.
the UP/DOWN buttons to select the
2 Use
desired screen angle.
turn off the display, press the ANGLE
3 Tobutton
again.
ADVANCED
ADVANCED
FUNCTIONS
28
Downloaded From Disc-Player.com Samsung Manuals
29
Using the Bookmark Function
The Bookmark function lets you select parts of a DVD or VCD (MENU OFF mode) so that you
can quickly find the section at a later time.
During play, press the BOOKMARK button on the
remote. The Bookmark icons will be displayed.
the UP/DOWN or LEFT/RIGHT
2 Use
buttons to select the part of the screen you
want to zoom in on.
the LEFT/RIGHT buttons to move to the
2 Use
desired bookmark icon.
3
4
3 Press the ENTER button.
When you reach the scene you want to mark,
press the ENTER button. The icon will change to
a number (1, 2, or 3).
- During DVD play, press ENTER to zoom in
2X/4X/2X/Normal in order.
- During VCD play, press ENTER to zoom in
2X/normal in order.
Press the BOOKMARK button to turn off the
display.
Using the 3D Sound Function
Recalling a Marked Scene
Clearing a Bookmark
During play, press the BOOKMARK button
on the remote.
Use the LEFT/RIGHT buttons to select the
bookmark number you want to delete.
Press the CLEAR button to delete a bookmark
number. Press the BOOKMARK button to turn
off display.
NOTE
• Up to three scenes may be
marked at a time.
• When in VCD 2.0 mode (MENU
ON mode), this function does not
work.
1
During play, press the 3D button.
The 3D SOUND mark will be displayed on
screen. (Be sure the DIGITAL OUTPUT is set to
PCM.)
the UP/DOWN buttons to turn the 3D
2 Press
Sound feature on or off.
ADVANCED
ADVANCED
FUNCTIONS
The simulated surround effect depends on the disc
contents. If you connect the unit to your stereo
system, you can enhance sound quality and
produce a greater surround effect.
This feature is useful when you are using the DVD
player with a two channel stereo through the
analog outputs.
(Discs which are recorded with LPCM or DTS will
not work. When the DIGITAL OUTPUT is set to BIT
STREAM in the SETUP MENU, the 3D Sound
function will not work.)
play, press the BOOKMARK button on
1 During
the remote.
the LEFT/RIGHT buttons to select a
2 Use
marked scene.
the PLAY/PAUSE buttons to skip to the
3 Press
marked scene.
1
2
3
Using the Zoom Function (DVD/VCD)
play or pause mode, press the
1 During
ZOOM button on the remote.
A square will be displayed on screen.
Using the Bookmark Function (DVD/VCD)
1
Using the Zoom & 3D Sound Functions
NOTE
• 3D Sound is possible only on discs
recorded using DOLBY SURROUND or
DOLBY DIGITAL. However, some of
these discs do not contain rear channel
sound signals.
• Depending on the disc, the Zoom and
3D Sound function may not work.
• Depending on the disc, the
Bookmark function may not work.
30
Downloaded From Disc-Player.com Samsung Manuals
31
MP3 Play
When an MP3 Disc is inserted into the DVD PLAYER, the first song file of the first folder plays.
MP3 Play Function
1
Press STOP to stop playback of the first song file, then
press RETURN to display the music folder menu on the
right side of the screen. Up to 8 music folders can be
displayed at a time. If you have more than 8 folders
on a disc, press the LEFT/RIGHT buttons to bring them
up on the screen.
the UP/DOWN buttons to select the desired music
2 Use
folder, the press ENTER. Use the UP/DOWN buttons
again to select a song file. Press ENTER to begin
playback of the song file.
Press the MODE button to switch between the RANDOM
and PROGRAM modes. See page 21 for more information
on these modes.
CD-R MP3 disc requirements
In the case of CD-R MP3 discs, please follow the recommendations below:
• Your MP3 files should be ISO 9660 or JOLIET format.
ISO 9660 format and Joliet MP3 files are compatible with Microsoft's DOS and Windows, and with
Apple's Mac. These two formats are the most widely used.
• When naming your MP3 files do not exceed 8 characters, and place ".mp3" as the file extension.
General name format of: Title.mp3. When composing your title, make sure that you use 8 characters or
less, have no spaces in the name, and avoid the use of special characters including: (.,/,\,=,+).
• Use a decompression transfer rate of at least 128 Kbps when recording MP3 files.
Sound quality with MP3 files basically depends on the rate of compression/decompression you choose.
Getting audio CD quality sound requires an analog/digital sampling rate (conversion to MP3 format) of at
least 128 Kbps and up to 160 Kbps. However, choosing higher rates, like 192 Kbps or more, only rarely
give better sound quality.
Conversely, files with sampling rates below 128 Kbps will not be played properly.
• Do not try recording copyright protected MP3 files.
Certain "securized" files are encrypted and code protected to prevent illegal copying. These files are of
the following types: Windows MediaTM (registered trade mark of Microsoft Inc) and SDMITM (registered
trade mark of The SDMI Foundation). You cannot copy such files.
• Your DVD player only accepts one level of file directory.
Consequently you must choose:
-either to save all your MP3 recording files at the root of the disc;
-and/or create folders in the directory for each artist or music type (e.g.classical, rock, jazz, etc)
ADVANCED
ADVANCED
FUNCTIONS
Program/Random playback
MP3 Play
• Important: The above recommendations cannot be taken as a guarantee that the DVD player will play
MP3 recordings, or as an assurance of sound quality.
You should note that certain technologies and methods for MP3 file recording on CD-Rs prevent optimal
playback of these files on your DVD player (degraded sound quality and in some cases, inability of the
player to read the files).
NOTE
• Press the REPEAT button to hear a song file repeatedly.
Press Repeat again to release the Repeat mode.
32
Downloaded From Disc-Player.com Samsung Manuals
33
Using the Setup Menu
Setting Up the Language Features
The Setup menu lets you customize your DVD player by allowing you to select various
language preferences, set up a parental level, even adjust the player to the type of television
screen you have.
If you set the player menu, disc menu, audio and subtitle language in advance,
they will come up automatically every time you watch a movie.
Using the Player Menu Language
1
With the unit in Stop mode, press the SETUP button
on the remote.
1
the UP/DOWN buttons to select the
2 Use
PLAYER MENU.
3 Press the ENTER button.
the UP/DOWN buttons to select
4 Use
‘English’.
5 Press the ENTER button.
With the unit in Stop mode, press the
SETUP button.
Player Menu : Setup of the Display Language
Use the Player preference menu to select the
language for the player’s on-screen displays.
Disc Menu : Setup of the Menu Language
Use the Menu preference menu to select the language you want a
DVD’s disc menu to be displayed in.
Audio : Setup of the Audio Language
Use the Audio preference menu to select the soundtrack language.
Subtitle : Setup of the Subtitle Language
Use the Subtitle preference menu to select the language the disc’s
subtitles are to be displayed in.
- English is selected and the screen returns to SETUP
MENU.
- To make the SETUP MENU disappear, press the
RETURN button.
Parental : Setup of the Parental Level
Allows users to set the level necessary to prevent children from
viewing unsuitable movies such as those with violence, adult subject
matter, etc.
Using the Disc Menu Language
Audio Options : Setup of the Audio Options
Display Options : Setup of the Display Options
Use to select which type of screen you want to watch and several
display options.
This function changes the text language only
on the disc menu screens.
the unit in Stop mode, press the
1 With
SETUP button.
Use the UP/DOWN buttons on the remote to access
the different features.
3 Press the ENTER button to access the sub features.
To make the setup screen disappear after setting up, press the
SETUP button again.
NOTE
Depending on the disc, some
Setup Menu selections may not
work.
34
Downloaded From Disc-Player.com Samsung Manuals
the UP/DOWN buttons to select
DISC MENU.
2 Use
3 Press the ENTER button.
the UP/DOWN buttons to select
‘English’.
4 Use
e.g Setting up in English.
CHANGING
SETUP MENU
2
e.g Setting up in English.
- Select “Others” if the language you want is not listed.
5 Press the ENTER button.
- English is selected and the screen returns to SETUP
MENU.
35
Setting Up the Language Features
The Parental Control function works in conjunction with DVDs that have been assigned a
rating - which helps you control the types of DVDs that your family watches.
There are up to 8 rating levels on a disc.
Using the Audio Language
the unit in Stop mode, press the SETUP
1 With
button.
2 Press the UP/DOWN buttons to move to AUDIO.
3 Press the ENTER button.
the UP/DOWN buttons to select ‘ENGLISH’
4 Press
.
the unit in Stop mode, press SETUP button.
1 With
The Setup Menu screen appears.
UP/DOWN to select Parental. Press ENTER.
2 Use
The Parental Control screen appears.
LEFT/RIGHT to select Yes if you want to use
3 Use
a password. Press ENTER. The Enter Password
screen appears.
- Select “Original” if you want the default soundtrack language
to be the original language the disc is
recorded in.
- Select “Others” if the language you want is not listed.
5
your password. The Re-enter Password
4 Enter
screen appears to confirm the password. Enter
your password again. The Parental Control
screen appears.
Press the ENTER button.
About the Rating Level ;
5 The
Rating Level will work only when Use
- English is selected and the screen returns to SETUP MENU.
Using the Subtitle Language
Password is set to Yes. To unlock the player,
use LEFT/RIGHT to select No. Use UP/DOWN
to select Rating level. Press ENTER.
1 With the unit in Stop mode, press the SETUP button.
2 Use the UP/DOWN buttons to select SUBTITLE.
3 Press the ENTER button.
4 Use the UP/DOWN buttons to select ‘English’.
5 Press the ENTER button.
- English is selected and the screen returns to SETUP MENU.
- Use UP/DOWN to select the level(e.g. Level 6) and press
ENTER. Discs that contain Level 7 will now not play.
- To cancel the rating level, use LEFT/RIGHT to select No
in Use Password.
6 About the Change Password ;
NOTE
• If the selected language is not
recorded on the disc, the original
pre-recorded language is selected.
• How to make the SETUP MENU
disappear or return to menu screen
during set up; Press RETURN button.
36
Downloaded From Disc-Player.com Samsung Manuals
e.g Setting up in LEVEL6.
- Use UP/DOWN to select Change Password. The Change
Password screen appears.
- Enter your new password. Re-enter the new password
again.
CHANGING
SETUP MENU
- Select “Automatic” if you want the subtitle language to be the
same as the language selected as the audio preference.
- Select “Others” if the language you want is not listed. Some
discs may not contain the language you select as
your initial language; in that case the disc will use its
original language setting.
Setting Up the Parental Control
NOTE
• How to make the SETUP MENU disappear or return to menu screen during set up;
Press RETURN button.
• If you have forgotten your password, see Forget Password in the Troubleshooting Guide.
37
Setting Up the Audio Options
1
the UP/DOWN buttons to select AUDIO
2 Use
OPTIONS. Then press the ENTER button.
the UP/DOWN buttons to select the desired
3 Use
item. Then press the LEFT/RIGHT buttons.
With the unit in Stop mode, press the SETUP
button.
Digital Output
1. PCM : Converts to PCM(2CH) 48kHz audio.
Select PCM when using the Analog
Audio Outputs.
2. Bitstream : Converts to Dolby Digital Bitstream (5.1CH).
Select Bitstream when using the Digital
Audio Output.
N O T E : Be sure to select the correct Digital Output or
no audio will be heard.
N
DTS
1. Off : Doesn’t output digital signal.
2. On : Outputs DTS Bitstream via digital output only.
Select DTS when connecting to a DTS Decoder.
Dynamic Compression
1. On : To select dynamic compression.
2. Off : To select the standard range.
2X Scan Audio
NOTE
• How to make the SETUP MENU disappear or return to menu screen during set up; Press RETURN button.
• Manufactured under license from Dolby Laboratories.
”Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
• “DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.
38
Downloaded From Disc-Player.com Samsung Manuals
1 With the unit in Stop mode, press the SETUP button.
the UP/DOWN buttons to select DISPLAY
2 Use
OPTIONS. Then press the ENTER button.
the UP/DOWN buttons to select the desired
3 Use
item. Then press the LEFT/RIGHT buttons.
TV Aspect
Depending on the type of television you have, you may want to
adjust the screen setting (aspect ratio).
1. 4:3 Letter Box :
Select when you want to see the total 16:9 ratio screen DVD
supplies, even though you have a TV with a 4:3 ratio screen.
Black bars will appear at the top and bottom of the screen.
2. 4:3 Pan-Scan :
Select this for conventional size TVs when you want to see the
central portion of the 16:9 screen. (Extreme left and right side of
movie picture will be cut off.)
3. 16:9 Wide :
You can view the full 16:9 picture on your widescreen TV.
Still Mode
These options will help prevent picture shake in still mode and
display small text clearer.
1. Field : Select this feature when the screen shakes in the Auto
mode.
2. Frame : Select this feature when you want to see small letters
more clearly in the Auto mode.
3. Auto : When selecting Auto, Field/Frame mode will be
automatically converted.
Screen Messages
Use to turn on-screen messages On or Off.
Front Display
Adjust the brightness of the unit’s front panel display.
1. Bright : Makes the Front Panel Display bright.
2. Dim : Makes the Front Panel Display dim.
3. Auto Dim : Makes the Front Panel Display dim automatically
when playing a DVD.
CHANGING
SETUP MENU
1. Off : Turns 2X audio off.
Though 2X Scan Audio is ON in the SETUP MENU,
no sound will be heard on discs which are recorded with
LPCM, DTS or MPEG-2 Audio.
2. On : Turns 2X audio on.
Setting Up the Display Options
Black Level
Adjusts the brightness of the screen.(On/Off)
NOTE
• How to make the SETUP MENU disappear or return to menu screen during set up;
Press the RETURN button.
39
Specifications
Troubleshooting
Before requesting service (troubleshooting), please check the following.
Action
Problem
P6
Disc does not play.
• Ensure that the disc is installed with the label side facing up.
• Check the region number of the DVD.
P9
5.1 channel sound is not
being reproduced.
• 5.1 channel sound is reproduced only when the following conditions
are met. :
1) The DVD player is connected with the proper amplifier
2) The disc is recorded with 5.1 channel sound.
• Check whether the disc being played has the “Dolby 5.1 ch” mark on
the outside.
• Check if your audio system is connected and working properly.
• In a SETUP Menu, is the Audio Output set to Bitstream?
P14
The
icon appears on
screen.
• The features or action cannot be completed at this time because:
1. The DVD’s software restricts it.
2. The DVD’s software doesn’t support the feature (e.g., angles).
3. The feature is not available at the moment.
4. You’ve requested a title or chapter number or search time that is
out of range.
General
Dimensions
Operating Temperature Range
Operating Humidity Range
DVD
(DIGITAL VERSATILE DISC)
Disc
CD : 5"
(COMPACT DISC)
CD : 31/2"
(COMPACT DISC)
VCD : 5"
P17
Disc Menu doesn’t appear.
• Check if the disc has a Menu.
P34~35
Play mode differs from the
Setup Menu selection.
• Some of the functions selected in the Setup Menu may not work
properly if the disc is not encoded with the corresponding function.
P34~39
The screen ratio cannot be
changed.
• The Screen Ratio is fixed on your DVDs.
P39
No audio.
• Make sure you have selected the correct Digital Output in the Audio
Options Menu.
P38
Forgot password
• Press power on from a cold start with no disc in the unit. Press the STOP
and PLAY buttons simultaneously on the front panel for three seconds. The
Select Menu Language display will appear. Select the desired language
button. Press the SETUP button on the remote control to select the Parental
Mode. The Parental Mode is now unlocked as indicated on the display.
Press the DOWN button to select Parental. Press ENTER and the Create
Password display will appear. You can now set your rating level and
change your password to a new number.
Video
Output
Composite Video
Component Video
S-VIDEO
2 Channel
• Go to the contents and find the section of the instruction book that
contains the explanations regarding the current problem, and follow
the procedure once again.
• If the problem still cannot be solved, please contact your nearest
authorized service center.
40
Downloaded From Disc-Player.com Samsung Manuals
P37
Audio
Output
*Frequency Response
*S/N Ratio
*Dynamic Range
*Total Harmonic Distortion
AC 110~240 V, 50/60 Hz
13 W
6.2 lbs
W 16.9 in x D 9.4 in x H 3.1 in
+41°F to +95°F
10 % to 75 %
Reading Speed : 11.45 ft/sec.
Approx. Play Time
(Single Sided, Single Layer Disc) : 135 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 74 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 20 min.
Reading Speed : 3.9 to 4.6 ft/sec.
Maximum Play Time : 74 min. (Video + Audio)
1 channel : 1.0 Vp-p (75 Ω load)
Y : 1.0 Vp-p (75 Ω load)
Pr : 0.70 Vp-p (75 Ω load)
Pb : 0.70 Vp-p (75 Ω load)
Luminance Signal : 1.0 Vp-p (75 Ω load)
Chrominance Signal : 0.286 Vp-p (75 Ω load)
L(1/L), R(2/R)
48 kHz Sampling : 4 Hz to 22 kHz
96 kHz Sampling : 4 Hz to 44 kHz
110 dB
100 dB
0.004 %
*: Nominal specification
• Samsung Electronics Co., Ltd reserves the right to change the specifications without notice.
• Weight and dimensions are approximate.
REFERENCE
If you experience other
problems.
Power Consumption
Weight
• Check the batteries in the remote. May need replacing.
• Operate the remote control at a distance of no more than 20 feet.
• Remove batteries and hold down one or more buttons for several
minutes to drain the microprocessor inside the remote to reset it.
Reinstall batteries and try remote again.
No operations can be
performed with remote.
Power Requirements
Page
41
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
