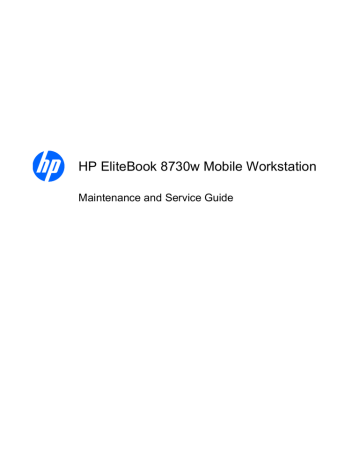

HP EliteBook 8730w Mobile Workstation
Maintenance and Service Guide
© Copyright 2008 Hewlett-Packard
Development Company, L.P.
Bluetooth is a trademark owned by its
proprietor and used by Hewlett-Packard
Company under license. Intel and Core are
trademarks of Intel Corporation in the United
States and other countries. Java is a U.S.
trademark of Sun Microsystems, Inc.
Microsoft, Windows, and Windows Vista are
U.S. registered trademarks of Microsoft
Corporation. SD Logo is a trademark of its
proprietor.
The information contained herein is subject
to change without notice. The only
warranties for HP products and services are
set forth in the express warranty statements
accompanying such products and services.
Nothing herein should be construed as
constituting an additional warranty. HP shall
not be liable for technical or editorial errors
or omissions contained herein.
First Edition: September 2008
Document Part Number: 485066-001
MSG revision history
Revision
Publication date
Description
A
March 2010
The keyboard for Slovenia, spare part number 494002-BA1, has been added in the
following locations: Computer major components on page 19, Sequential part
number listing on page 28, and Keyboard on page 55.
The graphics card heat sink for use in computer models with nVidia Quadro FX
3700M graphics cards, spare part number 518096-001, has been added in the
following locations: Computer major components on page 19, Sequential part
number listing on page 28, and Graphics card heat sink on page 61
The description for the graphics card heat sink for use in computer models with
nVidia Quadro FX 2700M graphics cards, spare part number 494011-001, has been
updated in the following locations: Computer major components on page 19,
Sequential part number listing on page 28, and Graphics card heat sink
on page 61.
The 500-GB, 7200-rpm hard drive, spare part number 519527-001, and the 500-GB,
5400-rpm hard drive, spare part number 515870-001, have been added in the
following locations: Product description on page 1, Computer major components
on page 19, Sequential part number listing on page 28, and Hard drive
on page 45.
The processors have been updated in the following locations: Product description
on page 1, Computer major components on page 19, Sequential part number
listing on page 28, and Processor on page 68.
The system board for use only in computer models with Core2 Duo processors in
the People's Republic of China and Russia, spare part number 509762-001, and the
system board for use only in computer models with Core2 Quad processors in the
People's Republic of China and Russia, spare part number 509763-001, have been
added in the following locations: Computer major components on page 19,
Sequential part number listing on page 28, and System board on page 85.
iii
iv
MSG revision history
Safety warning notice
WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not
place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a
hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft
surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact
the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the
AC adapter comply with the user-accessible surface temperature limits defined by the International
Standard for Safety of Information Technology Equipment (IEC 60950).
v
vi
Safety warning notice
Table of contents
1 Product description ........................................................................................................................................ 1
2 External component identification ................................................................................................................ 6
Display .................................................................................................................................................. 6
Top components ................................................................................................................................... 7
Pointing devices ................................................................................................................... 7
Lights ................................................................................................................................... 8
Buttons, switches, and fingerprint reader .......................................................................... 10
Keys ................................................................................................................................... 12
Front components .............................................................................................................................. 13
Left-side components ......................................................................................................................... 14
Rear component ................................................................................................................................. 15
Right-side components ....................................................................................................................... 15
Bottom components ........................................................................................................................... 16
Wireless antennae .............................................................................................................................. 17
3 Illustrated parts catalog ............................................................................................................................... 18
Service tag ......................................................................................................................................... 18
Computer major components ............................................................................................................. 19
Display assembly components ........................................................................................................... 24
Plastics Kit .......................................................................................................................................... 25
Cable Kit ............................................................................................................................................. 25
Mass storage devices ......................................................................................................................... 27
Miscellaneous parts ............................................................................................................................ 27
Sequential part number listing ............................................................................................................ 28
4 Removal and replacement procedures ....................................................................................................... 33
Preliminary replacement requirements ............................................................................................... 33
Tools required .................................................................................................................... 33
Service considerations ....................................................................................................... 33
Plastic parts ....................................................................................................... 33
Cables and connectors ..................................................................................... 34
Drive handling ................................................................................................... 34
vii
Grounding guidelines ......................................................................................................... 35
Electrostatic discharge damage ........................................................................ 35
Packaging and transporting guidelines ............................................. 36
Workstation guidelines ..................................................................... 36
Equipment guidelines ....................................................................... 37
Unknown user password ................................................................................................... 38
Component replacement procedures ................................................................................................. 39
Serial number .................................................................................................................... 39
Computer feet .................................................................................................................... 40
Battery ............................................................................................................................... 41
Display inverter or ambient light sensor ............................................................................. 42
Hard drive .......................................................................................................................... 45
Bluetooth module ............................................................................................................... 48
Memory module ................................................................................................................. 49
WLAN module .................................................................................................................... 51
Optical drive ....................................................................................................................... 53
Keyboard ........................................................................................................................... 55
RTC battery ....................................................................................................................... 58
Switch cover ...................................................................................................................... 59
Fan ..................................................................................................................................... 61
Graphics card heat sink ..................................................................................................... 61
Graphics card .................................................................................................................... 64
Processor heat sink ........................................................................................................... 66
Processor ........................................................................................................................... 68
Display assembly ............................................................................................................... 70
Camera module ................................................................................................................. 76
Top cover ........................................................................................................................... 78
Media card reader/audio board .......................................................................................... 81
USB/eSATA board ............................................................................................................. 82
Speaker assembly ............................................................................................................. 83
Modem module .................................................................................................................. 84
System board ..................................................................................................................... 85
ExpressCard assembly ...................................................................................................... 88
5 Computer Setup ............................................................................................................................................ 91
Starting Computer Setup .................................................................................................................... 91
Using Computer Setup ....................................................................................................................... 91
Navigating and selecting in Computer Setup ..................................................................... 91
Restoring factory settings in Computer Setup ................................................................... 92
Computer Setup menus ..................................................................................................................... 93
File menu ........................................................................................................................... 93
Security menu .................................................................................................................... 94
Diagnostics menu .............................................................................................................. 95
viii
System Configuration menu .............................................................................................. 96
6 Specifications ................................................................................................................................................ 99
Computer specifications ..................................................................................................................... 99
17.0-inch, WUXGA+WVA display specifications .............................................................................. 100
17.0-inch, WSXGA+WVA display specifications .............................................................................. 101
17.0-inch, WXGA+WVA display specifications ................................................................................ 102
Hard drive specifications .................................................................................................................. 103
Blu-ray ROM DVD+/-RW SuperMulti DL Drive specifications .......................................................... 104
DVD±RW and CD-RW Combo Drive, Double-Layer with LightScribe specifications ....................... 105
DVD-ROM Drive ............................................................................................................................... 106
System DMA specifications .............................................................................................................. 107
System memory map specifications ................................................................................................. 107
System interrupt specifications ......................................................................................................... 108
System I/O address specifications ................................................................................................... 109
7 Screw listing ................................................................................................................................................ 111
Phillips PM3.0×4.0 screw ................................................................................................................. 111
Phillips PM2.5×9.0 captive screw ..................................................................................................... 112
Phillips PM2.0×6.0 screw ................................................................................................................. 113
Phillips PM2.0×7.0 screw ................................................................................................................. 114
Phillips PM2.5×4.0 screw ................................................................................................................. 115
Torx T8M2.5×6.0 screw ................................................................................................................... 119
Phillips PM2.0×5.0 captive screw ..................................................................................................... 121
Phillips PM2.5×11.0 captive screw ................................................................................................... 122
Phillips PM2.0×3.0 screw ................................................................................................................. 123
Phillips PM3.0×10.0 captive screw ................................................................................................... 124
Torx TM2.5×9.0 screw ..................................................................................................................... 126
Black Phillips PM2.0×3.0 broad head screw .................................................................................... 128
8 Backup and recovery .................................................................................................................................. 129
Backup and recovery in Windows Vista ........................................................................................... 129
Overview .......................................................................................................................... 129
Backing up your information ............................................................................................ 129
Performing a recovery ..................................................................................................... 130
Using the Windows recovery tools .................................................................. 131
Using f11 ......................................................................................................... 131
Using a Windows Vista operating system DVD (purchased separately) ........ 132
Backup and recovery in Windows XP .............................................................................................. 132
Overview .......................................................................................................................... 132
Backing up your information ............................................................................................ 133
Performing a recovery ..................................................................................................... 133
Recovering your information ........................................................................... 134
ix
Recovering the operating system and programs ............................................ 134
9 Connector pin assignments ....................................................................................................................... 135
1394 ................................................................................................................................................. 135
Audio-in (microphone) ...................................................................................................................... 136
Audio-out (headphone) ..................................................................................................................... 136
External monitor ............................................................................................................................... 136
HDMI ................................................................................................................................................ 138
RJ-11 (modem) ................................................................................................................................ 139
RJ-45 (network) ................................................................................................................................ 139
Universal Serial Bus ......................................................................................................................... 140
10 Power cord set requirements .................................................................................................................. 141
Requirements for all countries and regions ...................................................................................... 141
Requirements for specific countries and regions ............................................................................. 142
11 Recycling ................................................................................................................................................... 143
Battery .............................................................................................................................................. 143
Display .............................................................................................................................................. 143
Index ................................................................................................................................................................. 149
x
1
Product description
Category
Description
Product Name
HP EliteBook 8730w Mobile Workstation
Processors
Intel® Core™2 Duo processors
T9600 2.80-GHz processor 6-MB L2 cache, 1066-MHz front side bus (FSB)
T9400 2.53-GHz processor 6-MB L2 cache, 1066-MHz FSB
P8600 2.40-GHz processor 3-MB L2 cache, 1066-MHz FSB
P8400 2.26-GHz processor 3-MB L2 cache, 1066-MHz FSB
T9550 2.66-GHz processor, 6-MB L2 cache, 1066-MHz FSB
T9800 2.93-GHz processor, 6-MB L2 cache, 1066-MHz FSB
T9900 3.06-GHz processor, 6-MB L2 cache, 1066-MHz FSB
Intel Core2 Quad processors
Q9100 2.26-GHz processor 12-MB L2 cache, 1066-MHz FSB
Q9000 2.0-GHz processor 6-MB L2 cache, 1066-MHz FSB
Intel Core2 Extreme processors
QX9300 2.53-GHz processor 12-MB L2 cache, 1066-MHz FSB
X9100 3.06-GHz processor 6-MB L2 cache, 1066-MHz FSB
Chipset
Northbridge: Intel PM45 Express Chipset with iAMT 4.0 support
Southbridge: Intel ICH9M-enhanced
Graphics
NVIDIA Quadro FX 3700M (NB9E-GLM3) graphics card with 1-GB graphics subsystem
memory operating at 800 MHz
NVIDIA Quadro FX 2700M (NB9E-GLM2) graphics card with 512-MB graphics
subsystem memory operating at 800 MHz
ATI Mobility FireGL V5725 (M86XT-GL) with 256-MB graphics subsystem memory
operating at 800 MHz
HDMI 1.3 Compliant
OpenGL driver support
Panels
17.0-inch WUXGA WVA AntiGlare display assembly
17.0-inch WUXGA WVA AntiGlare display assembly
17.0-inch WSXGA+ WVA AntiGlare display assembly
1
Category
Description
17.0-inch WUXGA DreamColor display assembly
17.0-inch WXGA+ AnitGlare display assembly
Memory
2 customer-accessible/upgradable memory module slots
Supports dual-channel memory
Supports up to 8 GB of system RAM
PC2-6400, 800-MHz, DDR2
Supports the following configurations:
Hard drives
●
8192-MB total system memory (4096 × 2, dual-channel)
●
6144-MB total system memory (4096 + 2048)
●
5120-MB total system memory (4096 + 1024)
●
4096-MB total system memory (2048 × 2, dual channel)
●
4096-MB total system memory (4096 × 1)
●
3072-MB total system memory (2048 + 1024)
●
2048-MB total system memory (1024 × 2, dual-channel)
●
2048-MB total system memory (2048 × 1)
●
1024-MB total system memory (1024 × 1)
Supports 9.5-mm 2.5-inch hard drives
Customer-accessible
Serial ATA
Supports the following drives:
●
500-GB, 7200 and 5400 rpm
●
320-GB, 7200 rpm
●
250-GB, 7200 and 5400 rpm
●
160-GB, 7200 and 5400 rpm
●
80-GB solid state drive
HP 3D Drive Guard
Optical drives
Upgrade bay (removal of 1 screw required)
Customer-accessible
Serial ATA
12.7-mm tray load
Supports the following drives:
2
Chapter 1 Product description
●
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
●
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
●
DVD-ROM Drive
Category
Description
Diskette drive
Supports external USB diskette drive only
Supports boot from external USB diskette drive
Microphone
Integrated dual-array microphone
Audio
ADI1984A HD Audio
Modem
56K V.92 1.5-inch data/fax modem with digital line guard
HD audio interface
Modem cable not included
Ethernet
Intel 82567LM 10/100/1000 network interface card (NIC) with iAMT
S3/S4/S5 wake on LAN: DC - no
S3/S4/S5 wake on LAN: AC - yes
NIC power-down technology
Wireless
Integrated WLAN options by way of wireless module:
Three WLAN antennae built into display assembly
Support for no-WLAN option
Support for the following WLAN formats:
●
Intel 802.11a/b/g/n
●
Intel 802.11a/b/g/n with iAMT support
●
Intel 802.11a/b/g
●
Intel 802.11a/b/g with iAMT support
Integrated personal area network (PAN) options by way of Bluetooth® module:
Support for no-WPAN option
Broadcom Bluetooth
External media cards
One ExpressCard/54 slot
Media Card Reader supporting Secure Digital (SD) Memory Card, MultiMediaCard
(MMC), Memory Stick (MS), Memory Stick Pro (MSP), xD-Picture Card (XD) and Memory
Stick Duo
Ports
Audio-in (mono microphone)
Audio-out (stereo headphone)
High-Definition Multimedia Interface (HDMI)
eSATA
RJ-11 (modem)
RJ-45 (Ethernet, includes link and activity lights)
USB (4)
VGA (Dsub 15-pin) supporting 1600 × 1200 external resolution at 75-Hz (hot plug/unplug
with auto-detect)
3
Category
Description
3-pin AC power
Docking
HP Advanced Docking Station and HP Docking Station
Keyboard/pointing devices
14.4-inch keyboard with separate numeric keypad
Dualpoint (pointing stick and TouchPad) with 3 pointing stick buttons and 3 TouchPad
buttons and vertical scrolling (taps enabled as default)
Power requirements
The following AC adapters with localized cable plug support (3-wire plug with ground pin,
supports 3-pin DC connector):
●
150-W PFC AC adapter
●
120-W PFC AC adapter
8-cell, 2.55-Ah (73-Wh) Li-ion battery
Support for 8-cell Extended Life Battery
Support for 12-cell Ultra Capacity Battery
Security
Full volume encryption
Integrated fingerprint reader
Integrated smart card reader
Preboot authentication (password, smart card)
Security cable slot
Trusted platform module (TPM) V.1.2
Operating system
Preinstalled:
Windows Vista® Business 32/64
Windows Vista Home Basic 32
Windows® XP Professional
FreeDOS
Preinstalled with Microsoft® Office:
Windows Vista Business 32/64 with Office 2007 Ready
Windows Vista Business 32/64 with Office 2007 Personal
Windows Vista Business 32/64 with Office 2007 Pro
Windows Home Basic with Office 2007 Ready
Windows Vista Ultimate with Office 2007 Ready
Windows XP Professional with Office 2007 Ready
Windows XP Professional with Office 2007 Personal
Windows XP Professional with Office 2007 Pro
Restore media:
Windows Vista Business 32/64
Windows Vista Home Basic 32
4
Chapter 1 Product description
Category
Description
Windows Ultimate 32
Windows XP Professional
DRDVD Windows XP Pro
DRDVD Windows Vista
Supported:
Window XP Professional 64 (SP2)
Certified:
Novell SuSE Linux
Serviceability
End-user replaceable parts:
AC adapter
Battery (system)
Hard drive
Memory module
Optical drive
WLAN module
Bluetooth module
Keyboard
RTC battery
Fan assembly
Power button
Switch cover
5
2
External component identification
Display
6
Component
Description
(1)
Internal display switch
Turns off the display if the display is closed while the power is on.
(2)
Internal microphones (2)
Record sound.
(3)
Webcam light
On: The webcam is in use.
(4)
Webcam
Records audio and video and captures still photographs.
(5)
Ambient light sensor
Automatically adjusts the display brightness based on the lighting
conditions in your environment.
Chapter 2 External component identification
Top components
Pointing devices
Component
Description
(1)
Pointing stick*
Moves the pointer and selects or activates items on the screen.
(2)
Left pointing stick button*
Functions like the left button on an external mouse.
(3)
TouchPad*
Moves the pointer and selects or activates items on the screen.
(4)
Left TouchPad button*
Functions like the left button on an external mouse.
(5)
Center TouchPad button*
Functions like the center button on an external mouse.
(6)
Right TouchPad button*
Functions like the right button on an external mouse.
(7)
TouchPad scroll zone
Scrolls up or down.
(8)
Right pointing stick button*
Functions like the right button on an external mouse.
(9)
Center pointing stick button*
Functions like the center button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences, follow these steps:
●
In Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.
●
In Windows XP, select Start > Control Panel > Printers and Other Hardware > Mouse.
Top components
7
Lights
Component
Description
(1)
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state (Windows Vista)
or Standby (Windows XP).
●
Off: The computer is off or in Hibernation.
●
On: An integrated wireless device, such as a wireless local
area network (WLAN) device and/or a Bluetooth device, is on.
●
Amber: All wireless devices are off.
(2)
8
Power lights (2)*
Wireless lights (2)†
(3)
Caps lock light
On: Caps lock is on.
(4)
Num lock light
On: Num lock is on.
(5)
Volume mute light
●
On: Computer sound is on.
●
Amber: Computer sound is off.
(6)
Volume down light
Blinking: The volume scroll zone is being used to decrease speaker
volume.
(7)
Volume up light
Blinking: The volume scroll zone is being used to increase speaker
volume.
(8)
Calculator light
On: The Windows calculator function is on.
Chapter 2 External component identification
Component
Description
(9)
●
Amber: A battery is charging.
●
Turquoise: A battery is close to full charge capacity.
●
Blinking amber: A battery that is the only available power
source has reached a low battery level. When the battery
reaches a critical battery level, the battery light begins blinking
rapidly.
●
Off: If the computer is plugged into an external power source,
the light turns off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low
battery level.
●
Blinking: The hard drive or optical drive is being accessed.
●
Amber: HP 3D DriveGuard has temporarily parked the hard
drive.
(10)
Battery light
Drive light
*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The
power light on the front of the computer is visible whether the computer is open or closed.
†
The 2 wireless lights display the same information. The light on the wireless button is visible only when the computer is open.
The wireless light on the front of the computer is visible whether the computer is open or closed.
Top components
9
Buttons, switches, and fingerprint reader
Component
Description
(1)
●
When the computer is off, press the button to turn on the
computer.
●
When the computer is on, press the button to shut down the
computer.
●
When the computer is in the Sleep state (Windows Vista) or
Standby (Windows XP), press the button briefly to exit Sleep
or Standby.
●
When the computer is in Hibernation, press the button briefly
to exit Hibernation.
Power button
If the computer has stopped responding and Windows shutdown
procedures are ineffective, press and hold the power button for at
least 5 seconds to turn off the computer.
To learn more about your power settings, follow these steps:
10
●
In Windows Vista, select Start > Control Panel > System
and Maintenance > Power Options.
●
In Windows XP, select Start > Control Panel > Performance
and Maintenance > Power Options.
(2)
Info button
Launches Info Center, which enables you to open various software
solutions.
(3)
Internal display switch
Turns off the display if the display is closed while the power is on.
Chapter 2 External component identification
Component
Description
(4)
Turns the wireless feature on or off but does not establish a
wireless connection.
Wireless button
NOTE: You must set up or access a wireless network to establish
a wireless connection.
(5)
Presentation button
Starts the presentation feature.
(6)
Volume mute button
Mutes and restores speaker sound.
(7)
Volume scroll zone
Adjusts speaker volume. Slide your finger to the left to decrease
volume and to the right to increase volume. You can also press the
left side of the volume slider to decrease volume, or press the right
side of the volume slider to increase volume.
(8)
Calculator button
Turns on the Windows calculator function.
(9)
Fingerprint reader
Allows a fingerprint logon to Windows instead of a password logon.
Top components
11
Keys
NOTE:
12
Your computer may look slightly different from the illustration in this section.
Component
Description
(1)
esc key
Displays system information when pressed in combination with the
fn key.
(2)
fn key
Executes frequently used system functions when pressed in
combination with a function key or the esc key.
(3)
Windows logo key
Displays the Windows Start menu.
(4)
Windows applications key
Displays a shortcut menu for items beneath the pointer.
(5)
Integrated numeric keypad keys
Can be used like the keys on an external numeric keypad.
(6)
Function keys
Execute frequently used system functions when pressed in
combination with the fn key.
Chapter 2 External component identification
Front components
Component
Description
(1)
On: An integrated wireless device, such as a wireless local area
network (WLAN) device and/or a Bluetooth device, is on.
Wireless light
Amber: All wireless devices are off.
(2)
(3)
(4)
Power light
Battery light
Drive light
●
On: The computer is on.
●
Blinking: The computer is in the Sleep state (Windows Vista)
or Standby (Windows XP).
●
Off: The computer is off or in Hibernation.
●
Amber: A battery is charging.
●
Turquoise: A battery is close to full charge capacity.
●
Blinking amber: A battery that is the only available power
source has reached a low battery level. When the battery
reaches a critical battery level, the battery light begins blinking
rapidly.
●
Off: If the computer is plugged into an external power source,
the light turns off when all batteries in the computer are fully
charged. If the computer is not plugged into an external power
source, the light stays off until the battery reaches a low
battery level.
Blinking: The hard drive or optical drive is being accessed.
Amber: HP 3D DriveGuard has temporarily parked the hard drive.
(5)
Speakers (2)
Produce sound.
(6)
Audio-out (headphone) jack
Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
NOTE: When a device is connected to the headphone jack, the
computer speakers are disabled.
(7)
Audio-in (microphone) jack
Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
Front components
13
Component
Description
(8)
Supports the following optional digital card formats:
Media Card Reader
●
Memory Stick
●
Memory Stick Duo
●
Memory Stick Pro
●
MultiMediaCard
●
Secure Digital Memory Card
●
xD-Picture Card
●
xD-Picture Card Type H
●
xD-Picture Card Type M
(9)
Display release button
Opens the computer.
(10)
Business card slot
Holds a business card in position so that the webcam can capture
an image.
Left-side components
Component
Description
(1)
Attaches an optional security cable to the computer.
Security cable slot
NOTE: The security cable is designed to act as a deterrent, but
it may not prevent the computer from being mishandled or stolen.
(2)
Vent
Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
14
(3)
Power connector
Connects an AC adapter.
(4)
HDMI port
Connects an optional HDMI device.
(5)
External monitor port
Connects an external VGA monitor or projector.
(6)
USB port
Connects an optional USB device.
(7)
1394 port
Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(8)
ExpressCard slot
Supports optional ExpressCards.
(9)
Smart card reader
Supports optional smart cards and Java™ Cards.
Chapter 2 External component identification
Rear component
The vent enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal components and prevent overheating.
It is normal for the internal fan to cycle on and off during routine operation.
Right-side components
Component
Description
(1)
eSATA port
Connects high-performance eSATA components, such as an
eSATA external hard drive.
(2)
USB ports (3)
Connect optional USB devices.
(3)
Upgrade bay
Supports an optical drive or hard drive.
(4)
RJ-45 (network) jack
Connects a network cable.
(5)
RJ-11 (modem) jack
Connects a modem cable.
Rear component
15
Bottom components
Component
Description
(1)
Battery bay
Holds the battery.
(2)
Docking connector
Connects an optional docking device.
(3)
Vents (3)
Enable airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(4)
Hard drive bay
Holds the hard drive and a Bluetooth device.
(5)
Memory module compartment
Contains the memory module slots and a wireless LAN module
slot.
CAUTION: To prevent an unresponsive system and the display
of a warning message, replace the WLAN module with only a
module authorized for use in the computer by the governmental
agency that regulates wireless devices in your country. If you
replace the module and then receive a warning message, remove
the module to restore computer functionality, and then contact
technical support through Help and Support.
16
(6)
Accessory battery connector
Connects an optional accessory battery.
(7)
Battery release latch
Releases the battery from the battery bay.
Chapter 2 External component identification
Wireless antennae
The antennae send and receive signals from one or more wireless devices. These antennae are not
visible from the outside of the computer.
NOTE: For optimal transmission, keep the areas immediately around the antennae free from
obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennae
17
3
Illustrated parts catalog
Service tag
The service tag, affixed to the bottom of the computer, provides information that may be needed when
troubleshooting system problems. The service tag provides the following information:
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the number used to locate documents, drivers, and support for the
computer.
(5) Warranty period: This number describes the duration of the warranty period for this computer.
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
18
Chapter 3 Illustrated parts catalog
Computer major components
Computer major components
19
Item
Description
(1)
Display assemblies (include 3 WLAN antenna transceivers and cables)
(2)
20
Spare part number
17.0-inch WUXGA WVA AntiGlare display assembly without camera module
494016-001
17.0-inch WUXGA WVA AntiGlare display assembly with camera module
494017-001
17.0-inch WSXGA+ WVA AntiGlare display assembly without camera module
494012-001
17.0-inch WSXGA+ WVA AntiGlare display assembly with camera module
494013-001
17.0-inch WUXGA DreamColor display assembly without camera module
494014-001
17.0-inch WUXGA DreamColor display assembly with camera module
494015-001
17.0-inch WXGA+ AnitGlare display assembly without camera module
494018-001
17.0-inch WXGA+ AnitGlare display assembly with camera module
494019-001
Keyboards with pointing stick (include keyboard cable and pointing stick cable)
For use in Belgium
494002-A41
For use in Brazil
494002-201
For use in the Czech Republic
494002-221
For use in Denmark
494002-081
For use in France
494002-051
For use in French Canada
494002-121
For use in Germany
494002-041
For use in Greece
494002-151
For use in Hungary
494002-211
For use in Iceland
494002-DD1
For use in Israel
494002-BB1
For use in Italy
494002-061
For use in Japan
494002-291
For use in Latin America
494002-161
For use in the Netherlands and Europe
494002-021
For use in Norway
494002-091
For use in Portugal
494002-131
For use in Russia
494002-251
For use in Saudi Arabia
494002-171
For use in Slovakia
494002-231
For use in Slovenia
494002-BA1
For use in South Korea
494002-AD1
For use in Spain
494002-071
For use in Sweden and Finland
494002-B71
Chapter 3 Illustrated parts catalog
Item
Description
Spare part number
For use in Switzerland
494002-111
For use in Taiwan
494002-AB1
For use in Thailand
494002-281
For use in Turkey
494002-141
For use in the United Kingdom
494002-031
For use in the United States
494002-001
(3)
Switch cover (includes LED board and cable and power button board)
493986-001
(4)
Top cover (includes TouchPad, TouchPad bracket, TouchPad cable, fingerprint reader board
and cable)
493987-001
(5)
Fan
494000-001
(6)
Graphics card heat sink
(7)
(8)
For use in computer models with nVidia Quadro FX 2700M graphics cards
494011-001
For use in computer models with nVidia Quadro FX 3700M graphics cards
518096-001
For use in computer models with ATI graphics cards
494211-001
Hard drives (include hard drive bracket and screws)
500-GB, 7200-rpm
519527-001
500-GB, 5400-rpm
515870-001
320-GB, 7200-rpm
493997-001
250-GB, 7200-rpm
493996-001
250-GB, 5400-rpm
493994-001
160-GB, 7200-rpm
493992-001
160-GB, 5400-rpm
493991-001
80-GB, solid state drive (not illustrated)
493998-001
Graphics cards (include replacement thermal material)
ATI Mobility FireGL V5725
493982-001
nVidia Quadro FX 2700M
493983-001
nVidia Quadro FX 3700M
493984-001
(9)
Bluetooth module (includes Bluetooth module cable)
398393-002
(10)
Heat sink assemblies (include replacement thermal material)
For use only with computer models equipped with the following processors: P8400, P8600,
T9400, and T9600
494010-001
For use only with computer models equipped with the following processors: X9100, Q9100,
and QX9300
494210-001
(11)
USB/eSATA board (includes cable)
493981-001
(12)
Modem modules
Computer major components
21
Item
Description
Spare part number
For use in all countries and regions except for Australia and New Zealand
461750-001
For use only in Australia and New Zealand
461750-011
(13)
Speaker assembly
494029-001
(14)
Media card reader/audio board
493978-001
(15)
Optical drives
(16)
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
493990-001
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
493989-001
DVD-ROM Drive
493988-001
Intel Core2 Extreme processors (include replacement thermal material)
QX9300 2.53-GHz processor (12-MB L2 cache, 1066-MHz FSB)
507946-001
X9100 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507950-001
Intel Core2 Quad processors (include replacement thermal material)
Q9100 2.26-GHz processor (12-MB L2 cache, 1066-MHz FSB)
507947-001
Q9000 2.0-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507948-001
Intel Core2 Duo processors (include replacement thermal material)
(17)
(18)
22
T9900 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
570434-001
T9800 2.93-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507951-001
T9600 2.8-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507955-002
T9550 2.66-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507953-001
T9400 2.53-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507956-002
P8600 2.4-GHz processor (3-MB L2 cache, 1066-MHz FSB)
507963-002
P8400 2.26-GHz processor (3-MB L2 cache, 1066-MHz FSB)
507964-002
System boards (include replacement thermal material)
For use in computer models with dual core processors (includes RTC battery)
493980-001
For use in computer models with quad core processors (includes RTC battery)
501508-001
For use only in computer models with Core2 Duo processors in the People's Republic of China
and Russia (includes RTC battery)
509762-001
For use only in computer models with Core2 Quad processors in the People's Republic of
China and Russia (includes RTC battery)
509763-001
Memory modules
4096-MB memory module (PC2-6400, 800-MHz, DDR2)
494009-001
2048-MB memory module (PC2-6400, 800-MHz, DDR2)
494008-001
1024-MB memory module (PC2-6400, 800-MHz, DDR2)
494007-001
(19)
ExpressCard assembly
493999-001
(20)
WLAN modules
Chapter 3 Illustrated parts catalog
Item
Description
Spare part number
For use in non-iAMT (Intel Active Management Technology) models:
●
Intel WiFi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions
except for Russia, Ukraine, and Pakistan
480985-001
●
Intel WiFi Link 5100 802.11a/b/g WLAN module for use in Russia, Ukraine, and Pakistan
482957-001
●
Intel WiFi Link 5300 802.11a/b/g/n WLAN module for use in all countries and regions
480986-001
For use in iAMT models:
●
Intel WiFi Link 5100 802.11a/b/g/n for iAMT WLAN module for use in all countries and
regions except for Russia, Ukraine, and Pakistan
506678-001
●
Intel WiFi Link 5100 802.11a/b/g for iAMT WLAN module for use in Russia, Ukraine, and
Pakistan
506680-001
●
Intel WiFi Link 5300 802.11a/b/g/n for iAMT WLAN module for use in all countries and
regions
506679-001
(21)
8-cell, 2.55-Ah, Li-ion battery
493976-001
(22)
Base enclosure (includes latch assembly)
493975-001
Plastics Kit (see Plastics Kit on page 25 for more Plastics Kit spare part information):
494020-001
(23a)
Hard drive cover (includes 2 captive screws, secured by C-clips)
(23b)
Memory module/WLAN module compartment cover (includes one captive screw, secured by a C-clip)
(23c)
ExpressCard slot bezel
(23d)
Bluetooth compartment cover
Rubber Kit (includes 8 feet in 2 different sizes)
494027-001
Cable Kit (not illustrated; see Cable Kit on page 25 for more Cable Kit spare part number
information)
493985-001
Computer major components
23
Display assembly components
Item
Description
(1)
Display bezels
(2)
(3)
24
Spare part number
For use only in computer models without a camera module
494003-001
For use only in computer models with a camera module
487285-001
Display inverter for use only in models with an LCD display (includes Mylar shield)
494001-001
Ambient light sensor board for use only in models with a DreamColor LED display –
494014-001 and 494015-001 (not illustrated)
495029-001
Display cable
For use only in computer models with a DreamColor LED display
495607-001
For use only in computer models with an LCD display
494005-001
Chapter 3 Illustrated parts catalog
Item
Description
Spare part number
(4)
Camera module (includes flex cable)
494030-001
(5)
Display Hinge Kit (includes hinge covers)
494004-001
(6)
Display enclosure (includes wireless antennae and microphone)
For use only in computer models with a DreamColor LED display
495895-001
For use only in computer models with an LCD display
494006-001
Plastics Kit
Item
Description
Spare part number
Plastics Kit:
494020-001
(1)
Hard drive compartment cover (includes 2 captive screws, secured by C-clips)
(2)
Memory module/WLAN module compartment cover (includes 3 captive screws, secured by C-clips)
(3)
Bluetooth compartment cover
(4)
ExpressCard slot bezel
Cable Kit
Plastics Kit
25
Item
26
Description
Spare part number
Cable Kit:
493985-001
(1)
RJ-45 jack cable
(2)
RJ-11 jack cable
(3)
Bluetooth cable
(4)
Microphone extension cable
Chapter 3 Illustrated parts catalog
Mass storage devices
Item
Description
(1)
Hard drives (include bracket and screws)
(2)
Spare part number
320-GB, 7200-rpm
493997-001
250-GB, 7200-rpm
493996-001
250-GB, 5400-rpm
493994-001
160-GB, 7200-rpm
493992-001
160-GB, 5400-rpm
493991-001
Solid state drive, 80 GB (not illustrated)
493998-001
Optical drives (include bezel)
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
493990-001
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
493989-001
DVD-ROM Drive
493988-001
Miscellaneous parts
Description
Spare part number
AC adapters
150-W PFC AC adapter
463954-001
120-W PFC AC adapter
463953-001
Power cords:
For use in Argentina
490371-D01
For use in Australia
490371-011
For use in Brazil
490371-201
For use in Denmark
490371-081
For use in Europe, the Middle East, and Africa
490371-021
For use in India
490371-D61
Mass storage devices
27
Description
Spare part number
For use in Israel
490371-BB1
For use in Italy
490371-061
For use in Japan
490371-291
For use in the People's Republic of China
490371-AA1
For use in South Africa
490371-AR1
For use in South Korea
490371-AD1
For use in Switzerland
490371-111
For use in Taiwan
490371-AB1
For use in the United Kingdom
490371-031
For use in the United States
490371-001
Screw Kit
494028-001
●
Phillips PM2.5×2.5 screw
●
Phillips PM2.5×3.0 screw
●
Phillips PM2.5×4.5 screw
●
Phillips PM2.0×3.0 screw
●
Torx T8M2.5×8.0 screw
●
Torx T8M2.5×4.0 screw
Sequential part number listing
28
Spare part
number
Description
398393-002
Bluetooth module (includes Bluetooth module cable)
449137-001
RTC battery
461750-001
Modem module for use in all countries and regions except for Australia and New Zealand
461750-011
Modem module for use only in Australia and New Zealand
463953-001
120-W PFC AC adapter
463954-001
150-W PFC AC adapter
480985-001
Intel WiFi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions except for Russia,
Ukraine, and Pakistan
480986-001
Intel WiFi Link 5300 802.11a/b/g/n WLAN module for use in all countries and regions
482957-001
Intel WiFi Link 5100 802.11a/b/g WLAN module for use in Russia, Ukraine, and Pakistan
490371-001
Power cord (3-wire) for use in North America
490371-011
Power cord (3-wire) for use in Australia
490371-021
Power cord (3-wire) for use in Europe, the Middle East, and Africa
Chapter 3 Illustrated parts catalog
Spare part
number
Description
490371-031
Power cord (3-wire) for use in the United Kingdom
490371-061
Power cord (3-wire) for use in Italy
490371-081
Power cord (3-wire) for use in Denmark
490371-111
Power cord (3-wire) for use in Switzerland
490371-201
Power cord (3-wire) for use in Brazil
490371-291
Power cord (3-wire) for use in Japan
490371-AA1
Power cord (3-wire) for use in the People's Republic of China
490371-AB1
Power cord (3-wire) for use in Taiwan
490371-AD1
Power cord (3-wire) for use in South Korea
490371-AR1
Power cord (3-wire) for use in South Africa
490371-BB1
Power cord (3-wire) for use in Israel
490371-D01
Power cord (3-wire) for use in Argentina
490371-D61
Power cord (3-wire) for use in India
493975-001
Base enclosure (includes latch assembly)
493976-001
Battery, 8-cell, 2.55-Ah, Li-ion
493978-001
Media card reader/audio board
493980-001
System board for use in computer models with dual core processors (includes RTC battery and replacement
thermal material)
493981-001
USB/eSATA board (includes cable)
493982-001
ATI Mobility FireGL V5725 graphics card; includes replacement thermal material
493983-001
nVidia Quadro FX 2700M graphics card; includes replacement thermal material
493984-001
nVidia Quadro FX 3700M graphics card; includes replacement thermal material
493985-001
Cable Kit (see Cable Kit on page 25 for more Cable Kit spare part information
493986-001
Switch cover (includes LED board and cable and power button board)
493987-001
Top cover (includes TouchPad, TouchPad bracket, TouchPad cable, fingerprint reader board and cable)
493988-001
DVD-ROM drive
493989-001
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
493990-001
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
493991-001
160-GB, 5400-rpm hard drive (includes hard drive bracket and screws)
493992-001
160-GB, 7200-rpm hard drive (includes hard drive bracket and screws)
493994-001
250-GB, 5400-rpm hard drive (includes hard drive bracket and screws)
493996-001
250-GB, 7200-rpm hard drive (includes hard drive bracket and screws)
493997-001
320-GB, 7200-rpm hard drive (includes hard drive bracket and screws)
493998-001
80-GB, solid state drive (includes hard drive bracket and screws)
Sequential part number listing
29
30
Spare part
number
Description
493999-001
ExpressCard assembly
494000-001
Fan
494001-001
Display inverter for use only in models with an LCD display (includes Mylar shield)
494002-001
Keyboard with pointing stick for use in the United States
494002-021
Keyboard for use in Europe
494002-031
Keyboard for use in the United Kingdom
494002-041
Keyboard for use in Germany
494002-051
Keyboard for use in France
494002-061
Keyboard for use in Italy
494002-071
Keyboard for use in Spain
494002-081
Keyboard for use in Denmark
494002-091
Keyboard for use in Norway
494002-111
Keyboard for use in Switzerland
494002-121
Keyboard for use in French Canada
494002-131
Keyboard for use in Portugal
494002-141
Keyboard for use in Turkey
494002-151
Keyboard for use in Greece
494002-161
Keyboard for use in Latin America
494002-171
Keyboard for use in Saudi Arabia
494002-201
Keyboard for use in Brazil
494002-211
Keyboard for use in Hungary
494002-221
Keyboard for use in the Czech Republic
494002-231
Keyboard for use in Slovakia
494002-251
Keyboard for use in Russia
494002-281
Keyboard for use in Thailand
494002-291
Keyboard for use in Japan
494002-A41
Keyboard for use in Belgium
494002-AB1
Keyboard for use in Taiwan
494002-AD1
Keyboard for use in South Korea
494002-B71
Keyboard for use in Sweden and Finland
494002-BA1
Keyboard for use in Slovenia
494002-BB1
Keyboard for use in Israel
494002-DD1
Keyboard for use in Iceland
494003-001
Display bezel for use in computer models without a camera module
Chapter 3 Illustrated parts catalog
Spare part
number
Description
494004-001
Display Bracket Kit (includes hinge covers)
494005-001
Display panel cable for use in computer models with LCD displays
494006-001
Display enclosure for use in computer models with LCD displays (includes wireless antennae and microphone)
494007-001
1024-MB memory module (PC-6400, 800-GHz, DDR2)
494008-001
2048-MB memory module (PC-6400, 800-GHz, DDR2)
494009-001
4096-MB memory module (PC2-6400, 800-MHz, DDR2)
494010-001
Heat sink for use only with computer models equipped with the following processors: P8400, P8600, T9400,
and T9600 (includes replacement thermal material)
494011-001
Graphics card heat sink for use in computer models with nVidia Quadro FX 2700M graphics cards
494012-001
17.0-inch, WSXGA+ WVA AntiGlare display assembly without camera module (includes 3 WLAN antenna
transceivers and cables)
494013-001
17.0-inch, WSXGA+ WVA AntiGlare display assembly with camera module (includes 3 WLAN antenna
transceivers and cables)
494014-001
17.0-inch, WUXGA DreamColor display assembly without camera module (includes 3 WLAN antenna
transceivers and cables)
494015-001
17.0-inch, WUXGA DreamColor display assembly with camera module (includes 3 WLAN antenna
transceivers and cables)
494016-001
17.0-inch, WUXGA+ WVA AntiGlare display assembly without camera module (includes 3 WLAN antenna
transceivers and cables)
494017-001
17.0-inch, WUXGA+ WVA AntiGlare display assembly with camera module (includes 3 WLAN antenna
transceivers and cables)
494018-001
17.0-inch, WXGA+ AntiGlare display assembly without camera module (includes 3 WLAN antenna
transceivers and cables)
494019-001
17.0-inch, WXGA+ AntiGlare display assembly with camera module (includes 3 WLAN antenna transceivers
and cables)
494020-001
Plastics Kit (see Plastics Kit on page 25 for more Plastics Kit spare part information)
494027-001
Rubber Kit (includes 8 feet in 2 different sizes)
494028-001
Screw Kit
494029-001
Speaker assembly
494030-001
Camera module (includes flex cable)
494210-001
Heat sink for use only with computer models equipped with the following processors: X9100, Q9100, and
QX9300 (includes replacement thermal material)
494211-001
Graphics card heat sink for use in computer models with ATI graphics cards
495029-001
Ambient light sensor board (for use only in models with a DreamColor LED display – 494014-001 and
494015-001)
495030-001
Display bezel for use in computer models with a camera module
495607-001
Display panel cable for use in computer models with DreamColor LED displays
495895-001
Display enclosure for use in computer models with DreamColor LED displays (includes wireless antennae and
microphone)
Sequential part number listing
31
32
Spare part
number
Description
501508-001
System board for use only with computer models equipped with quad core processors (includes RTC battery
and replacement thermal material)
506678-001
Intel WiFi Link 5100 802.11a/b/g/n for iAMT WLAN module for use in all countries and regions except for
Russia, Ukraine, and Pakistan
506679-001
Intel WiFi Link 5300 802.11a/b/g/n for iAMT WLAN module for use in all countries and regions
506680-001
Intel WiFi Link 5100 802.11a/b/g for iAMT WLAN module for use in Russia, Ukraine, and Pakistan
507946-001
Intel Core2 Extreme QX9300 2.53-GHz processor (12-MB L2 cache, 1066-MHz FSB; includes replacement
thermal material)
507947-001
Intel Core2 Quad Q9100 2.26-GHz processor (12-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
507948-001
Intel Core2 Quad Q9000 2.0-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
507950-001
Intel Core2 Extreme X9100 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement
thermal material)
507951-001
Intel Core2 Duo T9800 2.93-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
507953-001
Intel Core2 Duo T9550 2.66-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
507955-002
Intel Core2 Duo T9600 2.80-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
507956-002
Intel Core2 Duo T9400 2.53-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
507963-002
Intel Core2 Duo MV P8600 2.40-GHz processor (3-MB L2 cache, 1066-MHz FSB; includes replacement
thermal material)
507964-002
Intel Core2 Duo MV P8400 2.26-GHz processor (3-MB L2 cache, 1066-MHz FSB; includes replacement
thermal material)
509762-001
System board for use only in computer models with Core2 Duo processors in the People's Republic of China
and Russia (includes RTC battery)
509763-001
System board for use only in computer models with Core2 Quad processors in the People's Republic of China
and Russia (includes RTC battery)
515870-001
500-GB, 5400-rpm hard drive (includes hard drive bracket and screws)
518096-001
Graphics card heat sink for use in computer models with nVidia Quadro FX 3700M graphics cards
519527-001
500-GB, 7200-rpm hard drive (includes hard drive bracket and screws)
570434-001
Intel Core2 Duo T9900 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB; includes replacement thermal
material)
Chapter 3 Illustrated parts catalog
4
Removal and replacement procedures
Preliminary replacement requirements
Tools required
You will need the following tools to complete the removal and replacement procedures:
●
Flat-bladed screwdriver
●
Magnetic screwdriver
●
Phillips P0 and P1 screwdrivers
●
Torx T8 screwdriver
Service considerations
The following sections include some of the considerations that you must keep in mind during
disassembly and assembly procedures.
NOTE: As you remove each subassembly from the computer, place the subassembly (and all
accompanying screws) away from the work area to prevent damage.
Plastic parts
Using excessive force during disassembly and reassembly can damage plastic parts. Use care when
handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.
Preliminary replacement requirements
33
Cables and connectors
CAUTION: When servicing the computer, be sure that cables are placed in their proper locations
during the reassembly process. Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat
or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In
all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme
care; these cables tear easily.
Drive handling
CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the
computer, damage to a drive, or loss of information, observe these precautions:
Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the
computer is off or in Hibernation, turn the computer on, and then shut it down through the operating
system.
Before handling a drive, be sure that you are discharged of static electricity. While handling a drive,
avoid touching the connector.
Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and
be sure that the optical drive tray is closed.
Handle drives on surfaces covered with at least one inch of shock-proof foam.
Avoid dropping drives from any height onto any surface.
After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.
Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.
Avoid exposing a drive to temperature extremes or liquids.
If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective
packaging and label the package “FRAGILE.”
34
Chapter 4 Removal and replacement procedures
Grounding guidelines
Electrostatic discharge damage
Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure
determine the degree of sensitivity. Networks built into many integrated circuits provide some protection,
but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.
A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or
microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.
An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a
normal cycle. Or the device may function normally for a while, then degrade in the internal layers,
reducing its life expectancy.
CAUTION: To prevent damage to the computer when you are removing or installing internal
components, observe these precautions:
Keep components in their electrostatic-safe containers until you are ready to install them.
Use nonmagnetic tools.
Before touching an electronic component, discharge static electricity by using the guidelines described
in this section.
Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.
If you remove a component, place it in an electrostatic-safe container.
The following table shows how humidity affects the electrostatic voltage levels generated by different
activities.
CAUTION:
A product can be degraded by as little as 700 V.
Typical electrostatic voltage levels
Relative humidity
Event
10%
40%
55%
Walking across carpet
35,000 V
15,000 V
7,500 V
Walking across vinyl floor
12,000 V
5,000 V
3,000 V
Motions of bench worker
6,000 V
800 V
400 V
Removing DIPS from plastic tube
2,000 V
700 V
400 V
Removing DIPS from vinyl tray
11,500 V
4,000 V
2,000 V
Removing DIPS from Styrofoam
14,500 V
5,000 V
3,500 V
Removing bubble pack from PCB
26,500 V
20,000 V
7,000 V
Packing PCBs in foam-lined box
21,000 V
11,000 V
5,000 V
Preliminary replacement requirements
35
Packaging and transporting guidelines
Follow these grounding guidelines when packaging and transporting equipment:
●
To avoid hand contact, transport products in static-safe tubes, bags, or boxes.
●
Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.
●
Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.
●
Place items on a grounded surface before removing items from their containers.
●
Always be properly grounded when touching a component or assembly.
●
Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive
foam.
●
Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that
mechanized equipment used for moving materials is wired to ground and that proper materials are
selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate
electric charges.
Workstation guidelines
Follow these grounding workstation guidelines:
36
●
Cover the workstation with approved static-shielding material.
●
Use a wrist strap connected to a properly grounded work surface and use properly grounded tools
and equipment.
●
Use conductive field service tools, such as cutters, screwdrivers, and vacuums.
●
When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe
materials.
●
Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and
Styrofoam.
●
Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle
these items only at static-free workstations.
●
Avoid contact with pins, leads, or circuitry.
●
Turn off power and input signals before inserting or removing connectors or test equipment.
Chapter 4 Removal and replacement procedures
Equipment guidelines
Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.
●
When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps
with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground,
wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors,
use alligator clips to connect a wrist strap.
●
When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps)
can be used at standing workstations and are compatible with most types of shoes or boots. On
conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one
megohm resistance between the operator and ground. To be effective, the conductive strips must
be worn in contact with the skin.
The following grounding equipment is recommended to prevent electrostatic damage:
●
Antistatic tape
●
Antistatic smocks, aprons, and sleeve protectors
●
Conductive bins and other assembly or soldering aids
●
Nonconductive foam
●
Conductive tabletop workstations with ground cords of one megohm resistance
●
Static-dissipative tables or floor mats with hard ties to the ground
●
Field service kits
●
Static awareness labels
●
Material-handling packages
●
Nonconductive plastic bags, tubes, or boxes
●
Metal tote boxes
●
Electrostatic voltage levels and protective materials
The following table lists the shielding protection provided by antistatic bags and floor mats.
Material
Use
Voltage protection level
Antistatic plastic
Bags
1,500 V
Carbon-loaded plastic
Floor mats
7,500 V
Metallized laminate
Floor mats
5,000 V
Preliminary replacement requirements
37
Unknown user password
NOTE: This process will not work if Stringent Security is enabled in F10 Setup. Stringent Security
installs passwords into the ROM so that it is not affected when the RTC battery is removed.
If the computer you are servicing has an unknown user password, follow these steps to clear the
password:
NOTE:
These steps also clear CMOS.
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
5.
Remove the real-time clock (RTC) battery (see RTC battery on page 58).
6.
Wait approximately 5 minutes.
7.
Replace the RTC battery and reassemble the computer.
8.
Connect AC power to the computer. Do not reinsert any batteries at this time.
9.
Turn on the computer.
All passwords and all CMOS settings have been cleared.
38
Chapter 4 Removal and replacement procedures
Component replacement procedures
This chapter provides removal and replacement procedures.
There are as many as 86 screws in 12 different sizes that must be removed, replaced, or loosened when
servicing the computer. Make special note of each screw size and location during removal and
replacement.
Serial number
Report the computer serial number to HP when requesting information or ordering spare parts. The
serial number is located on the bottom of the computer.
(1) Product name: This is the product name affixed to the front of the computer.
(2) Serial number (s/n): This is an alphanumeric identifier that is unique to each product.
(3) Part number/Product number (p/n): This number provides specific information about the product's
hardware components. The part number helps a service technician to determine what components and
parts are needed.
(4) Model description: This is the number used to locate documents, drivers, and support for the
computer.
(5) Warranty period: This number describes the duration of the warranty period for this computer.
When ordering parts or requesting information, provide the computer serial number and model
description provided on the service tag.
Component replacement procedures
39
Computer feet
The computer feet are adhesive-backed rubber pads. The feet are included in the Rubber Kit, spare
part number 494027-001. There are 9 rubber feet in 2 different sizes that attach to the base enclosure
in the locations illustrated below.
40
Chapter 4 Removal and replacement procedures
Battery
Description
Spare part number
8-cell, 2.55-Ah, Li-ion battery
493976-001
Before disassembling the computer, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
Remove the battery:
1.
Turn the computer upside down on a flat surface, with the battery bay toward you.
2.
Slide the battery release latch (1) to release the battery.
3.
Remove the battery (2) from the computer.
Install the battery by inserting it into the battery bay until you hear a click.
Component replacement procedures
41
Display inverter or ambient light sensor
NOTE: If it has been determined that the display inverter must be replaced to complete the computer
repair, the display assembly does not have to be removed. Follow the procedures in this section to
replace the display inverter. For information on replacing the display assembly, the display hinges, or
the display bezel, see Display assembly on page 70.
NOTE: The display inverter and the ambient light sensor are installed in the same location. The only
difference in removal and replacement is the ambient light sensor does not include a backlight cable
connector, while the inverter does. Models with LCD displays use the inverter, while models with
DreamColor LED displays use the ambient light sensor.
Description
Spare part number
Display inverter for use only in models with an LCD display (includes Mylar shield)
494001-001
Ambient light sensor for use only in models with a DreamColor LED display – 494014-001 and
494015-001
495029-001
Before removing the display inverter or ambient light sensor, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
Remove the display inverter or ambient light sensor:
42
1.
Turn the computer right-side up, with the front toward you.
2.
Open the computer as far as possible.
Chapter 4 Removal and replacement procedures
3.
Remove the six screw covers (1) and six Torx T8M2.5×6.0 screws (2) that secure the display bezel
to the display enclosure.
4.
Flex the display bezel bottom edge (1), the inside edges of the left and right sides (2), and then the
display bezel top edge (3) until the bezel disengages from the display assembly.
5.
Lift the display bezel straight up (4) to remove it from the display assembly.
NOTE: There are two posts that protrude through two holes on the top edge of the bezel. So that
you do not break the posts, be sure to lift the bezel straight up when removing it from the display
assembly.
6.
Remove the Torx T8M2.5×6.0 screw (1) that secures the display inverter or ambient light sensor
to the display enclosure.
7.
Release the inverter or sensor (2) from the display enclosure as far as the display panel cable and/
or backlight cable allow.
NOTE: Models with a DreamColor LED display use the ambient light sensor which does not have
a backlight cable connector.
Component replacement procedures
43
8.
Disconnect the display panel cable (3) and the backlight cable (inverter only) (4) from the display
inverter or ambient light sensor.
9.
Remove the display inverter or ambient light sensor (5).
Reverse this procedure to install the display inverter or ambient light sensor.
44
Chapter 4 Removal and replacement procedures
Hard drive
NOTE: The hard drive spare part kit includes the hard drive bracket and screws.
Description
Spare part number
500-GB, 7200-rpm hard drive
519527-001
500-GB, 5400-rpm hard drive
515870-001
320-GB, 7200-rpm hard drive
493997-001
250-GB, 7200-rpm hard drive
493996-001
250-GB, 5400-rpm hard drive
493994-001
160-GB, 7200-rpm hard drive
493992-001
160-GB, 5400-rpm hard drive
493991-001
80-GB, solid state drive
493998-001
Before removing the hard drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
Remove the hard drive:
1.
Position the computer with the front toward you.
2.
Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the hard drive cover to the
computer.
Component replacement procedures
45
46
3.
Lift the right side of the hard drive cover (2), swing it to left, and remove the cover. The hard drive
cover is included in the Plastics Kit, spare part number 494020-001.
4.
Loosen the Phillips PM2.5×11.0 captive screw (1) that secures the hard drive to the computer.
5.
Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the right to disconnect it
from the system board.
6.
Remove the hard drive (4) from the hard drive bay.
7.
If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive
bracket screws (1) from each side of the hard drive.
Chapter 4 Removal and replacement procedures
8.
Lift the bracket (2) straight up to remove it from the hard drive.
Reverse this procedure to reassemble and install the hard drive.
Component replacement procedures
47
Bluetooth module
Description
Spare part number
Bluetooth module (includes Bluetooth module cable)
398393-002
Before removing the Bluetooth module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
Remove the Bluetooth module:
1.
Position the computer upside down with the front toward you.
2.
Lift the back of the Bluetooth compartment cover up, and then lift the cover up and off the computer
(1).
NOTE: The Bluetooth compartment cover is available in the Plastics Kit, spare part number
494020-001.
3.
Lift and remove the Bluetooth module (2) from the compartment by lifting it straight up.
4.
Disconnect the Bluetooth module cable (3) from the Bluetooth module.
Reverse this procedure to reassemble and install the Bluetooth module.
48
Chapter 4 Removal and replacement procedures
Memory module
Description
Spare part number
4096-MB (PC2-6400, 800-MHz, DDR2)
494009-001
2048-MB (PC2-6400, 800-MHz, DDR2)
494008-001
1024-MB (PC2-6400, 800-MHz, DDR2)
494007-001
Before removing the memory module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
Remove the memory module:
1.
Loosen the Phillips PM2.5×5.0 captive screw (1) that secures the memory module/WLAN module
compartment cover to the computer.
2.
Lift the front edge of the cover, swing it up and forward (2), and then remove the cover. The memory
module/WLAN module compartment cover is included in the Plastics Kit, spare part number
494020-001.
3.
Spread the retaining tabs (1) on each side of the memory module slot to release the memory
module. (The edge of the module opposite the slot rises away from the computer.)
Component replacement procedures
49
4.
Remove the memory module (2) by pulling the module away from the slot at an angle.
NOTE: Memory modules are designed with a notch (3) to prevent incorrect insertion into the
memory module slot.
Reverse this procedure to install the memory module.
50
Chapter 4 Removal and replacement procedures
WLAN module
Description
Spare part number
For use in non-iAMT models:
Intel WiFi Link 5100 802.11a/b/g/n WLAN module for use in all countries and regions except for
Russia, Ukraine, and Pakistan
480985-001
Intel WiFi Link 5100 802.11a/b/g WLAN module for use in Russia, Ukraine, and Pakistan
482957-001
Intel WiFi Link 5300 802.11a/b/g/n WLAN module for use in all countries and regions
480986-001
For use in iAMT models:
Intel WiFi Link 5100 802.11a/b/g/n for iAMT WLAN module for use in all countries and regions except
for Russia, Ukraine, and Pakistan
506678-001
Intel WiFi Link 5100 802.11a/b/g for iAMT WLAN module for use in Russia, Ukraine, and Pakistan
506680-001
Intel WiFi Link 5300 802.11a/b/g/n for iAMT WLAN module for use in all countries and regions
506679-001
Before removing the WLAN module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
5.
Remove the memory module/WLAN module compartment cover (see Memory module
on page 49).
Remove the WLAN module:
1.
Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.
NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The
white WLAN antenna cable is connected to the WLAN module “Aux” terminal. If the computer is
equipped with an 802.11a/b/g/n WLAN module, the yellow WLAN antenna cable is connected to
the middle terminal on the WLAN module.
2.
Remove the two Phillips PM2.0×4.0 screws (2) that secure the WLAN module to the computer.
(The edge of the module opposite the slot rises away from the computer.)
Component replacement procedures
51
3.
Remove the WLAN module (3) by pulling the module away from the slot at an angle.
NOTE: WLAN modules are designed with a notch (4) to prevent incorrect insertion into the WLAN
module slot.
Reverse this procedure to install the WLAN module.
52
Chapter 4 Removal and replacement procedures
Optical drive
Description
Spare part number
DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive with LightScribe
493990-001
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
493989-001
DVD-ROM Drive
493988-001
Before removing the optical drive, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
Remove the optical drive:
1.
Position the computer with the left side toward you.
2.
Loosen the captive Phillips PM2.5×9.0 screw (1) that secures the optical drive to the computer.
3.
Insert a flat-bladed screwdriver or similar tool into the optical drive tab access (2) and press the
tab to the right to release the optical drive from the computer.
4.
Remove the optical drive (3).
5.
If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward
you.
6.
Remove the two Phillips PM2.0×3.0 screws (1) that secure the optical drive bracket to the optical
drive.
Component replacement procedures
53
7.
Remove the optical drive bracket (2).
Reverse this procedure to reassemble and install an optical drive.
54
Chapter 4 Removal and replacement procedures
Keyboard
NOTE:
The keyboard spare part kit includes a keyboard cable.
For use in:
Spare part number
For use in:
Spare part number
Belgium
494002-A41
Norway
494002-091
Brazil
494002-201
Portugal
494002-131
The Czech Republic
494002-221
Russia
494002-251
Denmark
494002-081
Saudi Arabia
494002-171
France
494002-051
Slovakia
494002-231
French Canada
494002-121
Slovenia
494002-BA1
Germany
494002-041
South Korea
494002-AD1
Greece
494002-151
Spain
494002-071
Hungary
494002-211
Sweden and Finland
494002-B71
Iceland
494002-DD1
Switzerland
494002-111
Israel
494002-BB1
Taiwan
494002-AB1
Italy
494002-061
Thailand
494002-281
Japan
494002-291
Turkey
494002-141
Latin America
494002-161
The United Kingdom
494002-031
The Netherlands and Europe
494002-021
The United States
494002-001
Before removing the keyboard, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
Remove the keyboard:
1.
Position the computer upside down with the front toward you.
Component replacement procedures
55
56
2.
Loosen the four Phillips PM2.5×9.0 captive screws that secure the keyboard to the computer.
3.
Turn the computer right-side up, with the front toward you.
4.
Lift the upper right corner of the keyboard (1) and swing the rear of the keyboard up (2).
5.
Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and
disconnect the keyboard cable (2) from the system board.
Chapter 4 Removal and replacement procedures
6.
Release the ZIF connector (3) to which the pointing stick cable is attached, and disconnect the
pointing stick cable (4) from the system board.
7.
Remove the keyboard.
Reverse this procedure to install the keyboard.
Component replacement procedures
57
RTC battery
NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all
passwords and CMOS settings to be cleared.
Description
Spare part number
RTC battery
449137-001
Before removing the RTC battery, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
5.
Remove the keyboard (see Keyboard on page 55).
Remove the RTC battery:
1.
Press the clip on the right side of the battery socket (1) toward the right until the battery disengages
from beneath the clip.
2.
Remove the RTC battery (2) from the system board.
Reverse this procedure to install the RTC battery.
58
Chapter 4 Removal and replacement procedures
Switch cover
Description
Spare part number
Switch cover (includes LED board and cable and power button board)
493986-001
Before removing the switch cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
5.
Remove the keyboard (see Keyboard on page 55).
Remove the switch cover:
1.
Turn the computer upside down, with the rear panel toward you.
2.
Remove the three PM2.0×3.0 broadhead screws that secure the switch cover to the computer.
3.
Turn the computer right-side up, with the front toward you.
4.
Open the computer as far as possible.
5.
Lift the left and right sides of the switch cover to release it from the computer (1).
6.
Release the ZIF connector to which the LED board cable is connected (2) and disconnect the cable
from the system board.
Component replacement procedures
59
7.
Remove the switch cover (3) by lifting it straight up.
Reverse this procedure to install the switch cover.
60
Chapter 4 Removal and replacement procedures
Fan
Description
Spare part number
Fan
494000-001
Before removing the fan, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
5.
Remove the keyboard (see Keyboard on page 55).
6.
Remove the switch cover (see Switch cover on page 59).
Remove the fan:
1.
Disconnect the fan cable (1) from the system board.
2.
Remove the three PM2.0×3.0 screws (2) that secure the fan to the computer.
3.
Lift the fan from the computer (3).
Reverse this procedure to install the fan.
Graphics card heat sink
NOTE:
The spare part kit for the graphics card heat sink includes replacement thermal material.
Component replacement procedures
61
Description
Spare part number
Graphics card heat sink for use in computer models with nVidia Quadro FX 2700M graphics cards
494011-001
Graphics card heat sink for use in computer models with ATI graphics cards
494211-001
Graphics card heat sink for use in computer models with nVidia Quadro FX 3700M graphics cards
518096-001
Before removing the graphics card heat sink, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41).
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Fan (see Fan on page 61)
Remove the graphics card heat sink:
1.
Loosen the two black captive PM3.0×10.0 screws and four silver captive PM3.0×10.0 screws in
the order shown in the following illustration. You may have to move the inverter cable to access
the screw identified by callout (2).
NOTE: The heat sink may look different from the illustrations in this section, depending upon the
model.
62
Chapter 4 Removal and replacement procedures
2.
Lift the heat sink up slightly and toward the front of the computer (1) to disengage it from the system
board, and then lift the heat sink from the computer (2).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the graphics card heat
sink and the graphics card each time the graphics card heat sink is removed.
Reverse this procedure to install the graphics card heat sink.
Component replacement procedures
63
Graphics card
NOTE:
The spare parts kit for the graphics card includes replacement thermal material.
Description
Spare part number
ATI Mobility FireGL V5725
493982-001
nVidia Quadro FX 2700M
493983-001
nVidia Quadro FX 3700M
493984-001
Before removing the graphics card, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Fan (see Fan on page 61)
e.
Graphics card heat sink (Graphics card heat sink on page 61)
Remove the graphics card:
64
1.
Remove the two PM2.5×4.0 screws (1) that secure the graphics card to the system board.
2.
Lift the front edge of the graphics card (2) until it clears the adjacent edge of the top cover.
Chapter 4 Removal and replacement procedures
3.
Remove the graphics card by sliding it away from the graphics card slot at an angle (3).
NOTE:
The graphics card is designed with a notch to prevent incorrect installation.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the graphics card
and graphics card heat sink each time the graphics card heat sink is removed.
Reverse this procedure to install the graphics card.
Component replacement procedures
65
Processor heat sink
NOTE:
The processor heat sink spare part kit includes replacement thermal material.
Description
Spare part number
For use only with computer models equipped with the following processors: P8400, P8600, T9400,
and T9600
494010-001
For use only with computer models equipped with the following processors: X9100, Q9100, and
QX9300
494210-001
Before removing the processor heat sink, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Fan (see Fan on page 61)
e.
Graphics card heat sink (Graphics card heat sink on page 61)
Remove the processor heat sink:
66
1.
In the order indicated on the heat sink, loosen the four Phillips PM2.0×8.0 captive screws (1) that
secure the processor heat sink to the base enclosure.
2.
Lift the right side of the processor heat sink (2) until it disengages from the processor.
Chapter 4 Removal and replacement procedures
3.
Release the processor heat sink by sliding it to the right until it clears the base enclosure, and then
lift the heat sink up and out of the computer (3).
Reverse this procedure to install the processor heat sink.
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the processor heat sink
and the processor each time the processor heat sink is removed.
Component replacement procedures
67
Processor
NOTE:
The processor spare part kit includes replacement thermal material.
Description
Spare part number
Intel Core2 Extreme QX9300 2.53-GHz processor (12-MB L2 cache, 1066-MHz FSB)
507946-001
Intel Core2 Extreme X9100 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507950-001
Intel Core2 Quad Q9100 2.26-GHz processor (12-MB L2 cache, 1066-MHz FSB)
507947-001
Intel Core2 Quad Q9000 2.0-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507948-001
Intel Core2 Duo T9900 3.06-GHz processor (6-MB L2 cache, 1066-MHz FSB)
570434-001
Intel Core2 Duo T9800 2.93-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507951-001
Intel Core2 Duo T9550 2.66-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507953-001
Intel Core2 Duo T9600 2.80-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507955-002
Intel Core2 Duo T9400 2.53-GHz processor (6-MB L2 cache, 1066-MHz FSB)
507956-002
Intel Core2 Duo MV P8600 2.40-GHz processor (3-MB L2 cache, 1066-MHz FSB)
507963-002
Intel Core2 Duo MV P8400 2.26-GHz processor (3-MB L2 cache, 1066-MHz FSB)
506964-002
Before removing the processor, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Fan (see Fan on page 61)
e.
Graphics card heat sink (Graphics card heat sink on page 61)
f.
Processor heat sink (see Processor heat sink on page 66)
Remove the processor:
1.
68
Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise
until you hear a click.
Chapter 4 Removal and replacement procedures
2.
Lift the processor (2) straight up and remove it.
NOTE: The gold triangle (3) on the processor must be aligned with the triangle (4) embossed on
the processor socket when you install the processor.
Reverse this procedure to install the processor.
Component replacement procedures
69
Display assembly
NOTE:
All display assembly spare part kits include 3 WLAN antenna transceivers and cables.
Description
Spare part number
17.0-inch, WUXGA+ WVA AntiGlare display assembly without camera module
494016-001
17.0-inch, WUXGA+ WVA AntiGlare display assembly with camera module
494017-001
17.0-inch, WSXGA+ WVA AntiGlare display assembly without camera module
494012-001
17.0-inch, WSXGA+ WVA AntiGlare display assembly with camera module
494013-001
17.0-inch, WUXGA DreamColor display assembly without camera module
494014-001
17.0-inch, WUXGA DreamColor display assembly with camera module
494015-001
17.0-inch, WXGA+ AntiGlare display assembly without camera module
494018-001
17.0-inch, WXGA+ AntiGlare display assembly with camera module
494019-001
Before removing the display assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the battery (see Battery on page 41).
5.
Remove the keyboard (see Keyboard on page 55).
6.
Remove the switch cover (see Switch cover on page 59).
Remove the display assembly:
70
1.
Turn the computer upside down, with the rear panel toward you.
2.
Remove the four Torx T8M2.5×9.0 screws (1) from the rear panel that secure the display assembly
to the computer.
3.
Remove the Torx T8M2.5×9.0 screw (2) from the left rear corner of the computer.
Chapter 4 Removal and replacement procedures
4.
Remove the PM2.5×4.0 screw (3) from the battery bay.
5.
Turn the computer right-side up, with the front toward you and open as far as possible.
6.
Disconnect the display panel cable (1) from the system board. The display panel cable is available
using spare part number 495607-001 for DreamColor LED models, 494005-001 for LCD models.
7.
Disconnect the microphone cable (2) from the system board.
8.
Remove the wireless antenna cables from the clips (1) and routing channels built into the top cover.
Component replacement procedures
71
9.
Disconnect the camera cable (2) from the system board.
CAUTION: The display assembly will be unsupported when the following screws are removed.
To prevent damage to the display assembly, support it before removing the screws.
10. Remove the PM2.5×4.0 screw (1) from the left display hinge.
11. Remove the Torx T8M2.5×9.0 screw (2) from the right hinge.
12. Lift the display assembly (3) straight up and remove it.
72
Chapter 4 Removal and replacement procedures
13. If it is necessary to replace the display bezel or display hinges, remove the six screw covers (1)
and six Torx T8M2.5×6.0 screws (2) that secure the display bezel to the display enclosure. The
display bezel is available using spare part number 494003-001 for models without a camera
module, 495030-001 for models with a camera module.
NOTE: See Display inverter or ambient light sensor on page 42 for display inverter replacement
instructions.
14. Flex the display bezel bottom edge (1), the inside edges of the left and right sides (2), and then the
display bezel top edge (3) until the bezel disengages from the display assembly.
NOTE: There are two posts that protrude through two holes on the top edge of the bezel. So that
you do not break the posts, be sure to lift the bezel straight up when removing it from the display
assembly (4).
15. If it is necessary to remove the display panel, remove the two Torx T8M2.5×6.0 screws (1) that
secure the display panel to the display enclosure.
Component replacement procedures
73
16. Remove the display panel from the display enclosure by lifting it straight up (2). The display
enclosure is available using spare part number 495895-001 for DreamColor LED models,
494005-001 for LCD models.
17. If it is necessary to replace the display hinges, remove the four Phillips PM2.0×4.0 screws (1) that
secure each display hinge to the display panel.
18. Remove the display hinges (2). The left and right display hinges are included in the Display Bracket
Kit, spare part number 494004-001.
74
Chapter 4 Removal and replacement procedures
19. If it is necessary to replace the display cable, disconnect the cable from the connector (1), and then
remove the cable from the display enclosure (2). The display cable is available using spare part
number 494005-001 for LCD displays, 495607-001 for DreamColor LED displays.
Reverse this procedure to reassemble and install the display assembly.
Component replacement procedures
75
Camera module
Description
Spare part number
Camera module (includes flex cable)
494030-001
Before removing the camera module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Display (see Display assembly on page 70)
Remove the camera module:
76
1.
Loosen the tape (1) that secures the camera cable to the display enclosure.
2.
Disconnect the camera flex cable from the camera board (2).
3.
Use a flat-bladed screwdriver to loosen the camera module from the clips in the display enclosure,
and then pull the module and cable through the opening near the top of the enclosure (3).
Chapter 4 Removal and replacement procedures
4.
Use a flat-blade screwdriver to loosen tape that secures the camera module board to the display
enclosure, and then remove the board.
Reverse this procedure to install the camera module.
Component replacement procedures
77
Top cover
NOTE:
The top cover spare part kit includes a fingerprint reader board and cable.
Description
Spare part number
Top cover (includes TouchPad, TouchPad bracket, TouchPad cable, fingerprint reader board and
cable)
493987-001
Before removing the top cover, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Display assembly (see Display assembly on page 70)
Remove the top cover:
78
1.
Turn the computer upside down, with the front toward you.
2.
Remove the three large (1) and five small (2) rubber screw covers.
Chapter 4 Removal and replacement procedures
3.
Remove the 12 Torx T8M2.5×9.0 screws (1) and two PM2.5×4.0 screws (2) that secure the top
cover to the base enclosure.
4.
Turn the computer right-side up, with the front toward you.
5.
Disconnect the TouchPad board cable (1) and the fingerprint reader board cable (2) from the
system board.
Component replacement procedures
79
6.
Remove the one Torx T8M2.5×9.0 screw (1) and the three PM2.5×4.0 screws (2) that secure the
top cover to the computer.
7.
Lift the front edge of the top cover (1) until it rests at an angle.
8.
Lift the left and right edges of the top cover outward and then up (2) up until it disengages from the
base enclosure.
9.
Remove the top cover (3).
Reverse this procedure to install the top cover.
80
Chapter 4 Removal and replacement procedures
Media card reader/audio board
Description
Spare part number
Media card reader/audio board
493978-001
Before removing the media card reader/audio board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41).
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Display assembly (see Display assembly on page 70)
e.
Top cover (see Top cover on page 78)
Remove the media card reader/audio board:
1.
Remove the three PM2.5×4.0 screws that secure the board to the system board (1).
2.
Lift the back of the board up, and then lift it from the system board (2).
Reverse this procedure to install the media card reader/audio board.
Component replacement procedures
81
USB/eSATA board
Description
Spare part number
USB/eSATA board (includes cable)
493981-001
Before removing the USB/eSATA board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Optical drive (see Optical drive on page 53)
c.
Keyboard (see Keyboard on page 55)
d.
Switch cover (see Switch cover on page 59)
e.
Display assembly (see Display assembly on page 70)
f.
Top cover (see Top cover on page 78)
Remove the USB/eSATA board:
82
1.
Disconnect the USB/eSATA board cable (1) from the system board.
2.
Remove the two PM2.5×4.0 screws (2) that secure the USB/eSATA board to the base enclosure.
3.
Lift the left side of the USB/audio board (3) until the USB and eSATA connectors disengage from
the openings in the base enclosure.
4.
Remove the USB/eSATA board and cable from the base enclosure.
Chapter 4 Removal and replacement procedures
Reverse this procedure to install the USB/eSATA board.
Speaker assembly
Description
Spare part number
Speaker assembly
494029-001
Before removing the speaker assembly, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Display assembly (see Display assembly on page 70)
e.
Top cover (see Top cover on page 78)
Remove the speaker assembly:
1.
Remove the two PM2.5×4.0 screws (1) that secure the speaker to the base enclosure.
2.
Disconnect the speaker cable (2) from the system board.
3.
Remove the speaker assembly (3) from the base enclosure.
Component replacement procedures
83
Reverse this procedure to install the speaker assembly.
Modem module
Description
Spare part number
Modem module for use in all countries and regions except for Australia and New Zealand
461750-001
Modem module for use only in Australia and New Zealand
461750-011
Before removing the modem module, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Keyboard (see Keyboard on page 55)
c.
Switch cover (see Switch cover on page 59)
d.
Display assembly (see Display assembly on page 70)
e.
Top cover (see Top cover on page 78)
f.
Speaker assembly (see Speaker assembly on page 83)
Remove the modem module:
84
1.
Remove the two Phillips PM2.0×4.0 screws (1) that secure the modem module to the system board.
2.
Disconnect the modem module (2) from the system board by lifting it straight up.
Chapter 4 Removal and replacement procedures
3.
Disconnect the modem module cable (3) from the modem module.
4.
Remove the modem module.
Reverse this procedure to install the modem module.
System board
NOTE:
The system board spare part kit includes replacement thermal material.
Description
Spare part number
System board for use in computer models with dual core processors (includes RTC battery)
493980-001
System board for use in computer models with quad core processors (includes RTC battery)
501508-001
System board for use only in computer models with Core2 Duo processors in the People's Republic
of China and Russia (includes RTC battery)
509762-001
System board for use only in computer models with Core2 Quad processors in the People's Republic
of China and Russia (includes RTC battery)
509763-001
Before removing the system board, follow these steps:
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Hard drive (see Hard drive on page 45)
c.
Bluetooth module (see Bluetooth module on page 48)
d.
Optical drive (see Optical drive on page 53)
Component replacement procedures
85
e.
Keyboard (see Keyboard on page 55)
f.
Switch cover (see Switch cover on page 59)
g.
Fan (see Fan on page 61)
h.
Graphics card heat sink (see Graphics card heat sink on page 61)
i.
Graphics card (see Graphics card on page 64)
j.
Processor heat sink (see Processor heat sink on page 66)
k.
Display assembly (see Display assembly on page 70)
l.
Top cover (see Top cover on page 78)
m.
Speaker assembly (see Speaker assembly on page 83)
When replacing the system board, be sure that the following components are removed from the defective
system board and installed on the replacement system board:
●
Memory modules (see Memory module on page 49)
●
WLAN module (see WLAN module on page 51)
●
Modem module (see Modem module on page 84)
●
Processor (see Processor on page 68)
●
ExpressCard assembly (see ExpressCard assembly on page 88)
Remove the system board:
86
1.
Turn the computer right-side up, with the front toward you.
2.
Remove the three PM2.5×4.0 screws that secure the system board to the base enclosure.
Chapter 4 Removal and replacement procedures
3.
Disconnect the modem cable from the system board:
4.
Disconnect the microphone cable from the system board.
5.
Disconnect the RJ-11 cable from the system board and remove the jack from the base enclosure.
6.
Use the optical drive connector (1) to lift the right side of the system board (2) until it rests at an
angle.
Component replacement procedures
87
7.
Remove the system board (3) by sliding it away from the base enclosure at an angle.
Reverse this procedure to install the system board.
ExpressCard assembly
Description
Spare part number
ExpressCard assembly
493999-001
Before removing the ExpressCard assembly, follow these steps:
88
1.
Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2.
Disconnect all external devices connected to the computer.
3.
Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4.
Remove the following components:
a.
Battery (see Battery on page 41)
b.
Hard drive (see Hard drive on page 45)
c.
Bluetooth module (see Bluetooth module on page 48)
d.
Optical drive (see Optical drive on page 53)
e.
Keyboard (see Keyboard on page 55)
f.
Switch cover (see Switch cover on page 59)
g.
Fan (see Fan on page 61)
h.
Graphics card heat sink (see Graphics card heat sink on page 61)
i.
Graphics card (see Graphics card on page 64)
Chapter 4 Removal and replacement procedures
j.
Processor heat sink (see Processor heat sink on page 66)
k.
Display assembly (see Display assembly on page 70)
l.
Top cover (see Top cover on page 78)
m.
Speaker assembly (see Speaker assembly on page 83)
n.
System board (see System board on page 85)
Remove the ExpressCard assembly:
1.
Turn the system board upside down, with the ExpressCard eject button toward you.
2.
Lift the Mylar covering up (1) to expose the screws that secure the assembly to the system board.
3.
Remove the two Phillips PM2.0×6.0 screws (2) that secure the ExpressCard assembly to the
system board.
4.
Turn the system board right-side up.
5.
Remove the two Phillips PM2.0×7.0 screws (1) that secure the ExpressCard assembly to the
system board.
Component replacement procedures
89
6.
Remove the ExpressCard assembly from the system board (2).
Reverse this procedure to install the ExpressCard assembly.
90
Chapter 4 Removal and replacement procedures
5
Computer Setup
Starting Computer Setup
Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system
is not working or will not load.
NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your
computer.
NOTE: An external keyboard or mouse connected to a USB port can be used with Computer Setup
only if USB legacy support is enabled.
To start Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2.
Press f10 to enter BIOS Setup.
Using Computer Setup
Navigating and selecting in Computer Setup
The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and
System Configuration menus.
To navigate and select in Computer Setup, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
●
To select a menu or a menu item, use the keyboard arrow keys and then press enter, or use
a pointing device to click the item.
●
To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the
screen.
●
To close open dialog boxes and return to the main Computer Setup screen, press esc, and
then follow the on-screen instructions.
NOTE: You can use either a pointing device (TouchPad, pointing stick, or USB mouse) or the
keyboard to navigate and make selections in Computer Setup.
2.
Press f10 to enter BIOS Setup.
3.
Select the File, Security, Diagnostics, or System Configuration menu.
Starting Computer Setup
91
To exit Computer Setup menus, choose one of the following methods:
●
To exit Computer Setup menus without saving your changes, click the Exit icon in the lower-left
corner of the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Ignore changes and exit, and then press enter.
– or –
●
To save your changes and exit Computer Setup menus, click the Save icon in the lower-left corner
of the screen, and then follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
Restoring factory settings in Computer Setup
NOTE:
Restoring defaults will not change the hard drive mode.
To return all settings in Computer Setup to the values that were set at the factory, follow these steps:
1.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
2.
Press f10 to enter BIOS Setup.
3.
Use a pointing device or the arrow keys to select File > Restore defaults.
4.
Follow the on-screen instructions.
5.
To save your changes and exit, click the Save icon in the lower-left corner of the screen, and then
follow the on-screen instructions.
– or –
Use the arrow keys to select File > Save changes and exit, and then press enter.
Your changes go into effect when the computer restarts.
NOTE: Your password settings and security settings are not changed when you restore the factory
settings.
92
Chapter 5 Computer Setup
Computer Setup menus
The menu tables in this section provide an overview of Computer Setup options.
NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your
computer.
File menu
Select
To do this
System Information
●
View identification information for the computer and the
batteries in the system.
●
View specification information for the processor, cache
and memory size, system ROM, video revision, and
keyboard controller version.
Set System Date and Time
Set or change the date and time on the computer.
Restore defaults
Replace the configuration settings in Computer Setup with the
original factory settings. (Hard drive mode, password settings,
and security settings are not changed when you restore the
factory settings.)
Ignore changes and exit
Cancel any changes entered during the current session. Then
exit and restart the computer.
Save changes and exit
Save any changes entered during the current session. Then
exit and restart the computer. Your changes go into effect
when the computer restarts.
Computer Setup menus
93
Security menu
NOTE:
Some of the menu items listed in this section may not be supported by your computer.
Select
To do this
Setup BIOS Administrator Password
Set up a BIOS administrator password.
User Management (requires a BIOS administrator password)
●
Create a new BIOS user account.
●
View a list of ProtectTools users.
Password Policy (requires a BIOS administrator password)
Revise password policy criteria.
HP SpareKey
Enable/disable HP SpareKey (enabled by default).
HP SpareKey Enrollment
Enroll or reset HP SpareKey, which is a set of security
questions and answers used if you forget your password.
Always Prompt for HP SpareKey Enrollment
Enable/disable HP SpareKey enrollment (enabled by default).
Fingerprint Reset on Reboot (If Present)
Reset/clear the fingerprint reader ownership (select models
only; disabled by default).
Allow Reset of HP ProtectTools security keys
Enable/disable reset of HP ProtectTools security keys.
Change Password
Enter, change, or delete a BIOS administrator password.
DriveLock Passwords
●
Enable/disable DriveLock on any computer hard drive
(enabled by default).
●
Change a DriveLock user password or master password.
NOTE: DriveLock settings are accessible only when you
enter Computer Setup by turning on (not restarting) the
computer.
TPM Embedded Security
Enable/disable support for Trusted Platform Module (TPM)
Embedded Security, which protects the computer from
unauthorized access to owner functions available in
Embedded Security for ProtectTools. For more information,
refer to the ProtectTools software Help.
NOTE: You must have a setup password to change this
setting.
Automatic DriveLock
Enable/disable Automatic DriveLock support.
Disk Sanitizer
Run Disk Sanitizer to destroy all existing data on the primary
hard drive or the drive in the upgrade bay.
CAUTION: If you run Disk Sanitizer, the data on the selected
drive is destroyed permanently.
94
System IDs
Enter a user-defined computer asset tracking number and
ownership tag.
Setup BIOS Administrator Password
Set up a BIOS administrator password.
Always Prompt for HP SpareKey Enrollment
Enable/disable a prompt for HP SpareKey enrollment.
Chapter 5 Computer Setup
Diagnostics menu
Select
To do this
System Diagnostics menu
●
F1 System Information—Displays the following
information:
◦
Identification information for the computer and the
batteries in the system.
◦
Specification information for the processor, cache
and memory size, system ROM, video revision, and
keyboard controller version.
●
F2 Start-up Test—Verifies the system components
needed for starting the computer.
●
F3 Run-In Test—Runs a comprehensive check on
system memory.
●
F4 Hard Disk Test—Runs a comprehensive self-test on
any hard drive in the system.
●
F5 Error Log—Displays a log file if any errors have
occurred.
Computer Setup menus
95
System Configuration menu
NOTE:
Some of the listed System Configuration options may not be supported by your computer.
Select
To do this
Language
Change the Computer Setup language.
Boot Options
●
Set a Startup Menu delay (in seconds).
●
Enable/disable Custom Logo (disabled by default).
●
Enable/disable Display Diagnostic URL (enabled by
default).
●
Enable/disable CD-ROM boot (enabled by default).
●
Enable/disable SD Card boot (enabled by default).
●
Enable/disable floppy boot (enabled by default).
●
Enable/disable PXE Internal NIC boot (enabled by
default).
●
Set the Express Boot Popup delay in seconds.
●
Set the boot order.
●
Enable/disable USB legacy support (enabled by default).
When enabled, USB legacy support allows the
following:
Device Configurations
96
Chapter 5 Computer Setup
◦
Use of a USB keyboard in Computer Setup even
when a Windows operating system is not running.
◦
Startup from bootable USB devices, including a hard
drive, diskette drive, or optical drive connected by a
USB port to the computer.
●
Select a parallel port mode: ECP (Enhanced Capabilities
Port), standard, bidirectional, or EPP (Enhanced Parallel
Port).
●
Enable/disable fan always on while connected to an AC
outlet (enabled by default).
●
Enable/disable LAN Power Save (select models only).
When enabled, saves power by turning off the LAN when
not in use (enabled by default).
●
Enable/disable Data Execution Prevention. When
enabled, the processor can disable some virus code
execution, which helps to improve computer security.
●
SATA (Serial Advanced Technology Attachment) device
mode. The following options are available:
◦
AHCI (Advanced Host Controller Interface)
◦
IDE (Integrated Drive Electronics)
◦
RAID (select models only)
Select
To do this
NOTE: Availability of the options above varies by
computer model.
Built-In Device Options
●
Enable/disable secondary battery fast charge (enabled by
default).
●
Enable/disable HP QuickLook 2 (enabled by default).
●
Enable/disable Virtualization Technology (select models
only; disabled by default).
●
Enable/disable TXT (Intel Trusted Execution Technology)
(select models only; disabled by default).
●
Enable/disable Dual Core CPU (select models only;
enabled by default).
●
Enable/Disable Unified Extensible Firmware Interface
(UEFI) mode (disabled by default).
●
Enable/disable the wireless button state (enabled by
default).
●
Enable/disable embedded WWAN device radio (select
models only; enabled by default).
●
Enable/disable embedded Bluetooth device radio
(enabled by default).
●
Enable/disable the Network Interface Controller (LAN)
(enabled by default).
●
Set the wake on LAN state. Options include the
following:
◦
Disabled
◦
Boot to Network (set by default)
◦
Follow Boot Order
●
Enable/disable the fingerprint device (enabled by
default).
●
Enable/disable a modem device (enabled by default).
●
Enable/disable the embedded WLAN device (enabled by
default).
●
Enable/disable LAN/WLAN switching (disabled by
default).
●
Enable the ambient light sensor (enabled by default).
●
Enable/disable the Notebook Multibay device (enabled by
default).
●
Enable/disable the integrated camera (select models
only; enabled by default).
Computer Setup menus
97
Select
To do this
Port Options (all are enabled by default)
NOTE: All port options are enabled by default.
●
Enable/disable the Smart Card slot.
●
Enable/disable the ExpressCard slot.
●
Enable/disable the serial port.
●
Enable/disable the parallel port.
●
Enable/disable the flash media reader.
●
Enable/disable the USB port.
CAUTION: Disabling the USB port also disables
MultiBay devices and ExpressCard devices on the
advanced port replicator.
●
AMT Options
98
Enable/disable the 1394 port.
NOTE: All AMT options are disabled by default.
●
Enable/disable Firmware Verbosity.
●
Enable/disable AMT Setup Prompt (CTRL-P).
●
Enable/disable USB Key Provisioning Support.
●
Enable/disable Unconfigure AMT on Next Boot.
●
Enable/disable Terminal Emulation Mode
●
Enable/disable Firmware Progress Event Support.
●
Enable/disable include TYPE-131 in SMBIOS.
Set Security Level
Change, view, or hide security levels for all BIOS menu items.
Restore Security Defaults
Restore the default security settings.
Chapter 5 Computer Setup
6
Specifications
Computer specifications
Metric
U.S.
Length
28.2 cm
11.1 in
Width
39.3 cm
15.5 in
Height (front to rear)
3.2 cm
1.3 in
Weight (equipped with 8-cell battery, 80-GB/5400-rpm hard
drive, optical drive, one 1024-MB memory module, WLAN
module, pointing stick, TouchPad, and nVidia GM84 graphics
card; varies by configuration)
3.5 kg
7.6 lbs
Dimensions
Input power
Operating voltage
19.0 V dc @ 4.74 A – 120 W
Operating current
4.74 A
Temperature
Operating (not writing to optical disc)
0°C to 35°C
32°F to 95°F
Operating (writing to optical disc)
5°C to 35°C
41°F to 95°F
Nonoperating
-20°C to 60°C
-4°F to 140°F
Relative humidity
Operating
10% to 90%
Nonoperating
5% to 95%
Maximum altitude (unpressurized)
Operating
-15 m to 3,048 m
-50 ft to 10,000 ft
Nonoperating
-15 m to 12,192 m
-50 ft to 40,000 ft
Shock
Operating
125 g, 2 ms, half-sine
Nonoperating
200 g, 2 ms, half-sine
Random vibration
Operating
0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep rate
Computer specifications
99
Metric
Nonoperating
U.S.
1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate
NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this
range of temperatures.
17.0-inch, WUXGA+WVA display specifications
Metric
U.S.
Height
24.4 cm
9.65 in
Width
38.1 cm
15.0 in
Diagonal
43.2 cm
17.0 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.172 × 0.172 mm
Format
1920 × 1200
Configuration
RGB vertical stripe
Backlight
CCFT
Character display
80 × 25
Total power consumption
6.0 W
Viewing angle
+/-65° horizontal, +/-50° vertical (typical)
100 Chapter 6 Specifications
17.0-inch, WSXGA+WVA display specifications
Metric
U.S.
Height
24.4 cm
9.6 in
Width
38.1 cm
15.0 in
Diagonal
43.2 cm
17.0 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.172 × 0.172 mm
Format
1680 × 1050
Configuration
RGB vertical stripe
Backlight
CCFT
Character display
80 × 25
Total power consumption
7.0 W
Viewing angle
+/-60° horizontal, +40/-50° vertical (typical)
17.0-inch, WSXGA+WVA display specifications 101
17.0-inch, WXGA+WVA display specifications
Metric
U.S.
Height
24.4 cm
9.6 in
Width
38.1 cm
15.0 in
Diagonal
43.2 cm
17.0 in
Number of colors
Up to 16.8 million
Contrast ratio
200:1 (typical)
Brightness
180 nits (typical)
Dimensions
Pixel resolution
Pitch
0.259 × 0.259 mm
Format
1440× 900
Configuration
RGB vertical stripe
Backlight
CCFT
Character display
80 × 25
Total power consumption
6.5 W
Viewing angle
+/-45° horizontal, +15/-35° vertical (typical)
102 Chapter 6 Specifications
Hard drive specifications
250-GB*
250-GB*
160-GB*
Height
9.5 mm
9.5 mm
9.5 mm
Width
70 mm
70 mm
70 mm
Weight
101 g
101 g
101 g
Interface type
SATA
SATA
SATA
Transfer rate
300 MB/sec
300 MB/sec
150 MB/sec
Security
ATA security
ATA security
ATA security
Single track
1.1 ms
1.1 ms
1.5 ms
Average
12 ms
12 ms
0.5 ms
Maximum
20 ms
20 ms
20.5 ms
Logical blocks
625,142,448
488,397,168
312,581,808
Disk rotational speed
7200 rpm
7200 and 5400 rpm
7200 and 5400 rpm
Dimensions
Seek times (typical read, including setting)
Operating temperature
5°C to 55°C (41°F to 131°F)
*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive
specifications may differ slightly.
NOTE:
Certain restrictions and exclusions apply. Contact technical support for details.
Hard drive specifications 103
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
specifications
Applicable disc
Read:
Write:
CD-DA, CD+(E)G, CD-MIDI, CDCD-R and CD-RW
TEXT, CD-ROM, CD-ROM XA,
MIXED MODE CD, CD-I, CD-I Bridge DVD+R, DVD+R(9), DVD+RW, DVD-R,
DVD-R(9),DVD-RW, DVD-RAM
(Photo-CD, Video CD), Multisession
CD (Photo-CD, CD-EXTRA, Portfolio,
CD-R, CD-RW), CD-R, CD-RW, DVDROM (DVD-5, DVD-9, DVD-10,
DVD-18), DVD-R, DVD-RW, DVD+R,
DVD+RW, DVD-RAM, BD-ROM, BDRE. BD-R
Access time
CD
DVD
Blu-ray
Random
150 ms
180 ms
300 ms
Cache buffer
8 MB
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD-ROM
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
1X BD-ROM
4,500 KB/sec
1X BD-R read
4,500 KB/sec
1X BD-RE read
4,500 KB/sec
Transfer mode
Multiword DMA Mode
104 Chapter 6 Specifications
DVD±RW and CD-RW Combo Drive, Double-Layer with
LightScribe specifications
Applicable disc
Read:
Write:
CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CDROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession
CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CDRW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW,
DVD+R, DVD+RW, DVD-RAM
CD-R and CD-RW
Access time
CD
DVD
Random
< 175 ms
< 230 ms
Cache buffer
2 MB
DVD+R, DVD+RW, DVD-R, DVDRW, DVD-RAM
Data transfer rate
24X CD-ROM
3,600 KB/sec
8X DVD-ROM
10,800 KB/sec
24X CD-R
3,600 KB/sec
16X CD-RW
2,400 KB/sec
8X DVD+R
10,800 KB/sec
4X DVD+RW
5,400 KB/sec
8X DVD-R
10,800 KB/sec
4X DVD-RW
5,400 KB/sec
2.4X DVD+R(9)
2,700 KB/sec
5X DVD-RAM
6,750 KB/sec
Transfer mode
Multiword DMA Mode
DVD±RW and CD-RW Combo Drive, Double-Layer with LightScribe specifications 105
DVD-ROM Drive
Applicable disc
DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18, CD-ROM (Mode 1 and 2), CD Digital
Audio, CD-XA ready (Mode 2, Form 1 and Form 2), CD-I (Mode 2, Form 1 and Form
2), CD-R, CD-RW, Photo CD (single and multisession), CD-Bridge
Access time
CD
DVD
Random
< 100 ms
< 125 ms
Cache buffer
512 KB
Data transfer rate
CD-R (24X)
3600 KB/s (150 KB/s at 1X CD rate)
CD-RW (10X)
1500 KB/s (150 KB/s at 1X CD rate)
CD-ROM (24X)
3600 KB/s (150 KB/s at 1X CD rate)
DVD (8X)
10,800 KB/s (1,352 KB/s at 1X DVD rate)
Multiword DMA mode 2
16.6 MB/s
106 Chapter 6 Specifications
System DMA specifications
Hardware DMA
System function
DMA0
Not applicable
DMA1*
Not applicable
DMA2*
Not applicable
DMA3
Not applicable
DMA4
Direct memory access controller
DMA5*
Available for ExpressCard
DMA6
Not assigned
DMA7
Not assigned
*ExpressCard controller can use DMA 1, 2, or 5.
System memory map specifications
Size
Memory address
System function
640 KB
00000000-0009FFFF
Base memory
128 KB
000A0000-000BFFFF
Video memory
48 KB
000C0000-000CBFFF
Video BIOS
160 KB
000C8000-000E7FFF
Unused
64 KB
000E8000-000FFFFF
System BIOS
15 MB
00100000-00FFFFFF
Extended memory
58 MB
04800000-07FFFFFF
Super extended memory
58 MB
04800000-07FFFFFF
Unused
2 MB
08000000-080FFFFF
Video memory (direct access)
4 GB
08200000-FFFEFFFF
Unused
64 KB
FFFF0000-FFFFFFFF
System BIOS
System DMA specifications 107
System interrupt specifications
Hardware IRQ
System function
IRQ0
System timer
IRQ1
Standard 101-/102-Key or Microsoft Natural Keyboard
IRQ2
Cascaded
IRQ3
Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD
IRQ4
COM1
IRQ5*
Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax
Modem with SmartCP
IRQ6
Diskette drive
IRQ7*
Parallel port
IRQ8
System CMOS/real-time clock
IRQ9*
Microsoft ACPI-compliant system
IRQ10*
Intel USB UHCI controller—24C2
Intel 82852/82855 GM/GME Graphic Controller
Realtek RTL8139 Family PCI Fast Ethernet Controller
IRQ11
Intel USB EHCI controller—24CD
Intel USB UHCI controller—24C4
Intel USB UHCI controller—24C7
Intel Pro/Wireless 2200BG
TI OHCI 1394 host controller
TI PCI1410 CardBus controller
IRQ12
Synaptics PS/2 TouchPad
IRQ13
Numeric data processor
IRQ14
Primary IDE channel
IRQ15
Secondary IDE channel
*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.
NOTE: ExpressCards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial
port may assert IRQ3 or IRQ4.
108 Chapter 6 Specifications
System I/O address specifications
I/O address (hex)
System function (shipping configuration)
000 - 00F
DMA controller no. 1
010 - 01F
Unused
020 - 021
Interrupt controller no. 1
022 - 024
Opti chipset configuration registers
025 - 03F
Unused
02E - 02F
87334 “Super I/O” configuration for CPU
040 - 05F
Counter/timer registers
044 - 05F
Unused
060
Keyboard controller
061
Port B
062 - 063
Unused
064
Keyboard controller
065 - 06F
Unused
070 - 071
NMI enable/RTC
072 - 07F
Unused
080 - 08F
DMA page registers
090 - 091
Unused
092
Port A
093 - 09F
Unused
0A0 - 0A1
Interrupt controller no. 2
I/O Address (hex)
System Function (shipping configuration)
0A2 - 0BF
Unused
0C0 - 0DF
DMA controller no. 2
0E0 - 0EF
Unused
0F0 - 0F1
Coprocessor busy clear/reset
0F2 - 0FF
Unused
100 - 16F
Unused
170 - 177
Secondary fixed disk controller
178 - 1EF
Unused
1F0 - 1F7
Primary fixed disk controller
1F8 - 200
Unused
201
JoyStick (decoded in ESS1688)
202 - 21F
Unused
System I/O address specifications 109
I/O address (hex)
System function (shipping configuration)
220 - 22F
Entertainment audio
230 - 26D
Unused
26E - 26
Unused
278 - 27F
Unused
280 - 2AB
Unused
2A0 - 2A7
Unused
2A8 - 2E7
Unused
2E8 - 2EF
Reserved serial port
2F0 - 2F7
Unused
2F8 - 2FF
Infrared port
300 - 31F
Unused
320 - 36F
Unused
370 - 377
Secondary diskette drive controller
378 - 37F
Parallel port (LPT1/default)
380 - 387
Unused
388 - 38B
FM synthesizer—OPL3
38C - 3AF
Unused
3B0 - 3BB
VGA
3BC - 3BF
Reserved (parallel port/no EPP support)
3C0 - 3DF
VGA
3E0 - 3E1
ExpressCard controller in CPU
3E2 - 3E3
Unused
3E8 - 3EF
Internal modem
3F0 - 3F7
“A” diskette controller
3F8 - 3FF
Serial port (COM1/default)
CF8 - CFB
PCI configuration index register (PCIDIVO-1)
CFC - CFF
PCI configuration data register (PCIDIVO-1)
110 Chapter 6 Specifications
7
Screw listing
This section provides specification and reference information for the screws and screw locks used in
the computer. All screws listed in this section are available in the Screw Kit, spare part number
494028-001.
Phillips PM3.0×4.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
4
4.0 mm
3.0 mm
5.0 mm
Where used: 4 screws that secure the hard drive bracket to the hard drive
Phillips PM3.0×4.0 screw 111
Phillips PM2.5×9.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
5
9.0 mm
2.5 mm
5.0 mm
Where used: (1) One captive screw that secures the optical drive to the computer (screw is secured by
a C-clip)
Where used: (2) Four captive screws that secure the keyboard to the computer (screws are secured
by C-clips)
112 Chapter 7 Screw listing
Phillips PM2.0×6.0 screw
Color
Quantity
Length
Thread
Head diameter
Silver
2
6.0 mm
2.0 mm
5.0 mm
Where used: 2 screws that secure the ExpressCard to the system board
Phillips PM2.0×6.0 screw 113
Phillips PM2.0×7.0 screw
Color
Quantity
Length
Thread
Head diameter
Silver
2
7.0 mm
2.0 mm
5.0 mm
Where used: 2 screws that secure the ExpressCard assembly to the base enclosure
114 Chapter 7 Screw listing
Phillips PM2.5×4.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
20
4.0 mm
2.5 mm
5.0 mm
Where used: 3 screws that secure the system board to the base enclosure
Where used: 2 screws that secure the modem module to the system board
Phillips PM2.5×4.0 screw 115
Where used: 3 screws that secure the top cover to the base enclosure
Where used: 2 screws that secure the speaker assembly to the base enclosure
Where used: 2 screws that secure the top cover to the system board
116 Chapter 7 Screw listing
Where used: 2 screws that secure the WLAN module to the computer
Where used: 2 screws that secure the graphics card to the system board
Where used: One screw in the battery bay that secures the display to the base enclosure
Phillips PM2.5×4.0 screw 117
Where used: One screw near the left hinge that secures the display to the base enclosure
Where used: 2 screws that secure the USB/eSATA module to the base enclosure
118 Chapter 7 Screw listing
Torx T8M2.5×6.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
9
6.0 mm
2.5 mm
5.0 mm
Where used: One screw that secures the inverter to the display enclosure
Where used: 6 screws that secure the display bezel to the display enclosure
Torx T8M2.5×6.0 screw 119
Where used: 2 screws that secure the display panel to the display enclosure
120 Chapter 7 Screw listing
Phillips PM2.0×5.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
3
5.0 mm
2.0 mm
5.0 mm
Where used:
(1) 2 captive screws that secure the hard drive compartment cover to the computer (screws are secured
by C-clips)
(2) One captive screw that secures the memory module/WLAN module compartment cover to the
computer (screw is secured by a C-clip)
Phillips PM2.0×5.0 captive screw 121
Phillips PM2.5×11.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
1
11.0 mm
2.5 mm
5.0 mm
Where used: 1 captive screw that secures the hard drive to the computer
122 Chapter 7 Screw listing
Phillips PM2.0×3.0 screw
Color
Quantity
Length
Thread
Head diameter
Silver
13
3.0 mm
2.0 mm
5.0 mm
Where used: 2 screws that secure the optical drive bracket to the optical drive
Where used: 3 screws that secure the fan to the base enclosure
Phillips PM2.0×3.0 screw 123
Where used: 8 screws that secure the display brackets to the display
Phillips PM3.0×10.0 captive screw
Color
Quantity
Length
Thread
Head diameter
Black
2
10.0 mm
3.0 mm
5.0 mm
Where used: 2 captive screws that secure the graphics card heat sink to the computer (screws are
secured by C-clips)
124 Chapter 7 Screw listing
Color
Quantity
Length
Thread
Head diameter
Silver
4
10.0 mm
3.0 mm
5.0 mm
Where used: 4 captive screws that secure the graphics card heat sink to the computer
Phillips PM3.0×10.0 captive screw 125
Torx TM2.5×9.0 screw
Color
Quantity
Length
Thread
Head diameter
Black
18
9.0 mm
2.5 mm
5.0 mm
Where used: 4 screws that secure the heat sink to the computer
Where used: One screw that secures the top cover to the computer
126 Chapter 7 Screw listing
Where used: 12 screws that secure the top cover to the base enclosure
Where used: One screw that secures the top cover to the base enclosure
Torx TM2.5×9.0 screw 127
Black Phillips PM2.0×3.0 broad head screw
Color
Quantity
Length
Thread
Head diameter
Black
3
2.0 mm
3.0 mm
7.0 mm
Where used: 3 screws that secure the switch cover to the computer
128 Chapter 7 Screw listing
8
Backup and recovery
Backup and recovery in Windows Vista
Overview
To protect your information, use the Backup and Restore Center to back up individual files and folders,
back up your entire hard drive (select models only), or create system restore points. In case of system
failure, you can use the backup files to restore the contents of your computer.
The Backup and Restore Center provides the following options:
●
Backing up individual files and folders
●
Backing up the entire hard drive (select models only)
●
Scheduling automatic backups (select models only)
●
Creating system restore points
●
Recovering individual files
●
Restoring the computer to a previous state
●
Recovering information using recovery tools
NOTE:
For detailed instructions, perform a search for these topics in Help and Support.
NOTE: In case of system instability, HP recommends that you print the recovery procedures and save
them for later use.
Backing up your information
Recovery after a system failure is as complete as your most current backup. You should create your
initial backup immediately after software setup. As you add new software and data files, you should
continue to back up your system on a regular basis to maintain a reasonably current backup.
You can back up your information to an optional external hard drive, a network drive, or discs.
Note the following when backing up:
●
Store personal files in the Documents folder, and back it up regularly.
●
Back up templates that are stored in their associated programs.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time-saver if you have to reset your preferences.
Backup and recovery in Windows Vista 129
To create a screen shot:
1.
Display the screen you want to save.
2.
Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
3.
Open a word-processing document, and then select Edit > Paste.
The screen image is added to the document.
4.
●
Save the document.
When backing up to discs, use any of the following types of discs (purchased separately): CD-R,
CD-RW, DVD+R, DVD+R DL, DVD-R, DVD-R DL, or DVD±RW. The discs you use will depend on
the type of optical drive installed in your computer.
NOTE: DVDs and DVDs with double-layer (DL) support store more information than CDs, so
using them for backup reduces the number of recovery discs required.
●
When backing up to discs, number each disc before inserting it into the optical drive of the computer.
To create a backup using Backup and Restore Center, follow these steps:
NOTE:
Be sure that the computer is connected to AC power before you start the backup process.
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1.
Select Start > All Programs > Maintenance > Backup and Restore Center.
2.
Follow the on-screen instructions to back up your entire computer (select models only) or your files.
NOTE: Windows includes the User Account Control feature to improve the security of your
computer. You may be prompted for your permission or password for tasks such as installing
software, running utilities, or changing Windows settings. Refer to Help and Support for more
information.
Performing a recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
●
Windows recovery tools: You can use the Backup and Restore Center to recover information you
have previously backed up. You can also use Windows Startup Repair to fix problems that might
prevent Windows from starting correctly.
●
f11 recovery tools: You can use the f11 recovery tools to recover your original hard drive image.
The image includes the Windows operating system and software programs installed at the factory.
NOTE: If you are unable to boot (start up) your computer, you must purchase a Windows Vista
operating system DVD to reboot the computer and repair the operating system. For additional
information, refer to the “Using a Windows Vista operating system DVD (purchased separately)” section
in this guide.
130 Chapter 8 Backup and recovery
Using the Windows recovery tools
To recover information you previously backed up, follow these steps:
1.
Click Start > All Programs > Maintenance > Backup and Restore Center.
2.
Follow the on-screen instructions to recover your entire computer (select models only) or your files.
NOTE: Windows includes the User Account Control feature to improve the security of your computer.
You may be prompted for your permission or password for tasks such as installing software, running
utilities, or changing Windows settings. Refer to Help and Support for more information.
To recover your information using Startup Repair, follow these steps:
CAUTION: Using Startup Repair completely erases hard drive contents and reformats the hard drive.
All files you have created and any software installed on the computer are permanently removed. When
reformatting is complete, the recovery process restores the operating system, as well as the drivers,
software, and utilities from the backup used for recovery.
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the Windows partition and the HP Recovery partition. To find
the partitions, select Start > Computer.
NOTE: If the Windows partition and the HP Recovery partition have been deleted, you must
recover your operating system and programs using the Windows Vista operating system DVD and
the Driver Recovery disc (both purchased separately). For additional information, refer to the “Using
a Windows Vista operating system DVD (purchased separately)” section in this guide.
3.
Restart the computer, and then press f8 before the Windows operating system loads.
4.
Select Repair your computer.
5.
Follow the on-screen instructions.
NOTE: For additional information on recovering information using the Windows tools, perform a search
for these topics in Help and Support.
Using f11
CAUTION: Using f11 completely erases hard drive contents and reformats the hard drive. All files you
have created and any software installed on the computer are permanently removed. The f11 recovery
tool reinstalls the operating system and HP programs and drivers that were installed at the factory.
Software not installed at the factory must be reinstalled.
To recover the original hard drive image using f11, follow these steps:
1.
If possible, back up all personal files.
2.
If possible, check for the presence of the HP Recovery partition. To find the partition, select
Start > Computer.
NOTE: If the HP Recovery partition has been deleted, you must recover your operating system
and programs using the Windows Vista operating system DVD and the Driver Recovery disc (both
purchased separately). For additional information, refer to the “Using a Windows Vista operating
system DVD (purchased separately)” section in this guide.
3.
Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”
message is displayed at the bottom of the screen.
Backup and recovery in Windows Vista 131
4.
Press f11 while the “Press <F11> for recovery” message is displayed on the screen.
5.
Follow the on-screen instructions.
Using a Windows Vista operating system DVD (purchased separately)
If you are unable to boot (start up) your computer, you must purchase a Windows Vista operating system
DVD to reboot the computer and repair the operating system. Make sure that your most recent backup
(stored on discs or on an external drive) is easily accessible. To order a Windows Vista operating system
DVD, go to http://www.hp.com/support, select your country or region, and follow the on-screen
instructions. You can also order the DVD by calling technical support. For contact information, refer to
the Worldwide Telephone Numbers booklet included with the computer.
CAUTION: Using a Windows Vista operating system DVD completely erases hard drive contents and
reformats the hard drive. All files you have created and any software installed on the computer are
permanently removed. When reformatting is complete, the recovery process helps you restore the
operating system, as well as drivers, software, and utilities.
To initiate recovery using a Windows Vista operating system DVD, follow these steps:
NOTE:
This process takes several minutes.
1.
If possible, back up all personal files.
2.
Restart the computer, and then insert the Windows Vista operating system DVD into the optical
drive before the Windows operating system loads.
3.
When prompted, press any keyboard key.
4.
Follow the on-screen instructions.
5.
Click Next.
6.
Select Repair your computer.
7.
Follow the on-screen instructions.
Backup and recovery in Windows XP
Overview
To protect your information, use the Windows Backup utility (select models only) to back up files and
folders or create recovery points. In case of system failure, you can use the backup files to restore your
computer.
Windows provides the following options:
●
Backing up individual files and folders
●
Backing up all files and folders
●
Scheduling automatic backups
●
Creating recovery points
●
Recovering information
NOTE:
For detailed instructions, perform a search for these topics in Help and Support.
132 Chapter 8 Backup and recovery
NOTE: In case of system instability, HP recommends that you print the recovery procedures and save
them for later use.
Backing up your information
Recovery after a system failure is as complete as your most current backup. You should create your
initial backup immediately after software setup. As you add new software and data files, you should
continue to back up your system on a regular basis to maintain a reasonably current backup.
You can back up individual files or folders to an optional external hard drive or to a network drive.
Note the following when backing up:
●
Store personal files in the My Documents folder, and back it up periodically.
●
Back up templates stored in their associated programs.
●
Save customized settings that appear in a window, toolbar, or menu bar by taking a screen shot
of your settings. The screen shot can be a time saver if you have to reset your preferences.
To copy the screen and paste it into a word-processing document:
1.
Display the screen you want to save.
2.
Copy the screen image:
To copy only the active window, press alt+fn+prt sc.
To copy the entire screen, press fn+prt sc.
3.
Open a word-processing document, click Edit > Paste.
The screen image is added to the document.
4.
Save the document.
To create a backup using the Windows Backup utility (select models only), follow these steps:
NOTE:
Be sure that the computer is connected to AC power before you start the backup process.
NOTE: The backup process may take over an hour, depending on file size and the speed of the
computer.
1.
Click Start > All Programs > Accessories > System Tools > Backup.
2.
Follow the on-screen instructions.
Performing a recovery
In case of system failure or instability, the computer provides the following tools to recover your files:
●
Windows recovery tools (select models only): You can use the Windows Backup utility to recover
information you have previously backed up.
●
Operating System and Driver Recovery discs (included with your computer): You can use the discs
to recover your operating system and programs installed at the factory.
Backup and recovery in Windows XP 133
Recovering your information
To recover information you previously backed up, follow these steps:
1.
If possible, back up all personal files.
2.
Click Start > All Programs > Accessories > System Tools > Backup.
The Backup or Restore Wizard opens.
3.
Click Restore files and settings, and then click Next.
4.
Follow the on-screen instructions.
NOTE: For additional information on initiating a recovery in Windows, perform a search for this topic
in Help and Support.
Recovering the operating system and programs
CAUTION: The recovery process reformats and completely erases the hard drive. All files you have
created and any software installed on the computer are permanently removed. The recovery process
reinstalls the original operating system, software, and drivers. Software, drivers, and updates not
installed by HP must be manually reinstalled.
To recover your operating system and programs, follow these steps:
1.
If possible, back up all personal files.
2.
Insert the Operating System disc into the optical drive.
3.
Shut down the computer.
4.
Turn on the computer.
5.
Follow the on-screen instructions to install the operating system.
6.
After the operating system is installed, remove the Operating System disc and insert the Driver
Recovery disc.
7.
Follow the on-screen instructions to install the drivers and programs.
134 Chapter 8 Backup and recovery
9
Connector pin assignments
1394
Pin
Signal
1
Twisted pair B-
2
Twisted pair B+
3
Twisted pair A-
4
Twisted pair A+
1394 135
Audio-in (microphone)
Pin
Signal
1
Audio signal in
2
Audio signal in
3
Ground
Audio-out (headphone)
Pin
Signal
1
Audio out, left channel
2
Audio out, right channel
3
Ground
External monitor
Pin
Signal
1
Red analog
2
Green analog
3
Blue analog
4
Not connected
5
Ground
6
Ground analog
136 Chapter 9 Connector pin assignments
Pin
Signal
7
Ground analog
8
Ground analog
9
+5 VDC
10
Ground
11
Monitor detect
12
DDC 2B data
13
Horizontal sync
14
Vertical sync
15
DDC 2B clock
External monitor 137
HDMI
Pin
Signal
1
TMDS data 2+
2
TMDS data 2 shield
3
TMDS data 2–
4
TMDS data 1+
5
TMDS data 1 shield
6
TMDS data 1–
7
TMDS data 0+
8
TMDS data 0 shield
9
TMDS data 0–
10
TMDS clock+
11
TMDS clock shield
12
TMDS clock–
13
CEC
14
Not connected
15
DDC clock
16
DDC data
17
Ground
18
+5V power
19
Hot plug detect
20
Shell
138 Chapter 9 Connector pin assignments
RJ-11 (modem)
Pin
Signal
1
Unused
2
Tip
3
Ring
4
Unused
5
Unused
6
Unused
RJ-45 (network)
Pin
Signal
1
Transmit +
2
Transmit -
3
Receive +
4
Unused
5
Unused
6
Receive -
7
Unused
8
Unused
RJ-11 (modem) 139
Universal Serial Bus
Pin
Signal
1
+5 VDC
2
Data -
3
Data +
4
Ground
140 Chapter 9 Connector pin assignments
10 Power cord set requirements
The wide range input feature of the computer permits it to operate from any line voltage from 100 to 120
volts AC or from 220 to 240 volts AC.
The 3-conductor power cord set included with the computer meets the requirements for use in the
country or region where the equipment is purchased.
Power cord sets for use in other countries and regions must meet the requirements of the country or
region where the computer is used.
Requirements for all countries and regions
The requirements listed below are applicable to all countries and regions:
●
The length of the power cord set must be at least 1.5 m (5.0 ft) and no more than 2.0 m (6.5 ft).
●
All power cord sets must be approved by an acceptable accredited agency responsible for
evaluation in the country or region where the power cord set will be used.
●
The power cord sets must have a minimum current capacity of 10 amps and a nominal voltage
rating of 125 or 250 V AC, as required by the power system of each country or region.
●
The appliance coupler must meet the mechanical configuration of an EN 60 320/IEC 320 Standard
Sheet C13 connector for mating with the appliance inlet on the back of the computer.
Requirements for all countries and regions 141
Requirements for specific countries and regions
Country/region
Accredited agency
Applicable note number
Australia
EANSW
1
Austria
OVE
1
Belgium
CEBC
1
Canada
CSA
2
Denmark
DEMKO
1
Finland
FIMKO
1
France
UTE
1
Germany
VDE
1
Italy
IMQ
1
Japan
METI
3
The Netherlands
KEMA
1
Norway
NEMKO
1
The People's Republic of China
CCC
5
South Korea
EK
4
Sweden
SEMKO
1
Switzerland
SEV
1
Taiwan
BSMI
4
The United Kingdom
BSI
1
The United States
UL
2
1.
The flexible cord must be Type HO5VV-F, 3-conductor, 1.0-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
2.
The flexible cord must be Type SPT-3 or equivalent, No. 18 AWG, 3-conductor. The wall plug must be a two-pole grounding
type with a NEMA 5-15P (15 A, 125 V) or NEMA 6-15P (15 A, 250 V) configuration.
3.
The appliance coupler, flexible cord, and wall plug must bear a “T” mark and registration number in accordance with the
Japanese Dentori Law. The flexible cord must be Type VCT or VCTF, 3-conductor, 1.00-mm² conductor size. The wall
plug must be a two-pole grounding type with a Japanese Industrial Standard C8303 (7 A, 125 V) configuration.
4.
The flexible cord must be Type RVV, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
5.
The flexible cord must be Type VCTF, 3-conductor, 0.75-mm² conductor size. Power cord set fittings (appliance coupler
and wall plug) must bear the certification mark of the agency responsible for evaluation in the country or region where it
will be used.
142 Chapter 10 Power cord set requirements
11 Recycling
Battery
When a battery has reached the end of its useful life, do not dispose of the battery in general household
waste. Follow the local laws and regulations in your area for computer battery disposal.
Display
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
CAUTION: The procedures in this chapter can result in damage to display components. The only
components intended for recycling purposes are the liquid crystal display (LCD) panel and the backlight.
When you remove these components, handle them carefully.
NOTE: Materials Disposal. This HP product contains mercury in the backlight in the display assembly
that might require special handling at end-of-life. Disposal of mercury may be regulated because of
environmental considerations. For disposal or recycling information, contact your local authorities, or
see the Electronic Industries Alliance (EIA) Web site at http://www.eiae.org.
This section provides disassembly instructions for the display assembly. The display assembly must be
disassembled to gain access to the backlight (1) and the liquid crystal display (LCD) panel (2).
NOTE: The procedures provided in this chapter are general disassembly instructions. Specific details,
such as screw sizes, quantities, and locations, and component shapes and sizes, can vary from one
computer model to another.
Battery 143
Perform the following steps to disassemble the display assembly:
1.
Remove all screw covers (1) and screws (2) that secure the display bezel to the display assembly.
2.
Lift up and out on the left and right inside edges (1) and the top and bottom inside edges (2) of the
display bezel until the bezel disengages from the display assembly.
3.
Remove the display bezel (3).
144 Chapter 11 Recycling
4.
Disconnect all display panel cables (1) from the display inverter and remove the display inverter
(2).
5.
Remove all screws (1) that secure the display panel assembly to the display enclosure.
6.
Remove the display panel assembly (2) from the display enclosure.
7.
Turn the display panel assembly upside down.
8.
Remove all screws that secure the display panel frame to the display panel.
9.
Use a sharp-edged tool to cut the tape (1) that secures the sides of the display panel to the display
panel frame.
Display 145
10. Remove the display panel frame (2) from the display panel.
11. Remove the screws (1) that secure the backlight cover to the display panel.
12. Lift the top edge of the backlight cover (2) and swing it outward.
13. Remove the backlight cover.
14. Turn the display panel right-side up.
146 Chapter 11 Recycling
15. Remove the backlight cables (1) from the clip (2) in the display panel.
16. Turn the display panel upside down.
WARNING! The backlight contains mercury. Exercise caution when removing and handling the
backlight to avoid damaging this component and causing exposure to the mercury.
17. Remove the backlight frame from the display panel.
Display 147
18. Remove the backlight from the backlight frame.
19. Disconnect the display panel cable (1) from the LCD panel.
20. Remove the screws (2) that secure the LCD panel to the display rear panel.
21. Release the LCD panel (3) from the display rear panel.
22. Release the tape (4) that secures the LCD panel to the display rear panel.
23. Remove the LCD panel.
24. Recycle the LCD panel and backlight.
148 Chapter 11 Recycling
Index
Symbols/Numerics
1394 port
pin assignments 135
1394 port, identifying 14
A
AC adapter, spare part
numbers 27
accessory battery connector,
identifying 16
ambient light sensor
removal 42
spare part number 42
ambient light sensor board
spare part number 24, 31
ambient light sensor, identifying 6
AMT options 98
AMT options, AMT setup prompt
(CTRL-P) 98
AMT options, firmware progress
event supporty 98
AMT options, firmware
verbosity 98
AMT options, terminal emulation
mode 98
AMT options, TYPE-131 in
SMBIOS 98
AMT options, unconfigure AMT on
next boot 98
AMT options, USB key provisioning
support 98
antennae
disconnecting 51
applications key, Windows 12
audio board
spare part numbers 81
audio, product description 3
audio-in (microphone) jack,
identifying 13
audio-in jack
pin assignments 136
audio-out (headphone) jack,
identifying 13
audio-out jack
pin assignments 136
B
backing up 129, 133
base enclosure, spare part
number 23, 29
battery
removal 41
spare part number 23, 29,
41
battery bay 16
battery light, identifying 9, 13
battery release latch,
identifying 16
bays
battery 16
hard drive 16
bezel
illustrated 24
spare part number 24
BIOS Administrator password 94
Blu-ray ROM DVD+/-RW
SuperMulti DL Drive
removal 53
spare part number 22, 27,
29, 53
specifications 104
Bluetooth cable, illustrated 26
Bluetooth compartment cover,
illustrated 25
Bluetooth module
removal 48
spare part number 21, 28,
48
boot options 96
boot order 96
built-in device
ambient light sensor 97
Bluetooth device radio 97
embedded WLAN 97
fingerprint reader 97
integrated camera 97
LAN/WLAN switching 97
modem 97
Network Interface Controller
(LAN) 97
Wake on LAN 97
wireless button 97
WWAN device radio 97
built-in device options 97
built-in-device
Notebook Multibay 97
business card slot, identifying 14
buttons
display release 14
info 10
pointing stick 7
power 10
presentation 11
TouchPad 7
volume mute 11
wireless 11
C
Cable Kit
contents 26
spare part number 23, 26,
29
cable kit, spare part number 25
cables, service considerations 34
camera module
removal 76
spare part numbers 76
camera module, spare part
number 31
Index 149
caps lock light, identifying 8
chipset, product description 1
CMOS clearing 38
compartments
memory module 16
components
bottom 16
display 6
front 13
left-side 14
rear 15
right-side 15
top 7
wireless antennae 17
computer feet
locations 40
spare part number 23, 31,
40
Computer Setup
accessing 91
Diagnostics menu 95
File menu 93
navigating and selecting 91
restoring factory settings 92
Security menu 94
System Configuration
menu 96
using 91
computer specifications 99
connector, power 14
connectors
service considerations 34
D
device configurations 96
Diagnostics menu 95
discs
Driver Recovery 133
Operating System 133, 134
Disk Sanitizer 94
diskette drive
precautions 34
product description 3
display assembly
removal 70
spare part numbers 20, 31,
70
display bezel
illustrated 24
release 42
150 Index
removal 73
spare part number 24
display bezel, spare part
number 30
Display Bracket Kit, spare part
number 31
display cable, spare part
number 24
display component recycling 143
display components
illustrated 24
spare part numbers 24
display enclosure
illustrated 24
spare part number 25
display hinge
removal 74
spare part number 31, 74
Display Hinge Kit, spare part
number 25
display inverter
illustrated 24
removal 42
spare part number 24, 30,
42
display panel
illustrated 24
product description 1
removal 74
display release button,
identifying 14
display specifications 100, 101,
102
docking connector, identifying 16
docking support, product
description 4
drive light, identifying 9, 13
DriveLock password 94
DriveLock, automatic 94
Driver Recovery disc 133
drives
preventing damage 34
drives, boot order 96
Dual Core CPU 97
DVD-ROM Drive
precautions 34
removal 53
spare part number 22, 27,
29
spare part numbers 53
specifications 106
DVD-RW Drive
precautions 34
specifications 105
DVD/CD-RW Combo Drive
precautions 34
DVD±RW and CD-RW Combo
Drive
precautions 34
spare part numbers 22, 27,
29
specifications 105
DVD±RW and CD-RW SuperMulti
Double-Layer Combo Drive with
LightScribe
removal 53
spare part numbers 53
E
electrostatic discharge 35
eSata port, identifying 15
esc key, identifying 12
Ethernet, product description 3
Execution Disable 96
ExpressCard assembly
removal 88
spare part number 22, 30,
88
ExpressCard slot bezel,
illustrated 25
ExpressCard slot, identifying 14
external media cards, product
description 3
external monitor port
pin assignments 136
external monitor port,
identifying 14
F
f11 recovery 131
fan
removal 61
spare part number 30, 61
fan, spare part number 21
feet
locations 40
spare part number 23, 31,
40
File menu 93
fingerprint reader, identifying 11
fn key, identifying 12
function keys, identifying 12
G
graphics card
removal 64
spare part numbers 21, 29,
64
Graphics card heat sink
spare part number 21
graphics card heat sink
removal 61
spare part numbers 61
Graphics card heat sink – ATI,
spare part number 31
Graphics card heat sink – nVidia,
spare part number 31
graphics, product description 1
grounding equipment and
methods 37
H
hard disk test 95
hard drive
precautions 34
product description 2
removal 45
spare part numbers 21, 27,
29, 45
specifications 103
hard drive bay, identifying 16
hard drive bracket, removal 47
hard drive compartment cover
illustrated 25
hard drive cover
removal 46
hard drive recovery 131
HDMI port
pin assignments 138
headphone (audio-out) jack 13
headphone jack
pin assignments 136
heat sink
spare part numbers 21, 31
hinge
removal 74
spare part number 31, 74
HP QuickLook 2 97
HP SpareKey enrollment 94
I
I/O address specifications 109
IEEE 1394 port, identifying 14
info button, identifying 10
internal display switch,
identifying 6, 10
internal microphone, identifying 6
interrupt specifications 108
inverter
illustrated 24
removal 42
spare part number 24, 42
J
jacks
audio-in (microphone) 13
audio-out (headphone) 13
RJ-11 (modem) 15
RJ-45 (network 15
K
keyboard
product description 4
removal 55
spare part numbers 20, 30,
55
keypad keys, identifying 12
keys
esc 12
fn 12
function 12
keypad 12
Windows applications 12
Windows logo 12
L
LAN Power Save 96
language, changing in Computer
Setup 96
latch, battery release 16
legacy support, USB 96
lights
battery 9, 13
caps lock 8
drive 9, 13
mute 8
num lock 8
power 8, 13
volume down 8
volume mute 8
volume up 8
webcam 6
wireless 8, 13
M
mass storage devices, spare part
numbers 27
Media Card Reader,
identifying 14
media card reader/audio board
removal 81
Media card reader/audio board,
spare part number 22
media card reader/audio board,
spare part number 29
memory map specifications 107
memory module
product description 2
removal 49
spare part numbers 22, 31,
49
memory module compartment,
identifying 16
memory module/WLAN module
compartment cover
illustrated 25
removal 49
microphone (audio-in) jack 13
microphone extension cable
illustrated 26
microphone jack
pin assignments 136
microphone, product
description 3
model name 1
modem jack
pin assignments 139
modem module
product description 3
removal 84
spare part number 21, 28,
84
monitor port
pin assignments 136
monitor port, external 14
mute button, identifying 11
mute light, identifying 8
N
network jack
pin assignments 139
Index 151
num lock light, identifying 8
O
Operating System disc 133, 134
operating system, product
description 4
optical drive
precautions 34
product description 2
removal 53
spare part numbers 22, 27,
29, 53
specifications 104, 105, 106
P
packing guidelines 36
parallel port mode 96
password clearing 38
passwords 94
pin assignments
1394 port 135
audio-in jack 136
audio-out jack 136
external monitor port 136
HDMI port 138
headphone jack 136
microphone jack 136
modem jack 139
monitor port 136
network jack 139
RJ-11 139
RJ-45 jack 139
Universal Serial Bus (USB)
port 140
plastic parts 33
Plastics Kit
contents 25
spare part number 23, 25,
31
plastics kit, spare part number 25
pointing device
product description 4
pointing stick buttons,
identifying 7
pointing stick, identifying 7
port options
1394 port 98
ExpressCard slot 98
flash media reader 98
parallel port 98
152 Index
serial port 98
Smart Card slot 98
USB port 98
ports
1394 14
eSATA 15
external monitor 14
product description 3
USB 14, 15
power button, identifying 10
power connector, identifying 14
power cord
set requirements 141
spare part numbers 27, 28
power lights, identifying 8, 13
power requirements, product
description 4
presentation button,
identifying 11
processor
product description 1
removal 68
spare part numbers 22, 32,
68
processor heat sink
removal 66
spare part numbers 66
product description
audio 3
chipset 1
diskette drive 3
display panel 1
docking support 4
Ethernet 3
external media cards 3
graphics 1
hard drives 2
keyboard 4
memory module 2
microphone 3
modem module 3
operating system 4
optical drives 2
pointing devices 4
ports 3
power requirements 4
processors 1
product name 1
security 4
serviceability 5
wireless 3
product name 1
R
RAID (Redundant Array of
Independent Disks) devices 96
recovery partition 131
release latch, battery 16
removal/replacement
preliminaries 33
procedures 39
restore security defaults 98
restore the factory settings 93
restoring the hard drive 131
RJ-11 (modem) jack,
identifying 15
RJ-11 jack
pin assignments 139
RJ-11 jack cable
illustrated 26
RJ-45 (network) jack,
identifying 15
RJ-45 jack
pin assignments 139
RJ-45 jack cable
illustrated 26
RTC battery
removal 58
spare part number 28, 58
Rubber Kit, spare part
number 23, 31
run-in test 95
S
SATA (Serial Advanced
Technology Attachment) devices
AHCI (Advanced Host Controller
Interface) 96
IDE (Integrated Drive
Electronics) 96
Screw Kit
contents 111
spare part number 28, 31
screw listing 111
scroll zone, TouchPad 7
Secondary Battery Fast
Charge 97
security cable slot, identifying 14
Security menu
always prompt for HP SpareKey
enrollment 94
Automatic DriveLock 94
change password 94
Disk Sanitizer 94
DriveLock 94
fingerprint reader reset 94
HP Sparekey 94
HP Sparekey enrollment 94
password policy 94
set up BIOS Administrator
password 94
System IDs 94
TPM embedded Security 94
user management 94
security, product description 4
serial number 39
service considerations 33
service tag 18
serviceability, product
description 5
set security level 98
setup utility
accessing 91
Diagnostics menu 95
File menu 93
navigating and selecting 91
restoring factory settings 92
Security menu 94
System Configuration
menu 96
slots
business card 14
ExpressCard 14
memory module 16
security cable 14
smart card reader 14
WLAN 16
smart card reader, identifying 14
speaker assembly
removal 83
spare part number 22, 31,
83
speaker, identifying 13
specifications
Blu-ray ROM DVD+/-RW
SuperMulti DL Drive 104
computer 99
display 100, 101, 102
DVD-ROM Drive 106
DVD-RW Drive 105
DVD±RW and CD-RW Combo
Drive 105
hard drive 103
I/O addresses 109
interrupts 108
memory map 107
optical drive 104, 105, 106
system DMA 107
start-up test 95
static-shielding materials 37
switch cover
removal 59
spare part number 21, 29,
59
system board
removal 85
spare part numberS 85
spare part numbers 22, 29,
32
System Configuration menu 96
system date and time 93
System Diagnostics menu 95
system DMA 107
system fan 96
system IDs 94
system information 93
system memory map 107
T
thermal material,
replacement 63, 65, 67
tools required 33
top cover
removal 78
spare part numbers 21, 29,
78
TouchPad buttons,
identifying 7
TouchPad scroll zone,
identifying 7
TouchPad, identifying 7
transporting guidelines 36
Trusted Platform Module
Embedded Security 94
TXT (Intel Trusted Execution
Technology) 97
U
Unified Extensible Firmware
Interface (UEFI) mode 97
Universal Serial Bus (USB) port
pin assignments 140
unknown password 38
upgrade bay, identifying 15
USB legacy support 96
USB ports, identifying 14, 15
USB/eSATA board
removal 82
spare part number 21, 29,
82
V
vents, identifying 14, 16
Virtualization Technology 97
volume down light, identifying 8
volume mute button,
identifying 11
volume mute light, identifying 8
volume scroll zone, identifying 11
volume up light, identifying 8
W
webcam light, identifying 6
webcam, identifying 6
Windows applications key,
identifying 12
Windows Backup utility 133
Windows logo key, identifying 12
Windows recovery 134
Windows Vista operating system
DVD 132
wireless antennae
disconnecting 51
wireless button, identifying 11
wireless light, identifying 8, 13
wireless, product description 3
WLAN module
removal 51
spare part numbers 22, 28,
51
workstation guidelines 36
Index 153
