ARGUS

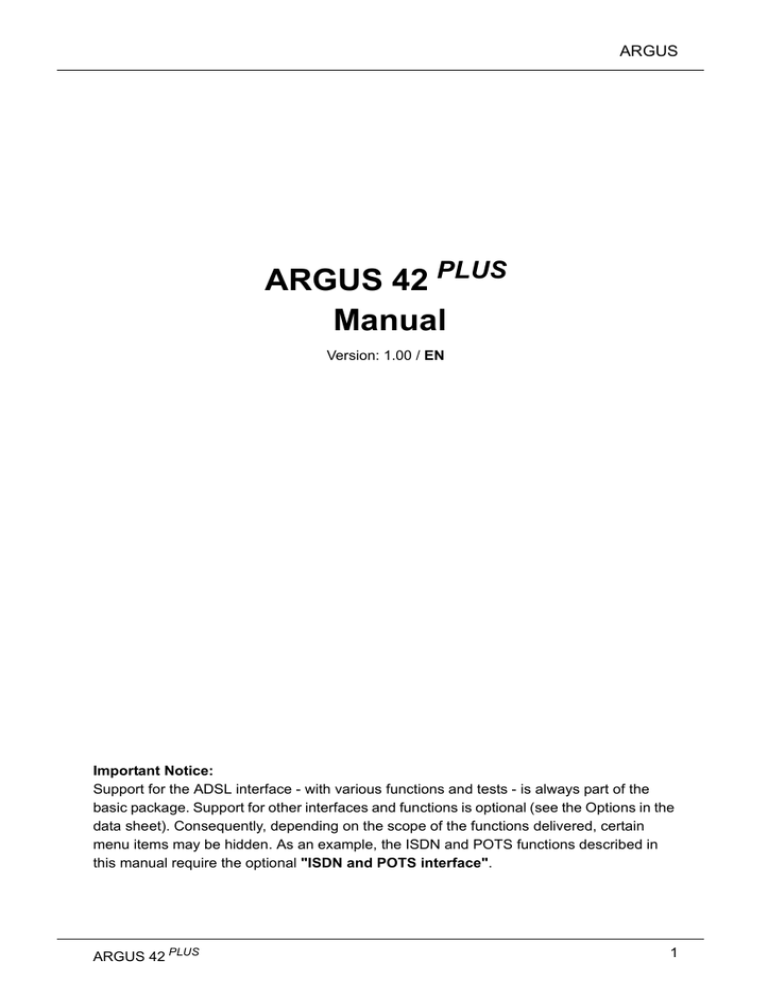

ARGUS 42 PLUS
Manual
Version: 1.00 / EN







Important Notice:
Support for the ADSL interface - with various functions and tests - is always part of the
basic package. Support for other interfaces and functions is optional (see the Options in the
data sheet). Consequently, depending on the scope of the functions delivered, certain
menu items may be hidden. As an example, the ISDN and POTS functions described in
this manual require the optional "ISDN and POTS interface".
ARGUS 42 PLUS
1
ARGUS
 by intec Gesellschaft für Informationstechnik mbH
D-58507 Lüdenscheid, Germany, 2010
Alle Rechte, auch der Übersetzung, vorbehalten. Kein Teil des Werkes darf in irgendeiner
Form (Druck, Fotokopie, Mikrofilm oder einem anderen Verfahren) ohne schriftliche
Genehmigung reproduziert, vervielfältigt oder verbreitet werden.
All rights are reserved. No portion of this document may be reproduced, duplicated or
distributed in any form (print, copies, microfilm or on any other media) without intec’s
written permission.
2
ARGUS 42 PLUS
ARGUS
1
Introduction .........................................................................................7
2
2.1
Safety Instructions ...........................................................................11
Safety instructions regarding the add. NiMH battery pack ...........13
3
General Technical Data ....................................................................15
4
Operating Instructions .....................................................................17
5
Menu Hierarchy .................................................................................29
6
6.1
6.2
6.3
Operation on an ADSL Access ........................................................37
Setting the ADSL Interface and Access Mode ...............................38
ADSL Settings ...................................................................................39
The ARGUS in the ATU-R Access Mode .........................................47
6.3.1 Determining the ADSL connection parameter ...........................47
6.3.2 Tests in ATU-R Access Mode ....................................................53
The ARGUS in the ATU-R Bridge Access Mode ............................54
6.4.1 Tests in ATU-R bridge access mode .........................................55
The ARGUS in the ATU-R Router Access Mode ............................56
6.5.1 Tests in ATU-R router access mode ..........................................59
6.5.2 Displaying the Test Results .......................................................59
6.5.3 Level measurement on an access .............................................59
6.4
6.5
7
7.1
7.2
7.3
7.4
7.5
7.6
Operation on an Ethernet Access ...................................................60
Setting the Ethernet Interface ..........................................................63
Ethernet Settings ..............................................................................65
Autonegotiation / Ethernet Link Parameter ....................................71
ARGUS determines the following Ethernet parameters ...............72
Clearing Down the Ethernet Connection ........................................73
Tests on an Ethernet Access ...........................................................73
8
8.1
8.2
ATM tests ...........................................................................................75
VPI / VCI scan ....................................................................................75
ATM OAM ping ..................................................................................78
9
9.1
9.2
IP tests ...............................................................................................81
Ping test .............................................................................................81
HTTP download .................................................................................90
10
10.1
VoIP test ............................................................................................95
VoIP telephony ..................................................................................95
11
MDI analysis ....................................................................................105
12
12.1
12.2
12.3
Operation on an ISDN Access .......................................................111
Setting the ISDN Interface and Access Mode ..............................111
Initialization Phase Including B-Channel Test: ............................114
ISDN Parameter Configuration ......................................................116
ARGUS 42 PLUS
3
ARGUS
12.4
12.5
12.6
12.7
12.8
12.9
12.10
12.11
12.12
12.13
12.14
12.15
12.16
Bit error rate test .............................................................................119
The Supplementary Services Test ................................................129
Service tests ....................................................................................133
X.31 test ...........................................................................................136
Call Forwarding (CF) ......................................................................140
MSN interrogation (only on a DSS1 BRI S/T) ...............................144
Connection ......................................................................................145
Testing features via the keypad ....................................................153
Test manager: Managing multiple tests or connections .............154
12.12.1 Starting Several Tests to Run Simultaneously ....................155
12.12.2 Switching between tests ......................................................158
12.12.3 Cancel all .............................................................................158
Level measuring on an S-Bus access ..........................................159
Level measurement on a U-interface access ...............................160
The L1 Status of a BRI access .......................................................161
Leased line ......................................................................................162
12.16.1 Telephony ............................................................................162
12.16.2 Bit error rate test ..................................................................163
12.16.3 Loopbox ...............................................................................164
12.16.4 Switching from permanent switch mode ..............................164
13
13.1
13.2
13.3
13.4
13.5
Operation on a POTS access .........................................................165
Setting the physical interface ........................................................165
Setting the POTS parameters ........................................................166
Connection on a POTS access ......................................................168
POTS monitor ..................................................................................169
Level measuring on a POTS access .............................................170
14
Copper test ......................................................................................171
15
15.1
15.2
15.3
15.4
15.5
15.6
Test reports .....................................................................................173
Save test reports (Ethernet as an example) .................................173
Display results ................................................................................174
Test reports – sending to a PC ......................................................175
Deleting test reports .......................................................................176
Send all test reports to a PC ..........................................................176
Starting automatic tests on an ISDN access ................................177
16
16.1
16.2
16.3
ARGUS Settings ..............................................................................181
Trace / remote .................................................................................181
Device settings ...............................................................................182
Reset all parameters .......................................................................184
17
Saving call numbers in the speed-dialing memory .....................185
18
Use of accumulators and battery packs .......................................186
4
ARGUS 42 PLUS
ARGUS
19
Firmware update .............................................................................189
20
A)
B)
C)
D)
E)
F)
G)
H)
I)
J)
K)
Appendix .........................................................................................192
Acronyms........................................................................................ 192
CAUSE-Messages – DSS1 Protocol ...............................................198
ARGUS Error Messages (DSS1) .....................................................200
Error message: PPP connection ......................................................202
Error message: Download test ........................................................203
HTTP status codes: .........................................................................204
General Error Messages ..................................................................206
VoIP SIP status codes .....................................................................207
Software Licenses ...........................................................................210
Index ................................................................................................211
Own notes ........................................................................................227
ARGUS 42 PLUS
5
ARGUS
6
ARGUS 42 PLUS
1 Introduction
1 Introduction
The ARGUS 42 PLUS provides support for setting up ADSL accesses. It supports
measurement of the up and downstream line parameters and can, depending on the
version, be used for both ADSL-over-POTS (analog) and ADSL-over-ISDN. In addition, it
can be used as a POTs and ISDN tester. Thanks to its range of features, this single tester
can handle all of the important customer interfaces. Besides the automatic test routines for
the various types of access and protocols, the ARGUS 42 PLUS also measures the quality
of the line as well as the maximum possible transmission speed and thus simplifies the job
of correctly setting up an access.

Access tests can be saved in the ARGUS 42 PLUS and later transferred to a PC. The line
parameters are presented on the display. Furthermore, the ARGUS 42 PLUS can be
expanded with optional IP ping functions, a bridge mode and router mode to add support
for testing Internet connections. With these options, network operators can use it to
exchange data packets with the Internet provider to determine the transmission quality. In
such a case, a download test is also available. Furthermore, the tester can also be used to
run tests on Ethernet interfaces or to measure the resistance and capacitance on a
subscriber's line as well as to detect certain frequencies on the line.

The ARGUS 42 PLUS can also be upgraded to a complete voice tester if desired. Using its
handset, it is possible to set up voice calls to test and evaluate connections on not only
POTS and ISDN, but now also for calls placed via VoIP. The test results will be shown in
the display. In such cases, the ARGUS 42 PLUS determines the MOS value for the
connection and evaluates it, as well as delivering other detailed measurements. 
It is also possible to determine the Media Delivery Index (MDI) in accordance with RFC
4445.
Thanks to the intuitive, easily understood menu system, which permits among other things
easy configuration and the storage of various profiles, it is simple to operate. It is also easy
to connect a headset, 

Furthermore, if you want to extend the ARGUS 42 PLUS operating time, you can use an
additional battery pack. With the standard battery pack, the tester weighs 425 g.

Software updates can be downloaded to a PC free of charge and then loaded into the
ARGUS at any time. They are available at http://www.argus.info/en/service.
ARGUS 42 PLUS
7
1 Introduction
An overview of some important ARGUS functions:
ADSL functions (ADSL, ADSL2 and ADSL2+: Annex A, B and M)
-
Synchronization with determination of the connection parameters and error
counters
-
PPP login plus ADSL bridge, ADSL router and PC replacement modes
ADSL and Ethernet tests
-
-
-
-
ATM tests (for ADSL only)
-
VPI/VCI scan
-
ATM OAM ping
-
ATM statistics
IP tests
-
IP ping
-
Download tests HTTP
VoIP test
-
Telephony function
-
Quality assessment (including MOS)
IPTV tests
-
MDI analysis
ISDN functions
-
Protocol recognition plus B-channel, service and bit error rate tests (BERT)
-
Telephony function and an automatic supplementary services test
-
CF and MSN queries
-
Layer 1 tests and bus feed
-
Testing features via the keypad
POTS functions
-
Telephony function
-
POTS (analog) functionality
Tests CLIP and other Caller-ID services in accordance with ETSI 300 659/778.
-
Monitoring a POTS line (high-impedance listening-in)
-
POTS - voltage and polarity measurement

8
ARGUS 42 PLUS
1 Introduction
RC measurement with calculation of the line length and three wire test (TRG)
Measurement of the loop resistance and the capacitance of the open (voltage-free) line.
Access acceptance report
When the ARGUS is connected to a PC via the USB serial adapter, it is, as an example,
possible - with the aid of WINplus or WINanalyse - to create a comprehensive test report
on the PC and print it.
Should you have any further questions, please contact us:
intec Gesellschaft für Informationstechnik mbH
Rahmedestr. 90
D-58507 Lüdenscheid
Tel.: +49 (0) 2351 / 9070-0
Fax: +49 (0) 2351 / 9070-70
www.argus.info/en
support@argus.info
ARGUS 42 PLUS
9
1 Introduction
10
ARGUS 42 PLUS
2 Safety Instructions
2 Safety Instructions
The ARGUS may only be used with the included accessories. Usage of other accessories
may lead to erroneous measurements and may even cause damage to the ARGUS and the
connected installation. The ARGUS is only to be used in accordance with the instructions in
this documentation. Any other usage may result in bodily injury and destruction of the
ARGUS.
- Before connecting the ARGUS to an access make certain that the voltages on the
access are not high enough to be dangerous or outside the specified range of the
ARGUS or its accessories. You must also taken into account the fact that the
voltage may vary while the ARGUS is connected to the access.
- Regardless of the interface or access, use the ARGUS only for its intended
purpose.
- Voltages in excess of 50 V AC or 120 V DC can cause mortal injury.
- Never attempt a measurement if the battery pack is not inserted or the
accumulators are not in place!
- The ARGUS is not watertight. Protect the ARGUS from exposure to water!
- Before replacing the accumulators or the battery pack, disconnect all the test
leads and switch the ARGUS off.
CAUTION: Never remove the accumulators or the battery pack during operation.
- Unplug the power supply from the mains, once the ARGUS is switched off and will
no longer be used (for example after recharging the accumulators)!
- The ARGUS may only be used by trained personnel.
- Do not operate the ARGUS on a power supply that has other specifications. The
specifications are:
(Input: 100 V to 240 V AC; 50/60 Hz; 0.18 A)
(Output: 9 V DC; 0.56 A)
- Do not plug anything into the headset jack other than headsets approved by the
manufacturer; the use of this jack for any other application (e.g. connection of a
stereo system) is expressly prohibited.
- The electromagnetic compatibility of the ARGUS was checked in accordance with
the regulations stated in our Declaration of Conformity.
CAUTION: This tester is a Class A. product which may cause interference when
operated in a residential area. In such case, the user must take appropriate
measures.
- Do not plug anything into the serial jack (Ser.) except a USB serial adapter
approved by the manufacturer; the use of this jack for any other application is
expressly prohibited.
ARGUS 42 PLUS
11
2 Safety Instructions
- The ARGUS battery pack may only be actively charged (Charge accus) or trickle
charged (default setting: off) when the ambient temperature is between 0 °C 
(32 °F) and +40 °C (104 °F).
- If the ARGUS is operated under extreme conditions, it may have to automatically
shutdown, terminate the current test and drop the connection in order to protect
itself and the user. To ensure reliable long-term operation of the ARGUS, make
certain that it is protected from excessive temperatures.
- Do not open the tester.
- In connection with the additional NiMH battery pack, please observe the following
notes regarding safety and transport.

Return and environmentally acceptable disposal
The RoHS (EU Directive on the “Restriction of Hazardous Substances”) guidelines, which
restrict the use of certain hazardous substances in electrical and electronic equipment,
apply in eight of the ten categories of the WEEE (EU Directive on “Waste Electrical and
Electronic Equipment”) guidelines. Devices which are in Category 9 “Monitoring and
Control Instruments” are currently excluded from the scope of the Directive. The ARGUS
products fall into Category 9 and are thus not subject to the RoHS guidelines. Nonetheless,
we have voluntarily complied with all of the RoHS guidelines since 1 January 2007.

In compliance with WEEE (EU Directive on Waste of Electrical and Electronic Equipment)
2002/96/EU and the German Electrical and Electronic Equipment Act (ElektroG - Elektround Elektronikgerätegesetz), we began marking our testers in October 2005 with the
following symbol:
(
) (DIN EN 50419).
In other words, the ARGUS and its accessories may not be disposed of in the household
waste.
Regarding the return of old equipment, please contact our Service department.









12
ARGUS 42 PLUS
2 Safety Instructions
2.1 Safety instructions regarding the add. NiMH battery pack
Protective features have been implemented to prevent harm if it is exposed to excessive
pressure, short-circuits, dangerous reverse currents or other destructive influences.
The protective features of the battery pack may be harmed if the following
instructions are not observed. In this case extremely high currents and
voltages may result, which could lead to abnormal reactions, such as
overheating and/or smoke. Furthermore, if the user does not observe and
comply with these instructions both the performance and service life may
suffer.

Safety Instructions and Warnings
1.
Do not disassemble or short-circuit the battery pack.
2.
The temperature of the battery pack may not exceed (> 55 °C (131 °F)).
3.
Keep the battery pack dry - do not let it get wet or damp.
4.
Do not charge the battery pack at temperatures below 0 °C (32 °F) or above 
+40 °C (104 °F).
5.
The battery pack may only be charged using the associated ARGUS or a
charger approved by intec.
6.
Do not damage the battery pack with a sharp object.
7.
Do not throw the battery pack or expose it to shocks or impacts.
8.
If a battery pack is damaged or deformed, do not use it.
9.
The contacts of battery pack are polarized (plus and minus). Make certain that
the polarity of the battery pack is not reversed when it is inserted in the ARGUS or
when the battery pack is connected to the charger.
10.
The battery pack may only be connected to the associated ARGUS or charger in
the intended manner.
11.
The battery pack may not be directly connected to the output of a plug-in power
supply, an automobile cigarette lighter or similar power source.
12.
The battery pack may only be used together with an ARGUS.
13.
The battery pack may not be connected to, or stored or transported with metallic
objects.
14.
Do not expose the battery pack to high electrostatic forces.
15.
The battery pack may not be used in combination with primary 
(non-rechargeable) batteries, nor may it be charged or discharged together with
other rechargeable batteries.
16.
If the battery pack is still not properly charged when the charging time has
elapsed, do not charge it again.
17.
Do not expose the battery pack to excessive pressure.
ARGUS 42 PLUS
13
2 Safety Instructions
18.
If the battery pack emits an odor or heats up, becomes discolored or misshapen,
or if there are any other indications of that it has malfunctioned while it is in use or
being charged or while it stored, remove the battery pack from the ARGUS or
charger immediately and do not use it again.
19.
If the battery pack leaks acid, make certain that you do not get this acid in your
eyes or on your skin. In event that you get this acid in your eyes or on your skin,
rinse the affected area immediately with clean water. Do not rub the affected
area. In either case, seek medical care immediately. Otherwise, permanent injury
may result.
20.
The battery pack must be kept out of reach of children.
21.
Please read the manual and associated safety instructions before using the
battery pack.
22.
If you find that the battery pack emits an odor, or is rusty or appears to be in
anything other perfect condition before you first use it, please contact intec to
determine how to proceed.
14
ARGUS 42 PLUS
3 General Technical Data
3 General Technical Data
Tester specifications:
Dimensions / Weight
Inputs / Outputs
Height: 229 mm (9.016 in), 
-
RJ-45 (Line) for ADSL, U-interface, 
Width: 72 mm (2.835 in), 

BRI S/T and POTS
Depth: 35 mm (1.378 in),
-
Connector (PWR) for external Power supply 
Weight: 425 g (0.937 lb) 
-
RJ-11 (Ser.) PC interface

-
RJ-45 10/100 Base-T (LAN) 
(with accumulators, 

for bridge and router mode and Ethernet
without the protective cover)
-
Jack to connect a headset
Keypad
21 Keys
LCD display
Temperature ranges
LCDdisplay with switchable
Temperature range - charging: 
Background lighting
0 °C (32 °F) to +40 °C (104 °F)
4 lines with 16 characters
Operating Temperature: 
0 °C (32 °F) to +50 °C (122 °F)
Storage temperature: 
-20 °C (-4 °F) to +60 °C (140 °F)
Humidity: 
up to 95 % relative humidity, non-condensing
Power supply
included NiMH standard accumulators or 
optional NiMH battery pack or
9 V/0.56 A ARGUS electronic plug-in power supply
Other information
ARGUS user safety tested in accordance with
EN60950-1

RoHS conformity pursuant to the WEEE guidelines

Quality management in accordance with 
DIN EN ISO 9001

The electromagnetic compatibility of the ARGUS
was checked in accordance with the regulations
stated in our Declaration of Conformity.
ARGUS 42 PLUS
15
3 General Technical Data
Supported Standards:
ADSL (Line):
ITU-T G.992.1, Annex A (ADSL)
ITU-T G.992.2, Annex A (G.lite)
ITU-T G.992.3, Annex A (ADSL2)
ITU-T G.992.5, Annex A (ADSL2+)
ITU-T G.992.1, Annex B (ADSL)
ITU-T G.992.3, Annex B (ADSL2)
ITU-T G.992.5, Annex B (ADSL2+)
ITU-T G.992.3, Annex M (ADSL2)
ITU-T G.992.5, Annex M (ADSL2+)
ANSI T1.413
RC test (Line):
Voltage measurement:
- DC voltage: up to +200 V max., precision ±2 %
- AC voltage: up to 120 V max., precision ±2 %
Resistance measurement: Precision for 100  - 100k
Capacitance measurement: Precision for the range from 1 nF to 1 µF: ±5 %
ISDN BRI S/T (Line):
ITU-T I.430
ITU-T G.821
ITU-T X.31
ISDN U-interface (Line):
ANSI T1.601
Ethernet (LAN):
IEEE 802.3 
- 10 Base-T 
- 100 Base-T
Autonegotiation
Auto MDIX
Line:
DC voltage: +200 VDC maximum
AC voltage: 120 VAC maximum
at 50 or 60 Hz
16
ARGUS 42 PLUS
4 Operating instructions
4 Operating instructions
Receiver inset
LEDs
LCD Display: 4 x 16 characters
Softkeys
Menu control
Confirmation key
Numerical keypad
Layer 1 measurement
Making calls: Pickup or
hangup
Power / Display backlighting
Microphone
Fastener for shoulder strap



Power Key:
-
Switch the ARGUS on 
-
To start up again after a power down
-
To switch on the display backlighting 

In battery mode, to save power, the backlighting will switch off

automatically after 5 seconds. 
-
To switch off the ARGUS - must be pressed somewhat longer
If the ARGUS is connected to its power supply, the accumulators or
battery pack will be automatically charged when the ARGUS is
switched off (see page 187).
Confirmation key:
-
Open menu
-
Open the next display
-
Start test
-
Confirm the entry
ARGUS 42 PLUS
17
4 Operating instructions
Menu control:
-
Scroll through displayed lines
-
Select a menu
-
Select a function or a test
Telephony:
ISDN or POTS
-
Pickup or hang up
-
Simplified overlap signaling, press the telephone key twice (ISDN only)
ADSL/Ethernet:
-
The ARGUS opens the VoIP profiles see page 96.
Layer 1 Measurement:
-
BRI S/T, U-interface access: Start the Layer 1 measurement (level/

voltage)
-
ADSL access: Display the line parameters
Number pad:
-
Entry of the digits 0....9, letters and special characters 
-
Direct function call 

Softkeys:
-












-
18
The function of the 3 softkeys varies with the situation. The current function
of each softkey is shown in the bottom, highlighted line of the display.
Common softkeys and their meaning:
<MENU>: The main menu will open.
<PROFILE>: Display the profile
<PARAM.>: Access the parameter lists
<START>: Setup a connection or start a test
<STOP>: Clear down a connection or stop a test
<RESET>: Reset a setting or a counter
<DEL.>: Delete the character before the cursor
<CONT.>: The ARGUS will open the next display.
<INFOS>: Open additional connection information
<12>ab>: Entry of the digits 0 to 9 plus * and #
<ab>AB>: Entry of the lowercase characters and @, /,- and .
<AB>12>: Entry of the uppercase characters and @, /,- and .
You will find the other softkeys described at the relevant points in the
manual.
ARGUS 42 PLUS
4 Operating instructions
The ARGUS is in largest part operated with the two  -, -Keys, the confirmation key
and the three softkeys. On the following pages, only the softkey's meaning in the respective
context is shown - enclosed in angle brackets <
The softkeys <
>, e.g. <ADSL>.
>, <> and <> perform the same functions as the confirmation key
and the arrow keys
and
on the ARGUS keypad.
Connections at bottom:
PWR
Connection for the external plug-in power supply.
If the plug-in power supply is connected, the ARGUS 
will disconnect the accumulators and, when it is 
switched off, the ARGUS will automatically recharge 
the accumulators (see page 187).
Line
ADSL connection
Pin assignment 4/5 
U-interface connection Pin assignment 4/5 
BRI S/T connection
Pin assignment 4/5 and 3/60
POTS connection
Pin assignment 4/5
Ser.
Serial interface to connect a PC
LAN
Connection to the PC's network card via
patch cable (Access mode: ATU-R Bridge or ATU-R
router). Connection to the Ethernet interface of the 
ADSL modem via a patch cable. (Ethernet connection)
Connectors at top:
Jack:
Connector for a headset
When an external headset is plugged into the ARGUS,
it will automatically switch to headset operation and will
return to the internal receiver when the external
headset is unplugged.
ARGUS 42 PLUS
19
4 Operating instructions
Start-Up
Using the included cable, connect the ARGUS to the access to be tested. Press the
-
key to switch the ARGUS on. The ARGUS will first display the DC voltage (VDC) and AC
voltage (VAC) on the 2-wire line (Line). As an option, the ARGUS will automatically check
for a high-frequency signal (frequency displayed in kHz). The ARGUS will display different
softkeys depending on the DC voltage found on the 2-wire line.
1. case: 
no DC voltage on the line
Start-Up Display
<ADSL> press
The ARGUS will setup an ADSL
connection, see page 48.
<LINE> press
The ARGUS opens the Access
menu.
<RC> press
Start the Copper Test.
To run the Copper Test, the line
must be voltage-free (out of
service)!
The Access Menu: 
<> or
to select the access.
The selected access will be marked
in the display with an  (in the
example, ADSL).
<
> or
The ARGUS will use the marked
type of access.
Access Mode Menu: .
<> or
Select the Access mode
The selected access mode will be
marked in the display with an  (in
the example, ATU-R).
20
<
> or
The ARGUS will use the marked
access mode.
<
>
To have the ARGUS return to the
previous display.
ARGUS 42 PLUS
4 Operating instructions
ARGUS – State display


On an ADSL access, the ARGUS will display the DC
voltage on the line and the active ADSL profile.

<MENU>
Open the Main menu
<START>
Setting up an ADSL connection, see
page 48.
<NEW>
The ARGUS will open the Start-Up display.
Hold the softkey depressed for 2 seconds.
Main menu

All of the menus, which are available for the type of
access under test, are listed in the Main menu.
to select a menu.
<> or
The selected menu will be marked in the
display with an  (in the example, Single
tests)
<
> or
<
>
to have the ARGUS open the menu
marked with the  (in the example, Test
results).
to return to the previous display
(in this example, ARGUS State)


Menus available in the Main menu:
ADSL access
BRI S/T or U-interface
access
POTS access
Ethernet
Single Tests
Single Tests
Connection
Single Tests
Test Manager
Start Monitor
_________
Test results
Test results
Test results
Test results
Line status
Level measuring
Level measuring
__________
Level measuring
The L1 state (BRI only)
Configuration
Configuration
Configuration
Configuration
Access
Access
Access
Access
Accu Servicing
Accu Servicing
Accu Servicing
Accu Servicing
Help
Help
Help
Help
________
ARGUS 42 PLUS
_______
__________
21
4 Operating instructions
2. case:
DC voltage on the line equal to
or greater than 60VDC


<LINE>
<ISDN>
The ARGUS opens the Access menu.
Set up Layers 1 to 3 for U-interface.
Afterwards, the ARGUS will show the
status display for the U-interface, see
page 115.
In setting up the U-interface connection,
the ARGUS will use the access and mode
parameters last used.
<ADSL>
3. case:
DC voltage on the line less
than 60 VDC
Setting the VDC threshold
Configuration
VDC threshold
22










<LINE>
Setting up an ADSL connection, see
page 48.
The ARGUS opens the Access menu.
<POTS>
The ARGUS will open the Status display. 
POTS accesses, see page 165.
<ADSL>
Setting up an ADSL connection, see
page 48.





The user-definable DC threshold value (shown at the
side) is used to determine which type of access is
displayed on the softkey in the middle. If the voltage
is less than this threshold, the ARGUS will show that
the access is a POTS access.
Using the keypad, you can enter a value ranging from
0 V to 199 V. The default threshold voltage is 67 V.
ARGUS 42 PLUS
4 Operating instructions
Starting functions with the numeric keys/key combinations
Using the numeric keys, you can start important ARGUS functions/tests directly, regardless
of the menu that the ARGUS is currently showing. If a function is called where the ARGUS
expects the entry of a digit, pressing a number key will be interpreted as the expected input.

The assignment of functions to the numeric keys can also
viewed on the ARGUS display. Open the Main menu and
select “Help”.
The ARGUS will display the
“assignment” of the numeric
keys.

Operation on an ADSL or Ethernet access (Access mode: ATU-R)
Numeric key 2
Start a VPI/VCI scan
Numeric key 3
Start a Ping test
Numeric key 5
Start HTTP download
Numeric key 8
The ARGUS will open the Trace/remote menu
Numeric key 9
Start the MDI Analysis
Display the Line status
Start VoIP telephony
Operation on an ISDN Access
Numeric key 2
Start the service check
Numeric key 3
Start Supplementary Service test
Numeric key 4
Start Auto-Test
Numeric key 5
Send test results to a PC
Numeric key 6
Start the Test Manager
Numeric key 7
Open the Speed-Dialling Memory
Numeric key 8
The ARGUS will open the Trace/remote menu
Numeric key 9
BERT start
Level measuring
Call setup
ARGUS 42 PLUS
23
4 Operating instructions
Operation on a POTS Access
Numeric key 5
Send test results to a PC
Numeric key 7
Open the Speed-Dialling Memory
Numeric key 8
The ARGUS will open the Trace/remote settings menu
Level measuring
Call setup
In general the following assignments apply to all operating modes and
access modes:
Numeric key 0
Display ARGUS Status
Numeric key 1
Show the “Function assignment” on the ARGUS display
One after the other
Display the available SW options
and
One after the other
and
Reset all the parameters to their default values.
The speed-dialing memory with the call
numbers, PPP user name, PPP password, IP
addresses, Profile names, User-specific
services, Keypad Infos and all of the test
results stored in the ARGUS (e.g. Automatic
test sequence on an ISDN access, ADSL test
results etc.) will be deleted.
24
ARGUS 42 PLUS
4 Operating instructions
Set the volume of the (receiver/headset).
The volume of the receiver or headset can be set for each type of access separately
during a connection by using the
-key. In the case of an ISDN connection, 
<VOLUME> softkey will also be shown.
ISDN connection 
(BRI S/T or U-interface)
POTS connection
-- = lower, louder
-Key: Confirm
entries
<EXT.> or <INT.> to
manually switch
between the integrated
receiver and the jack
for an external headset.
Manually switching between the internal receiver and the headset jack.
If the jack for an external <EXT.> headset is selected manually, the internal
receiver <INT.> will be muted. This setting will be saved, until it is manually
switched back to the internal receiver <INT.> or a headset is plugged in and then
unplugged again.
Automatic headset detection
When an external headset is plugged into the ARGUS, it will automatically switch
to headset operation <EXT.> and will return to the internal receiver when the
external headset is unplugged. In the meantime, you can switch between <INT.>
and <EXT.> manually.






ARGUS 42 PLUS
25
4 Operating instructions
Charging the accumulators for the first time
The battery compartment for the three accumulators (rechargeable batteries) and the
connector for the optional battery pack are located on the back of the case. Unscrew the
screws to remove the cover of the case and insert the accumulators in accordance with the
polarity marking. Use only the accumulators included in the package. The battery pack is
plugged into connector on the back of the case and fastened to it with a screw. With the
ARGUS switched off, connect it to the supplied plug-in power supply.
Press the
-key to switch the ARGUS on. The following will be shown on the display:

The state of the accumulator
charge (if it is not connected to
the power supply)

Current assignment of the
softkeys







Press the softkey


Name of the menu
Selected Command








Press the softkey

The ARGUS will switch itself
off automatically as soon as
the accumulators are
recharged.






The accumulators supplied must be fully charged and discharged three times (see page
187 Charge accus) before they will achieve their maximum capacity.
26
ARGUS 42 PLUS
4 Operating instructions
Power Management
In accu/battery operation, if the ARGUS is idle for 5 minutes (default), it will
automatically switch to the power-down mode (power-down). The ARGUS will
remain in power-down mode until the Power-Key is pressed again. Reasonably
enough, the ARGUS will not enter power-down mode during a test (e.g. Loopbox)
or when it is in Trace mode.

As an alternative, it is possible to operate the ARGUS using the included power supply. If
the ARGUS is connected to the plug-in power supply, it will automatically disconnect the
accumulators and will not enter power-down mode. You should only operate the ARGUS
with the accumulators installed. This will ensure among other things the uninterrupted
operation of the real-time clock.
Power Management settings:
If desired, the settings recommended for the times may be changed. In this case, the
settings for the automatic power-down and for the display lighting may be set separately.
Settings under: "Menu\Configuration\Device\Power management"
Caution! If you change the recommended (default) settings, this may lead to
shorter battery operation!
ARGUS 42 PLUS
27
4 Operating instructions
An Overview of the ARGUS Connections
28
ARGUS 42 PLUS
5 Menu Hierarchy
5 Menu Hierarchy
Case 1: no DC voltage on the line
Switch the
ARGUS on
1
Optional: Detection of HF after
powering on (displayed in kHz)
Displays the AC voltage (VAC)
Displays the DC voltage (VDC)
Selection of a profile (only
when more than one profile
is enabled), the Annex A,
Annex B and Annex M
profiles will be displayed,
see page 40.
2
Setting up an ADSL
connection
see page 48
3
Copper test
Hold depressed
for 2 seconds!
1
The ARGUS checks the resistance and
capacitance of the voltage-free (disconnected)
line (out of service measurement), see
page 171.
Main menu selections:
Single tests
see page 32
Test reports
display the stored results
send the results to a PC
delete the results
see page 173
Configuration
Setting the parameters (e.g. ADSL profile)
see page 39
Access
Selection of the physical access, see page 40
Accu servicing
see page 186
4
ARGUS 42 PLUS
29
5 Menu Hierarchy
The Access menu
4
The ARGUS opens the Access menu:
- ADSL
- Ethernet
- S-Bus interface (BRI)
- U-interface
- POTS
- Copper test
ADSL
see page 37
see page 60 
see page 159 
see page 160 
see page 165 
see page 171
3
1
1
6
The ARGUS takes all of the
parameters necessary for
setting up the ADSL connection
from the profile shown on the
display see page 52.
5
BRI S/T
1
30
6
5
6
Start POTS monitor –
high impedance listeningin with no influence on the
interface, see page 169.
2
ISDN access
The Access Mode menu will open
automatically for an:
- ISDN access, see page 111
- ADSL access, see page 37
- Ethernet access, see page 60
U-interface
ARGUS State display: see page 111
The ARGUS displays the
availability of the B-channels.
a level evaluation, the access
mode, the bus configuration and
the protocol.
Repeat the Bchannel test,
see page 114.
BRI S/T, 
U-Interface
Copper test
POTS
1
6
Repeat the Bchannel test,
see page 114.
ARGUS 42 PLUS
5 Menu Hierarchy
5
Access Mode Menu
The Access mode menu will open automatically if an ADSL access is selected:
ADSL access
- ADSL
1
6
2
see page 38
The ARGUS takes all of the
parameters necessary for
setting up the ADSL connection
from the profile shown on the
display (see page 52).
For more information regarding the Menu Hierarchy please see the
included detailed menu diagram. The current menu diagrams can also
be found under www.argus.info/en/service
ARGUS 42 PLUS
31
5 Menu Hierarchy
6
Main menu
Depending on the type of access selected, the Main menu
will include not only the Access menu but also the following
menus:
The Single Tests Menu
BRI S/T / U-interface access
Bit error rate test
- BERT start
- BERT wait
- B-channel loop
Supplementary
Services
see page 129
Service tests
X.31 test
see page 133
- Automatic
- Manual
CF interrogation
ADSL access
see page 136
see page 140
CF activation
see page 142
CF delete
see page 143
Connection display
see page 145
IP ping
see page 81
HTTP download
see page 90
VPI / VCI Scan
ATU-R only
ATM OAM ping
ATU-R only
VoIP telephone
MDI analysis
Ethernet with protocol
see page 119
see page 75
see page 78
see page 95
ATU-R bridge and
ATU-R router only
Ping
see page 105
see page 81
HTTP download
see page 90
VoIP telephone
see page 95
MDI analysis
see page 105
The Test Manager Menu
BRI S/T / U-interface access
Administration of
tests or connections
running in parallel
- Start new one
- Stop all
see page 154
The Connection Menu
POTS access
Setup a POTS connection
see page 168
High impedance listening-in
see page 169
The Start Monitor Menu
POTS access
32
ARGUS 42 PLUS
5 Menu Hierarchy

The Line Status Menu
ADSL access
Display the ADSL connection parameters
see page 52
Display and manage the
saved test results



Run an automatic test
series on an ISDN access
see page 173
The Test Results Menu
- View
- Test data to PC
- Delete
- All to PC
- Delete all
- Start (ISDN)
The Level Measuring Menu
Measure the voltage and
display the polarity on the
access under test
see page 59
Display the current Layer
1 status
see page 161
The L1 Status Menu
BRI S/T access
The Configuration Menu
The ARGUS can be configured to suit special requirements. The parameters are organized in
submenus (e.g. all the ADSL parameters are in the Profile submenu) The default (factory) settings
can be restored by selecting “Reset”.
Trace / remote
see page 181
Profile
see page 46
ISDN parameters
see page 116
BERT parameters
see page 120
POTS parameters
see page 166
VDC threshold
see page 22
X.31 parameters
see page 136
Device settings
see page 182
Numbers
see page 184
Reset
see page 184
Selection of the physical access
see page 37
Discharging and recharging the accumulators
see page 187
Show the keypad “Function assignment” on the
ARGUS display.
see page 23
The Access Menu
The Accu Servicing Menu
The Help Menu
ARGUS 42 PLUS
33
5 Menu Hierarchy
Switch the
ARGUS on
Case 2: DC voltage on the line equal to
or greater than 60 VDC
1
Optional: Detection of HF after powering
on (displayed in kHz):
Displays the AC voltage (VAC)
Displays the DC voltage (VDC)
2
Selection of a profile (only
when more than one profile
is enabled), only the Annex B
profile will be displayed, 
see page 46.
Setting up an ADSL
connection. Based on the
voltage, the ARGUS
determines that the ADSL
mode used is e.g. Annex B.
U-interface
ARGUS State display: see page 115
The ARGUS displays the access coding, 
the voltage, the access mode, the bus
configuration and the protocol.
Hold
depressed for
2 seconds!
1
6
see page 32
Repeat the Bchannel test,
see page 114.
4
further, see page 30
34
ARGUS 42 PLUS
5 Menu Hierarchy
Switch the
ARGUS on
Case 3: DC voltage on the line
less than 60 VDC
1
Optional: Detection of HF after
powering on (displayed in kHz)
Displays the AC voltage (VAC)
Displays the DC voltage (VDC)
Selection of a profile (only
when more than one profile
is enabled), only the Annex A
and Annex M profiles will be
displayed.
2
Setting up an ADSL
connection.
Based on the voltage, the
ARGUS determines that the
ADSL mode used is e.g.
Annex A.
Hold
depressed
for 2
seconds!
1
6
see page 32
Start the POTS monitor
High impedance tap (listening-in)
- no influence on the interface,
see page 169.
4
further, see page 30
ARGUS 42 PLUS
35
5 Menu Hierarchy
36
ARGUS 42 PLUS
6 Operation on an ADSL Access
6 Operation on an ADSL Access
The ARGUS supports the following types of access (access modes):
ATU-R
Terminal mode (ADSL Transceiver Unit Remote) see page 47.
Connection of the ARGUS directly to the ADSL access (before or
after the splitter). The ARGUS replaces both the modem and the PC.
ATU-R Bridge
Bridge mode (ADSL Transceiver Unit Remote Bridge) see page 54.
Insertion of the ARGUS between the ADSL access and the PC. The
ARGUS replaces the ADSL modem.
ATU-R Router
Router mode (ADSL Transceiver Unit Remote Router) see page 56.
Insertion of the ARGUS between the ADSL access and the PC. The
ARGUS replaces both the ADSL modem and the router.
The individual tests record and store data. The user must comply with the
statutory regulations governing the collection and storage of such data and his
obligation to give notice in this connection.
ARGUS 42 PLUS
37
6 Operation on an ADSL Access
6.1 Setting the ADSL Interface and Access Mode
Using the original ARGUS cable, connect the ARGUS to the access to be tested and
then switch the ARGUS on.
The Access Menu
Select an ADSL (physical)
interface.
The ADSL connection is
not yet set up!
The Access mode menu is
not selectable from the Main
menu. It opens automatically
once the ADSL physical
access has been selected. 
ATU-R see page 47
ATU-R Bridge see page 54
ATU-R Router see page 56
ARGUS State display
The ARGUS displays the
access mode and the DC
voltage on the access
interface. The ADSL
connection is not yet set
up!
ARGUS Main menu
see page 32
38
ARGUS 42 PLUS
6 Operation on an ADSL Access
6.2 ADSL Settings
The ARGUS stores all of the parameters required to run a test (determination of the ADSL
connection parameters, ping test) on an ADSL access in a profile. Up to 10 user-defined
profiles can be created. A profile must be selected before an ADSL test is run. Only those
parameters which are relevant will be used for the respective test situation. 
The default settings can be restored at any time (see page 184). The procedure for
configuring a parameter is the same for all parameters and will be illustrated with a single
example:
Configuration
<
>
<EDIT>
In the Main menu, select “Configuration”.



Select “Profile”.





Select the profile to be edited.
The currently selected profile is indicated by the
(in the example, Profile 1)
The ARGUS will use the parameters in the current profile
when setting up the ADSL connection. The currently active
profile is indicated by the  
(in the example: Profile 2)
Activating a profile: 
<>
Select the profile
< >
or
The ARGUS will use the profile marked with the 
 as the current profile (the current profile will
be marked with an  in the display).


Open the selected profile for editing


e.g. select Access parameter
ARGUS 42 PLUS
39
6 Operation on an ADSL Access

e.g. select Physical Access



e.g. select ADSL




e.g. select ADSL mode


Select the desired ADSL mode.
The ARGUS will now store this setting in the
< >
profile.
<
> The ARGUS will return to the previous display
without saving the selected setting.




























40
ARGUS 42 PLUS
6 Operation on an ADSL Access

Setting
Explanation
Access parameters
Phys. access
ADSL:
Access parameters for the ADSL connection
ADSL mode
Different ADSL modes can be selected depending on the national
variant of the ARGUS. The selected ADSL mode must be compatible
to ATU-C (network-side). If the ADSL mode “Annex A(B) Auto” is
selected, the ARGUS will automatically determine the configuration
of the DSLAM ( G.DMT or ANSI) and set itself accordingly. 
Default setting: dependent on the national variant
Rated values
Use the keypad to enter the upstream and downstream comparison
values for the ATM bitrate [kbit/s]. If the current bitrates on the ADSL
connection exceed the rated values, the ARGUS will display "OK“,
otherwise it will display "FAIL“.
Default setting: d: 0 and u: 0
Protocol:
Selection of the transfer protocol that the ARGUS should use for the
test (e.g. for an IP test).
Protocols for ADSL:
PPPoE (PPPoEoA) - Point-to-Point Protocol over Ethernet
PPPoA - Point-to-Point-Protocol over ATM
EoA (IPoE, IPoEoA) - Ethernet over ATM
IPoA - Internet Protocol over ATM
Default setting: PPPoE
ATM:
Settings for Asynchronous Transfer Mode
VPI / VCI
VPI:
Enter Virtual Path Identifier
VCI:
Enter Virtual Channel Identifier
Ranges: VPI: 0 to 127, VCI: 32 to 255
Default setting: VPI: 1 and VCI: 32
Encapsulation
Selection of the encapsulation of the packets to be sent 
(LLC or VC-MUX). 
Default setting: LLC
ARGUS 42 PLUS
41
6 Operation on an ADSL Access
MAC / VLAN:
MAC (Media Access Control) and VLAN (Virtual Local Area
Network)
MAC address
Display and selection of the MAC addresses. 
The first two MAC addresses cannot be changed. If the default MAC
address is selected, the Argus will use its onw MAC address.
If Dynamic MAC Address is select a different MAC address will be
used for each synchronization.
Default setting: Default MAC Address
A third MAC address can be entered: 
Mark a line and then press <Edit>.
<Edit> Enter the address in hexadecimal using the 
keypad and the softkeys <A..F> (e.g. to enter a “C”
press the softkey three times or to enter an “F” six
times, then finish up by pressing <OK> to confirm
your entry). 
Default setting: 00:00:00:00:00:00
Use the address.
The new address is only saved temporarily and will
not be available when the ARGUS is switched on
again.
VLAN
Use
Specifies whether or not VLAN should be used:
VLAN:
yes or no.
Default setting: No
ID:
Identifier for the VLAN to which the frame belongs.
Every VLAN is assigned a unique number, the VLAN
ID. A device, which belongs to the VLAN with the ID
= 1, can communicate with every other device in the
same VLAN, but not with a device in other VLANs
(one with an ID other than 1, i.e. 2).
Range: from 0 to 4095
Default setting: 0
Priority:
User - priority information: An eight-level (3 bits)
priority can be assigned to each frame. In this
manner, it is possible e.g. to give priority to
forwarding voice data (in the case of VoIP), while
HTTP data will be handled as a lower priority.
Range: 0 to 7
Default setting: 0
42
ARGUS 42 PLUS
6 Operation on an ADSL Access
PPP:
PPP (Point- to-Point Protocol) settings
User name
Entry of the user name assigned (by the network operator)
Use the keypad to enter the user name. When the right
softkey is pressed it assumes a different meaning and thus
influences the entries made from the keypad (letters or
digits), page 51.
Password
Entry of the password assigned by the network operator: (see
above)
Set the IP
If “Yes”, the IP address entered as own IP address will be used for
the connection.
Default setting: No
Activation
delay
After setting up the PPP connection, the ARGUS will first wait until
the period specified in the “activation delay” has elapsed before
beginning a test.
Range: 2 to 10 seconds
Default setting: 2
IP:
Internet Protocol setting (for EoA)
IP address
Setting the assignment of the IP addresses
Static IP:
fixed IP addresses
DHCP client: 
IP address assigned by the server (remote end)
DHCP server:
IP address assigned by the ARGUS
DHCP auto:
The ARGUS will check whether there is a DHCP
server in the network. If yes, the IP address will be
assigned by the server. Otherwise, the ARGUS
will assign the address.
Default setting: DHCP client
Own
IP address
own local IP address of the ARGUS
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
IP netmask
IP netmask 
Range: 0.0.0.0 to 255.255.255.255
Default setting: 255.255.255.0 (see RFC 3330 regarding
assignment)
Gateway IP
Gateway IP address
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
ARGUS 42 PLUS
43
6 Operation on an ADSL Access
DNS server
DNS server 1 and DNS server 2
Entry of the IP address of the Domain Name System server
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
DHCP client
DHCP timeout (setting of how long to wait for the IP address):
Range: 1 to 9999 seconds
Default setting: 20
DHCP vendor ID:
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP vendor ID in ASCII format
Default setting: ARGUS, operation see page 43
- HEX data: Enter the DHCP vendor ID in hexadecimal format
For instructions, see MAC address page 42.
DHCP vendor info:
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP vendor info in ASCII format
Default setting: ARGUS, operation see page 43.
- HEX data: Enter the DHCP vendor info in hexadecimal
format (for instructions, see MAC address) page 42.
DHCP user class information
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP user class i. in ASCII format
Default setting: ARGUS, operation see page 43.
- HEX data: Enter the DHCP user class information in
hexadecimal format (for instructions, see MAC address) page 42.
DHCP user-defined option 
(Create a user-defined DHCP option)
- Option number 
- Range: 0 to 255
Default setting: 255 = off
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Entry of the DHCP userdef. option in ASCII format
Default setting: ARGUS, operation see page 43.
- HEX data: Enter the DHCP user-defined option in
hexadecimal format (for instructions, see MAC address) page 42.
44
ARGUS 42 PLUS
6 Operation on an ADSL Access
DHCP server
Settings for the DHCP server:
- Start and end IP addresses
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
- Name of the domain, for information on the operation see page 43.
- The period for which the IP addresses are reserved
Range: 1 to 99999 hours
Default setting: 240
Bridge / Router
Ethernet
Autonegotiation On or off: If autonegotiation is enabled, a network card can
independently determine the correct transmission speed and duplex
setting for the Ethernet port to which it is connected and configure
itself accordingly.
In the case of Ethernet, autonegotiation is based on layer 1 of the
OSI Model (in accordance with the IEEE 802.3u standard). 
Default setting: on
IP:
IP mode
Setting the assignment of the IP addresses
Static IP:
fixed IP addresses
DHCP client:
IP address assigned by the server (remote end)
DHCP server:
IP address assigned by the ARGUS
DHCP auto:
The ARGUS will check whether there is a DHCP
server in the network. If yes, the IP address will be
assigned by the server. Otherwise, the ARGUS
will assign the address.
Default setting: DHCP client
Own
IP address
own local IP address of the ARGUS
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
IP netmask
IP netmask 
Range: 0.0.0.0 to 255.255.255.255
Default setting: 255.255.255.0 (see RFC 3330 regarding
assignment)
ARGUS 42 PLUS
45
6 Operation on an ADSL Access
DHCP server
Settings for the DHCP server:
- Start and end IP addresses
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
- Name of the domain, for information on the operation see page 43
- The period for which the IP addresses are reserved
Range: 1 to 99999 hours
Default setting: 240
Test parameters The test parameters are described in the chapters on IP tests, VoIP
tests, and MDI analysis.
Data Log
Data Log on or off: This setting must be "on" in order to send a trace
file to a PC, see page 173.
Default setting: off
Profile 
use
To set the profile to be used. 
Profile name
Enter the name of the profile
46
Yes: use this profile and display it in the profile list.
ARGUS 42 PLUS
6 Operation on an ADSL Access
6.3 The ARGUS in the ATU-R Access Mode
6.3.1 Determining the ADSL connection parameter
Using the xDSL connection cable (consisting of the xDSL cable and the xDSL adapter), the
ARGUS is connected directly to the ADSL access (either before or after the splitter). In this
case, the ARGUS replaces both the modem and the PC.

Use only the cable included in the package!
Connector
Line

xDSL connection cable
xDSL cable
xDSL
adapter
ADSL
access
The ARGUS uses the access parameters stored in the profile when setting up the
connection (see page 40).
The ARGUS may need a few seconds to record all of the parameters. To be
certain that all of the parameters have been recorded, simply examine the Bits/
Tone or SNR/Tone graphs. If the ARGUS can display these, it must have also
recorded all of the rest of the parameters. 
If the test is terminated too early (right after synchronization), it is possible that
some of the important parameters will not be included in the test report.
Setting the ATU-R access mode:
Access
<
>
<
>
<
>
ADSL
ATU-R
ARGUS 42 PLUS
The ARGUS - Main menu










The ADSL test is not yet started
47
6 Operation on an ADSL Access
Setting Up an ADSL Connection
The ARGUS will set up an ADSL connection and determine all of the relevant ADSL
connection parameters. The ARGUS displays the connection parameters and saves them
after the connection is cleared down if desired.
If an ADSL connection is set up directly after the
ARGUS is switched on, the Access mode will
always be set to “ATU-R”. 

Setting up an ADSL connection from the Status
display.
In this case, the access mode must first be
selected in the Access mode menu (see page 38).
In this example, “ATU-R”.

The ARGUS displays the profiles released for use
(see page 46). The current profile will be released
for use automatically. The display shown at the
side will only appear if more than one profile has
been released for use. If this is not the case, the
ARGUS will immediately begin the initialization
using the current profile’s parameters to set up the
connection (the current profile is marked with an
“*” in the Configuration menu).

<EDIT>
Edit the profile marked with the .
The ARGUS opens the Configuration
menu: In this menu, you can edit the
parameters of the selected profile
(see page 39).

The ARGUS will use the parameters in the profile
marked with the . 
The currently active profile will only be marked
with an * (not an .


Initialization
Initializing the hardware



48
ARGUS 42 PLUS
6 Operation on an ADSL Access

The ARGUS synchronizes with the DSLAM (the “L1
Sync” LED will flash). The ARGUS will display the current
modem state.
<STOP>
Cancel setup


The ARGUS displays the current modem state, the setup
time (in the example: 23 seconds) and the ADSL mode.
> The ARGUS will return to the previous display
<
<TRACE> Command symbols:
< = command sent from the ARGUS
> = command sent from modem
= modem status
<TIME>
Display showing when the commands arrive.

Once the connection has been setup (“L1 Sync” LED on
constantly), the ARGUS will determine the ADSL
connection parameters.
ARGUS 42 PLUS
49
6 Operation on an ADSL Access
Connection successfully setup
Once the ADSL connection has been setup (“L1/Sync” LED on constantly), the ARGUS will
determine and display the ADSL connection parameters.
Once the ARGUS has successfully synchronized, the error counters will be reset to zero.
After the ARGUS has synchronized, please leave it connected to the ADSL access for at
least another 20 seconds since the ADSL connection parameters are first available to be
stored in the ARGUS after this period of time.
Display of the downstream and upstream bit rates.
The ARGUS will display an OK if the bit rate achieved is
greater than the target value set (see page 40). Otherwise,
it will display a FAIL.
<MENU>
The ARGUS will open the Main menu.
<STOP>
Clear down the ADSL connection

The ARGUS will display the ADSL mode, the duration of
the connection (Elapsed) and the ADSL connection
parameters. 
 -, -Keys Display the ADSL connection parameter
see table page 52.
<TRACE>
Display the commands and modem state.
Reset the error counters: FEC, CRC, HEC
CAUTION: Once showtime has been reached,
the ARGUS will automatically reset the error
counters.
Press any
softkey
Press any
softkey
Display bit distribution
e.g. bits transported per carrier frequency (tone).
y-axis: bits per carrier frequency (tone)
x-axis: tones (carrier frequencies)
Based on the bit distribution, it is possible to detect line
disturbances (e.g. HDB3, HDSL, RF etc.)

Display of the signal-to-noise ratio for each tone
y-axis: SNR in dB 
x-axis: tones (carrier frequencies)
Shows interference or noise by frequency.

Display of the quiet level noise (QLN) for each tone The
QLN is measured once before synchronization (it is not
checked continuously) and can be examined after
synchronization. 
y-axis: QLN in dBm/Hz
x-axis: tones (carrier frequencies)
Detection of disturbances on the line.
Press any
softkey
50
ARGUS 42 PLUS
6 Operation on an ADSL Access





Close the results display.




Clear down the ADSL connection.

<IP>PC>:
The ARGUS will send the trace file to the connected PC,
which must be running WINplus or WINanalyse. The data
will be saved in the "*.log" format and can be renamed to
"*.pcap" and decoded with a freeware program (such as
Wireshark). The setting “Data Log” must be set to “on”. In
bridge and router mode, two log files will be loaded to the
PC, one for the WAN and one for the LAN side.

Save the results (see page 173).

The ARGUS will save the test results in the first free record.
This record can be assigned any name (default: AMP_1,
AMP_2, AMP_3, etc. or the call number of the access
under test if the number has been entered into the speeddialling memory, see page 185). If all of the records have
been written, you must manually select a memory location
(record).
A record name can be entered using the numeric keypad.
When the right softkey is pressed it assumes a different
meaning and thus influences the entries made from the
keypad:
ARGUS 42 PLUS
<12>ab>
Entry of the digits 0 to 9 plus * and #
<ab>AB>
Entry of the lowercase characters 
and @, /,-, .
(e.g. to enter a "c“ press the "2" on the keypad
three times).
<AB>12>
Entry of the uppercase characters and @, /,-, .
<DEL>
Delete the character before the cursor
 -,-Keys
Move the cursor
<START>
Set up an ADSL connection again
51
6 Operation on an ADSL Access
The ARGUS will determine the following ADSL connection parameters downstream (d:)
and upstream (u:):
ADSL Connection Parameters
Latency mode
Depending on the configuration of the DSLAM, the ARGUS will
display either Interleaved or Fast mode.
Target value
comparison
The target value, which was set for the bit rate, is compared with
ATM
The actual useable ATM bitrate in kbit/s.
Attain. ATM
This is the theoretically attainable bitrate in kbit/s.
Rel.capacity
Utilization of the line as a percentage.
Attenuation
The line’s attenuation in dB over its entire length.
Output PWR
Output power in dBm.
SNR margin
The signal-to-noise margin in dB; the SNR margin is a measure
the rate actually achieved (see page 40).
of how much additional noise the transmission can withstand and
still achieve a BER (Bit Error Rate) of 10-7.
Interl. Depth
The interleave depth in bytes Interleaving is a procedure that
arranges the data transmitted in a non-contiguous order and is
used to protect the data transmission against impulse noise
(burst errors).
INP
The Impulse Noise Protection (INP) is an indicator of the quality
of the protective mechanism as far as impulse noise is
concerned.
The number of DMT symbols, which can be completely distorted
in succession, without an error occurring on the higher layers.
Interleave Delay
This is the delay (in ms) caused by interleaving the data blocks.
FEC
Forward 
Error 
Correction
The FEC shows the number of transmission errors corrected
using the ATM cell checkbytes.
In upstream (far) and downstream (near):
f (far): Errors that the DSLAM has detected and informed the
ARGUS.
n (near): Errors which were detected by the ARGUS in the blocks
it received.
52
ARGUS 42 PLUS
6 Operation on an ADSL Access
CRC
Cyclic 
Redundancy
Check
The super-frame checksum sent from the opposing end does not
match the one calculated locally. 
Possible cause: Fault on the line.
In upstream (far) and downstream (near):
f (far): Errors that the DSLAM has detected and informed the
ARGUS.
n (near): Errors which were detected by the ARGUS in the blocks
it received.
HEC
Header
Error Checksum
The HEC shows the number of ATM cells with bad header
checksums.
In upstream (far) and downstream (near):
f (far): Errors that the DSLAM has detected and informed the
ARGUS.
n (near): Errors which were detected by the ARGUS in the blocks
it received.
Err. Count. Reset
Shows how often the error counters have been reset.
Resync
Number of times that the ARGUS has been resynchronized.
Vendor far
The manufacturer of the ATU-C side shown as hexadecimal
number.
Version
Vendor Specific Information, generally shows the version of the
software running at the ATU-C (DSLAM) end.
6.3.2 Tests in ATU-R Access Mode
Depending on the protocol, the following ADSL tests are supported:
ATM tests, see page 75
- VPI/VCI scan
- ATM OAM ping
IP tests, see page 81
- IP ping
- HTTP download
VoIP tests, see page 95
- VoIP telephony
IPTV tests, see page 105 - MDI analysis
ARGUS 42 PLUS
53
6 Operation on an ADSL Access
6.4 The ARGUS in the ATU-R Bridge Access Mode
In Bridge mode, the ARGUS acts like an ADSL modem, i.e. the ARGUS passively passes
all packets from the Ethernet interface to the ADSL access (and vice versa). In this case,
the PC is responsible for setting up the connection.

Ethernet
PC
ADSL
Protocol e.g. PPPoE
ADSL
access

Setting the parameters:
In addition to the physical parameters, Bridge mode also
requires that the two following ATM parameters (connection
parameters):
- VPI / VCI (page 41) 
- Encapsulation (page 41)





ADSL connection in Bridge mode:
ATU-R bridge
54












In the Access mode menu, select "ATU-R Bridge".
ARGUS 42 PLUS
6 Operation on an ADSL Access
Set up an ADSL connection.

The ARGUS will display the profiles released for use. The
current profile will be released for use automatically. The
display shown at the side will only appear if more than one
profile has been released for use. If this is not the case, the
ARGUS will immediately begin the initialization using the
current profile’s parameters to set up the connection (the
current profile is marked with an “*” in the Configuration
menu). 
<EDIT> Edit the profile marked with the . Open the
Main menu. In this menu, you can edit the
parameters of the selected profile see page 39.

The ARGUS will use the parameters in the profile marked
with the . 
The currently active profile will only be marked with an * (not
an .

The ARGUS will first synchronize itself with the DSLAM.
Afterwards, it will initialise the software.
While the ARGUS is attempting to set up the ADSL
connection, the "L1 Sync" LED will flash.

Once the connection has been setup (“L1 Sync” LED on
constantly), the ARGUS will determine the ADSL
connection parameters.
The ARGUS display how long it has been in Bridge mode.
<STAT.> Display the statistics.
<PHYS.>
Display the physical parameter.
Displayed when the ADSL connection has been set up:
ADSL mode and duration of the ADSL connection
Display the ADSL connection parameter
(see the table on page 52).
<ADSL>
ADSL connection parameter.
<ETH>
Display the Ethernet Phys. Parameters.
<TRACE>
Display the commands and modem state.
<GRAPH>
Bit distribution display: Display of the signalto-noise ratio for each tone.
Display of the quiet level noise (QLN) for each
tone.
When the connection is being cleared down, you will be prompted as to whether the results
should be saved (see page 50). 
6.4.1 Tests in ATU-R bridge access mode
IPTV tests, see page 105 - MDI analysis
ARGUS 42 PLUS
55
6 Operation on an ADSL Access
6.5 The ARGUS in the ATU-R Router Access Mode
Connect the ARGUS to the ADSL access using the xDSL cable and to the PC with a patch
cable.
In router mode, the ARGUS replaces not only the modem but also the router. In this case,
several PCs (connected via a hub/switch) can access the connection via a network
connection. The network IP addresses can either be assigned statically or the ARGUS can
serve as a DHCP server and assign IP addresses to the connected PCs.

The ARGUS does not have
a firewall!
PC
Hub/Switch
IP
PPPoE, PPPoA, 
IPoA or EoA (IPoE)
IP
Ethernet
ADSL
Ethernet
ADSL
Access
PC
IP
Ethernet
Settings for Ethernet / Protocol IP: see page 45
Setting
Bridge / Router
Ethernet
Autonegotiation on / off
IP
- IP mode
- own IP address
- IP netmask
- DHCP server:
Router
NAT on / off



Start / End address
domain, 
Reservation period









56
ARGUS 42 PLUS
6 Operation on an ADSL Access
Protocol-dependent settings for ADSL:
Setting
Access parameters
ARGUS 42 PLUS
Phys. Access
ADSL
ADSL mode
Protocol
PPPoE (PPPoEoA), PPPoA , IPoA, EoA
ATM
Default VC:
VPI / VCI
(Multicast VC)
Encapsulation
MAC / VLAN
(IPoA and EoA protocols only)
MAC address
VLAN
PPP 
(PPPoE/PPPoA protocols only)
User name
Password
Set the IP
Activation delay
IP
(IPoA and EoA protocols only)
IP Mode (Static IP)
own IP address
IP netmask
Gateway IP
DNS server
DHCP client
DHCP server
57
6 Operation on an ADSL Access
Setting the ARGUS-Router Access Mode
The ARGUS - Main menu 










The ADSL connection is not yet setup
<START> Set up an ADSL connection.
Access
ADSL
ATU-R router

The ARGUS will display the profiles released for use. The
current profile will be released for use automatically. The
display shown at the side will only appear if more than one
profile has been released for use. If this is not the case, the
ARGUS will immediately begin the initialization using this
profile’s parameters to set up the connection (the current
profile is marked with an “*” in the Configuration menu). 
<EDIT> Edit the profile marked with the . The ARGUS
opens the Configuration menu: In this menu, you
can edit the parameters (page 40).
The ARGUS will use the parameters in the profile marked
with the . The currently active profile will only be marked
with an * (not an .
The ARGUS will first synchronize with the DSLAM (the “L1
Sync” LED will flash). Afterwards, it will initialise the
software.Tests with router mode active
Display the ADSL connection parameters,
trace data, bit distribution etc.
Initialization
<STOP>
Router mode active!
Deactivate router mode 
and clear down the ADSL connection.
The following tests can be performed:

Single tests

IP ping
Select test
Start test
58
For more information, see page 81
HTTP download
For more information, see page 90
VoIP phone
For more information, see page 95
MDI analysis
For more information, see page 105

ARGUS 42 PLUS
6 Operation on an ADSL Access
6.5.1 Tests in ATU-R router access mode
Depending on the protocol, the following ADSL tests are supported:
IP tests, see page 81
- IP ping
- HTTP download
VoIP tests, see page 95
- VoIP telephony
IPTV tests, see page 105 - MDI analysis
6.5.2 Displaying the Test Results
Test reports

In the Main menu, select “Test results”.



 -Key
Select the record with the stored ADSL test
results, see page 173.



Select “Display result”.




Scroll through the test results
Scroll through the test results
< >
For details on the meaning of the parameters,
see page 52.

Bit distribution display 

<CONT.>
Display additional results:
- signal-to-noise ratio
- noise level without signal (QLN)
6.5.3 Level measurement on an access
Level measuring
ARGUS 42 PLUS

In the Main menu, select “Level measuring”.
May not be started if a synchronization has been begun.

Start measurement. The ARGUS displays the polarity and
the voltage on the line. The measurement will be updated
continuously.
59
7 Operation on an Ethernet Access
7 Operation on an Ethernet Access
In Ethernet mode, the ARGUS supports the following types of access:
The individual tests record and store data. The user must comply with the
statutory regulations governing the collection and storage of such data and his
obligation to give notice in this connection.
Connection to a modem:
Patch cable
Modem
Ethernet
ADSL
LAN jack
ADSL
Access
PPPoE (PPPoEoA)

Settings in the profile:
Access parameters
Protocol:
PPPoE (PPPoEoA)
MAC / VLAN:
MAC address see page 42
PPP:
User name, Password, Set IP, Activation delay, see page 43

Connection to a Router/Modem:
Patch cable
Router/
Modem
Ethernet
ADSL
LAN jack
IP (IPoE)
PPPoE, PPPoA, or EoA (IPoE)
ADSL
Access

Settings in the profile:
Access parameters
Protocol:
IP (IPoE)
MAC / VLAN:
MAC address see page 42
IP:
IP mode, own IP address (static IP), IP netmask (static IP), Gateway IP
address (static IP on PPPoE or PPPoA), DNS server (static IP on
PPPoE), DHCP client, DHCP server, see page 43
60
ARGUS 42 PLUS
7 Operation on an Ethernet Access
Connection to a PPTP Router/Modem:
PPTP
(Router)/
Modem
Patch cable
ADSL
Ethernet
LAN jack
PPTP
PPPoA
ADSL
Access

Settings in the profile:
Access parameters
Protocol:
PPTP
MAC / VLAN:
MAC address see page 42
PPP:
User name, Password, Set IP, Activation delay
PPTP:
IP address of the PPTP modem
IP:
IP mode, own IP address (static IP), IP netmask (static IP), Gateway IP
address (static IP on PPPoE or PPPoA), DNS server (static IP on
PPPoE), DHCP client, DHCP server, see page 43


Connection to a PC via IP (IPoE):
PC
Patch cable
Ethernet
LAN jack
IP (IPoE)


Settings in the profile:
Access parameters
Protocol:
IP (IPoE)
MAC / VLAN:
MAC address see page 42
IP:
IP mode, own IP address (static IP), IP netmask (static IP), gateway IP
(static IP), DNS server, see page 43
ARGUS 42 PLUS
61
7 Operation on an Ethernet Access

Connection to IP network:
PC
IP (IPoE)
Patch cable
Hub/Switch
Ethernet
LAN jack
IP (IPoE)
IP (IPoE)
IP (IPoE)
PC

Settings in the profile:
Access parameters
Protocol:
IP (IPoE)
MAC / VLAN:
MAC address see page 42
IP:
IP mode, own IP address (static IP), IP netmask (static IP), gateway IP
(static IP), DNS server, see page 43
62
ARGUS 42 PLUS
7 Operation on an Ethernet Access
7.1 Setting the Ethernet Interface
To use the ARGUS as a replacement for a PC, connect one end of the included patch cable
to its "LAN“ jack and the other end to a modem, hub, switch or PC (see sketch on page 60)
and then switch the ARGUS on.
<LINE>
Opens the Access menu.
The Access Menu:
Select Ethernet as the type of access. The
selected type of access will be marked with
an arrow in the display.
Ethernet will be used since it is the access type that is marked.
The Access Mode Menu:
Select the access mode:
Ethernet with protocol The protocol will be
setup directly and, afterwards PPP login and the
IP tests (e.g. VoIP) can be performed.
Ethernet no protocol: No protocol will be setup;
in this mode it is only possible to start an Ethernet
Loop from the Single Tests menu.

<START>
Start the Ethernet connection.
<STOP>
Disable the Ethernet connection.





Switch to the Line mode

Displays the current connection status.
Display the time elapsed since the activation.
ARGUS 42 PLUS
<STAT.>
Display the statistics.
<ETH>
Display the Ethernet Phys. Parameters
63
7 Operation on an Ethernet Access
BRAS information: The ARGUS displays 
(for the PPPoE protocol only) the BRAS 
(Broadband Remote Access Server) information:
- AC (Access Server) name of the server 
- Service name (name of the service)

Assigned configuration: The ARGUS will display the
IP configuration assigned by the server.
- IP address assigned
- Gateway IP address
- DNS server available

PPP information: The ARGUS will display the number
of PPP packets and bytes received (Rx) and sent (Tx).
LAN Ethernet: The ARGUS will display the number of
Ethernet frames received (Rx) and sent (Tx) and the
number of bytes and errors.


In the case of <PPP>, a PPP trace will be displayed
showing the sequence of PPP messages.
Command symbols:
<
= command sent from the ARGUS
>
= command sent from the DSLAM

-
PADI: PPPoE Active Discovery Initiation
-
PADO: PPPoE Active Discovery Offer
-
PADR: PPPoE Active Discovery Request
-
PADS: PPPoE Active Discovery Session confirmation
-
PADT: PPPoE Active Discovery Termination
-
LCP: Link Control Protocol
-
IPCP: Internet Protocol Control Protocol
-
PAP: Password Authentication Protocol

<Time>
The <Time> softkey is used to tag the individual
messages with times from the ARGUS system clock.
64
ARGUS 42 PLUS
7 Operation on an Ethernet Access
7.2 Ethernet Settings
The ARGUS stores all of the settings required to run a test (e.g. IP ping etc.) in profiles. Up
to 10 user-defined profiles can be created. A specific profile can be selected before a
connection is setup or a test performed, otherwise the ARGUS will use the default (preset)
profile. Only those settings which are relevant will be used for the respective test situation.
The default (factory) settings can be restored at any time (see page 184). The procedure
for changing a setting will be illustrated with a single example:
Configuration
Profile








Select a profile. The selected profile is
marked with an * (asterisk). 
The ARGUS will use this profile when setting
up a connection.
The ARGUS will use the marked profile as
the default profile and return to the Settings
menu.

Select the Access parameter
Access parameter


Select Phys. access
Phys. access


Select Ethernet
Ethernet
* On

Set autonegotiation (in the example, "on") The default
setting will be marked in the display with an asterisk
(*).
<
The ARGUS uses the marked
setting as the default and
returns to the next higher
menu.
ARGUS 42 PLUS
>
Open the next higher menu without making
any changes to the settings. 
The ARGUS will use the default setting


65
7 Operation on an Ethernet Access
Setting
Explanation
Access parameters
Phys. access
Ethernet
Autonegotiation
On or off: If autonegotiation is enabled, a network card can
independently determine the correct transmission speed and
duplex setting for the Ethernet port to which it is connected and
configure itself accordingly. In the case of Ethernet,
autonegotiation is based on Layer 1 of the OSI Model (in
accordance with the IEEE 802.3u standard). 
Default setting: on
For information on the off setting, also see the next chapter: 
Autonegotation / Ethernet Link Parameter
Protocol:
Selection of the protocol:
PPPoE (PPPoEoA) - Point-to-Point Protocol over Ethernet
IP (IPoE) - Internet Protocol over Ethernet
PPTP - Point-to-Point Tunneling Protocol
EoA (IPoE, IPoEoA) - Ethernet over ATM
Default setting: PPPoE
MAC / VLAN:
MAC (Media Access Control) / VLAN (Virtual Local Area Network)
MAC address
Display and selection of the MAC addresses. 
The first two MAC addresses cannot be changed.
If the default MAC address is selected, the Argus will use its onw
MAC address. Default setting: Default MAC Address
If Dynamic MAC Address is select a different MAC address will be
used for each synchronization. 
A third MAC address can be entered: 
Mark a line and then press <Edit>.
<Edit> The address is entered in hexadecimal using the
numeric keypad and the <A..F> softkey (e.g. to
enter a "C" press the softkey three times, to enter an
"F" six times). 
Default setting: 00:00:00:00:00:00
Use the address: The new address will be used
temporarily. After the ARGUS has been switched off
and back on, it will use the default address again.
66
ARGUS 42 PLUS
7 Operation on an Ethernet Access
VLAN
Use
Specifies whether or not VLAN should be used:
VLAN:
Default setting: No
ID:
Identifier for the VLAN to which the frame belongs.
Every VLAN is assigned a unique number, the VLAN
ID. A device, which belongs to the VLAN with the ID
= 1, can communicate with every other device in the
same VLAN, but not with a device in other VLANs
(one with an ID other than 1, i.e. 2).
Range: from 0 to 4095
Default setting: 0
Priority:
User - priority information: An eight-level (3 bits)
priority can be assigned to each frame. In this
manner, it is possible e.g. to give priority to
forwarding voice data (e.g. in the case of VoIP),
while HTTP is handled as a lower priority.
Range: 0 to 7
Default setting: 0
PPP:
PPP (Point- to-Point Protocol) settings
User name
Entry of the user name assigned (by the network operator)
Use the keypad to enter the user name. When the
right softkey is pressed it assumes a different
meaning and thus influences the entries made from
the keypad (letters or digits), page 51.
Password
Entry of the password assigned by the network operator:
For instructions, see User name.
Set the IP
If “Yes”, the IP address entered as own IP address will be used for
the connection.
Default setting: No
Test delay
After setting up the PPP connection, the ARGUS will first wait until
the period specified in the “activation delay” has elapsed before
beginning a test.
Range: 2 to 10 seconds
Default setting: 2
PPTP:
PPTP (Point- to-Point Tunneling Protocol) settings
Use the keypad to enter the IP address of the server.
ARGUS 42 PLUS
67
7 Operation on an Ethernet Access
IP:
Internet protocol settings
IP mode
Setting the assignment of the IP addresses
Static IP: 
fixed IP addresses
DHCP client: 
IP address assigned by the server

(remote end)
DHCP server: 
IP address assigned by the ARGUS
DHCP auto:
The ARGUS will check whether there is a
DHCP server in the network. If yes, the
IP address will be assigned by the server.
Otherwise, the ARGUS will assign the
address.
Default setting: DHCP client
Own
IP address
own local IP address of the ARGUS
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
IP netmask
IP netmask 
Range: 0.0.0.0 to 255.255.255.255
Default setting: 255.255.255.0 (see RFC 3330 regarding
assignment)
Gateway IP
Gateway IP address
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
DNS server
DNS server 1 and DNS server 2
Entry of the IP address of the DNS server
(DNS = Domain Name System)
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
DHCP client
DHCP timeout (setting of how long to wait for the IP address):
Range: 1 to 9999 seconds
Default setting: 20
DHCP vendor ID:
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP vendor ID in ASCII format
Default setting: ARGUS, operation see page 67.
- HEX data: Enter the DHCP vendor ID in HEX format.
For instructions, see MAC address page 66.
68
ARGUS 42 PLUS
7 Operation on an Ethernet Access
DHCP vendor info:
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP vendor info in ASCII format
Default setting: ARGUS, operation see page 67
- HEX data: Enter the DHCP vendor info in hexadecimal
format (for instructions, see MAC Address) page 66
DHCP user class information
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP user class i. in ASCII format
Default setting: ARGUS, operation see page 67
- HEX data: Enter the DHCP user class information in
hexadecimal format (for instructions, see MAC address) 
-- page 66
DHCP user-defined option 
(Create a user-defined DHCP option)
- Option number
Range: 0 to 255
Default setting: 255 = off
- Format: Selection of the format: ASCII or hexadecimal
- ASCII data: Enter the DHCP userdef. option in ASCII
Default setting: ARGUS, operation see page 67
- HEX data: Enter the DHCP user-defined option in hexadecimal
- format (for instructions, see MAC address)
- page 66
DHCP server
Settings for the DHCP server:
- Start and End IP addresses
Range: 0.0.0.0 to 255.255.255.255
Default setting: 0.0.0.0 (see RFC 3330 regarding assignment)
--Name of the domain, for information on the operation see
--page 67
- The period for which the IP addresses are reserved
- Range: 1 to 99999 hours
- Default setting: 240

ARGUS 42 PLUS
69
7 Operation on an Ethernet Access
Test parameters
The test parameters are described in the chapters on IP tests,
VoIP tests, and MDI analysis.
Data log
Data log on or off: This setting must be "on" in order to send a
trace file to a PC, see page 73.
Default setting: off
Use profile
To set the profile to be used. 
Yes: use this profile and display it in the profile list.
Profile name
70
Enter the name of the profile
ARGUS 42 PLUS
7 Operation on an Ethernet Access
7.3 Autonegotiation / Ethernet Link Parameter
The Ethernet link "autonegotiation" is supported by the default setting.
When negotiating the link parameter, the ARGUS notifies the remote end that the following
are supported (these settings are fixed; they cannot be reconfigured):
- 10 and 100 Mbit/s
- Half and full duplex
- Flow control on / off (when on: sym. and asym. pause)
Manual setting of the Ethernet link parameter
When "autonegotiation" is deactivated, the speed, duplex mode, flow control (flow control =
"pause" mode) are set in the profile (see page 66). The ARGUS the following can
configured:
- 10 and 100 Mbit/s
- Half and full duplex
- Flow control on / off (flow control is only reasonable when operating in full duplex)
One-sided autonegotiation
If a device which has autonegotiation enabled (on) attempts to connect to a
device on which autonegotiation is disabled (off) or not supported, no information
will be exchanged with the remote end. The speed will still be determined even
without autonegotiation by listening for NLP signals (10 Base-T) or a 100 Base-T
idle pattern (parallel detection). In this case, the device using autonegotiation will
generally fall back to half duplex (duplex mismatch is possible). This may lead to
a conflict between the duplex modes with "poorer" performance.
ARGUS 42 PLUS
71
7 Operation on an Ethernet Access
7.4 ARGUS determines the following Ethernet parameters
Ethernet parameter in Line mode, opened via the [Level key]
Status
Ethernet status when the ARGUS is connected, e.g. "active!"
(link + protocol are setup) or "inactive!" (link + protocol are not
yet setup).
Showtime
Duration of the active link in h:mm:ss.
Assigned LAN configuration, open via [<Stat.>]
IP
IP address of the ARGUS.
This IP address was, for example, assigned by a DHCP server
(depending on the setting in the profile).
Netmask
IP netmask, which the ARGUS must use in this network.
Res.period
The assigned reservation period for the IP addresses
Gateway
IP address of the broadband gateway.
DNS 1
IP address of the first DNS server
DNS 2
IP address of the second DNS server (if any)
Frames [Rx|Tx]
The number of Ethernet frames received (Rx) and sent (Tx)
(also referred to as Ethernet frames).
Bytes [Rx|Tx]
The number of bytes received (Rx) and sent (Tx).
Errors [Rx|Tx]
The number of errors on the receive (Rx) and send (Tx) sides.
Collision
The total number of Ethernet collisions that occurred in both
directions.
Eth-Phys-Param. -> Physical Ethernet parameters, opened via the [<ETH>]
Autonegotiation
Show the autonegotiation setting that the ARGUS uses.
Auton.remote
Show the autonegotiation setting that the remote end (modem,
PC etc.) uses.
Speed
Shows the maximum speed negotiated between the ARGUS
and the remote end.
Duplex
Shows the duplex mode negotiated between the ARGUS and
the remote end.
Flow control
72
Shows whether flow control is used or not.
ARGUS 42 PLUS
7 Operation on an Ethernet Access
7.5 Clearing Down the Ethernet Connection
ARGUS – State display


Stop Ethernet test.

<IP>PC>:
The ARGUS will send the trace file to the connected
PC, which must be running WINplus or WINanalyse.
The data will be saved in the "*.log" format and can be
renamed to "*.pcap" and decoded with a freeware
program (such as Wireshark). The setting “Data Log”
must be set to “on”. In Bridge and Router mode, two
log files will be loaded to the PC, one for the WAN and
one for the LAN side.


The ARGUS saves the Ethernet parameters in the first
available memory location, which can be assigned any
name. The name for the memory location is entered
using the keypad (default: AMP_1, AMP_2.... or the
call number of the access under test if the number has
been entered into the speed-dialling memory (see
page 185)).
Store the result

If the memory is full, you must manually select a
memory location to be overwritten.

Once the results have been successfully saved in
memory, the ARGUS will return to the State display. A
new test can be started by pressing <Start>.
7.6 Tests on an Ethernet Access
Depending on the protocol, the following tests are supported:
IP tests, see page 81
- IP ping
- HTTP download
VoIP tests, see page 95
- VoIP telephony
MDI analysis, see page 105
- MDI analysis
ARGUS 42 PLUS
73
7 Operation on an Ethernet Access
74
ARGUS 42 PLUS
8 ATM tests
8 ATM tests
The following ATM tests can only be performed on ADSL interfaces; other interfaces such
as Ethernet do not use ATM technology.
8.1 VPI / VCI scan
In a VPI/VCI scan, the ARGUS checks which VPI/ VCI combinations are active on the
access under test: The ARGUS will send a test packet for each of the possible VPI/VCI
combinations and wait for a packet in response.
The following parameters (see page 75) are required for the VPI/VCI scan:
Protocol independent parameters
Configuration




Profile
VPI / VCI scan:
Select profile
VPI
(Virtual Path Identifier)
This sets the VPI range, which the ARGUS will
check during the VPI / VCI scan.
Range: 0 to 255
Default setting: 0 to 8
VCI
(Virtual Channel Identifier) 
This sets the VCI range, which the ARGUS will
check during the VPI / VCI scan.
Range: 32 to 65535
Default setting: 32 to 48
Number
of
scans
The number of scans. 
Range: 0 to 99
Default setting: 2
Timeout
This sets the maximum amount of time that the
ARGUS will wait for a response from an ATM
network node to a test packet which it sent.
Range: 0.1 to 9.9 seconds
Default setting: 0.5 seconds
<EDIT>
Test parameters
VPI / VCI scan
ARGUS 42 PLUS
75
8 ATM tests
Starting a VPI / VCI scan
Single tests
VPI / VCI scan
Access Mode: ATU-R
Set up an ADSL connection.
The profile used to set up the ADSL connection will also be
used for the VPI/VCI scan.


The ARGUS will open the Main menu.



Select “VPI/VCI scan“.



Initialization of the test software 
(If it has not yet been done, set up an ADSL connection).




Displayed when the ADSL connection has been set up:
ADSL mode and duration of the ADSL connection

Display the ADSL connection parameter
see table page 52.
<TRACE>
Display the commands and modem state.
<GRAPH>
Bit distribution display
Display of the signal-to-noise ratio for each
tone
Display the Quiet Line Noise (QLN) level for
each tone.
<
VPI / VCI scan
>
The ARGUS will open the Status display.
Press the <STOP> softkey in the Status
display to clear down the ADSL connection.


The VPI / VCI scan starts automatically.
The ARGUS will display the currently tested VPI/VCI
combination. Depending on the protocol, the LAN, WAN,
PPP and ATM statistics will also be displayed 
(use the -key to scroll though the display).
<ADSL>
Display the ADSL connection parameters etc.
<ABORT> The test will be cancelled, the ARGUS will display
the results collected thus far and will inquire
whether to save them.
76
ARGUS 42 PLUS
8 ATM tests
VPI/VCI scan Results

Once the test is over, the ARGUS will display the results:
the VPI/VCI combinations active on the access under test
and the statistics (scroll through with the -key).
<ADSL> or Display the ADSL connection parameters, the
duration of the ADSL connection, etc.
<NEW>
Start a new VPI/VCI scan test.







Save the test results in the internal Flash memory.

For more information on the operation, see page 173.

Single tests
ARGUS 42 PLUS
77
8 ATM tests
8.2 ATM OAM ping
In the ATM OAM ping test, the ARGUS checks the availability of individual ATM network
nodes or an ATM subnet. The following - protocol independent - parameters are required
for the ATM OAM ping test (see page 78):
The ARGUS “Configuration” menu.
Profile


Select profile
<EDIT>
Test parameters






ATM OAM ping





ATM OAM ping:
VPI / VCI
Entry of the VPI and VCI for the ATM OAM ping
Range: VPI: 0 to 255, VCI: 32 to 65535
Default setting: VPI: 1, VCI: 32
Number of
pings
This sets the number of test packets that the ARGUS will send. 
If you enter "0", the ARGUS will send packets continuously until the
ATM OAM ping is stopped manually.
Range: 1 to 99,999
Default setting: 3
Timeout
This sets the maximum amount of time that the ARGUS will wait for
a response from an ATM network node to a test packet which it sent.
Range: 0.1 to 9.9 seconds
Default setting: 1 second
OAM cell type
F5 loopback seg: The loopback cell will be answered by the first
ATM node of the virtual channel. F5 loopback ete The loopback cell
will be answered by the endpoint of the virtual channel.
Default setting: F5 loopback ete
78
ARGUS 42 PLUS
8 ATM tests
Starting an ATM OAM ping test
Single tests
ATM OAM ping
ATM OAM ping
ARGUS 42 PLUS
Access Mode: ATU-R
Setting Up an ADSL Connection
The profile used to set up the ADSL connection will also be
used for the ATM OAM ping test.


The ARGUS will open the Main menu.



Select “ATM OAM ping”.



Initialization of the test software
(If it has not yet been done, set up an ADSL connection).


Displayed when the ADSL connection has been set up:
ADSL mode and duration of the ADSL connection.

 ,Keys Display the ADSL connection parameter 
see table page 52.



The ATM OAM ping test will start automatically.
The ARGUS will display the current number of test packets
sent and packets received in response. Depending on the
access mode and protocol, the ARGUS will display the
WAN, PPP or (optionally) the ATM or LAN statistics (scroll
through with the - key).


<ABORT> The test will be cancelled, the ARGUS will
display the results collected thus far and will
inquire whether to save them.
79
8 ATM tests
ATM OAM ping Results

Once the test is over, the ARGUS will display the following
results: 
- Number of packets sent
- Number of packets received
- Number of packets lost
- Minimum packet round-trip delay
- Maximum packet round-trip delay
- Average packet round-trip delay
- WAN and PPP statistics
- ATM and LAN statistics

to scroll through the results.
<ADSL> Display the ADSL connection parameters, the
or
duration of the ADSL connection, etc.
<NEW>
Start a new ATM OAM ping test.

Saving test reports

Single tests
80
ARGUS 42 PLUS
9 IP tests
9 IP tests
9.1 Ping test
In a Ping test, the ARGUS checks whether it is possible to setup a connection to an Internet
Service Provider (ISP) via the DSLAM and ATM/IP network: 
The ARGUS sends a test packet to a predefined IP address (remote site) and then waits for
a packet in reply. Based on the received packet, it is possible to evaluate the ATM/IP
network availability and delay. It is also possible to determine the network's maximum data
packet size. 

The following parameters (see page 82) are required for the Ping test:
Protocol independent parameters
Configuration
Profile
Select profile
<EDIT>
Test parameters
IP ping
ARGUS 42 PLUS




























81
9 IP tests

IP ping:
IP address
This is the address of the remote site. The ARGUS can save up to 3
IP addresses. The saved IP addresses are available to all of the
profiles.

The ARGUS shows the memory locations (a total of three)
available for storing IP addresses. Use the cursor keys to
mark the memory location with the IP address that you wish
to edit (in this example, the first memory location is marked
(1/3).

Open the marked IP
address to edit it.
<Edit>
as name:
<
The address can be
entered as an IP address
(number) or as a name.
>

Enter the name of the IP address.
Entry using the numeric keypad. Use the softkey on the right
to shift the keypad (the softkey on the right assumes a
different meaning when pressed), page 51.

<
Number of pings
>
Set the marked IP address as
the default address.
Enter the number of test packets that the ARGUS should send to the
IP address. If you enter a zero ("0"), the ARGUS will send packets
continuously until the test is stopped manually.
Range: 1 to 99,999
Default setting: 10
Pause
This setting determines the amount of time that the ARGUS will wait
between sending test packets.
Range: 0.1 to 9.9 seconds
Default setting: 1 second
Packet size
This setting determines the size of the test packets.
By varying the size, it is possible to determine the maximum data
packet size and the relationship between size and response time.
Range: 36 to 55,555 bytes
Default setting: 84 bytes
82
ARGUS 42 PLUS
9 IP tests
Fragmentation
This parameter sets the fragmentation:
Default setting: on
on
Depending on the network (or router), test packets
may be divided into multiple packets.
off
Fragmentation is not permitted, i.e. the test packets
may be rejected by the network (or router). In this
case, the ARGUS will not receive a packet in reply.
auto
The ARGUS determines the maximum packet size
for the path to the destination address (Path-MTU)
and splits the test packet into smaller packets.
These can then be sent with the minimum of delay
(since the network/router need not fragment the test
packet).
Protocol-dependent parameters on an ADSL access:
Protocol
PPPoE (PPPoEoA) or PPPoA
IPoA / EoA (or also IPoE)
Access
parameter
ATM
- VPI / VCI
- Encapsulation
ATM
- VPI / VCI
- Encapsulation
PPP
- User name
- Password
- Set the IP
- Activation delay
ADSL mode
ADSL mode
IP
- IP mode
- own IP address
- IP netmask
- Gateway IP
- DNS server 
- DHCP client
- DHCP server
MAC / VLAN 
(in the case of PPPoE)
- MAC address
- VLAN
MAC / VLAN 
(in the case of EoA)
- MAC address
- VLAN

ARGUS 42 PLUS
83
9 IP tests
For information on protocol-dependent parameters on an Ethernet access, see:

Ethernet
Protocol
IP
PPPoE
PPPTP


PPP
- User name
- Password
- Set WAN IP
- Activation delay
PPTP
- Server IP address
PPP
- User name
- Password
- Set WAN IP
- Activation delay
IP
- IP mode
- own IP address
- IP netmask
- Gateway IP
- DNS server 
- DHCP client
- DHCP server
IP
- IP mode
- own IP address
- IP netmask
- Gateway IP
- DNS server 
- DHCP client
- DHCP server
IP
- IP mode
- own IP address
- IP netmask
- Gateway IP
- DNS server 
- DHCP client
- DHCP server
MAC / VLAN
- MAC address
- VLAN
MAC / VLAN
- MAC address
- VLAN
MAC / VLAN
- MAC address
- VLAN
Access
parameter
84
ARGUS 42 PLUS
9 IP tests
Start a ping test:
Single tests
Ping
Access Mode: ATU-R
Set up an ADSL connection.
The profile used to set up the ADSL connection will also be
used for the Ping test.

The ARGUS will open the Main menu.








Depending on the protocol and access:
The ARGUS will first display the user name stored in the
profile for the PPP connection. 
The user name can, however, be changed (see page 43).

If the user name is changed here, it will only be
placed in temporary storage; the profile itself is
not modified.
If you change the user name, you must enter the password
again (see page 43). 

If the password is changed here, it will only be
placed in temporary storage; the profile itself is not
modified.
The password will remain visible during entry. It will
not be masked until you have confirmed your entry.

The ARGUS displays the IP address stored in the profile. 

To select the IP address for the ping.
(The default address is marked with an “*”)
<EDIT>
Opens the IP address for editing. 
(see page 39).

ARGUS 42 PLUS
85
9 IP tests

Initializing the test software
(If it has not yet been done, set up an ADSL connection).

Displayed when the ADSL connection has been set up:
ADSL mode and duration of the ADSL connection
Display the ADSL connection parameters, 
see table page 52
Ping test
86
<TRACE>
Display the commands and modem state.
<GRAPH>
Bit distribution display
Display of the signal-to-noise ratio for each
tone
Display the Quiet Line Noise (QLN) level for
each tone.
<
The ARGUS will open the Status display.
Press the <STOP> softkey in the Status
display to clear down the ADSL connection.
>



The Ping test will start automatically.
The ARGUS will display the current number of test packets
sent and number of packets received in response. 
Depending on the access mode and protocol, the LAN,
WAN, PPP and ATM statistics will also be displayed (scroll
through with the -key).
<ADSL>
Display the ADSL connection parameters, the
duration of the ADSL connection
<ABORT>
The test will be cancelled, the ARGUS will
display the results collected thus far and will
inquire whether to save them.
ARGUS 42 PLUS
9 IP tests
Ping results

Once the test is over, the ARGUS will display the results:
- Number of packets sent
- Number of packets received
- Number of packets sent again
- Checksum errors
- Number of faulty packets received
- Minimum packet round-trip delay
- Maximum packet round-trip delay
- Average packet round-trip delay
- Assigned WAN IP
- statistics




<ADSL>
Display the ADSL connection parameters, the
duration of the ADSL connection
<NEW>
Start a new ping test







Switch to Line mode

<Stat.> Depending on the access
mode and protocol, the
ARGUS will display the BRAS,
IP, PPP, WAN, ATM or LAN
statistics.


BRAS information:
The ARGUS displays (for the PPPoE protocol only) the
BRAS (Broadband Remote Access Server) information:
- AC (Access Server) name of the server 
- Service name (name of the service)

Assigned configuration:
The ARGUS will display the IP configuration assigned by
the server:
- IP address assigned
- Gateway IP address
- DNS server available
ARGUS 42 PLUS
87
9 IP tests
PPP information:
The ARGUS will display the number of PPP packets and
bytes received (Rx) and sent (Tx).

WAN Ethernet:
The ARGUS will display the number of Ethernet frames
and bytes received (Rx) and sent (Tx).

ATM Cells:
The ARGUS will display the number of ATM cells received
(Rx) and sent (Tx) (ADSL only).

ATM Information:
The ARGUS will display the ATM information received (Rx)
and sent (Tx) such as 
- Number of OAM cells
- Number of user-side VCCs 
- Number of AAL5 PDUs (ADSL only)
- Received (Rx) unmapped cells
- Received (Rx) unmapped VPI
- Received (Rx) unmapped VCI 
(ADSL only)

<PPP>
Press the <PPP> softkey to display a PPP trace showing
the sequence of PPP messages.

Command symbols:
<
= command sent from the ARGUS
>
= command, sent from the remote site

-
PADI: PPPoE Active Discovery Initiation
-
PADO: PPPoE Active Discovery Offer
-
PADR: PPPoE Active Discovery Request
-
PADS: PPPoE Active Discovery Session confirmation
-
PADT: PPPoE Active Discovery Termination
-
LCP: Link Control Protocol
-
IPCP: Internet Protocol Control Protocol
-
PAP: Password Authentication Protocol

<Time>
The <Time> softkey is used to tag the individual messages
with times from the ARGUS system clock.
88
ARGUS 42 PLUS
9 IP tests

<IP>PC>:
The ARGUS will send the trace file to the connected PC,
which must be running WINplus or WINanalyse. The data
will be saved in the "*.log" format and can be renamed to
"*.pcap" and decoded with a freeware program (such as
Wireshark). The setting “Data Log” must be set to “on”. In
Bridge and Router mode, two log files will be loaded to the
PC, one for the WAN and one for the LAN side.

Save the test results in the internal Flash memory.

The ARGUS will save the test results in the first free record.
This record can be assigned any name (default: AMP_1,
AMP_2.... or the call number of the access under test if the
number has been entered into the speed-dialling memory,
see page 185). If all of the records have been written, you
must manually select a memory location (record).




Ping Test – Error messages
If an error occurs, the ARGUS will stop the test and display
an error message.
<NEW>
Start a new Ping test
For a description of the error messages, please see the
appendix.
ARGUS 42 PLUS
89
9 IP tests
9.2 HTTP download
In the HTTP download test, the ARGUS will attempt to download data from a web site or
file. The ARGUS will display the current download rate and once the test is over the
average speed (in the case of multiple download attempts).
The following parameters are required for the HTTP download (for a description and details
on their use, see page 90):
Protocol independent parameters
Configuration
Profile
Select profile
<EDIT>
Test parameters
HTTP download
Select server profile.
<EDIT>
The ARGUS “Configuration” menu.














Up to three user-defined HTTP Download profiles can be
created.




Edit the selected profile.






Server profile: A total of up to 3 user-defined server profiles can be created. These
server profiles will then be used for the HTTP download tests. All of
the parameters for an HTTP Download are in the profiles.
Server IP
Enter the IP address of the server from which the ARGUS should
download the file. For information on the softkeys, see page 82.
90
ARGUS 42 PLUS
9 IP tests
Download
filename
The name of the file that the ARGUS should retrieve in the
download test.
When entering a www address alias (see page 91).
For information on the softkeys, see page 18.
User name
Entry of the user name for the HTTP server.
For more information, see page 43.
Password
Entry of the password for the HTTP server.
For more information, see page 43.
This sets how often the ARGUS will retrieve the data (download
Number
file) from the “source” address in the download test. "Zero“ means
continuously. In which case, the test must be terminated manually.
Range: 1 to 9999
Default setting: 3
No. parallel
down.
The number of packets into which the requested download should
be divided. 
Range: 1 to 10
Default setting: 4
Profile name
Entry of a name for the profile

If an alias www address is entered as the "Source" address, the ARGUS will
"only" download the one HTML page during the HTML download test. The
ARGUS does not evaluate the HTML code, so any link to a “true” www address
will be ignored. In this case, the ARGUS will not display an error message since
the “Source” address specified will have been loaded without error.
Since it is not possible to accurately determine the transmission speed if the
duration of the download test is less than 10 seconds, you should download a
reasonably large file. 

When entering the “Source” address (server address and download filename)
make certain that you use the correct notation (upper and lower case), otherwise
the ARGUS will report an Error 301 (Moved Permanently) or Error 404 (Not
Found).

If the ARGUS requests multiple downloads, it will reduce the number of
downloads requested to suit the number of downloads supported by the server.
This may result in a deviation from the parameters set. This can, for example, be
the case if the size of the requested file is unknown. 

For information on protocol-dependent parameters, see page 83
ARGUS 42 PLUS
91
9 IP tests
Start the HTTP download:
Single tests
HTTP download
Access Mode: ATU-R
Set up an ADSL connection.
The profile used to set up the ADSL connection will also be
used for the HTTP download test.

The ARGUS will open the Main menu.









Depending on the protocol and access:
The ARGUS will first display the user name stored in the
profile for the PPP connection. 
The user name can, however, be changed (see page 43).

If the user name is changed here, it will only be
placed in temporary storage; the profile itself is
not modified.


If you change the user name, you must enter the password
again (see page 43). 

If the password is changed here, it will only be
placed in temporary storage; the profile itself is
not modified.
Select the HTTP download profile
<EDIT> Edit the profile marked with the . 
The ARGUS will open the configuration menu in
which the selected profile’s parameters can be
edited (see page 90).
The ARGUS will use the parameters in the profile marked
with the . 
The currently active profile will only be marked with an *
(not an .

Initialising the test software
(If it has not yet been done, set up an ADSL connection).
<ADSL> Display the ADSL connection parameters, the
duration of the ADSL connection, etc.
or
92
ARGUS 42 PLUS
9 IP tests
HTTP download

The HTTP download test will start automatically. 
During the download test, the display shows:
In the example, the first download of a total of three
attempts (3/3) is shown. 67% of the data has already been
downloaded. The current net download rate is 21.493 
Mbit/s.

Display further information
-
-
-

-
HTTP download results
The size of the file downloaded so far
Total size of the file to be downloaded
Duration of the download thus far (in
h:min:sec,msec)
Time remaining before the download will
be done

Once the test is over, the ARGUS will display the following
results:
- the calculated average transfer rate of the
downloads (in the example, 9.5 MB/s)
- the size of the downloaded file
- the average time needed for a download
- statistics 
<ADSL> Display the ADSL connection parameters, the
duration of the ADSL connection, etc.
or
<NEW>
Start a new download test

If an error occurs during the test, the ARGUS will interrupt
the test and display an error message 
(see appendix Page 203).






Save the test results.


For more information on the operation, see page 173.

Single tests
ARGUS 42 PLUS
93
9 IP tests
94
ARGUS 42 PLUS
10 VoIP test
10 VoIP test
10.1 VoIP telephony
On an ADSL or Ethernet access, the ARGUS acts as a VoIP terminal with which a
telephone (voice) call can be set up. The ARGUS uses the Session Initiation Protocol (SIP)
as the signaling protocol for VoIP. Using this protocol, the ARGUS can be used peer-topeer operation (direct, address based) or with a registrar (proxy, SBC or similar). 
The user can individually configure three “VoIP Profiles” for use in VoIP telephony (for more
information, see page 96): the profiles can be opened – to view and edit – from the
Configuration menu. If a connection is currently set up, the ADSL access parameters 
(e.g. the ADSL mode) will be write-protected.
The following parameters are required for VoIP telephony:
Protocol-independent parameters:
Configuration
Profile
Select profile
<EDIT>
Test parameters
VoIP
<EDIT>
ARGUS 42 PLUS
The ARGUS - Main menu





























95
10 VoIP test
VoIP Configuration Parameters at a glance

VoIP 
Test param.:
Up to 3 user-defined VoIP profiles can be created.
<Edit> Edit the selected profile.
Destination
The VoIP destination can be entered as a call number, an IP address
or as an SIP URI. The ARGUS will save up to 10 destinations. To edit
a destination, select a place in the list and open it with <Edit>.
Entry using the numeric keypad. Use the softkey on the right to shift
the keypad (the softkey on the right assumes a different meaning
when pressed):
SIP
User name
User name for the registrar.
For information on the softkeys, see page 43.
Password
The password to use with the registrar.
For information on the softkeys, see page 43.
Registrar
Use registrar
server
Setting: yes or no.
If an Internet Telephony Service Provider (ITSP) is
used (in such case, you will dial a normal telephone
number), a registrar must be used. A registrar is not
needed if you dial a VoIP telephone directly, e.g. via
its IP address or SIP-URI.
Default setting: No
Registrar server
Address of the registrar server
Outbound
(SBC= Session Border Controller)
proxy/SBC
Use proxy: This setting specifies whether or not to
use Outbound Proxy.
Default setting: No
Outbound proxy/SBC
Address of the Outbound Proxy Server
Outbound proxy/SBC Port
Port of the outbound proxy server
Range: 0 to 65535
Default setting: 5060
96
ARGUS 42 PLUS
10 VoIP test
SIP domain
Configuration of the domain name for the “From”
field in the SIP message (when using an Internet
Telephony Service Provider (ITPS)).
Listen port
The port used for the incoming SIP signaling.
Range: 0 to 65535
Default setting: 5060
Remote port
The port used by the remote end.
When using a registrar (see Registrar Server Setting
on page 96), enter the port number of the Registrar/
Proxy Server; otherwise, enter the port number of
the remote end.
Range: 0 to 65535
Default setting: 5060
Authentication Addtional xTU-R password used for proper
authentication with the registrar. For information on
the softkeys, see page 18.
Caller ID
Optional entry of any text desired which will then be
displayed on the called party's equipment instead of
the caller's phone number. For information on the
softkeys, see page 18.
User agent
ID-string or terminal type which will be sent to the
called party. For information on the softkeys, see
page 18.
Default setting: Argus 42 plus
Qualify
Specifies whether or not the proxy server’s
availability should be checked continuously.
Default setting: No
Registrar
Specifies how long a registration with the Registrar
expire
Server is valid.
Range: 10 to 6000 seconds
Default setting: 3600 seconds
Delete
Delete the registration with the Registrar Server.
existing regist. When set to "yes“, the ARGUS will be exclusively
registered with the registrar server. If it is set to "no“,
it will be put in the list of existing registrations.
Default setting: yes
ARGUS 42 PLUS
97
10 VoIP test
Telephone
setting
Jitter buffer
Sets whether the amount of playout delay is static or
adaptive.
Default setting: static
Static 
Entry of the amount of the static playout
jitter buffer: delay.
Range: 20 to 200 ms
nominal: 60ms
Adaptive 
Entry of the minimum (min) and
jitter buffer: maximum (max) amounts of playout
delay and the initial value (init).
Range: 20 to 600 ms
min: 60ms
Init. 60ms
max: 120ms
DTMF
DTMF is a Dual-Tone Multi-Frequency dialing
configuration
procedure.
Mode: DTMF mode settings. Choose one of the
following settings automatic, SIP Info, RFC 2833 or
inband.
Default setting: automatically
Duration: The VoIP DTMF Time setting
Range: 40 to 1000 ms
Up to 200 ms in increments of 10, 200 to 300 ms in
increments of 20, 300 to 1000 ms in increments of
100. 
Default setting: 80 ms
Increase or decrease VoIP DTMF time.
STUN
Use STUN
Use STUN; setting - yes or no.
If there is a NAT router between the ARGUS and the
next remote end (gateway), you must use STUN so
that the ARGUS can determine which IP address is
seen by the other end for it (the ARGUS).
Default setting: No
STUN server
STUN Server
Specifies the address of a STUN server which must
be located in the same network (on the same level)
as the remote end.
98
ARGUS 42 PLUS
10 VoIP test
MOS threshold Entry of the MOS threshold:
The MOS value (Mean Opinion Score) is an evaluation of the quality
of the speech data. The MOS quality scale ranges from 5 (excellent)
down to 1 (bad). The ARGUS will compare the MOS value of the
currently active VoIP connection to the target MOS value and will
display OK - if the current MOS value is at least as good as the target
MOS value - or FAIL - if it is not.
Range: 1.0 to 5.0
Default setting: 4.0
Profile name
ARGUS 42 PLUS
Enter or change the name of the edited VoIP profile.
99
10 VoIP test
Start VoIP telephony (In this example: ADSL access)
Single tests
Access Mode: ATU-R
Set up an ADSL connection.
The profile used to set up the ADSL connection will also be
used for VoIP telephony.

The ARGUS will open the Main menu.









Depending on the protocol and access:
The ARGUS will first display the user name stored in the
profile for the PPP connection. 
The user name can, however, be changed (see page 43). 
If the user name is changed here, it will only be
placed in temporary storage; the profile itself is
not modified.
If you change the user name, you must enter the password
again (see page 43). 
If the password is changed here, it will only be
placed in temporary storage; the profile itself is
not modified.

Select the VoIP profile.
<EDIT> The ARGUS will open the Configuration menu
and display the parameters of the selected
profile. The parameters of the selected profile
can be edited here (see page 96).
Initialization
100


Initialization of the test software 
(If it has not yet been done, set up an ADSL connection).


ARGUS 42 PLUS
10 VoIP test
The ARGUS will display the VoIP profile used.
If a registrar is used, the ARGUS will display how long it has
been registered. Otherwise, it will display how long VoIP
telephony has been activated.
Additional information will be displayed, e.g. the
user ID (own number).
Display the ADSL connection parameters, bit
distribution and signal-to-noise ratio etc.


The ARGUS displays the destination address stored in the
first memory location in the VoIP profile (see page 96).
There are several memory locations available for
destination addresses. 
Scroll through the destination addresses.
<EDIT>
or
Open the marked memory location to edit it or
to enter a new destination address in an empty
memory location 
(see page 96).

Setup the connection



The subscriber called has not yet accept the call; the
display shows “Call”.

Display further information:
"own number"
number of the party called, etc.
<LOG>
Display the signaling protocol:
SIP message status codes in numerical form.
<CLEAR> Disconnect.
The results can be stored in the internal flash
or
memory (for more information, see page 173).
ARGUS 42 PLUS
101
10 VoIP test
If the party called accepts the call and a MOS value can be
determined, the ARGUS will display “OK” if the speech
quality meets or exceeds the target MOS value set (see
page 99).
Display further information
- MOS value for the voice connection
- Codec (in the example, G.726 (32 kbit/s))
- Duration of the voice connection
(Hours: Minutes: Seconds)
- “own number”
- Number of the party called
Display the ADSL connection parameters, 
trace data, bit distribution and signal-to-noise ratio
for each tone etc.
<LOG>
Display the signaling protocol:
SIP message status codes in numerical form.
Set the handset volume
<CLEAR> Disconnect.
or
The results can be stored in the internal flash
memory (for more information, see page 173).

the evaluation of the MOS value in accordance with ITU-T
P.800 (in the example: Good), the average MOS (Avg.
MOS), the current MOS (Cur. MOS), the minimum and
maximum MOS that occurred, the ideal MOS (MOS
possible without interference, dependent on the codec) and
the R Factor in accordance with ITU-T G.107.
Scroll through the test results

Display of the other VoIP results:
- Packet statistics 
- Packet loss etc.
Scroll through the test results
Statistics of the remote end (RTCP) if the remote end sends
them.
Scroll through the test results
Disconnect.
The results can be stored in the internal flash
memory (for more information, see ). page 173

102
ARGUS 42 PLUS
10 VoIP test
An overview of the VoIP results
During and after a successful registration:
Display / Meaning
SIP log
A log showing the SIP methods and status
codes exchanged
Register state
The ARGUS shows all of the important
registration and registrar info in the Register
state display.
During a call or a connection:
Display / Meaning
MOS threshold, Voice codec
Current MOS threshold, voice codec
currently used
SIP log:
A log showing the SIP methods and status codes
exchanged
INFO: MOS results:
Threshold: Display shows whether the value
stayed within the preconfigured MOS threshold.
P.800: Evaluation in accordance with P.800
MOS value current / average / minimum
R-Factor current / average / minimum
INFO: RTP results:
RTP packets: received / sent
RTP jitter: current / average / minimum
(Calculation in accordance with RFC3550
performed every second)
RTP packet loss total number:
(RTP packets not received)
RTP packet loss: current / average /
minimum / maximum in percent
RTP drop: RTP packets received, but rejected
by the jitter buffer
RTP error: defective RTP packets received
INFO: RTCP results:
RTP jitter - remote end: current /
average / minimum / maximum
(The content of the RTCP packets will RTP packet loss - remote end: 
be displayed if this is supported by the current / average / minimum / maximum in %
remote end.)
RTP packet loss - remote end 
Total Number
Network delay: current / average / minimum
(Determined by exchanging RTCP packets)
ARGUS 42 PLUS
103
10 VoIP test
Clear down the connection, save and send log to PC

The connection is cleared down in the same manner as it is after an IP ping.
However, pressing the "Cancel“ key once will only clear down the connection (if
there is one). The results will be saved when the key is pressed again. The
ARGUS will remain registered with the Registrar so the ARGUS can still be called
(an incoming call can be rejected or accepted). If the "Cancel“ key is pressed
again, the registration is also terminated and you are given the opportunity to
save the results. 
The Layer 1 connectivity originally setup for the VoIP connection remains.

Whenever the ARGUS offers to save the Log (in the internal memory of the
ARGUS), you can instead send the Log (Trace file) to the connected PC. For
more information see IP ping which is similar.
104
ARGUS 42 PLUS
11 MDI analysis
11 MDI analysis
The ARGUS analyzes a UDP/RTP (User Datagram Protocol / Real-Time Transport
Protocol) data stream actively or in the passive Bridge mode and determines the MDI
(Media Delivery Index) in accordance with RFC 4445 and displays the Media Loss Rate
and the Delay Factors.

ARGUS in Bridge Mode
DSL connection cable
(Note the labels!)
Patch cable
Active
Line jack
Passive
LAN jack
ADSL
Ethernet
alternatively
ADSL
access
Ethernet
PC with VLC
(Video-LAN Client)
Passive
Set-Top-Box (STB) or ARGUS
The following parameters (see page 106) are required for the MDI Analysis:
Protocol-independent parameters:
Configuration
Profile
Select a profile
<EDIT>
Test parameters
MDI analysis
Edit parameters
ARGUS 42 PLUS
The ARGUS - Main menu

















105
11 MDI analysis

MDI analysis:
Mode
Manual: The address of the TV channel, whose data stream should
be analyzed, must be entered under Multicast IP and Port. The time
span within which the ARGUS will attempt to receive a data stream is
unlimited. For an active analysis, the ARGUS must be set to
"manual“, it will then use the configured multicast IP address and
request the data stream.

Automatic: The ARGUS will search for the data stream with the
highest bit rate of one of the TV channels available. You must enter
the time span within which the ARGUS will attempt to receive a data
stream under Scan time. In this mode (when it is in bridge mode), the
ARGUS is passive.

Default setting: Automatic
Scan time
The time span within which the ARGUS will attempt to receive a data
stream.
Range: 1 to 10 seconds
Default setting: 3 seconds
Multicast IP
The multicast IP of the TV channel whose data stream should be
analyzed.
Default setting: 224.0.0.0
Port
The port number of the TV channel whose data stream should be
analyzed. 
Range: 0 to 65535
Default setting: 0
Use
IP header
Specify whether the IP header should be used:
It is not possible to determine the packet loss (Media Loss Rate) of a
data stream, which does not have a RTP header (UDP based only).
In this case, it is possible to use the IP header to enable the ARGUS
to determine the packet loss, if its ID field has been suitably
maintained.
Default setting: No
If Use IP Header has been set to “yes”, but the ID
field of the IP header has not been maintained, the
ARGUS cannot correctly determine the packet loss
(Media Loss Rate).
106
ARGUS 42 PLUS
11 MDI analysis
MDI limit
values
Entry of the limit values for the Delay Factor (DF pursuant to RFC
4445), the Media Loss Rate (MLR pursuant to RFC 4445) and the
packet loss in percent (PLR – Packet Loss Ratio). The Packet Loss
Ratio shows the relationship between the number of packets lost to
the number of packets expected (received and lost).
If one of these values is exceeded while running a MDI analysis, the
ARGUS will consider the test to have failed. Display shows "Fail".
To run an analysis in accordance with RFC 4445, the limit value for
PLR must be switched off (enter PLR = 100.0 %).
Delay factor (DF):
- Range: 0 to 1000 ms
- Default setting: 150 ms
Media Loss Rate (MLR):
- Range: 0 to 65535
- Default setting: 1 per second
Packet loss in %:
- Range: 0.00 to 100 percent (100% = evaluation "off")
- Default setting: 0.10 %

Start the MDI Analysis
Single tests
Initialization
Waiting for stream
ARGUS 42 PLUS
Access Mode: ATU-R bridge
Set up an ADSL connection.
The profile used to set up the ADSL connection will also be
used for the MDI analysis.

The ARGUS will open the Main menu.








The waiting time for a stream is dependent on the Mode
setting, see page 106.
<ABORT> Quit waiting, cancel MDI analysis.
107
11 MDI analysis
During the MDI analysis, the display shows:
- Delay Factor (DF) in msec
- Media Loss Rate (MLR) (number of lost or 
out-of-order data packets per second)
- Packet loss (PLR) in percent
- Evaluation with OK or FAIL dependent on the
MDI limit values set (see page 107)
<ABORT> Stop MDI analysis

- Display the duration of the MDI analysis
Scroll through the test results:
-

-
-


-

-
-

-


-
Delay Factor (DF) in msec and 
Media Loss Rate per sec.
Packet Loss Ratio (PLR) in percent
C. Err. cur.: The number of continuity counter
(CC) errors per second that occurred in the
MPEG packets.
IP address of the channel with the analyzed
data stream
The channel’s port number
Packet Loss: The number of lost or out-oforder data packets counted during the test.
CC Total: The total number of continuity
counter (CC) errors that occurred in the
MPEG packets during the test.
Depending on the access mode and protocol:
Display the WAN, PPP, ATM and LAN
statistics

Display the ADSL connection parameters, 
trace data, bit distribution and signal-to-noise
ratio for each tone.
<RESET> Reset Packet Loss and CC errors
<
>
The ARGUS will return to the previous display

Display the PIDs and their usage
<
> The ARGUS will open the “MDI statistics”
display
108
ARGUS 42 PLUS
11 MDI analysis
After the MDI analysis is completed, the ARGUS will
display the results.
The ARGUS will first display the duration of the MDI
analysis in hours:minutes:seconds.
<PID>
Display the PIDs and their usage

Display additional results


IP address of the channel with the analyzed data
stream
-
The channel’s port number
-
Minimum delay factor that occurred
-
Maximum delay factor that occurred
-
Average value of the delay factor etc.


ARGUS 42 PLUS
109
11 MDI analysis
110
ARGUS 42 PLUS
12 Operation on an ISDN Access
12 Operation on an ISDN Access
12.1 Setting the ISDN Interface and Access Mode
Using the included access cable, connect the ARGUS to the access to be tested and
then switch the ARGUS on. The initial display (Start-up menu) will depending on how the
ARGUS was last used.
The Access Menu
Select the physical interface.
The connection has not been set up
yet!
The Access mode menu is not
selectable from the Main menu. If a BRI
S/T or U-interface has been selected as
the physical access, it will open
automatically, see page 113.
ARGUS State display
see page 115
The Access menu can be opened by either pressing the <LINE> softkey in the Start-up
menu or by making the appropriate selection in the Main menu (see page 32). Select the
type of physical access that the ARGUS is connected to.
If you use the ARGUS on a BRI S/T interface in an ISDN system, whose specifications
deviate from the (DIN ETS 300 102) standard, such as those of some networked PBXs,
you must take these manufacturer-specific modifications into account. In such cases,
please contact the distributor of your ISDN PBX for assistance.
ARGUS 42 PLUS
111
12 Operation on an ISDN Access
Setting the Physical Interface
If the parameters displayed at power on are not accepted, the Access menu will open
automatically. However, you can also open the Access menu at any time from the Main menu 
(see page 21).
In the Access menu, the user must select the type of physical access to which the ARGUS is
connected. When the ARGUS is restarted, the settings used last will be suggested as the
default. If "automatic" is selected, a fully-automatic sequence will be started: The ARGUS will
automatically determine whether the interface is a BRI S/T or a 2-wire interface 
(POTS or U-interface) and the access mode (P-P or P-MP).

If you use the ARGUS on a BRI S/T interface in an ISDN system, whose specifications deviate
from the (DIN ETS 300 102) standard, such as those of some networked PBXs, you must take
these manufacturer-specific modifications into account. In such cases, please contact the
distributor of your ISDN PBX for assistance.
ARGUS State display
Access
or <
>


ARGUS – status display



Open the Main menu



Select the Access menu
Using the
<> or the 
 -,-Keys

Select desired access. If "automatic" is selected, the
ARGUS will automatically determine whether the access
is a BRI S/T, U-interface or a POTS access and the
associated Access mode (P-P or P-MP). 
Press to confirm your selection.
< >
If a BRI S/T or U-interface is selected, the
Access mode menu will open automatically
see page 113.

The following applies for all displays:
> The ARGUS will return to the previous
<
display and ignore any changes to the
settings. 
In this case, the ARGUS simply uses the "old"
access.
112
ARGUS 42 PLUS
12 Operation on an ISDN Access
TE Simulation
The Access mode menu is not selectable from the Main
menu. 
It will open automatically after the physical access – the BRI
S/T or U-interface – has been selected in the Access menu.
Using the
<> or the 
 -,-Keys
<
>
Select the desired Access mode
Confirm the Access mode.
The ARGUS will open the Status display see
page 115.
TE automatic
The ARGUS will automatically determined the D-channel Layer 2 mode (PP or P-MP).
If the ARGUS determines that the access supports both modes, a configuration menu
will open in which you can select the desired L2 mode
TE P-P or TE P-MP
Afterwards, the access and the protocol stack will be initialized in accordance with the
selected setting. 



















ARGUS 42 PLUS
113
12 Operation on an ISDN Access
12.2 Initialization Phase Including B-Channel Test:
Initialization on a BRI S/T or U-interface access
The ARGUS will setup Layer 1. While Layer 1 is being setup, "L1" LED over the display will
blink. If the ARGUS cannot setup Layer 1, it will display the message “No Net”. When the
ARGUS is operated on a U-interface, it can take up to 2.5 minutes to activate Layer 1. As
soon as Layer 1 is successfully setup, "L1" LED will light continuously. Once Layer 2 has
been setup, the "L2" LED will light.
If both modes (P-P / P-MP) are found when Layer 2 on the D-channel is checked,
the mode must be selected manually.

If everything has been correctly detected, the ARGUS will display the type and mode of
access found. Additionally, a qualitative assessment of the level will be displayed. The
ARGUS will automatically determine the protocol or use the manually selected protocol
(see page 117). On a bilingual access, the ARGUS will use the DSS1 protocol.

LED L3 will light after the ARGUS has setup Layer 3. At the same time the ARGUS will start
a B-channel test and then display the results. If an error occurs in the B-channel test (e.g.
access is not plugged-in), the ARGUS will either repeat the initialization or show an error
message (see page 200). The ARGUS will then show the Status display.
114
ARGUS 42 PLUS
12 Operation on an ISDN Access
State display on a BRI S/T 
access
The ARGUS will display the following:
- Type of access (e.g. BRI S/T)
- Access mode
TEs 
TE Simulation Slave Mode
FVs
Leased Line Slave Mode, see page 162
- Bus configuration (D-channel Layer 2 mode)
P-P
Point-to-Point
P-MP
Point-to-Multipoint
D-channel protocol (in the example, DSS1)
- The availability of the B-channels
B12
Both B-channels are available
B1-
Only B-channel 1 is available
B-2
Only B-channel 2 is available
B-No B-channel is available
If only one B-channel is available, this can
have an impact on the service check and
the testing of the supplementary services.
<NEW>
depressed
for 2 sec.
- Level evaluation
OK 
Level is OK
<<
Level is too low
>>
Level is too high
-No voltage
<START>
Repeat the B-channel test.
<MENU>
The ARGUS opens the Main menu, see
page 21.
<DSL>
The ARGUS opens the Access mode
menu for the ADSL access, see page 38.
<LINE>
The ARGUS opens the Access menu see
page 111.
<AUTO>
The ARGUS starts the automatic access
recognition, see page 111.

It must be mentioned again, that the ARGUS only determines the general bus status once
when switched on or when the ARGUS first connected. On the other hand, the status of the
protocol stacks for Layers 1, 2 and 3 will be continually monitored and displayed.
State display on a U-interface access
The ARGUS displays the availability of the B-channels, the
voltage when idle, the access mode, the bus configuration
and the D-channel protocol.
ARGUS 42 PLUS
115
12 Operation on an ISDN Access
12.3 ISDN Parameter Configuration
It is possible to configure the following "ISDN Parameters" as needed. The default settings
can be restored at any time (see page 184). The procedure for configuring a parameter is
the same for all parameters and will be illustrated with a single example:
Configuration
<
>
In the Main menu, select “Configuration”.




Select "ISDN".




Select the ISDN parameter e.g. "Protocol".




<>
Select the setting for the protocol
<
<
The ARGUS will now use this setting.
>
>
The ARGUS will return to the previous display
without storing the selected setting.



















116
ARGUS 42 PLUS
12 Operation on an ISDN Access
Parameter
Remark
Protocol
As an alternative to automatic protocol determination, you can also set
the Layer-3 D-channel protocol manually. This setting will be stored
permanently and will also active when the tester is switched on again.
Default setting: Automatic
Alerting mode
You can specify whether, for an incoming call on a BRI point-to-point
access, the ARGUS should only display the access number without
extension or the complete number with extension.
If it is set to “Manual”, the ARGUS will display the extension (An
incoming call will be signaled. The ARGUS will send the Layer 3
message “Alert” when it accepts the call. The digits of the extension
that have been sent by this point will be displayed.).
When using the “Manual” setting, an incoming call must be
answered within 20 seconds or it will be lost. Furthermore, you
should note that the remote subscriber will not hear a ringing
tone. If it is set to "automatic", the ARGUS will only display the access
number without extension or, depending on the configuration of the
access in the exchange, it may not display the number called at all.
Default setting: Automatic
Call parameter On the user-side (ARGUS in TE mode), four different parameters can
be set for a call setup (in ISDN):
1. Type of number (TON) for the CGN (=CGPN) or CDN (=CDPN)
element of a SETUP signal
User-side:
User CGN TON
User CDN TON
2. The Numbering Plan (NP) for the CGN (=CGPN) or CDN (=CDPN)
element of a SETUP signal
User-side:
User CGN NP
User CDN NP
Default setting: unknown
3. CGN Subaddress
CGN Subaddress
Default setting: User specific
4. UUI (User User Info)
ARGUS 42 PLUS
117
12 Operation on an ISDN Access
Services
Up to three user-specific services (user spec.1 to user spec.3) can be
entered and saved. For each "user spec. service“, you must enter the
info-elements BCAP, HLC and LLC in hexadecimal. To do so, use the
keypad and the <A..F> softkey (e.g. to enter a "C", press the softkey
three times; for an "F", press it six times).
Call
acceptance
If set to "only own MSN/DDI“, when the ARGUS is on a P-MP access,
it will only signal those calls which placed to the MSN (on a P-P access
the DDI) of the access under test. 
If set to “all MSN/DDI”, the ARGUS signals all calls.
Prerequisite: 
- the "own" number must be entered in the speed-dialing memory ‚
- under “own number” (See “Reset all parameters” on page 184)
- the incoming call must have a destination MSN
Default setting: All MSN/DDI
This setting will be saved permanently.
Voice coding
There are two options for coding voice data in a B-channel: 
- A-law
- µ-law
Default setting: A-Law
This parameter will be reset to the default setting when the ARGUS is
switched off and back on again
DTMF / Keypad
DTMF or keypad setting 
Default setting: DTMF
Dest. no. MSN
A destination number can be entered, which the ARGUS will use for
MSN interrogation. 
Default setting: 9999
CUG Index
Entry of the CUG Index 
Default setting: 148
Keypad
Save up to three possible keypad infos. The keypad infos are saved
permanently. Use the cursor keys to select one of the three available
memory locations for keypad infos.
<EDIT>
Select a Keypad Info entry to be edited.
Afterwards, use the keypad to enter the Keypad
Info.
<
118
>
Save Keypad Info
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.4 Bit error rate test
The bit error rate test (BERT = Bit Error Rate Test) serves to check the transmission quality
of the access circuit. 

As a rule, the network operator will guarantee an average error rate of 1 x 10-7, in other
words in long-term operation 1 bit error in 10 million transmitted bits. A higher bit error rate
will be especially noticeable in transmitting data.

The application program detects the errors in the data blocks transmitted and requests that
the remote partner send them again, which reduces the effective throughput of the ISDN
connection.

In the bit error rate test, the tester establishes an ISDN connection to a remote tester or
places a call to itself, sends a standardized (quasi-) random number string and compares
the received data with that which was sent. The individual bit errors are summed and
depending on the test procedure and equipment evaluated in accordance with the ITU
Guideline G.821.

During the test, the ARGUS counts the bit errors and after the test is done it calculates the
bit error rate and other parameters in accordance with G.821. Two B-channels are needed
at the same time for this bit error rate test. 

As a rule, the quality of the network operator’s access circuits is quite good. Therefore, no
bit errors should occur in a 1-minute test.

However, if an error occurs, the test should be repeated with a measurement time of 15
minutes to achieve higher statistical precision. The access circuit is heavily distorted, if
more than 10 bit errors occur within a test period of 15 minutes.

Contact the network operator or the supplier of the PBX equipment and ask them to test
your access circuit.
In the case of an NGN (Next Generation Network), where a packet-switched
network segment may follow a circuit switched one, please explicitly select "UDI
64k" as the service for the BERT. Then the ARGUS will, in accord with RFC
4040, switch to clear mode, deactivate the echo canceler and not use a codec.

The BERT can be performed in three different ways:
ARGUS 42 PLUS
119
12 Operation on an ISDN Access
1. BERT in an extended call to oneself
A remote number is not needed, since the ISDN connection is set up to oneself. In this
case, the ARGUS requires two B-channels for the test.
2. BERT with a loopbox
A loopbox (e.g., another member of the ARGUS family of testers at the remote end) is
required. The test uses one B-channel.
3. BERT end-to-end
This test requires a waiting remote tester such as an ARGUS in the BERT wait mode
(see page 126). A bit pattern is sent to this tester. 
Independent of the received bit pattern, the remote tester uses the same algorithm to
generate a bit-pattern that it sends back. Therefore, both directions are tested
independently.
Setting the BERT Parameters
The default settings can be restored at any time (see page 184). The procedure for
configuring a parameter is the same for all parameters and will be illustrated with a single
example:
Configuration
<
>

In the Main menu, select “Configuration”.




Select "BERT"




Select the BERT setting e.g. "BERT time".




Enter the duration of the BERT
Numeric
keypad
<DEL>
Delete the digit before the cursor
<ABORT>
The ARGUS returns to the BERT config.
menu without changing the settings.
<
>
Save the setting

120
ARGUS 42 PLUS
12 Operation on an ISDN Access
Parameter
Remark
BERT time
You can use the keypad to enter measurement times ranging from 1
minute to 99 hours and 59 minutes (= 99:59).
Default setting: 1 minute
If the time is set to 00:00 (= BERT with unlimited measurement
time), the BERT will not stop automatically. In this case, the
user must terminate the BERT (by pressing <ABORT>).
Bit patt. BRI/U
This setting determines the bit pattern that the ARGUS will
repeatedly send in a BERT. Several predefined bit patterns are
available 
Default setting: 211-1
Additionally, it is also possible to enter a 16 bit long pattern of
your choice in binary.
-,-Keys Move the cursor
<DEL>
<
Error level
>
Changes a one (1) before the cursor to a zero (0)
Saves the bit pattern
This is the level used to evaluate whether the BERT had an
"acceptable" bit error rate.
If the BERT has a bit error rate, which exceeds this error level, the
ARGUS will display a "NO" as the test result. 
Using the keypad, this parameter can be set to any value from 
01 (= 10-01) to 99 ( = 10-99).
The default (threshold) level is 10-06. That means that, in the event that
the bit error rate is less than 10-06 (one error in 106= 1,000,000 sent
bits), the bit error rate test will be evaluated as OK.
HRX value
Setting for the HRX value 
(Hypothetical Reference Connection, see ITU-T G.821) 
Using the keypad, you can enter a value ranging from 0 to 100 %.
Default setting: 15%





ARGUS 42 PLUS
121
12 Operation on an ISDN Access
BERT start
BERT
<
>
<
>
BERT start
122

The ARGUS - Main menu











Enter your own number to perform the BERT in an
extended call to oneself (two B-channels) or
a remote number for a BERT to a loopbox (one B-channel)
or end-to-end.


Using the cursor keys, select the service which should be
used for the BERT.



Enter the B-channel on the keypad (first press <DEL>). If
you enter an *, the ARGUS will choose any B-channel that
is free.

BERT start

After the ARGUS has setup the connection and
synchronized the send and receive directions, it will display
the bit pattern, the B-channel used (e.g. B02) , the
remaining test time in h:min:sec, the number of bit errors
that have occurred (e.g. 3), the synchronicity of the bit
pattern (synchronous or asynchronous) and the LOScounter.
<ERROR>
The ARGUS will generate an artificial bit
error, which can be used to test the
reliability of the measurement (in
particular for end-to-end tests).
<TM>
Open the Test Manager see page 154
0-Key
Restarts the BERT: The test time and
number of bit errors will be reset.
<ABORT>
Stop the BERT
ARGUS 42 PLUS
12 Operation on an ISDN Access
When a bit error is detected, this will be signaled by a brief alarm; 
in the event that the synchronization is lost, a constant alarm will sound (see page
183 Alarm bell).
After the test time is over, the ARGUS will display the cause
and the location which initiated the disconnect. If the test
ran normally, the ARGUS will display “Active clearing” on
this line. 

The test results display:
Bit pattern
2^15
B-channel used
B02
Data transmitted in kbit
10309 Kb, 
k= 1024 bits
The number of bit errors
10
Bit error rate
9.7E-07 = 9.7·10-7 =
0.00000097
The evaluation of the results OK
depends on the error
threshold.
<MENU>
The ARGUS opens the BERT menu.
Display of other characteristic values (in accordance with
ITU-T G.821). 
All values are given in percentages. The ARGUS evaluates
whether the test results satisfy the limits specified in the
ITU-T G.821 with consideration of the reference connection
HRX (displaying OK or NO).

 -Key
Scroll
<TM>
Open the Test Manager
<SAVE>
Save the results see page 125
<
>
The ARGUS will return to the previous
display










ARGUS 42 PLUS
123
12 Operation on an ISDN Access
Characteristic values (in accordance with ITU-T G.821)

HRX
Defines the hypothetical reference connection
EFS
Error Free Seconds:
The number of seconds in which no error occurred.
ES821
Errored Seconds:
The number of seconds in which one or more errors occurred.
SES821
Severely Errored Seconds:
The number of seconds in which the bit error rate is >10-3. 
64,000 bits are sent in one second, i.e. Bit ERror 
(BER) = 10-3 equals 64 bit errors.
US
Unavailable Seconds:
The number of all sequentially adjacent seconds (at least 9 sec) in which
BER > 10-3.
AS
Available Seconds: 
The number of all sequentially adjacent seconds (at least 9 sec) in which
BER < 10-3.
DM
Degraded Minutes:
The number of minutes in which the bit error rate is 10-6. 
3,840,000 bits are transferred in one minute, thus BER = 10-6 corresponds
to 3.84 bit errors (3 errors = NO (no degraded minutes), 4 errors = OK
(Degraded Minutes).
LOS
Loss of Synchronization:
Synchronization is lost at an error rate > or = 20 % within a second. The
absolute number of synchronization losses will be shown.
124
ARGUS 42 PLUS
12 Operation on an ISDN Access
BERT - saving
The ARGUS can store the results of several BERTs. The ARGUS saves the results
together with the date, time and call number of the access under test (if this number has
been entered as the "own" number in the speed-dialing memory, see page 184) under the
next free record number (see page 173). If all of the records are used, the ARGUS will
return to the "Autom. Test" dialog and request permission to overwrite the oldest test
results.












Using the numeric keys, enter the name under which the
result should be saved (Default: AMP_1, AMP_2, ... or the
call number of the access under test if the number has been
entered into the speed-dialing memory).
When the right softkey is pressed it assumes a different
meaning and thus influences the entries made from the
keypad (letters or digits).
ARGUS 42 PLUS
125
12 Operation on an ISDN Access
BERT wait
In “BERT wait” mode, the ARGUS will wait for the BERT at the remote end which is
necessary for an end-to-end test:
ARGUS in the Single tests menu 









Activate “BERT wait”

The ARGUS first waits for a call and then sets up the
connection. During the connection, the received bit pattern
will be evaluated. In addition, another independent bit
pattern will be sent.
<MENU>
The ARGUS will open the Main menu.
"BERT wait" is still active. Return to the
"BERT wait" display via the Test Manager
(page 154).
<TM>
Call the Test Manager (page 154)
<ABORT>
Exit “BERT wait” mode.

The ARGUS displays that will appear are the same as
those described in Chapter BERT start.
126
ARGUS 42 PLUS
12 Operation on an ISDN Access
B-channel loop
“B-channel loop” mode is required in order to run a bit error rate test using a loopbox at the
remote end as well as to test leased lines.
BERT
<
>
ARGUS in the Single tests menu







Activate the “B-channel loop”

The ARGUS will wait for a call. Any incoming call
(regardless of the service) will be taken immediately. The
ARGUS will switch a loop back in the B-channel that is
specified by the exchange and then send the received bit
pattern back to the caller/sender.
<MENU>
The ARGUS will open the Main menu.
From this menu, you can start a second Bchannel loop connection (this is also
possible using the Test Manager).
(The "B-channel loop“ remains active in the
background; use the Test Manager to
return to the "B-channel loop", "Wait active"
see page 158).
<TM>
Open the Test Manager (page 154)
<ABORT>
Exit “B-channel loop” mode
As soon as the ARGUS takes a call, the "B-channel LOOP" connection display will open:
The ARGUS will display the caller's number (e.g.
235190700), the B-channel used (e.g. B01) and the number
dialed (e.g. 907070).
 -Key
Display further information 
(e.g. TON, NP, UUS, ...)
ARGUS 42 PLUS
<MENU>
The ARGUS will open the Main menu.
<TM>
Open the Test Manager (page 154)
<ABORT>
Disconnect B-channel loop
“B-channel loop” mode remains active.
127
12 Operation on an ISDN Access
Displaying the saved BERT results:
Test reports
<
>

In the Main menu, select Test Reports.



-, -Keys to select the record with the saved BERT








The ARGUS will first display the status of the access under
test.





display the stored results 
128
< >
to scroll through the results
<ABORT>
Continue to the next higher menu
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.5 The Supplementary Services Test
The ARGUS checks whether the access under test supports supplementary services in the
DSS1 protocol.
Suppl.service interrogation in DSS1
ARGUS in the Single tests menu





Use the keypad to enter the "Own number" (the number of
the access under test) or select it from the speed-dialing
memory (see page 184). The ARGUS will test the
availability of the supplementary service (in part by placing
a call to itself). 


Select the service which should be used for the
supplementary services test.



Enter the B-channel on the keypad. By default, the channel
last used will be suggested. If you enter an *, the ARGUS
will choose any B-channel that is free.




Select the supplementary service (e.g. TP) that the ARGUS
should check to see whether it is supported on the access
under test.

Start test

The ARGUS will automatically display the test results:
+ =
suppl. service supported
- =
suppl. service not supported
<>
<
Scroll through the test results
>
The ARGUS will return to the previous
display

ARGUS 42 PLUS
129
12 Operation on an ISDN Access

Test
TP
Explanation
The ARGUS tests the TP (Terminal Portability) supplementary service by
making a self call.
HOLD
The ARGUS tests the HOLD supplementary service by making a self call.
CLIP
The ARGUS checks, one after the other, whether the 4 supplementary
services CLIP, CLIR, COLP and COLR are supported. To do so, the ARGUS
will setup as many as three calls to itself.
CLIP:
Will the calling subscriber's number be displayed at the called
subscriber?
t = CLIP temporarily available
p = CLIP permanently available
CLIR:
Will the display of calling subscriber's number at the called
subscriber be suppressed or is it possible to temporarily suppress
the display? If the ARGUS displays an *, it is not possible to
determine the availability of the service, since no CLIP has been
setup.
t = CLIR temporarily available
p = CLIR permanently available
COLP: Will the call number of the subscriber who answered be displayed on
the caller's phone?
COLR: Will the display of the call number of the subscriber who answered
be suppressed on the caller's phone or is it possible to temporarily
suppress the display? If the ARGUS displays an *, it is not possible
to determine the availability of the service, since no COLP has been
setup.
The suppl. services CLIP, CLIR, COLP and COLR will be tested in pairs. If
CLIR or COLR is set up permanently, it is not possible to make a clear
assessment.
DDI
Can a caller directly dial in to an extension on the PBX access under test?
MSN
Is the supplemental service MSN supported?
CF
The ARGUS will check whether the 3 supplementary services CFU, CFB and
CFNR are supported.
CFU:
Can this access immediately forward an incoming call?
CFB:
Can this access forward an incoming call when it is busy; in other
words does it support Call Forwarding Busy?
130
ARGUS 42 PLUS
12 Operation on an ISDN Access
CFNR: Can this access forward an incoming call when it is not answered?
In the CF test, the ARGUS attempts to set up a call diversion to the call
number that is in the speed-dialing memory location for “remote call number
1” (see "Saving call numbers in the Speed-dialing Memory" on page 24).
When performing a CF test, the ARGUS will report an error if this location
does not contain a valid call number to which it is possible to divert a call.
CW
Does the access under test support call waiting?
CCBS /
CCBS-T
Will the access under test automatically recall a remote subscriber if the
CCNR /
CCNR-T
Will the access under test automatically recall a remote subscriber if the call
MCID
Does the access tested allow identification of malicious callers (call tracing)?
3pty
Does the access under test support a three-party conference call?
number called was busy?
was not answered?
For this test, you need the assistance of a remote subscriber, whose call
number must be entered. A connection is necessary.
ECT
Is an explicit call transfer supported by the access under test? 
For this test, you need the assistance of a remote subscriber, whose call
number must be entered. A connection is necessary.
CUG
The ARGUS then uses a self call to check whether the access under test
belongs to a closed user group.
CD
An incoming call will be diverted immediately. This form of call diversion
differs from the others in that it is invoked on a call-by-call basis, and is not
preconfigured to a specific destination.
AOC
The ARGUS checks whether the charges can be sent to the access under
test. The test uses a call to oneself to check both AOC-D (AOC during a call)
and AOC-E (AOC at the end of a call).
SUB
A call is made to oneself and answered to check the transfer of the subaddress in both directions.
Are sub-addresses supported on the access under test?
UUS
Does the access under test support the transfer of user data?
No
If the caller supports CLIP No Screening, all of the net-side call numbers
Screening connected with the ARGUS will be displayed.
ARGUS 42 PLUS
131
12 Operation on an ISDN Access
Supplementary Services Test - Error Messages
If an error occurs during the Supplementary Services Tests or if it is not possible to setup a
call, the ARGUS will display the corresponding error code (e.g. 28).
Example: The error code 28 equates to "wrong or invalid number". 
In the table below, you will find that this is an error from the network and that it reports that
the call number was incomplete or in the wrong call number format (see "CAUSEMessages – DSS1 Protocol" in the appendix).

A few error codes and their meaning:
Description
Cause (from network)
Cause ARGUS internal
DSS1
no or another access
__
201, 204, 205, 210, 220
wrong or invalid
1, 2, 3, 18, 21, 22, 28, 88
152 ,161, 162, 199
number
One or more 
17, 34, 47
___
49, 57, 58 ,63 , 65, 70, 79
___
B-channels busy
wrong service














132
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.6 Service tests
The ARGUS checks, which of the following services are supported by the access under
test:
Service
Name in the ARGUS
display / abbreviation
Language
Language / Lang
Unrestricted Digital Information
UDI 64kBit / UDI 64
3.1 kHz Audio
3.1k audio / Tel.
7 kHz Audio
7 kHz audio / 7 kHz
Unrestricted Digital Information with tones / display
UDI+TA / UDI TA
Telephony
Tel.ISDN / Tel.
Facsimile Group 2/3
Fax G3 / FaxG3
Facsimile Group 4 Class 1
Fax G4 / FaxG4
Teletex service basis and mixed mode and facsimile
Mixed Mode / Mixed
service Group 4 Classes II and III
Teletex Service basis mode
Teletex / Ttx64
International inter working for Videotex
Videotex
Telex
Telex
OSI application according to X.200
OSI
7 kHz Telephony
Tel.7kHz / Tel7k
Video telephony, first connection
Videotel.1 / Vid.1
Video telephony, second connection
Videotel.2 / Vid.2
Three user-specific services
Userspec.1 /
Userspec.2 /
Userspec.3 /
(See “Services” on page 118)
Service test
ARGUS 42 PLUS

ARGUS in the Single tests menu 





Enter the number of the access under test



The test runs automatically.
For each service, the ARGUS will place a call to itself (to
the access under test). However, the call will not be
answered so no charges will be incurred.
133
12 Operation on an ISDN Access
There are PBXs that use separate call numbers for incoming and outgoing calls.
In this case, for the Service tests, you can enter a “remote” call number that does
not match the “own” number that is stored in the ARGUS.
If the Service test should extend outside of the local exchange, it is possible to perform the
Service test in an end-to-end mode.
In this case, you must enter the remote call number for a second terminal device. The
ARGUS will then automatically check whether the remote terminal can accept the call
under the various services – in other words, whether it is “compatible” with these services.

In the test results, the second part (second +, - or *) refers to the answer from the remote
exchange.
The ARGUS will display the results of the test once it is
done.
The ARGUS makes a distinction between outgoing calls
(the first +, - or *) and incoming calls (the second +, - or *).
< > Scroll through the test results
Test results:
+ =
- =
*=
Service supported
Service not supported
A definite statement cannot be given, see the
adjacent error code for the reason.
Interpreting the test results:
Display
++
Explanation
The self call functions OK or the remote end can take the call for
this service
+-
The call was sent successfully, however, it was rejected at the
remote end due to a lack of authorization.
-
An outgoing call with this service is not possible
+*
The call was sent successfully, the call back or call to the remote
end failed (e.g., remote end busy or no B-channel available for the
call back).
*
Wrong number, no B-channel available or other error
If the outgoing call is not successful, it is not possible to make a statement about an
incoming call. Therefore, you will never see “- +” or “- *” on the display.
134
ARGUS 42 PLUS
12 Operation on an ISDN Access
Example:


For outgoing, the Fax G3 service is OK. No statement is
possible about incoming. The error code 63 gives the coded
cause of the error (see the table in the Appendix). In this
case, it is recommended that you have someone place a
call to the access under test using this service.

Fax G4 service is supported in both directions.


If an error occurs (See “Supplementary Services Test - Error Messages” on page 132) the
Service test will be aborted. Any other error will be coded in decimal (in the example above
63), assigned to the respective service and then displayed.
ARGUS 42 PLUS
135
12 Operation on an ISDN Access
12.7 X.31 test
The ARGUS will either perform a “Manual X.31 test” or an “Automatic X.31 test”:
The ARGUS will first perform a TEI test and then begin to setup an X.31 connection.
Afterwards, the ARGUS will automatically clear the connection and display the results.
In the case of a manual test, the ARGUS will setup a D-channel connection and an X.31
connection. The duration of this connection is determined by the user (or the opposing
end). For the duration of the connection, the ARGUS will repeatedly send a predefined data
packet. 
The ARGUS will count all of the data packets sent and received and will display (where
possible) the contents of the data packets received.
Two different parameters can be set for the X.31 test:
Configuring the X.31 parameters
Configuration
<
>
<
>
<
>
X.31
TEI
Enter a TEI

In the Main menu, select “Configuration”.



Select "X.31"


Select the desired parameter (in this example, TEI )


Using the keypad, enter the TEI

The ARGUS saves the TEI entered.
< >
<
>
The ARGUS will return to the previous display
without saving any TEI entered.


Parameter
Remark
TEI
Entry (from the keypad) of the TEI to be used in the X.31 test. If you
enter **, the ARGUS will automatically select a TEI.
LCN
136
Entry (from the keypad) of the LCN to be used in the X.31 test.
ARGUS 42 PLUS
12 Operation on an ISDN Access
X.31 test, automatically (D-channel)

The "Automatic X.31 test" is performed in two steps:

First Step:
The ARGUS tests whether it is possible to access the X.25 service via the D-channel on
the BRI S/T access under test. The ARGUS checks all of the TEIs from 0 to 63 one after
the other. All the TEIs, which support X.31-service on Layer 2, will be displayed.

Second step:
For each TEI with which X.31 is possible on Layer 2, a CALL_REQ packet will be sent and
then the ARGUS will wait for an answer. Beforehand, the ARGUS will request the entry of
the X.25 access number, which will be saved in speed-dialling memory under X.31 test
number (see ”Reset all parameters" on page 184). With the entry of the X.25 access
number, you can - if you wish - select a logical channel (LCN) other than the default.
ARGUS in the Single tests menu

Select "X.31 Test" 




Select "Automatically" 


Start test

The test can take up to 4 minutes (a rotating bar will be
displayed). The ARGUS will display the currently tested
TEI, the previously tested TEI and the results:
+
= X.31 is available for this TEI
= X.31 is not available for this TEI

After the test is completed, the ARGUS will show whether
the X.31 service is available for Layer 3 for the TEIs found
in Step 1.

 -Key
to scroll through the results



ARGUS 42 PLUS
137
12 Operation on an ISDN Access
Test results
TEI 02 =
++
=
+=
The first valid TEI value is 02.
Both test steps were successful.
2. test step was unsuccessful. 
In this case, the ARGUS will display the relevant X.31 cause for the failure
(in the example above, 13) and the associated diagnostic code (in the
example, 67) if available (see page 201).
If the X.31 service is not supported, the ARGUS will report “X.31 (D) n. impl.”


Manual X.31, D-channel test
The ARGUS first requests a TEI, LCN and an X.31 number. If an ** is entered for the TEI,
the ARGUS will automatically determine a TEI. Using the first TEI with which X.31 is
possible, the ARGUS will begin to setup a connection.
ARGUS in the Single tests menu
Select "X.31 Test" 





Select "Manual" 



The ARGUS displays the TEI stored in the Configuration
menu (see page 136). You can edit the TEI from the
keypad; If you enter ** , the ARGUS will automatically
determine a TEI.
<DEL>
Delete the TEI

The ARGUS displays the LCN saved in the Configuration
menu. It is possible to edit the LCN from the keypad.



The saved X.31 number (speed-dialing memory) is
displayed (see page 184). It can be edited from the keypad.


Setup a X.31 connection

138
ARGUS 42 PLUS
12 Operation on an ISDN Access
The ARGUS will display the LCN, TEI and X.31 number
(e.g. 0263110 00091258).
<DATA>
Send predefined data packets (three different
packets are available).
Display additional information (if made
available by the exchange).


The connection will be maintained until the user or the
opposing end clears it. When the X.31 is cleared down, the
ARGUS will automatically clear down the D-channel
connection.

<YES>
The ARGUS saves the results. 
For information on displaying the saved test
results, see page 173.
ARGUS 42 PLUS
139
12 Operation on an ISDN Access
12.8 Call Forwarding (CF)
CF Interrogation
The ARGUS will check whether a call diversion has been setup in the exchange for the
access under test (DSS1 only). 
The ARGUS will show the type of diversion (CFU, CFNR or CFB) and the call diversion’s
service. The display is limited to a maximum of 10 call diversions for all of the MSNs. The
ARGUS will count any additionally set up call diversions. 
Any call diversion setup in the exchange can be cleared with the ARGUS.
ARGUS in the Single tests menu

Select "CF interrogation" 


Start the CF Interrogation which can take several seconds. 

The ARGUS displays the type (e.g. CFU) and service (e.g.
Spch) of the call diversion, which in this example is the third
of a total of nine found 
(3/09). The number 2351919658 is diverted to 14418.
 -Key
to scroll
<NEW>
Repeat the CF interrogation

Delete call diversion



Security query:

<YES>
The ARGUS will delete the displayed number
in the exchange. If the call diversion could not
be cleared, the ARGUS will report: Call
diversion not changeable.
<ALL>
Delete all current call diversions.


<CONT.>
140
The ARGUS opens the Single tests menu.
ARGUS 42 PLUS
12 Operation on an ISDN Access
Some PBXs or exchanges do not permit the use of the mechanism used (by the
ARGUS) for the interrogation of the call diversions for all MSNs or they return a
negative acknowledgment of the interrogation of call diversions, implying that no
call diversions have been set up.
In the event of a negative acknowledgment, the ARGUS will, therefore, request
that the own MSN be entered.
The call diversion interrogation will be repeated MSN-specific.
Naturally, in this case, the results of the interrogation of the call diversion only apply
for the entered MSN and not for the entire access.
Abbreviations used for the services and service groups on the display:
Basic Service
Abbreviation
All services
All
Language
Spch
Unrestricted digital information
UDI
Audio 3.1 kHz
A3k1H
Audio 7 kHz
A7khz
Telephony 3.1 kHz
Tel31
Teletext
TTX
Fax Group 4
FaxG4
Video syntax based
ViSyB
Video Telephony
ViTel
Telefax Groups 2/3
FaxG3
Telephony 7 kHz
Tel7k
UDI 64 kBit
UDI
Unknown Basic Service
Unkno
ARGUS 42 PLUS
141
12 Operation on an ISDN Access
CF activation
Using the ARGUS, call diversions can be setup in the exchange.
ARGUS in the Single tests menu

Select "CF activation" 





Select the call diversion service 




Select the call diversion type 




Under "Own number", enter the number which should be
diverted.
<DEL>
Delete the digit before the cursor



Enter the number to which calls should be diverted.


Setup the call diversion
142
ARGUS 42 PLUS
12 Operation on an ISDN Access
CF delete
Using the ARGUS, call diversions can be deleted in the exchange.
ARGUS in the Single tests menu

Select "CF delete" 





Select the call diversion service 




Select the call diversion type 




Under "Own number", enter the number which should no
longer be diverted.
<DEL>
Delete the digit before the cursor

Delete call diversion










ARGUS 42 PLUS
143
12 Operation on an ISDN Access
12.9 MSN interrogation (only on a DSS1 BRI S/T)
On a P-MP access using the DSS1 protocol, the ARGUS will determine the MSNs of the
access under test. It will display a maximum of 10 call numbers. Depending on the Type of
Number (TON), the ARGUS will display the call numbers in different versions:
- only the MSN (without area code)
- MSN with national area code without the leading “0”
- with country code without leading the “00”
- complete call number
In order to interrogate the MSNs, the access under test must support the
supplementary service “Call Forwarding (CF)”. In addition, pay attention to the
"Destination MSN" setting.

ARGUS in the Single tests menu

Select "MSN interrogation" 


Start the MSN interrogation

In this example, the ARGUS displays the first MSN
(2351919658) of a total of three found (1/03). 
< >
Scroll through the test results
<NEW>
Repeat the MSN interrogation



Due to differences in the protocol, some exchanges do not support MSN
interrogation. In this case, the ARGUS will report: 
MSN interrogation not possible!
144
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.10 Connection
Setting up an ISDN connection
a) The ARGUS can setup a connection for the following services:

Service

Name in the ARGUS display /
abbreviation
Language
Language / Lang
Unrestricted digital information
UDI 64kBit / UDI 64
3.1 kHz Audio
3.1 kHz audio / 3.1k
7 kHz Audio
7 kHz audio / 7 kHz
Unrestricted Digital Information with tones / display
UDI-TA / UDI TA
Telephony
Telephony ISDN / Tel.
Facsimile Group 2/3
Fax G3 / FaxG3
Facsimile Group 4 Class 1
Fax G4 / FaxG4
Teletex service basis and mixed mode and facsimile
Mixed Mode / Mixed
service Group 4 Classes II and III
Teletex Service basis mode
Telex / Ttx64
International inter working for Videotex
Videotex / VTX
Telex
Telex / Telex
OSI application according to X.200
OSI / OSI
7 kHz Telephony
Telephony 7kHz / Tel7k
Video telephony, first connection
Video telephony 1 /
Vid.1
Video telephony, second connection
Video telephony 2 /
Vid.2
Additional three user-specific services (See “Services” on page 118).
b) The integrated handset can be used as a phone during a telephone connection.
c) When an ISDN connection is set up, pressing the number keys (0-9) or the * or # will
generate and send the corresponding DTMF tones. 









ARGUS 42 PLUS
145
12 Operation on an ISDN Access
Overlap sending (outgoing call)
In overlap sending, the digits entered for the call number are sent individually.
Connection
<
-Key
>

In the Single tests menu, select “Connection”.

Select "Overlap sending"

The ARGUS will open the connection
display

Select the service to be used for the connection.

Enter the B-channel via the keypad (by default, the
last B-channel used will be suggested). To enter a
new B-channel, first press <DEL>. If you enter an *,
the ARGUS will choose any B-channel that is free.
The ARGUS will show whether the B-channel is
available.

Setup the connection

Enter the number on the keypad.
The ARGUS displays the service (Tel.), the own
number (90700), the B-channel (B02) and the number
called (01191), the call reference (CR value) as well
as its length and flag.
-key
Scroll through the Infos
<TM>
For information on starting the Test
Manager, see page 154.
<CLEAR>
Cancel setup

The connection is setup using B-channel 2.
-key
Scroll through the Infos
(if there are any):
- Subaddress of the caller (SUB)
- User-User Information (UUI)
- Display Information
- Type of number (TON)
- Numbering Plan (NP)
146
<CLEAR>
Disconnect
<VOLUME>
Set the handset volume
e.g. 
0-key
Keypad information, can also be
transferred during the call, see
page 153 and page 118.
ARGUS 42 PLUS
12 Operation on an ISDN Access


The ARGUS displays the cause of the disconnect.
(see page 151 Clearing Down a Connection).




Displaying Advice of Charges (AOC)
If the charges are not given in units, rather directly as currency, the ARGUS will display the
current charges in currency. If, in DSS1, the call charges are not provided in accordance
with the DIN ETS 300 182 standard, rather in the form of the information element DISPLAY
(DSP), the ARGUS will display the DISPLAY message's character string.
Note regarding the entry of the call number
Separate the extension from the access number with a # (e.g. 02351 / 9070-0 is
entered on the ARGUS as: 023519070 #0). 
For an outgoing call, the ARGUS uses the entire call number (without #) as the
number called (CDPN or DAD) and, for the calling number, only the extension
(DSS1-CGPN or 1TR6-OAD).
A ‘#‘ at the beginning of a call number is treated as a valid character. A ‘#’ at the
end of the own call number instructs the ARGUS to not send the caller’s number for
outgoing calls (CGPN or OAD).


Simplified overlap signaling using the telephone key

Press
The ARGUS will open the Connection/Overlap window
directly regardless of the currently open menu.
Press again
ARGUS 42 PLUS
A dial tone will be heard and once the call number is
entered, the call will be setup.
147
12 Operation on an ISDN Access
En-bloc sending (outgoing call)
In en-bloc sending, the ARGUS sends the entire dialing information in one block. The
number is dialed from the call number memory (see page 184).
Connection
<
>

In the Single tests menu, select “Connection”.



Select Enblock 




Select the number from the call number
-Key
memory (see page 184) or reenter the
number on the keypad
<DEL>
-Key
-Key
Delete digit
The ARGUS will open the connection
display

Select the service to be used for the connection.




Enter the B-channel via the keypad (by default, the last
B-channel used will be suggested). To enter a new Bchannel, first press <DEL>. If you enter an *, the
ARGUS will choose any B-channel that is free. The
ARGUS will show whether the B-channel is available.


Start the dialing procedure
(for more displays and information see Overlap
sending)

Cancel setup

The ARGUS displays the cause of the disconnect.
(see page 151 Clearing Down a Connection)
148
ARGUS 42 PLUS
12 Operation on an ISDN Access
Incoming Call
An incoming call can be taken at any time even when a test (e.g. a BERT) is in process
(see page 155). The ARGUS will signal an incoming call with an audible tone and a
message on the display. 
On a P-MP access, you can use the Call acceptance (see page 118) function to configure
the ARGUS to only signal incoming calls which are addressed to the MSN that corresponds
to your own call number. This function can only be used when your own call number has
been entered into the ARGUS’s speed-dialing memory (see page 184) and the incoming
call has a destination MSN.
The ARGUS displays the service (Tel.), the number of the
caller (02351907070), the B-channel used (B01) and the
number called (90700).
The ARGUS will display the complete destination number
(DDI), if the Alerting mode is set to manual (see page 117).
View additional information (if available)
-Key
<REJECT>
Reject call

Accept the call



-Key
View additional information (if available)
<TM>
Start Test Manager (see page 154).
<VOLUME>
Set the handset volume
e.g. 
0-key
Keypad information, can also be
transferred during the call, see page 153
and page 118.

Clearing the connection 






ARGUS 42 PLUS
149
12 Operation on an ISDN Access
Redial
The ARGUS will set up a call using the last number dialed.
Connection
<
>
<
>
Redial
or
-Key
150

In the Single tests menu, select “Connection”.


Select “Redial” 



Select the service to be used for the connection.







Enter the B-channel via the keypad (by default, the last Bchannel used will be suggested). To enter a new Bchannel, first press <DEL>. If you enter an *, the ARGUS
will choose any B-channel that is free. The ARGUS will
show whether the B-channel is available.


Using the number used last, start dialling (for information
on the other displays and operation see Overlap sending
page 146).


ARGUS 42 PLUS
12 Operation on an ISDN Access
Clearing Down a Connection



-Key
View additional information (if available)
<TM>
For information on starting the Test
Manager, see page 154.
<VOLUME>
Set the handset volume
<CLEAR>
or
Clearing the connection (see page 151).
-Key

The ARGUS will display the cause (see the table below) of
the disconnect (e.g. Normal clearing) and the location where
the cause occurred (e.g. subscriber).
View additional information (if available)
-Key
<TM>
For information on starting the Test
Manager, see page 154.


The ARGUS opens the Single tests menu.



The following causes are shown in clear text:
Cause
Display
255
Active clearing
Explanation
Clearing User actively initiated the disconnection
Length 0 Normal clearing
Cause element with Long 0
01
unalloc. number
Signals “No access under this call number”
16
Norm. clearing
Normal clearing
17
User busy
The number called is busy
18
No user respond
No answer from the number called
19
Call.time XX
Call time too long
21
Call reject
The call is actively rejected
28
Wrong number
Wrong call number format or call number is incomplete
31
Norm. clearing
Unspecified “normal class” (Dummy)
34
No B-chan.avail.
No circuit / B-channel available
44
Req.chan.unavail
Requested B-channel not available
50
Req.fac.not subs
Requested supplementary service (facility) not
subscribed
ARGUS 42 PLUS
151
12 Operation on an ISDN Access
57
BC n.enabled
Requested bearer capability is not enabled
63
Serv./Opt.n.verf
Unspecified for “Service not available” or “Option not
69
Req.fac.not
impl.
Requested facility is not supported
88
Incompat.
Destination
Incompatible destination
102
Timer expired
Error handling routine started due to time-out
111
Protocol error
Unspecified for “protocol error class”
127
Interworking err
Unspecified for “interworking class”
available”

Other causes are not shown in clear text, rather as decimal codes (see Appendix C and D
page 200).
152
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.11 Testing features via the keypad
This feature is only relevant on a BRI S/T access.
Some network operators do not support the standard DSS1 features, rather they expect the
user to control the network via so-called keypad command sequences.

In these cases, the desired facility is usually activated by entering a series of characters
and then sending these characters within a DSS1-specific protocol element. These socalled Keypad-Elements are imbedded in a SETUP message. Each step is acknowledged
either acoustically (handset) or via special protocol elements (cause). These causes are
displayed by the ARGUS.
Connection
<
>
Keypad dial
<
>
In the Single tests menu, select “Connection”.



Select “Keypad dial” 



Select a Keypad Info entry, see page 118.
-Key
<EDIT>
out.call
ARGUS 42 PLUS
Select a Keypad Info entry to be edited.
Afterwards, use the keypad to enter the
Keypad Info (see page 118).

Select the service to be used for the connection.



Enter the B-channel to be used for the connection via the
keypad (by default, the last B-channel used will be
suggested). To enter a new B-channel, first press <DEL>.
If you enter an *, the ARGUS will choose any B-channel
that is free. The ARGUS will show whether the B-channel
is available.


Start the dialing procedure
(for more displays and information see Overlap sending
page 146)



153
12 Operation on an ISDN Access
12.12 Test manager: Managing multiple tests or connections
The ARGUS can simultaneously start several tests or “connections” fully independently of
each other. As an example, a BERT can be run at the same time that you make a phone
call. The individual tests or “connections” use resources. 

All of the tests that have been started will be administered by the test manager. Using the
Test Manager you can start new tests, switch between tests running in parallel or terminate
all of the tests that are currently running.
Test manager
<
154
>

In the Main menu, select "Test manager".

Open the Test Manager

<TM>  Opens the test manager directly, if the ARGUS
is in the Single tests menu or has a connection
or
for a call or is running a test.
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.12.1 Starting Several Tests to Run Simultaneously
Starting a new test or connection during an existing connection

Example:
There is a connection on B-channel 1.

<TM> Calls the Test Manager 
or
Single tests
<
>

The ARGUS displays the number of existing connections
(-/01). 
Select "Start new one". 

The ARGUS will open the Main menu. 

Select single tests.



Select the desired test, e.g. BERT


Start BERT (still connected)

For information on running a BERT, see page 119



The ARGUS will open the Test Manager.

Select “Outgo. connect.”.
An example of the
display
The connection
was the first
started
Tests
1/02
There are currently
two active
connections or tests
B01
The connection 
uses B-channel 1

The ARGUS will open the "Connect. Tel." display.
If a test (or connection) is cancelled or cleared, the
ARGUS will return to the Test Manager if there is another
test (or connection) running in the background.
ARGUS 42 PLUS
155
12 Operation on an ISDN Access
Some tests use so many resources that they cannot be run in every combination
with other tests. In this case, the ARGUS will display “Test not possible at this
time”.

Test/
Connection display.
Number of times that this test/connection
can be started at the same time
It is possible
to change to
another test
Incoming call
2
Yes
Outgoing call
2
Yes
BERT
2
Yes
Loop
2
Yes
Service tests
1
No
Suppl.serv.test
1
No
Time measurement
1
No
X.31 Test
1
No
CF Interrogation
1
No
Auto. test
1
If the auto. test is running, all
of the resources are in use and no
other tests or connections are possible.
No
S-Bus level
1
No
156
ARGUS 42 PLUS
12 Operation on an ISDN Access
Accepting an incoming call/connection when a test is running.

The ARGUS signals an incoming call both audibly and on the display (see page 145
Setting up an ISDN connection). The incoming call can be accepted without affecting the
currently running test. If either the “B-channel loop” or the “BERT wait” function is active,
the call will be accepted automatically.
The manner that multiple connections are handled is illustrated in the following example of
"Accepting an incoming call during a BERT", but it is identical for all other tests.

While running a BERT, the ARGUS displays information
about an incoming call.

<REJECT>
Reject the incoming call
The ARGUS returns to the BERT.

Accept the call

The BERT will continue in the background.



<TM> Calls the test manager 
or

Select “BERT outgoing”.


The ARGUS will open the BERT display.

The connection is still active in the background, the handset
is still switched to the connection.

If available, the internal handset will be assigned to the currently started (voice)
connection. The assignment of the handset to a given connection is also retained
in the background.
ARGUS 42 PLUS
157
12 Operation on an ISDN Access
12.12.2 Switching between tests
Open the test manager. 


Select the test (connection) to which you wish
< >
to switch.
<
<
The ARGUS will jump to the selected test.
>
>
The ARGUS will return to the point from which
the Test Manager was called (e.g. to a test
running in parallel). 
If no other test is running, the ARGUS will,
reasonably enough, return to the Main menu.






12.12.3 Cancel all

Open the test manager. 
Select "Cancel all"
< >
The ARGUS will cancel all of the currently running tests
and/or connections and then return to the main menu. 








158
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.13 Level measuring on an S-Bus access
Level measurement – connected line
The ARGUS measures the level of the received useful signal and the phantom feed. The
measurement will be updated continuously.
Level measuring
<
>

In the Main menu, select “Level measuring”.

Start measurement

The ARGUS will display the level of the useful signal (e.g.
0.64 V) and the level of the feed (e.g. 38.2 V).
Measurement results: 
- Evaluation of the useful signal level:
<<
Level is too low
>>
Level is too high
OK
Level is in order (0.75 V +20%
i. e. from 0.9 V to 0.5 V)
none
no level
-33%



- Evaluation of the level of the feed
OK NORM
Normal feed (40 V +4.25%-13.75%, i.e.
from 41.7V to 34.5V)
ARGUS 42 PLUS
OK Rev
Inverted phantom feed
NONE
No feed (Voltage)

<R>ON>
100 resistor switched in
<R>OFF>
100 resistor switched out
<NEW>
to set up Layer 1 again - to ensure a
reasonable measurement.
159
12 Operation on an ISDN Access
12.14 Level measurement on a U-interface access
Measuring the feed voltage
Level measuring
<
>
<
>
Voltage U
In the Main menu, select “Level measuring”.





Start measurement

The ARGUS will display the level of the feed voltage.
The measurement will be updated continuously.

<ABORT> Stop measurement.
The ARGUS opens the Level measuring
menu.


Measurement of the U-interface under load
The ARGUS measures the voltage on the U-interface under various selectable loads and
displays the calculated current and power. From these values, it is possible to estimate the
length of the line.
Power U
<
>
In the Level measuring menu, select "Power U" 


Start measurement

The ARGUS displays the switched-in load in kthe
measured voltage in Volts (should not exceed 100 V), the
calculated power in mW and the calculated current in mA.
<++>
To increase the load by one increment (i.e.
the resistance is lowered)
<-->
To decrease the load by one increment (i.e.
the resistance is increased)
<ABORT>
The ARGUS opens the level measuring
menu.




160
ARGUS 42 PLUS
12 Operation on an ISDN Access

Step
Load / k
Maximum voltage / V
1
64.4
approx. 126.0 1)
2
28.1
approx. 126.0 1)
3
19.2
approx. 114.0 1)
4
13.9
approx. 114.0 1)
5
11.3
approx. 114.0 1)
6
9.2
approx. 109.4 2)
7
7.98
approx. 101.8 2)
8
6.88
approx. 94.6 2)
9
6.13
approx. 75.0 1)
10
5.46
approx. 75.0 1)
11
5.0
approx. 75.0 1)
12
4.55
approx. 75.0 1)
13
4.21
approx. 73.9 2)
14
3.90
approx. 71.2 2)
15
2.72
approx. 59.5 2)

1)
The voltage is limited by the power capacity of the individual circuit elements.
2)
The voltage is limited by the maximum power (1300 mW).

When switching the load levels, the power limitations of the components within the ARGUS
and the maximum permissible power (1300 mW) of the U-interface must be taken into
consideration. Therefore, the ARGUS will only permit the load to be switched another
increment when the specified voltage will not be exceeded.
12.15 The L1 Status of a BRI access
The ARGUS displays the current status of Layer 1: i.e., which signal is received from the
remote end (Rx) and which signal does the ARGUS send (Tx).
L1 state
<
ARGUS 42 PLUS
>

In the Main menu, select “L1 status”.



The ARGUS displays the status of Layer 1 or of the signal,
which is currently being sent (Info 0, ... , Info 4).
<NEW>
To setup Layer 1 again (if necessary).
161
12 Operation on an ISDN Access
12.16 Leased line
Besides dial-up connections to any subscriber, ISDN also supports the use of permanent
circuits switched to a specific remote location (leased lines). These leased lines
(permanent circuits) are available after setting up Layer 1, in other words after
synchronizing both terminals.
As a quick test of a leased line, you can simply call the opposite end 
using a selected B-channel. However, for a more revealing test of a leased line, you should
perform a bit error rate test.

Both ends of the permanent circuit (leased line) must use the same channel.
12.16.1 Telephony
Access
<
>
S-Bus interface
<
>
The ARGUS - Main menu










Display "LLs" in the status display.
The ARGUS will open the B-channel
selection.
Alternative: Alternatively, in the Single tests
menu, select Connection.
The ARGUS will display the B-channels available. Use the
-,-keys to select a B-channel or enter the number of
the B-channel on the keypad 
(first press <DEL>).
The ARGUS will setup the phone connection
< >
and display the B-channel used together with
the duration of the leased line connection
(permanent switch circuit) in
hours:minutes:seconds.
<VOLUME> Setting the volume
162
<TM>
Start Test Manager (see page 154). 
Another connection can be setup.
<ABORT>
Disconnect. 
The ARGUS will open the Status display.
ARGUS 42 PLUS
12 Operation on an ISDN Access
12.16.2 Bit error rate test
On a BRI S/T access:
Single tests
<
>
<
>
<
>
BERT
BERT start
A number of variations are possible in testing leased lines
with a BERT.
In the simplest case, a B-channel loop will be set up at the
remote end.
After selection of the channel to be tested (B-channel or
D-channel), the ARGUS will send the test pattern, receive
it back and evaluate it accordingly.

The displays and operation are, in largest part, similar to
those of a BERT on a dial-up connection (see page 122),
however, you need not enter call numbers or select a
service.



In the case of a BRI access in end-to-end mode (see
page 122 and page 126), it is also possible to run a BERT
in the D-channel.




 -,-Keys Change the B-channel or use the keypad
to enter the B-channel

BERT start

The ARGUS will display
- the bit pattern, B-channel used and the bitrate
- synchronicity of the bit pattern (synchron)
- sync.time in h:min:sec (the period of time 
that the ARGUS has been synchronized)
- LOS counter
- the bit errors that have occurred.
<ERROR>
Insert artificial bit errors to test the
reliability of the BERT.
0-key
The test time and bit error counter
will be reset.
<TM>
Start Test Manager (see page 154).
<ABORT>
Cancel the BERT.

Once it is over, the ARGUS will display the results of the
BERT (see page 122). For information on saving the test
results, see page 125.
ARGUS 42 PLUS
163
12 Operation on an ISDN Access
"BERT wait" on a leased line
In this mode, the BERT will wait for the BERT at the remote end which is necessary for an
end-to-end test: See “BERT wait” on page 126. 

12.16.3 Loopbox
Single tests
<
>
<
>
BERT

The ARGUS can be used as a loopbox on a permanent
circuit (leased line). 










Channel selection:
The ARGUS will loop either one B-channel (Channel
selection: B-channel) or all B-channels and the D-channel
(Channel selection: All framed).



The ARGUS will display the B-channel used and the
amount of time (in h:min:sec) that the Loopbox has been
active.

<ABORT>
Stop the Loopbox


12.16.4 Switching from permanent switch mode
ARGUS – status display 



164
<DSL>
The ARGUS opens the Access mode menu for
the ADSL access.
<LINE>
The ARGUS opens the Access menu see
page 111.
<AUTO>
The ARGUS starts the automatic access
recognition, see page 111.
ARGUS 42 PLUS
13 Operation on a POTS access
13 Operation on a POTS access
13.1 Setting the physical interface
Use the included connection cable to connect the ARGUS (line jack) to the access to be
tested and then switch the ARGUS on.
The Access Menu
Select a POTS
(physical) interface.
The POTS connection is
not yet setup!
ARGUS State display
The ARGUS will display
the voltage when idle. The
POTS connection is not
yet setup!
ARGUS - Main menu
see page 21
ARGUS 42 PLUS
165
13 Operation on a POTS access
13.2 Setting the POTS parameters
It is possible to configure the following POTS parameters as needed. The default settings can
be restored at any time (see page 184). The procedure for configuring a parameter is the same
for all parameters and will be illustrated with a single example:
Configuration
<
>
In the Main menu, select “Configuration”.



Select "POTS"





Select the parameter to be configured (e.g. Dial mode).




Select the desired dialling mode (e.g. Pulse mode).

The ARGUS will now use this setting.
< >
<
>
The ARGUS will return to the “POTS config”.
menu without making any changes.
Parameters:
Remark:
Dial mode
Selection of the dialling mode: DTMF or pulse dialing
Default setting: DTMF
POTS CLIP
Select the transfer procedure used to pass the call number:
FSK
CLIP via FSK 
(Frequency Shift Keying)
for Germany as well as some other parts of Europe
DTMF
CLIP via DTMF
for Scandinavia and the Netherlands
The ARGUS will automatically detect that a CLIP was
sent using DTMF with the polarity reversal and will set
itself accordingly
Default setting: FSK
166
ARGUS 42 PLUS
13 Operation on a POTS access
DTMF parameter
Settings for the three parameters Level, Duration and Interval of the
DTMF signals generated during POTS (analog) operation.
Level
Setting the DTMF level:
The level can range between -30 dB and +9 dB.
Use the cursor keys to raise or lower the level by 3dB.
Default setting: -3 dB
Duration
Setting the DTMF time:
The duration of the signal can take a value between 40ms and 1s. 
Default setting: 80 ms
Use the cursor keys to raise or lower the setting:
In the range
In the range
In the range
DTMF interval
40 - 200 ms:
200 - 300 ms:
300 - 1000 ms:
10 ms steps
20 ms steps
100 ms steps
Setting the interval between two DTMF characters:
The interval can take a value between 40ms and 1s. Default setting:
80 ms 
Use the cursor keys to raise or lower the setting:
In the range
In the range
In the range
Defaults
40 - 200 ms:
200 - 300 ms:
300 - 1000 ms:
10 ms steps
20 ms steps
100 ms steps
Restores the default settings: Level = -3 dB, Time = 80 ms
Interval = 80 ms
Flash time
Sets the length of a flash.
This setting is needed in order to use special features of a PBX.
Default setting: 80 ms
The flashtime can take a value between 40ms and 1s. 
Use the cursor keys to raise or lower the setting:
In the range
In the range
In the range
40 - 200 ms:
200 - 300 ms:
300 - 1000 ms:
10 ms steps
20 ms steps
100 ms steps
For information on restoring the default parameter settings, see page 184.
ARGUS 42 PLUS
167
13 Operation on a POTS access
13.3 Connection on a POTS access
Outgoing Calls
The Argus behaves like a POTS (analog) terminal. The ARGUS sets up a connection to
another terminal. If the terminal is a telephone, the handset integrated in the ARGUS can
be used to hold a conversation.
Connection
<
>

In the Main menu, select “Phone / connec.”
or 
simplified overlap sending using the telephone key
The ARGUS will open the POTS telephony window
directly (e.g. from the status display): Once the call
Key
number is entered, the call will be setup.

Setup the connection.

Enter the number on the keypad. Each of the number's
digits will be dialed individually. The ARGUS will display the
number dialed. As soon as the remote party answers, a
voice connection will be set up.
The ARGUS will display the charges, if the information is
available for the access under test.
<R>
Generate a flash signal
<No.>


<>
<DEL>
Select the number from the call number
memory or reenter the number on the keypad
Scroll through the speed-dialing memory see
page 185
Delete the digit before the cursor
The last number dialed will always be used as the default 
(simplified last number redial).

The ARGUS sends the complete dialing information
together.
<CLEAR>
Disconnect
Set the handset volume

Simplified overlap signaling using the telephone key
Press the - key and the ARGUS will immediately open the POTS telephony
display. Once the call number is entered, the call will be setup.
168
ARGUS 42 PLUS
13 Operation on a POTS access
Incoming Call
The ARGUS signals an incoming call both audibly and on the display.

If the access supports CLIP, the ARGUS will display the
number of the caller.

Accept the call


<R>
Generate a FLASH signal
<CLEAR>
Disconnect



13.4 POTS monitor
Essentially, the POTS monitor provides a high impedance tap (for listening-in) that does not
influence the interface. You can listen to the line with the integrated handset without having
the ARGUS send on the interface.




Start monitoring (alternatively: select “Start Monitor” in the
Main menu)

The ARGUS displays the voltage (when "off hook"), the
number of the caller (if CLIP is supported) and the DTMF
characters dialed by both telephone subscribers and the
SMS received. Any received DTMF-characters will be
appended to the line, which will shift left for each character
once it is full.
An incoming call will be signalled acoustically.

-key
Press to display additional information, if
available on the access
ARGUS 42 PLUS
<DEL>
Clears the display.
<ABORT>
Stop monitoring.
the ARGUS will open the Status display.
169
13 Operation on a POTS access
13.5 Level measuring on a POTS access
The ARGUS measures the voltage level in both the normal case and when the line is
“busy” (trunk line).
Level measuring
<
>

In the Main menu, select “Level measuring”.


Start measurement

The ARGUS will display the polarity of the 2-wire POTS line
(red plug "a"; black plug "b") as well as the "on hook" and
"off hook" voltage levels.

<NEW>
To repeat the measurement
<ABORT>
170
The ARGUS will open the Main menu.
ARGUS 42 PLUS
14 Copper test
14 Copper test
In a copper test, the ARGUS will measure the line’s resistance (loop) and capacitance
(open). Use the included cable to connect the ARGUS (Line jack) to the test points (red or
black banana plug). You can perform the copper test between both wires or between a
single wire and the earth (ground). 
To perform a TRG test (a to b, a to earth and b to earth), the optional 3-wire cable is
required. 

Switch the ARGUS on.
The line must be voltage-free (out of service) for the measurement!

Open the Main menu and select the Access menu.




Select "Copper test"









Select the test points (Tip/ring or Tip/ground). The default
setting will be marked in the display with an “*”. In the
example, the test will be performed using both wires (a to b
- or tip and ring).
The ARGUS will first determine the resistance. If the
resistance test shows that the line is open (infinite
resistance), the ARGUS will begin the capacitance
measurement.

The ARGUS displays the resistance measured. The
capacitance will not be displayed, since the resistance
measurement shows that it is a closed line and, therefore,
the capacitance cannot be determined.
<NEW>
Repeat the test.


Determination of the approximate length of the line.
ARGUS 42 PLUS
171
14 Copper test

 -,-Keys
<
>
Select the line-specific resistance of your
line 
(Range of settings: 20 /km to 300 /km).
The ARGUS will calculate the approximate
length of the line (in the example: 325
meters),
to return to the previous display 




If the ARGUS has determined that the line is open, it will
measure the line's capacitance. The resistance in the
example is very high - outside the range of the ARGUS and as a result the ARGUS cannot measure it.
<NEW>
Repeat the test.


Determination of the approximate length of the line.


 -,-Keys Select the line-specific capacitance of your
line 
(Range of settings: 35 pF/m to 99 pF/m).
The ARGUS will calculate the approximate
length of the line.
<
>
to return to the previous display 


Measurement ranges:
Determining the resistance of the line:
Range: 100  to100 k
Resolution: 0.1 k 
Precision: ±2%

Determining the capacitance of the line:
Range: 1 nF to 1 F
Resolution: 0.2 nF
Precision: ±5%

172
ARGUS 42 PLUS
15 Test reports
15 Test reports
15.1 Save test reports (Ethernet as an example)
ARGUS – State display



Stop Ethernet test.

<IP>PC>:
The ARGUS will send the trace file to the connected
PC, which must be running WINplus or WINanalyse.
The data will be saved in the "*.log" format and can be
renamed to "*.pcap" and decoded with a freeware
program (such as Wireshark). The setting “Data Log”
must be set to “on”. In Bridge and Router mode, two
log files will be loaded to the PC, one for the WAN and
one for the LAN side.


The ARGUS will save the test results in the first free
record. This record can be assigned any name
(default: AMP_1, AMP_2.... or the call number of the
access under test if the number has been entered into
the speed-dialling memory, see page 185). If all of the
records have been written, you must manually select a
memory location (record).

A record name can be entered using the numeric
keypad. When the right softkey is pressed it assumes
a different meaning and thus influences the entries
made from the keypad:
Save the
<12>ab>
Entry of the digits 0 to 9 plus * and #
results
<ab>AB>
Entry of lowercase characters 
and @, /,- and .
<AB>12>
Entry of uppercase characters 
and @, /,- and .
<DEL>
Delete the character before the cursor
 -, -Keys
Move the cursor

Once the results have been successfully saved in
memory, the ARGUS will return to the State display. A
new test can be started by pressing <Start>.
ARGUS 42 PLUS
173
15 Test reports
15.2 Display results
The ARGUS displays the saved test results. Using the WINplus or WINanalyse software,
the test results can also be saved on a PC. WINplus or WINanalyse can then be used to
generate a comprehensive measurement report from these results.
The ARGUS saves the test results of various test runs together with the date and time
(from the internal clock of the ARGUS) in memory locations with sequential record numbers
1, 2, 3, ... Additionally, settings such as your own plus a remote call number will also be
saved. The results are not lost when the ARGUS is switched off.
Each function in the Test results menu involves at least one record. The selections "All tests
to PC" and "Deleted all" affect all records. Therefore, the first step will open a dialog in
which you must select the desired data record.
Test reports
<
174
>

In the Main menu, select "Test reports".


Use the cursor keys to select the record (saved test
results). The ARGUS will also display the associated name
or the corresponding date and time for each record
number. Empty records are labeled as "empty".

<NAME>
Display the record names, e.g. AMP_1, ...
or

<DATE>
Display the date and time
ARGUS 42 PLUS
15 Test reports
15.3 Test reports – sending to a PC
Using the included "USB serial adapter", data records can be transferred from the serial
interface of the ARGUS (“Ser.”) to a PC (USB interface) where these test results can be
visualized and archived. Connect the ARGUS to your PC and start the ARGUS WINplus
program.
Test reports
<
>

In the Main menu, select “Test results”.




 -key
Select the record (saved test results)


Select "Test data to PC".

Start transfer of
data to PC
ARGUS 42 PLUS
175
15 Test reports
15.4 Deleting test reports
Test reports
<
>

In the Main menu, select “Test results”.




 -key
Select the record (saved test results)


Select "Delete"


Delete the selected record (in the example, no. 1).
A deleted record will be shown as “empty”. 

To delete all of the test results, select "Delete all".



15.5 Send all test reports to a PC
The ARGUS sends all of the saved test results to the PC.
Test reports
<
>

In the Main menu, select “Test results”.




 -key
Select the record (saved test results)


Select "All tests to PC".

Start transfer of data
to PC
176
ARGUS 42 PLUS
15 Test reports
15.6 Starting automatic tests on an ISDN access
The ARGUS performs an automatic test series and displays the test results. The required
parameters (on a BRI S/T access e.g. the measurement time and error level for the BERT,
see page 121) should be checked before the automatic test series is begun. The ARGUS
automatically performs the following sequence of tests:
On a BRI S/T or U-interface access
On a BRI S/T or U-interface leased line
(permanent circuit)
- Status
- Status
- Level measuring
- Level measuring
- Service tests
- BERT in end-to-end mode 
(e.g. with a loopbox on the remote end)
- BERT in an extended call to oneself
- Supplementary Services Test
- CF Interrogation (Call Diversions)
- MSN Interrogation
- X.31 test
Test reports
<
>

In the Main menu, select “Test results”.

 -key
Select the record (memory location), in which
the results of the automatic test sequence
should be saved.



Select "Start"
In the example, the new test is saved in record number 1.



After function key 4 is pressed to start the test, the ARGUS
requests that the user enter the record name.



Enter “Own number” ; on accesses using the DSS1
protocol, also enter a “remote number”.

ARGUS 42 PLUS
177
15 Test reports


Select the service which should be used for the
supplementary services test.


Start test

The ARGUS will display the currently running single test in
the first three lines. 
<ABORT>
Interrupting a test

Terminating the test (early):

The ARGUS is running an automatic test.



Interrupting a test

Select "Interrupt test" 
<ABORT>
Test - resuming



If a test is aborted, any results determined up to this point
will not be saved. Any “old” data stored under this data
record number from a prior test will be retained.

Skipping individual tests:
A single test can be skipped:
In this example, the ARGUS is currently running a Service
check.



Interrupting a test

Select "Stop cur. test" 
<ABORT>
Continue the Service check.

The ARGUS will skip the current single test. 

The next single test (in this example, BERT) will be started.
178
ARGUS 42 PLUS
15 Test reports
Resuming a test:


An interrupted single test can be resumed.
In this example, the ARGUS is currently running a Service
check.


Interrupting a test

Select "Continue test".
<ABORT>
Test - resuming

The ARGUS repeats the “disturbed” single test. 
(in the example, Service test)







Displaying the results of the automatic test sequence
The ARGUS displays the saved results of the single tests of the automatic test sequence
(see page 177) run on a BRI S/T or U-interface in the following order:
On a BRI S/T or U-interface access
BRI S/T or U-interface leased line
-
-
Status
Status
-
Level measuring
-
Level measuring
-
Service tests
-
BERT
-
BERT in an extended call to oneself
-
Supplementary Services Test
(Suppl.serv.test)
-
CF Interrogation (Call Diversions)
-
MSN Interrogation
-
X.31 test
ARGUS 42 PLUS
179
15 Test reports
Test reports
<
>

In the Main menu, select “test reports”.





 -key
Select the record (saved ISDN test reports)


Select “Display result”.


Display the test results:

The ARGUS will first display the status of the access under
test.


Display the result of the next single test
e.g. display Service check:

to scroll through the results of the single tests
< >
<CONT.>
to display the results of the next single test

180
ARGUS 42 PLUS
16 ARGUS Settings
16 ARGUS Settings
The ARGUS can be configured to suit your special requirements. The default (factory)
settings can be restored by selecting “Reset”. 
(see page 184 Reset all parameters).
16.1 Trace / remote
The ARGUS remains active and passes the data from the D-channel (all of the D-channel
messages sent to and received from the network) or DSL trace data online directly to the
connected PC running the optional WINplus/WINanalyse software.
Configuration
<
>

In the Main menu, select “Configuration”.



Select "Trace/remote".




Auto PC sync
Even after it is switched on again,
the ARGUS remains in Trace mode
and passes D-channel data to the
PC ("Trace" LED on continuously).
Manual PC sync
The ARGUS is set to Trace mode
and will pass D-channel data to the
PC until it is switched off. When it is
switched on again, it will not return
to Trace mode.

Confirm the entry.


If the ARGUS cannot send the data to the PC without
errors, the “Trace” LED will flash at 5Hz (5 times per sec).
The currently active settings will be marked in the display
with an *.
ARGUS 42 PLUS
181
16 ARGUS Settings
16.2 Device settings
The procedure for configuring a parameter is the same for all device parameters and will be
illustrated with a single example:
Configuration
<
>

In the Main menu, select “Configuration”.



Select "Device".





Select a parameter (e.g. Menu language).




Select the desired "Menu language" (e.g. German).

Confirm your setting.
< >
<
>
The ARGUS will return to the previous display
without storing the parameter setting.




Parameter
Remark
Menu language
Selection of the menu language
Default setting: German
LCD contrast
182
Setting the display contrast: 
The contrast can be adjusted in 16
steps.
Use the cursor-keys to adjust the
display contrast.
The display shows a vertical arrow,
which shows the current setting on a
scale from low to high contrast.
ARGUS 42 PLUS
16 ARGUS Settings
Enter the date and time. Initialization
Enter date /
time
of the internal clock using the keypad.
Use the -key to scroll to the next
line. The entered time will be
continuously updated by the ARGUS’s real time clock as long as the
power is not switched off. 
When the power is switched off (the ARGUS switched off without
batteries), the clock will run a few more weeks on its internal supply. If
the backup supply is exhausted, the time will be undefined and must
be set again.
Baud rate
Sets the maximum Baud rate to be used by the ARGUS to
communicate with a PC.
Default setting: max 57,600 baud
Ringer volume
Using the "Ringer volume" parameter, the beginning and ending
volume can be adjusted. The volume can be adjusted from Level 1
(low) to Level 7 (very loud). The volume is increased in increments.
Beginning volume: Default setting: Level 1
Ending volume: Default setting: Level 7
Alarm bell
The ARGUS signals with an alarm in a variety of situations, e.g. when
a bit error occurs in a BERT. When this parameter is set to "off“, all
audible alarms are suppressed.
Default setting: off
Power down
Set the how long the ARGUS can remain idle before it will switch to
power-down mode. If power-down mode is disabled, the ARGUS will
display a message, when it is switched on, warning that this will lead
to a shorter battery life. The ARGUS can be set to automatically
power down after 5, 10, 15 or 30 minutes.
Default setting: after 5 minutes
Set how long the background lighting will remain on. The background
lighting can be set to switch off after 30 sec., 1 minute or 5 minutes.
Default setting: off after 30 seconds
Software
option
ARGUS 42 PLUS
To enable a software option (e.g. additional functions), you must first
enter a software key via the keypad.
183
16 ARGUS Settings
16.3 Reset all parameters
The ARGUS will reset all of the parameters to their default values.
The speed-dialing memory with the call numbers, PPP user name, PPP password,
IP addresses, Profile names, User-specific services, Keypad Infos and all of the test
results stored in the ARGUS (e.g. Automatic test sequence on an ISDN access,
ADSL test results etc.) will be deleted.
In the Main menu, select “Configuration”.
Configuration
<

>


Select "Reset".



Security query



Reset ARGUS to its default values




Alternative: Then press one after the other the keys
and
. The ARGUS will first
prompt you to confirm that you really want to do this (see above).
The default values can be found in the relevant chapter.
184
ARGUS 42 PLUS
17 Saving call numbers in the speed-dialing memory
17 Saving call numbers in the speed-dialing memory
Ten call numbers with a maximum of 24-places can be entered in the speed-dialing
memory.
The first speed-dial number (displayed as "Own number") must be the call number
of the access under test (this is especially important for the automatic Service
check).
In the "Remote No.1-8" memory locations, you can save remote call numbers. In the "X.31
test number" memory location, the ARGUS expects the entry of the X.25 access number
for the X.31 test (see page 136).
Configuration
<
>
In the Main menu, select “Configuration”.



Select "Numbers"





Using the keypad, enter the number of the access under
test.
<DEL>
Delete the character before the cursor
 -key
Scroll through the speed-dialing memory.
Save the call number.




When entering an own call number with an extension (operation of the ARGUS on a PBX
access), observe the following: The extension is separated from the access number by a #.
For outgoing calls, the ARGUS uses the entire call number (without #) as the number called
(CDPN or DAD) and, for the calling number (DSS1-CGPN or 1TR6-OAD), only the number
after the #, in other words the extension. A "#" at the beginning of a call number is treated
as a valid character.
Example: 02351/9070-0 is entered as 023519070#0
If the “# “ is at the end of a number, when the number is later dialed it will be done
without CGPN or OAD. This is important for some PBXs.
ARGUS 42 PLUS
185
18 Use of accumulators and battery packs
18 Use of accumulators and battery packs
Replacing the accumulators
Switch the ARGUS off and disconnect the plug-in power supply. Afterwards, remove the
complete set of accumulators or replace the battery pack (see page 25).
Accumulators - Usage
The accumulators used in the ARGUS must have the same capacity and be
charged to the same level. To ensure that this achieved, you must observe the
following rules: 
Accumulator set
-
The supplied accumulators must only be charged and discharged in the ARGUS.
-
Do not use the supplied accumulators in other devices.
-
Do not use accumulators with differing capacities or ones that are not equally
charged.
-
Order a complete set of new accumulators from the manufacturer and use these to
replace the complete set of old accumulators. After you have replaced a set of
accumulators, they must be fully charged in the ARGUS before use.
-
The accumulators should not be exposed to very high or low temperatures any
longer than necessary.
-
Discharge and recharge the accumulators fully at least once a month (even if the
ARGUS is not used for a longer period of time).
-
When the capacity of the accumulators decreases, replace all of the entire set.
-
Do not use batteries.
Battery pack (accumulators)
-
The supplied battery pack may only be charged in the ARGUS.
-
Do not use the supplied battery pack in other devices.
-
The ARGUS battery pack may only be actively charged (Charge accus) or trickle
charged (default setting: off) when the ambient temperature is between 0 °C 
(32 °F) and +40 °C (104 °F).
-
Recharge the battery pack fully at least once a month (even if the ARGUS is not
used for a longer period of time).
-
To maximize a battery pack service life, if it is to be stored over a longer period of
time (> 1 year), it should not be exposed to temperatures in excess of +35 °C 
(95 °F).
-
Please read the extensive notes on safety and the transport of the battery pack
found in the section "Safety Instructions“.
186
ARGUS 42 PLUS
18 Use of accumulators and battery packs
Automatic recharging of the accumulators when the ARGUS is switched on
The ARGUS automatically recharges the accumulators (often shortened to "accus"), if the
ARGUS is connected to the plug-in power supply and is switched off and the battery pack
voltage is too low. While charging, the ARGUS displays the message “Charge accu”. If you
press and hold the power switch, the ARGUS will switch off before the accumulators are
recharged. Once the accumulators are charged, the ARGUS display "Done" and - if no
errors occurred while charging - will automatically switch off.
Charge accus
The ARGUS will display the current charge of the accumulators graphically, if no power
supply is connected. In the LCD display, a battery symbol will begin to blink, when there is
still approximately (depending on the mode of operation) 5 minutes reserve power. During
this period, it is possible that there may be audible interference and in rare cases even
malfunctions. Connect the power supply.

When the power supply is connected, the accumulators in the ARGUS can be completely
discharged or immediately (without being first discharged) recharged. The discharge
procedure takes up to 7 hours. The ARGUS will automatically begin recharging the
accumulators after a break of about 30 minutes (depending on the capacity of the
accumulators, it can take up to 7 hours to recharge them).
Accu servicing
<
>
<
>
Charging

In the Main menu, select “Accu service”.


Select "Charge accu".

Charging will begin if the plug-in power supply is connected.
The ARGUS will display the level of the charge and the
voltage while charging the accumulators.
<ABORT>
The download is stopped.
Discharging and recharging the accumulators (
Accu servicing)
The accumulators will first be fully discharged and then after a brief pause - automatically recharged.
In the Main menu, select “Accu service”. Afterwards select
"Discharge & Charge".

Notes on the use of the battery pack The accumulator
service can take up to 16 hours.
ARGUS 42 PLUS
187
18 Use of accumulators and battery packs
Automatic recharging of the battery pack during operation (trickle charge)
"Accu servicing during operation" does not replace "normal" charging, since the
ARGUS will only top up the current charge with a trickle charge. 
If the ARGUS is disconnected from its power supply, it is possible that the
accumulators may not be fully charged. In such case, when the ARGUS is
reconnected to the power supply, it will not begin to charge the accumulators again
until their voltage drops below the threshold once more. 
If the ARGUS is switched off during "Accu servicing during operation", it will switch
back to "normal accu charging" (see page 187 Automatic recharging of the
accumulators when the ARGUS is switched on).
Accu servicing
<
>







<
>

If the trickle charge setting is set to “ON”, the ARGUS will
begin charging the accus automatically while it is in
operation (if the power supply is plugged in) as soon as the
voltage drops below the threshold (display shows battery
symbol).
188
ARGUS 42 PLUS
19 Firmware update
19 Firmware update
You can download a firmware file from www.argus.info/en/service free-of-charge and save
it on your PC to later transfer to your ARGUS tester.
Open the Internet site www.argus.info/en:
Click on
“English”.
Click on
“Service”.
Click on “ARGUS 42 PLUS” and
follow the instructions.
You can download a PDF
file with comprehensive
instructions for the
firmware update to read at
your leisure.

ARGUS 42 PLUS
189
19 Firmware update
Important information regarding the ARGUS firmware update:
Do not, under any circumstances, start to update the firmware if the ARGUS is
running on its battery pack. First connect the ARGUS to the plug-in power supply,
before sending the firmware update file from your PC to the ARGUS.

The ARGUS USB serial adapter is required in order to perform an update. Save
the configuration and test reports before beginning an upgrade. 

Do not disconnect the ARGUS from the PC during the update.

Do not switch the ARGUS off while an update is being performed.

You must also pay attention to the messages on the ARGUS display – not just the
instructions displayed by the Update Tool on the PC.
The update has not been successfully completed until the Update Tool displays a
corresponding message on the PC and the ARGUS – after being automatically
restarted by the Update Tool – shows the normal startup screen.
The ARGUS will not switch on until after you have clicked on one of the two
buttons ("back to step 1" or "Exit program") on the Update Tool after the update
has been completed.
190
ARGUS 42 PLUS
19 Firmware update
ARGUS 42 PLUS
191
20 Appendix
20 Appendix
A) Acronyms
Characters
2B1Q
2 Binary 1 Quaternary - line code
3PTY
Three Party Service
4B3T
4 Binary 3 Ternary - a Modified Monitored State 43 code (MMS43)
A
A3k1H
Audio 3.1 kHz
A7kHz
Audio 7 kHz
POTS
POTS interface
AAL
ATM adaptation layer
AC
Access Server
ADSL
Asymmetric Digital Subscriber Line
AMP
Argus measurement report
ANSI
American National Standards Institute
AOC
Advice of Charge
AOC-D
Advice of Charge - Charging Information During the Call and
at the end of the call
AOC-E
Advice of Charge - Charging Information at the End of the Call
at the end of the call
AS
Available Seconds
ATM
Asynchronous Transfer Mode
ATU-R
ADSL Transceiver Unit - Remote
Auto-MDI-X
Automatic Medium Dependent Interface Crossing
Avg
Average
B
BC
Bearer Capability
BER
Bit Error Rate
BERT
Bit Error Rate Test
BRAS
Broadband Remote Access Server
C
CALL PROC
CALL PROCeeding message
CC
Continuity Counter
CCBS
Completion of Calls to Busy Subscriber
CCNR
Call Complete No Response
Automatic callback if the called party did not answer
CD
Call Deflection
CDN
see also CDPN
CDPN
CalleD Party Number
CF
Call Forwarding
192
ARGUS 42 PLUS
20 Appendix
CFB
Call Forwarding Busy
CFNR
Call Forwarding No Reply
CFU
Call Forwarding Unconditional
CGN
see also CGPN
CGPN
CallinG Party Number
CLIP
Calling Line Identification Presentation 
Display caller’s number
CLIR
Calling Line Identification Restriction
Suppress display of the caller’s number
Codec
Coder Decoder
COLP
Connected Line Identification Presentation 
Display the number of the party called
COLR
Connected Line Identification Restriction
Suppress the display of the number of the party with whom one is
connected
CONN
CONNect Message
CONN ACK
CONNect ACKnowledge Message
CR
Call Reference
CRC
Cyclic Redundancy Check
CT
Call Transfer
CUG
Closed User Group
CW
Call Waiting
D
DDI
Direct Dialling In (dialling in to an extension directly)
DF
Delay Factor
UDI
Unrestricted Digital Information (data telecommunications)
DHCP
Dynamic Host Configuration Protocol
DIN
Deutsches Institut für Normung e. V. 
(the German Institute for Standardization)
DISC
DISConnect Message
DMT
Discrete Multitone
DNS
Domain Name System
DSL
Digital Subscriber Line
DSLAM
Digital Subscriber Line Access Multiplexer
DSS1
Digital Subscriber Signalling System No. 1
DTMF
Dual Tone Multi Frequency
E
ECT
Explicit Call Transfer / call forwarding or explicit call diversion
E-DSS1
European Digital Subscriber Signalling System Number 1
EFS
Error Free Seconds
EU
European Union
ARGUS 42 PLUS
193
20 Appendix
EIT
Event Information Table
ElektroG
Elektro- und Elektronikgerätegesetz (German Electrical and Electronic
Equipment Act )
EN
European Norm
EoA
Ethernet over ATM
ES
Errored Seconds
ete
End-to-end
ETH
Ethernet
ETSI
European Telecommunications Standards Institute
F
Fax G3
Fax Group 3
Fax G4
Fax Group 4
FEC
Forward Error Correction
FSK
Frequency Shift Keying
H
HEC
Header Error Checksum
HLC
High Layer Compatibility
HOLD
Call Hold
HRX value
Hypothetical reference connection
HTTP
Hyper-Text Transfer Protocol
I
IAD
Integrated Access Device
ID
Identifier
IEEE
Institute of Electrical and Electronics Engineers
IGMP
Internet Group Management Protocol
INFO
INFOrmation Message
INP
Impulse Noise Protection
IP
Intenet Protokoll
IPCP
Internet Protocol Control Protocol
IPoA
Internet Protocol over ATM
IPoE
Internet Protocol over Ethernet
ISDN
Integrated Services Digital Network
ISO
International Standard Organization
ISP
Internet Service Provider
ITSP
Internet Telephony Service Provider
ITU
International Telecommunication Union
L
L1
Layer 1 in the OSI reference model
L2
Layer 2 in the OSI reference model
L3
Layer 3 in the OSI reference model
LAN
Local Area Network
194
ARGUS 42 PLUS
20 Appendix
LAPD
Link Access Procedure - D-channel
LCD
Liquid Crystal Display
LCN
Logical channel number / X.25 channel number
LCP
Link Control Protocol
LED
Light-Emitting Diode
LL
Leased Line
LLC
Low Layer Compatibility
LOS
Loss of Synchronization
M
MAC
Media Access Control
MCID
Malicious Call Identification
MDF
Main Distribution Frame
MDI
Media Delivery Index (RFC 4445)
MLR
Media Loss Rate
MOS
Mean Opinion Score
MPEG
Moving Picture Experts Group
MSN
Multiple Subscriber Number
MTU
Maximum Transmission Unit
N
n/a
Not available
n/r
Not received
n/u
Not used
NAT
Network Address Translation
NOK
Not OK
NP
Numbering Plan
NTBA
Network Termination Basic Access
O
OAM
Operations, Administration and Maintenance
OSI
Open Systems Interconnection
P
PABX
Private Automatic Branch Exchange
PADI
PPPoE Active Discovery Initiation
PADO
PPPoE Active Discovery Offer
PADR
PPPoE Active Discovery Request
PADS
PPPoE Active Discovery Session confirmation
PADT
PPPoE Active Discovery Termination
PAP
Password Authentication Protocol
PC
Personal Computer
PID
Packet Identifier
PLR
Packet Loss Ratio
P-P
Point-to-point
ARGUS 42 PLUS
195
20 Appendix
P-MP
Point-to-multipoint
PPP
Point-to-Point Protokoll
PPPoA
Point-to-Point Protocol over ATM
PPPoE
Point-to-Point Protocol over Ethernet
PPTP
Point-to-Point Tunneling Protocol
PWR
Power
Q
QLN
Quiet Line Noise
R
RC
Resistance (R) and capacitance (C)
REL
RELease Message
REL ACK
RELease ACKnowledge Message
REL COMPL
RELease COMPLete Message
RFC
Request for Comments
RJ
Registered Jack (standardized jack)
RoHS
Restriction of Hazardous Substances
RTCP
RealTime Control Protocol
RTP
RealTime Transport Protocol
Rx
Receive
S
SBC
Session Border Controller - Outbound Proxy
SES
Severely Errored Second
SIP
Session Initiation Protocol
SNR
Signal-to-Noise-Ratio
Spch
Speech
STB
Settop-Box
STUN
Session Traversal Utilities for NAT
SUB
Sub-addressing / Sub-addressing is possible
SUSP
SUSPend Message
T
TCP
Transmission Control Protocol
TE
TErminal, Terminal Equipment
TEI
Terminal Endpoint Identifier
Tel31
Telephony 3.1 kHz
Tel7k
Telephony 7 kHz
TM
Test Manager
TON
Type of Number
TP
Terminal Portability / Moving the terminal on the bus
TS
Technical Specification
TTX
Teletext
Tx
Transmit
196
ARGUS 42 PLUS
20 Appendix
U
UDP
User Datagram Protocol
URI
Uniform Resource Identifier
USB
Universal Serial Bus
UUI
User-User-Info (UUI),
UUS
User-to-User Signalling / transfer of user data
V
VC
Virtual Channel
VCI
Virtual Channel Identifier
VC-MUX
Virtual Circuit Multiplexing
ViSyB
Video Syntax Based
ViTel
Video-Telephony
VLAN
Virtual Local Area Network
VLC
Video LAN Client
VoIP
Voice over Internet Protocol
VPI
Virtual Path Identifier
W
WAN
Wide Area Network
WEEE
Waste Electrical and Electronic Equipment
X
xDSL
Collective term for different DSL variants
xTU-C
xDSL Transceiver Unit - Central Office
xTU-R
xDSL Transceiver Unit - Remote
ARGUS 42 PLUS
197
20 Appendix
B) CAUSE-Messages – DSS1 Protocol

Dec. Cause
Description
01
Unallocated (unassigned) number
No access under this call number
02
No route to specified transit network
Transit network not reachable
03
No route to destination
Wrong route or routing error
06
Channel unacceptable
B-channel for the sending system not acceptable
07
Call awarded and being delivered in
an established channel
Call awarded and connected in an already existing channel
(e.g., X.25 SVC)
16
Normal call clearing
Normal clearing
17
User busy
The number called is busy
18
No user responding
No terminal equipment answered (Timer NT303 / NT310
time-out)
19
No answer from user (user alerted)
Call time too long
21
Call rejected
Call rejected (active)
22
Number changed
Call number has been changed
26
Non-selected user clearing
Incoming call not awarded to this terminal
27
Destination out of order
Destination / access out of order
28
Invalid number format (address
incomplete)
Wrong call number format or call number incomplete
29
Facility rejected
Requested service is rejected
30
Response to STATUS ENQUIRY
Response to status enquiry
31
Normal, unspecified
Unspecified for "normal class" (Dummy)
34
No circuit / channel available
No circuit / B-channel available
38
Network out of order
Network not operational
41
Temporary failure
Network is temporarily not operational
42
Switching equipment congestion
Switching equipment is overloaded
43
Access information discarded
Access information could not be transferred
44
Requested circuit / channel not
available
Requested circuit / B-channel is not available
47
Resources unavailable, unspecified
Unspecified for "resource unavailable class" (Dummy)
49
Quality of service unavailable
The requested quality of service is not available
50
Requested facility not subscribed
Requested service attribute not subscribed
57
Bearer capability not authorized
The requested bearer capability is not enabled
58
Bearer capability not presently
available
The requested bearer capability is not currently available
63
Service or option not available
Unspecified for “service unspecified or option not 
available class” (Dummy)
65
Bearer capability not implemented
Bearer capability is not supported
66
Channel type not implemented
Channel type is not supported
69
Requested facility not implemented
Requested facility is not supported
70
Only restricted digital information
bearer capability is available
Only limited bearer capability is available
198
ARGUS 42 PLUS
20 Appendix
79
Service or option not implemented,
service unspecified or option not
implemented class” (Dummy)
Unspecified
81
Invalid call reference value
Invalid call reference value
82
Identified Channel does not exist
Requested channel is invalid
83
A suspended call exists, but this call
identity does not
The call identity entered is the wrong one for the parked call
84
Call identity in use
The call identity is already in use
85
No call suspended
No call has been parked
86
Call having the requested call
identity has been cleared
The parked call has been cleared
88
Incompatible destination
Incompatible destination
91
Invalid transit network selection
Invalid format for the transit network identifier
95
Invalid message, unspecified
Unspecified for "invalid message class" (Dummy)
96
Mandatory information element is
missing
The mandatory information element is missing
97
Message type non-existent or not
implemented
This type of message is in this phase not permitted, not
defined or not supported
98
Message not compatible with call
state or message type non-existent
or not implemented
In this phase, the message is not permitted, not defined or
not supported
99
Information element non-existent or
not implemented
In this phase, the content of the information element is not
permitted, not defined or not supported
100
Invalid information element contents
Invalid content in information element
101
Message not compatible with call
state
Message not valid in this phase
102
Recovery on timer expired
Error handling routine started due to time-out
111
Protocol error, unspecified
Unspecified for "protocol error class" (Dummy)
127
Interworking, unspecified
Unspecified for "interworking class" (Dummy)
ARGUS 42 PLUS
199
20 Appendix
C) ARGUS Error Messages (DSS1)
Error
Number
Cause
Description
0
Network
The network is not in a state defined for DSS1. This may,
however, occur in connection with normal clearing on a PBX.
1 to 127
Network
DSS1 Cause
150
ARGUS
An error occurred during the supplementary service test.
Common cause: no response from network
152
ARGUS
The CF-Test was started with the wrong own number.
153
ARGUS
No HOLD is available, but HOLD is required to test the
supplementary service (ECT, 3pty)
154
ARGUS
CLIR or COLR could not be tested, since CLIP or COLP is not
available
161
ARGUS
The party called did not answer within the prescribed time
(approx.10 sec)
162
ARGUS
A call was setup to a remote subscriber, instead of being setup –
as was expected – to your own number.
163
ARGUS
The Auto-Test could not setup a connection and therefore the
AOC/D supplementary service could not be tested.
170
ARGUS
During the Suppl.services test, a call came in without a Bchannel (call waiting). Therefore, it was not possible to accept
the call and test.
199
ARGUS
A call number was entered.
200
ARGUS
Internal error
201
ARGUS
Network did not confirm acceptance of the call (CONN sent, no
CONN_ACK received from network)
204
ARGUS
a) Layer 2 connection was cleared-down
b) No response to SETUP (call setup)
c) Layer 2 connection could not be setup
205
ARGUS
Reestablish the Layer 2 connection
206
ARGUS
The selected B-channel is already busy.
210
ARGUS
No response to the clear-down ( REL sent, no REL_CMP/
REL_ACK received from network)
220
ARGUS
Remote end signaled that it is in State 0.
245
ARGUS
Keypad sent via ESC, but no response was received from
network
250
ARGUS
FACility was sent, but no response was received from network
200
ARGUS 42 PLUS
20 Appendix
X.31 Test – Error messages
X.31 Causes
0 to 255
Network
See ISO 8208: 1987(E)
Table 5- Coding of the clearing cause field in clear indication packets, page 35
257
ARGUS
No answer from network (to a CALL-REQUEST or a CLEAR-REQUEST)
258
ARGUS
Unexpected or wrong answer from network
(no CALL-CONNECTED or CLEAR-INDICATION as response to a 
CALL-REQUEST)
259
ARGUS
The network has indicated in a DIAGNOSTIC message that the logical channel
is invalid. 
Origin: No (=1) or a wrong LCN was set.
512
ARGUS
It was not possible to determine an internal or external cause.
Origin: Layer 2 could not be setup or remote end does not support X.31
65535
ARGUS
X.31 Layer 3 test was not performed. The error can only occur in a test log.
X.31 Diagnostic (only for a cause less than 256)
0 to 255
Network
ARGUS 42 PLUS
See ISO 8208: 1987(E)
Figure 14a page 121
Figure 14a page 123 et seq.
and/or CCITT Recommendation X.25, Annex E
201
20 Appendix
D) Error message: PPP connection
Display on ARGUS
Description
External fault:
Negotiation err
Cannot negotiate the network protocol for PPPD, so the remote site
is not reachable.
Idle release
Connection was terminated, since there was no activity.
Time out rel
Connection was terminated, since the maximum connection time
elapsed.
Echo req. error
Remote site did not answer echo requests so the connection has
been terminated. (PPP connections are tested at regular intervals
by sending echo requests to the remote site.)
Hanging up rel
Disconnected by remote site.
Loopback erro
The setup of the PPP connection was cancelled, since a loopback
was detected.
Authent. Error
Authentication error: Wrong user name or password - rejected by
remote site.
PADO timeout
No PADO packet received.
PADS timeout
No PADS packet received.
202
ARGUS 42 PLUS
20 Appendix
E) Error message: Download test

Display on ARGUS
Description
External fault:
Http redir.error
Fault: Too many HTTP redirects.
Http no response
No answer from HTTP server.
Http serv.error
HTTP server has returned an error.
(for details see the table below "HTTP Error Messages")
Http encod.error
Due to an encoding problem, data transfer with HTTP is not
possible.
Network error
Network error
URL error
Fault: no HTTP URL specified
Socket error 2
Error when connecting a socket. The server's HTTP service is not
available.
Http Head.error
Error in the header of the requested HTTP file.
Unknown address
Unknown host address.
Possible cause: Error in the address entered, DNS resolution not
working or network not accessible.
Unknown download
error
Unknown download error
ARGUS 42 PLUS
203
20 Appendix
F) HTTP status codes:
Display on
ARGUS:
Code No.
Meaning
100
Client should continue its request.
101
The protocol is being changed at the Client's request.
200
The Client's request has succeeded.
201
The Client's request that a new document be created was successful.
202
The Client's request has been accepted for processing.
203
The Client's request will be answered with information from a source
other than the server.
204
The Client's request was successful. The server sends [no content] only
the HTTP header.
205
The Client's request was successful. The server [resets content] sends a
new HTTP body.
206
The Client's request was successful. The server sends only part of the
requested document [partial content].
300
The request was not precise enough so multiple documents have been
returned.
303
The requested resource has been found at a different URI and should be
retrieved from there.
304
The requested document has not been changed in the interim.
305
The requested document must be retrieved from a proxy instead of from 
.
307
The requested resource has been temporarily relocated to a different
URI [temporary redirect].
400
Syntax error in the Client's request [Client error].
401
The request requires user authentication.
402
Payment is required to process this request.
403
The Client's request has been refused. (e.g. because authentication 
failed).
404
The requested document was not found (e.g. because of an error in the
URL entered or while the document is no longer available).
405
The method specified by the Client in its request is not allowed by the
server.
406
The requested document in a format that is not supported by the Client.
407
The request requires that the Client authenticate itself with a proxy.
204
ARGUS 42 PLUS
20 Appendix
408
The Client did not place its request within the time allowed by the server
[Request Timeout].
409
Due to a conflict (e.g.another request) the Client's request cannot be
completed by the server.
410
The requested URL is [gone] no longer available on the server.
411
The Client sent data to the server without a defined Content Length.
412
The preconditions in the Client's request could not be satisfied by the
server.
413
The Client's request has been refused by the server because the
request entity is too large.
414
The Client sent a URL to the server that is too large
(e.g. because of the form values contained).
415
The Client's data is not supported by the server.
416
The range (in a document) requested by the Client does not exist.
417
The server could not (or did not wish to) satisfy the Client's expectation
given in the Expect request header field.
424
For aesthetic reasons, the requested document will not be sent by the
server.
500
Due to an unexpected condition, the server cannot fulfill the Client's
request (e.g. faulty configuration, missing or wrong CGI program).
501
The server does not support the function required to fulfill the Client's
request.
502
The server received an invalid response from an upstream server or
proxy which it accessed in attempting to fulfill the request.
503
The server is currently unable to handle the request due to a temporary
overloading of the server.
504
The Client's request (of a gateway or proxy) did not receive a response
within the specified time.
505
The server does not support the HTTP protocol version that was used in
the Client's request.
ARGUS 42 PLUS
205
20 Appendix
G) General Error Messages

Display on ARGUS
Description
Prot. not supp.
The protocol (IP, PPPoE, etc.) is not supported in the selected mode.
Unknown error
Unknown error occurred.
No PPP connec.
No PPP connection can be setup.
Test aborted
Test aborted by user.
Pingstart error
Error when starting the Ping test.
Fault: PPP
connection
Unexpected termination of the PPP connection.
Unexp. PING end
Unexpected termination of the Ping test.
206
ARGUS 42 PLUS
20 Appendix
H) VoIP SIP status codes

SIP requests:
The six basic requests / methods:
INVITE
Invite a user to a session (call - initiates a session)
ACK
Acknowledge an INVITE request
BYE
Terminate a session (hangup)
CANCEL
Terminates the setup of a connection
REGISTER Provides subscriber data (host name and IP address)
OPTIONS
Supplies information regarding the functions supported by the other SIP
telephone
SIP responses:
SIP responses are answers to SIP requests. There are six basic types of SIP responses
with numerous sub-responses:
1xx
Informational responses (180 indicates for example that the phone of the
party called is ringing)
2xx
Reports that the request has been successful
3xx
Redirection responses
4xx
Client failure responses
5xx
Server failure responses
6xx
Global failure responses
Meaning
Display
on
ARGUS:
Code No.
Explanation
100
Trying
The ARGUS is attempting to setup a call.
180
Ringing
The phone at the other end is ringing.
181
Call Being Forwarded
The call is being forwarded.
182
Call Queued
The call is in a wait loop.
183
Session Progress
The call is being setup.
200
OK
Everything is all right.
202
Accepted
Connection has been accepted.
ARGUS 42 PLUS
207
20 Appendix
300
Multiple Choices
There is no unique destination address for
the remote end. Please select one.
301
Moved Permanently
Calls are being permanently forwarded.
302
Moved Temporarily
Calls are being temporarily forwarded.
305
Use Proxy
A proxy must be used.
380
Alternative Service
Alternative service
400
Bad Request
The request is not OK.
401
Unauthorized
You are not authorized.
402
Payment Required
Payment is required.
403
Forbidden
This is not permitted.
404
Not Found
The remote end was not found or does not
exist.
405
Method Not Allowed
The method (e.g. SUBSCRIBE or NOTIFY)
is not permitted.
406
Not Acceptable
The options used in the call are not
supported.
407
Proxy Authentication Required
The proxy must be authenticated.
408
Request Timeout
The time for the request has been
exceeded (timeout).
409
Conflict
There is a conflict.
410
Gone
The subscriber is no longer reachable here.
411
Length Required
The length must be supplied.
413
Request Entity Too Large
The values are too long.
414
Request URI Too Long
The URI is too long. (Destination address)
415
Unsupported Media Type
The codec is not supported.
416
Unsupported URI Scheme
The URI scheme is not supported. 
(Destination address)
420
Bad Extension
The extension is wrong.
421
Extension Required
An extension is necessary.
423
Interval Too Brief
There is a problem with the SIP
parameters. 
(Register Expire is too short)
480
Temporarily Unavailable
The subscriber is currently not reachable.
481
Call/Transaction Does Not Exist This connection does not exist (any longer).
482
Loop Detected
A redirection loop has been detected.
483
Too Many Hops
Too many redirects.
484
Address Incomplete
The SIP address is incomplete or faulty.
485
Ambiguous
The SIP address is not unique.
486
Busy Here
The destination is busy.
487
Request Terminated
The request has been terminated.
488
Not Acceptable Here
The call cannot be accepted.
491
Request Pending
A request is waiting.
208
ARGUS 42 PLUS
20 Appendix
493
Undecipherable
Decryption error.
500
Server Internal Error
Internal error in the server.
501
Not Implemented
The requested method (functionality) has
not been implemented.
502
Bad Gateway
The gateway is bad.
503
Service Unavailable
The service is not available.
504
Server Time-Out
The gateway did not respond in time.
505
Version Not Supported
The SIP protocol version is not supported.
513
Message Too Large
The message length is too long. Use TCP.
600
Busy Everywhere
All terminals are busy at the remote end.
603
Declined
The system at the remote end refused to
accept the call.
604
Does Not Exist Anywhere
This user does not exist any longer.
605
Not Acceptable
SIP request not acceptable.
ARGUS 42 PLUS
209
20 Appendix
I) Software Licenses
The ARGUS firmware includes code from what are known as Open Source packages,
which have been published under various licenses (GPL, LGPL, MIT, BSD, etc.). 
Additional information can be found - if requested in your order - on the CD-ROM included
in the package (see Software_License.htm) or can be viewed at http://www.argus.info/web/
download/Software_License.htm.
In the event that you are interested in the sources licensed under GPL or LGPL, please
contact support@argus.info. A machine-readable copy of the source code can be obtained
from intec Gesellschaft für Informationstechnik mbH for a minimal fee - to cover the cost of
physically copying the code. This offer is valid for 3 years.
210
ARGUS 42 PLUS
ARGUS
J) Index
Numerics
3.1 kHz Audio ..............................................................................................................133
3-wire cable .................................................................................................................171
7 kHz Audio .................................................................................................................133
7 kHz Telephony ..........................................................................................................133
A
AAL5 PDUs ...................................................................................................................88
AC voltage .....................................................................................................................16
AC voltage measurement: .............................................................................................16
Accept the call .............................................................................................................149
Access
ADSL .....................................................................................................................19
BRI S/T ..................................................................................................................19
Ethernet .................................................................................................................19
Headset .................................................................................................................19
LAN .......................................................................................................................19
Line ........................................................................................................................19
POTS .....................................................................................................................19
PWR ......................................................................................................................19
Ser. ........................................................................................................................19
U-interface .............................................................................................................19
Access acceptance report ...............................................................................................9
Access Server .........................................................................................................64, 87
Accu Capacity ..............................................................................................................187
Accu Servicing .............................................................................................................187
Accumulator Set ..........................................................................................................186
Accumulators - Usage .................................................................................................186
Acronyms .....................................................................................................................192
ADSL
Access mode .........................................................................................................53
Access parameters ................................................................................................40
Annex A .................................................................................................................40
Annex B .................................................................................................................40
ATM Bitrate ...........................................................................................................52
Bit distribution ........................................................................................................50
Bits per tone (carrier frequency or channel) ..........................................................50
Bridge mode ..........................................................................................................54
Bridge, display physical Ethernet parameter .........................................................55
Configuration .........................................................................................................39
Connection parameters .........................................................................................52
Determination of connection parameters ..............................................................47
Error Counters .......................................................................................................50
Protocol-dependent settings ..................................................................................57
QLN per tone (carrier frequency or channel) .........................................................50
Router ..............................................................................................................37, 56
Select the mode ....................................................................................................40
SNR per tone (carrier frequency or channel) ........................................................50
Standards ..............................................................................................................16
ARGUS 42 PLUS
211
ARGUS
Tests ATU-R ................................................................................................... 53, 55
Tests ATU-R router ............................................................................................... 59
Alarm .......................................................................................................................... 123
Alarm bell .................................................................................................................... 183
A-Law .......................................................................................................................... 118
Alerting mode .............................................................................................................. 117
Alias www address ....................................................................................................... 91
AOC ............................................................................................................................ 131
ARGUS
Connections .......................................................................................................... 28
Dimensions ........................................................................................................... 15
Outputs ................................................................................................................. 15
Received ............................................................................................................... 15
Switch on .............................................................................................................. 17
Weight ................................................................................................................... 15
ARGUS Error Messages ............................................................................................. 200
ARGUS State display
U-interface .......................................................................................................... 115
ATM .............................................................................................................................. 75
Tests ..................................................................................................................... 75
ATM cells ...................................................................................................................... 88
ATM information ........................................................................................................... 88
ATM OAM ping ............................................................................................................. 78
Cell type ................................................................................................................ 78
Number ................................................................................................................. 78
Results .................................................................................................................. 80
Start ...................................................................................................................... 79
Timeout ................................................................................................................. 78
VPI / VCI ............................................................................................................... 78
Attain. ATM ................................................................................................................... 52
Attenuation .................................................................................................................... 52
ATU-R Access Mode .................................................................................................... 47
ATU-R Bridge Access Mode ......................................................................................... 54
Automatic protocol determination ............................................................................... 117
Automatic Tests on an ISDN Access .......................................................................... 177
Autonegotiation ........................................................................................... 16, 45, 66, 71
B
Background lighting .............................................................................................. 15, 183
Banana plug ................................................................................................................ 171
Basic Package ................................................................................................................ 1
Batteries ...................................................................................................................... 186
Battery pack (accumulators) ......................................................................................... 15
Actively charged ........................................................................................... 12, 186
Long-term storage .............................................................................................. 186
Notes regarding transport ..................................................................................... 12
Protective features ................................................................................................ 13
Protective properties ............................................................................................. 12
Safety instructions ................................................................................................ 13
Temperature ......................................................................................................... 13
212
ARGUS 42 PLUS
ARGUS
Temperature range - charging .......................................................................12, 186
Baud rate .....................................................................................................................183
BCAP ...........................................................................................................................118
B-channel delay ...............................................................................................................7
B-channel loop .............................................................................................................127
B-channel Test ............................................................................................................114
Beginning volume ........................................................................................................183
BERT
Available seconds ...............................................................................................124
Bit error rate test ..................................................................................................119
Degraded minutes ...............................................................................................124
End-to-end ...........................................................................................................120
Error free seconds ...............................................................................................124
Error level ............................................................................................................121
ES821 ..................................................................................................................124
In an extended call to oneself ..............................................................................120
LOS-counter ........................................................................................................122
Loss of synchronisation .......................................................................................124
Parameter ............................................................................................................120
saving ..................................................................................................................125
SES821 ...............................................................................................................124
Setting the threshold ...........................................................................................121
Start .....................................................................................................................122
Stop .....................................................................................................................122
Time ....................................................................................................................120
Unavailable Seconds ...........................................................................................124
Unlimited measurement time ...............................................................................121
Viewing the results ..............................................................................................128
Wait .....................................................................................................................126
With a loopbox .....................................................................................................120
Bilingual access ...........................................................................................................114
Bit distribution ................................................................................................................50
Bit error rate test ..........................................................................................................119
Bit error rate test time (duration) ..................................................................................119
Bit pattern ....................................................................................................................121
BRAS information ....................................................................................................64, 87
Bridge / Router ..............................................................................................................45
Bridge mode ..................................................................................................................54
Bus configuration: ........................................................................................................115
C
cable
Patch .....................................................................................................................56
xDSL ......................................................................................................................56
Calculation of the line length .......................................................................................172
Call Forwarding (call diversion) ...................................................................................140
Call number display .....................................................................................................130
Call number memory ...................................................................................................185
Call Reference .............................................................................................................146
Call time too long .........................................................................................................151
ARGUS 42 PLUS
213
ARGUS
Call tracing .................................................................................................................. 131
Caller ID ........................................................................................................................ 97
Capacitance measurement ................................................................................... 16, 171
CAUSE Messages
DSS1 .................................................................................................................. 198
Causes for clearing down an ISDN connection .......................................................... 151
CDPN or DAD ............................................................................................................. 147
CF Activation .............................................................................................................. 142
CF Delete .................................................................................................................... 143
CF Interrogation .......................................................................................................... 140
CFB ..................................................................................................................... 130, 140
CFNR .................................................................................................................. 131, 140
CFU .................................................................................................................... 130, 140
CGN Subaddress ........................................................................................................ 117
CGPN or OAD ............................................................................................................ 147
Characteristic values (ITU-T G.821) ........................................................................... 124
Charge accus ................................................................................................ 12, 186, 187
Initial operation ..................................................................................................... 25
Charger ......................................................................................................................... 13
Charging the accumulators during operation .............................................................. 188
Clear mode ................................................................................................................. 119
CLIP ............................................................................................................................ 130
CLIP No Screening ..................................................................................................... 131
CLIR ............................................................................................................................ 130
COLP .......................................................................................................................... 130
COLR .......................................................................................................................... 130
Configuration
ARGUS ............................................................................................................... 181
ARGUS settings .................................................................................................. 182
Confirmation key ........................................................................................................... 17
Connections
below .................................................................................................................... 19
top ......................................................................................................................... 19
Connector
Headset .......................................................................................................... 15, 19
LAN ................................................................................................................. 15, 61
Line ....................................................................................................................... 15
PWR ..................................................................................................................... 15
Ser. ....................................................................................................................... 15
Continuity Counter ...................................................................................................... 108
Copper test ................................................................................................................. 171
CRC .............................................................................................................................. 53
CUG (Closed User Group). ......................................................................................... 131
CUG Index .................................................................................................................. 118
D
Data Log ....................................................................................... 46, 51, 70, 73, 89, 173
Data packet size, maximum .......................................................................................... 81
Data Sheet ...................................................................................................................... 1
DC voltage .................................................................................................................... 16
214
ARGUS 42 PLUS
ARGUS
DC voltage measurement ..............................................................................................16
default values ..............................................................................................................184
Delay Factor ........................................................................................................105, 108
Delete All Test Reports ................................................................................................176
Destination MSN ..........................................................................................................118
Destination number MSN ....................................................................................118, 144
Device Settings ............................................................................................................182
DHCP Auto ....................................................................................................................68
DHCP Client ......................................................................................................44, 60, 68
DHCP Server .................................................................................................................68
DHCP server .................................................................................................................69
DHCP timeout ..........................................................................................................44, 68
DHCP User Class Information .................................................................................44, 69
DHCP User-defined Option .....................................................................................44, 69
DHCP Vendor ID .....................................................................................................44, 68
DHCP Vendor Info ...................................................................................................44, 69
DIN EN 50419 ...............................................................................................................12
DIN ETS 300 102 ........................................................................................................112
DIN ETS 300 182 ........................................................................................................147
Direct dialling in ...........................................................................................................130
Direct Dialling In (Extension) ...............................................................................147, 185
Discharge Procedure ...................................................................................................187
Discharging & Charging ...............................................................................................187
DISPLAY Message ......................................................................................................147
Display properties ..........................................................................................................15
Display the available SW options ..................................................................................24
Display the record names ............................................................................................174
Displaying Advice of Charges (AOC) ..........................................................................147
DNS server ........................................................................................................44, 60, 68
Download rate ...............................................................................................................90
Downstream Power Back Off ........................................................................................41
DPBO Support ...............................................................................................................41
DTMF ...........................................................................................................................166
DTMF / Keypad ...........................................................................................................118
DTMF signal ................................................................................................................145
Duplex mismatch ...........................................................................................................71
Duplex mode .................................................................................................................71
E
Echo canceler ..............................................................................................................119
Electromagnetic Compatibility .................................................................................11, 15
Emergency supply .......................................................................................................159
En-bloc sending ...........................................................................................................148
Encapsulation ................................................................................................................41
Ending volume .............................................................................................................183
Energy-saving mode ......................................................................................................12
Enter date / time ..........................................................................................................183
Enter:
Lowercase characters .........................................................................................173
Numbers ..............................................................................................................173
ARGUS 42 PLUS
215
ARGUS
Uppercase characters ......................................................................................... 173
Enter:Lowercase characters ......................................................................................... 51
Enter:Numbers .............................................................................................................. 51
Enter:Uppercase characters ......................................................................................... 51
Environmentally acceptable disposal ............................................................................ 12
EoA ................................................................................................................... 41, 60, 66
Error Counter Reset ...................................................................................................... 53
Error Messages
Download test ..................................................................................................... 203
general: ............................................................................................................... 206
PPP connection .................................................................................................. 202
X.31 test .............................................................................................................. 201
Ethernet
Access parameters ............................................................................................... 65
Active .................................................................................................................... 72
Assigned configuration ................................................................................... 64, 72
Bytes ............................................................................................................... 64, 72
Clearing down ....................................................................................................... 73
Collisions .............................................................................................................. 72
Configuration ........................................................................................................ 65
Connection to a PPTP router/modem ................................................................... 61
Connection to IP network ...................................................................................... 62
Connection to PC via IP ........................................................................................ 61
Connection to the router/modem .......................................................................... 60
Determination of connection parameters .............................................................. 72
Display the Ethernet Phys. Parameters ................................................................ 63
DNS IP, assigned ................................................................................................. 72
Errors .............................................................................................................. 64, 72
Frames ............................................................................................................ 64, 72
Gateway IP, assigned ........................................................................................... 72
inactive .................................................................................................................. 72
IP, assigned .......................................................................................................... 72
Link Parameter ............................................................................................... 66, 71
Netmask, assigned ............................................................................................... 72
Operation on an Access ....................................................................................... 60
Physical Access .................................................................................................... 65
Protocol ................................................................................................................. 66
Reservation period, assigned ............................................................................... 72
Showtime .............................................................................................................. 72
Status .................................................................................................................... 72
Test parameters .................................................................................................... 70
Tests ..................................................................................................................... 73
ETSI Support ................................................................................................................ 41
Explicit call transfer ..................................................................................................... 131
F
Facsimile Group 2/3 .................................................................................................... 133
Facsimile Group 4 Class 1 .......................................................................................... 133
Fastener for shoulder strap ........................................................................................... 17
FEC ............................................................................................................................... 52
216
ARGUS 42 PLUS
ARGUS
Firewall ..........................................................................................................................56
Firmware Update .........................................................................................................189
flash time .....................................................................................................................167
Flow control .............................................................................................................71, 72
Functionality ....................................................................................................................1
G
Gateway IP ........................................................................................................43, 60, 68
H
Handset ...........................................................................................................................7
Headset .....................................................................................................................7, 11
Headset detection ..........................................................................................................25
HEC ...............................................................................................................................53
Help ...............................................................................................................................23
HLC .............................................................................................................................118
HRX value ...................................................................................................................121
HTTP Download ............................................................................................................90
Average speed ................................................................................................90, 93
Configured parallel downloads ..............................................................................91
Download filename ................................................................................................91
Number ..................................................................................................................91
Password ...............................................................................................................91
Result ....................................................................................................................93
Server IP ...............................................................................................................90
Server profile .........................................................................................................90
Start .......................................................................................................................92
User name .............................................................................................................91
HTTP status codes: .....................................................................................................204
Hub/Switch ....................................................................................................................62
Humidity .........................................................................................................................15
Hypothetical Reference Connection ............................................................................121
I
Identification of malicious callers .................................................................................131
IEEE 802.3 ....................................................................................................................16
IEEE Standard 802.3u ...................................................................................................66
Incoming Call ...............................................................................................................149
Index ............................................................................................................................211
Initial operation ..............................................................................................................26
intec Gesellschaft für Informationstechnik mbH ..........................................................2, 9
Intended use ..................................................................................................................11
Interl. Depth ...................................................................................................................52
Internet Service Provider ...............................................................................................81
Internet Telephony Service Provider .............................................................................96
IP ...........................................................................................................43, 45, 60, 66, 68
Assigned configuration ..........................................................................................87
Own .......................................................................................................................45
IP address, assigned .....................................................................................................64
IP address, local ................................................................................................43, 60, 68
IP address, remote ........................................................................................................82
IP mode .............................................................................................................43, 60, 68
ARGUS 42 PLUS
217
ARGUS
IP netmask ........................................................................................................ 43, 60, 68
IP Ping
Fragmentation ....................................................................................................... 83
Number ................................................................................................................. 82
Packet size ........................................................................................................... 82
Pause .................................................................................................................... 82
Results .................................................................................................................. 87
Start ...................................................................................................................... 85
Test ....................................................................................................................... 86
IP Tests ......................................................................................................................... 81
IPCP ............................................................................................................................. 88
IPCP: ............................................................................................................................ 64
IPoA .............................................................................................................................. 41
ISDN
Access ................................................................................................................ 111
Call acceptance .................................................................................................. 118
Call parameter .................................................................................................... 117
Clearing down ............................................................................................. 147, 151
CLIP No Screening ............................................................................................. 131
Description of the Supplemental Service ............................................................ 130
Error Code .......................................................................................................... 132
Initialization ......................................................................................................... 114
Leased line ................................................................................................. 115, 162
Level ................................................................................................................... 114
Level measuring ................................................................................................. 159
Parameters ......................................................................................................... 116
Protocol ............................................................................................................... 117
Select the access ................................................................................................ 112
Select the protocol .............................................................................................. 116
Service test results ............................................................................................. 134
Service tests ....................................................................................................... 133
Services ...................................................................................................... 118, 145
Setting up an ISDN connection ........................................................................... 145
Setup the connection .......................................................................................... 145
Standards: ............................................................................................................ 16
Supplementary Services ..................................................................................... 129
TE Simulation ..................................................................................................... 113
Type of access .................................................................................................... 115
Voice coding ....................................................................................................... 118
Voltage when idle ............................................................................................... 115
ITU Guideline G.821 ................................................................................................... 119
J
Jack .............................................................................................................................. 15
Jitter Buffer ................................................................................................................... 98
K
Keypad .......................................................................................................................... 15
Testing Features ................................................................................................. 153
Keypad dial ................................................................................................................. 153
Keypad Infos ............................................................................................................... 118
218
ARGUS 42 PLUS
ARGUS
Keys ...............................................................................................................................19
L
L1 state
BRI S/T ................................................................................................................161
Latency mode ................................................................................................................52
Layer 1 measurement ....................................................................................................18
LCD contrast ................................................................................................................182
LCP ..........................................................................................................................64, 88
Leased line ..................................................................................................................162
Bit error rate test ..................................................................................................163
LEDs ..............................................................................................................................17
Level evaluation ...........................................................................................................115
Level measuring ............................................................................................................59
BRI S/T ................................................................................................................159
POTS ...................................................................................................................170
U-interface ...........................................................................................................160
Level Measuring on a BRI S/T Access ........................................................................159
Level measuring on a POTS Access ...........................................................................170
Level Measuring on a U-Interface Access ...................................................................160
Line mode ......................................................................................................................63
Listen Port .....................................................................................................................97
Listening-in ..................................................................................................................169
LLC ..............................................................................................................................118
Long-term operation ......................................................................................................12
M
MAC address ...........................................................................................................60, 66
dynamic .................................................................................................................66
Managing multiple tests or connections ......................................................................154
MDI Analysis ................................................................................................................105
Delay Factor ........................................................................................................107
Display during ......................................................................................................108
Duration ...............................................................................................................108
IP Header ............................................................................................................106
Limit values .........................................................................................................107
Mode ...................................................................................................................106
Packet Loss .................................................................................................107, 108
Port ......................................................................................................................106
Results ................................................................................................................109
Scan time ............................................................................................................106
Start .....................................................................................................................107
MDI limit values ...........................................................................................................107
MDIX ..............................................................................................................................16
Media Delivery Index ...................................................................................................105
Media Loss Rate ..................................................................................................105, 108
Medium error rate ........................................................................................................119
Menu control ..................................................................................................................18
Menu diagram ................................................................................................................31
Menu hierarchy ..............................................................................................................31
Menu language ............................................................................................................182
ARGUS 42 PLUS
219
ARGUS
Menu structure ................................................................................................................ 7
Microphone ................................................................................................................... 17
MOS
Threshold ............................................................................................................ 103
MOS Quality Scale ....................................................................................................... 99
MOS Threshold ............................................................................................................. 99
MOS Value ................................................................................................................. 102
MPEG ......................................................................................................................... 108
MSN Interrogation ....................................................................................................... 144
MTU .............................................................................................................................. 83
Multicast IP ................................................................................................................. 106
N
Net download rate ......................................................................................................... 93
Network Delay ............................................................................................................ 103
Next Generation Network ........................................................................................... 119
Nokia Support ............................................................................................................... 41
Normal clearing ........................................................................................................... 151
Notes .......................................................................................................................... 227
Notes on Safety and Transport ................................................................................... 186
Numbering Plan .......................................................................................................... 117
Numbers
Own .................................................................................................................... 185
Remote ............................................................................................................... 185
Numerical keypad ......................................................................................................... 17
O
OAM cells ..................................................................................................................... 88
Open the Test Manager .............................................................................................. 154
Operating Instructions ................................................................................................... 17
Operating Temperature: ............................................................................................... 15
Operation ...................................................................................................................... 17
Option ......................................................................................................................... 1, 7
Outbound Proxy/SBC ................................................................................................... 96
Output PWR .................................................................................................................. 52
Overlap sending .......................................................................................................... 146
P
Packet Loss Ratio ....................................................................................................... 107
PADI ....................................................................................................................... 64, 88
PADO ...................................................................................................................... 64, 88
PADR ...................................................................................................................... 64, 88
PADS ...................................................................................................................... 64, 88
PADT ...................................................................................................................... 64, 88
PAP ......................................................................................................................... 64, 88
PC interface .................................................................................................................. 15
PID .............................................................................................................................. 108
Pin assignment ............................................................................................................. 19
Ping test ........................................................................................................................ 81
Playout delay ................................................................................................................ 98
Plug-in Power Supply ................................................................................................. 186
POTS
220
ARGUS 42 PLUS
ARGUS
CLIP ....................................................................................................................166
Connection display. .............................................................................................168
dial mode .............................................................................................................166
DTMF parameter .................................................................................................167
Measures the signal level (voltage) .....................................................................170
Monitor ................................................................................................................169
Setting the Interface ............................................................................................165
Setting the Parameters ........................................................................................166
Setup the connection ...........................................................................................168
POTS CLIP
DTMF ..................................................................................................................166
FSK .....................................................................................................................166
Power Down ..........................................................................................................27, 183
Power key ......................................................................................................................17
Power Management ......................................................................................................27
Power supply .....................................................................................................11, 15, 27
Power U .......................................................................................................................160
PPP ...................................................................................................................43, 60, 67
Activation delay .........................................................................................43, 60, 67
Password ...................................................................................................43, 60, 67
Set the IP ...................................................................................................43, 60, 67
User name .................................................................................................43, 60, 67
PPP information .......................................................................................................64, 88
PPP trace ................................................................................................................64, 88
PPPoA .....................................................................................................................41, 60
PPPoE .........................................................................................................41, 60, 66, 88
PPTP .................................................................................................................61, 66, 67
Protocol test, Connection ............................................................................................145
Pulse dial .....................................................................................................................166
Q
QLN ...............................................................................................................................50
R
R Factor ...............................................................................................................102, 103
Rated Values .................................................................................................................40
RC measurement range ..............................................................................................172
RC Test Properties ........................................................................................................16
Real-time clock ..............................................................................................................27
Receiver inset ................................................................................................................17
Record Number ...........................................................................................................173
Redial ..........................................................................................................................150
Register state ..............................................................................................................103
Registrar server .............................................................................................................96
Relative Capacity ...........................................................................................................52
Remote Port ..................................................................................................................97
Replacing the accumulators ........................................................................................186
Reserve Power ............................................................................................................187
Reset All Parameters .............................................................................................24, 184
Resistance measurement: .....................................................................................16, 171
Resync ...........................................................................................................................53
ARGUS 42 PLUS
221
ARGUS
Return of old equipment ............................................................................................... 12
RFC 4040 ................................................................................................................... 119
Rights .............................................................................................................................. 2
Ringer volume ............................................................................................................. 183
RoHS guidelines ........................................................................................................... 12
RTCP .......................................................................................................................... 102
RTCP results .............................................................................................................. 103
RTP Header ................................................................................................................ 106
RTP results ................................................................................................................. 103
S
Safety Instructions ........................................................................................................ 11
Saving Test Reports ..................................................................................................... 51
S-Bus terminating resistor .......................................................................................... 159
Send All Test Reports to a PC .................................................................................... 176
Ser. ............................................................................................................................. 175
Serial interface ............................................................................................................ 175
Serial jack ..................................................................................................................... 11
Server profile ................................................................................................................ 90
Services
3.1k audio ........................................................................................................... 133
7 kHz audio ......................................................................................................... 133
Fax G3 ................................................................................................................ 133
Fax G4 ................................................................................................................ 133
Language ............................................................................................................ 133
Mixed Mode ........................................................................................................ 133
OSI ...................................................................................................................... 133
Tel.ISDN ............................................................................................................. 133
Tele.7kHz ............................................................................................................ 133
Teletex ................................................................................................................ 133
Telex ................................................................................................................... 133
UDI 64kBit ........................................................................................................... 133
UDI+TA ............................................................................................................... 133
Userspec. ............................................................................................................ 133
Videotel.1 ............................................................................................................ 133
Videotex .............................................................................................................. 133
Session Border Controller ............................................................................................. 96
Set the handset volume ...................................................................... 102, 146, 149, 168
Set-Top-Box ................................................................................................................ 105
Setup a X.31 connection ............................................................................................. 138
Shortkeys ...................................................................................................................... 23
Signal to noise ratio ...................................................................................................... 50
Simplified overlap sending .......................................................................................... 147
SIP ................................................................................................................................ 95
Authentication ....................................................................................................... 97
Delete existing registration ................................................................................... 97
Password .............................................................................................................. 96
Qualify ................................................................................................................... 97
Registrar expire .................................................................................................... 97
User name ............................................................................................................ 96
222
ARGUS 42 PLUS
ARGUS
SIP Domain ...................................................................................................................97
SIP Log ........................................................................................................................103
SIP requests ................................................................................................................207
SIP responses .............................................................................................................207
SIP status codes ..........................................................................................................207
SIP-URI .........................................................................................................................96
SMS .............................................................................................................................169
SNR margin ...................................................................................................................52
Softkeys .........................................................................................................................17
Software Licenses .......................................................................................................210
Software option ............................................................................................................183
specific capacitance ....................................................................................................172
specific resistance .......................................................................................................172
Speed-dialing memory .................................................................................................185
Standard accumulators ..................................................................................................15
Standards: .....................................................................................................................16
Start the MSN interrogation .........................................................................................144
Storage temperature: .....................................................................................................15
STUN Server .................................................................................................................98
Subaddress .................................................................................................................131
Suppl.serv.test DSS1 ..................................................................................................129
Supplementary services
3pty ......................................................................................................................131
AOC .....................................................................................................................131
CCBS ..................................................................................................................131
CCNR ..................................................................................................................131
CD .......................................................................................................................131
CF ........................................................................................................................130
CUG ....................................................................................................................131
CW ......................................................................................................................131
DDI ......................................................................................................................130
ECT .....................................................................................................................131
HOLD ..................................................................................................................130
MCID ...................................................................................................................131
MSN ....................................................................................................................130
SUB .....................................................................................................................131
TP ........................................................................................................................130
UUS .....................................................................................................................131
Supplementary Services Test - Error Messages .........................................................132
support .............................................................................................................................9
Switching on ..................................................................................................................17
System clock .................................................................................................................64
T
Target value comparison ...............................................................................................52
Technical data ...............................................................................................................17
TEI Test .......................................................................................................................136
Telephone key .......................................................................................................18, 147
Telephony ..............................................................................................................18, 133
Telex ............................................................................................................................133
ARGUS 42 PLUS
223
ARGUS
Temperature range - charging ...................................................................................... 15
Temperature ranges ..................................................................................................... 15
Test Log .......................................................................................................... 9, 174, 190
Test Manager .............................................................................................................. 154
Test Manager - Managing multiple tests or connections ............................................ 154
Test Reports
Delete ................................................................................................................. 176
Display ................................................................................................................ 174
Saving ................................................................................................................. 173
Sending to a PC .................................................................................................. 175
The availability of the B-channels ............................................................................... 115
The number called is busy .......................................................................................... 151
Three party conference ............................................................................................... 131
Trace / remote ............................................................................................................ 181
Transfer of user data .................................................................................................. 131
Transferring keypad information ......................................................................... 146, 149
TRG measurements ................................................................................................... 171
Trickle charge ............................................................................................... 12, 186, 188
Type of Number .................................................................................................. 117, 144
U
U-interface
Power .................................................................................................................. 160
Voltage ................................................................................................................ 160
Unmapped cells ............................................................................................................ 88
Unrestricted Digital Information .................................................................................. 133
Unrestricted Digital Information with tones / display ................................................... 133
Update ........................................................................................................................ 190
Update Tool ................................................................................................................ 190
USB ............................................................................................................................ 175
USB serial adapter .................................................................................... 9, 11, 175, 190
Use profile ............................................................................................................... 46, 70
User Agent .................................................................................................................... 97
User CDN NP ............................................................................................................. 117
User CDN TON ........................................................................................................... 117
User CGN NP ............................................................................................................. 117
User CGN TON ........................................................................................................... 117
User defined bit pattern .............................................................................................. 121
User safety .................................................................................................................... 15
User-side VCCs ............................................................................................................ 88
User-specific services ......................................................................................... 118, 133
UUI (User User Info) ................................................................................................... 117
V
VCI ................................................................................................................................ 75
Vendor far ..................................................................................................................... 53
Vendor Version ............................................................................................................. 53
Version ............................................................................................................................ 1
VLAN .......................................................................................................... 42, 60, 66, 67
ID .................................................................................................................... 42, 67
Priority ............................................................................................................. 42, 67
224
ARGUS 42 PLUS
ARGUS
VoIP
Codec ..................................................................................................................102
Destination ............................................................................................................96
DTMF Settings ......................................................................................................98
DTMF time .............................................................................................................98
Error Messages ...................................................................................................207
MOS Value ..........................................................................................................102
Packet Loss .........................................................................................................102
Packet statistics ...................................................................................................102
Results ........................................................................................................102, 103
Signaling protocol ..................................................................................................95
SIP status codes .................................................................................................207
Start .....................................................................................................................100
Telephone setting ..................................................................................................98
Telephony ..............................................................................................................95
Test parameters ....................................................................................................96
Tests ......................................................................................................................95
Voltage measurement ...................................................................................................16
Voltage polarity ..............................................................................................................59
Volume ................................................................................................................146, 149
Volume setting ...............................................................................................................25
VPI .................................................................................................................................75
VPI / VCI ........................................................................................................................41
VPI / VCI Scan ...............................................................................................................75
Number ..................................................................................................................75
Results ..................................................................................................................77
Start .......................................................................................................................76
Timeout .................................................................................................................75
W
WAN Ethernet ................................................................................................................88
WEEE guidelines ...........................................................................................................12
WINanalyse ...........................................................................................9, 51, 73, 89, 173
WINplus .................................................................................................9, 51, 73, 89, 173
Wireshark ..................................................................................................51, 73, 89, 173
X
X.25 Access Number ...........................................................................................137, 185
X.25 Service ................................................................................................................137
X.31
Enter a TEI ..........................................................................................................136
LCN .....................................................................................................................136
TEI .......................................................................................................................136
X.31 parameters ..........................................................................................................136
X.31 test ......................................................................................................................136
automatically .......................................................................................................137
manual .................................................................................................................138
Result ..................................................................................................................138
X.31 Test Number .......................................................................................................185
Z
µ-Law . .........................................................................................................................118
ARGUS 42 PLUS
225
ARGUS
226
ARGUS 42 PLUS
ARGUS
K) Own notes
ARGUS 42 PLUS
227
ARGUS
228
ARGUS 42 PLUS
