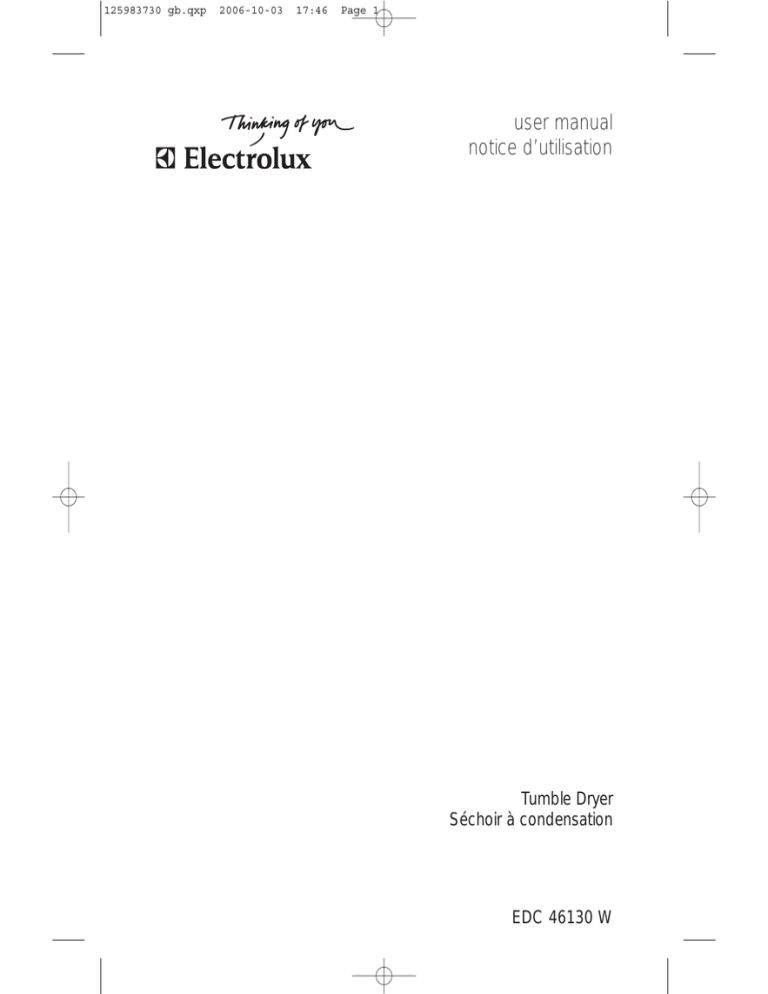

user manual
notice d’utilisation
Tumble Dryer
Séchoir à condensation
EDC 46130 W
125983730 gb.qxp
2006-10-03
17:46
Page 2
125983730 gb.qxp
2006-10-03
17:46
Page 3
electrolux 3
Welcome to the world of Electrolux
Thank you for choosing a first class
product from Electrolux, which hopefully
will provide you with lots of pleasure in
the future. The Electrolux ambition is to
offer a wide variety of quality products
that make your life more comfortable.
You find some examples on the cover in
this manual. Please take a few minutes
to study this manual so that you can
take advantage of the benefits of your
new machine. We promise that it will
provide a superior User Experience
delivering Ease-of-Mind. Good luck!
GB
125983730 gb.qxp
2006-10-03
17:46
Page 4
4 contents electrolux
Contents
Safety information..............................5
Product description ...........................7
Control panel .....................................7
Use....................................................8
Drying hints ................................12-13
Drying programme...........................14
Care and cleaning ......................15-17
Something not working ..............18-19
Technical data .................................20
Consumption values ........................21
Installation ..................................22-23
Environment concerns .....................24
Guarantee conditions .................25-26
Customer service ...........................26
The following symbols are used in this manual:
Important information concerning your personal safety and information on how
to avoid damaging the appliance.
General information and tips
Environmental information
125983730 gb.qxp
2006-10-03
17:46
Page 5
safety information electrolux 5
Safety Information
In the interest of your safety and to
ensure the correct use, before
installing and first using the
appliance, read this user manual
carefully, including its hints and
warnings. To avoid unnecessary
mistakes and accidents, it is
important to ensure that all people
using the appliance are thoroughly
familiar with its operation and safety
features. Save these instructions
and make sure that they remain
with the appliance if it is moved or
sold, so that everyone using it
through its life will be properly
informed on appliance use and
safety.
General safety
● It is dangerous to alter the
specifications or attempt to modify
this product in any way.
● Make sure that small pets do not
climb into the drum. To avoid this,
please check into the drum before
using.
● Any objects such as coins, safety
pins, nails, screws, stones or any
other hard, sharp material can cause
extensive damage and must not be
placed into the machine.
● As some bulky items such as
duvets and eiderdowns should be
dried in large commercial machines
because of their bulk, check with
the manufacturer of the item if it is
suitable for drying in a domestic
machine, even if the dry weight of
the item is within the limit advised.
● In order to avoid danger of fires
caused by excessive drying, do not
use appliance to dry the following
items: Cushions, quilts and the like
(these items accumulate heat).
Items containing rubber foam or
materials similar to rubber foam.
● Always unplug the appliance after
use, clean and maintenance.
● Under no circumstances should you
attempt to repair the machine
yourself. Repairs carried out by
inexperienced persons may cause
injury or serious malfunctioning.
Contact your local Service Centre.
Always insist on genuine spare parts.
● Danger of explosion: Never tumble
dry items that have been in contact
with inflammable solvents (petrol,
methylated spirits, dry cleaning fluid
and the like). As these substance are
volatile, they could cause an
explosion. Only tumble dry items
washed with water.
● Risk of fire: items that have been
spotted or soaked with vegetable or
cooking oil constitute a fire hazard
and should not be placed in the
tumble dryer.
● If you have washed your laundry with
stain remover you must execute an
extra rinse cycle before loading your
tumble dryer.
● Please make sure that no gas lighters
or matches have accidentally been left
in pockets of garments to be loaded
into appliance
Installation
● This appliance is heavy. Care should
be taken when moving it.
● When unpacking the appliance,
check that it is not damaged. If in
doubt, do not use it and contact the
Service Centre.
● All packing and transit bolts must be
GB
125983730 gb.qxp
2006-10-03
17:46
Page 6
6 safety information electrolux
●
●
●
●
●
●
removed before use. Serious
damage can occur to the product
and to property if this is not adhered
to. See relevant section in the user
manual.
The final part of a tumble dryer cycle
occurs without heat ( cool down
cycle ) to ensure that the items are
left at a temperature that ensures
that items will not be damaged.
Any electrical work required to
install this appliance should be
carried out by a qualified electrician
or competent person.
Care must be taken to ensure that
the appliance does not stand on the
electrical supply cable.
If the machine is situated on a
carpeted floor, please adjust the feet
in order to allow air to circulate freely
After having installed the appliance,
check that it is not pressing or
standing on its electrical supply
cable, inlet hose and drain hose.
If the tumble dryer is placed on top
of a washing machine, it is
compulsory to use the stacking kit
(optional accessory).
Use
This appliance is designed for
domestic use. It must not be used
for purposes other than those for
which it was designed.
● Only wash fabrics which are
designed to be machine dried.
Follow the instructions on each
garment label.
● Fabric softeners, or similar products,
should be used as specified by the
fabric softener instructions.
● Do not overload the appliance. See
the relevant section in the user
manual.
●
Clothes which are dripping wet
should not be placed in the dryer.
● Garments which have been in
contact with volatile petroleum
products should not be machine
dried. If volatile cleaning fluids are
used, care should be taken to
ensure that the fluid is removed from
the garment before placing in the
machine.
● Never pull the power supply cable to
remove the plug from the socket;
always take hold of the plug itself.
● Never use the tumble dryer if the
power supply cable, the control
panel, the working surface or the
base are damaged so that the inside
of the tumble dryer is accessible.
WARNING:
Never stop a tumble dry before the
end of the drying cycle unless all
items are quickly removed and
spread out so that the heat is
dissipated.
●
Child safety
● This machine is not intended for use
by young children or infirm persons
without supervision.
● Young children should be supervised
to ensure that they do not play with
the appliance.
● The packaging components (e.g.
plastic film, polystyrene) can be
dangerous to children - danger of
suffocation! Keep them out of
children’s reach
● Keep all detergents in a safe place
out of children’s reach.
● Make sure that children or pets do
not climb into the drum.
125983730 gb.qxp
2006-10-03
17:46
Page 7
electrolux product description/Control panel 7
Product description
GB
1
1
Control panel
2
Fluff filters
3
Rating Plate
4
Condenser unit
5
Water reservoir
6
Adjustable feet
2
3
4
5
6
Control panel
Drying
Cotton
Cooling
Easy Care
End/Anticrease
Start/Pause
Textile
1
1
1
Programme selector dial
2
Delicate button
3
Textile button
4
Indicator lights
5
Start/Pause button
2 3
4
5
125983730 gb.qxp
2006-10-03
17:46
Page 8
8 use electrolux
Use
caught between the door and filter.
First Use
●
●
●
Ensure that the electrical connections
comply with the installation
instructions.
Remove the polystryrene block and
any material from the drum.
Before using your tumble dryer for
the first time, were commend that
you to place a few damp cloths
inside the appliance and dry for 30
minutes.
There may be dust inside a brand
new tumble dryer.
Select the required programme
Turn the programme selector dial to the
required programme.
The light Start/Pause starts to flash.
Daily Use
Load the laundry
Connect the appliance.
Open the door (see picture).
Place the laundry in the drum, one item
at a time, shaking them out as much as
possible. Close the door.
Please check the laundry does not get
The selector dial is divided into following
sections:
Cottons
Synthetics
Time
Allows you to select electronically
controlled or time controlled drying.
Turn the dial to the required programme
or time.
Electronically controlled drying
(automatic)
The appliance runs these programmes
with the help of probes which detect the
degree of dampness of the laundry.
Simply select the programme according
to the type of laundry and degree of
drying required.
The selector dial can be turned either
clockwise or anticlockwise. The lights
125983730 gb.qxp
2006-10-03
17:46
Page 9
electrolux use 9
Drying, Cooling and End/Anticrease
come on.
At the end of the programme the
selector dial must be turned to
position O, to switch the machine off.
Select the Textile
Press the Textile button repeatedly, to
select the desired option. The relevant
light will light up.
Attention!
If you turn the programme selector dial
to another programme when the
machine is working, the lights of the
programme progress display start to
flash. The machine will not perform the
new selected programme.
Programme Option buttons
Depending on the programme, different
functions can be combined. These must
be selected after choosing the desired
programme and before depressing the
Start/Pause button.
When these buttons are pressed, the
corresponding pilot lights come on.
When they are pressed again, the pilot
lights go out.
Select Delicate
Pressing this button allows drying to be
performed at a lower temperature, for
delicate items.
You can select 2 different options:
Cotton Cycle: to be used for cotton,
where as in the programmes
When the programme has finished the
pilot lights End is on.
Easy Care: to be used for synthetic
or delicate items.
When the programme has finished the
pilot lights End is on.
Select the Start/Pause
Start/Pause
The corresponding pilot light comes
on. This option can also be used for
time controlled drying.
DELICATE is only suitable for use with
loads of up to 3kg!
When the programme has finished the
pilot lights End is on.
Press this button to start the dryer after
having selected the programme and
the options.
The relevant light will stop flashing.
If the programme selector dial is turned
to another position, when the machine is
running, the buzzer will sound and the
programme phase indicator lights will flash.
GB
125983730 gb.qxp
2006-10-03
17:46
Page 10
10 electrolux use
The drum turns alternately in both directions during drying.
All drying programmes end with a 10 minute
cooling phase (light Cooling is on).
You may remove the laundry after this
phase.
The lights End/Anticrease and
illuminate and the buzzer sounds
If the door of the appliance or the small
door at the bottom is opened while the
programme is running, this button must
be pressed again after closing the door
in order to restart the programme from
the point at which it was interrupted.
This button must be depressed also
after a power failure and after having reinserted the water reservoir, if it has
been emptied in the middle of a programme after lighting up of light
.
In both cases the light of the Start/Pause
button flashes to remind you that the
start button needs to be pressed again.
Indicator lights
TThese lights indicate the following
functions:
Drying” light
“D
This light indicates that the appliance is
in the drying phase.
“Cooling” light
This light indicates that the appliance is
in the cooling phase. At the end of
drying, there is a 10 minute cooling
phase to cool the laundry.
End of programme” light
“E
This light is on at the end of the cooling
phase, during the anti-creasing phase
and at the end of the programme.
Water reservoir full”” light
“W
This light indicates that the appliance is
in the drying phase.
This light comes on at the end of the
programme to remind you that the
water reservoir must be emptied out. If
this light illuminates during a
programme this means that the water
reservoir is full. The buzzer sounds, the
programme stops, the light of the
Start/Pause button flashes. This light
comes on also when the water
reservoir is not inserted correctly.
“Filter cleaning” light
This light illuminates at the end of the
programme to remind you that the
filters must be cleaned.
“Condenser cleaning” light
It comes on every 80 cycles to remind
you that the condenser must be
cleaned.
At the end of the programme
All drying programmes end with a 10
minute cooling phase.
You may remove the laundry after this
phase. The lights End of programme,
and
, and illuminate.
The display shows a static zero.
If the laundry is not removed at the end
of the cycle, the dryer performs an anticreasing phase (duration: 30 minutes
maximum). If you do not remove the
laundry, the dryer will stop automatically
at the end of the anti-creasing phase.
Lights End of programme,
and
remain lit and the buzzer sounds for 2
minutes.
Turn the programme selector dial to “O”
to switch the machine off. Remove the
laundry from the drum and carefully
check that the drum is empty.
If you do not intend to carry out another
wash, close the water tap. Leave the
door open to prevent the formation of
mildew and unpleasant smells.
125983730 gb.qxp
2006-10-03
17:46
Page 11
electrolux use 11
O”;
Turn the programme selector dial to “O
all the lights go out. The appliance is
switched off.
Remove the laundry.
If you open and then close the door
before turning the selector dial to “O”
all the lights corresponding to the
phases making up the performed
programme come on.
After each use
• Clean the filters.
• Empty the water reservoir.
Important!
If the drying programme has to be
stopped before it reaches the end, we
recommend that you turn the programme selector dial to position Cooling
and wait until the end of this cooling
phase before removing the laundry. This
will avoid a build-up of heat inside the
appliance.To do this first turn the dial to
O” and then to Cooling
“O
and
depress Start button.
Modifying the programme
To change a programme which is running, first cancel it by turning the proO”. Select the
gramme selector dial to “O
new programme and press the Start
button .
GB
125983730 gb.qxp
2006-10-03
17:46
Page 12
12 electrolux drying hints
Drying hints
Before loading the laundry
Never tumble dry the following:
Particularly delicate items such as
net curtains, woollen, silk, fabrics
with metal trim, nylon tights, bulky
materials such as anoraks, blankets,
eiderdowns, sleeping bags, feather
quilts and any items containing rubber foam or materials similar to rubber foam.
• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
•
•
•
•
•
•
do not tumble dry
Close pillowcases and covers with
fasteners to prevent small laundry
items getting tangled inside them.
Close press studs, zips and hooks
and tie belts and apron strings.
Sort laundry according to type and
degree of drying required.
Do not over-dry laundry, this avoids
creasing and saves energy.
Avoid drying dark clothes with light
coloured fluffy items such as towels
as they could attract the fluff.
The laundry must be thoroughly spun
before tumble drying.
Easy-c
care items, too, e.g. shirts,
should be briefly pre-spun before
drying (depending on crease resistance approx. 30 seconds or using
the special brief spin programme of
your washing machine).
• Knitted textiles (knitted underwear)
may shrink a little during drying.
Please do not overdry items of this
type. It is advisable to allow for
shrinkage when choosing the size of
new purchases.
• You can also put starched items into
your dryer. However, to achieve the
desired starched effect, choose the
programme “iron dry”. To remove any
starch residues, wipe out the internal
drum after drying with a moist cloth
and then rub it dry.
• To avoid a static charge when drying
is completed, use either a fabric softener when you are washing the
laundry or a fabric conditioner specifically for tumble dryers.
• Remove the laundry when the dryer
has finished drying.
• If individual items are still damp after
drying, set a brief post-drying time,
but at least 30 minutes. This will be
necessary particularly for multilayered
items (e.g. collars, pockets, etc.).
Make sure that no metal objects
are left in the laundry (e.g. hair
clips, safety pins, pins).
Button up pillowcases, close zip
fasteners, hooks and poppers. Tie any
belts or long tapes.
To avoid laundry becoming tangled:
close zips, button up duvet covers and
tie loose ties or ribbons (e.g. of aprons).
Turn items with double-layered fabrics
inside out (e.g. with cottonlined anoraks,
the cotton layer should be outermost).
These fabrics will then dry better.
125983730 gb.qxp
2006-10-03
17:46
Page 13
drying hints electrolux 13
Maximum loads
Recommended loads are indicated in
the programme charts.
General rules:
Cotton, linen: drum full but not too
tightly packed;
Synthetics: drum no more than half full;
Delicate fabrics and woollens: drum
no more than one third full.
Try to load to the maximum capacity
of the machine as small loads are
uneconomical.
Laundry weights
The following weights are indicative:
bathrobe
napkin
quilt cover
sheet
pillow case
tablecloth
towelling towel
tea cloth
night dress
ladies’ briefs
man’s work shirt
man’s shirt
man’s pyjamas
blouse
men’s underpants
1200 g
100 g
700 g
500 g
200 g
250 g
200 g
100 g
200 g
100 g
600 g
200 g
500 g
100 g
100 g
GB
125983730 gb.qxp
2006-10-03
17:46
Page 14
14 electrolux drying programmes
Drying programmes
Programme
Extra
Type of
laundry
Options
Cotton
Textile Cotton
Drying thick or multi-layered textiles,
e.g. terry towelling items
Cotton
Textile Cotton
Thorough drying of fabrics of even
thicknesses, e.g. terry towelling items,
knitted items, towels.
Synthetics
Textile Easy care
Thorough drying of thick or
multilayered fabrics, e.g. pullovers,
bedding, table linen.
Synthetics
Textile Easy care
Cupboard
Extra
Cupboard
Textile
-Easy care
Time
Description of programme
Synthetics
-Cotton
Delicate
Max Cottons load:
Max Synthetics load:
Max Time load:
6 kg
3 kg
1 kg
For thin fabrics which are not ironed,
e.g. easy care shirts, table linen, baby
clothes, socks, lingerie with bones or
wires.
If the TIME programme has been
selected, programme duration time of
30 minutes up to 150 minutes can be
set by intervals of 5 minutes or 10
minutes.
Drying thick or multi-layered textiles,
e.g. terry towelling items.
125983730 gb.qxp
2006-10-03
17:46
Page 15
electrolux care and cleaning 15
Care and cleaning
GB
You must DISCONNECT the appliance
from the electricity supply, before you
can carry out any cleaning or
maintenance work.
External cleaning
The filter in the inner door must be
removed for cleaning.
Use only soap and water and then dry
thoroughly.
Important: do not use methylated spirit,
diluents or similar products..
Cleaning the door
Clean periodically the interior part of
the door to remove any fluff from the
seals around the filter. Accurate cleaning ensures correct drying.
Cleaning the filters
Your dryer will only function well if the filters are clean.
The filters collect all the fluff which
accumulates during drying and they
must therefore be cleaned at the end
of each programme, before removing
the laundry, with a damp cloth.
The light
is on to remind you this
operation.
Do not be alarmed by the amount of fluff. It
is not due to excessive wear caused by the
dryer.
All fabric loses fluff when drying but it
goes un-noticed in the air. In a tumble
dryer it simply collects in the filter.
After a while, a withish patina due to
detergent residue on laundry forms on
the filters. When this occurs, clean the
filters with warm water using a brush.
Remove the filter in the door opening
as per picture (it can be positioned with
the tooth facing to the left or to the
right).
125983730 gb.qxp
2006-10-03
17:46
Page 16
16 electrolux care and cleaning
Do not use the appliance without filters.
Cleaning the condenser unit
Clean the condenser when light
on.
comes
The condenser is situated at the lower part
of the cabinet behind a small door. To open
the door, push the catch as per picture.
During the drying cycle or at the end, it is normal
for water to be present on the surface of the
condenser insertion.
Clean it with a brush and rinse it under the
shower if necessary.
Also clean the outside, removing all fluff.
Clean the rubber seal round the condenser
cabinet and in the inner part of the small
door with a damp cloth.
Important! Do not use pointed objects
or utensils to clean the spaces
between the plates, as this could damage the condenser and make it permeable.
Re-fit the condenser, turn the red stops
upwards and close the door.
To pull out the condenser, first turn the two
red stops downwards and then remove the
condenser unit holding it at the handle.
Do not use this appliance if the condenser
has not been fitted.
Emptying the water reservoir
Water extracted from the laundry condenses inside the machine and is collected in a
reservoir.
The reservoir must be emptied after each
drying cycle to ensure efficient operation
when the machine is next used. The pilot
125983730 gb.qxp
2006-10-03
17:46
Page 17
electrolux care and cleaning 17
light
reminds you this operation.
Proceed as follows:
• Open the small door at the lower part of
the cabinet
Handy tip: The condensed water may be
used in a steam iron or to top up a battery,
etc. In this case it must be filtered (e.g.
through a coffee filter)).
• Turn the yellow stop upwards
• Pull out the reservoir
Cleaning the air intake grille
• Open the small cover and let water flow
down
Using a vacuum cleaner remove the fluff
from the air intake grille at the back of the
appliance.
• Close the small cover and re-insert correctly the reservoir
• Push it until it clicks and turn the yellow
stop downwards to lock firmly it
• Close the small door and press the
START/PAUSE button again to allow the
programme to continue.
Cleaning the drum
When your laundry does not reach the desired
degree of dryness, in other words, when it
turns out either too dry or too damp, we
advise you to clean the inside of the drum with
a cloth soaked with vinegar.
This will eliminate the slight patina that has
formed in the drum (due to residues of
detergent and softeners used in the washing, and to the lime contained in the water),
which prevents the probes from detecting
the correct degree of dryness.
The reservoir must be re-iinserted correctly.
After emptying and inserting the reservoir
the START-button has to be depressed
again to allow the programme to continue.
GB
125983730 gb.qxp
2006-10-03
17:46
Page 18
18 electrolux something not working
Something not working
Certain problems are due to lack of simple maintenance or oversights, which can be
solved easily without calling out an engineer. Before contacting your local Service
Centre, please carry out the checks listed below.
During machine operation it is possible that the red Start/Pause pilot light flashes to
indicate that the machine is not working.
Once the problem has been eliminated, press the Start/Pause button to restart the
programme. If after all checks, the problem persists, contact your local Service
Centre.
Malfunction
Dryer does not work.
Drying results
unsatisfactory.
Possible cause
●
Mains plug is not plugged in
or fuse is not working
correctly.
●
Plug in at mains socket.
Check fuse in fuse box
(domestic installation).
●
Loading door is open.
●
Close loading door.
●
Have you pressed the
START/ PAUSE button?
●
Press the START/PAUSE
button again.
●
Wrong programme selected.
●
Select a different programme the
next time you dry (see “Overview
of programmes” section).
●
Lint filter clogged.
●
Clean lint filter.
●
Heat exchanger clogged with lint.
●
Clean heat exchanger.
●
Incorrect volume of laundry.
●
Observe recommended
loading volumes.
●
Ventilation slots in base area
covered up.
●
Residue on inside surface of
drum or drum ribs.
Uncover ventilation slots in
base area.
●
Clean inside surface of drum
and drum ribs
Conductance of water at
installation site differs from
standard setting of machine.
●
Re-programme standard setting
for degree of drying (see
‘Programming options’ section).
Fine strainer not in place
and/or large mesh filter not
locked in place.
●
●
●
Loading door does not
close.
Solution
●
Install fine strainer and/or
snap large mesh filter into
place.
125983730 gb.qxp
2006-10-03
17:46
Page 19
something not working electrolux 19
Malfunction
Possible cause
When pressing a button,
the corresponding
button flashes several
times.
●
Drying cycle ends
shortly after programme
starts. END
light illuminated.
●
Programme inactive,
Water reservoir full
Solution
Washing protection.
After the start of the programme, the option can no longer
be set.
●
Not enough washing loaded
or washing loaded is too
dry for selected programme.
●
Select time programme or
higher drying level (e.g. EXTRA
DRY instead of CUPBOARD).
●
Condensate tank is full.
●
Empty condensate tank, then
start programme with
START/PAUSE button.
●
Lint filter clogged.
●
Clean lint filter
●
Heat exchanger clogged with
lint.
●
Clean heat exchanger.
●
DELICATE button pressed
and load volume too big.
●
DELICATE is only suitable for
use with loads of up to 3 kg!
●
Load volume too big.
●
Reduce load volume.
●
Laundry insufficiently
predrained.
light illuminated.:
Drying cycle lasts an
unusually long time.
Note:
After around 5 hours
the drying cycle ends
automatically (see
„Drying cycle complete“)
If you are unable to identify or solve the
problem, contact our service centre.
Before telephoning, make a note of the
model, serial number and purchase date
of your machine: the Service Centre will
require this information.
1206
Turn the programme knob to
OFF. Set the programme
again
Laundry must be adequately
pre-drained.
●
IMPORTANT: if you call out an engineer
to a fault listed below, or to repair a fault
caused by incorrect use or installation, a
charge will be made even if the
appliance is under guarantee.
GB
125983730 gb.qxp
2006-10-03
17:46
Page 20
20 electrolux technical data
Technical data
Dimensions
Electrical connection
Voltage - Overall power Fuse
Width
60 cm
Height
85 cm
Depth
58 cm
Information on the electrical connection is given
on the rating plate on the inner edge of the
appliance door
Depth with loading door open
Maximum Load
Use
109 cm
Cotton
6
kg
Synthetics
3
kg
Domestic
+ 5°C à + 35°C
This appliance conforms with the following EU Directives:
73/23/EEC dated 19.02.1973 Low Voltage Directive
89/336/EEC dated 03.05.1989 EMC Directive inclusive of
Amending Directive 92/31/EEC
93/68/EEC dated 22.07.1993 CE Marking Directive
125983730 gb.qxp
2006-10-03
17:46
Page 21
consumption values electrolux 21
Consumption values
Programme
Cottons Cupboard1)
Cottons Cupboard
1)
Synthetics Cupboard
1)
2)
Max Cottons load:
Max Synthetics load:
2)
Programme
duration
(in minutes)
Energy
consumption
(in kWh)
Revolutions
per
minute
110
3.7
1000
95
3.0
1400
46
1.4
1200
6 kg
3 kg
The consumption values have been
established under standard conditions.
They may deviate when the machine is
operated in domestic circumstances.
GB
125983730 gb.qxp
2006-10-03
17:46
Page 22
22 electrolux installation
Installation
Unpacking
Slide out the polythene bag with the
polystyrene stuffing before using the
appliance Pull off adhesive strips from
inside machine on top of drum.
Should the appliance be moved, it must
be transported vertically.
The appliance must not be installed
behind a lockable door, a sliding door a
door with a hinge on the opposite side
to that of the appliance.
Positioning
It is recommended that, for your
convenience, the machine is positioned
close to your washing machine.
The tumble dryer must be installed in a
clean place, where dirt does not build
up.
Air must be able to circulate freely all
round the appliance. Do not obstruct the
front ventilation grille or the air intake
grilles at the back of the machine.
To keep vibration and noise to a
minimum when the dryer is in use, it
should be placed on a firm, level surface.
Once in its permanent operating position,
check that the dryer is absolutely level with
the aid of a spirit level. If it is not, raise or
lower the feet until it is.
The feet must never be removed. Do not
restrict the floor clearance through deeppile
carpets, strips of wood or similar. This might
cause heat build-up which would interfere
with the operation of the appliance.
Important
The hot air emitted by the tumble dryer
can reach temperatures of up to 60°C.
The appliance must therefore not be
installed on floors which are not
resistant to high temperatures.
When operating the tumble dryer, the room
temperature must not be lower than +5°C
and higher than +35°C, as it may affect the
performance of the appliance.
Stacking kit
A special stacking kit is available through
your dealer, to enable the mounting of
the dyer on top of a front loading
washing machine with cover’s depth
between 48 and 60 cm.
Read carefully the instructions supplied
with the kit.
125983730 gb.qxp
2006-10-03
17:46
Page 23
installation electrolux 23
Door reversal
To make it easier to load or unload the
laundry the door can be reversed.
Reversing the door is not possible if after
this operation the appliance result
installed behind a door with a hinge on
the opposite side to that of the
appliance.
This operation must be carried out by
qualified personnel.
Please contact the nearest Service
Centre.
Electrical connection
This machine is designed to operate on
a 220-230 V,
single-phase, 50 Hz supply. Check that
your domestic electrical installation can
take the maximum load required (2.2
kW), also taking into account any other
appliances in use.
Connect the machine to an earthed
socket, in accordance with current
wiring regulations.
The manufacturer declines any
responsibility for damage or injury
through failure to comply with the
above safety precaution. Should
the appliance power supply cable
need to be replaced, this must be
carried out by our Service Centre.
Important!
The power supply cable must be
accessible after installing the machine.
GB
125983730 gb.qxp
2006-10-03
17:46
Page 24
24 electrolux environment concerns
Environment concerns
Ecological hints
Packaging materials
The materials marked with the symbol
are recyclable.
>PE<=polyethylene
>PS<=polystyrene
>PP<=polypropylene
This means that they can be recycled by
disposing of them properly in
appropriate collection containers.
Old machine
Use authorised disposal sites for your
old appliance. Help to keep your country
tidy!
The symbol
on the product or on its
packaging indicates that this product
may not be treated as household waste.
Instead it shall be handed over to the
applicable collection point for the
recycling of electrical and electronic
equipment. By ensuring this product is
disposed of correctly, you will help
prevent potential negative consequences
for the environment and human health,
which could otherwise be caused by
inappropriate waste handling of this
product. For more detailed information
about recycling of this product, please
contact your local city office, your
household waste disposal service or the
shop where you purchased the product.
To save energy and to help protect the
environment,we recommend that you
follow these hints:
• Try to load the maximum capacity of
the machineas small loads are
uneconomical.
• Always load well spun laundry. The
higher the spinspeed, the lower the
electricity consumption andthe shorter
the drying times.
• Do not over-dry laundry, this avoids
creasing andsaves energy.
Select the drying programme
according to thetype of laundry and
the required degree ofdryness.
• To utilize the maximum load, laundry
which is tobe dried ready to put away
(store dry) can be driedtogether with
items to be ironed. To do this,
selectthe programme for iron-dry,
remove the iron-dryitems at the end of
the programme and thenfinish-dry the
rest of the load.
• Clean the filters regularly to avoid
excessive dryingtimes and high
electricity consumption.
• Ventilate the room well. The room
temperatureshould not exceed +35°C
during drying.
125983730 gb.qxp
2006-10-03
17:47
Page 25
guarantee conditions electrolux 25
European guarantee
This appliance is guaranteed by
Electrolux, in each of the countries
listed in the following page, for the
period specified in the appliance
guarantee or otherwise by law. If you
move from one of these countries to
another of these countries the
appliance guarantee will move with you
subject to the following qualifications:
● The appliance guarantee starts from
the date you first purchased the
appliance which will be evidenced by
production of a valid purchase
document issued by seller of the
appliance.
● The appliance guarantee is for the
same period and to the same extent
for labour and parts as exists in your
country of residence for this
particular model or range of
appliances.
● The appliance guarantee is personal
to the original purchaser of the
appliance and cannot be transferred
to another user.
● The appliance is installed and used in
accordance with instructions issued
by Electrolux and is only used within
the home, i.e. is not used for
commercial purposes.
● The appliance is installed in
accordance with all relevant
regulations in force within your new
country of residence.
The provisions of this European
Guarantee do not affect any of the rights
granted to you by law.
Belgium
DECLARATION OF GUARANTEE TERMS.
Our appliances are produced with the greatest of
care. However, a defect may still occur. Our
consumer services department will repair this
upon request, either during or after the guarantee
period. The service life of the appliance will not,
however, be reduced as a result.
This declaration of guarantee terms is based on
European Union Directive 99/44/EC and the
provisions of the Civil Code. The statutory rights that
the consumer has under this legislation are not
affected by this declaration of guarantee terms.
This declaration does not affect the vendor's
statutory warranty to the end user. The appliance
is guaranteed within the context of and in
adherence with the following terms:
1. In accordance with provisions laid down in
paragraphs 2 to 15, we will remedy free of charge
any defect that occurs within 24 months from the
date the appliance is delivered to the first end user.
These guarantee terms do not apply in the event of
use for professional or equivalent purposes.
2. Performing the guarantee means that the
appliance is returned to the condition it was in
before the defect occurred. Defective parts are
replaced or repaired. Parts replaced free of
charge become our property.
3. So as to avoid more severe damage, the defect
must be brought to our attention immediately.
4. Applying the guarantee is subject to the
consumer providing proof of purchase showing
the purchase and/or delivery date.
5. The guarantee will not apply if damage caused to
delicate parts, such as glass (vitreous ceramic),
synthetic materials and rubber, is the result of
inappropriate use.
6. The guarantee cannot be called on for minor
faults that do not affect the value or the overall
reliability of the appliance.
7. The statutory warranty does not apply when
defects are caused by:
– a chemical or electrochemical reaction
caused by water,
– abnormal environmental conditions in general,
– unsuitable operating conditions,
– contact with harsh substances.
8. The guarantee does not apply to defects due to
transport which have occurred outside of our
responsibility. Nor will the guarantee cover those
caused by inadequate installation or assembly, lack
of maintenance or failure to respect the
assembly instructions or directions for use.
9. Defects that result from repairs or measures
carried out by people who are not qualified or
expert or defects that result from the addition of
GB
125983730 gb.qxp
2006-10-03
17:47
Page 26
26 electrolux guarantee/customer service
non-original ccessories or spare parts are not
covered by the guarantee.
10.Appliances that are easy to transport may be
delivered or sent to the consumer services
department. Home repairs are only anticipated for
bulky appliances or built-in appliances.
11. If the appliances are built-in, built-under,
fixed or suspended in such a way that removing
and replacing them in the place where they are
fitted takes more than half an hour, the costs
that result therefrom will be charged for. Connected
damage caused by these removal and replacement
operations will be the responsibility of the user.
12. If, during the guarantee period, repairing the
same defect repeatedly is not conclusive, or if the
repair costs are considered disproportionate, in
agreement with the consumer, the defective
appliance may be replaced with another appliance of
the same value. In this event, we reserve the right to
ask for a financial contribution calculated according
to the length of time it has been used.
13. A repair under guarantee does not mean that
the normal guarantee period will be extended nor
that a new guarantee period begins.
14.We give a twelve month guarantee for
repairs, limited to the same defect.
15. Except in the event where liability is legally
imposed, this declaration of guarantee terms excludes
any compensation for damage outside the appliance
for which the consumer wishes to assert his rights.
In the event of legally admitted liability,
compensation will not exceed the purchase
price paid for the appliance. These guarantee
terms are only valid for appliances purchased
and used in Belgium. For exported appliances,
the user must first make sure that they satisfy
the technical conditions (e.g.: voltage,
frequency, installation instructions, type of gas,
etc.) for the country concerned and that they can
withstand the local climatic and environmental
conditions.
For appliances purchased abroad, the user must first
ensure that they meet the qualifications required in
Belgium. Non-essential or requested adjustments
are not covered by the guarantee and are not
possible in all cases. Our consumer services
department is always at your disposal, even after the
guarantee period has expired.
Address for our consumer services
department:
Belgium
Electrolux Home
Consumer 02/
Products Belgium
services
ELECTROLUX
SERVICE
02/
363.04. 363.04.0
44
0
02/
363.04.6
0
Bergensesteenweg 719
1502 Lembeek
E-mail: consumer.services@electrolux.be
Luxembourg
Electrolux Home
Consumer 00352 00352
Luxembourg
services
42 431- 42 4311
360
ELECTROLUX
HOME PRODUCTS
Rue de Bitbourg. 7
L-1273 Luxembourg- Hamm
E-mail: consumer-service.luxembourg@electrolux.
Download PDF

advertising
