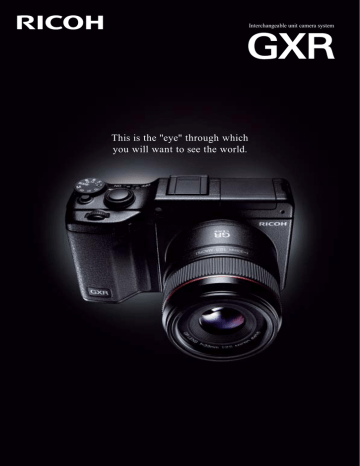

Interchangeable unit camera system
This is the "eye" through which
you will want to see the world.
For your next camera, accept no creative limitations.
A camera system shakes up the world of candid photography: GXR
In your everyday world, frankly capture the scenes that unexpectedly sync with your sensibility.
The sweetest expression may be the casual one noticed only by you.
Preserving in an honest image the things you see and the things that touch your heart,
the candid photo becomes a kind of personal documentary,
a landscape of your mind sketched out in images.
For this a compact camera is best, one that can always be with you,
always ready for a casual shot.
And if you could also change the lens in the same way that your perspective
changes to match the scene and mood of the moment, it would bring even
greater possibilities and enjoyment to photo expression.
In search of this ideal, an unprecedented new camera system was born.
The interchangeable unit camera system: GXR.
For a subtlety of sensibility that cannot be touched by an SLR camera.
For a diverse expressiveness out of reach of a compact camera.
Today the candid photo is transcending old boundaries of shooting range.
Camera unit
Interchangeable unit camera system
12.30
CMOS
50mm
megapixels
23.6mm×15.7mm
fixed focal length
1/2x
Maximum magnification
(minimum shooting distance 7 cm)
Camera unit
Camera unit
The "VC" designation indicates that this unit has the Vibration Correction function
developed independently by Ricoh.
The "VC" designation indicates that this unit has the Vibration Correction function
developed independently by Ricoh.
10.00
CCD
24-72mm
1cm
10.00
CMOS
28-300mm
1cm
megapixels
1/1.7-inch
optical zoom
minimum shooting distance
megapixels
1/2.3-inch Back-illuminated
High magnification zoom
minimum shooting distance
*All lens focal lengths in this catalog are converted into 35 mm camera equivalents.
An original system expanding range of expression with
interchangeable units
Compact, high-performance lens design at a level only possible
with the interchangeable unit system
GXR is a unique camera system that
consists of a body and camera units.
Each camera unit contains a lens (focal
lengths differ between units), an image
sensor of optimum type and size for
the unit, and an image processing
engine. By changing units, the photographer can handle a diverse shooting
range in a way that satisfies sophisticated requirements for photo expression. The slide mechanism for attachment/
removal enables smooth camera units
changes.
It is the lens that gives life to the photograph. In interchangeable lens
camera systems up to now, the distance from the mount and the back of the
lens to the sensor image plane was subject to requirements for flange back
distance and back focal length. This made it difficult to achieve both compactness and high optical performance.
Eliminating the lens mount, however, means that the back focal length can
be freely defined for the GXR, enabling it to use the most optically
efficient lens designs with the minimum size. In addition, combining the
lens and image sensor increases design flexibility so camera units can be
developed based on a variety of concepts. The totally new camera system
birthed by this practical inspiration features portability and high image
quality along with superb expandability and growth potential as a system.
Compact size, high image quality, and unlimited f
A highly airtight system so no worrying about dust when
changing lenses
The ease with which dust can adhere to image sensors has been a system
problem for interchangeable lens digital cameras up to now. In the case of
GXR camera units, however, the lens and the image sensor are integrated
into a single unit. This structure makes it difficult for dust to get in since it
is not necessa r y t o ex pose t he
inside of the camera when changing
lenses. In addition, the inside of the
units are highly airtight with lightshielded walls. Even in highly
d u s t y s h oo t i n g e n v i r o n m e n t s,
camera units can be changed without hesitation.
Designs optimized to make the most of lens and image sensor
capabilities
In order to make the best use of the inherent power of the lens and the
image sensor, the ideal solution is to combine both in a single unit. Consider, for example, the low-pass filter covering the surface of the image
sensor.
The dilemma faced is that while the filter helps prevent color noise and
color moiré, increasing this benefit results in an ever greater sacrifice in
lens resolution. Traditional interchangeable lens systems must use a single
low-pass filter for all lenses so they are unable to avoid situations where
the filter effect is excessive or inadequate. With the GXR, on the other
hand, we can design a low-pass filter optimized for the resolution of the
specific lens. In this way, Ricoh has succeeded in effectively preventing
color noise while minimizing filter influence on lens resolution.
future potential. When compromise is not an option, this is the camera system you get.
Slide mechanism for high precision and reliability
In a relationship similar to that of an SLR and its lens mount, the guide rail is a
defining characteristic of the GXR system. To create a highly reliable slide
mechanism, stainless steel with superior strength and corrosion resistance was
adopted for the rails. Surface hardness and wear resistance were further
enhanced with a soft-nitriding process, the end result being a high-precision
slide for attachment and removal. The
combination of the slide, the resin components, and the pressure-welded springs
give an appropriate sliding feel and quietness. The reliability of both the mechanical and electrical connections has been
verified in high-stress attachment/removal
testing of the slide mechanism.
The exterior itself is a functional aspect of the camera.
Magnesium alloy cover
For their exterior covers, both
the body and the camera units
utilize a light and strong magnesium alloy with superior
precision-molding, hea tdissipation, and magneticshielding characteristics. Durability and high-class impression are further enhanced by a
high-class, non-slip "pear-skin"
baked finish with strong corrosion and wear resistance.
Paired with a 23.6 mm×15.7 mm image sensor,
this GR LENS is a standard macro boasting superb definition and refined bokeh.
New system enables higher dimension of optical performance
The lens configuration has 8 groups and 9 elements. Making good use of the new
system's advantage of not having to accommodate back focal length, we were able
to design the refractive capabilities of each element in a more efficient and practical manner than is possible for SLR interchangeable lenses. Partly thanks to the
use of a large-diameter aspherical element, this lens achieves a superior level of
edge-to-edge resolution and image quality unimaginable for its small size.
In addition, there is little vignetting so richly luminous, natural-form bokeh
extends to the edge. The floating structure corrects various types of aberrations
that tend to occur in close-up photography. Even at the minimum shooting
distance, this lens gives excellent definition and sharpness worthy of the GR LENS
name. *There is a built-in extendable hood.
Lens Unit
MTF curve graph
(1/30x F2.5)
100
80
MTF(%)
60
40
20
0
0.0
4.3
7.1 8.5 9.9 11.4 12.8 14.2
Distance from frame center(mm)
Blue lines:15/mm Solid lines:Radial values
Red lines:45/mm Dotted lines:Tangential values
Beautiful bokeh and imaging power.23.6 mm × 15.7 mm CMOS sensor
The CMOS sensor boasts 23.6 mm × 15.7 mm size for rich bokeh and approximately 12.30 million effective pixels for superior resolution. Supporting the exceptional optical performance of the GR LENS, this image sensor enables the photographer to obtain both crisp details and refined bokeh, and the wide dynamic range
gives rich tonal gradations. The result is high image quality that demands printing
in large format.
Maximum 1/2x magnification and a focus ring for full-fledged
close-up photography
Close-up photography at a maximum magnification of 1/2x is possible, with the
minimum shooting distance approximately 7 cm from the front of the lens. A
manual focus ring is also provided. If the body focus ring setting selected is
AF+MF, after the AF focusing is done it is possible to turn the focus ring to make
fine adjustments to the focus.
Beautifully shoot and relive the excitement. High definition (HD)
movie function
Enjoy shooting HD movies. Image size is 1280×720, aspect ratio 16:9, and frame
rate 24 frames/sec. Utilizing the high sensitivity (maximum ISO 3200) and the
beautiful bokeh made possible by the F2.5 aperture and the large image sensor, it
is possible to create impressive movies with a different feel than those of standard
video cameras. The GXR body has an HDMI connector so for large-screen movie
viewing it can be connected to TVs supporting HDMI.
*HDMI cable sold separately.
Note: When shooting movies of 1280 × 720 size, the use of an SD/SDHC memory card with an SD
speed class of Class 6 or higher is recommended.
GR LENS A12 50mm F2.5 MACRO, 1/570sec, F2.5, ISO200, EV±0, WB: MANU
GR LENS A12 50mm F2.5 MACRO – Other Major Specifications
Item
Effective pixels
Image sensor
Lens Focal length
Aperture(f-number)
Focus range
Construction
Zoom
ISO sensitivity (Standard Output Sensitivity)
Flash Range (built-in flash)
Shutter speed
Number of pictures shot in Continuous
(Picture Size: RAW)
Continuous shooting
capacity
Battery life
Dimensions
(W × H × D)
Weight
5
Specifications
Approximately 12.30 million
23.6×15.7mm CMOS (total pixels: 12.90 million)
33 mm (35 mm format equivalent: 50mm)
f/2.5 – f/22(ND filter used for apertures of f/22 in auto shooting mode)
Normal shooting: Approx. 30 cm – infinity, Macro shooting: Approx. 7 cm – infinity (maximum magnification 1/2x)
9 elements in 8 groups
4.0× digital zoom (3.6x for movies), 5.9× auto resize zoom (VGA)
AUTO, AUTO-HI, ISO200 / ISO400 / ISO800 / ISO1600 / ISO3200
Approx. 20 cm – 3.0 m (ISO auto)
Photographs: 1/3200 – 180 sec. Movies: 1/30 – 1/2000 sec.
Noise Reduction off or on (Weak): 4 pictures,
Noise Reduction on (Strong): 3 pictures
Photographs: 4288 × 2416, 3776 × 2832, 4288 × 2848, 2848 × 2848, 3456 × 1944,
3072 × 2304, 3456 × 2304, 2304 × 2304, 2592 × 1944, 2048 × 1536, 1280 × 960, 640 × 480
Movies: 1280 × 720, 640 × 480, 320 × 240
Based on CIPA standard, DB-90: approx. 320 shots
Camera unit only:68.7 mm × 57.9 mm × 38.6 mm (excluding projections)
When mounted on the camera body:113.9 mm × 70.2 mm × 44.4 mm (excluding projections)
Camera unit only: Approx. 263g Mounted on camera body: Approx. 423g (not including battery,
SD memory card, or neck strap), accessory weight: approx. 23g (battery, strap)
Camera Unit
AL, no trimming
Camera unit
12.30
CMOS
50mm
megapixels
23.6mm×15.7mm
fixed focal length
1/2x HD movies Max 4 frames
Maximum magnification
(minimum shooting distance 7 cm)
1280×720P
RAW continuous shooting
6
RICOH LENS S10 24-72mm F2.5-4.4 VC, 1/48sec, F2.5, ISO100, EV-0.5, WB: AUTO, no trimming
7
Camera Unit
For a diverse range of photo subjects.
"Everyday" zoom coverage from wide-angle to medium telephoto.
Camera unit
The "VC" designation indicates that this unit has the Vibration Correction function
developed independently by Ricoh.
10.00
CCD
24-72mm
megapixels
1/1.7-inch
optical zoom
1cm
minimum shooting distance
Excellent correction of various types of aberrations. Sharp optical
performance at all focal lengths
With wide focal length coverage in a single lens, the 24-72 mm 3x optical zoom
can handle a diverse range of subjects. The lens configuration has 7 groups and 11
elements, and the rear focus technique convenient for fast AF is used.
Beginning with a large-diameter aspherical lens as the first element, there are a
total of four aspherical lens elements situated in optimum positions. Using special
low-dispersion glass and other techniques, we have achieved suppressing image
distortion and color fringing near the edge, even at 24 mm wide-angle. With an
extravagant optical design, compact size is maintained while achieving highresolution and contrast at all focal lengths. In production, the lens group optical
axis and image sensor gradient are precisely adjusted in micron units. Superior
optical performance to the edge of the image is insured before the image is delivered to the photographer.
Lens Unit
MTF curve graph
(1m F2.5)
100
80
MTF(%)
60
40
20
VGA
movies
640×480P
Max 5 frames
RAW continuous shooting
High-sensitivity CCD achieves natural and high image quality
Because it can achieve both high image quality and the portability needed for a
photographer's "everyday" zoom lens, a 1/1.7-inch CCD is used as image sensor.
Providing both high-sensitivity and low-noise, this CCD can handle the wide sensitivity setting range of ISO100 to 3200. Even when shooting at high ISO sensitivity,
it is possible to obtain natural high-quality images with low levels of both color
noise and luminance noise.
Distinct images without blurring.
Camera shake correction and high-sensitivity setting
RICOH LENS S10 24-72 mm uses the Vibration Correction function developed
independently by Ricoh. It is effective for preventing the camera shake that can
occur in various situations, such as when you want an ambient-light atmosphere
for sunset or party scenes, when shooting in museums and other public facilities
where flash use is prohibited, when shooting nightscapes beyond flash range, and
when shooting dark scenes with medium telephoto. In addition, blurring from both
camera shake and subject movement can be suppressed using Auto-Hi (high sensitivity auto), which can be set as high as ISO3200.
0
0
1.4
2.3 2.8 3.2 3.7 4.1 4.6
Distance from frame center(mm)
Blue lines:50/mm Solid lines:Radial values
Red lines:150/mm Dotted lines:Tangential values
Approach subject detail from 1 cm range. Close-up photography
Close-up photography with a minimum shooting distance of 1 cm (wide-angle;
distance from front of lens) is possible. When used in combination with the digital
zoom, which provides greater magnification than standard shooting, it is possible
to fill the frame with a subject of about 4.4×3.3 mm size.
RICOH LENS S10 24-72mm F2.5-4.4 – Other Major Specifications
Item
Effective pixels
Image sensor
Lens Focal length
Aperture(f-number)
Focus range
Construction
Zoom
ISO sensitivity (Standard Output Sensitivity)
Shutter speed
Number of pictures shot in Continuous
Continuous shooting
capacity
Battery life
Dimensions
(W × H × D)
Weight
Specifications
Approximately 10.0 million
1/1.7" CCD (total pixels: approx. 10.40 million)
5.1mm – 15.3mm (35 mm format equivalent: 24-72 mm)
f/2.5 – f/4.4
Normal shooting: Approx. 30 cm to infinity:Macro shooting: Approx. 1 cm to infinity (wide angle); Approx. 4 cm to infinity (telephoto); approx. 1 cm to infinity (zoom macro)
11 elements in 7 groups
3.0 × optical zoom; 4.0 × digital zoom; approx. 5.7 × auto resize zoom (VGA)
Auto, Auto-Hi, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200
Photographs: 1/2000 – 180 sec. Movies: 1/30 – 1/2000 sec.
Noise Reduction off: 5 pictures, Noise Reduction on (Weak or Strong): 4 pictures (ISO sensitivity: ISO 800,
ISO 1600, ISO 3200)
Photographs: 3648 × 2048, 3648 × 2736, 3648 × 2432, 2736 × 2736, 3264 × 1840, 3264 × 2448,
3264 × 2176, 2448 × 2448, 2592 × 1944, 2048 × 1536, 1280 × 960, 640 × 480
Movies: 640 × 480, 320 × 240
Based on CIPA standard DB-90: approx. 410 shots
68.7 mm × 57.9 mm × 38.6 mm (excluding projections) When mounted on the camera body:
113.9 mm × 70.2 mm × 44.4 mm (excluding projections)
Camera unit only: Approx. 161g Mounted on camera body: Approx. 325g (not including battery,
SD memory card, or neck strap), accessory weight: approx. 23g (battery, strap)
8
10.7x optical zoom lens, high-speed continuous shooting at 5 frames/second in RAW mode, and
This high-performance camera unit expands your GXR world of expression.
RICOH LE
RICOH LENS P10 28-300mm F3.5-5.6 VC, 1/164sec, F5.6, ISO100, EV±0, WB: Multipattern AUTO, no trimming
300mm Telephoto
Camera unit
The "VC" designation indicates that this unit has the Vibration Correction function
developed independently by Ricoh.
10.00
CMOS
28-300mm
megapixels
1/2.3-inch Back-illuminate
High magnification zoom
1cm
minimum shooting distance
HD movies Max 5 frames
1280×720P
RAW continuous shooting
RICOH LE
9
Camera Unit
high sensitivity with low noise.
Great versatility in a 10.7x optical zoom with wide-angle to
telephoto coverage
From expansive landscape shots to concerts and sports where you are far from the
action, this 28-300 mm 10.7x optical zoom handles not only everyday subjects but
special events as well. Enjoying rich expressive possibilities, you can emphasize
sense of distance with wide-angle or compress subject-background distance with
telephoto. The lens configuration has 7 groups and 10 elements. The adoption of 4
aspherical lenses (5 surfaces) has made it possible to achieve clear photographs
with high image quality at all focal lengths.
Lens Unit
MTF curve graph
(1m F3.5)
100
80
MTF(%)
60
40
20
0
0.0
1.1
1.9 2.3 2.7 3.1 3.4 3.8
Distance from frame center(mm)
Blue lines:50/mm Solid lines:Radial values
Red lines:150/mm Dotted lines:Tangential values
Ultra-high-speed continuous shooting at 5 frames/second in RAW
mode and up to 120 frames/second maximum
NS P10 28-300mm F3.5-5.6 VC, 1/1620sec, F3.5, ISO100, EV-0.7, WB: MANUAL, no trimming
28mm Wide-angle
Wield continuous shooting power at about 5 frames/second* at maximum pixels
(10M) and at up to 120 frames/second (640 × 480) at the ultra-high-speed Hi
setting. Or vividly capture that instant of drama using M-continuous plus to record
images shot continuously up to the moment you remove your finger from the
shutter-release button.
*When noise reduction is off.
*The maximum number of images for continuous shooting in RAW mode is five.
Darkness conquered with MAX noise reduction and a new
CMOS sensor
Beautifully reproduce tones and colors even in low-light scenes. With the MAX
setting for noise reduction level, the screen is divided into segments and the
optimum noise processing is done for each. This gives a smoother and more natural result than past methods which used uniform noise processing for the entire
image. This camera unit also has a back-illuminated CMOS sensor.
Since high-quality images are possible even with ISO sensitivity set quite high,
you can obtain beautiful pictures even in nightscape and indoor shooting.
*The amount of time it takes to record an image will vary depending on the noise reduction setting.
Extensive shooting functions to realize all your creative inspirations
Dynamic range double shot suppresses both overexposure and underexposure even
in high-contrast scenes. "Highlights" and "Shadows" settings can be used to fine
tune the effect. You will be able to more faithfully record the world as you see it
and as you want it to be. The extensive range of functions also includes macro
shooting as close as 1 cm to the subject (at wide-angle; from front of lens) and the
shooting of 1280 × 720 high-resolution HD movies.
Note: When shooting movies of 1280 × 720 size, the use of an SD/SDHC memory card with an SD
speed class of Class 6 or higher is recommended.
RICOH LENS P10 28-300mm F3.5-5.6 VC – Other Major Specifications
Item
Effective pixels
Image sensor
Lens Focal length
Aperture(f-number)
Focus range
Specifications
Approximately 10.00 million
1/2.3-inch CMOS sensor (total pixels: approx. 10.60 million pixels)
f=4.9-52.5 mm (35 mm equivalent: 28-300 mm)
f/3.5 – f/5.6
Normal shooting: Approx. 30 cm - infinity (wide-angle), approx. 1.5 m – infinity (telephoto)
Macro shooting (from the front of the lens): Approx. 1 cm - infinity (wide-angle), approx. 27 cm - infinity (telephoto),
approx. 1 cm - infinity (zoom macro)
10 elements in 7 groups (4 aspherical lens elements with 5 surfaces)
Construction
Zoom
10.7× optical zoom; 4.0× digital zoom (2.8x for movies, HD), approx. 5.7× auto resize zoom (VGA)
ISO sensitivity (Standard Output Sensitivity) Auto, Auto-Hi, ISO 100, ISO 200, ISO 400, ISO 800, ISO 1600, ISO 3200
Flash Range (built-in flash)
Approx. 20 cm – 4.0 m (wide-angle), approx. 28 cm – 2.5 m (telephoto) (ISO AUTO)
Shutter speed
Photographs: 1/2000 - 30 s (upper and lower limits vary according to shooting and flash mode)
Movies: 1/30 – 1/2000 s
Number of pictures shot in Continuous
Noise Reduction off: 5 pictures;
(Picture Size: RAW)
Noise Reduction on weak, strong, or MAX: 4 pictures
Continuous shooting
Photographs: 3648 × 2048, 3264 × 1840, 3648 × 2736, 3264 × 2448, 2592 × 1944, 2048 × 1536, 1280 × 960,
capacity
640 × 480, 3648 × 2432, 3264 × 2176, 2736 × 2736, 2448 × 2448
Movies: 1280 × 720, 640 × 480, 320 × 240
Battery life
Based on CIPA standard DB-90: approx. 440 shots
Dimensions
Camera unit only: 68.7 mm × 57.9 mm × 44.0 mm (according to CIPA guidelines)
(W × H × D)
When mounted on the camera body: 113.9 mm × 70.2 mm × 49.8 mm (according to CIPA guidelines)
Weight
Camera unit only: Approx. 160 g. Mounted on camera body: Approx. 367 g (including battery, SD memory
card, and lens cap)
NS P10 28-300mm F3.5-5.6 VC, 1/50sec, F4.3, ISO1600, EV±0, WB: MANUAL, no trimming, MAX noise reduction
*For aperture value adjustment, an ND filter is used.
10
What to say, and how to say it?
This system understands the photographer's intentions.
Freedom to create the best image quality. Image settings adjustable
to 9 levels
Flexible response to creative intent. Settings read when camera
unit attached
Image settings include Vivid, Standard, Natural, Black & White, B&W (TE), and
Setting. In addition, for Black & White, B&W (TE), and Setting, the range across
which vividness, contrast, sharpness, and individual color settings can be adjusted
has been broken down into nine levels. So it is now possible to fine tune image
finishing in greater detail across a wider range.
The GXR remembers shooting settings in both the body and the camera unit. It is
possible to specify in advance which settings are to be used. Select the body
settings if you want to shoot and process images in the same way regardless of the
camera unit. Select the camera unit settings if you want to change settings for
image creation in a style specific to the camera unit. This increases shooting
flexibility and speed by saving the time and effort involved in redoing settings.
ISO3200 high sensitivity, a strong ally in shooting dark scenes and
preventing subject blur
Depending on the camera unit being used, high sensitivity settings of up to ISO1600 or
ISO3200 are possible. An image sensor with a high signal-to-noise ratio together with
an advanced image processing engine make it possible to obtain natural-looking
images with a low-noise feel even at high ISO settings. For the sensitivity setting, you
can select Auto or Auto-Hi (high sensitivity auto), or specify the sensitivity yourself.
Intuitive operation. 8-Directional pad handles diagonal movement
The directional pad handles diagonal movement in addition to the standard
up-down and right-left. For example, the directional pad enables smoother and
easier operations for AE/AF target selection, image selection on the micro-thumbnail
display, etc.
Three My Settings and the My Settings Box
Natural color reproduction. Multi-pattern auto white balance
The GXR segregates the image into multiple areas and applies the optimum white
balance to each. For example, in cases such as where a person is photographed with
flash in a room illuminated by incandescent light, even if the subject and background
have different color temperatures, both are reproduced with natural colors.
Seize that shutter chance. Full press snap
With this quick-shooting function, a one-push full-press of the shutter-release button
instantly takes the shot, skipping the usual AF operation. It is possible to select from
the following focus distances: 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 3.5 m, 5 m, or infinity.
The GXR provides three My Settings. In addition, up to six special purpose and
infrequently used My Settings can be saved in a My Settings Box and quickly
assigned to the mode dial as necessary.
Direct operability. ADJ. lever and two Fn buttons
Frequently used functions can be assigned to the ADJ. lever. Press at the center to
call up the registered functions and then press to the left or right to select a
function. Use the + or – button to quickly complete the setting. In addition, there
are two Fn buttons to which selected functions can be registered for switching
with one push. Setting changes can be made directly without menu operations.
*Can only be used when focus is set to Multi AF or Spot AF.
Precise focus checking with a 920,000-dot picture display
Don't miss the moment. M-continuous plus
Shoot continuously by holding down the shutter-release button. When you release
your finger from the button, multiple images shot up to that moment are recorded.
Select the HI setting when shooting speed is the priority and LO when resolution is
the priority.
*The consecutively shot images are recorded as a single MP file (a file format with multiple still images
in a single file). With MP file images, a selected frame can be extracted and saved as an individual
JPEG image within the camera. *Focus, exposure, and image size are fixed.
The GXR has a 3.0-inch, 920,000-dot VGA picture display. A wide color
reproduction range with 100% sRGB coverage gives a high-reality image for both
shooting and playback. Precise focus checking and a micro-thumbnail display with
up to 81 images are possible. Various coatings are used to insure superior visibility
and durability.
[ Other functions ]
• Pixel output interpolation algorithm effectively suppresses whiteout.
Speedy function settings via DIRECT screen
Pressing the DIRECT button located on the back of the body displays the current
shooting settings. Since the settings are transparently displayed over the image, the
image and the settings can be simultaneously checked. Then selecting an
individual setting with the directional pad, a change* can be quickly made.
Background image density (four levels) can be changed by pressing the DISP.
button while the DIRECT screen is displayed.
• Noise reduction increases image quality during high-sensitivity shooting.
• Distortion correction reduces the distortion that is characteristic of
wide-angle lenses.
*Done on certain camera units only.
• Level compensation adjusts contrast and tone gradations after shooting.
• Pre-AF speeds up focusing.
*For certain functions, setting changes cannot be made.
• AE/AF target selection provides greater freedom in framing and
creative use of light.
• Auto bracketing and white balance bracketing enhance shooting certainty.
• Color bracketing simultaneously records black and white and tinted
monochrome images, each with a different feel.
• Manual flash amount enables the control of subject and background
light balance.
• Tilt indicator supports quick and accurate camera leveling.
• Flag function enables registration of up to 20 images for easy viewing later.
• Grid guide function provides three patterns for selection to suit the subject.
11
A full line of accessories for a system to realize
the photographer's aspirations.
Performing with light and shadow. External TTL Flash GF-1
This is an external flash with G.No 20(24mm) -30(105mm) (ISO100•m). It utilizes
an original TTL flash technique to provide precise flash exposure with auxiliary
flash. Also capable of bounce flash to softly and naturally illuminate the subject
with indirect light, the GF-1 enables the photographer to enjoy a wide range of
creative shooting options only possible with an external flash. There are built-in
wide-angle diffuser and catch-light panels. When the wide-angle diffuser panel is
used, a coverage angle equivalent to 18 mm is possible.
field of view, creating dramatic scenes, and imposing order on the image
composition.
*Optional accessories for RICOH LENS S10 24-72 mm
*For use, the hood & adapter (HA-3) are necessary.
*When attached, the internal flash cannot be used because vignetting
would occur.
*When attached, vignetting may occur at all zoom positions other than
maximum telephoto.
Small size and 920,000-dot high definition. LCD Viewfinder VF-2
Attached to the hot shoe, the LCD viewfinder has a 100% field of view equivalent
to approx. 920,000 dots. It provides a wealth of benefits to the photographer, such
as eliminating the influence of sunlight to provide a consistently excellent field of
view and helping control hand-motion blur by enabling a three-point hold. With a
high-performance viewfinder optical system utilizing an aspherical lens, the VF-2
achieves a low-distortion field of view, a high image magnification ratio, and a
wide diopter correction range (–1±3.5Dpt). The tilt capability is convenient for
low-angle shooting. (Case included)
For wide-angle shooting wider than the naked eye.
Wide Conversion lens DW-6
This is a convenient accessory for shooting at a wider wide-angle and for
achieving a more extreme sense of distance. Magnification is 0.79x, and used at the
maximum wide-angle setting it enables 19 mm ultra-wide-angle photography.
Optimized for the optical system of the camera unit, the DW-6 consists of three
glass lenses.
Great for preventing hand-motion blur.
Cable Switch CA-1
The cable switch is effective for scenes where hand-motion blur tends to occur and
also for long exposures when using a tripod for nightscapes or macro shooting. It
can do both half-press and full-press operations. Easy to use total length of approx.
65 cm (from grip end to connector end).
For greater shooting flexibility. Self-retaining Lens Cap LC-2
This hinged-type lens cap opens and closes automatically when the lens barrel
extends and retracts. It increases shooting flexibility by eliminating the
inconvenience of having to remove/attach the lens cap. There is also no more
worry about lens cap loss. Bayonet-type mount.
*Optional accessories for RICOH LENS S10 24-72 mm
*For use, the hood & adapter (HA-3) are necessary.
*When attached, the internal flash cannot be used because vignetting would occur.
*Optional accessories for RICOH LENS S10 24-72 mm and RICOH LENS P10 28-300 mm
*When the LC-2 is used, Hood & Adapter HA-3 cannot be used.
Bayonet type for easy mounting. Hood & Adapter HA-3
Frame and capture your target. Teleconversion Lens TC-1
This magnification 1.88x teleconversion lens extends the focal length of the
camera unit lens, reaching 135 mm at maximum telephoto. Of course, a
telephoto lens will bring far away subjects closer, but the photographer can also
enjoy a variety of other effects, such as isolating one small area from the overall
Attaches to camera unit with a bayonet-type mount. Conversion lenses and an
exclusive hood can be attached. Universal filters (43 mm diameter), such as
polarization, cross-screen, and soft-focus filters, can also be attached to expand
range of expression.
*Optional accessories for RICOH LENS S10 24-72 mm
System diagram
External Flash GF-1
External Viewfinder VF-2
Wide Conversion Lens DW-6
*Optional accessories for
RICOH LENS S10 24-72 mm
Hood & Adapter HA-3
*Optional accessories for
RICOH LENS S10 24-72 mm
Teleconversion Lens TC-1
*Optional accessories for
RICOH LENS S10 24-72 mm
Self-retaining Lens Cap LC-2
Cable Switch CA-1
Soft Case SC-55S
Neck Strap ST-3
Product Name
Hood & Adapter *3
Wide Conversion Lens *1 *3
Teleconversion Lens *1 *3 *4
External Flash
External Viewfinder
Cable Switch
Soft Case *3
Soft Case *2 *5
Neck Strap
Self-retaining Lens Cap *3 *5
Rechargeable Battery
Battery Charger
Model Name
HA-3
DW-6
TC-1
GF-1
VF-2
CA-1
SC-55S
SC-55L
ST-3
LC-2
DB-90
BJ-9
*1 For use, the hood & adapter (HA-3) are necessary.
When attached, the internal flash cannot be used
because vignetting would occur.
*2 Optional accessories for GR LENS A12 50mm F2.5 MACRO
*3 Optional accessories for RICOH LENS S10 24-72 mm
*4 When attached, vignetting may occur at all zoom
positions other than maximum telephoto.
*5 Optional accessories for RICOH LENS P10 28-300mm F3.5-5.6 VC
*Optional accessories for
RICOH LENS S10 24-72 mm and
RICOH LENS P10 28-300 mm
Soft Case SC-55L
•GXR Optional Accessories
Rechargeable Battery DB-90
Battery Charger BJ-9
12
GXR
GR LENS
A12 50mm F2.5 MACRO
< Accessories included >
< Accessories included >
•Rechargeable Battery •Battery charger •AV Cable •USB Cable
•Neck strap •CD-ROM •Instruction Manual(Camera Body User Guide)
*Warranty CardSoftware manual supplied on CD-ROM
•Lens cap •Connector cap •Soft case
•Instruction manual •Warranty
•GXR Major Specifications
Item
Flash
Mode
Range (built-in flash)
Flash compensation
Manual flash amount
Picture display
File format
Still Image
Movie
Compression
Other shooting options
Other playback options
Mode
Quality
Still
RAW*
FINE
M
FINE
Continuous shooting (continuous, M-Cont Plus);
self-timer (shutter release delay of approx. 10 s or 2 s, or custom setting); interval timer
(intervals of 5 s to 1 hour in increments of 5 s) *4; color bracketing; B&W (TE);
color space selection; noise reduction; histogram display; framing grid; depth-of-field indicator;
tilt indicator; hot shoe
Movie
Auto image rotation (when camera unit attached); multi-frame playback;
playback zoom (up to 16 ×); resize
Weight
Tripod screw hole
Operating temperature
Date storage time
Operating humidity
Storage temperature
1/4-20UNC
0 °C to 40 °C
Approx. 1 week
85% or less
–20 °C to 60 °C
Video signal format
Power source
Battery life
Dimensions (W × H × D)
L
FINE
Fine, Normal, RAW (DNG) *1
SD/SDHC memory card, internal memory (approx. 86 MB)
JPEG (Exif Ver. 2.21) *2, RAW (DNG)
AVI *3 (Open DML Motion JPEG compliant)
JPEG baseline compliant (photographs and movies)
USB 2.0 (High-Speed) Mini-B connector; Mass Storage *5; AV output (NTSC),
HDMI connector (Mini HDMI Type C)
NTSC, PAL
DB-90 rechargeable battery (3.6V)
Refer to camera unit specifications.
113.9 mm × 70.2 mm × 28.9 mm (excluding projections)
Camera body (excluding battery, memory card, neck strap, and connector cap): 160 g
Battery, neck strap, and connector cap: 66 g
Interface
RICOH LENS
P10 28-300mm F3.5-5.6 VC
< Accessories included >
< Accessories included >
•Lens cap •Connector cap •Soft case
•Instruction manual •Warranty
•Lens cap •Connector cap •Soft case
•Instruction manual •Warranty
GXR+S10 KIT
*Set with GXR body
GXR+P10 KIT
*Set with GXR body
•GR LENS A12 50mm F2.5 MACRO Storage Capacity (Number of Images and Time)*
Specifications
Auto (flash fires when lighting is poor or subject is backlit), red-eye, on, slow sync, manual, off
Refer to camera unit specifications.
±2.0 EV in increments of 1/2EV or 1/3EV
FULL, 1/1.4, 1/2, 1/2.8, 1/4, 1/5.6, 1/8, 1/11, 1/16, 1/22, 1/32, 1/64
3.0˝ transparent LCD; approx. 920,000 pixels
Auto, program shift, aperture priority, shutter priority, manual, scene
(movie, portrait, sports, landscape, nightscape, skew correction) My Settings”
Shooting mode
Picture quality
Storage
RICOH LENS
S10 24-72mm F2.5-4.4 VC
•GXR Software
Windows Vista®
Windows® XP
Windows® 2000
1. DL-10
2. Irodio Photo & Video Studio
3. Adobe Reader
Windows® 2000 / Windows® XP : 256MB or more ,
Windows Vista® : 512MB or more
Available disk space on hard drive at installation time
160MB or more
Display Resolution
1024×768 dots or greater
Display Colors
65,000 colors or greater
CD-ROM Drive
A CD-ROM drive compatible with the above-mentioned computer
USB Port
A USB port compatible with the above-mentioned computer
*When the GXR is connected to a PC, only a USB connection can be used. Serial connection is not supported.
*It is necessary for the above OS to be preinstalled and for the USB port to be standard equipment.
*The 64-bit OS version is not supported.
*The GXR is compatible with MAC OS 9.0 to 9.2.2 and Mac OS X 10.1.2 to 10.5.7 by mass storage connection.
4GB
8GB
16GB
32GB
404 images
810 images 1625 images
784 images 1573 images
3776×2832
4 images
97 images
191 images
391 images
4288×2848
3 images
42 images
85 images
168 images
343 images 688 images 1380 images
2848×2848
5 images
63 images
128 images
251 images
513 images 1029 images 2065 images
476 images 935 images 1912 images 3830 images 7684 images
4288×2416
21 images
235 images
3776×2832
20 images
227 images
462 images 907 images 1854 images 3715 images 7453 images
4288×2848
18 images
200 images
407 images 799 images 1633 images 3272 images 6565 images
2848×2848
27 images
299 images
608 images 1195 images 2442 images 4893 images 9815 images
3456×1944
32 images
357 images
724 images 1419 images 2902 images 5814 images 11662 images
30 images
337 images
27 images
302 images
614 images 1206 images 2466 images 4941 images 9913 images
41 images
447 images
903 images 1774 images 3627 images 7267 images 14578 images
1280×720 (24 frames / sec.)
21”
3’49”
7’46”
15’58”
31’10”
62’26”
640×480 (24 frames / sec.)
1’
11’2”
22’27”
46’10”
90’7”
180’32”
362’9”
320×240 (24 frames / sec.)
2’25”
26’24”
53’43”
110’27”
215’35”
431’52”
866’19”
Mode
Quality
Still
RAW*
FINE
M
FINE
Movie
683 images 1341 images 2741 images 5491 images 11014 images
125’15”
No. of
Pixels Recorded
Internal
Memory
1GB
3648×2048
6 images
68 images
138 images 272 images
2GB
4GB
8GB
16GB
32GB
556 images 1115 images 2237 images
3648×2736
4 images
51 images
104 images 204 images
418 images
837 images 1680 images
3648×2432
5 images
57 images
117 images
229 images
469 images
941 images 1888 images
271 images
555 images 1113 images 2232 images
2736×2736
6 images
68 images
138 images
3648×2048
29 images
323 images
653 images 1284 images 2624 images 5257 images 10546 images
3648×2736
22 images
242 images
497 images 965 images 1973 images 3953 images 7930 images
3648×2432
24 images
272 images
553 images 1087 images 2222 images 4452 images 8930 images
653 images 1284 images 2642 images 5257 images 10546 images
2736×2736
29 images
323 images
3264×1840
36 images
397 images
808 images 1588 images 3245 images 6502 images 13043 images
3264×2448
27 images
300 images
608 images 1195 images 2442 images 4893 images 9815 images
3264×2176
30 images
337 images
683 images 1341 images 2741 images 5491 images 11014 images
2448×2448
808 images 1588 images 3245 images 6502 images 13043 images
36 images
400 images
640×480 (30 frames / sec.)
49”
8’55”
18’8”
37’18”
72’50”
145’54”
292’41”
320×240 (30 frames / sec.)
1’59”
21’39”
44’2”
90’33”
176’44”
354’3”
710’13”
•RICOH LENS P10 28-300mm F3.5-5.6 VC Storage Capacity (Number of Images and Time)*
Mode
Quality
Still
RAW*
FINE
Windows®
Windows® 2000 Professional Service Pack4
Windows® XP Home Edition Service Pack 3/ Professional Service Pack 3
Windows Vista® Service Pack 2
Memory
47 images
2GB
100 images 197 images
2304×2304
L
FINE
Windows® 2000/ Windows® XP : Pentium®III 500MHz or more,
Windows Vista® : Pentium®III 1GHz or more
49 images
•RICOH LENS S10 24-72mm F2.5-4.4 VC Storage Capacity (Number of Images and Time)*
•GXR System Requirements
CPU
1GB
4 images
3072×2304
*To playback MP files and output still images from MP files on a Macintosh PC, please use the enclosed VM-1 Macintosh
software for viewing MP files (compatible OS: Mac OS X 10.4-10.5.7).
Operating system
Internal
Memory
4288×2416
3456×2304
L
FINE
*1 A JPEG file is also recorded (the JPEG file may be a fine or normal quality file with the same dimensions as the RAW file or a VGA file).
RAW files use the standard DNG format promoted by Adobe Systems Incorporated
*2 Compatible with the Design rule for Camera File system (DCF, a JEITA standard) and DPOF. Full compatibility with other devices is not
guaranteed.
*3 Audio: PCM 32 kHz, 16 bit monaural
*4 Flash off.
*5 Mass Storage is supported under Windows® 2000, Windows® XP, Windows Vista®, and Mac OS X 10.4–10.5.7.
No. of
Pixels Recorded
M
FINE
Movie
No. of
Pixels Recorded
Internal
Memory
1GB
3648×2048
6 images
67 images
137 images 270 images
2GB
4GB
8GB
16GB
32GB
551 images 1105 images 2217 images
3648×2736
4 images
50 images
103 images 203 images
415 images
3648×2432
5 images
57 images
116 images
228 images
466 images 934 images 1874 images
831 images 1688 images
551 images 1105 images 2217 images
2736×2736
6 images
67 images
137 images 270 images
3648×2048
29 images
323 images
653 images 1284 images 2624 images 5257 images 10546 images
3648×2736
22 images
242 images
491 images 965 images 1973 images 3953 images 7930 images
3648×2432
24 images
272 images
553 images 1087 images 2222 images 4452 images 8930 images
2736×2736
29 images
323 images
653 images 1284 images 2624 images 5257 images 10546 images
3264×1840
36 images
397 images
808 images 1588 images 3245 images 6502 images 13043 images
3264×2448
27 images
300 images
608 images 1195 images 2442 images 4893 images 9815 images
3264×2176
30 images
2448×2448
337 images
683 images 1341 images 2741 images 5491 images 11014 images
36 images
400 images
808 images 1588 images 3245 images 6502 images 13043 images
1280×720 (30 frames / sec.)
16”
3’3”
6’14”
12’14”
25’1”
50’7”
100’33”
640×480 (30 frames / sec.)
49”
8’55”
18’8”
35’38”
72’50”
145’54”
292’41”
320×240 (30 frames / sec.)
1’59”
21’39”
44’2”
86’28”
176’44”
354’3”
710’13”
*When RAW is selected, this is the compression rate for the simultaneously recorded copy.*For shooting capacity, the number of still
images and movie time are estimates. *Movies may be up to 90 minutes in length or 4GB in size. *The number of exposures remaining as
shown on the picture display may differ from the actual number because image file size varies depending on the subject. *The shooting
capacity for number of still images and movie recording time may vary depending on the capacity of the recording media (internal
memory or SD memory card), the shooting conditions, and the type and manufacturer of the SD memory card. *A high-speed memory
card is recommended when shooting for long periods. *For other compression rates please check the website.
Note: When shooting movies of 1280 × 720 size, the use of an SD/SDHC memory card with an SD speed class of Class 6 or higher is
recommended.
/r_dc
• GXR is a trademark of Ricoh Co., Ltd. • Microsoft, Windows, Windows Vista, and Direct X are registered trademarks or trademarks of Microsoft Corporation in the U.S. and/or other countries.
• Macintosh, Mac OS are registered trademarks of Apple Computer, Inc. in the U.S. and/or other countries. • Compatible with SEIKO EPSON CORPORATION PRINT Image Matching III. • The SDHC logo is a trademark. • The SD logo is a trademark.
• Adobe Reader and DNG logo are trademarks or registered trademarks of Adobe systems incorporated in the U.S. and/or other countries. • All other trademarks mentioned herein are the property of their respective owners.
RICOH ASIA PACIFIC OPERATIONS LIMITED
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
