For Parts Call K&T 606-678-9623 or 606-561-4983

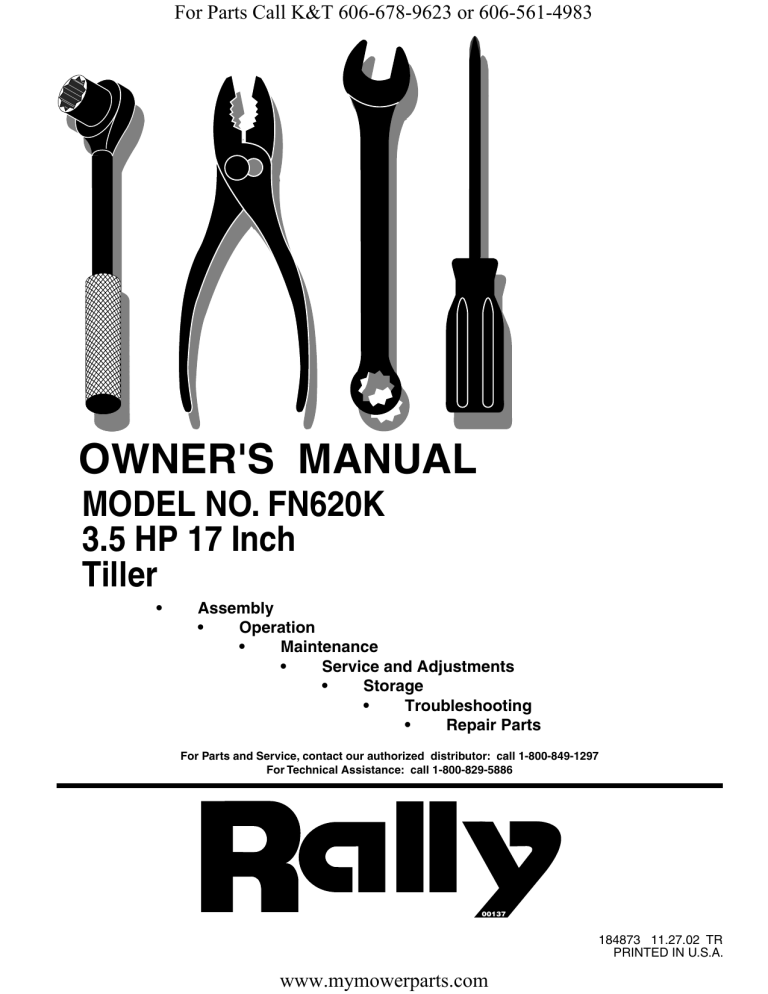

OWNER'S MANUAL

MODEL NO. FN620K

3.5 HP 17 Inch

Tiller

• Assembly

• Operation

• Maintenance

• Service and Adjustments

• Storage

• Troubleshooting

• Repair Parts

For Parts and Service, contact our authorized distributor: call 1-800-849-1297

For Technical Assistance: call 1-800-829-5886

www.mymowerparts.com

00137

184873 11.27.02 TR

PRINTED IN U.S.A.

For Parts Call K&T 606-678-9623 or 606-561-4983

SAFETY RULES

SAFE OPERATION PRACTICES FOR WALK-BEHIND POWERED RO TA RY TILLERS

TRAINING

fa mil iar with the controls and the proper use of the equip ment. Know how to stop the unit and disengage the controls quickly.

• Never allow children to operate the equipment. Never allow adults to op er ate the equipment without proper instruction.

• Keep the area of operation clear of all persons, par-

tic u lar ly small children, and pets.

PREPARATION

• Thoroughly inspect the area where the equipment is to be used and remove all foreign objects.

• Disengage all clutches and shift into neutral before starting the engine (mo tor).

• Do not operate the equipment with out wearing ad e quate outer gar ments. Wear footwear that will im prove footing on slippery surfaces.

• Handle fuel with care; it is highly fl ammable.

• Use an approved fuel container.

• Never add fuel to a running engine or hot engine.

• Fill fuel tank outdoors with extreme care. Never fi ll fuel tank indoors.

• Replace gasoline cap securely and clean up spilled fuel before restarting.

• Use extension cords and receptacles as specifi ed by the manufacturer for all units with electric drive motors or electric starting motors.

• Never attempt to make any adjustments while the engine (motor) is running (except where specifi cally rec om mend ed by manufacturer).

OPERATION

• Do not put hands or feet near or under rotating parts.

• Exercise extreme caution when op er at ing on or cross-

ing gravel drives, walks, or roads. Stay alert for hidden hazards or traffi c. Do not carry pas sen gers.

• After striking a foreign object, stop the engine (motor), remove the wire from the spark plug, thoroughly in spect the tiller for any damage, and repair the damage before restarting and op er at ing the tiller.

• Exercise caution to avoid slipping or falling.

• If the unit should start to vibrate ab nor mal ly, stop the engine (motor) and check immediately for the cause.

Vi bra tion is generally a warning of trouble.

• Stop the engine (motor) when leaving the operating position.

• Take all possible precautions when leav ing the ma chine unattended. Disengage the tines, shift into neutral, and stop the engine.

• Before cleaning, repairing, or inspecting, shut off the engine and make certain all moving parts have stopped.

Disconnect the spark plug wire, and keep the wire away from the plug to prevent accidental starting. Disconnect the cord on electric motors.

• Do not run the engine indoors; exhaust fumes are dangerous.

• Never operate the tiller without proper guards, plates, or other safety protective devices in place.

• Keep children and pets away.

• Do not overload the machine capacity by attempting to till too deep at too fast a rate.

• Never operate the machine at high speeds on slippery surfaces. Look behind and use care when backing.

• Never allow bystanders near the unit.

• Use only attachments and accessories approved by the manufacturer of the tiller.

• Never operate the tiller without good visibility or light.

• Be careful when tilling in hard ground. The tines may catch in the ground and propel the tiller forward. If this occurs, let go of the handlebars and do not restrain the machine.

MAINTENANCE AND STORAGE

• Keep machine, attachments, and accessories in safe work ing condition.

• Check shear pins, engine mounting bolts, and other bolts at frequent intervals for proper tightness to be sure the equip ment is in safe working condition.

• Never store the machine with fuel in the fuel tank inside a building where ignition sources are present, such as hot water and space heaters, clothes dryers, and the like. Allow the engine to cool before storing in any enclosure.

• Always refer to the operator’s guide instructions for im por tant details if the tiller is to be stored for an extended period.

- IMPORTANT -

CAUTIONS, IMPORTANTS, AND NOTES ARE A MEANS OF

IN FOR MA TION IN THIS MANUAL.

IMPORTANT:

USED TO ALERT YOU THAT THERE IS A

POS SI BIL I TY OF DAM AG ING THIS EQUIP MENT.

NOTE: Gives essential information that will aid you to better understand, incorporate, or execute a particular set of instructions.

Look for this symbol to point out im-

por tant safety precautions. It means

CAUTION!!! BE COME ALERT!!! YOUR

SAFE TY IS INVOLVED.

CAUTION: Always disconnect spark plug wire and place wire where it can-

not contact spark plug in order to pre-

vent ac ci den tal starting when setting up, trans port ing, adjusting or making re pairs.

WARNING

The engine exhaust from this product con-

tains chem i cals known to the State of Cal i for nia to cause cancer, birth defects, or other reproductive harm.

2

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

PRODUCT SPECIFICATIONS

GASOLINE CAPACITY: 2 Quarts (1,89L)

Unleaded Regular

OIL(API-SF-SJ): SAE 30W (Above 32°F/0°C)

(CAPACITY: 20 oz./0.6L) SAE 5W-30 (Below 32°F/0°C)

SPARK PLUG : Champion

(GAP: .030"/0.76mm) RJ19LM

CUSTOMER RESPONSIBILITIES

• Read and observe the safety rules.

• Follow a regular schedule in maintaining, caring for and using your tiller.

• Follow instructions under “Maintenance” and “Stor age” sections of this Owner’s Manual.

CONGRATULATIONS

on your purchase of a new tiller. It has been designed, en gi neered and manu fac tured to give you the best pos sible de penda bil ity and per form ance.

Should you experience any prob lems you can not easily remedy, please contact your nearest authorized service center. We have com pe tent, well-trained tech ni cians and the proper tools to service or repair this unit.

Please read and retain this manual. The in struc tions will enable you to assemble and main tain your tiller prop erly.

Always observe the “SAFETY RULES”.

IMPORTANT:

THIS UNIT IS EQUIPPED WITH AN INTERNAL

COMBUSTION ENGINE AND SHOULD NOT BE USED ON

OR NEAR ANY UNIMPROVED FOREST-COVERED, BRUSH-

COVERED OR GRASS COVERED LAND UNLESS THE

ENGINE'S EXHAUST SYSTEM IS EQUIPPED WITH A SPARK

ARRESTER MEETING APPLICABLE LOCAL LAWS (IF ANY).

IF A SPARK ARRESTER IS USED, IT SHOULD BE MAINTAINED

IN EFFECTIVE WORK ING ORDER BY THE OPERATOR.

IN THE STATE OF CALIFORNIA, A SPARK ARRESTER IS

REQUIRED BY LAW (SECTION 4442 OF THE CALIFORNIA

PUBLIC RESOURCES CODE). OTHER STATES MAY HAVE

SIMILAR LAWS. FEDERAL LAWS APPLY ON FEDERAL

LANDS. SEE YOUR AUTHORIZED SERVICE CENTER FOR

SPARK ARRESTER.

TABLE OF CONTENTS

SAFETY RULES ............................................................ 2

PRODUCT SPECIFICATIONS ....................................... 3

CUSTOMER RESPONSIBILITIES................................. 3

ASSEMBLY ................................................................. 4-5

OPERATION ............................................................... 6-9

MAINTENANCE SCHEDULE ...................................... 10

MAINTENANCE ..................................................... 10-12

SERVICE & ADJUSTMENTS ................................. 13-15

STORAGE .................................................................... 16

TROUBLESHOOTING ................................................. 17

REPAIR PARTS-TILLER......................................... 18-23

WARRANTY................................................................. 24

3

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

ASSEMBLY

Your new tiller has been assembled at the factory with exception of those parts left unassembled for shipping purposes.

To ensure safe and proper operation of your tiller all parts and hardware you assemble must be tightened securely. Use the correct tools as necessary to insure proper tightness.

TOOLS REQUIRED FOR ASSEMBLY

A socket wrench set will make assembly easier. Standard wrench sizes are listed.

(1) Utility knife

(1) Pair of pliers

(1) Screwdriver

(2) 1/2" wrenches

OPERATOR’S POSITION (See Fig. 1)

When right or left hand is mentioned in this manual, it means when you are in the operating position (standing behind tiller handles).

LEFT

FRONT

RIGHT

OPERATOR'S

POSITION

FIGURE 1

CONTENTS OF HARDWARE PACK

(2) Hex Bolts 5/16-18 x 3/4

(2) Hex Bolts 5/16-18 x 1

(4) Washers

3/8 x 7/8 x 14 Ga.

(2) Hex Bolts 5/16-18 x 1-1/4

(6) Hex Nuts 5/16-18 (6) Lock Washers 5/16

4

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

ASSEMBLY

UNPACK CARTON & INSTALL HANDLE (See

Fig. 2)

CAUTION: Be careful of exposed sta ples when handling or disposing of cartoning material.

IMPORTANT

: WHEN UNPACKING AND AS

TILLER, BE CAREFUL NOT TO STRETCH OR KINK

CABLE(S).

• Cut cable ties securing handles.

• The handle may be assembled in high or low position.

Slowly lift handle as sem bly up, route cable(s) as shown and align han dle holes with desired handle panel hole and slot.

• Loosely assemble hardware as shown. Be sure the shorter (3/4" long) hex bolt is assembled in lower hole of handle. Repeat for opposite side. Tight en all hard ware se cure ly.

NOTE:

Cables must not touch the muffl er.

• Cut cable ties securing tiller to skid and remove tiller from skid.

• Remove screws securing depth stake to skid and discard the screws.

NUT

LOCK

WASH ER

TILLER

HANDLE

HAN DLE

PANEL

INSTALL DEPTH STAKE ASSEMBLY

(See Fig. 3)

Loosen nut “A”.

• Insert stake support between engine bracket halves with stake spring down.

• Bolt stake support to engine brackets with bolts, lock washers and nuts. Tighten se curely. Tighten nut “A”.

• Depth stake must move freely. If it does not, loosen support bolt.

ENGINE BRACK ET

HALVES

NUT “A”

DEPTH STAKE

SUPPORT

STAKE

SPRING

HEX BOLTS,

LOCK WASH ERS,

AND HEX NUTS

DEPTH

STAKE

SUPPORT

BOLT

CABLE

TILLER

HANDLES

HANDLE

PANEL

BOLTS

FLAT

WASHER

HEX BOLT

5/16-18X1"

HEX BOLT

5/16-18X3/4"

FIG. 3

HANDLE HEIGHT

• Handle height may be adjusted to better suit operator.

(See “HANDLE HEIGHT” in the Service and Ad just ments section of this manual).

TILLING WIDTH

• Tilling width may be adjusted to better handle your tilling con di tions (See “TINE ARRANGEMENT” in the

Ser vice and Adjustments section of this manual).

TINE OPERATION

• Check tine operation before fi rst use. (See “TINE OP-

ERATION CHECK” in the Service and Adjustments section of this manual).

FIG. 2

5

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

KNOW YOUR TILLER

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR TILLER.

Compare the illustrations with your tiller to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference.

These symbols may appear on your Tiller or in literature supplied with the product. Learn and understand their meaning.

FORWARD TINE CONTROL

DEPTH STAKE

RECOIL

STARTER

HANDLE

THROTTLE

CONTROL

CHOKE CONTROL

TINE

SHIELD

TINES

FIG. 4

MEETS ANSI SAFETY REQUIREMENTS

Our tillers conform to the safety standards of the American National Standards Institute.

FORWARD TINE CONTROL

- Engages tines in forward direction.

THROTTLE CONTROL

- Controls engine speed.

CHOKE CONTROL

- Used when starting a cold engine.

DEPTH STAKE

- Controls forward speed and the depth at which the tiller will dig.

RECOIL STARTER HANDLE

- Used to start the engine.

6

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

The operation of any tiller can result in foreign objects thrown into the eyes, which can result in severe eye damage. Always wear safety glasses or eye shields before starting your tiller and while tilling. We recommend a wide vision safety mask over spectacles or standard safety glasses.

HOW TO USE YOUR TILLER

Know how to operate all controls before adding fuel and oil or attempting to start engine.

STOPPING (See Fig. 5)

TINES

• Release tine control to stop move ment.

ENGINE

• Move throttle control to “STOP” position.

• Never use choke to stop engine.

FORWARD TINE CON-

TROL IN “ON” (DOWN)

POSITION

FORWARD TINE CON TROL

IN “OFF ” (UP) POSITION

DEPTH STAKE (See Fig. 6)

Adjust depth stake by removing the hairpin clip and clevis pin. Change depth stake to desired position. Replace the clevis pin and hairpin clip.

• For normal tilling, set depth stake at the second or third hole from the top.

WHEELS (See Fig. 6)

Adjust wheels by removing the hairpin clip and clevis pin.

Change wheel position. Replace the hairpin clip and clevis pin.

• For normal tilling, set wheels at the second or third hole from the top.

HAIRPIN CLIP

AND CLEVIS PIN

THROTTLE

CONTROL

CHOKE

CONTROL

FIG. 5

TINE OPERATION (See Fig. 5)

• Squeeze tine control to handle.

TILLING

The speed and depth of tilling is regulated by the position of the depth stake and wheel height.

The depth stake should always be below the wheels for digging. It serves as a brake to slow the tiller’s forward motion to enable the tines to penetrate the ground. Also, the more the depth stake is lowered into the ground the deeper the tines will dig.

DEPTH

STAKE

STAKE

SPRING

WHEEL

FIG. 6

TRANSPORTING YOUR TILLER

CAUTION: Before lifting or trans port ing, allow tiller engine and muffl er to cool.

Disconnect spark plug wire. Drain gasoline from fuel tank.

AROUND THE YARD

• Tip depth stake forward until it is held by the stake spring.

• Push tiller handles down, raising tines off the ground.

• Push or pull tiller to desired location.

AROUND TOWN

• Disconnect spark plug wire.

• Drain fuel tank.

• Transport in upright position to prevent oil leakage.

7

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

BEFORE STARTING ENGINE

IMPORTANT

: BE VERY CAREFUL NOT TO ALLOW DIRT

TO ENTER THE ENGINE WHEN CHECKING OR ADDING

OIL OR FUEL. USE CLEAN OIL AND FUEL AND STORE IN

AP PROVED, CLEAN, COVERED CONTAINERS. USE CLEAN

FILL FUNNELS.

FILL ENGINE WITH OIL (See Fig. 7)

• With engine level, remove engine oil fi ller plug.

• Fill engine with oil to point of overfl owing. For ap proxi mate ca pac i ty see “PRODUCT SPEC I FI CA TIONS” on page 3 of this manual.

• Tilt tiller back on its wheels and then re-level.

• With engine level, refi ll to point of overfl owing if nec-

es sary. Re place oil fi ller plug.

• For cold weather operation you should change oil for easier starting (See “OIL VISCOSITY CHART” in the

Maintenance section of this manual).

• To change engine oil, see the Maintenance section of this manual.

OIL

LEVEL

OIL

FILLER

PLUG

FIG. 7

ADD GASOLINE

• Fill fuel tank to bottom of fi ller neck. Do not overfi ll.

Use fresh, clean, regular un lead ed gasoline with a minimum of 87 octane. (Use of leaded gasoline will increase carbon and lead oxide deposits and reduce valve life). Do not mix oil with gasoline. Purchase fuel in quan ti ties that can be used within 30 days to assure fuel freshness.

CAUTION: Fill to within 1/2 inch of top of fuel tank to prevent spills and to allow for fuel expansion. If gasoline is ac-

ci den tal ly spilled, move machine away from area of spill. Avoid creating any source of ignition until gasoline vapors have disappeared.

Wipe off any spilled oil or fuel. Do not store, spill or use gasoline near an open fl ame.

IMPORTANT:

WHEN OPERATING IN TEMPERATURES

BELOW32°F(0°C), USE FRESH, CLEAN WINTER GRADE

GAS O LINE TO HELP INSURE GOOD COLD WEATHER

START ING.

CAUTION: Alcohol blended fuels (called gas o hol or using ethanol or methanol) can attract moisture which leads to sep a ra tion and for ma tion of acids during storage. Acidic gas can damage the fuel system of an engine while in storage. To avoid engine problems, the fuel system should be emptied before stor age of

30 days or longer. Drain the gas tank, start the engine and let it run until the fuel lines and carburetor are empty. Use fresh fuel next sea son. See Storage In struc tions for additional information. Never use engine or carburetor cleaner products in the fuel tank or permanent damage may occur.

TO START ENGINE (See Fig. 8)

CAUTION: Keep drive control bar in

“DISENGAGED” position when start-

ing en gine.

When starting engine for the fi rst time or if engine has run out of fuel, it will take extra pulls of the recoil starter to move fuel from the tank to the engine.

• Make sure spark plug wire is prop er ly connected.

• Move shift lever indicator to “N” (neutral) position.

• Place throttle control in “FAST” position.

• Move choke control to full “CHOKE” position. Grasp recoil starter handle with one hand and grasp tiller handle with other hand. Pull rope out slowly until engine reaches start of com pres sion cycle (rope will pull slightly harder at this point).

• Pull recoil starter handle quickly. Do not let starter handle snap back against starter. Repeat if necessary.

• If engine fi res but does not start, move choke control to half choke position. Pull recoil starter handle until engine starts.

• When engine starts, slowly move choke control to

“RUN” position as engine warms up.

NOTE:

A warm engine requires less choking to start.

• Move throttle control to desired running position.

• Allow engine to warm up for a few minutes before engaging tines.

NOTE:

If at a high altitude (above 3000 feet) or in cold temperatures (below 32°F), the carburetor fuel mix ture may need to be adjusted for best engine per for mance. See “TO

ADJUST CARBURETOR” in the Service and Ad just ments section of this manual.

NOTE:

If en ble shoot ing points.

8

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

OPERATION

SPARK

PLUG

THROT TLE

CON TROL

CHOKE

CON TROL

• You will fi nd tilling much easier if you leave a row untilled between passes. Then go back between tilled rows. (See Fig. 9) There are two reasons for doing this. First, wide turns are much easier to negotiate than about-faces. Sec ond, the tiller won’t be pulling itself, and you, toward the row next to it.

• Set depth stake and wheel height for shallow tilling when working extremely hard soil or sod. Then work across the fi rst cuts at normal depth.

RE COIL START ER

HAN DLE

FIG. 8

4

5

3

6

2

7

1

BREAKING IN YOUR TILLER

Break-in your belts, pulleys and tine control before you actually begin tilling.

• Start engine, tip tines off ground by pressing handles down and engage tine control to start tine rotation.

Allow tines to rotate for fi ve minutes.

• Check tine operation and adjust if necessary. See “TINE

OPERATION CHECK” in the Service and Ad just ments sec tion of this manual.

TILLING HINTS

CAUTION: Until you are accustomed to handling your tiller, start ac tu al fi eld use with throttle in slow po si tion (mid-way be tween “FAST” and “IDLE”).

To help tiller move forward, lift up the handles slightly (thus lifting depth stake out of ground). To slow down the tiller, press down on handles.

If you are straining or tiller is shaking, the wheels and depth stake are not set properly in the soil being tilled. The proper setting of the wheels and depth stake is through trial and error and depends upon the soil con di tion. (The harder or wetter the ground, the slower the engine and tine speed needed. Under these poor con di tions, at fast speed the tiller will run and jump over the ground).

A properly adjusted tiller will dig with little effort from the operator.

• Tilling is digging into, turning over, and breaking up packed soil before planting. Loose, unpacked soil helps root growth. Best tilling depth is 4" to 6" (10-15 cm).

A tiller will also clear the soil of unwanted vege ta tion.

The decomposition of this vegetable mat ter en rich es the soil. Depending on the climate (rain fall and wind), it may be advisable to till the soil at the end of the growing season to further condition the soil.

• Soil conditions are important for proper tilling. Tines will not readily penetrate dry, hard soil which may con trib ute to excessive bounce and diffi cult handling of your tiller.

Hard soil should be mois tened before tilling; however, extremely wet soil will “ball-up” or clump during tilling.

Wait until the soil is less wet in order to achieve the best results. When tilling in the fall, remove vines and long grass to prevent them from wrapping around the tine shaft and slowing your tilling operation.

9

FIG. 9

CULTIVATING

Cultivating is destroying the weeds between rows to pre vent them from robbing nourishment and moisture from the plants. At the same time, breaking up the upper layer of soil crust will help retain moisture in the soil.

Best digging depth is 1" to 3" (2.5-7.5 cm).

• You will probably not need to use the depth stake.

Begin by tipping the depth stake forward until it is held by the stake spring.

• Cultivate up and down the rows at a speed which will allow tines to uproot weeds and leave the ground in rough con di tion, promoting no fur ther growth of weeds and grass (See Fig. 10).

FIG. 10

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

MAINTENANCE

SCHEDULE

FILL IN DATES

AS YOU COMPLETE

REGULAR SERVICE

Check Engine Oil Level

Change Engine Oil

Oil Pivot Points

Inspect Spark Arrester / Muffler

Inspect Air Screen

Clean or Replace Air Cleaner Cartridge

2

Clean Engine Cylinder Fins

Replace Spark Plug

1 - Change more often when operating under a heavy load or in high ambient temperatures.

2 - Service more often when operating in dirty or dusty conditions.

SERVICE DATES

LUBRICATION CHART

c

TINE CON TROL

GENERAL RECOMMENDATIONS

The warranty on this tiller does not cover items that have been subjected to operator abuse or negligence. To receive full value from the warranty, operator must main tain tiller as instructed in this manual.

Some adjustments will need to be made periodically to properly maintain your tiller.

All adjustments in the Service and Adjustments section of this manual should be checked at least once each season.

• Once a year you should replace the spark plug, clean or replace air fi lter, and check tines and belts for wear.

A new spark plug and clean air fi lter assure proper air-fuel mixture and help your engine run better and last longer.

BEFORE EACH USE

• Check engine oil level.

• Check tine operation.

• Check for loose fasteners.

LUBRICATION

Keep unit well lubricated (See “LUBRICATION CHART”)

. d

EN GINE

c

IDLER

ARM

c

SAE 30 OR 10W-30 MOTOR OIL

d

REFER TO MAINTENANCE “ENGINE” SECTION

10

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

Disconnect spark plug wire before performing any maintenance (except car bu re tor adjustment) to prevent accidental start ing of engine.

Prevent fi res! Keep the engine free of grass, leaves, spilled oil, or fuel. Re move fuel from tank before tipping unit for maintenance. Clean muffl er area of all grass, dirt, and debris.

Do not touch hot muffl er or cylinder fi ns as contact may cause burns.

ENGINE

LUBRICATION

Use only high quality detergent oil rated with API service classifi cation SF-SJ. Select the oil’s SAE vis cos i ty grade according to your expected temperature.

SAE VISCOSITY GRADES

SAE 30

5W-30

F

C

80

100

-30

TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE

FIG. 11

NOTE:

Although multi-viscosity oils (5W-30, 10W-30, etc.) improve starting in cold weather, these multi-viscosity oils will result in increased oil consumption when used above

32°F (0°C). Check your engine oil level more frequently to avoid possible engine damage from running low on oil.

Change the oil after every 25 hours of operation or at least once a year if the tractor is not used for 25 hours in one year.

Check the crankcase oil level before starting the engine and after each fi ve (5) hours of continuous use. Add SAE

30 motor oil or equivalent. Tighten oil fi ller plug securely each time you check the oil level.

TO CHANGE ENGINE OIL (See Figs. 11 and 12)

Determine temperature range expected before oil change.

All oil must meet API service classifi cation SF-SJ.

• Be sure tiller is on level surface.

• Oil will drain more freely when warm.

• Catch oil in a suitable container.

• Remove drain plug.

• Tip tiller forward to drain oil.

• After oil has drained completely, replace oil drain plug and tighten securely.

• Remove oil fi ller plug. Be careful not to allow dirt to enter the engine.

• Refi ll engine with oil. See “CHECK ENGINE OIL LEVEL” in the Operation section of this manual.

OIL

DRAIN

PLUG

FIG. 12

AIR CLEANER (See Fig. 13)

Service air cleaner cartridge every twenty-fi ve hours, more often if engine is used in very dusty conditions.

• Loosen air cleaner screws, one on each side of cover.

• Remove air cleaner cover.

• Carefully remove air cleaner cartridge. Be care ful. Do not allow dirt or de bris to fall into carburetor.

• Clean by tapping gently on a fl at surface.

• If very dirty or damaged, replace cartridge.

• Clean and re place cover. Tighten screws securely.

CAUTION: Petroleum sol vents, such as kerosene, are not to be used to clean cartridge. They may cause de te ri o ra tion of the cartridge. Do not oil car tridge.

Do not use pres sur ized air to clean or dry cartridge.

AIR

CLEANER

SCREW

OIL FILLER

PLUG

OIL LEVEL

COVER

AIR CLEANER

CAR TRIDGE

FIG. 13

11

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

MAINTENANCE

COOLING SYSTEM (See Fig. 14)

Your engine is air cooled. For proper engine performance and long life keep your engine clean.

• Clean air screen frequently using a stiff-bristled brush.

• Remove blower housing and clean as nec es sary.

• Keep cylinder fi ns free of dirt and chaff.

CYLINDER FINS

MUFFLER

BLOWER

HOUSING

FIG. 14

AIR SCREEN

MUFFLER

Do not operate tiller without muffl er. Do not tamper with exhaust system. Damaged muffl ers or spark arresters could create a fi re hazard. Inspect pe ri odi cally and re place if nec es sary. If your engine is equipped with a spark arrester screen assembly, re move every 50 hours for cleaning and inspection. Re place if dam aged.

SPARK PLUG

Replace spark plugs at the beginning of each tilling sea-

son or after every 50 hours of use, whichever comes fi rst.

Spark plug type and gap setting is shown in “PRODUCT

SPEC I FI CA TIONS” on page 3 of this man ual.

TRANSMISSION

Your transmission is sealed and will only require lubrication if serviced.

CLEANING

Do not clean your tiller when the engine and transmission are hot. We do not rec om mend using pressurized water

(gar den hose, etc.) to clean your unit un less the gasket area around the trans mis sion and the engine muf fl er, air in en gine will short en the useful life of your tiller.

• Clean engine, wheels, fi nish, etc. of all foreign matter.

• Keep fi nished surfaces and wheels free of all gas o line, oil, etc.

• Protect painted surfaces with au to mo tive type wax.

12

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

TILLER

CAUTION: Disconnect spark plug wire from spark plug and place wire where it cannot come into contact with plug.

MID-WIDTH TILLING - 15" PATH (See Fig. 17)

• Assemble holes “A” in tine hubs to holes “C” in tine shaft.

A

C C A

TO ADJUST HANDLE HEIGHT (See Fig. 15)

Factory assembly has provided lowest handle height. Se lect handle height best suited for your tilling conditions. Handle height will be different when tiller digs into soil.

• If a higher handle height is desired, loosen the four nuts securing handle panel to engine brackets.

• Slide handle panel to desired location.

• Tighten the four nuts securely.

ENGINE

BRACKETS

HANDLE

PANEL

NUTS (ALSO 2

ON LEFT SIDE

OF TILLER)

FIG. 17

NARROW TILLING - 10-1/4" PATH (See Fig. 18)

• Remove outer tines.

FIG. 15

TINE ARRANGEMENT

Your outer tines can be assembled in several different ways to suit your tilling or cultivating needs.

CAUTION: Tines are sharp. Wear gloves or other protection when han-

dling tines.

NORMAL TILLING - 17" PATH (See Fig. 16)

• Assemble holes “A” in tine hubs to holes “B” in tine shaft.

CLEVIS

PIN

OUTER TINE

A

B

A

INNER TINES ONLY

FIG. 18

NARROW CULTIVATING - 12-1/2" PATH (See Fig. 19)

• Remove inner tines.

• Assemble holes “A” in tine hubs to holes “C” in tine shaft.

A

C

C

A

FIG. 19

EDGING - 9-5/8" PATH (See Fig. 20)

• Remove inner tines.

• Assemble holes “A” in tine hubs to holes “D” in tine shaft.

A

D

D

A

HAIRPIN CLIP

B

INNER TINE

FIG. 16

FIG. 20

13

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

NOTE:

Additional tine arrangements can be attained by moving outer tines to opposite side of tiller which will point tines outward. Always keep sharp edges of tines rotating forward from above.

TINE OPERATION CHECK (See Fig. 21)

Be sure tines do not rotate when engine is running and tine control is in the “OFF” position.

WARNING: Disconnect spark plug wire from spark plug to prevent starting while checking tine operation.

FINAL CHECK “OFF” POSITION

• With tine control “OFF” (up), push down on handle to raise tines off the ground.

• Slowly pull recoil starter handle while observing tines.

Tines should not rotate.

• If tines rotate, place loop of idler spring in a lower link of chain and retest.

FINAL CHECK “ON” POSITION

• With tine control “ON” (held down to handle) push down on handle to raise tines off the ground.

• Slowly pull recoil starter handle while observing tines.

Tines should rotate forward.

• If tines do not rotate, place loop of idler spring in a higher link of chain and retest.

NOTE:

If “ON” position check required adjustment, re check

“OFF” position adjustment to insure tines do not rotate when control is “OFF” (up).

TO REMOVE BELT GUARD (See Fig. 22)

• Remove screws from side of belt guard.

• Pull belt guard out and away from unit.

• Replace belt guard by reversing above procedure. Be sure slot in bottom of belt guard is under head of tine shield bolt and all nuts are tightened securely.

BELT GUARD

SCREW

TINE

SHIELD

FIG. 22

SCREW

SCREW

TINE CONTROL

“OFF” POSITION

TINE CONTROL

“ON” POSITION

CHAIN

IDLER

SPRING

FIG. 21

14

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

SERVICE AND ADJUSTMENTS

TO REPLACE V-BELT (See Fig. 23)

Replace V-belt if it has stretched considerably or if it has cracks or frayed edges.

Belt guard must be removed to service belt. See “TO RE-

MOVE BELT GUARD” in this section of manual.

BELT REMOVAL

• Remove V-belt from transmission pulley fi rst and then from engine pulley.

BELT REPLACEMENT

• Install new V-belt to engine pulley fi rst then to trans-

mis sion pulley. Be sure belt is positioned on inside groove of both pulleys, inside all belt guides and rests on idler pulley.

CHECK TINE OPERATION

• See “TINE OPERATION CHECK” in this section of manual.

REPLACE BELT GUARD

ENGINE PULLEY

BELT

GUIDE

BELT

GUIDE

IDLER

PUL LEY

V-BELT

FIG. 23

ENGINE

TO ADJUST CARBURETOR

The carburetor has a high speed fi xed jet and has been preset at the factory and ad just ment should not be nec-

es sary. How ev er, minor ad just ments may be required to compensate for dif fer ences in fuel, temperature, altitude or load. If the carburetor does need adjustment, see engine manual.

IMPORTANT:

NEVER TAMPER WITH THE EN

GOVERNOR, WHICH IS FACTORY SET FOR PROPER ENGINE

SPEED. OVER SPEED ING THE ENGINE ABOVE THE FACTORY

HIGH SPEED SET TING CAN BE DANGEROUS. IF YOU THINK

THE ENGINE-GOVERNED HIGH SPEED NEEDS ADJUSTING,

CON TACT YOUR NEAREST AUTHORIZED SERVICE CENTER/

DEPARTMENT, WHICH HAS THE PROPER EQUIP MENT AND

EX PE RI ENCE TO MAKE ANY NEC ES SARY ADJUSTMENTS.

TRANS MIS SION

PUL LEY

15

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

STORAGE

Immediately prepare your tiller for storage at the end of the season or if the unit will not be used for 30 days or more.

WARNING: Never store the tiller with gasoline in the tank inside a build ing where fumes may reach an open fl ame or spark. Allow the engine to cool before storing in any enclosure.

ENGINE OIL

Drain oil (with engine warm) and replace with clean oil. (See

“ENGINE” in the Maintenance section of this man ual).

CYLINDER(S)

• Remove spark plug.

• Pour 1 ounce (29 ml) of oil through spark plug hole into cylinder.

• Pull starter handle slowly several times to distribute oil.

• Replace with new spark plug.

TILLER

• Clean entire tiller (See “CLEANING” in the Maintenance section of this manual).

• Inspect and replace belts, if nec es sary (See belt re-

place ment in struc tions in the Service and Ad just ments section of this manual).

• Lubricate as shown in the Maintenance section of this manual.

• Be sure that all nuts, bolts and screws are securely fastened. Inspect moving parts for damage, break age and wear. Replace if necessary.

• Touch up all rusted or chipped paint surfaces; sand lightly before painting.

ENGINE

OTHER

• Do not store gasoline from one season to another.

• Replace your gasoline can if your can starts to rust.

Rust and/or dirt in your gasoline will cause problems.

• If possible, store your unit indoors and cover it to give protection from dust and dirt.

• Cover your unit with a suitable pro tec tive cover that does not retain moisture. Do not use plastic. Plastic cannot breathe which allows con den sa tion to form and will cause your unit to rust.

IMPORTANT:

NEVER COVER TILLER WHILE ENGINE AND

EXHAUST AREAS ARE STILL WARM.

FUEL SYSTEM

IMPORTANT:

IT IS IMPORTANT TO PREVENT GUM DEPOSITS

FROM FORMING IN ESSENTIAL FUEL SYSTEM PARTS SUCH

AS THE CARBURETOR, FUEL FILTER, FUEL HOSE, OR TANK

DURING STORAGE. ALSO, EXPERIENCE INDICATES THAT

ALCOHOL BLENDED FUELS (CALLED GASOHOL OR USING

ETHANOL OR METHANOL) CAN ATTRACT MOISTURE WHICH

LEADS TO SEPARATION AND FORMATION OF ACIDS DURING

STORAGE. ACIDIC GAS CAN DAMAGE THE FUEL SYSTEM

OF AN ENGINE WHILE IN STORAGE.

• Drain the fuel tank.

• Start the engine and let it run until the fuel lines and car bu re tor are empty.

• Never use engine or carburetor cleaner products in the fuel tank or permanent.

NOTE:

Fuel stablizer is an acceptable alternative in minimizing the formation of fuel gum deposits during storage. Add stabilizer to gasoline in fuel tank or storage container. Always follow the mix ratio found on stablizer container. Run engine at least 10 minutes after adding stablizer to allow the stabilizer to reach the carburetor.

Do not drain the gas tank and carburetor if using fuel stabilizer.

16

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

TROUBLESHOOTING POINTS

PROBLEM CAUSE CORRECTION

Will not start

1. Out of fuel. 1. Fill fuel tank.

2. Engine not “CHOKED” properly. 2. See “TO START ENGINE” in the Operation section.

3. Engine fl ooded. 3. Wait several minutes before attempting to start.

4. Dirty air cleaner. 4. Clean or replace air cleaner cartridge.

5. Water in fuel. 5. Drain fuel tank and carburetor, and refi ll tank with

fresh gasoline.

6. Clogged fuel tank. 6. Remove fuel tank and clean.

7. Loose spark plug wire. 7. Make sure spark plug wire is seated properly on

plug.

8. Bad spark plug or improper gap. 8. Replace spark plug or adjust gap.

9. Carburetor out of adjustment. 9. Make necessary adjustments.

Hard to start

1. Throttle control not set properly. 1. Place throttle control in “FAST” position.

2. Dirty air cleaner. 2. Clean or replace air cleaner cartridge.

3. Bad spark plug or improper gap. 3. Replace spark plug or adjust gap.

4. Stale or dirty fuel. 4. Drain fuel tank and refi ll with fresh gasoline.

5. Loose spark plug wire. 5. Make sure spark plug wire is seated properly on

plug.

6. Carburetor out of adjustment. 6. Make necessary adjustments.

Loss of power

1. Engine is overloaded. 1. Set depth stake and wheels for shallower tilling.

2. Dirty air cleaner. 2. Clean or replace air cleaner cartridge.

3. Low oil level/dirty oil. 3. Check oil level/change oil.

4. Faulty spark plug. 4. Clean and regap or change spark plug.

5. Oil in fuel. 5. Drain and clean fuel tank and refi ll, and clean

carburetor.

6. Stale or dirty fuel. 6. Drain fuel tank and refi ll with fresh gasoline.

7. Water in fuel. 7. Drain fuel tank and carburetor, and refi ll tank with

fresh gasoline.

8. Clogged fuel tank. 8. Remove fuel tank and clean.

9. Spark plug wire loose. 9. Connect and tighten spark plug wire.

10. Dirty engine air screen. 10. Clean engine air screen.

11. Dirty/clogged muffl er. 11. Clean/replace muffl er.

12. Carburetor out of adjustment. 12. Make necessary adjustments.

13. Poor compression. 13. Contact an authorized service center/department.

Engine overheats

1. Low oil level/dirty oil. 1. Check oil level/change oil.

2. Dirty engine air screen. 2. Clean engine air screen.

3. Dirty engine. 3. Clean cylinder fi ns, air screen, muffl er area.

4. Partially plugged muffl er. 4. Remove and clean muffl er.

5. Improper carburetor adjustment. 5. Adjust carburetor to richer position.

Excessive bounce/

1. Ground too dry and hard. 1. Moisten ground or wait for more favorable soil

diffi cult handling

conditions.

2. Wheels and depth stake incorrectly adjusted. 2. Adjust wheels and depth stake.

Soil balls up or clumps

1. Ground too wet. 1. Wait for more favorable soil conditions.

Engine runs but tiller

1. Tine control is not engaged. 1. Engage tine control.

won’t move

2. V-belt not correctly adjusted. 2. Inspect/adjust V-belt.

3. V-belt is off pulley(s). 3. Inspect V-belt.

Engine runs but labors

1. Tilling too deep. 1. Set depth stake for shallower tilling.

when tilling

2. Throttle control not properly adjusted. 2. Check throttle control setting.

3. Carburetor out of adjustment. 3. Make necessary adjustments.

17

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TILLER - - MODEL NUMBER FN620K

HANDLE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 137176X505 Bracket, Handle

2 72140512 Bolt, Carriage 5/16-18 UNC x 1-1¦2

3 9266R Grip, Handle

4 151473 Handle, L.H.

5 73680500 Locknut, Crown 5/16-18

6 19111116 Washer 11/32 x 11/16 x 16 Ga.

7 19121414 Washer 3/8 x 7/8 x 14 Ga.

8 74760516 Bolt, Hex Hd. 5/16-18 x 1

9 74760512 Bolt, Hex Hd 5/16-18 x 3/4

10 10040500 Washer, Lock 5/16

11 73220500 Nut, Hex 5/16-18

12 98000129 Nut, Flanged 5/16-18

KEY PART

NO. NO. DESCRIPTION

13

180847

Bolt, Carriage 5/16-18 x 3/4

14 9209R505 Panel, Handle

15 74760524 Bolt Fin Hex 5/16-18 x 1-1/2

16 151474 Handle, R.H.

18 3067J Cable Asm Clutch

19 164937 Lever Clutch

23 8206H Grip Handle

28 19131312 Washer 13/32 x 13/16 x 12 Ga.

34 3070J Spring

NOTE:

All component dimensions are given in U.S. inches. 1 inch = 25.4 mm

18

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TILLER - - MODEL NUMBER FN620K

BELT GUARD AND PULLEY ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 23230506 Screw, Set 5/16-18 x 3/8

2 130812 Sheave, Engine

4 74610812 Bolt, Hex 1/2-20 x 3/4

5 17490440 Bolt Thd Roller 1/4-20 X 2-1/2

6 174898 Shield Inner Guard Belt

7 170488 Screw Hex Wsh Slt #10-24 x .50

8 139155 Spacer Split .523 x .718 x 2

9 165768X505 Guard, Belt

10 109227X Pad, Idler

12 9180R V-Belt Drive

13 12000028 Ring, Retainer

14 151223 Sheave, Transmission

KEY PART

NO. NO. DESCRIPTION

16

12000035

Ring, Klip

17 73350600 Nut, Hex, Jam 3/8-16

18 161806 Pulley, Idler

19 175377 Arm, Idler

20 74760620 Bolt, Hex 3/8-16 x 1-1/4

21 106968X Shaft, Idler Arm

25 73350500 Nut, Hex, Jam 5/16-18

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

19

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TILLER - - MODEL NUMBER FN620K

WHEEL AND DEPTH STAKE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 9194R Pin, Clevis

2 74760520 Bolt, Hex 5/16-18 x 1-1/4

3 74760512 Bolt, Hex 5/16-18 x 3/4

4 73220500 Nut, Hex 5/16-18

5 10040500 Washer, Lock 5/16

7 4921H Clip, Hairpin

8 318J Support, Depth Stake, R.H.

9 9193R Stake, Depth

10 9551R Rivet, Drilled

13 317J Support, Depth Stake, L.H.

15 5388J Spring, Stake

KEY PART

NO. NO. DESCRIPTION

16 121117X Bolt, Shoulder

17 9186R Wheel

18 19131311 Washer 13/32 x 13/16 x 11 Ga.

19 9190R Bracket, Wheel

20 73680600 Locknut, Crown 3/8-16

21 74760516 Bolt, Hex 5/16-18 x 1

22 73800500 Locknut, w/insert 5/16-18

23 74780524 Bolt Fin Hex 5/16-18 UNC x 1-1/2

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

20

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TILLER - - MODEL NUMBER FN620K

TINE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 165774 Tine, Outer, R.H.

2 4921H Retainer, Spring

3 165772 Tine, Inner, R.H.

KEY PART

NO. NO. DESCRIPTION

4 165771 Tine, Inner, L.H.

5 165773 Tine, Outer, L.H.

6 9194R Pin, Clevis

21

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TILLER - - MODEL NUMBER FN620K

TRANSMISSION

KEY PART

NO. NO. DESCRIPTION

1 74760524 Bolt, Hex 5/16-18 x 1-1/2 Gr. 2

2 74780652 Bolt, Hex, Fin 3/8-16 x 3-1/4

3 19131311 Washer 13/32 x 13/16 x 11

5 73800600 Locknut, Hex, w/washer 3/8-16

6 9056R505 Shield, Tine

7 165835 Bracket, Engine, R.H.

8 165834 Bracket, Engine, L.H.

10 73970500 Nut, Lock Hex Flange

11 74760544 Bolt, Hex 5/16-18 x 2-3/4

12 151937 Transmission

14 9173R Spacer, Split

KEY PART

NO. NO. DESCRIPTION

16 19091412 Washer 9/32 x 7/8 x 12 Ga.

17 19092016 Washer 9/32 x 1-1/4 x 16 Ga.

18 10040400 Washer, Lock 1/4

19 74610412 Bolt, Hex 1/4-28 x 3/4 Gr. 5

20 - - - - - - - Engine, Briggs Model 94202

(Order parts from engine Manufacturer)

NOTE:

All component dimensions given in U.S. inches.

1 inch = 25.4 mm

22

www.mymowerparts.com

4

For Parts Call K&T 606-678-9623 or 606-561-4983

REPAIR PARTS

TILLER - - MODEL NUMBER FN620K

DECALS

1

5

6

2

12

10

9

8

11

KEY PART

NO. NO. DESCRIPTION

1 132629 Decal, Logo

2

163989

Decal, Logo

4 127185X Decal, Description

5 110613X Decal, Tine Control

6 110614X Decal, Hand Placement

8 120076X Decal, Warning, Rotating Tines

9 171803 Decal, Briggs & Stratton

10 171806 Decal, 3.5 HP

11 162384 Decal, Warning

12 165327 Decal, Speed Control

- -

184873

Manual, Owner’s (English)

- -

184874

Manual, Owner’s (French)

23

www.mymowerparts.com

For Parts Call K&T 606-678-9623 or 606-561-4983

LIMITED WARRANTY

The Manufacturer warrants to the original consumer purchaser that this product as manufactured is free from defects in materials and work man ship. For a period of two (2) years from date of purchase by the original consumer purchaser, we will repair or replace, at our option, without charge for parts or labor incurred in replacing parts, any part which we fi nd to be defective due to materials or workmanship. This Warranty is subject to the following limitations and exclusions.

1. This warranty does not apply to the engine or components parts thereof. Please refer to the applicable manufacturer's warranty on these items.

2. Transportation charges for the movement of any power equipment unit or attachment are the responsibility of the pur chaser. Transportation charges for any parts submitted for replacement under this warranty must be paid by the purchaser unless such return is requested by Electrolux Home Products.

3. The Warranty period for any products used for rental or commercial purposes is limited to 90 days from the date of original purchase.

4. This Warranty applies only to products which have been properly assembled, adjusted, operated, and maintained in ac cor dance with the instructions furnished. This Warranty does not apply to any product which has been subjected to alteration, misuse, abuse, improper assembly or installation, delivery damage, or to normal wear of the product.

5. Exclusions: Excluded from this Warranty are belts, tines, tine adapters, normal wear, normal adjustments, stan-

dard hard ware and normal maintenance.

6. In the event you have a claim under this Warranty, you must return the product to an authorized service dealer.

Should you have any unanswered questions concerning this Warranty, please contact:

Electrolux Home Products, Inc.

Outdoor Products Customer Service Dept.

In Canada contact:

Electrolux Canada Corp.

250 Bobby Jones Expressway 7075 Ordan Drive

Augusta, GA 30909 USA

Mississauga, Ontario

L5T 1K6 giving the model number, serial number and date of purchase of your product and the name and address of the authorized dealer from whom it was purchased.

THIS WARRANTY DOES NOT APPLY TO INCIDENTAL OR CONSEQUENTIAL DAMAGES AND ANY IMPLIED

WAR RAN TIES ARE LIMITED TO THE SAME TIME PERIODS STATED HEREIN FOR OUR EXPRESSED WAR-

RANTIES. Some areas do not allow the limitation of consequential damages or limitations of how long an implied

Warranty may last, so the above limitations or exclusions may not apply to you. This Warranty gives you specifi c legal rights, and you may have other rights which vary from locale to locale.

This is a limited Warranty within the meaning of that term as defi ned in the Magnuson-Moss Act of 1975.

00137

www.mymowerparts.com

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
