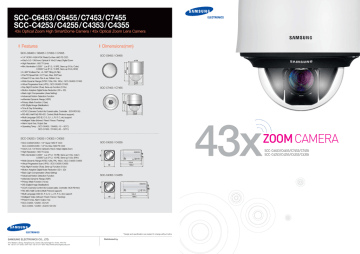

SCC-C6453 / C6455 / C7453 / C7455
SCC-C4253 / C4255 / C4353 / C4355
43x Optical Zoom High SmartDome Camera / 43x Optical Zoom Lens Camera
Features
Dimensions(mm)
SCC-C6453 / C6455 / C7453 / C7455
SCC-C6453 / C6455
178
140
219
152
171
SCC-C7453 / C7455
240
256
• 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD
• 43x(f=3.2~138.5mm) Optical & 16x(0.1step) Digital Zoom
• High Resolution : 600 TV Lines
• Min. illumination 0.0007 Lux (F1.2, 15 IRE, Sens-up 512x, Color)
0.00007 Lux (F1.2, 15 IRE, Sens-up 512x, B/W)
• 0~360º Endless Pan, -6~186º Tilting (D-Flip)
• Pan/Tilt Speed Min. 0.01º/sec, Max. 600º/sec
• Preset 512 ea, Auto Pan 4 ea, Pattern 3 ea
• Wide Dynamic Range (NTSC 128x, PAL 160x) : SCC-C6455 / C7455
• Virtual Progressive Scan (VPS) : SCC-C6455 / C7455
• Day Night Function (True), Sens-up Function (512x)
• Motion Adaptive Digital Noise Reduction (3D + 2D)
• Back Light Compensation (Area Setting)
• Advanced Motion Detection Function
• eXtended Dynamic Range ( XDR)
• Privacy Mask Function (12ea)
• DIS (Digital Image Stabilization)
• Time & Day Scheduling
• CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100)
• RS-485 (Half/Full)/RS-422 Control (Multi-Protocol support)
• Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support
• Intelligent Video (Moved / Fixed / Fence / Tracking)
• Alarm Input 8 ea, Output 3ea
• Operating Temp. : SCC-C6453 / C6455 (-10 ~ 50°C )
SCC-C7453 / C7455 (-50 ~ 50°C )
216
228
SCC-C4253 / C4255 / C4353 / C4355
59
SCC-C4253 / C4255
113.9
59
124.2
SCC-C4353 / C4355
59
• SCC-C4253/C4353 : 1/4" Super HAD IT CCD
SCC-C4255/C4355 : 1/4" Ex-View HAD PS CCD
• 43x(f=3.2~137.6mm) Optical & 16x(0.1step) Digital Zoom
• High Resolution : 600 TV Lines
• Min. illumination 0.0007 Lux (F1.2, 15 IRE, Sens-up 512x, Color )
0.00007 Lux ( F1.2, 15 IRE, Sens-up 512x, B/W )
• Wide Dynamic Range (NTSC 128x, PAL 160x) : SCC-C4255 / C4355
• Virtual Progressive Scan ( VPS ) : SCC-C4255 / C4355
• Day Night Function (True), Sens-up Function (512x)
• Motion Adaptive Digital Noise Reduction (3D + 2D)
• Back Light Compensation (Area Setting)
• Advanced Motion Detection Function
• eXtended Dynamic Range (XDR)
• Privacy Mask Function (12 ea)
• DIS (Digital Image Stabilization)
• CCVC (Camera Control Via Coaxial cable, Controller: SCX-RD100)
• RS-485 (Half) Control (Multi-Protocol support)
• Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support
• Intelligent Video (Moved / Fixed / Fence / Tracking)
• Preset 512ea, Alarm Output 1ea
• SCC-C4253 / C4255 : DC12V
SCC-C4353 / C4355 : AC24V / DC12V
144.2
59
154.5
* Design and specifications are subject to change without notice
SAMSUNG ELECTRONICS CO., LTD.
416, Maetan 3 Dong, YeongTong-Gu, Suwon City, Kyeonggi-Do, Korea, 443-742
Tel: +82-31-277-3342~3347 Fax: +82-31-277-6597 http://www.samsungsecurity.com
Distributed by
43x
ZOOM CAMERA
SCC-C6453 / C6455 / C7453 / C7455
SCC-C4253 / C4255 / C4353 / C4355
43X OPTICAL POWER ZOOM
43x
Zooming
How far can you see?
43x Power Zoom
32x Zoom
SCC-C6455/C7455/C4255/C4355
Conventional
12x Zoom
Conventional
43x
Zoom
43x Optical Power
Zoom Camera
Samsung Electronics' 43x cameras enable to
see the objects from a long distance.
Also users can catch more detailed images
than with any other cameras.
3 Seconds Zoom Speed
Only 3 seconds can zoom-in 43x. This fast zoom-in
speed enable users to get to the scence
where the event is happening without delay of time.
2|3
43X OPTICAL ZOOM CAMERA
PRESET PAN/TILT 600˚/SEC
600˚/sec
Preset Pan/Tilt
How fast can you catch?
Preset 1
Preset 2
SCC-C6453 / C6455 / C7453 / C7455
Preset Pan/Tilt
600˚/sec Camera
Move
with a lightning speed
Once user set the preset point, 43x speed dome
cameras get to the point with lightning speed and
will catch the scene that user want.
Preset 1
Pan/Tilt Moving Simultaneously
Pan Range
Tilt Range
360˚
192˚
Pan Range 360˚ : Camera Support 360˚ Endless Pan Function
Tilt Range 192˚ : Camera Support -6˚~186˚ Tilt Function
Preset 2
Low Speed Down to 0.01˚/sec
Conventional
43x SmartDome cameras
Pan/Tilt speed can be lowered to 0.01/sec,
showing no blur in the scene during the movement.
4|5
43X OPTICAL ZOOM CAMERA
FUNCTION
Low Electricity Consumption
Built on the principles of functionality
Samsung Electronics' 43x SmartDome cameras
provide the lowest power consumption of 47W.
Users can save cost and also take a part of
eco-environment activities to reduce the waste of energy.
The Samsung Electronics extensive knowledge of CCTV camera
requirements has resulted in the development of the new A1 camera series,
delivering unrivalled performance and benefits.
47W
ALL IN ONE
Super High Resolution of 600 TV Lines
XDR (eXtended Dynamic Range)
A1 technology is able to resolve a horizontal resolution
of 600 TV lines, by means of 12 Bit A/D serial signal
processing coupled with image element enhancement
technology. Additionally, it provides a more vivid and
clearer image preventing noise under low illumination
applications.
Conventional
600 TV Lines
Under strong backlight or high contrast scenes,
detail is often lost in the darker areas of the scene.
A1 cameras provide XDR technology to increase
the level of visible detail in the dark areas,
whilst maintaining image clarity and detail in the
brighter portions of the image.
XDR OFF
100cm Close-up
XDR ON
VPS (Virtual Progressive Scan)
The shorter distance between the camera and
the objects can result an unfocused image.
43x SmartDome camera resolved this problem and
provide 100cm of MOD (Minimum Object Distance)
100cm
43x A1 cameras providing WDR, also offer VPS able
to utilize either interlace or progressive scanning
technology to deliver sharply defined edges of
moving objects.
Interlace Transmission(Delayed edge)
Operation in high / low temperature (SCC-C7455)
50˚
VPS Transmission(Clear edge)
Intelligent Video Content Analysis
Alarm
The housing makes outside applications possible by
resisting rain, dust and cold.
The IP-66 compliant rating provides the highest
level of weathe and vandal resistance.
Operating Temperature is -50˚C~50˚C.
Fixed
-50˚
Low temperature
High temperature
Conventional
Motion Adaptive DNR (Digital Noise Reduction)
Video Content Analysis(Moved)
DNR ON
Senses objects that appear and remain in a scene for longer
than a pre-determined period of time.
Moved Detects objects removed from a scene
Fence Provides virtual electronic area [Area mode] and directional
line [Line mode] and generates an alarm in the event of
a breach of the area or a cross of the directional line
Tracking Tracks an object through a scene and generates an alarm
in the event of abnormal directional changes.
WDR (Wide Dynamic Range)
The DNR function eliminates noise and generates
a distinct and clear image under the dark environment.
A1 technology utilizes both a 2D filter reducing noise
of moving objects and a 3D filter reducing noise
generated by background, resulting in great
reduction of blur.
DNR OFF
The Samsung Electronics A1 series of cameras, also
provide built-in capability for video content analysis.
Operational modes include:
A1 series of cameras achieve WDR by using Dual
Shutter [Long/Short] Algorithm to operate a Dual
Scan CCD. The contrast enhancer sustains the effective
contrast range and expands Dynamic Range up to
128x(NTSC) and 160x(PAL).
WDR OFF
WDR ON
6|7
43X OPTICAL ZOOM CAMERA
ACCESSORIES
Easy Installation!
Accessories
Easy Installation
Wall Mount
Ceiling Mount
Corner Mount
Parapet Mount
SCX-300WM
SCX-300CM
SCX-300KM
SCX-300LM
Housing Easy Installation
Pole Mount
Hanging Mount
Flush Mount
SCX-300PM
SCX-300HM
SCX-DF300W
Wall Mounting
Ceiling Mounting
Wall Mounting with Corner Mount
Flush Mounting
Variable Mounting Options
Surface Mounting (In-ceiling cabling)
Flush Mounting (Indoor Application)
Wall Mounting with Pole Mount
Ceiling Mounting
Wall Mounting with Pole Mount
Wall Mounting with Corner Mount
Parapet Mounting (Outdoor Application)
Parapet Mounting
Wall Mounting
8|9
43X OPTICAL ZOOM CAMERA
SPECIFICATIONS
43x Optical Zoom High SmartDome Camera
43x Optical Zoom Lens Camera
Specifications
Items
Camera Type
Resolution
Min. Scene
Illumination
Sub-items
Color/BW
Device
Pixels
Horizontal
Color
B/W
Pan/Tilt
Speed
Range
Functions
Video Output
S/N Ratio
Lens
OSD
Alarm
Remote Control
Environmental
Conditions
Power
Physical
Specification
Specifications
SCC-C6455/C7455
Color
1/4" Super HAD IT CCD
Effective
Sens-up Off
Sens-up 512x
Sens-up Off
Sens-up 512x
Manual Pan
Preset Pan
Manual Tilt
Preset Tilt
Panning
Tilting
Number of Auto PAN
Number of Preset
Number of Pattern
Number of Privacy Zone
Day/Night
Motion Detection
Wide Dynamic Range
D-Zoom
High Speed Shutter
Sens Up
BLC
AGC
Auto Focus
Syncronization
Camera ID
VPS (Virtual Progressive Scan)
XDR (eXtended Dynamic Range)
DNR (Digital Noise Reduction)
Schedule
White Balance
VBS 1.0Vp-p
S/N Ratio
Focal Length
Min. Object Distance
Zoom Ratio
Aperature Ratio
Viewing Angle
Tele
Wide
Lens Drive Type
Mount Type
OSD
Input
Output
Remote Control
Operating Temperature
Operating Humidity
Power Requirement
Power Consumption
LED Indicator
Dimensions (WxHxD)
Weight
Color
SCC-C6453/C7453
1/4" Ex-View HAD PS CCD
768 X 494 (NTSC) / 752 X 582 (PAL)
600 (Color) TV Lines
0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE)
0.3Lux(15IRE), 0.7Lux(30IRE), 1.2Lux(50IRE)
0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE)
0.0007Lux(15IRE), 0.001Lux(30IRE), 0.002Lux(50IRE)
0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE)
0.03Lux(15IRE), 0.07Lux(30IRE), 0.12Lux(50IRE)
0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE)
0.00007Lux(15IRE), 0.0001Lux(30IRE), 0.0002Lux(50IRE)
o
o
0.01 /sec ~ 180 /sec
o
600 /sec
o
o
0.01 /sec ~ 180 /sec
o
600 /sec
o
o
0 ~360 (Endless)
o
o
-6 ~186
4 ea
512 ea
3 ea
12 ea
Auto / Day / Nigh (ICR)
Yes, Sensitivity 1~7 Level
Yes (NTSC : 128x, PAL : 160x)
Yes (~16x)
1/100~1/10K sec
Yes (2x ~ 512x)
Off / On
Off/On (Very Low / Low / Mid / High / Very High / User / Fix)
Manual / Auto (pan, tilt, zoom linked) / one AF
Internal / Line lock
Max 54 Character, 2 Line
Yes
Off/On (Low/Middle/High)
Off/On (Low/Middle/High/User(3D/2D))
Day / Time Schedule
ATW1 / ATW2 / AWC (Manual) / 3200 / 5600
VBS 1.0Vp-p
52 dB
3.2 ~ 138.5mm
1000mm
43x Optical (688x with 16x Digital zoom)
F1.65(W)/F3.7(T)
o
o
1.47 (H) x 1.10 (V)
o
o
61.22 (H) x 47.16 (V)
DC Auto Iris
Board-in type
Yes
8 ea
3 ea (2 Open Collector, 1 relay)
RS485 (Half/Full Duplex) / RS422, CCVC
o
o
o
o
SCC-C6453/C6455 : -10 C ~ +50 C , SCC-C7453/C7455 : -50 C ~ +50 C
Less than 90%
24 VAC
11W(SCC-C7453/C7455 Camera with Fan/Heater : 47W)
Yes
SCC-C6453/C6455 : 180 X 220 mm , SCC-C7453/C7455 : 215 X 270 mm
SCC-C6453/C6455 : 2.0kg , SCC-C7453/C7455 : 3.0kg
Light Gray
Items
Camera Type
Resolution
Min. Scene
Illumination
Sub-items
Color/BW
Device
Pixels
Horizontal
Color
B/W
Functions
Video Output
S/N Ratio
Lens
OSD
Alarm
Remote Control
Environmental
Conditions
Power
Physical
Specification
SCC-C4253/C4353
SCC-C4255/C4355
Color
1/4" Super HAD IT CCD
Effective
Sens-up Off
Sens-up 512x
Sens-up Off
Sens-up 512x
Number of Privacy Zone
Day/Night
Motion Detection
Wide Dynamic Range
D-Zoom
High Speed Shutter
Sens Up
PIP
BLC
AGC
Auto Focus
Syncronization
Camera ID
VPS (Virtual Progressive Scan)
XDR (eXtended Dynamic Range)
DNR (Digital Noise Reduction)
Schedule
White Balance
VBS 1.0Vp-p
S/N Ratio
Focal Length
Min. Object Distance
Zoom Ratio
Aperature Ratio
Viewing Angle
Tele
Wide
Lens Drive Type
Mount Type
OSD
Input
Output
Remote Control
Operating Temperature
Operating Humidity
Power Requirement
Power Consumption
LED Indicator
Dimensions (WxHxD)
Weight
Color
1/4" Ex-View HAD PS CCD
768 X 494 (NTSC) / 752 X 582 (PAL)
600 (Color) TV Lines
0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE)
0.3Lux(15IRE), 0.7Lux(30IRE), 1.2Lux(50IRE)
0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE)
0.0007Lux(15IRE), 0.001Lux(30IRE), 0.002Lux(50IRE)
0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE)
0.03Lux(15IRE), 0.07Lux(30IRE), 0.12Lux(50IRE)
0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE)
0.00007Lux(15IRE), 0.0001Lux(30IRE), 0.0002Lux(50IRE)
12 ea
Auto / Day / Night (ICR)
Yes, Sensitivity 1~7 Level
Yes (NTSC : 128x, PAL : 160x)
Yes (~16x)
1/100 ~ 1/10K sec
Yes (2x ~ 512x)
Yes
Off / On
Off/On (Very Low / Low / Mid / High / Very High / User / Fix)
Manual / Auto / one AF
SCC-C4253 / C4255 : Internal , SCC-C4353 / C4355 : Internal / Line Lock
Max 54 Character, 2 Line
Yes
Off/On (Low / Middle / High)
Off / On (Low / Middle / High / User(3D/2D))
Day / Time Schedule
ATW1 / ATW2 / AWC(Manual) / 3200 / 5600
VBS 1.0Vp-p
52 dB
3.2 ~ 138.5mm
1000mm
43x Optical (688x with 16x Digital zoom)
F1.65(W)/F3.7(T)
o
o
1.47 (H) X 1.10 (V)
o
o
61.22 (H) X 47.16 (V)
DC Auto Iris
Board-in type
Yes
1ea
RS485, CCVC
o
o
-10 C ~ +50 C
Less than 90%
SCC-C4253/C4255 : DC12V, SCC-C4353/C4355 : DC12V, AC24V
SCC-C4253: 4.2W / SCC-C4353 : 5.6W
SCC-C4255 : 4.2W / SCC-C4355 : 5.6W
Yes
SCC-C4253/C4255 : 59.0 X 59.2 X 124.2 mm , SCC-C4353/C4355 : 59.0 X 59.2 X 154.5 mm
SCC-C4253/C4255 : 383g , SCC-C4353/C4355 : 508g
Silver
10 | 11
43X OPTICAL ZOOM CAMERA
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
