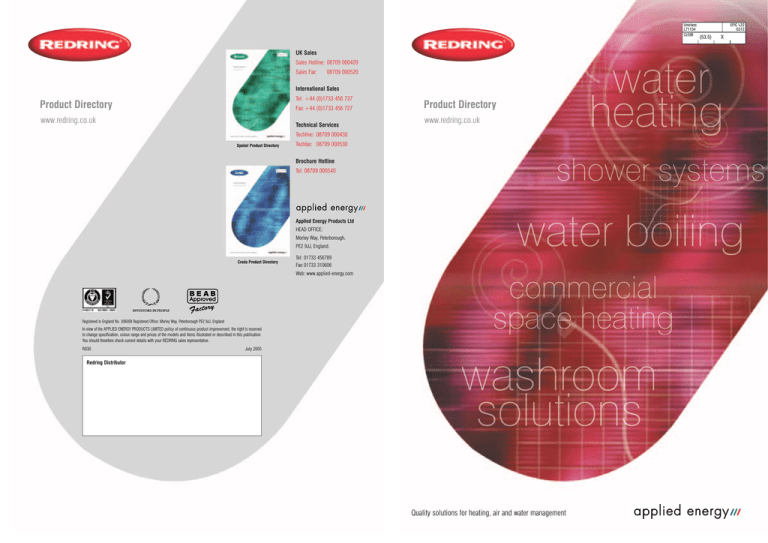

Redring SB2 Specifications

Redring SB2 Specifications
Uniclass
L71134
Cl/SfB
UK Sales
Sales Hotline: 08709 000420
Sales Fax:
08709 000520
International Sales
Tel: +44 (0)1733 456 737
Product Directory
Fax:+44 (0)1733 456 727
www.redring.co.uk
Technical Services
Product Directory
www.redring.co.uk
Techline: 08709 000430
Xpelair Product Directory
Techfax: 08709 000530
Brochure Hotline
Tel: 08709 000540
Applied Energy Products Ltd
HEAD OFFICE:
Morley Way, Peterborough,
PE2 9JJ, England.
Creda Product Directory
Tel: 01733 456789
Fax: 01733 310606
Web: www.applied-energy.com
Registered in England No. 306008 Registered Office: Morley Way, Peterborough PE2 9JJ, England
In view of the APPLIED ENERGY PRODUCTS LIMITED policy of continuous product improvement, the right is reserved
to change specification, colour range and prices of the models and items illustrated or described in this publication.
You should therefore check current details with your REDRING sales representative.
R030
July 2005
Redring Distributor
Quality solutions for heating, air and water management
2
EPIC L22
G312
(53.5)
X
Introduction
For over 30 years, Redring has been developing new products and technologies to ensure
excellence in heating and control of water in addition to specialist heating products.
Hot water is an essential part of our lives. Precise temperature control and delivery on
demand are essential – whether it’s an invigorating shower, hot water for domestic, industrial
and commercial applications or to centrally heat our homes – Redring provides the answer.
Where specialist heating is required, Redring offer a wide range of technologically advanced
and innovative solutions. Not just in the UK, but globally and distributed worldwide.
The latest Selectronic thermostatic instant shower eliminates water temperature variations when
the supply water pressure changes. Such a safety-conscious product is endorsed by the RNIB
and is ideal for children and less-abled people too.
The Redring SB2 and SB Professional range provides efficient, safer and more economical
boiling of hot water for all kinds of environments.
For domestic heating, Dualheat combines the convenience of electrically generated hot water
with the familiar comfort of wet radiator heating systems.
Not only does Redring offer an unbeatable product range, but as part of Applied Energy,
home to Xpelair and Creda Heating, it is backed by support services second to none.
Our Specification Team is trained to give pre-sales advice on product selection. For after
sales support we have both an in-house team that can offer advice over the phone and a
team of service engineers for carrying out repairs and maintenance on-site.
So for the peace of mind you get from quality products and superior support, there’s only
one choice – Redring.
2
3
Shower Systems
Shower Selector
Water Boiling Systems
Page 6
...................................
SB Professional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 40
Thermostatic Mixers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 8
SB2
Thermostatic Mixer Accessories
Corvette . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 43
Selectronic
Page 9
................
Page 42
....................................................
Page 10
..........................................
Zeta Digital/Profile
Page 11
.................................
Washroom Solutions
Slimline 650c/650 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 12
Autosensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 44
Slimline 620
Page 13
Instant 3 & 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 45
Expressions 550 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 14
Auto Flush . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 46
Expressions 500 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 15
AD1/AD10/AD10S . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 47
Active 350 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 16
AD20/30/50C . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 48
........................................
Active 320/300
Page 17
....................................
Expressions 570 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 18
Space Heating Solutions
Expressions 520TS/520M . . . . . . . . . . . . . . . . . . . . . . .Page 19
Sunscreen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 50
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 20
Sunfan
Page 51
...............................................
Sunspot
Page 52
.............................................
Water Heating Systems
Suntube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 53
Water Heating Selector . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 22
Sunslim
Powerstream
Ceramic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 55
Page 24
.......................................
Contour 7000 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 26
WS7
Page 54
..............................................
Sunquartz
Page 56
...........................................
Page 28
..................................................
Flatback Cistern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 29
EM/MW Series
LWC Range
Page 30
.....................................
Page 32
.........................................
LWSS Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 34
Dualheat
Page 36
.............................................
Immersion Heaters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 38
5
Shower Systems
Shower Selector
Shower Selector
You need a shower that
is fed from a stored
hot water tank
You need a shower to
heat the water
Good water pressure
is available
A powerful shower is required
A contemporary mixer
shower is required
Do you need
thermostatic control?
Choose from a range of mixer
shower packages for high or
low pressure installations
No
Choose the
Expressions 520m page 19
Low water pressure
is available
You need a slimline
shower
You need a
standard
shower
Choose from the
Zeta Digital/Profile or
the Slimline 650/620
page 11 - 13
Choose from the
Expressions 550/500
or the
Active 350/320/300
page14 - 17
Yes
Choose the
Expressions 520ts page 19
You need a
technologically
advanced thermostatic
shower with additional
safety features
Choose the
Expressions 570
pumped
page 18
page 8 - 9
Choose the
Selectronic
page 10
Choosing the right shower is vitally
important. At Redring, our renowned
customer support begins before you
even buy one of our showers!
This selector should enable you to make
a decision but, if you’re spoilt for choice,
please ring our customer techline on
08709 000430 or call our brochure
Water flow and temperature graph:
The graph below shows the relationship between
hot water flow and temperature rise obtainable
from an instant electric shower. The different
power loadings (available in the range)
expressed in kilowatts are shown as curves on
the graph. The incoming mains water
temperature into your property can vary, on
average, from 5oC in Winter to 20oC in Summer.
The graph shows a typical Winter and Summer
time condition. In Winter the 8.5kW shower will
give a flow rate of about 3.5 Litres/minute while
in Summer it will give approx. 5.1 Litres/minute.
hotline on 08709 000540 to request our
dedicated showering literature.
6
7
Thermostatic Mixers
Thermostatic Mixers
Consistent, all year round shower
performance in a range of models to
satisfy individual bathroom style
requirements.
A
TBM1 . . 36594201
.........
Exposed thermostatic bar mixer TMV2
TBM2 . 36594202
.........
Exposed thermostatic bar mixer TMV2
TBM3 . . 36594203
.........
Exposed thermostatic bar mixer TMV2
RTM
.............
...
36594204
F
H
G
I
L
D
Recessed thermostatic mixer TMV2
RTM2 . 36594214 . . . . . . . . . . . . . Recessed thermostatic mixer TMV3
B
E
C
Thermostatic Mixers
Key Features:
Installation / Technical specification
• Independent adjustment for both temperature
and water flow rate
• Minimum flow pressure (0.5bar for Mixer A): . . . 0.1bar
• Fine thermostatic control for comfort and safety
• All mixers are thermostatically approved to TMV2 with
Mixer E offering enhanced thermal performance to
TMV3 (NHS Estates DO8 requirements)*
• Maximum flow pressure:
..........................
5.0bar
• Hot water connection: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Left
• Cold water connection:
.............................
Right
• Maximum pressure loss ratio:
(use pressure reducing valve if ratio is greater) . . . 5:1
• Inlet connections:
(3/4” BSP on recessed model)
• Maximum hot water temperature at inlet: . . . . . . . . 85ºC
• Flow delivery at minimum inlet pressure: 8 litres
per minute (note that some accessories will
reduce the flow rate)
• Stylish bar mixer or traditional recessed options
• Recommended stored temperature:
• Choice of through the wall or surface mounted
accessories
• Minimum hot/blend temperature difference:
..............
....
60ºC
..............
Accessories
J
M
7.2
kW
8.5
kW
K
1/2” BSP
10ºC
• Factory setting @ 2bar equal pressures: . . . . . . . . 38ºC
• Range of spray head options available
• All mixers have a safety override button set to 38ºC
• 2 year guarantee (UK)
• WRAS approved
* TMV - Thermostatic Mixer Valve
Specification
Valid Options Matrix
Mixer
A
B
C
D
E
Mixer Showers
F
G
H
n
n
n
n
n
n
n
n
n
n
n
n
I
n
n
J
K
n
n
n
n
n
n
n
n
n
n
Note: accessory I is only required when mixer D or
E is used with accessory J or K
8
Mixer
Short Code
Cat No.
Description
A
TBM1
36-594201
Exposed thermostatic bar mixer (0.5bar min)
B
TBM2
36-594202
Exposed thermostatic bar mixer (0.1bar min)
C
TBM3
36-594203
Exposed thermostatic bar mixer (0.1bar min)
D
RTM
36-594204
Recessed thermostatic mixer (0.1bar min)
E
RTM2
36-594214
Recessed thermostatic mixer (TMV 3 Approved) (0.1bar min)
Accessory
F - Chrome overarm kit
G - Shower head kit
H - Traditional shower head kit
I - Outlet elbow
J - Accessory kit
K - Accessory kit
L - Pressure reducing valve
M - Outlet adapter
Short Code
TTW1
TTW2
TTW3
ELB
HRH
ACCPK4
PR2 1
N/A
Cat No.
36-594206
36-594207
36-594208
36-594211
36-594210
83-593804
36-594212
N/A
Description
Classic overarm kit 8 inch rose chrome finish, through the wall kit (2bar required)
Contemporary shower head and arm, high pressure, chrome finish, through the wall kit
Traditional shower head and arm chrome finish, through the wall kit (1bar required)
Wall outlet elbow, chrome finish
Flexible hose, riser rail kit and handset
Flexible hose, riser rail kit and handset
Pressure reducing valve for unbalanced water supplies
Supplied with F, G & H accessories and required when using mixers B or C
9
Selectronic Thermostatic Instant Showers
Ultra-slimline Instant Showers Zeta Range
The new thermostatic Selectronic range
The Zeta range is Britain’s slimmest
has been designed to be Redring’s most
wall mounted electric instant shower.
technologically advanced electric instant
Utilising a unique tubular heat exchanger,
shower. It combines accurate water
the Zeta gives you the most amount of
temperature control and simple to use
usable space in the shower.
controls. This safety-conscious design is
endorsed by the Royal National Institute
of the Blind and is ideal for children, the
elderly and less-abled people.
A: Selectronic Accessory Range
Curved multi-mode, rub clean handset, 0.45m riser rail with
fully adjustable handset holder, soap dish and 1.25m
convoluted shower hose (white & grey)
B: Selectronic Plus Accessory Range
Curved multi-mode, rub clean handset, 1m riser rail with fully
adjustable handset holder, soap dish, 2m easy clean smooth
shower hose and grab rail (plastic)
C: Selectronic Style (shown) Accessory Range
Curved multi-mode, rub clean handset, 0.45m curved riser
rail with fully adjustable handset holder, soap dish and 1.25m
convoluted shower hose (white & satin chrome)
8.5
kW
Selectronic
9.5 10.8
kW kW
Key Features:
• Thermostatic electric shower
• The model shown is the Selectronic Style. Also
available in Standard and Plus (for care sector
applications) variations
• Microprocessor thermostatic control for comfort
and safety
• Safe 40oC temperature lock facility with
override function
8.6
kW
9.6
kW
Key Features:
Features exclusive to the Zeta Digital:
• Independent adjustment for both temperature and
water flow rate
• Instant electric shower
• Polar white finish with chrome details
• Ultra slim profile
• Inclusively designed - RNIB product endorsement
(exc. Style)
• Fully temperature stabilised
• Full set of chrome accessories including premium
wide spray multi-mode handset
• Overheat protection
• Electronic digital temperature indicator
• High contrast push buttons, showerhead and clamp
adjustment components for visibility (on standard and
Plus models)
• Push buttons for on/off power selection
• Digital "user protect" safety feature incorporating auto
power adjust
• Electric solenoid operation on/off
• Premium accessories with multi-mode shower handset
• 3 power settings
• First electric shower to be awarded BEAB CARE approval
• Temperature and flow control with single turn valve
Features exclusive to the Zeta Profile:
• Easy one-touch operation
• Electronic phased shutdown
• Large, easy to press tactile button operation
• Unique secret-till-lit display for power level, low flow
and overheat
• Full set of accessories including premium wide spray
multi-mode handset
• Audible feedback response to commands
Dimensions Selectronic
Zeta Digital
• Large LED readout and clear print
Dimensions Zeta Range
• Polar white finish
• Illuminated temperature indicator
• Phased shutdown to ensure cool start for the next user
Specification
Zeta Profile
Product
Reference
Short
Code
Catalogue
Number
Max Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Selectronic 8.5
SEL85S
53-557001
8.5
7.8 - 8.5
6 - 10mm2
35 amps
Selectronic 9.5
SEL95S
53-558001
9.5
8.7 - 9.5
2
6 - 10mm
40 amps
Selectronic 10.8
SEL108S
53-559001
10.8
9.9 -10.8
10 - 16mm2
45 amps
Selectronic Plus 8.5
SEL85P
53-557005
8.5
7.8 - 8.5
6 - 10mm2
35 amps
Selectronic Plus 9.5
SEL95P
53-558005
9.5
8.7 - 9.5
6 - 10mm2
40 amps
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Zeta Profile 8.6
Z8.6P
53-594515
4.8 or 8.6
7.9 - 8.6
6 / 10mm2
40 / 45 amps
40 / 45 amps
Selectronic Plus 10.8
SEL108P
53-559005
10.8
9.9 -10.8
10 - 16mm2
45 amps
Zeta Profile 9.6
Z9.6P
53-595515
4.8 or 9.6
8.8 - 9.6
10mm
Selectronic Style 8.5
SEL85T
53-557010
8.5
7.8 - 8.5
2
6 - 10mm
35 amps
Zeta Digital 8.6
Z8.6D
53-596515
4.8 or 8.6
7.9 - 8.6
6 / 10mm
40 / 45 amps
Selectronic Style 9.5
SEL95T
53-558010
9.5
8.7 - 9.5
6 - 10mm2
40 amps
Zeta Digital 9.6
Z9.6D
53-597515
4.8 or 9.6
8.8 - 9.6
10mm
40 / 45 amps
Selectronic Style 10.8
SEL108T
53-559010
10.8
9.9 -10.8
10 - 16mm2
45 amps
• Operating water pressure 1-10bar (14.5-145 psi) • Cable entries-top, bottom and rear (up to 16mm2) • Pipe entries-top, bottom and rear (on right hand side)
• Water connection-15mm plain shank (compression elbow/push in fitting not supplied) • Fully temperature stabilised • Fixing pack and instruction book supplied
*The third year of the guarantee is only available for products registered with Redring after purchase.
10
2
2
2
• Operating water pressure 1-10bar (14.5-145 psi) • Water pressure operated power switch • 15mm plain shank for inlet compression connection • Top, bottom or rear cable entry
• Top, bottom or rear water entry • Comprehensive instruction booklet and template for ease of installation • Every unit is fully tested for safety and function • Fully temperature stabilised
*The third year of the guarantee is only available for products registered with Redring after purchase.
11
Slimline 650 Instant Showers
Instant Showers Slimline 620
The Slimline 650 combines all the great
The Slimline 620 has an ultra slimline
features of the 620 with the added
profile, generating more space in a shower
convenience of a push button power
cubicle. Packed full of features the 620
selection facility. The phased shutdown
is an ideal choice for upgrading or
feature ensures that temperatures are
replacing existing shower installations.
managed to deliver a cool and safe start
up for the next user. For the ultimate in
contemporary finishes, the 650 is also
available in chrome – the Slimline 650C.
8.5
kW
Slimline 650c
9.5 10.5
kW kW
8.5
kW
Slimline 620
9.5
kW
Slimline 650
Key Features
Key Features
• Rotary flow/temperature control for set and
forget operation
• Instant electric shower
• Ultra slimline profile
• Fully temperature stabilised
• Overheat protection
• Full set of polar white and chrome accessories
including multi-mode handset with 3 position
variable spray head
• Chrome with all chrome acessories
• 4 power settings
• Ultra slimline profile
• Timed phased shutdown to ensure cool start up
for next user
• Timed phased shutdown with flashing LED to ensure
cool start up for next user
• Fully temperature stabilised
• LED power indication
• Overheat protection
• Multi-service points for ease of installation
• Full set of accessories including multi-mode handset
with 3 position variable spray head
• Unit also available in polar white (650) with chrome
and 9.5kW rating
• Multi-service points for ease of installation
• Format ideal for upgrading or replacing of
existing shower
• Polar white finish
• Push button for on/off
• Push button power selection and on/off
Dimensions Slimline 650 and 650C
• Instant electric shower
• Rotary power select
• 3 power settings
Dimensions Slimline 620
• Rotary flow/temperature control
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Slimline 650 8.5
R6508
53-557201
4.8 - 8.5
7.8 - 8.5
6 / 10mm2
40
Slimline 650 9.5
R6509
53-558201
5.0 - 9.5
8.7 - 9.5
6 / 10mm2
45
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Slimline 650 10.5
R65010
53-559201
5.25 - 10.5
9.6 - 10.5
10 / 16mm2
45
Slimline 620 8.5
R6208
53-555201
3.7, 4.8 or 8.5
7.8 - 8.5
6 / 10mm2
40 amps
Slimline 650 Chrome 9.5
R6509C
53-558202
5.0 - 9.5
8.7 - 9.5
6 / 10mm2
45
Slimline 620 9.5
R6209
53-556201
4.5, 5.0 or 9.5
8.7 - 9.5
6 / 10mm
45 amps
• Operating water pressure 1-10bar (14.5-145 psi) • Water pressure operated power switch • 15mm plain shank for inlet compression connection • Top, bottom or rear cable entry
• Top, bottom or rear water entry • Comprehensive instruction booklet and template for ease of installation • Every unit is fully tested for safety and function • Fully temperature stabilised
*The third year of the guarantee is only available for products registered with Redring after purchase.
12
Specification
2
• Operating water pressure 1-10bar (14.5-145 psi) • Water pressure operated power switch • 15mm plain shank for inlet compression connection • Top, bottom or rear cable entry
• Top, bottom or rear water entry • Comprehensive instruction booklet and template for ease of installation • Every unit is fully tested for safety and function • Fully temperature stabilised
*The third year of the guarantee is only available for products registered with Redring after purchase.
13
Expressions 550 Instant Showers
Instant Showers Expressions 500
This shower combines all of the user-
Developed to provide the convenience of
friendly features of the Expressions 550
a push-button start/stop facility.
range with push-button power selection
A simple push on the button starts the
and phased shutdown features provided
shower at the pre-set power and flow
through electronic control.
rate reducing the amount of adjustment
required. To stop the shower, press the
button again and the power and flow rate
settings remain set for your next shower.
8.5
kW
Expressions 550
9.5
kW
Key Features:
7.2
kW
8.5
kW
9.5
kW
Key Features:
• Instant electric shower
• 8.5kW rating available with optional chrome
accessories (as shown)
• Fully temperature stabilised
• Temperature and flow control with single turn valve
• Overheat protection
• Low pressure and overheat indicators
• Full set of accessories including premium
multi-mode handset
Dimensions Expressions 550
Expressions 500
• Instant electric shower
• Temperature and flow control with single turn valve
• Fully temperature stabilised
• Low pressure neon indicator
• Overheat protection
• Power on/high/low and overheat neon indicator
• High/medium/cold power indicators
• Full set of accessories including premium
multi-mode handset
• Soft touch buttons for on/off power selection
• Electronic phased shutdown
• Push button for on/off selection
• Electronic solenoid operation on/off
• 7 level progressive LED/illuminated temperature indicator
• 3 power settings
• 3 power settings
• Polar white finish
• Polar white finish as standard
• 8.5kW and 9.5kW rating available with optional
chrome accessories
Dimensions Expressions 500
Specification
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Expressions 500 7.2 White
EX5007
53-552515
4.5 or 7.2
6.6 - 7.2
4 / 6mm2
30 amps
Expressions 500 8.5 White
EX50085
53-553015
4.8 or 8.5
7.8 - 8.5
2
6 / 10mm
40 amps
Expressions 500 8.5 White & Chrome
EX50085WC
53-553016
4.8 or 8.5
7.8 - 8.5
6 / 10mm2
40 amps
2
Expressions 550 8.5 White
EX5508
53-554515
4.8 or 8.5
7.8 - 8.5
6 / 10mm2
40 amps
Expressions 550 8.5 White & Chrome
EX5508WC
53-554516
4.8 or 8.5
7.8 - 8.5
6 / 10mm2
40 amps
Expressions 500 9.5 White
EX50095
53-554015
5.0 or 9.5
8.7 - 9.5
6 / 10mm
45 amps
Expressions 550 9.5 White
EX5509
53-555015
5.0 or 9.5
8.7 - 9.5
6 / 10mm2
45 amps
Expressions 500 9.5 White & Chrome
EX50095WC
53-554016
5.0 or 9.5
8.7 - 9.5
6 / 10mm2
45 amps
83-593514
-
-
-
-
Extended Control Knob (see page 21)
83-593514
-
-
-
-
Extended control knob (see page 21)
• Operating water pressure 0.7-7bar (10-100 psi) • Water pressure operated power switch • Standard 15mm inlet connection • Top, bottom or rear cable entry options
• Fixing pack and instructions supplied • Removable corner section for ease of installation
*The third year of the guarantee is only available for products registered with Redring after purchase.
14
• Operating water pressure 0.7-7bar (10-100 psi) • Water pressure operated power switch • Standard 15mm compression inlet connection • Top, bottom or rear cable entry
• Top, bottom or rear water entry • Fixing pack and instructions supplied • Removable corner section for ease of installation
*The third year of the guarantee is only available for products registered with Redring after purchase.
15
Active 350 Instant Showers
Instant Showers Active 320/300
The Active 350 allows accurate
The Active 320 has a unique dual
temperature selection. The integral water
control combining power select and
control valve provides on/off selection
on/off rotary flow/temperature control.
via the outer control lever, therefore the
The Active 300 incorporates a single
flow rate/temperature position can
lever rotary control providing water
remain positioned at your favourite
on/off and temperature/flow control.
setting from your last shower.
By simply positioning the control,
the water temperature can be selected.
The Active 300 is bottom entry only.
7.2
kW
Active 350
8.5
kW
Key Features
• Instant electric shower
• Separate controls for temperature adjustment
and power selection
• Fully temperature stabilised
• Neon power indicator
• Overheat protection
Active 320
7.2
kW
8.5
kW
Key Features
Features exclusive to the 320 Model
• Instant electric shower
• Choice of 3 power settings
• Neon power indicator
• Rotary controls for power and temperature selection
• Fully temperature stabilised
• Height adjustable riser rail and soap dish
• Full set of accessories including multi-mode handset
• Overheat protection
• Rotary lever control for on/off and power selection
• Single mode handset
Features exclusive to the 300 Model
• Electric solenoid operation on/off
• Polar white finish
• Easy grip on / off control lever
• 3 power settings
Dimensions Active 320
• Single fixed point handset holder
• Polar white with chrome
Dimensions Active 350
• Temperature and flow control with single turn valve
Dimensions Active 300
Specification
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Active 320 7.2
A3207
53-550515
2.7 / 4.5 / 7.2
6.6 - 7.2
4 / 6mm2
30 amps
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Active 350 7.2
A3507
53-551515
4.5 / 7.2
6.6 - 7.2
4 / 6mm2
30 amps
Active 320 8.5
A3208
53-551015
3.7 / 4.8 / 8.5
7.8 - 8.5
6 / 10mm2
40 amps
Active 350 8.5
A3508
53-552015
4.8 / 8.5
7.8 - 8.5
6 / 10mm2
40 amps
Active 300 7.2
A3007
53-550115
7.2
6.6 - 7.2
4 / 6mm2
30 amps
• Operating water pressure 0.7-7bar (10-100 psi) • Water pressure operated power switch • Standard 15mm inlet connection • Top, bottom or rear cable entry
• Top, bottom or rear water entry • Fixing pack supplied • Shallow backplate designed for ease of installation
*The third year of the guarantee is only available for products registered with Redring after purchase.
16
• Operating water pressure 0.7-7bar (10-100 psi) • Water pressure operated power switch • Standard 15mm inlet connection • Top, bottom or rear cable entry
• Top, bottom or rear water entry (bottom entry Active 320 model only) • Fixing pack supplied • Shallow backplate designed for ease of installation
*The third year of the guarantee is only available for products registered with Redring after purchase.
17
Expressions 570 Pumped Electric Showers
Power Showers Expressions 520
The Expressions 570 provides the
The Expressions 520 Range delivers
convenience of electric showering in
luxury showering performance from an
areas where no mains water or low water
integrated booster pump and mixer valve
pressure prevents the use of normal
in a simple to plumb installation. Taking
electric instant showers. By combining a
both hot and cold water from the cylinder
standard electric shower and booster
and header tank respectively, the integral
pump, this shower can simply be
pump delivers up to a maximum of 14
connected to a cold water header tank.
litres per minute. The 520TS unit provides
thermostatic temperature control.
8.5
kW
Dimensions Expressions 570
Expressions 570
9.5
kW
Key Features:
Expressions 520TS
Key Features of the Expressions 520M:
Dimensions Expressions 520 Range
• Instant electric shower with integral pump to ensure
constant water flow
• Ideal for installations where water pressure is
insufficient for an instant shower
• Key features of the Expressions 520M:
Additional features exclusive to the
Expressions 520TS:
• Manual power shower
• Thermostatic power shower
• Overheat protection
• Cold water cistern fed (not mains)
• Hot water tank and cold water cistern fed
• Thermostatic control and operation
• Full set of accessories including premium wide spray
multi-mode handset
• Full set of accessories including premium wide spray
multi-mode handset
• Thermostatic model offers added precision and safety
• High and low power selection
• Polar white finish
• Full set of accessories including premium wide spray
multi-mode handset
• Polar white finish
• Rotary knob for temperature selection
• Polar white finish
• Rotary control for temperature/flow selection
• Rotary knob for start/stop and flow rate
• Adjustable temperature limiter with override feature
• Power on and overheat neon indicators
• Adjustable temperature limiter with override feature
Installation Expressions 570
Installation Expressions 520 Range
The diagram shows the ideal installation with a separate cold
feed. In some installations it may be sufficient to take the
cold supply from existing pipework.
• Stable and consistent flow (no fluctuations)
Note: Only for connection to cold water header tank.
Note: Only for connection to cold
water tank and hot water cylinder.
• Delivers between 8 litres/min (economy) and 14
litres/min of water
• Easy to grip knobs with finger indentations
Specification
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Expressions 570 8.5
EXP5708
24-555515
4.8 or 8.5
7.8 - 8.5
6 / 10mm2
40-45 amps
Product
Reference
Short
Code
Catalogue
Number
Flow Rate
On Full
Mixing
Chamber
Minimum
Head
Maximum
Head
Expressions 570 9.5
EXP5709
24-556015
5.0 or 9.5
8.7 - 9.5
6 / 10mm2
45 amps
Expressions 520M
EXM520WC
46-598415
14 litres / min
Manual Cartridge
3” or 0.08m
33’ or 10m
Expressions 520TS
EXTS520WC
46-599415
12 litres / min
Thermostatic Cartridge
3” or 0.08m
33’ or 10m
• Cold water cistern fed • Operating water pressure: 3” minimum head to 33’ maximum head (0.08m to 10m). • Top, bottom and rear water and cable entry options
• Fixing pack and instructions supplied • 15mm push-fit fitting for cold water inlet connection • The unit incorporates a 240V AC motor to boost flow
• Maximum flow rate: 7.0 litres/min.
18
• Motor Rating - 140 watts @ 240V • Mains Supply - 220-240V supply • Top, bottom or rear cable entry • Top, bottom or rear water entry
19
Accessories
Accessories
Extended Riser:
The 1 metre extended length riser rails bring
the shower head & soap dish within easy reach
of children, the elderly or less-able people and
are available in white or chrome in 18 or 22mm
diameter.
Pick and mix from a stylish range of
Accessory Packs, designed to enhance
the performance and looks of any
electric shower.
Care Pack:
Comprising a white 1 metre riser rail with a 2
metre hose. Riser rail available in either 18 or
22mm diameter.
Curtain Rail Pack:
The versatile curtain rail pack is designed to fit
virtually any shape of bathroom. Contains a
white curtain, curtain rail, corner fittings, curtain
clips & full fixing kit. Available with or without a
non-slip bath mat.
Accessory Packs:
Designed to fit any electric shower, the
Standard Accessory Pack contains a multimode shower head, riser rail, brackets, handset
holder, soap dish and hose. Available in white
or white/chrome finish.
Curtain Rail Pack
Extended Shower Control Lever:
Ideal for children or the less-able, this extended
shower control lever is interchangeable with
Expressions 500 & 550 and the Active 320 &
350 showers.
The EXP Accessory Pack contains a multimode shower head, riser rail, soap dish and
high flow convoluted hose. Finished in white
and chrome.
The Premium Accessory Pack is all finished in
chrome and contains a multi-mode shower
head, riser rail, soap dish and a high flow
convoluted hose.
Accessories
Care Pack
Extended Shower Control Lever
Specification
Premium Accessory Pack
Shower Heads
• Multi-mode shower head, riser rail, soap dish and
• Multi-mode shower head packs to fit any electric shower
Product Reference
Colour
Catalogue Number
Short Code
• Available in white and chrome
Standard accessory pack with multi-mode handset
white
83-595301
ACCPK1
Standard accessory pack with multi-mode handset
white/chrome
83-595302
ACCPK2
EXP accessory pack with multi-mode handset
white/chrome
83-595303
ACCPK3
Premium accessory pack with multi-mode handset
chrome
83-595304
ACCPK4
high flow convoluted hose
• Finished in chrome
Standard Accessory Pack
Replacement Shower Hoses:
• 1.25m or 2m hoses available in white or chrome.
EXP Accessory Pack
• Multi-mode shower head, riser rail, soap dish and high
flow convoluted hose
Premium Accessory Pack
20
• Finished in white and chrome
• Multi-mode shower head, riser rail, brackets, handset
holder, soap dish and hose
• Available in white or white/chrome finish
Selectronic style accessory kit
white/matt chrome
83-593814
STLACC
Multi-mode shower head
white
83-595305
HEAD1
Multi-mode shower head
white/chrome
83-595306
HEAD2
1.25m convoluted hose
white
83-595307
HOSW
2.00m convoluted hose
white
83-595308
HOSW02
1.25m convoluted hose
chrome
83-595309
HOSC
2.00m convoluted hose
chrome
83-595310
HOSC2
Extended 1m riser rail (18mm dia.)
white
83-595311
RAILW
Extended 1m riser rail (18mm dia.)
chrome
83-595312
RAILC
Extended 1m riser rail (22mm dia.)
white
83-595313
RAILW2
Care pack with 18mm dia. 1m riser rail & 2m smooth white hose
white
83-792352
CP18
Care pack with 22mm dia. 1m riser rail & 2m smooth white hose
white
83-792354
CP22
Extended shower control lever
white
83-595314
LEV
Grab rail (plastic)
white
83-595315
PGR
Curtain & rail pack with fixings
white
83-792802
CU1
Curtain & rail pack with fixings & non-slip bathmat
white
83-792801
CU2
21
Water Heating Systems
Water Heating Selector
Water Heating Selector
You want a stored
supply of hot water
You want an instant
supply of hot water
You want hot/boiling water
suitable for drinking
You need hot water
for 1 outlet only
Choose our Vented Instant
Handwash Units
Choose SB Professional,
SB2 or Corvette
Pages 40-43
Autosensor or
Instant Range for touch-free
or manual control
Pages 44-45
You want hot water
supplied to the whole
house/flat
You want hot water
supplied to more
than one outlet
You want hot water
and central heating
Choose from our LWC
or LWSS range
You want an open-vented
Water Heater
You want a pressurised
Water Heater
Choose our 7 litre
Vented Units,
Contour 7000 and WS7
Choose Dualheat
Direct – choose either 50 to
100 litre capacity or Indirect
50 litre to 210 litre capacity
Choose one of our
Flatback Water Heaters
Choose one of our
Unvented Water Heaters
MW, EW and LWC range
Available in Oversink or
Undersink installation
Page 36
Pages 32-34
CT range, from 25
litre to 100 litre
At 10 litre to 100 litre
these units supply hot water
at mains pressure
Pages 26-28
Page 29
Pages 30-31
You want hot
water supplied to a
single outlet
You need hot water
for 1 or 2 outlets
Choose from our Unvented
Instant Water Heaters
Powerstream from
9.5kW to 12kW
Page 24
When specifying a hot water heater you
need to consider the use that the hot
At Redring we have a comprehensive
range of water heating products to suit
all applications. Designed using the
latest technology and built to Redring’s
exacting standards, the range covers
both storage and point-of-use.
This selector should enable you to
make a decision, but if you need further
clarification, please ring our customer
techline on +44 (0)8709 000430.
22
To assist in the effective selection of water
heating products, the chart on the right shows
how long it will take units of different kilowatt
loadings to heat water.
Litres heated through 50°C
i.e. It will take 9 minutes for a 3kW unit to heat
7 litres of water through 50°C.
Loading kilowatts
water is going to be put to.
1
2
3
4
6
8
9
12
5
7
10
15
30
60
80
100
150
200
18
9
6
5
3
3
2
2
25
13
9
7
5
4
3
2
35
18
12
9
6
5
4
3
55
27
18
14
9
7
6
5
105
55
35
27
18
14
12
9
210
105
70
55
35
27
24
18
280
140
95
70
50
35
35
24
175
120
90
60
45
40
30
265
175
135
90
70
60
45
235
175
120
90
80
60
Approximate time in minutes to heat water
23
Powerstream Unvented Instantaneous Water Heater
Unvented Instantaneous Water Heater Powerstream
Powerstream delivers instant hot
Accessories:
Typical Specification: Powerstream
water at point of use. This compact
In shower applications, we only recommend the use of
a Redring approved shower mixer kit: Chrome and white
mixer with white accessory kit and variable spray
shower head.
Supply and install a Redring Powerstream unvented
and unique design eliminates the need
for centrally stored hot water cylinders
water heater for connection to mains water supply and
mains electricity supply, providing instant mains
pressure hot water to one or two outlets, as supplied by:
saving on electricity usage and
Applied Energy Products Ltd.,
important space.
Morley Way Peterborough PE2 9JJ.
Dimensions Powerstream
• 12kW unit is the highest rated single
Sales Hotline: 08709 000420.
phase heater on the UK market
Model: Cat No:
9.5kW 45-793201
10.8kW 45-793204
12kW
45-793202
• The water heater shall be designed with a 3/8”NPT
water connection which have 15mm straight
connections on the inlet and outlet
• The water heater shall be capable of mounting in such
a way to allow pipe entry from the bottom or side
• The water heater shall be designed to operate on
Powerstream
Key Features:
• Water supplied to one or two outlets (either one
shower and one hand basin or two hand basins)
Model
4lts/min
5lts/min
6lts/min
9.5kW
39 / 54°C
32 / 47°C
28 / 42°C
10.8kW
44 / 58°C
36 / 51°C
31 / 46°C
• Direct mains supply
12kW
48 / 63°C
39 / 54°C
34 / 49°C
• Remote fitting option
• No standing heat losses
• Fast response
mains water pressure between 15-150psi for the
• RP10.8 and RP12 Heater Unit feeding two
handwash basins
• Multi-directional mounting
• Fixing pack supplied
9.5kW variant and 20-150psi for the 10.8 and 12kW
variants
• The water heater shall be designed to have a
For hand-wash applications, we recommend the use of
Redring approved 1/4 turn lever control ceramic disc
operated spray tap which will enhance the delivery
performance on dual-outlet installations.
Flow Rate/Performance – Winter/Summer:
• Water outlet via existing tap or mixer (especially
suitable via spray tap)
• Small compact shape
Installation Powerstream
minimum size of 160mm height, 307mm width and
74mm depth
• The water heater shall be designed to incorporate two
heating elements capable of being set for winter or
summer settings
• The water heater shall incorporate a ‘power on’
indicator visible through an impact resistant front cover
• The water heater shall be approved by BEAB for
Approximate water temperature which can be expected
from Powerstream for different flow rates. The temperature
of the mains supply can vary from 5°C in winter up to
about 20°C in summer, with a mean average of about 12°C.
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage
directive and electro magnetic compatibility directive
• Two heat settings
• The water heater shall have a 3 year manufacturer’s
• Neon ‘power on’ indicator
guarantee for UK use
• 3 year guarantee (UK)
• BEAB, WRAS and CE approved
Specification
Product
Short
Catalogue
Operating
kW Loading
Recommended
Recommended
Reference
Code
Number
Pressure
@ 230-240V
Cable Size
Fuse Rating
Powerstream 9.5
RP1
45-793201
15 - 150 psi
8.7 - 9.5
10mm2
40 amps
Powerstream 10.8
RP10.8
45-793204
20 - 150 psi
9.9 - 10.8
16mm2
45 amps
Powerstream 12
RP12
45-793202
25 - 150 psi
11 - 12
16mm
50 amps
Shower mixer kit
85-793605
-
-
-
-
1/4 turn lever control spray tap
85-793616
-
-
-
-
2
• Flow stabiliser/service valve • Thermal cut-out protection • Unique Redring water flow operated power switch • Impact resistant moulded cover
• Corrosion resistant steel backplate • Half power selection available on installation.
24
25
Contour 7000 Small Vented Storage Water Heaters
Large Unvented Storage Water Heaters LWC Range
The Contour 7000 has a 7 litre capacity
Typical Specification: Contour 7000
Contour 7000 Remote
of hot water storage for oversink
Supply and install a Redring Contour 7000 small vented
water storage heater for over sink operation, as supplied by
Supply and install a Redring Contour 7000 Remote
small vented water storage heater for under sink
operation, as supplied by
washing needs. Using the monoblock
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
chrome accessory it can be fitted
undersink. Alternatively the Contour
Model: Cat No:
3kW
44-784001
1kW
44-784002
7000 Remote is a complete installation
pack for undersink fitting, featuring an air
operated sink mounted switch that when
pressed delivers hot water through a
from minimal standing heat loss because
Key Features:
450mm
600mm
Extended Swivel Spouts
Monoblock
Chrome Mixer
• 7 litre capacity, point of use
Features exclusive to the
Contour 7000 Remote.
• Adjustable thermostat 15°C - 75°C
• On/off control via touch air switch
• Integral on/off and flow control
• Hot water delivered through a remote swivel spout
• Frost protection setting
• Remote air switch swivel spout and flexible
hose supplied
• Choice of heat settings
• Neat out of sight installation
• Ideal handwash and dishwash temperature settings
indicated on the unit
Accessories:
• Tamperproof thermostat cover
• Extended swivel spout (450mm)
• Complete with 300mm swivel spout
• Monoblock chrome mixer (for undersink installation)
44-784020
Installation Contour 7000 Remote
• The temperature control shall be located behind a
tamper-proof cover on the control panel. This control
shall incorporate a frost protection setting
• The temperature control shall be located behind a
tamper-proof cover on the control panel. This control
shall incorporate a frost protection setting
• The water heater shall be designed to deliver the hot
water through a 300mm swivel spout as supplied and
controlled by means of an integral on/off flow control
located visibly on the control panel
• The water heater shall be designed to deliver hot water
through a flexible hose coupling connected to a
remote swivel spout and operated via a remote air
switch which are both to be supplied with the unit
• The water heater shall be supplied with a wall bracket
and full fixing pack
• The water heater shall be supplied with a wall bracket
and full fixing pack
• The heater shall be capable of 15mm water connection
via side or bottom entry and electrical connection via
rear or bottom entry
• The heater shall be capable of 15mm water connection
via side or bottom entry and electrical connection via
rear or bottom entry
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
• The water heater shall have a 3 year manufacturer’s
guarantee for UK use
• The water heater shall have a 3 year manufacturer’s
guarantee for UK use
Contour 7000 Remote
4Undersink Mounting
• The water heater shall be designed to provide 7 litres
of stored hot water capable of temperature adjustment
between 15-75°C
Air Switch and Swivel Spout
4Air switch and swivel spout are included in installation pack.
• Standard 15mm (1/2”) inlet connection
• Rear or bottom cable entry
• Proven long life copper element
• Extended swivel spout (600mm)
3kW
• The water heater shall be designed to provide 7 litres
of stored hot water capable of temperature adjustment
between 15-75°C
they are installed at point of use.
Contour 7000
Model: Cat No:
Dimensions Contour 7000
remote swivel spout at your pre-set
temperature. These units also benefit
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
• Side or bottom water entry
• Negligible standing heat loss
• Wall bracket and full fixing pack supplied
• 3 year guarantee (UK)
Installation of Contour 7000 Remote
Installation of Contour 7000
4Oversink Mounting
4Undersink Mounting requires the monoblock mixer
accessory for undersink mounting
• BEAB, WRAS and CE approved
Specification
Product
Reference
Short
Code
Catalogue
Number
kW Loading
@ 240V
Recommended
Cable Size
Recommended
Fuse Rating
Contour 7000 3kW
C73
44-784001
3kW
2.5mm2
13 amps
Contour 7000 1kW
C71
44-784002
1kW
1.0mm2
5 amps
Contour 7000 Remote
C7U3
44-784020
3kW
13 amps
Extended swivel spout - 450mm
84-780404
-
-
-
Extended swivel spout - 600mm
84-780405
-
-
-
Monoblock chrome mixer
84-780408
-
-
-
Extended flexible hose (2 metres)
83-762502
-
-
-
• Corrosion resistant polypropylene water container with polystyrene insulation • High gloss, high strength impact resistant ABS cover • Capillary type, externally adjustable thermostat
• Restrictors supplied to optimise flow rate • Integral safety over temperature thermal fuse
26
27
WS7 Small Vented Storage Water Heaters
Large Vented Storage Water Heaters Flatback Cistern Type
The WS7 offers an economical solution
These Flatback Cisterns are designed
to provide stored hot water at point of
for wall mounted installation. A compact
use and can be mounted undersink using
unit which provides a multi-outlet water
the special monoblock chrome-mixer
heating solution.
accessory. These units also benefit from
minimal standing heat loss because they
are installed at point of use.
Typical Specification: Flatback Cistern Type
Supply and install a Redring Flatback Cistern Type
large vented water storage heater for wall mounting as
supplied by
Typical Specification: WS7
Supply and install a Redring WS7 small vented water
storage heater for over sink operation, as supplied by
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
Model: Cat No:
25 Litre Capacity
50 Litre Capacity
75 Litre Capacity
100 Litre Capacity
Model: Cat No:
3kW
44-780001
1kW
44-780002
• The water heater shall be designed to provide 7 litres
of stored hot water capable of temperature adjustment
between 15-75°C
WS7
Flatback Cistern Type
7.2
kW
8.5
kW
• The water heater shall be supplied with a wall bracket
and full fixing pack
• The water heater shall be capable of 15mm water
connection via side or bottom entry and electrical
connection via rear or bottom entry
Key Features:
Accessories:
Key Features:
• 7 litre capacity, point of use
• Extended length swivel spout (450mm)
• Choice of 25, 50, 75 or 100 litre capacities
• Adjustable thermostat 15°C - 75°C with frost
protection setting
• Extended length swivel spout (600mm)
• Two adjustable thermostats for precise control
• Monoblock chrome mixer (for undersink installation)
• Overheat protection
• Choice of 1kW and 3kW models
• Extended outlets available
600mm
• Integral safety over temperature thermal fuse
• 3 year guarantee (UK)
• Water heating shall be provided by means of a 3kW
incoloy sheathed heating element and contain an
overheat protection device
• The heater water vessel shall be manufactured from
copper sheet joined with brazed seams and be housed in
a corrosion proofed, enamel finished, steel outer case
• BEAB, WRAS and CE approved
• Drain connection supplied and fitted
Dimensions Flatback Cistern Type
• 1 year guarantee (UK)
CT50 4A Height 750mm 4B Width 600mm 4C Depth 320mm
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
CT100 4A Height 1080mm4B Width 600mm 4C Depth 320mm
• The water heater shall have a 1 year manufacturer’s
guarantee for UK use
CT25 4A Height 705mm 4B Width 470mm 4C Depth 210mm
CT75 4A Height 925mm 4B Width 600mm 4C Depth 320mm
• BEAB, WRAS and CE approved
Extended Swivel Spouts
Monoblock
Chrome Mixer
Specification
Specification
Product
Reference
Short
Code
Catalogue
Number
Inlet
Connection
kW Loading
@ 240V
Recommended
Cable Size
FuseRating
WS7
WS73
44-780001
15mm (1/2")
3kW
2.5mm2
13 amps
Product
Reference
Short
Code
Catalogue
Number
Capacity
Litres (Hot)
Capacity
Litres (Cold)
Weight
Empty (Kg)
Weight
Full (Kg)
WS7
WS71
44-780002
15mm (1/2")
1kW
1.0mm2
5 amps
Cistern Type 25
CT25
26-785001
25
8
20
53
84-780404
-
-
-
spout
Cistern Type 50
CT50
26-785101
50
24
32
106
spout
Cistern Type 75
CT75
26-785201
75
24
37
136
Cistern Type 100
CT100
26-785301
100
24
40
164
Extended swivel (450mm)
28
• Precision temperature control shall be provided by 2
adjustable thermostats
C
• 50 to 80°C thermostatic control range
450mm
• The water heater shall have a 3 year manufacturer’s
guarantee for UK use
Dimensions WS7
B
• Ideal for replacement (overflow and cold feed can be
connected on the left or right hand side)
• 300mm swivel spout included
• Wall bracket and full fixing pack supplied
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
• The heater shall be designed to allow hot water supply
to multiple outlets
• The heater shall be constructed to provide temperature
control between 50-80°C
• The temperature control shall incorporate a frost
protection setting
• The water heater shall be designed to deliver hot water
through a 300mm swivel spout as supplied. On/off flow
control is via a tap supplied with the heater
26-785001
26-785101
26-785201
26-785301
Extended swivel (600mm)
84-780405
-
-
-
Monoblock chrome mixer
84-780408
-
-
-
• Corrosion resistant polypropylene water container with polystyrene insulation • High quality impact resistant ABS cover
• Capillary type, externally adjustable thermostat
• Copper sheet water vessel with brazed seams • Corrosion proofed steel, with enamel finish outer casing
• 3kW Incoloy sheathed element • 1/2" BSP cold water and 22mm compression fitting hot water connections.
29
EW/MW Series Small Unvented Storage Water Heaters
Small Unvented Storage Water Heaters EW/MW Series
Key Features:
Typical Specification: EW Series
MW Series
to provide stored hot water from a mains
• Will deliver hot water up to four outlets
pressurised water supply.
• Balanced supply of hot and cold water
Supply and install a Redring EW Series small unvented
storage water heater for connection to mains pressurised
water supply for under sink mounting, as supplied by
Supply and install a Redring MW Series small unvented
storage water heater for connection to mains pressurised
water supply for under sink and over sink mounting, as
supplied by
The EW/MW range has been designed
The EW range has been designed
• Heat loss minimisation and energy savings from short
pipe runs and superior insulation
EW
• Water outlet via existing tap or mixer
without the need for the temperature and
• Adjustable thermostat to 70°C
pressure relief device making installation
• Over temperature safety cut-out
even simpler.
• Temperature pressure relief valve factory fitted to all
MW models
The MW range comes complete with a
• Neon light indicates when heater is working
factory fitted temperature and pressure
• Compact shape for undersink mounting
relief device.
• Remote siting possible
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
Model: Cat No:
10 litre 47-784501
15 litre 47-784502
• The heater shall be designed to provide mains
pressurised hot water for up to 4 outlets allowing both
hot and cold water supplies to be balanced
• The heater shall minimise the standing heat losses by
means of superior thermal insulation and by means of
being sited close to the outlets
• 1 year guarantee (UK)
• BEAB, WRAS and CE approved
• The heater shall be constructed so as not to require a
temperature and pressure relief device reducing
installation costs
Installation:
• Inlet/outlet connections 15mm (1/2" BSP)
• EW/MW units need to discharge to a drain
• The heater shall incorporate an integral neon indicator
illuminating when the heater is energised
B
C
• The heater shall be provided with a 15mm inlet and
outlet connection and a mounting pack
MW
Accessories:
Thermostatic Blending Valves – increasingly used to
ensure a safe maximum dispensing temperature for hot
water providing protection for end users. Quickly and
easily fitted to the outlet from the hot water system and
the cold water feed.
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
A
Cat No:
47-782001
47-782101
47-781001
47-781101
• The heater shall be designed to provide mains
pressurised hot water for up to 4 outlets allowing both
hot and cold water supplies to be balanced
• The heater shall minimise the standing heat losses by
means of superior thermal insulation and by means of
being sited close to the outlets
• The heater shall be supplied with a temperature and
pressure relief device factory fitted
• The heater shall provide water temperature
adjustments to 70°C and incorporate an overtemperature cut out
• Fixing pack with wall mounting bracket supplied
Model:
10 litre
15 litre
10 litre
15 litre
• The water heater shall have a 1 year manufacturer’s
guarantee for UK use
• The heater shall provide water temperature
adjustments to 70°C and incorporate an overtemperature cut out
• The heater shall incorporate an integral neon indicator
illuminating when the heater is energised
• The heater shall be provided with a 15mm inlet and
outlet connection and a mounting pack
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage
directive and electro magnetic compatibility directive
• The water heater shall have a 1 year manufacturer’s
guarantee for UK use
Dimensions EW10/MW10/MW10H
4A Height 360mm 4B Width 360mm 4C Depth 254mm
Dimensions EW15/MW15/MW15H
4A Height 360mm 4B Width 360mm 4C Depth 300mm
EW/MW Series
4MW15 supplying 4 basins via spray taps
Thermostatic Blending Valve
4MW10 supplying a sink and a basin
Specification
Product
Reference
Short
Code
Catalogue
Number
Capacity
In Litres
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
EW10 Undersink
EW10
47-784501
10
2.7 - 3
2
1.5mm
13 amps
EW15 Undersink
EW15
47-784502
15
2.7 - 3
1.5mm2
13 amps
Product
Reference
Short
Code
Catalogue
Number
Capacity
In Litres
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
87-783101
-
-
-
-
MW10 Undersink
MW10
47-782001
10
2.7 - 3
1.5mm2
13 amps
-
MW15 Undersink
MW15
47-782101
15
2.7 - 3
1.5mm
13 amps
-
MW10H Oversink
MW10H
47-781001
10
2.7 - 3
1.5mm
13 amps
-
MW15H Oversink
MW15H
47-781101
15
2.7 - 3
1.5mm
13 amps
Optional cold water controls
Tundish
Temperature & pressure relief valve
Blending valve fail safe
97-783236
97-783258
87-783103
-
-
-
• Operating water pressure 1 - 12bar (above 6bar use cold water controls pack) • Vitreous enamelled steel water container, white thermoplastic cover and foamed polyurethane insulation
• Magnesium sacrificial anode replaceable by front access • Anode available as spare part
30
Specification
2
2
2
• Operating water pressure 1 - 12bar (above 6bar use cold water controls pack) • Vitreous enamelled steel water container, white thermoplastic cover and foamed polyurethane insulation
• Magnesium sacrificial anode replaceable by front access • Anode available as spare part
31
LWC Range Large Unvented Storage Water Heaters
Large Unvented Storage Water Heaters LWC Range
The LWC Range is a range of water
heating cylinders providing mains
Product Specification: Direct System
Typical Specification: LWC Direct
Typical Specification: LWC InDirect
• Electric boiler for the supply of mains pressure hot water
Supply and install a Redring LWC large unvented storage
water heater for connection to pressurised mains water
supply providing whole house hot water, as supplied by
Supply and install a Redring LWC large unvented storage
water heater for connection to pressurised mains water
supply providing whole house hot water, as supplied by
• Power ratings of 2.7-3kW, or 2 x 2.7-3kW
pressure hot water. They do not require
• Available in capacities of 50, 75, 100, 144 and
210 litres
a header feeder tank which allows
installation almost anywhere in the
Product Specification: InDirect System
property. LWC boilers reduce the risk of
• Electric boiler with central heating boiler heat
exchange facility for the supply of hot water
water contamination, installation is
• Power ratings of 2.7-3kW @ 230-240V
relatively simple therefore reducing cost.
• Available in capacities of 144 and 210 litres
Installation:
• Supplied with pressure reducing valve incorporating
an in-line strainer, loose check valve, expansion
relief valve, temperature & pressure relief valve and
tundish making the LWC complete for installation
• Inlet and outlet connections are via 22mm
compression fittings
• Expansion valve set at 3bar
• Line strainer
• 2 port diverter to secondary heating circuit (indirect only)
• Temperature and pressure relief valve
Flow Rates:
4
Key Features:
• 'A' grade copper cylinder
3
Arrangement diagram for control devices
1 Temperature & Pressure Relief Valve
2 Expansion Relief Valve
3 Non Return Valve
4 Tundish
5
• Indirect versions have high efficiency copper
coil heat exchanger and 3kW immersion heater
for summer water heating
• The 100, 144 and 210 litre capacity models feature
2 x 3kW immersion heaters to gain maximum benefit
from 'Off-Peak' tariffs
• Immersion heaters are incoloy for longer life even in
hard water areas
• Finished in leatherette-coated grey steel for a
clean finish
• Insulated with CFC free PU hard foam for
energy efficiency
• Fitted with an internal expansion bubble, so no need
for external expansion vessel
Model: Cat No:
3kW - 144 litre capacity: 47-784701
3kW - 210 litre capacity: 47-784901
• The heater shall be constructed of an ‘A’ grade copper
cylinder incorporating incoloy immersion heaters for
longer life. It shall incorporate an anode as standard
requiring no further servicing. Be insulated with CFC
free PU hard foam for reduced standard heat losses
and be encased in a leatherette grey steel cladding for
easy cleaning
• The heater shall be capable of water temperature
control between 20-65°C and shall incorporate an over
temperature limiter set at 80°C
• Pressure reducing valve set at 1.5bar
1
Model: Cat No:
3kW - 50 litre capacity: 47-781301
3kW - 75 litre capacity: 47-781401
6kW - 100 litre capacity: 47-781501
6kW - 144 litre capacity: 47-781601
6kW - 210 litre capacity: 47-781801
• The heater shall have 3 levels of pressure and
temperature control provided as standard
• Tundish
2
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420
• The heater shall be designed to incorporate an integral
expansion bubble reducing installation costs
Installation accessories provided:
LWC Range
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
Balanced hot and cold water pressures give many
advantages. Flow rate, not pressure, is the true measure
of performance. The LWC units are comparable to any
other unvented cylinder currently listed by the BBA
providing a ‘power shower’ without a pump and filling a
bath in just a few minutes.
• Safety features include 3 levels of pressure
control and 3 levels of temperature control
• The heater shall be provided with all accessories
required to install the unit as standard, those being;
a tundish, expansion valve set at 3bar, pressure
reducing valve set at 1.5bar, line strainer and
temperature and pressure relief valve
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
• The heater shall be constructed of an ‘A’ grade copper
cylinder incorporating incoloy immersion heaters for
longer life. It shall incorporate an anode as standard
requiring no further servicing. Be insulated with CFC
free PU hard foam for reduced standard heat losses
and be encased in a leatherette grey steel cladding for
easy cleaning
• The heater shall be designed to incorporate an integral
expansion bubble reducing installation costs
• The heater shall have 3 levels of pressure and
temperature control provided as standard
• The heater shall be capable of water temperature
control between 20-65°C and shall incorporate an over
temperature limiter set at 80°C
• The heater shall be provided with all accessories
required to install the unit as standard, those being; a
tundish, expansion valve set at 3bar, pressure reducing
valve set at 1.5bar, line strainer, temperature and
pressure relief valve and a 2 port diverter
• The water heater shall be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive.
• The water heater shall have 2 years guarantee on the
cylinder and 1 year guarantee on components
• The water heater shall have 2 years guarantee on the
cylinder and 1 year guarantee on components
inDirect (iD)
Direct (Di)
• Immersion heaters have control thermostat range
adjusting from 20-65°C – High limit stat operates
at 80°C
• 2 year guarantee on cylinder and 1 year guarantee on
components (UK)
• BEAB, WRAS and CE approved
5 Combined Line Strainer/Pressure Limiter
Cold Water Mains
Cold Water Mains
Specification
LWC Unit Selection Guide:
Catalogue
Number
Capacity
In Litres
kW Loading
@ 240V
Recommended
Cable Size
LWC50Di
47-781301
50
1x3
1.5mm2
LWC75Di
47-781401
75
1x3
1.5mm2
LWC100Di
47-781501
100
2x3
Recommended
Fuse Rating
Height
mm
Diameter
mm
13 amps
700
460
13 amps
1050
460
1.5mm2
13 amps
1200
560
InDirect
Direct
LWC144Di
47-784601
144
2x3
1.5mm2
2 x 13 amps
1350
560
Small house with standard bath plus shower
144
144
LWC144iD
47-784701
144
1x3
1.5mm2
1 x 13 amps
1350
560
2/3 bedroom, en suite & bathroom
144
144
LWC210Di
47-784801
210
2x3
1.5mm2
2 x 13 amps
1850
560
LWC210iD
47-784901
210
1x3
1.5mm
1 x 13 amps
1850
560
House Type
4 bedroom, 2 bathroom
Large properties with 2 bathrooms & en suite
32
Product
Reference
144
210
210
210
2
• Di - Direct • iD - InDirect • Operating pressure 1.5bar • Expansion relief valve set at 3 bar • Temperature and relief valve set at 3.5bar at 95ºC
INSTALLATION MUST BE CARRIED OUT BY A COMPETENT INSTALLER
33
LWSS Range Large Unvented InDirect Storage Water Heaters
Large Unvented Storage Water Heaters LWSS Range
The LWSS range of stainless steel
Key features:
Technical specifications: LWSS Direct
Technical specifications: LWSS InDirect
water heating cylinders provides
• 25-year cylinder guarantee + 2-year parts.
effective, fast and safe mains-fed hot
• 150, 200 and 250 litre capacity units have a high
efficiency coil and a 3kW immersion heater.
• The LWSS range of water heaters incorporates a high
grade austenitic 316L material which is widely used in
the chemical, medical, nuclear, pharmaceutical and
food industries – it is ideally suited to hot water storage.
No anode is contained within the units and each one is
lightweight, insulated with CFC-free PU hard foam for
reduced heat losses and cased for easy cleaning
• The LWSS range of water heaters incorporates a high
grade austenitic 316L stainless steel material –
which is widely used in the chemical, medical,
nuclear, pharmaceutical and food industries – is
ideally suited to hot water storage. Servicing is kept to
a minimum as no anode is contained within the
cylinder. Each unit is also lightweight, insulated with
CFC-free PU hard foam for reduced heat losses and
cased for easy cleaning.
water around any property.
• High flow rate – ideal to supply power showers
without the need for a separate pump.
A high quality vessel employing the
• All ancillary components are supplied, allowing for
easy, quick and hassle-free installation.
best in laser welding technology, the
LWSS range features high flow rates,
• Supplied with a pressure gauge for instant diagnosis,
leading to simple servicing when required.
energy efficient insulation and an
• Expansion vessel helps eliminate discharge
between services.
expansion vessel.
Installation:
• For installation of the LWSS range, mains water supply
is essential. The unit requires a minimum 2bar water
pressure for use with a 22mm copper or 25mm MDPE
service for single bath/shower applications.
• For greater demand, 3bar pressure is required.
• LWSS units will fit through a standard 600mm wide
door frame and require a floor area of 600mm x
650mm to accommodate pipework.
• Electrical connections are located on the front of the
unit, to the right of centre, significantly reducing the
risk of electrical faults if a leak should occur.
• Each unit features 2 x 3kw immersion heaters to gain
maximum benefit from ‘off-peak’ tariffs. The provision
of all ancillary components makes installation simple
and cost-effective
• The LWSS range boasts a high flow rate making it
ideal for the supply of hot water for power shower
performance without a pump
• Each unit includes a self-diagnostic pressure gauge
allowing easy servicing of the unit and instant
diagnosis of any problems
• Each unit features a 3kW immersion heater.
The provision of all ancillary components makes
installation simple and cost-effective.
• The LWSS range boasts a high flow rate making it
ideal for the supply of hot water for power shower
performance without a pump.
• A 25-year cylinder guarantee is provided
• Each unit is approved by WRAS for connection to
mains water systems
Temperature &
pressure relief valve
AISI 316L welded
Stainless shell with
pressed domes
Pressure and
temperature relief valve
AISI 316L welded
stainless shell with
pressed domes
Service:
• An annual service of each unit is essential. The
diagnostic gauge located on the cold water inlet pipe
allows the inlet pressure to be easily read to make
servicing simple.
Inlet pressure should be 3bar at cold fill.
• The pressure and temperature relief valve and the
expansion vessel should be checked annually.
Siphonic
hot outlet
Hot outlet
Case
CFC Free
foam
insulation
CFC-free
foam
insulation
2 x 3kW
heating
elements
LWSS Range
High
efficiency
coil
Cold inlet
Cold inlet
Diffuser
Diffuser
Thermostat
pocket
Primary
flow
and
return
3kW
Immersion
heater
Choosing the right size:
Product Code
Capacity (Litres)
Cat No.
Nominal Sizes (mm)
Nominal Weight (kg) Full
Recommended for Heat up time/re-heat time
LWSS150id
150
47 - 786111
1120 x 560
230
Twin Bath 30 mins / 21 mins
LWSS200id
200
47 - 786211
1470 x 560
300
2 Bath and 2 Showers 33 mins / 24 mins
LWSS250id
250
47 - 786311
1770 x 560
360
3 Bath and 2 Showers 36 mins / 26 mins
34
35
Dualheat Combination Boiler
Combination Boiler Dualheat
Dualheat is an electric combi-boiler
Typical Specification: Dualheat - Vented
that provides domestic hot water – and
Supply and install a Redring Dualheat combination
electric boiler for connection to a cold water header
tank supplying both domestic hot water and central
heating system utilising low cost electrical supplies as
supplied by
powers ‘wet’ radiator systems.
It combines the convenience of low-cost
electricity, where available, with the
Applied Energy Products Ltd.,
comfort of radiator heating. Dualheat
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
unvented units can be sited almost
Model: Cat No:
Dualheat 9kW
Dualheat 12kW
anywhere as it has no external flue, no
fumes, no noise and no need for a
29-394561
29-394563
• The boiler shall be constructed from extra long life
copper forming both the spherical hot water vessel and
central heating supply vessel. It shall be insulated with
CFC free PU hard foam to reduce standing heat losses
space-wasting hot water cylinder. With
few moving parts, maintenance is
minimal. Unvented models supply hot
• The boiler shall be designed such that the domestic hot
water vessel shall have a capacity of 47 litres and
central heating supply vessel a capacity of 129 litres
(9kW), 703 litres (12kW) with all plumbing
connections at 22mm
water at mains pressure.
• The boiler shall be designed such that it is capable of
providing both hot water and central heating when
connected to a low cost peak avoidance tariff and that
central heating heat up response is within 2 minutes
Dualheat Combination Boiler
• The boiler shall be supplied with installation accessories
required to install the unit as standard, those being a
tundish, temperature and pressure relief device
• The boiler should be approved by BEAB for electrical
safety, WRAS for connection to mains water systems
and CE compliant to the low voltage directive and
electro magnetic compatibility directive
• The boiler shall be designed such that it is capable
of providing both hot water and central heating when
connected to a low cost peak avoidance tariff and that
central heating heat up response is within 2 minutes
• The water heater shall have a 2 year manufacturer’s
guarantee for UK use
• The boiler shall be supplied with installation
accessories required to install the unit as standard,
those being a tundish, temperature and pressure
relief device, pressure reducing valve and expansion
vessel
Typical Specification: Dualheat - Unvented
Supply and install a Redring Dualheat combination
electric boiler for connection to a cold water header
tank supplying the central heating system and
pressurised mains cold water supplying the domestic
hot water system utilising low cost electricity supply as
supplied by
Applied Energy Products Ltd.,
• The boiler should be approved by BEAB for electrical
safety, WRAS for connection to mains water systems
and CE compliant to the low voltage directive and
electro magnetic compatibility directive
• The water heater shall have a 2 year manufacturer’s
guarantee for UK use
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
Model: Cat No:
Dualheat 9kW
Dualheat 12kW
29-394562
29-394564
• The boiler shall be constructed from extra long life
copper forming both the spherical hot water vessel
and central heating supply vessel. It shall be
insulated with CFC free PU hard foam to reduce
standing heat losses
• The boiler shall be designed such that the domestic
hot water vessel shall have a capacity of 47 litres and
central heating supply vessel a capacity of 129 litres
(9kW), 703 litres (12kW) with all plumbing
connections at 22mm
Specification:
Installation Vented
Key Features:
Product Specification:
• Central heating and hot water in a single package.
• Electric boiler providing hot water and wet central
heating supplies
• Available as a vented or unvented unit (domestic hot water)
• Can be sited within an airing cupboard or roof space
• Extra long life copper tank and spherical copper heat
exchanger
• Connects directly to the mains.
• Quiet operation – no firing up or continuous burning
involved
• No fume emissions and needs no flue
• Low heat loss and high efficiency
Installation Unvented
• Unvented only capacities: 9kW model provides 47
litres of hot water and 129 litres for central heating.
The 12kW model provides 47 litres of hot water and
203 litres for central heating
• 2 year guarantee (UK)
• Easy draining
Plumbing Specification:
• Direct acting immersion heater allowing fast
temperature recovery to the available water after hot
water usage
• All tank connections 22mm
• Conventional room thermostat and thermostatic
radiator valves are only controls required.
• Low maintenance
36
• System types: Vented (hot water system); Unvented
(hot water system). (Note; Central heating system is
vented on all models.)
• Safe, clean, hygienic and reliable
• New design for rapid radiator heat up. Radiators up to
temperature within 2 minutes of the room thermostat
calling for heat
Dimensions Dualheat
DH9UC 4A Height 1040mm4B Width 590mm4C Depth 685mm
DH12UC 4A Height 1430mm4B Width 590mm4C Depth 685mm
CT75
4A Height 1040mm4B Width 590mm4C Depth 685mm
CT100 4A Height 1430mm4B Width 590mm4C Depth 685mm
• Power rating 230V,50Hz, 9kW, 39A or 230V, 50Hz,
12kW, 52A
• 2 year guarantee (UK)
• BEAB, WRAS and CE approved
• Water pressure 1bar – 12bar (mains water pressure)
• Hot water operating pressure 1.5bar
• Expansion relief setting 3bar
Model
Short Code
Catalogue No.
Physical Specification
Weight (empty)
Central heating vent, feed and radiator flow
Central heating drain
Domestic hot water inlet
Domestic hot water outlet
Expansion relief valve discharge
Temperature and pressure relief discharge
Equal pressure take off
Pressure reducing valve inlet
Tundish
DHW mixing valve
Primary store capacity (CH)
DHW heat exchanger capacity
Electrical Specification
Electrical supply
Full load current
Nominal rating
Min cable size
Performance (Electrical supply available)
Heat output equivalent Btu/hr
Output to heating (peak with full store)
Continuous output under steady state conditions
Output to DHW peak (peak to zero CH load)
Continuous output under steady state conditions
Hot water performance
Heat loss from cylinder
Thermal store
Dualheat 9C
DH9C
29-394561
Vented
48kg
22mm pipe
22mm pipe
22mm pipe
22mm pipe
22mm compression
22mm compression
129 litres
47 litres
Dualheat 9UC
DH9UC
29-394562
Unvented
48kg
22mm pipe
22mm pipe
22mm pipe
22mm pipe
15mm compression
22mm compression
22mm compression
22mm compression
3/4” BSP/1” BSP
22mm compression
129 litres
47 litres
Dualheat 12C
DH12C
29-394563
Vented
55kg
22mm pipe
22mm pipe
22mm pipe
22mm pipe
22mm compression
22mm compression
203 litres
47 litres
Dualheat 12UC
DH12UC
29-394564
Unvented
55kg
22mm pipe
22mm pipe
22mm pipe
22mm pipe
15mm compression
22mm compression
22mm compression
22mm compression
3/4” BSP/1” BSP
22mm compression
203 litres
47 litres
230V 1Ph 50Hz
39.13 A
9kW
10mm2
230V 1Ph 50Hz
39.13 A
9kW
10mm2
230V 1Ph 50Hz
52.2 A
12kW
16mm2
230V 1Ph 50Hz
52.2 A
12kW
16mm2
30750
>15kW
3 - 9kW
9kW
3kW
to BS6700
>180W
Equivalent to 6kW
30750
>15kW
3 - 9kW
9kW
3kW
to BS6700
>180W
Equivalent to 6kW
41000
>18kW
3 - 12kW
12kW
3kW
to BS6700
>250W
Equivalent to 6kW
41000
>18kW
3 - 12kW
12kW
3kW
to BS6700
>250W
Equivalent to 6kW
37
Immersion Heaters Dual cut-out immersion heaters
Dual cut-out immersion heaters Immersion Heaters
Specification for Dual cut-out Immersion Heaters
Redring have introduced a new range of
Dual cut-out immersion heaters to
21/4" BSP Copper with fitted STAT & CUT-OUT - (1 year guarantee)
Catalogue
Short
Length
No.
Code
Inches
Dual cut-out Twimerser:
33-324501
P11DC
11
33-324502
P14DC
14
All Redring dual cut-out immersion
33-324503
P27DC
27
The economy of two individually operating copper
sheathed heating elements. For light to normal use the
shorter element heats the top part of the tank. 1 year
guarantee (UK).
heaters are supplied complete with rod
33-324504
P30DC
30
33-324505
P36DC
36
comply with the European safety
standard, EN 60335-2-73 for fixed
immersion heaters.
thermostat, and are manufactured with a
21/4" BSP Aqualoy with fitted STAT & CUT-OUT - (3 year guarantee)
separate, ‘secondary manual reset
33-324601
A11DC
11
safety cut-out’ fitted directly to the
33-324602
A27DC
27
immersion heater head.
21/4" BSP Twimerser Copper with fitted STAT & CUT-OUT - (1 year guarantee)
This ensures that all Redring immersion
13/4" BSP Unvented Aqualoy with fitted STAT & CUT-OUT - (3 year guarantee)
heaters are compliant, and do not rely
33-324701
TS27DC
30-302801
Aqualoy:
For use in aggressive water areas. 3 year guarantee (UK).
10/27
GU11DC
11
on the fitting of a combined rod
Copper (Popular):
Specification for Industrial Immersion Heaters
thermostat with cut-out to meet the
safety requirement. Dual cut-out
21/4" BSP complete with Thermostat & Incoloy 825 Elements *Not recommended for aggressive water
immersion heaters are available in
Catalogue
No.
standard copper or Aqualoy variants for
use in more aggressive water areas.
Dual cut-out immersion heaters
Short
Code
Loading
kW
Phases
Immersed
Length
Thermostat
60-391301
RY211
2
1 only
11
Yes
60-391032
RY311
3
1 or 3
11
Yes
60-391303
RY330
3
1 or 3
30
Yes
60-391304
RY411
4
1 or 3
11
Yes
60-391305
RY416
4
1 or 3
16
Yes
60-391306
RY616
6
1 or 3
16
Yes
Economy7 Time Controller
Features & Benefits:
60-391307
RY630
6
1 or 3
30
Yes
The Redring Electronic 7 immersion heater controller
allows up to three secure off-peak heating periods every
24 hours to make the maximum use of cheap rate
structures – including split tariffs.
• One minute accuracy means no accidental
running over into full rate tariff periods
60-391309
RY724
7.5
1 or 3
24
Yes
60-391310
RY914*
9
1 or 3
14
Yes
• Suitable for use with single, dual or two element
immersion heaters
60-391311
RY927
9
1 or 3
27
Yes
60-390312
RY936
9
1 or 3
36
Yes
60-391313
RY1224
12
1 or 3
24
Yes
60-391314
RY1236
12
1 or 3
36
Yes
• Precise and flexible programming
• Pre-programmable automatic boost and one hour
manual boost
The standard heater for use in soft and normal water
areas. 1 year guarantee (UK).
Industrial Water Immersion Heaters:
• Incoloy 825 sheathed elements 21/4" BSP threaded
brass heads
• Control thermostat in Incoloy 825 pocket
• Corrosion resistant polypropylene terminal enclosure
which can be angularly rotated to any position
• Illuminated display for easy reading even in a
dark cupboard
• One touch winter/summer change button alters
setting and display
Dimensions Dualheat
4Height 115mm 4Width 170mm 4Depth 60mm
• Two year battery reserve protection against
power interruption
• Easy installation
• BEAB, WRAS and CE approved
Specification for Economy 7 Time Controller:
Product
Reference
Short
Code
Catalogue
Number
Supply
Power
Consumption
Live
Parts
Dirt
Protection
Moisture
Protection
Shock
Protection
Max. Op
Temp °C
Min. Op
Temp °C
Electronic 7
EC7
82-700206
240V AC, 50Hz
10VA max
Enclosed
Normal situations
Ordinary
Class 1
+35
0
• 230V - 240V, 13A. Suitable for immersion heaters up to 3kW. • Microgap on control. Full disconnection to immersion heater(s) on double pole isolator switch.
• 2 years reserve battery, total power disconnection. • Display: 6.35mm character height, backlit liquid crystal display, am/pm indication, Summer/Winter indication.
• Programme Settings: Off peak - up to 3 on/off periods. Boost - pre-programmable automatic boost and 1 hour manual boost.
• Mounting box materials: Thermoplastic, flame retardant.
38
39
Water Boiling Systems
SB Professional Beverage Water Boiler
SB Professional Beverage Water Boiler
A wall-mounted, self-calibrating and
Typical Specification: SB Professional
self-filling boiling water heater for
Supply and install a new Redring SB Professional wall
mounted water boiler as supplied by
Industrial and Commercial applications.
Applied Energy Products Ltd.,
Morley Way Peterborough PE2 9JJ.
Sales Hotline: 08709 000420.
It can be used for making cups of tea or
coffee and even soups and hot snacks.
Available in 7 capacity sizes, the 2.5 litre
model is ideal for small offices, ranging
to the 25 litre model suitable for a busy
Dimensions SB Professional 2.5L
canteen, community hall or hospital,
4A Height 430mm 4B Width 315mm4C Depth 210mm
4D Depth 125mm 4E Tap Height 185mm
Installation:
dispensing up to 150 cups of boiling
• Electrical connection via 1 metre cable supplied to
fused spur
water on demand and a delivery of 250
• Water entry bottom/rear via standard 15mm
compression fitting
cups per hour.
Dimensions SB Professional 5L
4A Height 510mm 4B Width 370mm4C Depth 250mm
4D Depth 170mm 4E Tap Height 185mm
• Install over sink, draining board, or drip tray
• The water boiler shall have a capacity ranging from
2.5 litres to 25 litres and 2.4kW element rating
• The water boiler shall incorporate bottom entry for
water, vent and 240 volt single phase electrical supply
Dimensions SB Professional 10L
• The water boiler shall be surface mounted 15mm
water supply to the unit and a 15mm vent which shall
drop to discharge to a suitable waste
4A Height 565mm 4B Width 425mm4C Depth 320mm
4D Depth 240mm 4E Tap Height 185mm
Dimensions SB Professional 15L
4A Height 565mm 4B Width 425mm4C Depth 320mm
4D Depth 240mm 4E Tap Height 185mm
SB Professional
Cat No:
22-7138-01
22-7158-01
22-7168-01
22-7178-01
22-7188-01
22-7193-01
22-7197-01
Dimensions SB Professional 7.5L
4A Height 510mm 4B Width 370mm4C Depth 250mm
4D Depth 170mm 4E Tap Height 185mm
• Open vent and overflow
Model:
2.5L
5L
7.5L
10L
15L
20L
25L
Dimensions SB Professional 20L
4A Height 630mm 4B Width 490mm4C Depth 350mm
4D Depth 270mm 4E Tap Height 185mm
• The water boiler shall be installed using an isolating
valve, and double check valve prior to the inlet of the
unit and in an accessible position
• The water boiler should be approved by BEAB for
electrical safety, WRAS for connection to mains water
systems and CE compliant to the low voltage directive
and electro magnetic compatibility directive
• The water boiler shall have a 2 year manufacturer’s
guarantee for UK use
Dimensions SB Professional 25L
4A Height 630mm 4B Width 490mm4C Depth 350mm
4D Depth 270mm 4E Tap Height 185mm
Key Features:
• Stainless steel water tank with fully insulated jacket to
minimise heat loss
• Robust corrosion resistant construction
• Brushed stainless steel cover wipes clean
• Neon ‘power on’ light
• Water temperature is automatically maintained
• Unit is fitted with manual reset safety device to avoid
boiling dry
• Manual reset thermostat for detecting excessive
steam in the event of water solenoid valve failure
• Condensation chamber for steam-free operation
• Open vent and overflow
• Provides for concealed plumbing and electrical
connection
• Operating pressure range between 2bar (29psi) and
10bar (140psi)
• Connects to 13 Amp (220-240V) double-pole fused
isolating switch
• 2 year guarantee (UK)
• BEAB, WRAS and CE approved
*To help you select the right size water boiler,
select the number of cups you will require in the
first hour of use from the specification chart below,
this will give you the appropriate capacity.
Specification
40
Product
Reference
Catalogue
Number
*Storage
Capacity
(Litres)
*First Hour
Delivery
(Cups)
Initial
Draw Off
(170ml)
SB Professional 2.5L
22-7138-01
*2.5
*125
15
SB Professional 5L
22-7158-01
*5.0
*135
30
Initial
Draw Off
(Litres)
Recovery
Rate
(Cups/hr)
Electrical
Approximate
Heating
Weight Kg
Element (kW)
Approximate
Laden
Weight Kg
2.5
125
2.4
6
5.0
125
2.4
7
12
8.5
SB Professional 7.5L
22-7168-01
*7.5
*150
45
7.5
125
2.4
8
15.5
SB Professional 10L
22-7178-01
*10.0
*175
60
10.0
125
2.4
9
19
SB Professional 15L
22-7188-01
*15.0
*200
100
15.0
125
2.4
10
25
SB Professional 20L
22-7193-01
*20.0
*225
120
20.0
125
2.4
12
32
SB Professional 25L
22-7197-01
*25.0
*250
150
25.0
125
2.4
13
38
41
SB2 Beverage Water Boiler
Wall kettle Corvette
The SB2 has been developed to deliver
The Corvette unit delivers boiling water
up to 154 cups of hot water every hour.
for drinks, beverages and washing up
This unique design provides hot water
needs from a permanently wired
for drinks and beverages instantly
installation. The water supply can be
eliminating the need for kettles and
permanently plumbed to the unit
minimising waiting times. Integral
providing a totally integrated boiling
sensors and controls provide automatic
water supply.
fill/top up and temperature management.
Key Features:
• Quick and easy installation
• Can boil from 1 litre to a maximum of 3.8 litres
• Easy to read water level indicator
• Detachable hose supplied, plumbing in kit required for
permanent supply
• Automatic switch off at boiling point with rapid reset
• Neon indicator clearly glows when water is being heated
• Extended spout for extra safe pouring
Installation:
• Economical to use
• Wall-mounted with rear or bottom plumbing
connection via a standard 15mm compression fitting
to the cold water mains
• Safety auto steam switch
SB2 Beverage Water Boiler
• Incorporates an overflow/vent connection that
discharges to a suitable drain
Corvette Wall kettle
7.2
kW
8.5
kW
• BEAB, WRAS and CE approved
Accessories:
Key Features:
• Available in 2.5 & 4 litre capacities
• Plumbing in kit to connect the Corvette directly to the
cold water mains (as featured)
• Thermostatically controlled to automatically set to
boiling point when the unit is first switched on
• Automatic fill and heat
• A single soft touch push-button for on/standby, and a
quarter turn rotary tap to dispense boiling water from
97° to 100°C. Three LED’s indicate power on, unit full
and temperature ready
• Microprocessor controlled for water level and accurate
temperature control
• High quality stainless steel sheathed heating elements
for long life in aggressive water areas
• CFC-free insulation to maintain water temperature and
ensure minimum energy loss
• On/standby function for energy saving
• Extended length filler hose 1.7m
• Integral scale trap to enhance the quality of the
beverage
• Extended length outlet spout 330mm
• Tap adaptor kit to connect the filler hose to nonstandard taps
• High impact, durable thermoplastic with WBS
approved water tank material
Installation:
• Electrical connection via a fused spur
• 2 year guarantee (UK) with an option to extend to
5 years
• BEAB, WRAS and CE approved
• Water entry via filler hose supplied, optional plumbing
kit, or manually
Dimensions Corvette Wall kettle
• The unit can be positioned over a sink or suitable outlet
Plumbing Kit
• Supplied 1m cable, cable tidy, wall mounting plate,
wall fixing kit, 1m filler hose and full installation and
user instructions
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Corvette
CV1
28-717201
min 1 - max 3.8
1.8 - 2.2
1mm2
13 amps
89-716201
-
-
-
-
Extended length filler hose
89-716202
-
-
-
-
Extended length outlet spout
89-716203
-
-
-
-
Tap adaptor kit
89-716204
-
-
-
-
Accessories
Specification
Product
Reference
Catalogue
Number
Short
Code
kW loading
@ 230/240V
Capacity
(Litres)
Initial draw
off (cups)
Recovery rate
(cups/hr)
First hour
delivery (cups)
SB2 2.5L
22-714401
RSB 2.5
2.0-2.2kW
2.5L
15
130
145
8
SB2 4L
22-714601
RSB 4
2.0-2.2kW
4L
24
130
154
13
• Minimum supply pressure 0.5bar (7psi) • Maximum supply pressure 10bar (145psi) • Electrical connection from suitable ring circuit via a switched/fused outlet.
42
• 3 year guarantee (UK)
• High quality stainless steel sheathed element
• Supplied with a hook-on wall bracket together with a
3-point screw fixing
Dimensions SB2
• 2-stage boil dry element protection
Heating time
(mins)
Plumbing in kit
• Stainless steel base plate.
43
Washroom Systems
Autosensor Touch-free Hand Wash Unit
Hand Wash Unit Instant 3 & 7
Autosensor is a unique hand wash unit
Economical and instant, these hand
operated by a no-touch sensor. Ideal for
wash units are compact and simple to
environments where cross-contamination
operate with a single on/off and
must be avoided, such as hospitals and
temperature control lever. They are also
food preparation areas. The unit is fitted
fitted with our patented Vortex spray
with a patented non-scaling vortex spray
outlet which eliminates the need for
outlet and an automatic shut-off to
costly maintenance due to the build-up
eliminate waste water.
of scale in hard water areas.
Unique, non-scaling patented Vortex spray head
Unique, non-scaling patented Vortex spray head
Autosensor
3
kW
Instant 3 & 7
3
kW
7.2
kW
Installation Vortex Spray:
Installation Vortex Spray:
• Direct connections to water mains
• Direct connections to water mains
• Standard 15mm pipework
• Top, bottom or rear cable entry
• Standard BSP 1/2" connections
• Full fixing pack supplied
Key Features:
Key Features:
• Touch free hygienic operation preventing cross
contamination
• Compact ergonomic design
• Standard 15mm pipework
• Top, bottom or rear cable entry
• Standard BSP 1/2" connections
• Single control lever for on/off and temperature selection
• Infra-red sensor activates water output for extra
economy
• Full fixing pack supplied
• Vortex spray outlet is non scaling and maintenance free
• ‘Heat on’ neon indicator
• Power on LED indicator
• Swivel 200mm stainless steel spray arm
• Timed shut-off set at approximately 20 seconds
• Easy clean polar white finish
• Vortex spray head is non scaling and maintenance free
• Overheat protection
• Swivel 200mm stainless steel spray arm
• Fully temperature stabilised
• Overheat protection
• No standing heat losses
• Fully temperature stabilised
• 3 year guarantee (UK)
• No standing heat loss
• Compact ergonomic design
• BEAB, WRAS and CE approved
Dimensions Autosensor
• 3 year guarantee (UK)
Accessories:
• BEAB, WRAS and CE approved
• Extended length spray arm, 380mm
Accessories:
• Short length spray arm, 160mm
Dimensions Instant 3 & 7
• Extended length spray arm, 380mm
Specification
• Short length spray arm, 160mm
Specification
Product
Reference
Short
Code
Catalogue
Number
Heat
Setting (kW)
kW Loading
@ 230-240V
Recommended
Cable Size
Recommended
Fuse Rating
Instant 3
13V
43-769715
3
2.7 - 3
1.5mm2
13 amps
13 amps
Instant 7
17V
43-769915
7.2
6.6 - 7.2
4 / 6mm
30 amps
-
-
Extended length spray arm
85-768322
-
-
-
-
-
-
Short length spray arm
85-768330
-
-
-
-
Product
Reference
Short
Code
Catalogue
Number
Touch Free Time
Cycle Cut-off
kW Loading
@ 240V
Recommended
Cable Size
Recommended
Fuse Rating
Autosensor
AV3
43-591015
20 - 25 seconds
3
1.5mm
Extended length spray arm, 380mm
85-768322
-
-
Short length spray arm, 100mm
85-768330
-
-
• Operating water pressure 0.7 - 7bar (10 - 100psi) • Water pressure operated power switch
44
2
2
• Operating water pressure 0.7 - 7bar (10 - 100psi) • Water pressure operated power switch
45
Automatic Hand Dryers AD1/AD10/AD10S
AutoFlush Water Management
Autoflush is a compact, unobtrusive
Hygiene is an area where warm air
automatic urinal flush controller which
dryers score significantly over paper or
maintains hygiene whilst eliminating
linen towels. Germ-free warm air is an
water wastage as required by Water
extremely hygienic drying medium –
Bylaw 83.
with no risk of cross-infection between
AD10S
Autoflush requires no electrical mains
users. Hand dryers are approved by the
connection and is supplied with a
Health and Safety Executive as well as
dedicated long-life lithium battery.
the Ministry of Defence for use in
AD1
commercial and office environments.
Also accepted by the National Health
Service resulting in increasingly
widespread use in British hospitals.
AD10
Autoflush
Installation Autoflush
Automatic Hand Dryers
7.2
kW
8.5
kW
Key Features:
Accessories:
AD1 Light to medium installations
AD10 Light to medium installations
• A powerful PIR sensor detects when someone
approaches the urinals and switches a solenoid valve
to open, allowing water to flush to the cistern
• Vandal proof cover
• Hand drying only
• Hand drying only
• Spare Battery
• Ideal for food preparation areas
• Ideal for surgeries, clinics and veterinary practices
• Note: Water Bylaw 83 states that where urinals are
installed there must be a method of controlling the
flushing, preventing inflow during times when they are
not being used.
• Class 2 insulation, so no need to earth
• Typical water savings of over 70% per annum. Capital
costs maybe recouped in less than two years
• Built-in cleansing flush (every 12 or 24 hours) for
maximum hygiene during unoccupied periods
• Fully automatic
• Infra-red no ‘touch’ on/off sensor to prevent cross
contamination
• 3 year guarantee (UK)
Dimensions AD10
• BEAB and CE approved
• IP24 rating
AD10S Light to medium installations
• BEAB and CE approved
• No mains electrical connection required, long life
lithium battery supplied. Red L.E.D indicates when
battery is low
• Typical applications: Offices, Public Conveniences,
Hotels, Restaurants, Leisure Facilities, Factories
• UK manufactured
• IP21 rating
• 2 year guarantee (UK)
• Choice of 10, 20 or 30 minute timed flow after
detection (factory set to 30 minutes)
Dimensions AD1
• Hand drying only
• Stainless steel cover
• Easy to clean
Dimensions Autoflush
• Fully automatic
• UK manufactured
• 1 year guarantee (UK)
• 3 year guarantee (UK)
• CE approved
Dimensions AD10S
• IP21 rating
• BEAB and CE approved
Specification
Specification
Product
Reference
Short
Code
Catalogue
Number
Sensor
Sensor
Range
Battery Pack
Supplied
Solenoid
Valve
Autoflush
AF1
27-900001
Passive infra-red
Up to 4m
10.5V, 3.6Ah lithium long life
9V DC latching (0-12bar)
96-900102
-
-
-
-
Spare Battery
• Non-corrosive Polar White ABS plastic box • Water connections: 15mm compression • Recommended Cable: 2 core, CSA 0.5mm2 (Outer diameter 5.4mm)
• Approvals: Restrictors - WRAS, Valve WRAS, Battery UL • Note - Designed to be used with a cistern. Unsuitable for pressurised systems.
46
Product
Reference
Short
Code
Catalogue
Number
Weight
(Kg’s)
Total Loading
@ 240V
Motor
Watts
Fan Motor
Speed (RPM)
Air Volume
M3/Hr
Air Velocity
M/Sec
Peak Air
Temp Rise °C
Noise Level at
1 mtr cb (A)
Autodry1
AD1
56-751501
1.9
1.5 kW
60
2500
120
15
60
63
Autodry10
AD10
56-750540
2.5
1.7 kW
100
2400
180
18
40
67
Autodry10S
AD10S
56-750541
2.5
1.7 kW
100
2400
180
18
40
67
• Heating element closed coil nickel chromium wire • Cover Stainless Steel (AD10S only) • Sensor range 150mm • Impact resistant plastic
47
AD20/30/50 Automatic Hand & Face Dryers
Automatic Hand & Face Dryers AD20/30/50
The reliable range of Redring automatic
dryers provides efficient and hygienic
hand and face drying.
AD20
Key Features –
AD20 Medium use installations
AD50C High use installations
• Hand and face drying
• High volume air-flow for faster drying
• Quiet operation – ideal for hospital wards or libraries
• Hand and face drying
With fully automatic operation the
• Fully automatic
• Ideal for motorway services, factories, schools &
sports centres
AD20 is ideal for installation where
• Cover cast aluminium alloy with epoxy paint
• Fully automatic
noise needs to be kept at a minimum
• UK Manufactured
• Cover cast iron vitreous enamelled
whilst the AD30 provides increased
• 3 year guarantee (UK)
• UK Manufactured
• IP23 rating
• 3 year guarantee (UK)
airflow for faster hand and face drying.
• IP23 rating
For installation at the busiest washrooms
the AD50 is highly durable making
Dimensions AD20
AD30 Medium use installations
• Hand and face drying
AD30
• Fast drying time – ideal for restaurants and hotels
it ideal for installations in airports,
• Fully automatic
factories and motorway service stations.
• Cover cast aluminium alloy with epoxy paint
• UK Manufactured
• 3 year guarantee (UK)
Dimensions AD30
• IP23 rating
AD50C
Dimensions AD50C
Dimensions AD50C
Automatic Hand & Face Dryers
Specification
Product
Reference
Short
Code
Catalogue
Number
Weight
Kg
Total Loading
@ 240V
Autodry20
AD20
56-751303
6.5
2 kW
Autodry30
AD30
56-751404
6.5
Autodry50C
AD50
56-751118
15
Motor
Watts
Fan Motor
Speed RPM
Air Volume
M3/Hr
Air Velocity
M/Sec
Peak Air temp
Rise °C
Noise Level at
1 mtr cb (A)
60
2800
150
12
50
64
2.4 kW
200
6000
220
22
50
78
2.5 kW
300
7000
250
25
50
78
• Sensor range 150mm
48
49
Space Heating Systems
Sunscreen Downflow Fan Heaters
High Level Fan Heaters Sunfan
The Sunscreen range of fan assisted
Sunfan is a robust 3kW high volume air
hot air curtains, designed for installation
throughput commercial/industrial wall
above external doors, effectively
mounted fan heater designed to provide
combats incoming cool air.
highly efficient heating in winter, or cool
The Sunscreen can also run cold,
air circulation in Summer.
forming a barrier against dust and giving
a cool refreshing breeze in Summer.
Versatile
brackets offer
flexible adjustment
3
kW
Dimensions Sunscreen
Sunscreen
4.5
kW
3
kW
Sunfan
Key Features:
Installation:
Key Features:
Accessories:
• High volume throughput Sunscreen 3 or 4.5kW 150
cu.ft. per minute
• Installation notes: Wall mounting requires holes to be
drilled in the wall to suit the location of the mounting
holes at the rear of the heater, otherwise the mounting
brackets should be used. Ideally heaters should be
mounted directly above the door but in any case not
more than 2.25 metres high and not less than 1.8
metres high.
• High air volume throughput of 300m3/hour
The dual control switch can be used to control the Sunfan
remotely, switching it both on and off and to fan only, for
cool air circulation in the Summer
• Integral switching simplifying installation
• Smooth running motors and balanced tangential fan
units for quiet and efficient operation
• Key hole slots are provided for ease of installation and
no back insulation is necessary when mounting direct
to wall
• Single end connection conduit or cable
• Quiet running, totally enclosed motor
Installation Sunfan
• Fan heating is not recommended for rooms greater
than 5 metres (15ft) high.
• Wall mounted with 2 part self supporting bracket
• Multi-directional adjustment of 45° vertically and
150° horizontally with single screw locking
• Remote control switch available as an option to
provide a cool air circulation facility
• 1 year guarantee (UK)
• Brackets are provided where adjustment for the air
flow is required, i.e. when mounted at high level to
serve as a multi-directional fan heater
• BEAB and CE approved
Dimensions Sunscreen
• Built-in thermal cut-out for added safety
• Supplied with fully adjustable wall mounted brackets
which offer flexible adjustment
• 1 year guarantee (UK)
• BEAB and CE approved
Specification
Specification
Product
Reference
Short
Code
Catalogue
Number
Colour
3kW Sunscreen
RS1
50-813905
4.5kW Sunscreen
RS3
50-813906
Recommended
Cable Size
Recommended
Fuse Rating
Product
Reference
Short
Code
Catalogue
Number
kW Loading
@ 230V
kW Loading
@ 240V
Fan only
@ 1m
@3m
Heater & fan
@ 1m
@3m
Element
Type
Cold, 1.5kW, 3kW
2.5mm2
13A
Sunfan
SF3
50-816401
3kW
3kW
49.5dBA
41.4dBA
47.9dBA
40.5dBA
Open wound spiral
Cold, 2.25kW, 4.5kW
4.0mm2
13A
Dual Control Switch
82-815906
-
-
-
-
-
-
-
kW Loading
@ 240V
Switching
Grey
3kW
Grey
4.5kW
Sunscreen • Element - Open coil supported by ceramic insulators • Zinc coated steel, powder coated body • Shaded pole motor
50
Sunfan • Flame retardant polycarbonate / glass filled nylon body • Single phase, 4 pole motor • Two tone grey (neutral colours) • Safety features - Two thermal cut-outs, double insulated.
51
Sunspot Fan Heaters
Tubular Heaters Suntube
Sunspot is an efficient 2.25kW fan
Suntubes are the perfect answer where
heater for high level wall mounting
a steady energy efficient source of heat
providing directional localised heat with
is needed, providing gentle background
adjustment through 90°. There is a cool
warmth and frost protection for both
air recirculation facility for summer.
domestic and commercial applications.
Sunbase is an integrally controlled
They are highly effective as window
space saving fan heater which provides
demisters and for horticultural use,
warmth in winter or cool air in summer.
providing invaluable, effective heating
Specially designed to occupy the space
and frost protection in greenhouses
beneath cupboards, counters, display
and conservatories.
units or plinth mounted in fitted kitchens.
2.25
kW
Sunspot
Dimensions Sunbase
2.0
kW
Sunbase
Suntube
Key Features:
Sunspot
Key Features:
Note:
Sunbase
• 60-360W outputs @ 240V
• High volume throughput, 130 cu. ft. per minute
• Saves valuable wall and floor space
• A range of 6 lengths and loadings
• Integral switching 1.1kW, 2.25kW and cold settings
simplifying installation
• Low level mounting gives good heat circulation
• SB1 integral switching simplifies fitting in existing units
• Complete with universal mounting brackets for floor or
wall fixing and 1m of white cable
We recommend the use of guards for additional security in
sensitive areas such as schools, hospitals and old peoples
homes. These can be obtained from C.Aino Ltd.
Tel: 0207 987 1184 quoting the short guard code from
table below.
• Built-in variable capillary thermostat for convenience
and energy efficiency
• Optional interlinking kit available for multiple
installations (100mm mounting centres)
• 2 heat settings 1kW - 2kW plus fan only operation
• Can be stacked using purpose designed inter-linking
kit for greater degree of heating
• Smooth running motor with balanced tangential fan
unit for quiet and efficient operation
• Built-in thermal cut-out for added safety
• Wall mounting fittings included
• Built-in neon indicator
• 1 year guarantee (UK)
• Over temperature cut-out for safety
• BEAB and CE approved
• Central support flange for easy installation
Dimensions Sunspot
• 1 year guarantee (UK)
• BEAB and CE approved
• Fit as initial equipment or retrofit in existing units
• BEAB and CE approved
Specification
Product
Reference
Specification
Catalogue
Number
Suntube
Short Code
Guard
Short Code
Rating
230-240V
Length
(mm)
Diameter
(mm)
Depth
(mm)
Suntube 410
51-731110
ST1
STG1
60 Watts
410
52
75
Suntube 670
51-731101
ST2
STG2
120 Watts
670
52
75
Suntube 980
51-731102
ST3
STG3
180 Watts
980
52
75
Product
Reference
Short
Code
Catalogue
Number
Colour
kW Loading
@ 240V
Heat
Setting
Recommended
Cable Size
Recommended
Fuse Rating
Suntube 1280
51-731103
ST4
STG4
240 Watts
1280
52
75
Suntube 1590
51-731105
ST5
STG5
300 Watts
1590
52
75
Sunspot
RS2
50-813907
Grey
2.25kW
1.1 - 2.2kW
1.5mm2
13 amps
Suntube 1890
51-731104
ST6
STG6
360 Watts
1890
52
75
Sunbase
SB1
50-815404
Grey
2.0kW
1.0 - 2.0kW
1.5mm2
13 amps
Interlinking Kit
85-731506
-
-
-
-
-
-
Sunspot • Element - Open coil supported by ceramic insulators • Zinc coated steel, powder coated body • Shaded pole motor • Grey colour • Single end connection conduit or cable
Sunbase • Element - Open coil supported by ceramic insulators • Zinc coated steel, powder coated body • Grey colour • Rear cable connection
52
Suntube • Elements - Metal sheathed throughout • Polyester epoxy powder coated aluminium body for corrosion resistance • Two Tone Grey colour
• High temperature glass filled nylon end caps/fixing brackets • Single end connection, conduit or cable
53
Sunslim Radiant Infra-red Heaters
Long Wave Infra-red Heaters Ceramic
Sunslim is a low cost, robust and easy
Long wave infra-red heaters offer
to install radiant heater. Its tilt mounting
highly efficient, silent, glare free
allows heat to be localised, or directed
localised heat. These heaters incorporate
at a general area. The Sunslim can be
dual ceramic emitters to rapidly convert
wall-mounted or ceiling hung.
electrical energy into heat energy without
producing light.
With no moving parts these heaters are
virtually maintenance-free.
Key Features:
• Instant, directional radiant heat
• Available in 2 and 3kW versions
• Completely silent in operation
• Lightweight, robust and good looking
• Corrosion resistant
• Suitable for bracket or chain mounting
• Easy to install
• Overhead mounting means no loss of floor space
• Ideal for localised heating in large covered areas
Dimensions Ceramic Model 2/3kW
• 1 year guarantee (UK)
4A Height 340mm4B Width 376mm4C Depth 140mm
• CE approved
2.0
kW
Installation:
3
kW
Sunslim
2.0
kW
Ceramic
3
kW
4.5
kW
When planning a Radiant Heating installation, refer to
Table 1 to select the application and type of environment
you wish to heat.
Table 2 shows the area that can be heated by a single
Sunslim Radiant Heater in 3kW and 2kW variants.
Note: Heating areas can be overlapped to achieve the
necessary heating index.
Table 1 - Sunslim Heating Index
Applications
Key Features:
• Durable ceramic emitters which rapidly convert
electrical energy into heat energy
Heating Index
Offices, Canteens, Waiting Rooms,
Entrance Halls, Dressing Rooms
10-14
• Available in 2, 3 and 4.5kW versions
Installation Notes:
Shops, Meeting Halls, Recreation Rooms, Clubs
12-16
• High temperature cable must be used. We recommend
the use of a residual current device (RCD)
Workshops, Garages, Public Buildings
14-18
• No fans or moving components so no dust
contamination to the environment
Warehouses, Loading Bays, Hangars
16-20
Churches
18-20
• Fitted with guards for personal protection
• Robust fitting brackets
• Unique temperature spot indicator (green when cold,
black when hot)
• 1 year guarantee (UK)
• Low maintenance
• CE approved
Installation Ceramic
• Good vibration resistance
For mounting dimensions please refer to the specification
table below.
Table 2 - Sunslim Heated Area
Installation Sunslim
Heating index
H
4.0
3.6
3.2
3.5
2.8
10
12
14
16
18
3kW
L
5.24
4.88
4.51
4.33
4.14
W
5.49
4.94
4.39
4.12
3.84
H
3.3
3.0
2.7
2.5
-
2kW
L
4.11
3.84
3.57
3.38
-
W
4.53
4.12
3.70
3.43
-
H = mounting height (determined by on-site requirements), L = length of the heated area, W = width of the heated area
Specification
Mounting Dimensions
Area of Coverage at Minimum Mounting Height
Heating index
Applications
2kW
130-150W/m
2
3kW
Shops, Meeting Halls
7.2m
150-170W/m
2
Offices, Canteens
170-200W/m2
220-240W/m2
4.5kW
Mounting
Dimension A
Mounting
Dimension B
Mounting
Dimension C
17.7m2
1800
300
200
10.0m2
15.7m2
2500
300
300
7.8m2
12.3m2
3000
500
500
12.0m
2
18.8m
6.8m
11.3m
2
Workshops, Garages
6.0m2
Churches
4.7m2
2
2
2
Specification
Product
Reference
Short
Code
Catalogue
Number
Rating
230-240V
A Height
B Width
C Depth
2kW Sunslim
SL2
51-804902
2kW
108mm
1215mm
71mm
3kW Sunslim
SL3
51-804903
3kW
108mm
1671mm
71mm
Sunslim • Element - Metal sheathed throughout • Zinc coated steel body • Chrome plated steel guards • Matt black with bright zinc body • Single end connection
• Anodised aluminium reflector • Installation notes: High temperature cable must be used. We recommend the use of a residual current device (RCD)
54
Dimensions Ceramic Model 4.5kW
4A Height 440mm4B Width 376mm4C Depth 140mm
Product
Reference
Short
Code
Catalogue
Number
Rating
2 kW Ceramic
CR2
71-821541
2kW
3 kW Ceramic
CR3
71-821542
3kW
4.5 kW Ceramic
CR45
71-821543
4.5kW
55
Sunquartz Infra-red Heaters
Infra-red Heaters Sunquartz
The sensation and welcome of instant
Specification:
heat right where it’s needed. Sunquartz
• Heaters
Tungsten halogen lamps, 240/230 volt rating, with ruby
red quartz outer sleeve, 7000 hours rated average life
short wave infra-red heaters warm
people, not the air. Their uses are
• Reflectors
Bright rolled, specular 99.8% aluminium, electrochemically brightened
endless, from warehouses to churches.
These efficient sun-like heaters can
• Case
Electro zinc coated steel
penetrate damp air with little waste to
Installation Sunquartz
Installation Sunquartz
the atmosphere.
• High temperature cable must be used
• High temperature cable must be used
• Miniature circuit breakers (type 3) must be used
• Miniature circuit breakers (type 3) must be used
• End Castings
High pressure die cast aluminium
• The heaters must never be rotated to face a wall,
ceiling or floor
• Finish
Epoxy polyester powder paint
• Units may be installed from the ceiling but MUST be
mounted at an angle
• Colour
Case: BS4800 00A13 White side bars and brackets:
BS4800 0013 Grey
• Maximum benefit is gained from receiving heat from
both sides
• Connection
Rear connection to terminal block via cable clamp
• Prior to installation check that no hazardous vapours
will be present in the immediate atmosphere
• Voltage
The 1 and 2 lamp units are suitable for a 230-240V
single phase supply only. The 3 lamp units are supplied
wired for 230-240V single phase supply, but can be
connected to a 380-415 volt three-phase supply
Table 1
Sunquartz - Heating Index (K) Recommended Applications
Sunquartz
Key Features:
130 - 170
Shops, Meeting halls, Recreation rooms, Clubs
150 - 170
Offices, Canteens, Waiting rooms, Entrance halls
150 - 200
Workshops, Garages, Public buildings
180 - 220
Warehouses, Loading bays, Hangars
220 - 240
Churches
Installation:
Use the following procedure when planning a SunQuartz
heating installation for buildings having a floor area of up
to 500m2
1 Make a scaled plan of the area to be heated, noting
possible mounting heights and positions
2 Determine the overall heating requirements
• Up to 90% efficient at converting electricity into energy
• Instant visible heat at switch on
WxYxK = Total kW loading
1000
• Penetrates damp air with minimum atmospheric
heat loss
Automatic Controller:
• Absolutely silent in operation
This automatic controller, which senses movement by
passive infra-red techniques, will automatically switch
on the Sunquartz whenever movement is detected
within its range. The heater will remain switched on for
a preset time after the last movement is detected and
then will switch off automatically.
• Long range heat projection
• Modular design blends with all environments
• Lightweight and silent
• Fitted with wire guard for safety
• CE approved
The unit is suitable for 220V/240V single phase
operation and will switch 500W-6000W of heaters.
Dimensions
Specification
• 1 year guarantee (UK)
Model
56
Dimensions mm
A Height
B Width
Key:
Soft start circuitry is incorporated to reduce the inrush
current allowing cables and fusegear to be rated as for
resistive loads and extending lamp life. The unit is wall
mounted and its passive infra-red sensor must face the
same directional plane as the heater. The P.I.R. range is
adjustable and a temperature hold off facility will inhibit
operation when ambient temperatures exceed a value
selected between 10° and 20°C.
W= Length to be heated in metres
Y = Width to be heated in metres
K = Intensity watts per m2, determined from
Heating Index Table 1
3 Determine the number of SunQuartz heaters by
dividing the kW rating of the selected units into the
total kW loading from stage 2
Min Mounting Distances
A mm
B mm
C mm
Product
Reference
Short
Code
Catalogue
Number
Rating
C Depth
Number Of
Lamps
Spare Tube
Number
55-821202
SQ 1.5
55-821202
1.5 kW
1
85-821421
55-821203
SQ 2.0
55-821203
2.0 kW
1
85-822171
55-821204
SQ 3.0
55-821204
3.0 kW
2
85-821421
55-821205
SQ 4.0
55-821205
4.0 kW
2
85-822171
55-821207
SQ 4.5
55-821207
4.5 kW
3
85-821421
85-822171
Sunquartz 1.0kW
185
390
115
1800
300
200
Sunquartz 1.5kW
185
390
115
1800
300
300
Sunquartz 2.0kW
185
390
115
2500
300
300
Sunquartz 3.0kW
340
390
115
3000
500
500
Sunquartz 3.0kW 3 lamp
510
390
115
3000
500
500
Sunquartz 4.0kW
340
390
115
3000
500
500
Sunquartz 4.5kW
510
390
115
3000
500
500
55-821208
SQ 6.0
55-821208
6.0 kW
3
Sunquartz 6.0kW
510
390
115
4000
500
500
Automatic Controller
85-822084
-
-
-
57
Total Service Solutions
Total Service Solutions
Total Service Solutions
Technical Services
When buying Redring products, you
Our Technical Services Call Centre is staffed by a team
trained in diagnosing and rectifying potential concerns
over the phone, whether or not the product you have
purchased is in guarantee.
already know that they will be of the
highest quality and will provide many
years of trouble-free operation.
However, for peace of mind, Redring’s
after sales service is second to none.
Most products are covered by a full
If for any reason they are unable to
solve the problem by phone, they will brief an engineer,
prior to the visit, to ensure that wherever possible, the
problem is fixed first time.
The team also provide advice on application, installation
and operation, ensuring that our customers receive the
full benefit from purchasing a Redring product.
parts and labour guarantee of up to 3
years* from the date of purchase, so
should the product become faulty within
the guarantee period, it will be replaced
For further information
Tel: 08709 000430
Fax: 08709 000530
with a new product or repaired by
dedicated service engineers, totally free
of charge.
As market leader, Redring prides itself on
engineering excellence and the range of
services offered to customers.
Sales Hotline: 08709 000420
Sales Fax:
08709 000520
www.redring.co.uk
*Conditions apply.
Application Design
Spares
A free design service is available to customers wishing
to use Redring, Xpelair or Creda Heating products in their
building projects. Design work can be carried out from
scaled architect’s plans (1:100 min), construction and
insulation data of the property, ventilation requirements
etc. these should be supplied with any request for design
work. Applied Energy engineers are experienced in all
areas of water heating, space heating and ventilation and
are able to offer: -
Regular maintenance and servicing of Redring products
is recommended to ensure the longevity of your Redring
product. From time to time it may be necessary to
replace components to extend the life of the product.
Redring provide a wide range of spare parts covering
current and old products, making maintenance simple
and effective.
• Consultation to select the optimum design and
product specification of the job
• Calculation of building and room heat losses to CIBSE
and other standards, water heating and ventilation
requirements
• Designs that meet both building and health & safety
regulations where required
• Sizing and selection of products to your own or
national specification requirements
• Estimated operating and equipment costs
• Energy ratings carried out on dwellings based on
NHER and SAP
For further information
Tel: 01782 385779
Fax: 01782 385893
58
For further information
Tel: 08709 000420
Export
Redring is a great British brand in every sense of the
word but for many years it has been a world leader in
water heating and space heating with sales in excess of
fifty countries world-wide.
Redring has achieved this by taking into consideration
global market requirements and ensuring products are
developed to meet these needs. We have developed
products for specific countries and regions, taking into
consideration approvals, electrical supply and climate.
For further details either call your local Redring
distributor or
For further information
Tel: +44 (0)1733 456 737
Fax: +44 (0)1733 456 727
59
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
