psh-v1.bk : 6xa1mt.fb4 Page 1 Tuesday, March 11, 1997 1:16 PM
5

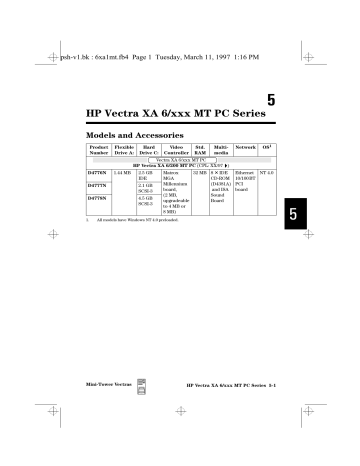

HP Vectra XA 6/xxx MT PC Series
Models and Accessories
Product
Number
Flexible
Drive A:
Hard
Drive C:
Video
Controller
Std.
RAM
Multimedia
Network
OS1
Vectra XA 6/xxx MT PC
HP Vectra XA 6/200 MT PC (CPL: XX/97 )
D4776N
1.44 MB
2.5 GB
IDE
D4777N
2.1 GB
SCSI-3
D4778N
4.5 GB
SCSI-3
1.
32 MB
Matrox
MGA
Millennium
board,
(2 MB,
upgradeable
to 4 MB or
8 MB)
8 ✕ IDE
CD-ROM
(D4381A)
and ISA
Sound
Board
Ethernet NT 4.0
10/100 BT
PCI
board
All models have Windows NT 4.0 preloaded.
Mini-Tower Vectras
HP Vectra XA 6/xxx MT PC Series 5-1
5
psh-v1.bk : 6xa1mt.fb4 Page 2 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
Supported Accessories
8-MB kit (2 ✕ 4-MB) 32-bit EDO, 60 ns main memory modules
D3646B
16-MB kit (2 ✕ 8-MB) 32-bit EDO, 60 ns main memory modules
D3647B
32-MB kit (2 ✕ 16-MB) 32-bit EDO, 60 ns main memory modules
D3648B
64-MB kit (2 ✕ 32-MB) 32-bit EDO, 60 ns main memory modules
D4543A
2-MB, 50 ns video memory upgrade kit
D3557B
Documentation
HP Vectra XA MT User’s Guide Manual Kit
D4780A
Input Devices
HP mouse
C3751B
HP keyboard for Windows® 95
C4725A
Video Displays
5
All current HP Displays (see the HP Vectra Accessory Service Handbook)
Mass Storage
1.2-GB IDE hard disk
D2785A
2.5-GB IDE hard disk
D2786A
2.1 GB SCSI-3 hard disk
tbd
4.5 GB SCSI-3 hard disk
tbd
Flexible disk 3.5-inch 1.44-MB (1-inch high)
D2035B
IDE 8✕ CD-ROM drive
D4381A
Multimedia sound accessory kit (8✕ CD-ROM drive, Plug-and-Play ISA audio
board, headphones)
D4179A
3.5-inch side mounting rails (packs of 5 pairs)
D3566A
5.25-inch side mounting rails (packs of 5 pairs)
D2880A
5-2 HP Vectra XA 6/xxx MT PC Series
Mini-Tower Vectras
psh-v1.bk : 6xa1mt.fb4 Page 3 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
System Board, BIOS, and Memory
System Board Switches
Processor:
Zero Insertion Force (ZIF)
socket allows upgrades
using overdrive
processors.
Main Memory:
32 MB fitted as standard.
Install pairs of identical
modules in each bank, up
to a maximum of 192 MB.
Mini-Tower Vectras
5
HP Vectra XA 6/xxx MT PC Series 5-3
psh-v1.bk : 6xa1mt.fb4 Page 4 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
System Board Switches
Switch
1-5
6
7
8
9
10
1.
5
Function
-
Default
Processor frequency, see the table below
-
Open
Normal operation
Closed
Clear the configuration data (in CMOS memory)
Open
Normal operation
Closed
Clears all passwords
Open
Open
Open
Disables keyboard power-on
Closed
Enables the PC to be turned on from the space bar on the
keyboard
Open
Normal operation
Closed
Clears the Product Identification (XA)1
Open
Normal operation
Closed
Open
Open
If the the Ethernet Interface section does not appear in Setup (for example when replacing
the system board), refer to the warning at the end of the “Ethernet 10/100 BaseT Network
Connections” section on page 5 .
Switch
1
2
3
4
5
Processor
Frequency
Frequency
Ratio
Processor :
Local Bus
Local Bus
Frequency
Closed
Open
Open
Closed
Open
180 MHz
3:1
60 MHz
Open
Open
Open
Closed
Open
200 MHz
3:1
66 MHz
BIOS History
The latest BIOS, the flasher utility program, and the BIOS history can each be
obtained from the World Wide Web:
http://www.hp.com/go/VectraSupport.
5-4 HP Vectra XA 6/xxx MT PC Series
Mini-Tower Vectras
psh-v1.bk : 6xa1mt.fb4 Page 5 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
Ethernet 10/100 BaseT Network Connections
The 10/100 BT board has two RJ-45 UTP connectors, one for 10BaseT
networking (supporting remote power-on) and one for 100BT networking
(supporting remote wake up, but not remote power-on).
Ethernet 10/100 BaseT network board
100 Base T
10 BaseT
5
Warning
If the the Ethernet Interface section does not appear in Setup
(for example when replacing the system board), proceed as
follows:
❒ Switch off the PC.
❒ Set the system board switch 9 to closed (clears the product identification
field) and ensure that the Ethernet Interface is properly plugged in.
❒ Switch on the PC to clear the product identification field in the BIOS and then
switch it off again.
❒ Set the system board switch 9 to open (normal operation) and switch on the
PC.
❒ The PC prompts for new information. By identifying the product correctly, the
BIOS is able to tailor itself for the particular product, and to enable the
appropriate features.
Mini-Tower Vectras
HP Vectra XA 6/xxx MT PC Series 5-5
psh-v1.bk : 6xa1mt.fb4 Page 6 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
Main Memory
The PC has three banks on the system board for installing main memory; banks
A, B and C. Each bank consists of two sockets. The PC is supplied with 16 or
32 MB of main memory (composed of two memory modules installed in any
bank). The PC uses 60-ns EDO DRAM.
Memory modules must be installed in identical pairs, so that each bank with
memory installed contains two memory modules of the same size and type
(both EDO, or both FPM).
Main memory can be installed up to a maximum of 192 MB.
Video Memory
5
The PC is supplied with 2 MB of video memory. An additional 2 MB of video
memory can be installed by adding a D3557B module in the video memory
socket. This will make a total of 4 MB. Alternatively, an additional 6 MB of video
memory can be installed by adding an MGA-MIL/MOD6 module in the video
memory socket (ordered from Matrox); this will make a total of 8 MB.
Matrox Video Board Switches
Switch
1
2
Function
· OFF to prevent Video BIOS upgrades - DEFAULT
· ON to allow Video BIOS upgrades
· OFF for single-screen operation - DEFAULT
· ON for dual-screen operation (with second VGA controller)
Replacing the Processor Chip
If any thermal interface material, such as aluminium
foil or silicone, is supplied with the heat-sink or the
processor chip, place it carefully on the top of the
processor before installing the heat-sink.
5-6 HP Vectra XA 6/xxx MT PC Series
Mini-Tower Vectras
psh-v1.bk : 6xa1mt.fb4 Page 7 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
Part Numbers
5
Mini-Tower Vectras
HP Vectra XA 6/xxx MT PC Series 5-7
psh-v1.bk : 6xa1mt.fb4 Page 8 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
Parts List for HP Vectra XA 6/xxx MT PC
Item
1
5
1.
2.
Description
Box assembly:
Repl.
Part Number
5064-0236
a
b
c
d
e
f
5063-8737
5062-5590
45935-00004
5063-7066
5064-1880
5042-0507
Status panel
Cover lock assembly
I/O panel blank
Filler panel 5.25 inch
Lock panel
System board guide
Exchange
Part Number
—
2
Rear bezel connector label
5042-1831
—
3
4
XA MT logo
Hard disk drive (standard) 1
5042-1498
—
IDE 2.5 GB (D2786A)
D2784-63001
D2784-69001
SCSI-3 2.1 GB (D2788A)
SCSI-3 4.5 GB (D2794A)
D2788-63001
D2794-63001
D2788-69001
D2794-69001
5
IDE hard disk cable
5182-3507
—
6
Rail kit (3 × 5.25 inch)
5063-7961
—
7
8
Flexible disk drive
Flexible disk drive cable
D2035-63152
5182-3509
—
—
9
IDE 8✕ CD-ROM drive
—
D4381-69001
10
11
IDE CD-ROM cable
Power supply
5182-3508
5063-8760
—
—
12
Fan
3160-1054
—
13
14
Airflow guide
Backplane board
5042-1484
5064-0244
—
—
15
System board
See PC’s system board parts list
16
17
Matrox Millennium video board Rev. 6.00
Audio board
5063-9057
D3568-69006
—
18
CD-ROM to Audio Board cable
5182-1857
—
19
20
Headphones
Internal speaker
5182-3552
5063-4559
—
—
21
Mouse
C3751-60201
—
22
10/100 BT Ethernet PCI Network card
5064-1802
23
24
Internal network cable
SCSI-3 interface board
5182-5403
5064-1823
25
Internal SCSI cable
5183-0731
Keyboard
C3758-602xx2
5064-0285
—
For optional disk drive information, see the Accessory Service Handbook.
Where “xx” is the code for your national keyboard (see the Accessory Service Handbook).
5-8 HP Vectra XA 6/xxx MT PC Series
Mini-Tower Vectras
psh-v1.bk : 6xa1mt.fb4 Page 9 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
System Board Parts List for HP Vectra XA 6/xxx MT PC
Description
Repl.
Part Number
Exchange
Part Number
System board:
Vectra XA 6/xxx MT system board
D4205-60001
D4205-69001
Processors:
Intel Pentium Pro (P6) 200 MHz
5063-8756 or 5064-1805 —
Thermal interface material
6040-0939
—
Heatsink and clip
1205-1170
—
D3648-63001
—
D3557-63002
—
Main memory modules1:
2 ✕ 16-MB main memory 60-ns EDO RAM
Video memory module:
2 MB video memory module
Batteries:
External battery
tbd
3 V system board battery (type CR2032)
1420-0356
1.
—
Memory modules must be installed in identical pairs, so that each bank with memory
installed contains two memory modules of the same type and size.
Software for HP Vectra XA 6/xxx MT PC
NT, OS/2 and Windows 95 drivers:
HP Vectra VA and XA Drivers CD-ROM
5011-3831
Multimedia software
5964-8365
DOS and Windows 3.x drivers:
available from HP BBS or WWW
—
Manuals and Documentation for HP Vectra XA 6/xxx MT PC
User’s Guide (Setting up the PC and Troubleshooting)
D4708A
HP Help (Using the PC and Technical information)
online 1
Familiarization Guide
D4200-90901
Technical Reference Manual: hardware and BIOS
No number 1
1.
Electronic file only.
Mini-Tower Vectras
HP Vectra XA 6/xxx MT PC Series 5-9
5
psh-v1.bk : 6xa1mt.fb4 Page 10 Tuesday, March 11, 1997 1:16 PM
HP Vectra XA 6/xxx MT PC Series
Notes: _____________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
5
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
____________________________________________________________________
5-10 HP Vectra XA 6/xxx MT PC Series
Mini-Tower Vectras
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
