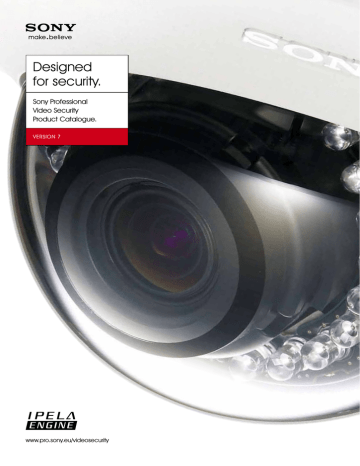

Designed
for security.
Sony Professional
Video Security
Product Catalogue.
VERSION 7
www.pro.sony.eu/videosecurity
1
VIDEO SECURITY
INTRODUCTION
The future of video
security is here.
Contents
Key Features
4
IP Fixed Cameras
15
IP Mini-dome Cameras
26
IP Rapid Dome or PTZ Cameras
38
Hybrid Cameras
50
Encoder
54
Recording Solutions
56
Accessories
60
Compatibility Tables
88
Index
90
At Sony we understand that every site is different, every user has different requirements
and every installer has different needs. Some sites are analogue and some are IP, some
are a combination of both and some sites simply have nothing at all. The one thing which
remains consistent is the demand for high quality, cost effective surveillance solutions.
t Go HD
Install Sony HD and Full HD cameras
for high quality IP surveillance.
t G
o Migrate
Migrate from analogue to IP
with hybrid recording solutions.
t G
o Advance
Advance your capabilities.
Forward thinkers use the number one
software choice.
t G
o Capture
You can capture everything with Sony
Professional surveillance cameras.
t G
o Convert
Convert your video security network
with intelligent encoder solutions.
Sony has an impressive background in
both analogue and IP technologies, and
is very confident of its expertise in
capturing the best possible image. As
the industry moves more and more
towards IP, Sony builds on its heritage by
releasing cutting edge HD and Full HD
cameras, whilst also developing a full
range of encoders and hybrid recorders.
HD and Full HD cameras are increasingly
being installed as the preferred format
for high quality IP surveillance. As this
demand grows, so too does the need
for innovative and value added features.
To satisfy this demand, Sony has
introduced such features as View-DR,
XDNR, Visibility Enhancer, DEPA and
Adaptive IR which are now seen as vital
and take the IP video surveillance
industry “Beyond HD”.
At Sony, we believe that selecting a
camera designed for security focuses on
three key points to satisfy the demand for
clarity - Sensitivity, Wide Dynamic Range
and Resolution.
Sensitivity
Simply speaking, crime typically
happens at night or when lighting
conditions are at their worst. For this
reason, Sony has focused its efforts on
designing sensors that can operate in
extremely low lighting conditions and
have introduced a range of cameras
with features such as, True Day/Night,
Adaptive IR, XDNR and Visibility Enhancer.
These cameras all present the best
possible picture – sharp, clear and free
from motion blur.
Wide Dynamic Range
For many years, installers have often
located cameras pointing them in
directions not preferred by the end user,
but trying to find a compromise between
the location of camera born from a
security requirement and what can
actually be seen from its output. To solve
this, Sony introduced View-DR, the best
wide dynamic range technology in the
industry at 130db.
Resolution
Finally, there is a need for a camera
that not only gives the clarity, but also
has the resolution to be able to see the
detail required. Be it a wide area of
surveillance for an excellent overview
of a site, or a much more narrowed field
of view for facial or number plate
registration.
Building on this need for clarity, Sony’s
new range of video security cameras
offer significant picture quality
enhancements to present images better
than the human eye can visualise.
SNC-ER550 & SNC-ER580
2
3
VIDEO SECURITY
VIDEO SECURITY
KEY FEATURES
KEY FEATURES
DR
View-DR.
DR
View-DR technology from Sony offers an extremely wide
dynamic range.
Brilliant clarity even with strong
backlighting
View-DR is one of Sony’s strongest and most
powerful features. Combining the power of
our new Exmor CMOS sensor with Visibility
Enhancer, we bring you the industry’s bestin-class wide dynamic range at 130db.
Real time, within the camera, we can take
up to 120 pictures per second. Four of
these pictures, each taken with a different
exposure time, are then combined using
a complex algorithm. Visibility Enhancer is
then applied to enhance the colour tones
and brightness further.
As can be seen from the examples shown
below, this feature is invaluable in scenes
which suffer from strong backlighting.
Typically installers would choose between
repositioning the camera away from the
back lighting, or adding artificial lighting to
those areas that have been made dark.
For the end user this is not the best solution,
they need a camera which can be installed
anywhere and gives them brilliant picture
quality in all lighting conditions, all year round.
Using this technology will not introduce
motion blur and does not limit the
camera’s frame rates or resolution. You
will still be able to encode HD video at full
frame rate and can even dual stream too.
1/60 s
1/60 s
View-DR.
View-DR is realized in the latest Wide-D technology, the Exmor CMOS sensor with a highspeed readout capability, and adaptive image enhancement with a Visibility Enhancer
feature. Sony cameras with View-DR function can reproduce the details of objects and
backgrounds, even in high-contrast conditions.
Visibility enhanced wide Dynamic Range
View-DR OFF
View-DR ON
View-DR OFF
View-DR ON
View-DR OFF
View-DR ON
Exposure Time
Standard Exposure Time
View-DR
Dedicated
Algorithm
Short Exposure Time
High-speed readout by
Exmor CMOS sensor
Captured Image by
Shorter Exposure Time
Shortest Exposure Time
Captured Image by
Captured Image by
Captured Image by
Visibility Enhancer
Combine the four images
to reproduce a
high-contrast image.
Apply “Visibility Enhancer” for high
chrominance and luminance.
One image is taken using a standard exposure time and either one or three images are
taken using very short exposure times, depending on the camera type.
(This illustration shows one standard exposure time and three very short exposure times.)
4
5
VIDEO SECURITY
VIDEO SECURITY
KEY FEATURES
KEY FEATURES
IR
IR Illuminator.
H.264 – the latest industry standard…
as standard.
Low visibility in dark scenes is one of the greatest challenges of HD and megapixel
cameras within the video security industry, with the dilemma of high resolution or
high sensitivity. With the new range of Sony IP Surveillance cameras with built in IR
Illuminators, you can now have both.
Sony Professional has adopted H.264 – the latest
compression standard – in all of its latest network cameras,
providing enhanced images with reduced bandwidth.
Designed to work in zero lux, these
cutting-edge cameras offer a significant
improvement in sensitivity and clarity over
rival IP and analogue cameras.
Better quality, reduced bandwidth
H.264 (MPEG-4 Part 10) was developed
to provide high-quality video at a much
lower bit rate than standard MPEG-4 or
JPEG. As a result, H.264 compression
represents a significant benefit to
network security camera operations,
offering enhanced images with reduced
bandwidth.
Using Sony Exmor sensors and embedded
infrared LEDs, the sensitivity of the camera
is maximised and, with the introduction of
semi-covert IR light, distinguishing details
can be identified at a distance of 15
metres without generating excessive light
pollution or experiencing motion blur.
Combining the camera with the IR LEDs
has a number of significant benefits.
Installation time is drastically reduced
while ensuring the quality of the install
is maximised. Using PoE, the cost of the
install can greatly be reduced as there
is no need to install separate power for
the camera or external IR lamp. The IR
Illuminators will activate automatically
when the camera detects the lighting
conditions have dropped and the
mechanical IR cut filter will be removed
to maximise the cameras sensitivity. The
camera can automatically refocus itself
ensuring the image is perfectly focused,
regardless of its lighting conditions,
but most importantly, all our cameras
with embedded IR Illuminators feature
Adaptive IR.
Adaptive
e IR
R
This brand
d new feature brings IR lighting
into the 21st century, the camera can
identifying an object getting closer and
detect when IR light rebounds off the
subject or object under surveillance.
By intelligently evaluating the scene,
the camera can vary the intensity of
the IR illuminators enabling the camera
to represent the image better than the
human eye.
Less bandwidth
For network security users, H.264 offers all
sorts of practical benefits. Using network
cameras designed to work with H.264,
your clients will need less bandwidth.
MPEG-4 requires approximately one-third
of the bandwidth used by JPEG; H.264
requires just one-fifth. That’s a 40% saving
between standard MPEG-4 and H.264.
Reduced storage
With better compression, stored files
take up much less room on servers,
potentially saving significant sums in
network storage requirements.
Improved quality
The data capture elements of each
frame in H.264 focus on the movement
areas, which has the benefit of creating
far more accurate images with more
detail. In security applications, this
can make a real difference to the
identification of facial features, for
example, or a vehicle registration plate.
PSNR (dB)
Video Parameters:
- 10 frames/s
- QCIF
(176 x 144 pixels)
- 10 seconds of video
(100 frames)
40
38
H.264
MPEG-4
JPEG
36
35
ON
34
True Day/Night
32
30
28
OFF
Bit rate (Kb/s)
The human eye can see between
400nm and 700nm, the Sony IR
cameras are sensitive between
400nm and 1000nm
6
Adaptive IR
H.264 requires less bandwidth, while
delivering better picture quality.
0
100
200
300
7
VIDEO SECURITY
VIDEO SECURITY
KEY FEATURES
KEY FEATURES
Intelligent Motion Detection –
driving actions directly from the camera.
Intelligent Motion Detection (IMD) enables your clients to
set up automatic actions based on specific movement
parameters.
IP66 – Vandal Resistant cameras
for tough applications.
Many of our models feature Vandal Resistant versions specifically designed for outdoor use.
Automatic prevention
and storage capabilities
The built-in IMD function can trigger
a variety of actions for prevention,
monitoring and apprehending. For
example, a particular motion pattern
could trigger the activation of lights,
alarms or other local devices through
its output relays. Alternatively, it could
prompt the storage and transfer of
images for later analysis. False alarms
caused by noise and repeated motion
patterns are minimised thanks to an
advanced Sony algorithm.
Meeting IP66 standard for dust and water ingress
Our outdoor cameras are designed to cope with tough
conditions. Many of our newest models comply with IP66
standards for protection against water and dust, enabling
your clients to enjoy reliable security, regardless of weather
conditions or installations in dusty alleys, streets or loading bays.
Vandal Resistant too
Our outdoor cameras are built to the highest standards.
Vandal Resistant cameras are housed in aluminium die-cast
enclosures. Robust mini-dome cameras feature impactresistant polycarbonate domes.
Enhanced performance with DEPA
When used in conjunction with Sony
Professional’s DEPA™- enabled recorders
or software, a multitude of filter functions
are available. These allow your clients to
initiate alarms based on more specific
movements, such as passing a virtual
borderline.
Analogue Video Output –
for fast installation and set-up.
While Sony Professional IP Cameras bring many advantages to users, some installers prefer
analogue set-up. That’s why we’ve retained analogue video output options on all our cameras.
Set up options to suit you
When it comes to setting up viewing angles and focus
adjustment, we know that many installers prefer to use their
tried and tested analogue monitors.
With Sony Professional, even with the latest IP cameras, we’ve
retained the Analogue Video Output option. You can choose
to install using PC-driven software or analogue technology –
whichever suits you and the specific application.
8
9
VIDEO SECURITY
VIDEO SECURITY
KEY FEATURES
KEY FEATURES
eXcellent Dynamic Noise
Reduction (XDNR).
HD for your security cameras.
The security market continues to demand higher quality video images, in response to
these demands Sony has introduced a range of High Definition (HD) CCTV solutions. Sony
HD CCTV solutions represent the next generation in video surveillance technology.
a variety of data formats. For maximum
flexibility and optimum performance
Sony HD CCTV solutions provides H.264,
MPEG-4 and JPEG video compression
formats.
From a surveillance solutions
perspective, the transition to HD CCTV
provides significant benefits. HD CCTV
technology delivers real time capture
and delivery of highly detailed images
over a wide field of view, highly
accurate object detection, recognition,
recording and display allow for forensic
levels of image analysis not found in
existing technology.
Sony HD CCTV solutions combine the
benefits of digital technology with the
ease of use of analogue to provide
the optimum in video security systems
performance.
HD CCTV is based upon technology
designed for use in high quality
broadcast television applications.
Video is captured using specialist High
Definition CMOS sensors, the sensors
contain a pixel array far greater than
that found in standard definition CCTV
sensors, this results in vastly superior
image quality and a greatly enhanced
field of view.
Additionally the CMOS sensors utilise a
progressive scan system which eliminates
the image flicker and blurring associated
with interlace scanning systems normally
found in standard definition CCTV
technology. The resulting images can
be transmitted via a suitable network in
10
Sony HD CCTV solutions deliver
additional enhancements to image
quality by utilising Sony’s unique
eXcellent Dynamic Noise Reduction
(XDNR) and Visibility Enhancer (VE)
technology.
XDNR provides clear images by
drastically reducing the image noise
and motion blur encountered under low
light illumination. VE optimises scene
visibility by improving wide dynamic
ranges under conditions of high
contrast illumination.
The superior image quality provided
by Sony HD CCTV solutions delivers
significant advantages when coupled
with the powerful video analytics
capability of Sony’s Advanced
Distributed Enhanced Processing
Architecture (DEPA). DEPA technology
offers advanced, intelligent alarm
functionality whilst distributing and
sharing image processing across the
network. This powerful combination
results in a reduced operator workload
through vastly improved alarm
handling, superior use of network
resources and a security solution
that’s more flexible, scalable and
economical.
Sony is the industry leader in the
provision of HD CCTV technology, our
portfolio provides for a full range of
powerful HD CCTV solutions.
Camera’s, SNT Encoder, NSR recording
and RSM monitoring software solutions
along with a comprehensive range of
accessories combine to provide the
complete HD CCTV systems solution
package.
In addition, total flexibility through
our Hybrid approach to seamless
integration of new and existing video
technology and maximum freedom
of choice via our participation in
the development of a global open
standard for network video products
via our Open Network Video Interface
Forum (ONVIF) membership ensures
that Sony HD solutions are the HD CCTV
products of choice.
XDNR delivers superior noise and ghost free images under
low light conditions.
The ability of a camera to deliver noise
and ghost free images under low light
conditions is fast becoming an essential
requirement for IP CCTV imaging
solutions.
The delivery of high quality images under
low light conditions presents numerous
technical challenges. Increased
image noise levels resulting from signal
amplification and image ghosting
caused by slow shutter speeds are
commonly encountered issues when
using existing CCTV technology within
a low light environment.
Recognising the importance of noise
and ghost free images in low light, SONY
has developed its unique eXcellent
Dynamic Noise Reduction (XDNR)
technology specifically for the IP CCTV
environment.
Sony HD SNC-RH PTZ cameras and
SNT-EX/EP encoder solutions offer XDNR
as a standard feature.
Using SNC–RH PTZ cameras combines
the quality of high definition video
with the superior noise and ghost free
images offered by Sony’s unique XDNR
technology. By migrating to the Sony
range of SNT-EX/EP encoders, XDNR
performance can be added to any
existing cameras and offers the perfect
hybrid solution.
XDNR technology from Sony offers
the optimum in low light imaging
performance. Available from a range of
products the technology is ideal for new
or existing installations for superior image
capture in low light conditions.
ON
OFF
XDNR utilises advanced 2DNR and 3DNR
signal processing methods in order
to remove random and fixed noise
and image ghosting, eliminating the
motion blur normally associated with the
capture of moving images in low light.
Delivering superior image quality in low
light, SONY XDNR offers the optimum in
noise reduction performance for IP CCTV
solutions.
11
VIDEO SECURITY
VIDEO SECURITY
KEY FEATURES
KEY FEATURES
Distributed Enhanced Processing
Architecture (DEPA) Advanced.
Building upon the success of DEPA, DEPA Advanced is an
enhanced technology that offers high quality image analysis
and detection.
Visibility Enhancer (VE).
VE technology from Sony offers the optimum in wide
dynamic range performance.
The ability of a camera to deliver
optimised images under extreme lighting
conditions is known as its wide dynamic
range capability. Wide dynamic range
is an essential feature when considering
image capture under demanding
lighting conditions.
Video surveillance has historically been
dependent upon human intervention
and control, the system operator often
providing the interface between alarm
activations and required actions. The
inability of the operator to monitor and
process multiple alarm events is often
cited as the weak point in traditional
surveillance systems.
The more recent introduction of intelligent
video and alarm analysis has provided
a reduction in operator workflow by the
addition of pre-configured alarms,
linked to pre-programmed actions.
As a result of its processor intensive
requirements video analysis can however
be cost prohibitive for many systems,
especially in the analogue environment.
Introduced in 2006 Sony’s unique
Distributed Enhanced Processing
Architecture (DEPA) addresses this issue
with an innovative design approach.
SONY DEPA is an embedded technology
providing pre-processing of image data
within its camera technology and post
of processing of image data within its
recording and monitoring solutions. Alarm
and image meta data generated by
the camera is transmitted on demand to
the recording solution where appropriate
alarm actions may be initiated.
12
This distributed architecture allows for
intelligent use of network bandwidth and
reduces the bottlenecks associated with
existing video analysis systems.
Operating a continuous product
development policy SONY introduces
DEPA Advanced technology. Building
upon existing success, DEPA Advanced is
an enhanced DEPA technology and now
offers the highest quality image analysis
and detection. SONY’s embedded DEPA
Advanced technology delivers unrivalled
analytical performance within a range
of imaging, recording and monitoring
products.
Utilising SONY’s unique Intelligent Motion
Detection (IMD) to determine real or
environmental movement and Intelligent
Object Detection (IOD) to monitor the
image for violation of a predetermined
rule, DEPA Advanced provides highly
accurate image meta data to the
recording and monitoring solution for
alarm activation and processing. A
comprehensive range of enhanced
predetermined alarm filters include,
tamper alarm, virtual fence, trip wire,
missing object, people counting and anti
loiter options, audio analysis completes
the range of advanced features on offer
with DEPA advanced technology.
SONY offers a comprehensive range
of embedded DEPA Advanced
products from the Sony HD SNC-RH PTZ
cameras and SNT-EX/EP encoders to
NSR1000 recorders and RSM Advanced
monitoring software solutions. A
comprehensive range of accessories
combine to provide the complete DEPA
Advanced end to end solution.
Minimising false alarms whilst maximising
operator workflow and bandwidth
usage, SONY DEPA Advanced offers the
optimum in cost effective, flexible and
scalable video analysis solutions.
Video surveillance technology has
traditionally failed to deliver high
quality images under the demanding
conditions of high contrast scene
illumination. Delivering wide dynamic
range by resolving bright and dark areas
of the image challenges traditional
image processing technology.
Existing technology may be optimised for
either bright or dark areas of the scene,
but not simultaneously. The resulting effect
is the reduced visibility of target objects.
In response to this problem Sony
has developed its unique Visibility
Enhancer (VE) technology. During image
processing VE captures and dynamically
monitors signal levels, reducing the
extreme levels of brightness within
the scene and increases levels within
the darker areas. This simultaneous
processing and adjustment of both
light and dark areas of the scene
delivers improved wide dynamic range
performance with enhanced scene
visibility and superior image quality.
Sony HD SNC-RH PTZ cameras and
SNT-EX/EP encoder solutions offer VE as
a standard feature. Using SNC–RH PTZ
cameras combines the quality
of high definition video with the wide
dynamic range capability offered
by Sony’s unique VE technology.
By migrating to the Sony range of
SNT-EX/EP encoders, VE performance
can be added to any existing cameras
and offers the perfect hybrid solution.
ON
OFF
VE technology from Sony offers the
optimum in wide dynamic range
performance. Available from a range of
products the technology is ideal for new
or existing installations for superior image
capture in all lighting conditions.
13
VIDEO SECURITY
VIDEO SECURITY
KEY FEATURES
IP FIXED CAMERAS
Open Network Video Interface
Forum (ONVIF).
In recognising cross-manufacturing compatibility as the key to
widespread adoption of network video solutions, Sony along
with a number of leading manufacturers have pioneered the
establishment of ONVIF (Open Network Video Interface Forum).
SNC-CH110
Compact and Affordable HD Security Camera. Excellent 720p HD
picture quality, supporting H.264 at 30 fps. 1.3 Megapixel (1280 x 960)
maximum resolution. Three codecs (H.264, MPEG-4, JPEG) and a
dual streaming capability. 1/3.8 type progressive scan CMOS sensor
incorporated to realize high image quality.
Key Features and Benefits
The global standards for analogue
video are long established and deliver
full interconnectivity and interoperability
between manufacturer’s products. IP
cameras and network video solutions
do not however currently benefit from
a global interoperability standard. As
a result the exciting potential for the
migration from traditional analogue
systems to IP network video solutions is
restricted.
The proliferation of IP network video
solutions presents a unique set of
challenges for both end users and
system integrators alike. At a systems
integration level the wide range of
product on offer can often be limited
in its application by the differing
standards for image compression and
network video transmission found from
manufacturer to manufacturer.
This lack of a unified standard defines
an obvious limiting factor in the global
deployment of fully integrated network
video solutions. As a result we restrict
customer choice and are unable to fully
realise the clear benefits on offer from
the wide spread use of this technology.
In recognising cross manufacturing
compatibility as the key to wide spread
adoption of network video solutions,
SONY along with a number of leading
manufacturers have pioneered the
establishment of ONVIF (Open Network
Video Interface Forum). Established
in 2008, ONVIF is a worldwide industry
forum encompassing manufacturers,
developers, consultants, systems
integrators, and end users and is open
to any group interested in furthering the
goals of the organisation.
ONVIF is committed to promoting the
adoption of network video solutions within
the global security market. Focusing on
system interoperability, the development of
a worldwide open standard is the forums
primary mission.
SONY through its commitment to
adoption of the open standard
introduces simplicity and ease of use
to the integration of solutions delivered
by multiple manufacturers. The SONY
range of network video solutions offers
compatibility with a wide range of
manufacturing platforms making it
even easier for end users, integrators,
consultants and manufacturers to
integrate with SONY products.
Using ONVIF-enabled SONY products
unlocks freedom of customer choice
and delivers the exciting opportunities
available from integrating SONY’s truly
flexible and scalable network video
solutions.
Innovative Design. Compact, slim and two body colours
(Silver and Black); suitable for many applications where the
bulky camera would be avoided
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Specifications
Camera
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Horizontal viewing angle
Focal length
F-number
Minimum object distance
1/3.8 type CMOS sensor
5.0 lx / AGC 30dB / 50IRE [IP]
1.3Megapixel (1296×985)
1/2 s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Fixed
80.7 degrees
f=2.34
F2.8
500 mm
Camera Features
Standard Features and Benefits
Day/Night
Noise reduction
Yes (electrical D/N)
Yes
t Intelligent Motion Detection that supports DEPA
t Analogue monitor output (AV mini jack)
t Powered by PoE (Power over Ethernet) for simple installation
Codec image size (H x V)
Video compression format
Codec streaming capability
t Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Maximum frame rate
t ONVIF (Open Network Video Interface Forum) Version 1.01
conformance that ensures greater interoperability and more
flexibility in building multiple-vendor systems
Network
1280x960, 1280x720, 1024x768, 1024x576, 768x576,
720x576, 704x576, 800x480, 720x480, 640x480, 640x368,
384x288, 352x288, 320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Dual streaming
JPEG / MPEG-4 / H.264: 30fps (1280×960 / 1280x720)
Scene Analytics
Intelligent motion detection
Protocols
ONVIF conformance
Number of clients
Authentication
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes (Version 1.01)
5
IEEE802.1X
Interface
Dimensions
Ethernet
Analogue monitor output
Sensor input
10BASE-T / 100BASE-TX (RJ-45)
AV Mini Jack
x1
Analogue video output
Signal system
NTSC / PAL
General
Weight
Dimensions (ø x H )
100 g (3.5 oz)
ø 44 x 93 mm (ø 1 3/4 x 3 3/4 inches)
Power requirements
PoE
Power consumption
2.4W
Operating temperature
Storage temperature
0 °C to 50 °C (32°F to 122°F)
-20 °C to +60 °C (-4°F to +140°F)
System Requirements
Operating system
Processor
Memory
Web browser
WindowsXP, WindowsVista (32bit), Windows7 (32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox-RSM-Lite),
Installation manual, B&P warranty booklet, FrontSheet
(with logo), FrontSheet (without logo), Sensor input cable
The SNC-CH110 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
14
15
VIDEO SECURITY
VIDEO SECURITY
IP FIXED CAMERAS
IP FIXED CAMERAS
SNC-CH210
SNC-CH120
Compact and Affordable 1080p HD Security Camera. Excellent
1080p HD picture quality, supporting H.264 at 15 fps. 3 Megapixel
(2048 x 1536) maximum resolution. Three codecs (H.264, MPEG-4,
JPEG) and a dual streaming capability. The “Exmor” CMOS sensor
incorporated to realize high image quality and low noise.
High-Quality 720p HD Security Camera. Excellent 720p HD picture
quality, supporting H.264 at 30 fps. 1.3 Megapixel (1280 x 1024)
maximum resolution. Three codecs (H.264, MPEG-4, JPEG) and a
dual streaming capability. The “Exmor” CMOS sensor incorporated
to realize high image quality and low noise.
Key Features and Benefits
Innovative Design. Compact, slim and two body colours
(Silver and Black); suitable for many applications where the
bulky camera would be avoided
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Standard Features and Benefits
t Intelligent Motion Detection that supports DEPA
t Analogue monitor output (AV mini jack)
t Powered by PoE (Power over Ethernet) for simple installation
t Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
t ONVIF (Open Network Video Interface Forum) Version 1.01
conformance that ensures greater interoperability and more
flexibility in building multiple-vendor systems
Specifications
Camera
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
3 Megapixel (2096 x 1561)
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Fixed
Focal length
f=3.3 mm
Minimum object distance
F2.8
500 mm
Camera Features
Day/Night
Noise reduction
Yes (electrical D/N)
Yes
REC
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
2048×1536 (Jpeg Only), 1920x1080, 1600x1200, 1680x1056,
1440x912, 1280x1024, 1280x960, 1376x768, 1280x800,
1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480, 640x368, 384x288, 352x288,
320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Dual streaming
H.264: 15fps (1920×1080) / 30fps (1280×720)
JPEG: 12fps (2048×1536) / 15fps (1920×1080) / 30fps (1280×720)
MPEG-4: 15fps (1920×1080) / 30fps (1280×720)
Scene Analytics
Intelligent motion detection
Yes
Network
Protocols
ONVIF conformance
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client
only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Sensor input
10BASE-T / 100BASE-TX (RJ-45)
Mini Jack
x1
Analogue video output
Signal system
NTSC / PAL
General
100g (3.5 oz)
ø 44 x 93 mm (1 3/4 x 3 3/4 inches)
Power requirements
PoE (IEEE802.3af compliant)
Power consumption
2.4W
Starting temperature
0°C to 50°C (32°F to 122°F)
Working temperature
0°C to 50°C (32°F to 122°F)
Storage temperature
-20°C to +60°C (-4°F to +140°F)
Web browser
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
Operating system
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered Focus
Standard Features and Benefits
t Analogue monitor output (phono jack)
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
1.4 Megapixel (1329 x 1049)
1s to 1/10000s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X
96.5 to 33.9 degrees
f=2.8 mm to 8 mm
F1.2 (Wide), F1.9 (Tele)
300 mm
Yes (Easy Focus)
Yes
Yes
Codec image size (H x V)
t Powered by PoE (Power over Ethernet) for simple installation
1/3 type progressive scan “Exmor” CMOS sensor
Colour: 0.50lx, BW: 0.30lx (F1.2/ AGC 42dB / 50IRE [IP])
Camera Features
Video compression format
Codec streaming capability
Maximum frame rate
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x
768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576,
720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288, 320 x
240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
Scene Analytics
Intelligent motion detection
Yes
Network
Protocols
Dimensions
ONVIF conformance
Number of clients
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Interface
Ethernet
Analogue monitor output
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
Sensor input
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically isolated from the camera)
Alarm output
Signal system
Weight
Dimensions (ø x H )
* The SNC-CH210 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
550 g (1 lb 3 oz) with lens
72 mm × 63 mm × 145 mm (2 7/8 inches × 2 1/2 inches × 5
3/4 inches) not including the projecting parts
72 mm × 63 mm × 197 mm (2 7/8 inches × 2 1/2 inches × 7
7/8 inches) with lens not including the projecting parts
PoE (IEEE802.3af compliant)
Power consumption
5.0 W max.
Starting temperature
0°C to 50°C (32°F to 122°F)
Operating temperature
-10°C to +50°C (14°F to 122°F)
Storage temperature
-20°C to +60°C (-4°F to +140°F)
System Requirements
Operating system
Processor
Memory
CD-ROM (User’s Guides, and supplied programs)
Installation manual
B&P Warranty Booklet
FrontSheet (with logo)
FrontSheet (without logo)
Sensor input cable
NTSC / PAL
General
Power requirements
System Requirements
Memory
Image device
Minimum illumination
Analogue video output
Weight
Dimensions (ø x H )
Operating system
Processor
Camera
Authentication
Interface
Ethernet
Analogue video output
Specifications
Day/Night*1
Noise reduction
Authentication
16
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
1s to 1/10000s
88 degrees
F-number
Easy focus function. Automatic adjustment of image
focusing simplifies installation
1/2.8 type progressive scan “Exmor” CMOS sensor
2.0lx (AGC 38dB / 50IRE[IP])
Horizontal viewing angle
Number of clients
Dimensions
Key Features and Benefits
Web browser
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (Users Guides, and supplied programs) (1)
Wire rope (1) Screw M4 (1) Installation Manual (1)
*1 Removable IR Cut Filter.
* The SNC-CH120 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
17
VIDEO SECURITY
VIDEO SECURITY
IP FIXED OUTDOOR CAMERAS
IP FIXED CAMERAS
SNC-CH160
SNC-CH220
High-Quality 720p HD Security Camera with IR Illuminators.
Excellent 720p HD picture quality, supporting H.264 at 30 fps.
1.3 Megapixel (1280 x 1024) maximum resolution. Three codecs
(H.264, MPEG-4, JPEG) and a dual streaming capability. The
“Exmor” CMOS sensor incorporated to realize high image quality
and low noise.
High-Quality 1080p HD Security Camera. Excellent 1080p HD
picture quality, supporting H.264 at 30 fps. 3 Megapixel (1920
x 1440) maximum resolution. Three codecs (H.264, MPEG-4,
JPEG) and a dual streaming capability. The Exmor CMOS sensor
incorporated to realize high image quality and low noise.
Key Features and Benefits
IR
Specifications
Camera
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
Image device
Minimum illumination
Number of effective pixels (HxV)
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
REC
Key Features and Benefits
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Lens type
Easy zoom function. Adjusts the focus relative to the
zoom ratio
Focal length
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Powered Focus
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Camera Features
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Zoom ratio
Horizontal viewing angle
F-number
Minimum objects distance
Powered zoom
IR illuminators
Day/Night*1
Noise reduction
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
1/3 type progressive scan “Exmor” CMOS sensor
0.50lx (Colour), 0 lx (BW) (IR ON) (F1.2/AGC 42dB/50IRE [IP])
1.4 Megapixel (1329 x 1049)
1 s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X
Intelligent motion detection
f=3.1 to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Protocols
t Analogue monitor output (phono jack)
ONVIF conformance
Number of clients
t Powered by PoE (Power over Ethernet) for simple installation
Authentication
Camera
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Number of effective pixels (HxV)
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Exposure control
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
Yes
Yes
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x
768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576, 720 x
480, 704 x 576, 640 x 480, 640 x 368, 384 x 288, 320 x 240,
320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
Yes
Network
t Intelligent Motion Detection that supports DEPA
Easy focus function. Automatic adjustment of image
focusing simplifies installation
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
85.4 to 31.2 degrees
Scene Analytics
Standard Features and Benefits
REC
Ethernet
Analogue monitor output
Sensor input
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiplevendor systems
Alarm output
t Intelligent Motion Detection that supports DEPA
t Equipped with a phono jack to instantly monitor the video
while installing the camera
t Powered by PoE (Power over Ethernet) for simple installation
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
R100
306 (12 1/8)
304 (12)
(4)
4)
ø140 (5 5/8)
5(
186 (7 3/8)
334.8 (13 1/4)
33
/8)
93
(3
ø
90 (3 5/8)
93 (3 3/4)
ø8
3/
52.3 (2 1/2)
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(Mechanical relay outputs electrically isolated from the camera)
-20 to +50 °C (-4 to +122°F)
Operating temperature
-30 to +50 °C (-22 to +122°F)
Storage temperature
-20 to +60 °C (-4 to +140°F)
CS Mount Vari-focal lens
Optical 2.1X
101.2 degrees to 47.0 degrees
f=2.8 mm to 6.0 mm
F-number
F1.3 (Wide), F1.9 (Tele)
Minimum objects distance
Powered Focus
300 mm
Yes (Easy Focus)
Camera Features
Yes
Yes
Codec image size (H x V)
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080,
1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,
1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480,
768 x 576, 720 x 576, 704 x 576, 720 x 480,
640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192
(H.264, MPEG-4, JPEG)
Video compression format
H.264, MPEG-4, JPEG
Codec streaming capability
Maximum frame rate
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 25 fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
Scene Analytics
Intelligent motion detection
Yes
Network
Authentication
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client only), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
145 (5 3/4)
Ethernet
Analogue monitor output
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
140 (5 5/8)
Sensor input
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically isolated from the camera)
Signal system
72 (2 7/8)
NTSC / PAL
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
CD-ROM (User’s Guide, SNC Toolbox), Installation manual, Wire
rope, +M4x8 screw, B&P Warranty Booklet, Template
*1 Removable IR Cut Filter.
*The SNC-CH160 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
Weight
Dimensions (ø x H )
550 g (1 lb 3 oz) with lens
72 x 63 x 197.3 mm (2 7/8 x 2 1/2 x 7 3/4 inches)
Power requirements
PoE (IEEE802.3af compliant)
Power consumption
5.0 W Max.
Starting temperature
0 °C to 50 °C (32 °F to 122°F)
Operating temperature
-10 °C to +50 °C (14 °F to 122 °F)
Storage temperature
-20 °C to +60 °C (-4 °F to +140 °F)
System Requirements
IP66
Operating system
Processor
System Requirements
Supplied Accessories
18
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
General
Starting temperature
Web browser
Auto
Auto, EV Compensation, Auto Slow Shutter
Analogue video output
12.9 W max
Memory
1 s to 1/10000 s
Focal length
Alarm output
NTSC / PAL
Power consumption
Operating system
Processor
Horizontal viewing angle
Approx. 3.27Megapixel (2096×1561)
Interface
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1
Power requirements
Ingress protection
Zoom ratio
Number of clients
Dimensions
Memory
63 (2 1/2)
Dimensions
Lens type
ONVIF conformance
5
1520 g (3 lb 6 oz)
ø93 x 186 mm (3 3/4 x 7 3/8 inches)
ø140 x 334.8 mm (5 5/8 x 13 1/4 inches) (including arm)
PoE
Dimensions (ø x H )
White balance modes
Protocols
General
Weight
Auto gain control (AGC)
1/2.8 type progressive scan “Exmor” CMOS sensor
0.70lx (Colour), 0.45lx (BW) (F1.2/ AGC 42dB/ 50IRE [IP])
Analogue video output
Signal system
Electronic shutter
Standard Features and Benefits
Interface
t Equipped with a built-in heater for continued camera
operation in cold weather
Image device
Minimum illumination
Day/Night*1
Noise reduction
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client
only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
IEEE802.1X
Specifications
Web browser
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (Users guides, and Supplied programs), Wire rope,
Screw M4, Installation Manual
*1 Removable IR Cut Filter.
* The SNC-CH220 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
19
VIDEO SECURITY
VIDEO SECURITY
IP FIXED OUTDOOR CAMERAS
IP FIXED CAMERAS
SNC-CH260
SNC-CH140
High-Quality 1080p HD Security Camera with IR Illuminators.
Excellent 1080p HD picture quality, supporting H.264 at 30 fps.
3 Megapixel (1920 x 1440) maximum resolution. Three codecs
(H.264, MPEG-4, JPEG) and a dual streaming capability. The
“Exmor” CMOS sensor incorporated to realize high image quality
and low noise.
Sony introduces the powerful addition to its network HD camera lineup,
the SNC-CH140. This dual-stream network HD camera, supporting
H.264, MPEG-4, and JPEG compression formats, deliver excellent
picture quality in HD 720p resolution at 30 frames per second (fps).
Incorporating the new “Exmor™” CMOS image sensor from Sony,
which is specially designed for surveillance applications, this camera
features state-of-the-art image-enhancement technology, such as
View-DR which realizes an extremely wide dynamic range.
Key Features and Benefits
IR
Specifications
1
Camera
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
Image device
Minimum illumination
Number of effective pixels (HxV)
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
REC
Key Features and Benefits
1/2.8 type progressive scan “Exmor” CMOS sensor
Colour: 0.70lx lx, B/W: 0 lx (IR ON) (F1.2/ AGC 42dB / 50IRE [IP])
Auto
Auto, EV Compensation, Auto Slow Shutter
Lens type
Easy zoom function. Adjusts the focus relative to the
zoom ratio
Focal length
f=3.1 mm to 8.9 mm
F-number
F1.2 (Wide), F2.1 (Tele)
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Powered Focus
Yes (Easy Focus)
Powered zoom
Yes (Easy Zoom)
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Camera Features
Optical 2.9X (x2 Digital Zoom)
Horizontal viewing angle
88.5 degrees to 32.3 degrees
Day/Night*1
Noise reduction
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
Standard Features and Benefits
Intelligent motion detection
Protocols
ONVIF conformance
Number of clients
t Powered by PoE (Power over Ethernet) for simple installation
Authentication
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
CF
Yes
Yes
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080,
1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,
1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480,
768 x 576, 720 x 576, 704 x 576, 720 x 480,
640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192
(H.264, MPEG-4, JPEG)
Equipped with a CF slot for on-board recording and wireless
operation capability with the optional SNCA-CFW5 802.11g card
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
in cold whether supported (-30 °C to +50 °C/ -22 °F to +122 °F)
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiplevendor systems
Ethernet
Analogue monitor output
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
Sensor input
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically isolated from the camera)
Alarm output
Analogue video output
Signal system
R100
ø140 (5 5/8)
5(
186 (7 3/8)
334.8 (13 1/4)
33
/8)
4)
3
ø9
(3
90 (3 5/8)
93 (3 3/4)
ø8
3/
Ingress protection
-20 °C to +50 °C (-4 °F to +122 °F)
-30 °C to +50 °C (-22 °F to +122 °F)*2
-20 °C to +60 °C (-4 °F to +140 °F)
IP66
System Requirements
Operating system
Processor
Memory
Web browser
Auto, EV Compensation*1, Auto Slow Shutter*2
Auto (ATW, ATW-Pro), Preset, One-push WB, Manual
CS Mount lens
Zoom ratio
Approx. 2.9X
Horizontal viewing angle
33.9 to 96.5°
Focal length
f=2.8 to 8.0mm
F-number
F1.2 (wide), F1.9 (tele)
Easy Focus
Yes (Easy Focus)
Easy Zoom
No
Camera Features
Day/Night*3
Wide-D
Image enhancement
Noise reduction
Yes
View-DR*4 (125 dB: Theoretical)
Visibility Enhancer
XDNR
Network
Intelligent motion detection
Intelligent object detection
Protocols
ONVIF conformance
t Onvif support. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
Wireless network
Number of clients
Authentication
t Power over Ethernet (PoE) capability
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x
768, 1024 x 576, 800 x 480, 768 x 576, 640 x 480, 640 x 368,
384 x 288, 320 x 240, 320 x 192
H.264, MPEG-4, JPEG
H.264/MPEG-4/JPEG: 30 fps (1280 x 720)
Card slots
Dimensions
Analogue video output
Sensor input
52 (2 1/8)
G.711/G.726
Yes (with built-in Post Filter)
No
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
Yes (with optional*5)
10
IEEE802.1X
Interface
Ethernet
Serial interface
145 (5 3/4)
140 (5 5/8)
Alarm output
External microphone input
Audio line output
Signal system
Horizontal resolution
S/N ratio
10BASE-T / 100BASE-TX (RJ-45)
No
CF card x1
Composite video (1Vp-p)
x1
x2
Mini-jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power
Mini-jack (monaural), Max output level: 1 Vrms
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
CD-ROM (User’s Guide, SNC Toolbox), Installation manual,
Wire rope, +M4x8 screw, Warranty Booklet, Template
*1 Removable IR Cut Filter. *2 With a built-in heater.
*The SNC-CH260 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
NTSC/PAL
600 TVL
More than 50 dB
General
152 (6)
Mass
Dimensions (W x H x D)
Power requirements
Power consumption
Operating temperature
Storage temperature
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
Supplied Accessories
20
Lens type
t Superior HD picture quality, supporting H.264 at 30 fps
(1280 x 720)
63 (2 1/2)
12.9 W max.
Storage temperature
Exposure control
White balance modes
Analogue video output
Power consumption
Operating temperature
Max gain setting LOW, MID, HIGH
Audio compression
NTSC / PAL
Power requirements
Starting temperature
(4)
306 (12 1/8)
304 (12)
1s to 1/10,000s
Auto gain control (AGC)
Scene analytics
72 (2 7/8)
1520g (3 lb 6 oz)
ø93 x 186 mm (3 3/4 x 7 3/8 inches)
ø140 x 334.8mm (5 3/8 x 13 1/4 inches) (including arm)
PoE
Dimensions (ø x H )
Approx. 1.4 Megapixel
Electronic shutter speed
t Triple codec support. (H.264, MPEG-4, JPEG) and
dual streaming capability
62 (2 1/2)
Weight
Number of effective pixels (HxV)
1/3-type progressive scan “Exmor” CMOS sensor
Colour : 0.20 lx, B/W : 0.10 lx (F1.2/View-DR OFF/XDNR ON-Middle/
VE OFF/AGC High/50 IRE[IP])
Audio
General
Dimensions
Minimum illumination
Maximum frame rate
5
IEEE802.1X
Image device
Video compression format
Standard Features and Benefits
Interface
t Equipped with a built-in heater for continued camera operation
Camera
Codec image size (H x V)
H.264, MPEG-4, JPEG
Network
t Equipped with a phono jack to instantly monitor the video
while installing the camera
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
Scene Analytics
t Intelligent Motion Detection that supports DEPA
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in low light conditions
300 mm
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
View-DR enhanced wide Dynamic range technology.
DR
Superior performance in high contrast lighting conditions
Built-in Vari-focal lens
Zoom ratio
IR illuminators
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Minimum objects distance
3 Sony 1/3" Exmor HD CMOS image sensor with mechanical
Approx. 3.27Megapixel (2096×1561)
1s to 1/10000 s
Specifications
Approx. 600 g (1 lb 2 oz)
72 x 63 x 197 mm (2 7/8 x 2 1/2 x 7 7/8 inches)
PoE, AC 24 V, DC 12 V
9.0 W max.
-10 to +50 °C*6 (-14 to 122 °F)
-20 to +60 °C (-4 to 140 °F)
System requirements
Operating system
Processor
Memory
Web browser
Windows Vista®, Microsoft Windows XP
Intel Core2 Duo 2GHz or higher
1GB or more
Microsoft Internet Explorer Ver6.0, Ver7.0
Supplied Accessories
CD-ROM (User’s guides, SNC Toolbox), Installation manual,
Wire rope, Warranty booklet
*1 Visibility Enhancer off mode only *2 View-DR off mode only *3 Removable IR Cut Filter *4 View-DR
technology is a combination of Sony’s full-capture Wide-D technology, the high-speed “Exmor” CMOS sensor,
and Visibility Enhancer. *5 With optional SNCA-CFW5 *6 Cold start temperature must be greater than 0°C.
21
VIDEO SECURITY
VIDEO SECURITY
IP FIXED OUTDOOR CAMERAS
IP FIXED CAMERAS
SNC-CH180
SNC-CH240
High-Quality 720p HD Security Camera with IR Illuminator and
View-DR. Excellent 720p HD picture quality, supporting H.264 at
30 fps. 1.3 Megapixel (1280 x 1024) maximum resolution. Three
codecs (H.264, MPEG-4, JPEG) and a dual streaming capability.
The “Exmor” CMOS sensor incorporated to realize high image
quality and low noise.
High-Quality 1080p HD Security Camera with View-DR Technology.
Excellent 1080p HD picture quality, supporting H.264 at 30 fps.
3 Megapixel (1920 × 1440) maximum resolution. Three codecs
(H.264, MPEG-4, JPEG) and a dual streaming capability. The
“Exmor” CMOS sensor incorporated to realize high image quality
and low noise.
Key Features and Benefits
DR
Specifications (continued)
View-DR enhanced wide Dynamic range technology.
Superior performance in high contrast lighting conditions
Camera (continued)
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Powered Focus
Powered Zoom
IR illuminators
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
IR
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
3
Day/Night *
Wide-D
Image enhancement
Noise reduction
Codec image size (H x V)
Easy zoom function. Adjusts the focus relative to the zoom ratio
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Equipped with a CF slot for on-board recording and wireless
operation capability with the optional SNCA-CFW5 802.11g card
Standard Features and Benefits
Audio compression
Scene Analytics
Protocols
Camera (continued)
Focal length
101.2 to 47.0 degrees
f=2.8 to 6.0 mm
View-DR enhanced wide Dynamic range technology.
Superior performance in high contrast lighting conditions
F-number
F1.3 (Wide), F1.9 (Tele)
Easy focus function. Automatic adjustment of image
focusing simplifies installation
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
R100
(4)
33
3
ø9
/8)
3/
Signal system
Horizontal resolution
S/N ratio
90 (3 5/8)
93 (3 3/4)
186 (7 3/8)
334.8 (13 1/4)
Operating temperature
Specifications
Starting temperature
Storage temperature
Ingress protection
Camera
Image device
Minimum illumination
Number of effective pixels (HxV)
1/3 type progressive scan “Exmor” CMOS sensor
Colour: 0.22 lx, B/W: 0 lx - IR ON
(F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50
IRE [IP])
1.4 Megapixel (1329 x 1049)
Electronic shutter
1s to 1/10000s
Auto gain control (AGC)
Auto (3 levels)
Exposure control
White balance modes
Lens type
Zoom ratio
Auto, EV Compensation *1, Auto Slow Shutter *2
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X (x2 Digital Zoom)
300 mm
Yes (Easy Focus)
Camera Features
Day/Night *3
Wide-D
Image enhancement
Noise reduction
Yes
View-DR (84 dB: Theoretical)
Visibility Enhancer
XDNR
Codec image size (H x V)
1920 × 1440, 1600 × 1200, 1680 × 1056, 1920 × 1080, 1440
× 912, 1376 × 768, 1280 × 960, 1280 × 800, 1280 × 720,
1280 × 1024, 1024 × 768, 1024 × 576, 800 × 480, 768 ×
576, 720 × 576, 704 × 576, 720 × 480, 640 × 480, 640 ×
368, 384 × 288, 320 × 240, 320 × 192 (H.264, MPEG-4, JPEG)
Video compression format
H.264, MPEG-4, JPEG
Codec streaming capability
Yes (with built-in Post Filter)
No
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
10
Yes
Yes (with Option *4)
IEEE802.1X
10BASE-T / 100BASE-TX (RJ-45)
No
CF card x1
BNC x 1
x1
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
Audio compression
tPowered by either AC 24V, DC 12V, or PoE (Power over
Ethernet) for easy installation
Scene Analytics
tEquipped with a BNC connector to instantly monitor the
video while installing the camera.
Rule filter
tONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Dual streaming
H264: 20 fps (1920 × 1440) / 30 fps (1920 × 1080)
MPEG-4: 15 fps (1920 × 1440) / 25 fps (1920 × 1080)
JPEG: 10 fps (1920 × 1440) / 15 fps (1920 × 1080)
Intelligent motion detection
Intelligent object detection
Protocols
Number of clients
ONVIF conformance
Wireless network
Dimensions
Ethernet
Serial interface
72 (2 7/8)
145 (7 7/8)
Card slots
Analogue video output
Sensor input
Alarm output
External microphone input
Audio line output
Video system
Horizontal resolution
Specifications
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Operating system
Processor
Memory
Web browser
Exposure control
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 With optional SNCA-CFW5.
*5 When used with PoE, SNC-CH180 cannot be used with a heater and a CF card slot.
Power requirements
Camera
Auto gain control (AGC)
CD-ROM (User’s Guide, SNC Toolbox), Installation manual, Wire
rope, M4 screw, B&P Warranty Booklet
Template
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
10
Yes
Yes (with option *4)
IEEE802.1X
10BASE-T / 100BASE-TX (RJ-45)
No
CF card x1
BNC x 1
x1
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
White balance modes
Lens type
Zoom ratio
NTSC / PAL
600 TV lines
More than 50 dB
General
Weight
Dimensions (W x H x D)
System requirements
Supplied Accessories
Yes
Analogue video output
S/N ratio
Windows XP, Windows Vista, Windows 7
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Yes (with built-in Post Filter)
No
Network
Authentication
NTSC / PAL
600 TV lines
More than 50dB
1600 g (3 lb 8 oz)
ø 93 x 186 mm (3 3/4 x 7 3/8 inches)
PoE *5, AC24V, DC12V
30 W Max.
AC24V/DC12V: -30 to +50 °C (-22 to +122°F)
PoE (IEEE802.3af): -10 to +50 °C (23 to 122°F)
AC24V/DC12V: -20 to +50 °C (-4 to +122°F)
PoE (IEEE802.3af): 0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
IP66
G.711/G.726
Interface
General
Weight
Dimensions (W x H x D)
Power requirements
Power consumption
Powered Focus
Audio
G.711/G.726
Analogue video output
4)
(3
Minimum object distance
Standard Features and Benefits
63 (2 1/2)
Ethernet
Serial interface
Card slots
Analogue video output
Sensor input
Alarm output
External microphone input
Audio line output
Horizontal viewing angle
Maximum frame rate
Interface
Dimensions
ø140 (5 5/8)
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Audio
Number of clients
ONVIF conformance
Wireless network
Authentication
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
5(
Maximum frame rate
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768,
1024 x 576, 800 x 480, 768 x 576, 720 x 576, 720 x 480, 704
x 576, 640 x 480, 640 x 368, 384 x 288, 320 x 240, 320 x 192
(H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
Specifications (continued)
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in low light conditions
Yes
View-DR (125dB: Theoretical)
Visibility Enhancer
XDNR
Network
t XDNR (eXcellent Dynamic Noise Reduction) technology for
clear images without motion blur under low illumination
ø8
Video compression format
Codec streaming capability
Intelligent motion detection
Intelligent object detection
Rule filter
t Optical Day/Night function to switch to Day or Night mode
depending on the light level
304 (12)
DR
Easy focus function. Automatic adjustment of image
focusing simplifies installation
306 (12 1/8)
85.4 to 31.2 degrees
f=3.1 to 8.9mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 27pcs)*3
Camera Features
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
CF
Key Features and Benefits
1/2.8 type progressive scan “Exmor” CMOS sensor
Colour: 0.55 lx, B/W: 0.3 lx
(F1.3/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])
3.27 Megapixel (2096 × 1561)
1s to 1/10000s
Auto (3 levels)
Auto, EV Compensation *1, Auto Slow Shutter *2
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
CS mount lens
Optical 2.1X (×2 Digital Zoom)
650 g (1 lb 7 oz)
72 × 63 × 197.3 mm (2 7/8 × 2 1/2 × 7 7/8 inches)
PoE, AC 24V, DC 12V
Power consumption
11.2 W max.
Starting temperature
0 to 50°C (32 to 122°F)
Working temperature
–10 to +50°C (23 to 122°F)
Storage temperature
–20 to +60°C (–4 to +140°F)
System requirements
Operating system
Processor
Memory
Web browser
Windows XP, Windows Vista, Windows 7
Intel Core2 Duo 2GHz or higher
1GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox), Installation manual, Wire
rope, M4 screw, B&P Warranty Booklet
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 With optional SNCA-CFW5.
*The SNC-CH240 include software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
The SNC-CH180 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
22
23
VIDEO SECURITY
VIDEO SECURITY
IP FIXED CAMERAS
IP RAPID DOME OR PTZ CAMERAS
SNC-CH280
SNC-EB520
High-Quality 1080p HD Security Camera with IR Illuminators and
View-DR. Excellent 1080p HD picture quality, supporting H.264
at 30 fps. 3 Megapixel (1920 x 1440) maximum resolution. Three
codecs (H.264, MPEG-4, JPEG) and a dual streaming capability.
The “Exmor” CMOS sensor incorporated to realize high image
quality and low noise.
High-Quality Security Camera. SVGA (800 x 600) maximum
resolution. Three codecs (H.264, MPEG-4, JPEG) and a dual
streaming capability. The “Exmor” CMOS sensor incorporated to
realise high image quality and low noise.
Key Features and Benefits
DR
Specifications (continued)
View-DR enhanced wide Dynamic range technology.
Superior performance in high contrast lighting conditions
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
IR
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
Camera (continued)
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered Focus
Powered zoom
IR illuminators
88.5 degrees to 32.3 degrees
f=3.1mm to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 27pcs)
Camera Features
Day/Night *3
Wide-D
Image enhancement
Noise reduction
Yes
View-DR (90dB)
Image enhancement Visibility Enhancer
XDNR
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Codec image size (H x V)
Easy zoom function. Adjusts the focus relative to the zoom ratio
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
CF
Key Features and Benefits
Equipped with a CF slot for on-board recording and wireless
operation capability with the optional SNCA-CFW5 802.11g card
Video compression format
Codec streaming capability
Maximum frame rate
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080,
1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,
1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480,
768 x 576, 720 x 576, 704 x 576, 720 x 480,
640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192
(H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 20fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
Audio
Audio compression
Specifications
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Day/night function. Switches automatically to mono in
night conditions
Stream Squared function to send two 4:3 aspect ratio videos
in user-selectable resolutions up to SD simultaneously (Lowcost solution to replace two SD cameras located in a line)
Standard Features and Benefits
t Analogue monitor output (phono jack)
t Powered by PoE (Power over Ethernet) for simple installation
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
G.711/G.726
Scene Analytics
Standard Features and Benefits
Intelligent motion detection
Rule filter
t Optical Day/Night function to switch to Day or Night mode
depending on the light level
t XDNR (eXcellent Dynamic Noise Reduction) technology for
clear images without motion blur under low illumination
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Yes (with built in Post Filter)
Yes
ONVIF conformance
Wireless network
Number of clients
Authentication
IPv4, IPv6, UDP, TCP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
Yes (with Option *4)
10
IEEE802.1X
Dimensions
R100
(4)
306 (12 1/8)
304 (12)
ø8
5(
33
(3
3/
90 (3 5/8)
93 (3 3/4)
/8)
4)
3
ø9
186 (7 3/8)
334.8 (13 1/4)
Dimensions (ø x H )
Power requirements
Power consumption
Starting temperature
Specifications
Operating temperature
Storage temperature
Ingress protection
Camera
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
24
1/2.8 type progressive scan “Exmor” CMOS sensor
Colour: 0.40 lx, B/W: 0 lx (IR ON)
(F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])
Approx. 3.27Megapixel (2096×1561)
1s to 1/10000 s
Auto (3 levels)
Auto, EV Compensation *1, Auto Slow Shutter *2
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Built-in Vari-focal lens
Optical 2.9X (x2 Digital Zoom)
Web browser
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
Alarm output
800 x 600 (SVGA), 720 x 576 (PAL D1), 720 x 480 (NTSC D1),
704 x 576 (4CIF) 640 x 480 (VGA), 352 x 288 (CIF),
320 x 240 (QVGA)
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264, MPEG-4, JPEG)
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client
only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
10BASE-T / 100BASE-TX (RJ-45)
x 1, make contact, break contact
x 1, 24V AC/DC, 1A (mechanical relay outputs
electrically isolated from the camera)
General
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Operating humidity
Storage humidity
Dimensions (W x H x D)
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Yes
Yes
Analogue monitor output
Network port
Sensor input
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
No
CF card x1
BNC x 1
Phono jack x 1
x1
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
System Requirements
Operating system
Processor
Memory
Day/Night
Noise Reduction
Interface
NTSC / PAL
600 TV lines
More than 50dB
1690 g (3 lb 12 oz)
ø93 x 186 mm (3 3/4 x 7 3/8 inches)
ø140 x 334.8mm (5 3/8 x 13 1/4 inches) (including arm)
PoE, AC24V, DC12V
33 W Max.
AC24V/DC12V : -20 °C to +50 °C (-4 °F to +122 °F)
PoE (IEEE802.3af) : 0 °C to 50 °C (32 °F to 122 °F)
AC24V/DC12V : -30 °C to +50 °C (-22 °F to +122 °F) *5
PoE (IEEE802.3af) : -10 °C to +50 °C (14 °F to 122 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
IP66
1/3-type “Exmor” CMOS sensor
Approx. 1.4 Megapixel (1329 x 1049)
Colour: 0.47 lx, B/W: 0.27 lx
(F1.0, shutter 1/30 sec., AGC 42dB, 50IRE by IP)
Auto
1/1 to 1/10,000 s
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
CS Mount Vari-focal lens
Optical 2.6x
Yes (Easy Focus)
89.2 to 34.6 degrees
f = 3.0 to 8.0 mm
F1.0 (Wide), F1.65 (Tele)
200 mm
Camera Features
ONVIF conformance
Number of clients
Authentication
General
Weight
Gain control
Electronic shutter speed
Exposure control
White balance mode
Lens type
Zoom ratio
Powered focus
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Protocols
Interface
Ethernet
Analogue monitor output
Serial interface
Card slots
Analogue video output
Analogue monitor output
Sensor input
Alarm output
External microphone input
Audio line output
Minimum Illumination
Intelligent motion detection
Network
Analogue Monitor Output
Signal system
Horizontal resolution
S/N ratio
Image sensor
Number of effective pixels (H x V)
Scene Analytics
Dimensions
Network
Protocols
Camera
Mass
Unit: mm (inches)
Safety regulations
PoE (IEEE802.3af compliant)
5.0 W max.
-10 to +50 °C (14 to 122°F)
0 to +50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
20 to 80%
20 to 95%
72 mm x 63 mm x 145 mm
(2 7/8 inches x 2 1/2 inches x 5 3/4 inches)
not including the projecting parts
72 mm x 63 mm x 187.8 mm
(2 7/8 inches x 2 1/2 inches x 7 7/8 inches) with lens
not including the projecting parts
Approx. 530 g (1 lb 7 oz) with lens
UL2044, FCC Class A Digital Device, IC Class A Digital Device,
IEC60950-1, EN55022(A)+EN55024+EN50
130-4, VCCI Class A, AN/NZS CISPR22
System requirements
Operating system
Processor
Memory
Web browser
Microsoft Windows XP, Windows Vista (32 bit), Windows 7 (32 bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (Users Guides, and supplied programs) (1),
Wire rope (1), Screw M4 (1), Installation Manual (1)
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox), Installation manual,
Wire rope, +M4x8 screw, Warranty Booklet, Template
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 With optional SNCA-CFW5.
*5 With a built-in heater.
*The SNC-CH280 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
25
VIDEO SECURITY
VIDEO SECURITY
IP MINI-DOME CAMERAS
IP MINI-DOME CAMERAS
SNC-DH110 / DH110T
SNC-DH210 / DH210T
Compact and Affordable Full HD Security Camera. Vandal-Resistant
HD Security Camera. Excellent 720p HD picture quality, supporting
H.264 at 30 fps. 1.3 Megapixel (1280 x 960) maximum resolution.
Three codecs (H.264, MPEG-4, JPEG) and a dual streaming
capability. 1/3.8 type progressive scan CMOS sensor incorporated
to realize high image quality.
Compact and Affordable Full HD Security Camera. Vandal-Resistant
HD Security Camera. Excellent 1080p HD picture quality, supporting
H.264 at 15 fps. 3 Megapixel (2048 x 1536) maximum resolution.
Three codecs (H.264, MPEG-4, JPEG) and a dual streaming capability.
The “Exmor” CMOS sensor incorporated to realize high image quality
and low noise.
Key Features and Benefits
Specifications
Camera
Innovative Design. Compact, slim and two body colours
(Silver and Black); suitable for many applications where the
bulky camera would be avoided
Image device
Minimum illumination
Key Features and Benefits
SNC-DH110
1.3 Megapixel (1296×985)
Number of effective pixels (HxV)
Electronic shutter
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
1/2s to 1/10000s
Auto gain control (AGC)
Exposure control
White balance modes
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO) , Preset, One-push WB, Manual
Lens type
Horizontal viewing angle
Fixed
80.7 degrees
Focal length
79 degrees
f=2.34
F-number
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
SNC-DH110T
1/3.8 type CMOS sensor
5.0lx / AGC 30dB / 50IRE[IP]
5.5lx / AGC 30dB / 50IRE[IP]
F2.8
Minimum objects distance
Approx. 340°
Tilt angle
Camera
Innovative Design. Compact, slim and two body colours
(Silver and Black); suitable for many applications where the
bulky camera would be avoided
Image device
Minimum illumination
0° to 57°
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Yes (electrical D/N)
Yes
Exposure control
White balance modes
t Analogue monitor output (AV mini jack)
Video compression format
1280x960, 1280x720, 1024x768, 1024x576, 768x576,
720x576, 704x576, 800x480, 720x480, 640x480, 640x368,
384x288, 352x288, 320x240, 320x192, 176x144
H.264, MPEG-4, JPEG
Codec streaming capability
t Powered by PoE (Power over Ethernet) for simple installation
Maximum frame rate
t Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Scene Analytics
t ONVIF (Open Network Video Interface Forum) Version 1.01
conformance that ensures greater interoperability and more
flexibility in building multiple-vendor systems
Protocols
Dual streaming
JPEG / MPEG-4 / H.264: 30fps (1280×960 / 1280x720)
Horizontal viewing angle
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
Wireless network
No
Number of clients
5
Authentication
10BASE-T / 100BASE-TX (RJ-45)
AV Mini Jack
t Intelligent Motion Detection that supports DEPA
t Powered by PoE (Power over Ethernet) for simple installation
Yes
Protocols
ONVIF conformance
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes (Version 1.01)
5
Ethernet
Analogue monitor output
-20 °C to +60 °C (-4°F to +140°F)
Vandal resistant
-
1/4)
ø10
Signal system
Dimensions (ø x H )
56.5 (2 1/4)
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite) Installation manual,
B&P Warranty Booklet, Sensor input cable Template
25 (1)
Supplied Accessories
* The SNC-DH110 and SNC-DH110T include software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (www.openssl.org/).
170 g (6 oz)
ø 106 x 56.5 mm
(ø 4 1/4 x 2 1/4 inches)
Power requirements
PoE
Power consumption
2.4W
0 °C to 50 °C (32°F to 122°F)
Storage temperature
-20 °C to +60 °C (-4°F to +140°F)
Vandal resistant
-
IK10
System Requirements
2 (3/32)
1 GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
160 g (5.6 oz)
ø 106 x 50.5 mm
(ø 4 1/4 x 2 inches)
Operating temperature
50.5 (2)
Memory
NTSC / PAL
General
Weight
30 (1 3/16)
WindowsXP, WindowsVista (32bit), Windows7(32bit)
Intel Core2 Duo 2 GHz or higher
x1
Analogue video output
IK10
Operating system
Processor
10BASE-T / 100BASE-TX (RJ-45)
AV Mini Jack
Sensor input
6 (4
1/4)
SNC-DH210T
0 °C to 50 °C (32°F to 122°F)
Storage temperature
IEEE802.1X
Interface
2 (3/32)
56.5 (2 1/4)
25 (1)
2 (3/32)
Dual streaming
JPEG:12fps (2048×1536) /15fps (1920×1080) /30fps: (1280×720)
MPEG-4 / H.264: 15fps (1920×1080) / 30fps (1280×720)
Network
Dimensions
6 (4
ø10
6
50.5 (2)
H.264, MPEG-4, JPEG
Intelligent motion detection
System Requirements
30 (1 3/16)
Video compression format
Scene Analytics
2.4 W max.
Operating temperature
2 (3/32)
2048×1536 (Jpeg Only), 1920x1080, 1600x1200, 1680x1056,
1440x912, 1280x1024, 1280x960, 1376x768, 1280x800,
1280x720, 1024x768, 1024x576, 768x576, 720x576, 704x576,
800x480, 720x480, 640x480, 640x368, 384x288, 352x288,
320x240, 320x192, 176x144
Maximum frame rate
t ONVIF (Open Network Video Interface Forum) Version 1.01
conformance that ensures greater interoperability and more
flexibility in building multiple-vendor systems
ø10
(4 1
/4)
1/4)
6 (4
ø10
160 g (5.6 oz) *Without cable
170 g (6 oz) *Without cable
ø 106 x 50.5 mm
ø 106 x 56.5 mm
(ø 4 1/4 x 2 inches)
(ø 4 1/4 x 2 1/4 inches)
PoE IEEE802.3af compliant, class1
Power consumption
26
Codec image size (H x V)
t Analogue monitor output (AV mini jack)
SNC-DH210
NTSC / PAL
General
Web browser
Yes (electrical D/N)
Yes
Day/Night
Noise reduction
x1
Signal system
Power requirements
0° to 60°
Number of clients
Analogue video output
Dimensions (ø x H )
Approx. 340°
Tilt angle
Authentication
Sensor input
Weight
F2.8
500 mm
Pan angle
IEEE802.1X
Ethernet
Analogue monitor output
SNC-DH110T
86 degrees
f=3.3
Minimum objects distance
Interface
SNC-DH110
Fixed
88 degrees
F-number
t Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
Yes
Network
Dimensions
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Focal length
Codec streaming capability
Intelligent motion detection
ONVIF conformance
Auto
Auto, EV Compensation, Auto Slow Shutter
Lens type
Standard Features and Benefits
Codec image size (H x V)
1s to 1/10000 s
Auto gain control (AGC)
Camera Features
Day/Night
Noise reduction
t Intelligent Motion Detection that supports DEPA
SNC-DH210T
3Megapixel (2096×1561)
Electronic shutter
Camera Features
Standard Features and Benefits
SNC-DH210
1/2.8 type progressive scan “Exmor” CMOS sensor
2.0 lx / AGC(38db)/ 50IRE(IP)
2.3 lx / AGC(38db)/ 50IRE(IP)
Number of effective pixels (HxV)
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
500 mm
Pan angle
Specifications
Operating system
Processor
WindowsXP, WindowsVista (32bit), Windows7(32bit)
Intel Core2 Duo 2 GHz or higher
Memory
1 GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Web browser
Supplied Accessories
CD-ROM (User’s Guide, SNC Toolbox, RSM-Lite), Installation manual,
B&P Warranty Booklet, Sensor input cable, Template
* The SNC-DH210 and SNC-DH210T include software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (www.openssl.org/).
27
VIDEO SECURITY
VIDEO SECURITY
IP MINI-DOME CAMERAS
IP MINI-DOME CAMERAS
SNC-DH120 / DH120T
SNC-DH160
High-Quality 720p HD Security Camera. Vandal-Resistant 720p HD
Security Camera. Excellent 720p HD picture quality, supporting H.264
at 30 fps. 1.3 Megapixel (1280 x 1024) maximum resolution. Three
codecs (H.264, MPEG-4, JPEG) and a dual streaming capability. The
“Exmor” CMOS sensor incorporated to realize high image quality and
low noise.
IP66 Vandal-Resistant 720p HD Security Camera with IR Illuminators.
Excellent 720p HD picture quality, supporting H.264 at 30 fps. 1.3
Megapixel (1280 x 1024) maximum resolution. Three codecs (H.264,
MPEG-4, JPEG) and a dual streaming capability. The “Exmor” CMOS
sensor incorporated to realize high image quality and low noise.
Key Features and Benefits
Specifications
Camera
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered focus
Powered zoom
Easy zoom function. Adjusts the focus relative to the
zoom ratio
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
REC
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Day/Night *1
Noise reduction
Video compression format
Codec streaming capability
t DEPA Intelligent Video Analytics system can be set up with a
DEPA-enabled recorder
Maximum frame rate
Intelligent motion detection
Network
t Powered by PoE (Power over Ethernet) for simple installation
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Protocols
ONVIF conformance
Number of clients
Authentication
Dimensions
Alarm output
SNC-DH120T
Signal system
General
119 (7 5/8)
118 (4 3/4)
/
R4
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client
only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically
isolated from the camera)
Weight
13
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720,
1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x 576,
720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288,
320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
Analogue video output
140 (5 5/8)
(1
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
IK10
IK10-rated vandal-resistant feature to protect the camera
from destructive behaviours
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Easy zoom function. Adjusts the focus relative to the zoom ratio
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Interface
Ethernet
Analogue monitor output
Sensor input
5
4.
IR
Yes
Yes
Scene Analytics
t Analogue monitor output (phono jack)
)
16
SNC-DH120T
Standard Features and Benefits
140 (5 5/8)
SNC-DH120
1/3 type progressive scan “Exmor” CMOS sensor
Colour: 0.50lx, BW: 0.30lx (F1.2/ AGC 42dB / 50IRE [IP])
1.4 Megapixel (1329 x 1049)
1s to 1/10000s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X
85.4 to 31.2 degrees
f=3.1 mm to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Camera Features
Codec image size (H x V)
SNC-DH120
Key Features and Benefits
Dimensions (ø x H )
Power requirements
Power consumption
Starting temperature
Operating temperature
Storage temperature
Vandal resistant
Web browser
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
715 g (1 lb 9 oz), not including 945 g (2 lb 1 oz), not including
the cables and bracket
the cables and bracket
ø140 mm × 118 mm
ø140 mm × 119 mm
(5 5/8 inches × 4 3/4 inches)
(5 5/8 inches × 4 3/4 inches)
PoE (IEEE802.3af compliant)
6.0 W max.
0°C to 50°C (32°F to 122°F)
-10°C to +50°C (14°F to 122°F)
-20°C to +60°C (-4°F to +140°F)
IK10
Camera
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered focus
Powered zoom
IR illuminators
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Day/Night *1
Noise reduction
t Intelligent Motion Detection that supports DEPA
t Analogue monitor output (AV mini jack)
t Powered by PoE (Power over Ethernet) for simple installation
t Equipped with a built-in heater for continued camera
operation in cold weather
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiplevendor systems
Dimensions
Yes
Yes
Video compression format
Codec streaming capability
Maximum frame rate
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720,
1024 x 768, 1024 x 576, 800 x 480, 768 x 576, 720 x
576, 720 x 480, 704 x 576, 640 x 480, 640 x 368, 384 x 288,
320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H.264: 20fps (1280 x 1024) / 30 fps (1280 x 720)
MPEG-4: 25fps (1280 x 1024) / 30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) / 30 fps (1280 x 720)
Scene Analytics
Intelligent motion detection
Network
Standard Features and Benefits
1/3 type progressive scan “Exmor” CMOS sensor
0.50lx (Colour), 0 lx (BW) (IR ON) (F1.2/AGC 42dB/50IRE [IP])
1.4 Megapixel (1329 x 1049)
1 s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X
85.4 to 31.2 degrees
f=3.1 to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
Camera Features
Codec image size (H x V)
NTSC / PAL
System Requirements
Operating system
Processor
Memory
REC
Specifications
Protocols
ONVIF conformance
Number of clients
Authentication
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Interface
Ethernet
Analogue monitor output
Sensor input
Alarm output
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(Mechanical relay outputs electrically isolated from the camera)
Analogue video output
Signal system
General
Weight
Dimensions (ø x H )
Power requirements
Power consumption
Starting temperature
Operating temperature
Storage temperature
Ingress protection
Vandal resistant
NTSC / PAL
1320 g (2 lb 15 oz)
ø 166 x 119 mm (6 5/8 x 4 3/4 inches)
PoE
12.9 W max
-20 to +50 °C (-4 to +122°F)
-30 to +50 °C (-22 to +122°F)
-20 to +60 °C (-4 to +140°F)
IP66
IK10
System Requirements
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
Operating system
Processor
Memory
Web browser
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guides, and
supplied programs) (1), Bracket (1),
Template (1), Wire rope (1),
Camera unit mounting screws (2),
Shoulder screw M4 (1), LAN cable
(1), Installation Manual (1)
CD-ROM (User’s Guides, and
supplied programs) (1), Bracket
(1), Template (1), Wire rope (1),
Camera unit mounting screws (2),
Shoulder screw M4 (1), Wrench (1),
I/O cable (1), LAN cable (1),
Installation Manual (1)
CD-ROM (User’s Guides, SNC Toolbox), Installation Manual, Bracket,
Template, Wire rope, Camera unit mounting screws (4), Shoulder screw
M4, I/O cable, LAN cable, B&P Warranty Booklet
*1 Removable IR Cut Filter.
*The SNC-DH160 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
*1 Removable IR Cut Filter.
* The SNC-DH120 and SNC-DH120T include software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (www.openssl.org/).
28
29
VIDEO SECURITY
VIDEO SECURITY
IP MINI-DOME CAMERAS
IP MINI-DOME CAMERAS
SNC-DH220 / DH220T
SNC-DH260
High-Quality 1080p HD Security Camera. Vandal-Resistant 1080p
HD Security Camera. Excellent 1080p HD picture quality, supporting
H.264 at 30 fps. 3 Megapixel (1920 x 1440) maximum resolution.
Three codecs (H.264, MPEG-4, JPEG) and a dual streaming
capability. The Exmor CMOS sensor incorporated to realize high
image quality and low noise.
IP66 Vandal-Reistant 1080p HD Security Camera with IR Illuminators.
Excellent 1080p HD picture quality, supporting H.264 at 30 fps. 3
Megapixel (1920 x 1440) maximum resolution. Three codecs (H.264,
MPEG-4, JPEG) and a dual streaming capability. The “Exmor” CMOS
sensor incorporated to realize high image quality and low noise.
Key Features and Benefits
Specifications
Camera
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered focus
Powered zoom
Easy zoom function. Adjusts the focus relative to the
zoom ratio
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
REC
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Key Features and Benefits
SNC-DH220
SNC-DH220T
1/2.8 type progressive scan “Exmor” CMOS sensor
0.70 lx (Colour), 0.45 lx (BW) (F1.2/ AGC 42dB/ 50IRE [IP])
Approx. 3.27Megapixel (2096×1561)
1 s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Built-in Vari-focal lens
Optical 2.9X
88.5 degrees to 32.3 degrees
f=3.1 mm to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Day/Night *1
Noise reduction
Video compression format
Codec streaming capability
t Intelligent Motion Detection that supports DEPA
Maximum frame rate
t Equipped with a phono jack to instantly monitor the video
while installing the camera
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Protocols
ONVIF conformance
Number of clients
Authentication
Ethernet
Analogue monitor output
Sensor input
Dimensions
Alarm output
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client only), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Signal system
General
119 (7 5/8)
118 (4 3/4)
4)
R4
.5
4
R4
(1
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically
Analogue video output
ø140 (5 5/8)
3/
1
Dimensions (ø x H )
Power requirements
Power consumption
Starting temperature
Operating temperature
Storage temperature
Vandal resistant
Web browser
REC
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered focus
Powered zoom
IR illuminators
1/2.8 type progressive scan “Exmor” CMOS sensor
Colour: 0.70lx lx, B/W: 0 lx (IR ON) (F1.2/ AGC 42dB / 50IRE [IP])
Approx. 3.27 Megapixel (2096×1561)
1 s to 1/10000 s
Auto
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Built-in Vari-focal lens
Optical 2.9X
88.5 degrees to 32.3 degrees
f=3.1mm to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
Camera Features
Day/Night *1
Noise reduction
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
“Stream Squared” function. Allows simultaneous streaming
of two 4:3 aspect ratio videos in user selectable SD
resolutions. You can select the entire image or a portion
of the image from the original field of view and resize to
SD resolution or lower for each stream
Codec image size (H x V)
Standard Features and Benefits
Video compression format
Codec streaming capability
Maximum frame rate
715 g (1 lb 9 oz), not including 945 g (2 lb 1 oz), not including
the cables and bracket
the cables and bracket
ø140 mm × 118 mm
ø140 mm × 119 mm
(5 5/8 inches × 4 3/4 inches)
(5 5/8 inches × 4 3/4 inches)
PoE (IEEE802.3af compliant)
6.0 W max.
0 °C to 50 °C (32 °F to 122 °F)
-10 °C to +50 °C (14 °F to 122°F)
-20 °C to +60 °C (-4 °F to +140°F)
IK10
Intelligent motion detection
Network
Protocols
t Intelligent Motion Detection that supports DEPA
t Equipped with a phono jack to instantly monitor the video
while installing the camera
t Powered by PoE (Power over Ethernet) for simple installation
t Equipped with a built-in heater for continued camera operation
in cold whether supported (-30 °C to +50 °C/ -22 °F to +122 °F)
NTSC / PAL
System Requirements
Operating system
Processor
Memory
Yes
Yes
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080,
1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,1280 x 720,
1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576,
720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368,
384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 20 fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiplevendor systems.
Dimensions
ONVIF conformance
Number of clients
Authentication
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Interface
Ethernet
Analogue monitor output
Sensor input
Alarm output
10BASE-T / 100BASE-TX (RJ-45)
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically isolated from the camera)
Analogue video output
Signal system
General
Weight
Dimensions (ø x H )
Power requirements
Power consumption
Starting temperature
Operating temperature
Storage temperature
Ingress protection
Vandal resistant
NTSC / PAL
1320g (2 lb 15 oz)
ø 166 x 119 mm (6 5/8 x 4 3/4 inches)
PoE
12.9 W Max.
-20 °C to +50 °C (-4 °F to +122 °F)
-30 °C to +50 °C (-22 °F to +122 °F)*2
-20 °C to +60 °C (-4 °F to +140 °F)
IP66
IK10
System Requirements
Microsoft Windows XP, Windows Vista (32bit), Windows 7 (32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
Operating system
Processor
Memory
Web browser
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s guides, and
Supplied programs), Bracket,
Template, Wire rope, Camera unit
mounting screws (2), Shoulder
screw M4, LAN cable, Installation
Manual
30
Easy zoom function. Adjusts the focus relative to the zoom ratio
Camera
Scene Analytics
isolated from the camera)
SNC-DH220T
Weight
(1
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Yes
Interface
5
3.
IK10-rated vandal-resistant feature to protect the camera
from destructive behaviours
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080,
1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800,
1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768
x 576, 720 x 576, 704 x 576, 720 x 480, 640 x 480,
640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 25 fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
Intelligent motion detection
Network
t ONVIF (Open Network Video Interface Forum) conformance
6)
IK10
Yes
Yes
Scene Analytics
t Powered by PoE (Power over Ethernet) for simple installation
1
3/
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
Standard Features and Benefits
ø140 (5 5/8)
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
Camera Features
Codec image size (H x V)
SNC-DH220
IR
Specifications
CD-ROM (User’s guides, and
Supplied programs), Bracket,
Template, Wire rope, Camera unit
mounting screws, Shoulder screw
M4, Wrench, I/O cable, LAN cable,
Installation Manual
*1 Removable IR Cut Filter.
* The SNC-DH220 and SNC-DH220T include software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (www.openssl.org/).
CD-ROM (User’s Guide, SNC Toolbox), Installation manual, Wire rope,
M4 screw, Warranty Booklet, Template
*1 Removable IR Cut Filter. *2 With a built-in heater.
*The SNC-DH260 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
31
VIDEO SECURITY
VIDEO SECURITY
IP MINI-DOME CAMERAS
IP MINI-DOME CAMERAS
SNC-DH140 / DH140T
SNC-DH180
Delivering HD resolution images in all lighting conditions and
utilising state-of-the-art image enhancement with the View-DR
wide dynamic range and XDNR noise reduction technologies,
the SNC-DH140 / DH140T from Sony represents the very latest in
mini-dome, HD network camera technology.
Sony is pleased to introduce a powerful addition to its network
HD camera lineup, the SNC-DH180. This vandal-resistant,
wide dynamic range camera is designed with a built-in
infrared (IR) illuminators. As a dual-stream network camera,
it supports H.264, MPEG-4, and JPEG compression formats,
and delivers excellent picture quality in HD 720p resolution at
30 frames per second (fps).
Key Features and Benefits
1
Specifications (continued)
3 Sony 1/3" Exmor HD CMOS image sensor with mechanical
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
View-DR enhanced wide Dynamic range technology.
DR
Superior performance in high contrast lighting conditions
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in low light conditions
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Easy zoom function. Adjusts the focus relative to the
zoom ratio
Advanced audio detection. Monitors and stores ambient
audio levels to deliver highly accurate audio alarm triggering
Camera (continued)
Horizontal viewing angle
Focal length
F-number
Powered Focus
Powered Zoom
t Triple codec support. Delivers flexible image compression
formats to overcome bandwidth limitations
t DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
t Onvif support. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
t Excellent 720p HD picture quality, supporting H.264 at 30 fps
Dimensions
SNC-DH140
SNC-DH140T
31.2 to 85.4°
f=3.1 to 8.9mm
F1.2 (wide), F2.1 (tele)
Yes (Easy Focus)
Yes (Easy Zoom)
IR
1
Yes
View-DR*4 (125 dB: Theoretical)
Visibility Enhancer
XDNR
No
IK10
Codec image size (H x V)
Video compression format
View-DR enhanced wide Dynamic range technology.
DR
Superior performance in high contrast lighting conditions
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in low light conditions
1280 x 1024, 1280 x 960,
1280 x 800, 1280 x 720, 1024
x 768, 1024 x 576, 800 x 480,
768 x 576, 640 x 480, 640 x
368, 384 x 288, 320 x 240,
320 x 192
Audio
Audio compression
G.711/G.726
Scene analytics
Intelligent motion detection
Intelligent object detection
Yes (with built-in Post Filter)
No
Network
Protocols
ONVIF conformance
Wireless network
Number of clients
Authentication
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
No
10
IEEE802.1X
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
1280 x 1024, 1280 x 960,
1280 x 800, 1280 x 720, 1024
x 768, 1024 x 576, 800 x 480,
768 x 576, 720 x 576, 720 x
480, 704 x 576, 640 x 480,
640 x 368, 384 x 288, 320 x
240, 320 x 192 (H.264,
MPEG-4, JPEG)
H.264, MPEG-4, JPEG
H.264: 20fps (1280 x 1024) /
30 fps (1280 x 720)
H.264/MPEG-4/JPEG: 30 fps
MPEG-4: 25fps (1280 x 1024) /
(1280 x 720)
30 fps (1280 x 720)
JPEG: 30fps (1280 x 1024) /
30 fps (1280 x 720)
Specifications (continued)
3 Sony 1/3” Exmor HD CMOS image sensor with mechanical
Camera Features
Day/Night*3
Wide-D
Image enhancement
Noise reduction
Vandal resistant standard
Maximum frame rate
Standard Features and Benefits
Key Features and Benefits
118 (4 3/4)
140 (5 5/8)
10BASE-T / 100BASE-TX (RJ-45)
No
No
Composite video (1Vp-p)
BNC x 1
x1
x2
Mini-jack (monaural), MIC IN/LINE IN: 2.5 V DC plug-in power
Mini-jack (monaural), Max output level: 1 Vrms
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Maximum frame rate
Standard Features and Benefits
t Triple codec support. Delivers flexible image compression
formats to overcome bandwidth limitations
t DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
t ONVIF support. Maximum interoperability and flexibility with a
wide range of manufacturers’ network video products
t IP66 Rated. Maximum environmental protection for heavy
duty outdoor monitoring applications
Dimensions
4)
Image device
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter speed
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
SNC-DH140
SNC-DH140T
1/3 type progressive scan “Exmor” CMOS sensor
Colour : 0.20 lx, B/W : 0.10 lx (F1.2/View-DR OFF/XDNR ONMiddle/VE OFF/AGC High/50 IRE[IP])
Approx. 1.4 Megapixel
1s to 1/10,000s
Max gain setting LOW, MID, HIGH
Auto, EV Compensation*1, Auto Slow Shutter*2
Auto (ATW, ATW-Pro), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X (x2 Digital Zoom)
Processor
Memory
Web browser
Windows XP, Windows Vista,
Windows Vista®, Microsoft
Windows XP
Windows 7
Intel Core2 Duo 2GHz or higher
1GB or more
Microsoft Internet Explorer
Microsoft Internet Explorer
Ver6.0, Ver7.0
Ver6.0, 7.0, or 8.0
Supplied Accessories
CD-ROM (User’s guides, SNC Toolbox), Installation manual,
Template, Wire rope, Bracket, LAN cable, BNC cable, Power
input cable, I/O cable, Audio Cable, Warranty booklet, M4
shoulder screw, M4 screws (2), Wrench
32
*1 Visibility Enhancer off mode only *2 View-DR off mode only *3 Removable IR Cut Filter *4 View-DR
technology is a combination of Sony’s full-capture Wide-D technology, the high-speed “Exmor” CMOS
sensor, and Visibility Enhancer. *5 Cold start temperature must be greater than 0°C.
Audio
Audio compression
Intelligent motion detection
Intelligent object detection
Rule filter
G.711/G.726
Yes (with built-in Post Filter)
No
Yes
Network
Protocols
Number of clients
ONVIF conformance
Wireless network
Authentication
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/server),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
10
Yes
No
IEEE802.1X
Interface
Ethernet
Serial interface
Card slots
Analogue video output
Sensor input
Alarm output
External microphone input
Audio line output
Video system
Horizontal resolution
S/N ratio
10BASE-T / 100BASE-TX (RJ-45)
No
No
BNC x 1, RCA x 1
x1
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
NTSC / PAL
600 TV lines
More than 50 dB
General
Weight
Dimensions (W x H x D)
Power requirements
Power consumption
Specifications
Starting temperature
Camera
Image device
Minimum illumination
System requirements
Operating system
Dual streaming
H.264: 20fps (1280 x 1024)
MPEG-4: 25fps (1280 x 1024)
JPEG: 30fps (1280 x 1024)
H.264/MPEG-4/JPEG: 30 fps (1280 x 720)
Analogue video output
NTSC/PAL
600 TV lines
More than 50 dB
Approx. 750 g (1 lb 10 oz)
980g (2 lb 3 oz)
140 x 118 mm (5 5/8 x 4 3/4 inches)
PoE, AC24V, DC12V
8.0 W max.
-10 to +50 °C (23 to 122°F)
-10 to +50 °C*5 (-14 to 122 °F)
-20 to +60 °C (-4 to 140 °F)
Video compression format
1280 x 1024, 1280 x 960, 1280 x 800, 1280 x 720, 1024 x 768,
1024 x 576, 800 x 480, 768 x 576, 640 x 480, 640 x 368, 384 x
288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Scene Analytics
3/
(1
3.5
R4
Camera
Mass
Dimensions (W x H x D)
Power requirements
Power consumption
Operating temperature
Storage temperature
Yes
View-DR (125dB: Theoretical)
Visibility Enhancer
XDNR
Codec streaming capability
General
Specifications
Day/Night *3
Wide-D
Image enhancement
Noise reduction
Easy zoom function. Adjusts the focus relative to the zoom ratio
Excellent picture quality in HD 720p resolution, supporting
H.264 at 30 fps
F1.2 (wide), F2.1 (tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
Camera Features
Codec image size (H x V)
Analogue video output
Signal system
Horizontal resolution
S/N ratio
F-number
Minimum object distance
Powered Focus
Powered Zoom
IR illuminators
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Interface
Ethernet connectivity
Serial interface
Card slots
Analogue video output
Sensor input
Alarm output
External microphone input
Audio line output
Camera (continued)
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
Working temperature
1/3 type progressive scan “Exmor” CMOS sensor
0.2 lx (Colour)
0 lx (B/W) - IR ON
(F1.2 / View-DR Off/VE Off / AGC High(48dB max.) / XDNR
Middle / 50IRE [IP])
1.4 Megapixel (1329 x 1049)
1s to 1/10000s
Auto (3 levels)
Auto, EV Compensation *1, Auto Slow Shutter *2
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
Optical 2.9X (x2 Digital Zoom)
85.4 to 31.2 degrees
f=3.1 to 8.9 mm
Storage temperature
Ingress Protection
Vandal resistant standard
1380 g (3 lb 1 oz)
166 x 119 mm (6 5/8 x 4 3/4 inches)
PoE *4, AC24V, DC12V
28 W max.
AC24V/DC12V: -20 to 50 °C (-4 to 122°F)
PoE (IEEE802.3af): 0 to 50 °C (32 to 122°F)
AC24V/DC12V: -30 to 50 °C (-22 to 122°F)
PoE (IEEE802.3af): -10 to 50 °C (23 to 122°F)
-20°C to +60°C (-4°F to 140 °F)
IP66
IK10
System requirements
Operating system
Processor
Memory
Web browser
Windows XP, Windows Vista
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver 6.0 or 7.0
Supplied Accessories
CD-ROM (User's Guide, SNC Toolbox), Installation manual, Wire rope,
Bracket, BNC cable, I/O cable, Audio cable, M4 shoulder screw, M4
screw x 4, Flyee, L-wranch, B&P Warranty Booklet, Template
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 When used
with PoE, SNC-DH180 cannot be used with a heater.
The SNC-DH180 includes software developed by the OpenSSL Project for use in the
OpenSSL Toolkit (http://www.openssl.org/).
33
VIDEO SECURITY
VIDEO SECURITY
IP MINI-DOME CAMERAS
IP MINI-DOME CAMERAS
SNC-DH240 / DH240T
SNC-DH280
Excellent 1080p HD picture quality, supporting H.264 at 30 fps.
3 Megapixel (1920 × 1440) maximum resolution. Three codecs
(H.264, MPEG-4, JPEG) and a dual streaming capability. The
“Exmor” CMOS sensor incorporated to realize high image quality
and low noise.
IP66 Vandal-Reistant 1080p HD Security Camera with IR Illuminators
and View-DR. Excellent 1080p HD picture quality, supporting H.264
at 30 fps. 3 Megapixel (1920 x 1440) maximum resolution. Three
codecs (H.264, MPEG-4, JPEG) and a dual streaming capability. The
“Exmor” CMOS sensor incorporated to realize high image quality and
low noise.
Key Features and Benefits
1
Specifications (continued)
3 Sony 1/3” Exmor HD CMOS image sensor with mechanical
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
View-DR enhanced wide Dynamic range technology.
DR
Superior performance in high contrast lighting conditions
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in low light conditions
Easy focus function. Automatic adjustment of image focusing
simplifies installation
Camera (continued)
SNC-DH240
SNC-DH240T
f=3.1 to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Focal length
F-number
Minimum object distance
Powered Focus
Powered Zoom
Camera Features
Day/Night *3
Wide-D
Image enhancement
Noise reduction
Vandal resistant standard
Codec image size (H x V)
Visibility Enhancer. Enhanced wide dynamic range improves
performance in challenging lighting conditions
IR
No
Video compression format
Codec streaming capability
Maximum frame rate
H.264, MPEG-4, JPEG
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 25 fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
Audio compression
G.711/G.726
IR Illuminator. Clearly captures objects in the dark up to
15m (49 feet) away with IR illuminators, which allows the
camera to operate in 0 lux lighting conditions
IP66-rated waterproof and dust-tight feature for outdoor
surveillance, or indoor where water ingress may pose an issue
IK10
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080, 1440 x
912, 1376 x 768, 1280 x 960, 1280 x 800,
1280 x 720, 1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480,
768 x 576, 720 x 576, 704 x 576, 720 x 480,
640 x 480, 640x 368, 384 x 288, 320 x 240, 320 x 192 (H.264,
MPEG-4, JPEG)
View-DR enhanced wide Dynamic range technology.
Superior performance in high contrast lighting conditions
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Yes
View-DR (84 dB: Theoretical)
Visibility Enhancer
XDNR
Audio
Standard Features and Benefits
DR
Easy zoom function. Adjusts the focus relative to the zoom ratio
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Key Features and Benefits
IK10
IK10-rated vandal-resistant feature to protect the camera
from destructive behaviours
Easy focus function. Automatic adjustment of image
focusing simplifies installation
Easy zoom function. Adjusts the focus relative to the zoom ratio
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Scene Analytics
t DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Intelligent motion detection
Intelligent object detection
Rule filter
t ONVIF support. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
Network
t Ruggedised design. Ideal for hostile indoor conditions
(on SNC-DH240T only)
Protocols
Number of clients
ONVIF conformance
Wireless network
Authentication
Yes (with built-in Post Filter)
No
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
10
Yes
No
IEEE802.1X
Interface
Ethernet
Serial interface
Card slots
Analogue video output
Analogue monitor output
Sensor input
Alarm output
External microphone input
Audio line output
Dimensions
140 (5 5/8)
118 (4 3/4)
10BASE-T / 100BASE-TX (RJ-45)
No
No
BNC × 1
Phono jack × 1
x1
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
Analogue video output
Video system
Horizontal resolution
S/N ratio
NTSC / PAL
600 TV lines
More than 50 dB
Standard Features and Benefits
Weight
Camera
Image device
Minimum illumination
Number of effective pixels (HxV)
SNC-DH240
SNC-DH240T
1/2.8 type progressive scan “Exmor” CMOS sensor
Colour: 0.55 lx, B/W: 0.3 lx
(F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])
3.27 Megapixel (2096 × 1561)
Electronic shutter
1s to 1/10000s
Auto gain control (AGC)
Auto (3 levels)
Exposure control
White balance modes
Lens type
Horizontal viewing angle
Zoom ratio
34
Dimensions (W x H x D)
Auto, EV Compensation *1, Auto Slow Shutter *2
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Vari-focal lens
88.5 to 32.3 degrees
Optical 2.9X (×2 Digital Zoom)
Power requirements
Power consumption
Starting temperature
Working temperature
Storage temperature
750g (1 lb 10 oz)
980g (2 lb 3 oz)
ø140 × 118 mm
ø140 x 119 mm
(5 5/8 × 4 3/4 inches)
(5 5/8 x 4 3/4 inches)
PoE, AC24V, DC12V
10.2 W max.
0 to 50°C (32 to 122°F)
–10 to +50°C (23 to 122°F)
–20 to +60°C (–4 to +140°F)
Minimum illumination
Number of effective pixels (HxV)
Electronic shutter
Auto gain control (AGC)
Exposure control
White balance modes
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum objects distance
Powered focus
Powered zoom
IR illuminators
Day/Night *3
Wide-D
Image enhancement
Noise reduction
Codec image size (H x V)
Video compression format
Codec streaming capability
Intelligent motion detection
Rule filter
t Powered by either AC 24V, DC 12V, or PoE (Power over
Ethernet) for easy installation
Protocols
t Equipped with a BNC connector and a phono jack to instantly
monitor the video while installing the camera
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Dimensions
Yes
View-DR (90dB)
Image enhancement Visibility Enhancer
Yes
t XDNR (eXcellent Dynamic Noise Reduction) technology for
clear images without motion blur under low illumination
t Equipped with a built-in heater for continued camera operation
in cold whether supported (-30 °C to +50 °C/ -22 °F to +122 °F)
1/2.8 type progressive scan “Exmor” CMOS sensor
Colour: 0.40 lx, B/W: 0 lx (IR ON)
(F1.2/View-DR OFF/XDNR ON-Middle/VE OFF/AGC High/50 IRE [IP])
Approx. 3.27Megapixel (2096×1561)
1 s to 1/10000 s
Auto (3 levels)
Auto, EV Compensation *1, Auto Slow Shutter *2
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Built-in Vari-focal lens
Optical 2.9X (x2 Digital Zoom)
88.5 degrees to 32.3 degrees
f=3.1mm to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Yes (Easy Focus)
Yes (Easy Zoom)
Yes (Wave Length: 850nm [Typical], IR LED: 21pcs)
Camera Features
Audio
Audio compression
Scene Analytics
1920 x 1440, 1600 x 1200, 1680 x 1056, 1920 x 1080,
1440 x 912, 1376 x 768, 1280 x 960, 1280 x 800, 1280 x 720,
1280 x 1024, 1024 x 768, 1024 x 576, 800 x 480, 768 x 576,
720 x 576, 704 x 576, 720 x 480, 640 x 480, 640x 368,
384 x 288, 320 x 240, 320 x 192 (H.264, MPEG-4, JPEG)
H.264, MPEG-4, JPEG
Dual streaming
H264: 20fps (1920 x 1440) / 30fps (1920 x 1080)
MPEG-4: 15fps (1920 x 1440) / 20fps (1920 x 1080)
JPEG: 10fps (1920 x 1440) / 15fps (1920 x 1080)
G.711/G.726
Yes (with built-in Post Filter)
Yes
Network
ONVIF conformance
Number of clients
Authentication
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP
(client/server), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
10
IEEE802.1X
Interface
Ethernet
Analogue video output
Analogue monitor output
Sensor input
Alarm output
External microphone input
Audio line output
10BASE-T / 100BASE-TX (RJ-45)
BNC x 1
Phono jack x 1
x1
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.5VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
Analogue Monitor Output
Signal system
Horizontal resolution
S/N ratio
NTSC / PAL
600 TV lines
More than 50 dB
General
Weight
Dimensions (ø x H )
Power requirements
Power consumption
Starting temperature
Operating temperature
Storage temperature
Ingress protection
Vandal resistant
Windows XP, Windows Vista, Windows 7
Intel Core2 Duo 2GHz or higher
1GB or more
Microsoft Internet Explorer Ver6.0, 7.0, or 8.0
1400g (3 lb 1 oz)
ø 166 x 119 mm (6 5/8 x 4 3/4 inches)
PoE, AC24V, DC12V
29 W Max.
AC24V/DC12V : -20 °C to +50 °C (-4 °F to +122 °F)
PoE (IEEE802.3af) : 0 °C to 50 °C (32 °F to 122 °F)
AC24V/DC12V : -30 °C to +50 °C (-22 °F to +122 °F)*4
PoE (IEEE802.3af) : -10 °C to +50 °C (14 °F to 122 °F)
-20 °C to +60 °C (-4 °F to +140 °F)
IP66
IK10
System Requirements
Operating system
Processor
Memory
Supplied Accessories
CD-ROM (User’s guides, SNC Toolbox), Installation manual,
Template, Wire rope, Bracket, LAN cable, BNC cable, Power
input cable, I/O cable, Audio Cable, Warranty booklet, M4
shoulder screw, M4 screws (2), Wrench
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter.
*The SNC-DH240 / DH240T include software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
Image device
t Optical Day/Night function to switch to Day or Night mode
depending on the light level
System requirements
Operating system
Processor
Memory
Web browser
Camera
Maximum frame rate
General
Specifications
Specifications
Web browser
Microsoft Windows XP, Windows Vista(32bit), Windows 7(32bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
*1 VE off mode only. *2 View-DR off mode only. *3 Removable IR Cut Filter. *4 With a built-in heater.
The SNC-DH280 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(www.openssl.org/).
CD-ROM (User’s Guide, SNC Toolbox), Installation manual, Wire rope,
M4 screw, Warranty Booklet, Template
35
VIDEO SECURITY
VIDEO SECURITY
IP MINI-DOME CAMERAS
IP MINI-DOME CAMERAS
SNC-EM520
SNC-EM521
High-Quality Security Camera. SVGA (800 x 600) maximum
resolution. Three codecs (H.264, MPEG-4, JPEG) and a dual
streaming capability. The “Exmor” CMOS sensor incorporated to
realise high image quality and low noise.
Vandal-Resistant Security Camera. SVGA (800 x 600) maximum
resolution. Three codecs (H.264, MPEG-4, JPEG) and a dual
streaming capability. The “Exmor” CMOS sensor incorporated to
realise high image quality and low noise.
Key Features and Benefits
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Day/night function. Switches automatically to mono in
night conditions
Stream Squared function to send two 4:3 aspect ratio videos
in user-selectable resolutions up to SD simultaneously (Lowcost solution to replace two SD cameras located in a line)
Standard Features and Benefits
t Analogue monitor output (phono jack)
Specifications
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Camera
Image sensor
Number of effective pixels (H x V)
Minimum illumination
Gain control
Electronic shutter speed
Exposure control
White balance mode
Lens type
Powered zoom
Zoom ratio
Powered focus
Horizontal viewing angle
Focal length
F-number
Minimum object distance
1/3-type “Exmor” CMOS sensor
Approx. 1.4 Megapixel (1329 x 1049)
Colour: 0.50 lx, B/W: 0.30 lx
(F1.2, shutter 1/30 sec., AGC 42dB, 50IRE by IP)
Auto
1/1 to 1/10,000 s
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Built-in Vari-focal lens
Yes (Easy Zoom)
Optical 2.9x
Yes (Easy Focus)
85.4 to 31.2 degrees
f = 3.1 to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Camera Features
t Powered by PoE (Power over Ethernet) for simple installation
Day/Night
Noise Reduction
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Dimensions
Key Features and Benefits
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
Yes
Yes
800 x 600 (SVGA), 720 x 576 (PAL D1), 720 x 480 (NTSC D1),
704 x 576 (4CIF), 640 x 480 (VGA), 352 x 288 (CIF),
320 x 240 (QVGA)
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264, MPEG-4, JPEG)
Scene Analytics
Intelligent motion detection
Network
Protocols
ONVIF conformance
Number of clients
Authentication
Day/night function. Switches automatically to mono in night
conditions
IK10
IK10-rated vandal-resistant feature to protect the camera
from destructive behaviors
Stream Squared function to send two 4:3 aspect ratio videos
in user-selectable resolutions up to SD simultaneously (Low-cost
solution to replace two SD cameras located in a line)
Network port
Image sensor
Number of effective pixels (H x V)
Minimum Illumination
Gain control
Electronic shutter speed
Exposure control
White balance mode
Lens type
Powered zoom
Zoom ratio
Powered focus
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Camera Features
t Analogue monitor output (phono jack)
t Powered by PoE (Power over Ethernet) for simple installation
Codec image size (H x V)
t ONVIF (Open Network Video Interface Forum) conformance that
ensures greater interoperability and more flexibility in building
multiple-vendor systems
Video compression format
Codec streaming capability
Maximum frame rate
Day/Night
Noise Reduction
Dimensions
Protocols
ONVIF conformance
Number of clients
Authentication
Unit: mm (inches)
Safety regulations
PoE (IEEE802.3af compliant)
6.0 W max.
-10 to +50 °C (14 to 122°F)
0 to +50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
20 to 80%
20 to 95%
ø140 mm × 118 mm (5 5/8 inches × 4 3/4 inches)
Approx. 715 g (1 lb 9 oz) not including the cables and bracket
UL2044, FCC Class A Digital Device, IC Class A Digital Device,
IEC60950-1, EN55022(A)+EN55024+EN50
130-4, VCCI Class A, AN/NZS CISPR22
System requirements
Operating system
Processor
Memory
Web browser
Yes
Yes
800 x 600 (SVGA), 720 x 576 (PAL D1), 720 x 480 (NTSC D1),
704 x 576 (4CIF), 640 x 480 (VGA), 352 x 288 (CIF),
320 x 240 (QVGA)
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264, MPEG-4, JPEG)
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client only),
SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Interface
Phono jack x 1
(1.0 Vp-p, 75 ohms, unbalanced, sync negative)
10BASE-T / 100BASE-TX (RJ-45)
Analogue monitor output
Network port
Sensor input
General
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Operating humidity
Storage humidity
Dimensions (W x H x D)
Mass
1/3-type “Exmor” CMOS sensor
Approx. 1.4 Megapixel (1329 x 1049)
Colour: 0.50 lx, B/W: 0.30 lx
(F1.2, shutter 1/30 sec., AGC 42dB, 50IRE by IP)
Auto
1/1 to 1/10,000 s
Auto, EV Compensation, Auto Slow Shutter
Auto (ATW, ATW-PRO), Preset, One-push WB, Manual
Built-in Vari-focal lens
Yes (Easy Zoom)
Optical 2.9x
Yes (Easy Focus)
85.4 to 31.2 degrees
f = 3.1 to 8.9 mm
F1.2 (Wide), F2.1 (Tele)
300 mm
Scene Analytics
Intelligent motion detection
Network
Interface
Analogue monitor output
Camera
Standard Features and Benefits
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client
only), SMTP, DHCP, DNS,NTP, RTP/RTCP, RTSP, SNMP (MIB-2)
Yes
5
IEEE802.1X
Specifications
Microsoft Windows XP, Windows Vista (32 bit), Windows 7 (32 bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guides, and supplied programs) (1),
Bracket (1), Template (1), Wire rope (1),
Camera unit mounting screws (2), Shoulder screw M4 (1),
LAN cable (1), Installation Manual (1)
*The SNC-EP520 and SNC-EP521 include software developed by the OpenSSL Project for use in the OpenSSL
Toolkit (http://www.openssl.org/).
Alarm output
Phono jack x 1 (1.0 Vp-p, 75 ohms, unbalanced, sync negative)
10BASE-T / 100BASE-TX (RJ-45)
x 1, make contact, break contact
x 1, 24V AC/DC, 1A
(mechanical relay outputs electrically isolated from the camera)
General
Unit: mm (inches)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Operating humidity
Storage humidity
Vandal resistant
Dimensions (W x H x D)
Mass
Safety regulations
PoE (IEEE802.3af compliant)
6.0 W max.
-10 to +50 °C (14 to 122°F)
0 to +50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
20 to 80%
20 to 95%
IK10
ø140 mm × 119 mm (5 5/8 inches × 4 3/4 inches)
Approx. 945 g (2 lb 2 oz), not including the cables and bracket
UL2044, FCC Class A Digital Device, IC Class A Digital Device,
IEC60950-1, EN55022(A)+EN55024+EN50
130-4, VCCI Class A, AN/NZS CISPR22
System requirements
Operating system
Processor
Memory
Web browser
Microsoft Windows XP, Windows Vista (32 bit), Windows 7 (32 bit)
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s Guides, and supplied programs) (1),
Bracket (1), Template (1), Wire rope (1),
Camera unit mounting screws (2), Shoulder screw M4 (1),
Wrench (1), I/O cable (1), LAN cable (1),
Installation Manual (1)
*The SNC-EP550 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
36
37
VIDEO SECURITY
VIDEO SECURITY
IP RAPID DOME OR PTZ CAMERAS
IP RAPID DOME OR PTZ CAMERAS
SNC-EP521
SNC-EP550
High-Quality PTZ Camera. Three codecs ( H.264, MPEG-4, JPEG)
and dual-streaming capability. Powerful 36x optical zoom
capability. Wide-D technology. Slim and stylish.
High-Quality 720p HD PTZ Camera. Excellent 720p HD picture
quality, supporting 30 fps at H.264 (1280 x 720 maximum
resolution). The “Exmor” CMOS sensor incorporated to realize
high image quality and low noise. Powerful 28x optical zoom
capability.
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Day/night function. Switches automatically to mono in
night conditions
REC
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Standard Features and Benefits
t 36x optical and total zoom ratio of 432x with 12x digital zoom
t Wide-D technology to handle various lighting conditions
in a scene
t Powered by hPoE for simple installation
t SD memory card slot for an on-board recording capability
t ONVIF (Open Network Video Interface Forum) Version 1.02
conformance
Dimensions
Key Features and Benefits
Minimum Illumination
Signal system
Electronic shutter speed
Auto gain control
Exposure control
White balance mode
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Pan Speed
Tilt angle
Tilt speed
Preset position
Tour
1/4-type EXview HAD CCD
Approx. 0.44 Megapixel
Colour: 1.4lx (F1.6, shutter 1/50sec, AGC ON, 50IR[IP])
B/W: 0.15lx (F1.6, shutter 1/50sec, AGC ON, Night Mode, 50IRE[IP])
PAL standard
1/1 to 1/10,000 s
Auto/Manual (-3 to 28 dB)
Full auto, Shutter priority, Iris priority, Manual
Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium
vapour lamp
Auto-focus Zoom Lens
Optical zoom 36x, Digital zoom 12x, Total zoom 432x
57.8 to 1.7 degrees
f=3.4 to 122.4 mm
F1.6 to F4.5
10mm (wide) to 1500mm (tele)
340 degrees
300 degrees/s (max)
105 degrees
300 degrees/s (max)
256 positions
5
Camera Features
Day/Night
Wide-D
Noise Reduction
Yes
Yes
Yes
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
720×576, 704×576, 640×480, 384×288, 320×240
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264/MPEG-4/JPEG)
Audio
Back
Front
Audio compression
Scene Analytics
Intelligent motion detection
Network
Protocols
ONVIF conformance
Number of clients
Authentication
190 (7 1/2)
190.9 (7 5/8)
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Camera
Image device
Number of effective pixels
G.711/G.726
Yes
Day/night function. Switches automatically to mono in night
conditions
REC
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Standard Features and Benefits
t Excellent 720p HD picture quality at 30fps
t 28x optical and total zoom ratio of 336x with 12x digital zoom
t Wide-D technology to handle various lighting conditions in a scene
Unit: mm (inches)
Operating system
t ONVIF (Open Network Video Interface Forum) Version 1.02
conformance
5
4(
7
Processor
Memory
7.
4
ø1
Bottom
Web browser
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Pan Speed
Tilt angle
Tilt speed
Preset position
Tour
Video compression format
Codec streaming capability
Maximum frame rate
Dimensions
Back
Front
CD-ROM (User’s guide, supplied programs), Installation
manual, Ceiling bracket, Screws(2), Template, 24V AC
Connector, I/O Connector
*The SNC-EP520 and SNC-EP521 include software developed by the OpenSSL Project for use in the OpenSSL
Toolkit (http://www.openssl.org/).
1/4-type Exmor CMOS
Approx. 1.43 Megapixel
Color: 1.0lx (F1.35, shutter 1/30sec, AGC ON, 50IRE[IP])
B/W: 0.1lx (F1.35, shutter 1/30sec, AGC ON, Night Mode, 50IR [IP])
Color: 0.7lx (F1.35, shutter 1/30sec, AGC ON, 30IRE[IP])
B/W: 0.07lx (F1.35, shutter 1/30sec, AGC ON, Night Mode, 30IRE[IP])
1/1 to 1/10,000 s
Auto/Manual (-3 to 28 dB)
Full auto, Shutter priority, Iris priority, Manual
Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium
vapour lamp
Auto-focus Zoom Lens
Optical zoom 28x, Digital zoom 12x, Total zoom 336x
55.9 to 2.1 degrees
f=3.5 to 98 mm
F1.35 to F3.7
10mm (wide) to 1500mm (tele)
340 degrees
300 degrees/s (max)
105 degrees
300 degrees/s (max)
256 positions
5
Yes
Yes
Yes
1280×720, 1024×576, 800×600, 800×480, 768×576,
720×576, 704×576, 720×480, 640×480, 640×368,
384×288, 320×240, 320×192
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264/MPEG-4/JPEG)
Audio
Audio compression
Scene Analytics
Intelligent motion detection
Network
Protocols
ONVIF conformance
Number of clients
Authentication
G.711/G.726
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Yes (Ver. 1.02)
5
IEEE802.1X
Interface
Ethernet
Card slots
Sensor input
Alarm output
External microphone input
Audio line output
10BASE-T / 100BASE-TX (RJ-45)
SD memory card x 1 (Compatible with the SD/SDHC standards)
x2
x1
Mini-jack (monaural)
Mini-jack (monaural), Max output level: 1 Vrms
General
Unit: mm (inches)
Mass
Dimensions (ø x H mm)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
1.7 kg (3 lb 12 oz) (including sealing bracket)
ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches)
HPoE (IEEE802.3at compliant), AC24V
Approx. 25W
-5 to +50 °C (23 to 122°F)
0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
System requirements
8)
7/
.
7
14
ø
5
4(
Operating system
Bottom
Processor
Memory
Web browser
Supplied Accessories
38
White balance mode
Codec image size (H x V)
10BASE-T / 100BASE-TX (RJ-45)
SD memory card x 1 (Compatible with the SD/SDHC standards)
x2
x1
Mini-jack (monaural)
Mini-jack (monaural), Max output level: 1 Vrms
Microsoft Windows XP (32bit) - Professional Edition
Microsoft Windows Vista (32bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Electronic shutter speed
Gain control
Exposure control
Day/Night
Wide-D
Noise Reduction
System requirements
)
/8
Minimum Illumination
t SD memory card slot for an on-board recording capability
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Yes (Ver. 1.02)
5
IEEE802.1X
1.7 kg (3 lb 12 oz) (including sealing bracket)
ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches)
HPoE (IEEE802.3at compliant), AC24V
Approx. 25W
-5 to +50 °C (23 to 122°F)
0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
Image device
Number of effective pixels
Camera Features
General
Mass
Dimensions (ø x H mm)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Camera
t Powered by hPoE for simple installation
Interface
Ethernet
Card slots
Sensor input
Alarm output
External microphone input
Audio line output
Specifications
190 (7 1/2)
Specifications
190.9 (7 5/8)
Key Features and Benefits
Microsoft Windows XP(32bit) - Professional Edition
Microsoft Windows Vista(32bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s guide, supplied programs), Installation
manual, Ceiling bracket, Screws(2), Template,
24V AC Connector, I/O Connector
*The SNC-EP550 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
39
VIDEO SECURITY
VIDEO SECURITY
IP RAPID DOME OR PTZ CAMERAS
IP RAPID DOME OR PTZ CAMERAS
SNC-EP580
SNC-ER521
High-Quality 1080p HD PTZ Camera. Excellent 1080p HD picture
quality, supporting 30 fps at H.264 (1920 x 1080 maximum
resolution). The “Exmor” CMOS sensor incorporated to realize
high image quality and low noise. Powerful 20x optical zoom
capability.
High-Quality Rapid Dome Camera. Three codecs ( H.264,
MPEG-4, JPEG) and dual-streaming capability. High-speed 360
degrees endless rotation. Powerful 36x optical zoom capability.
Wide-D technology. Slim and stylish.
Key Features and Benefits
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Day/night function. Switches automatically to mono in night
conditions
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Standard Features and Benefits
t Excellent 1080p HD picture quality at 30fps
t 20x optical and total zoom ratio of 240x with 12x digital zoom
t Wide-D technology to handle various lighting conditions in a scene
t Powered by hPoE for simple installation
Image device
Number of effective pixels
Minimum Illumination
Electronic shutter speed
Gain control
Exposure control
White balance mode
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Pan Speed
Tilt angle
Tilt speed
Preset position
Tour
Camera Features
Day/Night
Wide-D
Noise Reduction
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
Dimensions
1/2.8-type Exmor CMOS
Approx. 3.27 Megapixel
Colour: 1.7lx (F1.6, shutter 1/30sec, AGC ON, 50IRE[IP])
B/W: 0.07lx (F1.6, shutter 1/30sec, AGC ON, Night Mode, 50IRE[IP])
1/1 to 1/10,000 s
Auto/Manual (-3 to 28 dB)
Full auto, Shutter priority, Iris priority, Manual
Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium
vapour lamp
Auto-focus Zoom Lens
Optical zoom 20x, Digital zoom 12x, Total zoom 240x
55.4 to 2.9 degrees
f=4.7 to 94.0 mm
F1.6 to F3.5
10mm (wide) to 800mm (tele)
340 degrees
300 degrees/s (max)
105 degrees
300 degrees/s (max)
256 positions
5
Yes
Yes*1
Yes
t SD memory card slot for an on-board recording capability
t ONVIF (Open Network Video Interface Forum) Version 1.02
conformance
360o
Camera
1920×1080, 1680×1056, 1280×1024, 1440×912,
1280×960, 1376×768, 1280×800, 1280×720, 1024×768,
1024×576, 800×600, 800×480, 768×576, 720×576,
704×576, 720×480, 640×480, 640×368, 384×288,
320×240, 320×192
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264)
Specifications
High-Speed 360 degrees endless rotation
Camera
Above-the-horizon tilt. 15°tilt-up, total tilt range of 210°
Image device
Number of effective pixels
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Day/night function. Switches automatically to mono in
night conditions
REC
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Standard Features and Benefits
t 36x optical and total zoom ratio of 432x with 12x digital zoom
t Wide-D technology to handle various lighting conditions
in a scene
t Powered by hPoE for simple installation
t SD memory card slot for an on-board recording capability
t ONVIF (Open Network Video Interface Forum) Version 1.02
conformance
Audio
Audio compression
Scene Analytics
Back
Front
Intelligent motion detection
Network
ONVIF conformance
Number of clients
Authentication
190 (7 1/2)
Dimensions
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Yes (Ver. 1.02)
5
IEEE802.1X
Back
Front
Unit: mm (inches)
.4
47
(5
Operating system
7
Processor
Memory
ø1
Bottom
Web browser
Day/Night
Wide-D
Noise Reduction
Yes
Yes
Yes
Codec image size (H x V)
Video compression format
Codec streaming capability
Maximum frame rate
720×576, 704×576, 640×480, 384×288, 320×240
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264/MPEG-4/JPEG)
Audio
Protocols
G.711/G.726
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Yes (Ver. 1.02)
5
IEEE802.1X
10BASE-T / 100BASE-TX (RJ-45)
SD memory card x 1 (Compatible with the SD/SDHC standards)
x2
x1
Mini-jack (monaural)
Mini-jack (monaural), Max output level: 1 Vrms
General
1.7 kg (3 lb 12 oz) (including sealing bracket)
ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches)
HPoE (IEEE802.3at compliant), AC24V
Approx. 25W
-5 to +50 °C (23 to 122°F)
0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
Mass
Dimensions (ø x H mm)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Unit: mm (inches)
Operating system
*1 When using Wide-D technology, the maximum frame rate will be 15fps.
*The SNC-EP580 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
.4
7
14
ø
CD-ROM (User’s guide, supplied programs), Installation
manual, Ceiling bracket, Screws(2), Template, 24V AC
Connector, I/O Connector
1.7 kg (3 lb 12 oz) (including sealing bracket)
ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches)
HPoE (IEEE802.3at compliant), AC24V
Approx. 25W
-5 to +50 °C (23 to 122°F)
0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
System requirements
Microsoft Windows XP(32bit) - Professional Edition
Microsoft Windows Vista(32bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition
Intel Core2 Duo 2.33 GHz or higher
2 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
40
Camera Features
Ethernet
Card slots
Sensor input
Alarm output
External microphone input
Audio line output
System requirements
)
/8
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Pan Speed
Tilt angle
Tilt speed
Preset position
Tour
1/4-type EXview HAD CCD
Approx. 0.44 Megapixel
Colour: 1.4lx (F1.6, shutter 1/50sec, AGC ON(50IRE[IP])
B/W: 0.15lx (F1.6, shutter 1/50sec, AGC ON, Night Mode ,50IRE[IP])
PAL standard
1/1 to 1/10,000 s
Auto/Manual (-3 to 28 dB)
Full auto, Shutter priority, Iris priority, Manual
Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium
vapour lamp
Auto-focus Zoom Lens
Optical zoom 36x, Digital zoom 12x, Total zoom 432x
57.8 to 1.7 degrees
f=3.4 to 122.4 mm
F1.6 to F4.5
10mm (wide) to 1500mm (tele)
360 degrees
300 degrees/s (max)
210 degrees
300 degrees/s (max)
256 positions
5
Interface
10BASE-T / 100BASE-TX (RJ-45)
SD memory card x 1 (Compatible with the SD/SDHC standards)
x2
x1
Mini-jack (monaural)
Mini-jack (monaural), Max output level: 1 Vrms
General
Mass
Dimensions (ø x H mm)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
White balance mode
ONVIF conformance
Number of clients
Authentication
Interface
Ethernet
Card slots
Sensor input
Alarm output
External microphone input
Audio line output
Signal system
Electronic shutter speed
Auto gain control
Exposure control
Intelligent motion detection
Network
Yes
190 (7 1/2)
190.9 (7 5/8)
Protocols
Minimum Illumination
Audio compression
Scene Analytics
G.711/G.726
190.9 (7 5/8)
REC
Key Features and Benefits
Specifications
(5
Processor
Memory
)
/8
7
Web browser
Bottom
Microsoft Windows XP(32bit) - Professional Edition
Microsoft Windows Vista(32bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s guide, supplied programs),
Installation manual, Ceiling bracket, Screws(2), Template,
24V AC Connector, I/O Connector
*The SNC-ER520 and SNC-ER521 include software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
41
VIDEO SECURITY
VIDEO SECURITY
IP RAPID DOME OR PTZ CAMERAS
IP RAPID DOME OR PTZ CAMERAS
SNC-ER550
SNC-ER580
High-Quality 720p HD Rapid Dome Camera. Excellent 720p HD
picture quality, supporting 30 fps at H.264 (1280 x 720 maximum
resolution). The “Exmor” CMOS sensor incorporated to realize
high image quality and low noise. High-speed 360 degrees
endless rotation. Powerful 28x optical zoom capability.
High-Quality 1080p HD Rapid Dome Camera. Excellent 1080p HD
picture quality, supporting 30 fps at H.264 (1920 x 1080 maximum
resolution). The “Exmor” CMOS sensor incorporated to realize high
image quality and low noise. High-speed 360 degrees endless
rotation. Powerful 20x optical zoom capability.
Key Features and Benefits
360o
REC
Key Features and Benefits
Specifications
High-Speed 360 degrees endless rotation
Camera
Above-the-horizon tilt. 15°tilt-up, total tilt range of 210°
Image device
Number of effective pixels
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Minimum Illumination
Day/night function. Switches automatically to mono in night
conditions
Electronic shutter speed
Gain control
Exposure control
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
White balance mode
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Standard Features and Benefits
t Excellent 720p HD picture quality at 30fps
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Pan Speed
Tilt angle
Tilt speed
Preset position
Tour
t 28x optical and total zoom ratio of 336x with 12x digital zoom
Camera Features
t Wide-D technology to handle various lighting conditions in a scene
Day/Night
Wide-D
Noise Reduction
t Powered by hPoE for simple installation
t SD memory card slot for an on-board recording capability
t ONVIF (Open Network Video Interface Forum) Version 1.02
conformance
360o
1/4-type Exmor CMOS
Approx. 1.43 Megapixel
Color: 1.0lx (F1.35, shutter 1/30sec, AGC ON, 50IRE[IP])
B/W: 0.1lx (F1.35, shutter 1/30sec, AGC ON, Night Mode, 50IRE[IP])
Color: 0.7lx (F1.35, shutter 1/30sec, AGC ON, 30IRE[IP])
B/W: 0.07lx (F1.35, shutter 1/30sec, AGC ON, Night Mode, 30IRE[IP])
1/1 to 1/10,000 s
Auto/Manual (-3 to 28 dB)
Full auto, Shutter priority, Iris priority, Manual
Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium
vapour lamp
Auto-focus Zoom Lens
Optical zoom 28x, Digital zoom 12x, Total zoom 336x
55.9 to 2.1 degrees
f=3.5 to 98 mm
F1.35 to F3.7
10mm (wide) to 1500mm (tele)
360 degrees endless rotation
300 degrees/s (max)
210 degrees (with e-flip)
300 degrees/s (max)
256 positions
5
Video compression format
Codec streaming capability
Maximum frame rate
High-Speed 360 degrees endless rotation
Camera
Above-the-horizon tilt. 15°tilt-up, total tilt range of 210°
Image device
Number of effective pixels
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Day/night function. Switches automatically to mono in night
conditions
REC
Recording software (RealShot Manager Lite) is bundled to
start recording and monitoring instantly
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Standard Features and Benefits
t Excellent 1080p HD picture quality at 30fps
t 20x optical and total zoom ratio of 240x with 12x digital zoom
Yes
Yes
Yes
Codec image size (H x V)
Specifications
1280×720, 1024×576, 800×600, 800×480, 768×576,
720×576, 704×576, 720×480, 640×480, 640×368,
384×288, 320×240, 320×192
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264/MPEG-4/JPEG)
t Powered by hPoE for simple installation
t SD memory card slot for an on-board recording capability
t ONVIF (Open Network Video Interface Forum) Version 1.02
conformance
Front
Intelligent motion detection
Network
ONVIF conformance
Number of clients
Authentication
Dimensions
Ethernet
Card slots
Sensor input
Alarm output
External microphone input
Audio line output
Back
Front
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Yes (Ver. 1.02)
5
IEEE802.1X
Unit: mm (inches)
.4
7
14
ø
(5
8)
Operating system
7/
Processor
Memory
Bottom
Web browser
Supplied Accessories
42
CD-ROM (User’s guide, supplied programs),
Installation manual, Ceiling bracket, Screws(2), Template,
24V AC Connector, I/O Connector
*The SNC-ER550 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit (http://www.openssl.org/).
1920×1080, 1680×1056, 1280×1024, 1440×912,
1280×960, 1376×768, 1280×800, 1280×720, 1024×768,
1024×576, 800×600, 800×480, 768×576, 720×576,
704×576, 720×480, 640×480, 640×368, 384×288,
320×240, 320×192
H.264, MPEG-4, JPEG
Dual streaming
30 fps (H.264)
Audio
Protocols
Ethernet
Card slots
Sensor input
Alarm output
External microphone input
Audio line output
G.711/G.726
Yes
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, FTP (client/
server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP(MIB-2)
Yes (Ver. 1.02)
5
IEEE802.1X
10BASE-T / 100BASE-TX (RJ-45)
SD memory card x 1 (Compatible with the SD/SDHC standards)
x2
x1
Mini-jack (monaural)
Mini-jack (monaural), Max output level: 1 Vrms
General
Mass
Dimensions (ø x H mm)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Unit: mm (inches)
1.7 kg (3 lb 12 oz) (including sealing bracket)
ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches)
HPoE (IEEE802.3at compliant), AC24V
Approx. 25W
-5 to +50 °C (23 to 122°F)
0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
System requirements
Operating system
System requirements
Microsoft Windows XP(32bit) - Professional Edition
Microsoft Windows Vista(32bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Yes
Yes*1
Yes
Interface
10BASE-T / 100BASE-TX (RJ-45)
SD memory card x 1 (Compatible with the SD/SDHC standards)
x2
x1
Mini-jack (monaural)
Mini-jack (monaural), Max output level: 1 Vrms
1.7 kg (3 lb 12 oz) (including sealing bracket)
ø147.4 x 190.9 mm (5 7/8 x 7 5/8 inches)
HPoE (IEEE802.3at compliant), AC24V
Approx. 25W
-5 to +50 °C (23 to 122°F)
0 to 50 °C (32 to 122°F)
-20 to +60 °C (-4 to +140°F)
Video compression format
Codec streaming capability
Maximum frame rate
ONVIF conformance
Number of clients
Authentication
General
Mass
Dimensions (ø x H mm)
Power requirements
Power consumption
Operating temperature
Starting temperature
Storage temperature
Codec image size (H x V)
Intelligent motion detection
Network
Interface
190 (7 1/2)
190.9 (7 5/8)
Protocols
Yes
Day/Night
Wide-D
Noise Reduction
Audio compression
Scene Analytics
190 (7 1/2)
Back
G.711/G.726
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
F-number
Minimum object distance
Pan angle
Pan Speed
Tilt angle
Tilt speed
Preset position
Tour
Camera Features
190.9 (7 5/8)
Audio compression
Scene Analytics
White balance mode
t Wide-D technology to handle various lighting conditions in a scene
Audio
Dimensions
Minimum Illumination
Electronic shutter speed
Gain control
Exposure control
1/2.8-type Exmor CMOS
Approx. 3.27 Megapixel
Colour: 1.7lx (F1.6, shutter 1/30sec, AGC ON, 50IRE[IP])
B/W: 0.07lx (F1.6, shutter 1/30sec, AGC ON, Night Mode, 50IRE[IP])
1/1 to 1/10,000 s
Auto/Manual (-3 to 28 dB)
Full auto, Shutter priority, Iris priority, Manual
Auto, ATW, Indoor, Outdoor, One-push, Manual, Sodium
vapour lamp
Auto-focus Zoom Lens
Optical zoom 20x, Digital zoom 12x, Total zoom 240x
55.4 to 2.9 degrees
f=4.7 to 94.0 mm
F1.6 to F3.5
10mm (wide) to 800mm (tele)
360 degrees endless rotation
300 degrees/s (max)
210 degrees (with e-flip)
300 degrees/s (max)
256 positions
5
.4
ø
7
14
(5
Processor
Memory
8)
7/
Web browser
Bottom
Microsoft Windows XP(32bit) - Professional Edition
Microsoft Windows Vista(32bit) - Ultimate, Business Edition
Microsoft Windows 7 (32/64bit) - Ultimate, Professional Edition
Intel Core2 Duo 2 GHz or higher
1 GB or more
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0, Ver. 8.0
Firefox Ver.3.5 (Plug-in free viewer only)
Safari Ver.4.0 (Plug-in free viewer only)
Google Chrome Ver.4.0 (Plug-in free viewer only)
Supplied Accessories
CD-ROM (User’s guide, supplied programs),
Installation manual, Ceiling bracket, Screws(2), Template,
24V AC Connector, I/O Connector
*1 When using Wide-D technology, the maximum frame rate will be 15fps.
*The SNC-ER580 includes software developed by the OpenSSL Project for use in the OpenSSL Toolkit
(http://www.openssl.org/).
43
VIDEO SECURITY
VIDEO SECURITY
IP RAPID DOME OR PTZ CAMERAS
IP RAPID
PTZ CAMERAS
DOME OR PTZ CAMERAS
SNC-RH124
SNC-RH164
The SNC-RH124 indoor rapid dome camera delivers
unrivalled image quality at HD resolution.
Ideal for heavy duty, outdoor monitoring applications, the
SNC-RH164 rapid dome camera delivers unrivalled image
quality at HD resolution.
Key Features and Benefits
Specifications
HD video at 30 fps. Superior High Definition image quality
with real time capture
Camera
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in lowlight conditions
Wide-D
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Auto gain control
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Image device
Day/Night
Number of effective pixels
Electronic shutter speed
Exposure control
White balance mode
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
Standard Features and Benefits
t 210 degree tilt angle. Greater image capture at high
angles of tilt
t Quick Release Mechanism. Quick and easy to install
and maintain
t ONVIF Compliant. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
Key Features and Benefits
HD CMOS
Yes
No
(H x V) Approx. 2 Megapixel
1/2 to 1/10,000s
Auto/Manual (-3dB to +18dB)
Auto, Full auto, Shutter-priority, Iris-priority, Manual,
EV compensation, Backlight compensation
Auto, Indoor, Outdoor, One-push WB, Manual
Auto-focus zoom lens
10x
5.4 to 50 degrees
F1.8 (wide), F2.1 (tele)
Pan angle
360 degrees endless rotation
Pan speed
400 degrees/s (max.)
Tilt angle
210 degrees (with e-flip)
Tilt speed
400 degrees/s (max.)
Codec image size
Video compression format
Maximum frame rate
JPEG
(H x V) 1280 x 720,1024 x 576, 800 x 480, 768 x 576,
640 x 480 (VGA), 640 x 368, 384 x 288, 320 x 240 (QVGA),
320 x 192
H.264, MPEG-4, JPEG
H264/MPEG-4: 30 fps (1280 x 720)
10 fps (1280 x 720)
Audio
Audio compression
G.711/G.726
Scene Analytics
Dimensions
Simple activity detection
Intelligent motion detection
No
Yes (with built-in Post Filter)
Intelligent object detection
No
Network
Protocols
226 (9)
166 (6 5/8)
Wireless network
Number of clients
Authentication
TCP/IP, ARP, ICMP, HTTP, FTP (client/server), SMTP, DHCP, DNS,
NTP, RTP/RTCP, SNMP (MIB-2)
Yes (Optional card)
Card slots
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in lowlight conditions
Wide-D
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Auto gain control
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
IEEE802.1X
10BASE-T/100BASE-TX (RJ-45)
RS-232C/RS-422 (PELCO D protocol)
CF card x1
Image device
Day/Night
Number of effective pixels
Electronic shutter speed
Exposure control
White balance mode
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
Standard Features and Benefits
t IP66 Rated. Maximum environmental protection for heavy
duty outdoor monitoring applications
t 210 degree tilt angle. Greater image capture at high
angles of tilt
t Quick Release Mechanism. Quick and easy to install
and maintain
t ONVIF Compliant. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
1/2 to 1/10,000s
Auto/Manual (-3 to +18dB)
Auto, Full auto, Shutter-priority, Iris-priority, Manual,
EV compensation, Backlight compensation
Auto, Indoor, Outdoor, One-push WB, Manual
Auto-focus zoom lens
10x
5.4 to 50 degrees
f=5.1 to 51mm
F1.8 (wide), F2.1 (tele)
Pan angle
360 degrees endless rotation
Pan speed
400 degrees/s (max.)
Tilt angle
210 degrees (with e-flip)
Tilt speed
400 degrees/s (max.)
Video compression format
Maximum frame rate
JPEG
(H x V) 1280 x 720, 1024 x 576, 800 x 480, 768 x 576, 640 x 480
(VGA), 640 x 368, 384 x 288, 320 x 240 (QVGA), 320 x 192
H.264, MPEG-4, JPEG
H264/MPEG-4: 30 fps (1280 x 720)
10 fps (1280 x 720)
Audio
Audio compression
G.711/G.726
Scene Analytics
Simple activity detection
Intelligent motion detection
No
Yes (with built-in Post Filter)
Intelligent object detection
No
Network
Protocols
Wireless network
Number of clients
Authentication
Dimensions
Yes
(H x V) Approx. 2 Megapixel
F-number
Codec image size
t Sunshade Ventilation Mechanism. Delivering optimum
performance in hot weather conditions the camera benefits
from a special ventilation mechanism
HD CMOS
Yes
TCP/IP, ARP, ICMP, HTTP, FTP (client/server), SMTP, DHCP, DNS,
NTP, RTP/RTCP, SNMP (MIB-2)
Yes (With Optional card)
10
IEEE802.1X
Interface
Ethernet
Serial interface
Card slots
Analogue video output
10BASE-T/100BASE-TX (RJ-45)
RS-232C/RS-422 (PELCO D protocol)
CF card x1
Composite video (1Vp-p)
Composite video (1Vp-p)
Sensor input
x4
Sensor input
x4
Alarm output
Alarm output
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm,
2.45VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm,
2.45VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
Analogue video output
External microphone input
Audio line output
Analogue video output
Signal system
S/N ratio
PAL
More than 50 dB
External microphone input
Audio line output
Analogue video output
Signal system
S/N ratio
PAL
More than 50 dB
Sensitivity colour
2.1 (50IRE, AGC ON)
Sensitivity colour
1.9 (50IRE, AGC ON)
Sensitivity monochrome
0.19 (50IRE, AGC ON)
Sensitivity monochrome
0.17 (50IRE, AGC ON)
General
General
Weight
Dimensions
Power requirements
Approx. 2.1 kg (4 lb 10 oz)
(ø x H) 154 x 226 mm (6 1/8 x 9 inches)
hPoE, AC24V, DC12V
Weight
Dimensions
Approx. 4.5 kg (9 lb 15 oz)
(ø x H) 238 x 346 mm (9 3/8 x 13 5/8 inches)
Power requirements
AC24V
Power consumption
78 W max
Power consumption
27 W max
Operating temperature
-40 to 50 °C
Operating temperature
0 to 50 °C
Storage temperature
-20 to 60 °C
-20 to 60 °C
System requirements
Storage temperature
Operating system
System requirements
Operating system
System requirements
Web browser
Windows XP/Vista®
CPU: Intel® Pentium® IV 3GHz, Intel® Core™2 Duo 2GHz or
higher, RAM: 1GB or more
Microsoft Internet Explorer Ver6.0 or higher
Supplied Accessories
Base unit, Mounting bracket, Screws, Cables (Power
input, BNC, I/O, Serial), Installation manual, CD-ROM
(User’s guide, SNC toolbox), Mounting template, Wire rope
44
Camera
10
Interface
Ethernet
Serial interface
HD video at 30 fps. Superior High Definition image quality
with real time capture
f=5.1 to 51mm
F-number
Specifications
System requirements
Web browser
Windows XP/Vista®
CPU: Intel® Pentium® IV 3GHz, Intel® Core™2 Duo 2GHz or
higher, RAM: 1GB or more
Microsoft Internet Explorer Ver6.0 or higher
Supplied Accessories
Base unit, Top sunshade, Rotate-and-lock coupling,
Waterproof plug, Screws, Installation manual, CD-ROM
(User’s guide, SNC toolbox), Wire rope
45
VIDEO SECURITY
VIDEO SECURITY
IP RAPID
PTZ CAMERAS
DOME OR PTZ CAMERAS
IP RAPID
PTZ CAMERAS
DOME OR PTZ CAMERAS
SNC-RS44P
SNC-RS46P
The SNC-RS44P indoor rapid dome camera delivers high image
quality coupled feature-rich performance.
The SNC-RS46P indoor rapid dome camera delivers high image
quality and feature-rich performance with an enhanced optical
zoom range capability.
Key Features and Benefits
1
™
4 1/4" CCD with Exwave HAD technology. Superior
Specifications
image quality with extended infra red response
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in lowlight conditions
Wide-D
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Auto gain control
Number of effective pixels
Electronic shutter speed
Exposure control
White balance mode
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
Standard Features and Benefits
t 18 x optical zoom. Powerful optical zoom capability delivers
flexible image capture and tracking
t 210 degree tilt angle. Greater image capture at high
angles of tilt
t Quick Release Mechanism. Quick and easy to install
and maintain
Yes
(H x V) 440,000
1/2 to 1/10,000s
Auto/Manual (-3dB to +28dB)
Auto, Full auto, Shutter-priority, Iris-priority, Manual,
EV compensation, Backlight compensation
Auto, Indoor, Outdoor, One-push WB, ATW, Manual
Tilt angle
210 degrees (with e-flip)
Tilt speed
400 degrees/s (max.)
(H x V) 720 x 576, 640 x 480 (VGA), 384 x 288, 320 x 240 (QVGA)
H.264, MPEG-4, JPEG
H264/MPEG-4/JPEG, 25 fps (720 x 576)
Audio
G.711/G.726
Scene Analytics
Intelligent motion detection
No
Yes (with built-in Post Filter)
Intelligent object detection
No
Number of clients
Authentication
Auto gain control
TCP/IP, ARP, ICMP, HTTP, FTP (client/server), SMTP, DHCP, DNS,
NTP, RTP/RTCP, SNMP (MIB-2)
Yes (Optional card)
10
Standard Features and Benefits
t 36 x optical zoom. Powerful optical zoom capability delivers
flexible image capture and tracking
t 210 degree tilt angle. Greater image capture at high
angles of tilt
Pan angle
360 degrees endless rotation
400 degrees/s (max.)
Tilt angle
210 degrees (with e-flip)
Tilt speed
400 degrees/s (max.)
Codec image size
Video compression format
Maximum frame rate
(H x V) 720 x 576, 640 x 480 (VGA), 384 x 288, 320 x 240 (QVGA)
H.264, MPEG-4, JPEG
H264/MPEG-4/JPEG, 25 fps (720 x 576)
Audio
No
Simple activity detection
Network
Protocols
Dimensions
G.711/G.726
Scene Analytics
Wireless network
Number of clients
Authentication
TCP/IP, ARP, ICMP, HTTP, FTP (client/server), SMTP, DHCP, DNS,
NTP, RTP/RTCP, SNMP (MIB-2)
Yes (Optional card)
10
IEEE802.1X
Ethernet
Serial interface
Card slots
Analogue video output
10BASE-T/100BASE-TX (RJ-45)
RS-232C/RS-422 (PELCO D protocol)
CF card x1
Composite video (1Vp-p)
Sensor input
x4
Alarm output
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm,
2.45VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
External microphone input
Audio line output
Analogue video output
PAL
530 TV lines
More than 50 dB
Sensitivity colour
0.4 (50IRE, AGC ON)
Sensitivity monochrome
0.08 (50IRE, AGC ON)
Signal system
Horizontal resolution
S/N ratio
PAL
530 TV lines
More than 50 dB
Sensitivity colour
0.7 (50IRE, AGC ON)
Sensitivity monochrome
0.08 (50IRE, AGC ON)
General
General
Approx. 2.1 kg (4 lb 10 oz)
(ø x H) 154 x 226 mm (6 1/8 x 9 inches)
Weight
Dimensions
Approx. 2.1 kg (4 lb 10 oz)
(ø x H) 154 x 226 mm (6 1/8 x 9 inches)
Power requirements
hPoE, AC24V, DC12V
Power requirements
hPoE, AC24V, DC12V
Power consumption
25 W max.
Power consumption
25 W max.
Operating temperature
0 to 50 °C
Operating temperature
Storage temperature
-20 to 60 °C
Operating system
System requirements
Web browser
Storage temperature
0 to 50 °C
-20 to 60 °C
System requirements
System requirements
Windows XP/Vista®
CPU: Intel® Pentium® IV 3GHz, Intel® Core™2 Duo 2GHz or
higher, RAM: 1GB or more
Microsoft Internet Explorer Ver6.0 or higher
Operating system
System requirements
Web browser
Windows XP/Vista®
CPU: Intel® Pentium® IV 3GHz, Intel® Core™2 Duo 2GHz or
higher, RAM: 1GB or more
Microsoft Internet Explorer Ver6.0 or higher
Supplied Accessories
Supplied Accessories
Base unit, Mounting bracket, Screws, Cables (Power input, BNC,
I/O, Serial), Installation manual, CD-ROM (User’s guide, SNC
toolbox), Mounting template, Wire rope
46
F1.6 (wide), F4.5 (tele)
Intelligent object detection
CF card x1
Analogue video output
Weight
Dimensions
f=3.4 to 122.4mm
F-number
No
Yes (with built-in Post Filter)
Composite video (1Vp-p)
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm,
2.45VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
S/N ratio
36x
1.7 to 57.8 degrees
Interface
x4
Signal system
Horizontal resolution
Auto-focus zoom lens
Intelligent motion detection
10BASE-T/100BASE-TX (RJ-45)
RS-232C/RS-422 (PELCO D protocol)
Alarm output
Audio line output
1 to 1/10,000s
Auto/Manual (-3dB to +28dB)
Auto, Full auto, Shutter-priority, Iris-priority, Manual,
EV compensation, Backlight compensation
Auto, Indoor, Outdoor, One-push WB, ATW, Manual
t ONVIF Compliant. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
IEEE802.1X
Sensor input
External microphone input
Zoom ratio
Yes
(H x V) 440,000
Audio compression
226 (9)
226 (9)
166 (6 5/8)
Analogue video output
Lens type
1/4-type CCD with Exwave HAD technology
Yes
t Quick Release Mechanism. Quick and easy to install
and maintain
166 (6 5/8)
Card slots
Exposure control
Pan speed
Interface
Ethernet
Serial interface
Electronic shutter speed
Focal length
400 degrees/s (max.)
Wireless network
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Number of effective pixels
f=4.1 to 73.8mm
Network
Dimensions
Wide-D
Horizontal viewing angle
360 degrees endless rotation
Protocols
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in lowlight conditions
Image device
Day/Night
2.8 to 48 degrees
Pan speed
Audio compression
Camera
White balance mode
18x
Pan angle
Maximum frame rate
Specifications
1/4" CCD with Exwave HAD™ technology. Superior
image quality with extended infra red response
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Auto-focus zoom lens
F1.4 (wide), F3.0 (tele)
Codec image size
Video compression format
4
1/4-type CCD with Exwave HAD technology
Yes
F-number
Simple activity detection
t ONVIF Compliant. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
1
Camera
Image device
Day/Night
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Key Features and Benefits
Base unit, Mounting bracket, Screws, Cables (Power input, BNC,
I/O, Serial), Installation manual, CD-ROM (User’s guide, SNC
toolbox), Mounting template, Wire rope
47
VIDEO SECURITY
VIDEO SECURITY
IP RAPID
PTZ CAMERAS
DOME OR PTZ CAMERAS
IP RAPID
PTZ CAMERAS
DOME OR PTZ CAMERAS
SNC-RS84P
SNC-RS86P
Ideal for outdoor, heavy duty monitoring applications, the
SNC-RS84P rapid dome camera delivers high image quality
coupled with feature-rich performance.
Ideal for outdoor, heavy duty monitoring applications, the
SNC-RS86P rapid dome camera delivers high image quality and
feature-rich performance with an enhanced optical zoom range
capability.
Key Features and Benefits
1
™
4 1/4" CCD with Exwave HAD technology.
Specifications
Superior image quality with extended infra red response
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in lowlight conditions
Wide-D
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Auto gain control
Number of effective pixels
Electronic shutter speed
Exposure control
White balance mode
Lens type
Zoom ratio
Horizontal viewing angle
Focal length
Standard Features and Benefits
t 18 x optical zoom. Powerful optical zoom capability delivers
flexible image capture and tracking
t IP66 Rated. Maximum environmental protection for heavy
duty outdoor monitoring applications
t 210 degree tilt angle. Greater image capture at high
angles of tilt
t Quick Release Mechanism. Quick and easy to install
and maintain
t ONVIF Compliant. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
1
Camera
Image device
Day/Night
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Key Features and Benefits
1/4-type CCD with Exwave HAD technology
Yes
Yes
(H x V) 440,000
1 to 1/10,000s
Auto/Manual (-3 to +28dB)
Auto, Full auto, Shutter-priority, Iris-priority, Manual,
EV compensation, Backlight compensation
Auto, Indoor, Outdoor, One-push WB, ATW, Manual
Auto-focus zoom lens
18x
360 degrees endless rotation
400 degrees/s (max.)
Tilt angle
210 degrees (with e-flip)
Tilt speed
400 degrees/s (max.)
(H x V) 720 x 576, 640 x 480 (VGA), 384 x 288, 320 x 240 (QVGA)
H.264, MPEG-4, JPEG
H264/MPEG-4/JPEG, 25 fps (720 x 576)
Audio
G.711/G.726
Scene Analytics
Intelligent motion detection
No
Yes (with built-in Post Filter)
Intelligent object detection
No
Network
Protocols
Wireless network
Number of clients
Authentication
Wide-D
Visibility Enhancer. Enhanced wide dynamic range
improves performance in challenging lighting conditions
Auto gain control
Ethernet
Serial interface
Card slots
Analogue video output
Exposure control
DEPA Advanced analytics. Advanced, powerful intelligent
video analytics deliver enhanced system performance
Lens type
Zoom ratio
TCP/IP, ARP, ICMP, HTTP, FTP (client/server), SMTP, DHCP, DNS,
NTP, RTP/RTCP, SNMP (MIB-2)
Yes (Optional card)
10
Standard Features and Benefits
t 36 x optical zoom. Powerful optical zoom capability delivers
flexible image capture and tracking
t IP66 Rated. Maximum environmental protection for heavy
duty outdoor monitoring applications
t 210 degree tilt angle. Greater image capture at high
angles of tilt
t Quick Release Mechanism. Quick and easy to install
and maintain
t ONVIF Compliant. Maximum interoperability and flexibility with
a wide range of manufacturers’ network video products
IEEE802.1X
1/4-type CCD with Exwave HAD technology
Yes
Yes
(H x V) 440,000
1 to 1/10,000s
Auto/Manual (-3dB to +28dB)
Auto, Full auto, Shutter-priority, Iris-priority, Manual,
EV compensation, Backlight compensation
Auto, Indoor, Outdoor, One-push WB, ATW, Manual
Auto-focus zoom lens
36x
2.8 to 48.0 degrees
f=3.4 to 122.4 mm
F-number
F1.4 (wide), F3.0 (tele)
Pan angle
360 degrees endless rotation
Pan speed
400 degrees/s (max.)
Tilt angle
210 degrees (with e-flip)
Tilt speed
400 degrees/s (max.)
Codec image size
Video compression format
Maximum frame rate
(H x V) 720 x 576, 640 x 480 (VGA), 384 x 288, 320 x 240 (QVGA)
H.264, MPEG-4, JPEG
H264/MPEG-4/JPEG, 25 fps (720 x 576)
Audio
Audio compression
G.711/G.726
Scene Analytics
Simple activity detection
Intelligent motion detection
No
Yes (with built-in Post Filter)
Intelligent object detection
No
Network
Protocols
Wireless network
Number of clients
Authentication
TCP/IP, ARP, ICMP, HTTP, FTP (client/server), SMTP, DHCP, DNS,
NTP, RTP/RTCP, SNMP (MIB-2)
Yes (Optional card)
10
IEEE802.1X
Interface
10BASE-T/100BASE-TX (RJ-45)
RS-232C/RS-422 (PELCO D protocol)
CF card x1
Composite video (1Vp-p)
Dimensions
Ethernet
Serial interface
Card slots
Analogue video output
10BASE-T/100BASE-TX (RJ-45)
RS-232C/RS-422 (PELCO D protocol)
CF card x1
Composite video (1Vp-p)
Sensor input
x4
Sensor input
x4
Alarm output
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm,
2.45VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
Alarm output
x2
Mini-jack (Monaural), MIC IN/LINE IN: 2.2k ohm,
2.45VDC plug-in power
Mini-jack (Monaural), Max output level: 1 Vrms
External microphone input
Audio line output
Analogue video output
Signal system
Horizontal resolution
S/N ratio
PAL
530 TV lines
More than 50 dB
Sensitivity colour
0.4 (50IRE, AGC ON)
Sensitivity monochrome
0.09 (50IRE, AGC ON)
Weight
Dimensions
External microphone input
Audio line output
Analogue video output
General
Signal system
Horizontal resolution
S/N ratio
PAL
530 TV lines
More than 50 dB
Sensitivity colour
0.8 (50IRE, AGC ON)
Sensitivity monochrome
0.09 (50IRE, AGC ON)
General
Approx. 4.5 kg (9 lb 15 oz)
(ø x H) 238 x 346 mm (9 3/8 x 15 5/8 inches)
Weight
Dimensions
Approx. 4.5 kg (9 lb 15 oz)
(ø x H) 238 x 346 mm (9 3/8 x 15 5/8 inches)
Power requirements
AC24V
Power requirements
AC24V
Power consumption
80 W max.
Power consumption
80 W max.
Operating temperature
-40 to 50 °C
Operating temperature
-40 to 50 °C
Storage temperature
-20 to 60 °C
Storage temperature
-20 to 60 °C
System requirements
Operating system
System requirements
Web browser
System requirements
Windows XP/Vista®
CPU: Intel® Pentium® IV 3GHz, Intel® Core™2 Duo 2GHz or
higher, RAM: 1GB or more
Microsoft Internet Explorer Ver6.0 or higher
Supplied Accessories
Base unit, Top Sunshade, rotate and lock coupling, Waterproof
plug, Screws, Cables (Power input, BNC, I/O, Serial), Installation
manual, CD-ROM (User’s guide, SNC toolbox), Wire rope
48
Electronic shutter speed
White balance mode
Interface
Dimensions
Number of effective pixels
Focal length
Pan speed
Simple activity detection
XDNR noise reduction technology. Noise and Ghost free
images with superior sensitivity in lowlight conditions
f=4.1 to 73.8mm
Pan angle
Audio compression
Image device
Day/Night
Horizontal viewing angle
F1.4 (wide), F3.0 (tele)
Maximum frame rate
Camera
image quality with extended infra red response
2.8 to 48 degrees
F-number
Codec image size
Video compression format
™
4 1/4" CCD with Exwave HAD technology. Superior
Specifications
Operating system
System requirements
Web browser
Windows XP/Vista®
CPU: Intel® Pentium® IV 3GHz, Intel® Core™2 Duo 2GHz or
higher, RAM: 1GB or more
Microsoft Internet Explorer Ver6.0 or higher
Supplied Accessories
Base unit, Top Sunshade, rotate and lock coupling, Waterproof
plug, Screws, Cables (Power input, BNC, I/O, Serial), Installation
manual, CD-ROM (User’s guide, SNC toolbox), Wire rope
49
VIDEO SECURITY
VIDEO SECURITY
IP PTZ CAMERAS
HYBRID
CAMERAS
IP PTZ CAMERAS
HYBRID
CAMERAS
SNC-ZB550
SNC-ZM551
Hybrid Fixed Camera.
Hybrid Vandal Mini Dome Camera.
Key Features and Benefits
1
Specifications
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Camera
HD video at 30 fps. Superior High Definition image quality
with real time capture
Zoom ratio
3 Sony 1/3" Exmor HD CMOS image sensor with mechanical
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Maximum resolution (IP)
Horizontal viewing angle
2.9x optical zoom
f=2.8 to 8 mm
Lens type
CS mount lens
Minimum illumination
1
Colour: 0.50 lx,
B/W: 0.30 lx
(F1.2/AGC 42dB/50IRE (IP))
Day/Night
Wide-D
Yes
No
Noise reduction
Yes
Maximum frame rate
Image device
Dual streaming (Any combination with H.264/MPEG-4/JPEG,
including multiple streams of the same format)
H.264/MPEG-4/JPEG
IK10
Card slots
No
Maximum resolution (IP)
Horizontal viewing angle
Focal length
Lens type
Vandal Resistant
Minimum illumination
1280 x 1024 (1.3 Mega)
85.4° to 31.2°
2.9x optical zoom
f=3.1 to 8.9 mm
Built-in variable focal lens
IK10
Colour: 0.50 lx,
B/W: 0.30 lx
(F1.2/AGC 42dB/50IRE (IP))
Camera Features
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Day/Night
Wide-D
Yes
No
Noise reduction
Yes
IK10-rated vandal-resistant feature to protect the camera
from destructive behaviours
Codec streaming capability
Video compression format
Computer display format
Maximum frame rate
Standard Features and Benefits
No
Dimensions
Zoom ratio
1/3 type progressive scan Exmor CMOS sensor
Wireless capability
Interface
Power requirements
Power consumption
HD video at 30 fps. Superior High Definition image quality
with real time capture
HD
Image device
Dual streaming (Any combination with H.264/MPEG-4/JPEG,
including multiple streams of the same format)
H.264/MPEG-4/JPEG
HD
30 fps H.264/MPEG-4/JPEG at 1280 x 720
1/3 type progressive scan Exmor CMOS sensor
Network
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Analogue video output
Dimensions
Camera
30 fps H.264/MPEG-4/JPEG at 1280 x 720
Network
Signal system
General
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
Computer display format
Specifications
3 Sony 1/3" Exmor HD CMOS image sensor with mechanical
Camera Features
Video compression format
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
1280 x 1024 (1.3 Mega)
96.5° to 33.9°
Focal length
Codec streaming capability
Standard Features and Benefits
Key Features and Benefits
NTSC standard/PAL standard (selectable)
AC 24 V, DC 12 V
6 W max. (TBD)
No
Card slots
No
Analogue video output
Signal system
General
Power requirements
Power consumption
Dimensions
72 × 63 × 197 mm
(2 7/8 × 2 1/2 × 7 7/8 inches) with lens,
not including projecting parts
Wireless capability
Interface
Dimensions
NTSC standard/PAL standard (selectable)
AC 24 V, DC 12 V
7 W max. (TBD)
ø140 × 119 mm
(ø5 5/8 × 4 3/4 inches)
140 (5 5/8)
119 (7 5/8)
6)
/1
5
.
44
(1
13
R
50
51
VIDEO SECURITY
VIDEO SECURITY
IP PTZ CAMERAS
HYBRID
CAMERAS
IP PTZ CAMERAS
HYBRID
CAMERAS
SNC-ZM550
SNC-ZR550 / ZP550
Hybrid Mini Dome Camera.
SNC-ZR550 Hybrid Rapid Dome Camera.
SNC-ZP550 Hybrid PTZ Camera.
Key Features and Benefits
1
Specifications
Key Features and Benefits
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
Camera
HD video at 30 fps. Superior High Definition image quality
with real time capture
Zoom ratio
2.9x optical zoom
Focal length
f=3.1 to 8.9 mm
3 Sony 1/3" Exmor HD CMOS image sensor with mechanical
IRC filter. Designed for security with superior HD image
resolution in all lighting conditions
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
Maximum resolution (IP)
Horizontal viewing angle
Lens type
Built-in variable focal lens
Minimum illumination
Colour: 0.50 lx,
B/W: 0.30 lx
(F1.2/AGC 42dB/50IRE (IP))
Day/Night
Wide-D
Yes
No
Noise reduction
Yes
Video compression format
Computer display format
Maximum frame rate
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
Image device
Dual streaming (Any combination with H.264/MPEG-4/JPEG,
including multiple streams of the same format)
H.264/MPEG-4/JPEG
Camera
HD video at 30 fps. Superior High Definition image quality
with real time capture
Zoom ratio
™
4 1/4" CCD with Exwave HAD technology. Superior
image quality with extended infra red response
Day/night function. Ideal for mechanical switching to
monochrome in night conditions
IK10
IK10-rated vandal-resistant feature to protect the camera
from destructive behaviours
1/3 type progressive scan Exmor CMOS sensor
No
Card slots
No
Power requirements
Power consumption
Dimensions
SNC-ZP550
1280 x 720
55.9° to 2.1°
28x optical zoom
Focal length
Lens type
"Rapid Dome" or "PTZ"
f=3.5 to 98 mm
Auto-focus zoom lens
Rapid Dome
PTZ
360° endless rotation
340°
Tilt angle
-105° to +105° (210° tilt)
-15° to +90°
Minimum illumination
Colour: 0.7 lx (F1.35/AGC ON/shutter 1/30 s/30 IRE (IP)),
B/W: 0.07 lx (F1.35/AGC ON/shutter 1/30 s/30 IRE (IP))
Pan angle
Camera Features
Day/Night
Wide-D
Noise reduction
Codec streaming capability
Video compression format
Standard Features and Benefits
Computer display format
Maximum frame rate
Wireless capability
Interface
SNC-ZR550
Maximum resolution (IP)
Horizontal viewing angle
Yes
DynaView
Yes
Network
Signal system
General
140 (5 5/8)
JPEG, MPEG-4 and H.264 streaming. JPEG, MPEG-4, H.264
encoding allows maximum image transmission flexibility
HD
30 fps H.264/MPEG-4/JPEG at 1280 x 720
Analogue video output
Dimensions
1
Camera Features
Codec streaming capability
Standard Features and Benefits
1280 x 1024 (1.3 Mega)
85.4° to 31.2°
Specifications
t ONVIF (Open Network Video Interface Forum) conformance
that ensures greater interoperability and more flexibility in
building multiple-vendor systems
NTSC standard/PAL standard (selectable)
Image device
Dual streaming (Any combination with H.264/MPEG-4/JPEG,
including multiple streams of the same format)
H.264/MPEG-4/JPEG
HD
30 fps H.264/MPEG-4/JPEG
1/4 type Exmor CMOS sensor
Network
Wireless capability
Interface
Card slots
No
SD card x 1
Analogue video output
AC 24 V, DC 12 V
7 W max. (TBD)
Signal system
General
Dimensions
ø140 × 118 mm
(ø5 5/8 × 4 3/4 inches)
Power requirements
Power consumption
Back
118 (4 3/4)
190.9 (7 5/8)
Dimensions
hPoE, AC 24 V
TBD
ø147.4 × 190.9 mm
(ø5 7/8 × 7 5/8 inches)
190 (7 1/2)
Front
NTSC standard/PAL standard (selectable)
Unit: mm (inches)
4
7.4
ø1
(5
8)
7/
Bottom
52
53
VIDEO SECURITY
ENCODER
SNT-EX/EP Series
Offering single channel, four channel and highly flexible and scalable blade
solutions, the SONY SNT–EX/EP series delivers a unique encoding concept which
adds significant value and performance advantages not previously available to
traditional analogue camera systems. By simply adding SNT-EX/EP encoders to an
existing analogue system, users can immediately benefit from Sony’s unique imageenhancing and advanced analytics technology. Converting analogue video
signals into digital video streams for transmission via IP-based networks, the SNT-EX/EP
encoders offer unrivalled network flexibility coupled with D1 resolution support.
Sony’s unique XDNR (eXcellent Dynamic Noise Reduction), VE (Visibility Enhancer), DFI (Dynamic Frame Integration) technology and DEPA
Advanced (Distributed Enhanced Processing Architecture), combine with RS-485 and Coaxitron telemetry options to deliver superior
image quality, powerful video and audio analytics and advanced telemetry support to existing analogue systems. Delivering advanced
features, superior image quality from existing analogue video signals and the significant benefits of intelligent video and audio
analytics, the SONY SNT-EX/EP series encoders are the obvious choice when migrating from an existing analogue system, to an IP based
surveillance solution.
Key Features
Specifications
Benefits
t %SFTPMVUJPOTVQQPSU
t "
EWBODFEBVEJPEFUFDUJPO
t Delivers the highest possible image quality
t X
DNR noise reduction
technology
t 7
PJDFBMFSU
t Existing analogue cameras benefit from noise and ghost-free images
with superior sensitivity in lowlight conditions
t 7
FSTBUJMFUFMFNFUSZJOUFSGBDF
t 7JTJCJMJUZ&OIBODFS
t &
YUFSOBMTUPSBHFTPMVUJPOT
t %
'*%ZOBNJD'SBNF*OUFHSBUJPO
t 0OWJGTVQQPSU
t Produces superior images from dynamic scenes containing both still
and moving objects
t %
&1""EWBODFEBOBMZUJDT
t 5 SJQMFDPEFDTVQQPSU
Peripherals
t Enhanced wide dynamic range improves performance for existing
analogue cameras in challenging lighting conditions
Optional Accessories
SNT-RS3U
SNTA-RP1
3U rack station, houses up to
12 SNT-EX/EP154 blade encoders
to provide a maximum of 48
analogue input channels
Rack station power supply unit,
provides a redundant power
supply system for the SNT-RS3U
3U rack station, houses up to 4
SNT-EX154/EP154 blade encoders
to provide a maximum of 16
analogue input channels.
SNT-EX101
SNT-EX101E
SNT-EX104
SNT-EP104
SNT-EX154
SNT-EP154
No
Yes
No
RS-485
–
Yes
XDNR
Yes
Coaxitron control
Yes
Interface
Analogue video input
x1
Composite buffered
throughout
x1
x4
–
t Advanced, powerful intelligent video analytics deliver enhanced
system performance to existing analogue systems
Ethernet
RS-422/RS-485
RS-485
t Delivers flexible image compression formats to overcome bandwidth
limitations. The encoders generate JPEG/MPEG and H.264 images
at 30FPS
USB Memory slots
x1
x4
Sensor input
x2
x4
–
x4
Alarm output
x2
x4
–
x4
–
IN x1, OUT x1
IN x4, OUT x4
–
IN x1, OUT x1
–
Mini-jack (monaural), MIC IN/LINE IN: over 2.2kohm, 2.45VDC plug-in power
–
Mini-jack (monaural), MIC
IN/LINE IN: over 2.2kohm,
2.45VDC plug-in power
–
Mini-jack (monaural), Max output level: 1,5Vp-p
–
Mini-jack (monaural), Max
output level: 1,5Vp-p
–
Serial interface
Audio interface (IN/OUT)
t Monitors and stores ambient audio levels to deliver highly accurate
audio alarm triggering
External microphone input
t Stores up to three pre-recorded messages which may be replayed via
manual or alarm activation
Audio line output
t Flexible support for third-party telemetry cameras via RS-422, RS-485 and
Coaxitron interfaces
t Continuous, pre-and post-event recording may be stored using USB
memory devices
SNT-RS1U
Encoder Features
Visibility enhancer
t Maximum interoperability and flexibility with a wide range of
manufacturers’ network video products
Configurations
10Base-T/100Base-TX (RJ-45)
–
–
–
Codec image size (HxV)
D1 (NTSC: 720 x 480, PAL: 720 x 576), VGA (640 x 480), CIF (384 x 288), QVGA (320 x 240)
Video compression format
H.264, MPEG-4, JPEG
Maximum frame rate
H264/MPEG-4/JPEG: 30 fps (NTSC: 720 x 480, PAL: 720 x 576)
Audio
Audio compression
G.711/G.726
G.711/G.726
Scene Analytics
Intelligent motion
detection
Yes (with built-in Post Filter)
No
Yes
(with built-in Post Filter)
No
Motion detection
No
Yes
No
Yes
Advanced audio
detection
Yes
No
Yes
No
Network
Protocols
System Configuration
IPv4, IPv6, TCP, UDP, ARP, ICMP. IGMP, HTTP, HTTPS, FTP (client/server), SMTP, DHCP, DNS, NTP, RTP/RTCP, RTSP, SNMP (MB-2)
Number of clients
10
Authentication
Microphone
Speaker
HDMI/RGB Monitor
NSR-1000 Series
Number of IP address/Mac
address
Weight
Power requirements
System Controller
RM-NS1000
PTZ Camera
Analogue
Video
Cameras
x4
Approx. 0.4kg (14 oz)
73 x 34 x 155 mm
2 7/8 x 1 3/8 x 6 1/8 inches)
AC 24V (In ±20%, Out)
Power consumption
9.6W max.
Operating temperature
0 to 50°C
Approx. 0.4kg (14 oz)
78 x 34 x 382 mm
3 1/8 x 1 3/8 x 15 1/8 inches)
DC 12V
From Rack Station
14.4W max.
12W max.
0 to 45°C
-20 to 60°C
Microsoft Windows Vista®
Operating system
Video out
(Coaxial cable)
Approx. 1.3kg (2 lb 3 oz)
210 x 44 x 250 mm
8 3/8 x 1 3/4 x 9 7/8 inches)
System requirements
Video out
(Coaxial cable)
Intel® Core™2 Duo, 1.8GHz or higher.
Processor
Memory
LAN
Video out
(Coaxial cable)
Approx. 1.4kg (2 lb 3 oz)
PoE (802.af)
Storage temperature
IMZ-NS100 Series
RS-485
x1
General
Dimensions (W x H x D)
Video out
(Coaxial cable)
IEEE802.1X
1GB or more
Web browser
Microsoft Internet Explorer Ver. 6.0, Ver. 7.0
Supplied Accessories
SNT-EX104
Ethernet
Ethernet
CD-ROM (User’s Guide and supplied programs) (1),
Installation Manual (1), B&P Warranty Booklet (1), I/O
port connector (1), 24V AC connector (1), Attachment
brackets (4), Attachment screws (8)
PC
CD-ROM (User’s Guide and supplied programs) (1),
Installation Manual (1), B&P Warranty Booklet (1), AC
adaptor (AC-NB 12A) (1), Power cord (1),
I/O port connector (SNT-EX104 only) (1)
Installation Manual (1), B&P Warranty Booklet (1),
I/O port connector (Only SNT-EX154) (1),
Attachment screws (2)
Remote Control
Unit RM-NS1000
54
55
Intelligent search functions
VIDEO SECURITY
RECORDING SOLUTIONS
IMZ-NS100 Series
Real Shot Manager Advanced: simple, flexible, powerful
and scalable – HD-ready Intelligent Monitoring Software
from Sony Professional.
Post VMD Search
Key Features
Benefits
t&BTZUPVTFBOEVOEFSTUBOE
graphical user interface
t "VUPNBUJDDBNFSB
registration
t 4JNQMFZFUQPXFSGVM
recording capabilities
Specifications
t )PUTQPUNPOJUPSJOHGVODUJPO
t Minimal operator training required
t 'MFYJCMFDVTUPNTDSFFO
layouts
t Quick and easy set up of Sony IP cameras
t 5PUBMMZTDBMBCMFXJUINVMUJQMF
camera options
t Locate required images quickly and easily
t 0QFOQMBUGPSN
t "EWBODFJNBHFTFBSDI
functions
System Requirements
Operating system *1
t Manual, event and scheduled recording available
t Provides detailed view for area of interest
t Allows user defined graphical interface options
CPU
t System expansion to meet your requirement via
IMZ-NS101, NS104, NS109 and NS116, 1, 4, 9 and
32 channels options
Main memory
t Powerful system flexibility via support of third-party
IP cameras
Network interface card (NIC)
HDD 2
Windows 7 Professional (32bit or 64bit)
Windows 7 Enterprise (32bit or 64bit)
Windows Vista Business Service Pack 2 (32bit only)
Windows Vista Enterprise Service Pack 2 (32bit only)
Windows XP Professional Service Pack 3 (32bit only)
Windows Server 2003 Service Pack 2 (32bit only)
Windows Server 2008 R2 Standard Edition (32bit or 64bit)
1 GB or more
10GB spare capacity
(or more depending on the video that is to be stored)
Video card
1024 x 768, 16/24 bit colour
100BASE-TX or higher
Display (Resolution)
Configurations
RSM Lite
Standalone Configuration
Support device
Server with
IMZ-NS100 Series installed
Network
Third Party
Network
Cameras
RSM AD
Sony IP camera
Open platform
/ Encoder
Max ch number
9
Unlimited
Max client number
Master / Slave structure
(Multiple servers
connection from client)
VMD (Recorder)
3
20
No
Yes
No
Yes
Object Search
No
Yes
DEPA (VMF)
No
Yes
Manual Action
No
Yes
Easy-to-use monitoring functions
Intel® CoreTM 2Duo 2.0-GHz or higher
1024 x 768 or higher
Specifications
Sony
Professional’s
Network
Cameras
VMF Search
Server
Client
Video compression
JPEG/MPEG-4
JPEG/MPEG-4
Audio compression
G711/G726
G711/G726
Number of cameras to
be connected *2
32
—
Number of clients to be
connected *3
10
—
Maximum number of layouts
100
100
Maximum number of users
100
100
—
64
Maximum number of
servers to a client *4
Double-clicking a Frame
Hot spot monitoring/Dual monitor support
*1 x 64 edition is not supported.
*2 This is a recommended value to assure high performance. It is technically possible to connect more than 32
units by installing on the PC a corresponding number of licences. Display/recording performance basically
depends on PC performance, but an increase in cameras may deteriorate overall performance.
*3 This is a recommended value to assure high performance. It is technically possible to connect more than 10
clients, but this increase may deteriorate overall performance.
*4 This is a recommended value to assure high performance. It is technically possible to connect more than 64
servers, but this increase may deteriorate overall performance.
Monitor 1
AXIS 206
Network Camera
Monitor 2 (Hot spot)
AXIS
Client-Server Configuration
RSM Advanced Series software packages
Server with
IMZ-NS100 Series installed
Sony
Professional’s
Network
Cameras
Monitoring Room
Controller with
IMZ-NS100 Series installed
Network
Third Party
Network
Cameras
Network
56
IMZ-NS116
Control PC software for up to 16
networked video sources.
IMZ-NS104
Control PC software for up to four
networked video sources.
IMZ-NS132
Control PC software for up to 32
networked video sources images to
be searched quickly.
RSM Lite
Free of charge monitoring software
provided with all Sony IP products. Control
PC software for up to 9 cameras. Please
see RSM Advanced vs RSM Lite table for
more information.
AXIS 206
Network Camera
AXIS
Analogue Cameras
IMZ-NS101
Control PC software for one networked
video source.
SNT-V704
Server with
IMZ-NS100 Series installed
IMZ-NS109
Control PC software for up to nine
networked video sources.
57
VIDEO SECURITY
RECORDING SOLUTIONS
NSR-500
The NSR-500 is Sony’s 16-channel full-HD network surveillance
recording server delivering an excellent cost-performance ratio.
Six models with different storage capacities are available, so you
can select according to your precise requirements.
Key Features
Specifications
t Long-duration Recording
With a 12 TB HDD (2 TB x 6), you can record more than 300
hours of high-quality full-HD images compressed at 4 Mbps
with a frame rate of 30 fps.
t RAID Technology to Prevent Disk-failure Data Loss
The hard disk storage units of the NSR-500 are configured with
high redundancy. They feature RAID implementations and
hotswappable capabilities to protect important data against
hard disk failure, 24 hours a day. You can choose from RAID
1 (1+0), RAID 5 or RAID 5 + Hot Spare, depending on your
system requirements.
t Easy Setup and Easy Operation
The NSR-500 detects Sony’s network cameras in a network and
sets up all the parameters of each camera in a step-by-step
manner with a dedicated setup wizard. This drastically reduces
the time required for system installation. Images from cameras
are assigned automatically to a monitor layout menu, so that
you can start monitoring instantly.
t Backward System Compatibility
The NSR-500 can be used with Sony’s existing recording
systems such as the NSR-1000 Series, and RealShot Manager
Advanced, through the RealShot Manager Advanced client,
whose software can be downloaded from the NSR-500.
t Optional Licenses for Future System Expansion
The optional NSBK-CL05 allows you to add extra licenses,
and you can connect up to 24 network cameras to a single
NSR-500 (including the original 16 cameras).
Line-up
Video/Recording
Number of cameras supported
Video compression (IP camera)
Total recording frame rate
(at H.264, full-HD, 4 Mbps)
Recording frame rate / camera
Hard disk drives
(physical capacity)
Hard disk drives (interface)
Hard disk drives (RAID level)
*RAID level to be selected
depends on the number of HDDs
Hard disk drives
(recording capacity)
Expansion storage
NSR-500
16 (max. 24ch with NSBK-CL05)
H.264, MPEG-4, JPEG
NSR-500:00 NSR-500:01 NSR-500:02 NSR-500:04 NSR-500:08 NSR-500:12
HDD
-
1 TB x1
1 TB x2
1 TB x4
1 TB x4
1 TB x6
Physical
capacity
-
1 TB
2 TB
4 TB
8 TB
12 TB
Default
RAID level
-
-
RAID 0
480 fps
Max. 30 fps / camera
Up to 12 TB (2 TB x 6)
Serial ATA
RAID 5
RAID 0, 1 (1+0), 5, 5+hot spare
NSR-500:01 (RAID no) : Approx. 880 GB
NSR-500:02 (RAID 0) : Approx. 1.7 TB
NSR-500:04 (RAID 5) : Approx. 2.6 TB
NSR-500:08 (RAID 5) : Approx. 5.4 TB
NSR-500:12 (RAID 5) : Approx. 9.0 TB
Optional Accessories
t Additional Camera License NSBK-CL05
t Hard Disk Drive (1 TB) NSBK-HS05:01
t Hard Disk Drive (2 TB) NSBK-HS05:02
iSCSI storage (max. 16 TB)
Video Output
Monitor OUT *1
Monitor OUT display resolution
Connectors
Analogue RGB (D-sub 15-pin) x 1
1,920 x 1,200 / 1,920 x 1,080 / 1,360 x 768 / 1,600 x 1,200 /
1,280 x 1,024 / 1,024 x 768
Audio Output
Audio OUT
Front Panel (Cover Open) NSR-500
Stereo mini jack x 1
Sensor Input/Alarm Output
Sensor IN
Alarm OUT
Configurations
Compatible with DC3.3 V to 24 V, photo coupler input x 8
(insulated from main unit)
Max. DC 24V/1A, mechanical relay output x 8
(insulated from main unit)
Other Interfaces
Standalone Configuration
Multi-location System
Ethernet
USB
Branch 1
General
Serial interface (for UPS)
NSR-500
Sony’s Network Cameras
Dimensions (W x H x D)
NSR-500
Mass
Power requirements
Sony’s Network Cameras
Power consumption
Operating temperature
Operating humidity
Broadband Router
Network Switch
Supplied accessories
Third-Party Network
Cameras
Client PC
(RSM Advanced installed)
Monitoring Room
Branch 2
(RSM Advanced installed)
1000BASE-T/100BASE-TX/10BASE-T x 2
USB2.0 x 2 (Front), USB2.0 x 2 (Rear)
Rear Panel NSR-500
RS-232C : D-sub 9-pin x 1
440 x 88 x 400 mm (17 3/8 x 3 1/2 x 15 3/4 inch),
excluding protrusions
Approx. 9.4 kg (20 lb 12 oz)
100 V to 127 V AC / 200 V to 240 V (50/60 Hz)
Max. 250 W (100-240 V 3.5-1.5 A)
5 to 40 degrees C (41 to 104 degrees F)
20 to 80% (no condensing)
Installation manual x 1, CD-ROM x 1, Flyer (WEEE) x 1,
Flyer (EU battery) x 1, Warranty booklet x 1,
Front panel key x 2, Rubber PAD x 4, HDD screw x 24
(*w/o HDD model only), Setup Disc x 1 (*w/o HDD model only)
*1: Monitoring performance depends on the number of cameras registered and recorded, so Display Out is
used for making settings.
Hybrid Camera Receivers
Video/Recording
SNCA-ZX104 4CH Hybrid Camera Receiver.
Camera input
BNC x 4
Analogue video output
BNC x 4
Number of supported
hybrid cameras
Serial interface
Network Switch
Supported Serial PTZ
control protocol
RJ45 x 1 (100Base-TX/10Base-T)
RS-485 x 1
Pelco-D
General
Third-Party Network
Cameras
NSR-1000 Series
HDMI/RGB Monitor
Power requirements
DC 12 V (AC 100 V to AC 127 V, AC 200 V to
AC 240 V, 50/60 Hz for AC adaptor)
Power consumption
Approx. 8.5 W/9.0 W (AC 100 V/AC 240 V)
with AC adaptor
Dimensions (W x H x D)
58
4
Other Interfaces
Network port
Sony’s Network Cameras
SNCA-ZX104
210 x 44 x 250 mm (8 1/3 x 1 3/4 x 9 7/8 inches)
not including projecting parts
59
VIDEO SECURITY
ACCESSORIES - RECORDING SOLUTIONS
NSR Accessories
Expand your NSR storage with a selection of cost-effective storage
solutions to enable you to keep your data longer, while allowing
fast access and reliable data protection.
Features & Benefits
Specifications
NSRE-Si8/1*
NSRE-Si16/1*
NSRE-SJBOD16/1*
t 8 hot-swappable SAS/SATA drive bays in a robust
2U chassis
t 16 hot-swappable SAS/SATA drive bays in a robust
3U chassis
t 16 hot-swappable drive bays in a robust
3U chassis
t Multiple-port iSCSI 1Gb access with link
aggregation
t Multiple-port iSCSI 1Gb access with link
aggregation
t Supports Serial Attached SCSI (SAS)
and SATA drives
t iSCSI, SMB/CIFS, NFS, FTP support
t Single power supply unit with 80-PLUS Bronze
Certified
t iSCSI, SMB/CIFS, NFS, FTP support
t SAS expansion for easy scalability
t Single SAS JBOD I/O module
t Single power supply unit with 80-PLUS
Bronze Certified
t OPAS and UPS Monitor via USB service
t Comprehensive embedded web-based
management via Ethernet – WebPAM PROe
t Power Scheduler Operation
t MAID 2.0 support
t PerfectRAID and Predictive Data Migration
technology for robust error handling and recovery
t LCD Panel support (optional)
t Wake-on-LAN support (VessRAID)
t Single power supply unit with 80-PLUS Bronze
Certified
t OPAS and UPS Monitor via USB service
t Comprehensive embedded web-based
management via Ethernet – WebPAM PROe
t SES-2 compliant enclosure management
t Fully compatible with PROMISE HBAs and
RAID subsystems
t Wake-on-SAS support (WOS)
t Power Scheduler Operation
t MAID 2.0 support
Form Factor
Drive Support
Controller
Host Channel
Promise Expansion Enclosure
Data Cache
iSCSI Features
Command Queue Depth
File Sharing Protocol
Network Protocol
Data Services
t PerfectRAID and Predictive Data Migration
technology for robust error handling and recovery
RAID Levels
Hot spares
Max LUNs per subsystem
Max LUNs per array
Variable Block and Sector Size
Disk Data Formats
Dimensions
Background Activities
NSRE-Si16/1
JBOD I/O Module Features
NSRE-Si16/1
2U
3U
8 Drives (3.5")
16 Drives (3.5")
SAS(3Gb/s), SATAII(3Gb/s), NCQ, TCQ
Single (Intel® IOP348 1.2GHz)
Quad Ports full-duplex 1Gb iSCSI
One Port SAS-wide (x4)
N/A
for VessJBOD series
512MB~2GB ECC cache memory with Optional
BBU (Battery Backup Unit)
Error Recovery Level 0
Link Aggregation and Jumbo Frames w/ up to 64
Concurrent Sessions
CHAP, iSNS and DHCP
Microsoft iSCSI MPIO Support
1024
Form Factor
Drive Support
Controller
Host Channel
NSRE-SJBOD16/1
RAID Robustness
Promise RAID HBA
Promise RAID Storage System
Management Function
Management Tools
Management Interfaces/Protocols
Event Notification
Dual, IN/OUT SAS-wide(x4) port over SFF-8088
SuperTrak EX8654, SuperTrak EX8658
SuperTrak TX8658
VessRAID 1000 iSCSI/SAS Series
SAS Features
Full SAS domain Topology Management
SAS Management Protocol
In-band Access to Expander and PHY
Statistic Counters and Performance Monitors
Statistic Counters and Performance Monitors
SES Enclosure Management
System Management
Supported OS
0, 1, 1E, 3, 5, 6, 10 (0+1), 30, 50, 60
Global or Dedicated w/ revertible option
256
32
64KB ~ 1MB stripe block sizes
512B, 1KB, 2KB, 4KB sector size
Supports Disk Data Format (DDF) for drive roaming
between VTrak and VessRAID series systems.
Media Patrol
Background Synchronizing; Initialization
Rebuild; Redundancy Check
SMART Condition Pooling, OCE (Online Capacity
Expansion)/RLM (RAID Level Migration)
Priority Control; Throttle Rate Control and
watermarking per BGA (background activities) in
Disk and NVRAM
PDM (Predictive Data Migration)
PerfectRAID™ advanced error handling
Array Error Recovery
Read/Write Check Table, Write Hole Table, Bad
Sector Re-map Table, NVRAM event logging
Management Interfaces
Management Protocols
Windows 2000, XP, 2003, Vista, 2008
Windows 2000, XP, 2003, Vista, 2008
RedHat Linux, SuSE Linux, FreeBSD 7.0
LED Status Indicator
In-band SES Enclosure Management
In-band SES Enclosure Management
SES over in-band SAS
System Information
AC Input
Current (Max)
Power Supply
FAN
Temperature
Relative Humidity
Dimensions (H x W x D)
Weight
System Management
Supported OS
3U
16 Drives (3.5")
SAS(3Gb/s), SATAII(3Gb/s)
Single
SAS Features
SMB/CIFS (Apple, Microsoft), NFS (Linux/Unix)
FTP
Online Volume Clone, Box Replication, NAS Fusion
Base Configuration
Windows 2000, XP, 2003, Vista, 20081
RedHat Linux, SuSE Linux, FreeBSD 7.0
VMWare ESX Server 4.0
WebPAM PROe/SNMP via Ethernet
CLI/CLU via RJ-11 or Ethernet
LCD Control Panel (Optional)
OPAS/UPS Monitor via USB service
Power Scheduler Control
Ethernet, RJ-11 Serial Port, USB
SNMP, SSL, Telnet, SLP
Email , SNMP, NETSEND, Buzzer, LEDs,
LCD Control Panel
NSRE-SJBOD16/1
Host Options
Operational Features
t Wake-on-SAS support (VessJBOD
NSRE-Si8/1
NSRE-Si8/1
NAS Features
t LCD Panel support (optional)
t Wake-on-LAN support (VessRAID)
t Wake-on-SAS support (VessJBOD)
System and Controller Features
90 ~ 264 VAC, 47 ~ 63Hz
7A (100V); 3.5A (240V)
Single 450W
90-264V auto-ranging w/PFC
80PLUS® Bronze
N+1 Design
5° ~ 40°C1 (-40° ~ 60°C non operational)
10% to 80% non-condensing
131 x 446.2 x 460.5 mm
5.1 x 17.6 x 18.1 in
13.8 kg (30.42 lbs) w/o drives
13.8 kg (30.42 lbs) w/o drives
VessJBOD 2U/3U Unit w/ Drive Carrier
RJ11-to-DB9 Serial Data Cable, Power Cord
Quick Start Guide, Set of Screws, CD (Product
Manual, Firmware Update Tool, QSG)
Warranty and Option
Warranty
Supported Hardware Options
3 years limited warranty2
Front Bezel, Sliding Rail, SAS Cable
1
Operational Temperature between 5° ~ 35°C if BBU installed.
BBU is covered by one year limited warranty
2
System Information
AC Input
Current (Maximum)
Power Supply
Power Consumption
FAN
Temperature
Relative Humidity
Peripherals
Dimensions (H x W x D)
Weight
Base Configuration
60
NSR-RM1*
NSRE-RM2*
M2*
NSRE-RM3*
3*
NSRE-SASCABLE*
E*
Warranty and Support
Rackmount kit for the following products
- NSR-1100/2T, NSR-1200/4T & NSR-1050H/1T.
Rackmount kit for NSRE-Si8/1,
NSRE-Si8/1 for the
installation in a standard 19" rack housing.
Rackmount kit for NSRE-Si16/1
NSRE
and NSRE-SJBOD16/1
for installation in a standard 19" rack housing.
This is a 1M cable used
d to connect the
NSRE-SJBOD16/1 with the NSRE-Si16/1.
Warranty
*These products are manufactured by Promise Technology
Supported Hardware Options
90 ~ 264 VAC, 47 ~ 63Hz
6A (100V); 3A (240V)
7A (100V); 3.5A (240V)
Single 450W
Single 350W
90-264V full-ranging w/PFC 90-264V full-ranging w/PFC
®
80PLUS Bronze
80PLUS® Bronze
167.3 Watts (w/ SAS drives) 242.8 Watts (w/ SAS drives)
73.2Watts (w/o drives)
72.2Watts (w/o drives)
N+1 Design
2
5° ~ 40°C (-40° ~ 60°C non operational)
10% to 80% non-condensing
88.2 x 446.2 x 461 mm 130.1 x 446.2 x 461 mm
3.5 x 17.6 x 18.1 in
130.1 x 446.2 x 461 mm
10.8 kg (23.81 lbs) w/o drives 13.2 kg (29.1 lbs) w/o drives
16kg (35.27 lbs) w/ drives 23.6 kg (52.03 lbs) w/ drives
VessRAID 2U/3U Unit w/ Drive Carrier
VessRAID 2U/3U Unit w/ Drive Carrier
RJ11-to-DB9 Serial Data Cable, Power Cord
3 years limited warranty3
LCD Panel, Front Bezel, Sliding Rail,
Battery Backup Unit, SAS Cable
1
Microsoft® WHQL for Windows Server 2003 and 2008. 2Operational Temperature between 5° ~ 35°C
if BBU installed. 3BBU is covered by one year limited warranty.
61
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - RECORDING SOLUTIONS
ACCESSORIES - HOUSINGS
NSR Accessories continued
SNCA-HRX550/EXT*
The SNCA-HRX550/EXT Dome offers versatility and camera
protection in a compact size. This IP66 outdoor dome
housing is specifically designed to accomodate SNC-RZ25,
RX series, EP/ER series and RS/RH series indoor cameras.
Features & Benefits
Features and Benefits
NSRE-S200/4T
RM-NS1000
t The NSR-1200/4T,1100/2T & 1050H/1T have an internal storage capacity of
up to 2 TB/1 TB/0.5 TB respectively. For additional storage requirements,
each server can connect up to seven NSRE-S200/4T units via its SAS
interface. The NSRE-S200/4T is a 2 TB hard disk storage device with RAID 5
capability. With the NSR-1200/4T in RAID 5 configuration and with seven
connected NSRE-S200/4T units, its total maximum recording capacity is
approximately 22 TB.
t An optional RM-NS1000 System Controller – which connects to the
NSR-1000 Series or a client PC via USB cable – allows the user to control
multiple servers and cameras. A wide range of operations can be
performed from this unit, including camera selection, Pan/Tilt/Zoom (PTZ)
with preset controls, snapshot capturing, video exporting, and event
search and playback. Equipped with a three-axis joystick with a mouse
emulator, three-line LCD, and feature-rich control panel, the RM-NS1000
is the ideal tool for easy operation of your system.
1
2
3 4 5
6
7
8
9 10 11
12
13
Dimensions
Dimensions
t IP66 rated dome housing
t Designed to support SNC-RZ25, RX series, EP/ER series and RS/RH
series indoor cameras in outdoor installations
t Constructed of durable engineered plastic top, 94VO,
with UV protected lower dome
t Cast aluminium pendant mount is standard
t Optically clear .080 (2.0mm) thick polycarbonate dome
t 24 Hour fan operation for effective heating and condensation protection
t Thermostatically controlled 24VAC heater
t Separate power input for heater and blower and camera power
Model
Description Rating
Rear Panel NSRE-S200
SNCA-HRX550/EXT
Height
Outdoor
dome
camera
housing
IP66
Operating
temperature
-29 to +50°C
-44 to +50°C with
optional heater/
blower kit added
(SNCA-HEATER)
Operating
voltage
Applicable Camera
Models
SNC-RZ25
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RS44
SNC-RS46
SNC-RH124
24VAC
SNC-EP521
SNC-EP550
SNC-EP580
SNC-ER521
SNC-ER550
SNC-ER580
Optional accessories
SNCA-CEILING (always
SNCA-WM40
with SNCA-POLE30)
SNCA-CA2 (with
SNCA-POLE30
SNCA-WM accessory)
SNCA-WM20G
SNCA-PM3 (with
SNCA-WM20FC
SNCA-WM accessory)
SNCA-WM30G
SNCA-HEATER
Colour
SNCA-TINTED/2
SNCA-CLEAR/2
(included)
SNCA-POWERBOX
(with SNCA-WM
accessory)
DuPont
Sky White
PFW-510-S9
Width
Height 3.4" (87mm)
Width 16.9" (430mm)
Depth 16.4" (417mm)
14
1.
2.
3.
4.
5.
6.
7.
8.
9.
15
16 18 20
23
17 19 21 22
JOG/SHUTTLE LED BUTTON
PAUSE
LOCK BUTTON
PANIC BUTTON
PLAY BUTTON
ALARM BUTTON
LCD/MULTI FUNCTION BUTTON
ALL SELECT BUTTON
PRESET/SET BUTTON
25 26
24
10. CUSTOM FUNCTION BUTTON
11. DIGITAL ZOOM BUTTON
12. CURSOR LED BUTTON
13. JOYSTICK
14. JOG/SHUTTLE DIAL
15. LIVE BUTTON
16. CAMERA TOUR BUTTON
17. STILL CAPTURE BUTTON
18. LAYOUT TOUR BUTTON
19. MIC BUTTON
20. MONITOR SELECT BUTTON
21. FULL SCREEN BUTTON
22. BUILT-IN MIC
23. CAMERA SELECT BUTTON
24. NUMERIC KEY
25. IRIS BUTTON
26. FOCUS BUTTON
SNCA-HRX550/INT*
The SNCA-HRX550/INT 7” Dome offers versatility and camera
protection in a compact size for indoor installations. This
IP66 outdoor dome housing is specifically designed to
accomodate SNC-RZ25, RX series, EP/ER series and RS/RH
series indoor cameras.
Specifications
Features and Benefits
Storage Capacity
Hard disk drive
Physical capacity
Interface
RAID level
Recording capacity
NSRE-S200/4T
Interfaces
RM-NS1000
4 TB (500 GB x4)
Serial ATA
Interface
USB 2.0 low-speed device
(Cable Length - Approx 3m; 9ft. 10in.)
RAID 5
Approx. 1TB x 4
Ethernet
Serial attached SCSI (SAS1.1)
Headphone stereo mini jack (1)
100BASE-TX/10BASE-T x1 (Auto switching)
(For maintenance)
RS-232C x1 (For maintenance)
SFF-8088 (mini-SAS 26pin): input x1, output x2
General
Dimensions (W x H x D)
Mass
430 x 87 x 417 mm (16.9 x 3.4 x 16.4 inches)
(Excluding protrusions)
Approx. 12 kg (26 lb 7 oz)
AC 100 to 127 V/200 to 240 V (50/60 Hz)
Power consumption
Approx. 80 W (typical) (Max. 350 W)
Operating humidity
Supplied accessories
RS-485 port
General
Dimensions
Mass
Power requirements
Operating temperature
Microphone stereo mini jack (plug-in power) (1)
External Interface
Interfaces
Serial interface
USB 2.0 (2)
5 to 40 ºC (41 to 104 ºF)
20 to 80 %
Mini-SAS cable (1 m), Front panel key (2),
Installation manual,
Warranty booklet, Rubber foot (4)
Power Requirement
Power Consumption
AC Adapter
Operating Temperature
Operating Humidity
Supplied Accessories
409.0 (W) x 111.5 (H) x 170.0 (D) mm
(16 1/8 x 4 1/2 x 6 3/4 inches)
1.200 g (2.6 lb)
t Designed for the SNC-RZ25, RX series, EP/ER series and RS/
RH series indoor cameras
t Constructed of Durable engineered plastic top, 94VO,
with UV protected lower dome
t Cast aluminium pendant mount is standard
t Optically clear.118” (3mm) thick aspheric
polycarbonate dome
DC 12V
1A
100-240V AC, 50/60Hz
5 to 40 degrees C (41 to 104 degrees F)
20 to 80 % (max. wet bulb temperature :
32 decrees C (90 degrees F))
AC Adapter (1), First Step Guide (1), CD-ROM
(User’s Guide) (1), Warranty (1)
Model
SNCA-HRX550/INT
62
Dimensions
Description
Indoor dome
camera housing
Rating
IP66
*These products are manufactured by Videolarm
Operating
temperature
0ºC to +40ºC
Operating
voltage
24VAC
Applicable Camera Models
SNC-RZ25
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RS44
SNC-RS46
SNC-RH124
SNC-EP521
SNC-EP550
SNC-EP580
SNC-ER521
SNC-ER550
SNC-ER580
Optional accessories
SNCA-CEILING
(always with
SNCA-POLE30)
SNCA-POLE30
SNCA-WM20G
SNCA-WM20FC
SNCA-WM30G
SNCA-WM40
SNCA-TINTED/2
SNCA-CLEAR/2
(included)
Colour
DuPont
Sky White
PFW-510-S9
63
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - HOUSINGS
ACCESSORIES - HOUSINGS
SNCA-HRX550EXT/R*
SNCA-RX550EXT12V*
The SNCA-HRX550EXT/R 7" dome housing offers heavy duty,
vandal resistant protection for the camera. This tough dome
housing is specifically designed to accomodate SNC-RZ25,
RX series, EP/ER series and RS/RH series indoor cameras. The
housing offers versatility and outstanding camera protection
in a compact size.
The SNCA-RX550EXT dome housing offers versatility
and camera protection in a compact size. This IP66
dome housing is specifically designed as a 12vdc input
enclosure for outdoor installations to accomodate
SNC-RZ25, RX series, EP/ER series and RS/RH series indoor
cameras.
Features and Benefits
Dimensions
Features and Benefits
Dimensions
t IP66 outdoor dome housing
t IP66 outdoor IK10 rated vandal protection dome housing
t Designed for SNC-RZ25, RX series, EP/ER series and RS/RH series
indoor cameras
t Outdoor dome, UV protected
t Strong cast aluminium top and trim ring for IK10 rated protection
t Optically clear 118” (3mm) thick aspheric polycarbonate dome
t Thermostatically controlled 24VAC heater
t 24 Hour fan operation for effective heating and condensation protection
t Separate power input for heater and blower and camera power
t Pendant mount, 1½” NPT quick connect coupling
t Designed for SNC-RZ25, RX series, EP/ER series* and RS/RH series
indoor cameras
t Constructed of durable engineered plastic top, 94VO,
with UV protected lower dome
t Cast aluminium pendant mount is standard
t Optically clear.118” (3mm) thick aspheric polycarbonate dome
t 24 Hour fan operation for effective heating and condensation protection
t Thermostatically controlled 12vdc heater
t Separate power input for heater and blower and camera power
* it doesn't power the camera
Model
Description
Heavy duty,
SNCA-HRX550EXT/R outdoor dome
housing
Rating
IP66
Operating
temperature
-29 to +50°C
-44 to +50°C with
optional heater/
blower kit added
(SNCA-HEATER)
Operating
voltage
24VAC
Applicable Camera
Models
SNC-RZ25
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RS44
SNC-RS46
SNC-RH124
SNC-EP521
SNC-EP550
SNC-EP580
SNC-ER521
SNC-ER550
SNC-ER580
Optional accessories
SNCA-CEILING
(always with
SNCA-POLE30)
SNCA-POLE30
SNCA-WM20G
SNCA-WM20FC
SNCA-WM30G
SNCA-WM40
SNCA-CA2
(with SNCA-WM
accessory)
SNCA-PM3
(with SNCA-WM
accessory)
SNCA-HEATER
SNCA-TINTED/2
SNCA-CLEAR/2
(included)
SNCA-POWERBOX
(with SNCA-WM
accessory)
Colour
DuPont
Sky White
PFW-510-S9
Description
Rating
SNCAOutdoor dome
RX550EXT12V housing (12V)
Operating
temperature
IP66
-29 to 50ºC
Operating
voltage
12VDC
SNCA-HRX550/PRE*
The SNCA-HRX550EXT/W 7” dome housing offers versatility and camera
protection in a compact size. This IP66 dome housing is specifically
designed to accomodate SNC-RZ25, RX series and RS/RH series indoor
cameras with wireless capability. The SNCA-HRX550EXT/W includes a
pre-run wireless antenna cable that works with the SNCA-CFW1 wireless
card & SNCA-AN1 antenna.
The SNCA-HRX550/PRE dome housing offers versatility
and camera protection in a compact size. This IP66
dome housing is specifically designed to accomodate
SNC-RZ25, RX series, EP/ER series and RS/RH series
indoor cameras.
Dimensions
t Constructed of Durable engineered plastic top, 94VO,
with UV protected lower dome
t Cast aluminium pendant mount is standard
t Optically clear.118” (3mm) thick aspheric polycarbonate dome
t 24 Hour fan operation for effective heating and condensation protection
t Thermostatically controlled 24VAC heater
t Separate power input for heater and blower and camera power
t Wireless antenna cable included with housing
SNCAHRX550EXT/W
Outdoor dome
housing for
wireless
installation
Rating
IP66
Operating
temperature
-29 to +50°C
-44 to +50°C with
optional heater/
blower kit added
(SNCA-HEATER)
*These products are manufactured by Videolarm
Operating
voltage
24VAC
Applicable Camera
Models
SNC-RZ25
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RS44
SNC-RS46
SNC-RH124
Optional accessories
SNCA-WM30G
SNCA-CEILING (always
SNCA-WM40
with SNCA-POLE30)
SNCA-CA2 (with
SNCA-POLE30
SNCA-WM accessory)
SNCA-WM20G
SNCA-PM3 (with
SNCA-WM20FC
SNCA-WM accessory)
Colour
SNCA-HEATER
SNCA-TINTED/2
SNCA-CLEAR/2
(included)
Clear
Dimensions
t IP66 pressurized outdoor dome housing
tDesigned for SNC-RZ25, RX series, EP/ER series and RS/RH series
indoor cameras
tConstructed of durable engineered plastic top, 94VO,
with UV protected lower dome
tCast aluminium pendant mount is standard
tIncludes both Schrader and pressure relief valves
tPressurized to 7psi, able to maintain pressure for 2-3 years
e
tOptically clear .118” (3mm) thick aspheric polycarbonate dome
on
t24 Hour fan operation for effective heating and condensation protection
tThermostatically controlled 24VAC heater
tSeparate power input for heater and blower and camera powerr
t Designed for SNC-RZ25, RX series and RS/RH series indoor cameras
Description
SNC-EP521*
SNC-EP550*
SNC-EP580*
SNC-ER521*
SNC-ER550*
SNC-ER580*
Features and Benefits
t IP66 outdoor dome housing
Model
Applicable Camera
Models
SNC-RZ25
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RS44
SNC-RS46
SNC-RH124
SNCA-HRX550EXT/W*
Features and Benefits
64
Model
SNC-EP521
SNC-EP550
SNC-EP580
SNC-ER521
SNC-ER550
SNC-ER580
Optional accessories
SNCA-CEILING
(always with
SNCA-POLE30)
SNCA-POLE30
SNCA-WM20G
SNCA-WM20FC
SNCA-WM30G
SNCA-WM40
SNCA-CA2
(with SNCA-WM
accessory)
SNCA-PM3
(with SNCA-WM
accessory)
SNCA-HEATER
SNCA-TINTED/2
SNCA-CLEAR/2
(included)
SNCA-POWERBOX
(with SNCA-WM
accessory)
Colour
DuPont
Sky White
PFW-510-S9
Model
SNCA-HRX550/EXT
Description
Outdoor dome
camera housing
Operating
temperature
Rating
IP66
-29 to +50°C
-44 to +50°C with
optional heater/
blower kit added
(SNCA-HEATER)
*These products are manufactured by Videolarm
Operating
voltage
24VAC
Applicable Camera
Models
SNC-RZ25
SNC-RX530
SNC-RX550
SNC-RX570
SNC-RS44
SNC-RS46
SNC-RH124
SNC-EP521
SNC-EP550
SNC-EP580
SNC-ER521
SNC-ER550
SNC-ER580
Optional accessories
SNCA-CEILING
(always with
SNCA-POLE30)
SNCA-POLE30
SNCA-WM20G
SNCA-WM20FC
SNCA-WM30G
SNCA-WM40
SNCA-CA2
(with SNCA-WM
accessory)
SNCA-PM3
(with SNCA-WM
accessory)
SNCA-HEATER
SNCA-TINTED/2
SNCA-CLEAR/2
(included)
SNCA-POWERBOX
(with SNCA-WM
accessory)
Colour
DuPont
Sky White
PFW-510-S9
65
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - HOUSINGS
ACCESSORIES - HOUSINGS
SNCA-HRZ25*
SNCA-HRZ50/EXT/R*
The SNCA-HRZ25 outdoor dome housing with clear dome,
24 VAC input, with heater & blower offers versatility and
camera protection in a compact size. This IP66 dome
housing is specifically designed to accommodate Sony’s
SNC-RZ25 Network camera.
The SNCA-HRZ50/EXT/R 7” Dome offers heavy duty, vandal resistant, IK10
rated protection for the camera. This tough dome housing is specifically
designed to accommodate Sony’s SNC-RZ30 and SNC-RZ50 cameras.
This housing offers versatility and outstanding camera protection in a
compact size.
Features and Benefits
Dimensions
Features and Benefits
t Constructed of a durable engineered plastic top,
94VO, with UV protected lower dome
t Outdoor dome, UV protected
t Strong cast aluminium top and trim ring offers IK10 vandal protection
t Cast aluminium pendant mount is standard
t Optically clear 118” (3mm) thick aspheric polycarbonate dome
t Optically clear 118” (3mm) thick aspheric
polycarbonate dome
t Thermostatically controlled 24VAC heater
t 24 Hour fan operation for effective heating and condensation protection
t 24 Hour fan operation for effective heating and
condensation protection
t Separate power input for heater and blower and camera power
t Thermostatically controlled 24VAC heater
t Pendant mount, 1½” NPT quick connect coupling
t Separate power input for heater and blower and camera power
t Accepts the SNC-RZ25N and SNC-RZ30N cameras
Model
SNCA-HRZ25
Description
Outdoor 8” dome housing,
pendant mount with clear
dome for SNC-RZ25 camera
Operating
temperature
Rating
IP66
-6.67 to +40°C
Operating
Applicable
voltage
Camera Models
24VAC
SNC-RZ25P
Optional
accessories
SNCA-CEILING
(always with
SNCA-POLE30)
SNCA-POLE30
SNCA-WM20G
SNCA-WM20FC
SNCA-WM30G
SNCA-WM40
SNCA-CA2
(with SNCA-WM
accessory)
SNCA-PM3
(with SNCA-WM
accessory)
Colour
SNCA-HEATER
SNCA-TINTED
SNCA-CLEAR
(included)
SNCA-POWERBOX
(with SNCA-WM
accessory)
DuPont
Sky White
PFW-510-S9
Model
Description
Rating
Operating
temperature
Operating voltage
Applicable
Camera Models
Optional
accessories
Colour
SNCA-HRZ50/EXT/R
Heavy duty, indoor
dome housing
IP66
-29 to +50°C
(-44 to +50°C with
optional heater
blower kit)
24VAC
SNC-RZ30P
SNC-RZ50P
SNCA-CLEAR/2
(included)
SNCA-TINTED/2
SNCA-HEATER
DuPont
Sky White
PFW-510-S9
Operating voltage
Applicable
Camera Models
Optional
accessories
Colour
24VAC
SNC-RZ30P
SNC-RZ50P
SNCA-CLEAR/2
(included)
SNCA-TINTED/2
SNCA-HEATER
SNCA-CFW1
SNCA-AN1
DuPont
Sky White
PFW-510-S9
SNCA-HRZ50/EXT*
SNCA-HRZ50/EXT/W*
The SNCA-HRZ50/EXT Dome offers versatility and camera
protection in a compact size. This inconspicuous dome
housing is specifically designed to accommodate Sony’s
SNC-RZ30 and SNC-RZ50 cameras. The housing offers
versatility and outstanding camera protection in a
compact size.
The SNCA-HRZ50/EXT/W Dome offers versatility and camera
protection in a compact size. This inconspicuous dome
housing includes a pre-run wireless antenna cable that works
with the SNCA-CFW1 wireless card & SNCA-AN1 antenna. This
housing offers versatility and outstanding camera protection
in a compact size.
Features and Benefits
Dimensions
Features and Benefits
Dimensions
t Constructed of a durable engineered plastic top, 94VO,
with UV protected lower dome
t Constructed of a durable engineered plastic top, 94VO,
with UV protected lower dome
t Cast aluminium pendant mount is standard
t Cast aluminium pendant mount is standard
t Optically clear 118” (3mm) thick aspheric polycarbonate dome
t Optically clear 118” (3mm) thick aspheric polycarbonate dome
t 24 Hour fan operation for effective heating and condensation
protection
t 24 Hour fan operation for effective heating and condensation
protection
t Thermostatically controlled 24VAC heater
t Thermostatically controlled 24VAC heater
t Separate power input for heater and blower and camera power
t Separate power input for heater and blower and camera power
t Wireless ready model
Model
SNCA-HRZ50/EXT
66
Dimensions
Description
External dome
housing
*These products are manufactured by Videolarm
Rating
Operating
temperature
IP66
-29 to +50°C
(-44 to +50°C with
optional heater
blower kit)
Operating voltage
24VAC
Applicable
Camera Models
Optional
accessories
Colour
SNC-RZ30P
SNC-RZ50P
SNCA-CLEAR/2
(included)
SNCA-TINTED/2
SNCA-HEATER
DuPont
Sky White
PFW-510-S9
Model
Description
SNCA-HRZ50/EXT/W
External dome housing (wireless)
*These products are manufactured by Videolarm
Rating
Operating
temperature
IP66
-29 to +50°C
(-44 to +50°C with
optional heater
blower kit)
67
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - HOUSINGS
ACCESSORIES - HOUSINGS
SNCA-HRZ50/INT*
SNCA-HFIXSML/24*
The SNCA-HRZ50/INT Dome offers versatility and camera protection
in a compact size. This inconspicuous dome housing is specifically
designed to support Sony’s SNC-RZ30 and SNC-RZ50 cameras in
indoor installations. The housing offers versatility, easy installation and
outstanding camera protection in a compact size.
A 12VDC/24VAC Polycarbonate Housing with a Cable
Managed Aluminium bracket, designed for use with the
smaller cameras. This IP66 aesthetically pleasing housing
should protect the camera against all that the elements
can throw at it.
Dimensions
Dimensions
t Constructed of a durable engineered plastic top,
94VO, with UV protected lower dome
t Cast aluminium pendant mount is standard
t Optically clear 118” (3mm) thick aspheric
polycarbonate dome
Model
SNCA-HRZ50/INT
Description
Rating
Internal dome
housing
Operating
temperature
IP66
Operating voltage
0 to +50°C
12VDC
Applicable
Camera Models
SNC-RZ30P
SNC-RZ50P
Optional
accessories
SNCA-CLEAR/2
(included)
SNCA-TINTED/2
SNCA-HEATER
Model
Description
SNCA-HFIXSML/24
Fixed housing, c/w
sunshield, heater,
wall bracket
Operating
temperature
DuPont
Sky White
PFW-510-S9
IP66
-28 to 48°C
SNCA-HFIXSML/230**
SNCA-HFIXSTD/230*
A 115VAC/230VAC Polycarbonate Housing with a Cable
Managed Aluminium bracket, designed for use with the
smaller cameras. This IP66 aesthetically pleasing housing
should protect the camera against all that the elements
can throw at it.
A 115VDC/230VAC die cast aluminium side opening
housing with a cable managed bracket designed
to the highest specification, IP66 rated to protect
cameras against the weather.
Dimensions
Dimensions
Model
Description
SNCA-HFIXSML/230
Fixed housing, c/w
sunshield, heater,
wall bracket
*This product is manufactured by Videolarm
Rating
IP66
Operating
temperature
-28 to 48°C
Operating
voltage
230VAC
**This product is manufactured by Videotec
Applicable Camera
Models
SNC-CS10
SNC-CS11
SSC-DC172P
SSC-DC198P
SSC-DC372P
SSC-DC378P
SSC-E453P
SSC-E458P
SSC-E473P
SSC-E478P
SSC-M383CE
SSC-M388CE
Operating
voltage
Colour
Model
68
Rating
Optional
accessories
Colour
Approx.
Dimensions
Additional camera
PSU may be
required
(SNCA-PSVTSML230)
when using
230VAC model
DuPont
Sky White
PFW-510-S9
L400 x H106
x W127.5mm
SNCA-HFIXSTD/230
Description
Fixed housing, c/w
sunshield, heater,
wall bracket
Rating
IP66
*These products are manufactured by Videotec
Operating
temperature
-28 to 48°C
24VAC
Operating
voltage
230VAC
Applicable Camera
Models
SNC-CS10
SNC-CS11
SSC-DC172P
SSC-DC198P
SSC-DC372P
SSC-DC378P
SSC-E453P
SSC-E458P
SSC-E473P
SSC-E478P
SSC-M383CE
SSC-M388CE
Applicable Camera
Models
SNC-CS3P
SNC-CS10P
SNC-CS11P
SNC-Z20P
SNC-CS20
SNC-CM120
SNC-CS50P
SNC-CH140
SSC range
SNC-CH120
SNC-CH220
SNC-CH240
SNC-CH160
SNC-CH180
SNC-CH260
SNC-CH280
Optional
accessories
Colour
Approx.
Dimensions
SNCA-CAFIX1
SNCA-CA2
SNCA-PMFIX1
SNCA-POWERBOX
DuPont
Sky White
PFW-510-S9
L400 x H106
x W127.5mm
Optional
accessories
Colour
Approx.
Dimensions
Additional camera
PSU may be required
(SNCA-PSVTSTD230)
when using 230VAC
model
SNCA-CAFIX1
SNCA-PMFIX1
SNCA-PSVTSTD24
DuPont
Sky White
PFW-510-S9
L514 x H131
x W176mm
69
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - HOUSINGS
ACCESSORIES - MOUNTING HARDWARE
SNCA-HFIXSTD/24*
SNCA-HP5
A 12VDC/24VAC die cast aluminium side opening
housing with a cable managed bracket designed
to the highest specification, IP66 rated to protect
cameras against the weather.
The SNCA-HP5 is a unique outdoor housing
for the SNC-P5 camera.
Dimensions
Features and Benefits
Dimensions
t Easy camera installation
t Waterproof to IP x 3
t Operating Temperature -10C to +50C
Model
SNCA-HFIXSTD/24
Description
Fixed housing, c/w
sunshield, heater,
wall bracket
Rating
IP66
Operating
temperature
-28 to 48°C
Operating
voltage
24VAC, 50Hz
Applicable Camera
Models
SNC-CS3P
SNC-CS10P
SNC-CS11P
SNC-Z20P
SNC-CS20
SNC-CM120
SNC-CS50P
SNC-CH140
SSC Range
SNC-CH120
SNC-CH220
SNC-CH240
SNC-CH160
SNC-CH180
SNC-CH260
SNC-CH280
Optional
accessories
Colour
Approx.
Dimensions
SNCA-CAFIX1
SNCA-CA2
SNCA-PMFIX1
SNCA-POWERBOX
DuPont
Sky White
PFW-510-S9
L514 x H131
x W176mm
Model
Description
SNCA-HP5
Camera housing
for SNC-P5
Rating
SNCA-CEILING*
The SNCA-ICPTZ/C is a low profile indoor ceiling housing.
It features a 7” optically clear polycarbonate dome, which
accommodates Sony PTZ Cameras. The upper body is
made of steel with a white powder coat trim ring and an
injection molded 3mm thick, optically clear thermoplastic
polycarbonate dome.
The SNCA-CEILING is a ceiling mount adapter
with Junction Box and 1½" NPT coupling.
Dimensions
Operating
voltage
-10 to +50°C
SNCA-ICPTZ/C & SNCA-ICPTZ/T
Features and Benefits
Operating
temperature
Features and Benefits
Applicable
Camera Models
Optional
accessories
Colour
Approx.
Dimensions
SNC-P5
N/A
DuPont
Sky White
PFW-510-S9
187 x 238
x 257mm
(wall mounted)
Dimensions
t Constructed of heavy duty steel
t 7” polycarbonate dome for easy installation and servicing from
below the ceiling
t Housing extends only 3.5” below ceiling
t For the SNC-RZ25, SNC-RZ30, SNC-RZ50, SNC-RS44/46, SNC-RH124
and SNC-RX series ptz cameras
t Includes a decorative trim ring with quick-release pressure springs
t Optically clear .118” (3mm) thick aspheric polycarbonate dome
t A tinted lower dome is available as p/n SNCA-TINTED/2
Model
SNCA-ICPTZ/C
SNCA-ICPTZ/T
70
Description
Clear dome in
ceiling bracket
Tinted dome in
ceiling bracket
*This product is manufactured by Videotec
Rating
N/A
N/A
Operating
temperature
N/A
N/A
Operating
voltage
N/A
N/A
Applicable Camera
Models
SNC-RX530P
SNC-RX550P
SNC-RX570P
SNC-RZ50P
SNC-RX530P
SNC-RX550P
SNC-RX570P
SNC-RZ50P
SNC-RZ25P
SNC-RZ30P
SNC-RS44/46P
SNC-RH124
SNC-RZ25P
SNC-RZ30P
SNC-RS44/46P
SNC-RH124
Optional
accessories
Colour
Approx.
Dimensions
N/A
Clear
H9.1" x W12"
x D12"
Model
SNCA-CEILING
N/A
Tinted
Description
Ceiling mounting kit
H9.1" x W12"
x D12"
*This product is manufactured by Videolarm
Applicable/compatible housing models
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R SNCRS84P
SNC-RS86P
SNC-RH164
Optional accessories
Colour
SNCA-POLE30
(Ceiling mount adapter)
SNCA-RX550EXT12V
Black
71
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - MOUNTING HARDWARE
ACCESSORIES - MOUNTING HARDWARE
SNCA-POLE30*
SNCA-WM20FC*
Extension pipe, 305mm (12") long for use with SNCA-CEILING.
The SNCA-WM20FC is an aluminium gooseneck wall mount
bracket with fixed coupling for use with all dome enclosures.
Dimensions
Dimensions
Weld all around
water tight
0.25" Dia Pilot Hole
Do not go through
wall
Model
SNCA-POLE30
Applicable/compatible
housing models
Description
Extension pole for
ceiling mount housings
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
SNC-RS84P
SNC-RS86P
SNC-RH164
Optional accessories
SNCA-RX550EXT12V
Colour
Black
Model
Description
SNCA-WM20FC
Wall mounted bracket with
fixed coupling
Elliptical cutout
should match the
inside diameter at
the angle created
on this plane
Applicable/compatible
housing models
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE
SNCA-WM20G*
SNCA-WM30G*
The SNCA-WM20G is an aluminium gooseneck wall
mount bracket for use with all dome enclosures.
The SNCA-WM30G is a roof top parapet bracket designed
to mount the camera dome out & away from the roof top
for an unobstructed view. It features a 1½" pipe thread to
mount to any Sony dome. The design allows the dome to
be swung back over the roof for servicing.
Dimensions
Features and Benefits
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
Optional accessories
Colour
SNCA-PM3
(Pole mount adaptor)
SNCA-CA2 (Corner adaptor)
SNCA-POWERBOX
SNCA-RX550EXT12V
DuPont
Sky White
PFW-510-S9
Dimensions
t All aluminium construction
Access plug for
installation and
servicing
t Durable powder coat finish
t 1½" pipe thread for quick and easy mounting
1 1/2" NPT PIPE
THREADS
t 50 lb load rating
THREADS
Incoming wiring
Model
SNCA-WM20G
72
Description
Gooseneck wall mount
*These products are manufactured by Videolarm
Applicable/compatible
housing models
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
SNCA-HRZ25
SNC-RH164
Optional accessories
Colour
SNCA-PM3
(Pole mount adaptor)
SNCA-CA2 (Corner adaptor)
SNCA-POWERBOX
DuPont
Sky White
PFW-510-S9
Model
SNCA-WM30G
Description
Gooseneck wall mount
*These products are manufactured by Videolarm
Applicable/compatible
housing models
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
Wiring going to
the camera
Optional accessories
Colour
SNCA-RX550EXT12V
73
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - MOUNTING HARDWARE
ACCESSORIES - MOUNTING HARDWARE
SNCA-WM40*
Heavy-duty wall mount with removable panel. Durable
off-white polyurethane powder coat finish for corrosion
resistance in outdoor use.
Features and Benefits
Dimensions
t Heavy duty wall mount for use with all Sony domes
Model
SNCA-WM40
Applicable/compatible
housing models
Description
Extended wall mount
bracket
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE
SNCA-HRZ50/EXT
Optional
accessories
SNCA-PM3
(Pole mount adapter)
SNCA-CA2 (Corner
adapter)
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
SNC-RH164
Dimensions
L53cm
SNCA-CA2*
SNCA-PM3*
UNI-WMBB1
The SNCA-CA2 is an aluminium corner mount
bracket with female inserts, which can
accommodate the SNCA-WM20G,
SNCA-WM20FC and SNCA-WM40.
The SNCA-PM3 is an aluminium pole mount
adapter.
Bracket back box for pole or wall mounting
compatible with gooseneck SNCA-WM models
Description
SNCA-CA2
Corner mount bracket, 22Kg max load rating
SNCA-PM3
Pole mount adaptor bracket
SNCA-WM20G
SNCA-WM40
SNCA-WMMD1
SNCA-WMMD2
White
UNI-WMBB1
Aluminium wall/pole mount back box
SNCA-WMMD3
SNCA-WM20FC
SNCA-WM20G
Dupont SKY white PFW-510-S9
Colour
DuPont
Sky White
PFW-510-S9
Applicable/compatible
housing models
Model
SNCA-WM20G
SNCA-WM40
SNCA-WMMD1
SNCA-WMMD2
SNCA-WM20FC
SNCA-WMMD4
Colour
DuPont Sky White PFW-510-S9
SNCA-WMMD1*
The SNCA-WMMD1 is a cast aluminium mini dome bracket kit that bolts directly the
SSC-CD73 or SNCDF70 to allow the camera to be wall or pendant mounted. A 1”
NPT pipe thread, aluminium gooseneck wall mount is included. The wall mount
can be combined with the SNCA-CA2 for corner mount applications and with the
SNCA-PM3 for pole mount applications. The kit includes Teflon thread sealant tape,
gaskets and a sealing grommet for protection outdoors.
Features and Benefits
SNCA-CAFIX1** SNCA-PMFIX1** SNCA-WMFIX10PC UNI-XBB1/T10PC UNI-XBS1/T10PC
This is a Corner mount fixing
for the Housings and wall
brackets to fit to.
A Camera Bracket for
indoor usage, it is 14cm
long and has an adjustment
that allows for Wall or Ceiling
mounting.
Wall-mount bracket design
for X series box-type black
cameras.
Applicable/compatible
housing models
SNCA-CAFIX1
Corner mount adapter
SNCA-HFIXSML/24
SNCA-HFIXSML/230
SNCA-HFIXSTD/24
SNCA-HFIXSTD/230
L22cm
Pole mount adapter
SNCA-HFIXSML/24
SNCA-HFIXSML/230
SNCA-HFIXSTD/24
SNCA-HFIXSTD/230
L17.27cm
SNCA-WMFIX10PC
UNI-XBB1/T
UNI-XBS1/T
Wall/ceiling camera bracket
SNC-CS20
SNC-CS50P
Black bracket for X series
SNC-CH110B
SNC-CH210B
Silver bracket for X series
SNC-CH110S
SNC-CH210S
*This product is manufactured by Videolarm
**These products are manufactured by Videotec
t All aluminium construction
t 1” pipe thread for pendant mounting
t Outdoor or indoor use
Description
SNC-CS10
SNC-CS11
Wall-mount bracket design
for X series box-type silver
cameras.
t Wall mount or pendant mount the SSC-CD73V
or SNCDF70N
t Gooseneck bracket for wall mounting
Model
SNCA-PMFIX1
74
This pole mount adaptor
allows the Housing range
with Brackets to be
attached to a pole
of Diameter between
65mm and 110mm.
Dimensions
SNC-CM120
SNC-Z20P
Dimensions
Colour
H14.1cm
H6.8cm x D5.05cm
H6.8cm x D5.05cm
Model
Description
Applicable/compatible
housing models
Optional accessories
Colour
SNCA-WMMD1
Wall mounted mini dome bracket
DF70/CD73
SNC-DF70
SSC-CD73
SNCA-CA2
SNCA-PM3
SNCA-POWERBOX
DuPont
Sky White
PFW-510-S9
Black
Silver
*These products are manufactured by Videolarm
75
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - MOUNTING HARDWARE
ACCESSORIES - MOUNTING HARDWARE
SNCA-WMMD2*
SNCA-WMMD4*
The SNCA-WMMD2 is a cast aluminium mini dome bracket kit that
bolts directly the SNC-DF80, SNC-DF85, SNC-CD75 and SNC-CD77
cameras to allow for wall or pendant mounting. A 1” NPT pipe
thread, aluminium gooseneck wall mount is included. The wall
mount can be combined with the SNCA-CA2 for corner mount
applications and with the SNCA-PM3 for pole mount applications.
The kit includes Teflon thread sealant tape, gaskets and a sealing
grommet for protection outdoors.
The SNCA-WMMD4 is a mini-dome bracket kit that bolts the cameras
directly to the wall.
Features and Benefits
Dimensions
Dimensions
46
200.65
t All aluminium construction
4.
30
t Wall mount or pendant mount the SNCDF80N
119
83.35
t Gooseneck bracket for wall mounting
162.13
t 1” pipe thread for pendant mounting
t Indoor or outdoor use
THREAD
ASSEMBLED
Model
Model
Description
Applicable/compatible
housing models
SNCA-WMMD2
Wall mounted mini dome bracket
DF80/CD75/77
SNC-DF80P
SNC-DF85P
SNC-CD75P
SNC-CD77P
Optional accessories
Colour
SNCA-CA2
SNCA-PM3
SNCA-POWERBOX
DuPont
Sky White
PFW-510-S9
SNCA-WMMD3*
The SNCA-WMMD2 is a cast aluminium mini dome bracket kit that bolts directly the
SNC-DH outdoor cameras, SNC-DM160 and SNC-DS60 to allow for wall or pendant
mounting. A 1” NPT pipe thread, aluminium gooseneck wall mount is included. The
wall mount can be combined with the SNCA-CA2 for corner mount applications
and with the SNCA-PM3 for pole mount applications. The kit includes Teflon thread
sealant tape, gaskets and a sealing grommet for protection outdoors.
Features and Benefits
Dimensions
SNCA-WMMD4
Description
Applicable/compatible
housing models
Optional accessories
Wall mounted bracket
SNC-DH140/DH240,
SNC-DH120/DH220
SNC-DS10/DM110
SNC-DF50
SNC-RH124
SNC-RS44/RS46
N/A
Colour
Model
Description
Applicable/
compatible housing models
Optional
accessories
Dimensions
Colour
YT-ICB124
In Ceiling Bracket
SNC-RS46N
SNC-RS44N
SNC-RS44P
SNC-RS46P
SNC-RH124
YT-LD124
L226 x H152
x W270 mm
N/A
In Ceiling bracket
SNC-DH140
SSC-CD45
SSC-CD45P
SSC-CD49
SSC-CD49P
SNC-DF50N
SNC-DF50P
SNC-DS10
SNC-DM110
SNC-DH120
SNC-DH220
SNC-DH240
White
YT-ICB45
In ceiling bracket
SSC-CD45P
SSC-CD49P
SSC-CD75P
SSC-CD77P
SSC-CD79P
SNC-DF50P
SNC-DF80P
SNC-DF85P
SNC-DS10
SNC-DM110
SNC-DS60
SNC-DM160
White
YT-ICB73V
In ceiling bracket for
Ssc-cd73vp
SSC-CD73VP
Silver
YT-LD124C
Clear
Dome Cover
YT-ICB124
Clear
YT-LD124S
Tinted
Dome Cover
YT-ICB124
Tinted
YT-ICB140
t Wall mount the SNC-DH oudoor models, SNC-DM160
and SNC-DS60
t All aluminium construction
t 1” pipe thread for pendant mounting
t Gooseneck bracket for wall mounting
t Indoor or outdoor use
THREAD
ASSEMBLED
76
Model
Description
SNCA-WMMD3
Mini dome mounting kit, can
be used internally or externally.
Includes bracket and seal kit
*These products are manufactured by Videolarm
Applicable/compatible
housing models
SNC-DM160
SNC-DS60
SNC-DH160
SNC-DH180
SNC-DH260
SNC-DH280
Optional accessories
Colour
SNCA-CA2
SNCA-PM3
SNCA-POWERBOX
DuPont
Sky White PFW-510-S9
*This product is manufactured by Jawbone
77
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - POWER SUPPLIES
ACCESSORIES - POWER SUPPLIES
SNCA-POWERBOX*
SNCA-HPOE1*
The SNCA-POWERBOX is a rugged, outdoor NEMA rated, cast
aluminium power supply with 220/115Vac input converting
to 24Vac and 96w output power. Pole mounting clips
included.
The SNCA-HPOE1 is a single port, high-power solution for remote powering
of current and emerging high power applications. Generating
up to 30W, the SNCA-HPOE1 enables remote power for a new range
of applications including 802.11 Access Points, pan-tilt-zoom (PTZ)
cameras and video-phones. It complies to IEEE 802.3at PoE standard
and is backward compatible to IEEE802.3af. It can power both existing
10/100Base-T network devices and emerging wireless 1000Base-T devices
such as Wi-MAX and wireless IEEE 802.11n access points.
Features and Benefits
Dimensions
Features and Benefits
t Rugged cast aluminium NEMA 4 enclosure
t Up to 30W of Power on 2-pairs
t Meets IP 66 standards to prevent the induction
of minute particles
t IEEE 802.3at Compliant with 2-event classification
Specifications
General
No. of Ports
Pass Through Data Rates
Power over Ethernet Output
Pin Assignment and Polarity, Output 4/5 (+), 7/8 (–)
t IEEE 802.3af backward compatible
Output Power Voltage
55Vdc
User Port Power
30Watts
t Compatible With All IEEE 802.3af or Legacy
Cisco-Powered Devices
Input Power Requirements
Dimensions
87.9 mm x 51.3 mm x 166 mm, 3.46 in. x 2.0 in. x 6.53 in
t Provides 4 amps of power at 24Vac
t Safe: Low Power Devices Receive Only the Power
They Need
Weight
Indicators
.771 lbs (350g)
t Pole mounting clips included
t Safe and Reliable Power to WLAN Access Points
System Indicator
User Indicator
t Automatic Detection and Protection of Non–standard
Ethernet Terminals
Connectors
Environmental Conditions
t Designed for direct conduit connections
t The SNCA-WM20G and SNCA-WM20FC mount directly
to the door for simple installation and a clean look
Model
Description
Applicable/compatible
camera models
SNCA-POWERBOX
IP66 rated
power supply
with bracket
connection
SNCA-WM20G
SNCA-WM20FC
SNCA-WM40
SNCA-WMMD1
SNCA-WMMD2
Key features
Operating voltage
Approx. Weight
Colour
t Supports 10/100/1000Base-T applications
AC Input Current
AC Frequency
Operating Ambient Temperature
Operating Humidity
Storage Temperature
t Compact Design Fits Easily in WLAN Access Point
Installations
Ideal for powering
110VAC / 230VAC (select24VAC housings and the
able)
cameras
White
Compact and Cost-Effective 1-Port Power over Ethernet Midspan. Power over
Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective,
fully IEEE 802.3af compliant solution for remote powering of wireless LAN (WLAN)
access points, and other low port density installations. The 3001 PoE Midspan
eliminates the need for external power supply and its associated AC/DC power
cabling, providing a compact, affordable, safe and reliable power solution over
existing Ethernet infrastructure.
The SNCA-POE6 & POE12 offers a cost effective, fully IEEE 802.3af compliant
solution to upgrade existing infrastructure with PoE, providing a maximum
of 15.4 Watts of power through each port and ensuring safe operation of
any standard PoE data terminal. It allows IP telephones, wireless LAN access
points, security network cameras and IP terminals to receive power, along
with data, over standard Ethernet cables, leaving network infrastructure
completely unaltered.
Features and Benefits
Features and Benefits
Dimensions
No. of Ports
Data Rates
Power over Ethernet Output
Output Power Voltage
User Port Power
Input Power Requirements
AC Input Current
AC Frequency
1
3001/AC: 10/100 Mbps
3001G/AC: 10/100/1000 Mbps
Pin Assignment and Polarity: 4/5 (+),7/8 (–)
48
15.4W min.
AC Input Voltage: 90 to 264 Vac
0.5A @110–220 Vac
47 to 63 Hz
Dimensions
60 mm (W)x 31 mm (H)x 145 mm (L)
Weight
Indicators
1 lbs (450 g)
System Indicator
User Indicator
Connectors
Environmental Conditions
Operating Ambient Temperature
Operating Humidity
Storage Temperature
General
t Safe & reliable power over existing Ethernet infrastructure
Power over Ethernet Output
t Scalable 6 & 12 port models for optimised installation
Shielded RJ-45, EIA 568A and 568B
14º to 113ºF -(-10 to 45ºC)
Maximum 90%, Non-condensing
32º to 104ºF (0º to 40ºC)
100,000 hrs. @25ºC
27 BTU/Hr (@240VAC)
1-year
Specifications
t A cost-effective solution to upgrade existing
infrastructure to PoE
t Safe solution that Protects network infrastructure
AC Power (Green)
Channel Power (Green)
–1000 to 10,000 ft. (–304.8 to 3048 m)
SNCA-POE6* / SNCA-POE12*
General
50 to 60 Hz
Operating Altitude
Reliability
SNCA-POE1**
t Cost-effective power distribution for WLAN access point installations
t Safe powering of standard compliant, as well as Pre-standard
end-terminals
t Investment protection of existing Ethernet switches and cabling
infrastructure
t Saves time and reduces installation costs
t Easy plug-and-play installation
t Several units can be mounted adjacently for powering more
than one Ethernet terminal
t Cleans up low-density wireless LAN deployment and eliminates
the need for multiple one-port PoE solutions
t Supports Gigabit Ethernet data transmission for applications such as
Wi-Max access points, Gig IP phones, and IP cameras
0.8A @ 100-240 Vac
Maximum 95%, Non-condensing
MTBF
Thermal Rating
Specifications
AC Input Voltage: 100 to 240 Vac
Storage Humidity
Warranty
78
1
10/100/1000 Mbps
No. of Ports
Pass Through Data Rates
Output Power Voltage
User Port Power
Aggregate Power
Input Power Requirements
6 or 12
10/100 Mbps
Pin Assignment and Polarity, 4/5 (+), 7/8 (–)
48Vdc
15.4Watts Max.
up to 200Watts
AC Input Voltage: 90 to 264 Vac
t Fully 802.3af standard compliant
AC Input Current
t Cisco and legacy PoE support
Dimensions
438 mm x 272 mm x 44 mm, 17.3 in. x 17.7 in. x 1.73 in
Weight
Indicators
8.8 lbs (4 kg)
AC Power (Green)
Channel Power (Green)
AC Frequency
System Indicator
User Indicator
Shielded RJ–45,EIA 568A and 568B
Connectors
Environmental Conditions
32° to 104°F (0 to 40°C)
Maximum 90%, non-condensing
Operating Ambient Temperature
Operating Humidity
–4° to 158°F (–20° to 70°C)
Storage Temperature
4A @ 110 Vac, 2A @ 240 Vac
50 to 60 Hz
AC Power (Green)
Channel Power (Green)
Shielded RJ-45, EIA 568A and 568B
32º to 104ºF (0 to 40ºC)
Maximum 90%, Non-condensing
–4º to 158ºF (–20º to 70ºC)
Storage Humidity
Maximum 93%, Non-condensing
Storage Humidity
Maximum 95%, Non-condensing
Operating Altitude
–1000 to 10,000 ft.(–304.8 to 3048 m)
Operating Altitude
Reliability
–1000 to 10,000 ft. (–304.8 to 3048 m)
*This product is manufactured by Videolarm **This product is manufactured by Powerdsine
*These products are manufactured by Powerdsine
MTBF
Thermal Rating
Warranty
100,000 hrs. @25ºC
300 BTU/Hr (@240VAC)
1-year
79
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - POWER SUPPLIES
ACCESSORIES - POWER SUPPLIES
SNCA-PS12/1*
SNCA-PS24/4*
A 12V DC 500mA in-line power supply that provides a single
regulated DC output. The unit's mains and output leads are wire
ended to allow easy connection to terminal blocks etc. ABS
cased. These power supplies are intended for CCTV use and their
size makes them suitable for mounting inside a camera housing,
space permitting.
A 4 Amp 24V AC power supply with 1 x 4 Amp fused output. Ideal for powering
24V AC CCTV cameras and camera housing heaters. Steel cased.
Features and Benefits
Features and Benefits
t 12V DC in-line PSU
t Comes with wall mounting kit
t Comes with wall mounting kit
t 1 x 500mA output
t Individually fused outputs
t Weather proof enclosure
SNCA-PS24/4E*
A 4 Amp 24V AC power supply with 1 x 4 Amp fused outputs in an IP66 enclosure. Ideal
for powering 24V AC CCTV cameras and camera housing heaters. Grey ABS cased.
t Output leads are wire ended
t Suitable for mounting inside camera housings etc.
Model
Description
SNCA-PS24/4
An indoor,
in-line power
supply with
one output
rated at 4
Amps,
24VAC, 50Hz
SNCA-PS24/4E
An external,
in-line power
supply with
one output
rated at 4
Amps,
24VAC, 50Hz
t ABS cased
t Dimensions are 65 x 115 x 45
Model
Description
SNCA-PS12/1
Applicable/compatible
camera models
SSC-M183
SSC-DC83
SSC-DC593 SSC-CD43VP
An indoor, in-line
SSC-CD73VP
SSC-E473
power supply
SNC-CS50P
SSC-E453
with one output
SNC-DF40P
SSC-DC374
rated at 1 Amp,
SNC-DF70P
SSC-DC174
12VDC
SNC-Z20P
SSC-DC193P
SNC-CS3P
SSC-M383
SNC-CH120
SNC-CH140
SNC-CH220
SNC-CH240
SNC-CH160
SNC-CH180
SNC-CH260
SNC-CH280
Key
features
SNC-DH140
SNC-DH140T
SNC-DH240
SNC-DH240T
Current
(Amps)
Ideal for
powering
12VDC
cameras
1A
Voltage
(nominal)
12V DC
Case
ABS
Approx.
Weight
0.8Kg
Approx.
Dimensions
WxHxD
70 x 102 x 60
Colour
Black
Supply
Output
Key
Current
Voltage Voltage Case
features (Amps)
(nominal) (nominal)
Applicable/compatible
camera models
SNCA-HFIXED
SNCA-HRZ50/INT
SNCA-HRZ25
SNC-CH120
SNCA-HRZ30
SNC-CH140
SNCA-HRX550/EXT
SNC-CH220
SNCA-HRX550/EXT/W
SNC-CH240
SNCA-HRX550/EXT/R
SNC-CH160
SNCA-HRX550/INT
SNC-CH180
SNCA-HRZ50/EXT
SNC-CH260
SNCA-HRZ50/EXT/W
SNC-CH280
SNCA-HRZ50/EXT/R
SNC-DH140
SNCA-HFIXED
SNCA-HRZ50/INT
SNCA-HRZ25
SNC-CH120
SNCA-HRZ30
SNC-CH140
SNCA-HRX550/EXT
SNC-CH220
SNCA-HRX550/EXT/W
SNC-CH240
SNCA-HRX550/EXT/R
SNC-CH160
SNCA-HRX550/INT
SNC-CH180
SNCA-HRZ50/EXT
SNC-CH260
SNCA-HRZ50/EXT/W
SNC-CH280
SNCA-HRZ50/EXT/R
SNC-DH140
SNC-DH140T
SNC-DH240
SNC-DH240T
SNC-DH160
SNC-DH180
SNC-DH260
SNC-DH280
SNC-RZ25P
SNC-RZ50P
SNC-RX530P
SNC-DH140T
SNC-DH240
SNC-DH240T
SNC-DH160
SNC-DH180
SNC-DH260
SNC-DH280
SNC-RZ25P
SNC-RZ50P
SNC-RX530P
t Individually fused outputs
Approx.
Weight
Approx.
Dimensions Colour
WxHxD
SNC-RX550P
SNC-RX570P
SNC-RS44P
SNC-RS46P
SNC-RH124
SNC-RS84P
SNC-RS86P
SNC-RH164
Ideal for
powering
24VAC
cameras
1 x 4A
240V AC
50Hz
24V AC
Metal
2.05Kg
118 x 200 x
70mm
White
SNC-RX550P
SNC-RX570P
SNC-RS44P
SNC-RS46P
SNC-RH124
SNC-RS84P
SNC-RS86P
SNC-RH164
Ideal for
powering
24V AC
housings
and the
cameras
1 x 4A
240V AC
50Hz
24V AC
Grey
ABS
2.13Kg
150 x 250 x
100
White
SNCA-PS24/1*
A 1 Amp 24V AC in-line power supply. Ideal for powering 24V
AC CCTV cameras and camera housing heaters. The unit has
a black plastic case that can be wall mounted or placed
directly inside the camera housing (space permitting). It is
pre-wired with a Euro mains plug and terminals for connecting
to the output are provided inside the case.
Features and Benefits
t 24V AC in-line PSU
t 1 x 1A output
Model
t Suitable for mounting inside camera housings etc.
This camera power supply converts 230VAC to
SNCA-PSVTSML24** 24VAC to power the camera and fits perfectly
inside the SNCA-HFIXSML/230 Housing.
t ABS cased
t Dimensions are 68 x 115 x 70mm
Model
Description
Applicable/compatible
camera models
SSC-DC83
SSC-CD43VP
An indoor,
SSC-DC593 SSC-CD73VP
in-line power
SSC-E473
SNC-CS50P
supply with
SSC-E453
SNC-DF40P
SNCA-PS24/1 one output SSC-DC374
SNC-DF70P
SSC-DC174
SNC-Z20P
rated
SSC-DC193P
SNC-CS3P
at 1 Amp,
SNC-RX550P
24VAC, 50Hz SSC-M383
SSC-M183
SNC-RZ25P
80
*These products are manufactured by Dantech
SNC-CH120
SNC-CH140
SNC-CH220
SNC-CH240
SNC-CH160
SNC-CH180
SNC-CH260
SNC-CH280
SNC-DH140
Description
Key
features
SNC-DH140T
SNC-DH240
SNC-DH240T
Ideal for
powering
24VAC
cameras
Supply
Output
Current
Voltage Voltage
(Amps)
(nominal) (nominal)
Case
240V AC
50Hz
Plastic
1A
24V AC
Approx.
Approx.
Dimensions Colour
Weight
WxHxD
1Kg
68 x 115 x 70
SNCA-PSVTSTD24**
The OHOVPS2B converts 230VAC to
24VAC and is designed to fit into the
SNCA-HFIXSTD/230
SNCA-POWER/
PCB***
Red network camera power PCB with
12vdc output for all outdoor model dome
enclosures.
Applicable/compatible
camera models
Key
features
Operating
voltage
Approx.
Weight
Approx.
Dimensions
SNCA-HFIXSML/230
Can be
mounted in
housing
230VAC,
50Hz
N/A
SNCA-HFIXSTD/230
Can be
mounted in
housing
230VAC,
50Hz
N/A
Colour
Controls the
blower and
heater
Black
*These products are manufactured by Dantech
**These products are manufactured by Videotec
***This product is manufactured by Videolarm
81
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - LIGHTING
ACCESSORIES - LIGHTING
SNCA-IR20*
SNCA-IR40/OUTDR*
The SNCA-IR20 Infra-Red illuminator is designed to provide dedicated
lighting for network cameras via a PoE (Power over Ethernet) enabled
infrastructure. Installation is as simple as plugging in the PoE enabled
network cable. With an in-built photocell plus internal Command and
Control™ electronics the SNCA-IR20 is truly 'plug and play'.
The SNCA-IR40/OUTDR Infra-Red illuminator is designed to
work in conjunction with B&W or Day and Night Cameras for
short - medium distance applications. Adaptive Illumination™
allows for the onsite adjustment of beam patterns from 30-60°,
includes PSU with photocell.
Features and Benefits
Dimensions
Features and Benefits
Dimensions
t Operates from PoE
t Adaptive Illumination™
t In Built Photocell
t Surface Mount LED Technology
t Command and Control™ technology
t Active LED Life Control
t Vandal Resistant
t 24/7 Illumination
t Low Running Cost
t 20m range
t 5 Year Warranty
t 30° spread
t 40m range
t 30-60° spread
Model
Description
Key features
Operating Voltage
IP Rating
Colour
SNCA-IR20
IR light indoor 20m
20m range, 30° spread
PoE, 12-24V AC/DC
N/A
Black
Model
Description
Key features
Operating
Voltage
Power
Consumption
SNCA-IR40/
OUTDR
IR light outdoor
(850nm)
40m range,
30-60° spread
100-240V AC
auto-sensing
20W max
SNCA-IR20/OUTDR*
SNCA-IR80/OUTDR*
The SNCA-IR20/OUTDR Infra-Red illuminator is designed to work
in conjunction with B&W or Day and Night Cameras for short
range applications, includes PSU with photocell.
The SNCA-IR80/OUTDR Infra-Red illuminator is designed
specifically to work in conjunction with B&W or Day and Night
Dome Cameras. Ultimate Adaptive Illumination™ allows
for the onsite adjustment of beam patterns from 50-180°
achieving 360° with only 2 units. Includes PSU with photocell.
Features and Benefits
Dimensions
Features and Benefits
Dimensions
-50°C to +50°C 160 x 115 x 54mm
Weight
IP Rating
Colour
1.7kg
IP66
Black
Dimensions
t Surface Mount LED Technology
t Adaptive Illumination™
t Active LED Life Control
t Surface Mount LED Technology
t Vandal Resistant
t Active LED Life Control
t Low Running Cost
Operating
Temperature
t Vandal Resistant
t 5 Year Warranty
t Low Running Cost
t 20m range
t 5 Year Warranty
t 30° spread
t max 100m range
t 50-180° spread
82
Model
Description
Key features
Operating Voltage
IP Rating
Colour
Model
Description
SNCA-IR20/OUTDR
IR light outdoor 20m
20m range, 30° spread
12/24V AC/DC
IP66
Black
SNCA-IR80/OUTDR
IR light for PTZ
*These products are manufactured by Raytec
*These products are manufactured by Raytec
Key features
Operating Voltage
IP Rating
Colour
100-240V AC auto-sensing
IP66
Black
83
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - LIGHTING
ACCESSORIES - AUDIO
SNCA-WL15/OUTDR*
SCA-M30
The SNCA-WL15/OUTDR illuminator is designed to work in conjunction
with colour CCTV systems providing a visible White-Light with accurate
colour representation for the CCTV camera, includes PSU with
photocell.
The SCA-M30 is a ceiling microphone, designed to work
with Sony Security Network Cameras for indoor use.
Features and Benefits
Dimensions
Features and Benefits
Specifications
t Accurate Colour Representation
t Compatible with Sony Network Cameras
General
t Surface Mount LED Technology
t Clearly picks up sound
Capsule type
Directivity
t Active LED Life Control
t Strong structure against external vibration
Frequency response
Sensitivity (at 1 kHz)
-40dB*1 ±3.5dB
t Vandal Resistant
t Easy installation
Signal-to-noise ratio
60dB and more (IEC179 A weighted, 1KHz, 1Pa)
t Low Running Cost
t Input sensitivity can be selected
Current consumption
Power supply
Output connector
t 5 Year Warranty
Dimensions
t 20m range
Connector cable length
Dimensions
Mass
t 30° spread
Supplied accessories
Electret condenser
Uni-directional
300 Hz to 10kHz
Plug in Power DC 1.5 V - 9 V
0.5mA and less
φ3.5mm mini-plug (3poles)
Tip-Ring short connected
Approx.300 cm
φ126 X 55 mm
Approx. 146g (Not included cable)
Approx. 225g with Bracket (Not included cable)
Bracket(1), +BV 4 x 20(2), +K 2.6 x 20(3), Operating
instruction(1), Warranty booklet(1)
Applicable/compatible models
SNC-DH180, SNC-RS84P, SNC-DH140, SNC-RS84N, SNC-RH164,
SNC-CH140, SNC-RS44N, SNC-RS44P, SNC-RS46N, SNC-RS46P,
SNC-RH124
Model
Description
Key features
Operating Voltage
IP Rating
Colour
SNCA-WL15/OUTDR
White light outdoor 15m
15m range
12/24V AC/DC
IP66
Silver
SCA-S30
VIDEO SECURITY
ACCESSORIES - NETWORK CONNECTIVITY
The SCA-S30 is a highly durable speaker for outdoor
environments. It is designed to work with Sony Network
cameras and can generate loud sound by it's high
efficiency digital amplifier.
Network and Connectivity
Features and Benefits
Model
Description
Applicable/compatible
camera models
SNCA-AN1
Wireless Outdoor LAN Antenna
SNCA-CFW1
SNCA-CFW5
SNCA-CFW1
SNCA-CFW5
84
Wireless CF LAN card
Sim compact flash
(Sony MESH compatible)
IP Rating
50Ω Impedance
Fixing pole included
-20°C to 60°C
IP66
11Mb/s, 2.4GHz Powered by camera
Built-in antenna External antenna connector
Supports WEP/WPA/WPA2 IEEE-802.1
authentication Wireless diversity mode (TX/RX)
SNC-CS50P
(SNCA-CFADAPT req’d)
SNC-RZ50P
SNC-RX550P
(SNCA-CFADAPT req’d)
54Mb/s, 2.4GHz Powered by camera
Built-in antenna External antenna
connector Supports WEP/WPA/WPA2
IEEE-802.1 authentication Wireless diversity
mode (TX)
-20°C to 60°C
Powered by the
connecting device
-20°C to 60°C
Outdoor Antenna Kit
SNCA-CFW5
SNCA-CFADAPT**
CF to PCMCIA adaptor
SNCA-CFW1
SNCA-CFW5
**This product is manufactured by Jactron Ltd
t Built-in high efficiency digital amplifier
General
t Seamless integration with Sony Network Cameras
Frequency response
Reference input level (at 1 kHz)
t Reliable and durable in outdoor environments
Output
t Easy Installation (wall/pole fixing)
Input impedance
Maximum Output
Distortion
SNC-CS50P
(SNCA-CFADAPT req’d)
SNC-RZ50P
SNC-RX550P
(SNCA-CFADAPT req’d)
SNC-RZ25P
SNC-P5
SNCA-CW5
*This product is manufactured by Raytec
Key features
Operating
Temperature
Specifications
Signal to Noise ratio
Power supply
-20°C to 60°C
N/A
Power consumption
Dimensions
Dimensions
Mass
Operating temperature
Storage temperature
Supplied accessories
N/A
100 Hz to 15,000Hz (at 5W output power)
-10dBu (0dBu = 0.775Vrms)
30W and more (AC24V, 1kHz -10dBu input)
35W and more (AC24V, 1kHz input)
20kohm +/-20% (at 1kHz)
Less than 1% (AC24V, 30W output at 1kHz)
80dB and more (IEC179A weighted, 30W,1kHz)
AC24 V +/- 10% 50Hz/60Hz
8W (AC24V, 1/8 output power)
φ150 x 245mm (included mount frame)
Approx. 2.4kg (included mount frame)
0°C to 50°C
-20°C to +60°C
Wire rope (1), +M4 x 16(1), Operating instruction(1),
Warranty booklet(1)
Applicable/compatible models
SNC-DH180, SNC-DH140, SNC-RS84P, SNC-RS84N, SNC-RH164,
SNC-CH140, SNC-RS44N, SNC-RS44P, SNC-RS46N, SNC-RS46P,
SNC-RH124
N/A
85
VIDEO SECURITY
VIDEO SECURITY
ACCESSORIES - MISC
ACCESSORIES - MISC
SNCA-JOYSTICK1*
SNCA-TINTED*
The IP Desktop USB joystick provides security professionals
with intuitive P/T/Z camera control for network video
surveillance applications. Featuring a three axis Hall
effect joystick, twelve programmable pushbutton switches
and USB interface, the IP Desktop integrates seamlessly
with any software application recognizing joystick inputs
via Microsoft's DirectX.
Tinted Replacement capsule for SNCA-HRZ25 & SNCA-HRZ30.
SNCA-TINTED/2*
Tinted replacement capsule for Sony 7" dome housings.
Features and Benefits
Dimensions
Features and Benefits
tThree axes joystick for P/T/Z control
SNCA-TINTED
SNCA-TINTED/2
tProgrammable pushbuttons
t Acrylic construction
t Polycarbonate construction
tUSB 1.1 HID compliant “game controller” device
tEasy to use and operate
Model
Centering
HFX Series I, Model Single spring,
1400 Option 5
omnidirectional
Housing
Breakout
force
Operation
force
Maximum
force
Operating
temperature
Life cycles
Supply voltage
(USB bus)
Supply current
(USB bus)
Colour
High impact,
glass-filled
nylon
.109Nm
.151Nm
.169Nm
-40°C to +85°C
10,000,000
Vdd = 5V ± .5V
32mA
N/A
Model
Description
Rating
Operating
temperature
Operating
voltage
Applicable
Camera Models
Optional
accessories
Colour
Approx.
Dimensions
SNCA-TINTED
Tinted dome
N/A
N/A
N/A
SNCA-HRZ25
SNCA-HRZ30
N/A
Tinted
8" (20.32cm)
Diameter
Tinted
7" (17.78cm)
Diameter
SNCA-TINTED/2
Tinted dome,
new 7" version
N/A
N/A
N/A
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE SNCA-RX550EXT12V
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
SNCA-CLEAR*
Clear replacement capsule for SNCA-HRZ25 & SNCA-HRZ30.
SNCA-CLEAR/2*
Clear replacement capsule for Sony 7" dome housings.
Features and Benefits
86
SNCA-HEATER**
SNCA-CONNECTOR/PCB** YT-HU75
The SNCA-HEATER is a 24Vac Cold Weather Kit for
an additional heater and blower. It is designed
for outdoor dome housings in extremely cold
weather. Extends the low temperature operating
conditions by approx. 15°C.
Green control PCB board.
Model
Description
SNCA-HEATER
Heater blower kit
SNCA-CONNECTOR/
PCB
PC board
YT-HU75
Heater unit
Key features
Controls the blower
and heater
For outdoor
models only
Replacement part
*This product is manufactured by CH Product
Operating
temperature
Operating
voltage
Applicable Camera Models
Optional
accessories
Colour
Approx.
Dimensions
Extends lower operating
temperature of housing/
device by 15°C
24V, 25W
SNCA-HRX550/EXT
SNCA-HRX550EXT/W
N/A
N/A
N/A
SNCA-HRX550/EXT
SNCA-HRZ50/EXT/W
SNCA-HRX550/EXT/W
SNCA-HRZ50/EXT/R
SNCA-HRX550/EXT/R
SNCA-HRZ25
SNCA-HRX550/EXT/PRE
SNCA-HRZ30
SNCA-HRZ50/EXT
**These products are manufactured by Videolarm
SNCA-CLEAR
SNCA-CLEAR/2
t Acrylic construction
t Polycarbonate construction
Model
Description
Rating
Operating
temperature
Operating
voltage
Applicable
Camera Models
Optional
accessories
Colour
Approx.
Dimensions
SNCA-CLEAR
Clear dome
N/A
N/A
N/A
SNCA-HRZ25
SNCA-HRZ30
N/A
Clear
8" (20.32cm)
Diameter
Clear
7" (17.78cm)
Diameter
SNCA-CLEAR/2
Clear dome,
new 7" version
N/A
*These products are manufactured by Videolarm
N/A
N/A
SNCA-HRX550/EXT
SNCA-HRX550/EXT/W
SNCA-HRX550/INT
SNCA-HRX550/EXT/R
SNCA-HRX550/EXT/PRE SNCA-RX550EXT12V
SNCA-HRZ50/EXT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/R
87
VIDEO SECURITY
ACCESSORIES
Compatibility Tables
Guide on which camera's fit into each housing
and which housings fit with which brackets.
88
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t *
t *
t *
t *
t *
t *
t t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
For /OUTDOOR models, please look for the bundled camera accessories
*It doesn’t power the camera
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-PS12/1
SNCA-PS24/1
SNCA-PS24/4
SNCA-PS24/4E
UNI-BBB2
SNCA-HFIXSTD/24
SNCA-WMFIX10PC
SNCA-HFIXSML/24
UNI-XBS1/T10PC
SNCA-HFIXSML/230
UNI-XBB1/T10PC
YT-ICB140
SNCA-ICPTZ/T
SNCA-ICPTZ/C
YT-ICB45
SNCA-WM20G
SNCA-POLE30
(always with SNCA-POLE30)
SNCA-CEILING
(always with SNCA-AN1)
SNCA-CW5
SNCA-CFADAPT
SNCA-CFW5
SNCA-CFW1
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t t t
t t t
t t t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t t t
t t t
t t t
* With SNCA-WM bracket
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
*
t
t
t
t
t
t
t
t
t
*
*
*
*
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
*
SNCA-POLE30
t
t
t
t
t
t
(siempre con SNCA-POLE30)
t
t
t
t
t
t
SNCA-CEILING
t
t
t
t
t
t
(always with SNCA-AN1)
t
t
t
t
t
t
SNCA-CW5
t
t
t
t
t
t
SNCA-CFW5
t
t
t
t
t
t
SNCA-CFW1
SNCA-HRX550/INT
t
t
t
t
t
t
SNCA-HFIXSTD/24
SNCA-HRX550/PRE
t
t
t
t
t
t
SNCA-HFIXSTD/230
SNCA-HRX550EXT/W
t
t
t
t
t
t
SNCA-HFIXSML/24
SNCA-HRX550EXT/R
t
t
t
t
t
t
SNCA-HFIXSML/230
SNCA-HRX550EXT12V
SNCA-HP5
SNCA-WMFIX10PC
SNCA-HRX550/EXT
SNCA-POLE30
SNCA-WM20G
SNCA-WM20FC
SNCA-WM30G
SNCA-WM40
SNCA-CAFIX1
SNCA-CA2
SNCA-PM3
SNCA-PMFIX1
Power supply
SNCA-PSVTSML24
SNCA-PSVTSTD24
SNCA-POWERBOX
Heater
SNCA-HEATER
Covers
SNCA-TINTED
SNCA-TINTED/2
SNCA-CLEAR
SNCA-CLEAR/2
YT-LD124C
YT-LD124S
Network
SNCA-AN1
SNCA-WM40
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-WM30G
t t t
t
t
SNCA-WM20FC
t t t t
t t t t t t
t
t
SNCA-WM20G
t
t t t t
(always with SNCA-POLE30)
SNCA-HRZ50/INT
t
t t t t t
Mounting accessories
SNCA-CEILING
SNCA-HRZ50/EXT/W
t t t t
t t t t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-HRZ50/EXT/R
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-HRZ50/EXT
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SONY VIDEOSURVEILLANCE ACCESSORIES
SNCA-WMMD4
t
t t t t t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
Power supply
t
t
t
t
t
t
SNCA-WMMD3
t t t t
t t t t
t
t
t
Box-type housing
t
SNCA-WMMD1
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-WMMD2
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
YT-ICB140
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-ICPTZ/T
t
t
t
t
t
t
t
t
t
YT-ICB124
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
Box-type bracket
Box-type cameras
SSC-G103
SSC-G113
SSC-G118
SSC-G203
SSC-G213
SSC-DC372P
SSC-E413P
SSC-E433P
SSC-FB531
SSC-FB561
SSC-E473P
SSC-G813
SSC-G818
SSC-G923
SSC-CB565R
SSC-CB575R
Minidome cameras
SSC-CM565R
SSC-N11
SSC-N12
SSC-N13
SSC-N14
SSC-N20
SSC-N21
SSC-N22
SSC-N24
SSC-FM531
SSC-FM561
SNCA-ICPTZ/C
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
SNCA-HPOE1
(always with SNCA-WM bracket)
SNCA-PS24/4E
t t t t
t
t t t t t
t
t
t
t
t
t
t
t
t
SNCA-POWERBOX
SNCA-PS24/4
SNCA-HFIXSTD/24
SNCA-HFIXSTD/230
UNI-BBB1
t t t t
t
t t t t t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
t
In-ceiling mounting
SNCA-HRZ25
t
t
t
t
t
t
t
*
t t
t
t
t
t
t
t
*
t
t
t
t
t
SNCA-POE12
t
t
*
*
t
t
t
t
t
*
t
t
t
t
t
SNCA-POE6
t
*
t
t
t
t
t
Wireless
SNCA-POE1
t
t t
t t
t t
t t
t
t
t
SNCA-HFIXSML/24
t t
t t
t t t
t
t
t
SNCA-HFIXSML/230
SNCA-HRX550/INT
SNCA-HRX550/PRE
SNCA-HRX550EXT/W
SNCA-HRX550EXT/R
SNCA-HRX550EXT12V
SNCA-HRX550/EXT
SNCA-HRZ50/INT
SNCA-HRZ50/EXT/W
SNCA-HRZ50/EXT/R
SNCA-HRZ50/EXT
SNCA-HRZ25
UNI-LD280
UNI-LD110S
t
Power supply
SNCA-PS24/1
t
t
t
t
t
t
t t t
t
t
SONY VIDEOSURVEILLANCE ACCESSORIES
Box-type
housing
PTZ and speed-dome housing
SNCA-HP5
SNCA-WMFIX10PC
UNI-XBS1/T10PC
UNI-XBB1/T10PC
SNCA-WMMD4
SNCA-WMMD3
SNCA-WMMD2
Box-type
bracket
SNCA-PS12/1
Box-type cameras
SNC-P5
SNC-CS10
SNC-CS11P
SNC-CS20
SNC-CS50
SNC-CM120
SNC-EB520
SNC-CH110
SNC-CH120
SNC-CH140
SNC-CH160
SNC-CH180
SNC-CH210
SNC-CH220
SNC-CH240
SNC-CH260
SNC-CH280
Minidome cameras
SNC-DF50P
t
t
SNC-DF70P
SNC-DF80P
t
SNC-DF85P
t
SNC-DS10
t
t
SNC-DS60
t
SNC-DM110
t
t
SNC-DM160
t
SNC-EM520
t
SNC-EM521
t
SNC-DH110
SNC-DH110T
SNC-DH120
t
SNC-DH120T
t
SNC-DH140
t
SNC-DH140T
t
SNC-DH160
t
SNC-DH180
t
SNC-DH210
SNC-DH210T
SNC-DH220
t
SNC-DH220T
t
SNC-DH240
t
SNC-DH240T
t
SNC-DH260
t
SNC-DH280
t
PTZ and Hi-speed dome cameras
SNC-RZ30P
t t
SNC-RZ25P
t t
SNC-RZ50P
t t
SNC-RX530P
t t
SNC-RX550P
t t
SNC-RX570P
t t
SNC-RS44P
t t t
SNC-RS46P
t t t
SNC-RS84P
SNC-RS86P
SNC-EP521
t t t
SNC-EP550
t t t
SNC-EP580
t t t
SNC-ER521
t t t
SNC-ER550
t t t
SNC-ER580
t t t
SNC-RH124
t t t
SNC-RH164
SNCA-WMMD1
YT-ICB140
SNCA-ICPTZ/T
SNCA-ICPTZ/C
YT-ICB124
YT-ICB45
Minidome
bracket
SNCA-HFIXSTD/230
SONY VIDEOSURVEILLANCE ACCESSORIES
In-ceiling
mounting
t
t
t
t
89
VIDEO SECURITY
ACCESSORIES
Index
A comprehensive range of indoor, outdoor and specialist housings
to compliment the SONY range of camera products.
Key Features
View-DR
IP Mini-dome Cameras
Encoder
4
SNC-DH110 / DH110T
26
Infrared Illuminator (IR)
6
SNC-DH210 / DH210T
27
SNCA-POWERBOX & SNCA-POE1
78
H.264 - the latest industry standard … as standard
7
SNC-DH120 / DH120T
28
SNCA-HPOE1, SNCA-POE6 & SNCA-POE12
79
Intelligent Motion Detection driving actions directly from the camera
SNC-DH160
29
SNCA-PS12-1 & SNCA-PS24-1
80
8
SNC-DH220 / DH220T
30
IP66 - Vandal Resistent cameras for tough applications
9
SNC-DH260
31
IMZ-NS100 Series
SNC-DH140 / DH140T
32
SNC-DH180
33
SNC-DH240 / DH240T
34
SNCA-IR40/OUTDR & SNCA-IR80/OUTDR
83
SNC-DH280
35
SNCA-WL15/OUTDR
84
SNC-EM520
36
Network Connectivity
84
SNC-EM521
37
Analogue Video Output - for fast installation and set-up
9
HD for your security cameras
10
eXcellent Dynamic Noise Reduction (XDNR)
11
Distributed Enhanced Processing Architecture
(DEPA) Advanced
12
Visibility Enhancer (VE)
13
Open Network Video Interface Forum (ONVIF)
14
SNT-EX/EP Series
54
Recording Solutions
SNCA-PS24-4 & SNCA-PS24-4E
81
56
Misc Power Supplies
81
NSR-500
58
Lighting
SNCA-ZX104
58
SNCA-IR20 & SNCA-IR20/OUTDR
Accessories
IP Fixed Cameras
SNC-CH110
15
SNC-CH210
16
SNC-CH120
17
SNC-CH160
18
SNC-CH220
19
SNC-CH260
20
SNC-CH140
21
SNC-CH180
22
SNC-CH240
23
SNC-CH280
24
SNC-EB520
25
SCA-M30 & SCA-S30
85
NSRE-Si8/1, NSRE-Si16/1 & NSRE-SJBOD16/1
60
Misc
NSR-RM1, NSRE-RM2, NSRE-RM3 & NSRE-SASCABLE
60
SNCA-JOYSTICK1
NSRE-S200/4T & RM-NS1000
62
SNCA-HEATER
86
SNCA-CONNECTOR/PCB
86
86
SNC-EP521
38
Housings
SNC-EP550
39
SNCA-HRX550/EXT & SNCA-HRX550/INT
63
YT-HU75
86
SNC-EP580
40
SNCA-HRX550EXT/R & SNCA-HRX550EXT/W
64
SNCA-TINTED & SNCA-TINTED/2
87
SNC-ER521
41
SNCA-HRX550EXT12V & SNCA-HRX550/PRE
65
NCA-CLEAR & SNCA-CLEAR/2
87
SNC-ER550
42
SNCA-HRZ25 & SNCA-HRZ50/EXT
66
Compatibility Table
88
SNC-ER580
43
SNCA-HRZ50/EXT/R & SNCA-HRZ50/EXT/W
67
SNC-RH124
44
SNCA-HRZ50/INT & SNCA-HFIXSML/230
68
SNC-RH164
45
SNCA-HFIXSML/24 & SNCA-HFIXSTD/230
69
SNC-RS44P
46
SNCA-HFIXSTD/24
70
SNC-RS46P
47
SNCA-ICPTZ/C & SNCA-ICPTZ/T
70
SNC-RS84P
48
SNCA-HP5
71
SNC-RS86P
49
Mounting Hardware
Hybrid Cameras
90
82
Audio
Recording Solutions
IP Rapid Dome or PTZ Cameras
Power Supplies
SNC-ZB550
50
SNC-ZM551
51
SNC-ZM550
52
SNC-ZR550 / ZP550
53
SNCA-CEILING
71
SNCA-POLE30 & SNCA-WM20G
72
SNCA-WM20FC & SNCA-WM30G
73
SNCA-WM40
74
SNCA-CAFIX1, SNCA-PMFIX1, SNCA-WMFIX10PC,
UNI-XBB1/T10PC & UNI-XBS1/T10PC
74
SNCA-CA2, SNCA-PM3 & UNI-WMBB1
75
SNCA-WMMD1
75
SNCA-WMMD2 & SNCA-WMMD3
76
SNCA-WMMD4
77
Misc Mounting Hardware
77
91
At Sony Professional we believe images
have immeasurable power
Images nurture life
connect cultures
grow economies
deliver justice
inspire education
energise entertainment
advance science
liberate imagination
capture history
even promote peace
We use the power of images to increase
business value
We turn images into assets
This is Visual Wealth
© 2011 Sony Corporation. All rights reserved. Reproduction in whole or in part without permission is prohibited. Features and specifications are subject to change without notice. All non-metric weights and measurements are
approximate. Sony, make.believe, IPELA, DynaView, Exwave PRO, SuperExwave, Exwave HAD, Super HAD and DEPA are trademarks of Sony Corporation. All other trademarks are the property of their respective owners.
Distributed by
92
About Sony Professional
Sony Professional is the leading supplier of AV/IT solutions to businesses across a wide variety of sectors including, Media and Broadcast, Video
Security and Retail, Transport & Large Venue markets. It delivers products, systems and applications to enable the creation, manipulation and
distribution of digital audio-visual content that add value to businesses and their customers. With over 25 years’ experience in delivering innovative
market-leading products, Sony Professional is ideally placed to deliver exceptional quality and value to its customers. Sony’s Professional Services
division, its systems integration arm, offers its customers access to the expertise and local knowledge of skilled professionals across Europe.
Collaborating with a network of established technology partners, Sony Professional delivers end to end solutions that address the customer’s needs,
integrating software and systems to achieve each organisations’ individual business goals. For more information please visit www.pro.sony.eu
J336_Video_Security_Catalogue_V7_UK_(04/12)
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
