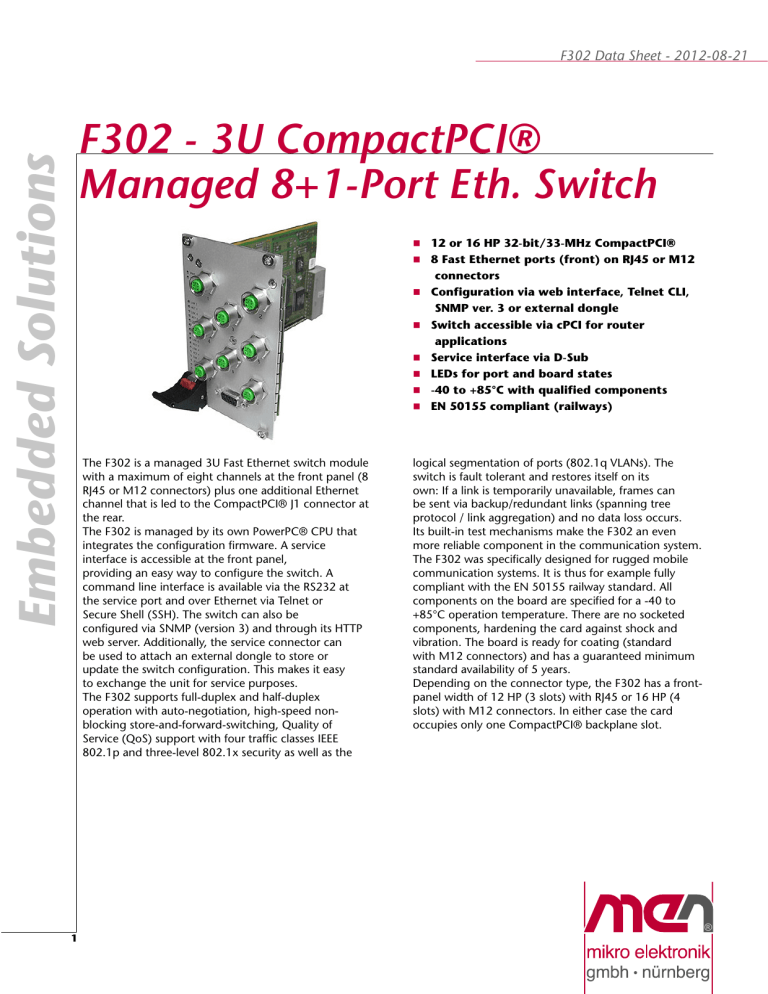

The F302 is a managed 3U Fast Ethernet switch module
with a maximum of eight channels at the front panel (8
RJ45 or M12 connectors) plus one additional Ethernet
channel that is led to the CompactPCI® J1 connector at
the rear.
The F302 is managed by its own PowerPC® CPU that
integrates the configuration firmware. A service
interface is accessible at the front panel,
providing an easy way to configure the switch. A
command line interface is available via the RS232 at
the service port and over Ethernet via Telnet or
Secure Shell (SSH). The switch can also be
configured via SNMP (version 3) and through its HTTP
web server. Additionally, the service connector can
be used to attach an external dongle to store or
update the switch configuration. This makes it easy
to exchange the unit for service purposes.
The F302 supports full-duplex and half-duplex
operation with auto-negotiation, high-speed nonblocking store-and-forward-switching, Quality of
Service (QoS) support with four traffic classes IEEE
802.1p and three-level 802.1x security as well as the
1
12 or 16 HP 32-bit/33-MHz CompactPCI®
8 Fast Ethernet ports (front) on RJ45 or M12
connectors
Configuration via web interface, Telnet CLI,
SNMP ver. 3 or external dongle
Switch accessible via cPCI for router
applications
Service interface via D-Sub
LEDs for port and board states
-40 to +85°C with qualified components
EN 50155 compliant (railways)
logical segmentation of ports (802.1q VLANs). The
switch is fault tolerant and restores itself on its
own: If a link is temporarily unavailable, frames can
be sent via backup/redundant links (spanning tree
protocol / link aggregation) and no data loss occurs.
Its built-in test mechanisms make the F302 an even
more reliable component in the communication system.
The F302 was specifically designed for rugged mobile
communication systems. It is thus for example fully
compliant with the EN 50155 railway standard. All
components on the board are specified for a -40 to
+85°C operation temperature. There are no socketed
components, hardening the card against shock and
vibration. The board is ready for coating (standard
with M12 connectors) and has a guaranteed minimum
standard availability of 5 years.
Depending on the connector type, the F302 has a frontpanel width of 12 HP (3 slots) with RJ45 or 16 HP (4
slots) with M12 connectors. In either case the card
occupies only one CompactPCI® backplane slot.
®
F302 Data Sheet - 2012-08-21
Embedded Solutions
Technical Data
Switch Fabric Key Features
n Eight 10/100Base-T ports at front panel
o Electrical isolation: 1500 Vrms
n Ninth 10/100Base-T port via CompactPCI® J1 (rear)
n Auto-negotiation
n High-speed non-blocking, store-and-forward switching
n 8K MAC address lookup table with automatic learning and
aging
n QoS (Quality of Service) support with 4 traffic classes
(IEEE 802.1p tagged frames)
n Layer 2 switching
n Back pressure or IEEE802.3x flow control
n Automatic MDI/MDI-X crossover (all ports)
Management Firmware System Features
n Saving and restoring user configurations
n Software upgrades through TFTP
n System logs (syslog) and e-mail alerts for critical events
n Remote monitoring (RMON) and alarm generation
n Displaying the running configuration in the form of CLI
commands
n DHCP client, server and relay
n Management interfaces through
o CLI (RS232 console, Telnet, SSH)
o SNMP v3
o WebUI (HTTP and HTTPS/SSL)
n Switch configuration can be loaded from external dongle
Management Firmware Layer 2 Features
n TCP/IP (IPv4, IPv6)
n Transparent bridging
n QoS (DiffServ) and 802.1p traffic prioritization queuing,
polishing, shaping
n VLAN-aware bridging with GARP
n Static and dynamic VLANs (through GVRP)
n Dynamic learning of multicast groups through GMRP
n Rapid Spanning Tree Protocol and Multiple Spanning Tree
Protocol to ensure loop free topology formation
n Reducing multicast traffic in the network through
multicast snooping - IGS (IPv4) and MLDS (IPv6)
n IGMP proxy
n Aggregating physical ports for increasing bandwidth and
redundancy through link aggregation (LACP)
n Link Layer Discovery Protocol (LLDP)
n SNMP (v1, v2c, v3) agent and MIB support, configuration
save/restore
Management Firmware Security Features
n User authentication using 802.1x
n Controlling management access through SNMP, CLI and web
only from authorized managers
n MAC based access list (ACL) for traffic filtering
n Rate-limiting and storm control to prevent packet
flooding from malicious peers
2
Supported Ethernet Standards
n Transparent bridging: IEEE 802.1d, 2004
n VLAN: IEEE 802.1q Rev D5.0, 2005
n Port based VLANs: IEEE 802.1q Rev D5.0, 2005
n GVRP/GMRP support: IEEE 802.1d
n Rapid Spanning Tree Protocol: IEEE 802.1d
n Multiple Spanning Tree: IEEE 802.1s, IEEE 802.1q Rev
D5.0, 2005
n IGMP snooping: draft-ietf-magma-snoop-12.txt
n MLD snooping: draft-ietf-magma-snoop-12.txt
n Link aggregation: IEEE 802.3ad, 2005
n Port based authentification with EAP: IEEE 802.1x REV2004
n Link Layer Discovery Protocol: IEEE 802.1ab, 2005
n Priority based switching: IEEE 802.1p
Service Interface
n 9-pin D-Sub connector at front
n RS232 / V24
n I2C interface for external dongle
Front I/O
n 8 Ethernet ports via RJ45 or M12 D connectors
n 1 service interface via 9-pin D-Sub plug connector
n 16 link and activity Ethernet status LEDs (2 per channel)
n Status LEDs for power, reset and error codes
CompactPCI® Bus
n Compliance with CompactPCI® Specification 2.0 R3.0
n Only one slot required on the 3U CompactPCI® bus
n Peripheral slot
n Compliance with PCI Specification 2.1
n V(I/O): +3.3 V
n Ninth Fast Ethernet port via CompactPCI® J1
Electrical Specifications
n Supply voltage/power consumption:
o +3.3 V (-3%/+5%), 5 W
o +5 V (-3%/+5%), 5 W
n MTBF: 778 505 h (RJ45 model) or 752 506 h (M12 model) @
40°C according to IEC/TR 62380 (RDF 2000)
Mechanical Specifications
n Dimensions: conforming to CompactPCI® specification for
3U boards
n Weight: 316 g (16HP model with M12 connectors)
Environmental Specifications
n Temperature range (operation):
o -40..+85°C (qualified components)
o Airflow: min. 10 m³/h
n Temperature range (storage): -40..+85°C
®
F302 Data Sheet - 2012-08-21
Embedded Solutions
Technical Data
n
n
n
n
n
n
n
Relative humidity (operation): max. 95% non-condensing
Relative humidity (storage): max. 95% non-condensing
Altitude: -300 m to + 3000 m
Shock: according to EN 60068-2-27
Bump: according to EN 60068-2-29
Vibration (sinusoidal): according to EN 60068-2-6
Conformal coating on request (standard with M12
connectors)
Safety
n PCB manufactured with a flammability rating of 94V-0 by
UL recognized manufacturers
EMC
n Tested according to EN 55022 (radio disturbance), IEC
1000-4-2 (ESD) and IEC 1000-4-4 (burst)
Firmware
n Firmware for configuration and management included
3
®
F302 Data Sheet - 2012-08-21
Embedded Solutions
Diagram
4
®
F302 Data Sheet - 2012-08-21
Embedded Solutions
Configuration & Options
Standard Configurations
Article No.
Channels
Connector
Front Panel
Operation
Temperature
Conformal coating
02F302-00
8
RJ45
12 HP
-40..+85°C
On request
02F302-02
8
M12
16 HP
-40..+85°C
Yes
Options
Front Connectors / Mechanical
n RJ45 connectors
o 12 HP (3-slot) front panel
n M12 D connectors
o 16 HP (4-slot) front panel
Environmental specifications
n Conformal coating for RJ45 models (standard with M12
connectors)
Cooling Concept
n Also available with conduction cooling in MEN CCA frame
Please note that some of these options may only be
available for large volumes. Please ask our sales staff
for more information.
5
®
F302 Data Sheet - 2012-08-21
Embedded Solutions
Ordering Information
Standard F302 Models
02F302-00
Managed Switch with 8 Fast Ethernet ports,
1 Fast Ethernet controller, RJ45
connectors, 12HP, -40..+85°C with qualified
components
02F302-02
Managed Switch with 8 Fast Ethernet ports,
1 Fast Ethernet controller, M12 connectors,
16HP, -40..+85°C with qualified components,
conformal coating
Related Hardware
05SF02-00
I2C dongle for F302, G302 and managed SFxx
switches, 512Kb, D-Sub, -40..+85°C
Software: Firmware/BIOS
14ETSW-00
Ethernet Switch Firmware for managed RSx,
SFx and F302 models
For operating systems not mentioned here contact MEN
sales.
Documentation
Compare Chart 3U CompactPCI® / PlusIO CPU cards Download
Compare Chart 3U CompactPCI® / PlusIO peripheral cards
Download
20F302-00
F302 User Manual
21ETSW-ER
14ETSW-00 Managed Ethernet Switch Firmware
Errata
21ETSW-00
Managed Ethernet Switch Quick Start Guide
21ETSW-01
Managed Ethernet Switch Command Line
Interface User Manual - Command Reference
For the most up-to-date ordering information and direct
links to other data sheets and downloads, see the F302
online data sheet under » www.men.de.
6
®
F302 Data Sheet - 2012-08-21
Embedded Solutions
Contact Information
Germany
MEN Mikro Elektronik GmbH
Neuwieder Straße 3-7
90411 Nuremberg
Phone +49-911-99 33 5-0
Fax +49-911-99 33 5-901
E-mail [email protected]
www.men.de
France
MEN Mikro Elektronik SA
18, rue René Cassin
ZA de la Châtelaine
74240 Gaillard
Phone +33 (0) 450-955-312
Fax +33 (0) 450-955-211
E-mail [email protected]
www.men-france.fr
USA
MEN Micro, Inc.
24 North Main Street
Ambler, PA 19002
Phone (215) 542-9575
Fax (215) 542-9577
E-mail [email protected]
www.menmicro.com
The date of issue stated in this data sheet refers to the Technical Data only. Changes in ordering information given herein do not affect the date of issue.
All brand or product names are trademarks or registered trademarks of their respective holders.
MEN is not responsible for the results of any actions taken on the basis of information in the publication, nor for any error in or omission from the publication.
MEN expressly disclaims all and any liability and responsibility to any person, whether a reader of the publication or not, in respect of anything, and of the
consequences of anything, done or omitted to be done by any such person in reliance, whether wholly or partially, on the whole or any part of the contents of the publication.
The correct function of MEN products in mission-critical and life-critical applications is limited to the environmental specification given for each product in the technical
user manual.The correct function of MEN products under extended environmental conditions is limited to the individual requirement specification and subsequent
validation documents for each product for the applicable use case and has to be agreed upon in writing by MEN and the customer.Should the customer purchase or use
MEN products for any unintended or unauthorized application, the customer shall indemnify and hold MEN and its officers, employees, subsidiaries, affiliates, and distributors
harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim or personal injury or death associated
with such unintended or unauthorized use, even if such claim alleges that MEN was negligent regarding the design or manufacture of the part.
In no case is MEN liable for the correct function of the technical installation where MEN products are a part of.
