DJ TECH
DJ TECH

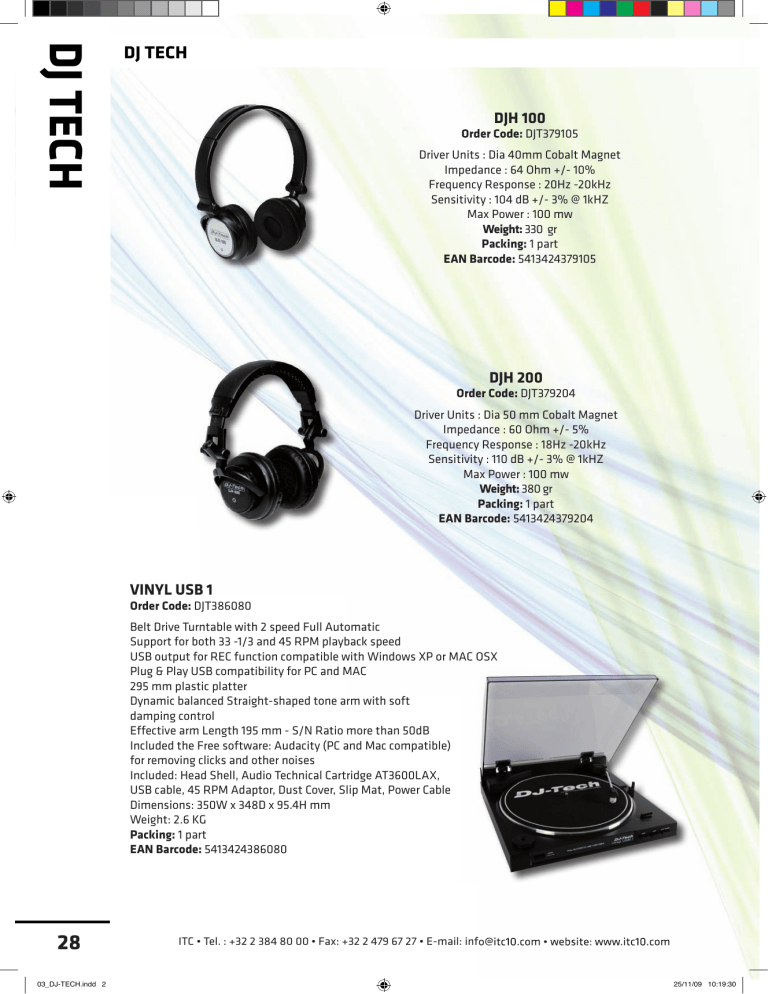

DJH 100
Order Code: DJT379105
Driver Units : Dia 40mm Cobalt Magnet
Impedance : 64 Ohm +/- 10%
Frequency Response : 20Hz -20kHz
Sensitivity : 104 dB +/- 3% @ 1kHZ
Max Power : 100 mw
Weight: 330 gr
Packing: 1 part
EAN Barcode: 5413424379105
DJH 200
Order Code: DJT379204
Driver Units : Dia 50 mm Cobalt Magnet
Impedance : 60 Ohm +/- 5%
Frequency Response : 18Hz -20kHz
Sensitivity : 110 dB +/- 3% @ 1kHZ
Max Power : 100 mw
Weight: 380 gr
Packing: 1 part
EAN Barcode: 5413424379204
VINYL USB 1
Order Code: DJT386080
Belt Drive Turntable with 2 speed Full Automatic
Support for both 33 -1/3 and 45 RPM playback speed
USB output for REC function compatible with Windows XP or MAC OSX
Plug & Play USB compatibility for PC and MAC
295 mm plastic platter
Dynamic balanced Straight-shaped tone arm with soft
damping control
Effective arm Length 195 mm - S/N Ratio more than 50dB
Included the Free software: Audacity (PC and Mac compatible)
for removing clicks and other noises
Included: Head Shell, Audio Technical Cartridge AT3600LAX,
USB cable, 45 RPM Adaptor, Dust Cover, Slip Mat, Power Cable
Dimensions: 350W x 348D x 95.4H mm
Weight: 2.6 KG
Packing: 1 part
EAN Barcode: 5413424386080
28
03_DJ-TECH.indd 2
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:19:30
VINYL USB 5 MKII
Order Code: DJT386103
BELT Drive Turntable with 2 speed Full manual
Support for both 33 1/3 , 45 RPM playback speeds
USB Output for REC function Compatible with
Windows XP or MAC OS9.1
Plug & Play USB compatibiliy for PC and MAC
Anti-skating control for increased stereo balance
330 mm plastic platter
± 10% adjustable pitch control
RCA PHONO/LINE output
Static balanced S-shaped tonearm with detachable headshell
Effective arm Length 220 mm - S/N Ratio more than 50dB
Included the Free software : Audacity (PC and Mac compatible)
for removing clicks and other noises
Included : Headshell , Audio Technica Cartridge AT3600L , USB
cable , 1,45rpm adaptor, power cable
Dimensions : 450W x 350D x 145H mm
Weight : 4,25 Kgs
Packing: 1 part
EAN Barcode: 5413424386103
DJ TECH
DJ TECH
VINYL USB 10
Order Code: DJT386240
BELT Drive Turntable with 3 speed Full manual
Support for both 33 1/3 , 45 and 78 RPM playback speeds
USB Output for REC function Compatible with
Windows XP or MAC OS9.1
Plug & Play USB compatibiliy for PC and MAC
Anti-skating control for increased stereo balance
330 mm aluminium diecast turntable platter
± 10% adjustable pitch control
RCA PHONO/LINE output
Static balanced S-shaped tonearm with detachable headshell
Effective arm Length 230,5 mm - S/N Ratio more than 60dB
Included the Free software : Audacity (PC and Mac compatible)
for removing clicks and other noises
Included : Power supply cable, USB cable, 1,45 rpm adaptor ,
headshell , Cartridge Autio technica AT3600L
Dimensions : 449W x 370D x 145H mm
Weight : 4 Kgs
Packing: 1 part
EAN Barcode: 5413424386240
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 3
29
25/11/09 10:19:54
DJ TECH
DJ TECH
VINYL USB 20
Order Code: DJT386165
DIRECT Drive Turntable with 2 speed Full manual
Support for both 33 1/3 ,and 45 RPMPlayback speeds
USB Output for REC function Compatible with
Windows XP or MAC OS9.1
Plug & Play USB compatibiliy for PC and MAC
Anti-skating control for increased stereo balance
330 mm aluminium diecast turntable platter
± 10% adjustable pitch control
RCA PHONO/LINE output
Static balanced S-shaped tonearm with detachable headshell
Effective arm Length 230,5 mm
S/N Ratio more than 60dB
Included the Free software : Audacity (PC and Mac compatible)
for removing clicks and other noises
Included : Power Supply Cable , USB cable , 1,45 RPM adaptor ,
headshell, cartridge Audio Technica AT3600L
Dimensions : 449W x 370D x 145H mm
Weight : 4 Kgs
Packing: 1 part
EAN Barcode: 5413424386165
VINYL USB 20 REVOLUTION
Order Code: DJT386301
YL
N
I
V
20
B
US
+
DJ SOFTWARE
=
L
A
I
C H
E
P
S ATC
SCR
30
03_DJ-TECH.indd 4
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:20:28
SB
U
T
C
DIRE ING
D
ENCO
VINYL ENCODER 5
Order Code: DJT386325
Direct recording to USB flash disk or USB hard drive
No computer is required
Recording with just one touch
No computer is required
Easily transfer music into your iTunes library on
your Mac or PC via USB thumb drive
FULL automatic tone arm
Listen to your vinyl recordings through your stereo system
Front-panel input jack allows you to
convert other music sources
Great quality recordings at
high-resolution sample rate, up to 192kHz
Works great stand-alone and without computer
Magix Audio Cleaning LAB SE (PC) and
Audacity (PC/Mac) software for
hassle-free quality optimising to reduce noise,
clicks, pops from your recordings
Packing: 1 part
EAN Barcode: 5413424386325
VINYL ENCODER 10
Order Code: DJT386363
Belt Drive USB Turntable with USB Direct encoding Solution
Belt Drive Turntable with 2 speed Full manual
USB Direct RECORD function
Play your Vinyl and Encode Directly into MP3 ( 192 kbps )
Support for both 33 1/3 and 45 RPM playback speeds
Anti-skating control for increased stereo balance
330 mm aluminium diecast platter
± 10% adjustable pitch control
MOTOR OFF & REVERSE FUNCTION
USB Input for Record , RCA PHONO/LINE output
Static balanced S-shaped tonearm with detachable headshell
Effective arm Length 230,5 mm - S/N Ratio more than 60dB
Included : Power supply cable, 1,45 rpm adaptor , headshell ,
Cartridge Audio Technica AT3600L
Dimensions : 449W x 370D x 145H mm
Weight : 3,8 Kgs
Packing: 1 part
EAN Barcode: 5413424386363
SB
U
T
C
DIRE DING
O
ENC
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 5
DJ TECH
DJ TECH
31
25/11/09 10:20:51
DJ TECH
DJ TECH
CD ENCODER 10
Order Code: DJT384109
CD to MP3 Encoder
CD/CD-R/CD-RW/MP3-CD/WMA-CD playback
USB & SD/MMC card slot
CD Ripping (1x or 2x speed selectable)
3 Ways to Encode : CD,AUX IN or MIC
Encode Directly to USB pen drive or SD Card
No need Any Software
Encode in MP3 with adjustable bit rate
Rate :
Built-in stereo condenser mic
Mic record level control
Encode from Aux-in / Line-in
Headphone output
Large Blue LCD Display with ID3 Text
CD Playlist up to 32 songs
USB & SD support up to 999 songs & 99 folders
USB 2.0 Speed with 2GB max Capacity
Play from CD,USB & SD
Speaker and Amplifier built-in
Monitor speaker output (2W RMS)
21Keys Flat Remote control (battery included)
Dimensions : 250W x 185D x 75H mm
Weight : 1,4 kg
Packing: 1 part
EAN Barcode: 5413424384109
CD
3
P
M
➜
K7 ENCODER 10
Order Code: DJT384208
Tape to MP3 Encoder
K7 ENCODER 10, is a very simple and affordable tape to
MP3 solution,without the need of a computer:
Play your tapes and with a twist, turns your music into
MP3! With the built-il Amplifier and speaker, listen and
select the songs to encode. No laptop is required and
you can select the USB port or the SD Card to store your
recorded songs. Thanks to the Microphone and LINE IN
integrated, you can record as well your speech or Musical performance : a complete and super easy Recording
solution is opened to you.
3
P
M
E➜
TAP
K7 ENCODER 10 includes MAGIX Audio Cleaning Lab Se
for PC and Audacity for Mac/PC, which help you import
your music to your computer, but also clean and optimize your sound quality. That is also possible to transfer
into iTunes in a snap. Upgrading your favorite recordings
has never been easier.
Packing: 1 part
EAN Barcode: 5413424384208
32
03_DJ-TECH.indd 6
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected]om • website: www.itc10.com
25/11/09 10:21:09
DJ TECH
DJ TECH
Order Code: DJT384307
Record stereo audio to your iPod directly with REC-iN. Capture
live sound on your iPod anywhere and anytime with a single
cable! Just dock your iPod to REC-iN, Connect REC-iN to the
source you want to record, adjust the proper level of recording
and press Record !!! From your turntable, to your mixers or your
CD player, record hasn’t never been that easy.
G IN
N
I
RD OD
O
C
RE UR IP
YO
As simple as 1,2,3.
1-Connect REC-iN to the source that you want to record
2-Dock your iPod to REC-iN
3-Press record and that’s it, you had recorded in Wave to your
iPod
Records to iPod Classic, iPod 5G, and iPod Nano 3G
Record level display with gain control
Mini jack input and output
USB port to sync your iPod to computer
AC adapter included
Packing: 1 part
EAN Barcode: 5413424384307
Delivered without IPOD
REC-IN
IFX-DJ
Order Code: DJT385106
iPod Ready Dock
8 x High Quality Dj Effects
2 x Effects Parameter knobs : X and Y
1 x Dry/Wet Parameter
2 x CH Mixer with Intelligent Crossfader
Effect on Channel adjustable
Master Volume knob
Headphones Volume
MIC Volume + Tone control
D
IPO G
IN
X
I
M
The Pack Contains :
1 x iFX-Dj
1 x CD Magix Music Make SE
1 x Mini jack cable to connect iPod
Battery and power supply adaptor not included
Packing: 1 part
EAN Barcode: 5413424385106
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 7
Delivered without IPOD
General:
2 X AUX Input (3.5mm)
1 X Headphone output (3.5mm)
1 X Master output ( RCA )
1 X Mic Input (6.35mm)
Power Switch & Power LED
9V Battery Powered with DC 9V Adaptor Input ( Battery and
adaptor Not included )
33
25/11/09 10:21:40
DJ TECH
DJ TECH
IFX-GT
Order Code: DJT385205
Features:
5 x Amplifier Simulation / 6 Preset Selector
4 x Effects Parameter knobs
2 x Reverb — 3 x Channel mixer
Master Volume knob — Gain Knob
MIC Volume, Mic Tone, AUX Volume Control
Amplification Simulation Preset List:
ACOUSTIC — CLEAN — DISTORSION 1 — DISTORSION 1
MICROPHONE — TUNER
Effects List:
EFX: OFF/ CHORUS/ FLANGER/ PHASER/ TREMOLO
REVERB: OFF/ REVERB/ ECHO/COLOUR/ TUNER
(When in TUNER Preset)
Packing: 1 part
EAN Barcode: 5413424385205
Delivered without IPOD
D
IPO R
TA
I
U
G
T
C
E
EFF
General:
1 X AUX Input (3.5mm)
1 X Headphone output (3.5mm)
1 X Guitar Output (6.35mm)
1 X Mic Input (6.35mm)
1 X Guitar Input (6.35mm)
Power Switch & Power LED
9V Battery Powered with DC 9V Adaptor Input
( Battery Not included )
UMIX-3 KIT
2 Channel Analog DJ Mixer with Full 3 Band EQ
One iPod docking with a full Set of Adaptors
One USB input OTG Solution – read MP3/WMA
Read MP3/WMA/AAC/MP4
iPod Video Output
Recharge iPod during Playing
Rotary Pot for Channel Volume
Mic Input Jack 6,35 with Tone Control
1 x Master Output ( 2 RCA ) + 1 x Rec Out ( 2 RCA )
Long Life Customized CrossFader
Headphones Output with Cue 1/2 Mix
Size : D19,5 x W23 x H5,5 cm / Weight : 750 gr
AC Adaptor included
Packing: 1 part
EAN Barcode: 5413424370249
34
03_DJ-TECH.indd 8
Delivered without IPOD
Order Code: DJT370249
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:22:02
DJ TECH
DJ TECH
I-MIX 200
Code: DJT372106
Delivered without IPOD
3 ch / 5 Input Analog DJ Mixer with 2 Full 3 Band EQ
iPodTM dock with a full Set of Adaptors
DIGITAL Sound for iPodTM - 2 x Video Output
Lighting Knobs for PLAY function iPod / USB
Recharge your iPodTM during Playing
USB input / MP3 and WMA Playback with LOOP
1 x Master Output – 1 + Rec Out
Tone EQ + Gain for Mic Channel
High Glossy Finish & Metal Knobs for Cyber Effect
Insert Function + REMOVABLE CrossFader
45 mm Fader with Long course for EZ Mix
Headphones Crossfader with Vol Control
Foldable Ears for 19’’ Rack included.
Size : TBA
Weight: TBA
Packing: 1 part
EAN Barcode: 5413424372106
I DANCE ZERO
Order Code: DJT370300
2 Ch DJ mixer with iPod docking
Play Music from your iPod Directly
Charging during playing
Scratch , Sample , and Add Effects to your iPod
Universal Dock for iPod with adjustable amount
Multi Function Jog wheel with Scratch Function
9 Digital Effects with adjustable parameter:
8 Sec Sampler built-in with Effect on Sampler
3 bands EQ with 6 Kill and gain control on both channels
4 input with Sampler Playback , 2 Phono/line inputs switchable
Headphones output with Tone Control
USB 2.0 Audio output + USB iPod Sync port
Soundcard integrated
Packing: 1 part
EAN Barcode: 5413424370300
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 9
Delivered without IPOD
Mobile DJ Workstation with Universal dock for iPod
Mix Music from your iPod Live , Audio & Video
35
25/11/09 10:22:52
DJ TECH
DJ TECH
I-MIX
Order Code: DJT370102
Professional USB DJ Console
2-deck controller - Mix 2 files in 1 controller
Totally portable - Smaller than a laptop
USB-bus powered: no extra power needed
2 Professional Jog-wheels to mix audio files
Pitch , Search and Scratch - 3 faders
1 Crossfader (mix 2 decks)
2 volume faders (1 per deck)
6 equalization filters with 6 Kills
Bass, medium, treble knobs
3 level equalization per deck
Package content :
1 x DJ mix controller USB powered
1 x PC DJing Software : Mix Vibes 3DEX Le
1 x USB Cable
Minimum System Requirements (PC):
WindowsXP (SP2) / Vista
Pentium III or AMD Athlon 1GHz - 512MB RAM
Packing: 1 part
EAN Barcode: 5413424370102
I-MIX RELOAD
Order Code: DJT370201
Portable USB DJ Mixer & Scratch Controller
2-deck controller - Mix 2 files in 1 controller
Totally portable
1,4 kg ONLY for 36(W )x 25.5(D) cm
USB-bus powered: no extra power needed
2 Professional Touch sensitive Jog-wheels to mix audio files
Pitch , Search and Scratch
3 Faders + 4 FX POT with 4 Knobs
1 Crossfader (mix 2 decks) - 2 volume faders (1 per deck)
6 equalization filters with 6 Kills
Bass, medium, treble knobs
3 level equalization per deck and PFL
Headphones Cue Mix and Volume
Package content :
1 x DJ mix controller USB powered
2 x PC DJing Software : Deckadance Le & Traktor 3 LE
1 x USB Cable
Minium System requirement
Processor:
PC: Intel Pentium III 1 GHz or Athlon XP 1.4 GHz
Mac: G4 1.5 GHz or Intel® Core™ Duo family
OS: PC: Windows XP(SP2)/Vista / Mac: OSX v10.4
Memory: 512MB Ram
Sound card:
PC: DirectSound or ASIO compatible soundcard
Mac: Sound card with CoreAudio drivers
Hard Disk Space: 200MB free space
Packing: 1 part
EAN Barcode: 5413424370201
36
03_DJ-TECH.indd 10
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:23:13
i-MIX RELOAD MKII
Order Code: DJT370225
DJ Control Surface with Audio I/O and Software
Complete professional computer-DJ package
Hardware controller with built-in audio I/O
Adjustable touch sensitive jog wheels
Includes Deckadance LE software
Lightweight and sturdy feel
Extremely clean and high-quality soundcard
Stiff, reliable knobs, faders, and buttons
Supports MIDI over USB
SERIOUS DJ SIMPLICITY with touch sensitive jog wheel.
DJ TECH
DJ TECH
Reload MKII contains everything you need to plug into any
club’s house PA and perform.
This high-quality, lightweight and rugged DJ device is not only
a hardware controller, for performing with included native
instruments Traktor 3 LE and Deckadance LE software, but it
also houses a professional digital-audio interface to feed your
headphones and the sound system.
Packing: 1 part
EAN Barcode: 5413424370225
KONTROL ONE
Order Code: DJT373929
272 midi messages can be sent
State of the art “touch sensitive” and “high resolution” jog
wheel.
World first: Innovative “Deck Select” rotary switch. Use it to
control 4 decks at once.
4 rotary encoders with LED rings and “push to switch” function
for ultimate control over FX effects, filters, samplers....
21 push buttons – 18 back illuminated for clear vision in dark
zones.
Shift push button allows all other controls to perform more
than one function.
Special size and shape to be used with dj hardware mixers.
Self powered. The Kontrol One USB connector allows it to be
powered directly from a compatible USB bus.
Strong metal case and high quality components ensures a
significantly longer lifetime.
Win, Mac and Linux compatible.
Packing: 1 part
EAN Barcode: 5413424373929
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 11
37
25/11/09 10:23:46
DJ TECH
DJ TECH
HYBRID 202
Order Code: DJT373943
2 channel 7 input mixer with Twin USB Soundcard and 8 DSP Effects
2 channel, 7 input mixer - 2 aux/phono, 2-line, 2 USB & 1 mic
Individual gain controls per channel
3-band EQ with CUT (-35dB) per channel
Dedicated microphone channel with 2-band EQ, and talkover
Large LCD display, which can be viewed from any angle
Built-in digital effects: echo, auto pan, flanger, manual filter, auto filter, reverb,transform,
pitch shifter and support for an external effect unit (send/return)
Crossfader effects: echo, brake and transform with an auto effects mix function
Effects are auto beat matched with twin parameter dials and 6 x BPM synced presets
Auto BPM and BPM tap display
Headphone cue mix control
VCA crossfader with 3 curve settings
60mm VCA channel faders with 3 curve settings and adjustable sweep
Fader start for crossfader or channel faders
Dual 10 LED monitor display - selectable PFL or master output
Balanced 6.3mm and unbalanced phono outputs
Record output
Dimensions : 296,7 x 223 x 105,90
Weight : 3,5kg
MIDI Controller KONTROL ONE:
2 times 272 midi messages can be sent
State of the art “touch sensitive” and “high resolution” jog wheel.
World first: Innovative “Deck Select” rotary switch. Use it to control 4 decks at once.
4 rotary encoders with LED rings and “push to switch” function for ultimate control over FX
effects, filters, samplers....
21 push buttons – 18 back illuminated for clear vision in dark zones.
Shift push button allows all other controls to perform more than one function.
Special size and shape to be used with dj hardware mixers.
Self powered. The Kontrol One USB connector allows it to be powered directly from a compatible USB bus.
Strong metal case and high quality components ensures a significantly longer lifetime.
Win, Mac and Linux compatible
Packing: 1 part
EAN Barcode: 5413424373943
38
03_DJ-TECH.indd 12
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:24:13
DJM-202
Order Code: DJT373905
2 channel, 7 input mixer - 2 aux/phono, 2-line, 2 USB & 1 mic
Individual gain controls per channel
3-band EQ with CUT (-35dB) per channel
Dedicated microphone channel with 2-band EQ, and talkover
Large LCD display, which can be viewed from any angle
Built-in digital effects: echo, auto pan, flanger, manual filter, auto filter,
reverb, transform, pitch shifter and
support for an external effect unit (send/return)
Crossfader effects: echo, brake and ransform with
an auto effects mix function
Effects are auto beat matched with twin parameter dials and 6 x BPM
synced presets
Auto BPM and BPM tap display
Headphone cue mix control
VCA crossfader with 3 curve settings
60mm VCA channel faders with 3 curve settings and
adjustable sweep
Fader start for crossfader or channel faders
Dual 10 LED monitor display - selectable PFL or
master output
Balanced 6.3mm and unbalanced phono outputs
Record output
Dimensions : 296,7 x 223 x 105,90
Weight : 3,5kg
Packing: 1 part
EAN Barcode: 5413424373905
DJ TECH
DJ TECH
UP-1
Order Code: DJT382105
Giant ID3 Display
USB card input - up to 4GB/ SD card input - up to 2GB
Plug & Play MP3 - No need to connect to Computer
Giant Dot Matrix Display with Contrast adjustment
Full Navigation of MP3 with EZ Search Encoder
Dual mode display
Full Display of songs of the mass storage: max of 500 Songs
Wireless Remote control
LOOP & RELOOP functions
Fast Search Function
10 PLAYLIST for the connected Mass storage device
Balanced output & 4 RCA output for 2 Different zones
Gain control for Balanced output
Adaptor power supply & 19" rack ears included
Size : 220(L) x 95(D) x 87(H) mm
Weight with ears: 1.8 kg
Packing: 1 part
EAN Barcode: 5413424382105
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 13
39
25/11/09 10:25:09
DJ TECH
DJ TECH
UM-110
Order Code: DJT373301
2 Channel 19’’ Analog DJ Mixer
MP3 player built in with ID3 display
USB and SD card input
Plug & Play MP3 - No need to connect to Computer
Giant Dot Matrix Display with Contrast adjustement
Full Navigation of MP3 with EZ Search Encoder
LOOP & RELOOP functions – Fast Search Function
10 PLAYLIST
5 input included Mic input
3 band EQ + Gain Control by Channel
Tone control for Mic Channel with Volume Control
3 LED Channel Input and Master output Display
200 000 cycles Crossfader & Headphones Crossfader
Mic Input Jack 6,35
Size : 483(L)x222(w)x77(h)mm
Weight: 4.5kgs
Packing: 1 part
EAN Barcode: 5413424373301
UM-120
Order Code: DJT373103
16FX BPM SYNC with Killers and Tap Tempo
5 Input Incl Mic + LED Display Level
Gain + Tone Control by Channel
Mic Input Jack 6.35 with Level + Tone Control
1 x Master Output & Rec Out
45 mm 200 000 Cycles Rader/Crossfader
Headphone Crossfader
Headphone Output 6.35 jack
Packing: 1 part
EAN Barcode: 5413424373103
40
03_DJ-TECH.indd 14
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:26:03
MX-110FX
Order Code: DJT373363
MX110.FX is a rack mixer with two mic inputs and digital effects
for DJs, clubs, houses of worship, performance venues and
more. Via the USB input, the MP3 Player built-in fills out the
sound perfectly in any situation or setting.
4 Channel Analog DJ Mixer + 2 Mic + 1 Master
MP3 Player Built-in
USB Input Plug and Play
16 FX BPM SYNC with Killers and Tap tempo
7 input incl Mic
Gain + 3 band EQ + Led Level Display by Channel
2 x Mic Input Jack 6,35 with Level + Tone Control
1 x Balanced Master Output & Rec Out
45 mm 200 000 Cycles Fader / CrossFader
Headphones Mixer with Tone Control
Headphones Output 6,35 jack
Dimensions : L483 x H95 x D261 mm
Packing: 1 part
EAN Barcode: 5413424373363
DJ TECH
DJ TECH
M-1 USB
Order Code: DJT373400
2U 19’’ Rackable Mixer
2CH with Phono/line Switch
MP3 Player built-in
USB input - OTG Solution
3 band EQ + Gain control per CH
Headphones Crossfader
Gain & Tone for the Mix
Master Level
Cue level
Level Meter for Output & Input
Dimensions : L483 x H88 x D98 mm
Weight including AC adaptor : 2,73 kg
Packing: 1 part
EAN Barcode: 5413424373400
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 15
41
25/11/09 10:26:20
DJ TECH
DJ TECH
MIX CONTROL 20
Order Code: DJT372205
MP3 MIXING KIT
2 CH DJ MIXER with 2 USB Soundcard built-in + DJ Software Mix
Vibes
2 Channel Analog DJ Mixer
2 USB input/output
FULL Duplex Operation USB 1.1
Playing audio files from PC
Recording your set on PC
Gain control input
Replaceable 45mm Crossfader
Rotary-style cueing
2-band EQ on each channel
included Mix Vibes Home Le DJ Software
2 x USB cables included
AC Adaptor included
PRODUCT DESCRIPTION
The Power of Digital Mix DJ-Tech gives you everything you need to
DJ in a single, easy-to-use workspace.
Mix Control 20 includes an integrated two-channel mixer with twoband EQs, level controls, headphone cueing and a crossfader, just
like a traditional DJ setup.
This Mixer has 2 USB soundcard built-in, allowing you, thru with
world wide acclaimed Djing Software: Mix Vibes-to mix, play and
more, 2 differents songs from your computer.
No need additional Soundcard, just plug and play the 2 USB output
from your mixer to your computer.
Packing: 1 part
EAN Barcode: 5413424372205
MIX FREE372809
Order Code: DJT372809
WIRELESS USB CONTROLLER
100% Easy: Automatic linking and mixing Push button sounds and
effects
100% Mobile: You can mix while moving around
100% Wireless: Controls the PC/MAC via a radio receiver on the
USB port
100% Fun : On board all Pro features with innovative interface
Ultra-compact & lightweight:
DIMENSIONS 256.5(W) x 161.65(D) x 44(H) mm
WEIGHT 0.63kg
Battery powered: LR14 (C size), 1.5V×2
Packing: 1 part
EAN Barcode: 5413424372809
42
03_DJ-TECH.indd 16
SS
E
L
E
WIR NG
MIXI
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:26:46
DJ TECH
DJ TECH
U2 STATION
Order Code: DJT373202
All-in-One Mixing Solution for USB Hard Drive with Effects and
Scratch
Dual deck USB hard drive player
Both player can play same song from the same USB
3 Effects with real time control
Large jog wheels for Pitch–bend, Scratch, Search or Set the Parameters of Effects
Seamless looping and relooping with stutter–start function
Cue play with Flying Cue in real time
Pitch control in ±4, 8 and 16 %
2 USB ports and Fader start
File formats supported: MP3 (CBR and VBR)
Quick folder access with Full ID3 info: Title, Artist, Genre, Rate
2 CH mixer with 3 band EQ and Kill
Crossfader Curve
Master Tempo
Packing: 1 part
EAN Barcode: 5413424373202
DJ MOUSE
Order Code: DJT378108
DJ-Software :
Real time Mixing and Scratching on MP3’s
6 effects with X and Y Control pads
AUTO BPM , AUTO MIX
Works with Windows XP & Vista , MAC
Real Dj’ing with real time Monitor function
DJ Mouse:
Heavy weight 120g optical mouse for Dj Application
Multi Function jog wheel with blue ring specially for dark area
Scratch Direct access Memory
Optimized for Deckadance Dj software for MAC and PC
Aluminium feel and mini jog wheel for controlling fader and Scratch
USB powered
DJ scratch mat:
Turntable design
Optimised for Scratch Performance
Packing: 1 part
EAN Barcode: 5413424378108
TH
I
W
LY
N
O
SE
NG
I
U
X
O
I
M
DJ M
R
U
YO
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 17
43
25/11/09 10:27:15
DJ TECH
DJ TECH
ISCRATCH
Order Code: DJT380057
CD & MP3 DJ Station — ID3-TAG support
Track- and Folder Search
Scratch Function for CD & MP3
4 independent 5-seconds sample banks
Samples pitchable, reversable
4 independent Cuepoint banks
Oversized LCD-Displays for all functions
Pitch range +/- 4/8/16/100%
Pitch bend +/- 100 % — Pitch lock & Auto-Cue
Master tempo — XXL jog wheel
Seamless LOOP for CD & MP3
Frame search — 1 bit technology
Playing address — anti-shock memory
Elapsed/remain time display
Sleep timer
Instant playback from cue point
Relay play — Fader start play
Digital output — S/N ratio: 90 dB
D/A converter_8-fold/1 Bit
Dimensions: 348 x 106 x 246 mm
Weight: 3,1 kg
Packing: 1 part
EAN Barcode: 5413424380057
ISCRATCH 101 ORANGE
Order Code: DJT380125
Top Load CD/MP3 Player with DSP and Sampler
USB output for Mix Vibes’s Software Control built-in.
Full MP3 playback capability with 1 line text display
ID3 Tag Display with Neon Blue LED Display
9 DSP effects with direct access including reverse
USB Audio output for Mix Vibes Control’s DVS Le Software
FX : Scratch,Filter,Echo,Trans,Skid,Phase,Flanger,Pan, Reverse.
Direct acess of X & Y Parameter in REAL TIME.
Giant Sensitive Jog Wheel for Scratch , Search and Pitch.
Customizable Jog’s Settings
4 Sampler bank and 4 HOT CUE.
Saves up to 3,000 cue points in memory,
transferable to compatible units
SSM mode : Sampler Scratch Mode
±6, 12, 25 and 100% pitch control on CD’s and MP3’s.
±100% Key Lock with key control on CD’s and MP3’s
Seamless LOOP with Reloop
48 seconds of Anti–Shock™ buffer memory
User–updateable operating system
Direct Folder Acess with Quick Track +10
High Glossy Black Panel for Controler and Main unit.
Slot-in Mechanisism - Relay function
Packing: 1 part
EAN Barcode: 5413424380125
44
03_DJ-TECH.indd 18
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:27:44
ISCRATCH 101
Order Code: DJT380101
Top Load CD/MP3 Player with DSP and Sampler
USB output for Mix Vibes’s Software Control built-in.
Full MP3 playback capability with 1 line text display
ID3 Tag Display with Neon Blue LED Display
9 DSP effects with direct access including reverse
USB Audio output for Mix Vibes Control’s DVS Le Software
FX : Scratch,Filter,Echo,Trans,Skid,Phase,Flanger,Pan, Reverse.
Direct acess of X & Y Parameter in REAL TIME.
Giant Sensitive Jog Wheel for Scratch , Search and Pitch.
Customizable Jog’s Settings
4 Sampler bank and 4 HOT CUE.
Saves up to 3,000 cue points in memory,
transferable to compatible units
SSM mode : Sampler Scratch Mode
±6, 12, 25 and 100% pitch control on CD’s and MP3’s.
±100% Key Lock with key control on CD’s and MP3’s
Seamless LOOP with Reloop
48 seconds of Anti–Shock™ buffer memory
User–updateable operating system
Direct Folder Acess with Quick Track +10
High Glossy Black Panel for Controler and Main unit.
Slot-in Mechanisism - Relay function
Packing: 1 part
EAN Barcode: 5413424380101
DJ TECH
DJ TECH
U-SOLO
Order Code: DJT382204
Compact Twin USB Player and Controller with Effects
Twin USB inputs..
Intelligent music database management
Digital turntable platter
5 DSP Effects:
Filter, Flanger, Echo, Brake and Scratching
4 multi-function jog mode:
Scratch, FX Parameter, search or pitch
Variable Pitch Slider (+/- 6, 12, 25, 100%) and Ultra-precise
Pitch Control
Firmware upgradeable
MP3’s compatible CBR or VBR at any bit rate up to 320kbps.
Comprehensive realtime looping
Seamless LOOP can be programmed in real time as well as
Reloop
Ultra-fast instant start cue point management
Auto-BPM counter
Dimensions: 204(W) x 215(D) x 93(H) mm
Weight: 1.1 Kg
Packing: 1 part
EAN Barcode: 5413424382204
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 19
45
25/11/09 10:28:13
DJ TECH
DJ TECH
ISCRATCH 303
Order Code: DJT380163
Professional Dual CD/MP3 Player with Scratch Function and
9 BPM Synced DSP Effects
Full MP3 Playback Capability with ID3 display on LCD
9 BPM Synchronized DSP Effects with Direct Acess :
SCRATCH,FILTER,ECHO,TRANS,SKID,PHASER,FLANGER,PAN,
REV
10 seconds of anti-shock memory per deck
Instant start & Seamless loop
Pitch range : (+/-6%,+/-12%, +/-25% ) +/-100% for CD&MP3
Scratch play& Reverse play
Automatic BPM Counter with Manual TAP Tempo
Auto cue function (-48dB )
Selectable ellapsed, remain and total remain time display
Single/continuous play
Relay play allows consecutive playback during two decks
S/PDIF digital audio RCA coaxial
Master Tempo
EZ Navigation for MP3 with Folder Search
User-updateable operating system
Packing: 1 part
EAN Barcode: 5413424380163
S-1
Order Code: DJT381108
2U Rackable Twin MP3 Player with Twin SD card input
Dual Deck SD card Player
ID3-TAG support
Can read same song from same card in both Player
Track- and Folder Search
Oversized LCD-Displays for all functions
Pitch range +/- 4/8/16%
Pitch bend +/- 12%
MASTER TEMPO
SUPER Flat Jog Wheel
Seamless LOOP & Reloop
Auto BPM & TAP Tempo
Frame search
Read FAT 16/32 Files
Accept 4Go SD Card
anti-shock memory
Elapsed/remain time display
Sleep timer
Instant playback from cue point
Fader Start
19’’ Standard 2U size
Packing: 1 part
EAN Barcode: 5413424381108
46
03_DJ-TECH.indd 20
D
R
A
C
SD
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:28:27
DJ TECH
DJ TECH
U-1
+
B
S
xU
Order Code: DJT382303
D
S
x
2
Twin USB Hard Drive DJ Media Player with USB/SD input
Twin USB Hard Drive DJ Media Player
1 x USB input + 2 x SD card Input(compatible SD HC)
Dual player from the SAME SOURCE
Master Tempo and Accurate Pitch
Seamless LOOP and RELOOP
BPM counter
Fader start
2U Size with angle monitor style
Firmware upgradable for new functions
Packing: 1 part
EAN Barcode: 5413424382303
1
U-2
Order Code: DJT382327
Twin USB Hard Drive DJ Media Player with 9 DSP Effects
2 x USB input with DUAL playing from the SAME SOURCE
9 editable DSP Effects: SCRATCH, FLANGER, FILTER,
TRANS, SKID, PAN, ECHO, PHASER, REVERSE
Master Tempo, Pitch 25%, Seamless LOOP and RELOOP
Multi jog mode, Cue Play and Flying Cue
BPM Counter, Fader Start
3U Size with digital Scratching mode
Firmware upgradable with new functions
Packing: 1 part
EAN
AN Barcode: 5413424382327
B
S
U
2x
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 21
47
25/11/09 10:29:15
DJ TECH
DJ TECH
CUBE 50
Order Code: DJT392227
Super Powerful 50 Watts Max
Battery Powered with built-in rechargeable battery
Included 3 wireless mics : Hand,Lavalier and headset
12 hours autonomy
Bass Reflex System for Loud and Clear Crystal voice
3 Channel Mixer with Tone Control on Master
Adjustable talkover for Microphone priority
Made with 12mm wood and carpet
6,5’’ Customized coaxial woofer
35 mm Pole mount for installation
Dimensions : 264W x 273Hx 264D mm
Weight : 8kg
Hit the Road now with the CUBE 50.
Everywhere,anywhere, bring your sound and just plug your
iPod or your favourite MP3 Player for instant TOTAL play back.
Small,light and compact, Enjoy freedom.
With the 3ch mixer: 1 Wireless Mic,1 Wired mic and one Line in,
the adjustable TALKOVER will make your presentation easy.
Packing: 1 part
EAN Barcode: 5413424392227
I-CUBE 90
Order Code: DJT392500
Delivered without IPOD
Feature:
80 W 8» Portable Speaker
Active PA Speaker with 2 rechargeable Battery
Wood Expoxy Painting
Pole Mount 35mm Standard
Intelligent iPod docking
5-Input: iPod/ MIC x 3/ AUX
Talkover for Microphone
Packing: 1 part
EAN Barcode: 5413424392500
48
03_DJ-TECH.indd 22
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:29:39
DJ TECH
DJ TECH
U-VISA 50 LIGHT
10 Watts RMS - Full range 5’’ Driver
Battery Powered – 1 x pc Rechargeable Battery
USB Player with full controler
4 to 6 hours with iPod Playing
One Wired Metal body Mic with Switch
Line in mini jack with Volume Control
Mic in Combo Jack with Volume Control
Adjustable Talkover with Switch Off mode
Recharge iPod when recharge the main unit
Master Volume with Power Off/On
19 mm Pole mount
Shoulder Strap included
iPod docking with full set of adaptors
Size: D39cm x L19cm x H20cm
Weight : 5,75 kg
AC adaptor included
Packing: 1 part
EAN Barcode: 5413424392104
Delivered without USB
Order Code: DJT392104
I-VISA 50 LIGHT
10 Watts RMS - Full range 5’’ Driver
Battery Powered – 1 x pc Rechargeable Battery
iPod Player with full controler
4 to 6 hours with iPod Playing
One Wired Metal body Mic with Switch
Line in mini jack with Volume Control
Mic in Combo Jack with Volume Control
Adjustable Talkover with Switch Off mode
Recharge iPod when recharge the main unit
Master Volume with Power Off/On
19 mm Pole mount
Shoulder Strap included
iPod docking with full set of adaptors
Size: D39cm x L19cm x H20cm
Weight : 5,75 kg
AC adaptor included
Packing: 1 part
EAN Barcode: 5413424392166
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 23
Delivered without IPOD
Order Code: DJT392166
49
25/11/09 10:31:19
DJ TECH
DJ TECH
U-CUBE 50
Order Code: DJT392241
FEATURES
Battery Powered
3 to 5 hours Autonomy
MP3 Player with USB Input
3 channel Mixer : Mic , Line & USB
Adjustable Talkover — RCA Stereo Line in
Tone Control for the master
Super Resistant 15mm MDF woodwith Expoxy Painting
16 mm Pole mount to install on speaker stand
Battery Powered — 3 to 5 hours Autonomy
MP3 Player with USB Input
3 channel Mixer : Mic , Line & USB
Adjustable Talkover — RCA Stereo Line in
Tone Control for the master
Easy Handle on rear panel
Bass Reflex Optimized Sound Tuned
50 Watts Max output Power
5 ‘’ Customized Coaxial Driver
1 x Sealed Rechargeable Battery Included
3 to 5 hours Autonomy ( when Battery is Full )
Dimensions ( HxWxD ) : 270 x 230 x 245 mm
Included : -Power cord -35mm Pole mount adapter -USB To
SD Card converter — Net Weight : 4,7 Kg
Packing: 1 part
EAN Barcode: 5413424392241
I-CUBE 50
iPod Docking with intelligent Bracket
Super Powerful 50 Watts Max
Battery Powered with built-in rechargeable lithium battery
3 to 12 hours autonomy
Bass Reflex System for Loud and Clear Crystal voice
3 Channel Mixer with Tone Control on Master
Talkover for Microphone priority
Made with 15mm MDF wood with Epoxy painting
5» Customized dual cone Woofer
Record output / Master out
35 mm Pole mount for installation
Charging iPod when Charging the unit
12V4Ah Lithium Battery included
Dimension = 272Wx337Hx272D mm
Weight= 8.7kg
Three inputs with independent level controls :
-1 x Integrated Universal Dock with adjustable bolt for all iPod
-1 x Microphone Combo XLR / Jack
-1 x Instrument 1/4» microphone / RCA input for CD/MP3 Player
Packing: 1 part
EAN Barcode: 5413424392265
50
03_DJ-TECH.indd 24
Delivered without IPOD
Order Code: DJT392265
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:31:54
U-CUBE-80
Order Code: DJT392401
Super Resistant 15mm MDF Cabinet
Epoxy Painting
USB Docking with Full Control Interface
1 x Video Output for iPod
3 channel Mixer : Lin, Mic, iPod
Tone Master Control
Adjustable TALKOVER
Stereo RCA REC OUTPUT
8 ‘’ Customized Coaxial Driver
Power Saving Mode for iPod
2 Sealed Rechargeable Battery Included
3 to 5 hours Autonomy ( when Battery is Full )
Soft Bag not Included
Dimensions : W29 x H40 x D30 cm ( TBC )
Packing: 1 part
EAN Barcode: 5413424392401
DJ TECH
DJ TECH
I-CUBE-80
Order Code: DJT392463
Super Resistant 15mm MDF Cabinet
Epoxy Painting
iPod Docking with Full Control Interface
1 x Video Output for iPod
3 channel Mixer : Lin, Mic, iPod
Tone Master Control
Adjustable TALKOVER
Stereo RCA REC OUTPUT
8 ‘’ Customized Coaxial Driver
Power Saving Mode for iPod
2 Sealed Rechargeable Battery Included
3 to 5 hours Autonomy ( when Battery is Full )
Soft Bag not Included
Dimensions : W29 x H40 x D30 cm ( TBC )
Packing: 1 part
EAN Barcode: 5413424392463
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 25
51
25/11/09 10:32:36
DJ TECH
DJ TECH
U CUBE EXPRESS
Order Code: DJT392524
Battery Powered
3 to 5 hours Autonomy
USB & SD card Input
MP3 Player with DSP,LOOP , Playlist
MP3 EZ Search
Giant Blue LCD Display with ID3 tags
3 channel Mixer
Adjustable Talkover
Mic in & Line in
Packing: 1 part
EAN Barcode: 5413424392524
UCUBE STATION V2
Order Code: DJT392562
80 Watts Wireless PA System + MP3 Player ( USB/SD Card input )
2 UHF Microphone + Remote Control
Cabinet
• 35 mm Pole mount to install on speaker stand
• Easy Telescopic Handle on rear panel
Amplification Part
• 8 ‘’ Customized Coaxial Driver
• 2 x Sealed Rechargeable Battery Included
• 3 to 5 hours Autonomy ( when Battery is Full )
Mixer part
• 3 Channel Mixer
• 2 UHF microphone included
• 16 Different Frequency by Microphone
• independent Volume for each mic
• Combo Jack 6,35 Input for additional Mic
• Stereo RCA Line in
• Stereo RCA Line output
• USB player Volume
USB & SD Card Player
• USB & SD input
• Plug & Play OTG solution for MP3’s
• LOOP IN /OUT , RELOOP.
• Playlist Memory for the Connected USB/SD mass storage Device
• Remote Control included to control USB/SD players
Packing: 1 part
EAN Barcode: 5413424392562
52
03_DJ-TECH.indd 26
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:32:59
DJ TECH
DJ TECH
IBOOST 202
Order Code: DJT392609
280 Watts MAX Active Stereo PA System
5 Channel Mixer: MIC 1, MIC 2/3, AUX, USB and iPod
iPod docking- recharge during playing
USB input for Plug and Play MP3
Talkover on MIC 1
Voice Processor on MIC 1: Pitch, Formant, Reverb
10” Woofer + 2 x 6.5” Mid range + 2 x 1” Dome Tweeter
USB input for MP3 Playback
RCA input for AUX IN
RCA output for REC OUT
Dimensions: 370 (W) x 795 (H) x 380 (D) mm
Weight: 27 kg
Packing: 1 part
EAN Barcode: 5413424392609
CUBE-302
Order Code: DJT391305
The Pack Contains :
1 x Active Sub with 4 Ch Mixer Built-in
2 x Passive Satellite
2 x Speakon to Speakon Cables to connect Sub and Sat
FEATURES
Global
3 ch Amplifier built-in + 4 Ch Mixer
Net System Weight ( 2 x Sat + 1 x Sub ) : 27 Kgs
Subwoofer
Active 10’’ Sub with 3 power amp built-in
160 Watts Max @ 4 Ohms SPL 90 db ( +/- 3db )
Rated Frequency range : 40hz- 120hz
4 Ch Mixer with Rec out RCA output
2 x Mic ( XLR/Jack ) + 1 x Aux ( 2 TRS ) + 1 x Line in ( 2 RCA )
Speakon output for Satellites
Size : 360W x 450H x 400D mm
Net Weight : 19 Kg
Speakers
6,5’’ woofer + 1’’ Dome Tweeter
60 Watts Max @ 4 Ohms SPL 90 db ( +/- 3db )
Size : 200L x 200W x 285H
Net Weight : 4 Kgs
Packing: 1 part
EAN Barcode: 5413424391305
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 27
53
25/11/09 10:33:28
HA-10
Order Code: DJT394061
20 Watts 6,5» Coaxial Driver
LOOP Function + DSP
6 Tone Presets (5 Amp + 1 Tuner)
Chrous/ Flanger/ Phaser/ Tremolo Control
Reverb/ Echo Control
AC Adaptor Included
Packing: 1 part
EAN Barcode: 5413424394061
Delivered without USB Key
DJ TECH
DJ TECH
USB Guitar Pack
Electric Guitarre
SolidBasswoodbody, ,black andgreysunburstcolor
22 Fret MapleNeck, rosewoodfingerboard
2 Single Coil, oneHumbuckerwithwhitepick-guard
Pickupswith5 waySwtiching
Vibrato bridge
Chrome Machine Head
Withjack Cables + 3 Picks+ 1 GigBag+ 1 Strap
Guitar Amplifier withUSB Player
DSP,LOOP & SEARCH functions
USB PLUG & PLAY SOLUTION
3 bandEQ withGain Control
Pedal for USB control isoptional
Strap& AC Adaptorincluded
Accessories
Jack cable
3 x Picks
1 x PaddedGigbag
1 x AdjustableStrap
Packing: 1 part
EAN Barcode: 5413424394207
54
03_DJ-TECH.indd 28
Delivered without USB Key
Order Code: DJT394207
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
25/11/09 10:33:40
DJ TECH
DJ TECH
UBM SOLO
Order Code: DJT394108
Just Plug UBM solo to your computer and
enjoy Virtual amplification,Tuner,Recorder,
and MP3 background music.
Stereo sound with Full control of the software.
Included Guitar Combo,UBM Studio,Basilik and
Michel Angelo,discover tons of sounds from
the super classic to the bold distorsion.
Just plug your mic and enjoy a studio experience.
Not only a simple amp. With Super Fast Asio driver,
enjoy low latency and rock your mp3's.
Bass: 20 Hz - 2.5 KHz
Treble: 2.5 KHz - 20 KHz
Speaker: Bass 5.25'' + Treble 1" x 2
Packing: 1 part
EAN Barcode: 5413424394108
ith
w
r
ifie r
l
p
m ce fo
A
t
r
c
a
a
e
t
f
f
i
r
f
Gu
nte edal E
i
C
P
/P
g
n
i
ord
c
e
R
ITC • Tel. : +32 2 384 80 00 • Fax: +32 2 479 67 27 • E-mail: [email protected] • website: www.itc10.com
03_DJ-TECH.indd 29
55
25/11/09 10:34:48
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
