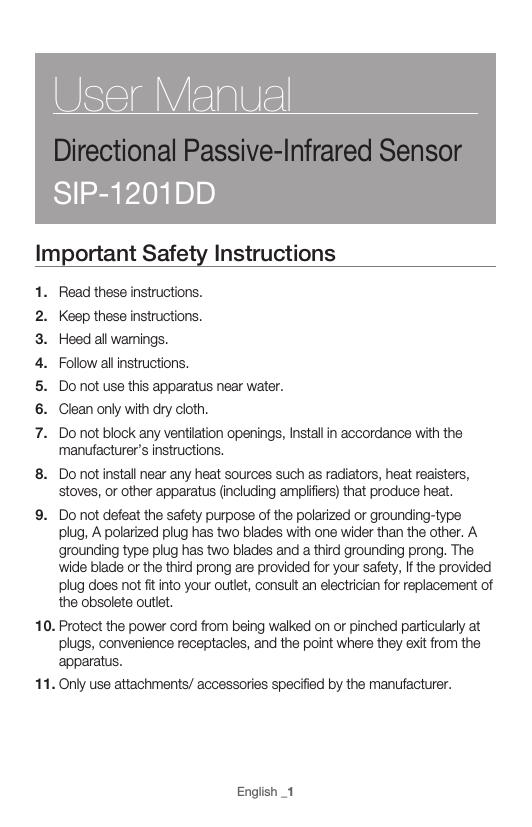

User Manual
Directional Passive-Infrared Sensor
SIP-1201DD
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings, Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat reaisters,
stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type
plug, A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wide blade or the third prong are provided for your safety, If the provided
plug does not fit into your outlet, consult an electrician for replacement of
the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
11. Only use attachments/ accessories specified by the manufacturer.
English _1
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used. Use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lighting storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO
NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH THE
VENTILATION GRILLS OR OTHER OPENNINGS ON THE
EQUIPMENT.
Apparatus shall not be exposed to dripping or splashing and that
no objects filled with liquids, such as vases, shall be placed on
the apparatus
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN
CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
English _2
EXPLANATION OF GRAPHICAL SYMBOLS
The lightning flash with arrowhead symbol, within
an equilateral triangle, is intended to alert the user
to the presence of “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintenance (servicing)
instructions in the literature accompanying the
product.
Class construction
An apparatus with CLASS construction shall be connected to a
MAINS socket outlet with a protective earthing connection.
Battery
Batteries(battery pack or batteries installed) shall not be exposed
to excessive heat such as sunshine, fire or the like.
Disconnection Device
Disconnect the main plug from the apparatus, if it’s defected.
And please call a repair man in your location.
When used outside of the U.S., it may be used HAR code
with fittings of an approved agency is employed.
CAUTION
These servicing instructions are for use by qualified service
personnel only.
To reduce the risk of electric shock do not perform any servicing
other than that contained in the operating instructions unless
you are qualified to do so.
English _3
Please read the following recommend safety precautions
carefully.
y Do not Place this apparatus on an uneven surface.
y Do not install on a surface where it is exposed to direct
sunlight, near heating equipment or heavy cold area.
y Do not place this apparatus near.
y Do not attempt to service this apparatus yourself.
y Do not place a glass of water on the product.
y Do not install near any magnetic sources.
y Do not block any ventilation openings.
y Do not place heavy items on the product.
User’s Manual is a guidance book how to use the products
The meaning of the using sign in the book is following
y Reference: in case of providing information for helping of
product’s usages
y Notice: If there’s any possibility to occur any damages for the
goods and human caused by not following the instruction
Ú Please read this manual for the safety before using of goods
and keep it in the safe place.
English _4
IR Sensor at a Glance
Body
Sensor Housing
Cover
Alarm LED
Spare LED
LENS
Front
Rear
Display the scanning direction
Internal Status LED
Alarm LED
DIP Switch
Direction Switch
Tamper Switch
Terminal
OUTPUT Select Switch
Wiring Hole
LED Select Switch
What’s Included
Screw (x2)
User Manual/
Warranty Card
English _5
Installation
Ceiling Mount
1. Turn the cover left to loosen it from
the body.
2. Turn the screws (4x25) clockwise to
secure the body to the ceiling and
do the wiring as necessary.
3. Adjust the lens in full detail to set the
boundary scanning range.
4. Turn the cover right to close it.
• For an ordinary concrete wall, use the
6mm concrete drill to make a hole and
insert the anchor.
English _6
Setting the direction switch
If intrusion is made in the arrow direction, set the pin to the left or right
accordingly.
 For an apartment building, intrusion is made
from the porch to the living room.
 If you turn off the switch #3, the directional
detection will be disabled.
Adjusting the DIP switch
Testing
ON : Directional detection, OFF : Normal passive-infrared sensor (duplex
area scanning)
Time setting for directional detection (5 sec, 1, 2, 4 min)
 The following is the factory default.
No.
Status
ON
OFF
1
2
Timer Setting
(for directional detection)
ON
ON
OFF
OFF
ON
OFF
ON
OFF
=
=
=
=
3
4
Directional Detection
Test
Active
Testing
Inactive
Normal operation
4 min
2 min
1 min
5 sec
English _7
Setting the output contact point with the
terminals
Setting
OUTPUT
LED
Factory Default
Scanning:
Connected
Alarming:
Disconnected
Scanning:
Turns off
Alarming:
Turns on
Scanning:
Disconnected
Alarming:
Connected
Scanning:
Turns off
Alarming:
Turns off
Terminal Layout
Terminal
Description
VCC
+12V
GND
0V
COM
COMMON
OUT
N.C/N.O
TAM1
Tamper
TAM2
Tamper
Comment
Nonpolar
Output jumper pin setting
Checking the boundary scanning range
Top view
Installation Height 2.6m
Side view
Inside Inside
(Outside) (Outside)
Zone Zone
English _8
Specifications & Appearance
Specifications
Item
Description
Scanning Type
Directional Detection & Duplex Area Scanning
Scanning Range
12m
Voltage and Current
Consumption
DC 12V (±15%) / 19mA
Number of Sensing
Zones
16 zones
Height
1.8m ~ 3.0m (basis of 2.6m)
Sensing Speed
Min. 0.2m/s, Max. 1.5m/s
Alarm Output Point of
Contact Capacity
1 A (DC 30V) Operating Time: Less than 2 seconds
LED Status
(turns off after it turned
on)
Category
Directional Detection
Normal operation / Test
Duplex Area
Scanning
Green
Internal operation / Detecting
movement in the left zone
-
Red
Alarm operation / Detecting
movement in the right zone
Alarming
Temperature
-10˚C ~ 50˚C (Humidity 95%)
Dimension
π 132 X Height 52mm
Weight
100g
Appearance
Unit: mm
English _9
Correct Disposal of This Product (Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries with separate collection
systems)
This marking on the product, accessories or literature indicates that the product and its electronic
accessories (e.g. charger, headset, USB cable) should not be disposed of with other household
waste at the end of their working life. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take these items for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of the purchase
contract. This product and its electronic accessories should not be mixed with other commercial
wastes for disposal.
P/No. : Z6806120801A-00
