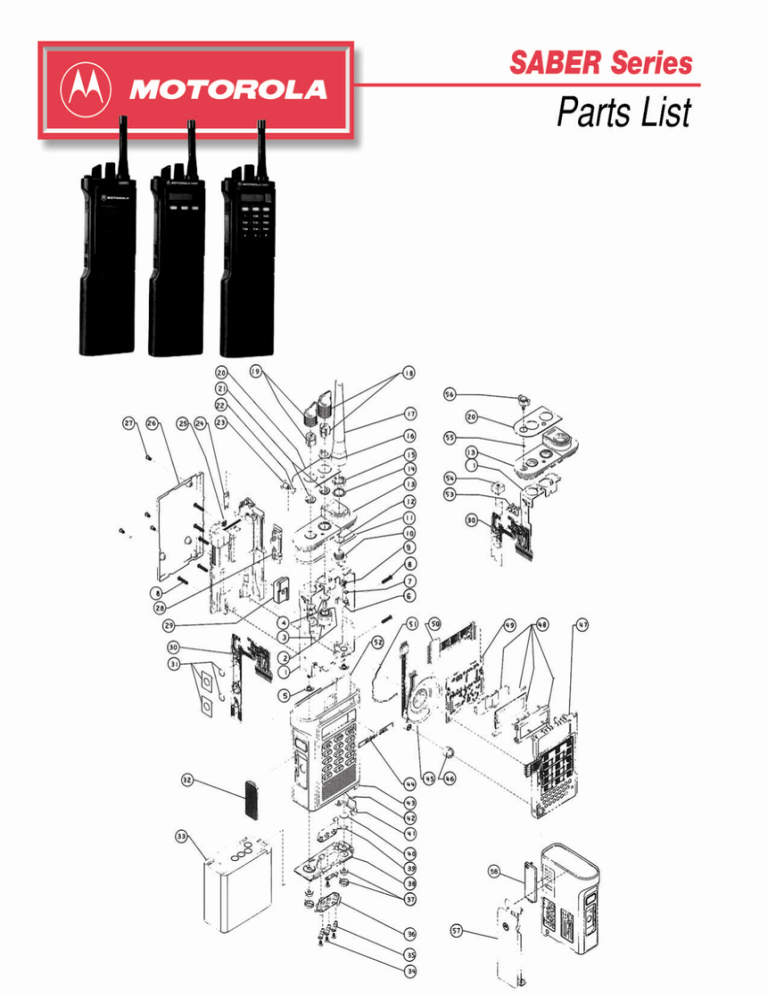

SABER Series
Parts List
SABER I, II, III VHF/UHF
REF.
NO. PART NO.
1
2
RPX4695A
RPX4689A
3
RPX4690A
4
3205082E68
5
6
7
8
3205422Q01
6105436Q01
3205082E59
0300138542
9
10
11
12
13
14
15
16
17
0305381L02
RPX4693A
3205082E80
3205082E58
RPX4692A
0400139731
0205765L02
0405781Q01
8505816K01
or
8505816K03
or
8505816K05
or
8505816K07
or
8505816K08
or
8505816K09
or
8505247K04
RPX4699A
REX4105A
1305622Q01
or
1305622Q11
or
1305622Q04
or
1305622Q13
18
19
20
21
22
23
24
25
26
27
28
29
30
31
0205916P01
3205082E61
RPX4691A
4205852N01
NLD8160B
NLE9450B
NTN4647A
0305706Q01
4205577Q01
1405387R01
RPX4700A
or
RPX4701A
RPX4694A
DESCRIPTION
Assembly, Frame Stud (includes item 5)
Kit, Frequency Switch (S823)
(includes item 4)
Kit, On/Off Switch (S800)/Volume
Control (R800) (includes item 4)
Gasket, “O” Ring (2 req’d)
(part of items 2 and 3)
Seal, Stud (2 req’d) (part of item 1)
Lightpipe, LED
Gasket, “O” Ring
Screw, Module, Ph Pah Hd; 2-56 x 3⁄8˝
(7 req’d)
Screw, Top Panel; 2-32 (2 req’d)
Kit, Antenna Bushing (includes item 12)
Gasket, “O” Ring (part of item 13)
Gasket, “O” Ring (part of item 10)
Kit, Control Top Panel (includes item 11)
Lockwasher, Internal Tooth
Nut, Antenna Bushing
Washer, Detent
Antenna, VHF Helical (136-150 MHz)
Antenna, VHF Helical (150-162 MHz)
REF.
NO. PART NO.
32
33
34
4505022P02
NTN4592CR
or
NTN4593DR
or
NTN4537CR
or
NTN4538DR
or
NTN4596DR*
0305706Q02
35
3905453Q01
36
37
4205669T01
RPX4696A
38
39
40
41
42
43
6405847N03
3205701Q01
3205472M01
5505333Q01
4105775Q01
NHN6395A
44
NHN6422A
NHN6397B
3305183R03
Antenna, VHF Helical (162-174 MHz)
Antenna, UHF Helical (403-432 MHz)
Antenna, UHF Helical (440-470 MHz)
3305183R01
Antenna, UHF Helical (460-512 MHz)
Antenna, UHF Helical (403-512 MHz)
Kit, Frequency Knob
Kit, On/Off/Volume Knob
Escutcheon, 12-Frequency
Escutcheon, 12-Frequency Emergency
Escutcheon, 12-Frequency Submersible
Escutcheon, 12-Frequency Emergency,
Submersible
Nut, Spanner (2 req’d)
Gasket, “O” Ring (part of item 23)
Kit, RF Connector (includes items 22, 24)
Contact, Ground, RF (part of item 23)
Assembly, VHF Main PC Board
Assembly, UHF Main PC Board
Assembly, Back Shield
(includes item 27)
Screw, Captive (4 req’d) (part of item 26)
Clip, Ground
Boot, Oscillator
Kit, PTT/Controls Flex (includes item 31)
Kit, PTT/Controls Flex Assembly
(includes items 2, 3, 31)
Kit, Contact Snapdome (S803, 805)
(2 req’d) (part of item 30)
45
3305183R02
0105950T07
0105950T06
46
47
1405490Q02
RPX4697A
48
49
50
51
52
53
54
55
56
57
7505641N03
0105953T53
8405681U01
4205872S01
1405182M03
0705309R02
4005221R02
3205082E68
3605392U03
or
NTN5068A
or
NTN4741B
58
RPX4702A
RPX4703A
NTN7061A
DESCRIPTION
Lever, PTT, (part of item 43)
Battery, 500mAh
Battery, 900mAh
Battery, FM, 500mAh
Battery, FM, 900mAh
Battery, FM, 1250mAh
Screw, Baseplate Ph Pan Hd; 2-56 x 3⁄32˝
(4 req’d) (part of item 43)
Contact, Power (4 req’d)
(part of item 43)
Retainer, Baseplate (part of item 43)
Kit, Slotted Spanner Nut (2 req’d)
(part of item 43)
Baseplate, (part of item 43)
Seal, Elastomer (part of item 43)
Seal, Vacuum Port (part of item 43)
Latch, Battery (part of item 43)
Spring, Latch (part of item 43)
Assembly, Housing, SABER I
(includes items 32, 34 thru 42,
44, and 45)
Assembly, Housing, SABER II
Assembly, Housing, SABER III
Label, Bottom Nameplate, SABER I
(part of item 43)
Label, Top Nameplate, SABER I
(part of item 43)
Label Name plate, SABER II and III
Assembly, Speaker/Microphone
Flex SABER II (8K Display)
Assembly, Speaker/Microphone
Flex SABER II (2K Display)
Boot, Microphone
Kit, Speaker Bracket, SABER
(includes item 48)
Pad, Speaker Bracket (part of item 47)
Controller PC Board
Flex Circuit, LCD Interconnect
Retainer, Speaker
Insulator, Universal Connector
Bracket, Switch (optional)
Switch, Dual-Functional (S801) (optional)
Gasket, “O” Ring (optional)
Knob, Push-Only
Knob, Push and Rotate
Assembly, Belt Clip
Non-Referenced Parts, SABER II and III
Keypad with Bracket
Kit, LCD
Universal Connector
*Factory Mutual
http://accesssecure.mot.com/Accesspoint
37
3/99
3/97
SABER I R Series
Parts List
SABER I R /Systems SABER I R
REF.
NO. PART NO.
1
2
3
RPX4695A
RPX4689A
RPX4690A
4
5
6
7
8
9
10
11
12
13
14
15
16
3205082E62
3205422Q01
6105436Q01
3205082E59
0305714J10
0300140332
RPX4693A
3205082E80
3205082E58
RPX4692A
0400139731
0205591R01
---or
4305141R03
8505816K01
or
8505816K03
or
8505816K05
or
NAE6440B
or
8505477T02
RPX4699A
or
REX4017A
or
3605526Q01
REX4105A
or
REX4016A
1305622Q01
or
1305622Q11
or
1305622Q04
or
1305622Q03
17
18
19
20
21
22
23
24
25
0205916P01
3205082E61
RPX4691A
4205852N01
NLD8750A
or
NLE4150B
or
NLC6370C
or
NLD8880B
or
NLE4200C
DESCRIPTION
REF.
NO. PART NO.
Kit, Frame Stud (includes item 5)
Kit, Frequency Switch (S823) (includes item 4)
Kit, On/Off Switch (S800)/Volume
Control (R800) (includes item 4)
Gasket, “O” Ring (2 req’d) (part of items 2 and 3)
Seal, Stud (2 req’d) (part of item 1)
Lightpipe, LED
Gasket, “O” Ring
Screw, Module, PH Pan Hd; 7-56 x .400˝ (7 req’d)
Screw, Top Panel; 2-28 x .187˝ (2 req’d)
Kit, Antenna Bushing (includes item 12)
Gasket, “O” Ring (part of item 13)
Gasket, “O” Ring (part of item 10)
Kit, Control Top Panel (includes item 11)
Lockwasher, Internal Tooth
Nut, Antenna Bushing
Insert, Frequency Knob (part of item 18)
(SABER only)
Insert, Frequency Knob (Systems SABER only)
Antenna, VHF Helical (136-150.8 MHz)
26
27
28
29
30
Antenna, VHF Helical (146-162 MHz)
NTN4647A
0305706Q01
4205577Q01
1405343S01
RPX4700A
or
RPX4701A
31
RPX4694A
32
33
34
35
36
4505315V01
4205292V01
3805294V01
3205082E85
NTN7058AR
37
38
39
40
4105293V01
3205300V01
3905291V02
0305706Q02
41
42
3905291V01
RPX4696A
43
NHN6524A
44
57
58
59
60
3305183R63
or
3305183R64
0105950T06
1405490Q02
RPX4697A
7505641N03
0405781Q01
or
0405781Q03
NTN7061A
4205872S01
1405182M03
0705319R02
4005221R03
3205082E83
NTN5076B
or
NTN5068A
or
NTN5069A
or
4305607S01
6405296V01
7505934Q05
3205472M03
8405681U01
61
62
2605682U01
0105953T52
63
1405888Q04
Antenna, VHF Helical (157-178 MHz)
Antenna, UHF Whip (403-520 MHz)
Antenna, MB Helical (74-88 MHz)
Kit, Frequency Knob (includes item 16)
(SABER only)
Kit, Frequency Knob, Low-Profile
(includes item 16) (SABER only)
Knob, Frequency (Systems SABER only)
Kit, On/Off/Volume Knob
Kit, Volume Knob, Low Profile
Escutcheon, 12-Frequency
Escutcheon, 12-Frequency Emergency
Escutcheon, 12-Frequency, Submersible
Escutcheon, 12-Frequency Emergency
Submersible
Nut, Spanner (2 req’d)
Gasket, “O” Ring (part of item 23)
Kit, RF Connector (includes items 22, 24)
Contact, Ground, RF (part of item 23)
Kit, VHF SECURENET Main PC Board (SABER only)
Kit, UHF SECURENET Main PC Board (SABER only)
Kit, MB SECURENET Main PC Board (SABER only)
Kit, VHF SECURENET Main PC Board
(Systems SABER only)
Kit, UHF SECURENET Main PC Board
(Systems SABER only)
45
46
47
48
49
50
51
52
53
54
55
56
DESCRIPTION
Assembly, Back Shield (includes items 27, 58)
Screw, Captive (4 req’d) (part of item 26)
Clip, Ground
Boot, Oscillator (SABER I)
Kit, PTT/Controls Flex (includes item 31)
Kit, PTT/Controls Flex Assembly
(includes items 2, 3, 31)
Kit, Contact Snapdome (S803, 805)
(2 req’d) (part of item 30)
Lever, PTT (part of item 43)
Slide (part of item 43)
Button (2 req’d) (part of item 43)
“O” Ring, Battery (part of item 36)
Battery, Submersible, 1500 mAh
(includes item 35)
Spring (part of item 43)
Seal, Elastomer (part of item 43)
Lockwasher (part of item 43)
Screw, Baseplate PH Pan Hd;
2-56 x 3⁄32˝ (3 req’d) (part of item 43)
Contact, Power (2 req’d) (part of item 43)
Kit, Slotted Spanner Nut (2 req’d)
(part of item 43)
Assembly, Housing (SABER I) (includes
items 32 thru 34, 37 thru 42, 57, and 59)
Label, Nameplate (SABER I R)
Label, Nameplate (Systems SABER I)
Assembly, Speaker/Microphone Flex, SABER I
Boot, Microphone
Kit, Speaker Bracket (SABER I) (includes item 48)
Pad, Speaker Bracket (part of item 47)
Washer, Detent (even number of switch positions)
Washer, Detent (odd number of switch positions)
Cover, Universal Connector
Retainer, Speaker
Insulator, Universal Connector
Bracket, Switch (optional)
Switch, Dual-Function (S801) (optional)
Gasket, “O” Ring (optional)
Kit, Push-Only Knob (includes item 55)
Kit, Push-and-Rotate Knob (includes item 55)
Kit, Rotate-Only Knob (includes item 55)
Plug, Seal
Baseplate (part of item 43)
Pad, Backshield (part of item 26)
Seal, Vacuum Port (part of item 43)
Flex Circuit, LCD Interconnect
(Systems SABER I R only)
Shield, LCD Board (Systems SABER I R only)
Assembly, Controller PC Board
(Systems SABER I R only)
Insulator, Front Shield (Systems SABER I R only)
http://accesssecure.mot.com/Accesspoint
39
3/99
3/97
SABER II R Series
Parts List
SABER II R
REF.
NO. PART NO.
REF.
NO. PART NO.
1
RPX4695A
Kit,
Frame Stud (includes item 5)
2
RPX4689A
Kit,
Frequency Switch (S823)
or
RPX4701A
DESCRIPTION
Kit, PTT/Controls Flex Assembly
(includes items 2, 3, 31)
(includes item 4)
3
RPX4690A
Kit, On/Off Switch
(S800)/Volume
Control (R800) (includes item
4)
4
3205082E62
WPLN4071AR
Gasket, “O” Ring (2 req’d)
(part of items 2 and 3)
5
3205422Q01
Seal, Stud (2 req’d) (part of item 1)
6
6105436Q01
Lightpipe, LED
7
3205082E59
Gasket, “O” Ring
8
0305714J10
Screw, Module, Ph Pan Hd; 7-56 x .400˝
(7 req’d)
9
0300140332
Screw, Top Panel; 2-28 x .187˝ (2 req’d)
10
RPX4693A
Kit, Antenna Bushing (includes item 12)
11
3205082E80
Gasket, “O” Ring (part of item 13)
12
3205082E58
Gasket, “O” Ring (part of item 10)
13
RPX4692A
Kit, Control Top Panel (includes item 11)
14
0400139731
Lockwasher, Internal Tooth
15
0205591R01
Nut, Antenna Bushing
16
---Insert, Frequency Knob (part of item 18)
17
8505816K01
Antenna, VHF Helical (136-150.8 MHz)
or
8505816K03
Antenna, VHF Helical (146-162 MHz)
or
8505816K05
Antenna, VHF Helical (157-178 MHz)
or
8505247K04
Antenna, UHF Whip (403-520 MHz)
or
8505477T02
Antenna, MB Helical (74-88 MHz)
18
RPX4699A
Kit, Frequency Knob (includes item 16)
or
REX4017A
Kit, Frequency Knob, Low-Profile
(includes item 16)
19
REX4105A
Kit, On/Off/Volume Knob
or
REX4016A
Kit, Volume Knob, Low-Profile
20
1305622Q01
Escutcheon, 12-Frequency
or
1305622Q11
Escutcheon, 12-Frequency Emergency
21
0205916P01
Nut, Spanner (2 req’d)
22
3205082E61
Gasket, “O” Ring (part of item 23)
23
RPX4691A
Kit, RF Connector (includes items 22, 24)
24
4205852N01
Contact, Ground, RF (part of item 23)
25
NLD8750A
Kit, VHF SECURENET Main PC Board
or
NLE4150B
Kit, UHF SECURENET Main PC Board
or
NLC6370C
Kit, MB SECURENET MAin PC Board
26
NTN4647A
Assembly, Back Shield (includes item 27)
27
0305706Q01
Screw, Captive (4 req’d) (part of item 26)
28
4205577Q01
Clip, Ground
29
REX4121A
Boot, Reference Oscillator, SABER II
30
RPX4700A
Kit, PTT/Controls Flex (includes item 31)
http://accesssecure.mot.com/Accesspoint
41
3/99
SABER/SABER R Series
Portable Accessories
CHARGERS
Single Unit Chargers
Provides quick and accurate charge for all SABER
batteries— in or out of the radio.
NTN4734B Single Unit,
Rapid Charge, 117V
NTN4786B Single Unit,
Rapid Charge,
220V/240V
BATTERY MAINTENANCE SYSTEM PLUS (BMS Plus)
Using interchangeable battery adapters (sold
separately), the BMS Plus is capable of charging and
discharging, analyzing, conditioning and cycle test on
batteries; tracking battery voltage and capacity (mAh).
The BMS Plus offers a 3 year warranty. Its easy-to-use
design supports hundreds of 2-way, cellular, and
camcorder batteries with printer port* (Serial-RS-232C
port – uses female 9-pin to male 25-pin cable).
WPLN4079AR Six Station, 110V AC, 50/60 Hz
WPLN4080AR Six Station, 230V AC, 50/60 Hz
NTN4734A
Multi-Unit Charger
Ideal charger for multi-shift operation or centrally located
equipment rooms where spare batteries are always
required. The charger can be either wail or rack
mounted or placed on a desktop. Three LED indicators
provide user feedback on the current charge state,
battery and charger condition.
WPLN4079AR
Adapters
NTN4796C Multi-Unit,
Rapid Charge, 117V
NTN4797C Multi-Unit,
Rapid Charge,
220V/240V
TDN9450A Adapter, 7.5V, 650/1000/1500 mAh SABER
Batteries
TDN9434A Adapter, 7.5V for Ruggedized SABER
Batteries
RLN4538A Adapter, 7.5V; insures battery contact in
high vibration environment. SABER Battery held down
with Velcro strap
NTN4796C
NLN7967A Wall Mount
for Multi-Unit Charger
Porta Pocket Charger
NTN5563B Porta Pocket Charger, 110V AC, Regular
Rate, includes AC Power Supply/Cable
NTN5793A Porta-Pocket Only, No Power Supply
NKN6289A 12V DC Ignition Wiring Cable, Includes
Dash Mount Bracket
NKN6290A 12V Cigarette Lighter Receptacle Cable,
includes Dash Mount Bracket
NLN9559A Spare Dash Mount Bracket
42
3/99
*Compatible with the STAR Micronics SP200 series printers,
available from any STAR Micronics distributor, and other printers
with STAR emulation.
SABER/SABER R Series
Portable Accessories
BATTERY OPTIMIZING SYSTEM (BOS)
The Battery Optimizing System
accommodates NiCD,
NiMH, Li-Ion, and SLA.
Four independent
stations for simultaneous
service of 4 batteries.
Reads battery capacity
in percentage of
nominal rating; verifies
voltage; measures
battery temperature
and displays battery
WPLN4071AR
impedance in milliohms.
(Adapter sold separately).
WPLN4071AR 4 Station, 110V AC, 50/60 Hz
WPLN4073AR 4 Station, 230V AC, 50/60 Hz
Adapter
RL-72703 Ruggedized Adapter, SABER R
RL-73063 Intrinsically Safe Adapter, SABER
RL-71203 Standard Battery Adapter, SABER
BATTERY DISCHARGE TESTER
Tester determines a battery’s
delivered capacity by discharging
a fully charged battery. ‘LED’
indicates cycle status by turning
“ON” when fully charged battery is
placed in adapter and “OFF”
when discharge is complete. Plugin adapters allow one console to
discharge most batteries. No AC
power source required (console is
powered by discharging battery).
RLN4201B
RLN4201B Single Unit Battery Discharge Tester,
Requires Battery Adapter or Cable/Clip Lead
RLN4323A Battery Adapter, SABER
RKN4038A Cable/Clip Lead, 10V
http://accesssecure.mot.com/Accesspoint
43
3/99
SABER/SABER R Series
Portable Accessories
CARRYING ACCESSORIES
Carrying Cases
CARRYING ACCESSORIES
Belt Clips
A variety of carrying accessories are
available for your comfort and
convenience. The carrying cases are
available in sizes designed to fit your
radio & battery and permit audio to be
heard clearly.
NTN4741B Belt Clip Attachment,
Removable
NTN4788B Belt Clip Attachment,
Removable, Securenet Radios Only
NTN4741B
Standard
NTN5577A
NTN5576A Leather Carry Case, with
Beltloop, for Light Capacity Battery
NTN5577A Leather Carry Case, with
Beltloop, for Medium Capacity Battery
NTN5578A Leather Carry Case
with Beltloop, for High/Ultra High
Capacity Battery
NTN7062A Leather Carry Case, Nylon,
includes T-Strap, for SABER-R only
Swivel
NTN5644A
NTN5579A Leather Carry Case, Snap,
for Light Capacity Battery
NTN5580A Leather Carry Case, Snap,
for Medium Capacity Battery
NTN5644A Leather Carry Case, Snap,
for High/Ultra High Capacity Battery
T-Straps
NTN5574A 6˝ T-Strap, with
Snaps
NTN5575A 7˝ T-Strap with
Snaps, Securenet Radio Only
Belt Loops
4205857B01 2˝ Swivel Belt Loop
4282421J06 21⁄2˝ Swivel Belt Loop
44
3/99
NTN5243A
NTN5243A Adjustable Black
Carrying Strap
Chest Pack
HLN6602A
Universal Chest
Pack with Radio
Holder and Velcro
Secured Pocket
1505596Z02
Replacement Strap
for HLN6602A
HLN6602A
RadioPAK™
RLN4815A Universal RadioPAK™ with Radio Holder.
Worn around waist with adjustable belt. Includes
attached 6” by 8” zippered pouch for other job
necessities
4280384F89 Universal RadioPAK™ belt lengthener; fits
waists larger than 40”
NTN5574A
4205857B01
Carrying Strap
SABER/SABER R Series
Portable Accessories
AUDIO ACCESSORIES
AUDIO ACCESSORIES
Remote Speaker
Microphone
Remote Speaker Microphone
Replacement Items
Allows you to talk and listen
without removing the radio
from the belt, case, or
charger. Ideal for high noise
level environments. This
water resistant compact unit
has a coiled cord, PTT switch
and back cover clip.
NMN6128C Remote
Speaker/Microphone
NMN6166C Remote Speaker
Microphone with 2.5 mm
Earphone Jack
NTN5627A Button Snap
NTN5651A Velcro Back for Microphone
Epaulet Strap
NMN6128C
Black leather epaulet straps
secure remote speaker
microphones to epaulet of shirts
or jackets and attach around
cord to back of microphone.
RLN4294A Epaulet Strap,
Velcro
RLN4296A Epaulet Strap, Large
Clip
RLN4294A
UHF Public Safety
Microphone
This water-resistant
microphone includes a
high-low audio switch and
straight cord. The external
antenna provides
additional antenna height
for better radiation
NMN6129B
pattern.
NMN6129B UHF Public Safety Microphone (antenna
and velcro patch must be ordered separately)
NMN6154B UHF Public Safety Microphone with 2.5 mm
Earphone Jack (antenna, earphone, and velcro patch
must be ordered separately)
5005178K01 Earphone with Cable for use with
NMN6154
Connector
Cover
RLN4296A
NTN7061A
Universal Connector Cover
NTN7061A
Antennas for NMN6129B and NMN6154B
8505355K03 ........400-430 MHz
8505355K04 ........440-470 MHz
8505309N11 ........470-512 MHz
NLN8410A Velcro Patch Pin
Attachment for Speaker
Microphone Assemblies
NLN8410A
http://accesssecure.mot.com/Accesspoint
45
3/99
SABER/SABER R Series
Accessories, Antennas
AUDIO ACCESSORIES
AUDIO ACCESSORIES
Ear Microphone System
Ear Microphone Accessories
This compact unit picks up the voice through bone
vibrations in the ear canal. Ideal for use in high noise
environments. Available in PTT or Voice activated (VOX)
capabilities for total hands free communications. Order
Interface Module separately.
0180358B32 Earholder, Black, Size
Small; Secures ear mic in ear
0180358B33 Earholder, Black, Size
Medium; Secures ear mic in ear
0180358B34 Earholder, Black, Size
Large; Secures ear mic in ear
0180358B35 Earholder, Clear, Size
Small; Secures ear mic in ear
0180358B36 Earholder, Clear, Size
Medium; Secures ear mic in ear
0180358B33
0180358B37 Earholder, Clear, Size
Large; Secures ear mic in ear
4280369E44 Replaceable Belt Clip with Screws
5080358B28 Eartips, Black, Size Medium (10 per pack)
5080358B29 Eartips, Black, Size Large (10 per pack)
5080358B30 Eartips, Beige, Size Medium (10 per pack)
5080358B31 Eartips, Beige, Size Large (10 per pack)
BDN6677A
BDN6677A* Ear Microphone
for Standard Noise Levels
(up to 95 db), Black
BDN6678A* Ear Microphone
for Standard Noise Levels
(up to 95 db), Beige
BDN6641A* Ear Microphone
for High Noise Levels (up to
105 db), Grey
Interface Modules
BDN6642A* Push-To-Talk
Interface Module
BDN6643B* Voice-Activated
Interface Module
BDN6643B
Optional Accessories
0180300E25
Earguard with
Adjustable Loop
0180358B38*
Remote Push-To-Talk
Ring Switch
*Factory Mutual approved
46
3/99
0180358B38
Heavyduty Headsets
High noise level headset
(up to 125 db) with noise
cancelling microphone and
push-to-talk switch located
on ear cup. Vox module
contained within headset on
voice activated units.
Factory Mutual Approved.
NOTE: Can be worn with or
without hard hat or fire
BDN6645A
helmet.
NTN5913A Headset Adapter Cable with Bayonet Jack
BDN6645A Push-To-Talk Headset with Boom
Microphone, Requires Adapter Cable
BDN6635B Voice-Activated Headset with Boom
Microphone, Requires Adapter Cable, lncludes 110V
Charger
SABER/SABER R Series
Batteries
AUDIO ACCESSORIES
BDN6640A Radio Adapter
Cable
BDN6636B VoiceActivated Headset with
Throat Microphone,
Requires Adapter Cable,
Includes 110V Charger
0180357B05 Spare VOX
Headset Charger
6881126E79 Instruction
Manual for BDN6645A
6881126E78 Instruction
Manual for BDN6635B
and BDN6636B
SURVEILLANCE ACCESSORIES
NSN6050A NSN6050A Earpiece Speaker
Without Volume Control
5083693B08 Ear Piece Only,
Extra Loud
Noise Kits
NMN6050B* Lightweight Headset with Boom
Microphone, to be worn on a helmet or safety glasses.
Requires NTN5913A adapter cable.
Lightweight translucent tube attaches to Motorola
surveillance accessories. Clothing clip prevents the
accessory from being pulled from the ear due to body
movement or head rotation.
NTN8370A Extreme Noise Kit, includes 2 foam earplugs
for loud environments
NTN8371A Low Noise Kit, includes rubber eartip for low
noise environments
5080384F72 Replacement Foam Plugs. Pack of 50
(for use with NTN8370A)
Flexible Ear Receiver
Earpiece
BDN6717B Ear Receiver
with 2.5 mm plug, to be
used with adapter
NTN5212B
BDN6717B
NTN5212B Earjack
Accessory Adapter. Allows use of any audio accessory
with a 2.5 mm connector.
The clear comfortable earpiece forms to the inside of
your ear and is perfect for low noise environments.
Compatible with the NTN8371A, clear acoustic tube
assembly, and most surveillance kits (1, 2 and 3 wire).
This earpiece is made of easy-to-clean chemically inert,
hypoallergenic material.
There are 3 items needed to make this product work:
1. Clear Comfortable Earpiece
2. Clear Acoustic Tube Assembly (NTN8371A)
3. Surveillance Kits
RLN4760A Small Custom Earpiece, right ear
RLN4763A Small Custom Earpiece, left, ear
RLN4761A Medium Custom Earpiece, right ear
RLN4764A Medium Custom Earpiece, left ear
RLN4762A Large Custom Earpiece, right ear
RLN4765A Large Custom Earpiece, left ear
BDN6636B
Lightweight Headsets
SURVEILLANCE ACCESSORIES
NTN5664D Surveillance
Accessory Adapter (for Keyload
Capable High and UHF
Models Only) for use with the
ZMN6031A
following:
ZMN6032A Microphone and
PTT Combined Ear Piece
ZMN6031A Microphone and PTT
Separate Ear Piece
ZMN6038A Microphone and PTT combined,
Extra Loud Earpiece
ZMN6039A Microphone and PTT Separate, Extra Loud
Earpiece
http://accesssecure.mot.com/Accesspoint
47
3/99
SABER/SABER R Series
Service Tools, Aids
VEHICULAR ADAPTER
The SVA console kits, orderable separately, allow use of
the portable radio in a mobile application. Order antenna
separately.
NTN5487B SVA Charging
Console, includes Power
Cables and Hardware
PORTABLE ANTENNAS
Heliflex Antenna
Motorola Heliflex antennas are
specifically engineered for maximum
output and greatest communication
coverage.
8505816K01
8505816K01
Heliflex Molded, 136-150.8 MHz, 6.5”
8505816K03
Heliflex Molded, 150.8-162 MHz, 6”
NTN5487B
8505816K05
Heliflex Molded, 162-174 MHz, 6”
NSN6054A 12-Watt External
Speaker
NSN6054A
8505816K07
Heliflex Molded, 403-433 MHz, 3”
8505816K08
Heliflex Molded, 450-470 MHz, 3”
HMN1056D Microphone,
Compact Palm
8505816K09
Heliflex Molded, 470-512 MHz, 3”
8505816K07
HMN1035C Microphone,
Heavy-Duty Palm
NMN6150A Microphone,
Full-featured Display
HMN1056D
48
3/97
Flexible Whip
Flexible Whip antennas have a
one-piece finish and steel core for
optimal radiation characteristics.
Provides more comfort when radio
is worn on the belt.
8505247K06
Flexible Whip, 403-512 MHz, 5.5”
8505247K06
SABER/SABER R Series
Service Aids, Manuals
PORTABLE BATTERIES
Nickel-Cadmium
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4537CR
Rapid
7.5V
700
23⁄8˝
IS & NI
NTN4537CR
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4538DR
Rapid
7.5V
1000
31⁄4˝
IS & NI
NTN4538DR
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4592CR
Rapid
7.5V
700
23⁄8˝
NI
PORTABLE BATTERIES
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4657AR
Rapid
7.5V
1100
4˝
CSA
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4992CR
Rapid
7.5V
1800
4˝
IS & NI
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN7058AR
Rapid
7.5V
1800
4˝
IS
Lithium
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4593DR
Rapid
7.5V
1100
31⁄4˝
NI
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4595DR
Rapid
7.5V
1800
4˝
NI
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4596DR
Rapid
7.5V
1800
4˝
IS & NI
NTN4593DR
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN4905A
(NA)
(NA)
(NA)
211⁄16˝
(NA)
Nickel Metal Hydride
NTN4596DR*
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN7014AR
Rapid
7.5V
950
23⁄8˝
NI
Part Number:
Charge:
Volts:
Avg. MAH:
Height:
FM Rating:
NTN7426AR
Rapid
7.5V
950
23⁄8˝
IS
http://accesssecure.mot.com/Accesspoint
49
3/99
SABER/SABER R Series
Portable Accessories
SERVICE TOOLS
SERVICE AIDS
Battery Eliminator
RSX4043A Torque
Screwdriver, Order Bits
Separately
RSX4043A
RTL4224A
6680370B89
6680370B89 Spanner
Wrench, Removes Spanner
Nuts at the Bottom of the
Radio
6680371B34 Spanner Tool, Removes Antenna Nut
6680370B88 Spanner Tool, Removes Nuts for Volume
Control and Channel Selector Switch
6680321B78 Phillips Power Bit #0,
Removes Radio Screws
6680370B99* Toggle Switch Driver
Bit, Removes Toggle Switch Nut
6680371B01* Antenna Nut Driver
Bit, Removes Antenna Nut on
Accessory
6680321B78
6680371B02* Button Screwdriver
Bit, Removes Button Screw
* for Public Safety Remote Speaker Microphone Accessory
(NMN6129A) only.
SERVICE AIDS
Housing Eliminator
Replace radio housing while
servicing unit. Electrical test
points can be accessed on
back of RF board.
REN4001C Housing Eliminator
The Battery eliminator acts like a battery
with a cable to access a DC external
power supply. It is ideal to inspect
transmitters and receivers on incoming
radios. Reverse power supply polarity
protection and input fuse protection are
provided.
RTL4224A Battery Eliminator
Field Modification Kit
Allows for quick field
modification of
RTX4005 “A” test sets
to provide operation
with the radio.
RPX4665A Field
Modification Kit,
RTX4005A
RPX4665A
Radio Interface Box
Links radio programming
cable and computer interface.
Provides required voltage
shift to enable
communications between
radio and computer. Requires
computer interface cable and
RLN4008B
programming cable, and a 9
volt snap type battery (6082728J01), order separately.
RLN4008B Radio Interface Box
Computer Interface Cable
REN4001C
Used to connect computers
serial adapter to radio
interface box.
3080369B71 Cable, RIB
to 25 pin D
3080369B72 Cable, RIB
to 9 pin D
3080369B71
50
3/99
SABER/SABER R Series
Portable Accessories
SERVICE AIDS
SERVICE AIDS
Wall Mounted Power Supply
Test Cable
Used to supply power to radio interface box, RLN4008B
0180357A57 Wall Mounted Power Supply, 110 Volts
0180358A56 Wall Mounted Power Supply, 220 Volts
Used with Securenet equipped R2000 Series System
Analyzers to test Saber radios with Securenet options.
This cable is used with RTL4200A junction box and is
part of RPX1013A Accessory Kit.
0180358A60 Test Cable
Radio Test and Programming Cable
Used with Portable
Radio Test Set,
RTX4005, for
transmitter, receiver
alignment and
performance checks.
Also used in
programming radio.
RTK4203C Test and
Programming Cable
RTK4203A
Programming Software
Utilizing your personal computer, this software enables
you to add or reprogram frequencies as your
requirements change. Compatible with IBM XT, AT,
Model 30 50, 60 and 80. Requires Radio Interface Box
and proper cables; order separately.
RVN4002K Programming Software, 31⁄2˝ Diskette
(includes manual and storage box)
SERVICE MANUALS
RF Adapter Cable
6881065C60
Must be used in conjunction
with REN4001A housing
eliminator. Radio housing must
be removed.
0180358A63 RF Adapter Cable
Terminated with BNC Male,
Other End Mates with Radio
Side Connector
0180358A63
Battery Load Tester
Tests battery under simulated
load conditions. Has self
contained voltmeter that shows
battery voltage.
RTL4237A Battery Load Tester
6881044C05
6881043C90
6881043C95
6881045C70
6881045C75
6881065C60
6881065C65
Operating Instructions Manual,
SABER I, II, III
Theory/Maintenance Manual
VHF Service Manual
UHF Service Manual
VHF Service Manual, SABER
Securenet
UHF Service Manual, SABER
Securenet
Operating Instructions Manual
SABER I
Operating Instructions Manual,
SABER II Securenet
RTL4237A
http://accesssecure.mot.com/Accesspoint
51
3/99
03-10 Saber
10/3/99 7:14 AM
Page 3
saber
This water-resistant microphone includes a high-low audio
switch and straight cord. The
external antenna provides
additional antenna height for
better radiation pattern.
NMN6129B* UHF Public Safety
Microphone (antenna and
Velcro patch must be ordered
separately)
NMN6154B UHF Public Safety
Microphone with 2 5 mm Earphone Jack
NMN6129B
(antenna, earphone, and Velcro patch must be
ordered separately)
5005178K01 Earphone with Cable for use with NMN6154B
NMN6128C
Remote Speaker Microphone (RSM)
RSM and PSM Accessories
Allows you to talk and listen without
removing the radio from the belt, case
or charger. Ideal for high noise level
environments. This water resistant
compact unit has a coiled cord, PTT
switch and back cover clip.
NMN6128C* Remote Speaker/
Microphone
NMN6166C* Remote Speaker
Microphone with 2.5 mm
Earphone Jack
NMN6225B Remote
Speaker/Microphone with Coil Cord
and Telco Plug
5005178K01 Earpiece with Cable for use
with NMN6166C
Microphone Accessories
Antennas for PSM
8505309N09 400-430 MHz
8505309N10 440-470 MHz
8505309N11 470-512 MHz
Velcro Patch
NLN8410A Velcro Patch Pin
Attachment for
speaker/microphone
assemblies
NLN8410A
Epaulet Strap
Black leather epaulet straps secure remote speaker
microphones to epaulet of shirts or jackets and attach
around cord to back of microphone.
RLN4294A Epaulet Strap, Velcro
4205832A01 Epaulet Strap
RLN4296A Epaulet Strap, large clip
Miscellaneous Accessories
Connector Cover
NTN7061A Universal Connector Cover
*Factory Mutual Approved
NMN6225B
UHF Public Safety Microphone (PSM)
3
NTN7061A
RLN4296A
03-10 Saber
10/3/99 7:14 AM
Page 4
Audio Accessories
Surveillance Kits
Clear Comfortable Earpiece
Surveillance accessories allow the user to privately receive
communications with the earpiece and are ideal when
environments require discrete communications.
The clear comfortable earpiece forms to
the inside of your ear and is perfect for
low noise environments. Compatible with
the NTN8371A, clear acoustic tube
assembly, and most surveillance kits
(1, 2 and 3 wire). This earpiece is made
of easy-to-clean chemically inert, hypoallergenic material.Does not provide hearing protection.
There are 3 items needed to make this
product work:
1. Clear Comfortable Earpiece
2. Clear Acoustic Tube Assembly
(NTN8371A)
3. Surveillance Kits
RLN4760A Small Custom Earpiece,
right ear
RLN4763A Small Custom Earpiece, left, ear
RLN4761A Medium Custom Earpiece, right ear
RLN4764A Medium Custom Earpiece, left ear
RLN4762A Large Custom Earpiece, right ear
RLN4765A Large Custom Earpiece, left ear
The following Surveillance Kits require NTN5664D
adapter:
NSN6050A Earpiece Assembly with Standard Earphone and
Urethane Earloop (1 Wire kit)
ZMN6032A* Microphone and
PTT Combined Ear Piece
(2 Wire Kit)
ZMN6031A* Microphone and
PTT Separate Ear Piece
(3 Wire Kit)
ZMN6038A* Microphone and
PTT Combined, Extra Loud
ZMN6031A
Earpiece (exceeds OSHA
limits) (2 Wire Kit)
ZMN6039A* Microphone and PTT Separate, Extra Loud
Earpiece (exceeds OSHA limits) (3 Wire Kit)
NTN5664D Surveillance Accessory Adapter (with keyload capability)
Ear Microphone System (EMS)
1-WIRE
2-WIRE
3-WIRE
*Factory Mutual Approved
Noise Kits
Lightweight translucent tube attaches to Motorola
surveillance accessories. Clothing clip prevents the
accessory from being pulled from the ear due to body
movement or head rotation.
NTN8370A Extreme Noise Kit, includes 2 foam earplugs for
loud environments, provides 24dB of noise reduction
NTN8371A Low Noise Kit, includes rubber eartip for low
noise environments, does not provide hearing reduction
5080384F72 Replacement Foam Plugs; pack of 50 (for use
with NTN8370A)
This compact unit picks up the voice through bone
vibrations in the ear canal. The miniature earpiece leaves
the hands free and face unobscured when worn by rescue
and hazard protection personnel, who still retain the ability
for direct hearing and speaking. For personnel required to
wear breathing apparatus, communications with protective
masks are as clear as communications
without. And its high speech clarity under
noisy environments makes it ideal for
high noise environments. Available in
PTT or Voice Activated (VOX).
Interface Module needs to be ordered
separately for EMS to work
BDN6677A* Ear Microphone for
standard noise levels (up to 95
db), black
BDN6678A* Ear Microphone for
standard noise levels (up to 95 db),
beige
BDN6641A* Ear Microphone for high
noise levels (up to 105 db), grey
*Factory Mutual Approved
O R D E R TO D AY !
Ear Microphone System (EMS) Cont'd
BDN6641A
Shown with
interface module
1-800-422-4210
Federal Government Customers Call 1-800-826-1913
http://Accesssecure.mot.com/Accesspoint
4
03-10 Saber
10/3/99 7:14 AM
Page 5
saber
Interface Modules For EMS
BDN6642B* Push-To-Talk Only
Interface Module
BDN6643B* Push-To-Talk and
Voice-Activated Interface Module
Optional Accessories for EMS
0180300E25 Earguard with
Adjustable Loop
0180358B38* Remote Push-To-Talk
Ring Switch
0180300E83* Remote Push-To-Talk
Body Switch
BDN6643B
0180358B32 Earholder, black, size small; secures
ear mic in ear
0180358B33 Earholder, black, size medium; secures ear mic in ear
0180358B34 Earholder, black, size large; secures ear mic in ear
0180358B35 Earholder, clear, size small; secures ear mic in ear
0180358B36 Earholder, clear, size medium;
secures ear mic in ear
0180358B37 Earholder, clear, size large; secures
ear mic in ear
4280369E44 Replaceable Belt Clip with Screws
5080358B28 Eartips, black, size medium
(10 per pack)
5080358B29 Eartips, black, size large
(10 per pack)
0180358B33
5080358B30 Eartips, beige, size medium
(10 per pack)
5080358B31 Eartips, beige, size large (10 per pack)
Flexible Ear Receiver
Plugs directly into the NTN5212B adapter or the earjack on
the speaker/mics. Earpiece utilizes a foam ear cushion that
rests over the ear.
BDN6717B Ear Receiver with 2.5/3.5 mm Plug, to be used with
adapter NTN5212B
NTN5212B Earjack Accessory Adapter; allows use of any audio
accessory with a 2.5 mm connection
Audio and Carrying Ac
CommPort: Integrated
Microphone/Receiver System
The CommPort system contains a miniature
microphone and receiver, and connects to
your two-way radio, making it possible to hear
and speak under the most adverse conditions.
NTN1623A Integrated Ear Microphone/Receiver
System w/Palm PTT (includes NTN5664D
adapter)
NKN6507A Replacement Cable for NTN1623
NTN8821A CommPort Maintenance Kit,
includes replacement ear tubes (quantity 10),
windscreens (quantity 2) and microphone seal
strips (quantity 10)
NTN1623A
NTN8986A Adhesive Pads (quantity 90) for secure
attachment to ear
NTN8988A Ear Straps (quantity 10), for secure attachment to ear
4285838B01 Replacement Collar Clip
4202006A01 Replacement Back Cover Clip
Lightweight Headsets
Lightweight headsets allow for high
clarity, hands free, discrete two-way
communications while adding comfort
necessary for extended wear in
moderate noise environments.
NMN6050B* Lightweight Headset with
NMN6050B
Boom Microphone, to be worn on a
helmet or safety glasses; requires
NTN5913A adapter cable
NTN5913A Headset Adapter Cable with Bayonet Jack
Heavy Duty Headsets
Heavy duty headsets include noise canceling boom microphones and can be worn with or without a hardhat. Headsets
are for use in noise levels up to 125db. The push-to-talk
switch is located on the earcup. The Voice Activated (VOX)
module is contained within the headset on voice activated
models. Heavy duty headsets require radio adapter cable to be
ordered separately.
BDN6640A* Radio Adapter Cable
BDN6645A* Push-to-Talk Headset with Boom Microphone,
requires adapter cable BDN6640A; noise reduction
rating = 24db
BDN6635B* Voice Activated (VOX)
Headset with Boom Microphone, requires
adapter cable BDN6640A; noise reduction rating 24db.
BDN6636B* Voice Activated (VOX)
Headset with Throat Microphone,
requires adapter cable
BDN6640A; noise reduction
rating = 24db.
BDN6717B
*Factory Mutual Approved
BDN6645A
5
03-10 Saber
10/3/99 7:14 AM
Page 6
ng Accessories
Carrying Cases
A variety of carrying accessories are available for
your comfort and convenience. The carrying cases
are available in sizes designed to fit your radio and
battery and permit audio to be heard clearly.
NTN5487B
Vehicular Adapter
The SVA console kits, allow use of the portable
radio in a mobile application. Order antenna separately.
NTN5487B SVA Charging Console, includes power cables
and hardware
NSN6054A 12-Watt External Speaker
HMN1056D Microphone, compact palm
HMN1035C Microphone,
heavy-duty palm
NMN6150A Microphone,
full-featured display (all other
Saber Models except Startsite
Saber SST/ATS)
NMN6169A Microphone, fullfeatured systems Saber display
(compatible only with system Saber)
NSN6054A
Light Capacity Batteries
NTN5576A Leather Standard Snap
Carry Case with Belt Loop
(order T-strap separately)
NTN5579A Leather Swivel Snap Carry Case
(order T-strap and swivel belt loop separately)
NTN5576A
Medium Capacity Batteries
NTN5577A Leather Standard Snap Carry Case Belt Loop
(order T-strap separately)
NTN5580A Leather Swivel Snap Carry Case
(order T-strap and swivel belt loop separately)
NTN5579A
Ultra High Capacity Batteries
NTN5578A Leather Standard Snap Carry Case with Belt
Loop (order T-strap separately)
NTN5644A Leather Swivel Snap Carry Case
(order T-strap and swivel belt loop separately)
NTN5577A
Nylon Carry Cases
NTN7062A Nylon Standard Carry Case with Belt Loop
(includes T-strap) for Saber-R only
NTN7216A Nylon Swivel Carry Case
(Includes T-strap swivel belt loop) for Saber-R only
Carrying Case Accessories
T-Straps
NTN5575A Nylon Snap T-Strap for system Saber
only
NTN5574A Nylon Snap T-Strap for all other
Saber models
Belt Loops
4282421J06 2.5" Leather Swivel Belt Loop
4205857B01 3" Leather Swivel Belt Loop
NTN7844A 3" Nylon Swivel Belt Loop
NTN5574A
O R D E R TO D AY !
1-800-422-4210
4205857B01
Federal Government Customers Call 1-800-826-1913
http://Accesssecure.mot.com/Accesspoint
6
03-10 Saber
10/3/99 7:15 AM
Page 7
s a b e r Carrying Accessories, Ba
Carrying Case Accessories Cont’d
Batteries
Belt Clips
NTN4741B Removable Belt Clip Attachment,
NTN4788B Removable Belt Clip Attachment,
SECURENET RADIOS)
NTN4592CR* Light Capacity, NiCd, 700 mAh;
(not compatible with Starsite Saber SST/ATS)
NTN4593DR* Medium-Capacity, NiCd, 1100 mAh
NTN4595DR* Ultra-High Capacity, NiCd,
1800 mAh:
NTN4905A Disposable Lithium Primary (not
rechargeable; requires medium size carry case)
NTN4657AR† Medium-Capacity, NiCd,1100 mAh
NTN7014AR* Light-Capacity, NiMH, 950mAh
NTN7426AR** Light-Capacity, NiMH, 950mAh
NTN4537CR*** Light-Capacity, NiCd, 700mAh (not
compatible with STARSITE SABER SST/ATS)
NTN4596DR*** Ultra-High Capacity NiCd,
1800 mAh
NTN4538DR*** Medium Capacity NiCd,
1000 mAh.
NTN7058AR** Ultra-High Capacity NiMH, 1800 mAh,
ruggedized (not compatible with Starsite Saber
SST/ATS)
NTN4992CR*** Ultra-High Capacity NiCd,
1800 mAh,
Carrying Strap
NTN5243A Adjustable Black
Carrying Strap attaches to “D”
ring on case
NTN4741B
NTN5243A
Chest Pack
HLN6602A Universal Chest Pack with
Radio Holder, Pen Holder, and
Velcro Secured Pocket.
1505596Z02 Replacement Strap for
HLN6602
NTN4537CR
NTN4596DR
* Non Incendiary
HLN6602A
** Intrinsically Safe
Break-a-Way Chest Pack
*** Non Incendiary and Intrinsically Safe
All of the same features as the original chest pack
(HLN6602A) plus break-a-way tabs that
allow the entire pack to be pulled off with
approximately 10 lbs of pressure. Perfect
for railroads, manufacturing locations,
construction sites and anywhere that
safety is a concern.
RLN4570A Break-A-Way
Chest Pack
† CSA
NTN7058AR
RLN4570A
RadioPAK™
It’s different from all other
holders or cases: more
comfortable, more useful,
and more stylish. Worn
around the waist, it holds
two-way, iDEN portables
or cellular phones right at
hand. Includes a separate
6"x8" zippered pouch for
other on-the-job necessities. Adjustable nylon
weave belt; fits both
men and women.
RLN4815A RadioPAK™
Radio/Utility Case
4280384F89 Universal
RadioPAK™ Belt Lengthener;
fits waists larger than 40"
7
O R D E R TO D AY !
1-800-422-4210
Federal Government Customers Call 1-800-826-1913
RLN4815A
03-10 Saber
10/3/99 7:15 AM
Page 8
es, Batteries and Chargers
Plus
(BMSPlus)
Single Unit Chargers
Battery Maintenance System
Provides quick and accurate charge for all SABER
batteries—in or out of the radio.
NTN4734B Single Unit, rapid
charge, 117V
NTN4786B Single Unit, rapid
charge, 220V/240V
Increase the useful life of your batteries.
Using interchangeable battery adapters (sold separately),
the BMSPlus is capable of charging and
discharging, analyzing, conditioning and
cycle testing on batteries; tracking battery voltage and capacity
(mAh). The BMSPlus offers a 3
year warranty. Its easy-to-use
design supports hundreds of 2-way,
WPLN4079AR
cellular, and camcorder batteries with printer
port* (Serial-RS-232C port –uses female 9-pin to male
25-pin cable).
WPLN4079AR Six Station, 110V AC, 50/60 Hz
WPLN4080AR Six Station, 230V AC, 50/60 Hz
Single Unit Rapid Universal
Tri-Chemistry Chargers
Tri-chemistry chargers support Nickel
Cadmium, Nickel Metal Hydride, and Lithium Ion.
NTN1667A 110V Universal Charger
NTN1668A 220V Universal Charger
NTN1669A 240V Universal Charger
NTN4734B
Multi-Unit Charger
*Compatible with the STAR Micronics SP200 series printers,
Ideal charger for multi-shift operation or centrally located equipment rooms where spare
batteries are always required. The charger can be either wall or rackmounted or placed on a
desktop. Three LED indicators provide user feedback on
the current charge state, battery and charger condition.
NTN4796D Multi-Unit, rapid charge,
117V
NTN4797C Multi-Unit, rapid charge,
NTN4796C
220V/240V
NLN7967A Wall Mount for multi-unit charger
available from any STAR Micronics distributor, and other printers with
STAR emulation.
Motorola Conditioning Charger (MCC)
The MCC will help extend battery life and enhance battery operation. It will safely condition and charge your specified Nickel
Cadmium (NiCd) and Nickel Metal Hydride (NiMH) batteries in
approximately an hour.
WPPN4002AR Base Charge Unit Only, 110V AC
(order adapter plates separately)
WPPN4006AR Base Charge Unit Only, 220V AC
(order adapter plates separately)
WPPN4001AR Adapter Only, 7V
WPLN4096AR Base 110V AC
(includes base unit and
7V adapter)
WPPN4065AR Multi-Unit
Charger, four station base, 110V
(order adapter plates separately)
3080384G15 Cigarette Lighter
Adapter Cord
Battery Maintenance SystemPlus
(BMSPlus) Adapters
TDN9450A NiCd Adapter, 7.5V, for use with NTN4537CR,
NTN4538DR, NTN4592CR, NTN4593DR, NTN4595DR,
NTN4596DR and NTN4992CR
TDN9434A NiCd Adapter, 7.5V for use with NTN7058AR SABER R
WPPN4066AR NiCd and NiMH Adapter, 7.5 V compatible with
same batteries as TDN9450A adapter plus NTN8251AR
Battery Optimizing System (BOS)
No other battery analyzer matches the speed, accuracy, versatility and ease-of-use of the Battery Optimizing System. Best of
all, the Battery Optimizing System helps lower your battery
costs, because you will get the maximum performance possible
from each battery when it is maintained by the Battery
Optimizing System.
• Accommodates NiCd, NiMH, Li-Ion and SLA
• Impedance test-checks battery condition in
six seconds
• Proprietary recondition cycle restores
NiCd and NiMH batteries
• Printer output for reports and labels,
computer interface
• High power-programmable.from
100mA to 2 Amp per station
• Interchangeable adapters
accommodate all major batteries
• Simple, intuitive user interface with keypad
WPLN4071AR Four Station, 110V AC, 50/60 Hz
WPLN4073AR Four Station, 230V AC, 50/60 Hz
WPLN4071AR
BOS Adapters
WPPN4065AR
shown with four
WPLN4001AR
adapters
RL-72703 Ruggedized Adapter, SABER-R
RL-73063 Intrinsically Safe Adapter, SABER
RL-71203 Standard Battery Adapter, SABER
http://AccessSecure.mot.com/Accesspoint
8
03-10 Saber
10/3/99 7:15 AM
Page 9
saber
Heliflex Antennas
Motorola Heliflex antennas are specifically
engineered for maximum output and
greatest communication coverage.
UFH Band
8505816K24 403-433 MHz Heliflex
8505816K25 440-470 MHz Heliflex
8505816K26 460-512 MHz Heliflex
High Band
8505816K22 136-150.8 MHz Heliflex
8505816K21 146-162 MHz Heliflex
8505816K23 157-174 MHz Heliflex
9
Antennas, Service Manuals
SERVICE MANUALS
6881065C60
6881065C65
6881060C10
6881043C90
6881045C75
6881067C10
6881066C95
Saber I Instructions Manual
Saber II, III Instruction Manual
System Saber, Saber ATS Instruction Manual
SecureNet High Band Service Manual
SecureNet UHF Band Service Manual
Systems Saber and Saber ATS Service Manual
System Saber, UHF Service Manual
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
