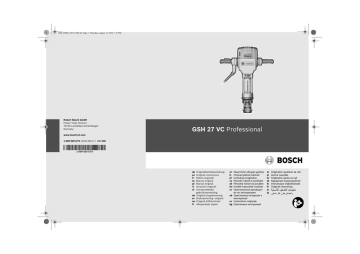

OBJ_DOKU-20115-003.fm Page 1 Thursday, August 12, 2010 1:27 PM
Robert Bosch GmbH
Power Tools Division
70745 Leinfelden-Echterdingen
Germany
GSH 27 VC Professional
www.bosch-pt.com
1 609 929 U79 (2010.08) O / 188 UNI
de
en
fr
es
pt
it
nl
Originalbetriebsanleitung
Original instructions
Notice originale
Manual original
Manual original
Istruzioni originali
Oorspronkelijke
gebruiksaanwijzing
da Original brugsanvisning
sv Bruksanvisning i original
no Original driftsinstruks
fi Alkuperäiset ohjeet
el
tr
pl
cs
sk
hu
ru
Πρωτότυπο οδηγιών χρήσης
Orijinal işletme talimat
Instrukcja oryginalna
Původní návod k používání
Pôvodný návod na použitie
Eredeti használati utasítás
Оригинальное руководство по эксплуатации
uk Оригінальна інструкція з
експлуатації
ro Instrucţiuni originale
bg Оригинална инструкция
sr
sl
hr
et
lv
lt
ar
fa
Originalno uputstvo za rad
Izvirna navodila
Originalne upute za rad
Algupärane kasutusjuhend
Instrukcijas oriģinālvalodā
Originali instrukcija
ΔϴϠλϷ΍ ϞϴϐθΘϟ΍ ΕΎϤϴϠόΗ
̶Ϡλ΍ έΎ̯ ίήσ ̵ΎϤϨϫ΍έ
OBJ_BUCH-1144-003.book Page 3 Friday, August 13, 2010 11:05 AM
3|
11/8" / 28 mm
1 609 929 U79 | (13.8.10)
Bosch Power Tools
OBJ_BUCH-1144-003.book Page 4 Friday, August 13, 2010 11:05 AM
4|
1
2
2
3
4
GSH 27 VC
Professional
1 609 929 U79 | (13.8.10)
Bosch Power Tools
OBJ_BUCH-1144-003.book Page 5 Friday, August 13, 2010 11:05 AM
5|
A
B
5
3
5
150°
4
4
3
C
D
5
5
180°
3
4
1 609 929 U79 | (13.8.10)
6
3
4
Bosch Power Tools
OBJ_BUCH-1144-003.book Page 13 Friday, August 13, 2010 11:05 AM
English | 13
Safety Notes
en
General Power Tool Safety Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to
your mains-operated (corded) power tool or
battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power
tools create sparks which may ignite the
dust or fumes.
c) Keep children and bystanders away
while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not
use any adapter plugs with earthed
(grounded) power tools. Unmodified
plugs and matching outlets will reduce
risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is
an increased risk of electric shock if your
body is earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool
will increase the risk of electric shock.
d) Do not abuse the cord. Never use the
cord for carrying, pulling or unplugging
the power tool. Keep cord away from
heat, oil, sharp edges and moving parts.
Damaged or entangled cords increase the
risk of electric shock.
Bosch Power Tools
e) When operating a power tool outdoors,
use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric
shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use
of an RCD reduces the risk of electric
shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool
while you are tired or under the influence of drugs, alcohol or medication. A
moment of inattention while operating
power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective
equipment such as dust mask, non-skid
safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery pack, picking up or carrying the
tool. Carrying power tools with your finger on the switch or energising power
tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench
or a key left attached to a rotating part of
the power tool may result in personal injury.
e) Do not overreach. Keep proper footing
and balance at all times. This enables
better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing
and gloves away from moving parts.
Loose clothes, jewellery or long hair can
be caught in moving parts.
1 609 929 U79 | (13.8.10)
OBJ_BUCH-1144-003.book Page 14 Friday, August 13, 2010 11:05 AM
14 | English
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and
properly used. Use of dust collection can
reduce dust-related hazards.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The
correct power tool will do the job better
and safer at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or the battery pack from the
power tool before making any adjustments, changing accessories, or storing
power tools. Such preventive safety
measures reduce the risk of starting the
power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts,
breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp
cutting edges are less likely to bind and
are easier to control.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that
the safety of the power tool is maintained.
Hammer Safety Warnings
f Wear ear protectors. Exposure to noise can
cause hearing loss.
f Hold power tool by insulated gripping surfaces, when performing an operation where
the cutting accessory may contact hidden
wiring or its own cord. Cutting accessory
contacting a “live” wire may make exposed
metal parts of the power tool “live” and
could give the operator an electric shock.
f Use suitable detectors to determine if utility lines are hidden in the work area or call
the local utility company for assistance.
Contact with electric lines can lead to fire
and electric shock. Damaging a gas line can
lead to explosion. Penetrating a water line
causes property damage or may cause an
electric shock.
f When working with the machine, always
hold it firmly with both hands and provide
for a secure stance. The power tool is guided
more secure with both hands.
f Secure the workpiece. A workpiece clamped
with clamping devices or in a vice is held
more secure than by hand.
f Always wait until the machine has come to
a complete stop before placing it down. The
tool insert can jam and lead to loss of control
over the power tool.
f Never use the machine with a damaged cable. Do not touch the damaged cable and
pull the mains plug when the cable is damaged while working. Damaged cables increase the risk of an electric shock.
g) Use the power tool, accessories and tool
bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended
could result in a hazardous situation.
1 609 929 U79 | (13.8.10)
Bosch Power Tools
OBJ_BUCH-1144-003.book Page 15 Friday, August 13, 2010 11:05 AM
English | 15
Products sold in GB only: Your product is fitted
with an BS 1363/A approved electric plug with
internal fuse (ASTA approved to BS 1362).
If the plug is not suitable for your socket outlets,
it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the
same fuse rating as the original plug.
The severed plug must be disposed of to avoid a
possible shock hazard and should never be inserted into a mains socket elsewhere.
Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual
current of 30 mA or less.
Functional Description
Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or serious injury.
While reading the operating instructions, unfold
the graphics page for the machine and leave it
open.
Intended Use
The machine is intended for heavy chiselling and
demolition work as well as for driving in and
compacting with the appropriate accessories.
Product Features
The numbering of the product features refers to
the illustration of the machine on the graphics
page.
1 On/Off switch
2 Handle (insulated gripping surface)
3 Tool retainer
4 Tool holder
5 Tool shank
6 Shoulder
Accessories shown or described are not part of the
standard delivery scope of the product. A complete
overview of accessories can be found in our accessories program.
Bosch Power Tools
Technical Data
Demolition Hammer
GSH 27 VC
Professional
3 611 C0A 0..
Article number
Rated power input
Impact rate
Impact energy per stroke
according to EPTAProcedure 05/2009
Tool holder
Weight according
to EPTA-Procedure
01/2003
W
2000
-1
1000
J
69
min
mm
28
"
1 1/8
kg
29.5
/II
Protection class
The values given are valid for a nominal voltage [U] of
230 V. For different voltages and models for specific
countries, these values can vary.
Please observe the article number on the type plate of
your machine. The trade names of the individual machines may vary.
Starting cycles generate brief voltage drops. Interference with other equipment/machines may occur in
case of unfavourable mains system conditions. Malfunctions are not to be expected for system impedances below 0.36 ohm.
Noise/Vibration Information
Measured sound values determined according
to 2000/14/EC.
Typically the A-weighted noise levels of the
product are: Sound pressure level 94 dB(A);
sound power level 105 dB(A). Uncertainty
K=3 dB.
Wear hearing protection!
Vibration total values (triax vector sum) determined according to EN 60745:
Chiselling: Vibration emission value ah =8 m/s2,
Uncertainty K=1.5 m/s2.
The vibration emission level given in this information sheet has been measured in accordance
with a standardised test given in EN 60745 and
may be used to compare one tool with another.
It may be used for a preliminary assessment of
exposure.
1 609 929 U79 | (13.8.10)
OBJ_BUCH-1144-003.book Page 16 Friday, August 13, 2010 11:05 AM
16 | English
The declared vibration emission level represents the main applications of the tool. However
if the tool is used for different applications, with
different accessories or poorly maintained, the
vibration emission may differ. This may significantly increase the exposure level over the total
working period.
An estimation of the level of exposure to vibration should also take into account the times
when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.
Identify additional safety measures to protect
the operator from the effects of vibration such
as: maintain the tool and the accessories, keep
the hands warm, organisation of work patterns.
Declaration of Conformity
We declare under our sole responsibility that
the product described under “Technical Data” is
in conformity with the following standards or
standardization documents: EN 60745 according to the provisions of the directives
2004/108/EC, 2006/42/EC, 2000/14/EC.
2000/14/EC: Guaranteed sound power level
108 dB(A). Conformity assessment procedure
according to Annex VI.
Equipment category: 10
Notified body:
TÜV NORD CERT GmbH & Co. KG,
Am TÜV 1, 30519 Hannover
Technical file at:
Robert Bosch GmbH, PT/ESC,
D-70745 Leinfelden-Echterdingen
Dr. Egbert Schneider
Senior Vice President
Engineering
Dr. Eckerhard Strötgen
Head of Product
Certification
Robert Bosch GmbH, Power Tools Division
D-70745 Leinfelden-Echterdingen
04.12.2009
1 609 929 U79 | (13.8.10)
Assembly
Changing the Tool
f Before any work on the machine itself, pull
the mains plug.
Clean the tool shank 5 and apply a light coat of
grease.
Tools without Shoulder (see figures A–B)
Pivot the tool retainer 3 upward by approx. 150°
and insert the tool into the tool holder 4.
Pivot the tool retainer 3 down to lock the tool.
Check the latching by pulling the tool.
Tools with Shoulder (see figures C–D)
Tools with an insertion length of 152 mm (6") to
the shoulder can be used.
Pivot the tool retainer 3 upward by approx. 180°
and insert the tool into the tool holder 4.
Pivot the tool retainer 3 back to the tool to lock
it. The shoulder 6 must be held by the tool retainer 3.
Check the latching by pulling the tool.
Dust/Chip Extraction
f Dusts from materials such as lead-containing
coatings, some wood types, minerals and
metal can be harmful to one’s health. Touching or breathing-in the dusts can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.
Certain dusts, such as oak or beech dust, are
considered as carcinogenic, especially in
connection with wood-treatment additives
(chromate, wood preservative). Materials
containing asbestos may only be worked by
specialists.
– Provide for good ventilation of the working place.
– It is recommended to wear a P2 filterclass respirator.
Observe the relevant regulations in your
country for the materials to be worked.
Bosch Power Tools
OBJ_BUCH-1144-003.book Page 17 Friday, August 13, 2010 11:05 AM
English | 17
Operation
For forging, heat the chisel to between 850 and
1050 °C (bright red to yellow).
Starting Operation
f Observe correct mains voltage! The voltage
of the power source must agree with the
voltage specified on the nameplate of the
machine. Power tools marked with 230 V
can also be operated with 220 V.
Switching On and Off
To start the machine, press the On/Off switch 1
and keep it pressed.
To switch off the machine, release the On/Off
switch 1.
For low temperatures, the machine reaches the
full impact rate only after a certain time.
This start-up time can be shortened by striking
the chisel in the machine against the floor one
time.
Working Advice
For the highest possible impact damping, work
only with moderate pressure.
Sharpening Chisels
Good results are only achieved with sharp chisels; therefore, sharpen the chiselling tools in
good time. This ensures a long service life of the
tools and good working performance.
Re-sharpening
Sharpen chiselling tools using grinding wheels
(e. g. ceramic bonded corundum wheel) with a
steady supply of water. Reference values are
shown in the figure. Take care that no annealing
coloration appears on the cutting edges; this impairs the hardness of the chiselling tools.
60
60
Bosch Power Tools
60
ca.40
20
ca.60
4
For hardening, heat the chisel to approx.
900 °C and quench in oil. Then anneal in an oven for approx. one hour at 320 °C (annealing
colour = light blue).
Maintenance and Service
Maintenance and Cleaning
f Before any work on the machine itself, pull
the mains plug.
f For safe and proper working, always keep
the machine and ventilation slots clean.
When the carbon brushes wear below acceptable service tolerances, the machine will automatically cut out. The machine must be sent to
customer service for maintenance (for address,
see the “After-sales Service and Customer
Assistance” section.
If the machine should fail despite the care taken
in manufacturing and testing procedures, repair
should be carried out by an after-sales service
centre for Bosch power tools.
In all correspondence and spare parts order,
please always include the 10-digit article
number given on the type plate of the machine.
After-sales Service and Customer
Assistance
Our after-sales service responds to your questions concerning maintenance and repair of your
product as well as spare parts. Exploded views
and information on spare parts can also be
found under:
www.bosch-pt.com
Our customer service representatives can answer your questions concerning possible applications and adjustment of products and accessories.
1 609 929 U79 | (13.8.10)
OBJ_BUCH-1144-003.book Page 18 Friday, August 13, 2010 11:05 AM
18 | English
Great Britain
Robert Bosch Ltd. (B.S.C.)
P.O. Box 98
Broadwater Park
North Orbital Road
Denham
Uxbridge
UB 9 5HJ
Tel. Service: +44 (0844) 736 0109
Fax: +44 (0844) 736 0146
E-Mail: [email protected]
Ireland
KZN – BSC Service Centre
Unit E, Almar Centre
143 Crompton Street
Pinetown
Tel.: +27 (031) 7 01 21 20
Fax: +27 (031) 7 01 24 46
E-Mail: [email protected]
Western Cape – BSC Service Centre
Democracy Way, Prosperity Park
Milnerton
Tel.: +27 (021) 5 51 25 77
Fax: +27 (021) 5 51 32 23
E-Mail: [email protected]
Origo Ltd.
Unit 23 Magna Drive
Magna Business Park
City West
Dublin 24
Tel. Service: +353 (01) 4 66 67 00
Fax: +353 (01) 4 66 68 88
Bosch Headquarters
Midrand, Gauteng
Tel.: +27 (011) 6 51 96 00
Fax: +27 (011) 6 51 98 80
E-Mail: [email protected]
Australia, New Zealand and Pacific Islands
The machine, accessories and packaging should
be sorted for environmental-friendly recycling.
Robert Bosch Australia Pty. Ltd.
Power Tools
Locked Bag 66
Clayton South VIC 3169
Customer Contact Center
Inside Australia:
Phone: +61 (01300) 307 044
Fax: +61 (01300) 307 045
Inside New Zealand:
Phone: +64 (0800) 543 353
Fax: +64 (0800) 428 570
Outside AU and NZ:
Phone: +61 (03) 9541 5555
www.bosch.com.au
Republic of South Africa
Disposal
Do not dispose of power tools into household
waste!
Only for EC countries:
According the European Guideline
2002/96/EC for Waste Electrical
and Electronic Equipment and its
implementation into national
right, power tools that are no
longer usable must be collected
separately and disposed of in an environmentally correct manner.
Subject to change without notice.
Customer service
Hotline: +27 (011) 6 51 96 00
Gauteng – BSC Service Centre
35 Roper Street, New Centre
Johannesburg
Tel.: +27 (011) 4 93 93 75
Fax: +27 (011) 4 93 01 26
E-Mail: [email protected]
1 609 929 U79 | (13.8.10)
Bosch Power Tools
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
