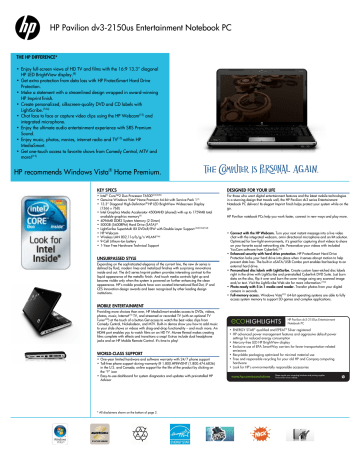

HP Pavilion DV3-2150 User manual

HP Pavilion DV3-2150 User manual
HP Pavilion dv3-2150us Entertainment Notebook PC
THE HP DIFFERENCE*
• Enjoy full-screen views of HD TV and films with the 16:9 13.3" diagonal
HP LED BrightView display.(8)
• Get extra protection from data loss with HP ProtectSmart Hard Drive
Protection.
• Make a statement with a streamlined design wrapped in award-winning
HP Imprint finish.
• Create personalized, silkscreen-quality DVD and CD labels with
LightScribe.(16a)
• Chat face to face or capture video clips using the HP Webcam(15) and
integrated microphone.
• Enjoy the ultimate audio entertainment experience with SRS Premium
Sound.
• Enjoy music, photos, movies, internet radio and TV(15) within HP
MediaSmart.
• Get one-touch access to favorite shows from Comedy Central, MTV and
more!(15)
HP recommends Windows Vista® Home Premium.
KEY SPECS
DESIGNED FOR YOUR LIFE
• Intel® Core™2 Duo Processor T6500(2c)(3)(4b)
• Genuine Windows Vista® Home Premium 64-bit with Service Pack 1(1)
• 13.3” Diagonal High-Definition(8) HP LED BrightView Widescreen Display
(1366 x 768)
• Intel Graphics Media Accelerator 4500MHD (shared) with up to 1759MB total
available graphics memory(6)
• 4096MB DDR2 System Memory (2 Dimm)
• 500GB (5400RPM) Hard Drive (SATA)(7)
• LightScribe SuperMulti 8X DVD±R/RW with Double Layer Support (6d)(16a)(16d)
• HP Webcam
• Wireless LAN 802.11a/b/g/n WLAN(10a)
• 9-Cell Lithium-Ion battery
• 1-Year Free Hardware Technical Support
For those who want digital entertainment features and the latest mobile technologies
in a stunning design that travels well, the HP Pavilion dv3 series Entertainment
Notebook PC delivers! Its elegant Imprint finish helps protect your system while on the
go.
UNSURPASSED STYLE
Expanding on the sophisticated elegance of the current line, the new dv series is
defined by fluid, modern lines and metalized finishes with surprising innovations
inside and out. The dv3 series Imprint pattern provides interesting contrast to the
liquid appearance of the metallic finish. And touch media controls light up and
become visible only when the system is powered on further enhancing the clean
appearance. HP’s mobile products have won coveted International Red Dot, iF and
CES Innovation design awards and been recognized by other leading design
institutions.
HP Pavilion notebook PCs help you work faster, connect in new ways and play more.
• Connect with the HP Webcam. Turn your next instant message into a live video
chat with the integrated webcam, omni directional microphone and an IM solution.
Optimized for low-light environments, it's great for capturing short videos to share
on your favorite social networking site. Personalize your videos with included
YouCam software from Cyberlink.(15)
• Enhanced security with hard drive protection. HP ProtectSmart Hard Drive
Protection locks your hard drive into place when it senses abrupt motion to help
prevent data loss. The built-in eSATA/USB Combo port enables fast backup to an
external hard drive.
• Personalized disc labels with LightScribe. Create custom laser-etched disc labels
right in the drive with LightScribe and preinstalled Cyberlink DVD Suite. Just burn
data on the disc, flip it over and burn the cover image using any scanned image
and/or text. Visit the LightScribe Web site for more information.(16a)
• Photo-ready with 5-in-1 media card reader. Transfer photos from your digital
camera in seconds.
• Full-memory access. Windows Vista®(1) 64-bit operating systems are able to fully
access system memory to support 3D games and complex applications.
MOBILE ENTERTAINMENT
Providing more choices than ever, HP MediaSmart enables access to DVDs, videos,
photos, music, Internet(15) TV, and streamed or recorded TV (with an optional TV
Tuner(24)) at the touch of a button.Get access to watch the best video clips from
Comedy Central, Nickelodeon, and MTV. Built-in demos show you how to add music
to your slide shows or videos with drag-and-drop functionality – and much more. An
HDMI port enables you to watch films on an HD TV. Muvee Reveal makes creating
films complete with effects and transitions a snap! Extras include dual headphone
jacks and an HP Mobile Remote Control. It’s time to play!
WORLD-CLASS SUPPORT
• One-year limited hardware and software warranty with 24/7 phone support
• Toll-free phone support during warranty @ 1.800.HPINVENT (1.800.474.6836)
in the U.S. and Canada; online support for the life of the product by clicking on
the "?" icon
• Easy-to-use dashboard for system diagnostics and updates with preinstalled HP
Advisor
* All disclaimers shown on the bottom of page 2.
HP Pavilion dv3-2150us Entertainment
Notebook PC
• ENERGY STAR® qualified and EPEAT® Silver registered
• HP advanced power management features and aggressive default power
settings for reduced energy consumption
• Mercury-free LED HP BrightView display
• Exclusive use of EPA SmartWay carriers for fewer transportation-related
emissions
• Recyclable packaging optimized for minimal material use
• Free and responsible recycling for your old HP and Compaq computing
hardware
• Look for HP’s environmentally responsible accessories
Please recycle your computing hardware and printing supplies.
Find out how at our website.
HP Pavilion dv3-2150us Entertainment Notebook PC
HP recommends Windows Vista® Home Premium.
SPECIFICATIONS
OPERATING SYSTEM • Genuine Windows Vista® Home Premium 64-bit
with Service Pack 1(1)
PROCESSOR
• Intel® Core™2 Duo Processor T6500(2c)(3)(4b)
PROCESSOR SPEED
• 2.10 GHz(4)
PROCESSOR CACHE
• 2MB L2 Cache
BUS SPEED
• 800MHz FSB(4a)
MEMORY
• 4096MB DDR2 System Memory (2 Dimm)
• Max supported =8192MB
ACCESSIBLE
MEMORY SLOTS
• 2
VIDEO GRAPHICS
• Intel Graphics Media Accelerator 4500MHD (shared) with up to
1759MB total available graphics memory(6)
HARD DRIVE
• 500GB (5400RPM) Hard Drive (SATA)(7)
FINISH AND
FEATURES
• HP Espresso Imprint finish & HP Webcam with integrated digital
microphone(15)
MULTIMEDIA DRIVE
• LightScribe SuperMulti 8X DVD±R/RW with Double
Layer Support (6d)(16a)(16d)
DISPLAY
• 13.3” Diagonal High-Definition(8) HP LED BrightView Widescreen
Display (1366 x 768)
NETWORK CARD
• Integrated 10/100BASE-T Ethernet LAN (RJ-45 connector)(9)
WIRELESS OPTION
• Wireless LAN 802.11a/b/g/n WLAN(10a)
DIGITAL MEDIA
• 5-in-1 integrated Digital Media Reader* for Secure Digital cards,
MultiMedia cards, Memory Stick, Memory Stick Pro, or xD Picture
cards(17a)
AUDIO
• Altec Lansing with SRS Premium Sound
KEYBOARD
• 101-key compatible
POINTING DEVICE
• Touch Pad with On/Off button and dedicated vertical scroll
Up/Down pad
PC CARD SLOTS
• 1 ExpressCard/34 Slot
EXTERNAL
NOTEBOOK PORTS
•
•
•
•
•
•
•
•
3 Universal Serial Bus (USB) 2.0, 3rd port shared with eSATA
1 Headphone out
1 microphone-in
HDMI
1 VGA (15-pin)
eSATA + USB 2.0
1 RJ -45 (LAN)
1 Consumer IR (Remote Receiver)
DIMENSIONS
• Unpackaged: 12.9 in (L) x 8.7 in (D) x 1.25 in (min H) / 1.38 in
(max H)
• Packaged: 17.9"(W) x 4.3"(D) x13.6"(H)
WEIGHT
• Unpackaged: 4.93 lbs(12)
• Packaged: 8.6 lbs
POWER
• 65W AC Adapter
• 9-Cell Lithium-Ion battery
OPTIONAL
ACCESSORIES
• HP 90W AC Adapter- KG298AA#ABA
• HP 6-cell Li-Ion Battery for dv4, dv5- NC273AA
• HP xb4 Media Docking Station- KG461AA#ABA
WARRANTY AND
SUPPORT
• 1-Year Limited Hardware Warranty with Toll Free Support (NA)
• 1-Year Free Hardware Technical Support
• 30-Days Free Limited Software Support with 1-Year (from date of
purchase) Free Limited Software Support with Product Registration.
SOFTWARE
SECURITY AND
SUPPORT
•
•
•
•
•
HP Help & Support
HP Recovery Manager
HP Total Care Advisor
ProtectSmart Hard Drive Protection
Symantec® Norton Internet Security™ 2009 (including 60 days
complimentary live update)(15)(19b)
PRODUCTIVITY AND • Microsoft® Works
FINANCE
• Microsoft® Office 2007 Home and Student Edition: 60 Day Trial
Version(19)
MULTIMEDIA
•
•
•
•
•
HP MediaSmart
Muvee Reveal
Cyberlink DVD Suite
Adobe® Acrobat Reader
HP Games Powered by Wild Tangent
INTERNET
SOLUTIONS
• HP Total Care Set Up(13)
• Microsoft® Internet Explorer
ADDITIONAL INFORMATION
PRODUCT NUMBER
• NV148UA#ABA
AD EMBARGO DATE • 7/12/2009
UPC CODE
• 884962282618
COUNTRY OF
ORIGIN
• CHINA
TARIFF NUMBER
• 8471300000
PALLET
INFORMATION
•
•
•
•
Dimensions: 47.2" (L) x 39.4" (W) x 46." (H)
Total weight: 601.6 lbs
Layers: 3
Products per layer: 22
WHAT'S IN THE BOX • HP Mobile Remote Control
SECURITY
• Kensington® MicroSaver lock slot
• Power-on password
• Accepts 3rd party security lock devices
VISIT WWW.HP.COM FOR MORE DETAILS!
(1)
Certain Windows Vista product features require advanced or additional hardware. See www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and www.microsoft.com/windowsvista/getready/capable.mspx for details. Windows Vista Upgrade Advisor can
help you determine which features of Windows Vista will run on your computer. To download the tool, visit www.windowsvista.com/upgradeadvisor.
(2c)
64-bit computing on Intel architecture requires a computer system with a processor, chipset, BIOS, operating system, device drivers and applications enabled for Intel® 64 architecture. Processors will not operate (including 32-bit operation) without an Intel 64
architecture-enabled BIOS. Performance will vary depending on your hardware and software configurations. See www.intel.com/info/em64t for more information. Dual Core is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. (3) Intel's numbering is not a measurement of higher performance. (4) GHz refers to internal clock speed of the processor. Other factors besides clock speed may impact system and application performance.(4a)
Actual bus speed is less. Listed bus speed represents the equivalent effective throughput for data.(4b) Dual Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. (6)
Shared video memory (UMA) uses part of the total system memory for video performance. System memory dedicated to video performance is not available for other use by other programs. Note: this disclaimer affects system memory and graphics. (6d) Note that DVD-RAM
cannot read or write to 2.6GB Single Sided/5.2 GB Double Sided – Version 1.0 media. (7) 1 GB = 1 billion bytes. Actual formatted capacity is less. Up to 12GB of system disk is reserved for system recovery software. (8) High-Definition content is required to view
high-definition images. (9) Actual speeds may vary. (10a) The specifications for the 802.11n WLAN are draft specifications and are not final. This may affect the ability of the PC to communicate with other 802.11n WLAN devices. (12) Weight will vary by configuration. (13)
Internet access requires payment of additional fees or subscription for use. Special Offers do not include local telephone company charges, if any, or applicable taxes. Any long distance charges incurred will be the responsibility of the customer. (15) Internet access required
and sold separately. (16a) Actual speeds may vary. Don’t copy copyright-protected materials. Double Layer is a new technology. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives. LightScribe creates a monochrome image.
LightScribe media required and sold separately. (16d) LightScribe creates a monochrome image. LightScribe media required and sold separately. (17a) Digital Media Slot supports MS, MSP, MMC, SD, XD formats. To avoid damaging the card or computer do not insert any type
of adapter, or mini format memory card, into the Digital Media Slot. Mini/Reduced flash memory cards require separately purchased adapter. (19) The Microsoft® Office Student and Teacher Edition 2008 is a trial version; functionality is reduced after 60 days. The full
version is sold separately. (19b) Internet access required. First 60 days included. Subscription required for live updates afterwards. (24) Optional items sold separately or as add on features
Actual product may vary from image shown on datasheet. ©2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty
statements accompanying such products and services. Nothing shall be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. 05/22_r1 tg Product Number: NV148UA#ABA
