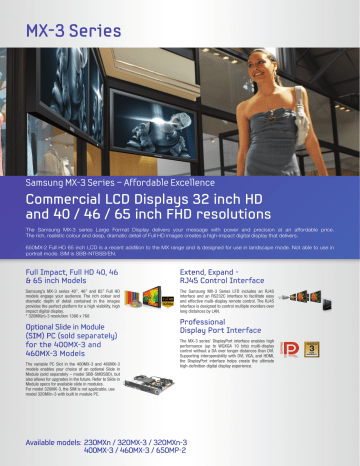

MX-3 Series
Samsung MX-3 Series – Affordable Excellence
Commercial LCD Displays 32 inch HD
and 40 / 46 / 65 inch FHD resolutions
The Samsung MX-3 series Large Format Display delivers your message with power and precision at an affordable price.
The rich, realistic colour and deep, dramatic detail of Full HD images creates a high-impact digital display that delivers.
650MX-2 Full HD 65 inch LCD is a recent addition to the MX range and is designed for use in landscape mode. Not able to use in
portrait mode. SIM is SBB-NTBSB/EN.
Full Impact, Full HD 40, 46
& 65 inch Models
Extend, Expand RJ45 Control Interface
Samsung’s MX-3 series 40”, 46” and 65” Full HD
models engage your audience. The rich colour and
dramatic depth of detail contained in the images
provides the perfect platform for a high visibility, high
impact digital display.
* 320MX(n)-3 resolution 1366 x 768
The Samsung MX-3 Series LFD includes an RJ45
interface and an RS232C interface to facilitate easy
and effective multi-display remote control. The RJ45
interface is designed to control multiple monitors over
long distances by LAN.
Optional Slide in Module
(SIM) PC (sold separately)
for the 400MX-3 and
460MX-3 Models
The variable PC Slot in the 400MX-3 and 460MX-3
models enables your choice of an optional Slide in
Module (sold separately – model SBB-SMDSBD), but
also allows for upgrades in the future. Refer to Slide in
Module specs for available slide in modules.
For model 320MX-3, the SIM is not applicable, use
model 320MXn-3 with built in module PC.
Professional
Display Port Interface
The MX-3 series’ DisplayPort interface enables high
performance (up to WQXGA 10 bits) multi-display
control without a DA over longer distances than DVI.
Supporting interoperability with DVI, VGA, and HDMI,
the DisplayPort interface helps create the ultimate
high-definition digital display experience.
Available models: 230MXn / 320MX-3 / 320MXn-3
400MX-3 / 460MX-3 / 650MP-2
3
YEAR
WARRANTY
>> Large Format Displays Specifications
MX-3 Series
Model
Panel
Display
Connectivity
Power
Mechanical
Spec
Operation
Feature
Accessories
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area(mm)
Brightness(Typ.)
Contrast Ratio
Viewing Angle(H/V)
Response Time(G-to-G)
Display Colors
Color Gamut
Dynamic C/R
H-Scanning Frequency
V-Scanning Frequency
Maximum Pixel Frequency
RGB
INPUT
VIDEO
AUDIO
RGB
OUTPUT
VIDEO
AUDIO
Power Out
External Control
External Sensor
Type
Power Supply
Power Consumption On mode
Sleep mode
Off mode
Set
Dimension (mm)
Package
Set
Weight (kg)
Package
VESA Mount
Protection Glass
Stand Type
Media Player Option Type
Bezel Width (mm)
Operating Temperature
Humidity
Key
Special
Environment
Included
Optional
320MX-3
23”
C-PVA
1920 x 1080
0.2566(H) x 0.2566(V)
509.76 x 286.74
300cd/m2
3000:1
178/178
8ms
16.7M
72%
5000:1
30kHz~81kHz
56Hz~85Hz
164MHz
Analog D-SUB
HDMI
Stereo mini Jack
VGA Out (Network)
N/A
Stereo mini Jack
N/A
RS232C (in)
N/A
Internal
AC 100 - 240 V~(+/- 10 %), 50/60 Hz
120W(max) / 80W(typ) / 409.2(BTU)
Less than 5W
Less than 0W (Power Switch Off)
557.5 x 339.0 x 73.9
640.0 x 418.0 x 192.0
7.0
8.6
100 x 100mm
N/A
N/A
Internal
22.85 (top, bot), 25.1 (side)
0˚c~40˚c
10~80%
Built In Network for Signage
32”
S-PVA(B-DID)
1366 x 768 (16:9)
0.51075(H) x 0.51075(W)
697.6845(H) x 392.256(V)
450cd/m2
3500:1
178/178
8ms
8 bit - 16.7M
72%
6000:1
30kHz~81kHz
56Hz~85Hz
148.5MHz
Analog D-SUB, DVI-D, Display Port
CVBS, HDMI1,HDMI2, Component (D-SUB 15pin)
RCA (L/R), Stereo mini Jack
N/A
N/A
Stereo mini Jack
5V (for SBB)
RJ45, RS232C (in/out)
N/A
Internal
AC 100 - 240 V~(+/- 10 %), 50/60 Hz
150W(max) / 110W(typ) / 1511.5(BTU)
Less than 2W
Less than 1W
780 x 482 x 109
890 x 590 x 256
13.7
16.7
200 x 200mm
Optional
Foot Stand (optional)
N/A
40
0˚c~40˚c
10~80%
Economy and Reliability
Lamp Error Detection, Anti Retention, Temperature
Anti Retention, Temperature Sensor, Built-In Fan
Sensor, RS232C/RJ45 MDC,Built in Speaker (5W
Control, RS232C MDC, Built in Speaker (3W + 3W), Plug
+ 5W),Plug and Play (DDC2B), PIP/PBP, Video Wall
and Play (DDC2B, DDC/CI), Pivot Display, Button Lock,
(10x10), Pivot Display, Button Lock, Smart Scheduling,
Windows XP embedded, Magicinfo S/W
Smart F/W update
N/A
ENERGY STAR 5.0 (USA)
Quick Setup Guide, Warranty Card,
Application CD, D-SUB cable, Power Cord,
Remote Controller, Batteries
Quick Setup Guide, Warranty Card,
Application CD, D-SUB cable, Power Cord,
Remote Controller, Batteries
Stand
Mount
N/A
N/A
STN-L32D
WMTL4001D
Specialty
N/A
N/A
Athlon X2 Dual-Core 4450e (2.3GHz)
AMD RS780
AMD SB700
AMD RS780 (IGP)
HDD 40GB
DDR2 1GB
Marvell 88E8055 Gigabit LAN
4 EA
D-SUB (RGB OUT)
LAN RJ45
N/A
Media Player CPU
N/B
S/B
GPU
FDM/HDD
Memory
Ethernet
Connectivity
230MXn
USB
Output
Others
Specifications correct at time of printing and subject to change without notice.
>> Large Format Displays Specifications
MX-3 Series
Model
Panel
Display
Connectivity
Power
Mechanical
Spec
Operation
Feature
Accessories
320MXn-3
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area(mm)
Brightness(Typ.)
Contrast Ratio
Viewing Angle(H/V)
Response Time(G-to-G)
Display Colors
Color Gamut
Dynamic C/R
H-Scanning Frequency
V-Scanning Frequency
Maximum Pixel Frequency
RGB
INPUT
VIDEO
AUDIO
RGB
OUTPUT
VIDEO
AUDIO
Power Out
External Control
External Sensor
Type
Power Supply
Power Consumption On mode
Sleep mode
Off mode
Set
Dimension (mm)
Package
Set
Weight (kg)
Package
VESA Mount
Protection Glass
Stand Type
Media Player Option Type
Bezel Width (mm)
Operating Temperature
Humidity
Key
Special
Environment
Included
Optional
Stand
Mount
Quick Setup Guide, Warranty Card,
Application CD, D-SUB cable, Power Cord,
Remote Controller, Batteries
Quick Setup Guide, Warranty Card,
Application CD, D-SUB cable, Power Cord,
Remote Controller, Batteries
STN-L32D
WMTL4001D
STN-L3255D
WMN5770D,WMN4250D, VMN4240D
N/A
CML500D (ceiling mount),
STN-520WE (welcome Board)
AMD Athlon II 235 Dual (2.7Ghz)
AMD RS780
AMD SB700
AMD RS780 (IGP)
HDD 40GB
DDR3 1GB
Marvell 88E8055 Gigabit LAN
3 EA
RGB OUT, Magicinfo OUT (digital)
LAN RJ45
SIM (Optional Slide In PC Module)
Specialty
Media Player CPU
N/B
S/B
GPU
FDM/HDD
Memory
Ethernet
Connectivity
USB
Output
Others
400MX-3
32”
40”
S-PVA(B-DID)
S-PVA(B-DID)
1366 x 768 (16:9)
1920 x 1080 (16:9)
0.51075(H) x 0.51075(W)
0.46125(H) x 0.46125(V)
697.6845(H) x 392.256(V)
885.6(H) x 498.15(V)
450cd/m2
450cd/m2
3500:1
3000:1
178/178
178/178
8ms
8ms
8 bit - 16.7M
8 bit - 16.7M
72%
72%
6000:1
40000:1
30kHz~81kHz
30kHz~81kHz
56Hz~85Hz
56Hz~85Hz
148.5MHz
148.5MHz
Analog D-SUB, DVI-D, Display Port
Analog D-SUB, DVI-D, Display Port
CVBS, HDMI1,HDMI2, Component (D-SUB 15pin)
CVBS, HDMI1,HDMI2, Component (D-SUB 15pin)
RCA (L/R), Stereo mini Jack
RCA (L/R), Stereo mini Jack
N/A
N/A
N/A
N/A
Stereo mini Jack
Stereo mini Jack
5V (for SBB)
5V (for SBB)
RJ45, RS232C (in/out)
RJ45, RS232C (in/out)
N/A
N/A
Internal
Internal
AC 100 - 240 V~(+/- 10 %), 50/60 Hz
AC 100 - 240 V~(+/- 10 %), 50/60 Hz
220W(max) / 177W(typ) / 750.2(BTU)
235W(max) / 193W(typ) / 801.35(BTU)
Less than 5W
Less than 2W
Less than 5W
Less than 1W
780 x 482 x 109
971 x 582.0 x 118.5
890 x 590 x 256
1085 x 703 x 310
15.1
19.3
18.1
23.8
200 x 200mm
600 x 400mm
Optional
Optional
Foot Stand (optional)
Foot Stand (optional)
Internal
SIM (Slide in Module)
40
40
10˚c~40˚c
0˚c~40˚c
10~80%
10~80%
Economy and Reliability
Economy and Reliability
Lamp Error Detection, Anti Retention, Temperature
Lamp Error Detection, Anti Retention, Temperature
Sensor, RS232C/RJ45 MDC, Built in Speaker (5W
Sensor, RS232C/RJ45 MDC, Built in Speaker (10W
+ 5W), Plug and Play (DDC2B), PIP/PBP, Video Wall
+ 10W), Plug and Play (DDC2B), PIP/PBP, Video Wall
(10x10), Pivot Display, Button Lock, Smart Scheduling,
(10x10), Pivot Display, Button Lock, Smart Scheduling,
Smart F/W update, MagicInfo S/W, Windows embedded
Smart F/W update
2009
N/A
ENERGY STAR 5.0 (USA)
Specifications correct at time of printing and subject to change without notice.
>> Large Format Displays Specifications
MX-3 Series
Model
Panel
Display
Connectivity
Power
Mechanical
Spec
Operation
Feature
Accessories
Diagonal Size
Type
Resolution
Pixel Pitch(mm)
Active Display Area(mm)
Brightness(Typ.)
Contrast Ratio
Viewing Angle(H/V)
Response Time(G-to-G)
Display Colors
Color Gamut
Dynamic C/R
H-Scanning Frequency
V-Scanning Frequency
Maximum Pixel Frequency
RGB
INPUT
VIDEO
AUDIO
RGB
OUTPUT
VIDEO
AUDIO
Power Out
External Control
External Sensor
Type
Power Supply
Power Consumption On mode
Sleep mode
Off mode
Set
Dimension (mm)
Package
Set
Weight (kg)
Package
VESA Mount
Protection Glass
Stand Type
Media Player Option Type
Bezel Width (mm)
Operating Temperature
Humidity
Key
Special
Environment
Included
Optional
Stand
Mount
Specialty
460MX-3
650MP-2
46”
S-PVA(B-DID)
1920 x 1080 (16:9)
0.53025(H) x 0.53025(V)
1018.08(H) x 572.67(V)
450cd/m2
3000:1
178/178
8ms
8 bit - 16.7M
72%
10000:1
30kHz~81kHz
56Hz~85Hz
148.5MHz
Analog D-SUB, DVI-D, Display Port
CVBS, HDMI1,HDMI2, Component (D-SUB 15pin)
RCA (L/R), Stereo mini Jack
N/A
N/A
Stereo mini Jack
5V (for SBB)
RJ45, RS232C (in/out)
N/A
Internal
AC 100 - 240 V~(+/- 10 %), 50/60 Hz
260W(max) / 233W(typ) / 886.6 (BTU)
Less than 2W
Less than 1W
1102 x 658 x 125.5
1220 x 780 x 310
22.8
29.8
600 x 400mm
Optional
Foot Stand (optional)
SIM (Slide in Module)
40
0˚c~40˚c
10~80%
Economy and Reliability
65”
AMV3
1920 x 1080 (16:9)
0.744(H) x 0.744(V)
1428.48(H) x 803.52(V)
500cd/m2
5000:1
178/178
5.5ms
8 bit - 1073.7M
72%
10000:1
30kHz~81kHz
56Hz~85Hz
165MHz
Analog D-SUB, DVI-D
CVBS, Component, BNC, HDMI
RCA (L/R), Stereo mini Jack
DVI-D (Loop-out)
BNC
Stereo mini Jack
N/A
RS232C (in/out)
N/A
Internal
AC 100 - 240 V~(+/- 10 %), 50/60 Hz
470W(max) / 430W(typ) / 1602.7(BTU)
Less than 2W
Less than 1W
1554 x 924 x 123.9
1690 x 1060 x 450
58
67.4
800 x 400mm
N/A
Foot Stand (optional)
SBB-NT
54
0˚c~40˚c
10~80%
Economy and Reliability
Lamp Error Detection, Anti Retention, Temperature Lamp Error Detection, Anti Retention, Brightness Sensor,
Sensor, RS232C/RJ45 MDC,Built in Speaker (10W Temperature Sensor, Built-In Fan Control, RS232C MDC,
+ 10W),Plug and Play (DDC2B), PIP/PBP, Video Wall
Built in Speaker (15W + 15W), Plug and Play (DDC2B,
(10x10), Pivot Display, Button Lock, Smart Scheduling, DDC/CI), PIP/PBP, Video Wall (5x5), Button Lock, Digital
Smart F/W update
Daisy Chain, Slide In Moduler Design
ENERGY STAR 5.0 (USA)
N/A
Quick Setup Guide, Warranty Card,
Application CD, D-SUB cable, Power Cord,
Remote Controller, Batteries
Quick Setup Guide, Warranty Card,
Application CD,D-SUB cable, Power Cord,
Remote Controller, Batteries
STN-L3255D
WMN5770D
STN-L65D
WMN7070D
CML500D (ceiling mount),
STN-520WE (welcome Board)
N/A
SIM (Optional Slide In PC Module)
SBB-NT available
Media Player CPU
N/B
S/B
GPU
FDM/HDD
Memory
Ethernet
Connectivity
USB
Output
Others
Specifications correct at time of printing and subject to change without notice.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
