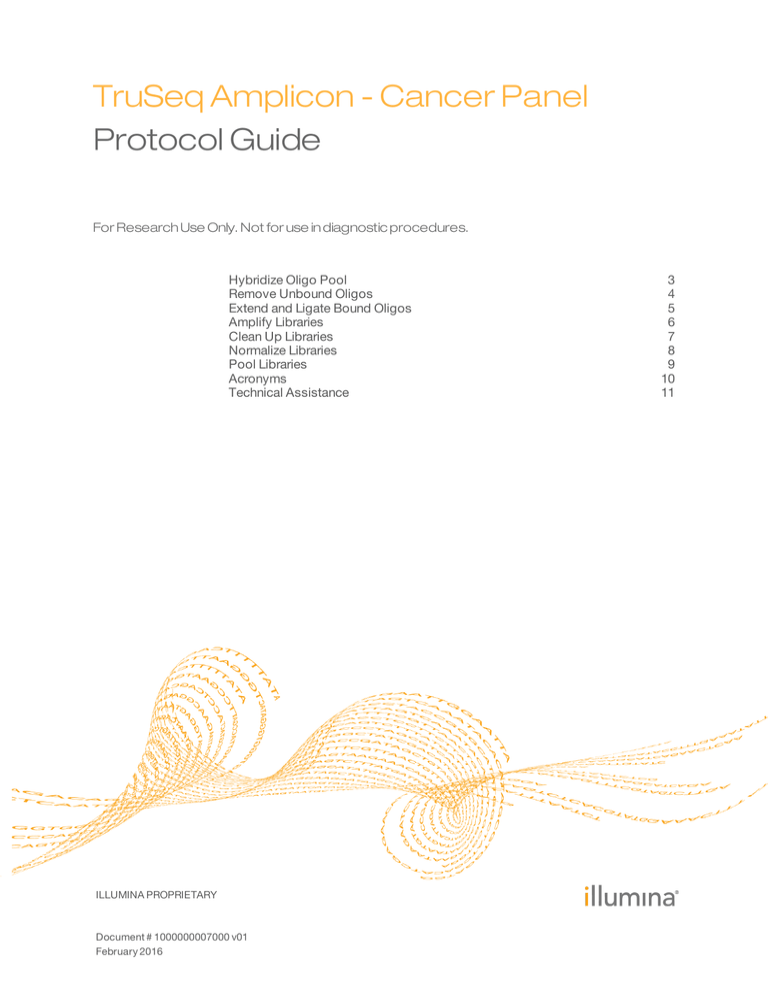

TruSeq Amplicon - Cancer Panel

Protocol Guide

For Research Use Only. Not for use in diagnostic procedures.

Hybridize Oligo Pool

Remove Unbound Oligos

Extend and Ligate Bound Oligos

Amplify Libraries

Clean Up Libraries

Normalize Libraries

Pool Libraries

Acronyms

Technical Assistance

9

10

11

7

8

5

6

3

4

ILLUMINA PROPRIETARY

Document # 1000000007000 v01

February 2016

This document and its contents are proprietary to Illumina, Inc. and its affiliates ("Illumina"), and are intended solely for the contractual use of its customer in connection with the use of the product(s) described herein and for no other purpose. This document and its contents shall not be used or distributed for any other purpose and/or otherwise communicated, disclosed, or reproduced in any way whatsoever without the prior written consent of Illumina. Illumina does not convey any license under its patent, trademark, copyright, or common-law rights nor similar rights of any third parties by this document.

The instructions in this document must be strictly and explicitly followed by qualified and properly trained personnel in order to ensure the proper and safe use of the product(s) described herein. All of the contents of this document must be fully read and understood prior to using such product(s).

FAILURE TO COMPLETELY READ AND EXPLICITLY FOLLOW ALL OF THE INSTRUCTIONS CONTAINED HEREIN

MAY RESULT IN DAMAGE TO THE PRODUCT(S), INJURY TO PERSONS, INCLUDING TO USERS OR OTHERS, AND

DAMAGE TO OTHER PROPERTY.

ILLUMINA DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE IMPROPER USE OF THE PRODUCT(S)

DESCRIBED HEREIN (INCLUDING PARTS THEREOF OR SOFTWARE).

© 2016 Illumina, Inc. All rights reserved.

Illumina, 24sure, BaseSpace, BeadArray, BlueFish, BlueFuse, BlueGnome, cBot, CSPro, CytoChip, DesignStudio,

Epicentre, ForenSeq, Genetic Energy, GenomeStudio, GoldenGate, HiScan, HiSeq, HiSeq X, Infinium, iScan, iSelect,

MiniSeq, MiSeq, MiSeqDx, MiSeq FGx, NeoPrep, NextBio, Nextera, NextSeq, Powered by Illumina, SureMDA,

TruGenome, TruSeq, TruSight, Understand Your Genome, UYG, VeraCode, verifi, VeriSeq, the pumpkin orange color, and the streaming bases design are trademarks of Illumina, Inc. and/or its affiliate(s) in the U.S. and/or other countries. All other names, logos, and other trademarks are the property of their respective owners.

Patent pending for methods performed by components in this kit.

For Research Use Only– not for any clinical or therapeutic use in humans or animals.

This product includes GoTaq® Hot Start Polymerase manufactured by Promega

Corporation for distribution by Illumina, Inc. Licensed to Promega Corporation under

U.S. Patent Nos. 5,338,671 and 5,587,287 and their corresponding foreign patents.

Hybridize Oligo Pool

WARNING

This set of reagents contains formamide, an aliphatic amide that is a probable reproductive toxin. Personal injury can occur through inhalation, ingestion, skin contact, and eye contact. Wear protective equipment, including eye protection, gloves, and laboratory coat. Handle used reagents as chemical waste and discard in accordance

with the governmental safety standards for your region. For environmental, health, and safety information, see the SDS for this kit at support.illumina.com/sds.html

.

Preparation

1 Set a 96-well heat block to 95°C.

2 Preheat an incubator to 37°C to prepare for the extension-ligation step.

Procedure

1 Add 5 µl ACD1 to 1 well of the HYP plate.

2 Add 5 µl gDNA to each remaining well.

3 Add 5 µl ACP1 to the well containing ACD1.

4 Add 5 µl AFP1 to each well containing gDNA.

5 Centrifuge at 1000 × g for 1 minute.

6 Add 40 µl OHS1. Pipette to mix.

7 Centrifuge at 1000 × g for 1 minute.

8 Place on the preheated heat block and incubate for 1 minute.

9 With the plate on the heat block, reset the temperature to 40°C and continue incubating for 80 minutes.

TruSeq Amplicon - Cancer Panel Protocol Guide

3

Remove Unbound Oligos

WARNING

This set of reagents contains formamide, an aliphatic amide that is a probable reproductive toxin. Personal injury can occur through inhalation, ingestion, skin contact, and eye contact. Wear protective equipment, including eye protection, gloves, and laboratory coat. Handle used reagents as chemical waste and discard in accordance

with the governmental safety standards for your region. For environmental, health, and safety information, see the SDS for this kit at support.illumina.com/sds.html

.

Preparation

1 Assemble the filter plate unit (FPU) from top to bottom as follows: lid, filter plate, adapter collar, and midi plate.

2 Wash the wells to be used in the assay with 45 µl SW1.

Procedure

1 Make sure that the heat block has cooled to 40˚C.

2 Remove from the heat block.

3 Centrifuge at 1000 × g for 1 minute.

4 Transfer each sample to the FPU plate.

5 Cover and centrifuge at 2400 × g for 2 minutes.

6 Wash 2 times with 45 µl SW1.

7 Discard flow-through.

8 Reassemble the FPU plate.

9 Add 45 µl UB1.

10 Cover and centrifuge at 2400 × g for 2 minutes.

4

Document # 1000000007000 v01

Extend and Ligate Bound Oligos

Procedure

1 Add 45 µl ELM3 to the FPU plate.

2 Incubate at 37°C for 45 minutes.

TruSeq Amplicon - Cancer Panel Protocol Guide

5

Amplify Libraries

Preparation

1 Save the following PCR program on a thermal cycler.

}

95°C for 3 minutes

}

27 cycles of:

} 95°C for 30 seconds

}

62°C for 30 seconds

}

72°C for 60 seconds

}

72°C for 5 minutes

} Hold at 10°C

Procedure

1 Arrange the Index 1 (i7) adapters in columns 1–12 of the TruSeq Index Plate Fixture.

2 Arrange the Index 2 (i5) adapters in rows A–H of the TruSeq Index Plate Fixture.

3 Place the plate on a TruSeq Index Plate Fixture.

4 Using a multichannel pipette, add 4 µl of each Index 1 (i7) adapter down each column.

5 Using a multichannel pipette, add 4 µl of each Index 2 (i5) adapter across each row.

6 Remove the FPU plate from the incubator and do the following.

a Replace the aluminum foil seal with the filter plate lid.

b Centrifuge at 2400 × g for 2 minutes.

c Add 25 µl 50 mM NaOH. Pipette to mix.

d Incubate at room temperature for 5 minutes.

7 Add 56 µl TDP1 to a full tube (2.8 ml) of PMM2. Invert to mix.

8 Transfer 22 µl PMM2/TDP1 mixture to the IAP plate.

9 Transfer eluted samples from the FPU plate to the IAP plate.

10 Centrifuge at 1000 × g for 1 minute.

11 Transfer the IAP plate to the post-amplification area.

12 Place on the preprogrammed thermal cycler and run the PCR program.

SAFE STOPPING POINT

If you are stopping, seal the plate and store at 2°C to 8°C for up to 2 days. Alternatively, leave on the thermal cycler overnight.

6

Document # 1000000007000 v01

Clean Up Libraries

Procedure

1 Centrifuge the IAP plate at 1000 × g for 1 minute.

2 Run an aliquot of library and control on 4% agarose gel (5 µl) or Bioanalyzer (1 µl).

3 Add 45 µl AMPure XP beads to the CLP plate.

4 Transfer all the supernatant from the IAP plate to the CLP plate.

5 Shake at 1800 rpm for 2 minutes.

6 Incubate at room temperature for 10 minutes.

7 Place on a magnetic stand and wait until the liquid is clear (~2 minutes).

8 Remove and discard all supernatant from each well.

9 Wash 2 times with 200 µl 80% EtOH.

10 Use a 20 µl pipette to remove residual EtOH.

11 Remove from the magnetic stand and air-dry for 10 minutes.

12 Add 30 µl EBT.

13 Shake at 1800 rpm for 2 minutes.

14 Incubate at room temperature for 2 minutes.

15 Place on a magnetic stand and wait until the liquid is clear (~2 minutes).

16 Transfer 20 µl supernatant from the CLP plate to the LNP plate.

17 Centrifuge at 1000 × g for 1 minute.

TruSeq Amplicon - Cancer Panel Protocol Guide

7

Normalize Libraries

WARNING

This set of reagents contains formamide, an aliphatic amide that is a probable reproductive toxin. Personal injury can occur through inhalation, ingestion, skin contact, and eye contact. Wear protective equipment, including eye protection, gloves, and laboratory coat. Handle used reagents as chemical waste and discard in accordance

with the governmental safety standards for your region. For environmental, health, and safety information, see the SDS for this kit at support.illumina.com/sds.html

.

WARNING

This set of reagents contains ß-mercaptoethanol. Perform the following procedure in a hood or well-ventilated area.

Procedure

1 For 96 samples, add 4.4 ml LNA1 to a new 15 ml conical tube.

2 Use a P1000 pipette to resuspend LNB1.

3 Transfer 800 µl LNB1 to the tube of LNA1.

4 Add 45 µl LNA1/LNB1 to the LNP plate.

5 Shake at 1800 rpm for 30 minutes.

6 Place on a magnetic stand and wait until the liquid is clear (~2 minutes).

7 Remove and discard all supernatant.

8 Remove from the magnetic stand.

9 Wash 2 times with 45 µl LNW1.

10 Use a 20 µl pipette to remove residual LNW1.

11 Remove from the magnetic stand.

12 Add 30 µl fresh 0.1 N NaOH.

13 Shake at 1800 rpm for 5 minutes.

14 Place the LNP plate on a magnetic stand and wait until the liquid is clear (~2 minutes).

15 Add 30 µl LNS1 to the SGP plate.

16 Transfer 30 µl supernatant from the LNP plate to the SGP plate.

17 Centrifuge at 1000 × g for 1 minute.

SAFE STOPPING POINT

If you are stopping, seal the plate and store at -25°C to -15°C for up to 30 days.

8

Document # 1000000007000 v01

Pool Libraries

Procedure

1 Centrifuge at 1000 × g for 1 minute.

2 Transfer 5 µl of each library to an 8-tube strip, column by column.

3 Transfer the contents of the 8-tube strip to the PAL tube. Pipette to mix.

4 Denature and dilute pooled libraries to the loading concentration for the sequencing instrument you are using. See the denature and dilute libraries guide for your instrument.

TruSeq Amplicon - Cancer Panel Protocol Guide

9

Acronyms

Acronym

FPU

HT1

HYP

IAP

LNA1

LNB1

LNS1

LNW1

ACD1

ACP1

AFP1

CLP

EBT

ELM3

LNP

OHS1

PAL

PMM2

SGP

SW1

TDP1

UB1

Definition

Amplicon Control DNA 1

Amplicon Control Oligo Pool 1

Amplicon Fixed Panel 1

Clean-up Plate

Elution Buffer with Tris

Extension Ligation Mix 3

Filter Plate Unit

Hybridization Buffer

Hybridization Plate

Indexed Amplification Plate

Library Normalization Additives 1

Library Normalization Beads 1

Library Normalization Storage Buffer 1

Library Normalization Wash 1

Library Normalization Plate

Oligo Hybridization for Sequencing Reagent 1

Pooled Amplicon Library

PCR Master Mix 2

Storage Plate

Stringent Wash 1

TruSeq DNA Polymerase 1

Universal Buffer 1

10

Document # 1000000007000 v01

Technical Assistance

For technical assistance, contact Illumina Technical Support.

Table 1 Illumina General Contact Information

Website

www.illumina.com

Email

[email protected]

Table 2 Illumina Customer Support Telephone Numbers

Region

North America

Australia

Austria

Belgium

China

Denmark

Finland

France

Germany

Hong Kong

Ireland

Italy

Contact Number

1.800.809.4566

1.800.775.688

0800.296575

0800.81102

400.635.9898

80882346

0800.918363

0800.911850

0800.180.8994

800960230

1.800.812949

800.874909

Region

Japan

Netherlands

New Zealand

Norway

Singapore

Spain

Sweden

Switzerland

Taiwan

United Kingdom

Other countries

Contact Number

0800.111.5011

0800.0223859

0800.451.650

800.16836

1.800.579.2745

900.812168

020790181

0800.563118

00806651752

0800.917.0041

+44.1799.534000
