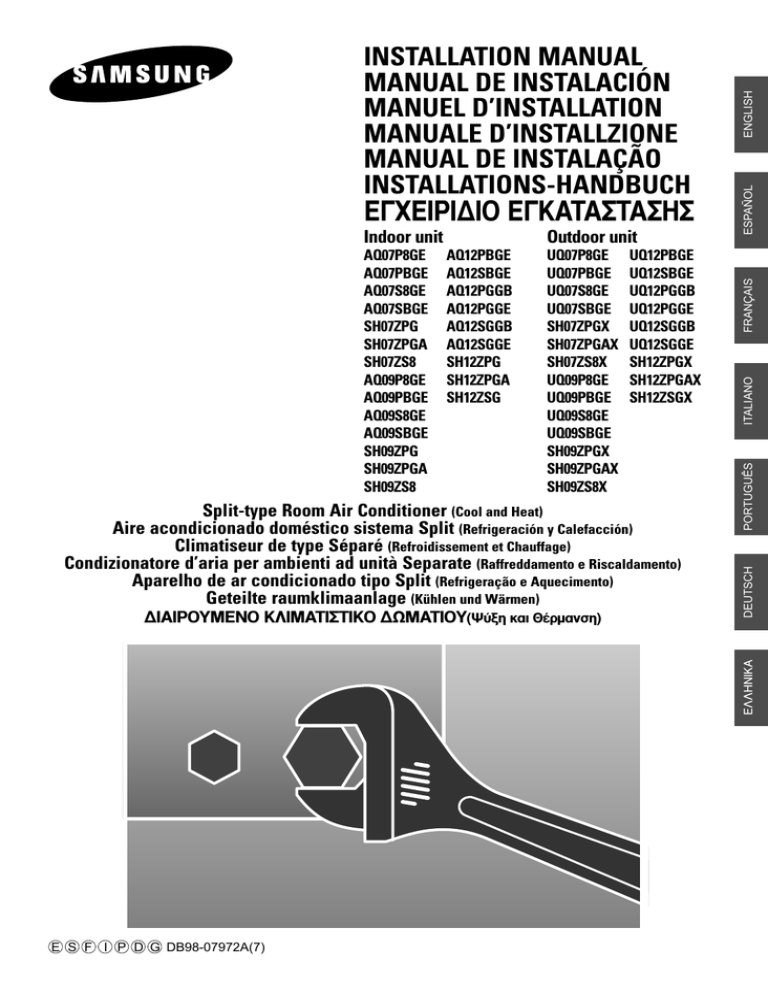

Samsung AQ07PBGE Installation manual

Samsung AQ07PBGE Installation manual
UQ07P8GE
UQ07PBGE
UQ07S8GE
UQ07SBGE
SH07ZPGX
SH07ZPGAX
SH07ZS8X
UQ09P8GE
UQ09PBGE
UQ09S8GE
UQ09SBGE
SH09ZPGX
SH09ZPGAX
SH09ZS8X
UQ12PBGE
UQ12SBGE
UQ12PGGB
UQ12PGGE
UQ12SGGB
UQ12SGGE
SH12ZPGX
SH12ZPGAX
SH12ZSGX
Split-type Room Air Conditioner (Cool and Heat)
Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción)
Climatiseur de type Séparé (Refroidissement et Chauffage)
Condizionatore d’aria per ambienti ad unità Separate (Raffreddamento e Riscaldamento)
Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)
Geteilte raumklimaanlage (Kühlen und Wärmen)
ENGLISH
E§§HNIKA
¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY(æ‡ÍË Î·È £¤ÚÌ·ÓÛË)
ESPAÑOL
Outdoor unit
AQ12PBGE
AQ12SBGE
AQ12PGGB
AQ12PGGE
AQ12SGGB
AQ12SGGE
SH12ZPG
SH12ZPGA
SH12ZSG
FRANÇAIS
AQ07P8GE
AQ07PBGE
AQ07S8GE
AQ07SBGE
SH07ZPG
SH07ZPGA
SH07ZS8
AQ09P8GE
AQ09PBGE
AQ09S8GE
AQ09SBGE
SH09ZPG
SH09ZPGA
SH09ZS8
ITALIANO
Indoor unit
PORTUGUÊS
E°XEIPI¢IO E°KATA™TA™H™
DEUTSCH
INSTALLATION MANUAL
MANUAL DE INSTALACIÓN
MANUEL D’INSTALLATION
MANUALE D’INSTALLZIONE
MANUAL DE INSTALAÇÃO
INSTALLATIONS-HANDBUCH
E S F I P D G DB98-07972A(7)
Safety Precautions
WARNING
◆ Do not attempt to install this air conditioner by yourself.
◆ Install according to this installation instruction strictly.
◆ Install the unit securely in a place which can bear the weight of the unit.
◆ Use the attached accessories parts and specified parts for installation.
◆ For electrical work, follow the local national wiring standard, regulation.
◆ Do not use intermediate connection of the power cord or the extension
cord and do not share the single outlet with other electrical.
◆ Check that the refrigerant gas do not leak after installation has
completed.
◆ When carrying out piping connection, take care not to let air substances
other than the specified refrigerant go into refrigeration cycle.
CAUTION
◆ This equipment must be earthed. Do not connect the earth a gas pipe,
water pipe, lighting rod or telephone earth.
◆ Do not install the unit in a place where an inflammable gas leaks.
◆ Perform the drainage / piping work securely according to the installation
manual.
◆ Fasten a flare nut with a torque wrench as specified in this manual.
E-2
ENGLISH
Contents
◆ PREPARING THE INSTALLATION
■
Deciding on Where to Install the Air Conditioner ..........................................
■
Air Conditioner and Accessories ...................................................................
4
6
◆ INSTALLING THE UNIT
■
Fixing the Installation Plate ...........................................................................
■
Purging the Unit.............................................................................................
■
Connecting the Assembly Cable ...................................................................
■
Installing and Connecting the Indoor Unit Drain Hose..................................
■
Installing and Connecting the Outdoor Unit Drain Hose ...............................
■
Installing and Connecting the Indoor Unit Assembly Piping .........................
■
Cutting/Extending the Piping ........................................................................
7
7
8
9
9
10
11
◆ COMPLETING THE INSTALLATION
■
Connecting Up and Purging the Circuit.........................................................
■
Performing Leak Tests...................................................................................
■
Placing the Indoor Unit in Position ................................................................
■
Fixing the Outdoor Unit in Position ...............................................................
■
Checking and Testing Operations .................................................................
■
Explaining Operations to the Owner .............................................................
12
13
13
14
14
15
◆ TECHNICAL SPECIFICATIONS
E-3
PREPARING THE INSTALLATION
Deciding on Where to Install the Air Conditioner
When deciding on the location of the air conditioner with the owner, the following restrictions
must be taken into account.
General
Do NOT install the air conditioner in a location where it will come into contact with the following elements:
◆ Combustible gases
◆ Saline air
◆ Machine oil
◆ Sulphide gas
◆ Special environmental conditions
If you must install the unit in such conditions, first consult your dealer.
Indoor Unit
◆ There must be no obstacles near the air inlet and outlet.
◆ Install the indoor unit on a surface that can support its weight.
◆ Choose a position that enables the piping and cables to be easily connected to the outdoor unit and the
recommended length of 5 metres to be respected (15 metres maximum).
◆ Leave enough clearance beneath the indoor unit to enable the filters to be removed without hindrance.
◆ Maintain sufficient clearance around the indoor unit, as indicated in the diagram on the page opposite.
◆ Make sure that the water dripping from the drain hose runs away correctly and safely.
◆ Install the indoor unit on the wall which is far from the floor by more than 2.5meters.
Outdoor Unit
◆ The outdoor unit must NEVER be placed on its side or upside down, as the compressor lubrication oil will run into the
cooling circuit and seriously damage the unit.
◆ Choose a location that is dry and sunny, but not exposed to direct sunlight or strong winds.
◆ Do not block any passageways or thoroughfares.
◆ Choose a location where the noise of the air conditioner when running and the discharged air do not disturb any
neighbours.
◆ Choose a position that enables the piping and cables to be easily connected to the indoor unit and the recommended
length of 5 metres to be respected (15 metres maximum).
◆ Install the outdoor unit on a flat, stable surface that can support its weight and does not generate any unnecessary
noise and vibration.
◆ Position the outdoor unit so that the air flow is directed towards the outside, as indicated by the arrows on the top of
the unit.
◆ Maintain sufficient clearance around the outdoor unit, as indicated in the diagram on the page opposite.
◆ If the outdoor unit is installed at a height, ensure that its base is firmly fixed in position; the maximum height is
7metres.
◆ Make sure that the water dripping from the drain hose runs away correctly and safely.
CAUTION
◆ You have just purchased a split-type room air conditioner and it has been installed by
your installation specialist.
◆ This device must be installed according to the national electrical rules.
◆ Max input power & current is measured according to IEC standard and input power &
current is measured according to ISO standard.
E-4
ENGLISH
PREPARING THE INSTALLATION
Respect the clearances and maximum lengths indicated in the diagram below when installing the unit.
300 mm or more
125 mm
or more
125 mm
or more
Wrap the refrigerant pipes and the drain
hose up in the absorbent pad and the
vinyl tape, refer to page 13.
7metres maximum
600 mm
minimum
15metres
maximum
300 mm
minimum
300 mm
minimum
600 mm
minimum
✴ The appearance of the unit may be different from the diagram depending on the model.
E-5
PREPARING THE INSTALLATION
Air Conditioner and Accessories
The following accessories are supplied with the air conditioner.
➢
The quantities are indicated in parentheses.
Accessories in the Indoor Unit Case
Installation Plate (1)
Batteries for
Remote Control (2)
Remote Control (1)
Owner’s Instruction
Booklet (1)
Installation Manual (1)
TIONS
OWNER'S INSTRUC CIONES
MANUAL DE INSTRUC
L'USO
ISTRUZIONI PER
ÕES
MANUAL DE INSTRUÇ
TION
MANUEL D'UTILISA
EISUNG
GEBRAUCHSANW
TIONS
OWNER'S INSTRUC CIONES
MANUAL DE INSTRUC
L'USO
ISTRUZIONI PER
ÕES
MANUAL DE INSTRUÇ
TION
MANUEL D'UTILISA
EISUNG
GEBRAUCHSANW
Air ConditionerSplit
Splut-type Room
doméstico sistema
ad unità Separate
Aire acondicionado
d'aria per ambienti
Condizionatorede ar condicionado tipo Split
Aparelho
type séparé
Climatiseur de
Geteilte raumklimaanlage
Air ConditionerSplit
Splut-type Room
doméstico sistema
ad unità Separate
Aire acondicionado
d'aria per ambienti
Condizionatorede ar condicionado tipo Split
Aparelho
type séparé
Climatiseur de
Geteilte raumklimaanlage
Accessories in the Outdoor Unit Case
5-wire
Assembly Cable (1)
Drain Plug (1)
Rubber Leg (4)
➢
The flare nuts are attached to the end of each evaporator in/out pipe or service valve.
Use the nuts when connecting the pipe.
➢
The 5-wire assembly cable is depending on the option. If they are not supplied, Using the standard
cable.
➢
The drain plug and rubber leg are only included when the air conditioner is supplied without the
assembly piping illustrated below.
The following connection accessories may be supplied, depending on the option. If they are not supplied,
it is recommended that you collect them together before starting to install the air conditioner.
Assembly Piping,
Ø6.35mm by 5m (1)
Pipe Clamps A (3)
➢
E-6
Assembly Piping,
Ø9.52mm by 5m (1)
(✴✴07/09✴✴)
Assembly Piping,
Ø12.70mm by 5m (1)
(✴✴12✴✴)
Pipe Clamps B (3)
PE T3 Foam Tube
Insulation (1)
M3.8 x 20 Screws
for Wood (10)
Vinyl Tape,
Width 50mm (1)
M4 x 16 Tapped
Screws (10)
Drain Plug (1)
Drain Hose,
length 2m (1)
If these accessories are supplied, they are located in the accessory box.
Rubber LEG (4)
Putty 100g (1)
INSTALLING THE UNIT
ENGLISH
Fixing the Installation Plate
Before fixing the installation plate to a wall or window frame, you
must determine the position of the 65 mm hole through which the
cable, piping and hose pass to connect the indoor unit up to the
outdoor unit. When facing the air conditioner in position on the wall,
the piping and cable can be connected from the:
◆ Right
◆ Left
Installation plate
1
Determine the position of the pipe and drain hose hole using the right
figure and drill the hole with an inner diameter of 65 mm so that it slants
slightly downwards.
2
If you are fixing the indoor unit to a...
Then follow Steps...
Wall
3.
Window frame
4 to 6.
30mm
◆ Rear (right or left)
Pipe hole
(Ø65mm)
✴✴07/09✴✴
Fix the installation plate to the wall in a manner appropriate to the weight
of the indoor unit.
➢ If you are mounting the plate on a concrete wall with anchor
bolts, the anchor bolts must not project by more than 20 mm.
4
Determine the positions of the wooden uprights to be attached to the
window frame.
5
Attach the wooden uprights to the window frame in a manner appropriate
to the weight of the indoor unit.
6
Using tapped screws, attach the installation plate to the wooden uprights,
as illustrated in the last figure opposite.
19
100
158
✴✴12✴✴
(Unit : mm)
45
3
(Unit : mm)
90
165
Purging the Unit
On delivery, the indoor unit is loaded with an inert gas. All this gas
must therefore be purged before connecting the assembly piping.
To purge the inert gas, proceed as follows.
Unscrew the caps at the end of each pipe.
Result: All inert gas escapes from the indoor unit.
➢
To prevent dirt or foreign objects from getting into the pipes
during installation, do NOT remove the caps completely
until you are ready to connect the piping.
E-7
INSTALLING THE UNIT
Connecting the Assembly Cable
The outdoor unit is powered from the indoor unit via the assembly cable.
If the outdoor unit is more than five metres away from the indoor unit,
the cable must first be extended to a maximum of 15 metres.
N1
1
2
3
Indoor
unit
N1
1
2
3
E
N1
1
N1 1
2
2
3
E
3
Outdoor
unit
1
Extend the assembly cable if necessary.
2
Open the front grille by pulling on the tabs on the lower right and left sides of
the indoor unit.
3
Remove the screw securing the connector cover.
4
Pass the assembly cable through the rear of the indoor unit and connect the
assembly cable to terminals as shown in the figure.
➢ Each wire is labeled with the corresponding terminal number.
5
Pass the other end of the cable through the 65 mm hole in the wall.
6
Replace the connector cover, carefully tightening the screw.
7
Close the front grille.
8
Remove the terminal board cover on the side of the outdoor unit.
9
Connect the cables to terminals as shown in the figure.
➢ Each wire is labeled with the corresponding terminal number.
❊ The designs and shape are subject to
change according to the model.
10
Connect the earth wires to the earth terminals.
11
Replace the terminal board cover, carefully tightening the screw.
12
Connect the power cable with the indoor unit.
Power cable specification
Model
Power
supply
Power cable
✴✴✴07/09/12✴✴✴
AC 220-240V,
50HZ
3G, 1.0mm2,
10/16A
H05VV-F
Interconnection Power plug or
circuit breaker
cable
5G, 1.0mm2
H07RN-F
Power plug with
earth pole.
(More than 10A)
◆ Connect the power cable to the auxiliary circuit breaker.
An all pole disconnection from the power supply must be incorporated in the fixed
wiring(≥3mm).
E-8
INSTALLING THE UNIT
ENGLISH
Installing and Connecting the Indoor Unit Drain Hose
Care must be taken when installing the drain hose for the indoor unit to ensure that any condensation
water is correctly drained outside. When passing the drain hose through the 65 mm hole drilled in the
wall, check that none of the following situations occur.
5 cm
less
The hose must
NOT slope
upwards.
The end of the drain
hose must NOT be
placed in water.
Do NOT bend the
hose in different
directions.
Keep a clearance of
at least 5 cm between
the end of the hose
and the ground.
Ditch
Do NOT place the
end of the drain hose
in a hollow.
To install the drain hose, proceed as follows.
1
If necessary, connect the 2-metre extension to the drain hose.
2
If you are using the extension, insulate the inside part of the extension
drain hose with a shield.
3
Pass the drain hose under the refrigerant piping, taking care to keep the
drain hose tight.
4
Pass the drain hose through the hole in the wall, making sure that it is
sloping downwards, as shown in the illustrations above.
➢
Shield
Drain hose
Extension drain hose
The hose will be fixed permanently into position once the
whole installation has been tested for gas leaks; refer to
page 12 for further details.
Installing and Connecting the Outdoor Unit Drain Hose
When using the air conditioner in the heating mode, ice may
accumulate. During de-icing, the condensed water must be drained
off safely. Consequently, you must install a drain hose on the outdoor
unit, following the instructions below.
1
Insert the drain plug into the drain hole on the underside of the outdoor
unit.
2
Connect the drain hose to the drain plug.
3
Ensure that the drained water runs off correctly and safely.
Drain hole
E-9
INSTALLING THE UNIT
Installing and Connecting the Indoor Unit Assembly Piping
There are two refrigerant pipes of different diameters:
◆ A smaller one for the liquid refrigerant
◆ A larger one for the gas refrigerant
A short length of piping is already fitted to the air conditioner. You must
extend this piping using assembly piping (optionally supplied).
The connection procedure for the refrigerant piping varies according to the
exit position of the piping from the indoor unit, as seen when facing the air
conditioner in position on the wall:
◆ Right (A)
◆ Left (B)
◆ Rear
B
A
1
With a knife, cut out the appropriate knock-out piece on the rear of the
indoor unit (unless you are connecting directly from the rear).
2
Smooth the cut edges.
3
Remove the protection caps on the pipes and connect the assembly piping
to each pipe, tightening the nuts, first manually and then with a wrench,
applying the following torque.
Outer Diameter
6.35 mm
9.52 mm
12.70 mm
Torque (kg•cm)
144~176
333~407
504~616
➢ If the piping must be shortened or extended, refer to page 11.
4
Cut off any excess foam insulation.
5
If necessary, bend the pipe round, along the bottom of the indoor unit and
out through the appropriate hole, taking care to ensure that:
◆ The piping does not jut out from the rear of the indoor unit
◆ The bending radius is 100 mm or more
6
Pass the piping through the hole in the wall.
7
For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 12.
➢ The piping will be insulated and fixed permanently into position
once the whole installation has been tested for gas leaks;
refer to page 13 for further details.
E-10
INSTALLING THE UNIT
ENGLISH
Cutting/Extending the Piping
Five metres of piping is supplied with the air conditioner(Optional). This
length can if necessary be:
◆ Extended to a maximum of 15metres
◆ Shortened as required
☛
If more than five metres of piping is required:
◆
The assembly cable must also be extended
◆
Refrigerant must be added to the circuit by an approved
installer; otherwise, the indoor unit may freeze
1
Make sure that you have the required tools available (pipe cutter, reamer,
flaring tool and pipe holder).
2
If you wish to shorten the piping, cut it using a pipe cutter, taking care to
ensure that the cut edge remains at a 90° angle with the side of the pipe,
and referring to the illustrations below for examples of edges cut correctly
and incorrectly.
Oblique
Rough
Burr
90
O
O
x
x
x
3
To prevent any gas from leaking out, remove all burrs at the cut end of the
pipe, using a reamer.
4
Slide a flare nut on to the pipe and modify the flare.
Outer Diameter (D)
6.35 mm
9.52 mm
12.70 mm
5
Check that the flaring is correct, referring to the illustrations below for examples of incorrect flaring.
x
x
Inclined
6
Damaged Surface
x
x
Cracked
Uneven Thickness
Align the pipes to be connected and tighten the flare nuts first manually and
then with a wrench, applying the following torque.
Outer Diameter
6.35 mm
9.52 mm
12.70 mm
7
Depth (A)
1.3 mm
1.8 mm
2.0 mm
Torque (kg•cm)
144~176
333~407
504~616
For further details on how to connect up to the outdoor unit and purge the
circuit, refer to page 12.
E-11
COMPLETING THE INSTALLATION
Connecting Up and Purging the Circuit
The outdoor unit is loaded with sufficient R22 refrigerant for 5 metres of piping. The air in the indoor unit and in the pipe must be purged.
If air remains in the refrigeration pipes, it will affect the compressor,
reduce to cooling/heating capacity and could lead to a malfunction.
Refrigerant for air purging is not charged in the outdoor unit.
Use Vacuum Pump as shown at the figure.
Outdoor unit
1
Connect each assembly pipe to the appropriate valve on the outdoor unit
and tighten the flare nut.
2
Referring to the illustration opposite, tighten the flare nut first manually and
then with a wrench, applying the following torque.
Indoor unit
Gas pipe side C
A
Liquid pipe side D
B
Outer Diameter
6.35 mm
9.52 mm
12.70 mm
Vacuum Pump
Torque (kg•cm)
144~176
333~407
504~616
3
Connect the charging hose of low pressure side of manifold gauge to the
packed valve having a service port as shown at the figure.
4
Open the valve of the low pressure side of manifold gauge counterclockwise.
5
Purge the air from the system using vacuum pump for about 10 minutes.
- Close the valve of the low pressure side of manifold gauge clockwise.
- Make sure that pressure gauge show -0.1MPa(-76cmHg) after about
- 10minutes.
- This procedure is very important in order to avoid gas leak.
- Turn off the vacuum pump
- Remove the hose of the low pressure side of manifold gauge.
6
Set valve cork of both liquid side and gas side of packed valve to the open
position.
7
Mount the valve stem nuts and the service port cap to the valve, and
tighten them at the torque of 18N•m with a torque wrench.
8
Check for gas leakage.
- At this time, especially check for gas leakage from the 3-way valve’s
stem nuts, and from the service port cap.
❊ The designs and shape are subject to
change according to the model.
B
(liquid)
Adding Refrigerant
A
(gas)
Valve stem
Stem cap
Refrigerant must be added if the piping measures more than 5 metres in length.
This operation can only be performed by a qualified refrigeration specialist.
☛
Model
A
B
✴✴07/09✴✴
7.5
20
AQ12S✴✴✴
SH12ZS✴
5.0
30
AQ12P✴✴✴
SH12ZP✴
7.5
30
If you have used...
Then...
More than “A” metres
of piping
“B”g of refrigerant (R22)
must be added for each
extra metre.
Less than “A” metres
of piping
The purge time is normal.
Refer to the Service Manual for more details on this operation.
E-12
COMPLETING THE INSTALLATION
Before completing the installation (insulation of the cables, hose and
piping and fixing of the indoor unit to the installation plate), you must
check that there are no gas leaks.
To check for gas leaks on the...
Then, using a leak detector,
check the...
Indoor unit
Flare nuts at the end of sections
C and D.
Outdoor unit
Valves on sections A and B.
C
ENGLISH
Performing Leak Tests
D
A
B
❊ The designs and shape are subject to
change according to the model.
Placing the Indoor Unit in Position
Once you have checked that there are no leaks in the system, you can insulate
the piping, hose and cables and place the indoor unit on the installation plate.
1
To avoid condensation problems, place heat-resistant polyethylene foam
separately around each refrigerant pipe in the lower part of the indoor unit.
2
Wrap the refrigerant pipes and the drain hose located at the rear of the
indoor unit up in the absorbent pad.
➢ Triply wind the pipes and hose to the end of the indoor unit with
the absorbent pad (make intervals of 20mm).
3
Wind insulating tape around the pipes, assembly cable and drain hose.
4
Place the resulting bundle carefully in the lower part of the indoor unit,
making sure that it does not jut out from the rear of the indoor unit.
5
Hook the indoor unit on to the installation plate and move the unit to the right
and left until you are sure that it is securely in place.
6
Finish wrapping vinyl tape around the rest of the piping leading to the
outdoor unit.
7
Using clamps (optionally supplied), attach the piping to the wall wherever
possible.
Installation plate
E-13
COMPLETING THE INSTALLATION
Fixing the Outdoor Unit in Position
The outdoor unit must be installed on a rigid and stable base to
avoid any increase in the noise level and vibration, particularly if the
outdoor unit is to be installed close to a neighbour.
“Y” mm
“X” mm
If it is to be installed in a location exposed to strong winds or at a height,
the unit must be fixed to an appropriate support (wall or ground).
Rubber leg
X
Y
AQ✴✴P8✴✴
AQ✴✴S8✴✴
SH✴✴✴S8
457
254
AQ✴✴SG✴✴
AQ✴✴PG✴✴
SH✴✴✴SG
SH✴✴✴PG(A)
489
AQ✴✴SB✴✴
AQ✴✴PB✴✴
506
Model
1
Position the outdoor unit so that the air flow is directed towards the
outside, as indicated by the arrows on the top of the unit.
2
Attach the outdoor unit to the appropriate support using anchor bolts.
3
If the outdoor unit is exposed to strong winds, install shield plates around
the outdoor unit, so that the fan can operate correctly.
300
❇ Certainly fix up its rubber leg, in order to prevent its vibration and noise.
252
Checking and Testing Operations
To complete the installation, perform the following checks and tests to
ensure that the air conditioner is operating correctly.
1
Review all the following elements in the installation:
◆ Installation site strength
◆ Piping connection tightness to detect any gas leakages
◆ Connection wiring
◆ Heat-resistant insulation of the piping
◆ Drainage
◆ Earthing wire connection
◆ Correct operations (follow the steps below)
2
Press the
Result:
3
E-14
button.
◆ The indicator lights on the indoor unit flash at half-second
intervals.
◆ While the indoor unit opens, the indoor unit fan runs to start.
Press the
Result:
4
/
/
button.
The outdoor unit operates in cooling or heating mode as
following the room temperature.
Air flow direction
Press the
/
button and check that the
air flow blades work properly.
COMPLETING THE INSTALLATION
ENGLISH
Explaining Operations to the Owner
Before leaving the premises on which you have installed the air conditioner,
you should explain the following operations to the owner, making reference
to the appropriate pages in the owner’s instruction booklet.
1
How to start and stop the air conditioner.
2
How to select the operating mode and adjust the temperature and fan
settings.
3
How to adjust the air flow direction.
4
How to set the timers.
5
How to remove and clean the filters.
Once the owner is happy with the basic operations, hand over the owner’s instruction
booklet and this installation manual for storage in a handy and safe place.
Technical Specifications
Model Indoor unit
AQ07P8GE
AQ07PBGE
AQ07S8GE
AQ07SBGE
SH07ZPG
SH07ZPGA
SH07ZS8
AQ09P8GE
AQ09PBGE
AQ09S8GE
AQ09SBGE
SH09ZPG
SH09ZPGA
SH09ZS8
AQ12PBGE
AQ12SBGE
AQ12PGGE
AQ12SGGE
SH12ZPG
SH12ZPGA
SH12ZSG
AQ12PGGB
AQ12SGGB
Power Supply
220-240V~, 50Hz
220V~, 60Hz
E-15
THIS AIR CONDITIONER IS MANUFACTURED BY:
ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR:
CE CLIMATISEUR EST FABRIQUE PAR:
QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA:
ESTE APARELHO DE AR CONDICIONADO É FABRICADO POR:
DIESE KLIMAANLAGE IST FABRIZIERT VON:
AYTH H ™Y™KEYH KATA™KEYA™THKE A¶O:
ELECTRONICS
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
